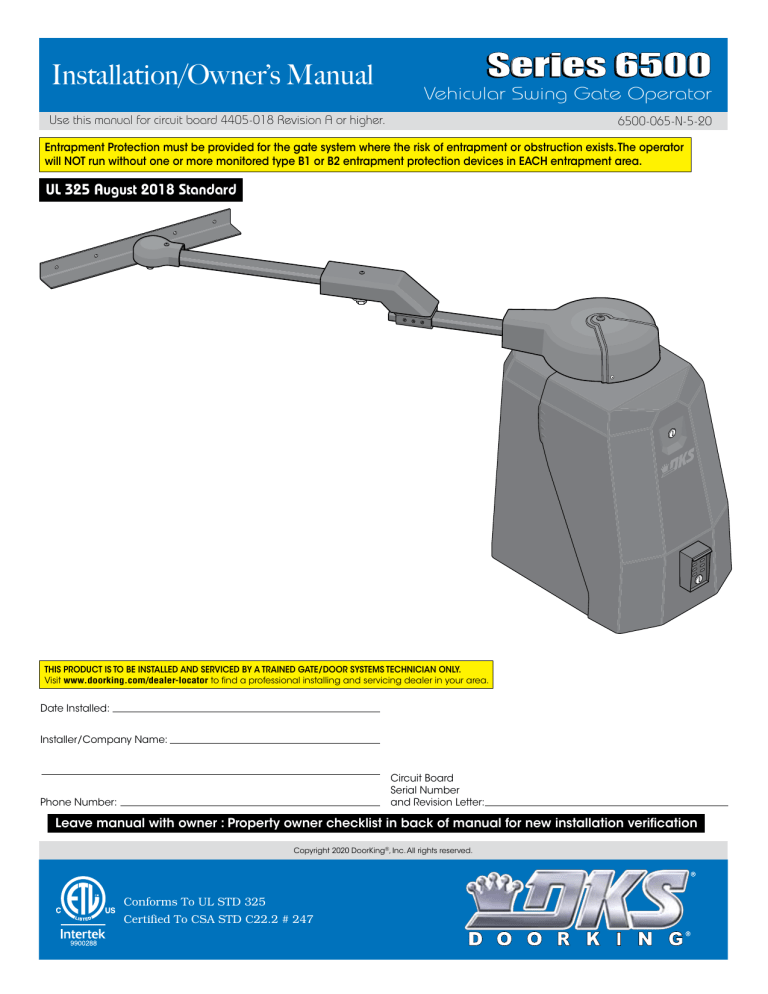

Installation/Owner’s Manual
Series 6500
Vehicular Swing Gate Operator
Use this manual for circuit board 4405-018 Revision A or higher.
6500-065-N-5-20
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator
will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area.
UL 325 August 2018 Standard
THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY.
Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area.
Date Installed:
Installer/Company Name:
Circuit Board
Serial Number
and Revision Letter:
Phone Number:
Leave manual with owner : Property owner checklist in back of manual for new installation verification
Copyright 2020 DoorKing®, Inc. All rights reserved.
Conforms To UL STD 325
Certified To CSA STD C22.2 # 247
Copyright 2009 DoorKing, Inc. All rights reserved.
QUICK GUIDE: DIP-Switches
See page 22 for more information about DIP-switches.
The two DIP-switches located on the circuit board are used to program the operator to operate in various modes and to turn on
or off various operating features. Whenever a switch setting is changed, power to the operator must be turned OFF and then
turned back on for the new setting to take affect. Check and review ALL switch settings prior to applying power to the operator.
Switch
Function
Primary 6500
Changes Gate
Opening
Direction
1
2
Setting
Opens
Clockwise
Secondary 6500
Changes Gate
Opening
Direction
3
Exit Loop Port
Output
Full Open Input
4
Auto-Close
Timer
Reverses Gate
5
6
7 and 8
External Shadow
Loop Detector
Single Operator
Dual Operators
Circuit
Board
Relay
SW 1 (Top 8 Switches)
Description
ON
OFF
Opens
Counter-Clockwise
Same as above, for secondary 6500 ONLY.
OFF The output wired to terminal #4 becomes the output from the exit loop detector
plugged into the EXIT Loop port.
ON Normal Setting. Terminal #4 is a normal full open input.
OFF Auto-close timer is OFF. Manual input required to close gate.
ON Normal Setting. Auto-close timer is ON. Adjustable from 1-23 seconds.
OFF Normal Setting. Input to terminal #6 and reverse loop will stop and reverse gate to
the full open position during the close cycle ONLY.
ON Input to terminal #6 becomes a SHADOW loop input. It is only active when the gate
is fully opened. (Shadow loop setting when external loop detector is used)
OFF Normal Setting. Switch must be OFF for single operator.
ON Switch must be ON when primary/secondary (dual) gates are used.
7-OFF 8-OFF Normal Setting. Relay activates when gate is at open limit.
(Shadow loop setting when DoorKing Plug-In loop detector is used)
7-OFF 8-ON Relay activates when gate is not closed.
7-ON 8-OFF Relay activates when gate is opening and open.
7-ON 8-ON Relay activates during opening and closing cycle.
See page 22 for ALL DIP-switch definitions and typical settings.
Switch
Function
Setting
SW 2 (Bottom 4 Switches)
Description
1
Gate Overlap
OFF Primary and secondary operators start at the same time (Normal setting for single
gate operator).
ON The secondary operator will start 1.5 sec. before primary operator during open
cycle and the primary operator will start 1.5 sec. before the secondary operator
during the close cycle (Normal setting for bi-parting gate operators).
2
Magnetic lock
OFF Normal Setting. Magnetic lock is not used.
ON Magnetic lock is used and connected to terminals 9 and 12. See page 27 for wiring.
3
4
2 Quick Guide - 1
OFF Normal Setting. Switch 3 MUST be turned OFF for Model 6500 operator.
OFF Normal Setting. Switch 4 MUST be turned OFF for Model 6500 operator.
6500-065-N-5-20
See pages 27 for terminal wiring.
QUICK GUIDE: Terminal Descriptions
Open N.O.
Close N.O.
Stop N.C.
Common
Jumper on top 2 pins
when NOT using
4-pin terminal.
• When using a 3-button control
station AND a interlock device
together, #3 terminal (N.C.) must
be wired in series.
• When gate is closed, input will open gate.
• When gate is open and auto close timer SW 1,
switch 4 is turned ON, input will re-set and hold
timer.
• See page 27 for wiring.
• When gate is open and auto close timer SW 1,
switch 4 is turned OFF, input will close gate.
20-Pin Main Terminal
2
3
4
4
1477-010
3 4
UL 325
Terminal
5
6
Pages 16,17,28-30
OB 7
CB
OE
8
CE
G
G
NC NO
Standard Reverse
10
11
12
Dry Relay Contact
13
14
15
16
17
18
19
Low Voltage Common
20
Circuit Board Power
• When gate is closing: SW 1, switch 5 is
OFF, an input to terminal #6 will stop and
reverse and the gate to the full open position.
Note: If the auto-close timer is ON, when gate
reaches the open position, timer will not
close the gate. Another input command is
needed to reset and close the gate (Normal
Setting).
24 VAC - 250 mA max.
(See note below)
Full Open
Full Open
6
Gate Tracker Data
Gate Tracker Busy
9
24 VDC Mag Lock Power
SW 1
• SW 1, switch 5 ON, an input to terminal #6
(e.g.: external loop detector connected) becomes a
SHADOW loop input. It is only active when the gate is
fully opened.
24-volt DC magnetic lock power is
provided constantly except when the
gate is opening or open (Normally
Closed function). 1 Amp Max.
Dry Relay Contact
Low Voltage Common
Entrapment Alarm
10 11
Alarm Reset
Secondary Current Sensor
Motor
Motor
DANGER
HIGH VOLTAGE!
Circuit Board Power
16
Operation of the circuit board dry
relay contact is dependent on
setting of SW 1, switches 7 and 8.
Relay contacts can be set for
Normally Open (NO) or
NO
Normally Closed (NC) C
N
operation.
SW 1
Contact rating is
1 amp maximum
at 24-volts DC.
Relay Not Available when using DoorKing
plug-In shadow loop detector.
ON
20
6
7
8
9
This input ONLY functions when gate is
fully opened or in the closing cycle.
1 2 3 4 5 6 7 8
Relay
Contacts
2
3
4
5
Full Open
5
ON
1
Low Voltage Common
SW 1
• When gate is closing, input will reverse gate.
1 2 3 4 5 6 7 8
2
1
SW 1
ON
Jumper on bottom
2 pins when using
4-pin terminal.
• lf SW 1, switch 3 is OFF, input to
terminal #4 becomes the output from the
EXIT loop detector plugged into the EXIT
loop port. (Used for specialized functions).
4
• Use a standard 4-wire 3-button
control station.
DoorKing’s 3-wire 3-button
control station cannot be used.
1 2 3 4 5 6 7 8
3-Pin with
Jumper
Notes:
ON
1
2
3
4
• lf SW 1, switch 3 is ON, functions as a
normal full open input (Normal setting).
1 2 3 4 5 6 7 8
4-Pin Non-Removable Terminal
Open LED
Close LED
Stop LED
For dual operator applications
ONLY. Allows the secondary
reversing sensor to monitor
the current flow into the
secondary operator. See page
25 for more information.
Terminal #3 Note:
Exceeding 250 mA of power from this terminal may
cause the circuit board transformer to overheat,
causing intermittent problems.
6500-065-N-5-20
Quick Guide - 2 3
SPECIFICATIONS
Use this manual for the Model 6500 operators with circuit board 4405-018 Rev A or higher ONLY.
Class of Operation
Type of Gate
Inherent Entrapment Protection Device
External Entrapment Protection Device Inputs
(Monitored Inputs)
Model 6500 - UL325 Class I, II, III, IV
Vehicular Swing Gates Only
Inherent Reverse Sensor System (Type A)
Connection inputs for Non-contact Sensor - Photo Sensor (Type B1)
Connection input for Contact Sensor - Reversing Edge (Type B2)
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.
The operator will not run without one or more monitored type B1 or B2 entrapment protection devices in EACH
entrapment area.
18 Ft.
18 Ft.
Cycles Per
Hour
60
60
Speed
90°
12-14 Sec
12-14 Sec
22 Ft.
22 Ft.
60
60
12-14 Sec
12-14 Sec
Model #
Type
Operator
Horsepower - Volts
Phase
Amp
Max Gate
Weight
Max Gate
Length
6500-380
6500-381
Primary
Secondary
1/2 HP - 115 VAC
1/2 HP - 115 VAC
1-Phase
1-Phase
5.4
5.4
700 Lbs.
700 Lbs.
6500-384
6500-385
Primary
Secondary
1 HP - 115 VAC
1 HP - 115 VAC
1-Phase
1-Phase
9.7
9.7
800 Lbs.
800 Lbs.
Note: 208/230/460/575 VAC input voltage can be connected to the
operator by installing an “Optional” High Voltage Kit on the
PRIMARY operator ONLY (P/N 2600-266).
Type of wiring to be used on ALL external devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better electrical,
mechanical, and flammability ratings.
31 5/8”
31”
28 3/8”
18 3/8”
23 1/4”
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.
4
6500-065-N-5-20
TABLE OF CONTENTS
QUICK GUIDES
Quick Guide: DIP-Switches
Quick Guide: Terminal Descriptions
SPECIFICATIONS
Swing Gate Requirements
ASTM F2200 Standard for Gate Construction
Important Safety Instructions
Instructions regarding intended installation:
Important Notices
UL 325 Entrapment Protection
Glossary
SECTION 1 - INSTALLATION
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
Underground Conduit Requirements
Concrete Pad
Installation Layouts
Overlapping Bi-Parting Gate Operator Positions
Securing Operator to Pad
Attach Gate Bracket
Determining Arm Lengths
Installation of Warning Signs
Entrapment Protection Installation
SECTION 2 - AC POWER TO OPERATOR(S)
2.1
2.2
2.3
High Voltage Wire Run
High Voltage Terminal Connection
Bi-Parting Gates Wiring - Dual Gate Operators
SECTION 3 - ADJUSTMENTS
3.1
3.2
3.3
3.4
3.5
4405 Circuit Board Descriptions and Adjustments
DIP-Switch Settings for 4405 Circuit Board
Limit Sensors
Inherent Reverse Sensors Adjustment
Secondary Current Sensor Adjustment
SECTION 4 - WIRING
4.1
4.2
4.3
4.4
4.5
Terminal Descriptions
Control Wiring
Entrapment Protection Wiring
Dual Gates Multiple Photo Sensors Wiring Sample
Loop Detector Wiring
SECTION 5 - OPERATING INSTRUCTIONS
5.1
5.2
5.3
Power and Reset Switch
Shutdown Conditions
Manual Gate Operation
SECTION 6 - MAINTENANCE AND TROUBLESHOOTING
6.1
Maintenance
6.2
Troubleshooting
6.3
Built-in Diagnostics
6.4
Accessory Items
6.5
Gearbox Shaft Extension Replacement
Model 6500’s Wiring Diagrams
SECTION 7 - OWNER OF THE GATE OPERATOR
7.1
7.2
7.3
7.4
6500-065-N-5-20
Alarm Sounding and Gate WILL NOT Operate
Manual Gate Operation
Gate Operators Monthly Checkup
New Installation Checklist for Installer and Property Owner
Printable Safety Page
Quick Guide - 1
Quick Guide - 2
Previous Page
2-3
4
4
4
5
6
7
8
8
8
9-12
13
14
14
15
15
16-17
18
18
18
19
20
20
21-22
23
24
25
26
26
27
28-29
30
31
32
32
33-34
34-35
36
36
37-38
39
40
41
42-44
45
45
46
47
48
49
1
Swing Gate Requirements
This operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. For pedestrian access in the vicinity of an automated vehicular gate, separate pedestrian access shall be
provided or available. The pedestrian access shall be in a location such that a pedestrian shall not come in contact with a
moving vehicular gate access gate during the entire path of travel of the vehicular gate. A pedestrian gate shall not be
incorporated into an automated vehicular gate panel.
Closed Gates
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.
The operator will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH
ENTRAPMENT AREA.
Closed Gate
With the hinge mounted on
the corner of the pilaster,
the entrapment area A is
eliminated and entrapment
protection is NOT required
for this area.
B If distance is less than 16 inches,
entrapment protection is REQUIRED
for this area.
Opened Gate
entrapment protection is REQUIRED
for this area.
B
Opened Gate
Closed Gate
A
A If distance is greater than 4 inches,
C If bottom of gate is 4” to 16”above the ground at
any part of the gate’s traveling path, entrapment
protection is REQUIRED for this area.
Not Allowed
OK
C 4 inches to 16 inches
Gates shall have smooth bottom edges, with vertical bottom edged
protrusions NOT exceeding 0.50 inches.
2
6500-065-N-5-20
Swing Gate Requirements Continued
D Monitored Non-contact
CLOSING Sensor (Type B1)
Minimizes the potential of the gate closing on
vehicular or other traffic that loops cannot sense.
Monitored device helps protect against entrapment
when needed. See page 13 for more information.
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
E Warning Signs
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
E
Permanently mounted and
easily visible from either
side of the gate.
D
E
Shadow Loop
Separate
Pedestrian
Walkway
Provides a hold open command to
the operator only if the gate is at
the full open position.
Located so pedestrians
cannot come in contact
with the vehicular gate.
G
F Monitored Non-contact
OPENING Sensor (Type B1)
F
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
Automatic Exit Loop
(Optional) will provide an open
command to the gate operator
when a vehicle is exiting the
property.
6500-065-N-5-20
Minimizes the potential of the gate opening on
vehicular or other traffic that loops cannot sense.
Monitored device helps protect against entrapment
when needed. See page 13 for more information.
G Monitored Contact
OPEN/CLOSE Sensor (Type B2)
Minimizes the potential of the gate striking vehicular
or other traffic that loops cannot sense. Monitored
device helps protect against entrapment when
needed. Contact sensor may be necessary on
bottom of gate. See previous page and page 17.
Entrapment Protection must be provided for the
gate system where the risk of entrapment or
obstruction exists.
The operator will NOT run without one or more
monitored type B1 or B2 entrapment protection
devices in EACH ENTRAPMENT AREA.
3
ASTM F2200 Standard for Gate Construction
Vehicular gates should be constructed and installed in accordance with ASTM F2200; Standard Specification for Automated Vehicular Gate Construction.
For a copy of this standard, contact ASTM directly at 610-832-9585; [email protected]; or www.astm.org.
Important Safety Instructions
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object activates the non-contact sensors.
After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of
injury or death.
5. Use the emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS!
Instructions regarding intended installation:
• Install the gate operator only if:
1. The operator is appropriate for the construction of the gate and the usage class of the gate.
2. All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 6 feet (1.83 m) above the ground to
prevent a 2 ¼ inch (57.2 mm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence
that the gate covers in the open position.
3. All exposed pinch points are eliminated or guarded.
4. Guarding is supplied for exposed rollers.
• The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate access opening. The pedestrian
access opening shall be designed to promote pedestrian usage. Locate the gate such that persons will not come in contact with the vehicular gate
during the entire path of travel of the vehicular gate.
• The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structures when opening and closing to
reduce the risk of entrapment. Swinging gates should not open into public access areas.
• The gate must be properly installed and work freely in both directions prior to the installation of the gate operator. Do not over-tighten the operator
clutch, pressure relief valve or reduce reversing sensitivity to compensate for a damaged gate.
• For gate operators utilizing Type D protection:
1. The gate operator controls must be placed so that the user has full view of the gate area when the gate is moving.
2. A warning placard shall be placed adjacent to the controls.
3. An automatic closing device (such as a timer, loop sensor, or similar device) shall not be employed.
4. No other activation device shall be connected.
• Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and where the user is prevented from
reaching over, under, around or through the gate to operate the controls. Outdoor or easily accessible controls should have a security feature to prevent
unauthorized use.
• The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start.
• A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
• For gate operators utilizing a non-contact sensor:
1. See the instructions on the placement of non-contact sensors for each type of application.
2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving in the opening direction.
3. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exist, such as the perimeter reachable by a moving
gate or barrier.
• For gate operators utilizing contact sensors:
1. One or more contact sensors shall be located where the risk of entrapment or obstruction exist, such as at the leading edge, trailing edge, and
post mounted both inside and outside of a vehicular horizontal slide gate.
2. One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.
3. One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.
4. A hardwired contact sensor shall be located and its wiring arranged so that the communication between the sensor and the gate operator is not
subjected to mechanical damage.
5. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for entrapment protection functions shall
be located where the transmission of the signals are not obstructed or impeded by building structures, natural landscaping or similar
obstructions. A wireless contact sensor shall function under the intended end-use conditions.
6. One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm).
• Be sure you have instructed the owner of the gate operator about safe and proper operation and testing of the gate operator.
4
6500-065-N-5-20
Important Notices
Vehicular gate operator products provide convenience and security. However, gate operators must use high levels of force to move gates and most people
underestimate the power of these systems and do not realize the potential hazards associated with an incorrectly designed or installed system.
These hazards may include:
• Pinch points
• Entrapment areas
• Reach through hazards
• Absence of entrapment protection devices
• Improperly located access controls
• Absence of vehicle protection devices
• Absence of controlled pedestrian access
In addition to these potential hazards, automated vehicular gate systems must be installed in accordance with the UL 325 Safety Standard and the ASTM
F2200 Construction Standard. Most people are unaware of, or are not familiar with, these standards. If an automated vehicular gate system is not properly
designed, installed, used and maintained, serious injuries or death can result. Be sure that the installer has instructed you on the proper operation of the
gate and gate operator system.
Be sure that the installer has trained you on proper and safe operation of this gate operating system and about the basic functions of the required
reversing systems associated with your gate operating system and how to test them (see section 7). These include reversing loops, inherent reversing
system, electric edges, photoelectric cells, or other external devices.
• This Owner’s Manual is your property. Keep it in a safe place for future reference.
• Be sure that all access control devices are installed a minimum distance of 6 feet away from the gate and gate operator, or in such a way that a
person cannot touch the gate or gate operator while using the device. If access control devices are installed in violation of these restrictions,
immediately remove the gate operator from service and contact your installing dealer.
Opening device MUST be mounted a
minimum of 6 feet from the gate and
NOT accessible through the gate!
• Loops and loop detectors, photo-cells or other equivalent devices must be installed to prevent the gate from closing on vehicular traffic.
• The speed limit for vehicular traffic through the gate area is 5 MPH. Install speed bumps and signs to keep vehicular traffic from speeding
through the gate area. Failure to adhere to posted speed limits can result in damage to the gate, gate operator, and to the vehicle.
• Be sure that all persons who will use the gate system are familiar with the proper use of the gate and gate operator and are familiar with the
possible hazards associated with the gate system.
• Be sure that warning signs are permanently installed on both sides of the gate in an area where they are fully visible to traffic.
• It is your responsibility to periodically check all entrapment protection devices. If any of these devices are observed to function improperly,
remove the operator from service immediately and contact your installing or servicing dealer.
• Follow the recommended maintenance schedule.
• Do not allow children to play in the area of the operator or to play with any gate-operating device.
• To remove the gate operator from service, operate the gate to the full open position and then shut off power to the operator at the service panel.
6500-065-N-5-20
5
UL 325 Entrapment Protection
UL 325 Classifications
Authorized
Personnel ONLY
Class I - Residential
Vehicular Gate Operator
Class III - Industrial/Limited Access
Vehicular Gate Operator
A vehicular gate operator (or system) intended for use in garages
or parking areas associated with a residence of one-to four single
families.
A vehicular gate operator (or system) intended for use in an
industrial location or building such as a factory or loading dock
area or other locations not accessible by or intended to service
the general public.
Class II - Commercial/General Access
Vehicular Gate Operator
A vehicular gate operator (or system) intended for use in a
commercial location or building such as a multi-family housing
unit (five or more single family units), hotel, garages, retail store,
or other buildings accessible by or servicing the general public.
Class IV - Restricted Access
Vehicular Gate Operator
A vehicular gate operator (or system) intended for use in a
guarded industrial location or building such as an airport security
area or other restricted access locations not servicing the general
public, in which unauthorized access is prevented via supervision
by security personnel.
Gate Operator Category
Horizontal Slide, Vertical Lift, Vertical Pivot
Entrapment Protection Types
Swing, Vertical Barrier (Arm)
A, B1*, B2* or D
Type A - Inherent entrapment protection system.
Type B1 - Non-contact sensor (photoelectric sensor or the equivalent).
Type B2 - Contact sensor (edge device or equivalent).
A, B1*, B2*, C or D
Vertical Barrier Note: Barrier gate operators (arm)
that is not intended to move toward a rigid object
closer than 16 inches (406 mm) are not required to
be provided with a means of entrapment protection.
Type C - Inherent force limiting, inherent adjustable clutch or inherent pressure relief device.
Type D - Actuating device requiring constant pressure to maintain opening or closing motion of the gate.
* B1 and B2 means of entrapment protection must be MONITORED.
6
6500-065-N-5-20
Glossary
GATE - A moving barrier such as a swinging, sliding, raising, lowering, or the like, barrier, that is a stand-alone passage
barrier or is that portion of a wall or fence system that controls entrance and/or egress by persons or vehicles and
completes the perimeter of a defined area.
RESIDENTIAL VEHICULAR GATE OPERATOR – CLASS I - A vehicular gate operator (or system) intended for use in a home
of one-to four single family dwelling, or garage or parking area associated therewith.
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR - CLASS II - A vehicular gate operator (or system)
intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units),
hotels, garages, retail store, or other building servicing the general public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR - CLASS III - A vehicular gate operator (or system)
intended for use in an industrial location or building such as a factory or loading dock area or other locations not intended
to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR - CLASS IV - A vehicular gate operator (or system) intended for use in
a guarded industrial location or building such as an airport security area or other restricted access locations not servicing
the general public, in which unauthorized access is prevented via supervision by security personnel.
VEHICULAR BARRIER (ARM) OPERATOR (OR SYSTEM) - An operator (or system) that controls a cantilever type device (or
system), consisting of a mechanical arm or barrier that moves in a vertical arc, intended for vehicular traffic flow at
entrances or exits to areas such as parking garages, lots or toll areas.
VEHICULAR HORIZONTAL SLIDE-GATE OPERATOR (OR SYSTEM) - A vehicular gate operator (or system) that controls a
gate which slides in a horizontal direction that is intended for use for vehicular entrance and exit to a drive, parking lot, or
the like.
VEHICULAR SWING-GATE OPERATOR (OR SYSTEM) - A vehicular gate operator (or system) that controls a gate which
moves in an arc in a horizontal plane that is intended for use for vehicular entrance and exit to a drive, parking lot, or the
like.
SYSTEM - In the context of these requirements, a system refers to a group of interacting devices intended to perform a
common function.
WIRED CONTROL - A control implemented in a form of fixed physical interconnections between the control, the associated
devices, and an operator to perform predetermined functions in response to input signals.
WIRELESS CONTROL - A control implemented in means other than fixed physical interconnections (such as radio waves or
infrared beams) between the control, the associated devices, and an operator to perform predetermined functions in
response to input signals.
INHERENT ENTRAPMENT PROTECTION SYSTEM - A system, examples being a motor current or speed sensing system,
which provides protection against entrapment upon sensing an object and is incorporated as a permanent and integral part
of the operator.
EXTERNAL ENTRAPMENT PROTECTION DEVICE - A device, examples being an edge sensor, a photoelectric sensor, or
similar entrapment protection device, which provides protection against entrapment when activated and is not incorporated
as a permanent part of an operator.
ENTRAPMENT - The condition when an object is caught or held in a position that increases the risk of injury.
6500-065-N-5-20
7
SECTION 1 - INSTALLATION
Prior to beginning the installation of the swing gate operator, we suggest that you become familiar with the
instructions, illustrations, and wiring guide-lines in this manual. This will help insure that your installation is
performed in an efficient and professional manner compliant with UL 325 safety and ASTM F2200 construction
standards.
The proper installation of the vehicular swing gate operator is an extremely important and integral part of the
overall access control system. Check all local building ordinances and building codes prior to installing
this operator. Be sure your installation is in compliance with local codes.
1.1 Underground Conduit Requirements
Primary
Operator
Position
Secondary
Operator
Position
DoorKing’s Primary/Secondary Interconnection Cable (Dual Operator Application Only)
(Secondary Operator AC Power and Communication wires)
External Safety Devices, Controls and P.A.M.S. Wires (Low Voltage wire insulation)
Loop Lead-In Wires (Low Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
Concrete Pad
Sweeps
• The conduit requirements are for a typical slide gate operator installation (the secondary operator is shown for those
applications where a secondary operator may be used). The conduit requirements for your application may vary from
this depending on your specific needs.
Sweep
YES
• Use only sweeps for conduit bends. Do not use 90° elbows as this will make wire pulls very
Elbow
NO
difficult and can cause damage to wire insulation. DoorKing recommends using 3/4-inch conduit.
• External Entrapment Protection is REQUIRED (photo sensor and/or reversing edge).
• Be sure that all conduits are installed in accordance with local codes.
• Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
1.2 Concrete Pad
Operator and Conduit Location
Center Line
CAUTION
28” Concrete Pad Length
11”
9”
31”
9”
21.5” to
center
of
conduit
area
Conduit
7” Area
4” minimum
7” Conduit
Area
3.75”
9”
3.75”
Power, Reset Box
22” Concrete Pad Width
8
Concrete pad
MUST be level.
Note: Bevel the
edges of concrete
pad to eliminate
water puddling
under the operator.
NEVER REMOVE HUB
after manual release.
12.5”
to
center
Underground depth of the
concrete pad is determined
by soil conditions and local
building codes. Reinforced
concrete recommended.
22”
Conduit
6500-065-N-5-20
1.3 Installation Layouts
48" Gate Attachment Point - Gates up to 22 Ft.
48”
Closed Gate
15”
Hinge
90°
Drive Arm
67.94” / 2 = 33.97 (round number up) = 34 inches
34”
Drive Arm
67.94”
Open Gate
Arm Calculations
60”
Connecting Arm
67.94” + 17.61” - 33.97” = 51.58 (round number down) = 51.5 inches
51.5”
Connecting Arm
Note: Maximum usable connecting arm length is 58.5 inches.
Note: Arm length is measured from center hole to center hole.
“Actual” arm length will be longer.
Measured Length
28”
17.61”
3”
Arm
Actual Length
22”
Arms in Open Position
Closed Gate
Connecting Arm
6”
Open Gate
37”
Arms in Closed Position
Drive Arm
6500-065-N-5-20
9
46" Gate Attachment Point - Gates up to 22 Ft.
46”
Closed Gate
15”
Hinge
90°
Open Gate
Arm Calculations
Drive Arm
67.88” / 2 = 33.94 (round number up) = 34 inches
34”
67.88”
Drive Arm
63”
Connecting Arm
67.88” + 18.38” - 33.94” = 52.32 (round number down) = 52.25 inches
52.25”
Connecting Arm
28”
Note: Maximum usable connecting arm length is 58.5 inches.
Note: Arm length is measured from center hole to center hole.
“Actual” arm length will be longer.
18.38”
3”
Measured Length
Arm
22”
Actual Length
Arms in Open Position
36”
Connecting Arm
6”
Open Gate
Closed Gate
Arms in Closed Position
Drive Arm
10
6500-065-N-5-20
36" Gate Attachment Point - Gates up to 14 Ft.
36”
Closed Gate
15”
Hinge
90°
Arm Calculations
Drive Arm
50.99” / 2 = 25.495 (round number up) = 25.5 inches
25.5”
47.75”
50.99”
Drive Arm
Connecting Arm
50.99” + 17.56” - 25.495” = 43.055 (round number down) = 43 inches
43”
28”
Connecting Arm
Note: Maximum usable connecting arm length is 58.5 inches.
17.56”
Note: Arm length is measured from center hole to center hole.
“Actual” arm length will be longer.
3”
22”
Open Gate
Measured Length
Arm
Actual Length
Arms in Open Position
31.5”
6”
Closed Gate
Connecting Arm
Arms in Closed Position
Open Gate
Drive Arm
6500-065-N-5-20
11
28" Gate Attachment Point - Gates up to 8 Ft.
28”
Closed Gate
15”
Hinge
90°
Arm Calculations
39.7”
Drive Arm
39.25”
39.7” / 2 = 19.85 (round number down) = 19.75 inches
19.75”
Drive Arm
Connecting Arm
28”
39.7” + 17.26” - 19.85” = 37.11 (round number down) = 37 inches
37”
17.26”
Connecting Arm
Note: Maximum usable connecting arm length is 58.5 inches.
3”
22”
Note: Arm length is measured from center hole to center hole.
“Actual” arm length will be longer.
Open Gate
Measured Length
Arms in Open Position
Arm
Actual Length
27.5”
6”
Closed Gate
Connecting Arm
Arms in Closed Position
Open Gate
Drive Arm
12
6500-065-N-5-20
1.4 Overlapping Bi-Parting Gate Operator Positions
When installing overlapping gates (using a maglock to secure gates in the center or architectural overlapping design etc.),
certain considerations must be taken into account or gates will NOT operate correctly.
The SECONDARY operator OPENS 1.5 secs BEFORE the primary operator (SW2, switch 1 - ON) to allow the secondary
operator’s gate to stay clear of the gate overlap. It is VERY important to install the SECONDARY operator on the gate that opens
FIRST according to YOUR specific gate layout or gates will NOT operate correctly.
Overlap
This gate MUST open
first in this example.
Interconnection Cable
See page 19.
Primary
Operator
Position
Gates Opening Inside
Secondary
Operator
Position
IMPORTANT
IMPORTANT
All loop detector, safety and access control devices are
wired to the PRIMARY operator.
AC power is also wired to the primary operator ONLY.
The SECONDARY operator
MUST be installed on the
gate that opens FIRST.
IMPORTANT
The distance EACH gate travels while cycling
MUST be set the same (Limit sensors settings),
otherwise the 1.5 second time delay may NOT
allow the primary operator’s gate with the overlap
to CLOSE BEFORE the secondary operator’s gate.
6500-065-N-5-20
13
1.5 Securing Operator to Pad
Permanently attach the operator to the concrete pad
using six (6) 3/8” x 3” sleeve anchors (not supplied).
3/8
Sleeve Anchor
(Not supplied)
IMPORTANT: Center mounted
sleeve anchors are REQUIRED to prevent
chassis from flexing during operation.
1.6 Attach Gate Bracket
A Release hub with release tool. DO NOT REMOVE HUB!
B Bolt crank arm to operator.
C Slide elbow assembly on crank arm.
D Bolt control arm to gate bracket.
E Slide control arm into elbow assembly. KEEP ARM ASSEMBLY LEVEL.
F Bolt gate bracket to gate.
D
Gate
Bracket
Arm assembly and gate bracket MUST
be level for gate to function correctly.
F
Control Arm
E
D
Control Arm
Elbow
Assembly
Gate Bracket
A
B
C
Crank Arm
CAUTION
DO NOT REMOVE HUB!
31”
14
6500-065-N-5-20
1.7 Determining Arm Lengths
Slide elbow assembly back and fourth, manually opening and closing gate until satisfied with the gate’s 90° open and fully
closed positions.
Mark and cut off excess arms. Secure arms to elbow assembly with 6 allen screws. Tighten hub and replace release tool. Install
safety covers.
excess
excess
1.8 Installation of Warning Signs
This DoorKing Swing Gate Operator is shipped with two warning
signs. The purpose of the warning sign is to alert uninformed
persons, and to remind persons familiar with the gate system, that
a possible hazard exists so that appropriate action can be taken to
avoid the hazard or to reduce exposure to the hazard. See page 3 for
suggested mounting positions of signs.
• Permanently install the supplied warning signs in locations so
that the signs are visible by persons on both sides of the gate.
• Use appropriate hardware such as wood or sheet metal screws
(not supplied) to install the warning signs.
6500-065-N-5-20
15
1.9 Entrapment Protection Installation
External Entrapment Protection Devices:
In addition to the inherent reversing sensor system, this operator has a UL 325 terminal for the connection of photo sensors-Type B1 and/or
reversing edges-Type B2 entrapment protection required by UL 325 standards. Entrapment Protection must be provided for the gate system
where the risk of entrapment or obstruction exists. The operator will NOT run without one or more monitored type B1 or B2 external
entrapment protection devices installed in each entrapment area. Install these devices where the risk of entrapment or a safety hazard
exists, examples of which are shown below and next page. Installations can vary.
Typical UL Photo Sensor mounting height and distance away from gate.
Open Beam
Open Beam
UL sensor mounted just
above top of operator
21”
Typical
Gate Frame (Closed)
5”
or
less
Gate Frame (Closed)
Close
Beam
27.5”
Max
Wall
Monitored OPEN Photo Sensor
Open Beam
Opening Gate
See page 28 for UL 325
terminal wiring for a
monitored photo sensor.
If the distance between an entrapment or obstruction
exists less than 16” from the open gate, then
entrapment protection is REQUIRED for this area.
Close Beam
Wall
Monitored CLOSE Photo Sensor
Entrapment protection
is RECOMMENDED for
this area.
Closing Gate
16
6500-065-N-5-20
1.9 Continued
A monitored reversing edge (Type B2) or a monitored photo sensor (Type B1, see previous page) MUST be installed in EACH
entrapment area or operator WILL NOT function.
Monitored Edge
Transmitter
Typical Monitored Reversing Edge mounted on end of gate.
Note: If bottom edge of gate is less than 4” or
greater that 16” above the ground, then NO
reversing edge is required on bottom of gate.
Gate Frame (Closed)
Monitored
Reversing
Edge
2-Wire End-of-Line Edge
OPTIONAL wireless transmitter can be used.
Receiver MUST monitor for the presence of the transmitter.
Reversing Edge
Mointored Reversing Edge Note:
Input can be wired to be active in
BOTH directions of travel.
See page 29 for UL 325
terminal wiring for a
monitored reversing edge.
Potential
Entrapment
Area
Entrapment protection
is RECOMMENDED for
this area.
If the distance between an entrapment or obstruction
exists less than 16” from the open gate, then
entrapment protection is REQUIRED for this area.
2-Wire
End-of-Line
Edge
Gate Frame (Closed)
Monitored Edge
Transmitter
4-Wire In-Line Edge
OPTIONAL wireless transmitter can be used.
Receiver MUST monitor for the presence of the transmitter.
Typical Wireless Reversing
Edges mounted on bottom and
end of gate when needed.
If the bottom of gate is greater than 4”
but less than 16” above the ground
at any point in its arc of travel,
entrapment protection is REQUIRED
for this area.
4-Wire In-Line Edge
Reversing Edges are wired in series
6500-065-N-5-20
2-Wire End-of-Line Edge
Greater than 4” but less than 16”
17
SECTION 2 - AC POWER TO OPERATOR(S)
Before attempting to connect any wiring to the operator, be sure that the circuit breaker in the electrical panel is in the OFF
position. Permanent wiring must be installed to the operator as required by local electrical codes. It is recommended that a
licensed electrical contractor perform this work.
Since building codes vary from city to city, we highly recommend that you check with your local building department prior
to installing any permanent wiring to be sure that all wiring to the operator (both high and low voltage) complies with local
code requirements.
THIS GATE OPERATOR MUST BE PROPERLY GROUNDED!!
2.1 High Voltage Wire Run
The distance shown in the chart is measured in Feet from the operator to the power source. If power wiring is greater than the maximum
distance shown, it is recommended that a service feeder be installed. When large gauge wire is used, a separate junction box must be
installed for the operator connection. The wire table is based on stranded copper wire. The wire run calculations are based on a power source
with a 3% voltage drop on the power line, plus an additional 10% reduction in distance to allow for other losses in the system.
This table illustrates the high voltage AC power wire size and distance limitations for a single operator.
Model
Type
Voltage
Required
Amps
Required
6500 1/2 HP
6500 1 HP
115
115
5.4
9.7
Wire Size / Max Distance in Feet
12 AWG
180
100
10 AWG
290
162
8 AWG
485
270
6 AWG
725
405
Reduce the wire distance in half for a primary/secondary dual gate operator application
Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
“Optional” High Voltage Kit Installation Note: When installing a high voltage kit for 208/230/460/575 VAC input power, refer to the “high voltage AC power
wire size and distance limitations” table on the instruction sheet with the high voltage kit (P/N 2600-266) for AC power wire run limitations.
“Optional” Heater Installation Note: When installing a heater, refer to the “high voltage AC power wire size and distance limitations” table on the
instruction sheet with the heater kit for AC power wire run limitations.
2.2 High Voltage Terminal Connection
115 VAC
Chassis
Ground
Neu Hot
AC Power Terminal
• Route incoming high voltage power
through conduit and into the operator as
shown.
White - Neutral
Black - 115 VAC Hot
Green - Chassis Ground
High Voltage • Be sure wiring is installed in accordance
AC Power Wire with local codes. Be sure to color code all
DANGER
wiring.
HIGH VOLTAGE!
TO
hn
ici OP
an ER
us AT
e
E
on
ly
AC POWER
ON
tec
PU
SH
High Voltage
AC Power Wire
External Power
Disconnect
Switch
High
Voltage
Conduit
Note: A separate power
disconnect switch may be
needed in your area. Check local
building codes before installation.
OFF
• It is recommended that a surge
suppressor be installed on the high
voltage power lines to help protect the
operator and circuit board from surges
and power fluctuations.
• Secondary operator in a dual operator
application gets AC power through the
8-wire interconnection cable that connects
the 2 operators together. See next page.
DO NOT cycle the operator without the OPEN and CLOSE limit sensors in their specific open and close positions.
The limit sensors or the AC power switch are the only ways to STOP the operator once an open cycle has started. This could
cause damage to the gate and/or operator if the gate opens too far!
EXTERNAL ENTRAPMENT PROTECTION MUST be connected or the gate operator WILL NOT function.
18
6500-065-N-5-20
2.2 Bi-Parting Gates Wiring - Dual Gate Operators
Connect the Primary/Secondary operators together with DoorKing’s interconnection cable as shown (Different lengths sold
separately P/N 2600-75x). High voltage power and low voltage communications are supplied to the secondary operator by
DoorKing’s UL approved cable that is run in a single conduit. Two conduits (High voltage and low voltage) will need to be
provided to the secondary operator when NOT using DoorKing’s UL listed, wet environment interconnection cable.
CB
OE
8
CE
G
G
NC NO
10
11
12
13
14
15
16
17
18
19
20
Primary Operator
20
Primary Operator
Chassis
8-Pin
Secondary Ground
Interface
Terminal
3
4
5
6
7
8
Motor
Neutral
24VAC
Limit
Spare
Limit
COM
Secondary Operator
(Red) Motor 1 High
(Blue) Motor 2 High
(White) Neutral 3 High
(Purple) 24VAC 4 Low
(Yellow) Limit 5 Low
(Brown) Spare 6 Low
(Orange) Limit 7 Low
(Gray) COM 8 Low
SW 1,
switches 1
and 2 will
be opposite
each other.
Switch 6
MUST be
ON, see
page 21.
2
Motor
Interconnection Cable Wiring
1
Motor 1 High (Red)
Motor 2 High (Blue)
Neutral 3 High (White) Operator
24VAC 4 Low (Purple) Chassis
Ground
Limit 5 Low (Yellow)
Spare 6 Low (Brown)
Limit 7 Low (Orange)
Conduit
COM 8 Low (Gray)
1
2
3
4
5
6
7
8
COM
OB 7
6
7
8
9
Limit
6
ON
5
1 2 3 4 5 6 7 8
1477-010
Spare
4
4
Limit
3
24VAC
2
• Secondary operator contains
NO control board.
• All loop detector, safety and access control devices
are wired to the primary operator.
Neutral
1
Secondary Operator Terminal
Primary Operator Control Board (4405)
Motor
2
2
3
4
5
Motor
1
Conduit
)
ent e
m
l
n
b
ro a
nvi ion C
E
et ct
(W onne
d
e
c
ist ter
L L ry In
U
g’s nda
Kin Seco
r
o
Do ary/
m
Pri
onl
y
PU
SH
tec TO
hni
OP
cia
n ER
use AT
E
Secondary
Operator
Primary
Operator
AC power
conduit to primary
operator only.
er
ow
P
AC
6500-065-N-5-20
ry e
nda cabl duit.
o
c
n
on
/se tio
ary nnec und c
m
i
Pr terco ergro
in und
in
Optional Heater Installation Note:
If optional heaters are to be installed on
the operators, run two power wires through
the interconnection cable conduit to power the
secondary operator’s heater. Refer to the instruction
sheet with the heater kit for more information.
19
SECTION 3 - ADJUSTMENTS
The switch settings and adjustments in this chapter should be made after your installation and wiring to the operator(s) is
complete. Whenever any of the programming switches on the circuit board are changed, power must be shut-off, and then
turned back on for the new setting to take effect.
3.1 4405 Circuit Board Descriptions and Adjustments
Fire Dept Open
ON
Auto-Close Timer
SW 1
Auto-close timer
(when turned on)
SW 1, switch 4.
ON
Adjust from 1 sec (full
counter-clockwise) to
approx 23 sec
(full clockwise).
2
3
1 2 3 4
Loop LEDs
4
4
SW1 ON
1477-010
5
1 2 3 4
6
TIME
DELAY
CB
OE
CE
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
REVERSE
LOOP
20
Secondary
20
Primary
6
7
8
9
10
11
12
16
17
18
19
4405-018
Adjust reversing sensitivity for
the open AND close direction of
the PRIMARY (single) and
SECONDARY (dual) operators,
See page 24.
8
2
3
4
5
13
14
15
REVERSE Loop Port
REVERSE/SHADOW
Loop Terminals
SHADOW Output Terminal
2
1
Limit
LEDs
See
page
Power LED
23 POWER
ON SW2
EXIT Loop Port
EXIT
LOOP
See page 29.
Inherent
Reverse Sensors
Illuminated LEDs Indicates that
low voltage power is being
applied to the circuit board.
Input LEDs should be OFF and will only
illuminate when the input is activated.
Limit LEDs will only illuminate when the
respective limit sensor has been activated.
Loop LEDs will only illuminate when a
reverse, shadow or exit loop is activated
(Vehicle passing over a loop).
23
1
SW1
EXIT Loop Terminal
FIRE
1 2 3 4 5 6 7 8
Plug-In Loop Detectors (Sold separately)
P2
OB 7
9409
Dual
Channel
1
ON
9410
Single
Channel
Plugs
How LEDs Function
MUST be
plugged in.
Input LEDs
1 2 3 4
SW 1
Time Delay:
SW 2
Limit
Sensors
Plug P2
ON
Connect ONLY emergency
access controls accessible by
authorized personnel (e.g.,
fire, police, EMS). Upon
activation, alarm will sound
and the operator will go into a
hard shutdown after reaching
the open limit. Operator must
be reset to resume normal
operation. See pages 27,
33-34.
1 2 3 4 5 6 7 8
Set the DIP-switches on
the circuit board to the
desired setting. See
switch-settings on next
2 pages.
1 2 3 4 5 6 7 8
DIP-Switches
Secondary
Interface
Terminal Plug
4-Pin
Non-Removable
Terminal
See pages 26 and 27.
6-Pin UL 325
Removable
Terminal and
4 DIP-Switches
See pages 16,17, 28-30.
Dry Relay Contact
.
.
N.C
N.O
Terminals 10-11
can be set for
Normally Open
(NO) or Normally
Closed (NC) operation by placing
the relay shorting bar on the N.O. or
N.C. pins respectively.
(Standard shadow loop function, NO)
20
Secondary Current Sensor
Primary Current Sensor
Uses a sensing coil with a given
number of wire turns through it
to monitor the current flow of the
primary operator motor.
Factory Set:
1/2 HP Motor - 2 Turns
1 HP Motor - 1 Turn
Uses a sensing coil with a given number of
wire turns through it to monitor the current
flow of the secondary gate operator motor.
Factory Set:
1/2 HP Motor - 2 Turns
1 HP Motor - 1 Turn
See page 25.
6500-065-N-5-20
3.2 DIP-Switch Settings for 4405 Circuit Board
The two DIP-switches located on the circuit board are used to program the operator to operate in various modes and to turn on
or off various operating features. Whenever a switch setting is changed, power to the operator must be turned OFF and then
turned back on for the new setting to take affect. Check and review ALL switch settings prior to applying power to the operator.
Switch
1
2
Function
Primary 6500
Changes Gate
Opening
Direction
Exit Loop Port
Output
Full Open Input
4
Auto-Close
Timer
Reverses Gate
5
7 and 8
Opens
Clockwise
Secondary 6500
Changes Gate
Opening
Direction
3
6
Setting
External Shadow
Loop Detector
Single Operator
Dual Operators
Circuit
Board
Relay
SW 1 (Top 8 Switches)
Description
ON
OFF
Opens
Counter-Clockwise
Same as above, for secondary 6500 ONLY.
OFF The output wired to terminal #4 becomes the output from the exit loop detector
plugged into the EXIT Loop port.
ON Normal Setting. Terminal #4 is a normal full open input.
OFF Auto-close timer is OFF. Manual input required to close gate.
ON Normal Setting. Auto-close timer is ON. Adjustable from 1-23 seconds.
OFF Normal Setting. Input to terminal #6 and reverse loop will stop and reverse gate to
the full open position during the close cycle ONLY.
ON Input to terminal #6 becomes a SHADOW loop input. It is only active when the gate
is fully opened. (Shadow loop setting when external loop detector is used)
OFF Normal Setting. Switch must be OFF for single operator.
ON Switch must be ON when primary/secondary (dual) gates are used.
7-OFF 8-OFF Normal Setting. Relay activates when gate is at open limit.
(Shadow loop setting when DoorKing Plug-In loop detector is used)
7-OFF 8-ON Relay activates when gate is not closed.
7-ON 8-OFF Relay activates when gate is opening and open.
7-ON 8-ON Relay activates during opening and closing cycle.
See next page for switch definitions and typical settings.
Switch
Function
Setting
SW 2 (Bottom 4 Switches)
Description
1
Gate Overlap
OFF Primary and secondary operators start at the same time (Normal setting for single
gate operator).
ON The secondary operator will start 1.5 sec. before primary operator during open
cycle and the primary operator will start 1.5 sec. before the secondary operator
during the close cycle (Normal setting for bi-parting gate operators).
2
Magnetic lock
OFF Normal Setting. Magnetic lock is not used.
ON Magnetic lock is used and connected to terminals 9 and 12. See page 27 for wiring.
3
4
6500-065-N-5-20
OFF Normal Setting. Switch 3 MUST be turned OFF for Model 6500 operator.
OFF Normal Setting. Switch 4 MUST be turned OFF for Model 6500 operator.
21
3.2 Continued
Switch Definitions
ON
1 2 3 4 5 6 7 8
SW 1 (Top 8 Switches)
Typical
Settings
Switch 1 Must OPEN the primary operator’s gate upon initial AC power up and open command. If the FIRST open command
begins to close the gate, turn AC power off and reverse this switch.
Switch 2 Must OPEN the secondary operator’s gate upon initial AC power up and open command. If the FIRST open command
begins to close the gate, turn AC power off and reverse this switch. This switch will be set the opposite of switch 1 (e.g. If
switch 1 is OFF, then switch 2 will be ON).
Switch 3 Determines that a device wired to terminal #4 is a normal full open command OR terminal #4 becomes the output
from the exit loop detector that is plugged into the EXIT Loop port in the circuit board (Used for specialized functions).
Switch 4 Turns the auto-close timer on or off. Maximum time that the close timer can be set for is approximately 23 seconds.
Switch 5 OFF setting is Standard Reverse for a CLOSING gate. An input to terminal #6 (e.g.: Normally Open-N.O. photo beam,
NOT entrapment protection) gets obstructed AND/OR reverse loops will stop and reverse the gate back to the full open
position. If the auto-close timer is ON, when gate reaches the open position, timer will not close the gate. Another input
command is needed to reset and close the gate.
ON setting allows an input to terminal #6 (e.g.: external loop detector only) to become a SHADOW loop input. It is only active
when the gate is in the fully opened position.
Switch 6 Sets up the circuit board for a single gate operator or primary / secondary (dual) gate operators.
Switches 7-8 These work in conjunction with each other and determine when the relay on the board will be activated. This relay
can be used as a switch for various functions such as illuminating a warning light when the gate is moving, or turning on a
green light when the gate is full open. This relay is not available for these uses if it is being used for the DoorKing Plug-In
shadow loop function.
ON
1 2 3 4
SW 2 (Bottom 4 Switches)
Typical
Settings
Switch 1 When the gate overlap is OFF, the gate operator(s) will start the open and close cycles at the same time. This is the
normal setting for a single gate operator.
Turning the gate overlap ON when using dual gate operators will cause the secondary operator to start the open cycle 1.5
seconds before the primary operator. The primary operator will start the close cycle 1.5 seconds before the secondary operator.
Switch 2 If a magnetic lock is not used with the gate operator, leave this switch in the OFF position. Turn this switch ON if a
magnetic lock is used and connected to terminals 9 and 12. This applies magnetic lock power and logic to these terminals (NC).
Switch 3 MUST be turned OFF for the Model 6500.
Switch 4 MUST be turned OFF for the Model 6500.
22
6500-065-N-5-20
3.3 Limit Sensors
Important Limit Sensor Adjustment Note:
The hub must not slip
during operation. Tighten
nut to stop any slipping.
CAUTION
It is very important NOT to cycle the gate operator
before the limit sensors are in the correct position or
it could cause damage to the gate and operator.
DO NOT REMOVE HUB!
ONLY turn ON AC power. Manually release the gate
operator hub with the release tool (See page 34).
Physically move the gate to the desired open
position. Loosen the set screw on the OPEN limit
sensor and slowly slide it under the magnetic sensor
activator until the OPEN limit Sensor LED lights up
on the circuit board. Tighten the set screw and
repeat this process for the close gate position.
Secure the hub with the release tool and cycle the
operator a few times and readjust if necessary.
HUB
Loosen set screw to
adjust the limit
sensor.
Release Tool
E
OS
CL
Magnetic Sensor
Activator
Magnetic Close
Limit Sensor
OPEN
Magnetic Open
Limit Sensor
Magnetic sensor activator
must be directly above the
limit sensor to activate it.
CLOSE SENSOR
P2
P2
Limit
Sensors
Plug
Not Used
Note: If P2 plug is not connected
to the circuit board and AC power
is turned on, alarm will sound
and operator will NOT function.
P8
OPEN SENSOR
Limit Sensor LEDs
P2
2
SW1
1 2 3 4 5 6 7 8
EXIT
LOOP
1
ON
FIRE
EXIT
OOP
OP
P
LOOP
Open
Closee
3
1 2 3 4
Open
2
Primary Secondary
Limit Limit
Sensors Sensors
ON SW2
Closee
1
4
4
SW1 ON
1477-010
5
1 2 3 4
POWER
6
OB 7
TIME
DELAY
PRIMARY Operator DIP Switch OPENING Direction
CB
OE
CE
ON
Operator Opens
Counter-clockwise
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
SW 1
Switch 1 “OFF”
Switch 1 “ON”
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
REVERSE
LOOP
SW 1
ON
6500-065-N-5-20
Operator Opens
Counter-clockwise
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
SW 1
SW 1
Operator Opens
Clockwise
Switch 2 “ON”
20
4405-018
Operator Opens
Clockwise
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SECONDARY Operator DIP Switch OPENING Direction
Switch 2 “OFF”
8
2
3
4
5
20
Dual Gate Operators Note: SW 1, switch 2 will be set the opposite
of SW 1, switch 1 (e.g. If switch 1 is OFF, then switch 2 will be ON).
23
3.4 Inherent Reverse Sensors Adjustment
This vehicular gate operator is equipped with an inherent adjustable reversing sensor (Type A) used as entrapment protection
according to UL 325 standards. The gate will reverse direction after “physically” encountering an obstruction in either the
opening or closing gate cycle.
If the Auto-Close Timer (DIP-switch SW 1, switch 4) is ON and the gate physically encounters an obstruction during the
CLOSING cycle, it will reverse to the open position and HOLD the gate at this position (Soft shutdown condition). Another input
command is needed before the gate will reset and close again.
For the reverse sensors to function correctly, THE HUB MUST NOT SLIP when the gate encounters an obstruction. The gate
must be properly installed and work freely in both directions. A good set of roller bearing hinges is essential for proper swing
gate operation.
For the reverse system to function correctly, the gate must be properly installed and work freely in both directions and the limit
sensors must be properly adjusted BEFORE adjusting the reverse sensors. The ideal adjustment will allow the operator to
move the gate through its entire travel cycle without reversing, but will reverse upon contact with an obstruction with no more
than 40 Lbs of force. This force can be measured with a gate scale.
CAUTION: Keep pedestrians and vehicles clear of the gate while adjusting and testing sensors!
Note: “Push to Operate” button will use the
Auto-Close timer if turned ON (SW 1, switch 4 ON).
1 Press the “Push to Operate” button to OPEN the gate.
E
AT nly
ER
o
OP use
O
n
T
ia
SH hnic
U
P
tec
2 While gate is opening, slowly rotate the primary reverse sensor clockwise until the LED
lights up and the gate reverses direction. Rotate the primary reverse sensor back
counter-clockwise approximately 1/8 turn to decrease the sensitivity (LED will turn off).
Note: The LED will turn
on briefly when AC
power is turned on.
Primary
Max
Min
LED
Note: The LED will light up during the first seconds of gate travel.
Wait until it turns off before adjusting the reverse sensor.
Sensitivity
3 Press the “Push to Operate” button and CLOSE the gate.
E
AT nly
ER
o
OP use
O
n
H T nicia
S
PU tech
Make sure the gate closes completely. If it reverses and
opens (LED will turn on), rotate the primary reverse
sensor counter-clockwise a little more to decrease the
reverse sensitivity (LED will turn off).
Cycle the gate a few times to be sure that it cycles completely in both directions,
adjusting the primary sensor as necessary.
Safety Note: The LED will
remain ON after a cycling gate
gets obstructed during normal
operation to indicate that the
reverse sensor has been tripped.
Always check the gate area for
possible obstructions before
putting operator back in service.
Dual Operators:
Adjust reverse sensors for each operator when dual operators have been installed. Secondary
Primary
Note: If the minimum or maximum reverse sensor sensitivity adjustment is
reached and the Secondary Operator will not reverse properly, the Secondary
Operator Current Sensor’s wire turns will have to be altered.
See 3.5 Secondary Current Sensor Adjustment on the next page.
Test the operator reversing sensitivity:
Place an immobile object along the gate path, allowing the gate to strike it while in the open and close cycles. The gate must
reverse direction after striking the object. If it does not, increase the reverse sensitivity and repeat this testing until the correct
sensitivity has been achieved in BOTH directions. The operator will assume a soft shutdown (Hold the auto-close timer) after
striking and reversing the gate which will require pressing the “Push to Operate” button to cycle the operator again.
24
6500-065-N-5-20
3.5 Secondary Current Sensor Adjustment (Dual Gates ONLY)
The PRIMARY gate operator’s “secondary reversing sensor” uses a secondary current sensing device (Located only in the
primary operator) to detect any obstructions “physically” encountered in the SECONDARY gate path when using dual gates.
The secondary current sensor uses a sensing coil with a given number of turns through it to monitor the current flow into the
secondary operator. Each time the wire passes through the coil, it is considered a turn. The number of turns through the
sensing coil is dependant on the operating voltage of the operator and the weight of the gate. In general, light weight gates may
require additional turns of wire through the secondary current sensor, while heavier gates may require less turns. CAUTION –
HIGH VOLTAGE: Be sure power is turned OFF before changing the number of wire turns to the secondary current sensor. When
you are setting the secondary reverse sensor (section 3.4 on the previous page) and reach the MAXIMUM sensitivity position
on the reverse sensor without activating the secondary operator reversing function, add an additional turn of wire through the
secondary current sensor. If you set the secondary reverse sensor to the MINIMUM sensitivity position and the gate will not
cycle completely, reduce the number of turns through the secondary current sensor.
Sample Turns
Primary Operator
Typical Number of Turns for
Secondary Current Sensor
DANGER
HIGH VOLTAGE!
Secondary Operator Model Turns
115 - 1/2 HP - Single Phase
115 - 1 HP - Single Phase
1
2
1
1 Turn
To AC power terminal.
Secondary
Current
Sensor
located
only in
primary
operator.
12
2 Turns
E
AT
y
ER
onl
OP use
n
TO
cia
SH
PU techni
To AC power terminal.
Secondary
Operator
se
ver
e
R
le
cab
n
tio
Sh
nec uit.
n
o
d
rc on
inte nd c
y
r
u
da gro
con nder
e
s
se
ry/ in u
ver
ma
i
e
r
R
P
w
o
ad
Primary
Operator
er
ow
P
AC
6500-065-N-5-20
25
1
2
3
4
Open N.O.
Close N.O.
Stop N.C.
Common
Jumper on top 2 pins
when NOT using
4-pin terminal.
• Use a standard 4-wire 3-button
control station.
DoorKing’s 3-wire 3-button
control station cannot be used.
• When gate is closed, input will open gate.
• When using a 3-button control
station AND a interlock device
together, #3 terminal (N.C.) must
be wired in series.
• When gate is open and auto close timer SW 1,
switch 4 is turned ON, input will re-set and hold
timer.
• See next page for wiring.
• When gate is open and auto close timer SW 1,
switch 4 is turned OFF, input will close gate.
SW 1
ON
Jumper on bottom
2 pins when using
4-pin terminal.
Notes:
1 2 3 4 5 6 7 8
3-Pin with
Jumper
• lf SW 1, switch 3 is OFF, input to
terminal #4 becomes the output from the
EXIT loop detector plugged into the EXIT
loop port. (Used for specialized functions).
4
4-Pin Non-Removable Terminal
Open LED
Close LED
Stop LED
ON
• lf SW 1, switch 3 is ON, functions as a
normal full open input (Normal setting).
1 2 3 4 5 6 7 8
SECTION 4 - WIRING
4.1 Main Terminal Description
SW 1
• When gate is closing, input will reverse gate.
20-Pin Main Terminal
2
3
4
4
1477-010
3 4
UL 325
Terminal
5
6
Pages 16,17,28-30
OB 7
CB
OE
8
CE
G
G
NC NO
6
7
8
9
Standard Reverse
10
11
12
Dry Relay Contact
13
14
15
16
17
18
19
Low Voltage Common
20
Circuit Board Power
(See note below)
Full Open
Full Open
6
Gate Tracker Busy
9
24 VDC Mag Lock Power
SW 1
• SW 1, switch 5 ON, an input to terminal #6
(e.g.: external loop detector connected) becomes a
SHADOW loop input. It is only active when the gate is
fully opened.
Gate Tracker Data
Dry Relay Contact
24-volt DC magnetic lock power is
provided constantly except when the
gate is opening or open (Normally
Closed function). 1 Amp Max.
Low Voltage Common
10 11
Entrapment Alarm
Alarm Reset
Secondary Current Sensor
Motor
Motor
DANGER
HIGH VOLTAGE!
Operation of the circuit board dry
relay contact is dependent on
setting of SW 1, switches 7 and 8.
Relay contacts can be set for
Normally Open (NO) or
NO
Normally Closed (NC) C
N
operation.
SW 1
Contact rating is
1 amp maximum
at 24-volts DC.
Relay Not Available when using DoorKing
plug-In shadow loop detector.
Circuit Board Power
Terminal #3 Note:
Exceeding 250 mA of power from this terminal may cause the circuit
board transformer to overheat, causing intermittent problems.
26
• When gate is closing: SW 1, switch 5 is
OFF, an input to terminal #6 will stop and
reverse and the gate to the full open position.
Note: If the auto-close timer is ON, when gate
reaches the open position, timer will not
close the gate. Another input command is
needed to reset and close the gate (Normal
Setting).
24 VAC - 250 mA max.
ON
20
Full Open
This input ONLY functions when gate is
fully opened or in the closing cycle.
1 2 3 4 5 6 7 8
Relay
Contacts
2
3
4
5
5
ON
1
Low Voltage Common
1 2 3 4 5 6 7 8
2
1
16
For dual operator applications
ONLY. Allows the secondary
reversing sensor to monitor
the current flow into the
secondary operator. See page
25 for more information.
6500-065-N-5-20
Orange
Brown
White
1
Com
Fire Dept Open
Gate will ONLY OPEN when this device is activated by authorized
personnel ONLY (fire, police, EMS) and operator has power. Alarm
will sound during entire open cycle. Operator will then go into a hard
shutdown once fully opened. Operator MUST be reset to function
normally again. This device MUST be mounted in the line-of-site of
gate so authorized personnel can monitor gate movement.
#1 Open N.O.
#3 Stop N.C.
OP
ST
SW1
1
3
N.C.
SW1 ON
Important: Controls intended
for user activation must be
located at least six (6) feet away
from any moving part of the
gate and where the user is
prevented from reaching over,
under, around or through the
gate to operate the controls.
Emergency access controls only
accessible by authorized
personnel (e.g., fire, police,
EMS) may be placed at any
location in the line-of-sight of
the gate.
UL 325 Terminal
See next page.
6
TIME
DELAY
REV SENSE
PRIMARY
OB 7
CB
OE
CE
8
Std
Reverse
6
Gate
Tracker 7
Gate
Tracker 8
24VDC 9
#9 Normally Close
#5 - Access Control
Devices
Type of wiring to be used on ALL external
devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better
electrical, mechanical, and flammability
ratings.
Telephone
Entry
G
G
NC NO
10
11
Com 12
Com
20
24 Volt
1 amp max.
Qu
a
Shd Box
ow
n
Magnetic Lock
Power (24-Volt DC) and logic
output. Power is shut off .5 sec.
prior to gate starting and
remains off while gate is
opening and in the
open position.
SW 2, switch 2 ON.
Stand-Alone
Keypad
ON
13
14
15
16
17
18
19
Stand-Alone
Key Switch
1 2 3 4
20
4405-018
#5 Normally Open
5
1 2 3 4
onl
y
Com
N.O.
Lock Disengaged
Terminal #3 Note:
Exceeding 250 mA of power from this terminal
may cause the circuit board transformer to
overheat, causing intermittent problems.
DANGER
1 2 3 4
ON SW2
4
4
1477-010
2
24VAC 3
Safety
Open 4
Access
Device 5
Open
OP
ER
use ATE
TO
Operator Stopped
1
HIGH VOLTAGE!
1 2 3 4 5 6 7 8
ON
2
hni
PU
SH
Lock Engaged
To #3 Stop N.C.
Radio
Open
tec
(2) Two 115 VAC
Convenience Outlets
To #4 Com
2
6500-065-N-5-20
SE
CLO
#4 Com
Com
REV SENSE
SECONDARY
EN
OP
Supplied
Wire Harness
FIRE
using 3-button
control station
AND interlock
switch together,
#3 terminal
(N.C.) must be
wired in series.
cian
Power is
limited to
250 mA
CANNOT be used.
#2 Close N.O.
3
3-Pin
Remote
Terminal
Activation Note: Activation of this device will OPEN gate regardless
of the status of the open direction monitored external entrapment
protection device(s). If gate is opening, and the operator’s inherent
entrapment protection
system detects an
obstruction, the operator will
4-Pin Non-Removable Terminal
reverse approx. 2 inches and
Normally Closed Interlock Switch
3-Button Control Station
go into a hard shutdown.
Operator Cycling
3-Pin
With
Use
a
standard
4-wire
3-button
Operator reset button MUST
N.C.
Jumper
control
station.
DoorKing’s
Com
be pushed to function again
3-wire
3-button
control
station
OR cycle operator’s power.
Note: When
N.O.
Place jumper
on bottom
2 pins when
using 4-pin
terminal.
2
3-Wire
Radio
Receiver
24 Volt
4.2 Control Wiring
Relay
to main terminal #3
to main terminal #2
to main terminal #1
SW 2
Gate Tracker - DoorKing Access Control System (Model 1833,
1835, 1837 or 1838) tracker system can be connected. This
system can keep track of gate operator cycle count, shorted
inputs, loop detector problems, any forced entry attempts, if the
gate has struck anything during the open or close cycle, power
interruptions, etc. For more detailed information refer to the
Tracker Installation and Wiring Manual, DoorKing P/N 2358-065.
Stand-Alone
Card Reader
Note: All stand-alone
and telephone entry devices
must use a separate power
source.
27
4.3 Entrapment Protection Wiring
External Entrapment Protection Devices:
In addition to the inherent reversing sensor system, this operator has a UL 325 terminal for the connection of photo sensors-Type B1 and/or
reversing edges-Type B2 entrapment protection required by UL 325 standards. Entrapment Protection must be provided for the gate system
where the risk of entrapment or obstruction exists. The operator will NOT run without one or more monitored type B1 or B2 external
entrapment protection devices installed in EACH entrapment area. Install these devices where the risk of entrapment or a safety hazard
exists. Installations can vary.
6-Pin UL 325 Terminal
CE
G
10
11
12
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
REVERSE
LOOP
13
14
15
16
17
18
19
20
20
4405-018
ONLY connect monitored devices.
1
2
3
4
5
6
OB OPEN Beam STOP (Switch 1)
CB CLOSE Beam REVERSE (Switch 2)
OE OPEN Edge/Beam REVERSE (Switch 3)
CE CLOSE Edge/Beam REVERSE (Switch 4)
G Ground (Common)
E
8
y
CB
OE
onl
OB 7
TIME
DELAY
1 2 3 4
6
7
8
9
6
OP
ER
use AT
5
1 2 3 4
DIP-switches MUST be turned ON
for each device wired to terminal.
TO
1477-010
SW1 ON
POWER
Sensor LEDs
1 2 3 4
ON SW2
4
4
ON
cia
n
3
SH
2
hni
1
PU
2
3
4
5
2
SW1
1 2 3 4 5 6 7 8
EXIT
LOOP
1
ON
FIRE
Entrapment Protection Device Connection
UL 325 DIP-Switches
tec
P2
G Ground (Common)
Sensor LEDs Note:
LED ON: Connected device has been activated.
LED remains off during normal operation.
LED Flashing: Connected device is in fault.
Wiring to device is bad.
The 6-pin terminal can be unplugged from
circuit board for easy wire connections.
(2) Two 115 VAC
Convenience Outlets
UL 325 DIP-Switches
ON
DIP-switches 1 & 2 MUST be turned ON.
Type of wiring to be used on ALL external devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better electrical,
mechanical, and flammability ratings.
1 2 3 4
6 5 4 3 2 1
UL 325 Terminal
Monitored CLOSE Photo Sensor
CLOSE Beam
OB OPEN Beam STOP
CB CLOSE Beam REVERSE
OE
CE
G Ground (Common)
G Ground (Common)
Note: Only 1 monitored device
can be connected to each input.
An OPTIONAL Expansion Kit
(sold separately) will allow
connection for additional devices.
Entrapment protection is
RECOMMENDED for this area.
If the distance between an
entrapment or obstruction
exists less than 16” from
the open gate, then
entrapment protection is
REQUIRED for this area.
OPEN Beam
IMPORTANT: Monitored Photo and
Edge sensors must be end-of-line
resistive types. See specific
manufacturer's wiring manual for
more information.
28
Monitored OPEN Photo Sensor
6500-065-N-5-20
4.3 Entrapment Protection Wiring Continued
1
2
3
4
4
SW1 ON
1477-010
5
Main Terminal
#3 Note:
Exceeding the
mA of power
from this
terminal may
cause the circuit
board
transformer to
overheat,
causing
intermittent
problems.
1 2 3 4
POWER
7
6
8
OB 7
TIME
DELAY
CB
8
20 19 18 17 16 15 14 13 12 11 10 9
OE
CE
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
REVERSE
LOOP
20
4405-018
Type of wiring to be used on ALL external devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better electrical, mechanical,
and flammability ratings.
24 VAC
6 5 4 3
1 2 3 4
ON SW2
2
SW1
1 2 3 4 5 6 7 8
ON
FIRE
EXIT
LOOP
2 1
P2
WIRELESS Multiple Reversing Edge Configuration
Monitored Edge
Transmitter
4-Wire
In-Line Edge
2-Wire
End-of-Line Edge
4-Wire
In-Line Edge
Main Terminal
HARDWIRED Multiple Reversing Edge Configuration
4404-018
UL 325 DIP-Switches
DIP-switches MUST be turned ON
for each device wired to terminal.
3-Sided Edge
1477-010 Note: When
using 3-Sided
Edge active in
BOTH directions
of gate travel jumper terminals
3 & 4 together
OB
and turn on
CB switches 3 & 4.
LED Notes: SW1 ON
LED OFF:
appropriate
1 2 3 4
device is
connected.
LED ON:
device has
been
activated.
1
2
3
4
5
6
Flashing LED:
Device NOT
connected.
Not
appropriate
device.
2-Wire
End-of-Line Edge
4-Wire
In-Line Edge
Wiring to Operator
Hardwiring arranged so
that the communication
between the sensor and
the gate operator is NOT
subjected to mechanical
damage.
OE
CE
G
G
Wiring Multiple Reversing Edges
(Add as many “4-wire” In-Line edges as needed)
Reversing Edges are wired in series
4-Wire
In-Line
Edge
Receiver MUST monitor
for the presence of the
transmitter.
See manufacturer’s
manual to “PROG”
wireless edges.
RB-G-K10
Wireless Note:
Refer to the
instruction sheet
that comes with the
receiver/transmitter
for more specific
wiring and
mounting
instructions.
2-Wire
End-of-Line
Edge
Black to Black. White to White.
Power
CHECK
PROG
Com
Monitored OPEN/CLOSE Reversing Edge
R1
R2
MR
ON DIP
Entrapment protection is
RECOMMENDED for this area.
1 2 3 4
R3 ATEST
+ - CS1
12/24 AC/DC
C1 BS1 CS2
C2 BS2 NO3 C3
If the distance
between an
entrapment or
obstruction exists
less than 16” from
the open gate,
then entrapment
protection is
REQUIRED for
this area.
Com ATEST
Sold Separately
To Com
To Open/Close Edge
Entrapment Protection must be provided for the gate
system where the risk of entrapment or obstruction
exists. The operator will not run without one or more
monitored type B1 or B2 entrapment protection
devices in EACH entrapment area.
29
4-Wire
In-Line
Edge
To Wireless Edge Transmitter
OR
UL 325 Terminals 3 & 6
Gate Link
GND ANT
4-Wire
In-Line Edge
Potential
Entrapment
Area
IMPORTANT: Monitored
Photo and Edge sensors
must be end-of-line
resistive types. See
specific manufacturer's
wiring manual for more
information.
OPEN/CLOSE
2-Wire End-of-Line Edge
6500-065-N-5-20
4.4 Dual Gates Multiple Photo Sensors Wiring Sample
Retro-Reflective Photocell
Close Beam
(Monitored)
Wall
Open Beam
(Monitored)
Wall
Open Beam
(Monitored)
IMPORTANT: Monitored Photo and
Edge sensors must be end-of-line
resistive types. See specific
manufacturer's wiring manual for
more information.
A If the distance between an entrapment or
obstruction exists less than 16” from the
OPEN gate, then entrapment protection is
REQUIRED for this area.
A
A
Retro-Reflective
Photocell
See manufacturer’s manual
to “LEARN” open photocells.
MIM-62 Back
Retro-Reflective
Photocell
Power
INPUT (-)
INPUT (+)
OUT A
PWR (-)
INPUT/OUTPUT
ASSIGNMENTS
ON
P
R
1 2 3 4 5 6
POWER
WIRING DIAGRAM
COM
P/N.C.
10K
COM
P/N.C.
10K
PWR (+)
OUT B
Set 3 to
“B Output”
ON
1 2
A
B
OUT A
OUT B
OUTPUT
TYPE
X X 3 4 5 6
Set to
“P” Pulse
LEARN
Model # MIM-62 Class 2 Device
Power
Use a 24 VDC power transformer
(not supplied) or (U.L. listed
equivalent) to power the MIM-62.
(P/N 1812-136)
IMPORTANT: All inputs must
use power from MIM-62.
75 mA maximum per channel.
Output B (P/N.C.) IN3
Output B Output A
IN1
6 5 4 3
Com
Input
Pwr-
Pwr+
24 VDC
Com
5
Input
4
4
Pwr-
3
IN2
2
1477-010
Pwr+
1
SW1 ON
MillerEdge
1 2 3 4
ON SW2
2
SW1
1 2 3 4 5 6 7 8
ON
FIRE
2 1
P2
EXIT
LOOP
1 2 3 4
CB
CE
G
G
REV SENSE
PRIMARY
NC NO
IN4
IN5
10K
COM
P/N.C.
Output A (P/N.C.)
IN1 and IN2
10K
Pwr+
Pwr-
Com
Input
Pwr+
Pwr-
Com
Input
Pwr+
Pwr-
Com
Input
7
CB
Pwr+
6500-065-N-5-20
OB
Pwr-
Flashing LED:
Device NOT
connected.
Not
appropriate
device.
1
2
3
4
5
6
Com
LED ON:
device has
been
activated.
Input
UL 325 Terminal
1477-010
LED Notes: SW1 ON
LED OFF:
Set 1 & 2 “ON”
appropriate
1 2 3 4
device is
connected.
P/N.C.
POWER
IN6
20
4405-018
COM
IN3
REVERSE
LOOP
8
20 19 18 17 16 15 14 13 12 11 10 9
OE
REV SENSE
SECONDARY
8
6
OB 7
TIME
DELAY
MIM-62
Multi-Input Module
POWER
MIM-62 Front
Power
Power 24VDC
Open Beam
Close Beam
ONLY connect monitored devices.
OE UL 325 DIP-Switches
DIP-switches MUST be turned ON
CE for each device wired to terminal.
G
G
30
• Loop detector wiring is shown for DoorKing
plug-in loop detectors. If other loop detectors are
used, refer to the installation instructions supplied
with those detectors for wiring instructions.
• If other detectors are used, use a separate power
supply to power these detectors.
• Loop layout shown is for a typical swing gate
application with two-way traffic, or one-way exit
only traffic.
DoorKing offers a free “Loop and
Loop-Detectors Information
Manual” PDF located at
DoorKing’s web site for more
information. www.doorking.com
4.5 Loop Detector Wiring
To help protect the operator from accidentally closing on vehicles
in the gate’s path, DoorKing highly recommends that loops and
loop detectors be installed. Loops are laid underneath, cut into
asphalt or concrete driveways or buried beneath gravel and earth
driveways. A loop detection system will sense a vehicle like a
metal detector and send a signal to the gate operator preventing
the gate from automatically opening or closing on a vehicle
when it is in the gate’s path. DoorKing recommends that a
licensed installer perform this work.
se
ver
e
R
w
do
a
Sh
Automatic Exit Loop
ate e.
d g renc
i
o
av rfe
. to t inte
n
i
t. m en
se
4 F ovem
m
ver
e
ers
ev
dr
Re
voi ce.
a
to n
in. erfere
m
t
.
t
4 F oop in
l
Automatically opens the gate for exiting
vehicles without having to use a transmitter or
keypad. The exit loop can be placed a minimum of 4
feet away from the reverse loop or far enough away from
the gate so the gate has started opening or even completely
opened by the time you drive up to it (Free exit).
xit
E
tic
ma
to
Au
P2
main gates in the Full Open Position when
a vehicle is on the shadow loop. However,
it WILL NOT stop or reverse the main
gates once they start to close.
EXIT
LOOP
2
SW1
1 2 3 4 5 6 7 8
FIRE
Exit Loop Port
ON
Shadow Loop will ONLY HOLD the
1
2
1 2 3 4
Shadow loop lead in wires are
twisted approx. 6 twists per foot.
LOOP 2
DoorKing Plug-In
Single Channel
Loop Detector
9410
POWER
NC
ON SW2
Shadow Loop Note:
Circuit board relay
MUST be used and
set to
NO
N.O.
3
4
4
SW1 ON
1477-010
5
1 2 3 4
TIME
DELAY
6
OB 7
CB
OE
CE
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
6
7
8
9
SW 1
Relay 10
Relay 11
NC NO
O
Reverse Loops are placed on
12
each side of the gate to prevent the gate
from closing on a vehicle in the gate’s
path. They will stop or reverse the
cycling of the gate while a vehicle is in
or near the gate’s pathway.
REVERSE
LOOP
13
14
15
16
17
18
19
Reverse Loop Port
Shadow Loop
Output
Reverse loop lead in wires
are twisted approx. 6 twists
per foot and are wired in
series.
LOOP 1
8
2
3
4
5
Jumper
Relay Note:
SW 1, switches 7
1
and 8 must be OFF.
ON
Jumper Note:
SW 1, switch 5 OFF.
1 2 3 4 5 6 7 8
Automatic exit loop lead in wires
are twisted approx. 6 twists per
foot.
LOOP 1
DoorKing Plug-In
Dual Channel
Loop Detector
9409
20
4405-018
20
Com
N.O.
6500-065-N-5-20
31
SECTION 5 - OPERATING INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object
activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to
adjust and retest the gate operator properly can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving and power has been shut-off.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate
hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS.
5.1 Power and Reset Switch
Unlock the power switch cover and open to access the MAIN POWER and the operator RESET switch.
RESET
AC
POWER
Reset Switch - Used to turn off the
entrapment alarm and to reset the
operator after a hard shutdown has
occurred.
Alarm Siren
AC Power Switch - Powers the operator
ON (toggle up) or OFF (toggle down).
OFF
32
6500-065-N-5-20
5.2 Shutdown Conditions
Under various entrapment conditions the operator will assume either a soft or hard (alarm) shutdown. To determine what
type of reset action is required, you will need to understand how the different entrapment conditions affect the gate
operator.
Soft Shutdown
This occurs in various situations where the inherent or entrapment protection devices have been activated. In a soft
shutdown condition, the operator will not respond to any input that was present when the entrapment protection
device sensed an obstruction. If the gate stops at the open position, the operator will not respond to the automatic
close timer.
• Example 1 - A time clock keys the gate open in the morning and an entrapment protection device senses
an obstruction prior to the gate reaching the full open position. If the entrapment is sensed by the inherent
system, the gate will reverse and run back to the closed position. The time clock input is still present, but
the gate will not re-open.
NOTE: In some systems, the time clock input comes from the telephone entry system relay. This same relay may also
provide open commands for a card reader, MicroPLUS transmitters and the visitor telephone entry. If so, these devices
will also be disabled in a soft shutdown condition.
• Example 2 - If the gate is closing and an entrapment protection device is activated, the gate will either stop
or reverse and run back to the open position, depending upon if the secondary or inherent device was
activated. The automatic close timer will not close the gate.
• Example 3 - Vehicle arrives at open loop and gate runs towards the open position. The inherent entrapment
protection is activated. The gate reverses and runs back to the closed position. If the vehicle is still present
at the open loop a soft shutdown condition does not occur. The loop input provides an immediate reset of
the operator and the gate will again run to the open position.
Resetting a Soft Shutdown
In some conditions, a soft shutdown will reset as soon as the entrapment condition clears. For example, if a
non-contact sensor (photo sensor) is sensing an obstruction, the operator will stop the gate and assume a soft
shutdown condition. When the photocell clears, the operator will return to normal operation.
When the operator is in a soft shutdown, activation of any "intended input" will reset the operator. An "intended
input" includes any command, any standard safety input and any loop input. Activating any of these inputs will reset
the gate. At that point the gate will return to normal operation. If the gate is open, the automatic close timer will
then time out and close the gate.
Hard Shutdown (Alarm Activated)
A hard shutdown condition occurs when the inherent entrapment protection system has sensed TWO consecutive
obstructions before the gate reaches the full open or closed position.
• Example - The gate is closing and the inherent entrapment protection system senses an obstruction and
causes the gate to reverse direction. As the gate begins to run in the open direction, a second obstruction
is sensed prior to the gate reaching the full open position. Once the second obstruction has been sensed,
the operator will stop, the audio alarm will be activated and all standard inputs are shut down (including
open commands, safety commands, loop inputs, etc.).
The audio alarm will sound for five minutes, or until the operator’s reset button is pushed. After (5) five minutes the
alarm will “chirp every 5 sec.” and the hard shutdown condition will remain in affect until the reset button is pushed.
• After 5 minutes, the audio alarm will “chirp” every 5 seconds. This indicates that the operator is in a hard
shutdown condition and the reset switch must be activated to reset the operator and silence the alarm.
Continued on the next page
6500-065-N-5-20
33
Resetting a Hard Shutdown
When the operator is in a hard shutdown condition (audio alarm activated or audio alarm “chirps” every 5 seconds),
the only way to reset the gate operator and return it to normal operation is to activate the alarm reset input
(auxiliary terminals 2 and 3). An alarm-reset switch can be mounted external of the gate operator provided that it is
installed in the line of sight of the gate and gate operator.
• Before resetting a hard shutdown, determine why the shutdown occurred. Inspect the gate for any
obstructions along its path that could have activated the inherent entrapment sensing system. Inspect
the gate and gate hardware.
NOTE: DoorKing operators have a built-in alarm reset push button mounted on the operator above the power
ON-OFF toggle switch. Activating this button will return the gate operator to normal operation, but will not activate
the gate operator.
Once the gate has been reset, an open or close command is needed to start the gate operator. Most activating
commands will cause the gate operator to cycle to the open position. This includes activation of a key switch or
open command and activation of the automatic exit loop. Activation of a close command will run the gate to the
closed position.
5.3 Manual Gate Operation
This operator is equipped with a manual release system that will allow the gate to be pushed open in the event of a power
outage or equipment failure. NEVER remove the hub from the operator after manually releasing it.
This gate operator CAN NOT be manually forced open in the event of a
power failure without FIRST manually releasing the gate! (See next page)
Never attempt to manually push open any gate with an operator attached
to it until you have verified that power to the operator has been shut-off.
Emergency Vehicle Access Conditions
The automatic vehicular gate system must be designed to allow access to emergency vehicles under different operating
conditions.
1. During normal powered operation, emergency vehicles access the gate by use of the Emergency Vehicle
Access Device installed on your gate system. The type of device that is used in your community is dependent
on your city codes. These devices may include (but are not limited to) Fire Department lock boxes, Click-2Enter radio receivers, strobe light sensors, siren sensors, etc.
2. In the event of a primary (AC) power failure, the system must have a release system to allow the gate to
be Manually Operated (See next page).
34
6500-065-N-5-20
Manual Release
A Unlock the cover and
rotate sliding door.
Never attempt to manually push open
any gate with an operator attached to
it until you have verified that power to
the operator has been shut-off.
B Remove release tool and
place where shown.
C Release hub.
Gate can now be
manually operated.
CAUTION
DO NOT REMOVE HUB!
6500-065-N-5-20
35
SECTION 6 - MAINTENANCE AND TROUBLESHOOTING
Inspection and service of this gate operator by a qualified technician should be performed anytime a malfunction is observed or
suspected. High cycle usage may require more frequent service checks.
6.1 Maintenance
When servicing the gate operator, always check any external reversing devices (loops, photo eyes, etc.) for proper operation. If
external reversing devices cannot be made operable, do not place this operator in service until the malfunction can be identified
and corrected.
Always check the entrapment protection devices (external and internal) when performing any maintenance. If any of these
devices cannot be made operable, remove this operator from service until the cause of the malfunction is identified and
corrected. Keeping this operator in service when any entrapment protection devices are malfunctioning creates a hazard
for persons which can result in serious injury or death should they become entrapped in the gate.
When servicing this gate operator, always turn power OFF!!
If gearbox requires oil, use only Mobil SYNTHETIC SHC-629 Oil. Do not completely fill gearbox with oil. Gearbox should
be half full only. Do not exceed this level.
Operator
Component
Warning Signs
Check that warning signs are on BOTH sides of the gate area.
Alarm
Activate the inherent reverse system by blocking the gate with a
solid object. When the gate reverses, block the gate in the
opposite direction prior to the limit being reached. The entrapment alarm should activate. Press the reset button to silence the
alarm.
Arms
Check set screws and nuts. Check bushings for wear.
Drive Belt
Check for alignment, tightness and wear.
Fire Dept.
Check emergency vehicle access device for proper operation.
Gate
Inspect for damage. Check gate hinges for wear and grease if
necessary.
Inherent Reverse System
Check that the gate reverses on contact with an object in both
the opening and closing cycles. See page 47.
Adjust the reversing sensor if necessary.
Loop(s)
Check vehicular reverse and shadow loops for proper operation.
Manual Release
Check manual release for proper operation. See page 46.
External Reverse Device
Check external reverse device(s) stop or reverse the gate when
activated. See page 47.
Complete check of gate and gate operating system.
Complete System
36
Monthly Interval
Maintenance
1
✓
6
12
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
6500-065-N-5-20
6.2 Troubleshooting
Have a good VOM meter to check voltages and continuity. A Meg-Ohm meter capable of checking up to 500 meg-ohms of
resistance is necessary to properly check the integrity of the ground loops. When a malfunction occurs, isolate the problem to
one of three areas: 1) the operator, 2) the loop system, 3) the keying devices. Use caution when checking high voltage areas:
terminals 17 through 20, the motor capacitor and the motor.
1. Check the input indicator LEDs. They should only come ON when a keying device (card reader, push button, etc.) is
activated. If any of the input LEDs are ON continuously, this will cause the gate operator to hold open. Disconnect the
keying devices one at a time until the LED goes OFF.
2. Check any external entrapment protection devices. Any short or malfunction in these devices can cause the gate
operator to stop or to hold open.
3. A malfunction in a loop or loop detector can cause the gate operator to hold open, or to not detect a vehicle when it is
present over the loop. The LEDs next to the loop detector ports on the operator circuit board will light only when the
loop has detected an object above it. If the LEDs stays on after the object has gone, then the loop detector has malfunctioned. Pull the loop detector circuit boards from the loop ports on the operator circuit board. If the malfunction
persists, the problem is not with the loop system. For more information on trouble shooting loops and loop detectors,
refer to your loop detector instruction sheet and to the DoorKing Loop and Loop Detector Information Manual.
4. Check to be sure that there are no shorted or open control wires from the keying devices to the gate operator. If a
keying device fails to open the gate, momentarily jumper across terminals 1 and 2 (or 1 and 5) on the gate operator
circuit board. If the gate operator starts, this indicates that a problem exist with the keying device and is not with the
gate operator.
5. Check the high voltage supply. A voltage drop on the supply line (usually caused by using too small supply voltage
wires) will cause the operator to malfunction. Refer to the wire size chart in section 2.1 page 18.
Symptom
Possible Solution(s)
Operator will not run.
Power LED is OFF.
• Check that power to the operator is turned ON.
• Transformer may be overheated. Turn power off and allow board to cool for several minutes then retest.
Check for low 115 VAC power and low voltage shorts.
• Check for 115 VAC at terminals 19 and 20. If voltage measures OK, check the terminal strip or replace the
circuit board.
Operator will not run.
Power LED is ON.
• Insure that a minimum of one (1) external entrapment protection device is connected in EACH entrapment
area and the inputs are connected and enabled (UL 325 DIP-switches are turned ON).
• Push test button or momentarily jumper terminal 1 to terminal 2 (or 1 to 5). If the input LED does not come
ON, check the terminal strip or replace the circuit board. If LED does come ON, proceed to next steps.
• Check Motor:
- Remove circuit board. With power ON, momentarily jumper terminal 19 to terminal 18 with a 14 AWG
insulated jumper wire. CAUTION – HIGH VOLTAGE. The motor should run.
- With power ON, momentarily jumper terminal 19 to terminal 17 with a 14 AWG insulated jumper wire.
CAUTION – HIGH VOLTAGE. The motor should run in the opposite direction of the above step.
- If the motor runs in both steps above, replace the control board. If the motor does not run, or runs in
only one direction, problem can be a bad motor, motor capacitor, wire connections from the control
board to the motor or a bad control board.
Secondary operator
motor will not run.
• Check that SW-1, switch 6 is ON.
• Remove circuit board. Momentarily jumper terminal 19 to the primary/secondary connection terminal block
terminal 1, then to terminal 2 with a 14 AWG insulated jumper wire. CAUTION – HIGH VOLTAGE.
The secondary motor should run one way, then the other way as power is applied to each terminal.
• If the secondary motor runs in both directions, replace the control board. If secondary motor does not run, or
runs in only one direction, problem can be in the wiring from the primary to secondary operator,
bad secondary motor or motor capacitor.
6500-065-N-5-20
37
Symptom
38
Possible Solution(s)
Operator will not run,
entrapment protection
input(s) LED is ON.
• The entrapment protection device has a fault or the wiring to it is shorted.
Operator will not run,
entrapment protection
input(s) LED is
Blinking.
• The entrapment protection device is not connected or the wiring to it is open.
Gate will not reverse
when an obstruction
is encountered.
• Check ERD setting.
• Make sure operator hub does not slip when gate encounters an obstruction.
Gate opens a short
distance, then stops
and reverses.
• Check the reversing sensitivity.
• Disconnect gate from the gate operator and check that the gate swings freely without any binding.
• Continue troubleshooting or replace the circuit board.
Gate opens but will
not close.
• Check the input LEDs. Any ON will hold the gate open and indicates a problem with a keying device.
• Check the secondary safety devices. Any activated will hold the gate open and indicates a problem with the
safety device.
• Check the loop detectors. Any activated can hold the gate open and indicates a problem with the loop detector
or ground loop.
• Operator may be in a “soft shutdown.” Activate any keying device to determine if operator returns to normal
operation.
• If automatic close is desired, be sure SW-1, switch 4 is ON.
• Check motor as described on previous page.
Gate closes but will
not open.
• Operator may be in a “soft shutdown.” Check input LEDs. If any are ON, momentarily disconnect, then
re-connect the wire going to the respective terminal. Operator should open.
• Check to be sure that the operator is running in the proper direction. Turn power OFF, and then back ON.
Activate a keying device. Operator should run in the open direction. If operator runs in the close direction,
turn power OFF and change direction switch SW-1, switches 1 and/or 2. Go to above section if operator now
opens but will not close.
• Be sure that the respective LED on the control board lights when the keying device connected to the respective
terminal is activated. If LED does not light, momentarily place a jumper wire from terminal 1 to the input
terminal being checked. If LED lights and gate opens, problem is with the keying device. If LED does not light,
replace control board.
• Check motor as described on previous page.
Gate starts to close,
then reverses to open.
•
•
•
•
Gate closes and then
re-opens.
• Check for any input or loop detector LEDs that are ON.
• Check that operator is running in the proper direction (see “Gate closes but will not open” above).
Alarm sounds for 5
minutes and then
beeps once every 5
seconds. Operator
will not run.
• Operator is in a “hard shutdown” condition. Reset switch must be activated to return operator to normal
operation.
Operator has intermittent functionality
problems that vary.
• The main terminal #3 250 mA power has been exceeded. Check total amp draw of connected device(s).
Check that the reverse sensitivity is properly adjusted.
Disconnect the gate from the operator and check that the gate operates freely without any binding.
Check the loop detector LEDs and input LEDs. Any that flash ON will cause the gate to reverse.
If a shadow loop is used, check for proper wiring. A mis-wired shadow loop detector will cause the gate to
reverse.
• Continue troubleshooting or replace the circuit board.
6500-065-N-5-20
6.3 Built-in Diagnostics
This gate operator is designed with built-in diagnostics that will alert you to potential or existing problems that the microprocessor has detected. Specific fault conditions are checked and the operator will signal that a fault exist through the built-in alarm.
Constant tone is heard when power is applied: This indicates that the limit switch wire harness is not connected to the circuit
board. In this condition, the operator will not run and the tone will continue until the fault is corrected. Check to be sure that
the limit switch plug is properly inserted into P2.
Constant tone is heard: This indicates that the operator is in a hard shutdown condition. The tone will continue to sound for
five minutes, and then will beep once every five seconds. The operator-reset button must be pressed or power must be
removed and then reapplied to return the operator to normal operation.
Short tone is heard every five seconds: This indicates that the operator has been in a hard shutdown condition in excess of five
minutes. This will continue until the operator-reset button is pressed or until power is removed from the operator.
Operator runs for 1 second and stops, two short tones are heard: This indicates that there may be a fault with the current
sensor circuit. Check that the black current sensor wire has been passed through the hole in the current sensor donut with the
correct number of loops (1/2 HP motor - 2 loops, 1 HP motor - 1 loop).
6500-065-N-5-20
39
6.4 Accessory Items
UL 325 Monitored Entrapment Protection Devices available for the model 6500 swing gate operator.
Type B2 Contact Sensors (Reversing Edge)
DoorKing 8080 Series Sensing Edges
Miller Edge Sensing Edges - all models with a T2 (resistive) termination.
Miller Edge wireless monitored transmitter/receiver kit model RB-G-K10
ASO GMBH Sentir GF Series sensing edges
Type B1 Non-contact Sensors (Photo Cell)
DoorKing Model 8080-057 Retro-Reflective Photocell
Miller Edge Reflective-Guard Model RG
Miller Edge Prime-Guard Model PG
EMX Industries Model IRB-MON
EMX Industries Model IRB-RET
Omron Model E3K-R10K4
Seco-Larm Model E-936-S45RRGQ
Seco-Larm Model E-960-D90GQ
Monitored Expansion Kit
Miller Edge Multi-Input Module Model MIM-62
Accessory items available for the model 6500 swing gate operator.
Plug-In Loop Detector - Detectors plug directly into ports on circuit board simplifying wiring.
Single channel detector - P/N 9410-010
Dual channel detector - P/N 9409-010
Single channel detector with aux relay - P/N 9411-010
Single channel low power draw detector - P/N 9416-010
Dual channel low power draw detector - P/N 9415-010
External Loop Detector
Reno A&E 12/24 VDC or 24 VAC - 9402-045
Reno A&E 120 VAC - 9402-047
Carlo Gavazzi 24 VAC/VDC - 9402-044
Diablo 10-30 VAC/VDC low power draw - 9402-050
Magnetic Lock - Magnetic Gate Lock Kit provides an excellent means to secure swing gates and is a fail-safe device allowing emergency
vehicle access upon power outage.
P/N 1216-080 and P/N 1216-081
115 VAC Heater and Fan Assembly - Cold weather climates where temperatures drop below 40°F (4°C). P/N 6500-480
Interconnection Cable - Interconnect wire cable contains all the necessary wires to interconnect primary / secondary operators.
Cable length 30 feet. P/N 2600-755
Cable length 40 feet. P/N 2600-756
Cable length 50 feet. P/N 2600-757
High Voltage Kit - Alter the input AC voltage on a 115 VAC 6500 to 208, 230, 460 or 575 VAC. P/N 2600-266
Time Clock - 7 day time clock can be used to automatically open gate at pre-set time and days. Compact clock fits inside the operator.
P/N 2600-791 - 7 day clock
Torsion Rods - Torsion rod assembly is used on uphill swing gates for counter balance.
P/N 1203-084
Hinges - Heavy-duty ball bearing hinges provide easy swing gate operation.
P/N 1200-009, P/N 1200-019, P/N 1200-039.
Surge Devices - High and low voltage surge suppressors help prevent circuit board failure caused by lightning strikes and power surges.
P/N 1879-010 - High Voltage
P/N 1878-010 - Low Voltage
Speed Bumps - Prefabricated six-foot speed bump reduces traffic speed through gate system. P/N 1610-150
40
6500-065-N-5-20
6.5 Gearbox Shaft Extension Replacement
Hub Assembly Remove the TWO bolts to remove
Crank Arm
Crank Arm Only P/N 6500-255
Control Arm Only P/N 2600-714
Elbow Assy ONLY P/N 2600-720
Complete Arm Kit P/N 6500-430
hub assembly from hub extension shaft.
Magnet
Assy
P/N 6500-420
Brass Bushings P/N 6500-145
Hub Extension Shaft Assembly P/N 6500-162
Snap Ring Channel
Limit Sensor Assemblies Loosen set
screws on plastic limit assemblies to
remove them. Be CAREFUL not to
P/N 6600-030
Open Bracket
damage limit sensor wires after the
EN
assemblies have been removed.
OP
Note: Close Limit Sensor must be
reinstalled on TOP of Open Limit Sensor.
Limit Sensor P/N 1601-263
CL
OS
P/N 6600-032
Close Bracket
E
Limit Sensor P/N 1601-261
Limit Sensors
Limit Sensors Collar P/N 6500-117
Remove the FOUR bolts to remove collar.
Brass Bushing P/N 6500-138
Bushing Lock Plate P/N 6500-123
P/N 2630-007 Snap Ring
Removing snap ring will release hub extension shaft.
Stainless Steel Washer P/N 2620-075
P
U
S
H
te TO
ch
ni O
ci P
an E
R
us AT
e
E
on
ly
Gearbox P/N 2600-719
6500-065-N-5-20
41
Model 6500 1/2 HP 115 VAC
Magnetic
Close
Sensor
Magnetic
Open
Sensor
Remote
Terminal
White
Yellow
Gray
Red
Brown
Gray
50uf Capacitor
Orange
Orange
1/2 HP
Blue
Gray
Orange
Yellow
White Loops
Red
Blue
P2
2
3
4
5
2
SW1
1 2 3 4 5 6 7 8
EXIT
LOOP
1
2
3
1 2 3 4
ON SW2
4
4
1477-010
SW1 ON
Yellow
Reset
5
6
OB 7
TIME
DELAY
CB
OE
White
6
7
8
9
1 2 3 4
POWER
Ground
White
1
ON
FIRE
8
CE
Red
Alarm
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
2 Loops
Current Sensor
REVERSE
LOOP
4405-018
10
11
12
13
14
15
16
17
18
19
20
Red
Black
Power
Push to Operate
Neutral
Power
NEU HOT
Chassis
Ground
Secondary
Current
Sensor
115 VAC
Gray
Orange
Yellow
White
Blue
2 Loops
Red
Ground
Purple
Brown
Secondary Interface Terminal
115 VAC
Convenience Open
Outlets
AC Power
42
6500-065-N-5-20
Model 6500 1 HP 115 VAC
Magnetic
Close
Sensor
Magnetic
Open
Sensor
Remote
Terminal
Gray
Yellow
Gray
1 HP
White
Brown
Orange
Red
Orange
Blue
Gray
White
Orange
Yellow
Ground
White Loops
P2
2
3
4
5
2
SW1
1 2 3 4 5 6 7 8
EXIT
LOOP
1
ON
FIRE
1
2
3
1 2 3 4
ON SW2
4
4
1477-010
SW1 ON
Reset
5
6
OB 7
TIME
DELAY
CB
OE
White
6
7
8
9
1 2 3 4
POWER
Yellow
8
CE
Red
Alarm
G
G
REV SENSE
SECONDARY
REV SENSE
PRIMARY
NC NO
2 Loops
Current Sensor
REVERSE
LOOP
4405-018
10
11
12
13
14
15
16
17
18
19
20
Red
Black
Power
Push to Operate
Neutral
Power
NEU HOT
Chassis
Ground
Secondary
Current
Sensor
115 VAC
Gray
Orange
Yellow
White
Blue
1 Loop
Red
Ground
Purple
Brown
Secondary Interface Terminal
115 VAC
Convenience Open
Outlets
AC Power
6500-065-N-5-20
43
Model 6500 1/2 HP Secondary Operator
1/2 HP
Red
50uf Capacitor
Magnetic
Close
Sensor
Magnetic
Open
Sensor
Yellow
Orange
Blue
Red
Blue
Gray
White
Blue
White
Red
Ground
Secondary Operator
Configuration
NO circuit Board
NO convenience outlets
Model 6500 1 HP Secondary Operator
1 HP
Magnetic
Open
Sensor
Yellow
Orange
Magnetic
Close
Sensor
Red
Blue
White
44
Gray
White
Blue
Red
Ground
6500-065-N-5-20
SECTION 7 - OWNER OF THE GATE OPERATOR
7.1 Alarm Sounding and Gate WILL NOT Operate
Note: The owner of the gate
operator is responsible for
the KEY availability.
A KEY has been supplied that will
unlock the power switch cover on
this gate operator.
When alarm is sounding . .
ALWAYS CHECK GATE AREA FOR ANY OBSTRUCTIONS FIRST.
If the cause of the alarm cannot be corrected, shut-off power and
DO NOT place this operator back into service until the malfunction
can be identified and CORRECTED.
IMPORTANT: Putting this gate operator back into service without
CORRECTING the cause of the alarm could result in serious injury
or DEATH!
r
we
Po itch
Swver
Co
RESET BUTTON
RESET
AC
POWER
UNLOCK the power switch
cover with KEY and press
RESET BUTTON.
This will reset the gate
operator and allow normal
gate operation again.
OFF
Gate Operator is in a Hard Shutdown Condition when Alarm is Sounding
This occurs when:
1. The inherent entrapment protection system (Type A) gets activated TWO consecutive times before the gate completes
the open or close cycle.
2. The reversing edge contact sensor (Type B2) gets activated and reverses but before the gate completes the reverse
cycle the inherent entrapment protection system (Type A) gets activated.
The audio alarm will sound for five minutes, or until the operator’s reset button is pushed. After (5) five minutes the
alarm will “chirp every 5 sec.” and the hard shutdown condition will remain in affect until the reset button is pushed.
Please read SECTION 5 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
6500-065-N-5-20
45
7.2 Manual Gate Operation
Caution:
NEVER attempt to manually
operate the gate until you have VERIFIED
that power to the gate operator has been
SHUT-OFF!
A KEY has been supplied that will
unlock the cover and power switch
cover on this gate operator.
Note: The owner of the gate operator
is responsible for the KEY availability.
A Unlock the cover and
rotate sliding door.
r
we
Po itch
Swver
Co
B Remove release tool
and place where
shown.
C Release hub.
Gate can now be
manually operated.
CAUTION
DO NOT REMOVE HUB!
Please read SECTION 5 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
46
6500-065-N-5-20
7.3 Gate Operator’s Monthly Checkup
Caution:
Make SURE gate area is clear BEFORE testing the gate operator!
DO NOT repair or adjust gate systems yourself. Contact a trained gate systems technician with any questions
or to make any repairs or adjustments. If you feel uncomfortable performing any of these inspections or testing,
a qualified service technician will perform the visual inspections and testing for you.
You can find a trained service technician at DoorKing’s “Dealer Locator” at www.doorking.com
Visual Inspection
Visually inspect the rollers, fasteners, brackets and other gate hardware for proper alignment, proper tightness, and signs of
damage, breakage, looseness, rust or wear. Moving parts should be lubricated and should not be squeaking.
Visually inspect wiring for fraying or exposure. If a malfunction is found, contact a trained service technician to make
adjustments or repairs.
Test Built-In Reversing Sensor
Begin with the gate in the fully OPEN position. Stand just outside the path of the gate and close the gate (typically auto-timer
will time-out and close gate automatically). As the gate is closing, firmly press a solid object against the end of the gate
frame in the direction opposing the travel of the gate. The gate should stop within 2 sec. and reverse to the OPEN position.
Another input command is needed before the gate will reset and close again. Repeat this test while opening the gate. Start
from the fully CLOSED position. While opening, gate should stop and reverse to the CLOSE position. If gate does NOT
respond like it should in either direction of gate travel, contact a trained service technician to make adjustments or repairs.
Test Photo Sensors
If the gate has a photo sensing device protecting the path of a closing gate, perform the following test. Begin with the gate in
the fully OPEN position. Stand just outside the path of the gate and close the gate (typically auto-timer will time-out and close
gate automatically). Pass an object across the path of the closing photo sensing beam. The gate should stop within 2 sec.
and reverse to the OPEN position. Typically the auto-timer times out and gate closes again.
If the gate has a photo sensing device protecting the path of a opening gate, start from the fully CLOSED position. OPEN
gate. Pass an object across the path of the opening photo sensing beam. The gate should stop, the gate will resume opening
when the beam is clear. If gate does NOT respond like it should in either direction of gate travel, contact a trained service
technician to make adjustments or repairs.
Test Reversing Edges
If the gate has a reversing edge(s) protecting the path of a closing gate, perform the following test. Begin with the gate in the
fully OPEN position. Stand just outside the path of the gate and close the gate. As the gate is closing, firmly press a solid
object against the reversing edge in the direction opposing the travel of the gate. The gate should stop within 2 sec. and
reverse to the OPEN position (typically auto-timer will time-out and close gate automatically). If the gate encounters another
obstruction before it is closed, the gate will stop and reverse to the OPEN position again. A input command is needed before
the gate will reset and close again, auto-timer will NOT close gate (Typically, press your remote button for input command).
If the gate has a reversing edge(s) protecting the path of a opening gate, starting from the fully CLOSED position.
Stand just outside the path of the gate and open the gate. OPEN gate. As the gate is opening, firmly press a solid object
against the reversing edge in the direction opposing the travel of the gate. gate should stop and reverse to the CLOSE
position. If gate does NOT respond like it should in either direction of gate travel, contact a trained service technician to make
adjustments or repairs.
Note: This gate operator uses high levels of force to move the gate and most people underestimate the power of these
systems and do not realize the potential hazards associated with this system if NOT maintained properly.
Scheduled maintenance visits are offered by most qualified service technicians to MAINTAIN your gate operator system.
6500-065-N-5-20
47
7.4 New Installation Checklist for Installer and Property Owner
Instructions: Check the space next to each item (“✓”) to indicate that it has been addressed by installer AND property owner.
If it is not applicable, enter N/A. Please note that the checklist is intended to be a summary of many important automated
vehicular gate aspects, But may not inclusively identify all potential hazards of every specific gate system installation.
Each item listed and checked has been examined by the Installer and is CLEARLY understood by the Property Owner.
Installer
Property
Owner
Description
The operator is installed on a gate used for vehicles only. Verify that separate pedestrian access is provided or
available, and the access is such that pedestrians cannot come in contact with the moving vehicular access gate
during its entire length of travel.
Gate/Hardware: Insure that there is a means to prevent the gate from falling over in the event of a roller or hinge
failure. Insure the gate has physical limit stops and that gravity will not initiate motion of the gate. Insure that all
rollers are guarded or covered to eliminate the possibility of a finger being inserted between the roller and gate.
Slide Gate: Insure that the maximum opening in the gate and in that portion of the adjacent fence that the gate
covers when the gate is in the open position is such that a 2 ¼" sphere cannot pass through the openings up to 72
inches above the ground or to the top of the gate, whichever is less. If the gate and adjacent fence do not meet this
requirement, wire mesh (or other means) must be added to meet this requirement before placing the gate system in
operation.
Insure that any gaps between the slide gate and stationary posts/pilasters is less than 2 1/4" and that these areas are
protected with an entrapment protection device.
The gate operator system is in compliance with the entrapment protection requirements of UL 325. Identify all
potential entrapment zones and ensure they are protected. Potential pinch areas have been guarded so as to be
inaccessible OR have a contact (reverse edge) and/or non-contact (photocell) obstruction sensing devices installed.
Verify that the system has in place external entrapment protection, independent from the inherent entrapment
protection. Edge sensors or photocells are typical, other means are possible. For more information see your
specific installation/owners manual for entrapment protection installation and locations.
The installer has properly adjusted the inherent entrapment protection feature on the gate operator, and has tested
the gate to make sure that the gate stops and reverses a short distance upon striking an immovable object.
Check that placement of user operational controls are six (6) or more feet away from the gate. If any operational
control is closer than six (6) feet to the gate, DO NOT place the automated vehicular gate into service.
Warning signs have been installed so that they are visible from each side of the gate - whether the gate is open or
closed.
The installer has instructed the property owner in the proper use of the gate operator and has reviewed the
operational functions, obstruction-sensing devices, alarm, and reset as outlined in your specific installation/owners
manual.
The installer has instructed the property owner in the proper use of the operator's manual release feature as
outlined in your specific installation/owners manual.
The installer has reviewed all safety instructions with the property owner, including the need to never let children
operate or play with gate controls, to keep the remote control away from children, and to always keep people and
objects away from the gate.
The installer has explained to the property owner that a regular maintenance schedule for both the gate and the gate
operator is recommended, including regular testing of entrapment protection as outlined in the manufacturer's
instructions.
The installer has left the installation/owners manual with the property owner for future reference.
48
6500-065-N-5-20
Alarm Sounding and Gate WILL NOT Operate
To obtain key to unlock
gate operator contact:
Name
Phone #
UNLOCK the power switch
cover with KEY and press
RESET BUTTON.
This will reset the gate
operator and allow normal
gate operation again.
RESET BUTTON
IMPORTANT: Putting this gate operator back into service without
CORRECTING the cause of the alarm could result in serious injury
or DEATH!
If the cause of the alarm cannot be corrected, shut-off power and
DO NOT place this operator back into service until the malfunction
can be identified and CORRECTED.
ALWAYS CHECK GATE AREA FOR ANY OBSTRUCTIONS FIRST.
A KEY has been
supplied that will
unlock the power
switch cover on
this gate operator.
When alarm is sounding . .
r
weehr
Pooiw
tc h
SSPwwvietcrr
CCoove
RESET
AC
POWER
OFF
Gate Operator is in a Hard Shutdown Condition when Alarm is Sounding
This occurs when:
1. The inherent entrapment protection system (Type A) gets activated TWO consecutive times before the gate completes
the open or close cycle.
2. The reversing edge contact sensor (Type B2) gets activated and reverses but before the gate completes the reverse
cycle the inherent entrapment protection system (Type A) gets activated.
The audio alarm will sound for five minutes, or until the operator’s reset button is pushed. After (5) five minutes the
alarm will “chirp every 5 sec.” and the hard shutdown condition will remain in affect until the reset button is pushed.
Manual Gate Operation
NEVER attempt to manually operate the gate until you have VERIFIED
that power to the gate operator has been SHUT-OFF!
Caution:
A KEY has been supplied
that will unlock the cover
and power switch cover
on this gate operator.
To obtain key to unlock
gate operator contact:
Name
Phone #
rotate sliding door.
A Unlock the cover and
and place where shown.
B Remove release tool
C Release hub.
Gate can now be
manually operated.
r
we
Po itch
Swver
Co
Please read SECTION 5 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
CAUTION
DO NOT REMOVE HUB!
www.doorking.com to get a PDF of this manual - Remove this page OR print this page in color, fold and laminate - Place at the gate operator
Please read SECTION 5 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
49
6500-065-N-5-20
Installation/Owner’s Manual
Series 6500
Vehicular Swing Gate Operator
Use this manual for circuit board 4405-018 Revision A or higher.
6500-065-N-5-20
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists. The operator
will NOT run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area.
UL 325 August 2018 Standard
THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE/DOOR SYSTEMS TECHNICIAN ONLY.
Visit www.doorking.com/dealer-locator to find a professional installing and servicing dealer in your area.
www.doorking.com
DoorKing, Inc.
120 S. Glasgow Avenue
Inglewood, California 90301
U.S.A.
50
Phone: 310-645-0023
6500-065-N-5-20
Fax: 310-641-1586
Copyright 2009 DoorKing, Inc. All rights reserved.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
