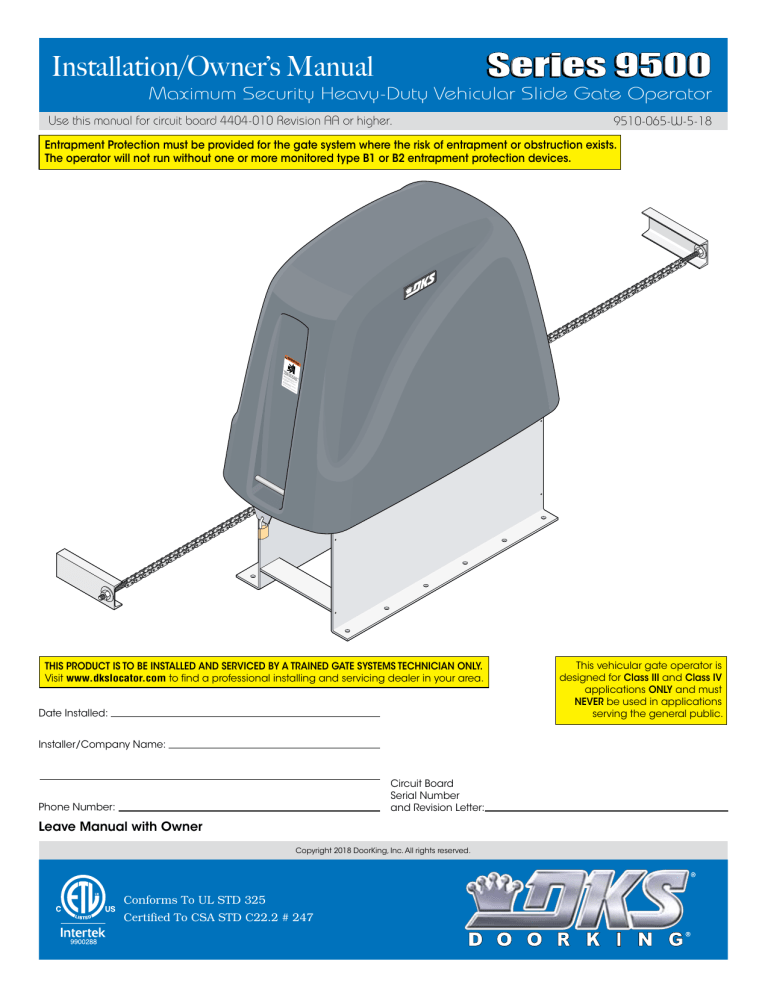

Installation/Owner’s Manual
Series 9500
Maximum Security Heavy-Duty Vehicular Slide Gate Operator
Use this manual for circuit board 4404-010 Revision AA or higher.
9510-065-W-5-18
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.
The operator will not run without one or more monitored type B1 or B2 entrapment protection devices.
WA
RN
IN
G
MO
SE VIN
RIO G GA
US
TE
Ope
INJ CA
and rate
UR N
free gate
Y OR CAUS
of only
Do
peo whe
DE E
or not allow ple and n
gate
ope
AT
rate child
obs area
H
truc is
gate ren
Do
tion in
.
to
pathnot stan
s. sigh
play
t
whil d
in
e gatein gate
gate
Rea
area
d own
is path
mov
er’s
ing.or walk
man
thro
ual
ugh
and
safe
ty
inst
ruct
ions
.
THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE SYSTEMS TECHNICIAN ONLY.
Visit www.dkslocator.com to find a professional installing and servicing dealer in your area.
Date Installed:
This vehicular gate operator is
designed for Class III and Class IV
applications ONLY and must
NEVER be used in applications
serving the general public.
Installer/Company Name:
Circuit Board
Serial Number
and Revision Letter:
Phone Number:
Leave Manual with Owner
Copyright 2018 DoorKing, Inc. All rights reserved.
Conforms To UL STD 325
Certified To CSA STD C22.2 # 247
Copyright 2009 DoorKing, Inc. All rights reserved.
QUICK GUIDE: DIP-Switches
See page 17 for more information about DIP-switches.
The two DIP-switches located on the circuit board are used to program the operator to operate in various modes and to turn on
or off various operating features. Whenever a switch setting is changed, power to the operator must be turned OFF and then
turned back on for the new setting to take affect. Check and review ALL switch settings prior to applying power to the operator.
Typical
Settings
SW 1 - Right 8 Switches
ON
1 2 3 4
ON
SW 2 is Upside-Down on Circuit Board.
1 2 3 4 5 6 7 8
Left 4 Switches - SW 2
SW 1 is Upside-Down on Circuit Board.
SW 1 - Right 8 Switches
Switch
1
2
3
Function
Setting
Description
Changes the direction the operator
will open/close the gate.
Auto-Close
Timer
Exit Loop Port
Output
Full Open Input
Opening direction
using ON setting.
Opening direction
using OFF setting.
OFF Auto-close timer is OFF. Manual input required to close gate.
ON Auto-close timer is ON. Adjustable from 1-23 seconds to close gate.
OFF The output wired to terminal #4 becomes the output from the exit loop detector
plugged into the EXIT Loop port. Used for dual operator application.
ON Normal Setting. Terminal #4 is a normal full open input.
Relay Activation 4-OFF 5-OFF Relay activates and LED is ON when the gate is fully open.
and
4-OFF 5-ON Relay activates and LED is ON when the gate is not closed.
4 and 5
LED Indicator 4-ON 5-OFF Relay activates and LED is ON when the gate is opening and open.
Light Activation
4-ON 5-ON Relay activates and LED is ON when the gate is opening and closing.
6
Warn Before
Operate
7
Reverses Gate
Stops Gate
8
Quick-Close
Timer Override
OFF Internal alarm will NOT sound.
ON Internal alarm will sound before gate starts and throughout gate’s cycle.
OFF Normal Setting. Input to terminal #6 and/or reverse loops will REVERSE gate
during CLOSE cycle.
ON Input to terminal #6 and/or reverse loops will STOP gate during CLOSE cycle.
OFF Normal Setting. Timer will function normally.
ON Opening gate will stop and begin to close as soon as all reversing inputs (Reverse
loops, photo sensors) are cleared regardless of the distance the gate has opened.
SW 2 - Left 4 Switches
Switch
Function
1
Self-Test
2
Gate Opens
Uphill
3
4
2 Quick Guide - 1
Setting
Description
Gate Opens
Downhill
OFF
ON
OFF
ON
OFF
ON
Normal Setting. Normal gate operation.
Self-test mode. Operator MUST be disconnected from gate to run self-test.
Normal Setting. Level gate operation or gate opens DOWNHILL.
MUST be ON if gate opens UPHILL.
Normal Setting. Level gate operation or gate opens UPHILL.
MUST be ON if gate opens DOWNHILL.
Spare
OFF
Leave in the OFF position.
9510-065-W-5-18
SW1 ON
QUICK GUIDE: Terminal Descriptions
1 2 3 4
See page 26 for terminal wiring.
P7
#2
Used in conjunction with the
circuit board inherent
reversing sensors. See page
19 for further information.
Low Voltage Common
Full Open
(See note)
24 VAC - 250 mA max.
Full Open
2 1
Partial Open
6 5 4 3
Standard Reverse OR Stop
3-Button Full Open
(DoorKing 3-Button Station ONLY)
3-Button Full Close
(DoorKing 3-Button Station ONLY)
Gate Tracker - Data
Gate Tracker - Busy
Dry Relay Contact
Dry Relay Contact
Low Voltage Common
Entrapment Alarm
Alarm Reset
Current Sensor
Current Sensor
Motor Hot
Motor Neutral
16
17
7
Main Terminal #3 Note:
Exceeding 250 mA of power from this terminal
may cause the circuit board transformer to
overheat, causing intermittent problems.
• SW 1, switch 3 is ON, terminal #4 functions as a normal FULL
open input. (Normal Setting). Single operator use ONLY.
• SW 1, switch 3 is OFF, input to terminal #4
becomes the output from a plug-in loop
detector installed in the EXIT loop port of the
circuit board. A jumper wire is needed to open
and close the gate(s) for these applications:
4
ON
DANGER
HIGH VOLTAGE!
8
1 2 3 4 5 6 7 8
Earth Ground
20 19 18 17 16 15 14 13 12 11 10 9
Low Voltage Common
Auxiliary Common
Terminal
Main Terminal Input LEDs #10
#9 #8
#7 #6 #5 #4
#2 - Jumper Wire - SW 1, switch 3 OFF (Dual Operators Full Open)
#1 - Jumper Wire - SW 1, switch 3 OFF (Single Operator Exit Loop Partial Open)
Low Voltage Common
CB
OB
OE
G
CE
G
NC
1477-010
NO
4404
SW 1 is Upside-Down on Board
#1 Terminal #4 jumpered to terminal #5 will PARTIALLY open an
automatic exit loop using a single channel plug-in loop detector
installed in the exit loop port when using a single gate operator.
#2 Terminal #4 jumpered to terminal #2 will FULLY open
bi-parting gates using a dual channel plug-in loop detector
installed in the exit loop port when using dual gate operators.
11
12
ON
NC
9510-065-W-5-18
SW 1 is Upside-Down on Board
NO
Relay contacts can be set for
Normally Open (NO) or Normally
Closed (NC) operation.
Contact rating is 1 amp maximum
at 24-volts DC.
1 2 3 4 5 6 7 8
Operation of relay is dependent on
setting of SW 1, switches 4 and 5.
See page 16 and 17 for DIP-switch
function descriptions.
6
This input ONLY fuctions when gate is fully opened or in the
closing cycle.
• When gate is closing: SW 1, switch 7 is OFF, an input to
terminal #6 (eg: photo beam gets obstructed) will reverse and
open the gate.
Note: If the auto-close timer is ON, when
gate reaches the open position, timer will
time out and close the gate.
SW 1 is Upside-Down on Board
ON
5
For long gate applications. An input device connected to
terminal #5 will open the gate to the partial open setting,
See page 18 for more information.
1 2 3 4 5 6 7 8
Main Terminal Input LEDs Note: The LED
that is above the main terminal wiring input
will light when that terminal input gets
activated.
• When gate is closing: SW 1, switch 7 is
ON, an input to terminal #6 (eg: photo beam gets obstructed)
will stop the gate, then continue to close the gate when input
is clear (Used to help prevent tailgating vehicles from
unauthorized entry). See page 17 for more information.
Quick Guide - 2 3
OPERATOR SPECIFICATIONS
Use this manual for the 9500 series operators with circuit board 4404-010 Rev AA or higher ONLY.
9530
3
9550
5
9555
5
9556
5
9575
Horse
Power
7.5
Volt/Phase
208 / 3
230 / 3
460 / 3
208 / 3
230 / 3
460 / 3
208 / 3
230 / 3
460 / 3
208 / 1
230 / 1
208 / 3
230 / 3
460 / 3
Amps
9.8
9.6
4.8
12.9
12.8
6.4
15.9
15.8
7.9
15.9
15.8
22.6
20.5
10.2
Gearbox
Mechanical Disc
Brake
Gate
Speed
Slow
Down
Chain #
Max Gate
Weight - lbs.
AC
Module
Electronic
Brake
40:1
No
2 ft/sec
Adjustable
Yes
80
10,000
10 HP
Yes
40:1
Heavy
Duty
No
1 ft/sec
Adjustable
Yes
100
20,000
15 HP
No
10:1
Yes
4 ft/sec
Adjustable
Yes
80
10,000
15 HP
Yes
10:1
Yes
4 ft/sec
Adjustable
Yes
80
10,000
15 HP
Yes
40:1
Heavy
Duty
No
2 ft/sec
Adjustable
Yes
100
25,000
15 HP
Yes
Cycles
Continuous
Operating Temperature
10° F to 140° F (-12° C to 62° C)
“Optional” heater kit recommended
for colder temperatures.
WARNING
160 Ft (Installed Level)
26”
Inherent Entrapment Protection Device
Inherent Reverse Sensor System (Type A)
External Entrapment Protection Device Inputs
(Monitored Inputs)
Connection inputs for Non-contact Sensor - Photo Sensor (Type B1)
Connection input for Contact Sensor - Reversing Edge (Type B2)
Do not stand in gate path or walk through
path while gate is moving.
Max Gate Length
Read owner’s manual and safety instructions.
Vehicular Slide Gates Only
Operate gate only when gate area is in sight
and free of people and obstructions.
Series 9500 - UL 325 Class III, IV
Type of Gate
Do not allow children to play in gate area
or operate gate.
Class of Operation
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
This vehicular gate operator is designed for Class III and Class IV applications only and must never be
used in applications serving the general public.
54”
Entrapment Protection must be
provided for the gate system
where the risk of entrapment or
obstruction exists.
The operator will not run without
one or more monitored type B1 or
B2 entrapment protection devices.
WARNING
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate gate only when gate area is in sight
and free of people and obstructions.
Do not allow children to play in gate area
or operate gate.
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions.
39”
59”
Padlock
Not Provided
23.5”
20”
15” Chain Height
44”
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.
4
9510-065-W-5-18
TABLE OF CONTENTS
QUICK GUIDES
Quick Guide: DIP-Switches
Quick Guide: Terminal Descriptions
Operator Specifications
Slide Gate Requirements
Safety Information for Slide Gate Operators
Gate Construction
Important Safety Instructions
Instructions regarding intended installation:
Important Notices
UL325 Entrapment Protection
Glossary
SECTION 1 - INSTALLATION
1.1
1.2
1.3
1.4
1.5
1.6
1.7
Quick Guide-1
Quick Guide-2
Previous Page
2
3
4
4
4
5
6
7
8
Gate Hardware
Removing Cover
Underground Conduit Requirements
Concrete Pad Description, Gate Types
Mounting Operator and Chain
Installation of Chain Tray
Installation of Warning Signs
8
8
8
9-10
11
12
12
SECTION 2 - AC POWER TO OPERATOR(S)
13
2.1
2.2
High Voltage Wire Runs
High Voltage Terminal Connection
SECTION 3 - ADJUSTMENTS
3.1
3.2
3.3
3.4
3.5
3.6
4404 Circuit Board Description and Adjustments
DIP-Switch SW 1 and SW 2 Settings
Limit Switches
Inherent Reverse Sensor Adjustment
9530 - 208/230 VAC Current Sensor Adjustment
AC Module Adjustment
SECTION 4 - ENTRAPMENT AND SAFETY PROTECTION
4.1
4.2
4.3
UL 325 Terminal Description
Entrapment Protection Device Locations
Loop Detector Wiring
SECTION 5 - MAIN TERMINAL WIRING
5.1
5.2
5.3
5.4
Main Terminal Description
Control Wiring for Single/Primary Operator
Auxiliary Device Wiring
Bi-Parting Gates Wiring - Dual Gate Operators
SECTION 6 - OPERATING INSTRUCTIONS
6.1
6.2
6.3
Built-In Controls and Reset Button Description
Shutdown Conditions
Manual Gate Operation
SECTION 7 - MAINTENANCE AND TROUBLESHOOTING
7.1
7.2
7.3
7.4
Maintenance
Built-In Diagnostic Tests
Troubleshooting
Accessory Items
SECTION 8 - OWNER OF THE GATE OPERATOR
8.1
Alarm Sounding and Gate WILL NOT Operate
8.2
Manual Gate Operation
8.3
Gate Operators Monthly Checkup
Printable Safety Page
9510-065-W-5-18
13
14
15
15
16-17
18
19
19
20
21
21
22-23
24
25
25
26
27
28
29
29
30
31
32
32
33
33-34
35
36
36
37
38
39
1
Slide Gate Requirements
The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that
persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
Adjacent fence that covers open gate position.
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
Fence
High Risk of Entrapment Area
XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX
Closed Gate
WARNING
Operate
and
free gate
of people
only when
and obstructions.
gate area is in sight
Do not allow children to play in gate area
or operate gate.
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions.
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
XXX
All openings of a horizontal slide
gate are guarded or screened from
the bottom of the gate to a minimum of six (6) feet
(1.83 m) above the ground to prevent a 2 1/4 inch
(57.2 mm) diameter sphere from passing through
the openings anywhere in the gate and in that
portion of the adjacent fence that the gate covers in
the open position.
DoorKing recommends installing screened wire
mesh on the ENTIRE gate AND and on that portion
of the adjacent fence that the gate covers in the
open position. (See above).
2
A contact
sensor
should be
installed in
this area
for safety.
(See A
on next
page).
Gate Support Post
High Risk of Entrapment Area
Note: A filler
post or barrier
may need to be
installed in the
gap area to
reduce the
distance to 2
1/4 inches or
less.
Gate Frame
A gap, measured in the horizontal plane parallel to
the roadway, between a fixed stationary object
nearest the roadway (such as a gate support post)
and the gate frame when the gate is in either the
fully open position or the fully closed position, shall
not exceed 2 1/4 inch (57.2 mm).
2 1/4” maximum gap area
Guide
Gates shall be designed, constructed and
installed to not fall over more than 45
degrees from the vertical plane, when a gate
is detatched from the supporting hardware.
Rollers
Fall Over Bracket
Screened Wire Mesh Less than 2 1/4”
9510-065-W-5-18
Safety Information for Slide Gate Operators
Physical Stops
Entrapment protection devices are required to reduce the risk of injury.
Install sensors where the risk of entrapment or obstruction exists while
gate is moving. Individual requirements will vary. See pages 21-24 for
more information on typical layout locations and setup.
Positive stops shall be required
to limit travel to the designed
fully open and fully closed
positions. These stops shall be
installed either at the top of the
gate, or at the bottom of the
gate where such stops shall
horizontally or vertically project
no more than is required to
perform their intended function.
2
Helps minimize the potential of entrapment during the back
travel of the gate.
2
Contact Sensor (Reversing Edges)
A
Installed on the fence to help minimize the potential of
entrapment between the gate and fence. A filler post or
barrier MAY need to be installed between fence and gate.
B
Helps minimize the potential of entrapment during the
back travel of the gate.
B
XXXXXXXXX
Minimizes the potential of the gate closing on vehicular or
other traffic that loops cannot sense. It can be installed on the
secure OR non-secure side of gate.
High Risk of Entrapment Area
Fence
Non-Contact Sensors (Photo Sensors)
1
Illustration not to scale.
Screened
Wire Mesh
May be necessary on part
of fence AND entire gate.
See previous page for more
information.
Read owner’s manual and safety instructions.
Do not stand in gate path or walk through
path while gate is moving.
Do not allow children to play in gate area
or operate gate.
Operate gate only when gate area is in sight
and free of people and obstructions.
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
WARNING
XXXXXXXXX
C
Warning Sign
Minimizes the potential of the gate closing on vehicular
or other traffic that loops cannot sense.
Guide Rollers
Moving Gate Can Cause
Serious Injury or Death
See previous page for more information.
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
A
Separate
Pedestrian
Walkway
1
1
C
Warning Signs
Permanently mounted and easily
visible from either side of the gate.
Fence
Note: DO NOT USE MMTC,
Inc. Model IR55 Photo Sensor
- P/N 8080-010 for the 9500
series slide gate operator.
Minimizes the potential
of the gate closing
when a vehicle is
present. Number and
placement of loops is
dependent on the
application.
Reverse
Loop
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
Physical Stop
Minimizes the potential
of the gate closing
when a vehicle is
present. Number and
placement of loops is
dependent on the
application.
Non-Secure Side of Gate
(Optional) will
provide an open
command to the
gate operator(s)
when a vehicle is
exiting the property.
Reverse
Loop
Closed Gate
Secure Side of Gate
Automatic
Exit Loop
External entrapment
protection devices are
REQUIRED for operator
to function.
Located so pedestrians
cannot come in contact
with the vehicular gate.
9510-065-W-5-18
3
ASTM F2200 Standard for Gate Construction
Vehicular gates should be constructed and installed in accordance with ASTM F2200; Standard Specification for Automated Vehicular Gate Construction.
For a copy of this standard, contact ASTM directly at 610-832-9585; [email protected]; or www.astm.org.
Important Safety Instructions
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object activates the non-contact sensors.
After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of
injury or death.
5. Use the emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS!
Instructions regarding intended installation:
• Install the gate operator only if:
1. The operator is appropriate for the construction of the gate and the usage class of the gate.
2. All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 6 feet (1.83 m) above the ground to
prevent a 2 ¼ inch (57.2 mm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence
that the gate covers in the open position.
3. All exposed pinch points are eliminated or guarded.
4. Guarding is supplied for exposed rollers.
• The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate access opening. The pedestrian
access opening shall be designed to promote pedestrian usage. Locate the gate such that persons will not come in contact with the vehicular gate
during the entire path of travel of the vehicular gate.
• The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structures when opening and closing to
reduce the risk of entrapment. Swinging gates should not open into public access areas.
• The gate must be properly installed and work freely in both directions prior to the installation of the gate operator. Do not over-tighten the operator
clutch, pressure relief valve or reduce reversing sensitivity to compensate for a damaged gate.
• For gate operators utilizing Type D protection:
1. The gate operator controls must be placed so that the user has full view of the gate area when the gate is moving.
2. A warning placard shall be placed adjacent to the controls.
3. An automatic closing device (such as a timer, loop sensor, or similar device) shall not be employed.
4. No other activation device shall be connected.
• Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and where the user is prevented from
reaching over, under, around or through the gate to operate the controls. Outdoor or easily accessible controls should have a security feature to prevent
unauthorized use.
• The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start.
• A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
• For gate operators utilizing a non-contact sensor:
1. See the instructions on the placement of non-contact sensors for each type of application.
2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while the gate is still moving in the opening direction.
3. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exist, such as the perimeter reachable by a moving
gate or barrier.
• For gate operators utilizing contact sensors:
1. One or more contact sensors shall be located where the risk of entrapment or obstruction exist, such as at the leading edge, trailing edge, and
post mounted both inside and outside of a vehicular horizontal slide gate.
2. One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.
3. One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.
4. A hardwired contact sensor shall be located and its wiring arranged so that the communication between the sensor and the gate operator is not
subjected to mechanical damage.
5. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for entrapment protection functions shall
be located where the transmission of the signals are not obstructed or impeded by building structures, natural landscaping or similar
obstructions. A wireless contact sensor shall function under the intended end-use conditions.
6. One or more contact sensors shall be located at the bottom edge of a vertical barrier (arm).
• Be sure you have instructed the owner of the gate operator about safe and proper operation and testing of the gate operator.
4
9510-065-W-5-18
Important Notices
Vehicular gate operator products provide convenience and security. However, gate operators must use high levels of force to move gates and most people
underestimate the power of these systems and do not realize the potential hazards associated with an incorrectly designed or installed system.
These hazards may include:
• Pinch points
• Entrapment areas
• Reach through hazards
• Absence of entrapment protection devices
• Improperly located access controls
• Absence of vehicle protection devices
• Absence of controlled pedestrian access
In addition to these potential hazards, automated vehicular gate systems must be installed in accordance with the UL 325 Safety Standard and the ASTM
F2200 Construction Standard. Most people are unaware of, or are not familiar with, these standards. If an automated vehicular gate system is not properly
designed, installed, used and maintained, serious injuries or death can result. Be sure that the installer has instructed you on the proper operation of the
gate and gate operator system.
Be sure that the installer has trained you on proper and safe operation of this gate operating system and about the basic functions of the required
reversing systems associated with your gate operating system and how to test them (see section 8). These include reversing loops, inherent reversing
system, electric edges, photoelectric cells, or other external devices.
• This Owner’s Manual is your property. Keep it in a safe place for future reference.
• Be sure that all access control devices are installed a minimum distance of 6 feet away from the gate and gate operator, or in such a way that a
person cannot touch the gate or gate operator while using the device. If access control devices are installed in violation of these restrictions,
immediately remove the gate operator from service and contact your installing dealer.
Opening device MUST be mounted a
minimum of 6 feet from the gate and
NOT accessible through the gate!
• Loops and loop detectors, photo-cells or other equivalent devices must be installed to prevent the gate from closing on vehicular traffic.
• The speed limit for vehicular traffic through the gate area is 5 MPH. Install speed bumps and signs to keep vehicular traffic from speeding
through the gate area. Failure to adhere to posted speed limits can result in damage to the gate, gate operator, and to the vehicle.
• Be sure that all persons who will use the gate system are familiar with the proper use of the gate and gate operator and are familiar with the
possible hazards associated with the gate system.
• Be sure that warning signs are permanently installed on both sides of the gate in an area where they are fully visible to traffic.
• It is your responsibility to periodically check all entrapment protection devices. If any of these devices are observed to function improperly,
remove the operator from service immediately and contact your installing or servicing dealer.
• Follow the recommended maintenance schedule.
• Do not allow children to play in the area of the operator or to play with any gate-operating device.
• To remove the gate operator from service, operate the gate to the full open position and then shut off power to the operator at the service panel.
9510-065-W-5-18
5
UL325 Entrapment Protection
UL 325 Classifications
Authorized
Personnel ONLY
Class I - Residential
ident
Vehicular Gate
e Operator
Class III - Industrial/Limited Access
Vehicular Gate Operator
A vehicular gate operator (or
or system) intended
inte
for use in garages
or parking areas associated with a residence of one-to four single
families.
A vehicular gate operator (or system) intended for use in an
industrial location or building such as a factory or loading dock
area or other locations not accessible by or intended to service
the general public.
STATE PRISON
Class II - Commercial/General
ercial/General Access
Vehicular Gate Operator
A vehicular gate operator (or system) intended for use in a
commercial location or building such as a multi-family housing
unit (five or more single family units), hotel, garages, retail store,
or other buildings accessible by or servicing the general public.
Class IV Restricted Access
Vehicular Gate Operator
A vehicular gate operator (or system) intended for use in a
guarded industrial location or building such as an airport security
area or other restricted access locations not servicing the general
public, in which unauthorized access is prevented via supervision
by security personnel.
Gate Operator Category
Effective January 12, 2016
Horizontal Slide, Vertical Lift, Vertical Pivot
Entrapment Protection Types
A, B1*, B2* or D
Type A - Inherent entrapment protection system.
Type B1 - Non-contact sensor (photoelectric sensor or the equivalent).
Type B2 - Contact sensor (edge device or equivalent).
Swing, Vertical Barrier (Arm)
A, B1*, B2*, C or D
Vertical Barrier Note: Barrier gate operators (arm)
that is not intended to move toward a rigid object
closer than 16 inches (406 mm) are not required to
be provided with a means of entrapment protection.
Type C - Inherent force limiting, inherent adjustable clutch or inherent pressure relief device.
Type D - Actuating device requiring constant pressure to maintain opening or closing motion of the gate.
* B1 and B2 means of entrapment protection must be MONITORED.
6
9510-065-W-5-18
Glossary
GATE - A moving barrier such as a swinging, sliding, raising, lowering, or the like, barrier, that is a stand-alone passage
barrier or is that portion of a wall or fence system that controls entrance and/or egress by persons or vehicles and
completes the perimeter of a defined area.
RESIDENTIAL VEHICULAR GATE OPERATOR – CLASS I - A vehicular gate operator (or system) intended for use in a home
of one-to four single family dwelling, or garage or parking area associated therewith.
COMMERCIAL / GENERAL ACCESS VEHICULAR GATE OPERATOR - CLASS II - A vehicular gate operator (or system)
intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units),
hotels, garages, retail store, or other building servicing the general public.
INDUSTRIAL / LIMITED ACCESS VEHICULAR GATE OPERATOR - CLASS III - A vehicular gate operator (or system)
intended for use in an industrial location or building such as a factory or loading dock area or other locations not intended
to service the general public.
RESTRICTED ACCESS VEHICULAR GATE OPERATOR - CLASS IV - A vehicular gate operator (or system) intended for use in
a guarded industrial location or building such as an airport security area or other restricted access locations not servicing
the general public, in which unauthorized access is prevented via supervision by security personnel.
VEHICULAR BARRIER (ARM) OPERATOR (OR SYSTEM) - An operator (or system) that controls a cantilever type device (or
system), consisting of a mechanical arm or barrier that moves in a vertical arc, intended for vehicular traffic flow at
entrances or exits to areas such as parking garages, lots or toll areas.
VEHICULAR HORIZONTAL SLIDE-GATE OPERATOR (OR SYSTEM) - A vehicular gate operator (or system) that controls a
gate which slides in a horizontal direction that is intended for use for vehicular entrance and exit to a drive, parking lot, or
the like.
VEHICULAR SWING-GATE OPERATOR (OR SYSTEM) - A vehicular gate operator (or system) that controls a gate which
moves in an arc in a horizontal plane that is intended for use for vehicular entrance and exit to a drive, parking lot, or the
like.
SYSTEM - In the context of these requirements, a system refers to a group of interacting devices intended to perform a
common function.
WIRED CONTROL - A control implemented in a form of fixed physical interconnections between the control, the associated
devices, and an operator to perform predetermined functions in response to input signals.
WIRELESS CONTROL - A control implemented in means other than fixed physical interconnections (such as radio waves or
infrared beams) between the control, the associated devices, and an operator to perform predetermined functions in
response to input signals.
INHERENT ENTRAPMENT PROTECTION SYSTEM - A system, examples being a motor current or speed sensing system,
which provides protection against entrapment upon sensing an object and is incorporated as a permanent and integral part
of the operator.
EXTERNAL ENTRAPMENT PROTECTION DEVICE - A device, examples being an edge sensor, a photoelectric sensor, or
similar entrapment protection device, which provides protection against entrapment when activated and is not incorporated
as a permanent part of an operator.
ENTRAPMENT - The condition when an object is caught or held in a position that increases the risk of injury.
9510-065-W-5-18
7
SECTION 1 - INSTALLATION
Prior to beginning the installation of the slide gate operator, we suggest that you become familiar with the
instructions, illustrations, and wiring guide-lines in this manual. This will help insure that your installation is
performed in an efficient and professional manner compliant with UL 325 safety and ASTM F2200 construction
standards.
The proper installation of the vehicular slide gate operator is an extremely important and integral part of the
overall access control system. Check all local building ordinances and building codes prior to installing this
operator. Be sure your installation is in compliance with local codes.
1.1 Gate Hardware
1.2 Removing Cover
DoorKing has a full line of tandem V-wheels
that are ideal for heavy gates and will ensure
safe, reliable and long lasting gate operation.
The gate must be properly installed and roll
smoothly in both directions.
3
1. Lift cover on padlock bracket
end a few inches.
2. Slide cover horizontal to free
cover from chassis cover catch.
3. Lift cover off vertical.
BE CAREFUL not to hit internal
Inside
Cover
Catch
2 components with cover!
1
Padlock Bracket
Chassis
Cover
Catch
Idler Wheels
Padlock
Not Provided
Padlock Bracket
1.3 Underground Conduit Requirements
Secondary
Operator
Position
Primary/Secondary Interconnection Cable (Dual Operator Application Only)
External Safety Devices, Control and/or P.A.M.S. Wires (Low Voltage wire insulation)
Loop Lead-In Wires (Low Voltage wire insulation)
AC Input Power (High Voltage wire insulation)
Sweeps
AC Input Power (High Voltage wire insulation)
3/4 Inch Minimum
Concrete Pad
Concrete Pad
Primary
Operator
Position
• The conduit requirements are for a typical slide gate operator installation (the secondary operator is shown for those
applications where a secondary operator may be used). The conduit requirements for your application may vary from
this depending on your specific needs.
Sweep
• Use only sweeps for conduit bends. Do not use 90° elbows as this will make wire pulls very
YES
Elbow
NO
difficult and can cause damage to wire insulation. DoorKing recommends using 3/4-inch conduit.
• Installation of External Entrapment Protection Devices are REQUIRED (photo sensors and/or reversing edges).
• Be sure that all conduits are installed in accordance with local codes.
• Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
8
9510-065-W-5-18
To
p
Vi
ew
1.4 Concrete Pad Description
To
Be p M
Le US
ve T
l!
Be sure the top of the concrete pad is level and a minimum of four (4)
inches above ground level. See the next page for typical gate types.
We suggest that you contact the local building department to
determine the required depth of the pad since soil
conditions and code requirements vary from city
to city.
iew
V
nt
• Use 1/2” re-bar. 4 per concrete post.
• Wire mesh is highly recommended.
End
Fro
Ab
Vie
ove
• 4 underground conduits recommended:
w
- High voltage AC power
- Low voltage controls
- Reverse loops
- Automatic exit loop.
Above ground conduits can be routed after the operator has
been installed using junction boxes if desired.
Gro
und
• Position operator approximately 4 inches away from the
gate frame and secure to concrete with sleeve anchors.
See page 11 for further information.
End View
Top View
Back Anchor Foot
Gate Frame
V-rail v-wheel
gate type shown.
3/4”
Conduit
36”
Conduit
Area
Front Anchor Foot
4”
Concrete Pad
56”
Front View
3/4”
Back Conduit
Anchor
Foot
Front
Anchor
Foot
Above Ground
Sleeve
Anchors
4”
12”
Wire Mesh
9510-065-W-5-18
24” depth up to 8,000 lb. gate.
36” depth up to 25,000 lb. gate.
10.5”
Re-bar
12”
3/4”
Conduit
(Sweeps)
10.5”
Re-bar
Note: Minimum suggested pad size.
The pad size will vary for each installation. It is important to have enough
concrete mass in the ground to
securely anchor the operator. This
prevents the pad from shifting in the
ground when cycling very heavy gates.
12”
Re-bar
12”
12”
12”
9
Gate Types
• Steel or aluminum.
• 25,000 lb max. weight per gate (9575).
• Chain tray recommended for gates
over 20 ft.
• Single gate: 160 ft max.
• Dual gates: 320 ft max.
-D
H
vy
ea
O
ut y
rn
e
am
n
C
tal
an
ve
e
l
i
t
r
WARN
ING
MOVING
SERIOUS
GATE
Operate
INJURY
and
CAN
free gate
of only
Do
people when
ORCAUSE
or not allow
DEATH
and gate
operate
area
children obstructions.
gate.
Do
is
in
to
pathnot stand
sight
play
while
in
in
gate
gate gate
area
path
owner’s is moving.
or
walk
manual
through
and
safety
instructions.
Read
He
a
Du
y
v
ty
x
Bo
Fra
C
me
an
v
tile
er
WARNI
NG
MOVING
SERIOUS
GATE
Operate
INJURYCAN
and
free gate
of only
Do
people when
ORCAUSE
or not allow
DEATH
and gate
operate
area
children obstructions.
Do
gate.
is in
pathnot stand
to
sight
play
while
in
in
gate
gate gate
area
path
owner’s is moving.
or
walk
manual
through
and
safety
instructions.
Read
-D
H
vy
ea
B
ut y
ox
m
Fra
WARNING
MOVING
GATE
CAN
CAUSE
ty V
u
D
vy- ntal
a
He ame
Orn
e
ll
Ro
il
-Ra
er
V-
e
Wh
el
WAR
NIN
WA
G
RNI
MOVING
SERIOUS
NG
GATE
Operate
INJURYCAN
and
free gate
CAUSE
of only
OR
Do
people when
DEATH
or not allow
and gate
Operate
operate
area
children obstructions.
gate.and
Do
is
free gate
in
to
pathnot stand
of only sight
play
while
Do
people
when
in
in
gate
gatenot
gate or
and gate
operate
area
pathallow
owner’s is moving.
area
or children obstructions.
walk
gate.
Do
is
manual
in
throughto
pathnot stand
sight
and
play
whilesafety
in
in
gate
gate
gate instructions.
Read
MOVING
SERIOUS
GATE
INJURY
CAN
CAUSE
OR
DEATH
Read
owner’s
is
path
moving.
manual
area
or
walk
through
and
safety
instructions.
10
9510-065-W-5-18
1.5 Mounting Operator and Chain
Positioning Operator and Chain Brackets
1 Operator MUST be parallel to gate!
idler wheels so chain stays parallel
to gate!
Cover Catch
2 Chain brackets MUST align with
Top View
Chain
Bracket
Idler Wheels
4” minimum from operator chassis to gate.
Note: Be sure to follow all 3 guidelines.
Installing the chain in any other manner
will cause excessive noise, chain idler
wheel wear and chain stretching.
3 Chain brackets MUST be mounted
so the chain remains the same
height as it is on the idler wheels!
Cover
Catch
Chain
Bracket
Chain
Bracket
Idler Wheels
15”
Gate Side View 15”
15”
15”
Attach Operator
to Concrete
1/2
9510-065-W-5-18
DoorKing recommends
twelve (12) 1/2” x 3”
sleeve anchors (not
supplied).
Gate
Frame
Chassis
Connect Chain Bracket to Gate. Weld
completely around bracket. Chain nut and chain
bolt should not protrude past gate frame.
Connect Chain to Chain Bracket.
Connect chain to chain bolt with master
link. Adjust the chain nuts to tighten the Chain
Nut
chain. The chain should sag no more
than one (1) inch per 10 feet of travel. Chain Bolt
Do not over tighten the chain.
n2
tio
Op
t
cke
Bra ion 1
n
i
t
a
Ch
Op ink
rL
ste
Ma
11
1.6 Installation of Chain Tray
A chain tray is recommended for longer gates to support the weight of the chain. DoorKing offers a chain tray and supporting
brackets in sections to fit any length gate. (DoorKing P/N 2601-270 10 Ft. section)
WAR
NI
NG
MOV
SERI ING
OUS
GATE
Operate
INJU CAN
and
free gate
RY CAUS
of only
OR
Do
people when
DEATE
or not allow
and gate
operate
children obstrucarea
H
gate.
Do
is
tions.
in
to
pathnot stand
sight
play
while
in
in
gate
gate gate
area
path
owner’s is moving
or
walk
manual
.
through
and
safety
Read
instruct
ions.
Vie
View A
wA
WARNING
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate gate only when gate area is in sight
and free of people and obstructions.
Do not allow children to play in gate area
or operate gate.
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions.
ent
m
Carriage Bolts
nt
t.
0F
e
egm
S
1
Supporting
Bracket
t.
0F
1
Seg
Weep Hole
Chain Tray Segment Connection
All gate types can have the chain tray
installed on them, V-rail v-wheel
ornamental is shown here. For further
information, refer to instructions
provided with the chain tray kit.
Chain Tray
Supporting
Bracket
11”
Note: The chain should sag at least
one (1) inch per 10 feet of travel.
1.7 Installation of Warning Signs
This DoorKing Slide Gate Operator is shipped with two warning signs. The
purpose of the warning sign is to alert uninformed persons, and to remind
persons familiar with the gate system, that a possible hazard exists so that
appropriate action can be taken to avoid the hazard or to reduce exposure to
the hazard. See page 3 for typical placement of signs.
• Permanently install the supplied warning signs in locations so
that the signs are visible by persons on both sides of the gate.
• Use appropriate hardware such as wood or sheet metal screws
(not supplied) to install the warning signs.
12
9510-065-W-5-18
SECTION 2 - AC POWER TO OPERATOR(S)
Before attempting to connect any wiring to the operator, be sure that the circuit breaker in the electrical panel is in the OFF
position. Permanent wiring must be installed to the operator as required by local electrical codes. It is recommended that a
licensed electrical contractor perform this work.
Since building codes vary from city to city, we highly recommend that you check with your local building department prior
to installing any permanent wiring to be sure that all wiring to the operator (both high and low voltage) complies with local
code requirements.
THIS GATE OPERATOR MUST BE PROPERLY GROUNDED!!
Electrical
Panel
Typical Grounding Sources
Ground
Wire
Ground
Wire
Ground to existing electrical system.
Ground to metallic cold water pipe.
Grounding rod 10 feet in soil.
IMPORTANT: Ground wire shown without safety protection for clarity. Make sure ground wire is protected from being touched or electrical
shock could occur!
2.1 High Voltage Wire Runs
The 9500 draws significant power and each operator should have a “Dedicated” circuit breaker at the power source.
If power wiring is greater than the maximum distance shown, it is recommended that a service feeder be installed. When large
gauge wire is used, a separate junction box must be installed for the operator connection. The wire table is based on stranded
copper wire. Wire run calculations are based on the NEC recommended maximum 3% voltage drop on the power line, plus an
additional 10% reduction in distance to allow for other losses in the system.
Never run low voltage rated wire insulation in the same conduit as high voltage rated wire insulation.
This table illustrates the high voltage AC power wire size and distance limitations for a single operator.
Wire Size / Max Distance in Feet
Phase
9530 - 3 HP: 208 VAC
9530 - 3 HP: 230 VAC
9530 - 3 HP: 460 VAC
9550 - 5 HP: 208 VAC
9550 - 5 HP: 230 VAC
9550 - 5 HP: 460 VAC
9555 - 5 HP: 208 VAC
9555 - 5 HP: 230 VAC
9555 - 5 HP: 460 VAC
9556 - 5 HP: 208 VAC
9556 - 5 HP: 230 VAC
9575 - 7.5 HP: 208 VAC
9575 - 7.5 HP: 230 VAC
9575 - 7.5 HP: 460 VAC
3
3
3
3
3
3
3
3
3
1
1
3
3
3
Amps
9.8
9.6
4.8
12.9
12.8
6.4
15.8
15.9
7.9
15.8
15.9
22.6
20.5
10.2
12 AWG
225
255
1035
170
190
775
140
155
630
120
135
95
120
495
10 AWG
8 AWG
6 AWG
365
415
1660
275
310
1245
225
250
1005
190
210
155
190
780
610
690
2765
465
515
2075
375
415
1680
310
360
265
320
1300
915
1035
4140
695
775
3110
565
630
2520
490
540
395
480
1940
“Optional” Heater Installation Note: When installing a heater, refer to the “high voltage AC power wire size
and distance limitations” table on the instruction sheet with the heater kit for AC power wire run limitations.
9510-065-W-5-18
13
2.2 High Voltage Terminal Connection
• Route incoming AC power wire through the high voltage conduit and run wire in the operator electronic box as shown.
• Be sure wiring is installed in accordance with local codes. Be sure to color code all wiring.
• It is recommended that a surge suppressor be installed on the high voltage power lines to help protect the operator
and circuit board from surges and power fluctuations.
• Dual operators (Primary/Secondary) require AC power to EACH operator.
Dual Operators
AC Power
AC Power
CAUTION
DO NOT power up and cycle the operator until the
High Voltage AC input power
MUST MATCH the operator
specifications or DAMAGE will
occur and VOID the warranty!
“DIP-Switches” and the “Limit Switches” have been
adjusted. Damage could occur to the gate and operator.
Hot
Hot
115 VAC Output
Chassis
Ground
EXTERNAL ENTRAPMENT
PROTECTION MUST be
connected or the gate
operator WILL NOT
function.
DANGER
HIGH VOLTAGE!
F
OF
E
RAT
OPE only
TO use
SH
PU nician
tech
EN
OP
E
OS
CL
1
OP
ST
Electronic Box
2
Hot
Remove the
3 locknuts
inside the
electronic
box to swing
box open.
Hot
Hot
115 VAC Output
Chassis
Ground
High Voltage
AC Input Wire
208/230/
460 VAC
THREE Phase
Check polarity of
three phase motor.
See page 18.
External Power
Disconnect Switch
3
14
High Voltage
AC Input Wire
High
Voltage
Input Wire
ON
208/230
VAC
SINGLE Phase
A separate power disconnect switch may
be needed in your area. Check local
building codes before installation.
Recommended by DoorKing.
9510-065-W-5-18
SECTION 3 - ADJUSTMENTS
The switch settings and adjustments in this chapter should be made after your installation and wiring to the operator(s) is
complete. Whenever any of the programming switches on the circuit board are changed, power must be shut-off, and then
turned back on for the new setting to take effect.
3.1 4404 Circuit Board Description and Adjustments
LEDs Indicates that low voltage power is applied to the circuit board. Input LEDs should be OFF and will only
illuminate when the input is activated. Limit LEDs will be on when the respective limit switch is activated.
Single Channel Loop Detector Dual Channel Loop Detector
AC Module
Adjustments
1 ft/s
9409
1.5 ft/s
.5 ft/s
0 ft/s
9410
See page 24 for
loop detector
information.
2 ft/s
2 ft/s
1 ft/s
3 ft/s
See page 18
Limit LEDs
LMT
1 2 3 4
ON
Sensor Input LEDs
ON
1 2 3 4
1 2 3 4 5 6 7 8
ON
ON
TIME
DELAY
1 2 3 4
SW1 ON
1 2 3 4
1477-010
ON
CB
OB
CAUTION
NO
Do not run self-test with the
operator connected to the gate.
The drive chain must be
disconnected before running the
self-test. This feature is designed
for bench testing ONLY.
NC
Auto-Close Timer
CLOSE
Auto-close timer (when
turned on) SW 1, switch 2.
ON
G
CE
OE
G
NC
Dry relay contacts
(terminals 11-12) can be
set for Normally Open
(NO) or Normally Closed
(NC) operation by placing
the relay shorting bar on the
N.O. or N.C. pins respectively.
SW 1, switches 4 and 5 must
be set to control relay. See
next 2 pages for descriptions. SW 1 is Upside-Down on Board
1
1 2 3 4 5 6 7 8
REV SENSE
CLOSE
See page 19
REV SENSE
OPEN
OPEN
1 2 3 4 5 6 7 8
ON
9510-065-W-5-18
Min Max
Sensitivity
Self-Test
SW 2 is Upside-Down on Board
Main Terminal
8 Input
7 LEDs
6 5See 4page325 2
Inherent
Reverse
Sensors
Dry Relay Contact
SW 1 is Upside-Down on Board
Self-test (when turned on)
SW 2, switch 1.
See pages 21-23
20 19 18 17 16 15 14 13 12 11 10 9
Adjust reversing
sensitivity for
open and close
directions.
Full counter
clockwise for
minimum
sensitivity, full
clockwise for
maximum
sensitivity.
See page 19.
DIP-Switches
Set the DIP-switches on the
circuit board to the desired
setting. See switch setting
descriptions on next 2 pages.
SW 2 is Upside-Down on Board
UL 325 Terminal
and DIP-switches
P7
Motor
Plug P6
4404-010
P6
Mechanical
Disc Brake
Plug P8
P8
See page 20 for
description.
EXIT
LOOP
Power LED
Min Max
Speed
LMT
4 ft/s
LOOP
REVERSE
0 ft/s
Exit
Loop
Port
See page 18
1 2 3 4 5 6 7 8
Limit Switch Plug P2
Reverse Loop Port
SW 1 is Upside-Down on Board
Adjust from 1 second
(full counter-clockwise) to
approximately 23 seconds
(full clockwise).
1
23
15
3.2 DIP-Switch SW 1 and SW 2 Settings
The two DIP-switches located on the circuit board are used to program the operator to operate in various modes and to turn on
or off various operating features. Whenever a switch setting is changed, power to the operator must be turned OFF and then
turned back on for the new setting to take affect. Check and review ALL switch settings prior to applying power to the operator.
Typical
Settings
SW 1 - Right 8 Switches
ON
1 2 3 4
ON
SW 2 is Upside-Down on Circuit Board.
1 2 3 4 5 6 7 8
Left 4 Switches - SW 2
SW 1 is Upside-Down on Circuit Board.
SW 1 - Right 8 Switches
Switch
1
2
3
Function
Setting
Description
Changes the direction the operator
will open/close the gate.
Auto-Close
Timer
Exit Loop Port
Output
Full Open Input
Opening direction
using ON setting.
Opening direction
using OFF setting.
OFF Auto-close timer is OFF. Manual input required to close gate.
ON Auto-close timer is ON. Adjustable from 1-23 seconds to close gate.
OFF The output wired to terminal #4 becomes the output from the exit loop detector
plugged into the EXIT Loop port. Used for dual operator application.
ON Normal Setting. Terminal #4 is a normal full open input.
Relay Activation 4-OFF 5-OFF Relay activates and LED is ON when the gate is fully open.
and
4-OFF 5-ON Relay activates and LED is ON when the gate is not closed.
4 and 5
LED Indicator 4-ON 5-OFF Relay activates and LED is ON when the gate is opening and open.
Light Activation
4-ON 5-ON Relay activates and LED is ON when the gate is opening and closing.
6
Warn Before
Operate
7
Reverses Gate
Stops Gate
8
Quick-Close
Timer Override
OFF Internal alarm will NOT sound.
ON Internal alarm will sound before gate starts and throughout gate’s cycle.
OFF Normal Setting. Input to terminal #6 and/or reverse loops will REVERSE gate
during CLOSE cycle.
ON Input to terminal #6 and/or reverse loops will STOP gate during CLOSE cycle.
OFF Normal Setting. Timer will function normally.
ON Opening gate will stop and begin to close as soon as all reversing inputs (Reverse
loops, photo sensors) are cleared regardless of the distance the gate has opened.
SW 2 - Left 4 Switches
16
Switch
Function
1
Self-Test
2
Gate Opens
Uphill
3
4
Setting
Description
Gate Opens
Downhill
OFF
ON
OFF
ON
OFF
ON
Normal Setting. Normal gate operation.
Self-test mode. Operator MUST be disconnected from gate to run self-test.
Normal Setting. Level gate operation or gate opens DOWNHILL.
MUST be ON if gate opens UPHILL.
Normal Setting. Level gate operation or gate opens UPHILL.
MUST be ON if gate opens DOWNHILL.
Spare
OFF
Leave in the OFF position.
9510-065-W-5-18
3.2 Continued
The two DIP-switches located on the circuit board (Upside-Down )are used to program the operator to operate in various modes
and to turn on or off various operating features. Whenever a switch setting is changed, power to the operator must be turned
OFF and then turned back on for the new setting to take affect. Check and review ALL switch settings prior to applying power to
the operator.
Switch Definitions
Typical Settings
1 2 3 4 5 6 7 8
SW 1 - Right 8 Switches
SW 1 is Upside-Down on Circuit Board.
ON
Switch 1 Motor direction switch - Must OPEN the gate upon initial AC power up and open command. If the open command
begins to close the gate, turn AC power off and reverse this switch.
Switch 2 Turns the auto-close timer on or off. Can be adjusted from 1 to 23 seconds to close gate.
Switch 3 A device wired to terminal #4 (Switch 3 ON) is a normal full open input. The output wired to terminal #4 (Switch 3
OFF) becomes the output of a plug-in loop detector that is installed in the EXIT loop port of the circuit board (Which must be
installed for the “OFF” setting to function). A jumper wire is needed to open and close gate(s). Terminal #4 jumpered to #5 is
used for partially opening an automatic exit loop using a single channel plug-in loop detector for a single gate operator (Page
24) OR terminal #4 jumpered to #2 will fully open bi-parting gates using a dual channel plug-in loop detector (Page 28).
Switches 4-5 These work in conjunction with each other and determine when the relay on the board will be activated. This relay
can be used as a switch for various functions such as illuminating a warning light when the gate is moving, or turning on a
green light when the gate is full open. If a magnetic lock is used with the gate operator, these switches must be set for magnetic
lock operation which limits the relay to activate only when the gate is opening and full open.
Switch 6 Warn Before Operate, When set to the ON position, the internal alarm in the operator will start sounding 2-3 seconds
prior to the gate starting and continue throughout the gate’s cycle.
Switch 7 Determines if an input to terminal #6 (Photo Sensors) AND/OR reverse loops will reverse OR stop a CLOSING gate.
A tailgating vehicle can activate terminal #6 (Photo sensors) and/or reverse loops while the gate is in the closing cycle from the
previous vehicle’s authorized entry:
If switch 7 is turned OFF (Reverse), the closing gate that gets activated by a tailgating vehicle will reverse back to the open
position, possibly allowing the tailgating vehicle unauthorized entry while the gate is reversing back to the open position.
If switch 7 is turned ON (Stop), the closing gate that gets activated by a tailgating vehicle will stop, partially or completely
blocking the pathway, NOT allowing the tailgating vehicle to enter without proper authorization. The gate will not move until all
sensors are clear, usually forcing the tailgating vehicle that activated the sensors to back away from the gate. The gate will then
continue until closed, helping prevent the tailgating vehicle from unauthorized entry.
Switch 8 Turning the quick-close feature on will cause the auto close timer to close the gate after 1 second, regardless of the
setting of the auto close timer potentiometer. This will also cause an opening gate to stop and reverse when the reverse loops
and/or photo sensors are cleared. This feature, along with turning switch 7 ON above, is useful to help prevent tailgating
vehicles from unauthorized entry.
Typical Settings
1 2 3 4
SW 2 - Left 4 Switches
SW 2 is Upside-Down on Circuit Board.
ON
Switch 1 This switch is a self-test feature that checks various functions of the circuit board and is used for bench test only.
Do not run this test with the operator connected to the gate.
Switch 2 Set to the OFF position for normal operation. Set to the ON position if gate OPENS in an UPHILL direction.
Switch 3 Set to the OFF position for normal operation. Set to the ON position if gate OPENS in a DOWNHILL direction.
Switch 4 Spare switch, leave in the OFF position.
9510-065-W-5-18
17
Check the polarity: Position the gate half way open. Give open command
and while gate is opening, activate the appropriate limit switch with your
finger. Gate should STOP. If it does not, activate the other limit switch. If
this STOPS the gate, AC power wires must be changed (Reverse the
connection of any 2 wires and re-check limits).
3.3 Limit Switches
Adjust Limit Nuts
Important: Turn power OFF and set AC module to
maximum speed before adjusting limit nuts!
1
Push and hold the lock plate down where shown to adjust the
Open and Close limit nuts.
2
After adjusting the limit nuts, be sure that the lock-plate is
engaged in the slots on the limit nuts to prevent them from
rotating.
3
The slow-down limit assembly will move up or down 3/4 inch.
DO NOT remove the slow-down limit assembly from the 3/4
inch slot and re-attach it in the partial open adjustment rail to
gain further adjustment. This will cause mechanical damage
to the switch assembly when the operator is activated.
4
5
Turn power on and activate the gate operator.
A
A
Lock-Plate
Partial Open Adjustment Rail
Re-adjust the limit nuts as necessary for full-open and
full-close gate travel. After you are satisified with the gate
limit settings, the AC module can then be adjusted to personal
preference (See page 20).
Partial Open Feature: When
using the partial open feature, the
operator’s access control device must
be connected to terminal #5 .
Middle Limit Nut (Partial Open)
Magnet - Align with magnetic pick-up sensor Adjust the middle limit nut and
magnetic pick-up sensor assembly to
B Magnetic Pick-Up Sensor
the gate’s desired stopping position.
Be sure to align the magnet (Recessed
in the limit nut) with the magnetic
pick-up sensor.
B
Push
Partial Open
Magnetic
Pick-up
Sensor
Adjustment
Push
Slow-Down Limit
A1
Slow-Down
Limit
(3/4 inch
adjustment
ONLY)
A1
Limit Nut
Limit
Switch
Limit LEDs
LMT
L
MT
T
C
REV SENSE
OPEN
C1
C
4404-010
1 2 3 4 5 6 7 8
TIME
DELAY
1 2 3 4
ON
P6
REV SENSE
CLOSE
Limit
Switch
A1
A
ON
P8
C
EXIT
LOOP
B
Limit Nut
C1
LMT
MT
T
LOOP
A
Limit Nut
C
REVERSE
Slow-Down Limit
C1
Slow-Down
Limit
(3/4 inch
adjustment
ONLY)
1 2 3 4
SW1 ON
P7
CB
OB
G
CE
OE
G
NC
1477-010
NO
Note: If limit
plug is not
connected to
the circuit
board and
AC power is
turned on,
alarm will
sound and
operator will
NOT
function.
Main Terminal Partial Open Connection
20 19 18 17 16 15 14 13 12 11 10 9
18
8
7
6 5 4 3
2 1
9510-065-W-5-18
3.4 Inherent Reverse Sensors Adjustment
This vehicular gate operator is equipped with an inherent adjustable reversing sensor (Type A) used as entrapment protection
according to UL 325 standards. The gate will reverse direction after “physically” encountering an obstruction in either the
opening or closing gate cycle.
If the Auto-Close Timer (DIP-switch SW 1, switch 2) is ON and the gate physically encounters an obstruction during the
CLOSING cycle, it will reverse to the open position and HOLD the gate at this position (Soft shutdown condition). Another input
command is needed before the gate will reset and close again.
If the Partial Open Feature is being used and the gate physically encounters an obstruction during the CLOSING cycle, the gate
will only reverse to the FULL open limit switch setting and NOT the partial open setting.
For the reverse system to function correctly, the gate must be properly installed and work freely in both directions and the limit
switches must be properly adjusted before adjusting these sensors. The ideal adjustment will allow the operator to move the
gate through its entire travel cycle without reversing, but will reverse upon contact with an obstruction with no more than 40
Lbs of force. This force can be measured with a gate scale.
Min Max
Sensitivity
OPEN
LED lights up and the gate reverses direction. Rotate the OPEN reverse sensor back counterclockwise approximately 1/8 turn to decrease the sensitivity (LED will turn off). The gate will
assume a soft shutdown and the CLOSE button will need to be pressed to cycle the operator.
3 Press the CLOSE button on the 3-push button to close the gate. CLOSE
4 After closing gate reaches full speed, slowly rotate the CLOSE reverse sensor clockwise until the
LED
CLOSE
LED lights up and the gate reverses direction. Rotate the CLOSE reverse sensor back counterclockwise approximately 1/8 turn to decrease the sensitivity (LED will turn off). The gate will
assume a soft shutdown and the OPEN button will need to be pressed to cycle the operator.
5
Cycle the gate a few times to be sure that it cycles completely. The current sensor may
need to be adjusted (9530 - 208/230 VAC models only) if gate will not reverse properly
(See 3.5 below)
Reverse Sensors
1 Press the OPEN button on the 3-push button to open the gate. OPEN
2 After opening gate reaches full speed, slowly rotate the OPEN reverse sensor clockwise until the
LED
Note: Each operator must be
individually adjusted if dual
operators have been installed.
Test the operator reversing sensitivity:
Place an immobile object along the gate path, allowing the gate to strike it while in the open and close cycles. The gate must
reverse direction after striking the object. If it does not, increase the OPEN and CLOSE reverse sensitivity (steps 2 and 4 )
and repeat this testing until the correct sensitivity has been achieved in BOTH directions. The operator will assume a soft
shutdown after striking and reversing the gate which will require a OPEN or CLOSE button command to cycle operator again.
3.5 9530 - 208/230 VAC Current Sensor Adjustment
The 9530 - 208 and 230 VAC gate operators use a current sensing device to detect any obstructions in the path of the opening
or closing gate. The current sensor uses a sensing coil with a given number of turns through it to monitor the current flow into
the operator. Each time the wire passes through the coil, it is considered a turn. The number of turns through the sensing coil is
dependant on the operating voltage of the operator, the speed of the gate and the weight of the gate.
In general, light weight gates may require additional turns of wire through the current sensor, while heavier gates may require
less turns. In addition, the speed of the gate can affect how the current sensor works. Gates running at a higher speed may
require less turns of wire through the sensor. CAUTION – HIGH VOLTAGE: Be sure power is turned OFF before changing the
number of wire turns to the current sensor. If you are setting the reverse sensors (section 3.4 above) and reach the full sensitive
position without activating the reversing function, add an additional turn of wire through the current sensor. If you are decreasing the sensitivity and the gate will not run properly, reduce the number of turns through the current sensor.
1
2
1
3
2
1
1 Turn . . . . . and . . . . . 2 Turns . . . . . and . . . . . 3 Turns . . . . . and . . . . .
9510-065-W-5-18
Voltage and Phase
Turns
9530 - 208 Three Phase
5
9530 - 230 Three Phase
6
19
3.6 AC Module Adjustment
9500s are equipped with an AC module that allows you to adjust the speed of the gate from 0 to 2 ft/ sec or 0 to 4 ft/sec on the
high speed models. To adjust the speed, simply rotate the speed control knob clockwise to increase the gate speed, or counterclockwise to decrease the gate speed. The digital readout on the AC module will display the gate speed.
10 HP AC Module
L1
L2
Min Max
Speed
1 ft/s
.5 ft/s
15 HP AC Module
L3
1. 0
EPM
L1
2 ft/s
1.5 ft/s
1 ft/s
L3
3. 0
EPM
3 ft/s
Mode
0 ft/s
L2
Min Max
Speed
Mode
2 ft/s
0 ft/s
4 ft/s
SCF series
SCF series
T1
T2
T3
U
V
W
B-
1
2
5
6
11
12
2
14
13A
13B
13C
15
25
2
30
31
TXA
TXB
basic I/O control
1
2
5
6
11
12
2
14
13A
13B
13C
15
25
2
30
31
TXA
TXB
basic I/O control
B+
T1
T2
T3
U
V
W
B-
B+
9555/9556 Mechanical Disc Brake
The 9555/9556 10:1 gear reducer is equipped with a disc brake. It is automatically controlled by the AC module and needs NO
adjustment. There is a manual release lock on the disc brake that must be unlocked before the gate can be manually operated
(See section 6.3 manual release on page 31 for further information).
Mechanical
Disc Brake
NO adjustment is needed for the disc brake.
20
Manual Release
9510-065-W-5-18
SECTION 4 - ENTRAPMENT AND SAFETY PROTECTION
External Entrapment Protection Devices:
In addition to the inherent reversing sensor system, this operator has a UL 325 terminal for the connection of photo sensors-Type B1 and/or
reversing edges-Type B2 entrapment protection required by UL 325 standards. Entrapment Protection must be provided for the gate system
where the risk of entrapment or obstruction exists. The operator will not run without one or more monitored type B1 or B2 entrapment
protection devices. Install these devices where the risk of entrapment or a safety hazard exists, examples of which are shown below and the
next 2 pages. Specific installations will vary.
4.1 UL 325 Terminal Description
4
EXIT
LOOP
LMT
REV SENSE
CLOSE
P8
4404
-010
P6
ONLY connect monitored
devices.
P7
1 2 3 4 5 6 7 8
OB OPEN Beam STOP (Switch 1)
Sensor LEDs Note:
LED ON: Connected device has been activated.
LED remains off during normal operation.
LED Flashing: Connected device is in fault.
Wiring to device is bad.
Wall / Fence
Closed Gate
WARNING
Open Beam
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate
only when
gate area is in sight
and
free gate
of people
and obstructions.
Dooperate
not allow
children to play in gate area
or
gate.
Do not
stand
in is
gate
path or walk through
path
while
gate
moving.
Read owner’s manual and safety instructions.
ON
1 2 3 4
ON
1 OPEN Beam Stop: Obstructed opening-direction photo
beam will stop the gate during the opening-direction only.
Gate will resume the open cycle when the obstructed photo
beam has been cleared.
CB CLOSE Beam REVERSE (Switch 2)
Monitored Device Note: Only 1 monitored Device can be
connected to each input. An OPTIONAL Expansion Board
(sold separately) will allow connection for additional devices.
OE OPEN Edge/Beam REVERSE (Switch 3)
2 1
CE CLOSE Edge/Beam REVERSE (Switch 4)
6 5 4 3
G Ground (Common)
OB
G
CE
CB
OE
NC
G
1477-010
NO
7
G Ground (Common)
SW1 ON
1 2 3 4
P7
8
3
REVERSE
TIME
DELAY
REV SENSE
CLOSE
P6
20 19 18 17 16 15 14 13 12 11 10 9
Connection.
3
4
3
4
LOOP
REV SENSE
OPEN
UL 325 Terminal
6 5 4 3 2 1 6-Pin
Entrapment Protection Device
2
1
2
1
2
1
Electronic Box
ON
LMT
1 2 3 4
EXIT
LOOP
LMT
LOOP
REVERSE
DIP-switches MUST be turned ON
for each device wired to terminal.
Sensor LEDs
P8
4404-010
115 VAC
Convenience
Outlets
UL 325 DIP-Switches
Entrapment Area
Entrapment Area
2
Close Beam
Wall / Fence
Closed Gate
WARNING
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate
only when
gate area is in sight
and
free gate
of people
and obstructions.
Dooperate
not allow
children to play in gate area
or
gate.
Do not
stand
in is
gate
path or walk through
path
while
gate
moving.
Read owner’s manual and safety instructions.
CLOSE Beam Reverse: Obstructed closing-direction
photo beam will reverse the gate to the open position and
reset the close-timer during the closing-direction only.
Gate will close when timer times out.
3
4
WARNING
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate
only when
gate area is in sight
and
free gate
of people
and obstructions.
Dooperate
not allow
children to play in gate area
or
gate.
Do not
stand
in is
gate
path or walk through
path
while
gate
moving.
Read owner’s manual and safety instructions.
OPEN Edge/Beam Reverse: Obstructed reversing edge or photo beam will reverse the gate to the close position during the opening-direction only.
• After the gate reverses to the close position, any
Wall / Fence
opening input will cycle the gate again.
Filler Post if necessary
Open Edge
Note: If the gate is opening by a time clock and a edge/beam
Open Edge
Closed Gate
gets obstructed, the gate will return to the closed position
Open Beam
and another input (automatic exit loop, reverse loop, remote
Entrapment Area
etc.) is needed to cycle the gate open again.
CLOSE Edge/Beam Reverse: Obstructed reversing edge or photo beam will reverse the gate to the open position during the closing-direction only.
Entrapment Area
Close Beam
Wall / Fence
Closed Gate
Close Edge
WARNING
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate
only when
gate area is in sight
and
free gate
of people
and obstructions.
Dooperate
not allow
children to play in gate area
or
gate.
Do not
stand
in is
gate
path or walk through
path
while
gate
moving.
Read owner’s manual and safety instructions.
• After the gate reverses to the open position, the close-timer
will time out and close the gate (if it is turned on).
• If a second sequential obstruction is encountered prior to the
gate reaching the close limit, the gate will reverse to full open
position and enter a soft shutdown condition (See page 30).
5 & 6 Ground (Common): Common terminal for all MONITORED entrapment protection device inputs.
9510-065-W-5-18
21
4.2 Entrapment Protection Device Locations
Typical UL Photo Sensor mounting height
and distance away from gate.
5”
or
Less
Outside Property
Reversing Edge (Open Contact Sensor)
Note: Additional
photo sensors can
be added above
the 27.5” height.
Sensor mounted on wall.
Sensor mounted on post.
Filler Post or Barrier
Non-Secure Side
Gate Frame
Inside Property
Gate Frame
5”
or
Less
Secure Side
If the distance between the gate
and wall is greater than 2 1/4”.
Wall
No higher than
27.5” above grade.
21” is typical for
most installations.
Photo sensors may be installed on either side of gate frame, as close
as practical to the gate but no further away than 5”.
A filler post or barrier may need to be installed between the
gate and wall area to reduce the distance to 2 1/4” or less.
A reversing edge should be installed on the post or barrier
for safety (See pages 2 and 3 for more information).
Photo Sensors (With Filler Post and Reverse Edge) Sample Setup
Close Beam
Wall
Filler Post If necessary
Open Edge
Closed Gate
Normally Closed
WARNING
Do not allow children to play in gate area
or operate gate.
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions.
OPEN Beam STOP
CLOSE Beam REVERSE
OPEN Edge/Beam REVERSE
(Common) Ground
ON
1 2 3 4
6-Pin
UL 325 6
Terminal
Wiring
ONLY
DIP-switches connect
1, 2 and 3
monitored
MUST be ON. devices.
CLOSE Edge/Beam REVERSE
(Common) Ground
UL 325
DIP-Switches
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate
and
free
gate
of only
people
whenand
gateobstructions.
area is in sight
Open Beam
IMPORTANT: Photo sensors must use Normally
Closed (NC) contacts with the beam set for light
operate (relay activated when beam is not
obstructed). Some manufacturer’s photo sensor
contacts are labeled as Normally Open (NO) but
their relay functions the same way as described
above. See specific manufacturer’s wiring manual
for more information about their specific relay
function.
5 4 3 2 1
Normally Closed
Only 1 monitored Device can be connected to each
input. An OPTIONAL Expansion Kit (sold separately)
will allow connection for additional devices.
Normally Closed
Photo Sensor Power Note: Photo sensors can be powered by the built-in
convenience outlets located on the operator (See previous page).
22
9510-065-W-5-18
Wireless Reverse Edge Sample Setup - Single Receiver
Open
Edge
Edge transmitter
mounted on gate.
Open
Beam
W
RA
INW
NA
GR
IN
GN
ET
M
IVO
GN IRES
AG SUO
rep a
NI
AC U
JM
eta
VO Sno etago eerf dn
C N IR
UA ONY E
yl p f
D
hw oe
no
ES DGRG OInR
E SUetag edna peOlp olla teopo ro
TAA
I era rtsboetare nalihc wg etar
HET
ia
D
d
AC UJnN
i s itcutag rnf edr .eta
no
C N YRhgis .snlnoo e folpeoet D dnats two htap
o ni
lih
UA O t w y oenpi ya
ES ED R tag nehneraa eeltpag olla taoppneotargsoi etag e o daeR
e o da
w htre m
w
A
HT i si aertcaurtsb erdlihkcltaawgroe.tganivo oaDm s’ren
O
i
n t .e
n
tolanunap
ot uorh
is .sno
atsna ht
t hg
alp hg
dns d w
iy
nyitefa elih
gn
tasgni tag
eR
eta
da
p uert si e
ra
ae
wo
htoaitc m
en
ro.sn vo
s’r
w .gni
m
kla
na
rht
au
uo
al
hg
dn
fas
yte
ni
rts
cu
oit
.sn
Close
Edge
IMPORTANT: Photo sensors must use Normally Closed (NC)
contacts with the beam set for light operate (relay activated when
beam is not obstructed). Some manufacturer’s photo sensor
contacts are labeled as Normally Open (NO) but their relay functions
the same way as described above. See specific manufacturer’s wiring
manual for more information about their specific relay function.
Mount transmitter on gate.
Edge
Transmitter
Wall
Open Edge
Filler Post (If necessary)
Closed Gate
Close
Edge
WARNING
Do not allow children to play in gate area
or operate gate.
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions.
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate
and
free
gate
of only
people
whenand
gateobstructions.
area is in sight
Open Beam
Connect ONLY monitored devices.
EXIT
LOOP
LMT
LOOP
6 5 4 3 2 1
REVERSE
OPEN Beam STOP
CLOSE Beam Reverse
OPEN Edge REVERSE
(Common) Ground
CLOSE Edge REVERSE
(Common) Ground
LMT
6-Pin
UL 325
Terminal
Normally Closed
4404-101
Normally Closed
REV SENSE
OPEN
Wireless Note: Refer to the instruction sheet
that comes with the receiver/transmitter for
more specific wiring and mounting instructions.
Normally Closed
1 2 3 4
1 2 3 4 5 6 7 8
ON
ON
1 2 3 4
24 VAC Receiver
P7
7
OB
G
CE
CB
OE
NC
G
Main Terminal #3 Note:
Exceeding 250 mA of power from this terminal
may cause the circuit board transformer to
overheat, causing intermittent problems.
8
1477-010
NO
20 19 18 17 16 15 14 13 12 11 10 9
9510-065-W-5-18
SW1 ON
REV SENSE
CLOSE
P6
Only 1 monitored Device can be connected to each
input. An OPTIONAL Expansion Kit (sold separately)
will allow connection for additional devices.
TIME
DELAY
ON
1 2 3 4
DIP-switches
1, 3 and 4
MUST be ON.
P8
UL 325
DIP-Switches
Coax Antenna Kit
P/N 1514-073
Place receiver in operator.
6 5 4 3
2 1
20-Pin
Main
Terminal
To #1 Com
To #3 24 Volt - Power is limited to 250 mA
23
4.3 Loop Detector Wiring
To help protect the operator from accidentally closing on vehicles in the gate’s path, DoorKing highly recommends that loops
and loop detectors be installed. Loops are laid underneath, cut into asphalt or concrete driveways or buried beneath gravel and
earth driveways. A loop detection system will sense a vehicle like a metal detector and send a signal to the gate operator
preventing the gate from automatically opening or closing on a vehicle when it is in the gate’s path. DoorKing recommends that
a licensed installer perform this work.
DoorKing offers a free “Loop and Loop-Detectors
Information Manual” PDF located at Doorking’s
web site for more information. www.doorking.com
Reverse Loops
Reverse loops are placed on each side of the gate to
prevent the gate from closing on a vehicle in the gate’s
path. They will stop or reverse the cycling of the gate
while a vehicle is in or near the gate’s pathway.
WAR
NING
MOVING
SERIOUS
GATE
Operate
INJURYCAN
and
free gate
CAUSE
of only
OR
Do
people when
DEATH
or not allow
and gate
operate
area
children obstructions.
gate.
Do
is
in
to
pathnot stand
sight
play
while
in
in
gate
gate gate
area
path
owner’s is moving.
or
walk
manual
through
and
safety
Read
instructions.
ate .
rse
d g rence
i
e
o
v
av fe
Re
ate e.
to ter
in. nt in
id g enc
PVC Conduit
vo er
t. M me
o a interf
t
4 F ove
.
in nt
m
t. M me
se
4 F ove
ver
m
Re
rse
eve
r
d
i
avo e.
to renc
.
n
e
i rf
xit
t. M nte
ic E
4 F oop i
t
a
l
m
W
ire
s
Note: SW 1, switch 7 must
be set for the reverse loops.
See page 17 for more
information about SW 1,
switch 7 ON/OFF options.
In
to
Au
ire
ad
W
Le
In
op
DoorKing
Plug-in
Loop Detectors
op
Le
ad
Lo
ON
Reverse loop
lead-in wires are
twisted approx.
6 twists per foot
and are wired in
series.
1 2 3 4 5 6 7 8
LOOP 1
A
Lo
SW 1 is Upside-Down on Board
Single Channel
A
Single Channel
B
Automatic Exit Loop
1 2 3 4 5 6 7 8
1 2 3 4
ON
1 2 3 4 5 6 7 8
LOOP 1
Exit Loop Port
LMT
TIME
DELAY
REV SENSE
CLOSE
ON
1 2 3 4
SW1 ON
SW 1 is Upside-Down on Board
P7
CB
7
OB
G
CE
8
OE
G
NC
20 19 18 17 16 15 14 13 12 11 10 9
1477-010
NO
Note: The plug-in exit loop detector can be
wired to partially open the gate if SW 1,
switch 3 is turned OFF. A jumper wire must
be connected from terminal #4 to terminal
#5 (See next page for more information).
EXIT
LOOP
LMT
REV SENSE
OPEN
4404-010
Reverse Loop Port
SW 1, switch 3
must be ON to
FULLY open gate
(Normal function).
P6
Exit loop lead-in
wires are twisted
approx. 6 twists
per foot.
P8
B
LOOP
REVERSE
PVC Conduit
9410
ON
9410
Automatically opens the gate for exiting
vehicles without having to use a transmitter or
keypad. The exit loop can be placed a minimum
of 4 feet away from the reverse loop or far
enough away from the gate so the gate has
started opening or even completely opened by
the time you drive up to it (Free exit).
6 5 4 3
Note: Loop detector
wiring is shown for
DoorKing plug-in
loop detector P/N
9410-010 (Single
Channel). If other
loop detectors are
used, refer to the
installation
instructions
supplied with those
detectors for wiring
and separate power
instructions.
2 1
1 2 3 4 5 6 7 8
ON
SW 1 is Upside-Down on Board
24
Exit Loop Partial Open
9510-065-W-5-18
SW1 ON
1 2 3 4
SECTION 5 - MAIN TERMINAL WIRING
P7
4404
#2
Used in conjunction with the
circuit board inherent
reversing sensors. See page
19 for further information.
Low Voltage Common
Full Open
(See note)
24 VAC - 250 mA max.
Full Open
2 1
Partial Open
6 5 4 3
Standard Reverse OR Stop
3-Button Full Open
(DoorKing 3-Button Station ONLY)
3-Button Full Close
(DoorKing 3-Button Station ONLY)
Gate Tracker - Data
Gate Tracker - Busy
Dry Relay Contact
Dry Relay Contact
Low Voltage Common
Entrapment Alarm
Alarm Reset
Current Sensor
Current Sensor
Motor Hot
Motor Neutral
16
17
7
Main Terminal #3 Note:
Exceeding 250 mA of power from this terminal
may cause the circuit board transformer to
overheat, causing intermittent problems.
• SW 1, switch 3 is ON, terminal #4 functions as a normal FULL
open input. (Normal Setting). Single operator use ONLY.
• SW 1, switch 3 is OFF, input to terminal #4
becomes the output from a plug-in loop
detector installed in the EXIT loop port of the
circuit board. A jumper wire is needed to open
and close the gate(s) for these applications:
4
ON
DANGER
HIGH VOLTAGE!
8
1 2 3 4 5 6 7 8
Earth Ground
20 19 18 17 16 15 14 13 12 11 10 9
Low Voltage Common
Auxiliary Common
Terminal
Main Terminal Input LEDs #10
#9 #8
#7 #6 #5 #4
#2 - Jumper Wire - SW 1, switch 3 OFF (Dual Operators Full Open)
#1 - Jumper Wire - SW 1, switch 3 OFF (Single Operator Exit Loop Partial Open)
Low Voltage Common
CB
OB
OE
G
CE
G
NC
1477-010
NO
5.1 Main Terminal Description
SW 1 is Upside-Down on Board
#1 Terminal #4 jumpered to terminal #5 will PARTIALLY open an
automatic exit loop using a single channel plug-in loop detector
installed in the exit loop port when using a single gate operator.
#2 Terminal #4 jumpered to terminal #2 will FULLY open
bi-parting gates using a dual channel plug-in loop detector
installed in the exit loop port when using dual gate operators.
11
12
ON
NC
9510-065-W-5-18
SW 1 is Upside-Down on Board
NO
Relay contacts can be set for
Normally Open (NO) or Normally
Closed (NC) operation.
Contact rating is 1 amp maximum
at 24-volts DC.
1 2 3 4 5 6 7 8
Operation of relay is dependent on
setting of SW 1, switches 4 and 5.
See page 16 and 17 for DIP-switch
function descriptions.
6
This input ONLY fuctions when gate is fully opened or in the
closing cycle.
• When gate is closing: SW 1, switch 7 is OFF, an input to
terminal #6 (eg: photo beam gets obstructed) will reverse and
open the gate.
Note: If the auto-close timer is ON, when
gate reaches the open position, timer will
time out and close the gate.
SW 1 is Upside-Down on Board
ON
5
For long gate applications. An input device connected to
terminal #5 will open the gate to the partial open setting,
See page 18 for more information.
1 2 3 4 5 6 7 8
Main Terminal Input LEDs Note: The LED
that is above the main terminal wiring input
will light when that terminal input gets
activated.
• When gate is closing: SW 1, switch 7 is
ON, an input to terminal #6 (eg: photo beam gets obstructed)
will stop the gate, then continue to close the gate when input
is clear (Used to help prevent tailgating vehicles from
unauthorized entry). See page 17 for more information.
25
5.2 Control Wiring for Single/Primary Operator
1 2 3 4
SW1 ON
Important: Controls intended for user activation must be located at least six (6) feet away from any moving part of the gate and
where the user is prevented from reaching over, under, around or through the gate to operate the controls.
Emergency access controls only accessible by authorized personnel (e.g., fire, police, EMS) may be placed at any location in the
line-of-sight of the gate.
P7
UL 325 Terminal
CB
20 19 18 17 16 15 14 13 12 11 10 9
#7
8
7
OB
#8
OE
G
#9
CE
#10
G
NC
4404-010
1477-010
NO
See pages 21-23
#6
#5
1 2 3 4 5 6 7 8
ON
Green Close
SW 1 is Upside-Down on Board
White Com
3-Button Control Station
DoorKing ONLY
#4 - Full Open
#5 - Partial Open (See page 18)
Red Full Open
SW 1, Switch 3 MUST be ON
except for dual operators or
automatic exit loop partial open
applications.
#2
Connect any common
wire to these 2 terminals.
#4
6 5 4 3
Note: All stand-alone and
telephone entry devices must
use a separate power source.
Auxiliary Common
Terminal
2 1
#1-Com
#2-Fully opens gate.
Safety Opening Device
#1-Com
#2 or #5-Relay
#3-24 volt
250 mA max.
3-Wire Radio Receiver
#1-24 Volt Power Com
#5 Terminal Note: Any opening
device connected to terminal #5 will
open the gate to the partial open
setting. Entrapment protection
devices will also open the gate to the
partial open setting. If the Inherent
Reverse Sensor gets activated during
the close cycle, it will always fully
open the gate.
Telephone Entry
#1-Relay Com
#2 or #5-Relay
#3-24 Volt Power
250 mA max.
4-Wire Radio Receiver
Key Switch
Stand-Alone
Keypad
Com
Stand-Alone
Card Reader
26
To #4 or #5
Main Terminal #3 Note:
Exceeding 250 mA of power from this terminal
may cause the circuit board transformer to
overheat, causing intermittent problems.
9510-065-W-5-18
1 2 3 4
SW1 ON
5.3 Auxiliary Device Wiring
P7
CB
7
OB
8
OE
G
CE
G
NC
20 19 18 17 16 15 14 13 12 11 10 9
1477-010
NO
4404-010
6 5 4 3
2 1
Gate Tracker - DoorKing Access Control System (Model 1833, 1835, 1837 or
1838) tracker system can be connected. This system can keep track of gate
operator cycle count, shorted inputs, loop detector problems, any forced entry
attempts, if the gate has struck anything during the open or close cycle,
power interruptions, etc. For more detailed information refer to the Tracker
Installation and Wiring Manual, DoorKing P/N 2358-065.
Terminal #2 (Full open) or #5 (Partial open) required only if the tracker
board will activate the gate operator. Refer to the manual 2358-065 for
detailed information.
9510-065-W-5-18
Gate Tracker
(Quad Box Shown)
27
1 2 3 4
SW1 ON
5.4 Bi-Parting Gates Wiring - Dual Gate Operators
P7
61 52 43 34 25 61
• Requires AC power to each operator.
UL 325
Terminal
NC
1 2 3 4
ON
NO
UL 325 DIP-switches 1,
2 and 3 MUST be ON.
4404-010
• Both operator DIP-switches must be set.
• Connect all control devices, auxiliary
devices and loops to the primary
operator only.
Primary Operator
7
Orange
DoorKing offers a free “Loop and Loop-Detectors
Information Manual” PDF located at Doorking’s
web site for more information. www.doorking.com
6 5 4 3
Gray #2
2 1
Yellow
8
Brown
20 19 18 17 16 15 14 13 12 11 10 9
Green to primary operator
chassis ground.
3-Wire Receiver
A
SW 1 is Upside-Down on Board
LOOP 2
Primary SW 1, switch 3
must be OFF.
Com to #1
A
Normally Open to #6
Reverse loop
lead-in wires are
twisted approx.
6 twists per foot
and are wired in
series.
PVC Conduit
Dual Channel
9409
B
Plug the DoorKing DUAL
channel loop detector
into Primary Operator’s
Exit Loop Port.
LOOP 1
Sold separately from DoorKing.
5 wires used (8 - 18 AWG wires total).
Note: 4-wire
radio receiver, or
any other
opening devices
get wired to
primary operator
ONLY, as shown
on page 26.
PVC Conduit
ON
Interconnection Cable
24 Volt Power
250 mA max.
1 2 3 4 5 6 7 8
Automatic
Exit Loop
When using plug-in
DUAL loop detector
Connect a jumper
from #4 to #2:
fully opens gates.
Loop Lead-In Wires
Reverse
Loop
B
Com
Relay
Loop Detector
Reverse
Loop
Exit loop lead-in
wires are twisted
approx. 6 twists
per foot.
To Open Photo #1
External Entrapment
Protection Devices
for Bi-Parting Gates
To Close Photo #2
To Open Edge #3
To Common #5
Main Terminal #3 Note:
Exceeding 250 mA of power
from this terminal may cause
the circuit board transformer
to overheat, causing
intermittent problems.
To Open Edge #3
Closing Non-Contact Sensor
Fence
Fence
Open Edge
Open Edge
Gate
Gate
Secondary
Operator
WARNING
Primary
Operator
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate
only when
gate
area is in sight
and
freegate
of people
and
obstructions.
not allow
Dooperate
or
gate. children to play in gate area
Do not
stand
in is
gate
path or walk through
path
while
gate
moving.
Read owner’s manual and safety instructions.
WARNING
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate
only when
gate
area is in sight
and
freegate
of people
and
obstructions.
Dooperate
not allow
or
gate. children to play in gate area
Do not
stand
in is
gate
path or walk through
path
while
gate
moving.
Read owner’s manual and safety instructions.
Open Beam
Filler Post if necessary (See page 2 for more info).
Open Beam
SW1 ON
To Open Edge #3
1 2 3 4
To Open Photo #1
To Common #5
P7
• Separate power source for photo sensors.
See page 21 for more information.
UL 325
Terminal
Secondary Operator
28
2 1
Yellow
6 5 4 3
Brown
7
Gray
8
Orange
20 19 18 17 16 15 14 13 12 11 10 9
ON
G
NC
1 2 3 4
61 52 43 34 52 61
1477-010
NO
4404-010
UL 325 DIP-switches 1, 2 and 3
MUST be ON.
Note: Secondary operator ‘s
DIP-switches MUST be set for the dual
operators to cycle correctly. See pages
18 and 19 for more information about
dual operator DIP-switch settings.
Green to secondary operator
chassis ground.
9510-065-W-5-18
SECTION 6 - OPERATING INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
This vehicular gate operator is designed for Class III and Class IV applications only. All users of this gate operating
system MUST be trained on the proper and safe operation of the system and must made aware of all hazards that
may be associated with the system.
WARNING - To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Test the operator monthly. The gate MUST reverse on contact with a rigid object or stop or reverse when an object
activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to
adjust and retest the gate operator properly can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving and power has been shut-off.
6. KEEP GATES PROPERLY MAINTAINED. Read the owner's manual. Have a qualified service person make repairs to gate
hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS.
6.1 Built-In Controls and Reset Button Description
Unlock (If padlocked) and remove
the cover (See section 1.2
Removing cover on page 8) to
gain access to these controls.
WARNING
AC Power Switch - Powers the
operator ON or OFF.
Yellow push button is inert.
Push to Operate Button - Used to
cycle the operator. It will use the
auto close timer if turned on to
close the gate.
Opens gate fully.
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate gate only when gate area is in sight
and free of people and obstructions.
Do not allow children to play in gate area
or operate gate.
ON
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions.
F
OF
E
RAT
OPE only
TO use
SH
PU nician
tech
EN
OP
E
OS
CL
OP
ST
3-Push Button - Used to open,
close or stop gate. Does NOT use
the auto close timer. Overrides
other opening devices.
Opens gate fully.
Reset Button - Used to
turn off the entrapment
alarm and to reset the
operator after a HARD
shutdown has occurred.
Accessible without
removing the cover.
9510-065-W-5-18
Alarm Siren
29
6.2 Shutdown Conditions
Under various entrapment conditions the operator will assume either a soft or hard (alarm) shutdown. To determine what
type of reset action is required, you will need to understand how the different entrapment conditions affect the gate operator.
Soft Shutdown
This occurs in various situations where the inherent or external entrapment protection devices have been activated. In a soft shutdown
condition, the operator will not respond to any input that was present when the entrapment protection device sensed an obstruction. If
the gate stops at the open position, the operator will not respond to the automatic close timer.
• Example 1 - A time clock keys the gate open in the morning and an entrapment protection device senses an
obstruction prior to the gate reaching the full open position. If the entrapment is sensed by the inherent system, the
gate will reverse and run back to the closed position. The time clock input is still present, but the gate will not re-open.
Note: In some systems, the time clock input comes from the telephone entry system relay. This same relay may also provide open
commands for a card reader, MicroPLUS transmitters and the visitor telephone entry. If so, these devices will also be disabled in a
soft shutdown condition.
• Example 2 - If the gate is closing and an entrapment protection device is activated, the gate will either stop or reverse
and run back to the open position, depending upon if the external or inherent device was activated. The automatic
close timer will not close the gate.
• Example 3 - Vehicle arrives at exit loop and gate runs towards the open position. If the inherent entrapment protection
gets activated during this opening cycle, the gate reverses and runs back to the closed position. After the inherent
entrapment protection is cleared, If the vehicle is still present at the exit loop, a soft shutdown condition does not
occur. The exit loop input provides an immediate reset of the operator and the gate will again run to the open position.
Resetting a Soft Shutdown
In some conditions, a soft shutdown will reset as soon as the entrapment condition clears. For example, if a non-contact sensor (photo
cell) is sensing an obstruction, the operator will stop the gate and assume a soft shutdown condition. When the photocell clears, the
operator will return to normal operation.
When the operator is in a soft shutdown, activation of any “intended input” will reset the operator. An “ intended input” includes any
command, any standard safety input and any loop input. Activating any of these inputs will reset the gate. At that point the gate will
return to normal operation. If the gate is open, the automatic close timer will then time out and close the gate.
Hard Shutdown (Alarm Activated)
A hard shutdown condition occurs when: (1.) The inherent entrapment protection system (Type A) gets activated TWO
consecutive times before the gate completes the open or close cycle. (2.) The reversing edge (Type B2) gets activated
and reverses but before the gate completes the reverse cycle the inherent entrapment protection system (Type A) gets
activated.
• Example of a Hard Shutdown - The gate is closing and the inherent entrapment protection system senses an obstruction and
causes the gate to reverse direction. As the gate begins to run in the open direction, a second obstruction is sensed prior to the
gate reaching the full open position. Once the second obstruction has been sensed, the operator will stop, the audio alarm will
sound and all standard inputs are shut down (including open commands, safety commands, loop inputs, etc.).
– To silence the alarm, press the reset button or after 5 minutes, the audio alarm will shut off but will “chirp” every 5
seconds. This indicates that the operator is in a hard shutdown condition (The reset button must be pressed to reset the
operator and stop the alarm “chirping”).
Resetting a Hard Shutdown
The operator is in a hard shutdown condition when the audio alarm is sounding OR “chirping” every 5 seconds.
• Before resetting a hard shutdown, determine why the shutdown occurred. Inspect the gate for any obstructions along
its path that could have activated the inherent entrapment sensing system. Inspect the gate and gate hardware.
The audio alarm will sound for five minutes, or until the operator’s reset button is pushed. After (5) five minutes the
alarm will “chirp every 5 sec.” and the hard shutdown condition will remain in affect until the reset button is pushed.
Once the operator has been reset, an open or close command is needed to start the gate operator. Most activating commands
will cause the gate operator to cycle to the open position. This includes activation of a key switch or open command and
activation of an automatic exit loop. Activation of a close command will run the gate to the closed position.
Note: DoorKing operators have a built-in alarm reset push button mounted on the operator (See previous page for reset button location).
Activating this button will return the gate operator to normal operation, but will not cycle the gate operator. A remote alarm/reset station
(P/N 1404-080) can be mounted external of the gate operator provided that it is installed in the line-of-sight of the gate and gate operator.
30
9510-065-W-5-18
6.3 Manual Gate Operation
Caution: Never attempt to manually operate any gate until you have verified that power to the operator has been shut-off.
1
Remove the Cover
2
3
Manually
Crank
2
1
Padlock
Bracket
Chassis
Cover
Catch
Idler Wheels
Padlock
Not Provided
Padlock
Bracket
Manual Crank Stored
Inside
Cover
Catch
Gate Frame
Interlock - Cuts off AC
power to the operator.
1. Lift cover on padlock bracket end a few inches.
2. Slide cover horizontal to free cover from chassis cover catch.
3. Lift cover off vertical.
BE CAREFUL not to hit internal components with cover!
9555/9556
Mechanical Disc Brake Release
The disc brake MUST be manually released (disengaged) with the
release handle 90° before manually operating the gate.
Insert the supplied manual hand crank into the motor
shaft underneath the interlock door. Turn the crank to
open the gate. Mechanical disc brake on 9555/9556
operator MUST also be manually released before
manually turning the hand crank.
Mechanical
Disc Brake
Mechanical disc brake will automatically
reengage after power has been restored.
al
nu e
a
M eas
l
Re
9510-065-W-5-18
31
SECTION 7 - MAINTENANCE AND TROUBLESHOOTING
Inspection and service of this gate operator by a qualified technician should be performed anytime a malfunction is observed or
suspected. High cycle usage may require more frequent service checks.
7.1 Maintenance
When servicing the gate operator, always check any secondary (external) reversing devices (loops, photocells, etc.) for proper
operation. If external reversing devices cannot be made operable, do not place this operator in service until the malfunction can
be identified and corrected.
Always check the inherent reversing system when performing any maintenance. If the inherent reversing system cannot be
made operable, remove this operator from service until the cause of the malfunction is identified and corrected. Keeping
this operator in service when the inherent reversing system is malfunctioning creates a hazard for persons which can result
in serious injury or death should they become entrapped in the gate.
When servicing this gate operator, always turn power OFF!!
If gearbox requires oil, use only Mobil SHC-629 Synthetic Gear Oil. Do not completely fill gearbox with oil. Gearbox
should be half full only. Do not exceed this level.
Operator
Component
32
Monthly Interval
Maintenance
Warning Signs
Check that warning signs are on BOTH sides of the gate area.
Alarm
Activate the primary (inherent) reverse system by blocking the
gate with a solid object. When the gate reverses, block the gate
in the opposite direction prior to the limit being reached. The
entrapment alarm should activate. Press the reset button to
silence the alarm.
Chain
Check for sagging. Tighten if necessary.
Fire Dept.
Check emergency vehicle access device for proper operation.
Gate
Inspect for damage. Check gate wheels. rollers and guides for
wear and grease if necessary.
Grease
Wheels and guide rollers if necessary.
Loop(s)
Check vehicular exit and reverse loops for proper operation.
Primary Reverse System
Check that the gate reverses on contact with an object in both
the opening and closing cycles. See page 38.
Adjust the reversing sensor if necessary.
Manual Release
Check manual release for proper operation. See page 37.
External Reverse Device
Check external reverse device(s) stop or reverse the gate when
activated. See page 38.
Sprockets
Check setscrews for tightness.
Complete System
Complete check of gate and gate operating system.
✓
✓
1
✓
✓
✓
✓
✓
6
12
✓
✓
✓
✓
✓
9510-065-W-5-18
7.2 Built-In Diagnostic Tests
This gate operator is designed with built-in diagnostics that will alert you to potential or existing problems that the microprocessor has detected. Specific fault conditions are checked and the operator will signal that a fault exist through the built-in alarm.
Constant alarm is heard when power is applied: This indicates that the limit switch wire harness is not
connected to the circuit board. In this condition, the operator will not run and the tone will continue until the fault is
corrected. Check to be sure that the limit switch plug is properly inserted into the limit switch plug on the circuit
board.
Constant alarm is heard: This indicates that the operator is in a hard shutdown condition (section 6.1 and 6.2
on pages 29 and 30). The tone will continue to sound for five minutes, and then will beep once every five seconds.
The operator-reset button must be pressed or power must be removed and then reapplied to return the operator to
normal operation.
Short “chirp” is heard every five seconds: This indicates that the operator has been in a hard shutdown
condition in excess of five minutes. This will continue until the operator-reset button is pressed or until power is
removed from the operator (section 6.1 and 6.2 on pages 29 and 30).
Operator runs for 1 second and stops, two short “chirps” are heard: This indicates that there may be
a fault with the current sensor circuit.
7.3 Troubleshooting
Have a good VOM meter to check voltages and continuity. A Meg-Ohm meter capable of checking up to 500 meg-ohms of
resistance is necessary to properly check the integrity of the ground loops. When a malfunction occurs, isolate the problem to
one of three areas: 1. the operator, 2. the loop system, 3. the keying devices. Use caution when checking high voltage
terminals, motor capacitor and the motor.
1. Check the input indicator LEDs. They should only come ON when a keying device (card reader, push button, etc.) is activated.
If any of the input LEDs are ON continuously, this will cause the gate operator to hold open. Disconnect the keying devices one
at a time until the LED goes OFF.
2. Check any external entrapment protection devices. Any short or malfunction in these devices can cause the gate operator to
stop or to hold open.
3. A malfunction in a loop or loop detector can cause the gate operator to hold open, or to not detect a vehicle when it is
present over the loop. Pull the loop detector circuit boards from the loop ports on the operator circuit board. If the malfunction
persists, the problem is not with the loop system. For more information on trouble shooting loops and loop detectors, refer to
your loop detector instruction sheet and to the DoorKing Loop and Loop Detector Information Manual located on DoorKing’s
web site.
4. Check to be sure that there are no shorted or open control wires from the keying devices to the gate operator. If a keying
device fails to open the gate, press the Key Switch or momentarily jumper across terminals 1 and 5 on the operator circuit
board. If the gate operator starts, this indicates that a problem exist with the keying device and is not with the gate operator.
5. If a three-button control station (open-close-stop) is connected to this gate operator, check for proper wiring. Only a
DoorKing three button control station (P/N 1200-006 or 007) can be used with this gate operator. Others will cause a
malfunction.
6. Check the high voltage supply. A voltage drop on the supply line (usually caused by using too small supply voltage wires) will
cause the operator to malfunction. Refer to the wire size chart in section 2.1 on page 13.
9510-065-W-5-18
33
Symptom
Operator will not run.
Power LED is OFF.
• Check that AC power to the operator is turned ON.
• Transformer may be overheated. Turn power off and allow board to cool for several minutes then retest. Check for low VAC
power and low voltage shorts.
• Check for VAC at high voltage input terminal. If voltage measures 0, check the incoming power wires or replace circuit board.
Operator will not run.
Power LED is ON.
• Insure that a minimum of one (1) entrapment protection device is connected and the input it is connected to is enabled
(UL 325 DIP-switch is ON).
• If a photocell is used as a external entrapment prevention device, check to be sure that the beam is not blocked.
• Be sure that the chain is not too tight. A too tight chain may cause the operator to stall.
• Bypass circuit board and Check Motor: Turn power switch OFF and remove the circuit board. Place a jumper wire from
terminal #18 to #17. CAUTION – HIGH VOLTAGE. Turn the power switch ON. The motor should run. Turn the power switch
OFF and remove the jumper. With power switch still OFF, place a jumper wire from terminal #18 to #16. CAUTION – HIGH
VOLTAGE. Turn the power switch ON. The motor should run in the opposite direction. Turn the power switch OFF and
remove the jumper.
• If the motor runs in both steps above, replace the control board. If the motor does not run, or runs in only one direction,
problem can be a bad motor, motor capacitor, motor resistors, wire connections from the control board to the motor or a
bad control board.
Operator will not run,
entrapment protection
input(s) LED is ON.
• The entrapment protection device has a fault or the wiring to it is shorted.
Operator will not run,
entrapment protection
input(s) LED is Blinking.
• The entrapment protection device is not connected or the wiring to it is open.
Gate opens a short
distance, then stops and
reverses.
• Disconnect the gate from the gate operator and check that the gate slides freely without any binding.
• Re-adjust the reverse sensitivity.
• Continue troubleshooting.
Gate opens but
will not close.
Gate closes but
will not open.
34
Possible Solution(s)
•
•
•
•
•
•
Check the input LEDs. Any ON will hold the gate open and indicates a problem with a keying device.
Check the external safety devices. Any activated will hold the gate open and indicates a problem with the safety device.
Check the loop detectors. Any activated can hold the gate open and indicates a problem with loop detector or ground loop.
Operator may be in a “soft shutdown.” Activate any keying device to determine if operator returns to normal operation.
If automatic close is desired, be sure SW 1, switch 2 is ON and set timer open from 1-23 seconds.
Bypass circuit board and check motor as above.
• Operator may be in a “soft shutdown.” Check input LEDs. If any are ON, momentarily disconnect, then re-connect the wire
going to the respective terminal. Operator should open.
• Check to be sure that the operator is running in the proper direction. Turn power OFF, and then back ON. Activate a keying
device. Operator should run in the open direction. If operator runs in the close direction, turn power OFF and change direction
switch SW 1, switch 1. Go to above section if operator now opens but will not close.
• Be sure that the each LED on the control board lights when the keying device connected to the that terminal is activated. If
LED does not light, momentarily place a jumper wire from terminal 1 to the input terminal being checked. If LED lights and
gate opens, problem is with the keying device. If LED does not light, replace control board.
• Bypass circuit board and check motor as described above.
Gate starts to close, then
reverses to open.
•
•
•
•
Re-adjust the reverse sensitivity.
Disconnect the gate from the gate operator and check that the gate slides freely without any binding.
Check the loop detector LEDs and input LEDs. Any that flash ON will cause the gate to reverse.
Continue troubleshooting.
Gate closes then
re-opens.
• Check for any input or loop detector LED’s that are ON.
• Check that the operator is running in the proper direction (see “gate closes but will not open”).
Alarm is sounding.
Operator will not run.
• Operator is in a “hard shutdown” condition. Reset button must be pushed to return operator to normal operation, see Section
6.2 Shutdown Conditions, page 30.
• Check the gate and gate hardware for any binding, correct where necessary.
• Gate may be too heavy.
Alarm chirps once every
5 seconds. Operator will
not run.
• Operator has been in a “hard shutdown” condition in excess of 5 minutes. Reset button must be
pushed to return operator to normal operation, see Section 6.2 Shutdown Conditions, page 30.
Alarm sounds when
power is applied and
operator will not run.
• The limit switch wire harness is not plugged into the circuit board. Check that the limit switch connector is properly plugged
into the limit switch plug on the circuit board.
Operator runs for 1
second and stops, two
short chirps are heard.
• There may be a problem with the current sensor on the circuit board. Replace the circuit board.
Operator has intermittent
functionality problems
that vary.
• The main terminal #3 250 mA power has been exceeded. Check total amp draw of connected device(s).
9510-065-W-5-18
7.4 Accessory Items
UL 325 Monitored Entrapment Protection Devices available for the series 9500 slide gate operators.
Type B2 Contact Sensors (Reversing Edge)
Miller Edge Sensing Edges - all models with a T2 (resistive) termination.
Miller Edge Monitored Gate Link Model MGL-K20
Miller Edge wireless monitored transmitter/receiver kit model RB-G-K10
ASO GMBH Sentir GF Series sensing edges
Type B1 Non-contact Sensors (Photo Cell)
Miller Edge Reflective-Guard Model RG
Miller Edge Prime-Guard Model PG
EMX Industries Model IRB-MON
EMX Industries Model IRB-RET
Omron Model E3K-R10K4
Seco-Larm Model E-936-S45RRGQ
Seco-Larm Model E-960-D90GQ
Monitored Expansion Kit
Miller Edge Multi-Input Module Model MIM-62
Accessory items available for the series 9500 slide gate operators.
Plug-In Loop Detector - Detectors plug directly into ports on circuit board simplifying wiring.
Single channel detector - P/N 9410-010
Dual channel detector - P/N 9409-010
Single channel detector with aux relay - P/N 9411-010
Single channel low power draw detector - P/N 9416-010
Dual channel low power draw detector - P/N 9415-010
External Loop Detector
Reno A&E 12/24 VDC or 24 VAC - 9402-045
Reno A&E 120 VAC - 9402-047
Carlo Gavazzi 24 VAC/VDC - 9402-044
Diablo 10-30 VAC/VDC low power draw - 9402-050
Chain Tray Kit - 10 Ft. section. Sections connect together to fit any length gate. P/N 2601-270
Loop Wire - 18 AWG loop wire with XLPE insulation is ideal for ground loops. Available in 500 and 1000 foot rolls. Red, blue or black
insulation.
Pre-Fab Loops - Prefabricated ground loops. 24-foot circumference with 50-foot lead-in. Available in yellow, red or blue jackets. Not for use in
asphalt roadways.
Loop Test Meter - Meg-ohm meter checks the integrity of ground loops. P/N 9401-045
3-Button Control Station - Provides open-close-stop manual operation of the gate.
Stand Alone Box - P/N 1200-006 Interior (fits in single gang box) - P/N 1200-007
Interconnection Cable - Interconnect wire cable contains all the necessary wires to interconnect primary / secondary operators.
Cable length: 30 ft. - P/N 2600-755 40 ft. - P/N 2600-756 50 ft. - P/N 2600-757
Time Clock - 7 day time clock can be used to automatically open gate at pre-set time and days. Compact clock fits inside the operator.
7 day clock - P/N 2600-791
V-Wheels - 4 inch and 6 inch. UHMW or Steel. Roller bearings or sleeve bearings. Single or tandem wheel configurations.
Surge Devices - High and low voltage surge suppressors help prevent circuit board failure caused by lightning strikes and power surges.
High Voltage - P/N 1879-010 Low Voltage - P/N 1878-010
Speed Bumps - Prefabricated six-foot speed bump reduces traffic speed through gate system. P/N 1610-150
9510-065-W-5-18
35
SECTION 8 - OWNER OF THE GATE OPERATOR
8.1 Alarm Sounding and Gate WILL NOT Operate
When alarm is sounding . .
ALWAYS CHECK GATE AREA FOR ANY OBSTRUCTIONS FIRST.
WARNING
If the cause of the alarm cannot be corrected,
shut-off power and DO NOT place this operator
back into service until the malfunction can be
identified and CORRECTED.
IMPORTANT: Putting this gate operator
back into service without CORRECTING
the cause of the alarm could result in
serious injury or DEATH!
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate gate only when gate area is in sight
and free of people and obstructions.
Do not allow children to play in gate area
or operate gate.
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions.
RESET
BUTTON
Press RESET BUTTON.
This will reset the gate
operator and allow normal
gate operation again.
Accessible without
removing the cover.
Gate Operator is in a Hard Shutdown Condition when Alarm is Sounding
This occurs when:
1. The inherent entrapment protection system (Type A) gets activated TWO consecutive times before the gate completes
the open or close cycle.
2. The reversing edge contact sensor (Type B2) gets activated and reverses but before the gate completes the reverse
cycle the inherent entrapment protection system (Type A) gets activated.
The audio alarm will sound for five minutes, or until the operator’s reset button is pushed. After (5) five minutes the
alarm will “chirp every 5 sec.” and the hard shutdown condition will remain in affect until the reset button is pushed.
Please read SECTION 6 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
36
9510-065-W-5-18
8.2 Manual Gate Operation
Caution:
NEVER attempt to manually operate the gate until you have VERIFIED
that power to the gate operator has been SHUT-OFF!
Please read SECTION 6 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
2
3
Note: The owner of
the gate operator is
responsible for the
PADLOCK KEY
availability.
Inside
Cover
Catch
2
1
Padlock
Bracket
Chassis
Cover
Catch
Idler Wheels
Padlock
Not Provided
Padlock
Bracket
Manually
Crank
Interlock - Cuts off AC
power to the operator.
Manual Crank Stored
Remove the Cover
Gate Frame
1
1. Lift cover on padlock bracket end a few inches.
2. Slide cover horizontal to free cover from chassis cover catch.
3. Lift cover off vertical.
BE CAREFUL not to hit internal components with cover!
9555/9556
Mechanical
Disc Brake
Release
Insert the supplied manual hand crank into the motor
shaft underneath the interlock door. Turn the crank to
open the gate.
Mechanical disc brake on 9555/9556 operator MUST
also be manually released before manually turning
the hand crank.
The disc brake MUST
be manually released
(disengaged) with the
release handle 90°
before manually
operating the gate.
Mechanical
Disc Brake
Mechanical disc brake will automatically
reengage after power has been restored.
al
nu
Maease
l
Re
Gate CANNOT be manually PUSHED open.
9510-065-W-5-18
37
8.3 Gate Operator’s Monthly Checkup
Caution:
Make SURE gate area is clear BEFORE testing the gate operator!
DO NOT repair or adjust gate systems yourself. Contact a trained gate systems technician with any questions
or to make any repairs or adjustments. If you feel uncomfortable performing any of these inspections or testing,
a qualified service technician will perform the visual inspections and testing for you.
You can find a trained service technician at DoorKing’s “Dealer Locator” at www.doorking.com
Visual Inspection
Visually inspect the rollers, fasteners, brackets and other gate hardware for proper alignment, proper tightness, and signs of
damage, breakage, looseness, rust or wear. Moving parts should be lubricated and should not be squeaking.
Visually inspect wiring for fraying or exposure. If a malfunction is found, contact a trained service technician to make
adjustments or repairs.
Test Built-In Reversing Sensor
Begin with the gate in the fully OPEN position. Stand just outside the path of the gate and close the gate (typically auto-timer
will time-out and close gate automatically). As the gate is closing, firmly press a solid object against the end of the gate
frame in the direction opposing the travel of the gate. The gate should stop within 2 sec. and reverse to the OPEN position.
Another input command is needed before the gate will reset and close again. Repeat this test while opening the gate. Start
from the fully CLOSED position. While opening, gate should stop and reverse to the CLOSE position. If gate does NOT
respond like it should in either direction of gate travel, contact a trained service technician to make adjustments or repairs.
Test Photo Sensors
If the gate has a photo sensing device protecting the path of a closing gate, perform the following test. Begin with the gate in
the fully OPEN position. Stand just outside the path of the gate and close the gate (typically auto-timer will time-out and close
gate automatically). Pass an object across the path of the closing photo sensing beam. The gate should stop within 2 sec.
and reverse to the OPEN position. Typically the auto-timer times out and gate closes again.
If the gate has a photo sensing device protecting the path of a opening gate, start from the fully CLOSED position. OPEN
gate. Pass an object across the path of the opening photo sensing beam. The gate should stop, the gate will resume opening
when the beam is clear. If gate does NOT respond like it should in either direction of gate travel, contact a trained service
technician to make adjustments or repairs.
Test Reversing Edges
If the gate has a reversing edge(s) protecting the path of a closing gate, perform the following test. Begin with the gate in the
fully OPEN position. Stand just outside the path of the gate and close the gate. As the gate is closing, firmly press a solid
object against the reversing edge in the direction opposing the travel of the gate. The gate should stop within 2 sec. and
reverse to the OPEN position (typically auto-timer will time-out and close gate automatically). If the gate encounters another
obstruction before it is closed, the gate will stop and reverse to the OPEN position again. A input command is needed before
the gate will reset and close again, auto-timer will NOT close gate (Typically, press your remote button for input command).
If the gate has a reversing edge(s) protecting the path of a opening gate, starting from the fully CLOSED position.
Stand just outside the path of the gate and open the gate. OPEN gate. As the gate is opening, firmly press a solid object
against the reversing edge in the direction opposing the travel of the gate. gate should stop and reverse to the CLOSE
position. If gate does NOT respond like it should in either direction of gate travel, contact a trained service technician to make
adjustments or repairs.
Note: This gate operator uses high levels of force to move the gate and most people underestimate the power of these
systems and do not realize the potential hazards associated with this system if NOT maintained properly.
Scheduled maintenance visits are offered by most qualified service technicians to MAINTAIN your gate operator system.
38
9510-065-W-5-18
Press RESET BUTTON.
This will reset the gate
operator and allow normal
gate operation again.
Accessible without
removing the cover.
IMPORTANT: Putting this gate operator
back into service without CORRECTING
the cause of the alarm could result in
serious injury or DEATH!
If the cause of the alarm cannot be corrected,
shut-off power and DO NOT place this operator
back into service until the malfunction can be
identified and CORRECTED.
ALWAYS CHECK GATE AREA FOR ANY OBSTRUCTIONS FIRST.
Alarm Sounding and Gate WILL NOT Operate
When alarm is sounding . .
WARNING
MOVING GATE CAN CAUSE
SERIOUS INJURY OR DEATH
Operate gate only when gate area is in sight
and free of people and obstructions.
Do not allow children to play in gate area
or operate gate.
Do not stand in gate path or walk through
path while gate is moving.
Read owner’s manual and safety instructions.
RESET
BUTTON
Gate Operator is in a Hard Shutdown Condition when Alarm is Sounding
This occurs when:
1. The inherent entrapment protection system (Type A) gets activated TWO consecutive times before the gate completes
the open or close cycle.
2. The reversing edge contact sensor (Type B2) gets activated and reverses but before the gate completes the reverse
cycle the inherent entrapment protection system (Type A) gets activated.
The audio alarm will sound for five minutes, or until the operator’s reset button is pushed. After (5) five minutes the
alarm will “chirp every 5 sec.” and the hard shutdown condition will remain in affect until the reset button is pushed.
1
3
2
1
Padlock
Not Provided
Padlock
Bracket
Phone #
Name
Manual Gate Operation
Remove the Cover
Idler Wheels
Padlock
Bracket
To obtain key to unlock gate
operator padlock contact:
Inside
Cover
Catch
Chassis
Cover
Catch
1. Lift cover on padlock bracket end a few inches.
2. Slide cover horizontal to free cover from chassis cover catch.
BE CAREFUL not to hit internal components with cover!
3. Lift cover off vertical.
9555/9556
Mechanical
Disc Brake
Release
The disc brake MUST
be manually released
(disengaged) with the
release handle 90°
before manually
operating the gate.
Mechanical
Disc Brake
al
nu
Maease
l
Re
2
Manually
Crank
Interlock - Cuts off AC
power to the operator.
Gate CANNOT be manually PUSHED open.
Mechanical disc brake will automatically
reengage after power has been restored.
Insert the supplied manual hand crank into the motor
shaft underneath the interlock door. Turn the crank to
open the gate.
Mechanical disc brake on 9555/9556 operator MUST
also be manually released before manually turning
the hand crank.
Manual Crank Stored
Please read SECTION 6 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
www.doorking.com to get a PDF of this manual - Remove this page OR print this page in color, fold and laminate - Place at the gate operator
Please read SECTION 6 - OPERATING INSTRUCTIONS for more information about operating this gate operator.
Gate Frame
Installation/Owner’s Manual
Series 9500
Maximum Security Heavy-Duty Vehicular Slide Gate Operator
Use this manual for circuit board 4404-010 Revision AA or higher.
9510-065-W-5-18
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.
The operator will not run without one or more monitored type B1 or B2 entrapment protection devices.
This vehicular gate operator is designed for Class III and Class IV applications ONLY and
must NEVER be used in applications serving the general public.
THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE SYSTEMS TECHNICIAN ONLY.
Visit www.dkslocator.com to find a professional installing and servicing dealer in your area.
www.doorking.com
DoorKing, Inc.
120 S. Glasgow Avenue
Inglewood, California 90301
U.S.A.
Phone: 310-645-0023
Fax: 310-641-1586
Copyright 2009 DoorKing, Inc. All rights reserved.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
