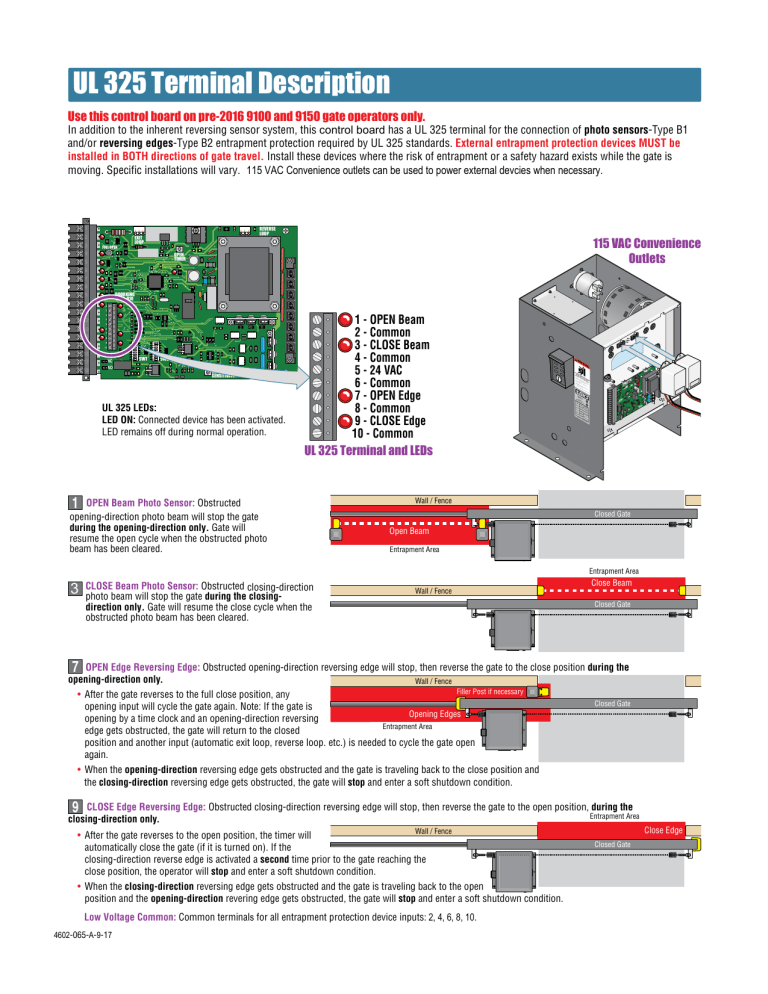

UL 325 Terminal Description
Use this control board on pre-2016 9100 and 9150 gate operators only.
In addition to the inherent reversing sensor system, this control board has a UL 325 terminal for the connection of photo sensors-Type B1
and/or reversing edges-Type B2 entrapment protection required by UL 325 standards. External entrapment protection devices MUST be
installed in BOTH directions of gate travel. Install these devices where the risk of entrapment or a safety hazard exists while the gate is
moving. Specific installations will vary. 115 VAC Convenience outlets can be used to power external devcies when necessary.
1
2
3
4
5
REVERSE
LOOP
EXIT
LOOP
OPEN
TIMER
6
7
8
9
10
11
12
115 VAC Convenience
Outlets
FULL OPEN
DOORKING
4602-010
1
2
3
4
5
6
7
8
ON
9
ON
13
14
15
16
17
18
10
NC
NO
SW1
SW2
REVERSE
SENSITIVITY
NIN
pathnot stan
whil
.
ren
to
d in
e gate
gate
Rea
d own
is
er’s
play
G
E
ERS
REVP
LOO
path
mov
ing.or
man
ual
tion in
s. sigh
in
area
walk
thro
ugh
and
safe
ty
CON
ANSFOR
I/ULMS
-32TO
CAN CER
5
/CS TIFI
A C22ED
VEH
TO
ICU .2 NO.
CLA
SS
LAR
MO
DEL
SER
IAL
N
OPEER
TIM
T
EXI P
LOO
t
gate
inst
ruct
ions
.
KEY
TCH
SWI
NG
RKI10
DOO2-0
460
247
GA
TE
5338
2
1
2
3
4
5
OP
ER
ATO
HP
R
VOL
TS
E
ERS Y
REVSITIVIT
SEN
SW
AM
PS
MA
X GAT
PHA
SE
E LOA
Doo
60
D
Hz
rKin
g,
Inc.
, Ingl
ewo
od,
CA
ON
1 OPEN Beam Photo Sensor: Obstructed
opening-direction photo beam will stop the gate
during the opening-direction only. Gate will
resume the open cycle when the obstructed photo
beam has been cleared.
WA
R
MO
SE VIN
RIO G GA
US TE
Ope
INJ CA
and rate
UR N
free gate
Y ORCA
of only
Do
peo whe
US
or not allow ple
DE E
andn gate
ope
AT
rate child
obs area
H
Do
truc is
gate
ON
UL 325 LEDs:
LED ON: Connected device has been activated.
LED remains off during normal operation.
1 - OPEN Beam
2 - Common
3 - CLOSE Beam
4 - Common
5 - 24 VAC
6 - Common
7 - OPEN Edge
8 - Common
9 - CLOSE Edge
10 - Common
UL 325 Terminal and LEDs
2
1
SW
NC
NO
Wall / Fence
Closed Gate
Open Beam
Entrapment Area
Entrapment Area
3
CLOSE Beam Photo Sensor: Obstructed closing-direction
photo beam will stop the gate during the closingdirection only. Gate will resume the close cycle when the
obstructed photo beam has been cleared.
Close Beam
Wall / Fence
Closed Gate
7 OPEN Edge Reversing Edge: Obstructed opening-direction reversing edge will stop, then reverse the gate to the close position during the
opening-direction only.
Wall / Fence
Filler Post if necessary
• After the gate reverses to the full close position, any
Closed Gate
opening input will cycle the gate again. Note: If the gate is
Opening Edges
opening by a time clock and an opening-direction reversing
Entrapment Area
edge gets obstructed, the gate will return to the closed
position and another input (automatic exit loop, reverse loop. etc.) is needed to cycle the gate open
again.
• When the opening-direction reversing edge gets obstructed and the gate is traveling back to the close position and
the closing-direction reversing edge gets obstructed, the gate will stop and enter a soft shutdown condition.
during the
9 CLOSE Edge Reversing Edge: Obstructed closing-direction reversing edge will stop, then reverse the gate to the open position, Entrapment
Area
closing-direction only.
Wall / Fence
• After the gate reverses to the open position, the timer will
automatically close the gate (if it is turned on). If the
closing-direction reverse edge is activated a second time prior to the gate reaching the
close position, the operator will stop and enter a soft shutdown condition.
• When the closing-direction reversing edge gets obstructed and the gate is traveling back to the open
position and the opening-direction revering edge gets obstructed, the gate will stop and enter a soft shutdown condition.
2,Low
4, Voltage
6, 8 & Common:
10
Common terminals for all entrapment protection device inputs: 2, 4, 6, 8, 10.
4602-065-A-9-17
Close Edge
Closed Gate
