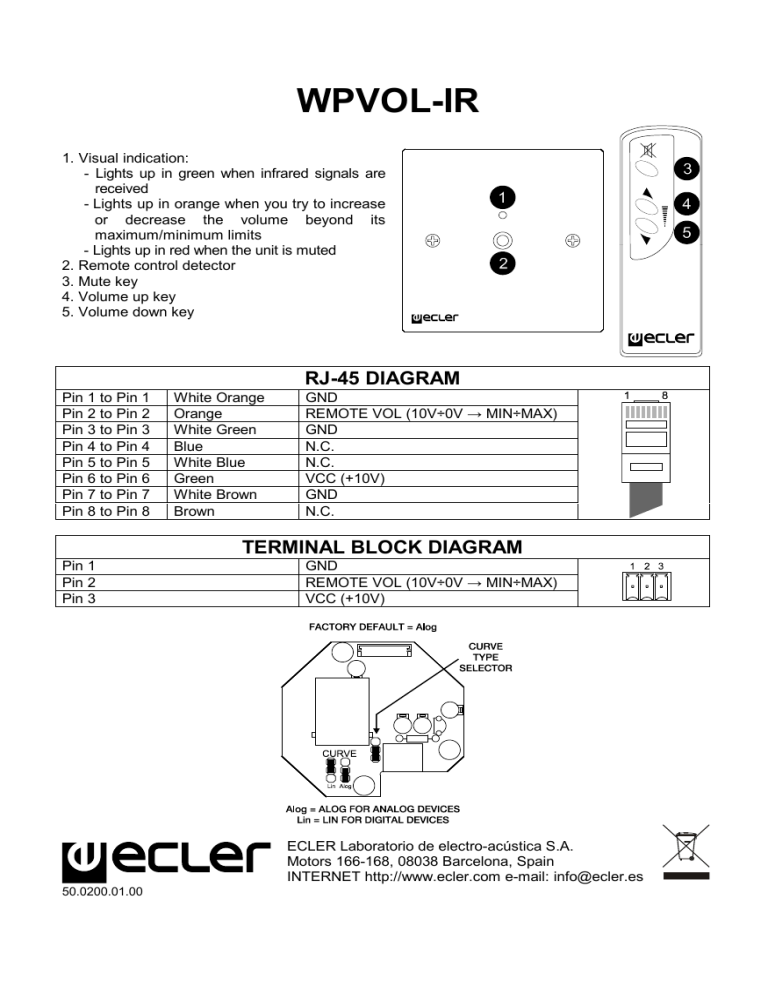

WPVOL-IR
1. Visual indication:
- Lights up in green when infrared signals are
received
- Lights up in orange when you try to increase
or decrease the volume beyond its
maximum/minimum limits
- Lights up in red when the unit is muted
2. Remote control detector
3. Mute key
4. Volume up key
5. Volume down key
RJ-45 DIAGRAM
Pin 1 to Pin 1
Pin 2 to Pin 2
Pin 3 to Pin 3
Pin 4 to Pin 4
Pin 5 to Pin 5
Pin 6 to Pin 6
Pin 7 to Pin 7
Pin 8 to Pin 8
White Orange
Orange
White Green
Blue
White Blue
Green
White Brown
Brown
GND
REMOTE VOL (10V÷0V → MIN÷MAX)
GND
N.C.
N.C.
VCC (+10V)
GND
N.C.
TERMINAL BLOCK DIAGRAM
Pin 1
Pin 2
Pin 3
GND
REMOTE VOL (10V÷0V → MIN÷MAX)
VCC (+10V)
