2002 ENGINES 3.5L V6 - Sedona
2002 ENGINES
3.5L V6 - Sedona
GENERAL
SPECIFICATIONS
Helpmelearn
June-06-08 8:54:36
8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 1
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona

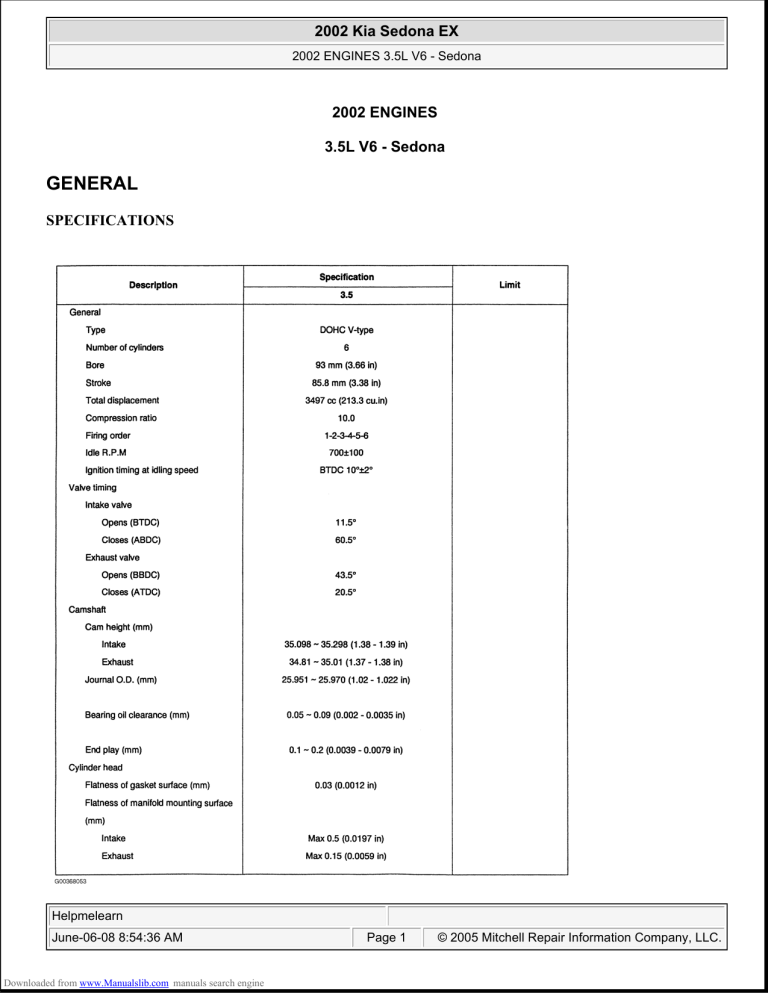

Fig. 1: General Specifications

Courtesy of KIA MOTORS AMERICA, INC.
Fig. 2: General Specifications
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 2
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Courtesy of KIA MOTORS AMERICA, INC.
Fig. 3: General Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 3
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 4: General Specifications
Courtesy of KIA MOTORS AMERICA, INC.
TORQUE SPECIFICATIONS
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 4
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
TORQUE SPECIFICATIONS
Application
Air Intake Surge Tank-To-Intake Manifold Bolt\Nut
Auto Tensioner Fixing Bolt
Camshaft Bearing Cap Bolt (1)
Inner Bolt
Ft. Lbs. (N.m)
11-15 (15-20)
15-20 (20-27)
(2)
Outer Bolt
Camshaft Sprocket Bolt
Catalytic Converter Nut
Center Exhaust Pipe Nut
Connecting Rod Nut
Step 1
Step 2
14-15 (19-21)
58-72 (79-98)
22-30 (30-40)
22-30 (30-40)
26 (35)
Plus Torque Angle 92 Degrees
51-58 (69-79)
Crankshaft Main Bearing Cap Bolt (1)
Crankshaft Pulley Bolt
Cylinder Head Bolts (3)
Drive Belt Pulley Bolt
Drive Belt Tensioner Nut
Drive Plate & Adapter Plate Bolt
Engine Cooling Inlet Fitting Attaching Bolt
Engine Coolant Pump Bolt
M8
M10
Engine Coolant Temperature Sensor & Gauge Unit Bolt
Engine Hanger Bracket Bolt
Exhaust Manifold Nut
Front Exhaust Pipe-To-Converter Bolt
Front Exhaust Pipe-To-Manifold Nut
Generator Mount Bolt (Bracket Side)
Generator Mount Bracket-To-Engine Bolt
Generator Mount Nut (Engine Front Case Side)
Intake Manifold Surge Tank Stay Bolt
Intake Manifold-To-Cylinder Head Bolt (4)
Oil Pan Drain Plug
Oil Relief Valve Plug
Oil Screen Bolt
Oxygen Sensor
Power Steering Oil Pump Bracket-To-Cylinder Head Bolt
Power Steering Oil Pump-To-Bracket Bolt
Starter-To-Engine Bolt
133-140 (180-190)
77-85 (105-115)
26-41 (35-55)
33-37 (45-50)
54-57 (73-77)
13-15 (17-20)
11-16 (15-22)
24-37 (33-50)
15-30 (20-40)
20-26 (27-35)
20-24 (27-32)
30-44 (40-60)
22-30 (30-40)
15-22 (20-30)
15-22 (20-30)
15-22 (20-30)
11-15 (15-20)
15-17 (20-23)
26-33 (35-45)
30-37 (40-50)
11-16 (15-22)
30-37 (40-50)
13-19 (17-26)
13-19 (17-26)
20-25 (27-34)
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 5
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Starter-To-Engine Nut
Timing Belt Cover Bolt
M6 Bolt
15-22 (20-30)
M8 Bolt
Timing Belt Idler Pulley Bolt
Timing Belt Tensioner Arm Fixing Bolt
Timing Belt Tensioner Pulley Bolt
15-20 (20-27)
37-44 (50-60)
26-41 (35-55)
32-41 (43-55)
22-31 (30-42)
(2)
Upper Oil Pan Bolt (10x38 mm) (5)
Water Outlet Fitting Bolt
Air Cleaner Mounting Bolt
Crank Position Sensor Wheel Screw
Cylinder Head Cover Bolt (6)
Delivery Pipe Installation Bolt
Fuel Hose Clamp
Generator Inlet Pipe-To-Front Cylinder Head Assembly Bolt
Heat Shield-To-Exhaust Manifold Bolt
Lower Oil Pan Bolt (7)
Main Muffler Hanger Support Bracket Bolt
Oil Filter
Oil Level Gauge Guide-To-Engine Bolt
Oil Pressure Switch
Oil Pump Case Bolts
Oil Pump Cover Screw
Oil Seal Case Bolt
Upper Oil Pan Bolt
171.5 mm
152.5 mm
Rear Plate Bolt
Throttle Body-To-Surge Tank Bolt
Transaxle Mounting Plate Bolt
(1) Tighten bolts evenly in 3-4 steps to specification.
(2)
Tighten bolt to 89-106 INCH lbs. (10-12 N.m)
(3)
Tighten in sequence to specification. See Fig. 5 .
(4)
Tighten in sequence to specification. See Fig. 6 .
(5)
Tighten in sequence to specification. See Fig. 7 .
(6)
Tighten in sequence to specification. See Fig. 8 .
13-15 (17-20)
INCH Lbs. (N.m)
71-106 (8-12)
44-53 (5-6)
71-89 (8-10)
89-133 (10-15)
106-133 (12-15)
106-133 (12-15)
106-133 (12-15)
89-106 (10-12)
89-133 (10-15)
106-142 (12-16)
106-133 (12-15)
71-106 (8-12)
106-133 (12-15)
71-133 (8-15)
89-106 (10-12)
44-62 (5-7)
44-62 (5-7)
89-106 (10-12)
89-115 (10-13)
89-106 (10-12)
Tighten in sequence to specification. See Fig. 9 .
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 6
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
(7)
Fig. 5: Cylinder Head Bolt Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 7
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 6: Intake Manifold Nut Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 8
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 7: Upper Oil Pan Bolt Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 9
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 8: Cylinder Head Cover Bolt Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 10
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 9: Lower Oil Pan Bolt Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
FLUIDS
ANTIFREEZE SERVICE STANDARD
Fig. 10: Antifreeze Service Standard Chart
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 11
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
ANTIFREEZE COOLANT
Fig. 11: Antifreeze Coolant Chart
Courtesy of KIA MOTORS AMERICA, INC.
SEALANT
Fig. 12: Sealant Chart
Courtesy of KIA MOTORS AMERICA, INC.
SPECIAL SERVICE TOOLS
Fig. 13: Special Service Tools
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 12
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 14: Special Service Tools
Courtesy of KIA MOTORS AMERICA, INC.
CHECKING COMPRESSION PRESSURE
1. Before checking compression, check the engine oil level and that the starter motor and battery are all in
normal operating condition.
2. Start the engine and wait until engine coolant temperature has risen to 80-95°C
3. Stop the engine and disconnect the spark plug cables.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 13
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
4.
5.
6.
7.
8.
Remove the spark plugs.
Turn over the engine to remove any foreign objects in the cylinders.
Attach the compression gauge to the spark plug hole.
Depress the accelerator pedal to fully open the throttle valve.
Turn over the engine and read the gauge.
Standard value: 1,200 kPa (12.2 kg.cm2 , 170 psi)
Limit: 1,050 kPa (10.7 kg.cm2 , 149 psi)
Fig. 15: Testing Compression
Courtesy of KIA MOTORS AMERICA, INC.
9. Repeat steps 6 through 8 on all cylinders, making sure ensuring that the pressure difference for each of
the cylinders is within the specified limit.
Limit: Max 100 kPa (1.0 kg/cm2 , 14 psi) for all cylinders.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 14
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
10. If a cylinder's compression or pressure difference is below the specification, add a small amount of oil
through the spark plug hole and repeat steps 6 through 9 .
a. If the addition of oil causes the compression to rise, it is possible that there is wear between the
piston ring and cylinder wall.
b. If the compression doesn't rise, valve seizure, poor valve seating or a compression leak from the
cylinder head gasket are all possible causes.
Spark plug tightening torque: 20-30 N.m (200 - 300 kg.cm, 14.75 - 22.13 lb.ft.)
ENGINE OIL
CHECKING ENGINE OIL
1. Position vehicle on a level surface
2. Stop the engine
CAUTION: In the case of a vehicle that has been out of service for a prolonged
period, run the engine for several minutes. Stop the engine and wait
a few minutes, then check the oil level.
3. If the oil is found to have fallen to the lower limit (the L mark), refill to the (F) mark.
CAUTION: When filling, use the same type of engine oil as the one currently
being used.
4. Check that the oil is not dirty or mixed with coolant or gasoline, and that it has the proper viscosity.
SELECTION OF ENGINE OIL
z
z
Recommended API classification : SD or above.
Recommended SAE viscosity grades :
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 15
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 16: Recommended Oil Viscosity Chart
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
For best performance and for maximum protection for all types of
operation, select only those lubricants which:
a. Confirm to the requirements of the API classification.
b. Have proper SAE grade number for expected ambient temperature
range. Lubricants which do not have both an SAE grade number and
an API service classification on the container should not be used.
Helpmelearn
June-06-08 8:54:28 AM
Downloaded from www.Manualslib.com manuals search engine
Page 16
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
CHANGING ENGINE OIL
1. Runt the engine until it reaches normal operating temperature.
2. Stop the engine.
3. Remove the oil filler cap and the drain plug. Drain the engine oil.
Fig. 17: Identifying Oil Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.
4. Tighten the drain plug to the specified torque. 26-30 ft.lbs. (35-45 N.m).
CAUTION: Whenever tightening an oil drain plug, use a new drain plug gasket.
5. Install oil filter.
6. Fill the engine with new engine oil through the oil filling hole. Amount of oil 4.5 qts (4.3Liters))
CAUTION: Do not overfill the crankcase. This will cause oil aeration and loss of
oil pressure.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 17
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
7. Reinstall the oil filler cap.
8. Start the engine.
9. Stop the engine and check the oil level. If not sufficient, refill engine.
REPLACING OIL FILTER
All Kia Motor Company engines are equipped with a quality, throw-away oil filter. This filter is recommended
as a replacement filter on all vehicles. The quality of replacement filters varies considerable. Only high quality
filters should be used to assure the most efficient service. Make sure that the rubber gasket from the old filter is
completely removed from the mating surfaces on the engine block, before installing the new filter.
1. Use a filter wrench to remove the oil filter.
2. Before installing the new oil filter on the engine, apply clean engine oil to the surface of the rubber
gasket.
Fig. 18: Illustrating Oil filter
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 18
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
3.
4.
5.
6.
Tighten the oil filter to the specified amount. 13-18 ft.lbs. (17-25 N.m))
Fill the engine with engine oil.
Start and run the engine and check for oil leaks.
After stopping the engine, check the oil level and add as much oil as necessary.
OIL PRESSURE SWITCH
1. If "OIL PRESSURE" indicating lamp lights when ignition switch is set to "ON" and goes out when
engine is started and runs at idle, then everything is in order. If "OIL PRESSURE" lamp does not light
when ignition switch is set to "ON" check switch, lamp and wiring.
2. If there is current flow when ignition switch is set to "ON" and if there is no current flow when engine is
running at idle, switch is good.
If switch is good, check lamp and wiring.
Operating pressure of oil pressure switch: 19.6 - 39.2 kPa (0.2 - 0.4 kg.cm2 , 2.84 - 5.69 psi)
Fig. 19: Illustrating Oil Pressure Switch
Courtesy of KIA MOTORS AMERICA, INC.
3. Using 24 mm deep socket, tighten the switch to the specified torque.
NOTE:
Do not tighten the oil pressure switch to the excessive torque.
Tightening torque
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 19
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Oil pressure switch and sensor assembly: 8-12 N.m (80~120 kg.cm, 5.91-8.85 lb.ft)
Fig. 20: Removing & Installing Oil Pressure Switch
Courtesy of KIA MOTORS AMERICA, INC.
DRIVE BELT ROUTING
1. For power steering belt routing, see Fig. 21 .
2. For air conditioning compressor and alternator belt routing, see Fig. 22 .
3. For combined belt routing, see Fig. 23 .
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 20
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 21: Power Steering Belt Routing
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 21
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 22: Air Conditioning Compressor & Alternator Belt Routing
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 22
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 23: Combined Drive Belt Routing
Courtesy of KIA MOTORS AMERICA, INC.
DRIVE BELT ADJUSTMENT
Power Steering
1. Loosen hinge bolt "A" and flange nut "B". See Fig. 24 .
2. Turn adjusting bolt "C" to set belt tension to specified deflection. See Fig. 24 and Fig. 25 . See BELT
ADJUSTMENT table.
3. Tighten hinge bolt "A" and flange nut "B" to specification. See TORQUE SPECIFICATIONS table.
Alternator & Air Conditioning Compressor
1. Loosen pulley lock nut "A". See Fig. 26 .
2. Turn adjustment bolt "B" to set belt tension to specified deflection. See Fig. 26 and Fig. 27 . See BELT
ADJUSTMENT table.
3. Tighten pulley lock nut "A" to specification. See TORQUE SPECIFICATIONS table.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 23
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
4. Start engine and turn A/C on.
5. Allow vehicle to run until normal operating temperature is reached.
6. Turn engine off, recheck belt deflection after operation and readjust belt tension as necessary. See BELT
ADJUSTMENT table.
BELT ADJUSTMENT
(1) Deflection - In. (mm)
Application
Alternator & Air Conditioning Compressor
New Belt Deflection
.20-.22 (5-5.5)
Used Belt Deflection
.24-.28 (6-7)
After Operation
.31 (8)
Power Steering
New Belt Deflection
.35-.43 (9-11)
Used Belt Deflection
.47-.59 (12-15)
(1) Deflection is measured at the contact point with 22 lbs. (10 kg) of deflection force.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 24
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 24: Adjusting Power Steering Belt Tension
Courtesy of KIA MOTORS AMERICA, INC.
Fig. 25: Measuring Power Steering Belt Deflection
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 25
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 26: Adjusting Alternator & Air Conditioning Compressor Belt
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 26
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 27: Measuring Alternator & Air Conditioning Compressor Belt Deflection
Courtesy of KIA MOTORS AMERICA, INC.
COOLANT LEAK CHECK
1. Loosen the radiator cap.
2. Confirm that the coolant level is up to the filler neck.
3. Install a radiator cap tester to the radiator filler neck and apply 22 lbs. of pressure. Hold for two minutes
in that condition, while checking, hose connections.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 27
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 28: Pressure Testing Radiator
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
z
z
z
z
Radiator coolant may be extremely hot. Do not open the system
while hot, or scalding. Engine coolant could spray out causing
personal injury. Allow the vehicle to cool before servicing this
system.
Be sure to completely clean away any moisture from the places
checked.
When the tester is removed, be careful not to spill any coolant
from tester.
Be careful, when installing and removing the tester and when
testing, not to deform the filler neck of the radiator.
4. If there is any leakage, repair or replace the appropriate part.
RADIATOR CAP PRESSURE TEST
1. Use an adapter to attack the cap to tester.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 28
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 29: Testing Radiator Cap
Courtesy of KIA MOTORS AMERICA, INC.
2. Increase the pressure until the gauge indicator stops moving.
z Main valve opening pressure: 14-18 psi (86-125 kPa).
z Main valve closing pressure: 12 psi (83 kPa)
3. Check that the pressure level is maintained at or above the limit.
4. Replace that radiator cap if the reading does not remain at or above the limit.
NOTE:
Be sure that the cap is clean before testing, since rust or other foreign
material on the cap seal will cause an improper reading.
SPECIFIC GRAVITY TEST
1. Measure the specific gravity of the coolant with a hydrometer.
2. Measure the coolant temperature, and calculate the concentration from the relation between the specific
gravity and temperature, using the following table for reference.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 29
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
COOLING SYSTEM SPECIFICATIONS
The coolant concentration can be calculated by measuring coolant temperature and specific gravity. After
coolant temperature and specific gravity is obtained, a concentration can be calculated using the following
chart. See Fig. 30 . If the concentration of coolant is below 30 percent, the anti-corrosion property will be
adversely affected. If the concentration is above 60 percent, both the antifreeze and engine cooling properties
will decrease and may adversely affect the engine.
NOTE:
Recommended coolant concentration is 40-50 percent, using only ethylene
glycol for aluminum type coolant.
Fig. 30: Testing Coolant Concentration & Specific Gravity
Courtesy of KIA MOTORS AMERICA, INC.
ENGINE MOUNTING
ENGINE MOUNTS
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 30
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 31: Identifying Engine Mounts
Courtesy of KIA MOTORS AMERICA, INC.
SUB FRAME MOUNTS
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 31
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 32: Identifying Subframe Mounts
Courtesy of KIA MOTORS AMERICA, INC.
ENGINE AND TRANSAXLE ASSEMBLY
REMOVAL
1. Remove the battery and engine cover.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 32
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
2.
3.
4.
5.
6.
7.
Detach the air cleaner.
Disconnect the connectors for the engine harness.
Disconnect the connectors for the alternator harness, the oil pressure switch and the oil pressure sensor.
Disconnect the connector of starter motor harness.
Drain the engine coolant.
Disconnect transaxle oil cooler hose.
NOTE:
When disconnecting the hoses, make identification marks to avoid making
any mistakes when re-installing them.
CAUTION: Be careful not to spill any of the oil or fluid out of the hoses. Plug the
openings to prevent the entry of foreign material.
8.
9.
10.
11.
12.
13.
Disconnect the radiator upper and lower hoses on the engine side, and then remove the radiator assembly.
Disconnect the high tension cable and all wires to the distributor and the ignition coil.
Disconnect the engine ground.
Disconnect the brake booster vacuum hose.
Disconnect the EVAP canister hose.
Remove the main fuel line, and the return and vapor hoses from the engine side.
CAUTION: To reduce the residual pressure in the hoses, see FUEL PRESSURE
TEST .
14.
15.
16.
17.
18.
Disconnect the heater hose (Intake and exhaust) at the engine side.
The accelerator cable should be removed from the engine side.
The cruise control cable should be removed from the engine side.
Remove the control cable from the transaxle.
Disconnect the speed sensor connector from the transaxle.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 33
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 33: Disconnecting The Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
19.
20.
21.
22.
Remove the power steering oil pump hose.
Raise the vehicle.
Remove the oil pan shield.
Drain the transaxle oil.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 34
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 34: Drain The Transaxle Oil
Courtesy of KIA MOTORS AMERICA, INC.
23. Disconnect the front exhaust pipe from the manifold.
NOTE:
Use a wire to suspend the exhaust pipe from the bottom of the vehicle.
24. Remove the tie rod end from steering knuckles.
25. Remove control link from stabilizer and lower arm.
26. Remove pinch bolt from knuckle. Separate lower arm form knuckle.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 35
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 35: Removing Pinch Bolt From Knuckle
Courtesy of KIA MOTORS AMERICA, INC.
27. Remove the drive shaft from the transaxle housing.
CAUTION:
z
z
Plug up the holes of the transaxle case to prevent entry of
foreign material.
The circlips on the drive shafts should be replaced whenever
reinstalling.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 36
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 36: Removing The Drive Shaft From The Transaxle Housing
Courtesy of KIA MOTORS AMERICA, INC.
28. Remove intermediate shaft bolt. See REMOVAL .
29. Remove No. 3, No. 4 engine mounting.
30. Support auto transaxle, engine and subframe with a suitable floor jack.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 37
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 37: Support Auto Transaxle, Engine & Subframe With A Suitable Floor Jack
Courtesy of KIA MOTORS AMERICA, INC.
31.
32.
33.
34.
Remove nuts and blots of impact bar and subframe.
Slowly lower engine, auto transaxle and subframe.
Remove No. 1, No. 2 engine mounting from subframe.
Separate auto transaxle from engine.
TIMING SYSTEM
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 38
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
TIMING BELT
COMPONENTS
Fig. 38: Identifying Timing System Components
Courtesy of KIA MOTORS AMERICA, INC.
REMOVAL
1. Remove the engine cover.
2. Remove the drive belt.
3. Remove the idler pulley, crankshaft pulley, power steering pulley and tensioner pulley.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 39
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 39: Identifying Belt Routing
Courtesy of KIA MOTORS AMERICA, INC.
4. Remove the upper and lower timing belt cover.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 40
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 40: Removing The Upper & Lower Timing Belt Cover
Courtesy of KIA MOTORS AMERICA, INC.
5. Support the engine with garage jack or special tool, and then remove the engine mounting insulator.
CAUTION: Take care not to deform the engine oil pan.
6. Remove the auto tensioner.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 41
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 41: Removing The Auto Tensioner
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
Rotate the crankshaft clockwise and align the timing mark to get the No. 1
cylinder's piston be in TDC position (compression stroke). At this time, the
timing marks of the camshaft sprocket and cylinder head cover should
coincide with each other.
7. Remove the timing belt.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 42
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 42: Remove The Timing Belt
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
When re-using timing belt, make sure of marking the rotating direction on the
belt so as to install correctly.
INSPECTION
TIMING BELT
Check the belt carefully and if any damage is found, exchange it with a new one.
1. Vulcanization of the rubber backside.
The backside is glossy and non-elastic so that, even if a finger nail is forced into it, no mark is produced.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 43
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 43: Testing Timing Belt For Vulcanization
Courtesy of KIA MOTORS AMERICA, INC.
2. Crack on the rubber belt surface.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 44
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 44: Testing Timing Belt For Cracks
Courtesy of KIA MOTORS AMERICA, INC.
3. Abnormal wearing of side face of belt.
CAUTION: Belts in good condition seem to be cut by a sharp knife.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 45
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 45: Testing Timing Belt For Side Face Wear
Courtesy of KIA MOTORS AMERICA, INC.
4. Abnormal tooth wearing
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 46
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 46: Testing Timing Belt For Abnormal Tooth Wear
Courtesy of KIA MOTORS AMERICA, INC.
Initial stage
Wearing of side face of load exerting tooth (Fabric puff up, rubber material peel off with color changing
to white and fabric become uneven and rough).
Last stage
Fabric wearing of side face of load exerting tooth occurs and rubber is exposed (Length between teeth
decrease.).
5. Missing tooth.
TIMING BELT TENSIONER
If any abnormal noise or difficulty in rotating the pulley by hand is noticed, replace the timing belt tensioner
and idler pulley.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 47
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 47: Testing Timing Belt Tensioner
Courtesy of KIA MOTORS AMERICA, INC.
INSTALLATION
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 48
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 48: Identifying Timing Belt Positions
Courtesy of KIA MOTORS AMERICA, INC.
TIMING BELT AND AUTO TENSIONER
1. Install the idler pulley to the engine support lower bracket.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 49
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 49: Installing The Idler Pulley To The Engine Support Lower Bracket
Courtesy of KIA MOTORS AMERICA, INC.
2. Install the tensioner arm, shaft and plain washer to the cylinder block.
Tightening torque: 35-55 N.m (350-550 kg.cm, 25.82-40.57 lb.ft)
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 50
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 50: Installing The Tensioner Arm, Shaft And Plain Washer To The Cylinder Block
Courtesy of KIA MOTORS AMERICA, INC.
3. Install the crankshaft sprocket.
NOTE:
Confirm if timing marks coincide with.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 51
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 51: Installing The Crankshaft Sprocket
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: Align the spacer with a pin, and assemble it exerting even force not
to deform the crankshaft sensing blade.
Helpmelearn
June-06-08 8:54:29 AM
Downloaded from www.Manualslib.com manuals search engine
Page 52
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 52: Align The Spacer & Pin
Courtesy of KIA MOTORS AMERICA, INC.
4. Install the camshaft sprocket.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 53
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Align it like initial state as shown on the picture.
CAUTION: When installing camshaft sprocket, tighten the bolt holding
hexagonal part of camshaft to prevent it from turning.
Fig. 53: Installing & Aligning Camshaft Sprockets
Courtesy of KIA MOTORS AMERICA, INC.
5. Install the auto tensioner to the oil pump case.
CAUTION: At this time the auto tensioner's set pin should be assembled
completely.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 54
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 54: Installing The Auto Tensioner To The Oil Pump Case
Courtesy of KIA MOTORS AMERICA, INC.
6. Align the timing marks of each sprocket and install the timing belt, maintaining the proper belt tension
between each shaft in this order.
Crankshaft sprocket, Idler pulley, Left bank exhaust camshaft sprocket, Left bank intake camshaft
sprocket, Water pump pulley, Right bank intake camshaft sprocket, Right bank exhaust camshaft sprocket
and Tensioner pulley.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 55
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 55: Identifying Timing Belt Routing
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION:
z
z
z
As a result of this, position of No. 1 cylinder comes to
compression TDC.
As each camshaft sprocket tends to rotate by itself, pay
attention not to injure fingers or other bodily part. Especially be
careful with the right bank.
In case the right bank camshaft sprocket rotates excessively, be
cautious not to rotate more than the initial stable position.
Always align timing mark of rotating sprocket by turning it
reversely. In this case, pay attention not to rotate it reversely
from the initial position. (If, with one sprocket fixed at No. 1
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 56
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
compression TDC position, the other sprocket is rotated one
revolution clockwise or counter clockwise, then the intake and
exhaust valve might interfere each other.)
7. After installing the timing belt, exert the reverse-directed force to the right bank exhaust camshaft
sprocket to give tension on the belt. Holding this state, recheck if each timing mark is correctly
positioned.
8. With tensioner pulley slightly pushing the belt down, tighten the center bolts lightly.
Fig. 56: Exerting The Reverse-Directed Force To The Right Bank Exhaust Camshaft Sprocket
Courtesy of KIA MOTORS AMERICA, INC.
9. Pull out the auto tensioner set pin.
ADJUSTING TIMING BELT TENSION
1. Tension setting (While auto tensioner is not operating: And set pin being kept installed.).
1. After rotating crankshaft 1/4 revolution reversely, rotate it clockwise to position No. 1 cylinder at
TDC.
Then, loosen the center bolt and give the belt 50kg-cm of tension with tensioner pulley socket (Two
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 57
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
pins are attached) and torque wrench. While maintaining this state, tighten the center bolt to the
standard torque.
Center bolt standard torque: 43-55 N.m (430-550 kg.cm, 31.72-40.57 lb.ft)
Fig. 57: Tensioning Timing Belt
Courtesy of KIA MOTORS AMERICA, INC.
2. Pull out the auto tensioner fixing pin.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 58
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 58: Removing Auto Tensioner Fixing Pin
Courtesy of KIA MOTORS AMERICA, INC.
2. How to check tension (While auto tensioner is operating: and fixing pin being uninstalled.)
a. After rotating crankshaft 2 revolutions clockwise to position No. 1 cylinder at TDC, wait for about
5 minutes, and measure the amount of protruding of the auto tensioner rod.
CAUTION: This is "leak down" time for the auto tensioner rod to protrude
1mm when tension caused by rotation of the crankshaft has
changed.
b. Check if the amount of rod protruding is in the range of 3.8~4.5mm.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 59
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 59: Measuring The Amount Of Rod Protruding From Auto Tensioner
Courtesy of KIA MOTORS AMERICA, INC.
c. Recheck if each sprocket is within the specified range.
NOTE:
If it is not within the specified range, repeat from TIMING BELT AND
AUTO TENSIONER .
CAMSHAFT
COMPONENTS
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 60
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 60: Exploded View Of Camshaft Components
Courtesy of KIA MOTORS AMERICA, INC.
REMOVAL
1. Remove the cylinder head cover.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 61
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 61: Removing Cylinder Head Cover
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 62
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the front bearing cap.
Fig. 62: Removing Front Bearing Cover
Courtesy of KIA MOTORS AMERICA, INC.
3.
4.
5.
6.
7.
8.
Remove the rear bearing cap.
Remove the bearing cap.
Remove the camshaft oil seal.
Remove the camshaft.
Remove the rocker arm.
Remove the lash adjustor.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 63
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 63: Identifying Camshaft Components
Courtesy of KIA MOTORS AMERICA, INC.
INSPECTION
CAMSHAFT
1. If there is excessive wear or damage on the camshaft journal or/and cam lobe after checking, replace it
with a new one. Measure the height of cam and if the readings are beyond the specification, replace it.
Standard value:
Intake: 35.198 mm (1.385 in)
Exhaust: 34.910 mm (1.375 in)
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 64
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 64: Measuring Camshaft Wear
Courtesy of KIA MOTORS AMERICA, INC.
ROCKER ARM
1. Inspect the roller visually, if any damage or crack is found, replace it.
2. Check that the roller rotates smoothly. If there is excessive clearance, replace it.
LEAK DOWN TEST OF LASH ADJUSTER
CAUTION:
z
z
z
As the lash adjuster is a precise part, take care not to let any dust
and foreign object enter.
Do not disassemble the lash adjuster.
Only light oil should be used to clean the lash adjuster
1. Immerse the lash adjuster in light oil.
2. Push out the steel ball in the lash adjuster softly using the special tool (Air bleed wire 09246-32200) and
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 65
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
shake the plunger upward and downward 4 or 5 times. Using the special tool (09246-32100), release air
from the rocker arm installation type lash adjuster.
Fig. 65: Releasing Air From Lash Adjuster
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: As the ball weight is very small (just a few grams), pushing the
special tool excessively can damage the lash adjuster. Push it with
care and appropriate force.
3. Take away the special tool (09246-32200) and push the plunger. If it feels tight, the lash adjuster is
normal. If it feels soft and easy, then release air from plunger feels and test again. If the plunger feels still
soft even after releasing air, replace it.
CAUTION: After releasing air, put the lash adjuster straight up not to spill the oil
over, and make sure there is no dust or foreign material on it.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 66
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
4. After finishing the air release, place the lash adjuster on the special tool (09246-32300).
5. After the plunger has gone down around 0.2~0.5mm, measure the time for the plunger to go down
additional 1mm. Replace it if the time is out of standard range. Standard dropping down rate:
2~16.5sec/mm (Light oil, oil temperature 20~30°C)
Fig. 66: Measuring Lash Adjuster Drop
Courtesy of KIA MOTORS AMERICA, INC.
ADJUSTMENT OF ROCKER ARM CLEARANCE
1. Replace the rocker arm with the one specially made for measurement.
2. After positioning the rocker arm roller on basic circle of camshaft, push down the ball lightly with special
tool (09246-32200) and push down the rocker arm by hand. Maintaining that state, measure the thickness
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 67
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
by inserting a thickness gauge between the camshaft and rocker arm.
Clearance between camshaft (Basic circle) and rocker arm (roller): 0.7+/-0.25 mm (0.0276+/-0.0098 in)
Fig. 67: Measuring Rocker Arm Clearance
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: As the ball weight is very small (just a few grams), pushing the
special tool excessively can damage the lash adjuster. Push it with
care and appropriate force.
INSTALLATION
CAMSHAFT AND BEARING CAP
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 68
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
1. Rotate the crankshaft and No. 1 cylinder is in TDC. (Compression stroke)
2. Check the position of the rocker arm whether it is exactly installed on the lash adjuster and valve or not.
3. Install the camshaft dowel pin as shown.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 69
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 68: Installing Camshaft Dowel Pin
Courtesy of KIA MOTORS AMERICA, INC.
4. The left and right banks of the camshafts are different and you should be careful not to confuse them. For
camshaft identification, see identification signal below.
CAMSHAFT IDENTIFICATION SIGNAL
Application
Left Bank
Intake
Exhaust
Right Bank
Intake
Exhaust
Identification Signal
F
E
G
H
Fig. 69: Illustrating Camshaft Inscribing Position
Courtesy of KIA MOTORS AMERICA, INC.
5. Confirm the identification mark and the number. Bearing caps of No. 3, No. 4, and No. 5 have the front
mark and arrange the front mark upon the cylinder head while installing the bearing caps.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 70
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 70: Illustrating Bearing Caps Identification Mark Chart
Courtesy of KIA MOTORS AMERICA, INC.
Fig. 71: Illustrating Bearing Caps Identification Marks
Courtesy of KIA MOTORS AMERICA, INC.
6. Tighten the bearing cap in two or three steps. Tighten it to the standard torque at the last stage.
Bearing cap standard torque:
16 pieces at the both ends: 21-26 N.m (210-260 kg-cm., 15-19 ft.lbs.)
24 pieces in the middle: 10-12 N.m (100-120 kg.cm, 7.38-8.85 ft.lbs.)
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 71
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 72: Locating Bearing Cap Positions
Courtesy of KIA MOTORS AMERICA, INC.
CYLINDER HEAD ASSEMBLY
COMPONENTS
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 72
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 73: Exploded View Of Cylinder Head Assemblies
Courtesy of KIA MOTORS AMERICA, INC.
DISASSEMBLY
Arrange removal parts according to cylinder numbers, intake and exhaust valves.
REMOVING CYLINDER HEAD BOLT
Remove the cylinder head bolts using the hexagonal wrench.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 73
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
REMOVING RETAINING LOCK
1. Compress the valve spring using Service Tool (09222-28000, 09222-28100).
Fig. 74: Compressing Valve Springs
Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the retainer lock.
REMOVING VALVE STEM SEAL
Do not reuse the valve stem seal.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 74
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 75: Removing Valve Stem Seals
Courtesy of KIA MOTORS AMERICA, INC.
INSPECTION & SERVICING
CYLINDER HEAD (Bare)
1. Remove scale, sealing compound and carbon deposits completely. After cleaning oil passages, apply
compressed air to make certain that the passages are not clogged.
2. Visually check the cylinder head for cracks, damage or water leakage.
3. Check the cylinder head gasket surface for flatness with a straight edge and feeler as shown in illustration
Flatness of cylinder head gasket:
Standard dimension: 0.03mm (0.0012 in) or lower
Service limit: 0.2mm (0.0079 in)
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 75
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 76: Measuring Cylinder Head Flatness
Courtesy of KIA MOTORS AMERICA, INC.
VALVES
1. Clean the valve with wire brush.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 76
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 77: Illustrating Cleaning Valves
Courtesy of KIA MOTORS AMERICA, INC.
2. Inspect wear and damage of each valve. Check for bending at the valve head and stem if there is wear,
replace the valve. If margin is smaller than service standard, replace the valve.
VALVE MEASUREMENTS
Application
Margin Standard In. (mm)
Intake
0.039 (1.0)
Exhaust
0.059 (1.5)
Margin Limit In. (mm)
0.02 (0.5)
0.039 (1.0)
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 77
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 78: Illustrating Valve Margin
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 78
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
VALVE SPRINGS
1. Check free height of each valve spring and replace if necessary.
2. Using a square, test squareness of each valve spring. If spring is excessively out of square, replace it.
VALVE SPRING HEIGHT MEASUREMENTS
Application
Margin Standard In. (mm)
Height With No Load
1.8268 (46.4)
VALVE SPRING RECTANGULARITY MEASUREMENTS
Application
Standard
Deviation Of Rectangularity
Less Than 2 Degrees
Margin Limit In. (mm)
1.7874 (45.4)
Margin Limit
4 Degrees
Fig. 79: Measuring Valve Spring Values
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 79
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Courtesy of KIA MOTORS AMERICA, INC.
VALVE GUIDE
Check the valve stem-to-guide clearance. If the clearance exceeds the service limit, replace the valve guide with
a new oversize guide.
VALVE GUIDE MEASUREMENTS
Application
Margin Standard In. (mm)
Intake
0.0009-0.00020 (.02-.05)
Exhaust
0.002-0.0033 (0.05-0.085)
Service Limit In. (mm)
0.0039 (0.1)
0.0059 (0.15)
Fig. 80: Measuring Valve Guide Clearance
Courtesy of KIA MOTORS AMERICA, INC.
VALVE SEAT INSERT
Inspect for any trace of overheating and the contact state of valve face. If necessary, repair or replace it. When
repairing, inspect for wear in the valve guide. If the guide is worn, replace it and adjust the seat ring. Adjust the
valve seat with grinder or cutter making valve seat contact width from the center of valve face to within the
specified value. When adjusting the exhaust valve seat, use the valve seat cutter or pilot. After adjustment,
lapping process can be made by using applying compound on the valve and valve seat.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 80
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 81: Grinding Valve Seat
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 81
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 82: Valve Seat Angle Chart
Courtesy of KIA MOTORS AMERICA, INC.
VALVE SEAT REPLACEMENT PROCEDURE
1. If the valve seat insert is excessively worn, cut out the insert wall using valve seat cover at normal
temperature. See figure "A" in figure 83.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 82
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 83: Insert Wall Removal Diagram
Courtesy of KIA MOTORS AMERICA, INC.
2. After removing the seat insert, match the seat insert bore using a reamer or cutter to the indicated size in
the table below.
3. Heat the cylinder head up to 250°C and press in an oversize seat insert. At this time, the temperature of
oversize seat insert must be the same as the room temperature. When new valve seat is installed, adjust
the valve seat face. For valve seat specifications, see chart in figure 84.
Fig. 84: Valve Seat Specifications Chart
Courtesy of KIA MOTORS AMERICA, INC.
VALVE GUIDE REPLACEMENT PROCEDURE
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 83
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
As the valve guide is tightly pressed in, replace the valve guide using following procedure, using the valve
guide installer or appropriate tools.
1. Using the push rod of the valve guide installer, push it out of initial position by pushing it to the cylinder
block side.
2. Machine insert hole of the cylinder head valve guide to the size of oversize valve guide.
3. Press in the valve guide using the valve guide installer or appropriate tools. By using the valve guide
installer, it can be pressed in the specified height.
Fig. 85: Illustrating Valve Guide Installation Tool
Courtesy of KIA MOTORS AMERICA, INC.
4. Valve guide is to be installed from the upside of the cylinder head.
As length of the intake valve guide is different from that of the exhaust valve guide, be careful. (The
lengths of guide for intake valve and exhaust valve are 45.5mm and 50.5mm respectively.)
After installing the valve guide, insert the new valve and check sliding state.
Helpmelearn
June-06-08 8:54:30 AM
Downloaded from www.Manualslib.com manuals search engine
Page 84
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 86: Measuring Valve Guide Length
Courtesy of KIA MOTORS AMERICA, INC.
5. When the valve guide is replaced, inspect for valve contact state. If necessary, adjust the valve seat.
VALVE GUIDE INSERT OVERSIZES
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 85
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 87: Valve Guide Oversize Chart
Courtesy of KIA MOTORS AMERICA, INC.
REASSEMBLY
VALVE STEM SEAL
1. Install the valve spring seat.
2. Install a new stem seal on valve guide using the special tool (09222-28200).
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 86
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 88: Identifying Valve Stem Seal Position
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: Valve stem seal should never be reused. Incorrect seal installation
can cause oil leakage through lower part of the valve guide. When
the valve stem seal is removed due to missing of valve spring seat,
the stem seal cannot be reused.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 87
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 89: Installing Valve Stem Seal
Courtesy of KIA MOTORS AMERICA, INC.
VALVE SPRING
Install the valve spring so that the end part with identification mark is paced at the end of the spring retainer.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 88
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 90: Positioning Valve Spring
Courtesy of KIA MOTORS AMERICA, INC.
RETAINER LOCK
Insert the retainer lock by pressing down the valve spring with special tool (09222-28000).
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 89
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 91: Installing Valve Retainer Lock
Courtesy of KIA MOTORS AMERICA, INC.
INSTALLATION
CYLINDER HEAD GASKET
1. All mating faces for the gasket on the cylinder block and the cylinder head should be cleaned.
2. Install new cylinder head gasket on the cylinder head assembly. Do not smear the sealant on the gasket
and only the new gasket must be used.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 90
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 92: Illustrating Cylinder Head Gasket
Courtesy of KIA MOTORS AMERICA, INC.
CYLINDER HEAD BOLT
1. Tighten the cylinder head bolts as shown in illustration below using the appropriate tool.
Tightening torque: 105-115 N.m (1050-1150 kg.cm, 75.9-83.2 lb.ft)
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 91
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 93: Illustrating Cylinder Head Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
LUBRICATION SYSTEM
COMPONENTS
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 92
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 94: Exploded View Of Oil Pump & Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.
DISASSEMBLY
1. Remove the oil pressure switch, using 24 mm deep socket.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 93
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 95: Removing Oil Pressure Switch
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
2.
3.
4.
5.
6.
Since a sealant is used on the threaded area, be careful not to damage the
oil pressure switch.
Remove the oil filter and the oil pan.
Remove the oil screen and gasket.
Remove the three bracket securing bolts and remove the oil filter bracket and gasket.
Remove the oil relief valve plug from the oil pump case.
Remove the oil pump case.
INSPECTION
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 94
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
OIL PUMP
1. Visually check the parts of the oil pump case for cracks and damage.
2. Assemble the rotor on the oil pump and then check the clearance with a thickness gauge.
OIL PUMP CLEARANCE
Application
Body Clearance
Side Clearance
Standard In. (mm)
0.0039-0.0071 (0.100-0.181)
0.0016-0.0037 (0.040-0.095)
Fig. 96: Illustrating Measuring Locations
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 95
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Courtesy of KIA MOTORS AMERICA, INC.
Fig. 97: Measuring Side & Body Clearance
Courtesy of KIA MOTORS AMERICA, INC.
RELIEF PLUNGER AND SPRING
1. Check the relief plunger for smooth operation.
2. Check the relief spring for the deformed or broken condition.
OIL FILTER BRACKET
1. Make sure that there is no damage on the oil filter installation surface.
2. Check the oil filter bracket for oil leaks or cracks.
OIL PRESSURE SWITCH
1. Check the continuity by between terminal and body with an ohmmeter.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 96
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
If there is continuity, replace the oil pressure switch.
Fig. 98: Testing Oil Pressure Switch Continuity
Courtesy of KIA MOTORS AMERICA, INC.
2. Check the continuity between the terminal and the body when the fine wedge is pushed. If there is
continuity even when the fine wedge is pushed, replace it.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 97
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 99: Testing Oil Pressure Switch Continuity When Activated
Courtesy of KIA MOTORS AMERICA, INC.
3. Or, if there is no continuity when a 50kPa (0.5 kg/cm2 , 7psi) vacuum is applied through the oil hole, the
switch is operating properly. Check that air doesn't leak. If air leaks, the diaphragm is broken, replace it.
REASSEMBLY
1. Install the oil pump case with the gasket.
Tightening torque:
Oil pump case bolt: 12-15 N.m (120-150 kg.cm, 8.85-11.06 lb.ft)
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 98
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Oil pump cover screw: 8-12 N.m (80-120 kg.cm, 5.91-8.85 lb.ft)
Fig. 100: Positioning Oil Pump Case & Gasket
Courtesy of KIA MOTORS AMERICA, INC.
2. Install the oil seal in the oil pump case, using special tool (09214-33000).
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 99
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 101: Installing Oil Pump Seal
Courtesy of KIA MOTORS AMERICA, INC.
3. Install the relief plunger and spring, and tighten the oil relief valve plug to the specified torque.
Tightening torque:
Oil relief valve plug: 40-50 N.m (400-500 kg.cm, 29.5-36.88 lb.ft)
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 100
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 102: Installing Relief Plunger & Spring
Courtesy of KIA MOTORS AMERICA, INC.
4. Install the oil screen with a new gasket.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 101
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Tightening torque
Oil screen bolt: 15-22 N.m (150-220 kg.cm, 11.06-16.23 lb.ft)
5. Clean the gasket surfaces of the cylinder block and the oil pan.
6. Apply sealant into the groove of the oil pan flange.
NOTE:
Make the first cut from the end of the nozzle furnished with the sealant
approx. 4 mm. After application of the sealant, do not exceed 15 minutes
before installing the oil pan.
7. Install the upper oil pan and tighten the bolts to the specified torque. Tighten the oil pan bolts as shown in
figure.
Tightening torque
Upper oil pan bolt No.1-14: 9.8-11.8 N.m (100-120 kg.cm, 7.2-8.7 lb.ft) N.m No.15-16: 5-7 (50-70
kg.cm, 3.68-5.16 lb.ft)
Upper oil pan and transaxle mounting bolt (4EA): 30-42 N.m (300-420 kg.cm, 22.13-30.98 lb.ft)
Fig. 103: Upper Oil Pan Bolt Tightening Sequence
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 102
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Courtesy of KIA MOTORS AMERICA, INC.
8. Install the lower oil pan and tighten the bolts to specified torque.
Tightening torque:
Lower oil pan bolt: 9.8-11.8 N.m (100-120 kg.cm, 7.2-8.7 lb.ft)
Fig. 104: Lower Oil Pan Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
9. Using 24 mm deep socket, install the oil pressure switch after applying sealant to the threaded area.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 103
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Sealant: Threebond 1104 or equivalent.
NOTE:
Do not tighten the oil pressure switch to the excessive torque.
Oil pressure switch tightening torque: 8-12 N.m (80-120 kg.cm, 5.91-8.85 lb.ft)
Fig. 105: Tightening Oil Pressure Switch
Courtesy of KIA MOTORS AMERICA, INC.
MAIN MOVING SYSTEM
CONNECTING ROD & PISTON ASSEMBLY
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 104
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
COMPONENTS
Fig. 106: Exploded View Of Connecting Rod & Piston Assembly
Courtesy of KIA MOTORS AMERICA, INC.
DISASSEMBLY
CONNECTING ROD CAP
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 105
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
CAUTION: Keep the bearings in order with their corresponding connecting rods
(according to cylinder numbers) for proper reassembly.
1. Remove the connecting rod cap bolts, then remove the caps and the big end lower bearing mark for
reassembly.
2. Push each piston connecting rod assembly toward the top of the cylinder.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 106
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 107
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 107: Marking Connecting Rod Assemblies
Courtesy of KIA MOTORS AMERICA, INC.
PISTON PIN REMOVAL & INSTALLATION
1. Use the appropriate tool to disassemble piston and connecting rod.
Fig. 108: Illustrating Removal & Installation Tools
Courtesy of KIA MOTORS AMERICA, INC.
2. Place the proper insert tool between the connecting rod and piston.
3. Insert the proper removing tool through the hole.
CAUTION: After removing the piston rod pin assembly, put in the center of the
arbor.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 108
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 109: Piston Pin Removal Fixture
Courtesy of KIA MOTORS AMERICA, INC.
4. Press the piston pin out of the connecting rod.
5. Install proper pin guide through piston into connecting rod. Hand tap pin guide into piston for proper
retention. Install piston pin into the other side of the piston.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 109
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 110: Piston Pin Installation Fixture
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: The pin guide centers on the connecting rod in the piston. When the
piston, connecting rod, piston pin and pin guide assembly are
positioned on the fork tool, the guide pin will also center on the tool
assembly. If a pin guide that is too small is used, the piston assembly
will not be located at the center of the tool and may cause the fork
and/or the insert of the tool to be damaged.
6. Install piston assembly on the fork assembly of tool. Tool will support connecting rod at the piston pin.
Be sure the piston assembly is slid onto the fork until the pin guide contacts the fork insert.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 110
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 111: Illustrating Fixture Set-Up
Courtesy of KIA MOTORS AMERICA, INC.
7. Adjust the installing arbor to the proper length by turning the numbered sleeve on the lettered shaft until
the specified alphanumeric is obtained.
8. Insert the installing tool through the hole in the arch of the tool. Press the piston pin into the connecting
rod until the sleeve in the installing arbor contacts the top of the tool arch. The pin guide will fall out of
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 111
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
the connecting rod as the piston pin is pressed in.
CAUTION: Do not exceed 5000 pounds of force when stopping the installation
arbor sleeve against the arch.
INSPECTION
PISTONS AND PISTON PINS
1. Check each piston for scuffing, scoring, wear and other defects. Replace any piston that is defective.
2. Check each piston ring for breakage, damage and abnormal wear. Replace the defective rings. When the
piston requires replacement, its rings should also be replaced.
3. Check that the piston pin fits in the piston pin hole. Replace any piston and pin assembly that is defective.
The piston pin must be pressed smoothly by hand into the pin hole (at room temperature).
PISTON RINGS
1. Measure the piston ring side clearance. If the measured value exceeds the service limit, insert a new ring
in the ring groove the measure the side clearance. If the clearance still exceeds the service limit, replace
the piston and rings together. If it is less than the service limit, replace only the piston rings.
z Piston ring side clearance ring No. 1: 0.04-0.08 mm (0.0016-0.0031 in.) Limit 0.01 mm (0.0039
in.)
z Piston ring side clearance ring No. 2: 0.02-0.06 mm (0.0008-0.0024 in.) Limit 0.01 mm (0.0039
in.)
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 112
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 112: Exploded View Of Piston Rings
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 113
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
2. To measure the piston ring end gap, insert a piston ring into the cylinder bore. Position the ring at right
angles to the cylinder wall by gently pressing it down with a piston. Measure the gap with a feeler gauge.
If the gap exceeds the service limit, replace the piston ring.
z Piston ring end gap No. 1: 0.2-0.3 mm (0.0079-0.0118 in.). Limit 0.8 mm (0.031 in.)
z Piston ring end gap No. 2: 0.45-0.60 mm (0.0177-0.236 in.) Limit 0.8 mm (0.031 in.)
z Oil ring side rail: 0.2-0.7 mm (0.0079-0.0276) Limit 1.0 mm (0.039 in.)
z When replacing the ring without correcting the cylinder bore, check the gap with the ring situated
at the lower part of cylinder that is less worn.
3. When replacing the ring without correcting the cylinder bore, check the gap with the ring positioned at
the lower part of the cylinder that is the less worn. When replacing a ring, be sure to the use a ring of the
same size.
PISTON RING MARK & LIMIT
Mark
OS 25
OS 50
OS 75
OS 100
NOTE:
Limit Standard In. (mm)
0.25 mm
0.50 mm
0.75 mm
0.100 mm
The mark can be found on the upper side of the ring next to the end.
CONNECTING RODS
1. When the connecting rod cap is installed, make sure that the cylinder numbers, marked on rod end cap at
disassembly, match. When a new connecting rod is installed, make sure that the notches holding the
bearing in place are on the same side.
2. Replace the connecting rod if it is damaged at either end of the thrust faces. If it has a wear, or if the
surface of the inside diameter of the small end is severely rough, replace the rod.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 114
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 113: Positioning Connecting Rod Bearing
Courtesy of KIA MOTORS AMERICA, INC.
REASSEMBLY
1. Install the expander.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 115
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 114: Positioning Oil Ring
Courtesy of KIA MOTORS AMERICA, INC.
2. Install the upper side rail. To install the side rail, first put one end of the side rail between the piston ring
groove and spacer, hold it firmly, and press down with finger on the portion to be inserted into the
groove. See Fig. 115 .
CAUTION: Do not use a piston ring expander when installing the side rail.
3. Install the lower side rail by the same procedure described above.
Helpmelearn
June-06-08 8:54:31 AM
Downloaded from www.Manualslib.com manuals search engine
Page 116
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 115: Installing Oil Ring Side Rail
Courtesy of KIA MOTORS AMERICA, INC.
4. Apply engine oil around the piston and piston grooves.
5. Using a piston ring expander, install the No. 2 piston ring.
6. Install the No. 1 piston ring.
Fig. 116: Installing Piston Rings
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 117
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
7. Position each piston ring end gap as far away from its neighboring gaps as possible. Make sure that the
gaps are not positioned in the thrust and pin directions.
Fig. 117: Positioning Piston Rings
Courtesy of KIA MOTORS AMERICA, INC.
8.
9.
10.
11.
Hold the piston rings firmly with a piston ring compressor as they are inserted into cylinder.
Install the upper connecting rod bearings into the connecting rod.
Install the lower connecting rod bearings into the connecting rod bearing caps.
Make sure that the front mark of the piston and the front mark (identification mark) of the connecting rod
are directed toward the front of the engine.
12. When the connecting rod cap is installed, make sure that any cylinder numbers placed on the rod and cap
at disassembly match.
13. When a new connecting rod is installed, make sure that the notches for holding the bearing in place are on
the same side.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 118
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 118: Positioning Connecting Rod Bearing Cap
Courtesy of KIA MOTORS AMERICA, INC.
14. When assembling, bolts should be fastened using the following technique.
a. Apply oil to the threads and matching areas.
b. Tighten the connecting rod bolt.
Connecting rod bolt, tightening torque: 35 N.m + 92° (350 kg.cm + 92°, 26 lb.ft + 92°)
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 119
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
CAUTION: After removing the connecting rod bolt, do not use it again. When
using a new bolt, do not tighten the bolt more than 3 times.
15. Check the bearing clearance as follows:
a. Remove oil and dirt from the bearings and journals.
b. Cut plastigauge to the same length as the width of the bearing and place it in parallel with the
journal, avoiding the oil holes.
c. Install the bearing and cap. Tighten to the specified torque. During this operation, do NOT turn the
crankshaft.
d. Remove the cap, measure at the widest part by using the scale printed on the plastigauge package.
Connecting rod cap bearing clearance, standard value :0.022-0.040 mm (0.0009-0.0016 in).
Limit: 0.1 mm (0.0039 in)
Fig. 119: Measuring Bearing Clearance
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 120
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
16. Check the connecting rod side clearance.
Connecting rod side clearance, standard: 0.10-0.25 mm (0.0039-0.0098 in.)
Limit: 0.4 mm (0.0157 in.)
Fig. 120: Measuring Bearing Side Clearance
Courtesy of KIA MOTORS AMERICA, INC.
CRANK SHAFT
COMPONENTS
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 121
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 121: Exploded View Of Crankshaft Components
Courtesy of KIA MOTORS AMERICA, INC.
DISASSEMBLY
1. Remove the timing belt, cylinder head assembly, drive plate, transaxle mounting plate oil pan. See
TIMING SYSTEM .
2. Remove the oil seal case and the rear oil seal.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 122
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
3. Remove the connecting rod caps.
NOTE:
Mark the main bearing caps to reassemble in the original position and
direction.
4. Remove the main bearing caps and remove the crankshaft.
Keep the bearings in order by cap number.
INSPECTION
CRANKSHAFT
1. Check the crankshaft journals and pins for damage, uneven wear and cracks. Also check the oil holes for
restrictions.
Repair or replace any defective part.
2. Inspect for out-of-roundness and taper of the crankshaft journal and pin.
Fig. 122: Crankshaft Specification
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 123
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 123: Measuring Crankshaft Journal
Courtesy of KIA MOTORS AMERICA, INC.
MAIN BEARING AND CONNECTING ROD BEARING
Visually inspect each bearing for peeling, melt, seizure and improper contact. Replace any defective bearings.
OIL CLEARANCE MEASUREMENT
Check for oil clearance by measuring the outside diameter of the crankshaft journal and the inside diameter of
the bearing. The clearance can be obtained by calculating the difference between the measured outside and
inside diameter.
Standard value
Oil clearance
Crankshaft main bearing: 0.018 - 0.036 mm (0.0007 - 0.0014 in)
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 124
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Connecting rod bearing: 0.022 - 0.040 mm (0.0009 - 0.0016 in)
Fig. 124: Measuring Oil Clearance
Courtesy of KIA MOTORS AMERICA, INC.
PLASTIGAUGE METHOD
Plastigauge may be used to measure the clearance.
1. Remove oil and grease and any other dirt from the bearings and journals.
2. Cut the plastigauge to the same length as the width of the bearing and place it in parallel with the journal,
avoiding the oil holes.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 125
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 125: Measuring Oil Clearance Using Plastigauge
Courtesy of KIA MOTORS AMERICA, INC.
3. Install the crankshaft, bearings and caps and tighten them to the specified torques. During this operation,
do not turn the crankshaft. Remove the caps. Measure the width of the widest part by using the scale
printed on the gauge package.
If the clearance exceeds the repair limit, the bearing should be replaced or an undersize bearing should be
used.
When installing a new crankshaft, be sure to use standard size bearings.
Should the standard clearance not be obtained even after bearing replacement, the journal and pin should
be ground to undersize and a bearing of the corresponding undersize should be installed.
OIL SEAL
Check the front and rear oil seals for damage or worn surfaces. Replace any seal that is defective.
DRIVING PLATE
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 126
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Replace the distorted, damaged, or cracked drive plate.
REASSEMBLY
MAIN BEARING
1. Install the grooved main bearing (upper bearing) on the cylinder block side.
Fig. 126: Identifying Main Bearings
Courtesy of KIA MOTORS AMERICA, INC.
2. Install the grooveless main bearing (lower bearing) on the main bearing cap side.
3. Install the crankshaft. Apply engine oil to the journal and pin.
4. Caps should be installed with the arrow mark directed toward the front of the engine. The cap number
sequence must be correct.
5. Tighten all cap bolts to the specified torque according to the order as shown, see Fig. 127 .
Main bearing cap bolt, tightening torque: 68.6-78.5 N.m (700-800 kg.cm, 50.6-57.9 lb.ft)
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 127
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 127: Crankshaft Bearing Cap Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
6. Cap bolt should be tightened to specified torque in 4~5 steps before being tightened to the specified
torque.
7. Make certain that the crankshaft turns freely and has the proper crankshaft end play.
Crankshaft end play, standard value: 0.050-0.250 mm (0.00197-0.0098 in)
Limit: 0.35mm (0.014 in)
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 128
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 128: Measuring Crankshaft End Play
Courtesy of KIA MOTORS AMERICA, INC.
8. Assemble the rear oil seal to oil case using the special tool (09231-33000).
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 129
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 129: Positioning Rear Oil Seal Onto Special Tool
Courtesy of KIA MOTORS AMERICA, INC.
9. Install the drive plate and the adapter plate.
Tightening torque
Drive bolt: 73 - 77 N.m (730 - 770 kg.cm, 53.85 - 56.80 lb.ft)
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 130
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 130: Installing Drive & Adapter Plates
Courtesy of KIA MOTORS AMERICA, INC.
ENGINE BLOCK
COMPONENTS
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 131
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 131: Identifying Cylinder Block Components
Courtesy of KIA MOTORS AMERICA, INC.
DISASSEMBLY
Remove the timing belt, cylinder head assembly, drive plate, transaxle mounting plate, oil pan and the oil pump
case.
INSPECTING CYLINDER BLOCK
1. Visually check the cylinder block for scores, rust and corrosion.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 132
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Also check for cracks or any other defects using a proper tool. Repair or replace the block if defective.
2. Measure the cylinder bore with a cylinder gauge at the three levels indicated in the directions of A and B,
see Fig. 132 .
Level 1: No. 1 piston ring position with piston at TDC.
Level 2: Center of cylinder
Level 3: Bottom of cylinder
Fig. 132: Measuring Cylinder Bore
Courtesy of KIA MOTORS AMERICA, INC.
3. If the cylinder bores show more than the specified out-of round or taper, or if the cylinder walls are badly
scuffed or scored, the cylinder block should be rebored and honed. New oversize pistons and rings should
be installed.
Standard value
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 133
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Cylinder bore: 93.00-93.03 mm (3.66-3.663 in)
Deviation of concentricity and taper of cylinder bore : 0.02 mm (0.00079 in) or less
4. If a ridge exists at the top of the cylinder, cut it way with a ridge reamer.
5. Oversize pistons are available in four sizes.
Oversize piston size.
0.25 O.S.: 0.25 mm (0.01 in)
0.50 O.S.: 0.50 mm (0.02 in)
0.75 O.S.: 0.75 mm (0.03 in.)
1.00 O.S.: 1.00 mm (0.039 in.)
6. To rebore the cylinder to oversize, keep the specified clearance between the oversize piston and the bore,
and make sure that all pistons used are of the same oversize. When measuring the piston outside diameter
measure the section of the thrust surface at 10 mm (0.39 in) above the bottom of the piston skirt.
Clearance between piston and cylinder wall: 0.03-0.05 mm (0.001-0.002 in)
7. Check the flatness of the upper surface. If the top surface exceeds limits, grind it to a minimum limit
value or replace. (Measuring method is same as that of cylinder head flatness.)
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 134
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 133: Measuring Cylinder Block Flatness
Courtesy of KIA MOTORS AMERICA, INC.
Standard value:
Flatness of the gasket mating surface: less than 0.05 mm (0.002 in)
Limit Flatness of the gasket mating surface: 0.1 mm (0.0039 in)
CAUTION: When the cylinder head is assembled, grinding less than 0.2 mm is
permissible. Grind the gasket surface of the cylinder block less than 0.2
mm.
BORING CYLINDER
1. Oversize pistons used should be determined on the basis of the largest bore cylinder.
PISTON MARK & LIMIT
Mark
Limit Standard In. (mm)
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 135
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
OS 25
OS 50
OS 75
OS 100
0.25 mm
0.50 mm
0.75 mm
0.100 mm
NOTE:
Size mark is stamped on top of the piston.
2. Measure the outside diameter of the piston to be used.
Fig. 134: Measuring Piston Diameter
Courtesy of KIA MOTORS AMERICA, INC.
3. Based on the measured O.D., calculate the boring finish dimension.
Boring finish dimension = piston outer diameter + 0.02~0.04 mm (The clearance between piston outer
diameter and cylinder) - 0.01 mm (Honing margin)
4. Bore each of the cylinders to the calculated size.
CAUTION: To prevent distortion that may result from temperature rise during
honing, bore the cylinder holes in the firing order sequence.
5. Hone the cylinders, finishing them to the proper dimension (piston outside diameter + gap with cylinder).
6. Check the clearance between the piston and cylinder.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 136
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Standard value: 0.03-0.05 mm (0.0012 - 0.0020 in)
NOTE:
z
z
All cylinders should be bored to the same oversize.
Never bore only one cylinder to an oversize.
COOLING SYSTEM
GENERAL
INLET CONTROL
Fig. 135: Illustrating Coolant Inlet Flow
Courtesy of KIA MOTORS AMERICA, INC.
FLOW CHART
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 137
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 136: Illustrating Coolant Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
RADIATOR
COMPONENTS
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 138
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 137: Locating Radiator Components
Courtesy of KIA MOTORS AMERICA, INC.
REMOVAL
1.
2.
3.
4.
5.
6.
7.
8.
Remove the air duct.
Remove the hood locker.
Disconnect the horn connector.
Remove the shroud upper member.
Disconnect the radiator fan motor connector and the condenser fan motor connector.
Remove the radiator fan and the condenser fan.
After marking on the radiator hose and clamp, disconnect the upper, lower hose and over flow hose.
Remove the radiator.
INSPECTION
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 139
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
1.
2.
3.
4.
Check if there are foreign objects among radiator fins.
Inspect the radiator fins for damage, if necessary, straighten them up.
Inspect the radiator for corrosion, damage and rust.
Inspect the radiator for crack, damage and any weakened part.
INSTALLATION
1. Fill the radiator reservoir tank with new coolant.
2. Run the engine till coolant temperature increases to open thermostat valve, and then stop the engine.
3. Remove the radiator cap and fill the radiator with water up to the filler neck, and fill the reservoir tank up
to the specified level.
4. Check if there are any leakage from radiator, hose and connecting part.
RADIATOR CAP
COMPONENTS
Fig. 138: Illustrating Radiator Cap Components
Courtesy of KIA MOTORS AMERICA, INC.
INSPECTION
1. Inspect the radiator cap for damage, crack and weakening.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 140
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 139: Inspecting Radiator Cap
Courtesy of KIA MOTORS AMERICA, INC.
2. Connect the radiator cap tester to the radiator cap.
3. Apply the pressure to the tester untill the needle is fixed.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 141
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 140: Testing Radiator Cap
Courtesy of KIA MOTORS AMERICA, INC.
4. If the needle stays at the same position for 10 seconds, the radiator cap is in good condition.
RADIATOR FAN MOTOR
COMPONENTS
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 142
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 141: Exploded View Of Fan Motor Assembly
Courtesy of KIA MOTORS AMERICA, INC.
REMOVAL
1.
2.
3.
4.
5.
6.
Remove the air duct.
Remove the hood locker.
Disconnect the horn connector.
Remove the shroud upper member.
Disconnect the radiator fan motor connector.
Remove the radiator fan.
INSPECTION
1. Radiator fan motor
a. Check if the radiator fan is rotating when the battery voltage is supplied to both terminals as shown
in the figure.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 143
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 142: Testing Radiator Fan Motor
Courtesy of KIA MOTORS AMERICA, INC.
b. Check if there is abnormal noise while motor is rotating.
INSTALLATION
1. Installation is done in the reverse order of disassembly procedure.
CAUTION:
z
z
When assembling the shroud, be cautions not to touch the
cooling fan.
After installing, while the fan is operating, check if there is
abnormal noise and vibration.
ENGINE WATER PUMP
COMPONENTS
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 144
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 143: Exploded View Of Water Pump Assembly
Courtesy of KIA MOTORS AMERICA, INC.
INSTALLATION
1. Clean the gasket mating surface of the water pump body and cylinder block.
2. After installing new O-ring in the groove at front of the water pipe, soak it with water. At this time, do
not soak it with oil or grease.
3. After installing a new water pump gasket and water pump assembly, tighten it to the specified torque, see
Fig. 144 .
Tightening torque:
(A) 5EA:14.7-21.6 N.m (150-220 kg.cm, 10.8-15.9 lb.ft)
(B) 1EA:32.4-49.0 N.m (330-500 kg.cm, 23.9-36.2 lb.ft)
(C) 2EA:19.6-26.5 N.m (200-270 kg.cm, 14.5-19.5 lb.ft)
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 145
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 144: Water Pump Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.
4. Install the timing belt tensioner and timing belt. After adjusting the timing belt tension, install the timing
belt cover.
5. After installing the water pump pulley and driving belt, adjust the belt tension.
6. Refill it with coolant.
7. Check for leakage by running the engine.
THERMOSTAT
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 146
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
COMPONENTS
Fig. 145: Exploded View Of Thermostat Components
Courtesy of KIA MOTORS AMERICA, INC.
REMOVAL
1. Drain the coolant to the bottom level of thermostat.
2. Remove the water outlet fitting.
3. Remove the thermostat.
INSPECTION
1. Heat the thermostat and check if the valve operates properly.
Helpmelearn
June-06-08 8:54:32 AM
Downloaded from www.Manualslib.com manuals search engine
Page 147
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
2. Check to determine the temperature at which the value begins to open and is completely opened.
Valve opening temperature: 80.0-84.0°C (176-183.2°F)
The temperature when the valve is completely opened: 95°C (203°F)
Fig. 146: Testing Thermostat
Courtesy of KIA MOTORS AMERICA, INC.
INSTALLATION
1. Align the arrangement mark of thermostat housing with the jiggle valve.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 148
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 147: Positioning Thermostat
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 149
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
2. Check to ensure that the flange of the thermostat at is correctly seated in the socket of the thermost at
housing. If the thermostat is installed in the wrong direction, the bottom of the thermostat will touch the
rib inside the intake manifold, making it impossible to seat flange in position.
3. Install a new gasket and engine coolant outlet fitting.
Engine coolant outlet fitting bolt, tightening torque: 17-20 N.m (170-200 kg.m, (12.54-14.75 lb.ft)
4. Refill the coolant.
ENGINE WATER HOSE/PIPES
COMPONENTS
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 150
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 148: Exploded View Of Water Hoses
Courtesy of KIA MOTORS AMERICA, INC.
REMOVAL
WATER TEMPERATURE GAUGE UNIT AND SENSOR
1. Drain the coolant to the bottom level of the gauge unit.
2. After disconnecting the battery ground cable, disconnect engine harness.
3. Remove the water temperature gauge unit and sensor.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 151
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 149: Locating Water Temp Gauge Unit
Courtesy of KIA MOTORS AMERICA, INC.
INSPECTION
ENGINE COOLANT HOSE/PIPES
Check for cracks, damage, or blockage on the water hose and pipe, and replace if necessary.
WATER TEMPERATURE GAUGE UNIT AND SENSOR
1. Water temperature gauge unit
a. Heat up the water temperature gauge by immersing it in hot water.
b. Check if the resistance is within the specified range.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 152
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 150: Temperature Gauge Resistance Chart
Courtesy of KIA MOTORS AMERICA, INC.
2. Water temperature sensor
a. Immerse the sensor in hot water.
b. Check if the resistance is within the specified range.
Fig. 151: Temperature Sender Resistance Chart
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 153
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 152: Testing Sending Unit
Courtesy of KIA MOTORS AMERICA, INC.
INSTALLATION
ENGINE COOLANT HOSE/PIPES
After inserting O-ring into a groove at the lower part of water inlet pipe, soak O-ring in water and insert it into
the water inlet pipe.
CAUTION:
z
z
z
Be careful not to smear oil or grease on the water pipe O-ring.
Pay attention not to let a foreign object get into the connecting part
of the water pipe.
Insert the water pipe up to its end part.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 154
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 153: Positioning Water Pipe O-Ring
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 155
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Courtesy of KIA MOTORS AMERICA, INC.
WATER TEMPERATURE GAUGE UNIT AND SENSOR
1. Apply the sealant on thread and then tighten it to the specified torque.
Fig. 154: Sealant & Tightening Chart
Courtesy of KIA MOTORS AMERICA, INC.
2. Connect the harness to water temperature gauge unit and cable.
3. Connect the battery ground cable.
4. Refill the coolant.
AIR CLEANER
COMPONENTS
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 156
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 155: Identifying Air Cleaner Components
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 157
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
REMOVAL
1. Disconnect the AFS connector.
Fig. 156: Locating AFS Connector
Courtesy of KIA MOTORS AMERICA, INC.
2. Pull out air duct which is connected to the air inlet hose and air cleaner.
3. Detach the air cleaner.
INSPECTION
1. Inspect the body, cover and packing of air cleaner for distortion, corrosion and damage.
2. Inspect the air duct for damage.
3. Inspect the air cleaner element for dirt, contamination and damage. If element is choked a little, blow air
from inside of element to get rid of the dust or other foreign object. If it is contaminated too much,
replace it. While replacing it, be cautious not to let foreign object get in.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 158
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 157: Cleaning Air Cleaner
Courtesy of KIA MOTORS AMERICA, INC.
4. Inspect the air cleaner housing for dirt, contamination and damage.
5. If the inside of air cleaner housing is contaminated, eliminates the contaminated material.
SURGE TANK & INTAKE MANIFOLD
COMPONENTS
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 159
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 158: Exploded View Of Surge Tank & Intake Manifold
Courtesy of KIA MOTORS AMERICA, INC.
REMOVAL
1. Detach the P.C.V. hose and brake booster vacuum hose.
2. Disconnect the connecting part of vacuum hose.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 160
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 159: Disconnecting PCV Hose
Courtesy of KIA MOTORS AMERICA, INC.
3. Remove the surge tank stay.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 161
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 160: Removing The Surge Tank Stay
Courtesy of KIA MOTORS AMERICA, INC.
4. After reducing the pressure of fuel pipe line to prevent fuel overflow, disconnect the connecting part of
the high pressure hose.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 162
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 161: Disconnecting High Pressure Fuel Hose
Courtesy of KIA MOTORS AMERICA, INC.
5. Remove the surge tank.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 163
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 162: Removing The Surge Tank
Courtesy of KIA MOTORS AMERICA, INC.
6. After removing the surge tank, remove the gasket.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 164
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 163: Removing Surge Tank Gasket
Courtesy of KIA MOTORS AMERICA, INC.
7. Disconnect the fuel injector harness connector.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 165
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 164: Disconnecting Fuel Injector Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.
8. Remove the delivery pipe with fuel injector and pressure regulator attached.
CAUTION: When removing the delivery pipe, be cautions not to drop the
injectors.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 166
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 165: Removing Fuel Delivery Pipe
Courtesy of KIA MOTORS AMERICA, INC.
9. Disconnect the wiring harness connector which is connected to the water temperature gauge unit and
water temperature sensor assembly.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 167
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 166: Disconnecting Wiring Harness
Courtesy of KIA MOTORS AMERICA, INC.
10. Remove the water outlet fitting and gasket.
11. Remove the thermostat.
INSPECTION
1. Surge tank
a. Inspect the surge tank for damage and crack, if necessary, replace it.
b. Check if coolant passage is blocked.
c. Inspect the mating surface for warpage using a straight edge or filler gauge.
Standard value: 0.15 mm (0.006 in)
Service limit: 0.2 mm (0.008 in)
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 168
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 167: Measuring Surge Tank Flatness
Courtesy of KIA MOTORS AMERICA, INC.
INSTALLATION
1. After replacing the intake manifold gasket, install the surge tank and tighten to the specified torque.
Tightening torque: 19.6-22.6 N.m (200-230 kg.cm, 14.5-16.6 lb.ft.)
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 169
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 168: Illustrating Intake Manifold
Courtesy of KIA MOTORS AMERICA, INC.
2. Install the delivery pipe and injector assembly to the intake manifold.
CAUTION: Check the interference between the injector and injector hole in
intake manifold.
3. Install the surge tank stay.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 170
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 169: Installing Surge Tank Stay
Courtesy of KIA MOTORS AMERICA, INC.
4.
5.
6.
7.
8.
9.
Install the fuel injector connector and wiring harness.
Connect the high pressure fuel hose.
Connect the various vacuum hose.
Connect the PCV valve hose and brake booster hose.
Install the idle speed actuator.
Installation of thermostat
a. Install the water outlet fitting gasket which is attached to thermost at housing.
Align the arrangement mark on thermost at housing with jiggle valve.
b. Apply the sealant on coolant temperature sensor and cooling water temperature gauge unit.
10. Install the air hose.
11. Install the accelerator cable.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 171
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
EXHAUST SYSTEM
EXHAUST MANIFOLD
COMPONENTS
Fig. 170: Exploded View Of Exhaust Manifold
Courtesy of KIA MOTORS AMERICA, INC.
REMOVAL
1. Remove the heat protector.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 172
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 171: Removing Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.
2. Remove the exhaust manifold.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 173
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 172: Removing Exhaust Manifold
Courtesy of KIA MOTORS AMERICA, INC.
INSPECTION
1. Exhaust manifold
a. Check for cracks, replace if necessary.
b. Check the distortion in mating surface with a straight edge and filler gauge
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 174
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 173: Exhaust Manifold Flatness Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Fig. 174: Measuring Exhaust Manifold Flatness
Courtesy of KIA MOTORS AMERICA, INC.
2. Heat protector, gasket
Check for damages and cracks in all parts, replace if necessary.
INSTALLATION
1. After installing the gasket, install the exhaust manifold.
Tightening torque: 40-50 N.m (400-500 kg.cm, 28.9-36.2 lb.ft.)
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 175
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 175: Installing Exhaust Manifold
Courtesy of KIA MOTORS AMERICA, INC.
CAUTION: Use only new exhaust manifold gaskets and nuts.
2. Install the heat protector.
Helpmelearn
June-06-08 8:54:33 AM
Downloaded from www.Manualslib.com manuals search engine
Page 176
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 176: Installing Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.
MUFFLER
COMPONENTS
Helpmelearn
June-06-08 8:54:34 AM
Downloaded from www.Manualslib.com manuals search engine
Page 177
© 2005 Mitchell Repair Information Company, LLC.
2002 Kia Sedona EX
2002 ENGINES 3.5L V6 - Sedona
Fig. 177: Identifying Muffler Components
Courtesy of KIA MOTORS AMERICA, INC.
Helpmelearn
June-06-08 8:54:34 AM
Downloaded from www.Manualslib.com manuals search engine
Page 178
© 2005 Mitchell Repair Information Company, LLC.
