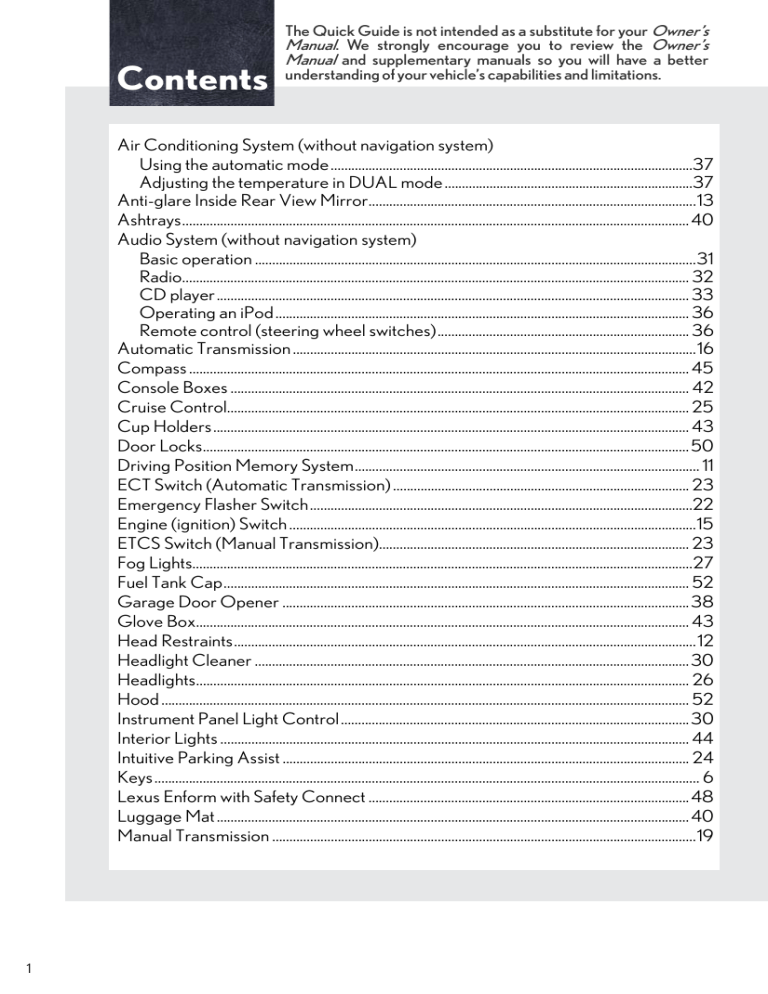

Contents
The Quick Guide is not intended as a substitute for your Owner’s
Manual. We strongly encourage you to review the Owner’s
Manual and supplementary manuals so you will have a better
understanding of your vehicle’s capabilities and limitations.
Air Conditioning System (without navigation system)
Using the automatic mode.........................................................................................................37
Adjusting the temperature in DUAL mode ........................................................................37
Anti-glare Inside Rear View Mirror...............................................................................................13
Ashtrays................................................................................................................................................... 40
Audio System (without navigation system)
Basic operation ................................................................................................................................31
Radio................................................................................................................................................... 32
CD player......................................................................................................................................... 33
Operating an iPod........................................................................................................................ 36
Remote control (steering wheel switches)......................................................................... 36
Automatic Transmission.....................................................................................................................16
Compass ................................................................................................................................................. 45
Console Boxes ..................................................................................................................................... 42
Cruise Control...................................................................................................................................... 25
Cup Holders.......................................................................................................................................... 43
Door Locks.............................................................................................................................................50
Driving Position Memory System.................................................................................................... 11
ECT Switch (Automatic Transmission) ...................................................................................... 23
Emergency Flasher Switch...............................................................................................................22
Engine (ignition) Switch ......................................................................................................................15
ETCS Switch (Manual Transmission).......................................................................................... 23
Fog Lights.................................................................................................................................................27
Fuel Tank Cap....................................................................................................................................... 52
Garage Door Opener ......................................................................................................................38
Glove Box............................................................................................................................................... 43
Head Restraints......................................................................................................................................12
Headlight Cleaner ..............................................................................................................................30
Headlights............................................................................................................................................... 26
Hood ......................................................................................................................................................... 52
Instrument Panel Light Control.....................................................................................................30
Interior Lights ........................................................................................................................................ 44
Intuitive Parking Assist ...................................................................................................................... 24
Keys.............................................................................................................................................................. 6
Lexus Enform with Safety Connect ............................................................................................. 48
Luggage Mat ......................................................................................................................................... 40
Manual Transmission ...........................................................................................................................19
1
Moon Roof............................................................................................................................................... 51
Multi-information Display.................................................................................................................20
Outside Rear View Mirrors.............................................................................................................. 13
Parking Brake......................................................................................................................................... 19
Power Windows.................................................................................................................................... 51
Rear Sunshade ......................................................................................................................................44
Rear Window and Outside Rear View Mirror Defoggers ................................................30
Safety Connect .....................................................................................................................................46
Satellite Switches................................................................................................................................... 21
Seat Belts .................................................................................................................................................. 12
Seat Heaters / Seat Heaters and Ventilators ........................................................................... 41
Seats (Manual) .........................................................................................................................................9
Seats (Power) .........................................................................................................................................10
Smart Access System with Push-button Start ............................................................................ 7
Steering Wheel...................................................................................................................................... 14
Theft Deterrent System ........................................................................................................................8
Trunk..........................................................................................................................................................53
Trunk Storage Extension ..................................................................................................................45
Turn Signal Lever .................................................................................................................................22
Windshield Wipers and Washer...................................................................................................28
2
Overview
Instrument Panel
Shift paddle switch (automatic transmission)
P.17, 18
Headlight switch
Turn signal lever
Fog light switch
Headlight cleaner switch 
P.30
Rear sunshade switch 
P.44
Inside lock button
P.50
Fuel filler door opener
P.52
Driving position
memory switches 
P.11
Window lock switch
P.51
Power window switches
P.51
Door lock switches
P.50
P.26
Multi-information
display P.20
P.22
P.27
Outside rear view
mirror switches P.13
Trunk opener
P.53
Parking brake pedal
(automatic transmission)
P.19
Hood release lever
P.52
Satellite switches P.21
Tilt and telescopic steering lock
release lever  P.14
3
Tilt and telescopic steering
control switch  P.14
Shift paddle switch (automatic transmission)
P.17, 18
Windshield wiper and
washer switch P.28
Engine (ignition) switch
P.15
Air conditioning system
P.37
Emergency flasher switch
P.22
Rear window and outside rear view
mirror defoggers switch P.30
Security indicator
Audio system
P.8
P.31
Glove box P.43
Trunk opener main switch
P.53
See P.5.
ECT switch (automatic transmission)
ETCS switch (manual transmission)
Cruise control switch
P.23
P.23
P.25
 : If equipped
4
Overview
Instrument Panel
Automatic transmission
Seat heaters/seat heaters
and ventilators  P.41
Automatic transmission
shift lever P.16
Ashtray 
Cup holders
P.40
P.43
Manual transmission
Ashtray 
P.40
Manual transmission
shift lever P.19
Parking brake lever
P.19
Seat heaters/seat heaters
and ventilators  P.41
Cup holders
P.43
 : If equipped
5
Keys
■ Electronic key
Smart access system with push-button start
(P.7, 15)
*: If equipped
Card key*
■ Mechanical key
● Locks and unlocks the doors
● Opens the trunk
● Locks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull,
or if equipped with a card key, press the button
and pull.
■ Wireless remote control
1
2
3
4
Locks all doors
Unlocks all doors
Unlocks the trunk (press and hold)
Sounds alarm (press and hold)
(Use the alarm to attract attention to the vehicle in order to help deter break-ins. To stop the
alarm, press any button on the wireless remote
control.)
6
Smart Access System with Push-button Start
The smart access system with push-button start allows you to enter and exit the vehicle
or start the engine by simply carrying the electronic key in your pocket or bag.
For details on starting the engine, see page 15.
■ Entering the vehicle
To unlock the vehicle, simply grasp either of the
front door handles.
■ Exiting the vehicle
To lock the vehicle, press the lock button on either
of the front door handles.
■ Opening the trunk
To open the trunk, press and hold the trunk
release button.
For details on what to do when the electronic key does not operate properly, see page 56.
7
Theft Deterrent System
The theft deterrent system includes the following features to help protect your vehicle from
theft.
■ Engine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
■ Alarm
The system sounds the alarm and flashes lights when forcible entry is detected.
To set the alarm: lock all the doors from outside the vehicle. The security indicator light
comes on to indicate that the alarm is in its preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the “ENGINE START STOP” switch to ACCESSORY
or IGNITION ON mode, start the engine or unlock the doors or trunk.
■ Steering lock
The steering wheel locks when the “ENGINE
START STOP” switch is OFF.
When the steering lock cannot be released, the
green indicator light on the “ENGINE START
STOP” switch will flash and a message will be
shown on the multi-information display. To release
it, gently turn the wheel left or right while pressing
the “ENGINE START STOP” switch.
8
Seats (Manual)
■ Adjusting seat position
With the lever raised, slide the seat forward or
backward.
■ Adjusting seatback angle
With the lever raised, tilt the seatback forward or
backward.
■ Adjusting seat height
1 Raises the seat
2 Lowers the seat
■ Adjusting the front of the seat cushion
1 Raises the front of the seat cushion
2 Lowers the front of the seat cushion
9
Seats (Power)
■ Adjusting seat position
1 Moves the seat forward
2 Moves the seat backward
■ Adjusting seatback angle
1 Tilts the seatback forward
2 Reclines the seatback
■ Adjusting the seat cushion
1 Raises and lowers the front of the cushion
2 Raises and lowers the entire seat
■ Adjusting the lumbar support (driver’s seat only)
1 Firmer
2 Softer
10
Driving Position Memory System (If Equipped)
The seats can be returned to a previously set position by simply pressing a button.
The position of the steering wheel and the outside rear view mirrors is adjusted along with the
driver's seat.
Positions can be conveniently recorded for the vehicle's primary drivers.
■ Setting memory positions
Press the SET button, then within 3 seconds press
one of the memory buttons (1, 2, or 3) until you
hear a beep.
The current position of the seat, as well as the
position of the steering wheel and the outside
rear view mirrors is recorded.
■ Recalling memory positions
Press one of the memory buttons (1, 2, or 3).
■ Linking driving position memory with door unlock operation
While holding down the desired memory button,
press and hold the
button on the wireless
remote control or door lock switch until you hear a
beep.
To prevent triggering of the alarm, open one of
the doors within 180 seconds after the beep is
heard.
Linking driving position memory to the door unlock operation allows the memory position
to be recalled automatically when the driver's door is opened. (The linked function does not
operate if the driver's door is unlocked using the mechanical key or manually from inside
the vehicle.)
11
Head Restraints
■ Vertical adjustment
Lock
release
button
To raise: push the head restraint upward.
To lower (front and center rear seats): push the
head restraint down while pressing the lock
release button.
To lower (outside rear seats): push the head
restraint down.
■ Folding (outside rear seats only)
Pull the head restraint up while pressing the lock
release button.
Lock release button
Seat Belts
■ Adjusting shoulder belt height (front seats only)
To raise: pull the anchor upward.
To lower: depress the button and push the anchor
down.
■ Seat belt comfort guides (outside rear seats only)
If the shoulder belt sits close to the neck, slide the
comfort guide forward.
12
Outside Rear View Mirrors
To select the mirror you wish to adjust (L or R),
use the master switch.
To adjust mirror angle, use the control switch.
On some models, the mirrors will automatically
angle downwards when the vehicle is reversing.
To disable this function, set the master switch in
the neutral position (between L and R).
Anti-glare Inside Rear View Mirror
The anti-glare mirror uses a sensor to detect light from vehicles behind and automatically
reduces glare.
Without compass
1 Turns automatic mode on
2 Turns automatic mode off
The indicator comes on when automatic mode
is turned on.
With compass
Turns automatic mode on/off
The indicator comes on when automatic mode
is turned on.
13
Steering Wheel
■ Manually adjustable type
To adjust the steering wheel, press the lever down
and move the steering wheel to the desired position. Lock the steering wheel in place by pulling
the lever up.
■ Power-adjustable type
1
2
3
4
Up
Down
Away from the driver
Toward the driver
The power-adjustable type steering wheel retracts automatically when the “ENGINE
START STOP” switch is turned OFF to allow for easy exit and entry. The steering wheel
returns automatically to its previously set position when the “ENGINE START STOP”
switch is switched to ACCESSORY or IGNITION ON mode.
14
Engine (ignition) Switch
With the electronic key on your person, the engine can be started by simply pressing the
“ENGINE START STOP” switch, while depressing the brake pedal or clutch pedal.
(The mechanical key cannot be used to start the engine.)
■ Starting the engine
Automatic transmission
Make sure the parking brake is engaged and the
shift lever is in P.
Depress the brake pedal.
The “ENGINE START STOP” switch indicator light turns green.
Press the “ENGINE START STOP” switch.
Manual transmission
Make sure the parking brake is engaged and the
shift lever is in N.
Depress the clutch pedal.
The “ENGINE START STOP” switch indicator light turns green.
Press the “ENGINE START STOP” switch.
■ Stopping the engine
Engage the parking brake and shift the shift lever to P (for automatic transmission) or N
(for manual transmission).
Press the “ENGINE START STOP” switch.
15
■ Changing power modes
To change power modes without turning on the engine, press the “ENGINE START STOP”
switch without depressing the brake pedal (for automatic transmission) or the clutch pedal
(for manual transmission). The modes can be changed in the following order:
OFF
ACCESSORY mode
(Indicator light: off)
IGNITION ON mode
(Indicator light: amber)
Automatic Transmission (If Equipped)
■ Shift positions
P
R
N
D
S
Park
Reverse
Neutral (drive not engaged)
Drive
S mode
The vehicle can only be shifted out of P when
the “ENGINE START STOP” switch is in
IGNITION ON mode and the brake pedal is
depressed.
16
■ Changing shift ranges in the D position
Operating the shift paddle switches allows shift ranges to be selected to suit the driving conditions.
Pull the “-” shift paddle switch toward you.
The indicator in the meter cluster will display the selected shift range.
Higher shift range:
Pull the “+” shift paddle switch toward you.
Lower shift range:
Pull the “-” shift paddle switch toward you.
Pulling and holding the “+” shift paddle switch for a certain period of time allows you to
return to normal D position driving. If the accelerator pedal is depressed for more than a
certain period of time in one range, shift range selection in the D position will be automatically deactivated.
17
■ Changing shift ranges in the S position
Operating the shift lever or shift paddle switches allows shift ranges to be selected to suit the
driving conditions.
Shift the shift lever to S.
The indicator in the meter cluster will display the selected shift range.
Higher shift range:
Move the shift lever in the “+” direction, or
pull the “+” shift paddle switch toward you.
Lower shift range:
Move the shift lever in the “-” direction, or
pull the “-” shift paddle switch toward you.
18
Manual Transmission (If Equipped)
To operate the shift lever, the clutch pedal must be
fully depressed.
To shift into R, the ring on the shift lever must be
pulled up.
Shift the shift lever to R only when the vehicle is
stationary.
Parking Brake
■ Automatic transmission
To set the parking brake: firmly depress the parking brake pedal.
Canada
U.S.A.
To release the parking brake: depress the parking brake pedal again.
■ Manual transmission
1 To set the parking brake: pull the parking
brake lever firmly upward.
2 3 4 To release the parking brake: press and
hold the lock release button and lift the lever
slightly before lowering it as far as it will go.
Canada
19
U.S.A.
Multi-information Display
The multi-information display shows information about your vehicle, including the items
shown below.
■ Display information
● Trip information
 Outside temperature
 Driving range
 Average fuel consumption
 Average fuel consumption after refueling
 Current fuel consumption
 Average vehicle speed
 Gear position display (automatic transmission only)
● Satellite switch mode display
● Intuitive parking assist display
(if equipped)
● Warning messages
■ Changing the display of trip information
Type A
Type B
Trip information items can be switched by pressing the DISP switch.
■ When using intuitive parking assist, the appropriate display is shown on the screen.
■ In the event that a problem is detected in any of the vehicle's systems, a warning message is
shown on the multi-information display.
20
Satellite Switches
The satellite switches can be used to change the settings of various functions. Settings
are shown on the multi-information display.
The satellite switches can be used to change the
settings of the following items.
● Intuitive parking assist (if equipped)
● Tire pressure warning system initialization
● ID code selection for the tire pressure warning
system
● Vehicle speed indicator
● Tacho indicator
■ Changing the ON/OFF settings
To cycle through the functions, press either the
left or right selector switch.
To change the settings, press the ON/OFF
button.
For detailed information of changing the settings, see the Owner’s Manual.
21
Turn Signal Lever
1 Right turn signal
2 Left turn signal
To signal a lane change, move the lever partway and hold.
Emergency Flasher Switch
Engaging the emergency flasher switch causes all
the turn signal lights to flash.
The emergency flashers can be operated even
when the “ENGINE START STOP” switch is OFF.
22
ECT Switch (Automatic Transmission)
Use the ECT switch to select the driving mode that best suits the driving and road conditions.
1 Power mode
For more powerful acceleration and uphill
driving.
2 Normal mode
3 Snow mode
For starting or accelerating on snow-covered
roads or other slippery surfaces.
An indicator comes on when in power or snow
mode.
ETCS Switch (Manual Transmission)
Use the ETCS switch to change to snow mode when starting or accelerating on snowcovered roads or other slippery surfaces.
An indicator comes on when in snow mode.
Press again to return to normal mode.
23
Intuitive Parking Assist (If Equipped)
The system uses a screen display and buzzer to inform the driver of obstacles near the
vehicle when parking or driving at low speed.
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
■ Turning the system on and off
The system can be turned on and off using the satellite switch. (P.21)
■ Multi-information display
Sensors are used to detect obstacles near the
vehicle. The distance to a detected obstacle is
shown by the number of indicator bars.
1 Indicates obstacles detected by the corner
sensors
2 Indicates obstacles detected by the back sensors
24
Cruise Control
Cruise control allows the driver to maintain a constant speed without having to operate the
accelerator pedal.
Use for highway driving or when traveling at a constant speed for long periods of time.
1 Indicator
2 Cruise control switch
■ Setting the speed
Press the ON-OFF button.
The system will turn on.
Accelerate or decelerate to the desired
speed, and then push the lever down.
This sets the speed in the cruise control
memory.
■ Canceling
1 To temporarily cancel the cruise control, pull
the lever toward you. To resume the cruise
control, push the lever up.
2 To turn the system off, press the ON-OFF button.
■ Adjusting the speed setting
To increase speed: push the lever up.
To decrease speed: push the lever down.
Release the lever when the desired speed is
reached.
25
Headlights
U.S.A. Canada
1 The daytime running lights turn on.
2 The instrument panel, side marker, parking, tail,
license plate lights, daytime running lights turn
on.
3 The headlights and all lights listed above
(except daytime running lights) turn on.
4 The headlights, parking lights, daytime running
lights and other lights turn on/off automatically
in accordance with ambient light levels.
To engage the high beams, push the lever forward.
To flash the high beams, pull the lever and hold.
26
Fog Lights
The fog lights can be used only when the headlights (low beam) are on.
1 Front fog lights off
2 Front fog lights on
27
Windshield Wipers and Washer
■ Intermittent wiper with interval adjuster (if equipped)
1
2
3
4
Intermittent operation
Low speed
High speed
Single wipe
Intermittent operation: Wiper interval can be
adjusted by turning the band.
To spray washer fluid, pull the lever. The wipers
will operate automatically.
28
■ Rain-sensing windshield wipers (if equipped)
1
2
3
4
Automatic operation
Low speed
High speed
Single wipe
Automatic operation: Sensitivity can be adjusted
by turning the band.
To spray washer fluid, pull the lever. The wipers
will operate automatically.
29
Headlight Cleaner (If Equipped)
The headlight cleaner can be used only when the
“ENGINE START STOP” switch is in IGNITION
ON mode and the headlights are on.
Rear Window and Outside Rear View
Mirror Defoggers
To defog the rear window and the outside rear
view mirrors, press the switch.
Press again to cancel.
The system turns off automatically after 15 to 60 minutes.
Instrument Panel Light Control
1 Darker
2 Brighter
30
Audio System (without navigation system)
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
■ Basic operation
Type A
Sound quality modes
Automatic Sound Levelizer (ASL)
Mute
Audio sources
AMFM: AM radio/FM radio
SAT: Satellite radio
CD•AUX: CD player/Auxiliary audio
device/USB memory/iPod/
Bluetooth® audio player
5 Power/Volume
1
2
3
4
Type B
Sound quality modes
Automatic Sound Levelizer (ASL)
Mute
Audio sources
AM: AM radio
FM: FM radio
CD: CD player
AUX: Auxiliary audio device/USB memory/iPod
5 Power/Volume
1
2
3
4
31
■ Radio
Type A
1
2
3
4
5
6
7
Traffic information
Station presets
Text messages
Radio tuner
RDS genre select
Scanning radio stations
Seek
1
2
3
4
5
Traffic information
Station presets
Radio tuner
Station select
Seek
Type B
■ Entering station presets
Press the desired station by using the tune, the seek or the scan function.
Press and hold one of the preset buttons (1-6) until you hear a beep, indicating that the
station is set.
32
■ CD player
■ Playing an audio CD
Type A
1 Random playback
2 Repeat play
3 Pause/Playback
4 Text information
5 Disc select
6 Disc load
7 Search playback
8 Playback
9 Eject
10 Track select/rewind/fast-forward
Type B
1
2
3
4
5
6
7
8
9
33
Random playback
Repeat play
Pause/Playback
Text information
Disc select
Disc load
Playback
Eject
Track select/rewind/fast-forward
■ Playing a CD with MP3/WMA files
Type A
Type B
1 Random playback
2 Repeat play
3 Pause/Playback
4 Folder select
5 Text information
6 File select
7 Disc select
8 Disc load
9 Search playback
10 Playback
1 1 Eject
1 Random playback
2 Repeat play
3 Pause/Playback
4 Folder select
5 Text information
6 File select
7 Disc select
8 Disc load
9 Playback
10 Eject
34
■ Loading a CD
Press the “LOAD” button.
“WAIT” is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from “WAIT” to “LOAD”.
■ Loading multiple CDs
Press and hold the “LOAD” button until you hear a beep.
“WAIT” is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from “WAIT” to “LOAD”.
The indicators on the slot turn to amber when the CD is inserted.
Insert the next CD when the indicators on the slot turn from amber to green again.
Repeat the procedure for the remaining CDs.
To cancel the operation, press the “LOAD” button. If you do not insert a CD within 15
seconds, loading will cancelled automatically.
35
■ Operating an iPod
Type A
1
2
3
4
5
6
7
8
Random play
Repeat play
Pause/Playback
Go back
Text information
Playback
Menu/Track select
Track select/rewind/fast-forward
1
2
3
4
5
6
7
8
Random play
Repeat play
Pause/Playback
Go back
Text information
Playback
Menu/Track select
Track select/rewind/fast-forward
Type B
■ Remote control (steering wheel switches)
The audio system can be operated using the remote control located on the steering wheel.
1 Volume
2 Radio mode: radio tuner
CD mode: disc/track/file (MP3/WMA) select
iPod mode: song select
3 Power on/change mode: press
Power off: press and hold
36
Air Conditioning System (without navigation system)
Owners of models equipped with a navigation system should refer to the “Navigation System
Owner's Manual”.
1
2
3
4
5
6
Driver side temperature control
Switch to automatic mode
Driver side temperature display
OFF button
Fan speed controls
Air flow controls
7 Passenger side temperature display
8 Micro dust and pollen filter
9 Passenger side temperature control
10 Windshield defog/defrost
1 1 Outside air/recirculated air mode switch
12 A/C switch
13 Dual mode switch
■ Using the automatic mode
Press the AUTO button.
Adjust the temperature using the TEMP buttons.
■ Adjusting the temperature in DUAL mode
In DUAL mode, driver and passenger side temperature settings can be adjusted separately.
Press the DUAL button.
Adjust the driver side temperature using the
TEMP buttons, and the passenger side temperature using the PASSENGER TEMP buttons.
37
Garage Door Opener
The garage door opener can be programmed to operate garage doors, gates, entry
doors, door locks, home lighting systems, security systems, and other devices.
The garage door opener (HomeLink Universal Transceiver) is manufactured under license
from HomeLink.
The HomeLink compatible transceiver in your
vehicle has 3 buttons which can be programmed
to operate 3 different devices.
■ Programming HomeLink®
Hold your hand-held transmitter within 3
inches of the HomeLink buttons.
Press and hold down the desired HomeLink
button.
For U.S.A. owners:
While pressing the HomeLink button,
press and hold down the button on the handheld transmitter until the indicator light
changes from a slow to a rapid flash.
For Canadian owners:
While pressing the HomeLink button,
repeatedly press and release (cycle) the button on the hand-held transmitter every 2
seconds until the indicator light changes
from a slow to a rapid flash.
If your garage door is of the rolling code type:
Press the learn button on the motor-head unit in
your garage.
Following this step, you have 30 seconds in
which to initiate step below.
Press and hold the vehicle’s programmed
HomeLink button for 2 seconds and release
it. Repeat this step once again.
If the door does not open, press and release
the same button once again.
38
■ Programming other devices
For U.S.A. owners:
To program an entry gate, see the Owner's Manual.
To program other devices, contact your Lexus dealer.
For Canadian owners:
To program all other devices, follow the same procedure as for garage door programming.
■ Operating HomeLink®
39
Press the appropriate HomeLink button.
The indicator light should come on.
Ashtrays (If Equipped)
Front
To remove the ashtray, push the release lever.
Rear
To remove the ashtray, press down on the plate
and lift the ashtray out.
Luggage Mat
Pull the lever upwards when lifting the luggage
mat up.
The lever can be hooked on the edge of the trunk.
40
Seat Heaters / Seat Heaters and
Ventilators (If Equipped)
Seat heaters
Turn the dial toward 1 .
Seat heaters and ventilators
Seat heaters: turn the dial toward 1 .
Ventilators: turn the dial toward 2 .
41
Console Boxes
Front
To open, slide and lift the armrest with the knob
pulled up.
Rear (if equipped)
To open, press the lock release button and lift the
armrest.
Overhead console
To open, press the lid.
There is a power outlet located in the front console box.
42
Glove Box
1 Open: press the button.
2 Lock
3 Unlock
The glove box can be locked and unlocked using
the mechanical key.
Cup Holders
Front (press-in type)
To open, press down on the front of the lid.
Front (slide type)
To open, pull and hold the knob and slide the armrest.
Rear
To open, press in and release.
43
Interior Lights
Without moon roof
1 Door position on/off
2 On/off
With moon roof
1 Door position on/off
2 On/off
Rear Sunshade (If Equipped)
To raise the rear sunshade, press the switch.
Press the switch again to lower it.
The sunshade automatically lowers to ensure visibility when reversing.
44
Compass (If Equipped)
To turn the compass on or off, press the switch.
Trunk Storage Extension
Longer items can be loaded in the vehicle by utilizing the trunk space and rear seat area.
Pull down the rear armrest.
Open the inside trunk door from the trunk and
load baggage or other items.
45
Safety Connect (If Equipped)
Safety Connect is a subscription-based telematics service that uses Global Positioning
System (GPS) data and embedded cellular technology to provide safety and security
features to subscribers. Safety Connect is supported by Lexus’ designated response
center, which operates 24 hours per day, 7 days per week.
Safety Connect service is available by subscription on select, telematics hardwareequipped vehicles.
■ System components
1 Microphone
2 LED light indicators
3 “SOS” button
■ Services
Subscribers have the following Safety Connect services available:
● Automatic Collision Notification*
In case of either airbag deployment or severe rear-end collision, the system is designed
to automatically call the response center. The responding agent receives the vehicle’s
location and attempts to speak with the vehicle occupants to assess the level of emergency. If the occupants are unable to communicate, the agent automatically treats the
call as an emergency, contacts the nearest emergency services provider to describe the
situation, and requests that assistance be sent to the location.
*: U.S. Patent No. 7,508,298 B2
● Stolen Vehicle Location
If your vehicle is stolen, Safety Connect can work with local authorities to assist them in
locating and recovering the vehicle. After filing a police report, call the Safety Connect
response center at 1-800-25-LEXUS (1-800-255-3987) and follow the prompts for
Safety Connect to initiate this service.
In addition to assisting law enforcement with recovery of a stolen vehicle, Safety-Connect-equipped vehicle location data may, under certain circumstances, be shared with
third parties to locate your vehicle. Further information is available at Lexus.com.
46
● Emergency Assistance Button (SOS)
In the event of an emergency on the road, push the “SOS” button to reach the Safety
Connect response center. The answering agent will determine your vehicle’s location,
assess the emergency, and dispatch the necessary assistance required.
If you accidentally press the “SOS” button, tell the response-center agent that you are
not experiencing an emergency.
● Enhanced Roadside Assistance
Subscribers can press the “SOS” button to reach a Safety Connect response-center
agent, who can help with a wide range of needs, such as: towing, flat tire, fuel delivery, etc.
For a description of the Enhanced Roadside Assistance services and their limitations,
please see the Safety Connect Terms and Conditions, which are available at Lexus.com.
■ Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services.
A variety of subscription terms is available for purchase. Contact your Lexus dealer, call 1800-25-LEXUS (1-800-255-3987) or push the “SOS” button in your vehicle for further
subscription details.
47
Lexus Enform with Safety Connect (If Equipped)
Lexus Enform and Safety Connect are subscription-based telematics services that use Global Positioning System (GPS) data, embedded cellular technology an XM® satellite data
services to provide safety and security as well as convenience features to subscribers.
Lexus Enform and Safety Connect services are supported by Lexus’ designated response
center, which operates 24 hours per day, 7 days per week.
Lexus Enform service is available by subscription on select, telematics hardware-equipped
vehicles.
For details, refer to the “Owner’s Manual” and “Navigation System Owner’s Manual”.
■ Services
With an active Lexus Enform subscription, the following features are available:
● Safety Connect features (P.46)
• Automatic collision notification*1
• Stolen vehicle location
• Emergency assistance button (SOS)
• Roadside assistance
● Destination Assist
Destination Assist provides you with live assistance for finding destinations via the Lexus
Enform response center. You can request either a specific business, address, or ask for
help locating your desired destination by category, such as restaurants, gas stations,
shopping centers or other points of interest (POI).
After you tell the agent your choice of destination, its coordinates are sent wirelessly to
your vehicle’s navigation system.
● eDestination
With the eDestination feature, you can go online, via the Lexus.com owner’s Web site, to
select and organize destinations of your choice and then wirelessly send them to your
vehicle’s navigation system.
You can store up to 200 locations online to access and update at any time.
Your locations can be organized into up to 20 personalized folders.
You must first go online at www.lexus.com and go to the “Owners” section where you will
need to register and log in. After this, you can create your personalized folders containing the locations you wish to send to your vehicle. (See Lexus Enform Guide for more
information.)
● XM® Sports and Stocks*2
XM® Sports and Stocks is a service included with XM® satellite radio subscriptions for
Lexus Enform vehicles. With this service, you can receive updates via the navigation system on your personally selected sports teams and stocks.
48
● XM NavWeather™*3
The subscription-based XM NavWeather™ service allows the navigation system to display weather information on the map.
● XM® NavTraffic*3
The subscription-based XM® NavTraffic service allows the navigation system to display
traffic information on the map.
The following navigation-based Lexus Enform features are available without a subscription:
● Lexus Insider
Lexus Insider is an optional service that can send audio messages, or articles, to participating owner’s vehicles via the navigation system. Potential Lexus Insider subjects might
include, for example, Lexus vehicle technology tips, updates on regional Lexus events, or
audio excerpts from Lexus Magazine articles. Up to 20 articles can be stored at a time.
● Voice Command
The voice command system enables you to operate the navigation system, audio system
and hands-free system by giving a command.
1
* : U.S. Patent No. 7,508,298 B2
*2: Available at no extra charge with an active XM® satellite radio subscription.
*3: Available via separate XM® subscription(s).
■ Subscription
After you have signed the Telematics Subscription Service Agreement and are enrolled,
you can begin receiving services. A variety of subscription terms is available for purchase.
Contact your Lexus dealer, call 1-800-25-LEXUS (1-800-255-3987), or push the
“Destination Assist” button in your vehicle for further subscription details. XM NavTraffic®
and XM NavWeather™ require separate XM® subscription(s). XM® Sports and Stocks is
available with an XM® Satellite Radio subscription. After a 90-day free trial, you must set
up the appropriate XM® subscription(s) to continue receiving these services.
49
Door Locks
■ Locking the vehicle from inside
Inside lock button
1 Locks
2 Unlocks
Door lock switch
Operates all door locks.
1 Locks
2 Unlocks
■ Locking the vehicle from outside
Using the entry function or wireless remote control (P.6, 7)
■ Rear door child-protector lock
Setting the switch to the LOCK position prevents
the rear doors from being opened from the inside.
Always set the child protector locks when children are seated in the rear seat.
50
Power Windows
1 Power window switches
To open: press the switch.
To close: pull the switch up.
Fully pulling up and releasing the switches
causes the windows to close fully. Fully
pressing down and releasing the switches
causes the windows to open fully.
2 Window lock switch
The window lock switch disables the operation of passenger window switches.
Moon Roof (If Equipped)
■ Opening and closing
1 Open
The moon roof stops slightly before the fully
opened position.
To fully open, press the switch again.
2 Close
■ Tilt up and down
1 Tilt up
2 Tilt down
51
Fuel Tank Cap
Press the fuel filler door opener.
Slowly remove the cap by turning it counterclockwise.
After the cap is removed, it can be hung on the
inside of the fuel filler door.
Hood
Pull the hood release lever.
Insert your fingers under the hood, pull the
hood catch and lift the hood.
52
Trunk
■ Trunk opener
To open the trunk from inside the cabin, simply
press the trunk opener.
To disable the trunk opener, turn off the main
switch in the glove box.
1 On
2 Off
When the trunk opener is disabled, the trunk cannot be opened using the wireless remote control
or the entry function.
■ Entry function and wireless remote control
P.6, 7
53
What to do if ...
List of Warning/Indicator Lights
The units used on the speedometer, the tachometer gauge display, indicators and warning
lights may differ depending on the model / type.
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning light
Have the vehicle inspected immediately.
Electric power steering
warning light
(U.S.A.)
Malfunction
indicator lamp
(Canada)
SRS warning light
(U.S.A.)
(Canada)
(Flashing and
then continuously on)
ABS warning light
Tire pressure warning light
Slip indicator
(Comes on)
For further information, refer to the Owner's Manual.
54
What to do if ...
Have the malfunction repaired immediately.
Open door warning light
Low fuel level warning light
(On the
instrument
cluster)
(On the
center panel)
(Illuminate no
flashing)
Driver’s seat belt
reminder light
Front passenger’s seat belt
reminder light
Tire pressure warning light*1
Master warning light
See the Owner's Manual
Turn signal indicator
Cruise control indicator
Headlight high beam indicator
Front fog light indicator
Headlight indicator (U.S.A.)
Intuitive parking assist
indicator*4
Tail light indicator (Canada)
Slip indicator
(Flashes)
ECT SNOW indicator*2
SRS airbag on-off indicator
ETCS SNOW indicator*3
VSC off indicator
ECT PWR indicator*2
Shift position and shift range indicators*2
For further information, refer to the Owner's Manual.
*1
: Turns on due to natural causes such as natural air leaks or tire inflation pressure changes
caused by temperature including the spare tire. Adjust the tire inflation pressure.
*2: Vehicles with automatic transmission
*3: Vehicles with manual transmission
*4
: If equipped
55
If the electronic key does not operate
properly
■ Unlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key to remove the lock cover on the driver's door
handle. The mechanical key is stored inside the
electronic key.
1 Unlocks
2 Locks
■ Starting the engine
Depress the brake pedal (for automatic transmission) or clutch pedal (for manual transmission).
Touch the Lexus emblem side of the electronic
key to the “ENGINE START STOP” switch.
Press the “ENGINE START STOP” switch
within 10 seconds of the buzzer, keeping the
brake pedal (for automatic transmission) or
clutch pedal (for manual transmission)
depressed.
If the electronic key battery becomes depleted, replace it with a new battery. For instructions on replacing the battery, refer to the Owner's Manual. If you need further assistance,
contact your Lexus dealer.
56
What to do if ...
If the engine doesn't start
Make sure that the correct operating procedures have been followed.
Automatic transmission
Brake/clutch pedal
Make sure that the brake pedal (for automatic
transmission) or clutch pedal (for manual transmission) is firmly depressed when attempting to
start the engine. (P.15)
Manual transmission
Steering wheel lock
Make sure that the steering wheel lock is released.
To release the steering wheel lock, gently turn the
wheel left or right while pressing the “ENGINE
START STOP” switch. (P.8)
If the engine still does not start, see the Owner's Manual for more information or contact
your Lexus dealer.
57
Electronic Key Alarm
The electronic key alarm uses an alarm and warning messages to indicate that the electronic
key has been used improperly. Take appropriate measure in response to any warning messages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the correction procedure in the table below.
Alarm
Situation
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
Exterior alarm sounds
compartment
once for 2 seconds
Closed the trunk while the
electronic key is still inside
and all doors are locked
Tried to exit the vehicle
with the electronic key and
Exterior alarm sounds
lock the doors without first
once for 60 seconds
turning the “ENGINE
START STOP” switch OFF
Tried to lock the vehicle
Exterior alarm sounds
using the entry function
once for 10 seconds
while a door is open
Tried to open the door and
Interior alarm sounds
exit the vehicle without
continuously*
shifting the shift lever to P
Switched to ACCESSORY mode while the
driver's door is open
(Opened the driver's door
when the “ENGINE
Interior alarm pings
START STOP” switch is in
continuously
ACCESSORY mode.)
Turned the “ENGINE
START STOP” switch OFF
while the driver's door is
still open
*: Vehicles with automatic transmission only
Correction procedure
Retrieve the electronic key
from the passenger compartment and lock the
doors again.
Retrieve the electronic key
from the trunk and close
the trunk lid.
Turn the “ENGINE START
STOP” switch OFF and
lock the doors again.
Close all of the doors and
lock the doors again.
Shift the shift lever to P.
Close the driver's door.
Close the driver's door.
58
Customizing Your Lexus
Your vehicle includes a variety of electronic features that can be personalized to your
preferences. Programming these preferences requires specialized equipment and may
be performed by an authorized Lexus dealership.
Some function settings are changed simultaneously with other functions being customized.
Contact your Lexus dealer for further details.
Item
Smart access
system with
push-button start
Function
Operation signal
(Emergency flashers)
Operation signal
(Buzzer)
Unlocking operation
Wireless remote
control
Automatic door lock function
to be activated if door is not
opened after being unlocked
Time elapsed before automatic door lock function is
activated if door is not opened
after being unlocked
Operation signal
(Emergency flashers)
Operation signal
(Buzzer)
Door lock buzzer
Trunk unlocking function
Trunk unlocking operation
Panic function
59
Default
setting
Customized
setting
On
Off
On
Off
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
All doors
unlocked in
one step
On
Off
30 seconds
60 seconds
120 seconds
On
Off
On
Off
On
On
Off
Off
Push twice
One short push
Off
Push and hold
On
Item
Function
Unlocking using a key
Door lock
Steering wheel
Speed-detecting automatic
door lock function
(Manual transmissions)
Speed-detecting automatic
door lock function
(Automatic transmissions)
Opening driver's door unlocks
all doors
(Manual transmissions)
Opening driver's door unlocks
all doors
(Automatic transmissions)
Shifting gears to P unlocks all
doors
Shifting gears to position other
than P locks all doors
Auto tilt-away function
Linked door key operation
Power windows
Wireless remote control linked
operation
Linked door key operation
Moon roof
Linked operation of components
when door key is used
Wireless remote control linked
operation
Linked operation of components
when wireless remote control is
used
Default
setting
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
Customized
setting
All doors
unlocked in
one step
On
Off
Off
On
On
Off
Off
On
On
Off
On
Off
On
Off
Off
Open only
Close only
Open and
close
Off
Open only
Open and
close
Off
Open only
Close only
Slide only
Tilt only
Off
Open only
Slide only
Tilt only
60
Customizing Your Lexus
Item
Automatic light
control system
Lights
Windshield
wipers and
washer
Intuitive parking
assist
Illumination
Seat belt
reminder
61
Function
Light sensor sensitivity
Time elapsed before headlights
automatically turn off after
doors are closed
Daytime running light system
(U.S.A. only)
Switching operation when the
vehicle is stationary
Drip prevention function
Time elapsed before the drip
prevention function operates
Back sensor operation display
and buzzer
Buzzer volume
Distance which a sensor detects
Time elapsed before lights turn
off
Operation when the doors are
unlocked
Operation after the “ENGINE
START STOP” switch turned
OFF
Front footwell lights
Shift lever light
Outer foot lights
Vehicle speed linked seat belt
reminder buzzer
Default
setting
Level 3
30 seconds
Customized
setting
Level 1 to 5
0 seconds
60 seconds
90 seconds
On
Off
On
Off
On
Variable
depending on
the vehicle
speed
Off
3 seconds
On
Off
Level 3
4.9 ft. (150 cm)
Level 1 to 5
2.0 ft. (60 cm)
7.5 seconds
30 seconds
15 seconds
On
Off
On
Off
On
On
On
Off
Off
Off
On
Off
Your Lexus dealer
Your Lexus dealer will provide quality maintenance and any other assistance
you may require.
If there is not a Lexus dealer near you, please call the following number:
■U.S. OWNERS
●In the U.S. mainland or Canada:
Lexus Roadside Assistance
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
●In Hawaii:
Servco Automotive Roadside Assistance/Customer Services
1-800-25-LEXUS or 1-800-255-3987 (Toll-Free)
■CANADIAN OWNERS
●In Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service
1-800-26-LEXUS or 1-800-265-3987 (Toll-Free)
Please access our websites for further information.
●The U.S. mainland: www.lexus.com
●Hawaii: www.servcolexus.com
●Canada: www.lexus.ca
©2010 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.
62
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
