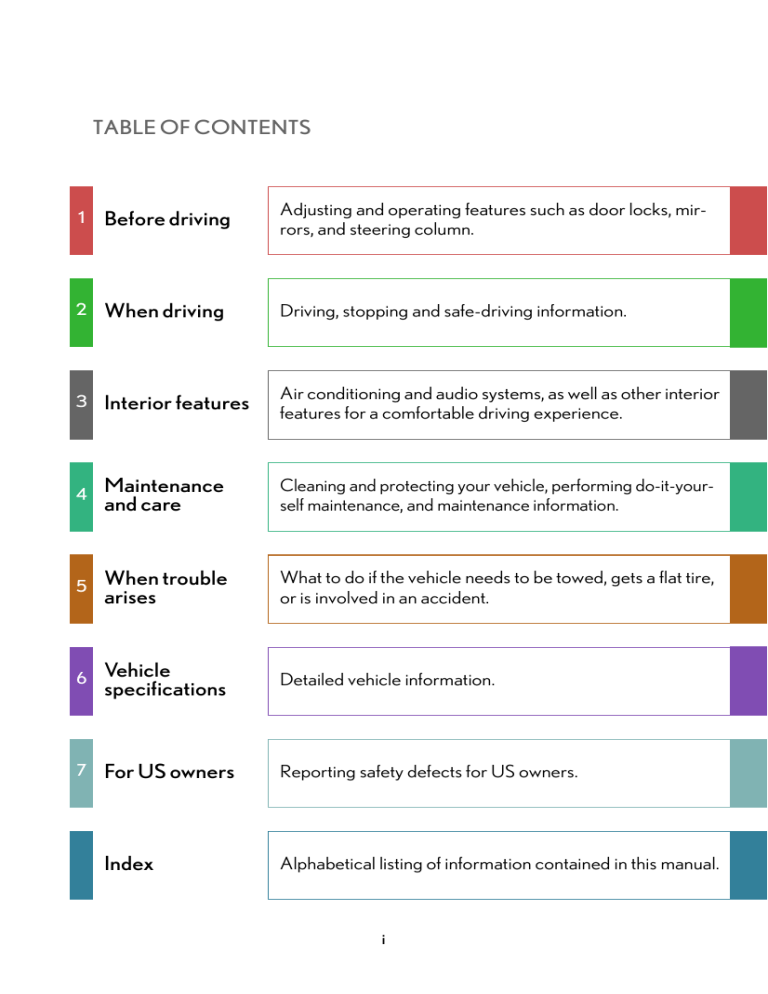

TABLE OF CONTENTS
1
Before driving
Adjusting and operating features such as door locks, mirrors, and steering column.
2
When driving
Driving, stopping and safe-driving information.
3
Interior features
Air conditioning and audio systems, as well as other interior
features for a comfortable driving experience.
4
Maintenance
and care
Cleaning and protecting your vehicle, performing do-it-yourself maintenance, and maintenance information.
5
When trouble
arises
What to do if the vehicle needs to be towed, gets a flat tire,
or is involved in an accident.
6
Vehicle
specifications
Detailed vehicle information.
7
For US owners
Reporting safety defects for US owners.
Index
Alphabetical listing of information contained in this manual.
i
TABLE OF CONTENTS
1
Index
1-6. Theft deterrent system............... 49
Before driving
Engine immobilizer system......... 49
Alarm..................................................... 51
Theft prevention labels
(U.S.A.)............................................. 53
1-1. Key information .............................. 2
Keys ......................................................... 2
1-7. Safety information....................... 54
1-2. Opening, closing and locking
the doors......................................... 4
Correct driving posture ............... 54
SRS airbags ....................................... 56
Front passenger occupant
classification system.................... 69
Child restraint systems ................. 74
Installing child restraints............... 77
Wireless remote control ................. 4
Side doors ............................................. 6
Back door.............................................. 11
1-3. Adjustable components ............. 13
Front seats........................................... 13
Rear seats............................................ 15
Driving position memory
system ............................................... 24
Head restraints................................. 26
Seat belts ............................................ 28
Steering wheel.................................. 35
Inside rear view mirror.................. 36
Outside rear view mirrors........... 37
Roof luggage carrier ..................... 39
2
When driving
2-1. Driving procedures.................... 88
Driving the vehicle......................... 88
Starting the engine ......................... 95
Automatic transmission................ 98
Turn signal lever.............................. 101
Parking brake ................................. 102
2-2. Instrument cluster ..................... 103
1-4. Opening and closing the
windows and moon roof ........... 41
Gauges and meters ..................... 103
Indicators and warning
lights................................................. 105
Trip information display.............. 108
Power windows................................. 41
Moon roof .......................................... 43
1-5. Refueling........................................ 46
Opening the fuel tank cap........... 46
ii
2-3. Operating the lights and
windshield wipers...................... 111
Headlight switch............................... 111
Fog light switch ................................ 113
Windshield wipers and
washer............................................... 114
Rear window wiper and
washer............................................... 117
2-4. Using other driving systems..... 118
Cruise control ................................. 118
Four-wheel drive system.............. 121
Rear height control air
suspension..................................... 123
Electronic modulated
suspension..................................... 129
DAC (Downhill Assist Control
system)............................................ 130
Driving assist systems.................. 132
2-5. Driving information .................. 135
Off-road precautions .................. 135
Cargo and luggage...................... 140
Vehicle load limits......................... 144
Winter driving tips ........................ 146
Trailer towing.................................. 150
Dinghy towing ................................ 160
iii
3
Interior features
3-1. Using the air conditioning
1
system and defogger.............. 162
Automatic air conditioning
system (without navigation
system)............................................ 162
2
Rear cooler system....................... 168
Rear window and outside rear
view mirror defoggers ............. 169
3-2. Using the audio system.............. 171
3
Audio system type .......................... 171
Using the radio............................... 173
Using the CD player..................... 181 4
Playing MP3 and WMA
discs ................................................. 188
Optimal use of the audio
system ............................................. 194 5
Using the AUX adapter............. 197
Using the steering switches...... 198
6
3-3. Using the rear audio
system ....................................... 200
Rear seat entertainment
system features ......................... 200
7
Using the DVD player
(DVD video)............................... 205
Using the DVD player
(video CD).................................... 212
Using the DVD player
(audio CD/CD text)................. 214
TABLE OF CONTENTS
Index
Using the DVD player
(MP3 discs) .................................. 215
Using the video mode ................. 217
Changing the initial setting ....... 218
4
4-1. Maintenance and care............ 272
Cleaning and protecting the
vehicle exterior .......................... 272
Cleaning and protecting the
vehicle interior............................ 274
3-4. Using the interior lights .......... 225
Interior lights list............................ 225
3-5. Using the storage
features..................................... 228
4-2. Maintenance.............................. 277
List of storage features............... 228
Maintenance requirements ..... 277
General maintenance................ 279
Emission inspection and
maintenance (I/M)
programs ...................................... 282
3-6. Other interior features........... 233
Sun visors......................................... 233
Vanity mirror.................................. 234
Clock................................................. 235
Outside temperature
display ............................................ 236
Ashtrays ........................................... 237
Cigarette lighter .......................... 238
Power outlet................................... 239
Seat heaters..................................... 241
Armrest ............................................ 243
Floor mats........................................ 244
Luggage compartment
features.......................................... 245
Garage door opener................. 248
Compass.......................................... 253
Lexus Link System ....................... 257
Maintenance and care
4-3. Do-it-yourself
maintenance........................... 283
Do-it-yourself service
precautions................................. 283
Hood.................................................. 286
Engine compartment.................. 287
Tires .................................................. 302
Tire inflation pressure................ 309
Wheels............................................... 313
Air conditioning filter................... 315
Wireless remote control
battery............................................. 317
Rear seat entertainment
system controller........................ 319
Checking and replacing
fuses................................................. 321
Light bulbs........................................ 331
iv
5
When trouble arises
6
Vehicle specifications
5-1. Essential information .............. 338
6-1. Specifications............................ 378
If your vehicle needs to be
towed............................................. 338
If you think something is
wrong ............................................. 343
Fuel pump shut off system ........ 344
Event data recorder.................... 345
Maintenance data........................ 378
Fuel information............................ 387
Tire information ........................... 390
1
2
6-2. Customization .......................... 398
Customizable features ............. 398
5-2. Steps to take in an
emergency ............................... 347
6-3. Initialization ................................ 401 3
Items to initialize ............................ 401
If a warning light turns on or a
warning buzzer sounds... ....... 347
If you have a flat tire..................... 356
If the engine will not start .......... 367
If the shift lever cannot be
shifted from P............................. 368
If you lose your keys.................... 369
If the vehicle battery is
discharged ................................... 370
If your vehicle overheats ........... 373
If the vehicle becomes
stuck................................................ 375
7
For US owners
4
Reporting safety defects for
U.S. owners.................................. 404
5
Index
Alphabetical index................... 406
6
What to do if................................ 414
7
v
Pictorial index
Headlight (low beam)
Exterior
P. 111
Windshield wipers P. 114
Moon roof P. 43
Hood P. 286
Parking light
Outside rear view
mirror P. 37
P. 111
Side marker light
P. 111
Fog light P. 113
Turn signal light P. 101
Headlight (high beam)
vi
P. 111
Turn signal light P. 101
Rear window defogger
Fuel filler door P. 46
Door
P. 169
Back door
P. 6
Tire
●Rotation
●Replacement
●Inflation pressure
●Information
Tail lights
P. 111
Side marker light
P. 302
P. 356
P. 385
P. 390
vii
P. 11
P. 111
Pictorial index
Interior
Door pocket P. 232
Seat belt P. 28
Head restraint P. 26
Power window
switch P. 41
Driver airbag P. 56
Ashtray P. 237
A
Floor mat P. 244
Front seat P. 13
SRS side airbag P. 56
Console box P. 229
Armrest P. 243
Cup holders P. 231
viii
A
Lexus Link System switches P. 257
Moon roof switch P. 43
Garage door opener switches P. 248
Personal light P. 226
Interior light P. 227
Rear seat entertainment
system  P. 200
SRS curtain shield airbag P. 56
Vanity mirror P. 234
Sun visor P. 233
Compass P. 253
: If equipped
ix
Pictorial index
Interior
B
Driving position memory switches P. 24
Door lock switch
x
P. 6
Window lock switch
P. 41
Power window switches
P. 41
C
Shift lever P. 98
Four-wheel drive control lever P. 121
Cigarette lighter P. 238
Ashtray P. 237
Seat heater switches P. 241
AUX adapter P. 197
Power outlet P. 239
Height control switches
Damping mode select switch
P. 123, P. 129
“DAC” switch P. 130
Parking brake lever P. 102
Shift lock override button P. 368
: If equipped
xi
Pictorial index
Instrument panel
Gauges and meters P. 103
Ignition switch P. 95
Headlight switch P. 111
Turn signal switch P. 101
Fog light switch P. 113
Windshield wiper and
washer switch P. 114
Cruise control switch P. 118
Glove box P. 228
Emergency flashers
xii
A
Audio remote control switches P. 198
B
Automatic transmission second start switch P. 99
Tire selector switch P. 304
xiii
Pictorial index
Instrument panel
C
With navigation system
Trip-information display P. 108
Navigation system*
Air conditioning
system
Audio system
P. 171
Without navigation system
Trip-information display P. 108
Audio system
P. 171
Air conditioning
system P. 162
xiv
D
Outside rear view mirror switches P. 37
Instrument panel light control P. 104
Center differential lock switch P. 121
Tilt and telescopic steering
control switch P. 35
“RSCA OFF” switch P. 68
Outside rear view mirror
heater switch P. 169
Hood lock release lever P. 286
Fuel filler door lever P. 46
Power outlet switch P. 239
*: Refer to “Navigation System Owner's Manual”.
xv
Pictorial index
Luggage compartment
Child restraint anchor brackets P. 83
Power outlet P. 239
A
Cargo net hook P. 245
Cargo hooks P. 245
xvi
A
Back door handle
Tools P. 356
Warning reflector holder P. 246
xvii
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. However, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustration may differ from
your vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or performance problems resulting from the modification may not be covered under warranty.
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as the multiport fuel injection system/sequential multiport
fuel injection system, cruise control system, anti-lock brake system, SRS airbag system and seat belt pretensioner system, be sure to check with your Lexus dealer for
precautionary measures or special instructions regarding installation.
xviii
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Leak detection pump (for the U.S.A. and Canada)
This pump performs fuel evaporation leakage check. This check is conducted several hours after the engine is turned off. You may hear a sound coming from underneath the luggage compartment for several minutes, however this does not indicate
a malfunction.
CAUTION
■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that will hurt or kill you, your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■ When children are in the vehicle
Never leave children unattended in the vehicle.
When left unattended, children may be able to start the vehicle or shift the vehicle
into neutral. There is also a danger that children may injure themselves by playing
with the cigarette lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can
be fatal to children.
xix
Symbols used throughout this manual
Cautions & Notices
CAUTION
This is a warning against anything which may cause injury to people if the warning is
ignored. You are informed about what you must or must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or its
equipment if the warning is ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.
Safety symbol
Throughout this manual, you will also see the symbol of a circle
with a slash through it. This means “Do not”, “Do not do this”, or
“Do not let this happen”.
xx
Before driving
1-1. Key information............................ 2
Keys....................................................... 2
1
1-4. Opening and closing the
windows and moon roof ........ 41
Power windows............................... 41
1-2. Opening, closing and locking
the doors ...................................... 4
Moon roof ....................................... 43
Wireless remote control............... 4
1-5. Refueling..................................... 46
Side doors .......................................... 6
Opening the fuel tank cap ....... 46
Back door........................................... 11
1-6. Theft deterrent system............ 49
1-3. Adjustable components........... 13
Engine immobilizer system...... 49
Front seats ........................................ 13
Alarm .................................................. 51
Rear seats ......................................... 15
Theft prevention labels
(U.S.A.).......................................... 53
Driving position memory
system ............................................ 24
Head restraints.............................. 26
1-7. Safety information.................... 54
Seat belts ......................................... 28
Correct driving posture ............ 54
Steering wheel............................... 35
SRS airbags .................................... 56
Inside rear view mirror............... 36
Outside rear view mirrors ........ 37
Front passenger occupant
classification system................. 69
Roof luggage carrier................... 39
Child restraint systems ............... 74
Installing child restraints............. 77
1
1-1. Key information
Keys
The following keys are provided with the vehicle.
Master keys
Valet key
Key number plate
Flat key
■ When required to leave a key to the vehicle with a parking attendant
Lock the glove box as circumstances demand. (P. 228)
Carry the master key for your own use and leave the valet key only with the attendant.
■ Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a key is lost, a new key can be made at your Lexus dealer using the key number
plate. (P. 369)
2
1-1. Key information
NOTICE
■ To prevent key damage
● Do not bend the keys, expose them to high temperatures by placing them in
direct sunlight, or get them wet.
1
● Do not expose the keys to electromagnetic materials or attach any material that
Before driving
blocks electromagnetic waves to the key surface.
3
1-2. Opening, closing and locking the doors
Wireless remote control
The wireless remote control can be used to lock and unlock the vehicle.
Locks all doors
Unlocks all doors
Opens the windows and
moon roof (push and hold)
Sounds alarm
(push and hold) (P. 52)
■ 2-step unlocking function
When you push the “UNLOCK” button, the driver's door is unlocked. Pushing the
button again within 3 seconds unlocks the other doors.
■ Operation indicator
● Doors: A buzzer sounds and the emergency flashers flash to indicate that the
doors have been locked/unlocked. (Locked: Once; Unlocked: Twice)
● Windows and moon roof: A buzzer sounds when the windows and moon roof
begin to open.
■ Door lock buzzer
If a door is not fully closed, a buzzer sounds continuously if an attempt to lock the
door is made. Fully close the door to stop the buzzer, and lock the vehicle once
more.
■ Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the theft deterrent system automatically locks the vehicle again.
■ Low battery
If the wireless remote control does not function or if it only operates very close to
the vehicle, the battery may be low. (P. 317)
4
1-2. Opening, closing and locking the doors
■ Customization
Settings (e.g. 2-step unlocking function, buzzer) can be changed. (P. 398)
■ Certification for wireless remote control (for vehicles sold in the U.S.A.)
1
FCC ID: MOZRI-20BTY
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
■ Certification for wireless remote control (for vehicles sold in Canada)
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
5
Before driving
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
1-2. Opening, closing and locking the doors
Side doors
The vehicle can be locked and unlocked using the wireless remote control,
a key or door lock switch.
■ Key
Locks all doors
Closes the windows/moon
roof (turn and hold)
Unlocks all doors
Turning the key unlocks the
driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon
roof (turn and hold)
■ Wireless remote control
P. 4
■ Door lock switch
Locks all doors
Unlocks all doors
6
1-2. Opening, closing and locking the doors
■ Inside lock button
Locks the door
Unlocks the door
1
Before driving
The front doors can be opened
by pulling the inside handles
even if the lock buttons are in
the lock position.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Push down rear door
switches to lock the rear doors.
7
1-2. Opening, closing and locking the doors
Automatic door locking and unlocking systems
The following functions can be set or canceled:
Function
Operation
Shift position linked door
locking function
Shifting the shift lever out of “P” locks all doors.
Shift position linked door
unlocking function
Shifting the shift lever to “P” unlocks all doors.
Speed linked door locking
function
All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver's door linked door
unlocking function
All doors are unlocked when the driver's door
is opened within 10 seconds after turning the
ignition switch to the “ACC” or “LOCK” position.
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure below:
STEP 1
STEP 2
Close all the doors and turn the ignition switch to the “ON” position. (Perform step 2 within 10 seconds.)
Shift the shift lever to “P” or “N”,
press and hold the driver's door
lock switch ( or ) for 5 seconds then release.
The shift lever and switch positions
corresponding to the desired function to be set or canceled are
shown as follows.
8
1-2. Opening, closing and locking the doors
Function
Shift position linked door locking
function
Shift position linked door unlocking function
Shift lever position
Switch position
“P”
1
Before driving
Speed linked door locking function
Driver's door linked door unlocking
function
“N”
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
■ Locking the front doors from outside using the inside lock button
Push the inside lock button rearward and close the door while holding the door
handle up.
■ If the wrong key is used
The key cylinder rotates freely to isolate the inside mechanism.
■ Customization
Settings (e.g. unlocking function using a key) can be changed. (P. 398)
9
1-2. Opening, closing and locking the doors
CAUTION
■ To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.
● Always use a seat belt.
● Always lock all doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the front door while driving.
● Set the rear door child protector locks when children are seated in the rear seat.
10
1-2. Opening, closing and locking the doors
Back door
The back door can be opened to the following positions:
Half open position
1
Before driving
Full open position
You can hold the back door in
this position using the back door
stopper.
When closing the door, be sure
to unlock the back door stopper.
Rear step bumper
For rear end protection and easier
step-up loading.
11
1-2. Opening, closing and locking the doors
■ The back door can be locked/unlocked
Using wireless remote control: P. 4
Using door lock switch: P. 6
CAUTION
Observe the following precautions.
Failure to do so may result in death or serious personal injury.
■ Caution while driving
● Keep the back door closed.
This not only keeps personal belongings from being thrown out, but also prevents
exhaust gases from entering the vehicle.
● Do not get on the rear step bumper.
■ If the back door is opened while parked
The open back door hides the rear lights. Other road users must be warned of the
presence of your vehicle by a warning triangle or other device.
■ When closing the back door
Make sure not to get your hands caught in the back door stay.
NOTICE
■ To prevent damage to the rear step bumper
Do not allow more than one person to get on at a time.
12
1-3. Adjustable components
Front seats
1
Before driving
Seat position fore/aft control switch
Seatback angle control switch
Seat cushion (front) angle control switch*
Vertical height control switch*
Lumbar support control switch
*: For driver’s seat only
13
1-3. Adjustable components
CAUTION
■ Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion, to
reduce the risk of sliding under the lap belt.
If the seat is too reclined during an accident, the lap belt may slide past the hips and
apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury.
■ When adjusting the front passenger’s seat from the driver’s seat
Wait until a passenger is seated or have gotten off the front passenger’s seat before
operating the switch to avoid injuring the passenger.
14
1-3. Adjustable components
Rear seats
To adjust the seat back angle, pull the lock release lever.
Second seats
1
Before driving
Third seats (if equipped)
15
1-3. Adjustable components
Tumbling the second seat (for third seat entry)
Vehicles with third seat: For easy access to the third seat, tumble the second seat in accordance with the following procedure.
■ Before tumbling the second seat
Stow the rear seat belt buckles.
■ Tumbling the second seat
STEP 1 Lower the head restraints to the lowest position.
Fold down the seatbacks while
STEP 2
pulling the lock release levers.
STEP 3
16
Swing the seat up and forward until
it locks in place.
1-3. Adjustable components
■ Returning the second seat
Push the red knobs and swing the
seat down, then raise the seatbacks.
1
Before driving
■ If you cannot raise the left side seatback
Release the seat belt lock by:
Pushing on the lower front edge of the
seatback to slacken the seat belt.
Let the seat belt retract a little.
17
1-3. Adjustable components
Folding up the third seats
■ Before folding up the third seats
Stow the rear seat belt buckles.
Use the seat belt hangers to prevent the belts from becoming tangled.
For the center seat belt, stow the
seat belt tabs in the cover set in the
roof as shown.
18
1-3. Adjustable components
STEP 4
Unlock the seat legs by pulling the
seat leg lock release handles, and
lift the seats sideward.
19
1
Before driving
■ Folding up the third seats
STEP 1 Lower the outboard head restraint to the lowest position and
remove the center head restraint.
STEP 2 Stow the center head restraint in the seatback. (P. 27)
Unlock the seatbacks by pushing
STEP 3
the lock release levers forward,
and fold them down.
1-3. Adjustable components
STEP 5
Retract the seat legs, then take the
holding straps out and attach the
straps to the assist grips.
STEP 6
Pull the free end of the straps to
the secure the seats.
■ When returning the third seat to its original position
Reverse the steps listed.
Be sure to stow the holding straps as shown.
20
1-3. Adjustable components
Removing the third seats
STEP 1
STEP 2
STEP 3
Remove the seat lock cover and
push the red seat lock release
knobs outward, then lift the seats
free.
■ When returning the third seat to its original position
Reverse the steps listed.
21
1
Before driving
Follow the procedure for “Folding up the third seats” up to STEP
3.
Unlock the seat legs by pulling the
seat leg lock release handles, and
lift the seats. Retract the seat legs,
then place the seats on the floor.
1-3. Adjustable components
CAUTION
■ Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion, to
reduce the risk of sliding under the lap belt.
If the seat is too reclined during an accident, the lap belt may slide past the hips and
apply restraint forces directly to the abdomen or your neck may contact the shoulder belt, increasing the risk of death or serious injury.
■ When the seatback is folded
Do not sit on or place anything on the seatback while driving.
■ When returning the seatbacks to their original position
Observe the following precautions. Failure to do so may result in death or serious
injury.
● Be careful not to get your hands or feet pinched in the seat.
● Make sure the seats are securely locked. Failure to do so will prevent the seat belt
from operating properly.
● Check that the seat belts are not twisted or caught under the seat.
● Arrange the seat belts in the proper positions for ready use.
■ When folding up the third seats
Fix the seats securely by adjusting the length of the holding strap. Failure to do so
may cause death or serious injury in the event of an accident or sudden braking.
■ When removing or reinstalling the third seats
Observe the following precautions to prevent personal injury:
● Do not remove or reinstall the seats while the vehicle is moving.
● Do not leave the removed seat loose in the vehicle.
● Be careful not to get your hands or feet pinched in the seats.
● Be careful not to hit a person with the removed seat or drop it on yourself.
● Do not sit on or place anything on the removed seat.
● Install each seat in the same position from which it was removed. Failure to do so
will prevent third seat occupants from using the seat belts properly.
22
1-3. Adjustable components
NOTICE
■ Before tumbling, folding up or removing the seats
The seat belts and buckles must be stowed.
1
■ Before tumbling the second seats
■ Removed third seats
Avoid putting heavy loads on the seats. The metallic tips of the seat legs may be
damaged, and you may be unable to correctly reinstall the seats.
23
Before driving
The headphone jack lid of the rear seat entertainment system must be closed.
1-3. Adjustable components
Driving position memory system
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be entered into the computer's
memory and recalled with the touch of a button.
Two different driving positions can be entered into memory.
■ Entering a position into memory
Check that the shift lever is set in “P”.
STEP 1
STEP 2
STEP 3
Turn the ignition switch to the “ON” position.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pushing the “SET” button,
push button “1” or “2” until the
signal beeps.
If the selected button has
already been preset, the previously recorded position will be
overwritten.
■ Recalling the memorized position
Check that the shift lever is set in “P”.
STEP 1
STEP 2
24
Turn the ignition switch to the “ON” position.
Push button “1” or “2” to recall
the desired position.
1-3. Adjustable components
■ Retained accessory power
Each memorized position (except for the tilt and telescopic steering column) can
be activated within 30 seconds after the driver’s door is opened, even if the key is
not in the ignition switch.
1
■ If any position memory button is pushed while the adjustments are being made
■ If the battery is disconnected
The memorized positions must be reset because the computer's memory is erased
when the battery is disconnected.
CAUTION
■ Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
If this happens, you can stop the movement by pressing another seat position memory button.
25
Before driving
The operation will stop. To reactivate the system, push the button again.
1-3. Adjustable components
Head restraints
■ Vertical adjustment
Lock
release
button
Grip the head restraint and
move it up or down.
Push and hold the lock release
button when lowering the head
restraint.
Grip the head restraint and
remove while holding the
lock release button.
■ Horizontal adjustment
Grip the head restraint and twist
to tilt forward or backward.
■ Adjusting the height of the head restraints
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
26
1-3. Adjustable components
■ When an occupant sits on the second center seat
Always pull up the head restraint to the lock position.
■ Head restraints of different seats
The head restraints are specially designed for the seats on which they are installed.
■ When not using the third center seat head restraint (vehicles with third seat)
CAUTION
■ Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
● Adjust the head restraints to the correct position at all times.
● Do not drive with the head restraints removed.
27
Before driving
Open the zipper on the back of the third seat
and stow the head restraint inside.
1
1-3. Adjustable components
Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
■ Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not come
into contact with the neck or
slide off the shoulder.
Position the lap belt as low as
possible over the hips.
Adjust the position of the
seatback. Sit up straight and
well back in the seat.
Do not twist the seat belt.
■ Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle until
a clicking sound is heard.
Release button
Releasing the belt
Press the release button.
28
1-3. Adjustable components
■ Adjusting the height of the belt (front and second outboard seats)
Up
Down
1
Before driving
Move the height adjuster up and
down as needed until you hear a
click.
Third center seat belt (vehicles with third seats)
The third center seat belt is a 3-point type restraint with 2 buckles. Both
seat belt buckles must be correctly located and securely latched for
proper operation.
Make sure that the buckle with the
light gray buckle release button is
securely latched for ready use of
the center seat belt.
29
1-3. Adjustable components
■ Release method
The belt can be completely released when not required, such as when
removing the third seat.
STEP 1
To release the hooked tab, insert
the vehicle's key into the hole on
the buckle with the light gray
buckle release button.
STEP 2
Stow the seat belt tabs in the cover
set in the roof as shown.
■ Extracting the belt
Pull the belt out partially, then remove the tabs from the cover.
30
1-3. Adjustable components
Seat belt pretensioners (front seats)
The pretensioner may not activate
in the event of a minor frontal
impact, a side impact or a rear
impact.
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if
you lean forward too quickly. A slow, easy motion will allow the belt to extend, and
you can move around fully.
■ Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is
used to hold the child restraint system (CRS) firmly. To free the belt again, fully
retract the belt and then pull the belt out once more. (P. 81)
31
1
Before driving
The pretensioner helps the seat
belt to quickly restrain the occupant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal collision.
1-3. Adjustable components
■ Pregnant women
Obtain medical advice and wear the seat belt
in the proper way. (P. 28)
Women who are pregnant should position
the lap belt as low as possible over the hips in
the same manner as other occupants. Extend
the shoulder belt completely over the shoulder and position the belt across the chest.
Avoid belt contact over the rounding of the
abdominal area.
If the seat belt is not worn properly, not only a
pregnant woman, but also the fetus could suffer death or serious injury as a result of sudden braking or a collision.
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 28)
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
● Use a child restraint system appropriately for the child, until the child becomes
large enough to properly wear the vehicle's seat belt. (P. 74)
● When the child becomes large enough to properly wear the vehicle's seat belt,
follow the instructions on P. 28 regarding seat belt usage.
■ Replacing the belt after the pretensioner has been activated
The seat belts cannot be used if a pretensioner has activated. After an accident,
have your Lexus dealer inspect the pretensioners and replace them, if necessary.
■ Seat belt extender
If your seat belts cannot be fastened securely
because they are not long enough, a personalized seat belt extender is available from
your Lexus dealer free of charge.
32
1-3. Adjustable components
CAUTION
■ Wearing a seat belt
Observe the following precautions to reduce the risk of injury in the event of sudden braking or an accident. Failing to do so may cause death or serious injury.
1
● Ensure that all passengers wear a seat belt.
● Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at the same time, including children.
● Children should be seated in the rear seat and always use a seat belt and/or an
appropriate child restraint system.
● Do not recline the seat any more than necessary to achieve a proper seating
position. The seat belt is most effective when the occupants are sitting up straight
and well back in the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate or buckle to be jammed
in the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from injury.
● Ensure that the belt and tab are locked and the belt is not twisted. If the seat belt
does not function correctly, immediately contact your Lexus dealer.
● Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there is no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of a seat belt.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling of the pretensioner may cause it to activate or operate improperly and may
cause death or serious injury.
33
Before driving
● Always wear a seat belt properly.
1-3. Adjustable components
CAUTION
■ When using the third center seat belt
Do not use the third center seat belt with
either buckle released. Fastening only one of
the buckles may result in death or serious
injury in case of sudden braking or a collision.
■ Using a seat belt extender
● Do not wear the seat belt extender, if you can fasten the seat belt without the
extender.
● Do not use the seat belt extender when installing a child restraint system, because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of a collision.
● The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seating position other than the one originally
intended.
NOTICE
■ When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
34
1-3. Adjustable components
Steering wheel
The steering wheel can be adjusted to a comfortable position while the
ignition switch is in the “ACC” or “ON” position.
Up
Down
Toward the driver
Away from the driver
1
Before driving
Auto tilt away and auto return
When the ignition key is removed,
the steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
When the key is inserted in the
ignition switch, the steering wheel
will return to the original position.
CAUTION
■ Caution while driving
Do not adjust the steering wheel.
Doing so may cause the driver to mishandle the vehicle and may lead to an accident, resulting in death or serious injury.
35
1-3. Adjustable components
Inside rear view mirror
In the auto mode, sensors are used to detect the headlights of vehicles
behind and automatically reduces the reflected light.
Press the switch to turn auto
mode on/off.
The indicator comes on when
auto mode is turned ON.
The anti-glare mirror is automatically set to auto mode
whenever the ignition switch is
turned to the “ON” position.
■ To prevent sensor error
To ensure correct functioning of the sensors,
do not touch or cover the sensors.
CAUTION
■ Caution while driving
Do not adjust the position of the mirror.
Doing so may lead to mishandling of the vehicle and may cause an accident, resulting in death or serious injury.
36
1-3. Adjustable components
Outside rear view mirrors
Mirror angle can be adjusted using the switch when the ignition switch is in
the “ACC” or “ON” position.
Select the mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
1
Before driving
Folding the mirrors
Push backward
■ When the mirrors are fogged up
Turn on the mirror heaters to defog the mirrors. (P. 169)
37
1-3. Adjustable components
■ Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (neither “L” nor
“R” selected).
■ One-touch adjustment of the mirror angle
(vehicles with driving position memory)
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (P. 24)
CAUTION
■ Caution while driving
Observe the following precautions.
Failing to do so may result in losing control of the vehicle and cause an accident,
resulting in death or serious injury.
● Do not adjust the mirrors.
● Do not drive with the mirrors folded back.
● Before driving, be sure to extend the mirrors and adjust properly.
■ When the mirror heaters are operating
Do not touch the mirror surface as the mirror surface becomes hot.
And do not touch the mirror surface also when the wiper switch is on at lower than
77F (25C) of the outside temperature.
NOTICE
■ If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de-icer to free the
mirror.
38
1-3. Adjustable components
Roof luggage carrier (if equipped)
Cross rails
Roof rails
1
Before driving
Adjusting the position of cross rails
STEP 1
Turn the knobs counterclockwise
to loosen the cross rails.
STEP 2
Slide the cross rails to the appropriate position for loading luggage.
After adjusting, be sure to tighten
the cross rails by turning knobs
clockwise.
39
1-3. Adjustable components
CAUTION
■ Cross rail adjustment
Make sure the cross rails are locked securely by applying pressure forward and
rearward.
Failure to do so may cause an accident, death or serious injury in the event of emergency braking or a collision.
■ When loading cargo
Observe the following precautions:
● Place the cargo so that its weight is distributed evenly between the front and rear
axles.
● If loading long or wide cargo, never exceed the vehicle overall length or width.
(P. 378)
● Before driving, make sure the cargo is securely fastened to the roof luggage car-
rier.
● Loading cargo on the roof luggage carrier will raise the vehicle’s center of gravity.
Avoid high speeds, sudden starts, sharp turns, sudden braking or abrupt maneuvers, otherwise unexpected loss of control or vehicle rollover may occur.
● If driving for a long distance, on rough roads, or at high speeds, stop the vehicle
occasionally during the trip to make sure the cargo remains securely fastened.
● Do not exceed 130 lb. (58 kg) cargo weight on the roof luggage carrier.
NOTICE
■ When loading the luggage
Be careful not to scratch the surface of the moon roof.
■ Cross rail stoppers
To prevent damage the moon roof, do not remove the cross rail stoppers.
40
1-4. Opening and closing the windows and moon roof
Power windows
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing*
Opening
One-touch opening*
1
Before driving
*: Pushing the switch in the
opposite direction will stop
window travel partway.
Lock switch
Press the switch down to lock the
passenger window switches.
Use this switch to prevent children
from accidentally opening or closing a passenger window.
■ The power windows can be operated when
The ignition switch is in the “ON” position.
■ Linked door lock window operation
● The power windows can be opened and closed using the key. (P. 6)
● The power windows can be opened using the wireless remote control. (P. 4)
41
1-4. Opening and closing the windows and moon roof
■ Retained accessory power operation
The power windows can be operated for approximately 45 seconds even after the
ignition switch is turned to the “ACC” or “LOCK” position. They cannot, however,
be operated once the driver’s or front passenger’s door is opened.
■ Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■ When the battery is disconnected
The power windows must be initialized in order to ensure proper operation.
(Perform for each window with the switch for each seat.)
STEP 1 Open the window halfway.
STEP 2 Fully close the window by pulling the switch up and continue holding the
switch for 1 second.
The indicator on the switch changes from a flashing pattern to being on when initialization are complete.
■ Customization
Settings (e.g. linked door lock operation) can be changed. (P. 399)
CAUTION
■ When closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection function
intentionally.
● The jam protection function may not work if something gets caught just before
the window fully closes.
42
1-4. Opening and closing the windows and moon roof
Moon roof
Use the overhead switches to open, close, and tilt the moon roof up and
down.
■ Opening and closing
1
Before driving
Open
Close
To stop partway, press the switch
lightly.
■ Tilt up and down
Tilt down
Tilt up
To stop partway, press the switch
lightly.
43
1-4. Opening and closing the windows and moon roof
■ The moon roof can be operated when
The ignition switch is in the “ON” position.
■ Linked door lock moon roof operation
● The moon roof can be opened and closed using the key. (P. 6)
● The moon roof can be opened using the wireless remote control. (P. 4)
■ Retained accessory power operation
The moon roof can be operated for approximately 45 seconds even after the ignition switch is turned to the “ACC” or “LOCK” position. It cannot, however, be operated once the driver’s door is opened.
■ Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and the moon roof opens slightly.
■ If the moon roof cannot be closed automatically
Keep the switch depressed.
■ Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.
■ When the battery is disconnected
The moon roof must be initialized in order to ensure proper operation.
STEP 1 Close the moon roof fully.
STEP 2 Hold down the “TILT UP” button until the moon roof tilts all the way up and
then tilts down a little automatically.
STEP 3 To ensure initialization is complete, make sure automatic opening and
closing functions work properly.
■ Customization
Settings (e.g. linked door lock operation) can be changed. (P. 399)
44
1-4. Opening and closing the windows and moon roof
CAUTION
■ When opening the moon roof
Observe the following precautions.
Failing to do so may cause death or serious injury.
1
● Do not allow any passengers to put their hands or heads outside the vehicle while
Before driving
it is moving.
● Do not sit on top of the moon roof.
■ When closing the moon roof
Observe the following precautions.
Failing to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their bodies in a
position where they could be caught when the moon roof is being operated.
● Do not allow children to operate the moon roof.
Closing the moon roof on someone can cause death or serious injury.
■ Jam protection function
● Never try jamming any part of your body to activate the jam protection function
intentionally.
● The jam protection function may not work if something gets caught just before
the moon roof fully closes.
45
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
■ Before refueling the vehicle
Stop the engine and ensure that all the doors and windows are
closed.
■ Opening the fuel tank cap
STEP 1
Pull the fuel filler door lever.
STEP 2
Turn the cap counterclockwise
by 90 degrees ( ), and then
turn it an additional 30 degrees
( ).
Pause briefly before removing
the cap.
STEP 3
46
Hang the fuel tank cap on the
back of the fuel filler door.
1-5. Refueling
Closing the fuel tank cap
■ Fuel types
Use premium unleaded gasoline. (91 Octane Rating [Research Octane Number
96] or higher)
■ Fuel tank capacity
Approximately 23 gal. (87 L, 19.1 Imp. gal.)
47
1
Before driving
After refueling, turn the fuel tank
cap clockwise until you hear a
click. The cap will revolve slightly in
the opposite direction once
released.
1-5. Refueling
CAUTION
■ When refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do so, may
result in death or serious injury.
● Touch the vehicle or some other metal surface to discharge any static electricity.
Sparks resulting from discharging static electricity may cause the fuel vapors to
ignite.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened. Wait until
the sound cannot be heard before fully removing the cap. In hot weather, pressurized fuel may spray out the filler neck and cause injury.
● Do not allow anyone that has not discharged static electricity from their bodies to
come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition hazard.
■ When replacing the fuel tank cap
Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle.
Failure to do so may cause a fire or other incident which may result in death or serious injury.
NOTICE
■ Refueling
Do not spill fuel during refueling.
Failing to do so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle's painted
surface.
48
1-6. Theft deterrent system
Engine immobilizer system
The vehicle's keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle's
on-board computer.
1
Before driving
The indicator light flashes after
the ignition switch has been
turned to the “LOCK” position
to indicate that the system is
operating.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object.
● If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
■ Certifications for the engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: MOZRI-20BTY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
49
1-6. Theft deterrent system
CAUTION
■ Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
■ For proper system operation
Do not modify, remove or disable the engine immobilizer system. If any unauthorized changes or modifications are made, the proper operation of the system cannot be guaranteed.
50
1-6. Theft deterrent system
Alarm
The alarm warns of forcible entry using the horn and lights.
To arm the alarm, exit the vehicle, make sure that the doors
and hood are closed, and lock
all the doors.
The system will operate automatically once the indicator
begins to flashing.
1
Before driving
Deactivating or stopping the alarm
Do one of the following:
● Unlock the doors using the key or the wireless remote control.
● Start the engine.
■ Items to check before locking the vehicle
To prevent unintended triggering of the alarm, check that there is no one in the vehicle, and that all windows and the moon roof are closed before locking the vehicle.
■ When the battery is disconnected
Be sure to cancel the alarm system.
If the battery is discharged before canceling the alarm, the system may be triggered
when the battery is reconnected.
51
1-6. Theft deterrent system
■ Panic mode
When the “PANIC” button is pushed for
longer than about 1 second, the headlights/
tail lights/emergency flashers will flash, the
interior lights will come on, and an alarm will
sound for about 60 seconds to deter any
person from trying to break into or damage
your vehicle.
To stop the alarm, push any button on the
wireless remote control.
52
1-6. Theft deterrent system
Theft prevention labels (U.S.A.)
These labels are attached to the
vehicle to reduce vehicle theft
by facilitating the tracing and
recovery of parts from stolen
vehicles. Do not remove under
penalty of law.
1
Before driving
53
1-7. Safety information
Correct driving posture
Drive with a good posture as follows:
Sit upright and well back in
the seat.
Adjust the position of the seat
forward or backward to
ensure the pedals can be
reached
and
easily
depressed to the extent
required. (P. 13)
Adjust the seatback so that
the controls are easily operable.
Adjust the tilt and telescopic
positions of the steering
wheel downward so the airbag is facing your chest.
(P. 35)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. (P. 26)
Wear the seat belt correctly.
(P. 28)
54
1-7. Safety information
CAUTION
■ Caution while driving
● Do not adjust the position of the driver’s seat.
1
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident. The adjustment
mechanism may also be damaged.
■ Adjusting the seat position
● Do not recline the seat more than necessary when the vehicle is in motion, to
reduce the risk of sliding under the lap belt.
If the seat is too reclined during an accident, the lap belt may slide past the hips
and apply restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury.
● Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
55
Before driving
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint, increasing the risk of death or
serious injury to the driver or passenger.
1-7. Safety information
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause significant injury to the occupants. They
work together with the seat belts to help reduce the risk of death or serious
injury.
Front airbags
Driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from impact with interior components.
Side and curtain shield airbags
Side airbag
Can help protect the torso of the front occupants.
Curtain shield airbag
Can help protect primarily the head of front occupants and rear outboard occupants.
56
1-7. Safety information
Airbag system components
1
Before driving
Front passenger airbag
Curtain shield airbag
Occupant detection system
(ECU and sensors)
“AIRBAG ON” and “AIRBAG
OFF” indicator light
Side airbag
Curtain shield airbag sensor
SRS warning light and “RSCA
OFF” indicator light
Driver airbag
Side and curtain shield airbag
sensor
Driver's seat position sensor
Driver's seat belt buckle switch
“RSCA OFF” switch
Front passenger’s seat belt
buckle switch
Airbag sensor assembly
Front airbag sensor
Your vehicle is equipped with “ADVANCED AIRBAGS” designed based
on US motor vehicle safety standards (FMVSS208). The airbag system
controls airbag deployment power for the driver and front passenger. The
driver airbag system consists of the driver’s seat position sensor etc. The
front passenger’s airbag system consists of the front passenger occupant
classification sensor etc.
57
1-7. Safety information
The main SRS airbag system components are shown above. The SRS airbag system is controlled by the airbag sensor assembly. The airbag sensor assembly consists of a safing sensor and an airbag sensor.
In certain types of severe frontal or side impacts, the SRS airbag system
triggers the airbag inflators. A chemical reaction in the inflators quickly
fills the airbags with non-toxic gas to help restrain the motion of the occupants.
■ If the SRS airbags deploy (inflate)
● Bruising and slight abrasions may result from contact with a deploying (inflating)
SRS airbag.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, and parts of the front pillar and roof side rail, may be hot
for several minutes. The airbag itself may also be hot.
● The windshield may crack.
58
1-7. Safety information
■ Operating conditions (front airbags)
● The SRS front airbags will deploy if the severity of the frontal impact is above the
designed threshold level, comparable to an approximate 15 mph (25 km/h) collision when the vehicle impacts straight into a fixed barrier that does not move
or deform.
● It is possible that in some collisions where the forward deceleration of the vehi-
cle is very close to the designed threshold level, the SRS front airbags and the
seat belt pretensioners may not activate together.
● The SRS front passenger airbag will not activate, if there is not passenger sitting
in the front passenger seat. However, the front passenger airbag may deploy, if
luggage is put in the seat or the seat belt is fastened, even if the seat is unoccupied. (P. 69)
■ Operating conditions (side and curtain shield airbags)
● The SRS side airbags and curtain shield airbags are designed to inflate when the
passenger compartment is subjected to a severe impact from the side.
● The SRS side airbag on the passenger seat will not activate if there is no passen-
ger sitting in the front passenger seat. However, the side airbag on the passenger seat may deploy, if luggage is put in the seat, even if the seat is unoccupied.
(P. 69)
59
Before driving
However, this threshold velocity will be considerably higher if the vehicle strikes
an object, such as a parked vehicle or sign pole, which can move or deform on
impact, or if the vehicle is involved in an underride collision (e.g. a collision in
which the front of the vehicle “underrides”, or goes under, the bed of a truck, etc.).
1
1-7. Safety information
■ Conditions under which the SRS airbags may deploy (inflate), other than a colli-
sion
The SRS front airbags may also deploy if a serious impact occurs to the underside of
your vehicle. Some examples are shown in the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or vehicle falling
The SRS curtain shield airbags may also deploy under the situations shown in the
illustration.
● The angle of vehicle tip-up is marginal.
● The vehicle skids and hits a curb stone.
■ Types of collisions that may not deploy the SRS airbag (front airbags)
The SRS front airbags are generally not designed to inflate if the vehicle is involved
in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a collision of any type causes sufficient forward deceleration of
the vehicle, deployment of the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
60
1-7. Safety information
■ Types of collisions that may not deploy the SRS airbag
(side and curtain shield airbags)
The SRS side airbag and curtain shield airbag system may not activate if the vehicle
is subjected to a collision from the side at certain angles, or a collision to the side of
the vehicle body other than the passenger compartment.
other than the passenger compartment
● Collision from the side at an angle
The SRS side airbags are not generally designed to inflate if the vehicle is involved in
a frontal or rear collision, if it rolls over, or if it is involved in a low-speed side collision.
● Collision from the front
● Collision from the rear
● Vehicle rollover
The SRS curtain shield airbags are not generally designed to inflate if the vehicle is
involved in a frontal or rear collision, if it pitches end over, or if it is involved in a lowspeed side collision.
● Collision from the front
● Collision from the rear
● Pitches end over end
61
Before driving
● Collision from the side to the vehicle body
1
1-7. Safety information
■ When to contact your Lexus dealer
In the following cases, contact your Lexus dealer as soon as possible. Do not disconnect the battery cables before contacting your Lexus dealer.
● Any of the SRS airbags have been inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS airbags to inflate.
● A portion of the doors is damaged or
deformed, or the vehicle was involved in an
accident that was not severe enough to
cause the SRS side airbags and curtain
shield airbags to inflate.
● The pad section of the steering wheel or
front passenger airbag cover of the instrument panel is scratched, cracked, or otherwise damaged.
● The surface of the seats with the side air-
bag is scratched, cracked, or otherwise
damaged.
● The portion of the front pillars, rear pillars
or roof side rail garnishes (padding) containing the curtain shield airbags is
scratched, cracked, or otherwise damaged.
62
1-7. Safety information
CAUTION
■ SRS airbag precautions
Observe the following precautions regarding the airbags. Failure to do so may
cause death or serious injury.
1
● The driver and all passengers in the vehicle must wear their seat belts properly.
● The SRS driver airbag deploys with considerable force, and can cause death or
serious injury especially if the driver is very close to the airbag. The National
Highway Traffic Safety Administration (“NHTSA”) advises:
Since the risk zone for driver airbag is the first 2 - 3 in. (50 - 75 mm) of inflation,
placing yourself 10 in. (250 mm) from your driver airbag provides you with a
clear margin of safety. This distance is measured from the center of the steering
wheel to your breastbone. If you sit less than 10 in. (250 mm) away now, you can
change your driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm) distance, even with the driver seat all the
way forward, simply by reclining the back of the seat somewhat. If reclining
the back of your seat makes it hard to see the road, raise yourself by using a
firm, non-slippery cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag
toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still maintaining control of the foot pedals, steering wheel, and your view of the instrument
panel controls.
63
Before driving
The SRS airbags are supplemental devices to be used with the seat belts.
1-7. Safety information
CAUTION
■ SRS airbag precautions
● If the seat belt extender has been con-
nected to the driver's seat belt buckle but
the seat belt extender has not also been
fastened to the latch plate of the driver's
seat belt, the SRS driver's airbag system
will judge that the driver is wearing the seat
belt even though the seat belt has not been
connected. In this case, the driver's airbag
may not activate correctly in a collision,
resulting in death or serious injury in the
event of collision. Be sure to wear the seat
belt with the seat belt extender.
● The SRS front passenger airbag also deploys with considerable force, and can
cause death or serious injury especially if the front passenger is very close to the
airbag. The front passenger seat should be as far from the airbag as possible with
the seatback adjusted, so the front passenger sits upright.
● Improperly seated and/or restrained infants and children can be killed or seri-
ously injured by a deploying airbag. An infant or child who is too small to use a
seat belt should be properly secured using a child restraint system. Lexus strongly
recommends that all infants and children be placed in the rear seats of the vehicle
and properly restrained. The rear seats are the safest for infants and children.
(P. 74)
64
1-7. Safety information
CAUTION
■ SRS airbag precautions
● Do not sit on the edge of the seat or lean
against the dashboard.
front passenger while the vehicle is moving.
● Do not drive the vehicle while the driver or
passenger have items resting on their
knees.
● Do not lean against the door, the roof side
rail or the front, side and rear pillars.
● Do not allow anyone to kneel on the pas-
senger seat toward the door or put their
head or hands outside the vehicle.
65
Before driving
● Do not allow a child sit on the knees of a
1
1-7. Safety information
CAUTION
■ SRS airbag precautions
● Do not attach anything to or lean anything
against areas such as the dashboard or
steering wheel pad of the instrument panel.
These items can become projectiles when
the SRS driver and front passenger airbags
deploy.
● Do not attach anything to areas such as the
door, windshield glass, side door glass,
front and rear pillars, roof side rail or assist
grip.
● Do not hang coat hangers or other hard
objects on the coat hooks. All of these
items could become projectiles and seriously injure or kill you, should the SRS curtain shield airbag deploy.
● Do not use seat accessories which cover the parts where the SRS side airbags
inflate as they may interfere with inflation of the airbags.
● Do not strike or apply significant levels of force to the area of the SRS airbag
components shown on P. 57. Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbag has deployed, open a door or
window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any
residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel pad and
front pillar garnish, are damaged or cracked, have them replaced by your Lexus
dealer.
66
1-7. Safety information
CAUTION
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without consulting your Lexus dealer. The SRS airbag may malfunction or deploy
(inflate) accidentally, causing death or serious injury.
● Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rail
● Repairs or modifications of the front fender, front bumper, or side of the occupant
compartment
● Installation of snow plows, winches, etc. to the front grille (bull bars, kangaroo bar
etc.)
● Modifications to the vehicle's suspension system
● Installation of electronic devices such as mobile two-way radios or CD players
● Modifications to your vehicle for a person with a physical disability
67
Before driving
● Installation, removal, disassembly and repair of the SRS airbags
1
1-7. Safety information
Deactivating the curtain shield airbags in a vehicle rollover
ON/OFF (Hold for a few seconds)
The “RSCA OFF” indicator light
turns on. (Only when the ignition
switch is in the “ON” position.)
■ The switch only should be used
In a situation where inflation is not desired (such as during extreme off-road driving).
■ Operating conditions when the “RSCA OFF” indicator is on
● The curtain shield airbag and seat belt pretensioner will not activate in a vehicle
rollover.
● The curtain shield airbag will activate in a severe side impact.
CAUTION
■ For normal driving
Make sure the “RSCA OFF” indicator light is not turned on. If it is left on, the curtain
shield airbag will not activate in the event of an accident, which may result in death
or serious injury.
68
1-7. Safety information
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classification system. This system detects the conditions of the front passenger seat and
activates or deactivates the devices for front passenger.
1
Before driving
SRS warning light
Front passenger’s seat belt reminder light
“AIRBAG OFF” indicator light
“AIRBAG ON” indicator light
Condition and operation in the front passenger occupant classification system
■ Adult*1
Indicator/
warning light
Devices
“AIRBAG ON” and “AIRBAG OFF”
indicator lights
SRS warning light
Front passenger’s seat belt reminder light
Front passenger airbag
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side
Front passenger’s seat belt pretensioner
“AIRBAG
ON”
Off
Flashing*2
Activated
69
1-7. Safety information
■ Child*3 or child restraint system*4
Indicator/
warning light
Devices
“AIRBAG ON” and “AIRBAG OFF”
indicator lights
SRS warning light
Front passenger’s seat belt reminder light
Front passenger airbag
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side
Front passenger’s seat belt pretensioner
“AIRBAG
OFF”*5
Off
Flashing*2
Deactivated
Activated
■ Unoccupied
Indicator/
warning light
Devices
70
“AIRBAG ON” and “AIRBAG OFF”
indicator lights
SRS warning light
Front passenger’s seat belt reminder light
Front passenger airbag
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side
Front passenger’s seat belt pretensioner
Not illuminated
Off
Deactivated
Activated
Deactivated
1-7. Safety information
■ System malfunction
Indicator/
warning light
*1:
*2:
*3:
*4:
*5:
“AIRBAG
OFF”
On
Off
1
Deactivated
Activated
The system judges a person of adult size as an adult. When a smaller
adult sits in the front passenger seat, the system may recognize him/
her as a child depending on his/her physique and posture.
In the event the front passenger does not wear a seat belt.
When a large child who has outgrown a child restraint system sits in
the front passenger seat, the system may recognize him/her as an
adult depending on his/her physique and posture.
Never install a rear-facing child restraint system on the front passenger seat. A forward-facing child restraint system should only be
installed on the front passenger seat when it is unavoidable.
(P. 77)
In case indicator is not illuminated, consult this manual as for installing the child restraint system properly. (P. 74)
71
Before driving
Devices
“AIRBAG ON” and “AIRBAG OFF”
indicator lights
SRS warning light
Front passenger’s seat belt reminder light
Front passenger airbag
Side airbag in the front passenger seat
Curtain shield airbag
on the front passenger side
Front passenger’s seat belt pretensioner
1-7. Safety information
CAUTION
■ Front passenger occupant classification system precautions
Observe the following precautions regarding the front passenger occupant classification system.
● Wear the seat belt properly.
● Make sure the front passenger’s seat belt tab has not been left inserted into the
buckle before someone sits in the front passenger seat.
● Make sure the “AIRBAG OFF” indicator light is not illuminated when using the
seat belt extender for the front passenger seat. If the “AIRBAG OFF” indicator
light is illuminated, disconnect the extender tongue from the seat belt buckle,
then reconnect the seat belt. Reconnect the seat belt extender after making sure
the “AIRBAG ON” indicator light is illuminated. If you use the seat belt extender
while the “AIRBAG OFF” indicator light is illuminated, the front passenger airbag
and side airbag on the front passenger side may not activate correctly, which
could cause death or serious injury in the event of a collision.
● Do not apply a heavy load to the front passenger seat or equipment (e.g. arm-
rest).
● Do not put weight on the front passenger seat by putting your hands or feet on
the front passenger seat seatback from the second seat.
● Do not let a second seat passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
● Do not put objects under the front passenger seat.
● Do not recline the front passenger seatback so far that it touches a rear seat. This
may cause the “AIRBAG OFF” indicator light to be illuminated, which indicates
that the passenger’s airbags will not deploy in the event of a severe accident. If the
seatback touches the rear seat, return the seatback to a position where it does
not touch the rear seat. Keep the front passenger seatback as upright as possible
when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
72
1-7. Safety information
CAUTION
■ Front passenger occupant classification system precautions
● If an adult sits in the front passenger seat, the “AIRBAG ON” indicator light is illu-
● When it is unavoidable to install a forward-facing child restraint system on the
front passenger seat, install the child restraint system on the front passenger seat
in the proper order. (P. 77)
● Do not remove the front seat.
● Do not kick the front passenger seat or subject it to severe impact. Otherwise,
the SRS warning light may come on to indicate a malfunction in the detection system. In this case, contact your Lexus dealer immediately.
● Do not use a seat accessory, such as a cushion or seat cover, that covers the seat
cushion surface.
● Child restraint systems installed on the second seat should not contact the front
seatbacks.
73
1
Before driving
iminated. If the “AIRBAG OFF” indicator is illuminated, ask the passenger to sit
up straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If the “AIRBAG OFF” indicator still remain illuminated, either ask the passenger to move to the rear seat, or if that is not possible, move the front passenger
seat fully rearward.
1-7. Safety information
Child restraint systems
A child restraint system for a small child or baby must itself be properly
restrained on the seat with the lap portion of the lap/shoulder belt.
The laws of all 50 states of the U.S.A. and Canada now require the use of
child restraint systems.
Points to remember
Studies have shown that installing a child restraint on a rear seat is much
safer than installing one to the front passenger seat.
● Choose a child restraint system appropriate to the age and size of the
child.
● For installation details, follow the instructions provided with the child
restraint system.
General installation instructions are provided in this manual. (P. 77)
Types of child restraints
Child restraint systems are classified into the following 3 types according
to the age and size of the child.
Infant seat
74
1-7. Safety information
Convertible seat
1
Before driving
Booster seat
■ When the child restraint system is not in use
Leave the child restraint system properly secured on the seat. Do not store the
restraint loosely on a passenger seat or in the luggage compartment.
■ Selecting an appropriate child restraint system
Get an appropriate child restraint system for the child. If a child is too large for a
child restraint system, sit the child on a rear seat and use the vehicle's seat belt.
(P. 28)
75
1-7. Safety information
CAUTION
■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child must
be properly restrained, using a seat belt or child restraint system depending on
the age and size of the child. Holding a child in your arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the windshield, or between you and the vehicle's interior.
● Lexus strongly urges the use of a proper child restraint system that conforms to
the size of the child, installed on the rear seat. According to accident statistics, the
child is safer when properly restrained in the rear seat than in the front seat.
● Never install a rear-facing child restraint system on the front passenger seat even
if the “AIRBAG OFF” indicator light is illuminated. In the event of an accident, the
force of the rapid inflation of the front passenger airbag can cause death or serious injury to the child if the rear-facing child restraint system is installed on the
front passenger seat.
● A forward-facing child restraint system should allowed to be installed on the front
passenger seat only when it is unavoidable. Always move the seat as far back as
possible even if the “AIRBAG OFF” indicator light is illuminated, because the
front passenger airbag could inflate with considerable speed and force. Otherwise, the child may be killed or seriously injured.
● Do not use the seat belt extender when installing a child restraint system on the
front or rear passenger seat. If installing a child restraint system with the seat belt
extender connected to the seat belt, the seat belt will not securely hold the child
restraint system, which could cause death or serious injury to the child or other
passengers in the event of collision.
● Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front pillar or roof side rail from which the side airbags or curtain shield airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the side airbags and curtain shield airbags
inflate, and the impact could cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by the
child restraint manufacturer and that the system is properly secured. If it is not
secured properly, it may cause death or serious injury to the child in the event of a
sudden stop or accident.
76
1-7. Safety information
Installing child restraints
Follow the child restraint system manufacturer's instructions. Firmly
secure the child restraint using the seat belt. If using the lower anchorages,
use the top strap as well, and be sure to secure both firmly.
1
Before driving
Seat belts equipped with a
child restraint locking mechanism (ALR/ELR belts except
driver’s seat belt) (P. 31)
Child restraint lower anchorages
Lower anchorages are provided for the right side seat and
between the center and left side
seats. (Buttons displaying the
location of the anchorages are
attached to the seats.)
Anchor bracket
(for top strap)
Anchor brackets are provided
for all second seats.
77
1-7. Safety information
Installing child restraints using a seat belt (child restraint lock function belt)
■ Rear facing child seat Infant/convertible
Place the child seat on the rear
STEP 1
seat facing the rear of the vehicle.
STEP 2
Run the seat belt through the infant
seat and insert the plate into the
buckle. Make sure that the belt is
not twisted.
STEP 3
Fully extend the shoulder belt and
then allow it to retract slightly in
order to activate the ALR lock
mode.
Lock mode allows the seat belt to
retract only.
78
1-7. Safety information
STEP 4
While pushing the child seat down
into the seat, allow the shoulder
belt to retract until the child seat is
securely in place.
■ Forward facing Convertible child seat
STEP 1
Place the child seat on the seat
facing the front of the vehicle.
STEP 2
Run the seat belt through the child
seat and insert the plate into the
buckle. Make sure that the belt is
not twisted.
STEP 3
Fully extend the shoulder strap and
then allow it to retract slightly into
the ALR lock mode.
Lock mode allows the seat belt to
retract only.
79
1
Before driving
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
1-7. Safety information
STEP 4
While pushing the child seat into
the seat, allow the shoulder belt to
retract until the child seat is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■ Booster seat
STEP 1
Place the child seat on the seat
facing the front of the vehicle.
STEP 2
Sit the child in the child seat. Fit the
seat belt to the child seat according to the manufacturer's instructions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is correctly positioned over the child's
shoulder, and that the lap belt is as
low as possible. (P. 28)
80
1-7. Safety information
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
1
Before driving
Installation with child restraint lower anchorages
Fold the seatback forward and
then back to the 1st lock position
(most upright position) until it locks
into place. Adjust the seatback to
the 5th lock position.
1st lock position
5th lock position
81
1-7. Safety information
Type A
STEP 1
STEP 2
Widen the gap between
the seat cushion and seatback slightly.
Latch the hooks of the
lower straps onto the
anchorages.
If the child restraint has a top
strap, the top strap should be
latched onto the anchorage.
For owners in Canada:
The symbol on a child restraint system indicates the presence of a
lower anchorage system.
Canada only
Type B
STEP 1
STEP 2
Widen the gap between
the seat cushion and seatback slightly.
Latch the buckles onto the
anchorages.
If the child restraint has a top
strap, the top strap should be
latched onto the anchorage.
For owners in Canada:
The symbol on a child restraint system indicates the presence of a
lower anchorage system.
Canada only
82
1-7. Safety information
Child restraint systems with a top strap
STEP 1
Secure the child restraint using a
seat belt or lower anchors, and
remove the head restraint.
1
Before driving
STEP 2
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top strap.
Make sure the top strap is securely
latched.
STEP 3
Reinstall the head restraint.
■ Laws and regulations pertaining to anchorages
Anchorages conform to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the SAE J1819.
83
1-7. Safety information
CAUTION
■ When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR lock
mode: (P. 31)
● ALR mode causes the belt to tighten only which could cause injury or discomfort
to the child.
● Do not allow the child to play with the seat belt or the child could be killed or seri-
ous injured.
■ When installing a child restraint system
Follow the directions given in the child restraint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child may be injured or
even killed in the event of sudden braking or an accident.
● If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
● Only put a forward facing or booster child
seat on the front seat when unavoidable.
When installing a forward facing or
booster child restraint on the front passenger seat, move the seat as far back as possible even if the “AIRBAG OFF” indicator
light is illuminated. Failing to do so may
result in death or serious injury if the airbags deploy (inflate).
84
1-7. Safety information
CAUTION
■ When installing a child restraint system
● When installing a child restraint system in
● When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child's shoulder. The belt should be kept away
from the child's neck, but not so that it could fall off the child's shoulder. Failing to
do so may result in death or serious injury in the event of an accident or sudden
braking.
● Ensure the belt and tab are securely locked and that the seat belt is not twisted.
● Push and pull the child seat in different directions to be sure it is secure.
● Follow all installation instructions provided by the child restraint system manufac-
turer.
■ Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of a collision.
85
1
Before driving
the third center position, set the both seatbacks to the same angle. Otherwise, the
child restraint system cannot be properly
secured.
1-7. Safety information
CAUTION
■ To correctly attach a child restraint system to the anchorages
● When using the lower anchorages, be sure that there are no foreign objects
around the anchorages and that the seat belt is not caught behind the child seat.
Make sure the child restraint system is securely attached, or it may cause death or
serious injury to the child in the event of a sudden stop or accident.
● When using the left side lower anchorages
for the child restraint system, do not sit in
the center seat. Seat belt function may be
impaired, such as being positioned overly
high or loose-fitting, which may result in
death or serious injury in the event of a collision.
86
When driving
2-1. Driving procedures................. 88
2
Driving the vehicle...................... 88
2-3. Operating the lights and
windshield wipers.................... 111
Starting the engine ...................... 95
Headlight switch............................ 111
Automatic transmission............. 98
Fog light switch ............................. 113
Turn signal lever ........................... 101
Windshield wipers and
washer ........................................... 114
Parking brake............................... 102
2-2. Instrument cluster................... 103
Gauges and meters .................. 103
Indicators and warning
lights.............................................. 105
Trip information display............ 108
Rear window wiper and
washer ........................................... 117
2-4. Using other driving
systems..................................... 118
Cruise control ............................... 118
Four-wheel drive system ........... 121
Rear height control air
suspension ................................ 123
Electronic modulated
suspension .................................. 129
DAC (Downhill Assist
Control system)....................... 130
Driving assist systems............... 132
2-5. Driving information................ 135
Off-road precautions............... 135
Cargo and luggage................... 140
Vehicle load limits ...................... 144
Winter driving tips ..................... 146
Trailer towing................................ 150
Dinghy towing ............................. 160
87
2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driving.
■ Starting the engine (P. 95)
■ Driving
STEP 1 With the brake pedal depressed, shift the shift lever to “D”.
(P. 98)
STEP 2 Release the parking brake.
(P. 102)
Gradually release the brake pedal and gently push the accelerator pedal to accelerate the vehicle.
■ Stopping
STEP 1 With the shift lever in “D”, push the brake pedal.
STEP 2 If necessary, set the parking brake.
STEP 3
When the vehicle is stopped for an extended period of time, shift the
shift lever to “P” or “N”.
(P. 98)
■ Parking the vehicle
STEP 1 With the shift lever in “D”, push the brake pedal.
STEP 2 Set the parking brake.
(P. 102)
STEP 3 Shift the shift lever to “P”.
(P. 98)
STEP 4 Turn the ignition switch to stop the engine.
STEP 5 Lock the door, making sure that you have the key on your person.
Starting on a steep incline
STEP 1
STEP 2
STEP 3
88
Firmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
2-1. Driving procedures
■ Breaking in your new Lexus
To extend the life of the vehicle, the following precautions are recommended to
observe:
● For the first 200 miles (300 km):
Avoid sudden stops.
● For the first 500 miles (800 km):
Do not tow a trailer.
2
● For the first 600 miles (1000 km):
Do not drive at extremely high speeds.
Avoid sudden acceleration.
Do not drive continuously in the low gears.
Do not drive at a constant speed for extended periods.
When driving
•
•
•
•
■ Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. (P. 380)
89
2-1. Driving procedures
CAUTION
■ When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine running.
This prevents the vehicle from creeping.
■ When driving the vehicle
● Do not drive if you are unfamiliar with the location of the brake and accelerator
pedals to avoid depressing the wrong pedal.
Accidentally depressing the accelerator pedal instead of the brake pedal will
result in sudden acceleration that may lead to an accident that could result in
death or serious injury.
● Do not drive the vehicle over or stop the vehicle near flammable materials.
● Do not let the vehicle roll backwards while the shift lever is in a driving position, or
roll forward while the shift lever is in “R”.
Doing so may cause the engine not to operate or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
● If the smell of exhaust is noticed inside the vehicle, open the windows and check
that the back door is closed.
Large amounts of exhaust in the vehicle can cause driver drowsiness and eventually, death. Have the cause of the problem inspected immediately.
● Do not under any circumstances shift the shift lever to “P”, “R” or “N” while the
vehicle is moving.
Doing so can cause significant damage to the transmission and may result in a
loss of vehicle control.
● Do not shift the shift lever to “N” while the vehicle is moving.
Doing so may cause the engine brake not to operate properly and lead to an
accident.
● Do not turn the engine off while driving.
The power steering and brake booster systems will not operate properly if the
engine is off.
90
2-1. Driving procedures
CAUTION
■ When driving the vehicle
● Use engine braking (downshift) to maintain a safe speed when driving down a
steep hill.
Using the brakes continuously may cause the brakes to overheat and lose effectiveness. (P. 100)
● When stopped on an inclined surface, use the brake pedal and parking brake to
prevent the vehicle from rolling backward or forward and causing an accident.
2
● Be careful when driving on slippery surfaces, as the vehicle may spin or skid when
● Do not adjust the position of the steering wheel, the seat, or the inside or outside
rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents that may
result in death or serious injury.
● Always check that all passengers' arms, heads or other parts of their bodies are
not outside the vehicle, as this may result in death or serious injury.
● Do not drive in excess of the speed limit. Even if the legal speed limit permits it, do
not drive over 85 mph (140 km/h) unless your vehicle has high-speed capability
tires. Driving over 85 mph (140 km/h) may result in tire failure, loss of control and
death or serious injury. Be sure to consult a tire dealer to determine whether the
tires on your vehicle are high-speed capability tires or not before driving at such
speeds.
● If you drive through deep water over about 20 in. (500 mm) in depth, put the
vehicle height in the “HI” mode using the active height select switch and then turn
off the active height control suspension by pushing the height control switch.
Drive your vehicle at 19 mph (30 km/h) or less.
91
When driving
downshifting, rapidly accelerating, braking or turning.
2-1. Driving procedures
CAUTION
■ When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
■ When the vehicle is stopped
● Do not race the engine.
If the vehicle is in any gear other than “P” or “N” the vehicle may accelerate suddenly and unexpectedly, and may cause an accident.
● Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do not enter the vehicle interior.
● Always keep a foot on the brake pedal while the engine is running to prevent an
accident caused by the vehicle moving.
■ When the vehicle is parked
● Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-
cle when it is in the sun.
Failure to do so may result in the following:
• Gas may leak from a cigarette lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plastic
material of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of
the vehicle, and may also cause a short circuit in the vehicle's electrical components.
● Always apply the parking brake, shift the shift lever to “P”, stop the engine and
lock the vehicle.
Do not leave the vehicle unattended while the engine is running.
● Do not touch the exhaust pipe while the engine is running or immediately after
turning the engine off.
Doing so may cause burns.
● Do not leave the engine running in an area with snow build up, or where snow is
expected to fall.
Exhaust gases may enter the vehicle and cause gas poisoning.
92
2-1. Driving procedures
CAUTION
■ When taking a nap in the vehicle
Always turn the engine off.
Otherwise, you may accidentally move the shift lever or press the accelerator
pedal, which could cause an accident or fire due to abnormal engine overheating.
Additionally, if the vehicle is parked in a poorly ventilated area, exhaust fumes may
enter the vehicle and cause gas poisoning.
■ When braking the vehicle
2
● When the brakes are wet, drive more cautiously.
● If the power brake assist function does not operate, do not follow other vehicles
closely and avoid downhill or sharp turns that require braking.
In this case, braking is still possible, but it will require more force on the pedal than
usual. Braking distance may also increase.
● Do not pump the brake pedal if the engine stalls.
Each push on the pedal uses up your reserved brake fluid pressure.
● The brake system consists of 2 individual hydraulic systems: if one of the systems
fails, the other will still operate. In this case, the brake pedal should be depressed
more firmly than usual and braking distance becomes longer.
Do not drive your vehicle with only a single brake system. Have your brakes fixed
immediately.
93
When driving
Braking distance increases when the brakes are wet, and may cause one side of
the vehicle to brake differently than the other side. Also the parking brake may
not securely hold the vehicle.
2-1. Driving procedures
NOTICE
■ While driving the vehicle
Do not use the accelerator pedal or depress accelerator and brake pedals together
to hold the vehicle on a hill.
■ When parking the vehicle
Always put the shift lever in “P”. Failure to do so may cause the vehicle to move or
the vehicle may accelerate suddenly if the accelerator pedal is accidentally
depressed.
■ Avoiding damage to vehicle parts
● Do not turn the steering wheel fully in either direction and hold it there for a long
time.
Doing so may damage the power steering pump.
● When driving over bumps in the road, drive as slowly as possible to avoid damag-
ing the wheels, underside of the vehicle, etc.
■ If you hear a squealing or scraping noise (brake pad wear limit indicators)
Have your Lexus dealer check and replace the brake pads as soon as possible.
The rotor damage can result if the pads are not replaced when needed.
■ If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering wheel
firmly and gradually press the brake pedal to slow down the vehicle.
● It may be difficult to control your vehicle.
● The vehicle will make abnormal sounds.
● The vehicle will behave abnormally.
Replace a flat tire with a new one. (P. 356)
94
2-1. Driving procedures
Starting the engine
■ Ignition switch
“LOCK”:
The steering wheel is locked
and the key can be removed.
“ACC”:
Some electrical components
such as the audio system can be
used.
2
When driving
“ON”:
All electrical components can
be used.
“START”:
For starting the engine.
■ Starting the engine
STEP 1 Check that the parking brake is set.
STEP 2 Turn off unnecessary lights and accessories.
STEP 3 Check that the shift lever is set in “P”.
STEP 4 Sit in the driver’s seat and firmly depress the brake pedal.
STEP 5 Turn the ignition switch to the “START” position to start the
engine.
■ Turning the key from “ACC” to “LOCK”
STEP 1 Shift the shift lever to “P”.
STEP 2 Push in the key and turn to the
“LOCK” position.
95
2-1. Driving procedures
■ Steering lock release
When starting the engine, the ignition switch
may seem stuck in the “LOCK” position. To
free it, turn the ignition key while turning the
steering wheel slightly in either direction.
■ Starting the engine using the flat key
STEP 1
Remove the flat key from its case. Insert the
key into the ignition switch.
STEP 2
Bring the key case close to the ignition switch
within 10 seconds as indicated by an arrow.
STEP 3 Put the key case away when the security indicator light goes out. This
means the engine immobilizer system has turned off.
STEP 4 Start the engine within 60 seconds after the security indicator light goes
off.
■ Leak detection pump
Several hours after the engine is turned off, you may hear a sound coming from
underneath the luggage compartment for several minutes. This is normal operation
and does not indicate a malfunction.
96
2-1. Driving procedures
CAUTION
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not press the accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution while driving
Do not turn the ignition switch to the “LOCK” position.
If in an emergency, you must turn the engine off while the vehicle is moving, turn the
key to only to the “ACC” position.
2
When driving
NOTICE
■ To prevent battery discharge
Do not leave the ignition key in the “ACC” or “ON” position for long periods without the engine running.
■ When starting the engine
● Do not race the cold engine.
● If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
97
2-1. Driving procedures
Automatic transmission
Select a shift position appropriate for the driving conditions.
■ Shifting the shift lever
While the ignition switch
is in the “ON” position,
depress the brake pedal
and move the shift lever.
98
2-1. Driving procedures
■ Shift position uses
Function
P
Parking the vehicle or starting the engine
R
Reversing
N
Neutral
D
Normal driving*
4
Position for moderate engine braking
3, 2
Position for more powerful engine braking
L
Position for maximum engine braking
2
When driving
Shift position
*: To improve fuel consumption and reduce noises, set the shift lever in the
“D” position for normal driving.
■ Selecting second start mode
Use the second start mode for accelerating and driving on slippery
road surfaces, such as on snow.
Press the “2nd STRT” switch.
To cancel the mode, press the
switch again.
99
2-1. Driving procedures
■ Downshifting restrictions
Keep the engine rpm from going into the red zone. The maximum allowable speed
is as follows:
Downshifting
43
32
2L
Transfer position
Maximum speed
mph (km/h)
“H”
86 (139)
“L”
33 (54)
“H”
58 (94)
“L”
22 (36)
“H”
24 (40)
“L”
9 (15)
■ When driving with the cruise control system
The engine brake will not operate when downshifting from “D” to “4”. (P. 118)
■ If the shift lever cannot be shifted from “P”
P. 368
100
2-1. Driving procedures
Turn signal lever
Left turn
Right turn
Move and hold the lever partway to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever partway to signal a lane change
2
When driving
The right hand signal will flash
until you release the lever.
■ Turn signals can be operated when
The ignition switch is in the “ON” position.
■ If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
101
2-1. Driving procedures
Parking brake
U.S.A.
Canada
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal
Releases the parking
brake
NOTICE
■ Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components overheating, which may affect braking performance and increase brake wear.
102
2-2. Instrument cluster
Gauges and meters
2
When driving
The units used on the speedometer may differ depending on the target
region.
The following gauges and meters illuminate when the ignition switch is
in the “ON” position.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Speedometer
Displays the vehicle speed.
Tachometer
Displays the engine speed in revolutions per minute.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Odometer/trip meter and trip meter reset knob
Switches between odometer and trip meter displays. Pushing and holding
the knob will reset the trip meter when the trip meter is being displayed.
103
2-2. Instrument cluster
Odometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different distances independently.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is in the
red zone (“H”). In this case, immediately stop the vehicle in a safe place. Check
the engine after it has cooled completely. (P. 373)
104
2-2. Instrument cluster
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
2
When driving
The units used on the speedometer and some indicators may differ depending on the target region.
Center panel
105
2-2. Instrument cluster
■ Indicators
The indicators inform the driver of the operating state of the vehicle’s various systems.
Turn signal indicator
(P. 101)
* “RSCA OFF” indicator
(P. 68)
* Downhill assist control
Headlight high beam indicator (P. 111)
* Engine oil replacement
Headlight indicator
(P. 111)
(U.S.A.)
reminder light (P. 350)
(U.S.A.)
Tail light indicator
(P. 111)
(Canada)
*
* Slip indicator
(P. 133)
Security indicator
(P. 49)
“VSC OFF” indicator
(P. 121)
Shift position indicators
(P. 99)
Center differential lock
indicator (P. 121)
Height control indicator
(P. 123)
Automatic transmission
second start indicator
(P. 99)
Cruise control indicator
(P. 118)
106
system indicator
(P. 130)
* “AIRBAG ON” indicator
(P. 69)
* “AIRBAG OFF” indicator
(P. 69)
2-2. Instrument cluster
■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. (P. 347)
*
*
*
(U.S.A.)
*
(Canada)
*
(if equipped)
*
(U.S.A.)
*
(U.S.A.)
*
*
(Canada)
*
*
2
(Canada)
When driving
*
*
*
*: These lights turn on when the ignition switch is turned to the “ON” position to indicate that a system check is being performed. They will turn off
after the engine is running, or after a few seconds. There may be a malfunction in a system if the lights do not come on, or turn off. Have the
vehicle inspected by your Lexus dealer.
CAUTION
■ If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light not
come on when you turn the ignition switch to the “ON” position, this could mean
that these systems are not available to help protect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by your Lexus dealer
immediately if this occurs.
107
2-2. Instrument cluster
Trip information display
The trip information display presents the driver with a variety of drivingrelated data.
Trip information display
• Clock(P. 235)
• Outside temperature display
(P. 236)
• Average fuel consumption
• Current fuel consumption
• Driving range
• Average vehicle speed
• Barometer
• Altimeter
• Driving time
Display items can be switched
by pushing the “MODE” button.
Display light control
Push and hold the “MODE” button until “ILL” appears on the display.
Push “▲” or “▼” to adjust the brightness.
You can adjust the brightness to 3 levels (when the tail lights are off) or 6 levels (when the tail lights are on).
108
2-2. Instrument cluster
Trip information
■ Driving range
Displays the estimated maximum distance that can
be driven with the quantity of fuel remaining.
This distance is computed based on your average fuel
consumption. As a result, the actual distance that can be
driven may differ from that displayed.
Displays the average fuel consumption since the
vehicle was last refueled.
■ Current fuel consumption
Displays the current rate of fuel consumption.
■ Average vehicle speed
Displays the average vehicle speed since the engine
was started or the function was reset.
The function can be reset by pushing the “DISP” switch
for longer than 1 second when the average vehicle
speed is displayed.
109
When driving
■ Average fuel consumption after refueling
2
2-2. Instrument cluster
■ Barometer
Displays the atmospheric pressure in the vehicle.
The displayed atmospheric pressure ranges from 17.8
IN.HG (600 hPa) up to 31.0 IN.HG (1050 hPa).
■ Altimeter
Displays the approximate altitude.
The displayed altitude ranges from -1500 ft. (-500 m)
up to 13000 ft. (4000 m).
■ Current fuel consumption
Displays the elapsed time after the engine starts.
When the engine is started, driving time is counted
from 0:00.
Up to 19:59 (19 hours, 59 minutes) can be displayed.
■ Altimeter mode
The indicated altitude of a single position may deviate according to the atmospheric
pressure and temperature.
While the altitude mode is displayed, push the “▲” or “▼” button to increase/
decrease the altitude by 50 ft. (or 10 m).
To reset the adjusted altitude, push and hold the “RESET” button for more than 1
second.
CAUTION
■ Caution while driving
Do not adjust the display.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.
110
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.
U.S.A.
Canada
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
2
When driving
The headlights and all the
lights listed above turn
on and off automatically.
(When the ignition
switch is in the “ON”
position.)
Turning on the high beam headlights
With the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the headlights on or off.
111
2-3. Operating the lights and windshield wipers
■ Daytime running light system
To make your vehicle more visible to other drivers, the front turn signal lights turn on
automatically whenever the engine is started and the parking brake is released.
■ Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the windshield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
■ Automatic light off system
The headlights and tail lights turn off 30 seconds after a door is opened or closed if
the ignition switch is turned to the “ACC” or “LOCK” position while the headlights
are turned on. (The lights turn off immediately if the “LOCK” button on the key is
pressed after all doors are locked.)
To turn the lights on again, turn the ignition switch to the “ON” position, or turn the
light switch “OFF” once and then back to the
or
position.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed. (P. 400)
NOTICE
■ To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.
112
2-3. Operating the lights and windshield wipers
Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
OFF
ON
2
When driving
113
2-3. Operating the lights and windshield wipers
Windshield wipers and washer
■ Intermittent wiper with interval adjuster (if equipped)
Wiper intervals can be adjusted for intermittent operation (when
“INT” is selected).
Intermittent wiper interval
adjustment (increase)
Intermittent wiper interval
adjustment (decrease)
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Wash/wipe operation
■ Rain-sensing windshield wipers (if equipped)
With “AUTO” selected, the wipers will operate automatically when
the sensor detects falling rain. The system automatically adjusts
wiper timing in accordance with rain volume and vehicle speed.
Sensor sensitivity (low)
Sensor sensitivity (high)
Rain-sensing wiper operation
Low speed wiper operation
High speed wiper operation
Wash/wipe operation
114
2-3. Operating the lights and windshield wipers
■ The windshield wiper and washer can be operated when
The ignition switch is in the “ON” position.
■ Dripping prevention wiper sweep
After washing and wiping operation several times, the wipers operate one more
time after a short delay to prevent dripping.
However, the last sweep will not happen if the vehicle is traveling above 106 mph
(170 km/h).
■ Effects of vehicle speed on wiper operation
● Intermittent wiper interval (“INT” mode)
● Wiper operation when the washer is being used (delay until drip prevention
wiper sweep occurs)
With “LO” selected, wiper operation will be switched from low speed to intermittent wiper operation only when the vehicle is stationary.
■ Rain drop sensor (vehicles equipped with the rain-sensing windshield wipers)
The sensor judges the amount of raindrops.
■ If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.
■ In extremely hot or cold weather
The system will turn off if the windshield gets extremely hot (more than 194F
[90C]) or cold (less than 14F [-10C]).
115
When driving
Vehicle speed affects the following even when the wipers are not in “AUTO” mode.
2
2-3. Operating the lights and windshield wipers
CAUTION
■ Caution regarding the use of windshield wipers in “AUTO” mode
The windshield wipers may operate unexpectedly if the sensor is touched or the
windshield is subject to vibration in “AUTO” mode. Take care that your fingers or
anything else do not become caught in the windshield wipers.
NOTICE
■ When the windshield is dry
Do not use the wipers, as they may damage the windshield.
■ When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled toward you
and held continually.
116
2-3. Operating the lights and windshield wipers
Rear window wiper and washer
Intermittent window wiper
operation.
Normal window wiper operation
Washer operation
Washer/wiper dual operation
2
When driving
■ The rear window wiper and washer can be operated when
The ignition switch must be in the “ON” position.
NOTICE
■ When the rear window is dry
Do not use the wipers, as they may damage the rear window.
117
2-4. Using other driving systems
Cruise control
Use the cruise control to maintain a set speed without using the accelerator.
■ Set the vehicle speed
STEP 1
Turn the “ON-OFF” button ON.
Push the button once more to
deactivate the cruise control.
STEP 2
Accelerate or decelerate to the
desired speed and press the
lever down to set the cruise
control speed.
■ Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set speed
(approximately 1.0 mph [1.6 km/
h]) can be made by lightly pressing the lever up or down and
releasing it.
118
2-4. Using other driving systems
■ Canceling and resuming regular acceleration
Cancel
Push the lever towards you to
cancel cruise control.
The setting is also canceled
when the brake pedal is
depressed.
2
Resume
When driving
To resume cruise control and
return to the set speed, push the
lever up.
■ Cruise control can be set when
● The shift lever is in “D” or “4”.
● Vehicle speed is between approximately 25 mph (40 km/h) and 125 mph
(200 km/h).
■ Accelerating
The vehicle can be accelerated normally. After acceleration, the set speed
resumes.
■ Automatic cruise control cancelation
The set speed is automatically canceled in any of the following situations.
● Actual vehicle speed falls more than 10 mph (16 km/h) below the preset vehicle
speed
● Actual vehicle speed is below 25 mph (40 km/h)
● VSC is activated
■ If the cruise control indicator light flashes
Turn the “ON-OFF” button off once, and then reactivate the system.
If the cruise control speed cannot be set or if the cruise control cancels immediately
after being activated, there may be a malfunction in the cruise control system. Have
the vehicle inspected by your Lexus dealer.
119
2-4. Using other driving systems
CAUTION
■ To avoid operating the cruise control by mistake
Keep the “ON-OFF” button off when not in use.
■ Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in control of the vehicle being lost and could cause a serious or
fatal accident.
● In heavy traffic
● On roads with sharp bends
● On slippery roads, such as those covered with rain, ice or snow
● On steep hills
● On winding roads
120
2-4. Using other driving systems
Four-wheel drive system
Use the four-wheel drive control lever and center differential lock button
to select following transfer and center differential modes.
Four-wheel drive control lever
“L” (low speed position)
Driving requiring maximum
power and traction such as
climbing or descending steep
hills, off-road driving and hard
pulling in sand or mud.
2
When driving
“N” (neutral position)
No power is delivered to the
wheels.
“H” (high speed position)
Normal driving on all types of
roads.
Center differential lock/unlock button
Use this button when your vehicle’s wheel gets stuck in a ditch
or when you are driving on a
loose or bumpy surface.
■ The four-wheel drive control lever can be operated when
● The ignition switch is in the “ON” position,
● The shift lever is in the “N” position, and
● The vehicle is stopped completely.
121
2-4. Using other driving systems
■ The center differential lock/unlock button can be operated when
● The ignition switch is in the “ON” position, and
● The four-wheel drive control lever is in the “H” or “L” position.
■ Locking/unlocking the center differential
● When the center differential is locked, VSC is automatically turned off. (The
center differential lock and “VSC OFF” indicator lights come on.)
● If the operation is not completed, the center differential lock indicator blinks. If
the indicator light does not go off when unlocking the center differential, drive
straight ahead while accelerating or decelerating, or drive in reverse.
● If center differential lock system operation is not completed within 5 seconds
while the cruise control system is set, cancel the cruise control system.
CAUTION
■ While driving
Never move the four-wheel drive control lever if the wheels are slipping. Doing so
may cause an accident resulting in death or serious injury.
NOTICE
■ To prevent damage to the center differential
● Unlock the center differential after the wheels are out of the ditch or off the loose
or bumpy surface.
● Do not push the center differential lock/unlock button when the vehicle is corner-
ing or when its wheels are spinning freely off the ground.
122
2-4. Using other driving systems
Rear height control air suspension
The rear height control air suspension adjusts the rear vehicle height in
accordance with driving conditions. There are 3 selectable modes, “HI”
(high), “N” (normal), and “LO” (low).
■ Height control switch
“▲” (Up) switch
“▼” (Down) switch
“OFF” switch
2
When driving
Push while the vehicle is
stopped. The “OFF” indicator
light will come on, and the vehicle height will be fixed in the
current mode. Push the switch
again to turn the system back
on.
■ Height control indicator lights
Height control mode indicators
Height control “OFF” indicator
123
2-4. Using other driving systems
Vehicle height modes
Press “▲” to step up one mode, and “▼” to step down one mode.
(e.g. When in the low mode, press “▲” once to switch to the normal
mode, and twice to switch to the high mode.)
■ “HI” (high) mode
Rear vehicle height is 1.6 in. (40 mm) higher than the normal mode
height.
This mode is suitable when driving on bumpy roads or through water.
High mode is only available when the vehicle speed is under 19 mph
(30 km/h).
■ “N” (normal) mode
The standard vehicle height. This mode is suitable for ordinary driving.
■ “LO” (low) mode
Rear vehicle height is 0.8 in. (20 mm) lower than the normal mode
height.
This mode allows easy access to the vehicle.
Low mode is only available when the vehicle speed is under 7 mph (12
km/h).
Conditions for changing the vehicle height mode
Some modes may not be selectable depending on the vehicle speed.
Refer to the following table.
124
Low mode
Normal mode
High mode
Under 7 mph (12 km/h)
Yes
Yes
Yes
Under 19 mph (30 km/h)
No
Yes
Yes
19 mph (30 km/h) or over
No
Yes
No
2-4. Using other driving systems
Height control indicator lights
If you change the vehicle height mode, the indicator lights change as follows:
• The current mode indicator light will turn off, and the selected mode
indicator light will begin flashing.
• Once the change in vehicle height is complete, the selected mode
indicator light will change from flashing to continuously lit.
● The engine must be running.
● Vehicle speed must be within the acceptable range for the selected mode.
■ Automatic change in vehicle height
If the vehicle speed exceeds 19 mph (30 km/h) when in the high mode, or 7 mph
(12 km/h) when in the low mode, normal mode is automatically selected.
■ Turning off the rear height control air suspension
● The system will remain off until the switch is pushed again, even if the ignition is
turned off.
● Even if the rear height control air suspension is turned off, the system automati-
cally selects the normal mode if the vehicle’s speed exceeds 19 mph (30 km/h).
■ Automatic leveling function
The vehicle is adjusted to a fixed height for each mode, regardless of the number of
occupants and the luggage load.
125
When driving
■ Operating conditions
2
2-4. Using other driving systems
■ If the vehicle height does not change
If the area around the rear suspension is coated with ice, or the undercarriage has
come into contact with the road surface, the rear height control suspension will not
operate. In this case, the indicator lights will change as follows:
● The current mode indicator light will turn off, and the target mode indicator light
will begin flashing.
● The target mode indicator light will turn off, and the original mode indicator light
will be lit once more. (The vehicle height does not change.)
If the rear height control air suspension cannot be operated even after removing
the ice or progressing to a smooth driving surface, turn off and restart the engine.
■ Parking and stopping tips
● If you immediately stop the engine after off-road driving, or park the vehicle for
a long time, the vehicle height may gradually lower. When parking, make sure
there is nothing under the vehicle that may come in contact with the underbody.
The vehicle will return to the set height when the engine is started.
● The vehicle height may change as the temperature changes when the engine is
stopped. The vehicle will return to the set height when the engine is started.
■ When lowering the vehicle
Even if the engine is stopped while the vehicle height is being lowered, operation
will continue for up to 25 seconds. If any of the side doors or the back door is
opened within this 25 seconds, operation will continue for a further 15 seconds.
■ Rear height control failure warning
● If a malfunction occurs in the rear height control air suspension, normal mode is
automatically selected.
The height control “OFF” indicator will blink, and the vehicle height control cannot be activated until the malfunction is corrected. Have the vehicle checked at
your Lexus dealer as soon as possible.
● If the height control “OFF” indicator light does not come on when the ignition
switch is turned to the “ON” position, there is a malfunction in the rear height
control air suspension. You can continue normal driving, however have the vehicle checked by your Lexus dealer as soon as possible.
126
2-4. Using other driving systems
CAUTION
Failure to observe the following precautions may result in an accident.
■ Using the high mode
This modes should only be used for rough off-road conditions. Because the vehicle’s center of gravity is higher when in the high mode, the vehicle may become
unstable when turning abruptly.
■ When jacking up the vehicle or installing tire chains
Turn off the rear height control air suspension and stop the engine, otherwise the
vehicle height may change due to the automatic leveling function.
Select the “HI” (high) mode and turn off rear height control air suspension. Drive at
19 mph (30 km/h) or lower. Otherwise, the vehicle height may change due to the
automatic leveling function.
■ If your vehicle must be towed
Put the vehicle height in the normal mode and turn off the rear height control air
suspension, otherwise the vehicle height may change due to the automatic leveling
function.
■ If your vehicle becomes stuck in a ditch
Turn off the rear height control air suspension, otherwise the vehicle height may
change due to the automatic leveling function.
127
When driving
■ When driving through water deeper than 2.3 ft. (0.7 m)
2
2-4. Using other driving systems
NOTICE
■ To avoid damage to the vehicle
● If in the low mode, the vehicle automatically shifts to the normal mode (vehicle
height is raised) when the engine is started. Take care when overhead height is
limited.
● After unloading, the vehicle height may be slightly higher than normal. Take care
when overhead height is limited.
● Before lowering the vehicle height, check that no-one is under the vehicle and
the area is free of obstructions. Also check that the underbody of the vehicle will
not touch the ground.
● Do not select the low mode when driving on bumpy roads, as the underbody of
the vehicle may contact the road surface.
■ Avoid rapid changes to the vehicle height when the vehicle is heavily loaded
As the compressor may overheat, causing the vehicle height adjustment operation
to stop.
128
2-4. Using other driving systems
Electronic modulated suspension
The electronic modulated suspension controls the suspension according to
the road and driving conditions. Selected driving mode allows for good
riding comfort and stability.
Hard
2
When driving
Soft
For driving on a bumpy road
For ordinary driving such as
in the city traffic
For moderate high speed
driving
For sporty type driving such
as on winding mountain
roads and high speed driving.
■ Driving mode
● Mode
is suitable for ordinary driving.
● Mode
or
is suitable for heavy load or driving on a unpaved road.
● With the four-wheel drive control lever at “L”, the damping effect suitable for off-
road driving will be provided.
129
2-4. Using other driving systems
DAC (Downhill Assist Control system)
The DAC system helps to prevent excessive speed on steep downhill
slopes.
The system will operate when the vehicle is traveling under 15 mph
(25km/h) and the four wheel drive control lever is in the “L” position.
■ System operation
Press the “DAC” switch. The
indicator will come on, and the
system will operate.
When the system is in operation,
the slip indicator light will flash,
and the stop lights/high
mounted stop lights will be lit.
■ Turning off the system
Press the “DAC” switch while the system is in operation. The indicator will flash as the system gradually ceases operation, and will turn
off when the system is fully off.
Press the “DAC” switch while the indicator is flashing to start the
system again.
130
2-4. Using other driving systems
■ Operating tips
The system will operate when the shift lever is in a position other than “P”, however
to make effective use of the system it is recommended that the shift lever be shifted
to “2” or “L”.
■ If the four wheel drive control lever is in “H”
The system will not operate.
■ If the brake system overheats
■ System malfunction
● The “DAC” indicator does not come on when the ignition key is turned to the
“ON” position.
● The “DAC” indicator does not come on when the “DAC” switch is pressed.
In the above cases have your vehicle checked by your Lexus dealer.
CAUTION
■ The system may not operate on the following surfaces, which may lead to an acci-
dent causing death or serious injury.
● Slippery surfaces such as wet or muddy roads
● Icy surfaces
● Unpaved roads
131
2
When driving
The system will cease operation and a buzzer will sound to alert the driver.
Stop the vehicle in a safe place. (There is no problem with continuing normal driving.)
2-4. Using other driving systems
Driving assist systems
To help enhance driving safety and performance, the following systems
operate automatically in response to various driving situations. Be aware,
however, that these systems are supplementary and should not be relied
upon too heavily when operating the vehicle.
■ ABS (Anti-lock Brake System)
Restrains the vehicle from slipping when driving on slick road surfaces or
in the event of sudden braking.
■ BA (Brake Assist)
Generates an increased level of braking force after the brake pedal is
depressed, when the system detects a panic stop situation.
■ VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning on
slippery road surfaces.
■ Active traction control
Maintains drive power and prevents the 4 wheels from spinning when
starting the vehicle or accelerating on slippery roads.
■ Hill-start assist control
Helps prevent the vehicle from rolling backwards when starting on an
incline or slippery slope. It operates for approximately 5 seconds at maximum.
■ LSD (Limited Slip Differential)
Transfers drive power to the rear tires when front tires spin, and vice versa,
in order to improve traction.
■ KDSS (Kinetic Dynamic Suspension System) (if equipped)
KDSS helps to significantly enhance handling response by reducing roll
stiffness of the suspension stabilizer bars through means of a hydraulic
control system.
132
2-4. Using other driving systems
When the VSC/TRAC/hill-start assist control systems are operating
If the vehicle is in danger of slipping, rolling backwards when
starting on an incline, or if the rear
wheels spin, the slip indicator light
flashes to indicate that the VSC/
TRAC/hill-start assist control systems have been engaged.
The stop lights and high mounted
stoplight turn on when the hill-start
assist control system is operating.
The slip indicator light flashes as
well when ABS is operating.
■ Sounds and vibrations caused by the ABS, BA, VSC, TRAC and hill-start assist
control systems
● A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indicate that
a malfunction has occurred in any of these systems.
● Any of the following conditions may occur when the above systems are operat-
ing. None of these indicates that a malfunction has occurred.
•
•
•
•
Vibrations may be felt through the vehicle body and steering.
A motor sound may be heard after the vehicle comes to a stop.
The brake pedal may pulsate slightly after the ABS is activated.
The brake pedal may move down slightly after the ABS is activated.
■ Hill-start assist control is operational when
● The shift lever is in any of the positions “D”, “4”, “3”, “2” or “L”.
● The brake pedal is not depressed.
133
When driving
A buzzer (intermittent) sounds to
indicate that VSC is operating.
2
2-4. Using other driving systems
CAUTION
Any of the following conditions may result in an accident which could cause death or
serious injury:
■ The ABS does not operate effectively when
● The limits of tire gripping performance have been exceeded.
● The vehicle hydroplanes while driving at high speed on the wet or slick road.
■ Stopping distance when the ABS is operating on the wet or slick roads
The ABS is not designed to shorten the vehicle’s stopping distance. Always maintain a safe distance from the vehicle in front of you in the following situations.
● When driving on dirt, gravel or snow-covered roads
● When driving with tire chains
● When driving over bumps in the road
● When driving over roads with potholes or roads with uneven roads
■ TRAC may not operate effectively when
Directional control and power may not be achievable while driving on slippery road
surfaces, even if the TRAC is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
■ The hill-start assist control may not operate effectively when
● On steep inclines.
● On icy surfaces.
■ When the VSC is activated
The slip indicator light flashes and a warning buzzer sounds. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the indicator light flashes and a buzzer sounds.
■ Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total load
capacity. In addition, make sure that the tires are inflated to the specified tire pressure level.
The ABS and VSC will not function correctly if different tires are fitted on the vehicle.
Contact your Lexus dealer for further information when replacing tires or wheels.
134
2-5. Driving information
Off-road precautions
This vehicle belongs to the utility vehicle class, which has higher
ground clearance and narrower tread in relation to the height of its
center of gravity to make it capable of performing in a wide variety of
off-road applications.
Off-road vehicle feature
● An advantage of the higher ground clearance is a better view of the
road allowing you to anticipate problems.
● It is not designed for cornering at the same speeds as ordinary passenger cars any more than low-slung sports cars designed to perform satisfactorily under off-road conditions. Therefore, sharp turns at
excessive speeds may cause rollover.
135
2
When driving
● Specific design characteristics give it a higher center of gravity than
ordinary passenger cars. This vehicle design feature causes this type of
vehicle to be more likely to rollover. And, utility vehicles have a significantly higher rollover rate than other types of vehicles.
2-5. Driving information
CAUTION
■ Off-road vehicle precautions
Always observe the following precautions to minimize the risk of serious personal
injury or damage to your vehicle:
● In a rollover crash, an unbelted person is significantly more likely to die than a
person wearing a seat belt. Therefore, the driver and all passengers should fasten
their seat belts whenever the vehicle is moving.
● Avoid sharp turns or abrupt maneuvers, if at all possible.
Failure to operate this vehicle correctly may result in loss of control or vehicle rollover causing death or serious injury.
● Loading cargo on the roof luggage carrier will make the center of the vehicle
gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden braking or
abrupt maneuvers, otherwise it may result in loss of control or vehicle rollover
due to failure to operate this vehicle correctly.
● Always slow down in gusty crosswinds. Because of its profile and higher center of
gravity, your vehicle is more sensitive to side winds than an ordinary passenger
car. Slowing down will allow you to have better control.
● Do not drive horizontally across steep slopes. Driving straight up or straight down
is preferred. Your vehicle (or any similar off-road vehicle) can tip over sideways
much more easily than forward or backward.
136
2-5. Driving information
Off-road driving
When driving your vehicle off-road, please observe the following precautions to ensure your driving enjoyment and to help prevent the closure of
areas to off-road vehicles.
● Drive your vehicle only in areas where off-road vehicles are permitted
to travel.
● Respect private property. Get owner's permission before entering private property.
2
● Do not enter areas that are closed. Honor gates, barriers and signs
that restrict travel.
When driving
● Stay on established roads. When conditions are wet, driving techniques should be changed or travel delayed to prevent damage to
roads.
■ Additional information for off-road driving
For owners in U.S. mainland, Hawaii and Puerto Rico:
To obtain additional information pertaining to driving your vehicle off-road, consult
the following organizations.
● State and Local Parks and Recreation Departments
● State Motor Vehicle Bureau
● Recreational Vehicle Clubs
● U.S. Forest Service and Bureau of Land Management
137
2-5. Driving information
CAUTION
■ Off-road driving precautions
Always observe the following precautions to minimize the risk of serious personal
injury or damage to your vehicle:
● Drive carefully when off the road. Do not take unnecessary risks by driving in
dangerous places.
● Do not grip the steering wheel spokes when driving off-road. A bad bump could
jerk the wheel and injure your hands. Keep both hands and especially your
thumbs on the outside of the rim.
● Always check your brakes for effectiveness immediately after driving in sand,
mud, water or snow.
● After driving through tall grass, mud, rock, sand, rivers, etc., check that there is no
grass, bush, paper, rags, stone, sand, etc. adhering or trapped on the underbody.
Clear off any such matter from the underbody. If the vehicle is used with these
materials trapped or adhering to the underbody, a breakdown or fire could occur.
● When driving off-road or in rugged terrain, do not drive at excessive speeds,
jump, make sharp turns, strike objects, etc. This may cause loss of control or vehicle rollover causing death or serious injury. You are also risking expensive damage to your vehicle’s suspension and chassis.
NOTICE
■ To prevent the water damage
Take all necessary safety measures to ensure that water damage to the engine or
other components does not occur.
● Water entering the engine air intake will cause severe engine damage.
● Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately damage.
● Water can wash the grease from wheel bearings, causing rusting and premature
failure, and may also enter the differentials, transmission and transfer case, reducing the gear oil’s lubricating qualities.
138
2-5. Driving information
NOTICE
■ When you drive through water
If driving through water, such as when crossing shallow streams, first check the
depth of the water and the bottom of the river bed for firmness. Drive slowly and
avoid deep water.
■ Inspection after off-road driving
● Sand and mud that has accumulated in brake drums and around brake discs may
affect braking efficiency and may damage brake system components.
2
● Always perform a maintenance inspection after each day of off-road driving that
139
When driving
has taken you through rough terrain, sand, mud, or water. For scheduled maintenance information, refer to the “Warranty and Services Guide/Owner’s Manual
Supplement/Scheduled Maintenance”.
2-5. Driving information
Cargo and luggage
Take notice of the following information about storage precautions, cargo
capacity and load.
● Stow cargo and luggage in the luggage compartment whenever
possible. Be sure all items are secured in place.
● Be careful to keep the vehicle level. Placing the weight as far forward as possible helps maintain vehicle balance.
● For better fuel economy, do not carry unnecessary weight.
Capacity and distribution
Cargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capacity) — (Total weight of occupants)
Steps for Determining Correct Load Limit—
(1) Locate the statement “The combined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s
placard.
(2) Determine the combined weight of the driver and passengers that
will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers from
XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity.
For example, if the “XXX” amount equals 1400 lbs. and there will be
five 150 lb passengers in your vehicle, the amount of available cargo
and luggage load capacity is 650 lbs. (1400 - 750 (5 150) = 650
lbs.)
140
2-5. Driving information
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle.
That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult this manual to determine how
this reduces the available cargo and luggage load capacity of your
vehicle. (P. 144)
When driving
Example on your vehicle
2
Cargo capacity
Total load capacity
When 2 people with the combined weight of 366 lb. (166 kg) are riding
in your vehicle, the available amount of cargo and luggage load capacity
will be as follows:
• With third seats — total load capacity: 1200 lb. (544 kg)
1200 lb. - 366 lb. = 834 lb. (544 kg - 166 kg = 378 kg)
• Without third seats — total load capacity: 1000 lb. (454 kg)
1000 lb. - 366 lb. = 634 lb. (454 kg - 166 kg = 288 kg)
141
2-5. Driving information
From this condition, if 3 more passengers with the combined weight of
388 lb. (176 kg) get on, the available cargo and luggage load will be
reduced as follows:
• With third seats
834 lb. - 388 lb. = 446 lb. (378 kg - 176 kg = 202 kg)
• Without third seats
634 lb. - 388 lb. = 246 lb. (288 kg - 176 kg = 112 kg)
As shown in the above example, if the number of occupants increases,
the cargo and luggage load equaling the combined weight of the occupants who got on later, by an amount. In other words, if an increase in the
number of occupants causes an excess of the total load capacity (combined weight of occupants plus cargo and luggage load), you must
reduce the cargo and luggage on your vehicle.
Seating configuration variation
Cargo capacity
Weight of removed third seat
If removing the third seat, it is possible to load extra cargo equal to the
weight of the removed seats.
(Cargo capacity) = (Total load capacity) - (Total weight of occupants) +
(Weight of the removed third seats)
Third seat weight:
Right side — 30.2 lb. (13.7 kg)
Left side — 32.4 lb. (14.7 kg)
142
2-5. Driving information
CAUTION
■ Storage precautions
● Do not place anything on the luggage cover, and do not stack anything in the lug-
gage compartment higher than the seatbacks.
Such items may be thrown about and possibly injure people in the vehicle during
sudden braking or in an accident.
● Do not drive with objects on top of the instrument panel.
● Secure all items in the occupant compartment, as they may shift and injure some-
one during an accident or sudden braking.
● Never allow anyone to ride in the luggage compartment. It is not designed for
passengers. They should ride in their seats with their seat belts properly fastened.
Otherwise, they are much more likely to suffer serious bodily injury, in the event
of sudden braking or a collision.
■ Weight of the load
● Improper loading may cause deterioration of steering or braking control result-
ing in an accident which may cause death or serious injury.
● Do not exceed the maximum axle weight rating or the total vehicle weight rating.
● Even if the total load of occupant's weight and the cargo load is less than the total
load capacity, do not apply the load unevenly. Improper loading may cause deterioration of steering or braking control which may cause death or serious injury.
143
2
When driving
They may interfere with the driver’s field of view or move during sharp acceleration or turning, thus impairing the driver’s control of the vehicle. In an accident
they may injure the vehicle occupants.
2-5. Driving information
Vehicle load limits
Vehicle load limits include total load capacity, seating capacity, towing
capacity and cargo capacity.
■ Total load capacity:
With third seats — 1200 lb. (544 kg)
Without third seats — 1000 lb. (454 kg)
Total load capacity means the combined weight of occupants, cargo
and luggage.
■ Seating capacity:
With third seats — Total 8 (Front 2, Rear 6)
Without third seats — Total 5 (Front 2, Rear 3)
Seating capacity means the maximum number of occupants whose
estimated average weight is 150 lb. (68 kg) per person.
Even if the number of occupants are within the seating capacity, do
not exceed the total load capacity.
■ Towing capacity: 6500 lb. (2948 kg)
Towing capacity means the maximum gross trailer weight (trailer
weight plus its cargo weight) that your vehicle is able to tow.
■ Cargo capacity
Cargo capacity may increase or decrease depending on the weight
and the number of occupants.
144
2-5. Driving information
■ Total load capacity and seating capacity
These details are also described on the tire and loading information label.
(P. 309)
CAUTION
■ Overloading the vehicle
145
2
When driving
Do not overload the vehicle.
It may not only cause damage to the tires, but also degrade steering and braking
ability, resulting in an accident.
2-5. Driving information
Winter driving tips
Carry out the necessary preparations and inspections before driving the
vehicle in winter. Always drive the vehicle in a manner appropriate to the
prevailing weather conditions.
■ Pre-winter preparations
● Use fluids that are appropriate to the prevailing outside temperatures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the level and specific gravity of
battery electrolyte.
● Have the vehicle fitted with four snow tires or purchase a set of
tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
■ Before driving the vehicle
Perform the following according to the driving conditions.
● Do not try to forcibly open a window or move a wiper that is frozen. Pour warm water over the frozen area to melt the ice. Wipe
away the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Remove any ice that has accumulated on the vehicle chassis.
● Periodically check for and remove any excess ice or snow that
may have accumulated in the wheel well or on the brakes.
146
2-5. Driving information
■ When driving the vehicle
Accelerate the vehicle slowly and drive at a reduced speed suitable
to road conditions.
■ When parking the vehicle
Park the vehicle and move the shift lever to “P” without setting the
parking brake. The parking brake may freeze, preventing it from
being released.
2
Use the correct snow chain size when mounting the snow chains. Chain size
is regulated for each tire sizes.
Side chain:
0.20 in. (5.0 mm)
1.81 in. (46.0 mm)
0.71 in. (18.0 mm)
Cross chain:
0.25 in. (6.3 mm)
1.5 in. (38.1 mm)
0.89 in. (22.6 mm)
Regulations on the use of snow chains
● Regulations regarding the use of tire chains vary according to location
and type of road. Always check local regulations before installing
chains.
● Install the chains on the rear tires.
● Retighten the chains after driving 1/4 - 1/2 mile (0.5 - 1.0 km).
147
When driving
Selecting snow chains
2-5. Driving information
■ Snow chain installation
Observe the following precautions when installing and removing chains.
● Install and remove tire chains in a safe location.
● Install tire chains on the rear tires.
● Install tire chains in accordance with the accompanying instructions.
CAUTION
■ Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or serious
injury.
● Use tires of the size specified for your vehicle.
● Maintain the specified level of tire inflation pressure.
● Do not drive in excess of 65 mph (105 km/h), regardless of the type of snow tires
being used.
● Snow tires should be installed on all wheels.
■ Driving with snow chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely, and may
cause death or serious injury.
● Do not drive in excess of the speed limit specified for the tire chains being used,
or 30 mph (50 km/h), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden turns and braking, as use of chains may adversely affect vehicle
handling.
● Slow down sufficiently before entering a curve to ensure that vehicle control is
maintained.
148
2-5. Driving information
NOTICE
■ Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Lexus dealer.
This is because the removal and attachment of snow tires affects the operation of
the tire pressure warning valves and transmitters.
■ When jacking up or installing tire chains
Be sure to turn off the rear height control air suspension and stop the engine.
Otherwise, the vehicle height may change because of the automatic leveling function, resulting in an accident.
The tire pressure warning valves and transmitters may not function correctly when
tire chains are fitted.
149
When driving
■ Fitting tire chains
2
2-5. Driving information
Trailer towing
Your vehicle is designed primarily as a passenger-and-load carrying vehicle. Towing a trailer will have an adverse effect on handling, performance,
braking, durability, and fuel consumption. For your safety and the safety of
others, do not overload the vehicle or trailer.
Lexus warranties do not apply to damage or malfunction caused by towing
a trailer for commercial purposes.
■ Weight limits
Confirm that the total trailer weight, gross vehicle weight, gross axle
weight and trailer tongue load are all within the limits.
■ Gross vehicle weight
The gross vehicle weight must not exceed the Gross Vehicle Weight
Rating (GVWR) indicated on the Certification Label. The gross
vehicle weight is the sum weight of the unloaded vehicle, driver, passengers, luggage, hitch and trailer tongue load. Also included is the
weight of any special equipment installed on your vehicle.
■ Gross axle weight
The load on either the front or rear axle resulting from distribution of
the gross vehicle weight on both axles must not exceed the Gross
Axle Weight Rating (GAWR) listed on the Certification Label.
Certification Label
150
2-5. Driving information
■ Trailer tongue load
The trailer cargo load should be distributed so that the tongue load
is 9 to 11% for weight carrying hitch or 15% for weight distributing
hitch of the total trailer weight, not exceeding the following.
Weight carrying hitch: 650 lb. (294 kg)
Weight distributing hitch: 975 lb. (442 kg)
(Tongue load/Total trailer weight x 100 = 9 to 11% or 15%)
2
When driving
The total trailer weight and tongue load can be measured with platform scales found at a highway weighing stations, building supply
companies, trucking companies, junk yards, etc.
Total trailer weight
Tongue load
Towing a trailer
Contact your Lexus dealer for further information about additional
requirements such as a towing kits, etc.
Hitch and tow hitch receiver
■ Hitch
Trailer hitch assemblies have different weight capacities established by
the hitch manufacturer. Even though the vehicle may be rated for towing a higher weight, the operator must never exceed the maximum
weight rating specified for the trailer hitch.
151
2-5. Driving information
■ Tow hitch receiver
A tow hitch receiver installed
under the rear bumper is rated for
weight that does not exceed the
vehicle’s total towing weight.
Selecting trailer ball
Use the correct trailer ball for your application.
Trailer ball load rating
Matches or exceeds the gross
trailer weight rating of the trailer.
Ball diameter
Matches the size of the trailer coupler. Most couplers are stamped
with the required trailer ball size.
Shank length
Protrudes beyond the bottom of
the lock washer and nut at least 2
threads.
Shank diameter
Matches the ball mount hole diameter size.
152
2-5. Driving information
Connecting trailer lights
Use the wire harness stored in the rear end underbody.
■ When connecting and disconnecting a trailer
Connecting
STEP 1 Set the rear height control air suspension to “LO” mode.
2
STEP 2 Turn off the ignition switch or the rear height control air suspension.
STEP 31 Connect the trailer.
When driving
STEP 41 Turn on the switch that was turned off on STEP 2.
STEP 51 Set the rear height control air suspension to “N” mode.
Disconnecting
STEP 1 Set the rear height control air suspension to “LO” mode.
STEP 2 Turn off the ignition switch or the rear height control air suspension.
STEP 31 Set the supporting leg of the trailer on the ground and raise the hitch by
4 in. (100 mm).
STEP 41 Turn on the switch that was turned off on STEP 2.
STEP 51 Wait until vehicle height is stabilized.
STEP 5
61 Make sure the hitch is disconnected. If the hitch does not disconnect, raise
the hitch higher and repeat steps 2 through 5.
STEP 5
6
71 Move the vehicle forward in the “LO” mode where the hitch does not
touch anything in the “N” mode.
STEP 8
5
61 Set the rear height control air suspension in the “N” mode.
153
2-5. Driving information
■ Before towing
Check that the following conditions are met:
● The vehicle’s tires are properly inflated. (P. 385)
● Trailer tires are inflated according to the trailer manufacturer’s recommenda-
tion.
● All trailer lights work.
● All lights work each time you connect them.
● The trailer ball is set up at the proper height for the coupler on the trailer.
● The vehicle remains level when a loaded or unloaded trailer is hitched. Do not
drive if the vehicle is not level, and check for improper tongue load, overloading,
worn suspension, or other possible causes.
● The trailer cargo is securely loaded.
● The rear view mirrors conform to all applicable federal, state/provincial or local
regulations. If they do not, install rear view mirrors appropriate for towing purposes.
■ Break-in schedule
Lexus recommends that you do not use a new vehicle or a vehicle with any new
power train components (engine, transmission, differential, wheel bearings, etc.) to
tow a trailer for the first 500 miles (800 km) of driving.
■ Maintenance
● If you tow a trailer, your vehicle will require more frequent maintenance due to
the additional load. (See “Warranty and Services Guide/Owner’s Manual Supplement/Scheduled Maintenance”.)
● Retighten the fixing bolts of the towing ball and bracket after approximately
600 miles (1000 km) of trailer towing.
154
2-5. Driving information
CAUTION
■ To avoid accident or injury
● The total trailer weight (trailer weight plus the weight of cargo) must not exceed
6500 lb. (2948 kg).
● If a trailer and cargo weight over 2000 lb. (907 kg), use a sway control device
with sufficient capacity.
● The gross combined weight (sum of your vehicle weight plus its load and the total
trailer weight) must not exceed 12000 lb. (5443 kg).
2
● Do not exceed the trailer hitch assembly weight, gross vehicle weight, gross axle
● Never load more weight in the back than in the front of the trailer. About 60% of
the load should be in the front half of the trailer, and the remaining 40% in the
rear.
● Set the vehicle height to the “LO” mode and turn off the rear height control air
suspension to prevent the vehicle height from automatically changing.
● The tow hitch receiver installed on your vehicle must never be used on another
vehicle
■ Hitches
● If you wish to install a trailer hitch, contact your Lexus dealer.
● Use only a hitch that conforms to the total trailer weight requirement.
● Follow the directions supplied by the hitch manufacturer.
● Lubricate the hitch ball with a light coat of grease.
● Remove the trailer hitch whenever you are not towing a trailer. After removing
the hitch, seal any mounting hole in the vehicle body to prevent entry of any substances into the vehicle.
■ When towing a trailer
● If the total trailer weight exceeds 1000 lb. (453 kg), trailer brakes are required.
● Never tap into your vehicle’s hydraulic system, as this will lower the vehicle’s brak-
ing effectiveness.
● Never tow a trailer without using a safety chain securely attached to both the
trailer and the vehicle. If damage occurs to the coupling unit or hitch ball, there is
danger of the trailer wandering into another lane.
155
When driving
weight and trailer tongue load capacities.
2-5. Driving information
NOTICE
■ When installing a trailer hitch
● Use only the position recommended by your Lexus dealer. Do not install the
trailer hitch on the bumper; this may cause body damage.
● Do not use axle-mounted hitches, as they can cause damage to the axle housing,
wheel bearings, wheels or tires.
■ Brakes
Lexus recommends trailers with brakes that conform to all applicable federal and
state/provincial regulations.
■ Safety chain
A safety chain must always be used between the towing vehicle and the trailer.
Leave sufficient slack in the chain for turns. The chain should cross under the trailer
tongue to prevent the tongue from dropping to the ground in the case that it
becomes damaged or separated. For the correct safety chain installation procedure, ask your Lexus dealer.
■ Do not directly splice trailer lights
Directly splicing trailer lights may damage your vehicle’s electrical system and
cause a malfunction.
156
2-5. Driving information
Trailer towing tips
Your vehicle will handle differently when towing a trailer. The 3 main
causes of vehicle-trailer accidents are driver error, excessive speed and
improper trailer loading. Keep the following in mind when towing.
● Before starting out, check the trailer lights and the vehicle-trailer connections. Recheck after driving a short distance.
● Reversing with a trailer attached is difficult and requires practice Grip
the bottom of the steering wheel and move your hand to the left to
move the trailer to the left. Move your hand to the right to move the
trailer to right. (This is generally opposite to reversing without a trailer
attached.) Avoid sharp or prolonged turning. Have someone guide
you when reversing to reduce the risk of an accident.
● As stopping distance is increased when towing a trailer, vehicle-tovehicle distance should be increased. For each 10 mph (16 km/h) of
speed, allow at least one vehicle and trailer length.
● Avoid sudden braking as you may skid, resulting in jackknifing and loss
of control. This is especially true on wet or slippery surfaces.
● Avoid jerky starts or sudden acceleration.
● Avoid jerky steering and sharp turns, and slow down before making
turns.
157
2
When driving
● Practice turning, stopping and reversing with the trailer attached in an
area away from traffic until you become accustomed to the feel of the
vehicle.
2-5. Driving information
● Note that when making a turn, the trailer wheels will be closer than the
vehicle wheels to the inside of the turn. Compensate by making a
larger than normal turning radius.
● Crosswinds and rough roads will adversely affect handling of your
vehicle and trailer, causing sway. Periodically check the rear to prepare
for being passed by large trucks or buses, which may cause your vehicle and trailer to sway. If swaying occurs, firmly grip the steering wheel,
reduce speed immediately but gradually, and steer straight ahead.
Never increase speed. If you make no extreme correction with the
steering or brakes, your vehicle and trailer will stabilize.
● Take care when passing other vehicles. Passing requires considerable
distance. After passing a vehicle, do not forget the length of your
trailer, and be sure you have plenty of room before changing lanes.
● In order to maintain efficient engine braking and electrical charging
performance, do not use overdrive. Transmission shift range position
must be in “4”.
● Due to the added load of the trailer, your vehicle’s engine may overheat
on hot days (at temperatures over 85°F [30°C] when driving up a
long or steep grade. If the engine coolant temperature gauge indicates
overheating, immediately turn off the air conditioning (if in use), pull
your vehicle off the road and stop in a safe spot. (P. 373)
158
2-5. Driving information
● Always place wheel blocks under both the vehicle and the trailer
wheels when parking. Apply the parking brake firmly, and put the
transmission in “P”. Avoid parking on a slope, but if unavoidable, do so
only after performing the following:
Apply the brakes and keep them applied.
STEP 2 Have someone place wheel blocks under both the vehicle and
trailer wheels.
STEP 31 When the wheel blocks are in place, release the brakes slowly
until the blocks absorb the load.
STEP 41 Apply the parking brake firmly.
STEP 51 Shift into “P” and turn off the engine.
● When restarting after parking on a slope:
STEP 1
STEP 2
STEP 31
STEP 41
With the transmission in the “P” position, start the engine. Be sure
to keep the brake pedal pressed.
Shift into “3”, “2”, “L”, or “R” position (if reversing).
Release the parking brake and brake pedal, and slowly pull or
back away from the wheel blocks. Stop and apply the brakes.
Have someone retrieve the blocks.
CAUTION
■ To avoid an accident
● Do not exceed 45 mph (72 km/h) or the posted towing speed limit, whichever is
lower. A instability (swaying) of the towing vehicle-trailer combination increases
as speed increases, exceeding 45 mph (72 km/h) may cause loss of control.
● Slow down and downshift before descending steep or long downhill grades. Do
not make sudden downshifts.
● Avoid holding the brake pedal down too long or applying the brakes too fre-
quently.
This could cause the brakes to overheat and result in reduced braking efficiency.
159
When driving
STEP 1
2
2-5. Driving information
Dinghy towing
Your vehicle is not designed to be dinghy towed (with 4 wheels on the
ground) behind a motor home.
NOTICE
■ To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
160
Interior features
3-1. Using the air conditioning
system and defogger........... 162
Automatic air conditioning
system (without navigation
system)......................................... 162
3
Using the DVD player
(MP3 discs)............................... 215
Using the video mode............... 217
Changing the initial
setting .......................................... 218
Rear cooler system.................... 168
Rear window and outside rear
view mirror defoggers........... 169
3-4. Using the interior lights ....... 225
Interior lights list ........................ 225
3-2. Using the audio system .......... 171
Audio system type ....................... 171
3-5. Using the storage
features.................................. 228
List of storage features ........... 228
Using the radio............................. 173
Using the CD player.................. 181
Playing MP3 and WMA
discs .............................................. 188
3-6. Other interior features........ 233
Sun visors ..................................... 233
Optimal use of the audio
system .......................................... 194
Vanity mirror ............................... 234
Using the AUX adapter ........... 197
Using the steering
switches....................................... 198
3-3. Using the rear audio
system .................................... 200
Rear seat entertainment
system features ...................... 200
Using the DVD player
(DVD video)............................ 205
Using the DVD player
(video CD)................................. 212
Using the DVD player
(audio CD/CD text)............... 214
Clock.............................................. 235
Outside temperature
display......................................... 236
Ashtrays ........................................ 237
Cigarette lighter........................ 238
Power outlet ................................ 239
Seat heaters .................................. 241
Armrest......................................... 243
Floor mats .................................... 244
Luggage compartment
features....................................... 245
Garage door opener............... 248
Compass ...................................... 253
Lexus Link System .................... 257
161
3-1. Using the air conditioning system and defogger
Automatic air conditioning system (without navigation system)
Airflow and outlets are automatically adjusted according to the temperature setting.
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner’s Manual”.
Fan speed display
Driver’s side temperature display
Airflow display
Passenger’s side temperature display
Automatic mode
Off
Windshield defogger
Fan speed
Outside air or
recirculated mode
Dual operation switch
Air conditioning ON/OFF switch
Changes the air outlets used
Driver's side temperature control
Passenger’s side temperature control
Using the automatic mode
STEP 1
Press
.
The air conditioning system will begin to operate. Air outlets
and fan speed are automatically adjusted according to the
temperature setting.
STEP 2
Press  to increase the temperature and  to decrease the temperature on the
.
The temperature for the driver and passenger seats can be set separately.
162
3-1. Using the air conditioning system and defogger
Adjusting the settings
■ Adjusting the temperature setting
Press  to increase the temperature and  to decrease the temperature on the
.
Press  (increase) or  (decrease) on the
to separately adjust the
temperature for the passenger and driver sides (dual mode). Press
to
return the driver and passenger side temperatures to the same setting
(simultaneous mode).
The air conditioning system switches between dual and simultaneous
modes each time
is pressed.
■ Adjusting the fan speed
Press
button.
Interior features
Press  (increase) or  (decrease) on the
3
to turn the fan off.
163
3-1. Using the air conditioning system and defogger
■ Changing the air outlets
Press
.
The air outlets switch each time the
button is pressed.
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
■ Switching between outside air and recirculated air modes
Press
.
The mode switches between
(recycles air inside the vehicle) and
(introduces air from outside the vehicle) modes each time the button
is pressed.
164
3-1. Using the air conditioning system and defogger
Defogging the windshield
Press
.
The air conditioning system control
operates automatically.
Adjusting the position of and opening and closing the air outlets
3
Center outlets
Side outlets
Direct air flow to the left or right,
up or down
Turn the knob right to open the
vent and left to close the vent
165
Interior features
Direct air flow to the left or right,
up or down
Turn the knob to open or close
the vent
3-1. Using the air conditioning system and defogger
■ Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur.
● The system may switch automatically to recirculated mode when the coolest
temperature setting is selected in summer.
● Immediately after the switch is pressed, the fan may stop for a while until warm
or cool air is ready to flow.
● Cool air may flow to the area around the upper body when the heater is on.
■ Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for an
extended period.
■ Window defogger feature
Recirculated air mode may automatically switch to
ations where the windows need to be defogged.
■ Outside temperature approaches 32F (0C).
The air conditioning system may not operate even when
■ When the indicator light on
(outside air) mode in situ-
is pressed.
flashes
and turn off the air conditioning system before turning it on once more.
Press
There may be a problem in the air conditioning system if the indicator light continues to flash. Turn the air conditioning system off and have it inspected by your Lexus
dealer.
166
3-1. Using the air conditioning system and defogger
CAUTION
■ To prevent the windshield from fogging up
Do not use
during cool air operation in extremely humid weather. The difference between the temperature of the outside air and that of the windshield can
cause the outer surface of the windshield to fog up, blocking your vision.
NOTICE
■ To prevent battery discharge
Do not leave the automatic air conditioning system on longer than necessary when
the engine is stopped.
3
Interior features
167
3-1. Using the air conditioning system and defogger
Rear cooler system
Rear cooler vents
Fan speed control button
Push either side to adjust the fan speed.
“AUTO” mode: Fan speed is automatically adjusted. Can only be set
if the front air conditioning fan speed is set to “AUTO”.
“REAR COOL” button
Turns the rear cooler on and off.
Does not operate if the front air conditioning is off.
“TEMP” (temperature control) button
Push either side to adjust the temperature.
The rear cooler temperature can be adjusted to within 10°F
(5°C) of the front air conditioning temperature.
NOTICE
■ To prevent battery discharge
Do not leave the rear cooler on longer than necessary when the engine is off.
168
3-1. Using the air conditioning system and defogger
Rear window and outside rear view mirror defoggers
These features are used to defog the rear window, and to remove raindrops, dew and frost from the outside rear view mirrors.
■ Rear window defogger
With navigation system
ON/OFF
3
Interior features
Without navigation system
ON/OFF
■ Outside rear view mirror defogger
ON/OFF
169
3-1. Using the air conditioning system and defogger
■ Operating conditions
The ignition switch must be in the “ON” position.
■ Auto shut-off function
The system will automatically shut off after operating for 15 minutes.
CAUTION
■ When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■ To prevent battery discharge
Turn the defoggers off when the engine is off.
170
3-2. Using the audio system
Audio system type
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
CD player with changer and AM/FM radio.
3
Interior features
If a Mark Levinson audio system is installed, the “Mark Levinson” logo
is shown on the panel.
Title
Page
Using the radio
P. 173
Using the CD player
P. 181
Playing MP3 and WMA discs
P. 188
Optimal use of the audio/video system
P. 194
Using the AUX adapter
P. 197
Using the steering switches
P. 198
171
3-2. Using the audio system
■ Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CAUTION
■ For vehicles sold in the U.S.A. and Canada
● Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
● Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information from the
surface of compact discs. The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to disassemble the player or alter any
of its parts since you may be exposed to laser rays and dangerous voltages.
• This product utilizes a laser.
Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
■ To avoid damaging the audio/video system
Take care not to spill drinks or other fluids over the audio system.
172
3-2. Using the audio system
Using the radio
Press
or
to choose either an AM or FM band.
Display radio text messages
Adjust the frequency
Seek any traffic program station
(AM, FM mode) or
Station selector
Power and volume
channel (SAT mode)
3
AM•SAT/FM
mode buttons
Interior features
Seek frequency
Scan for receiv- FM mode: change PTY
able stations
SAT mode: change
category
173
3-2. Using the audio system
Setting station presets (excluding XM® satellite radio)
STEP 1
Search for desired stations by turning the
 or  on
STEP 2
dial or pressing
.
Touch and hold one of the preset stations (1 - 6) until you hear a
beep.
Scanning radio stations (excluding XM® satellite radio)
■ Scanning the preset radio stations
STEP 1
Press and hold
until you hear a beep.
Preset stations will be played for a few seconds each.
When the desired station is reached, press the button once again.
■ Scanning all radio stations within range
STEP 2
STEP 1
Press
.
“SCAN” appears on the display and all stations with reception will be
played for a few seconds each.
STEP 2
174
When the desired station is reached, press the button once again.
3-2. Using the audio system
RDS (Radio Data System)
This feature allows your radio to receive station identification information
and program information (classical, jazz, etc.) from radio stations which
broadcast this information.
■ Receiving RDS broadcasts
STEP 1 Press  or  on the
button during FM reception.
The type of program changes each time the button is pressed.
● ROCK
● EASYLIS (Easy listening)
3
● CLS/JAZZ (Classical music and Jazz)
Interior features
● R & B (Rhythm and Blues)
● INFORM (Information)
● RELIGION
● MISC (Miscellaneous)
● ALERT (Emergency messages)
If the system receives no RDS stations, “NO PTY” appears on the display.
STEP 2
Press
, or  or  on
.
The radio seeks or scans the station by the relevant program type.
If no radio station of that type is found, “NOTHING” appears on the
screen.
175
3-2. Using the audio system
■ Displaying radio station names
Press
.
■ Displaying radio text messages
Press
.
If MSG shows in the display, a text message will be displayed.
If the text continues past the end of the display,  is displayed. Press and
hold
until you hear a beep.
■ Traffic announcement
Press
.
“TRAF SEEK” appears on the display, and the radio will start seeking
any station broadcasting traffic program information.
If no traffic program station is found, “NO TRAF INFO” appears on the
display.
XM® satellite radio
■ Receiving XM® satellite radio
STEP 1
Press
until “SAT” appears on the display.
The display changes as follows each time the switch is pressed.
AM  SAT1  SAT2  SAT3
STEP 2
Turn the
dial to select a desired channel from all the cate-
gories or press  or  on
current category.
176
to select a desired channel in the
3-2. Using the audio system
■ Presetting XM® satellite radio channels
Select the desired channel. Touch one of the preset stations (1 - 6) and
hold it until you hear a beep.
■ Changing the channel category
Press  or  on
.
■ Scanning XM® satellite radio channels
● Scanning channels in the current category
STEP 1
Press
.
“SCAN” appears on the screen.
When the desired channel is reached, press the button
again.
● Scanning preset channels
STEP 2
The display will show up to 10 characters.
177
Interior features
Press and hold
until you hear a beep.
STEP 2 When the desired channel is reached, press the button
again.
■ Displaying text information
Press
.
STEP 1
3
3-2. Using the audio system
■ When the battery is disconnected
All preset stations are erased.
■ Reception sensitivity
● Maintaining perfect radio reception at all times is difficult due to the continually
changing position of the antenna, differences in signal strength and surrounding
objects, such as trains, transmitters, etc.
● The radio antenna is mounted inside the quarter window. To maintain clear
radio reception, do not attach metallic window tinting or other metallic objects
to the antenna wire mounted inside the quarter window.
■ XM® satellite radio
The optional Lexus genuine satellite radio tuner and antenna allows you to receive
and play XM® satellite radio broadcasts. (Subscription is required. Not available in
Hawaii and Alaska.)*
● XM® subscriptions
For detailed information about XM® satellite radio or to subscribe, visit XM®
on the web at www.xmradio.com or call (800) 967-2346.
● Radio ID
You will need the radio ID when activating XM® service or reporting a prob-
lem. Select “CH000” using the
dial, and the receiver's 8-character ID
number will appear.
● Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accompanying Text Information of XM® satellite radio.
*: Terms and services provided by XM® Radio are subject to change without
notice.
178
3-2. Using the audio system
■ If the satellite radio does not operate normally
If a problem occurs with the XM® tuner, a message will appear on the screen. Refer
to the table below to identify the problem, and take the suggested corrective action.
ANTENNA
The XM® antenna is not connected. Check whether
the XM® antenna cable is attached securely.
There is a short-circuit in the antenna or the surrounding antenna cable. See a Lexus certified dealer.
You have not subscribed to XM® satellite radio. The
radio is being updated with the latest encryption code.
Contact XM® satellite radio for subscription information. When a contract is canceled, you can choose
“CH000” and all free-to-air channels.
NO SIGNAL
LOADING
The premium channel you selected is not authorized.
Wait for about 2 seconds until the radio returns to the
previous channel or “CH001”. If it does not change
automatically, select another channel. If you want to listen to the premium channel, contact XM® satellite
radio.
Interior features
UPDATING
3
The XM® signal is too weak at the current location.
Wait until your vehicle reaches a location with a stronger signal.
The unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIR
The channel you selected is not broadcasting any programming. Select another channel.
-----
There is no song/program title or artist name/feature
associated with the channel at that time. No action
needed.
179
3-2. Using the audio system
---
The channel you selected is no longer available. Wait
for about 2 seconds until the radio returns to the previous channel or “CH001”. If it does not change automatically, select another channel.
Contact the XM® Listener Care Center at (800) 967-2346 during the following
hours*.
Monday - Saturday: 6 a.m. - 2 a.m. Sunday: 8 a.m. - 8 p.m. ET
*: Subject to change without notice.
■ Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by trying one or more of the following:
● Reorienting or relocating the receiving antenna.
● Increasing the separation between the equipment and receiver.
● Connecting the equipment into an outlet on a circuit different from that to which
the receiver is connected.
● Consulting the dealer or an experienced radio/TV technician for help.
180
3-2. Using the audio system
Using the CD player
Insert a CD or press
CD eject
Power and volume
with a CD inserted.
CD slot
CD load
3
Random play
Repeat play
Playback
Scan play
Interior features
Track selection
Select CD
181
3-2. Using the audio system
Loading a CD
■ Loading a single CD
STEP 1
STEP 2
Press
.
When the indicator changes from flashing amber to green, insert
a CD.
The display changes from “WAIT” to “LOAD”.
■ Loading multiple CDs
STEP 1
STEP 2
STEP 3
Press and hold
until you hear a beep.
When the indicator changes from flashing amber to green, insert
a CD.
After inserting a CD, wait until the indicator changes from flashing amber to green, then insert the next CD.
Repeat steps 2 and 3 until you have inserted all CDs.
To cancel the operation, press the
or
button. If you do not
insert a CD within 15 seconds, loading will be canceled automatically.
Ejecting CDs
■ Ejecting a CD
STEP 1
To select the CD to be ejected,
press  or  on
.
The number of the CD selected is
shown on the display.
Press
and remove the CD.
■ Ejecting all CDs
Press and hold
until you hear a beep, then remove the CDs.
STEP 2
182
3-2. Using the audio system
Selecting, fast forwarding, rewinding, and scanning tracks
■ Selecting a track
Press  to move up and  to move down using
track number is displayed.
until the desired
To fast forward or rewind, press and hold  or  on
.
■ Scanning a CD
STEP 1 Press
.
“SCAN” appears on the display.
The first 10 seconds of each track will be played.
STEP 2
Press the button again when the desired track is reached.
3
■ To select a CD to play
To select the desired CD, press  or  on
■ To scan loaded CDs
STEP 1 Press and hold
Interior features
Selecting a CD
.
until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
STEP 2
Press the button again when the desired CD is reached.
183
3-2. Using the audio system
Random play
■ Current CD
Press
(RAND).
Songs are played in random order until random play is canceled.
■ All CDs
Press and hold
(RAND) until you hear a beep.
Tracks on all loaded CDs are played in random order until the button is
pressed once again.
Repeating a track or a disc
■ Repeating a track
Press
(RPT).
■ Repeating a disc
Press and hold
(RPT) until you hear a beep.
■ Canceling random, repeat and scan playback
Press
(RAND, RPT), or
again.
■ Displaying the title and artist name
If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Up to
12 letters can be displayed.
■ When “ERROR” or “WAIT” is shown on the display.
“ERROR”: This indicates trouble either with the CD or within the player. The CD
may be dirty, damaged, or inserted upside down.
“WAIT”: Operation is stopped due to high temperature inside the player. Wait for a
while and then press
not be played.
184
. Contact your Lexus dealer if the CD still can-
3-2. Using the audio system
■ CD compatibility
Audio CDs
Only audio CDs with the marks shown to the
left can be used.
The following products may not be playable
on your CD player.
● SACDs
● dts-CDs
● Copy-protected CDs
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
■ If CDs are left inside the CD player or in the ejected position for extended peri-
3
ods
Interior features
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
185
3-2. Using the audio system
NOTICE
■ Discs and adapters that cannot be used
Do not use the following types of discs, 3 in. (8 cm) disc adapters or Dual Disc.
Doing so may damage the player and render the disc insert/eject function unusable.
● Discs that have a diameter that is not 4.7 in.
(12 cm).
● Low-quality and deformed discs.
● Discs with a transparent or translucent
recording area.
● Discs that have tape, stickers or CD-R
labels attached to them, or that have the
label peeled off.
186
3-2. Using the audio system
NOTICE
■ Player precautions
Failure to follow the precautions below may result in damage to the discs or the
player itself.
● Do not insert anything other than discs into the disc slot.
● Do not apply oil to the player.
● Store discs away from direct sunlight.
● Never try to disassemble any part of the player.
● Do not insert more than one disc at a time.
3
Interior features
187
3-2. Using the audio system
Playing MP3 and WMA discs
Insert an MP3 or WMA disc or press
CD eject
Power and volume
Select file
with a disc inserted.
Select a folder
CD slot
Random play
Repeat play
Select a file
CD load
Playback
Scan play
Select CD
Loading, ejecting and selecting MP3 and WMA discs
Refer to the section titled “Using the CD player” for details. (P. 181)
Selecting a folder
■ Selecting a folder
Press
( or ) to select the previous/next folder.
■ Selecting the desired folder by cueing the first file of each folder
Press and hold
188
until you hear a beep.
3-2. Using the audio system
Selecting and scanning files
■ Selecting one file at a time
dial or press  or  on
Turn the
to select the desired file.
■ Selecting a desired file by cueing the files in the folder
Press
.
When the desired file is reached, press the switch once again.
File repeat
Press
3
(RPT).
Interior features
Folder repeat
Press and hold
(RPT) until you hear a beep.
Random play
■ To play files from a particular folder in random order
Press
(RAND).
■ To play all the files on a disc in random order
Press and hold
(RAND) until you hear a beep.
189
3-2. Using the audio system
■ Canceling random, repeat and scan play
Press
(RAND, RPT), or
again.
■ Error messages
P. 184
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
■ If CDs are left inside the CD player or in the ejected position for extended peri-
ods
CDs may be damaged and may not play properly.
■ Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■ MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using MP3
compression.
WMA (Windows Media TMAudio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
● MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates
MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
• MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
*: Compatible with VBR
• Compatible channel modes: stereo, joint stereo, dual channel and monaural
190
3-2. Using the audio system
● WMA file compatibility
• Compatible standards
WMA Ver. 7, 8, 9
• Compatible sampling frequencies
32, 44.1, 48 (kHz)
• Compatible bit rates
Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
*: Only compatible with 2-channel playback
● Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-RWs.
Playback in some instances may not be possible, depending on the status of the
CD-R or CD-RW. Playback may not be possible or the audio may jump if the disc
is scratched or marked with fingerprints.
The following disc formats can be used.
• Disc formats: CD-ROM Mode 1 and Mode 2
CD-ROM XA Mode 2, Form 1 and Form 2
• File formats: ISO9660 level 1, level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed above may
not play correctly, and their file names and folder names may not be displayed correctly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum length of folder names/file names: 32 characters
• Maximum number of folders: 192 (including the root)
• Maximum number of files per disc: 255
● File names
The only files that can be recognized as MP3/WMA and played are those with
the extension .mp3 or .wma.
● Multi-sessions
As the audio system is compatible with multi-sessions, it is possible to play discs
that contain MP3 and WMA files. However, only the first session can be played.
191
Interior features
● Compatible disc formats
3
3-2. Using the audio system
● ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track title
and artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags. (The
number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the track
title and artist name in the same way as with ID3 tags.
● MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc are first
checked. Once the file check is finished, the first MP3 or WMA file is played. To
make the file check finish more quickly, we recommend you do not write in any
files other than MP3 or WMA files or create any unnecessary folders.
Discs that contain a mixture of music data and MP3 or WMA format data cannot
be played.
● Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA
files, they will be mistakenly recognized and played as MP3 and WMA files. This
may result in large amounts of interference and damage to the speakers.
● Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate
of 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances, depending on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3
and WMA files on the market, and depending on the status of the encoding
and the file format, poor sound quality or noise at the start of playback may
result. In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may take
more time to recognize the disc and in some cases, playback may not be
possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks of
Microsoft Corporation in the U.S. and other countries.
192
3-2. Using the audio system
■ CD-R and CD-RW discs
● CD-R/CD-RW discs that have not been subject to the “finalizing process” (a
process that allows discs to be played on a conventional CD player) cannot be
played.
● It may not be possible to play CD-R/CD-RW discs recorded on a music CD
recorder or a personal computer because of disc characteristics, scratches or
dirt on the disc, or dirt, condensation, etc. on the lens of the unit.
● It may not be possible to play discs recorded on a personal computer depend-
ing on the application settings and the environment. Record with the correct
format. (For details, contact the appropriate application manufacturers of the
applications.)
● CD-R/CD-RW discs may be damaged by direct exposure to sunlight, high
temperatures or other storage conditions. The unit may be unable to play damaged discs.
more slowly than with a conventional CD or CD-R disc.
● Recordings on CD-R/CD-RW cannot be played using the DDCD (Double
Density CD) system.
■ Unsuitable discs, and player precautions
P. 186
193
Interior features
● If you insert a CD-RW disc into the MP3/WMA player, playback will begin
3
3-2. Using the audio system
Optimal use of the audio system
Push: Sound quality mode
Turn: Adjust sound quality and balance
Adjusting sound quality, volume, balance and sound level
■ Changing sound quality modes
Push
to change the sound mode in the following order.
BAS  MID  TRE  FAD  BAL  ASL  POS*
*: For a Mark Levinson brand audio system is not available.
194
3-2. Using the audio system
■ Adjusting sound quality
Turn the
Sound quality mode
Bass
Midrange
Treble
Forward-rear
balance
Left-right
balance
dial to the left or right.
Mode
displayed
BAS
MID
TRE
Level
Turn to the
left
Turn to the
right
-5 to 5
-5 to 5
-5 to 5
Low
High
FAD
F7 to R7
3
BAL
L7 to R7
Shifts to left
Shifts to right
OFF
ON
■ Adjusting the Automatic Sound Levelizer (ASL)
ASL automatically adjusts the volume and tone quality according to
the noise level as you drive your vehicle.
Turn
while the ASL mode is displayed to turn on or off the automatic sound levelizer.
195
Interior features
SURON/OFF
ROUND
*: Mark Levinson brand audio system only.
Surround*
Shifts to rear Shifts to front
3-2. Using the audio system
Changing the listening position (For a Mark Levinson brand audio
system is not available)
The speaker balance can be changed to produce the best sound for
each listening position.
Turn the
dial while “POS” is shown on the display.
The listening position changes as follows each time the switch is
touched.
Display
DRIVER
Position best suited to the driver's seat
FRONT
Position best suited to the driver's and front passenger’s seat
REAR
ALL
196
Listening position
Position best suited to the rear seats
Position best suited to all seats
3-2. Using the audio system
Using the AUX adapter
This adapter can be used to connect a portable audio device and listen to it
using the vehicle's speakers.
Connect the portable audio
device.
STEP 1
STEP 2
Press
.
3
The volume can be adjusted using the vehicle's audio controls. All other adjustments must be made on the portable audio device itself.
197
Interior features
■ Operating portable audio devices connected to the audio system
3-2. Using the audio system
Using the steering switches
Some audio features can be controlled using the steering switches.
Power on, select audio
source
Volume
Radio: Select radio stations
CD: Select tracks and discs
Turning on the power
Press
when the audio system is off.
The audio system can be turned OFF by holding the switch down for 1 second
or more.
Changing the audio source
Press
when the audio system is on. The audio source changes as
follows each time the button is pressed. If a CD is not inserted, that mode
will be skipped.
FM (1, 2) CD player AUX AM SAT (1, 2, 3)
Adjusting the volume
Press “+” on
to increase the volume and “-” to decrease the volume.
Hold down the button to continue increasing or decreasing the volume.
198
3-2. Using the audio system
Selecting a radio station
STEP 1
Press
to select the radio mode.
STEP 2
Press or  on
to select a radio station.
To seek for receivable stations, press and hold the switch until you hear
a beep.
Selecting a track
Press
STEP 2
Press  or  on
3
to select the CD player.
Interior features
STEP 1
to select the desired track.
Selecting a disc
STEP 1
Press
to select the CD player.
STEP 2
Press and hold  or  on
until you hear a beep.
CAUTION
■ To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
199
3-3. Using the rear audio system
Rear seat entertainment system features (if equipped)
The rear seat entertainment system is designed for the rear passengers to
enjoy audio and DVD video separately from the front audio system.
Front audio system
Display
DVD player
Power outlet
Headphone volume control dials, headphone jacks and A/V input
adapter
Rear seat entertainment system controller
Power outlet main switch
200
3-3. Using the rear audio system
Opening and closing the display
Press the lock release button to
open the display.
Pull the display down to an easily
viewable angle (between 90 and
125).
To close the display, press the display up until a click is heard.
Loading a disc
Insert the disc into the slot with the
label side up.
The DISC indicator light turns on
while the disc is loaded.
The player will play the track or
chapter, and will repeat it after it
reaches the end.
201
Interior features
The screen is automatically turned
off when the display is closed.
However, the rear seat entertainment system is not turned off.
3
3-3. Using the rear audio system
Ejecting a disc
Press
and remove the disc.
Headphone jacks
To use the headphones, connect
them to the jack.
To adjust the volume
Turn the dial clockwise to
increase the volume, and counterclockwise to decrease the
volume.
202
3-3. Using the rear audio system
■ The rear seat entertainment system can be used when
The ignition switch is in the “ACC” or “ON” position.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
■ When
appears on the screen
This indicates that the selected operation is not currently available.
3
■ Error messages
Indicates that the disc is dirty, damaged or was inserted upside
down. Clean the disc or insert it correctly.
REGION ERROR: Indicates that the DVD region code is incorrect.
DVD ERROR:
Indicates that there is a problem inside the player. Eject the disc,
then reinsert it. If this problem persists, see your Lexus dealer.
If the malfunction still exists, take the vehicle to your Lexus
dealer.
■ Before using the remote control (for new vehicle owners)
An insulating sheet is set to prevent the batteries from being discharged. Remove the
insulating sheet before using the remote control.
203
Interior features
DISC CHECK:
3-3. Using the rear audio system
■ Headphones
Some headphones may not receive signals from the system clearly. Lexus recommends the use of Lexus genuine wireless headphones.
Please contact your Lexus dealer for further details.
■ Volume
● Adjust the volume when you connect the headphones to the jack. Loud sounds
may have a significant impact on the human body.
● Conversational speech on some DVDs is recorded at a low volume to emphasize
the impact of sound effects. If you adjust the volume assuming that the conversations represent the maximum volume level that the DVD will play, you may be
startled by louder sound effects or when you change to a different audio source.
Be sure to adjust the volume with this in mind.
CAUTION
■ While driving
Do not use headphones.
Doing so may cause an accident, resulting in death or serious injury.
■ When the rear seat entertainment system is not used
Keep the display closed.
In the event of an accident or sudden braking, the opened display may hit an occupant's body, resulting in injury.
■ To prevent accidents and electric shock
Do not disassemble or modify the remote control.
■ When the remote control is not used
Stow the remote control to the remote control case.
Injuries may result in the event of an accident or sudden braking.
204
3-3. Using the rear audio system
Using the DVD player (DVD video)
■ Remote control
205
3
Interior features
Turn on the DVD mode
Search a chapter
Rewind
Turn on the menu screen
Turn on the title selection
screen
Search the title
Change the screen angle
Enter the selected option
Select an option
Play/pause
Fast forward
Stop
Change the subtitle language
Change the audio language
3-3. Using the rear audio system
■ Display (Page 1)
Turn off the operation
switches on the display
Display Page 2
Turn on or off the title selection screen for the disc
Turn on or off the menu
screen for the disc
Rewind
Stop
Pause/cancel pause
Fast forward
■ Display (Page 2)
Display the initial setting
screen
Display Page 1
Search for a title
Return to the previous screen
Change the audio language
Change the subtitle language
Change the angle
206
3-3. Using the rear audio system
NOTICE
■ Cleaning the display
Wipe the display with a dry soft cloth.
If the screen is wiped with a rough cloth, the surface of the screen may be
scratched.
■ To prevent damage to the remote control
● Keep the remote control away from direct sunlight, high temperatures and high
humidity.
● Do not drop or knock the remote control against hard objects.
● Do not sit on or place heavy objects on the remote control.
■ DVD player
Never try to disassemble or oil any part of the DVD player. Do not insert anything
other than a disc into the slot.
Interior features
Turning the operation switches on and off
Press
Press
switches.
to turn on the operation switches.
once again or select
3
to turn off the operation
Turning on the title selection screen
Press
or select
to turn on the title selection screen. For
operation of the title selection screen, see the manual that comes with the
DVD disc.
Turning on the menu screen
Press
or select
to turn on the menu screen. For operation of
the title selection screen, see the manual that comes with the DVD disc.
207
3-3. Using the rear audio system
Returning to the previous screen
Press
to return to the previous screen. For operation of the title
selection screen, see the manual that comes with the DVD disc.
Searching for a title
Press
or select
display the title search screen.
to
Select the title number, and press
“ENT” to input it.
Select
to return to the previous screen.
Changing the subtitle language
Press
or select
to
display the subtitle language
screen.
Each time
is pressed or
is selected, another language stored on the disc is
selected.
Select
to return to the previous screen.
208
3-3. Using the rear audio system
Changing the audio language
Press
or select
to
display the audio language screen.
Each time
is pressed or
is selected, another language stored on the disc is
selected.
Select
to return to the previous screen.
Changing the angle
3
Each time
is pressed or
is selected, the angle
changes.
Select
to return to the previous screen.
■ DVD player and DVD video discs
This DVD player is compatible with NTSC color TV formats. DVD video discs conforming to other formats such as PAL or SECAM cannot be used.
■ Region codes
Some DVD video discs have a region code indicating where you can use them. If
the DVD video disc is not labeled ALL or I, you cannot use it in this DVD player. If
you attempt to play an inappropriate DVD video disc in this player, REGION
CODE ERROR appears on the screen. Even if the DVD video disc does not have a
region code, in some cases you cannot use it.
209
Interior features
Press
or select
to
display the screen to change the
angle.
3-3. Using the rear audio system
■ Symbols shown on DVD video discs
Indicates NTSC format.
Indicates the number of audio tracks.
Indicates the number of language subtitles.
Indicates the number of angles.
Indicates the screen display ratios available.
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s region code.
All: all countries
Number: region code
■ DVD video disc glossary
● DVD video discs: Digital Versatile Discs that hold the world’s standard video.
DVD video discs have adopted “MPEG2”, one of the world standards of digital
compression technologies. The picture data is compressed by 1/40 on average
and stored. Variable rate encoding technology has been adopted in which the
volume of data assigned to the picture is changed depending on the picture format. Audio data is stored using PCM and Dolby digital, which enables higher
sound. Furthermore, multi-angle and multi-language features will also help you
enjoy the more advanced technology of DVD video.
210
3-3. Using the rear audio system
● Viewer restrictions: This feature limits what can be viewed in conformity with the
level of restrictions of the country. The level of restrictions varies depending on
the DVD video disc. Some DVD video discs cannot be played at all, or violent
scenes are skipped or replaced with other scenes.
• Level 1: DVD video discs for children can be played.
• Level 2 - 7: DVD video discs for children and G-rated movies can be played.
• Level 8: All types of DVD video discs can be played.
● Multi-angle feature: Allows you to enjoy the same scene from different angles.
● Multi-language feature: Allows you to select the language of the subtitles and
audio.
● Region codes: Region codes are found on DVD players and DVD discs. If a DVD
video disc does not have the same region code as the DVD player, you cannot
play the disc on that DVD player.
● Audio: This DVD player can play liner PCM, Dolby digital, dts and MPEG audio
3
format DVD. Other decoded type cannot be played.
divided into sections by title and chapter.
● Title: The largest unit of the video and audio programs stored on DVD video discs.
Usually, one movie, one album, or one audio program is assigned as a title.
● Chapter: A unit smaller than a title. A title comprises multiple chapters.
■ Audio
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”,
and
are trademarks of Dolby Laboratories. Confidential unpublished works.
1992-1997 Dolby Laboratories. All rights reserved.
“dts” is a trademark of Digital Theater Systems, Inc.
211
Interior features
● Title and chapter: Video and audio programs stored on DVD video discs are
3-3. Using the rear audio system
Using the DVD player (video CD)
■ Remote control
Select a switch
Select a chapter
Play/pause
Rewind
Display operation switches
Enter the selected option
Fast forward
Stop
Change the initial setting
212
3-3. Using the rear audio system
■ Display (page 1)
Select a disc menu number
Turn off the menu screen
Display page 2
Turn on the disc menu
Return to the previous page
screen (with the disc menu
displayed)
Proceed to the next page
screen (with the disc menu
displayed)
Change to a multiplex transmission
3
Interior features
■ Display (page 2)
Display page 1
Rewind
Play/pause
Fast forward
Selecting a disc menu number
Select
to display the disc menu number search screen.
Select the disc menu number, and press “ENT” to input it.
Select
to return to the previous screen.
213
3-3. Using the rear audio system
Using the DVD player (audio CD/CD text)
■ Control screen
Press
to display the control screen.
Repeat play
Random play
Scan play
■ Canceling random, repeat and scan play
Select
214
,
or
again.
3-3. Using the rear audio system
Using the DVD player (MP3 discs)
■ Control screen
Press
to display the control screen.
Repeat play
Random play
Scan play
Display file information
Select a folder
Repeat play
3
Interior features
■ Repeat a file
Select
.
■ Repeat all of files in a folder
Select
, and press and hold “ENT” on the remote control.
Random play
■ Playing files from a particular folder in random order
Select
.
■ Playing all of the files on a disc in random order
Select
, and press and hold “ENT” on the remote control.
215
3-3. Using the rear audio system
Scan play
■ Selecting the desired file by cueing the files in the folder
Select
.
The player will scan all the files in the folder. Each file will be played for
10 seconds.
■ Selecting the desired file by cueing the folders on the disc
Select
, and press and hold “ENT” remote control.
The player will scan all the folders on the disc. The first file in each
folder will be played for 10 seconds.
■ Canceling random, repeat and scan play
Select
216
,
or
again.
3-3. Using the rear audio system
Using the video mode
Press
mode.
to select the video
Before switching to the video
mode, connect the audio
machine to the input terminal
adapter.
Using the adapter
3
Open the cover.
Yellow: Image input adapter
White: Audio input adapter
Red: Audio input adapter
■ A/V input adapter
The rear seat entertainment system plays videos and sound when audio-video
equipment is connected to the A/V input adapter. For details, refer to the manufacturer's instructions.
■ Power outlet
The power outlet is used to connect the audio device. (P. 239)
NOTICE
■ When the A/V input adapter is not in use
Keep the A/V input adapter cover closed.
Inserting anything other than an appropriate plug may cause electrical failure or
short circuit.
217
Interior features
The A/V input adapter is composed of 3 input adapters.
3-3. Using the rear audio system
Changing the initial setting
Press
or select
to
display the initial settings
screen.
The following settings can be
changed here.
•
•
•
•
•
Audio language
Subtitle language
DVD language
Angle mark
Parental lock
Changing the audio language
Select “Audio Language”.
Select the language you want to
hear, and press “ENT” to input it.
Select “Others” if you cannot find
the language you want to hear.
Enter the appropriate 4-digit language code. Select a number, and
press “ENT” to input it.
Language code list (P. 222)
If a code that is not in the list is
entered, Incorrect Code will
appear on the screen.
218
3-3. Using the rear audio system
Changing the subtitle language
Select “Subtitle Language”.
Select the desired language, and
press “ENT” to input it.
Language code list (P. 222)
If a code that is not in the list is
entered, Incorrect Code will
appear on the screen.
Changing the DVD language
Select “DVD Language”.
Select the desired language and
press “ENT” to input it.
219
3
Interior features
Select “Others” if you cannot find
the desired language.
Enter the appropriate 4-digit language code. Select a number, and
press “ENT” to input it.
3-3. Using the rear audio system
Select “Others” if you cannot find
the desired language.
Enter the appropriate 4-digit language code. Select a number, and
press “ENT” to input it.
Language code list (P. 222)
If a code that is not in the list is
entered, Incorrect Code will
appear on the screen.
Turning the angle mark on and off
The angle mark can be turned on for discs that are multi-angle compatible.
Each time you press “ENT” when “Angle Mark” is selected, the angle mark
turns on or off alternately.
Setting viewer restriction levels
Setting a password allows use of
the viewer restriction function.
Select “Parental Lock”.
Enter the password and press
“ENT”.
The setting cannot be changed
unless the password is entered.
It is necessary to initialize the password if you forget it. (P. 221)
220
3-3. Using the rear audio system
Select a restriction level (1-8), and
press “ENT”. The smaller the level
number, the stricter the age limit.
Setting the display mode
Pressing
changes the display modes sequentially as follows:
3
NormalWide 1 Wide 2
Interior features
■ Returning to the previous screen
Select
, and press “ENT”.
■ To initialize the password
Press “ ” on the remote control or unit ten times when the personal code input
screen is displayed.
221
3-3. Using the rear audio system
■ Language code list
Code
222
Language
Code
Language
Code
Language
1001
Japanese
0125
Aymara
0601
Persian
0514
English
0126
Azerbaijani
0609
Finnish
0618
French
0201
Bashkir
0610
Fiji
0405
German
0205
Byelorussian 0615
Faroese
0920
Italian
0207
Bulgarian
0625
Frisian
0519
Spanish
0208
Bihari
0701
Irish
2608
Chinese
0209
Bislama
0704
Scots-Gaelic
1412
Dutch
0214
Bengali
0712
Galician
1620
Portuguese
0215
Tibetan
0714
Guarani
1922
Swedish
0218
Breton
0721
Gujarati
1821
Russian
0301
Catalan
0801
Hausa
1115
Korean
0315
Corsican
0809
Hindi
0512
Greek
0319
Czech
0818
Croatian
0101
Afar
0325
Welsh
0821
Hungarian
0102
Abkhazian
0401
Danish
0825
Armenian
0106
Afrikaans
0426
Bhutani
0901
Interlingua
0113
Amharic
0515
Esperanto
0905
Interlingue
0118
Arabic
0520
Estonian
0911
Inupiak
0119
Assamese
0521
Basque
0914
Indonesian
3-3. Using the rear audio system
Code
Language
Code
Language
Code
Language
Icelandic
1307
Malagasy
1612
Polish
0923
Hebrew
1309
Maori
1619
Pashto,
Pushto
1009
Yiddish
1311
Macedonian 1721
Quechua
1023
Javanese
1312
Malayalam
1813
RhaetoRomance
1101
Georgian
1314
Mongolian
1814
Kirundi
1111
Kazakh
1315
Moldavian
1815
Romanian
1112
Greenlandic 1318
Marathi
1823
Kinyarwanda
1113
Cambodian
1319
Malay
1901
Sanskrit
1114
Kannada
1320
Maltese
1904
Sindhi
1119
Kashmiri
1325
Burmese
1907
Sangho
1121
Kurdish
1401
Nauru
1908
SerboCroatian
1125
Kirghiz
1405
Nepali
1909
Sinhalese
1201
Latin
1415
Norwegian
1911
Slovak
1214
Lingala
1503
Occitan
1912
Slovenian
1215
Laothian
1513
(Afan)
Oromo
1913
Samoan
1220
Lithuanian
1518
Oriya
1914
Shona
1222
Latvian
1601
Panjabi
1915
Somali
3
Interior features
0919
223
3-3. Using the rear audio system
Code
Language
Code
Language
Code
Language
1917
Albanian
2009
Tigrinya
2118
Urdu
1918
Serbian
2011
Turkmen
2126
Uzbek
1919
Siswati
2012
Tagalog
2209
Vietnamese
1920
Sesotho
2014
Setswana
2215
Volapük
1921
Sundanese
2015
Tonga
2315
Wolof
1923
Swahili
2018
Turkish
2408
Xhosa
2001
Tamil
2019
Tsonga
2515
Yoruba
2005
Telugu
2020
Tatar
2621
Zulu
2007
Tajik
2023
Twi
2008
Thai
2111
Ukrainian
■ Adjusting the screen
Press
.
Select the brightness, contrast, tone or color,
and make adjustments. Press
or
“ENT” to input it.
“-” or Red
224
“+” or Green
Brightness
Darkens
Brightens
Contrast
Weakens the contrast
Strengthens the contrast
Tone
Weakens the tone
Strengthens the tone
Color
Strengthens the red
color
Strengthens the green
color
3-4. Using the interior lights
Interior lights list
Illuminated entry system: The various lights automatically turn on/off
according to whether the doors are locked/unlocked, whether the doors
are open/closed, the ignition switch position, and the vehicle’s speed.
3
Interior features
Foot light
Ignition switch light
Personal light
Center console spot lights
Inside door handle lights
Center interior light
Running board lights
When the instrument panel light control dial is turned to minimum, the
foot lights will turn off. (P. 104)
225
3-4. Using the interior lights
■ To prevent battery discharge
All of the lights will automatically turn off when the ignition key is removed and the
door is left open for more than 30 minutes.
■ Customization
Setting (e.g. The time elapsed before lights turn off) can be changed. (P. 400)
Personal lights
“ON”
“OFF”
“DOOR”
The lights are turned on/off by the
illuminated entry system.
226
3-4. Using the interior lights
Interior lights
Center (without rear seat entertainment system)
“ON”
“OFF”
“DOOR”
The lights are turned on/off by the
illuminated entry system.
Center (with rear seat entertainment system)
“ON”
“OFF”
“DOOR”
3
Rear
“ON”
“OFF”
“DOOR”
The light turns on when the back
door is opened.
227
Interior features
The lights are turned on/off by the
illuminated entry system.
3-5. Using the storage features
List of storage features
Glove box
Overhead console
Cup holders
Door pocket
Console box
Glove box
Open
Lock with the key
Unlock with the key
228
3-5. Using the storage features
■ Glove box light
The light turns on when the headlight switch is on.
CAUTION
■ Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Console box
Push the center of the lid to open.
3
Interior features
■ Console box light
The light turn on when the headlight switch is on.
CAUTION
■ Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
229
3-5. Using the storage features
Overhead console
The overhead console is useful for
temporarily storing sunglasses and
similar small items.
CAUTION
■ Items that should not be left in the overhead console
Do not leave glasses or lighters in the console.
If the interior of the vehicle becomes hot, lighters may explode and glasses may
warp or become cracked.
■ Caution while driving
Do not leave the overhead console open. Items may fall out and cause injury.
■ Maximum storage weight
Do not store any object heavier than 0.44 lb. (200 g) in the overhead console, as
this may cause the console to open unexpectedly, leading to injury.
230
3-5. Using the storage features
Cup holders
In front of the rear console box
To open, press down and release
the cup holder lid.
In the rear console box
3
Second seat armrest
To open, press in and release the
rear cup holder on the armrest.
231
Interior features
To use, open the rear console box
and pull down the cup holder.
3-5. Using the storage features
Beside the third seat
CAUTION
■ Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or sudden
braking and cause injury. If possible, cover hot drinks to prevent burns.
■ When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Door pockets
232
3-6. Other interior features
Sun visors
Forward position: Flip down.
Side position: Flip down,
unhook, and swing to the
side.
Side extender: Place in side
position, then slide backwards.
The secondary sun visor may
be used when the primary
sun visor is in the side position.
3
Interior features
233
3-6. Other interior features
Vanity mirror
The light turns on when the
cover is opened.
234
3-6. Other interior features
Clock
■ Adjust clock
STEP 1
STEP 2
■ The clock is displayed when
The ignition switch is in the “ACC” or “ON” position.
■ When the 12 volt battery is disconnected
The time display will automatically be set to 1:00.
235
3
Interior features
STEP 3
Push and hold the “MODE” button until “ILL” appear on the
display.
Push “MODE” button once. The time will blink.
Adjust hours.
Adjust minutes.
Round the nearest hour.
After setting, push “MODE”
button.
3-6. Other interior features
Outside temperature display
The displayed temperature ranges from -22°F (-30°C) up to 122°F
(50°C).
■ Operating conditions
The ignition switch is in the “ON” position.
■ When -- is displayed
The system may be malfunctioning. Take your vehicle to your Lexus dealer.
236
3-6. Other interior features
Ashtrays
Front
Push the lid to open.
Hold the plate down and pull the
ashtray upwards to remove.
Rear
Raise the lid to open.
3
CAUTION
■ When not in use
Keep the ashtray closed.
Injuries may result in the event of an accident or sudden braking.
NOTICE
■ To prevent fire
● Fully extinguish matches and cigarettes before putting them in the ashtray, then
make sure the ashtray is fully closed.
● Do not place paper or any other type of flammable object in the ashtray.
237
Interior features
Hold the plate down and pull the
ashtray upwards to remove.
3-6. Other interior features
Cigarette lighter
Push the cover to open, and
rush in the cigarette lighter.
The cigarette lighter will pop out
when ready for use.
■ The cigarette lighter can be used when
The ignition switch is in the “ACC” or “ON” position.
CAUTION
■ To avoid burns or fires
● Do not touch the metal parts of the cigarette lighter.
● Do not hold the cigarette lighter pressed in. It could overheat and cause a fire.
● Do not insert anything other than the cigarette lighter into the outlet.
238
3-6. Other interior features
Power outlet
The power outlet can be used for a following component.
12V: Accessories that run on less than 10A.
115V AC: Audio device that use less than 100W.
12V
3
To use the power outlet, push
the switch.
The indicator light comes on.
Power outlet socket
■ The power outlet can be used when
12V: The ignition switch is in the “ACC” or “ON” position.
115V: The ignition switch is in the “ON” position.
239
Interior features
115V AC
3-6. Other interior features
NOTICE
■ To avoid damaging the power outlet
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■ To prevent the fuse from being blown
12V: Do not use an accessory that uses more than 12V/10A.
115V: Do not use a 115V AC appliance that requires more than 100W.
If a 115V AC appliance that consumes more than 100W is used, the protection
circuit will cut the power supply.
■ To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not running.
■ Appliances that may not operate properly (115V AC)
The following 115V AC appliances may not operate even if their power consumption is under 100W.
● Appliances with high initial peak wattage
● Measuring devices that process precise data.
● Other appliances that require an extremely stable power supply
240
3-6. Other interior features
Seat heaters
For driver’s seat
For front passenger’s seat
Turn the dial to heats the seat.
The indicator light comes on.
■ The seat heaters can be used when
3
The ignition switch is in the “ON” position.
Interior features
■ When not in use
Turn the dial until the indicator light turns off.
CAUTION
■ Burns
● Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
•
•
•
•
Babies, small children, the elderly, the sick and the disabled
Persons with sensitive skin
Persons who are fatigued
Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
241
3-6. Other interior features
NOTICE
■ To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp objects
(needles, nails, etc.) into the seat.
■ To prevent battery discharge
Turn the dials off when the engine is not running.
242
3-6. Other interior features
Armrest
Front seat
Lower the armrest.
Raise it to the desired angle.
Second seat
Pull the armrest down for use.
3
Interior features
NOTICE
■ To prevent damage to the armrest
Do not place too much strain on the armrest.
243
3-6. Other interior features
Floor mats
Securely place a mat that matches the size of the space on the carpet.
Secure the floor mat using the
hooks provided.
CAUTION
■ When inserting the floor mat
Make sure the floor mat is properly placed on the vehicle carpet. If the floor mat
slips and interferes with the movement of the pedals during driving, it may cause an
accident.
244
3-6. Other interior features
Luggage compartment features
■ Quarter window
To open the quarter windows,
pull the latch handle toward you
and swing the window fully out.
■ Cargo hooks
Cargo hooks are provided for
securing loose items.
3
Interior features
■ Cargo net hooks
To hang the cargo net, use the cargo net hooks and cargo hooks.
The cargo net itself is not included as an original equipment.
■ Storage compartment
Open the storage compartment
as shown.
245
3-6. Other interior features
First-aid kit storage belt
Loosen
Tighten
■ Warning reflector holder
Disengage
Engage
■ Luggage cover
Pull out the luggage cover and
hook it on the anchors.
246
3-6. Other interior features
Removing luggage cover
Retract the cover and release both
ends, then lift it out.
After removing the luggage cover,
place it somewhere other than the
passenger compartment.
■ When installing the luggage cover
3
Keep the “TOP” mark on the luggage cover ends upward.
■ When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they are not in
use.
NOTICE
■ To prevent cargo hooks damage
Do not use the third seat anchors instead of the cargo hooks.
247
Interior features
CAUTION
3-6. Other interior features
Garage door opener
The garage door opener can be programmed to operate garage doors,
gates, entry doors, door locks, home lighting systems, and security systems,
and other devices.
The garage door opener (HomeLink Universal Transceiver) is manufactured
under license from HomeLink.
Programming the HomeLink (for U.S.A. owners)
The HomeLink compatible transceiver in your vehicle has 3 buttons
which can be programmed to operate 3 different devices. Refer to the
programming method below appropriate for the device.
Indicator
Buttons
■ Programming the HomeLink
STEP 1
Point the remote control for the
device 1 to 3 in. (25 to 75 mm)
from the HomeLink control buttons.
Keep the indicator light on the
HomeLink in view while programming.
248
3-6. Other interior features
STEP 2
Press and hold down one of the
buttons on the HomeLink and
the button on the transmitter.
When the indicator light on the
HomeLink changes from a slow
to a rapid flash after 20 seconds,
you can release both buttons.
STEP 3
Test the operation of the
HomeLink by pressing the newly
programmed button.
STEP 4
Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
249
3
Interior features
If programming a garage door
opener, check to see if the garage
door opens and closes. If the
garage door does not operate, see
if your garage transmitter is of the
Rolling Code type. Press and hold
the programmed HomeLink button. The garage door has the rolling code feature if the indicator
light (on the HomeLink) flashes
rapidly for 2 seconds and then
remains lit. If your transmitter is the
Rolling Code type, proceed to the
heading “Programming a rolling
code system”.
3-6. Other interior features
■ Programming a Rolling Code system (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink” before proceeding with the
steps listed below.
STEP 1
Locate the training button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener.
Refer to the operation manual supplied with the garage door opener
for the location of the training button.
STEP 2
STEP 3
Press the training button.
Press and release the vehicle’s programmed HomeLink button
twice. The garage door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door opener motor should now recognize
the HomeLink transceiver and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
STEP 1 Place your transmitter 1 to 3 in. (25 to 75 mm) away from the surface of the HomeLink.
STEP 4
Keep the indicator light on the HomeLink in view while programming.
STEP 2
STEP 3
STEP 4
250
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink compatible transceiver start to flashing rapidly, release the buttons.
3-6. Other interior features
Test the operation of the HomeLink by pressing the newly programmed button. Check to see if the gate/device operates correctly.
STEP 6 Repeat the steps above to program another device for each of
the remaining HomeLink buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your authorized Lexus dealer for assistance.
STEP 5
■ Reprogramming a button
The individual HomeLink buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Basic programming” instructions.
Press the appropriate HomeLink button. The HomeLink indicator
light on the HomeLink transceiver should turn on.
The HomeLink continues to send a signal for up to 20 seconds as long as
the button is pressed.
Erasing the entire HomeLink memory (all three programs)
Press and hold down the 2 outside
buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink memory.
251
Interior features
Operating the HomeLink
3
3-6. Other interior features
■ Before programming
● Install a new battery in the transmitter.
● The battery side of the transmitter must be pointed away from the HomeLink.
■ Certification for the garage door opener
This device complies with Part 15 of the FCC Rules and with RSS-210 of the IC
Rules.
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
WARNING: This transmitter has been tested and complies with FCC and IC rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the device.
CAUTION
■ When programming a garage door or other remote control device
The garage door may operate, so ensure people and objects are out of danger to
prevent potential harm.
■ Conforming to federal safety standards
Do not use the HomeLink Compatible Transceiver with any garage door opener
or device that lacks safety stop and reverse features as required by federal safety
standards.
This includes any garage door that cannot detect an obstruction object. A door or
device without these features increases the risk of death or serious injury.
252
3-6. Other interior features
Compass
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
■ Operation
To turn the compass on or off,
push the button for longer than
3 seconds.
3
■ Displays and directions
Direction
N
North
NE
Northeast
E
East
SE
Southeast
S
South
SW
Southwest
W
West
NW
Northwest
Interior features
Display
253
3-6. Other interior features
Calibrating the compass
The direction display deviates from the true direction determined by the
earth’s magnetic field. The amount of deviation varies according to the
geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will deviate.
To obtain higher precision or perfect calibration, refer to the following.
■ Deviation calibration
STEP 1 Stop the vehicle where it is safe to drive in a circle.
Press the button until a number (1
STEP 2
to 15) appears on the compass display.
STEP 3
254
Press the button, and referring to the map above, select the number of the zone where you are.
3-6. Other interior features
STEP 4
Wait a few seconds until the compass direction is displayed.
The calibration is complete.
■ Circling calibration
If “C” appears on the display, drive
the vehicle at 5 mph (8 km/h) or
less in a circle until a direction is
displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is displayed.
3
■ Conditions unfavorable to correct operation
● The vehicle is stopped immediately after turning.
● The vehicle is on an inclined surface.
● The vehicle is in a place where the earth's magnetic field is subject to interfer-
ence by artificial magnetic fields (underground car park/parking lot, under a
steel tower, between buildings, roof car park/parking lot, near an intersection,
near a large vehicle, etc.).
● The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
● The battery has been disconnected.
● A door is open.
255
Interior features
The compass may not show the correct direction in the following conditions:
3-6. Other interior features
CAUTION
■ Caution while driving
Do not adjust the display.
Be sure to adjust the display only when the vehicle is stopped.
■ When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neighborhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■ To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■ To ensure normal operation of the compass
● Do not perform circling calibration of the compass in a place where the earth's
magnetic field is subject to interference by artificial magnetic fields.
● During calibration, do not operate electric systems (moon roof, power windows,
etc.) as they may interfere with the calibration.
256
3-6. Other interior features
Lexus Link System (if equipped)
The Lexus Link System is a communication service that uses Global Positioning System (GPS) data and cellular service to provide you with safety,
security and convenience. This system is only operational in GPS and cellular coverage areas. Button operation and voice commands are used to
operate the system. To operate the system, follow the voice guidance
instructions. For details about service and subscription, call the Lexus Link
Call Center at 1-800-25-LEXUS (1-800-255-3987) (toll-free).
■ Buttons
Voice keypad button
Volume control
Phone button
“SERVICES” button
Emergency button
3
Interior features
■ Services
The Lexus Link System offers the following services.
● Airbag deployment notification (P. 259)
● Emergency assistance (P. 259)
● Stolen vehicle location assistance (P. 260)
● Remote horn/lights and remote door lock/unlock (P. 260)
● Advisor record (P. 261)
● Personal calling (P. 261)
● Other services (P. 260)
Operating the Lexus Link System during a Bluetooth phone call will terminate the Bluetooth phone call.
257
3-6. Other interior features
Safety information for the Lexus Link System
Important! Read this information before using the Lexus Link System.
■ Exposure to radio frequency signals
The Lexus Link System installed in your vehicle is a low power ratio transmitter and receiver. When the ignition switch is in the “ON” position, it
receives and also sends radio frequency (RF) signals.
In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wireless
phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies.
● ANIS (American National Standards Institute) C95.1 [1992]
● NCRP (National Council on Radiation Protection and Measurement)
Report 86 [1986]
● ICNIRP (International Commission on Non-Ionizing Radiation Protection) [1996]
Those standards were based on comprehensive and periodic evaluations
of the relevant scientific literature. Over 120 scientists, engineers, and
physicians from universities, government health agencies, and industry
reviewed the available body of research to develop the ANSI Standard
(C95.1).
The design of the Lexus Link System complies with the FCC guidelines in
addition to those standards.
258
3-6. Other interior features
Indicator and warning lights
Operation indicator light
If your subscription has expired,
the operation indicator light will go
off.
Warning light
If the warning light (red light)
comes on, have the vehicle
inspected by your Lexus dealer.
Airbag deployment notification
3
The Lexus Link Advisor can, if requested, connect you to an emergency services operator.
Emergency assistance
When you press the
button, a priority call is placed to the Lexus Link
Call Center with your vehicle’s location. At the Call Center, the Lexus Link
Advisor can determine your vehicle’s location, communicate with you, and,
if appropriate, contact the nearest emergency service provider.
If you have accidentally pressed the button, tell the Lexus Link Advisor that you
are not experiencing an emergency.
259
Interior features
If an airbag deploys, an emergency call is automatically placed to the Lexus
Link Call Center, and your vehicle’s location is identified. The Lexus Link
Advisor will attempt to contact you and assess the situation. The Advisor
can quickly contact the nearest emergency services provider, describe the
situation and request that assistance be sent to your location.
3-6. Other interior features
Stolen vehicle location assistance
If your vehicle is stolen, call the Lexus Link Call Center at 1-800-25LEXUS (1-800-255-3987) (toll-free) and select the option for Lexus Link.
To protect subscribers’ privacy, the location of a vehicle will not be provided to
anyone other than a law enforcement authority.
Remote horn/lights and remote door lock/unlock
The remote operations are performed by contacting the Lexus Link Call
Center from the outside of the vehicle. When necessary, call the Lexus Link
Call Center at 1-800-25-LEXUS (1-800-255-3987) (toll-free) and
select the option for Lexus Link.
● In the case that you forget to lock the vehicle or you are locked out, the
Lexus Link Call Center can send a signal to lock or unlock the vehicle
remotely.
● In the case that you forget where you parked the vehicle, such as in a
large parking lot, the Lexus Link Call Center can send a signal to flash the
headlights and sound the horn to help you locate the vehicle.
When contacting the Lexus Link Call Center from the outside of the vehicle,
you need the Lexus Link PIN (Personal Identification Number). Write the PIN
down and carry it with you.
Other services
Press the
button in the vehicle or call the Lexus Link Call Center at 1800-25-LEXUS (1-800-255-3987) (toll-free), and then select the option
for Lexus Link. The services provided will depend on the service plan level.
260
3-6. Other interior features
Advisor record
■ Recording a conversation with an advisor
Press the
press the
button to record a conversation. To stop recording,
button again.
• Up to 2 minutes of recording time is available.
• Recording a new conversation deletes the previously recorded conversation.
■ Playing the recorded conversation
STEP 1 Press the
or
button.
STEP 2 Say “Advisor playback”.
Press the button again to stop the playback.
• Say “Resume” to resume the playback.
• Say “Play” to start from the beginning.
Personal calling
The hands-free personal calling feature can be added to the Lexus Link
System as an option. You can purchase a package of minutes that works
best for you. As you make and receive calls, minutes are deducted from
your plan. They are easily billed to a credit card that is kept on file so no
separate phone bill is needed.
Personal calling universal voice recognition commands:
• “Help” The system will provide a list of available commands.
• “Clear” When you are entering digits, this command will erase the last
digit entered.
• “Cancel” This command takes you from the current function to the “Lexus
Link ready” prompt. If the last response from the system was “Lexus Link
ready”, this command will exit voice mode.
261
3
Interior features
To restart the playback, press the
button, say “Advisor playback”
and then select either of the following methods.
3-6. Other interior features
Voice recognition error message:
• “Pardon” The system responds with this message if the system does not
recognize your voice command properly. Say the command slowly again.
After the third time this happens, the system will try to guess the command
you are requesting. If correct, say “Yes”. If not, say “No”, and the system will
prompt you with its next-best guess.
• “Slower please” The system responds with this message if you say a command before the system is ready to listen or if your voice command cannot
be recognized because of substantial background noise. Try to wait
slightly longer before speaking.
■ There are 5 ways to make a call.
Dialing a specific number
STEP 1 Press the
button. When the system responds with “Lexus
Link ready”, say “Dial”.
STEP 2 When the system responds with “Phone number to dial please”,
say the entire number you wish to dial without pausing.
STEP 3 The system will repeat the number and ask “Yes or No”.
STEP 4 Say “Yes” (or “No” to try again).
STEP 5 The system responds with “Dialing” (your call will then be connected).
Dialing digit-by-digit (“Digit Dial”)
“Digit Dial” enables you to dial a phone number by individual digit. This is
helpful when there is background noise and also improves voice recognition.
STEP 1
STEP 2
STEP 3
262
Press the
button. When the system responds with “Lexus
Link ready”, say “Digit dial”.
When the system responds with “Digit please”, say the first digit
of the number to be dialed and wait for it to be repeated back to
you.
Continue one digit at a time until all digits are entered.
3-6. Other interior features
STEP 4
When finished, say “Dial”. The system responds with “Dialing” and
your call is placed.
If you have problems storing a number using the continuous number
method, you can store numbers one digit at a time using “Digit Store”.
Simply follow the instructions above for “Digit Dial”, except say “Digit
Store” in STEP 1 and “Store” in STEP 4.
Dialing a phone number saved as a nametag
A nametag is a convenient way to store important or frequently called
phone numbers for easy access at any time. To do this, choose a frequently-called number to store, the example below uses your home telephone number.
● How to store a nametag
STEP 1
STEP 3
STEP 4
STEP 5
STEP 6
Press the
button. When the system responds with “Lexus
Link ready”, say “Store”.
When the system responds with “Phone number to store, please”,
say the entire number you wish to store with no pauses. The system will repeat the number and ask “Yes or No”.
Say “Yes” (or “No” to try again).
When the system responds with “Nametag, please”, say “home”.
When the system responds with “About to store home. Does that
sound OK?”, say “Yes” (or “No” to try again).
The system responds with “Storing home”.
-The system can store up to 20 nametags.
-Try to use multi-syllable nametags such as “my home”, and “the office”.
-Try to avoid similar-sounding nametags like “Tim” and “Kim”.
When using the “Dial” and “Store” commands, the system will recognize 7, 10, and 11-digit phone numbers. When dialing or storing a phone
number, you can say “zero” or “oh” for 0.
263
Interior features
STEP 2
3
3-6. Other interior features
● How to place a call using a stored nametag
Press the
button. When the system responds with “Lexus
Link ready”, say “Call”.
STEP 2 When the system responds with “Nametag, please”, say the
stored nametag.
STEP 3 The system responds with “Calling [nametag]”.
● How to hear a list of your stored nametags
STEP 1
Press the
button. When the system responds with “Lexus
Link ready”, say “Directory”.
STEP 2 The system will list your nametags.
Dialing the last number you called (“Redial”)
You can dial the last number you called by using the “Redial” feature.
STEP 1
Press the
button. When the system responds with “Lexus
Link ready”, say “Redial”.
STEP 2 The system will respond with “Redialing [#]”.
Dialing a number a Lexus Link Advisor downloaded to your vehicle
STEP 1 Press the
button. When the system responds with “Lexus
Link ready”, say “Number recall”.
STEP 2 The system will respond with “Connecting to number recall”.
■ Receiving a call
When someone calls you, you will hear a ring tone. Press the
button to answer the call.
STEP 1
If you do not answer within 30 seconds, the system will terminate the incoming call.
■ Ending a call
When your call is finished, press the
264
button to end the call.
3-6. Other interior features
■ Accessing voicemail and sending number tones to an automated
phone system
You can access a voicemail system and respond to a number request
from an automated phone system. When you receive the request for a
number while in a call, press the
button after saying the numbers
one at a time, say “Dial”.
If you do not say any commands within 5 seconds after pressing the button,
or if you press the button twice, the system cannot receive the number tones
you are trying to send. Press the button to try again.
265
3
Interior features
■ How to retrieve your phone number
STEP 1 Press the
button. When the system responds with “Lexus
Link ready”, say “My number”.
STEP 2 The system responds with “Your number is [#]”.
If the response is “Personal calling unavailable”, this means your personal
calling feature is not yet active, this may take a few days from vehicle
delivery. It could also mean that the personal calling service is not available in your area. Press the
button to check with an Advisor. Now
that you have your number, take a moment to practice by making your
first call to your home phone. Remember, the system recognizes numbers
better when you say them quickly.
3-6. Other interior features
■ Verifying remaining units (minutes)
To verify remaining minutes
STEP 1 Press the
button. When the system responds with “Lexus
Link ready”, say “Units”.
STEP 2 When the system responds with “Verify or add”, say “Verify”.
STEP 3 The system responds with “You have [#] units remaining”.
To add more calling units (minutes)
STEP 1 Press the
button. When the system responds with “Lexus
Link ready”, say “Units”.
STEP 2 When the system responds with “Verify or add”, say “Add”.
STEP 3 The system responds with “Connecting to the Personal Calling
Center”.
■ Security code/locking your system
The personal calling function can be locked using a 4-digit security code.
While the system is locked, it is only possible to communicate with the
Lexus Link Call Center.
To turn on/off the security
STEP 1
STEP 2
STEP 3
266
Press the
button. When the system responds with “Lexus
Link ready”, say “Security”.
When the system responds with “Enter first digit of code please”,
say your 4-digit code one digit at a time.
After the fourth digit, the system responds with “Security (code
####) is now on/off”.
3-6. Other interior features
■ Speech recognition information
The Lexus Link speech recognition systems use speech technology that is designed
to understand a wide range of speakers of American English. However, the technology may not work as well if a regional or ethnic accent is encountered. If the speech
recognition system does not work properly, refer to the following.
● The system does not recognize your command properly if noise is present. Per-
form the following to improve voice command recognition.
•
•
•
•
Turn down or off the air conditioning system.
Slow down to reduce wind noise.
Close the windows and the moon roof to block outside noise.
Have all occupants be quiet so that the system does not recognize their conversation as a command.
● When to speak
Say a command within 5 seconds after the system prompts you to speak.
• Speak forcefully and clearly.
• Speak calmly and naturally.
• The driver should speak while facing forward, and the passenger should
speak facing the inside rear view mirror.
• Avoid speaking with a rising intonation. Use a flat or falling intonation.
● Tips for one-word commands
• The system recognizes only one word at a time for personal calling. (There
are some exceptions, such as “Advanced services” and “My number”.)
• When inputting the security codes or voice-activated keypad number, you
must say them one digit at a time. When inputting a phone number, the
speech recognition system can recognize 7, 10, and 11-digit numbers as well
as the number 911.
267
Interior features
● How to speak
3
3-6. Other interior features
● Tips for entering a phone number using the “Dial” and “Store” commands
• You do not need to say “Dial”, “Store” or “Verify” after the phone number.
• If the phone number entered is not 7, 10, or 11 digits, use the “Dial” or “Store”
command.
• Do not pause between the digits.
• Speech recognition does not recognize the words “Hundred” or “Thousand”.
Instead, say each digit.
• Speech recognition often works better when the digits are combined
smoothly into a single phrase.
• If the system does not recognize your command properly, use the “Digit dial”
command to enter one digit at a time.
● If problems continue
• Say each one of the syllables in the word clearly.
• Be sure to articulate each sound in the word.
• If the system is confusing 2 commands that are similar, be sure to pronounce
the distinction.
• Avoid clipping short words and syllables.
• Try speaking louder to prevent background noise from drowning out your
voice.
● Audible voice prompts
Some of the voice guidance instructions can be changed to Spanish. Press the
button and ask a Lexus Link Advisor.
■ Information on Advanced services
See the Lexus Link area of the Lexus website at www.lexus.com/lexuslink/ or call
the Lexus Link Call Center at 1-800-25-LEXUS (1-800-255-3987)(toll free)
for more information.
■ Certification for the Lexus Link System
FCC ID: SCWTR-423-A2
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
268
3-6. Other interior features
■ Lexus Link transceiver antenna
● Before using an automatic car wash,
disconnect the antenna by unscrewing
it from the roof mount.
When you remove the antenna, make
sure the ignition is turned off.
● Use only the supplied or an approved antenna. Unauthorized antennas, modifi-
cations, or attachments could damage the Lexus Link System and may violate
FCC regulations.
3
CAUTION
Changes or modifications in construction not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
Radio Frequency Exposure. This device is approved for Mobile Application only
and, to comply with applicable FCC radio frequency exposure regulations, must be
used with a distance of at least 7.9 in. (20 cm) between the antenna and the body of
any person at all time during use.
■ Caution regarding interference with electronic devices
Persons using medical devices such as a pacemaker should not touch or come in
close contact with the antenna while the vehicle ignition is on. Otherwise, the cellular signals may cause a malfunction in the medical devices.
269
Interior features
■ FCC WARNING
3-6. Other interior features
NOTICE
■ To avoid damage to the system
● Do not touch the antenna unless necessary, as this may affect transceiver quality
and may cause the unit to operate at a higher power level than necessary.
● Make sure the antenna is removed before driving through an automatic car wash.
■ To ensure the Lexus Link System functions correctly
Be sure to reattach the Lexus Link transceiver antenna.
270
Maintenance and care
4
4-1. Maintenance and care ......... 272
4-2. Maintenance........................... 277
Cleaning and protecting the
vehicle exterior........................ 272
Maintenance
requirements............................. 277
Cleaning and protecting the
vehicle interior.......................... 274
General maintenance............. 279
Emission inspection and
maintenance (I/M)
programs ................................... 282
4-3. Do-it-yourself
maintenance......................... 283
Do-it-yourself service
precautions............................... 283
Hood .............................................. 286
Engine compartment .............. 287
Tires................................................. 302
Tire inflation pressure .............. 309
Wheels ........................................... 313
Air conditioning filter ............... 315
Wireless remote control
battery .......................................... 317
Rear seat entertainment
system controller..................... 319
Checking and replacing
fuses.............................................. 321
Light bulbs..................................... 331
271
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime condition.
● Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any dirt
and dust.
Wash the vehicle body using a sponge or soft cloth, such as a chamois.
● For hard-to-remove marks, use car wash soap and rinse thoroughly with water.
● Wipe away any water.
● If water no longer beads on clean paint, apply wax when the vehicle body is cool.
■ Automatic car washes
● Fold the mirrors back before washing the vehicle.
● Brushes used in automatic car washes may scratch the vehicle surface and
harm your vehicle’s paint.
■ High pressure automatic car washes
Do not allow the nozzles of the car wash to come within close proximity of the windows. Before entering an automatic car wash, check that the fuel filler door is
closed.
■ Aluminum wheels
Remove any dirt immediately by using a neutral detergent. Do not use hard brushes
or abrasive cleaners. Do not use strong or harsh chemical cleaners. Use the same
mild detergent and wax as used on the paint.
■ Bumpers and side moldings
Do not scrub with abrasive cleaners.
272
4-1. Maintenance and care
■ To prevent paint deterioration and corrosion on the body
● Wash the vehicle immediately in the following cases:
•
•
•
•
•
After driving near the sea coast
After driving on salted roads
If you see coal tar or tree sap on the paint surface
If you see dead insects or insect droppings on the paint
After driving in an area contaminated with soot, oily smoke, mine dust, iron
powder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
● If the paint is chipped or scratched, have it repaired immediately.
CAUTION
■ Caution about the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled sufficiently, as touching a hot exhaust pipe can cause burns.
■ To protect your vehicle’s painted surfaces
Do not use organic cleaners such as benzene or gasoline.
■ If the windshield washer nozzle becomes blocked
Contact your Lexus dealer. Do not try to clean it with a pin or other object, as this
may damage the nozzle.
■ Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
273
Maintenance and care
NOTICE
4
4-1. Maintenance and care
Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle's interior and keep
it in top condition:
■ Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces
with a cloth dampened with lukewarm water.
■ Cleaning the leather areas
● Remove dirt and dust using a vacuum cleaner.
● Wipe any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool detergent.
● Wring out any excess water from the cloth and thoroughly wipe
off all remaining traces of detergent.
● Wipe the surface with a dry, soft cloth to remove any remaining
moisture. Allow the leather to dry in shaded and ventilated area.
■ Synthetic leather areas
● Remove loose dirt using a vacuum cleaner.
● Apply a mild soap solution to the synthetic leather using a sponge
or soft cloth.
● Allow the solution to soak in for a few minutes. Remove the dirt
and wipe off the solution with a clean, damp cloth.
274
4-1. Maintenance and care
■ Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires. Use a cloth dampened with lukewarm water to
gently wipe the window clean. Wipe the window in strokes running parallel to the
heater wires.
■ Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to maintain the quality of the vehicle’s interior.
■ Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge or
brush to apply the foam. Rub in overlapping circles. Do not apply water. The excellent results are obtained by keeping the carpet as dry as possible.
■ Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also check the
belts periodically for excessive wear, fraying or cuts.
4
CAUTION
● Be careful not to splash or spill liquid on the floor.
● Do not get any of the SRS components or wiring in the vehicle interior wet.
(P. 56)
Electrical malfunction may cause the airbags to deploy or not function properly,
resulting in death or serious injury.
275
Maintenance and care
■ Water in the vehicle
4-1. Maintenance and care
NOTICE
■ Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehicle interior or cause streaks or damage to painted surfaces.
● Non-seat portions: Organic substances such as benzene or gasoline, alkaline or
acidic solutions, dye, or bleach.
● Seats: Acidic solutions, such as thinner, benzene, or alcohol.
■ Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
● Remove any dust or dirt on leather surfaces immediately.
● Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
● Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■ Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■ Cleaning the inside of the rear window
Be careful not to scratch or damage the heater wires or antenna.
276
4-2. Maintenance
Maintenance requirements
To ensure safe and economical driving, day-to-day care and regular maintenance is essential. It is the owner’s responsibility to perform regular
checks. Lexus recommends the following maintenance.
■ General maintenance
Should be performed on a daily basis. This can be done by yourself
or by a Lexus dealer.
■ Scheduled maintenance
Should be performed at specified intervals according to the maintenance schedule.
For details about maintenance items and schedules, refer to the “Warranty and Services Guide/Owner’s Manual Supplement/Scheduled
Maintenance”.
■ Do-it-yourself maintenance
You can perform some maintenance procedures yourself.
Please be aware that do-it-yourself maintenance may affect warranty coverage.
For details about warranty coverage, see the separate “Owner’s Guide”,
“Warranty and Services Guide”, “Owner’s Manual Supplement” or
“Warranty Booklet”.
■ Repair and replacement
It is recommended that genuine Lexus parts be used for repair to ensure performance of each system. If non-Lexus parts are used in replacement or if a repair
shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
277
Maintenance and care
The use of Lexus service and repair manuals is recommended.
4
4-2. Maintenance
■ Allow inspection and repairs to be performed by a Lexus dealer
● Lexus technicians are well-trained specialists and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
● Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus dealer will promptly take care of it.
CAUTION
■ Hazardous materials
● Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause cancer and birth defects and other reproductive harm. Work in a well ventilated area.
● Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
● Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after handling. (P. 299)
● Used engine oil contains chemicals that have been shown to cause cancer in lab-
oratory animals. Avoid prolonged and repeated contact. Always protect your
skin by washing thoroughly with soap and water.
278
4-2. Maintenance
General maintenance
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide/Owner’s
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.
Engine compartment
Items
Check points
Battery
• Maintenance-free (P. 299)
Brake fluid
• At the correct level?
(P. 296)
Engine coolant
• At the correct level?
(P. 294)
Engine oil
• At the correct level?
(P. 289)
Exhaust system
• No fumes or strange sounds?
Power steering fluid
• At the correct level?
Radiator/condenser/hoses
• Not blocked with foreign matter?
(P. 295)
Washer fluid
• At the correct level?
4
(P. 301)
279
Maintenance and care
(P. 297)
4-2. Maintenance
Vehicle interior
Items
280
Check points
Accelerator pedal
• Moves smoothly (without uneven
pedal effort or catching)?
Automatic transmission “Park”
mechanism
• Can the vehicle be held securely on an
incline with the shift lever in “P”?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance
and correct amount of free play?
Brakes
• Pulls to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints
• Move smoothly and lock securely?
Indicators/buzzers
• Function properly?
Lights
• Do all the lights come on?
Parking brake
• Moves smoothly?
• Can hold the vehicle securely on an
incline?
Seat belts
• Does the seat belt system operate
smoothly?
• Are the belts undamaged?
Seats
• Do the seat controls operate properly?
Steering wheel
• Moves smoothly?
• Has correct free play?
• No strange noises?
4-2. Maintenance
Vehicle exterior
Items
Check points
Doors
• Operate smoothly?
Engine hood
• The lock system works properly?
Fluid leaks
• Is there any leakage after parking?
Tire
• Inflation pressure is correct?
• Tire surfaces not worn or damaged?
• Tires rotated according to the
maintenance schedule?
• Wheel nuts are not loose?
CAUTION
4
■ If the engine is running
281
Maintenance and care
Turn off the engine and ensure that there is adequate ventilation before performing
maintenance checks.
4-2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the operation of the emission control system.
■ If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Contact your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test:
● When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary malfunction and your vehicle may not pass the I/M test.
■ When the malfunction indicator lamp goes off after several driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prepare the vehicle for re-testing.
282
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct procedure given in these sections.
Items
Battery condition
Brake fluid level
(P. 299)
• Warm water
• Baking soda
• Grease
• Conventional wrench
(for terminal clamp bolts)
(P. 296)
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
• Rag or paper towel
• Funnel (used only for adding brake
fluid)
(P. 294)
• “Toyota Super Long Life Coolant”
or similar high quality ethylene glycol based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding coolant)
283
4
Maintenance and care
Engine coolant level
Parts and tools
4-3. Do-it-yourself maintenance
Items
Parts and tools
Engine oil level
(P. 289)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses
(P. 321)
• Fuse with same amperage rating as
original
• Automatic transmission fluid
DEXRON® II or III
Power steering fluid level (P. 297)
• Rag or paper towel
• Clean funnel
Radiator and condenser (P. 295)
Tire inflation pressure
Washer fluid
284

(P. 309)
• Tire pressure gauge
• Compressed air source
(P. 301)
• Water washer fluid containing antifreeze (for winter use)
• Funnel
4-3. Do-it-yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may move suddenly, become hot, or become electrically energized. To avoid death or serious injury.
■ When working on the engine compartment
● Keep hands, clothing, and tools away from the moving fan and engine drive belt.
● Be careful not to touch the engine, inverter, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
■ When working near the electric cooling fan or radiator grille
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.
NOTICE
■ If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.
285
4
Maintenance and care
Be sure the ignition switch is in “LOCK”.
With the ignition switch is in the “ACC” or “ON” position, the electric cooling fan
may automatically start to run if the air conditioning is on and/or the coolant temperature is high. (P. 295)
4-3. Do-it-yourself maintenance
Hood
Release the lock from the inside of the vehicle to open the hood.
STEP 1
Pull the hood lock release lever.
The hood will pop up slightly.
STEP 2
Lift the hood catch and lift the
hood.
CAUTION
■ Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
286
4-3. Do-it-yourself maintenance
Engine compartment
4
Condenser
(P. 295)
Electric cooling fan
Engine coolant reservoir
(P. 294)
Radiator
(P. 295)
Washer fluid tank (P. 301)
Power steering fluid reservoir
(P. 297)
Maintenance and care
Engine oil level dipstick
(P. 289)
Engine oil filler cap
(P. 290)
Brake fluid reservoir
(P. 296)
Fuse box
(P. 321)
Battery
(P. 299)
287
4-3. Do-it-yourself maintenance
Engine compartment cover
■ Removing the covers
■ Installing the clips
Push up center portion
Insert
Press
288
4-3. Do-it-yourself maintenance
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
STEP 1 Park the vehicle on level ground. After turning off the engine wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
STEP 2
the dipstick out.
4
STEP 3
STEP 5
STEP 6
289
Maintenance and care
STEP 4
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Wipe the dipstick and reinsert it fully.
Low
Full
4-3. Do-it-yourself maintenance
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Oil grade
Oil quantity
(Low  Full)
Items
STEP 1
STEP 2
STEP 3
290
ILSAC multigrade engine oil
1.6 qt. (1.5 L, 1.3 Imp. qt.)
Clean funnel
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise until you hear a click.
4-3. Do-it-yourself maintenance
■ Recommended viscosity
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
Outside temperature
*: If SAE 5W-30 is not available,
SAE 10W-30 may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
■ How to read oil container labels
Some oil containers are labeled with ILSAC certification marks that
help you to select the proper oil.
4
Maintenance and care
291
4-3. Do-it-yourself maintenance
■ Engine oil consumption
● The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
● More oil is consumed under driving conditions such as high speeds and fre-
quent acceleration and deceleration.
● A new engine consumes more oil.
● When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
● Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per 1000
km). If the vehicle consumes more than this amount, contact your Lexus dealer.
■ Resetting the engine oil maintenance data (U.S.A. only)
Perform the following steps:
STEP 1 Switch the display to the odometer. (P. 103)
STEP 2 Turn the ignition switch to the “LOCK” position.
STEP 3 Turn the ignition switch to the “ON” position with the trip meter reset but-
ton held down.
STEP 4 Keep pressing the knob until the “MAINT REQD” light goes off.
If the light continues flashing, return to STEP 1 and try again.
292
4-3. Do-it-yourself maintenance
CAUTION
■ Used engine oil
● Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation or skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
● Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information concerning recycling or disposal.
● Do not leave used engine oil within the reach of children.
NOTICE
■ To prevent serious engine damage
Check the oil level on regular basis.
4
■ When replacing the engine oil
Maintenance and care
● Be careful not to spill engine oil on the vehicle components.
● Avoid overfilling, or the engine could be damaged.
● Check the oil level on the dipstick every time you refill the vehicle.
● Be sure the engine oil filler cap is properly retightened.
293
4-3. Do-it-yourself maintenance
Engine coolant
The coolant level is satisfactory if it is between the “F” and “L” lines on the
reservoir when the engine is cold.
Reservoir cap
Full
Low
If the level is on or below the “L”
line, add coolant up to the “F” line.
■ If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock and water
pump.
If you cannot find a leak, have your Lexus dealer pressure test the cap and check for
leaks in the cooling system.
■ Coolant selection
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50%
deionized water. (Enabled: -31F [-35C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45%
deionized water. (Enabled: -44F [-42C])
For more details about engine coolant, contact your Lexus dealer.
294
4-3. Do-it-yourself maintenance
CAUTION
■ When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing burns or other injuries.
NOTICE
■ When adding the coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it damage to parts or paint.
4
Radiator and condenser
CAUTION
■ The radiator and condenser may be hot after driving
To prevent burns, do not touch the radiator or condenser after driving.
295
Maintenance and care
Check the radiator and condenser and clear any foreign objects.
If either of the above parts are extremely dirty or you are not sure of their
condition, have your vehicle checked by your Lexus dealer.
4-3. Do-it-yourself maintenance
Brake fluid
■ Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
lines on the tank.
Make sure to check the fluid type and prepare the necessary items.
■ Adding fluid
Fluid type
Items
FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Clean funnel
■ Brake fluid can absorb moisture from the air
Excess moisture in the fluid can cause a dangerous loss of braking efficiency. Use
only newly opened brake fluid.
CAUTION
■ When filling the reservoir
Take care because brake fluid can harm your hands or eyes and damage painted
surfaces.
If fluid gets in your eyes, flush your eyes with clean water immediately.
If you still experience discomfort, see a doctor.
296
4-3. Do-it-yourself maintenance
NOTICE
■ If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads wear or
when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
Power steering fluid
■ Fluid level
The fluid level should be within the appropriate range.
Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
4
Cold: The engine has not been run for about 5 hours. (Room temperature, 50F - 85F [10C - 30C]).
297
Maintenance and care
Hot: The vehicles has been driven around 50 mph (80 km/h) for 20
minutes, or slightly longer in frigid temperatures. (Fluid temperature,
140F - 175F [60C - 80C]).
4-3. Do-it-yourself maintenance
■ Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Fluid type
Automatic transmission fluid DEXRON® II or III
Items
Rag or paper, clean funnel (only for adding fluid)
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall and remove the reservoir cap again.
Check the fluid level.
CAUTION
■ When checking the reservoir
Take care, as the reservoir may be hot.
NOTICE
■ When adding fluid
Avoid overfilling, or the power steering may be damaged.
■ After replacing the reservoir cap
Check the steering box case, vane pump and hose connections for leaks or damage.
298
4-3. Do-it-yourself maintenance
Battery
■ Exterior
Make sure that the battery terminals are not corroded and that there
are no loose connections, cracks, or loose clamps.
Terminals
Hold-down clamp
■ Checking condition
Check the battery condition by the indicator color.
4
Blue: Good.
Red: Not working properly, have
the battery checked by your
Lexus dealer.
■ Before recharging
When recharging, the battery produces hydrogen gas which is flammable and
explosive. Therefore, before recharging:
● If recharging with the battery installed on the vehicle, be sure to disconnect the
ground cable.
● Make sure the power switch on the charger is off when connecting and discon-
necting the charger cables to the battery.
299
Maintenance and care
White: Charging is necessary.
Have the vehicle inspected
by your Lexus dealer.
4-3. Do-it-yourself maintenance
CAUTION
■ Chemicals in the battery
A battery contains poisonous and corrosive sulfuric acid and may produce hydrogen gas which is flammable and explosive. To reduce the risk of death or serious
injury, take the following precautions while working on or near battery:
● Do not cause sparks by touching the battery terminals with tools.
● Do not smoke or light a match near the battery.
● Avoid contact with eyes, skin and clothes.
● Never inhale or swallow electrolyte.
● Wear protective safety glasses when working near the battery.
● Keep children away from the battery.
■ Where to safely charge the battery
Always charge the battery in an open area. Do not charge the battery in a garage or
closed room where there is not sufficient ventilation.
■ How to recharge the battery
Only perform a slow charge (5A or less). The battery may explode if charged at a
quicker rate.
■ Emergency measures regarding electrolyte
● If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and seek immediate medical attention. If possible, continue to apply water with a sponge or cloth while
traveling to the nearest medical facility.
● If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or a burning sensation, seek
medical attention immediately.
● If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the clothing and
follow the procedure above if necessary.
● If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Follow with milk of magnesia, beaten raw
egg or vegetable oil. Seek emergency medical attention immediately.
300
4-3. Do-it-yourself maintenance
NOTICE
■ When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all accessories are turned off.
Washer fluid
If a washer does not work, the
washer tank may be empty. Add
washer fluid.
4
Maintenance and care
NOTICE
■ Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■ Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.
301
4-3. Do-it-yourself maintenance
Tires
Replace or rotate tires in accordance with maintenance schedules and
tread wear.
■ Checking tires
New tread
Tread wear indicator
Worn tread
The location of tread wear indicators is shown by the “TWI” or
“” marks, etc., molded on the
sidewall of each tire.
Check spare tire condition and
inflation pressure if not rotated.
■ Tire rotation
Rotate the tires in the order
shown.
Front
Lexus recommends tire rotation
in accordance with the maintenance schedule to equalize tire
wear and extend tire life.
■ The tire pressure warning system
Your Lexus is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire inflation pressure before serious problems arise. (P. 351)
302
4-3. Do-it-yourself maintenance
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and transmitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
sensor ID codes must be registered in the tire pressure warning ECU.
Registering and selecting ID codes
■ Registering ID codes
2 sets of tire pressure warning valve and transmitter ID codes can be
registered. Once a second set of tires (winter tires etc.) is registered at
“2nd”, you can switch between tire set settings simply by pressing the
tire pressure warning select switch.
There are 2 settings:
“MAIN” position: The ID code of the tire pressure warning valve and
transmitter on the tires originally installed on the vehicle is registered.
4
“2nd” position: The code is not registered. When you replace a new set
of tires, purchase tire pressure warning valves and transmitters from
your Lexus dealer and have the new ID code registered by your Lexus
dealer.
Maintenance and care
303
4-3. Do-it-yourself maintenance
■ Selecting ID codes
When replacing tires, make sure to select the ID code set that matches
the new tire set. If the incorrect ID code is selected, the tire pressure
warning system will not operate properly. After a certain period of
time, the tire pressure warning light comes on after blinking for 1
minute to indicate a system malfunction.
“MAIN”
“2nd”
■ When to replace your vehicle’s tires
Tires should be replaced if:
● You have tire damage such as cuts, splits, cracks deep enough to expose the
fabric or bulges indicating internal damage
● A tire goes flat repeatedly or cannot be properly repaired due to the size or
location of a cut or other damage
If you are not sure, consult with your Lexus dealer.
■ Replacing tires and wheels
If the ID code is not registered, the system will not work properly. After about 1 hour,
the tire pressure warning light comes on after blinking for 1 minute to indicate a system malfunction.
■ Tire life
Any tire over 6 years old must be checked by a qualified technician even if they
have seldom or never been used or damage is not obvious.
■ If the tread wears down below 0.16 in. (4 mm) on snow tires
The effectiveness of snow tires is lost.
304
4-3. Do-it-yourself maintenance
■ Maximum load of tire
Check that the maximum load of the replaced tire is greater than 1/2 of the Gross
Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever is
greater.
As for the maximum load of the tire, see the load limit at maximum cold tire inflation
pressure mentioned on the sidewall of the tire, and as for the Gross Axle Weight
Ratings (GAWR), see the Certification Label. (P. 309, 390).
■ Tire types
1 Summer tires
Summer tires are high-speed performance tires best suited to highway driving
under dry conditions. Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow-covered
or icy roads. For driving on snow-covered roads or icy roads, the use of snow tires
is recommended. When installing snow tires, be sure to replace all four tires.
2 All season tires
3 Snow tires
For driving on snow-covered roads or icy roads, we recommend using snow tires.
If you need snow tires, select tires of the same size, construction and load capacity as the originally installed tires. Since your vehicle has radial tires as original
equipment, make sure your snow tires also have radial construction. Do not install
studded tires without first checking local regulations for possible restriction.
Snow tires should be installed on all wheels. (P. 146)
305
4
Maintenance and care
All season tires are designed to provide better traction in snow and to be adequate for driving in most winter conditions, as well as for use year round. All season tires, however, do not have adequate traction performance compared with
snow tires in heavy or loose snow. Also, all season tires fall short in acceleration
and handling performance compared with summer tires in highway driving.
4-3. Do-it-yourself maintenance
■ If you push the tire pressure reset switch accidentally
If initialization is performed, adjust the tire inflation pressure to the specified level
and initialize the system again.
■ Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
■ If the tire pressure select switch is set to the wrong tire setting
The system will not work properly. After about 1 hour, the tire pressure warning light
comes on after blinking for 1 minute to indicate a system malfunction.
306
4-3. Do-it-yourself maintenance
■ Tire pressure warning system certification
For vehicles sold in the U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
307
Maintenance and care
● Increase the separation between the equipment and receiver.
4
4-3. Do-it-yourself maintenance
CAUTION
■ When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause
damage to parts of the drive train, as well as dangerous handling characteristics,
which may lead to fatal or injury accidents.
● Do not mix tires of different makes, models, tread patterns or tread wear.
● Do not use tire sizes other than those recommended by Lexus.
● Do not mix radial, bias-belted, or bias-ply tires.
● Do not mix summer, all season and winter tires.
NOTICE
■ Repairing or replacing tires, wheels and tire pressure warning valves and trans-
mitters
● When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and
transmitter may be damaged if not handled correctly.
● When replacing tires, make sure also to replace the tire pressure warning valve
and transmitter grommets.
■ Do not use puncture sealant sprays to repair flats
Puncture sealant sprays may damage tire pressure warning valves and transmitters.
■ Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the cushioning ability of the tires. In addition driving on rough roads may cause damage to the
tires themselves, as well as the vehicle’s wheels and body.
■ If tire inflation pressures become low while driving
Do not continue driving, or your tires and/or wheels may be ruined.
308
4-3. Do-it-yourself maintenance
Tire inflation pressure
■ Tire inflation pressure
The recommended cold tire inflation pressure and tire size is displayed on the tire and loading information label. (P. 385)
4
Maintenance and care
309
4-3. Do-it-yourself maintenance
■ Inspection and adjustment procedure
Tire valve
Tire pressure gauge
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the graduations of the gauge.
If the tire inflation pressure is not within the recommended levels, adjust tire pressure.
If you add too much air, press the center of the valve to lower.
After completing the tire inflation pressure measurement and
adjustment, apply soapy water to the valve and check for leakage.
Reinstall the tire valve cap.
.
■ Tire inflation pressure check interval
You should check tire inflation pressure every 2 weeks, or at least once a month.
Do not forget to check the spare.
310
4-3. Do-it-yourself maintenance
■ Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
● Reduced fuel efficiency
● Reduced driving comfort and tire life
● Reduced safety
● Damage to the drive train
If a tire needs frequent refilling, have it checked by your Lexus dealer.
■ Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
● Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours and has not been driven for
more than 1 mile or 1.5 km, you will get an accurate cold tire inflation pressure
reading.
● Always use a tire pressure gauge.
The appearance of the tire can be misleading. In addition, tire inflation pressures
that are even just a few pounds off can degrade ride and handling.
4
● Do not bleed or reduce tire inflation pressure after driving. It is normal for the
● Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle is balanced.
311
Maintenance and care
tire inflation pressure to be higher after driving.
4-3. Do-it-yourself maintenance
CAUTION
■ Proper inflation is critical to save tire performance
Keep your tires properly inflated. Otherwise, the following conditions may occur
and result in an accident causing death or serious injury.
● Excessive wear
● Uneven wear
● Poor handling
● Possibility of blowouts resulting from overheated tires
● Poor sealing of the tire bead
● Wheel deformation and/or tire separation
● A greater possibility of tire damage from road hazards
NOTICE
■ When inspecting and adjusting tire inflation pressure
Be sure to reinstall the tire valve caps.
Without the valve caps, dirt or moisture could get into the valve and cause air leakage, which could result in an accident. If the caps have been lost, replace them as
soon as possible.
312
4-3. Do-it-yourself maintenance
Wheels
If a wheel is bent, cracked or heavily corroded, it should be replaced.
Otherwise, the tire may separate from the wheel or cause loss of handling
control.
■ Wheel selection
When replacing wheels, care should be taken to ensure that they
are equivalent to those removed in load capacity, diameter, rim
width, and offset.
Replacement wheels are available at your Lexus dealer.
Lexus does not recommend using:
• Wheels of different sizes or types
• Used wheels
• Bent wheels that have been straightened
• Lexus wheels with after market chrome plating
■ Aluminum wheel precautions
● Use only Lexus wheel nuts and wrenches designed for use with
your aluminum wheels.
4
Maintenance and care
● When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
● Be careful not to damage the aluminum wheels when using tire
chains.
● Use only Lexus genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.
■ When replacing wheels
The wheels of your Lexus are equipped with tire pressure warning valves and transmitters that allow the tire pressure warning system to provide advanced warning in
the event of a loss in tire inflation pressure. Whenever wheels are replaced, the tire
pressure warning valves and transmitters must be switched over from the old
wheels. (P. 303)
313
4-3. Do-it-yourself maintenance
CAUTION
■ When replacing wheels
● Do not use wheels that are a different size from those recommended in the
Owner’s Manual, as this may result in loss of handling control.
● Never use an inner tube in a leaking wheel which is designed for a tubeless tire.
Doing so may result in an accident, causing death or serious injury.
NOTICE
■ Replacing tire pressure warning valves and transmitters
● Because tire repair or replacement may affect the tire pressure warning valves
and transmitters, make sure to have tires serviced by your Lexus dealer. In addition, make sure to purchase your tire pressure warning valves and transmitters at
your Lexus dealer.
● Ensure that only genuine Lexus wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly with nongenuine wheels.
314
4-3. Do-it-yourself maintenance
Air conditioning filter
The air conditioning filter must be changed regularly to maintain air conditioning efficiency.
STEP 1
STEP 2
STEP 3
Turn the ignition switch to the “LOCK” position.
Open the glove box and
unhook the clip.
Push in each side of the glove
box to disconnect the claws.
4
Maintenance and care
STEP 4
Remove the filter case.
315
4-3. Do-it-yourself maintenance
STEP 5
Remove the air conditioning filter from the filter case and
replace it with a new one.
The “UP” marks shown on the
filter and the filter case should
be pointing up.
■ Changing interval
Inspect and replace the air conditioning filter according to the maintenance schedule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, refer to the “Warranty and Services Guide/Owner's Manual Supplement/Scheduled Maintenance”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
■ When using the air conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the system.
316
4-3. Do-it-yourself maintenance
Wireless remote control battery
Replace the battery with a new one if it is discharged.
■ You will need the following items:
● Small Phillips-head screwdriver
● Lithium battery (CR1616)
■ Replacing the battery
STEP 1
Remove the screw and cover.
Push the cover in the arrow
direction.
Remove the module.
STEP 3
Remove the 2 screws to take
out the lid.
4
Maintenance and care
STEP 2
Insert a new battery with the “+”
terminal facing up.
317
4-3. Do-it-yourself maintenance
■ If the battery is discharged
The following symptoms may occur.
● The wireless remote control will not function properly.
● The operational range is reduced.
■ Use a CR1616 lithium battery
● Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
● Replace only with the same or equivalent type recommended by a Lexus dealer.
● Dispose of used batteries according to the local laws.
CAUTION
■ Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the electronic key.
● Do not bend the battery terminals.
318
4-3. Do-it-yourself maintenance
Rear seat entertainment system controller
Replace the batteries if they are discharged.
■ Necessary items
3 AA batteries
■ Replacing the battery
STEP 1
Remove the cover.
STEP 2
Remove the depleted batteries
and install the new batteries.
4
Maintenance and care
■ If the batteries are discharged
The following symptoms may occur.
● The rear seat entertainment system control will not function properly.
● The operational range is reduced.
■ Use 3 AA batteries
● Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
● Replace only with the same or equivalent type recommended by a Lexus dealer.
● Dispose of used batteries according to the local laws.
319
4-3. Do-it-yourself maintenance
CAUTION
■ Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
■ For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
● Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other components inside the remote control.
● Do not bend the battery terminals.
320
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the ignition switch to the “LOCK” position.
STEP 2 Open the fuse box cover.
Engine compartment
Push the tabs in and lift the lid
off.
STEP 1
Driver's side instrument panel
4
Remove the lid.
Maintenance and care
321
4-3. Do-it-yourself maintenance
STEP 3
STEP 4
After a system failure, see “Fuse layout and amperage ratings”
(P. 323) for details about which fuse to check.
Remove the fuse with the pullout tool.
Check if the fuse has blown.
Type A
STEP 5
Normal fuse
Blown fuse
Replace it with one of an appropriate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type B
Normal fuse
Blown fuse
Replace it with one of an appropriate amperage rating. The
amperage rating can be found
on the fuse box lid.
322
4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings
■ Engine compartment
Fuse
Ampere
Circuit
4
ALT
140
2
HEATER
50
Air conditioning system
3
AIR SUS
50
Rear height control air suspension
4
AM1
50
ACC, CIG, IG1, FR WIP-WSH, RR
WIP, RR WSH, DIFF, ECU-IG,
TEMS, STA
5
TOWING BRK
30
Trailer brake controller
6
J/B
50
P FR P/W, P RR P/W, D RR P/W, D
P/SEAT, P P/SEAT, TAIL, PANEL,
POWER OR TI&TE
7
BATT CHG
30
Trailer sub battery
323
Maintenance and care
1
Charging system, AM1, HEATER,
CDS FAN, FR FOG, DEFOG, AIR
SUS, AC INV, SEAT HEATER, OBD,
STOP, J/B, RR AC, MIR HEATER,
BATT CHG, TOWING BRK, TOWING
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
8
TOWING
40
Trailer lights
9
CDS FAN
20
Electric cooling fan
10
RR A/C
30
Rear air conditioning system
11
MIR HEATER
10
Outside rear view mirror defogger
12
STOP
10
Stop lights, high mounted stoplight,
shift lock control system, vehicle stability control system, electronic modulated suspension, rear height control
air suspension, multiport fuel injection system/sequential multiport fuel
injection system
13
AC INV
15
Power outlet (115V AC)
14
FR FOG
15
Front fog lights
15
OBD
7.5
On-board diagnosis system
16
HEAD (LO RH)
10
Right hand headlight (low beam)
17
HEAD (LO LH)
10
Left hand headlight (low beam)
18
HEAD (HI RH)
10
Right hand headlight (high beam)
19
HEAD (HI LH)
10
Left hand headlight (high beam)
20
EFI NO.2
10
Multiport fuel injection system/
sequential multiport fuel injection
system
21
HEATER No.2
7.5
Air conditioning system
22
DEFOG
30
Rear window defogger
23
AIRSUS NO.2
10
Rear height control air suspension
24
SEAT HEATER
20
Seat heaters
324
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
25
DOME
10
Ignition switch light, interior lights,
personal lights, foot lights, running
board lights, door courtesy lights,
inside door handle lights, trip information display
26
RADIO NO.1
20
Audio system, navigation system
27
ECU-B
10
Multiplex communication system,
vehicle stability control system, wireless remote control system, inside
rear view mirror, air conditioning system, electronic modulated suspension, driving position memory system,
power windows, moon roof, rear view
monitor system
28
ECU-B NO.2
10
Theft deterrent system
ABS MTR
40
30
AM2
30
Starting system, IGN, SRS, GAUGE,
ST2
31
ABS SOL
30
Anti-lock brake system, vehicle stability control system, active traction
control system, brake assist system
32
ALT-S
7.5
Charging system
33
MAYDAY
7.5
Lexus Link System
34
HORN
10
Horns
325
Maintenance and care
29
Anti-lock brake system, vehicle stability control system, active traction
control system, brake assist system
4
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
35
A/F HEATER
15
A/F sensor
36
TRN-HAZ
15
Turn signal lights
37
ETCS
10
Electronic throttle control system
38
EFI
20
Multiport fuel injection system/
sequential multiport fuel injection
system
39
D FR P/W
20
Power window
40
DR/LCK
25
Power door lock
41
TOWING
30
Towing converter
42
RADIO NO.2
30
Audio system, navigation system
43
A/PUMP
50
Multiport fuel injection system/
sequential multiport fuel injection
system
326
4-3. Do-it-yourself maintenance
■ Driver’s side instrument panel
Fuse
Ampere
Circuit
IGN
10
2
SRS
10
SRS airbag system, front passenger
occupant classification system
3
GAUGE
7.5
Gauges and meters
4
ST2
7.5
Multiport fuel injection system/
sequential multiport fuel injection
system
5
FR WIP-WSH
30
Windshield wipers, windshield
washer
6
TEMS
20
Electronic modulated suspension
7
DIFF
20
Four-wheel drive system
8
RR WIP
15
Rear window wiper
9
D P/SEAT
30
Driver's power seat
10
P P/SEAT
30
Front passenger's power seat
11
PWR OUTLLET
15
Power outlet (12V DC)
4
Maintenance and care
1
Multiport fuel injection system/
sequential multiport fuel injection
system, vehicle stability control system
327
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
12
IG1 NO.2
10
Rear air conditioning system, inside
rear view mirror, kinetic dynamic suspension system
13
RR WSH
15
Rear window washer
10
Shift lock control system, power windows, outside rear view mirror defogger, anti-lock brake system, active
traction control system, vehicle stability control system, air conditioning
system, navigation system, power
windows, moon roof, tilt and telescopic steering, trip information display, driving position memory system,
rear view monitor system, tire pressure warning system
10
Air conditioning system, back-up
lights, rear window defogger, seat
heaters, vehicle stability control system
14
15
ECU-IG
IG1
16
STA
7.5
Multiport fuel injection system/
sequential multiport fuel injection
system
17
P FR P/W
20
Front passenger's power window
18
P RR P/W
20
Rear right side power window
19
D RR P/W
20
Rear left side power window
20
PANEL
10
Instrument panel lights
21
TAIL
10
Parking lights, tail lights, license plate
lights, front fog lights
328
4-3. Do-it-yourself maintenance
Fuse
Ampere
Circuit
22
ACC
7.5
Shift lock control system, power outlet, outside rear view mirror, audio
system, navigation system, power
rear view mirrors, trip information
display, rear view monitor system
23
CIG
10
Cigarette lighter
24
POWER OR
TI&TE
30
Power windows, moon roof, tilt and
telescopic steering
■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 331)
● If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
Maintenance and care
■ If there is an overload in the circuits
4
The fuses are designed to blow before the entire wiring harness is damaged.
329
4-3. Do-it-yourself maintenance
CAUTION
■ To prevent system breakdowns and vehicle fire
● Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
● Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
● Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
● Do not modify fuses or the fuse box.
NOTICE
■ Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
330
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. (P. 386)
■ Remove the engine compartment cover if necessary.
P. 288
■ Front bulb locations
Head light low beam
4
Maintenance and care
Headlight high beam
■ Rear bulb locations
Rear turn signal light
License plate lights
Stop/tail lights
331
4-3. Do-it-yourself maintenance
Replacing light bulbs
■ Headlight low and high beam
STEP 1
Unplug the connector while pushing the lock release.
STEP 2
Turn the bulb base counterclockwise to remove it.
■ Rear turn signal, stop/tail lights
STEP 1
332
Open the back door and remove
the screws.
4-3. Do-it-yourself maintenance
STEP 2
Turn the bulb base counterclockwise.
Turn signal light
Stop/tail lights
STEP 3
Remove the light bulb.
4
■ License plate light
Remove while pressing from the
side.
STEP 2
Turn the bulb base counterclockwise.
333
Maintenance and care
STEP 1
4-3. Do-it-yourself maintenance
STEP 3
Remove the light bulbs.
■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
● Fog lights
● Parking lights
● Front turn signal lights
● Front side marker lights
● High mounted stoplight
● Back-up lights
■ Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The high mounted stoplights consist of a number of LEDs. If any LEDs burn out,
take your vehicle to your Lexus dealer to have the light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to local
laws (SAE).
334
4-3. Do-it-yourself maintenance
CAUTION
■ Replacing light bulbs
● Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
● Do not attempt to repair or disassemble light bulbs, connectors, electric circuits
or component parts.
Doing so may result in serious injury due to electric shock.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.
4
Maintenance and care
335
4-3. Do-it-yourself maintenance
336
When trouble arises
5
5-1. Essential information............ 338
If your vehicle needs to be
towed .......................................... 338
If you think something is
wrong.......................................... 343
Fuel pump shut off system ..... 344
Event data recorder................. 345
5-2. Steps to take in an
emergency............................ 347
If a warning light turns on or a
warning buzzer sounds... .... 347
If you have a flat tire.................. 356
If the engine will not start ....... 367
If the shift lever cannot be
shifted from P........................... 368
If you lose your keys................. 369
If the vehicle battery is
discharged ................................ 370
If your vehicle overheats ........ 373
If the vehicle becomes
stuck ............................................ 375
337
5-1. Essential information
If your vehicle needs to be towed
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing service, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
The wheels and axle on the ground must be in good condition.
If they are damaged, use a towing dolly or flat bed truck.
Before towing
The following may indicate a problem with your transmission. Contact
your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be temporarily towed using a cable or chain secured to the emergency towing
eyelet. This should only attempted on hard, surfaced roads for short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehicle’s wheels, drive train, axles, steering and brakes must be in good condition.
338
5-1. Essential information
Towing eyelets
■ Emergency towing procedure
STEP 1 Release the parking brake.
STEP 2 Put the shift lever in “N”.
STEP 3 The ignition switch must be in the “ACC” position (engine off) or the “ON”
position (engine on).
CAUTION
■ Caution while towing
5
● Use extreme caution when towing the vehicle.
● If the engine is not running, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
● Put the vehicle height in the “N” (normal) mode and push the height control
“OFF” switch to turn off rear height control air suspension. Otherwise the automatic leveling function may adjust the vehicle height unexpectedly, resulting in an
accident.
NOTICE
■ To prevent causing serious damage to the transmission
Never tow this vehicle from the rear with four wheels on the ground.
339
When trouble arises
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain.
5-1. Essential information
Towing with a sling-type truck
NOTICE
■ To prevent body damage
Do not tow with a sling type truck, either from the front or rear.
Towing with a wheel lift-type truck
From front
Use a towing dolly under the rear
wheels.
NOTICE
■ To prevent causing serious damage to the transmission
Never tow this vehicle from the front with the rear wheels on the ground.
340
5-1. Essential information
From rear
Use a towing dolly under the front
wheels.
NOTICE
■ To prevent damaging the vehicle
● Do not tow the vehicle with the ignition switch in the “LOCK” position.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
● When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle
could be damaged while being towed.
5
When trouble arises
341
5-1. Essential information
Using a flat bed truck
Front
If your Lexus is transported by flat
bed truck, it should be tied down at
the locations shown in the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie downs
or the vehicle may be damaged.
342
5-1. Essential information
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■ Visible symptoms
● Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points
higher than normal
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
● Engine missing, stumbling or running rough
● Appreciable loss of power
5
● Vehicle pulls heavily to one side when braking
● Loss of brake effectiveness, spongy feeling, pedal almost touches
the floor
343
When trouble arises
● Vehicle pulls heavily to one side when driving on a level road
5-1. Essential information
Fuel pump shut off system
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
■ Follow the procedure below to restart the engine after the system is activated.
STEP 1 Turn the ignition switch to the “ACC” or “LOCK” position.
STEP 2 Restart the engine.
NOTICE
■ Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
344
5-1. Essential information
Event data recorder
Your vehicle has computers that monitor and control certain aspects of
your vehicle. These computers assist in driving and maintaining optimal
vehicle performance.
Besides storing data useful for troubleshooting, there is a system to record
data in a crash or a near car crash event. This is called an Event Data
Recorder (EDR).
In a crash or a near car crash event
The EDR may record some or all of the following information.
● Engine speed
● Whether the brake pedal was applied or not
● Vehicle speed
● To what extent the accelerator pedal was depressed
● Position of the transmission shift lever
● Whether the driver and front passenger wore seat belts or not
5
● Driver's seat position
● SRS airbag deployment data
● SRS airbag system diagnostic data
Your Lexus’ Electronic Control Unit (ECU) may contain another EDR.
There are a variety of driving situations which include activating the vehicle stability control (VSC) under which the VSC EDR will record certain
information. The VSC EDR may record some or all of the following information:
● Behavior of the vehicle
● Steering wheel angle
345
When trouble arises
● Front passenger's occupant classification
5-1. Essential information
● Vehicle speed
● To what extent the accelerator pedal was depressed
● To what extent the brake pedal was applied
● To what extent the ECU controlled the condition of the 4 wheels
● Vehicle stability control system diagnostic data
The information above is intended to be used for the purpose of improving vehicle safety performance. Unlike general data recorders, the EDR
does not record sound data such as conversation between passengers.
Disclosure of the data
Lexus will not disclose the data recorded in an EDR to a third party
except when:
● An agreement from the vehicle's owner (or the leasing company for a
leased vehicle) is obtained
● Officially requested by the police or other authorities
● Used as a defense for Lexus in a law suit
● Ordered by a court
However, if necessary Lexus will:
● Use the data for research on Lexus vehicle safety performance
● Disclose the data to a third party for research purposes without disclosing details of the vehicle owner, and only when it is deemed necessary
● Disclose summarized data cleared of vehicle identification information
to a non-Lexus organization for research purposes
346
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Calmly perform the following actions if any of the warning lights turn on or
flash. If a light turns on or flashes, but then turns off, this does not necessarily indicate a malfunction in the system.
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
Warning light
Warning light/Details
Brake system warning light
(U.S.A.) • Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
(Canada)
released. If the light turns off after the parking brake is fully
released, the system is operating normally.
5
When trouble arises
347
5-2. Steps to take in an emergency
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Warning light
Warning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
while the engine is running.
Low engine oil pressure warning light
Indicates an abnormal level of engine oil pressure.
This warning light may turn on if the level of engine oil
declines. The light should turn off after checking the oil and
adding oil if necessary.
Have the vehicle inspected by your Lexus dealer immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning light
Warning light/Details
Malfunction indicator lamp
Malfunction in:
(U.S.A.)
• The electronic engine control system;
(Canada) • The electronic throttle control system; or
• The electronic automatic transmission control system.
SRS warning light
Malfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.
348
5-2. Steps to take in an emergency
Warning light
Warning light/Details
ABS warning light
Malfunction in:
• The ABS; or
(Canada)
• The brake assist system.
(U.S.A.)
VSC/TRAC warning light
Malfunction in:
• The VSC;
• The active traction control system;
• The downhill assist control system; or
• The hill-start assist control system.
Automatic transmission fluid temperature warning light
Indicates that the automatic transmission fluid temperature
is too high.
Unengaged “Park” warning light
Malfunction in the transmission “Park” mechanism.
(if equipped)
Kinetic dynamic suspension system warning light
Malfunction in the kinetic dynamic suspension system.
5
When trouble arises
349
5-2. Steps to take in an emergency
Have the malfunction repaired immediately.
After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
Warning light
Warning light/Details
Correction procedure
Open door warning light
A door or a back door is not
fully closed.
Check that all doors and the
back door are closed.
Low fuel level warning light
Remaining fuel
Refuel the vehicle.
(Approximately 2.9 gal. [11 L,
2.4 Imp.gal.] or less)
Low washer fluid warning
light
Low level of washer fluid.
Fill the tank.
Engine oil replacement
reminder light
Illuminates for about 3 seconds and then flashes for
Check the engine oil, and
about 12 seconds: The engine change if necessary.
oil is scheduled to be changed.
Comes on and remains on:
The engine oil should be
changed.
350
Check and change the engine
oil.
5-2. Steps to take in an emergency
Warning light
Warning light/Details
Driver’s seat belt reminder
light (warning buzzer)*
Warns the driver to fasten
his/her seat belt.
Correction procedure
Fasten the seat belt.
Front passenger’s seat belt
reminder light
Fasten the seat belt.
Warns the front passenger to
fasten his/her seat belt.
Tire pressure warning light
When the light comes on:
Low tire inflation pressure.
Adjust the tire inflation pressure.
When the light stays on after
blinking for 1 minute:
Malfunction in the tire pressure warning system.
Have the system checked by
your Lexus dealer.
*: Driver’s seat belt reminder buzzer:
351
5
When trouble arises
The driver’s seat belts reminder sounds to alert the driver that his or her seat
belt is not fastened. Once the ignition key is turned to the “ON” or “START”
position, the reminder light flashes and a buzzer sounds if the driver's seat belt
is not fastened. Unless the driver fastens the belt, the light continues flashing,
however the buzzer stops after about 4 to 8 seconds.
5-2. Steps to take in an emergency
■ If the malfunction indicator lamp comes on while driving
First check the following:
● Is your vehicle low on gas?
If it is, refuel the vehicle immediately.
● Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after taking several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■ Front passenger detection sensor and passenger seat belt reminder
● If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in
the seat.
● If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■ SRS warning light
This warning light system monitors the following:
● The airbag sensor assembly
● Front airbag sensors
● The curtain shield airbag sensors
● The side and curtain shield airbag sensors
● The occupant detection system (ECU and sensors)
● “AIRBAG ON” and “AIRBAG OFF” indicator lights
● The seat belt buckle switches
● The driver’s seat position sensor
● The driver’s seat belt buckle switch
● Front passenger’s seat belt buckle switch
● The inflators
● The warning light
● The interconnecting wiring and power sources
352
5-2. Steps to take in an emergency
■ When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
■ The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caused by temperature. In this case, adjusting the tire inflation pressure will turn off the warning light.
■ When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the warning light does not turn off. Replace the spare tire with the repaired tire and
adjust the proper tire inflation pressure. The warning light will turn off after a few
minutes.
■ If the tire pressure warning system is inoperative
The tire pressure warning system may become inoperative in the following conditions:
(When the condition becomes normal, the system will work properly.)
● If tires not equipped with tire pressure warning valves and transmitters are used.
● If the ID code on the tire pressure warning valves and transmitters is not regis-
tered.
● If electronic devices or facilities using similar radio wave frequencies are nearby.
5
● If a radio set at similar frequencies is in use in the vehicle.
● If the tire pressure warning select switch is set to a different tire setting.
● If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
● If non-genuine Lexus wheels are used.
● If tire chains are used.
● If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.
● If the tire is in a location subject to poor radio wave signal reception.
353
When trouble arises
● If a window tint that affects the radio wave signals is installed.
5-2. Steps to take in an emergency
■ If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on after blinking for 1 minute frequently
when the ignition switch is turned to the “ON” position, have it checked by your
Lexus dealer.
■ After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. (P. 292)
CAUTION
■ Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is significantly under-inflated. Accordingly, when the low tire pressure telltale (tire pressure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly underinflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle's handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver's responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
354
5-2. Steps to take in an emergency
CAUTION
■ If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause loss of
vehicle control and result in death or serious injury.
● Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation pres-
sure immediately.
● If the tire pressure warning light comes on even after tire inflation pressure adjust-
ment, it is probable that you have a flat tire. Check the tires. If the tire is flat,
change to the spare tire and have the flat tire repaired by the nearest Lexus
dealer.
● Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could
lose control of the steering wheel or the brakes.
■ If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
NOTICE
■ Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pressure warning system may not operate properly.
5
When trouble arises
355
5-2. Steps to take in an emergency
If you have a flat tire
Remove the flat tire and replace it with the spare provided.
■ Before jacking up the vehicle
● Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to “P”.
● Turn off the rear height control air suspension. (P. 123)
● Stop the engine.
● Turn on the emergency flashers.
■ Location of the spare tire, jack and tools
Jack handle and extensions
Tools
Jack
Wheel nut
wrench
Spare tire
356
5-2. Steps to take in an emergency
Taking out the jack and tools
Jack
Remove the jack compartment
cover and take out the jack.
Tools
Remove the tool tray compartment cover and take out the tool
tray.
5
Jack handle
357
When trouble arises
Assemble the jack handle extension as shown. Be sure to tighten
each bolt securely.
5-2. Steps to take in an emergency
Taking out the spare tire
STEP 1
Remove the spare tire carrier lid
using a flathead screwdriver.
STEP 2
Insert the jack handle extension
into the lowering socket.
Place a rag under the jack handle
extension to protect the bumper.
STEP 3
Lower
Raise
Lower the spare tire completely to
the ground.
Vehicles with kinetic dynamic suspension: If the spare tire becomes
caught on the suspension components, raise the tire, pull it towards the
rear of the vehicle, and begin lowering it again.
358
5-2. Steps to take in an emergency
Pull out the spare tire and remove
the holding bracket.
STEP 4
Replacing a flat tire
Chock the tires.
STEP 1
Flat tire
Rear
Left-hand side
Behind the rear right-hand side tire
Right-hand side
Behind the rear left-hand side tire
Left-hand side
In front of the front right-hand side tire
Right-hand side
In front of the front left-hand side tire
5
When trouble arises
Front
Wheel chock position
359
5-2. Steps to take in an emergency
STEP 2
Remove the wheel ornament using
the wheel nut wrench as shown.
STEP 3
Slightly loosen the wheel nuts (one
turn).
STEP 4
Turn the tire jack portion “A” by
hand until the head of the jack is in
contact with the appropriate jack
point.
Front (vehicles without kinetic
dynamic suspension)
Front (vehicles with kinetic
dynamic suspension)
Rear
360
5-2. Steps to take in an emergency
STEP 5
Attach the hooked jack handle end
to the jack handle extension as
shown.
STEP 6
Raise the vehicle until the tire is
slightly raised off the ground.
STEP 7
Remove all the wheel nuts and the
tire.
361
5
When trouble arises
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
5-2. Steps to take in an emergency
Installing the spare tire
Remove any dirt or foreign matter
from the wheel contact surface.
STEP 1
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire may come off
the vehicle.
STEP 2
Washer
Wheel nut
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into loose
contact with the disc wheel sheet.
Disc wheel
STEP 3
362
Lower the vehicle.
5-2. Steps to take in an emergency
STEP 4
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
83 ft•lbf (112 N•m, 11.5 kgf•m)
STEP 5
Reinstall the wheel ornament.
Stowing the flat/spare tire, jack and tools
Lay down the tire with the outer
side facing up, and install the holding bracket.
STEP 5
2
Raise the tire.
Vehicles with kinetic dynamic suspension: Pull the tire towards
the rear of the vehicle when raising. After raising, visually check
that the tire is not interfering with suspension components.
Stow the tools and jack securely, and replace all covers.
STEP 5
3
363
5
When trouble arises
STEP 1
5-2. Steps to take in an emergency
CAUTION
■ Using the tire jack
Improper use of the tire jack may lead to death or injuries due to the vehicle suddenly falling off the jack.
● Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
● Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
● Always check that the tire jack is securely set to the jack point.
● Be sure to turn off the rear height control air suspension and stop the engine.
● Do not raise the vehicle while someone is in it.
● When raising the vehicle, do not put an object on or under the jack.
● Do not raise the vehicle to a height greater than that required to replace the tire.
● Use a jack stand if it is necessary to get under the vehicle.
● Do not put any part of your body under the vehicle supported by a jack.
● Do not start or run the engine while your vehicle is supported by the jack.
Take particular care when lowering the vehicle to ensure that no one working on or
near the vehicle may be injured.
■ Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver, to prevent the extension parts from coming apart unexpectedly.
364
5-2. Steps to take in an emergency
CAUTION
■ Replacing a flat tire
Observe the following precautions to reduce the risk of injury.
● Lower the spare tire completely to the ground before removing it from under the
vehicle.
● Do not try to remove the wheel ornament by hand. Take due care in handling the
ornament to avoid unexpected personal injury.
● Never use oil or grease on the wheel bolts or wheel nuts.
The oil or grease can cause the wheel nuts to loosen, causing a serious accident.
Remove any oil or grease on the wheel bolts or wheel nuts.
● Have the wheel nuts tightened with a torque wrench to 83 ft•lbf (112 N•m, 11.5
kgf•m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and the wheels
may fall off, which could lead to an accident causing death or serious injury.
● Do not attach a heavily damaged wheel ornament, as it may fly off the wheel while
the vehicle is moving.
5
When trouble arises
365
5-2. Steps to take in an emergency
NOTICE
■ Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
■ When stowing the flat tire
● Ensure that there is no object caught between the tire and the vehicle underbody.
● Vehicles with kinetic dynamic suspension: To avoid damaging the suspension sys-
tem, make sure that the spare tire does not interfere with the suspension components when stowed.
■ When replacing the tires
● When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and
transmitter may be damaged if not handled correctly.
● Replace the grommets for the tire pressure warning valves and transmitters as
well.
■ To avoid damaging the tire pressure warning valves and transmitters
Do not use liquid sealants on flat tires.
366
5-2. Steps to take in an emergency
If the engine will not start
If the engine will not start even though correct starting procedures are
being followed (P. 95), consider each of the following points.
■ The engine will not start even when the starter motor operates
normally
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Add fuel to the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. (P. 95)
● There may be a malfunction in the engine immobilizer system.
(P. 49)
■ The starter motor turns over slowly, interior lights and headlights
are dim, or the horn does not sound or sounds at a low volume
One of the following may be the cause of the problem.
● The battery may be discharged. (P. 370)
● The battery terminal connections may be loose or corroded.
5
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. (P. 370)
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.
367
When trouble arises
■ The starter motor does not turn over, interior lights and headlights
do not turn on, or the horn does not sound
One of the following may be the cause of the problem.
5-2. Steps to take in an emergency
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental operation of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
Set the parking brake.
Turn the ignition switch to the “ON” position.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override button.
The shift lever can be shifted
while the button is pressed.
368
5-2. Steps to take in an emergency
If you lose your keys
New genuine Lexus keys can be made and programmed to your vehicle by
your Lexus dealer, using one of the other keys or the key number stamped
on your key number plate.
5
When trouble arises
369
5-2. Steps to take in an emergency
If the vehicle battery is discharged
The following procedures may be used to start the engine if the vehicle's
battery is discharged.
You can call your Lexus dealer, Roadside Assistance or Lexus Customer
Service.
If you have a set of jumper (or booster) cables and a second vehicle
with a 12 volt battery, you can jump start your Lexus by following the
steps below.
STEP 1
Open the hood.
STEP 2
Connecting the jumper cables.
If required, remove all vent plugs from the booster battery. Lay a
cloth over the open vents on the booster battery. (This helps reduce
the chance of explosion, personal injuries and burns.)
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Negative (-) battery terminal on your vehicle.
STEP 3 Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the 12 volt battery of your vehicle.
STEP 4 Maintain the engine speed of the second vehicle and start your
vehicle's engine.
370
5-2. Steps to take in an emergency
Once your vehicle's engine has started, remove the jumper
cables in the exact reverse order in which they were connected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.
STEP 5
■ To prevent battery discharge
● Turn off the headlights and the audio system while the engine is off.
● Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■ When the battery is removed or discharged
The power windows and moon roof must be initialized.
CAUTION
■ Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
5
● Make sure the jumper cable is connected to the correct terminal and that it is not
● Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
● Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
371
When trouble arises
unintentionally in contact with any part other than the intended terminal.
5-2. Steps to take in an emergency
CAUTION
■ Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while related parts
contain lead and lead compounds. Observe the following precautions when handling the battery:
● When working with the battery, always wear safety glasses and take care not to
allow any battery fluids (acid) to come into contact with skin, clothing or the vehicle body.
● Do not lean over the battery.
● If the battery fluid comes into contact with the skin or eyes, immediately wash the
affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention can be
received.
● Always wash your hands after handling the battery support, terminals, and other
battery-related parts.
● Do not allow children near the battery.
NOTICE
■ To avoid damaging the vehicle
Do not pull or push-start the vehicle, as the three-way catalytic converter may overheat and become a fire hazard.
■ When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan or any
of the belts when connecting or disconnecting them.
372
5-2. Steps to take in an emergency
If your vehicle overheats
If the engine overheats:
STEP 1
STEP 2
STEP 3
STEP 4
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam:
Turn off the engine and carefully lift the hood.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating:
Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating:
Stop the engine immediately and call your local Lexus
dealer.
After the engine has cooled
down sufficiently, check the
coolant level and inspect the
radiator for any leaks.
5
When trouble arises
373
5-2. Steps to take in an emergency
STEP 5
Add coolant if required.
Water can be used as an emergency measure if coolant is
unavailable. (P. 382)
Have the vehicle checked at your nearest Lexus dealer as soon as possible.
■ Overheating
In the following situations, your vehicle may be overheating.
● The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
● Steam is coming from under the hood.
CAUTION
■ To prevent an accident or injury when inspecting under the hood of your vehicle
● Keep hands and clothing away from the fan and engine drive belt while the
engine is running.
● Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
NOTICE
■ When adding coolant
Wait until the engine has cooled down before adding coolant.
When adding coolant, do so slowly. Adding cold coolant to a hot engine too quickly
can cause damage to the engine.
374
5-2. Steps to take in an emergency
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
STEP 6
Stop the engine. Set the parking brake and shift the shift lever
to “P”.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, large stones or some other material to help provide traction under the tires.
Restart the engine.
Lock the center differential to turn off the vehicle stability control system. ( P. 121)
Carefully apply the accelerator to free the vehicle.
CAUTION
■ When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surrounding area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
5
■ When shifting the shift lever
NOTICE
■ To avoid damaging the transmission and other components
● Avoid spinning the wheels and racing the engine.
● If the vehicle remains stuck after trying these procedures, the vehicle may require
towing to be freed.
375
When trouble arises
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
5-2. Steps to take in an emergency
376
Vehicle specifications
6
6-1. Specifications ......................... 378
Maintenance data..................... 378
Fuel information......................... 387
Tire information.......................... 390
6-2. Customization........................ 398
Customizable features ........... 398
6-3. Initialization.............................. 401
Items to initialize......................... 401
377
6-1. Specifications
Maintenance data
Dimensions and weight
Overall length
188.2 in. (4780 mm)
Overall width
74.0 in. (1880 mm)
73.0 in. (1855 mm) *2
Overall height *1
74.6 in. (1895 mm)*3
Wheelbase
Tread
109.8 in. (2790 mm)
Front
62.4 in. (1585 mm)
Rear
62.4 in. (1585 mm)
Vehicle capacity weight
(Occupants + luggage)
With third seat
Without third seat
Towing capacity
*1: Unladen vehicle
*2: Without roof luggage carrier
*3: With roof luggage carrier
378
1200 lb. (544 kg)
1000 lb. (454 kg)
6500 lb. (2948 kg)
6-1. Specifications
Vehicle identification
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel.
This number is also on the Certification Label.
■ Engine number
The engine number is stamped on
the engine block as shown.
6
Vehicle specifications
379
6-1. Specifications
Engine
Model
2UZ-FE
Type
8-cylinder V type, 4-cycle, gasoline
Bore and stroke
3.70  3.31 in. (94.0  84.0 mm)
Displacement
284.5 cu.in. (4664 cm3)
Drive belt tension
Automatic adjustment
Fuel
Fuel type
Premium unleaded gasoline only
Octane rating
91 (Research Octane Number 96) or higher
Fuel tank capacity
23 gal. (87 L, 19.1 Imp.gal)
380
6-1. Specifications
Lubrication system
Oil capacity
(drain and refill)
with filter
without filter
6.5 qt. (6.2 L, 5.5 Imp.qt.)
6.0 qt. (5.7 L, 5.0 Imp.qt.)
Oil grade
ILSAC multigrade engine oil
Use Lexus approved “Toyota Genuine Motor Oil” or
equivalent to satisfy the above grade and viscosity.
Recommended oil
viscosity
Outside temperature
*:5W-30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity:
● The 5W portion of the oil viscosity rating indicates the characteristic of
the oil which allows cold startability. Oils with a lower value before the W
allow for easier starting of the engine in cold weather.
381
Vehicle specifications
● The 30 in 5W-30 indicates the oil viscosity when the oil is as its operating
temperature. An oil with a higher viscosity may be better suited if the
vehicle is operated at high speeds, or under extreme load conditions.
6
6-1. Specifications
Cooling system
Capacity
13.6 qt. (12.9 L, 11.4 Imp.qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make
DENSO
NGK
Gap
SK20R11
IFR6A11
0.043 in. (1.1 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the gap when tuning the engine.
382
6-1. Specifications
Electrical system
Battery
Open voltage at
68F (20C):
12.6  12.8V Fully charged
12.2  12.4V Half charged
11.8  12.0V Discharged
(Voltage is checked 20 minutes after
the key is removed with all the lights
turned off.)
Charging rates
5A max.
Differential
Oil capacity
Front
Rear
Oil type and viscosity
1.5 qt. (1.4 L, 1.2 Imp.qt.)
3.3 qt. (3.1 L, 2.7 Imp.qt.)
Hypoid gear oil API GL-5
Above 0F (-18C): SAE 90 or
SAE 85W-90
Below 0F (-18C): SAE 80W or
SAE 80W-90
6
Transfer
1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type
Hypoid gear oil API GL-5
Recommended oil viscosity
SAE 75W-90
Vehicle specifications
Oil capacity
383
6-1. Specifications
Transmission
Fluid capacity
Drain and refill
3.2 qt. (3.0 L, 2.6 lmp.qt.)
Fluid type
Toyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and
ultimately damage the transmission of your vehicle.
Brakes
Pedal clearance *1
2.0 in. (52 mm) Min.
Pedal free play
0.04  0.24 in. (1.0  6.0 mm)
Brake pad wear limit
0.04 in. (1.0 mm)
Parking brake adjustment *2
5  7 clicks
Parking brake lining wear limit
0.04 in. (1.0 mm)
Fluid type
SAE J1703 or FMVSS No. 116 DOT 3
*1: Minimum pedal clearance when depressed with a force of 490 N (50 kgf, 110
lbf) while the engine is running.
*2: Parking
lbf).
384
brake adjustment when depressed with a force of 196 N (20 kgf, 44
6-1. Specifications
Chassis lubrication
Propeller shafts
Spiders
Slide yoke
Lithium base chassis grease, NLGI No.2
Molybdenum-disulfide lithium base chassis
grease,
NLGI No.2 or lithium base chassis grease,
NLGI No.2
Steering
Free play
Less than 1.2 in. (30 mm)
Power steering fluid
Automatic transmission fluid DEXRON® II
or III
Tires and wheels
Tire size
P265/65R17 110S
Wheel size
17  7 1/2 JJ
Wheel nut torque
83 ft•lbf (112 N•m, 11.5 kgf•m)
385
6
Vehicle specifications
Driving under normal conditions
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Driving at high speeds above 100 mph (160
Tire inflation pressure
km/h) (in countries where such speeds are per(Recommended cold tire inflation mitted by law)
Add 9 psi (60 kPa, 0.6 kgf/cm2 or bar) to the
pressure)
front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
6-1. Specifications
Light bulbs
Light Bulbs
Exterior
Interior
A:
B:
C:
D:
E:
F:
G:
386
Bulb No.
W
Type
Headlights (low beam)

55
A
Headlights (high beam)
9005
60
B
Front turn signal lights
4157NAK
27/8
D
Parking lights
168
5
C
Fog lights

55
E
Front side marker light
168
5
C
Stop/tail lights
7443
21/5
C
Stop/tail and rear side marker
lights
7443
21/5
C
Rear turn signal lights
7440
21
C
Back-up lights
7440
21
C
Running board lights
194
3.8
C
License plate lights
168
5
C
Vanity lights

2
F
Personal lights

8
G
Interior lights

8
F
Door courtesy lights

3.8
G
Glove box light

1.2
C
H11 halogen bulbs
HB3 halogen bulbs
Wedge base bulbs (clear)
Wedge base bulbs (amber)
H3 halogen bulbs
Double end bulbs
Single end bulbs
6-1. Specifications
Fuel information
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an Octane Rating of 91 (Research
Octane Number 96) or higher required for optimum engine performance.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.
■ Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■ If premium gasoline is not available
If this premium fuel is not available, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91).
■ If your engine knocks
● Consult your Lexus dealer.
● You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■ Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
6
Vehicle specifications
387
6-1. Specifications
■ Gasoline quality standards
● Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
● The WWFC consists of four categories that are based on required emission
levels. In the US, category 3 or 4 has been adopted.
● The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
■ Lexus recommends the use of gasoline containing detergent additives
● Lexus recommends the use of gasoline that contains detergent additives to
avoid build-up of engine deposits.
● All gasoline sold in the US contains detergent additives to clean and/or keep
clean intake systems.
■ Lexus recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains oxygenates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is available in many
areas.
Lexus recommends the use of cleaner burning gasoline and appropriately blended
reformulated gasoline. These types of gasoline provide excellent vehicle performance, reduce vehicle emissions and improve air quality.
■ Lexus does not recommend blended gasoline
● Lexus allows the use of oxygenate blended gasoline where the oxygenate con-
tent is up to 10% ethanol or 15% MTBE.
● If you use gasohol in your Lexus, be sure that it has an octane rating no lower
than 87.
● Lexus DOES NOT recommend the use of gasoline containing methanol.
■ Lexus does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT (Methylcy clopentadienyl Manganese Tricarbonyl).
Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel containing MMT is used, your emission control system may be adversely affected.
The malfunction indicator lamp on the instrument cluster may come on. If this happens, contact your Lexus dealer for service.
388
6-1. Specifications
NOTICE
■ Notice on gasoline quality
● Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three-way catalytic converters causing the emission control system to malfunction.
● Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance problems.
● Use of unleaded gasoline with an octane rating lower than 91 may result in engine
knocking.
Persistent knocking can lead to engine damage and should be corrected by refueling with higher octane unleaded gasoline.
■ Fuel-related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor hot starting, vaporization, engine knocking, etc.), discontinue the use of that type of fuel.
■ When refueling with gasohole
Take care not to spill gasohol. It can damage your vehicle's paint.
6
Vehicle specifications
389
6-1. Specifications
Tire information
Typical tire symbols
Tire size
DOT and Tire Identification Number (TIN)
Location of tread wear indicators
Tire ply composition and materials
(P. 392)
(P. 391)
(P. 302)
Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.
Radial tires or bias-ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL is a
bias-ply tire.
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the tire. A
tube type tire has a tube inside the tire and the tube maintains the air pressure.
Load limit at maximum cold tire inflation pressure
Maximum cold tire inflation pressure
This means the pressure to which a tire may be inflated.
Uniform tire quality grading
For details, see “Uniform Tire Quality Grading” that follows.
390
(P. 395)
(P. 395)
6-1. Specifications
Summer tire or all season tire
(P. 305)
An all season tire has “M+S” on the sidewall. A tire not marked “M+S” is a
summer tire.
Typical DOT and tire identification number (TIN)
DOT symbol*
Tire Identification Number (TIN)
Tire manufacturer's identification mark
Tire size code
Manufacturer's optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*: The DOT symbol certifies that
the tire conforms to applicable
Federal Motor Vehicle Safety
Standards.
6
Vehicle specifications
391
6-1. Specifications
Tire size
■ Typical tire size information
The illustration indicates typical
tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 or 3 digits)
Speed symbol
(alphabet with one letter)
■ Tire dimensions
Section width
Tire height
Wheel diameter
392
6-1. Specifications
Tire section names
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Uniform Tire Quality Grading
This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S.A. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Lexus vehicles with information on uniform tire quality grading.
Your Lexus dealer will help answer any questions you may have as you read
this information.
For example: Treadwear 200 Traction AA Temperature A
393
6
Vehicle specifications
■ DOT quality grades
All passenger vehicle tires must conform to Federal Safety Requirements in addition to these grades. Quality grades can be found where
applicable on the tire sidewall between tread shoulder and maximum
section width.
6-1. Specifications
■ Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified government test course.
For example, a tire graded 150 would wear one and a half (1 - 1/2) times as
well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions of
their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.
■ Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire's ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) traction.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire failure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
394
6-1. Specifications
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related term
Meaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmission, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equipment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum inflation pressure
The maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight
150 lb. (68 kg) times the number of occupants specified in the second column of Table 1* that follows
6
Vehicle specifications
395
6-1. Specifications
Tire related term
Meaning
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
Vehicle capacity weight
(Total load capacity)
The rated cargo and luggage load plus 150 lb. (68
kg) times the vehicle's designated seating capacity
Intended outboard sidewall
(a) The sidewall that contains a whitewall, bears
white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other sidewall of the tire, or
(b) The outward facing sidewall of asymmetrical tire
that has a particular side that must always face
outward when mounted on a vehicle
Occupant distribution
Distribution of occupants in a vehicle as specified in
the third column of Table 1* below
Recommended inflation
pressure
Cold tire inflation pressure recommended by a manufacturer.
Rim
A metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)
Nominal diameter of the bead seat
Rim size designation
Rim diameter and width
Rim type designation
The industry manufacturer's designation for a rim by
style or code
Rim width
Nominal distance between rim flanges
396
6-1. Specifications
Tire related term
Meaning
The load on an individual tire that is determined by
Vehicle maximum load on
distributing to each axle its share of the maximum
the tire
loaded vehicle weight, and dividing by two
Vehicle normal load on
the tire
The load on an individual tire that is determined by
distributing to each axle its share of curb weight,
accessory weight, and normal occupant weight (distributed in accordance with Table 1* below), and
dividing it by two
Weather side
The surface area of the rim not covered by the
inflated tire
*:Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Designated seating
capacity, Number of
occupants
Vehicle normal load,
Number of occupants
Occupant distribution in
a normally loaded vehicle
2 through 4
2
2 in front
5 through 10
3
2 in front, 1 in second seat
6
Vehicle specifications
397
6-2. Customization
Customizable features
Your vehicle includes a variety of electronic features that can be personalized to your preferences. Programming these preferences requires specialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.
Item
Wireless
remote control
(P. 4)
398
Function
Default setting
Customized
setting
Wireless remote control
ON
OFF
Unlocking operation
Driver's door
unlocked in 1step, all doors
unlocked
in 2-steps
All doors
unlocked
in 1-step
Time elapsed before automatic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
Operation indicator
(Emergency flashers)
ON
OFF
Operation indicator
(Buzzer)
ON
OFF
Panic function
ON
OFF
Buzzer sounds when
pushing the “LOCK” button with any door not
closed.
ON
OFF
6-2. Customization
Item
Default setting
Customized
setting
Driver's door
unlocked in 1step, all doors
unlocked
in 2-steps
All doors
unlocked
in 1-step
Speed-detecting automatic door lock function
OFF
ON
Opening driver's door
unlocks all doors
OFF
ON
Shift the shift lever to “P”
unlocks all doors.
ON
OFF
Shift the shift lever to position other than “P” locks
all doors.
ON
OFF
Linked door lock operation
ON
OFF
Linked door key operation
Open and close
Wireless remote control
linked operation
ON
Function
Unlocking using a key
Door lock
(P. 6)
Power windows
(P. 41)
Open only
Close only
OFF
6
Vehicle specifications
399
6-2. Customization
Item
Moon roof
(P. 43)
Function
Default setting
Customized
setting
Linked door lock operation
ON
OFF
Linked door key operation
Open and close
Slide only
Tilt only
Wireless remote control
linked operation
ON
OFF
Linked operation of components when wireless
remote control used
Slide only
Tilt only
Level 3
Levels 1 to 5
Time elapsed before
headlights automatically
turn off after doors are
closed
Daytime running light
Time elapsed before lights
turn off
Illumination
(P. 225)
0 seconds
30 seconds
60 seconds
90 seconds
ON
15 seconds
OFF*
7.5 seconds
30 seconds
Operation when the
doors are unlocked
ON
OFF
Operation after the ignition switch is turned to the
“ACC” position
ON
OFF
*: Vehicles sold outside Canada
400
Close only
Linked operation of components when door key is
used
Light sensor sensitivity
Automatic
light control
system
(P. 111)
Open only
6-3. Initialization
Items to initialize
After reconnecting or performing maintenance on the battery, the following items must be initialized for normal system operation.
Item
Power window
Moon roof
Engine oil maintenance
data
When to initialize
Reference
• After reconnecting or changing the
battery
• After changing a fuse
P. 41
P. 43
• After changing engine oil
P. 292
6
Vehicle specifications
401
6-3. Initialization
402
For US owners
7
Reporting safety defects for
U.S. owners................................ 410
403
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash
or could cause injury or death, you should immediately inform the
National Highway Traffic Safety Administration (NHTSA) in addition
to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Tollfree: 1-800-25-LEXUS).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer, or
Lexus Division of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may either call the Auto Safety Hotline tollfree at 1-800-424-9393 (or 366-0123 in Washington, DC area) or
write to: NHTSA, U.S. Department of Transportation, Washington, DC
20590. You can also obtain other information about motor vehicle
safety from the Hotline.
404
Index
Alphabetical index ........................... 406
What to do if... ..................................... 414
405
Alphabetical index
Alphabetical index
A A/C (Air conditioning system) ........ 162
ABS (Anti-lock Brake System) ........ 132
Active traction control......................... 132
Air conditioning system (A/C)
Air conditioning filter .........................315
Automatic air conditioning
system....................................................162
Airbags
Airbag operating conditions...........59
Airbag precautions for your
child.......................................................... 64
Airbag warning light ........................348
Curtain shield airbag
precautions .......................................... 66
General airbag precautions ........... 63
Locations of airbags............................56
Modification and disposal of
airbags.................................................... 67
Side airbag precautions ....................65
Side and curtain shield airbags
operating conditions .......................59
SRS airbags .............................................56
Alarm ............................................................. 51
Antenna ..........................................178, 269
Armrest.....................................................243
Ashtrays....................................................237
Audio system
Antenna....................................................178
CD player/changer ............................ 181
DVD information...............................209
DVD player..........................................200
DVD video/audio.............................205
MP3/WMA disc ................................ 188
Optimal use............................................194
Radio..........................................................173
Rear sear entertainment
system..................................................200
406
Steering switches ................................198
Video CD ................................................212
Automatic light control system............111
Automatic transmission........................98
B BA (Brake Assist)...................................132
Back door ...................................................... 11
Back-up lights
Wattage .................................................386
Battery
Battery .................................................... 299
Checking............................................... 299
If the vehicle battery is
discharged ........................................ 370
Preparing and checking
before winter...................................... 146
Brake
Fluid.......................................................... 296
Parking brake........................................102
C Care
Exterior....................................................272
Interior......................................................274
Seat belts ................................................275
Cargo capacity....................................... 140
Cargo hooks .......................................... 245
CD player...................................................181
Center differential lock......................... 121
Chains .........................................................147
Child-protectors..........................................7
Child restraint system (CRS)
Definition ...................................................74
Installation ................................................. 77
Installing CRS with lower
anchorages............................................ 81
Installing CRS with seatbelts ...........78
Alphabetical index
Installing CRS with top straps........ 83
Child safety
Airbag precautions ..............................64
Child restraint system .........................74
Child-protectors....................................... 7
How your child should wear
the seatbelt............................................32
Installing child restraints.....................77
Moon roof.................................................43
Power window lock switch ............... 41
Power window precautions.............42
Removed battery
precautions .........................................318
Seat belt precautions...........................33
Seat heater precautions................... 241
Cigarette lighter................................... 238
Cleaning
Exterior ....................................................272
Interior......................................................274
Seat belts ................................................275
Clock......................................................... 235
Compass ................................................. 253
Condenser.............................................. 295
Cooling system
Engine overheating...........................373
Cruise control
Cruise control........................................ 118
Cup holders..............................................231
Curtain shield airbags............................56
Customizable features ...................... 398
D Daytime running light system .............112
Defogger
Rear window ......................................... 169
Side mirror.............................................. 169
Dimension................................................378
Dinghy towing......................................... 160
Display
Trip information ...................................108
Do-it-yourself maintenance .............283
Door courtesy lights ............................225
Door pocket............................................232
Doors
Door lock..................................................... 6
Rear door child protector ....................7
Downhill assist control system .........130
Driver's seat belt reminder light ...... 351
Driving
Correct posture.....................................54
Procedures ..............................................95
DVD player............................................ 200
407
Alphabetical index
E Electronic modulated suspension .. 129
Emergency, in case of
If a warning light turns on .............. 347
If the engine will not
start........................................................ 367
If the shift lever cannot be
shifted from P...................................368
If the vehicle battery is
discharged .......................................370
If you have a flat tire .........................356
If you lose your keys.........................369
If you think something is
wrong...................................................343
If your vehicle becomes stuck.....375
If your vehicle needs to be
towed ...................................................338
If your vehicle overheats................ 373
Engine
Compartment ..................................... 287
Hood........................................................286
How to start the engine.....................95
If the engine will not
start........................................................ 367
Overheating......................................... 373
Engine compartment cover ............ 288
Engine coolant temperature
gauge.......................................................103
Engine coolant
Capacity.................................................382
Checking ............................................... 294
Preparing and checking
before winter......................................146
Engine immobilizer system..................49
408
Engine oil
Capacity ..................................................381
Checking............................................... 289
Preparing and checking
before winter...................................... 146
Engine oil maintenance data ........... 292
Event data recorder ............................345
F
First-aid kit storage belt ..................... 246
Flat key.............................................................2
Floor mats................................................ 244
Fluid
Brake ....................................................... 296
Power steering ....................................297
Washer.....................................................301
Fog lights
Switch..........................................................113
Wattage .................................................386
Foot light .................................................. 225
Front passenger's seat belt
reminder light ...................................... 351
Front passenger occupant
classification system............................ 69
Front seats
Adjustment ................................................ 13
Driving position memory ..................24
Front turn signal lights
Wattage .................................................386
Fuel
Capacity ................................................380
Fuel gauge..............................................103
Gas station information ................... 416
Information ........................................... 387
Refueling....................................................46
Fuel filler door........................................... 46
Fuses ............................................................321
Alphabetical index
G Garage door opener.......................... 248
Gas station information.......................416
Gauges.......................................................103
Glove box ............................................... 228
H Head restraints..........................................26
Headlights
Replacing light bulbs .........................331
Switch............................................................111
Wattage .................................................386
Heaters
Seat heaters............................................ 241
Side mirror..............................................169
Hill-start assist control .........................132
Hood ......................................................... 286
Hooks
Cargo...................................................... 245
I
Ignition switch........................................... 95
Illuminated entry system ....................225
I/M test ..................................................... 282
Indicator lights.........................................105
Initialization
Items to initialize...................................401
Inside rear view mirror............................ 36
Instrument panel light control...........104
Interior lights
Interior lights ........................................ 225
Wattage .................................................386
J
Jack
Replacing the wheel........................ 356
Jack handle..............................................356
K Keys
If you lose your keys........................ 369
Key number plate .....................................2
Keys .................................................................2
Wireless remote control ...................... 4
Kinetic Dynamic Suspension
System (KDSS).................................... 132
L
Lexus Link System................................ 257
Light bulbs
Replacing ................................................ 331
Wattage................................................. 386
Lights
Fog light switch ...................................... 113
Headlights switch....................................111
Interior lights list..................................225
Replacing light bulbs......................... 331
Turn signal lever ....................................101
Vanity lights ..........................................234
Wattage................................................. 386
Limited slip differential......................... 132
Luggage cover.......................................246
409
Alphabetical index
M Maintenance
Do-it-yourself maintenance .........283
General maintenance ..................... 279
Maintenance data..............................378
Maintenance requirements ...........277
Meter
Instrument panel light control ...... 104
Meters ...................................................... 103
Mirrors
Inside rear view mirror....................... 36
Side mirror heater...............................169
Side mirrors..............................................37
Vanity mirrors...................................... 234
Moon roof...................................................43
MP3 disc ....................................................... 188
O Odometer.................................................103
Off-road precautions
Driving.......................................................137
Vehicle......................................................135
Oil
Engine oil ...............................................289
Outside rear view mirrors
Adjusting and folding ..........................37
Defogger switch...................................169
Driving position memory...................24
Outside temperature display...........236
Overhead console ...............................230
Overheating, Engine............................. 373
410
P
Parking brake.......................................... 102
Parking lights
Replacing light bulbs......................... 331
Switch............................................................111
Wattage .................................................386
Personal lights........................................ 225
Power outlet ........................................... 239
Power windows..........................................41
Q Quarter window ................................... 245
R
Radiator.................................................... 295
Radio ................................................................ 173
RDS (Radio Date System) ..................175
Rear console box.................................. 229
Rear height control
air suspension .......................................123
Rear sear entertainment system
A/V input adapter...............................217
Headphone jacks.............................. 202
Remote control ..................................205
Rear seat
Folding up the third seat..................... 18
Removing the third seat.......................21
Tumbling the second seat ................. 16
Rear step bumper ...................................... 11
Rear turn signal lights
Replacing light bulbs......................... 331
Wattage .................................................386
Alphabetical index
Rear window defogger........................169
Rear window wiper and washer ........117
Replacing
Fuses.......................................................... 321
Light bulbs ..............................................331
Reporting safety defects for
U.S.A. owners .................................... 404
Roof luggage carrier ..............................39
S
Seat belts
Adjusting the seat belt ....................... 28
Automatic Locking Retractor
(ALR) ........................................................ 31
Child restraint system
installation ..............................................77
Cleaning and maintaining
the seat belts......................................275
Emergency Locking Retractor
(ELR)......................................................... 31
How to wear your seat belt............. 28
How your child should wear
the seat belt...........................................32
Pregnant women,
proper seat belt use..........................32
Reminder light.......................................351
Seat belt extenders...............................32
Seat belt pretensioners........................ 31
Seat heaters.............................................. 241
Seating capacity ..................................... 144
Seats
Child seats/child restraint
system installation...............................77
Cleaning................................................. 274
Driving position memory.................. 24
Folding up the third seat..................... 18
Head restraint.........................................26
Properly sitting in the seat ................54
Seat adjustment .......................................13
Seat adjustment precautions.............14
Seat heaters ............................................241
Removing the third seat.......................21
Tumbling the second seat ..................16
Security indicator................................... 106
Service reminder indicators ............. 106
Shift lever
If the shift lever cannot be
shifted from P .................................. 368
Shift lock system....................................368
Side airbags................................................56
Side marker lights
Switch............................................................111
Side mirror
Adjusting and folding.......................... 37
Driving position memory.................. 24
Spare tire
Inflation pressure............................... 385
Spark plug................................................382
Specifications .........................................378
Speedometer ..........................................103
411
Alphabetical index
Tires
Chains....................................................... 147
Checking............................................... 302
If you have a flat tire ......................... 356
Inflation pressure ...............................385
Information ...........................................390
Pressure warning system.............. 302
Replacing .............................................. 356
Rotating tires........................................ 302
Size...........................................................385
Snow tires................................................148
Tools...........................................................356
Total load capacity.................................144
Towing
Dinghy towing ......................................160
Emergency towing........................... 339
Trailer towing ........................................150
Trip information display ...................... 108
Trip meter ................................................. 103
Turn signal lights
Replacing light bulbs......................... 331
Switch..........................................................101
Wattage .................................................386
Steering wheel
Adjustment............................................... 35
Audio switches .................................... 198
Driving position memory...................24
Storage feature......................................228
Stuck
If your vehicle becomes stuck.....375
Sun visors .................................................233
Switch
“2nd STRT” switch ............................... 99
Center differential lock switch ........121
“DAC” switch ....................................... 130
Fog light switch.......................................113
Height control off switch..................123
Light switches........................................... 111
Power door lock switch........................6
Power window switch.......................... 41
“RSCA OFF” switch............................68
Window lock switch ............................. 41
Wipers and washer switch...............114
T
412
Tail lights
Switch ........................................................... 111
Theft deterrent system
Alarm ............................................................51
Theft prevention labels ..........................53
Tire inflation pressure ........................ 385
Tire information
Glossary.................................................395
Size ...........................................................392
Tire identification number ...............391
Uniform Tire Quality Grading....393
V
Vanity lights
Vanity lights...........................................234
Wattage .................................................386
Vanity mirrors ............................................234
Vehicle identification number......... 379
Vehicle load limits ..................................144
VSC (Vehicle Stability Control) ......132
Alphabetical index
W Warning buzzers
Seat belt reminder ..............................351
Warning lights
“AIRBAG ON/OFF”
indicators..............................................106
Anti-lock brake system (ABS) ... 349
Brake system........................................347
Charging system...............................348
Downhill assist control
indicator................................................106
Engine oil replacement
reminder light...................................350
Height control indicator...................106
Low engine oil pressure ................348
Low fuel level.......................................350
Low washer fluid................................350
Malfunction indicator lamp ..........348
Open door ...........................................350
Seat belt reminder light ....................351
SRS airbags..........................................348
Tire pressure warning light.............351
Unengaged “P” .................................. 349
“VSC TRAC” ...................................... 349
Warning reflector holder...................246
Washer
Checking.................................................301
Preparing and checking
before winter......................................146
Switch..........................................................114
Washing and waxing ...........................272
Weight
Cargo capacity ....................................140
Load limits............................................... 144
Weight.................................................... 378
Wheels ....................................................... 313
Window glasses ........................................41
Window lock switch .................................41
Windows
Power windows.......................................41
Rear window defogger.................... 169
Washer ...................................................... 114
Windshield wipers...................................... 114
Winter driving tips................................. 146
Wireless remote control
Locking/Unlocking ................................ 4
Replacing the battery.........................317
WMA disc ................................................188
413
What to do if...
What to do if...
A tire punctures
P. 356 If you have a flat tire
The engine does not start
Engine immobilizer system
P. 367 If the engine will not start
P. 370 If the battery is discharged
The shift lever cannot be
moved out
P. 368
P. 49
If the shift lever cannot be shifted
from “P”
The engine coolant temperature
gauge enters the red zone
P. 373 If your vehicle overheats
Steam can be seen coming
from under the hood
The key is lost
P. 369 If you lose your keys
The battery is discharged
P. 370 If the vehicle has a discharged battery
The doors cannot be locked
P. 6
Doors
The horn begins to sound
P. 51
Alarm
The vehicle is stuck in mud or
sand
414
P. 375 If the vehicle becomes stuck
What to do if...
The warning light or indicator
light comes on
P. 347 If the warning light turns on
■Warning lights
Brake system warning light
or
Malfunction indicator lamp
v
P. 347
or
P. 348
Driver’s seat belt reminder
light
P. 351
ABS warning light
or
P. 349
“VSC/TRAC” warning light
P. 349
Low fuel level warning light
P. 350
Front passenger’s seat belt
reminder light
P. 351
Tire pressure warning light
P. 351
Kinetic dynamic suspension
system warning light
P. 349
Automatic transmission fluid
temperature warning light
SRS warning light
P. 348
Open door warning light
P. 350
Charging system warning
light
P. 348
P. 349
Unengaged “Park” warning
light
P. 349
Low washer fluid warning
light
P. 350
Low engine oil pressure
warning light
P. 348
415
GAS STATION INFORMATION
Auxiliary catch lever
P. 286
Hood lock release lever
P. 286
Fuel tank capacity
Fuel type
Cold tire inflation
pressure
Engine oil capacity
(Drain and refill)
Engine oil type
416
Fuel filler door
P. 46
Fuel filler door lever
P. 46
Tire inflation pressure
P. 385
23 gal. (87 L, 19.1 lmp.gal.)
Premium unleaded gasoline only
P. 47
P. 385
qt. (L, Imp.qt.)
With filler
6.5 (6.2, 5.5)
Without filler
6.0 (5.7, 5.0)
“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W-30
P. 381
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
