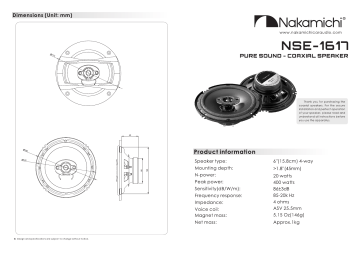

Dimensions (Unit: mm)
a
N
Xx Design and specifications are subject to change without notice.
45
125
MNakamichi
www .nakamichicaraudio.com
NSE-161 |
PURE SOUND - COAXIAL SPEAKER
Productinformation
Speaker type:
Mounting depth:
N-power:
Peak power:
Sensitivity (dB/W/m):
Frequency response:
Impedance:
Voice coil:
Magnet mass:
Net mass:
Thank you for purchasing the
coaxial speakers. For the secure
installation and perfect operation
of your speaker, please read and
understand all instructions before
you use the apparatus.
6"(15.8cm) 4-way
>1.8"(45mm)
20 watts
400 watts
86+3dB
85-20k HZ
4 ohms
ASV 25.5mm
5.15 Oz(146g)
Approx.1kg
Important
Read and understand all instructions before you use the apparatus. If damage is caused by failure to follow
instructions, the warranty does not apply.
Use only the supplied mounting hardware for a safe and secure installation.
Do not continuously use the speaker system beyond the peak power handling capacity.
Keep credit cards, watches, recorded tapes etc. with magnetic coding away from the speaker system to
prevent damage caused by the magnets in the speakers.
Clean the apparatus with soft, damp cloth. Never use substances such as alcohol, chemicals or household
cleaners on the apparatus.
What's in the box
Check and identify the contents of your package:
1. Installation manual(xIpc); 2.Speaker(x2prs); 3. Frame(x2prs);
4. Screw [x1ópcs)(24x20mm for NSE-1617);
Installation
Option 1: Mount on door (front or rear)
You can mount the speakers on the front/rear door of your car.
x Make sure that nothing obstructs around the mounting location of the door.
Xx A hole formounting may already be cut out of the inner panel of the door(front orrear). In this care, you need to
modify the board only.
* Ensure that the speaker terminals, frame or magnet do not interfere with any inner parts, such as the window), etc.
Also ensure that the speaker grille does not touch any inner fittings, such as the window cranks, door handles, arm
rests etc.
1. Turn off the carignition key.
Xx If the poweris on, the click noise generated by the connection may damage the speakers.
. Cut out the mounting template from the packing box.
. Paste the template on the location selected for mounting the speaker.
. Mark the cut-off hole and the 4 bolt holes. (Fig.1)
. Cut out the marked area and drill the bolt holes. (Fig.2)
сп № © N
A
\)
Fig.1 Fig.2
7. Strip the speaker wires and connect them to the amplifier.
Xx Consult the diagram below. Be sure to connect corresponding terminals, i.e. "+" to "+" and "-" to "-". Connection
with reversed polarity will degrade the quality of production.
Xx Connect the provided speaker cord to the speaker terminal while holding the lower portion of the speaker terminal.
Right Not Included
© © > L Right
© © == 9
Amplifier
O) ® = ft
Left Not Included
8. Mount on the speaker as shown below.
LS
2 NS
9. Press and insert the edges of the frame.
x The speaker grille can be mountTed without the grille net, if you like.
Option 2: Mount on rear tray
You can also mount the speakers into the surface of the rear tray.
Follow the steps in section “Option 1: Mount on door” to mount the speakers into the rear tray.
