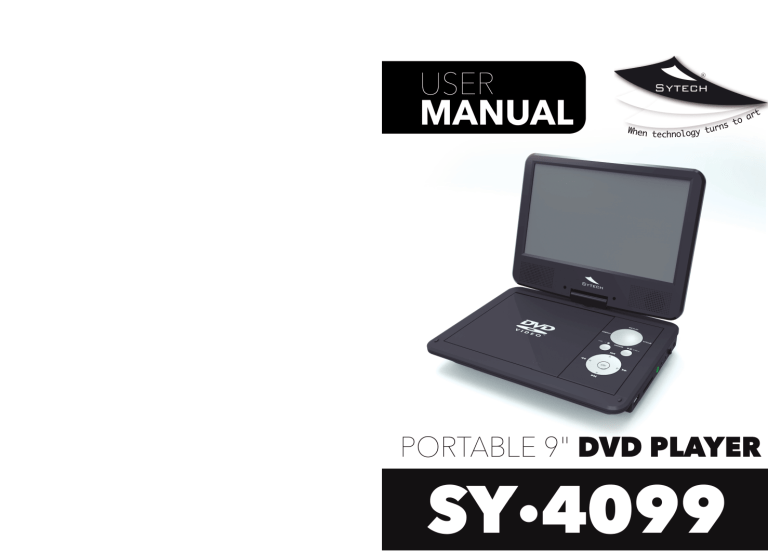

Sytech SY4099 Owner's manual

Sytech SY4099 Owner's manual
Safety Precaution
Table Of Contents
Safety Precaution
1
Package
2
Main Features
2
Main Unit Controls
3
System Connection
4
The Remote Control
6
Basic operation
8
Thank you for choosing our portable DVD player.The unit applies the latest state of art
electronics and is designed for use at home,in hotels and in offices etc for relaxation.
The compact size makes carrying easier as well as installation.Please read the manual
carefully prior to use and keep it well for future reference.
Hi-voltage, Don't Open it
Remind user to be careful to
avoid electric shock
System Setup
16
Specification
20
Warning:To reduce the risk of fire or electric shock, do not expose this apparatus to rain
or moisture.
Troubleshooting
21
1) Please read the instruction manual carefully and follow all the requirements of safe
operation to operate the device.
2) Do not use this unit near water.Do not place the unit over any container with liquid
inside.
3) Do not install near any heat sources such as radiators,heat registers,stoves,or other
apparatus(including amplifiers)that produce heat.
4) Unplug this unit during lightning storms or when unused for long time.
5) About Cleaning:Unplug the system,use only wet cloth to clean.Do not use liquid
detergent or aerosol.
6) Only use accessories specified by the manufacturer.
7) Refer all servicing to qualified service personnel,servicing is required when the unit
has been damaged in any way.Such as power supply cord or plug damaged, liquid
spilled or objects falling into the unit,exposed to moisture,not operating normally.
Don't try to repair the machine by yourself because of the danger of high voltage and
electric shock.
8) Do not use irregular shaped discs such as heart or star-shaped discs as they may
cause to the unit malfunction.
1
Package
Main Unit Controls
1
DVD Player
1
Remote Control with battery
1
AC/DC Power Adapter
1
Cigarette Lighter Adapter
1
User Manual
1
Earphone
1
2
3
5
4
10
9
6
7
Main Features
8
11
12
13
14
15
16
High brightness color 9” LCD screen
17
Compatible with disc of DVD,VCD,MP3,MPEG4,CD,JPEG,etc
Built-in stereo speaker
Built-in rechargeable Lithium polymer battery
Support PAL or NTSC system
Support Multi-language OSD,speed forward/backward,repeat function
Zoom in/out function
2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10. STOP button
11. DC IN 9-12V
12. Power ON/OFF switch
13. AV OUT
14. Earphone jack
15. Volume knob
16. SD card slot
17. Open and close knob
USB Port
SETUP button
MENU button
MODE button
TITLE button
( )/ ( )
OK button
( )/ ( )
PLAY/PAUSE button
3
System Connection
Connecting with external Speaker
The unit can be connected with external speaker.Please see the following illustration.
Powering and installation
Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the
unit, then plug the other end into the AC power receptacle. Please refer to the following
illustration.
AV CABLE
Not supplied
VIDEO IN
AUDIO IN
AMPLIFIER
TV
If using car cigarette lighter adaptor to connect to the power:
Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug
the other end into the car cigarette lighter socket. See illustration below.
Center speaker
Right front speaker
Left front speaker
SUBWOOFER
Note:
1.Car cigarette lighter adaptor is not recommended to recharge the battery.
2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.
3.The mains plug is used as the disconnect device, the disconnect device should remain
readily operable.
Right rear speaker
Left rear speaker
Note:
There is no 5.1 channel in the unit, however,after connecting to APM it is available to output
audio in 5.1 channel.
4
5
The Remote Control
The Use of Remote Control
Please put the battery into the remote control as per below illustration.
1
1
2
10
11
12
2
4
13
14
5
6
15
16
3
CR2025
CR2025
When using remote control,make sure the infrared window is pointed to infrared receiving
window of the machine.The distance between machine and remote control must be within
3 metres.Please refer to the following illustration.
20
17
7
18
19
8
9
RC-M42E
1. Number button
11. ZOOM(To zoom in/out the image
during the playback)
2. TITLE(To display title information)
12. MENU(To enter or exit root menu)
3. AUDIO(To select audio language)
13. SUBTITLE(To select subtitle language
when playing DVD disc)
4. SETUP(To go to or exit setup menu)
5.
Previous/Next button(To go
to previous/next chapter or scene
during playing)
6.
Fast forward/backward
button(To scan forward/backward
at 2,4,8,16,or 32 times)
14. ANGLE(To change viewing angle
when playing disc with multi-angle)
15. A-B(Repeat a specific portion from
point A to B, press it again to cancel
repeat playing)
16. REPEAT(To repeat playing title,
chapter or track)
7. OSD(To display disc information
during playing such as elapsed and
remaining time)
17. RETURN(To return to the main menu)
8.
18. MUTE(To turn to mute)
9.
PLAY/PAUSE
STOP(press once to stop playback, then
press
to resume playback from the
point where you stopped; press stop
button twice to stop playback completely)
19. VOL +/- (To adjust the volume)
20. ENTER(To confirm)
RC-M42E
Note:
1. To avoid falling off or place near damp environment.
2. To avoid infrared receiving window of the unit being under direct sunlight.
3. Please use a new battery to replace old one if the remote control doesn't work.
10. MODE(To select the source)
6
7
Basic Operation
DVD
MPEG4
SVCD
Fast forward and fast backward
VCD
DVD
MP3
CD
Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3.
1. In the Source Mode,you can press “
source you want.
DVD
” to select and “ ENTER ” key to enter the
SD
MPEG4
SVCD
VCD
CD
When playing disc of DVD,MPEG4,SVCD,VCD,CD, the machine can search forward or
backward.
1. Press“ ”,the unit will search forward. Press it repeatedly ,the machine will play
at 2, 4,8, 16, 32 times of speed.
2X
4X
16X
8X
USB
32X
2. Open the disc door and insert a disc into the door with the label side facing up.
3. Close the disc door.The unit will load the disc and start playing.
2. Press“ ”, the unit will search backward.
Press it repeatedly,the machine will play at
2,4,8,16,32 times of speed.
4. Press“ ”once to stop playback;press“ ”to resume playback from the point
where you stopped;press“ ”twice to stop playback completely.
2X
Search forward
Search backward
4X
RC-M42E
5. During playback,press“
”to pause; press it again to resume playback.
6. When the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.
7. For some DVD disc with Title or Chapter menu, press“MENU”button to enter menu
page, and use“
”to select. Press ENTER to confirm.
Note:
Please do not disconnect USB devices or plug out SD/MMC cards while they are working
with the unit.Functional failure may occur in case of wrong operations.
32X
16X
8X
Repeat playing
DVD
MPEG4
SVCD
VCD
CD
MP3
When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one
chapter, title or the whole disc.
For DVD disc,press“repeat”button,user can repeat playing one Chapter;press it
again to repeat playing Title;press it the third time to repeat playing the whole disc.
Chapter
Title
Title
All
Repeat off
Menu
For MP3 disc,press“repeat”button to repeat playing present file;press it again to repeat
playing the folder;press it the third time to cancel repeat function.
Cursor button
ENTER
one
folder
Repeat off
Play/pause
RC-M42E
RC-M42E
For CD/VCD disc, press “repeat”button repeatedly to repeat the track and the whole disc.
Track
8
All
9
Repeat off
Repeat playing of favorite scene
DVD
MPEG4
SVCD
VCD
CD
Playing JPEG file in data disc
MP3
When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a
specific section.
During playback,press“A-B”button at a point A,then press
A
this button again in point B,the unit will automatically repeat
playing the part between“A-B”
AB
Press it the third time,the unit will return to normal playback.
Number
Zoom in/out
A-B
Angle
Angle
RC-M42E
DVD
During playing DVD disc with multi-angle, press“Angle”button to change the display angle.
Note:
The function is available only for discs with multi-angle.
1. Place a JPEG disc into the tray, the unit will start reading and play.
2. Press“
”to select a JPEG file and press“ENTER”button to confirm.
Note:you can press “MENU” to return to the folder list.Press “
” or “ENTER” to
preview the file selected.
3. To rotate the picture counter-clockwise,press “ ”;Press “ ” to rotate the picture
clockwise.
4. Press OSD button when viewing pictures,you can select different refresh mode as
follows:
1. from top to bottom
2. from bottom to top
3. from left side to right side
4. from right side to left side
5. from left top to right bottom
6. from right top to left bottom
7. from left bottom to right top
8. from right bottom to left top
9. from horizontal center to both sides
10.from vertical center to both sides
11.from top and bottom to center
12.from right and left to center
13.from four window's top side to bottom side
14.from four window's left side to right side
15.from 4 edges to center
5. During viewing files,“ ”may appear when pressing“Angle”or“Subtitle”or “Audio”
or“A-B”or“Title”etc; in this situation these options are unavailable to operate.
6. When viewing JPEG files,press“ ”,pictures will be displayed in thumbnail mode,
press “
” or “ENTER” button to select one picture to view.
2X
Playing MP3 files in data disc
Zoom in/ out
3X
DVD
MPEG4
SVCD
Place MP3 disc into the disc door. Press “
” or “ENTER”button to choose an MP3
file;Press “ ” or“ENTER”button to play the file selected.
VCD
When playing disc of DVD,MPEG4,SVCD,VCD,user can
zoom in or zoom out the image.
4X
00 36 03 43
Dir 001
\Ctyy\
1 /2X
During playback,press“Zoom”button,the image will be
enlarged;press it again the image will be enlarged again;
press it fourth time,the image will zoom out,press it
repeatedly and the image will return to normal status.
......
Mp3
1 /3X
Mp3
Mp3
Mp3
Mp3
1 /4X
When the image is enlarged,user can press“
10
/ / /
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
”to move the image.
11
Browser mode
SD/MMC/USB main menu
00 00 03 43
001/008
\Ctyy\
......
Mp3
Mp3
Mp3
Mp3
Mp3
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
After entering the SD/MMC or USB,the system will show Main Menu which includes 4
Function ICONS.You can select them by“
”and press“ENTER” key to confirm.
Browser Mode
Please refer to P14 for detail explanation
In
“
“
“
the Browser Mode,the system will show the list of file and folder.
”, “ ”, “ENTER” key:select and play
” :Enter the folder
” :Quit the folder
Note:
If you want to return to the Main Menu,please make sure the system is in list of file or
folder status,then press“ RETURN ” KEY.
Photo Mode
Please refer to P14 -15 for detail explanation
Photo mode
Music Mode
Please refer to P15 for detail explanation
Slide Show
Movie Mode
Please refer to P16 for detail explanation
Menu
Prev Next
In the Photo Mode,the System will show the thumbnail Mode first.
“ ”, “ ”, “ ”, “ ”, “ENTER” :select and play.
Slide Show:play the JPEG.
Menu:Enter the Help Menu.
Prev:Page Up.
Next:Page Down.
Note:Media cards formatted in exFAT file system are not supported.
12
13
When playing JPEG :
1.To rotate the picture counter-clockwise,press “
”; Press“
” to rotate the picture
clockwise
2. Press OSD button when viewing pictures,you can select different refresh mode as
follows:
1. from top to bottom
2. from bottom to top
3. from left side to right side
4. from right side to left side
5. from left top to right bottom
6. from right top to left bottom
7. from left bottom to right top
8. from right bottom to left top
9. from horizontal center to both sides
10.from vertical center to both sides
11.from top and bottom to center
12.from right and left to center
13.from four window's top side to bottom side
14.from four window's left side to right side
15.from 4 edges to center
In the Movie Mode,the system will show the list of Movie file,like AVI and so on.
“ ”, “ ”, “ENTER” Key:Select and Play.
3. During viewing files,“ ”may appear when pressing“Angle”or“Subtitle”or“Audio”
or“A-B”or“Title”etc;in this situation these options are unavailable to operate.
4. When viewing JPEG files,press“ ”and“RETURN”key,pictures will be displayed in
thumbnail mode,press“
”or“ENTER”button to select one picture to view.
When playing movie you can press“ MENU ” and “ Return ” Key to back to the list of movie
file status.And if you want to Return to the Main Menu,Please Press“ Return ” key in list
of Movie file status.
Note :
If you want to return the Main Menu, please press“RETURN”key in the thumbnail mode.
CD RIPPING
Movie mode
001/006
AVI
AVI
AVI
AVI
AVI
AVI
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
TRACK06
During playing the CD/HDCD disc,you can enter CD Ripping function.By pressing
subtitle button,DVD player will be able to change the CD format into MP3 format,
and then store it in the USB or SD card.
Music mode
128Kbps
CD RIP
Mp3
Mp3
Mp3
Mp3
Mp3
Options
TRACK01
TRACK02
TRACK03
TRACK04
TRACK05
P
Track
Speed
Normal
Track 01
03:36
001/008
Bitrate
128kbps
Track 02
03:36
Repeat Off
Track 03
03:36
Create Id3
Yes
Track 04
03:36
Device
USB 1
Track 05
03:36
Track 06
03:36
Track 07
03:36
00
00 03
43
P
SUMMARY
Selected Track
Selected Time
In the Music Mode,the system will show the list of music file,like Mp3 and so on.
Press “ ”, “ ”, “ENTER” ,select and play.
” to fast forward /backward MP3 during playing.
Press “
” to select the function button when in “ stop ” status.
Press “
Page-:Page Up.
:play
Page+:Page Down
Start
0
00:00
Exit
All
Note:Press “ Return ” Key to Return to the Main Menu.
14
15
None
Speed: In this item, you can set the rip speed: Normal or Fast.
Bitrate: In this item, you can set the bitrate. It has 6 choices,128Kbps,192Kbps,256Kbps,
320Kbps,96Kbps and 112Kbps.
Create ID3:In this item, you can create ID3 when playing CD text.
Device: This item indicates whether USB or SD CARD is connected with DVD player.
Exit: Exit to the previous menu.
All: Select all the files in the disc for convertion and storage.
None: Cancel the selection .
Start: Move the cursor to the item and press “ENTER” button, the convertion begins.
During the converting,you can select “CANCEL” to stop it.
General Setup Page
General Setup
TV Display
Angle Mark
OSD Lang
Screen Saver
Wide
ON
ENG
ON
Angle Mark:
Enter this option to set the angle during
playback.
Optional setting:ON,OFF
On
Off
The default is:ON
:Move
:Return
:Entry
General Setup
CD RIP
Ripping
Selected track
Track Progress
Track 01
9%
Total Progress
TV Display
Angle Mark
OSD Lang
Screen Saver
Wide
ON
ENG
ON
OSD Language:
In the option user can set OSD menu
language(English,French,German,Italian).
English
French
German
Italian
The default:English
Cancel
:Move
SUMMARY
:Return
:Entry
Now ripping
Track
01/01
General Setup
TV Display
Angle Mark
OSD Lang
Screen Saver
System Setup
:Move
Wide
ON
ENG
ON
Screen Saver
Enter this option to set whether to activate
the screen saver function.
On
Off
:Return
The default is ON.
:Entry
Video Setup
Setup Menu
--
Press “ SETUP ” button,the main menu will be
displayed on the screen
” button to
In the main Page,Press“
highlight the item.
Press “ ENTER ” button to access.
Press “SETUP” button to exit.
Main Page
General Setup
Video Setup
Preference Setup
TV Type
Quality
Panel Quality
:Move
16
PAL
:Return
PAL
NTSC
TV Type:
Enter this option to select TV type(PAL,NTSC)
The default is PAL.
:Entry
17
Video Setup Page
Preference Setup
Subtitle
Select your preferred language to show the
subtitles on the screen.
The default is OFF
The subtitle languages depend on the
information available on each disc,You can
also change the subtitle language during
playback by press the SUBTITLE button.
Video Setup
TV Type
Quality
Panel Quality
PAL
Set the Video Quality of AV OUT
Audio
Subtitle
Disc Menu
Parental
Default
:Move
:Move
ENG
Off
ENG
English
French
German
Italian
Off
:Return
:Entry
:Entry
:Return
Preference Setup
Video Setup
TV Type
Quality
Panel Quality
Audio
Subtitle
Disc Menu
Parental
Default
PAL
ENG
Off
ENG
Set the Video Quality of PANEL
:Move
:Move
Disc Menu
This function allows you to choose the menu
language stored on the disc.
The default is English.
Note:the disc menu languages depend on the
information available on the disc.
English
French
German
Italian
:Return
:Entry
:Entry
:Return
Preference Setup
Audio
Subtitle
Disc Menu
Parental
Default
ENG
Off
ENG
Preference Page
:Move
1
2
3
4
5
6
7
8
Parental:
Enter this option to set the parental control
level to some unsuitable disc scenes being
watched by the children.
Optional parental control levels: KID SAFE,
G, PG,PG 13,PGR, R, Nc17, ADULT.
KID SAFE
G
PG
PG 13
PGR
R
NC 17
ADULT
:Return
The default is ADULT.
The default password:8888.
:Entry
Preference Setup
Audio
Subtitle
Disc Menu
Parental
Default
:Move
ENG
Off
ENG
:Return
Audio:
Enter this option,user can select preferred
audio language for DVDs.
The default is English.
Note
The audio language depend on the material
on each disc.
User can also change the audio language
durin g playback by pressing the Audio button.
English
French
German
Italian
:Entry
Preference Setup
Audio
Subtitle
Disc Menu
Parental
Default
:Move
18
ENG
Off
ENG
Default:
Select this item and press ENTER button to
reset.
Reset
:Return
:Entry
19
Troubleshooting
Specification
Compatible disc: DVD/VCD/CD/MP3/MPEG4
Signal system: PAL/NTSC
Panel size: 9 inch
Frequency response: 20 Hz to 20 kHz
Video output: 1 Vp-p/75Ohm, unbalanced
Audio output: 1.4Vrms/10kOhm
Audio S/N: Better than 80dB
Dynamic range: Better than 85dB
Laser: Semiconductor Laser, Wave Length: 650nm/795nm
Power source: DC 9-12V
Power consumption: 10 W
Operating temperature: 0~40°C
Weight: 0.85kg
Dimensions : 233.5 x 175x 43mm
Battery Type: Li Polymer
Note:
1.The quality and speed for reading JPEG photos depend on the resolution and
compression ratio of the photos. Some JPEG photo may not be played due to the disc
quality and the formats.
2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to the quality on
burning conditions.
Rechargeable battery use
The machine utilize s long-life Li polymer battery for portable power supply.The battery has
no “ Memory Effect”and thus can be recharged safely regardless of whether the battery
is fully or partially discharged.It's enough to recharge no longer than 3H each time,fully
recharged battery can last about 2 hours with earphone.
Precautions related to Battery Recharge
The battery can be only recharged when turning power to OFF state,and keep continuous
power supply, the red light will be on,and the light will turn yellow when it's fully charged.
Using and Maintaining Rechargeable Battery
1. The normal working temperature is:0°C ~40 °C ;
2. Always unplug AC/DC power supply for the unit when not in use;
3. Heat will create during playing,it's normal,while avoid long time playing and
unattendance;
4. Avoid having the unit collide with any objects,and place away from all possible heat
sources or damp areas.
PROBLEM
SOLUTION
No sound or
distorted sound
Make sure the machine is connected properly.
Make sure all cables are securely inserted into
the appropriate jacks.
Can't advance
through a movie
You can't advance through the opening credits
and warning information that appears at the
beginning of movies because the disc is
programmed to prohibit that action.
The icon
appears on
screen
The feature or action cannot be completed at
this time because:
1.The disc's software restricts it.
2.The disc's software doesn't support the
feature (e.g.,angles)
3.The feature is not available at the moment.
4.You've requested a title or chapter number
that is out of range.
Picture is distorted
The disc might be damaged.Try another disc;
it is normal for some distortion to appear during
forward or reverse scan.
No forward or
reverse scan
Some discs have sections that prohibit rapid
scanning or chapter skip;If you try to skip
through the warning information and credits
at the beginning of a movie,you won't be able
to.This part of the movie is often programmed
to prohibit skipping through it.
If at any time in the future you should need to dispose of this product please
note that waste electrical products should not be disposed of with household
waste.Please recycle where facilities exist.Check with your Local Authority
or retailer for recycling advice.(Waste Electrical and Electronic equipment
Directive)
Owing to continuous improvement,no prior notice will be given regarding changes on
above feature and spec.
Caution:Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
20
21
DECLARATIONOF CONFORMITY
Manufacturer: Satyatrade S. L.
Address: Pol. Ind. La Raya. C/ Guadalquivir, 2.
Camarma de Esteruelas, 28816 Madrid
Tel: 902 430 967
Fax: 91 8864285
NIF: B83254763
Manufacturing country: China
Description: Portable DVD player
Sytech® SY-4099 complies with the following directives:
CE Standard: Directive 2004/108/EC
LVD Standard: 2006/95/EC
RoHS Standard: 2011/65/EU. Restriction of hazardous substances
Signed: Ajeet Nebhwani Utamchandani
SoleAdministrator
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
