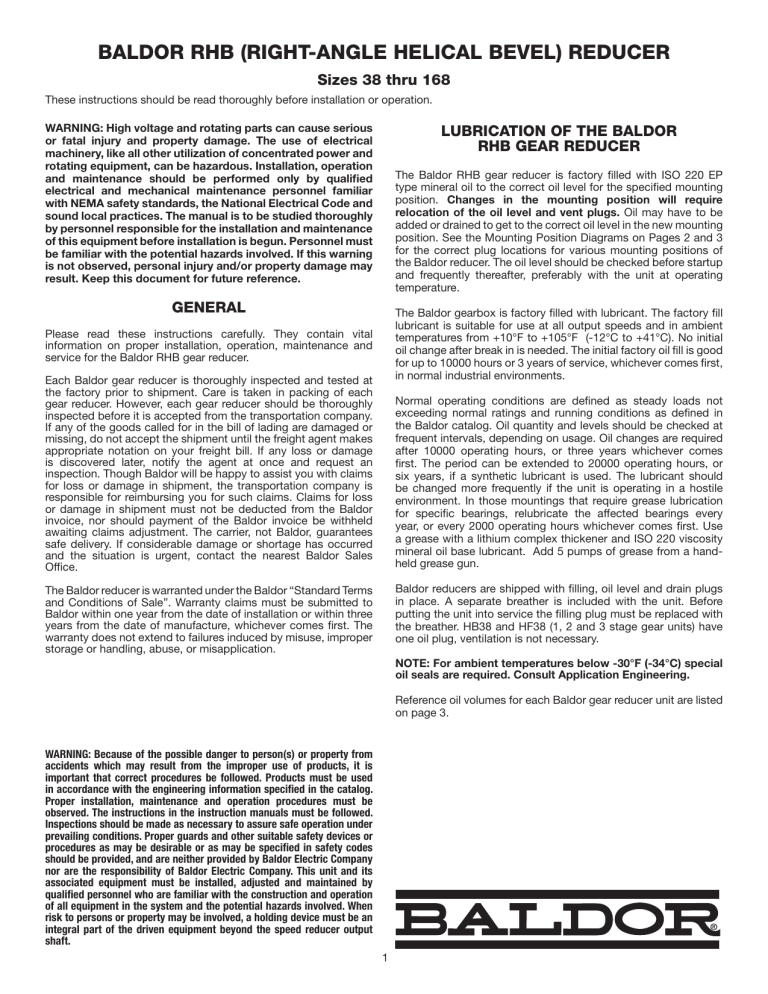

BALDOR RHB (RIGHT-ANGLE HELICAL BEVEL) REDUCER

Sizes 38 thru 168

These instructions should be read thoroughly before installation or operation.

WARNING: High voltage and rotating parts can cause serious or fatal injury and property damage. The use of electrical machinery, like all other utilization of concentrated power and rotating equipment, can be hazardous. Installation, operation and maintenance should be performed only by qualified electrical and mechanical maintenance personnel familiar with NEMA safety standards, the National Electrical Code and sound local practices. The manual is to be studied thoroughly by personnel responsible for the installation and maintenance of this equipment before installation is begun. Personnel must be familiar with the potential hazards involved. If this warning is not observed, personal injury and/or property damage may result. Keep this document for future reference.

GENERAL

Please read these instructions carefully. They contain vital information on proper installation, operation, maintenance and service for the Baldor RHB gear reducer.

Each Baldor gear reducer is thoroughly inspected and tested at the factory prior to shipment. Care is taken in packing of each gear reducer. However, each gear reducer should be thoroughly inspected before it is accepted from the transportation company.

If any of the goods called for in the bill of lading are damaged or missing, do not accept the shipment until the freight agent makes appropriate notation on your freight bill. If any loss or damage is discovered later, notify the agent at once and request an inspection. Though Baldor will be happy to assist you with claims for loss or damage in shipment, the transportation company is responsible for reimbursing you for such claims. Claims for loss or damage in shipment must not be deducted from the Baldor invoice, nor should payment of the Baldor invoice be withheld awaiting claims adjustment. The carrier, not Baldor, guarantees safe delivery. If considerable damage or shortage has occurred and the situation is urgent, contact the nearest Baldor Sales

Office.

The Baldor reducer is warranted under the Baldor “Standard Terms and Conditions of Sale”. Warranty claims must be submitted to

Baldor within one year from the date of installation or within three years from the date of manufacture, whichever comes first. The warranty does not extend to failures induced by misuse, improper storage or handling, abuse, or misapplication.

LUBRICATION OF THE BALDOR

RHB GEAR REDUCER

The Baldor RHB gear reducer is factory filled with ISO 220 EP type mineral oil to the correct oil level for the specified mounting position.

Changes in the mounting position will require relocation of the oil level and vent plugs.

Oil may have to be added or drained to get to the correct oil level in the new mounting position. See the Mounting Position Diagrams on Pages 2 and 3 for the correct plug locations for various mounting positions of the Baldor reducer. The oil level should be checked before startup and frequently thereafter, preferably with the unit at operating temperature.

The Baldor gearbox is factory filled with lubricant. The factory fill lubricant is suitable for use at all output speeds and in ambient temperatures from +10°F to +105°F (-12°C to +41°C). No initial oil change after break in is needed. The initial factory oil fill is good for up to 10000 hours or 3 years of service, whichever comes first, in normal industrial environments.

Normal operating conditions are defined as steady loads not exceeding normal ratings and running conditions as defined in the Baldor catalog. Oil quantity and levels should be checked at frequent intervals, depending on usage. Oil changes are required after 10000 operating hours, or three years whichever comes first. The period can be extended to 20000 operating hours, or six years, if a synthetic lubricant is used. The lubricant should be changed more frequently if the unit is operating in a hostile environment. In those mountings that require grease lubrication for specific bearings, relubricate the affected bearings every year, or every 2000 operating hours whichever comes first. Use a grease with a lithium complex thickener and ISO 220 viscosity mineral oil base lubricant. Add 5 pumps of grease from a handheld grease gun.

Baldor reducers are shipped with filling, oil level and drain plugs in place. A separate breather is included with the unit. Before putting the unit into service the filling plug must be replaced with the breather. HB38 and HF38 (1, 2 and 3 stage gear units) have one oil plug, ventilation is not necessary.

NOTE: For ambient temperatures below -30°F (-34°C) special oil seals are required. Consult Application Engineering.

Reference oil volumes for each Baldor gear reducer unit are listed on page 3.

WARNING: Because of the possible danger to person(s) or property from accidents which may result from the improper use of products, it is important that correct procedures be followed. Products must be used in accordance with the engineering information specified in the catalog.

Proper installation, maintenance and operation procedures must be observed. The instructions in the instruction manuals must be followed.

Inspections should be made as necessary to assure safe operation under prevailing conditions. Proper guards and other suitable safety devices or procedures as may be desirable or as may be specified in safety codes should be provided, and are neither provided by Baldor Electric Company nor are the responsibility of Baldor Electric Company. This unit and its associated equipment must be installed, adjusted and maintained by qualified personnel who are familiar with the construction and operation of all equipment in the system and the potential hazards involved. When risk to persons or property may be involved, a holding device must be an integral part of the driven equipment beyond the speed reducer output shaft.

1

MOUNTING POSITIONS

RIGHT-ANGLE HELICAL BEVEL SIZES 38-168

These mounting arrangements are for all output configurations and output shaft types. When ordering, please specify mounting position for correct oil quantity. In cases of mounting position other than shown here with regard to the oil quantity, please contact

Application Engineering.

A1

Oil Level

Horizontal - Floor Mount

Oil Drain

A2

Ventalation

Vertical Wall Mount - Motor Shaft Up

A3

Horizontal - Ceiling Mount

A4

A

A5

B

Horizontal - Wall Mount

A6

Vertical Wall Mount - Motor Shaft Down

Horizontal - Wall Mount

BB38 and BF38 units are sealed and furnished with only one plug for the purpose of filling and draining.

Shaded mounting position not recommended. Use of product in positions not recommended negates the time-in-use warranty.

Figure 1 - Mounting Positions

2

OLD VS. NEW MOUNTING POSITIONS

Shaded A2 mounting is not a recommended mounting position due to the weight of oil on the high speed input seal.

Figure 2 - Old vs. New Mounting Position Nomenclature

3

Type

B_38

B_48

B_68

B_88

B_108

B_128

B_148

B_168

Red.

Stage

3

3

3

3

3

3

3

3

Pints

1.0

1.5

2.7

4.7

11.7

17.5

31.2

45.8

A1

Liters

0.5

0.7

1.3

2.2

5.5

8.3

14.8

21.7

Pints

1.8

2.5

5.1

9.7

17.6

31.2

47.3

73.6

A2

Table 1 - Approximate Lubricant Amount

Mounting Position

A3 A4

Liters

0.8

1.2

Pints

2.3

3.6

Liters

1.1

1.7

Pints

3.1

4.9

2.4

4.6

8.3

14.8

22.4

34.8

6.2

12.8

20.9

41.4

63.7

97.8

2.9

6.1

9.9

19.6

30.2

8.2

16.3

29.3

53.7

86.7

46.3

132.3

Liters

1.5

2.3

3.9

7.7

13.9

25.4

41.0

62.6

Pints

2.1

3.3

5.9

10.7

19.7

36.9

54.9

86.9

A5

Liters

1.0

1.6

2.8

5.1

9.3

17.6

26.0

41.1

Pints

1.9

3.8

5.7

9.8

18.9

35.1

59.4

83.4

A6

Liters

0.9

1.8

2.7

4.6

8.9

16.6

28.1

39.4

NOTE:

Do not mix oils from different manufacturers. If a change to another type or brand of oil is made, the existing lubricant should be drained and the gearcase flushed with a small quantity of the new lubricant before refilling with the new lubricant. This is necessary to avoid possible incompatibility problems between the two lubricants. The list below gives approved alternative lubricants. This is not an exclusive list. Equivalent lubricants from other manufacturers may be used.

All reducers are factory filled according to the mounting position indicated on the order. If the mounting position is changed from the ordered mounting position, the oil level must be changed. The oil volumes shown in the mounting position charts are approximate.

The correct oil level is determined by the oil level hole in the housing except for size 38 reducers. If the reducer is ordered with the standard mineral oil and the oil is later changed to synthetic oil, it is recommended the shaft seals be changed to Viton (FKM) material.

RHB is furnished with oil level, drain, and fill plugs except for the size 38, which only has a fill plug. Before starting operation, the breather must be located in the correct location.

Continued operation in cold ambient conditions requires special modifications. Contact contact the nearest Baldor Sales Office.

The density of the standard factory fill oil is 0.93 lbs/pint (1.98 lbs/ liter). The list below shows lubricants that are available as factory fill in Baldor RHB reducers. The standard factory fill lubricant is

Mobilgear 600 XP 220, which is a high performance mineral oil lubricant with special additives for use in industrial gear products.

Ambient

Temperature*

10°F to 105°F

(-12°C to 41°C)

-20°F to 50°F

(-29°C to 13°C)

-10°F to 115°F

(-23°C to 46°C)

30°F to 140°F

(-0° C to 60° C)

Oil Type

Mineral Oil

Synthetic Oil

Synthetic Oil

Synthetic Oil

Table 2 - Lubricant Selection Table

ISO

Viscosity Grade

Available Oils

220

Mobilgear 600 XP 220

(standard factory fill **)

68 Mobil SHC 626

220 Mobil SHC 630

460 Mobil SHC 634

Available Food Grade Oils (NSF H1)

-

-

-

-

25°F to 75°F

(-4°C to 29°C)

45°F to 105°F

(7°C to 41°C)

Mineral Oil

Mineral Oil

220

460

-

-

Chevron FM 220

Chevron FM 460

* Ambient temperatures listed are for lubricant only and do not indicate a particular gear unit’s suitability to run in that ambient.

** Previous factory fill oil was Mobilgear 630 - Mobilgear 600 XP 220 and Mobilgear 630 are compatible with each other and do not require a flush.

Recommendations will be made based on specific application details.

4

LONG TERM STORAGE

NOTE: Unless an extended warranty has been negotiated prior to sale, time in storage is considered time in service for warranty purposes.

If the drive is not installed immediately, it should be stored in a clean, dry, protected area. During periods of long term storage

(six months or longer) special procedures must be followed. The unit should be filled to the highest oil level hole with an approved lubricant blended with 2%, by volume, of “Daubert Chemical Co.

Nox-Rust VCI-105” oil. Apply a thick coating of rust preventative on all unpainted surfaces including threads, bores, keyways, and shafts. Apply a thick coating of chassis-type grease to all exposed shaft seals. If the unit is to be stored outdoors or in a damp, unheated area indoors, cover the entire exterior with a rust preventative. Seal the unit in a moisture proof container or wrapping with a desiccant inside. Shade the enclosure from direct sunlight. Rotate the input shaft at least 60 revolutions once a month to redistribute the lubricant and prevent brinnelling of bearings and drying of seals.

INSTALLATION OF COMPONENTS ON GEAR

REDUCER SHAFTS

Use care when installing couplings, sprockets and sheaves (pulleys) on the Baldor input and output shafts. Such components should not be hammered into place. Damage to shafts and bearings may result. If parts do not slip into place easily, check for dirt or burrs that may be binding the assembly. Very tightly fitted parts may need to be heated to get them onto the shafts. Keys should be located for maximum engagement between the shaft and the associated part. Sprockets and sheaves should be mounted as close to the gearcase as possible to minimize overhung loads.

Retaining hardware (setscrews, etc.) for couplings, sprockets and sheaves should be tightened as recommended by the component manufacturer. Chain and belt drives must be aligned to run true. Tighten chains and belts according to the chain or belt manufacturer’s instructions. Excessive tension results in rapid chain and belt wear and reduces the bearing life of the Baldor unit.

1 2 3

Upon removal from storage, remove all protective coatings applied for protection during storage. Check all hardware for proper tightness. Drain and refill the gear reducer with a recommended lubricant. If the gear reducer has been stored for more than three years or in an area with high ambient temperatures, replace the oil seals.

X

1 Reducer Coupling Hub

2 Coupling Element

3 Motor Coupling Hub

X = Distance from motor shaft end to end face of coupling half (the length of the coupling jaws is not included in dimension X).

INSTALLATION AND OPERATION

Baldor reducers are shipped with fill, oil level and drain plugs in place. A separate breather is included with the unit. Before putting the unit into service the filling plug must be replaced with the breather. Install the oil level plug and breather plug in the correct location for the appropriate mounting position using the mounting position diagrams shown on pages 2 and 3. Add or drain oil to get to the correct oil level for the mounting position used.

Figure 3 - Three-Piece Coupling Assembly

1 Clamp Collar

Review the dataplates on the reducer and drive motor to verify that the drive is correct for the intended loads, speeds and power supply. The gear reducer should be installed in a location that meets the following requirements:

• Ambient temperatures below 100°F (40°C).

• Free flow of air around the motor.

• Good access to gear reducer and motor for maintenance.

• A flat, level, rigid steel mounting surface.

• All four feet of the foot-mounted unit must be evenly supported.

• The flange mounted unit must have even support at the flange face.

• Units supported by both flange and feet must be shimmed to avoid housing stress.

• Good alignment to both input and output devices.

2 Reducer Input Bore

Figure 4 - Clamp Collar Assembly

Bottom of Key

Correct key fit in Motor Keyway

Incorrect key fit in Motor Keyway

Figure 5 - Clamp Collar Motor Key Fit

5

Table 3 - MOUNTING MOTORS TO C-FACE REDUCERS

FOR 3-PIECE COUPLED INPUT REDUCERS

(Reference Figure 3)

FOR CLAMP COLLAR INPUT REDUCERS

(Reference Figure 4)

Prepare the motor by checking the motor shaft extension for dirt or damage. Remove any anti-rust coating that may be on the shaft. Apply a thin even coating of anti-seize compound to the entire motor shaft.

Insert the coupling key into the motor shaft keyway. Slip the motor coupling half onto the motor shaft and locate it a distance

“ x” from the motor shaft end. Refer to Figure 3 for definition of distance “ x” . Refer to the table on page 8 for values of “ X” for each motor

Tighten the motor coupling half setscrew to the correct torque value listed below.

Check that the reducer coupling half, with its key in place, is mounted on the reducer input shaft inside the C-face adapter.

Make sure this coupling half is mounted on the reducer shaft such that the shaft extends the complete length of the coupling bore. Insert the coupling spider properly into the coupling jaws.

The Baldor RHB C-Face reducer should be firmly anchored to prevent sliding as the motor is mounted. The motor should be rotated on its axis so the motor flange holes line up with the

C-Face adapter holes. Check to be sure the motor conduit box, grease fittings and condensations drains (where fitted) will be oriented as needed by the reducer mounting position.

Hoist motor level and in line with reducer input shaft.

Align the motor coupling half such that its jaws are aligned with the gaps between the spider and the reducer coupling half jaws. Push the motor into place. Motor flange to C-face adapter clearances are tight and good alignment is essential.

Insert and tighten the motor retaining bolts Tighten to the correct torque value listed below.

Prepare the motor by checking the motor shaft extension for dirt or damage. Use solvent to remove all traces of anti-rust coating that may be on the shaft.

Check the input bore for dirt or damage. Clean the bore with solvent to remove all traces of oil or anti-rust coating.

For NEMA motors ONLY: A special long, tall motor key is provided with the QUANTIS unit.

1. Discard the motor key and replace it with the special key provided. DO NOT USE THE MOTOR KEY.

2. If the special key does not fit snugly in the motor shaft keyway, prepare the key for assembly by nicking its bottom in a couple of spots. A chisel may be used to accomplish this. This must be done on a work surface away from the

QUANTIS unit and the motor. This nicking should widen the key bottom and cause it to fit snugly in the motor keyway.

Refer to Figure 5 for definition of key bottom.

3. Install the key in the motor shaft keyway by lightly tapping it in place with a rubber mallet.

4. Locate the key so that it sits flat in the motor shaft keyway.

The key will probably extend beyond the end of the motor shaft. This is OK. The key MUST NOT sit tilted in the keyway. A tilted key can occur when a motor shaft has a sled runner keyway, Refer to Figure 5.

5. Mark the clamp collar with a fine tipped marker on both sides of the setscrew to indicate where the center of the set screw is located. Run a line down both sides of the clamp collar that line up with the line previously created.

6. Remove the socket head screw and set screw from the clamp collar and apply Loctite 243 thread locker. Reinstall the screws into the clamp collar. Install the clamp collar onto the reducer input shaft and line up the mark previously made on the clamp collar with the center of the keyway in the shaft. If the clamp collar rotates freely, tighten the clamping screw slightly to keep it from rotating during assembly. Make sure the marked line is pointing to the center of the keyway.

The Baldor RHB C-Face reducer should be firmly anchored to prevent sliding as the motor is mounted. The motor should be rotated on its axis so the motor flange holes line up with the C-Face adapter holes. Check to be sure the motor conduit box, grease fittings and condensate drains (where fitted) will be oriented as needed by the reducer mounting position.

Hoist motor level and in line with reducer input shaft.

Align the motor shaft with the gear reducer input bore making sure that the motor shaft keyway is in line with the input bore key. Push the motor into place. Motor shaft to input bore clearances are tight and good alignment is essential.

Insert and tighten the motor retaining bolts. Tighten to the correct torque value listed below.

6

FOR 3-PIECE COUPLED INPUT REDUCERS

(Reference Figure 3)

NEMA Motor Frame Motor Bolt

FOR CLAMP COLLAR INPUT REDUCERS

Bolt Tightening Torque NEMA Motor Frame

(Reference Figure 4)

Motor Bolt Bolt Tightening Torque

56-140

180

3/8—16

1/2—13

276 lb-in (31 Nm)

660 lb-in (75 Nm)

56-140

180

3/8—16

1/2—13

276 lb-in (31 Nm)

660 lb-in (75 Nm)

210

250

280

320

360

1/2—13

1/2—13

1/2—13

5/8—11

5/8—11

660 lb-in (75 Nm)

660 lb-in (75 Nm)

660 lb-in (75 Nm)

1320 lb-in (150 Nm)

1320 lb-in (150 Nm)

210

250

280

320

360

1/2—13

1/2—13

1/2—13

5/8—11

5/8—11

660 lb-in (75 Nm)

660 lb-in (75 Nm)

660 lb-in (75 Nm)

1320 lb-in (150 Nm)

1320 lb-in (150 Nm)

IEC Motor Frame

71

80

90

100

112

132

160

180

200

225

250

Motor Bolt

M8

M10

M10

M12

M12

M12

M16

M16

M16

M16

M16

Bolt Tightening Torque IEC Motor Frame

220 lb-in (25 Nm)

440 lb-in (50 Nm)

440 lb-in (50 Nm)

800 lb-in (90 Nm)

800 lb-in (90 Nm)

800 lb-in (90 Nm)

1860 lb-in (210 Nm)

1860 lb-in (210 Nm)

1860 lb-in (210 Nm)

1860 lb-in (210 Nm)

1860 lb-in (210 Nm)

71

80

90

100

112

132

160

180

200

Motor Bolt

M8

M10

M10

M12

M12

M12

M16

M16

M16

Bolt Tightening Torque

220 lb-In (25 Nm)

440 lb-in (50 Nm)

440 lb-in (50 Nm)

800 lb-in (90 Nm)

800 lb-in (90 Nm)

800 lb-in (90 Nm)

1860 lb-in (210 Nm)

1860 lb-in (210 Nm)

1860 lb-in (210 Nm)

FOR 3-PIECE COUPLED INPUT REDUCERS

(Reference Figure 3)

View the coupling assembly through the access hole in the

C-face adapter.

1. Make sure the couplings jaws fully engage the spider. If they do not, loosen the setscrew in the reducer coupling half and slide it forward until full jaw engagement is achieved.

However, make sure the jaws on one coupling half do not contact the hub of the other coupling half.

2. Reaching through the access hole in the C-face adapter with a hex key, tighten the coupling setscrew on the reducer coupling half to the recommended torque given below.

Replace the access hole plugs in the C-face adapter.

NOTE: A TEE handle hex key wrench is not stiff enough to properly tighten the coupling setscrews. A large diameter socket wrench extension with a short hex key insert must be used in conjunction with a torque wrench. Failure to tighten the setcrews to the proper torque may result in movement between shafts and coupling components and cause premature wear on the shafts, coupling and keys.

FOR CLAMP COLLAR INPUT REDUCERS

(Reference Figure 4)

View the clamp collar through the access holes in the C-face adapter.

1. Rotate the clamp collar to locate the setscrew over the key, if necessary.

2. Tighten the setscrew to the torque referenced below.

3. Reach through the access hole in the C-face adapter with a hex socket and tighten the clamp collar clamping bolt to the torque value given below.

Replace the access hole plugs in the C-face adapter.

NOTE: A TEE handle hex key wrench is not stiff enough to properly tighten the clamp collar bolt. A socket wrench extension with a hex insert must be used in conjunction with a torque wrench. Failure to tighten the clamp collar to the proper torque may result in movement between motor and reducer shafts and cause premature wear on the shafts and keys

7

56

140

180

210

250

280

320

360

NEMA

Motor

Frame

FOR 3-PIECE COUPLED INPUT REDUCERS

(Reference Figure 3)

Coupling

Size

19

19/24

24/28

28/38

38/45

42/55

48/60

55/70

Setscrew

Size

M5

M5

M5

M6

M8

M8

M8

M10

Setscrew

Tightening

Torque

18 lb-in (2 Nm)

18 lb-in (2 Nm)

18 lb-in (2 Nm)

42 lb-in (4.8 Nm)

90 lb-in (10 Nm)

90 lb-in (10 Nm)

90 lb-in (10 Nm)

150 lb-in (17 Nm)

Motor

Coupling

Half Position

Dimension

“X”

0

0

0

0

0

0

0

0

IEC

Motor

Frame

71

80

90

100

112

132

160

180

200

225

250

Coupling

Size

19

19/24

19/24

24/28

24/28

28/38

38/45

42/55

42/55

48/60

55/70

Setscrew

Size

M5

M5

M5

M5

M5

M6

M8

M8

M8

M8

M10

Setscrew

Tightening

Torque

18 lb-in (2 Nm)

18 lb-in (2 Nm)

18 lb-in (2 Nm)

18 lb-in (2 Nm)

18 lb-in (2 Nm)

42 lb-in (4.8 Nm)

90 lb-in (10Nm)

90 lb-in (10 Nm)

90 lb-in (10 Nm)

90 lb-in (10 Nm)

150 lb-in (17 Nm)

Motor

Coupling

Half Position

Dimension

“X”

0

0

0

0

0

0

0

0

0

0.040 in

(6.0 mm)

0

(Reference Figure 4)

NEMA

Motor

Frame

Clamp

Bolt

Clamp Bolt

Tightening Torque

Setscrew

Size

56

140

180

210

250

280

320

360

IEC

Motor

Frame

71

80

90

100

112

132

160

180

200

FOR CLAMP COLLAR INPUT REDUCERS

M6

M6

M8

M10

M8

M8

M10

M10

Clamp

Bolt

M6

M6

M8

M8

M8

M8

M8

M10

132 lb-in (15 Nm)

132 lb-in (15 Nm)

312 lb-in (35 Nm)

600 lb-in (68 Nm)

312 lb-in (35 Nm)

312 lb-in (35 Nm)

600 lb-in (68 Nm)

600 lb-in (68 Nm)

Clamp Bolt

Tightening Torque

132 lb-in (15 Nm)

132 lb-in (15 Nm)

312 lb-in (35 Nm)

312 lb-in (35 Nm)

312 lb-in (35 Nm)

M10 600 lb-in (68 Nm)

312 lb-in (35 Nm)

312 lb-in (35 Nm)

600 lb-in (68 Nm)

M4

M4

M6

M8

M6

M6

M8

M8

Setscrew

Size

M4

M4

M6

M6

M6

M8

M6

M6

M8

Set Screw

Tightening

Torque

27 lb-in (3 Nm)

27 lb-in (3 Nm)

90 lb-in (10 Nm)

220 lb-in (25 Nm)

90 lb-in (10 Nm)

90 lb-in (10 Nm)

220 lb-in (25 Nm)

220 lb-in (25 Nm)

Set Screw

Tightening

Torque

27 lb-in (3 Nm)

27 lb-in (3 Nm)

90 lb-in (10 Nm)

90 lb-in (10 Nm)

90 lb-in (10 Nm)

220 lb-in (25 Nm)

90 lb-in (10Nm)

90 lb-in (10 Nm)

220 lb-in (25 Nm)

WARNING: The Baldor gear reducer and its connected equipment and accessories must be guarded. Rotating parts such as couplings, pulleys, fans and unused shaft extensions must be permanently guarded by the user against accidental contact with personnel and their clothing. The surface temperature of the Baldor gear reducer enclosure may reach temperatures which can cause discomfort or injury to personnel accidentally coming into contact with hot surfaces.

The user should provide guards to prevent accidental contact with hot surfaces. Guards must be sufficiently rigid to maintain adequate guarding in normal service.

MAINTENANCE

Check oil levels and oil quality regularly. Change oil at the intervals specified in the Lubricants section of this document. Check alignments of drive components regularly. Check chain and belt tensions and hardware tightness periodically too.

WARNING: Threaded hardware used to mount the Baldor RHB unit must be SAE Grade 5 or Metric Class 8.8 or better. DO

NOT USE HARDWARE OF A LOWER GRADE.

8

ASSEMBLY / DISASSEMBLY

HELICAL BEVEL REDUCER (RHB)

Please follow the instructions outlined below when assembling and disassembling this unit. Failure to follow the instructions as outlined may result in damage to the gear unit or to the machine’s drive shaft. For ease of assembly, it is recommended that the machine’s drive shaft be chamfered. DO NOT HAMMER THE

GEARBOX SHAFT ONTO THE MACHINE’S DRIVE SHAFT. The machine’s drive shaft should be produced in accordance with the dimensions shown on the accompanying tables 5 or 6.

ASSEMBLY:

All shaft mounted gearboxes are furnished with A) Retaining Ring

B) Keeper plate C) Retaining Bolt D) Spring Washer and E) Dust

Cap, as shown in the finished assembly, Figure 7. The gearbox is pulled onto the shaft by means of a threaded rod and nut assembly as shown in Figure 6 below. The threaded rod and spacer are not supplied. The threaded rod (M) is specified in Table 5 or 6. After the gearbox has been pulled completely onto the machine shaft firmly against the machine shaft’s backing shoulder, it must be locked in place with the retaining bolt tightened to the tightening torque shown in Table 4.

B

SPACER

NUT

THREADED ROD

C

D

B

E

Machine’s Drive Shaft

Backing Shoulder

Figure 6 - Threaded Rod and Nut Assembly

A

U

A

C

M4

VG

M4

Figure 8 - Disassembly Arrangement

Table 4 - Tightening Torques for Retaining Bolt

Recommended Tightening Torque for Retaining Bolt

Unit Size

B38

Bolt Thread Size (M)

3/8–16

M10

Torque

248 in-lb

16 N-m

B48

B68

B88

B108

3/8–16

M12

5/8–11

M16

3/4–10

M16

3/4–10

M20

248 in-lb

28 N-m

611 in-lb

69 N-m

1221 in-lb

69 N-m

1221 in-lb

138 N-m

B128

B148

B168

3/4–10

M20

3/4–10

M20

1–8

M24

1221 in-lb

138 N-m

1221 in-lb

138 N-m

2098 in-lb

237 N-m

Figure 7 - Finished Assembly

DISASSEMBLY:

Prior to disassembly, the dust cap, retaining bolt, spring washer, keeper plate and retaining ring must be removed. For ease of disassembly, it is recommended that the following tools be made and used as described: The round keyed nut (A) is inserted into the free space between the retaining ring in the gear unit’s hollow shaft and the end of the machine’s drive shaft. The removal bolt

(B) is screwed into the nut (A) which presses a disk (C) against the machine’s drive shaft. The resulting force pushes the gearbox off of the machine’s drive shaft. Reference Figure 8 for the disassembly arrangement.

Please note: The retaining bolt supplied with the gear unit cannot be used for this purpose and must be replaced with the bolt specified in Table 5 or 6. The round keyed nut and disk should be made from 1045 steel and removal bolt should be a minimum of SAE Grade 5

9

RETAINING BOLT M

VB

M-TAP

VL

CUSTOMER SUPPLIED KEY.

REFERENCE GEARCASE DIMENSIONS

FOR RECOMMENDED KEY.

x

RS

MACHINE'S

DRIVE SHAFT

x

UG

M1

2.5 x M

MINIMUM

VB1

Y

x

FH

UY

x

UE

ROUND KEYED NUT

FG

M1-TAP

FV

S

REMOVAL BOLT

x

UE

GF

DISK

Unit

Size

FG Ø FH FV GF

Straight Hollow Bore Assembly / Disassembly

TABLE 5 - INCH SHAFTS for Straight Hollow Bore Installation

Dimensions - Inch

M M1 M4 S Ø U

Y

Max.

Ø UE Ø UG

B_38 0.38 0.75 0.625 0.12

3/8-16

B_48 0.38 0.93 0.625 0.12

3/8-16

B_68 0.50 1.06 0.875 0.25

B_88 0.50 1.37 0.813 0.25

5/8-11

3/8-16

3/4-10

5/8-11

B_108 0.50 1.75

1.00

0.31

3/4-10

B_128 0.50 2.00

1.00

0.31

3/4-10

B_148 0.50 2.62

1.00

0.31

B_168 0.50 3.00

1.25

0.31

1-8

1-8

3/8-16

5/8-18

3/4-10

7/8-14

7/8-14

7/8-14

1.73

0.31

1.250

0.250

1.245

1.250

2.28

0.50

1.375

0.312

1.370

1.375

2.72

0.63

3.07

0.81

3.66

0.81

4.84

0.81

1-1/4-12 5.83

1.00

1-1/4-12 6.89

1.00

1.500

1.4375

2.000

1.9375

2.375

2.4375

0.375

0.5

0.625

1.495

1.5

1.433

1.4375

1.995

2.000

1.933

1.938

2.370

2.375

2.433

2.438

2.750

0.625

2.745

2.750

2.9375

0.750

2.933

2.938

3.625

3.4375

4.000

3.9375

0.875

1.000

3.620

3.625

3.433

3.438

3.995

4.000

3.933

3.938

tol.

UY

Max

+0.000

-0.0006 1.367

VL

3.50

VB

1.75

VB1

6.00

VG

4.02

Ø RS

1.75

+0.000

-0.0006

1.52

+0.000

-0.0006 1.669

4.50

1.75

7.00

5.04

1.875

5.25

2.25

8.00

5.91

2.00

+0.000

-0.0006 1.605

1.9375

+0.000

-0.0007

+0.000

-0.0006

2.22

2.16

+0.000

-0.0007

2.65

+0.000

-0.0007 2.714

6.5

7.25

2.25

3.00

9.50

12.50

7.09

8.19

2.50

2.4375

2.875

2.9375

+0.000

-0.0007

3.03

+0.000

-0.0007 3.269

+0.000

-0.0009

+0.000

-0.0009

4.01

3.82

+0.000

-0.0009

4.44

+0.000

-0.0009 4.378

9.5

11.00

13.25

3.00

3.00

3.00

14.00 10.35

16.00 12.20

18.50 14.41

3.25

3.4375

4.125

3.9375

4.50

4.4375

Hollow shaft tolerances (For dimension U) are shown in the gearbox dimension pages.

Tolerance for dimension UE should be -0.01 in for inch bore shafts

Bold shaft diameters indicate standard shaft

RS Dimension is the minimum recommended shaft shoulder diameter

10

RETAINING BOLT M

VB

M-TAP

VL

CUSTOMER SUPPLIED KEY.

REFERENCE GEARCASE DIMENSIONS

FOR RECOMMENDED KEY.

x

RS

MACHINE'S

DRIVE SHAFT

x

UG

M1

2.5 x M

MINIMUM

VB1

Y

x

FH

UY

x

UE

ROUND KEYED NUT

FG

M1-TAP

FV

S

REMOVAL BOLT

x

UE

GF

DISK

Straight Hollow Bore Assembly / Disassembly

Unit

Size

FG Ø FH

B_38 10

B_48 9

B_68 13

B_88 13

B_108 12

B_128 12

B_148 7

B_168 8

9

22

26

35

45

52

61

79

FV

15

15

20

20

24

24

24

30

GF

6

6

7

7

10

10

10

10

TABLE 6 - METRIC SHAFTS for Straight Hollow Bore Installation

Dimensions - mm

M M1 M4 S

Ø U

Y Max.

Ø UE Ø UG tol.

UY

Max

M10 M10 x 1.5

44

M12

M16

M16

M20

M20

M24

M12 x 1.5

58

M16 M16 x 1.5

69

M16 x 1.5

78

M20 M20 x 1.5

93

8

10

13

13

16

M20 M20 x 1.5

123 16

M20 x 1.5

148 16

M24 M24 x 1.5

175 20

30

35

40

40

45

50

60

60

70

70

80

80

90

100

110

8

10

12

12

14

14

18

18

20

20

22

22

25

28

29.9

34.9

39.9

39.9

44.9

49.9

59.9

59.9

69.9

69.9

79.9

79.9

89.9

99.9

109.9

30

35

40

40

45

50

60

60

70

70

80

80

90

100

110

+0.0000

-0.0019

+0.0000

-0.0019

+0.000

-0.019

+0.0000

-0.0019

+0.000

-0.022

+0.0000

-0.0022

+0.000

-0.022

+0.000

-0.013

+0.0000

-0.0016

+0.0000

-0.0016

+0.0000

-0.0016

+0.0000

-0.0016

+0.0000

-0.0016

+0.0000

-0.0019

+0.0000

-0.0019

33

38

43

43

49

53

64

64

74

74

85

85

95

106

116

VL

90

VB VB1 VG Ø RS

40 150 102

115 60 180 128

135 60 210 150

165

185 80 320 208

240

280

330

60

70

80

85

85

95

95

100

250 180

360 263

410 310

470 366

42

47

52

52

57

62

72

72

82

82

92

102

112

122

Hollow shaft tolerances (For dimension U) are shown in the gearbox dimension pages.

Tolerance for dimension UE should be -0.02 mm for metric bore shafts.

Bold shaft diameters indicate standard shaft

RS Dimension is the minimum recommended shaft shoulder diameter

11

STANDARD

INTEGRAL

MOTOR

(LINE VOLTAGE

= L1, L2, L3)

LOW VOLTAGE

230V

4 5 6

7 8 9

1

L1

2

L2

3

L3

HIGH VOLTAGE

460V

4 5 6

7 8 9

1

L1

2

L2

3

L3

INTEGRAL

BRAKE

MOTOR

(NO VFD OR

SOFT START)

4

7

1

L1

B1 B2

B3 B5

INSULATE B4

5

8

2

L2

6

9

3

L3

4

7

1

5

8

2

L1

B1

L2

B2

B5

INSULATE B3

INSULATE B4

4 5 6

7 8 9

6

9

3

L3

4

7

5

8

6

9

INTEGRAL

BRAKE

MOTOR

WITH VFD OR

SOFT START

*BRAKE CAN NOT

BE POWERED

FROM MOTOR

TERMINAL BLOCK

1

L1

2

L2

3

L3

1

L1

2

L2

3

L3

S1

B1

S2

B2

*SEPARATE

SINGLE

PHASE

LINE TO

BRAKE

S1

B1

S2

B2

*SEPARATE

SINGLE

PHASE

LINE TO

BRAKE

B3 B5 B5

INSULATE B4

INSULATE B3

INSULATE B4

FAST RESPONSE

BRAKING:

ADD AUXILIARY SWITCH

BETWEEN B3 AND B5 TO

BE OPEN FOR BRAKING

ADD AUXILIARY SWITCH

BETWEEN B1 AND B5 TO

BE OPEN FOR BRAKING

BRAKES ARE ELECTROMAGNETICALLY RELEASED;

SPRING SET

NOTE: FOR POSITIONING APPLICATIONS AN ADDITIONAL FAST RESPONSE

KIT IS AVAILABLE; ORDER DODGE PART NUMBER 031389 AND FOLLOW

WIRING INSTRUCTIONS THAT COME WITH THE KIT.

Figure 11 - Wiring Diagram for Dual Voltage / Single Speed Integral Motor

P.O. Box 2400, Fort Smith, AR 72902-2400 U.S.A., Ph: (1) 479.646.4711, Fax (1) 479.648.5792, International Fax (1) 479.648.5895

www.baldor.com

© Baldor Electric Company

MN1698 (Replaces 499049)

*1698-0411*

All Rights Reserved. Printed in USA.

4/11 Printshop 100

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
