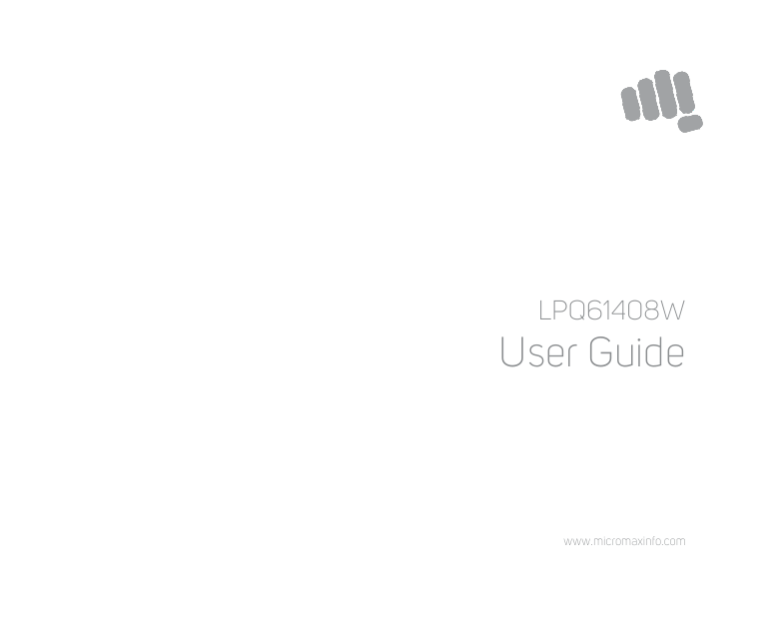

LPQ61408W
User Guide
www.micromaxinfo.com
Table of Contents
Welcome ................................................................................................ 1
Notification area ................................................................................. 13
Layout ....................................................................................................2
Replacing Desktop with Start Screen ........................................... 13
Function keys .......................................................................................4
Pin and unpin Applications.............................................................. 15
Insert Memory Card ........................................................................... 6
Removing an App...............................................................................16
Power on Your Device ....................................................................... 6
Power off Device ................................................................................ 16
Charge the Battery .............................................................................. 7
Settings Screen ..................................................................................19
Battery Status...................................................................................... 8
Connect to Wi-Fi ...............................................................................20
Connect to USB Device ..................................................................... 9
Troubleshooting ................................................................................ 22
Connect to HDMI Enabled Devices ................................................ 9
Device Specifications....................................................................... 24
Put your device in Sleep Mode ....................................................... 11
Safety Precautions ........................................................................... 25
Microsoft Account .............................................................................. 11
Taking Care of your device ............................................................26
Wake up your computer................................................................... 12
Recycle your Device ........................................................................26
Taskbar ................................................................................................12
Disclaimer........................................................................................... 27
Start Menu ........................................................................................... 12
Copyright ............................................................................................ 27
Welcome
Thank you for purchasing the Micromax LPQ61408W device. Your device is powered by Windows 10 Operating System which is set
to revolutionize your PC experience in pleasant ways.
1
Layout
Camera
LCD screen
DC IN
Ethernet port
USB port
HDMI port
Earphone
Micro SD
card port
Power/Awake
button
Security lock
Keyboard
MIC
Touchpad
Touchpad Key
Switch on indicator
Charging indicator
2
Speakers
3
Function keys
Please press
with below keys to achieve these functions.
Sleep
Airplane mode On/Off
Touchpad On/Off
Brightness Down
4
Brightness Up
Volume Down
Transfer LCD/HDMI
Volume Up
Switch on/off LCD display
Mute
5
Insert Memory Card
micro SD
To store additional files and applications, you need to insert a memory card. Insert the memory card in the slot as shown:
Power on Your Device
1. If this is the first time you have turned the device on, connect the AC adapter and fully charge the battery.
2. Press the power button
(normally 1 to 2 seconds) until you see the power indicator light up.
6
Charge the Battery
When the battery is low, the low-battery icon appears on the screen.
Plug the charger to the electrical outlet and plug the charging cable to the charging port on the device.
The battery indicator will start blinking.
7
When the battery is fully charged, the battery indicator will stop linking and stay solid.
Before using the device for the first time, we recommend you to fully charge the battery. It takes around 4 to 5 hours to
fully charge the battery. When not using the device for a long time, charge the device to 30-40% of its battery capacity to
extend battery life.
Use only Micromax chargers and cables that came with the packaging. Other chargers or cables may damage the battery or
device. This will invalidate your device warranty.
Battery Status
In the desktop, move the cursor to the battery icon in the taskbar. A pop-up dialog box appears and shows you the remaining
battery percentage, as shown:
8
Battery is fully charged
Battery is starting to drain
Battery is about to completely drain, and you should stop using your laptop and charge
it at once.
Battery is being charged
Connect to USB Device
Your device comes with two USB ports compatible with USB devices. Once you plug a USB device into a USB port on your computer,
Windows automatically loads a driver for that device. Once the driver has been loaded, you can disconnect and reconnect the same
device without performing any additional steps.
Connect to HDMI Enabled Devices
The HDMI Out feature makes it possible to share what’s on your device with an even bigger screen and an even bigger audience by
connecting to an external display device such as a monitor, TV, projector, etc.
Just attach the HDMI cable to the HDMI socket on your device and you can watch a movie in your living room on your HDTV.
1. Power off the external device and locate the HDMI port on your computer.
2. Connect one end of your HDMI cable to the port, and the other end to the HDMI port on the external device.
9
3. Power on the external device. When connecting a TV, you may need to configure your TV or display device to external device mode.
4. Press
+
, open Project setting. Then select Duplicate item, to display HDMI and LCD devices.
10
Put your device in Sleep Mode
When you are away from your computer for a short time, you can put your device into sleep mode. Press the power button briefly once.
If you want to change the settings, click on the battery level icon on the taskbar, and select Power and Sleep settings
Note: It is recommended that you put your computer into sleep mode before you move it.
Microsoft Account
Your Microsoft Account lets you take full advantage of applications and services offered by Microsoft. Configure your Microsoft account on
this device to get access to Outlook, Windows Store, One Drive, and much more.
To configure your Microsoft account on the device,
1. Connect to the Internet and open Settings → Accounts → Sign in with a Microsoft Account instead and tap the required
credential (if you already have an account) or tap create a new one.
2. Enter the required details and follow the on-screen instructions to log in or create your new account.
You may add various other accounts, depending on your applications.
11
Wake up your computer
A: Press the power button briefly once (when it is already in sleep mode).
B: Press any key on the keyboard or open the display panel.
Taskbar
The black bar on the bottom of the desktop is called Taskbar. It provides several key features and they are:
● Start menu
●
Search box
●
App shortcuts area
●
Notification area
Start Menu
To open the Start menu, you can either click on the Windows icon (also known as Start button) located at the left end of the taskbar or
press once on the Windows key on the keyboard. And the Start menu will appear, as shown below:
12
Notification area
The right part of the taskbar holds several icons that show you the status of your laptop, as shown:
This area is called Notification Area which houses the following icons:
Click here to show more status icons
Shows you the current battery status
Shows you the status of your wireless network connection
Click here to show the unread notifications
Replacing Desktop with Start Screen
You can set your laptop to show the Start screen instead of the Desktop every time you power on your laptop. To do so:
1. Open the Settings screen.
2. Select <Personalization>.
3. In the Personalization screen, enable the option <Use Start full screen>
After performing these steps, you will see the Start screen every time you turn on your laptop, as shown:
13
14
Pin and unpin Applications
1. Open the Start menu and select <All Apps>
2. Right-click on the app that you want to appear on your Start menu or taskbar, and an option menu appears.
15
3. Click <Pin to Start> or <Pin to taskbar>to add the app to your Start menu or taskbar.
Removing an App
1. Right click the app that you want to remove from your Start menu or taskbar.
2.Click <Unpin from Start> or <Unpin from taskbar> to remove it from your Start menu or taskbar.
Power off Device
You can power off your device from either the Start menu or directly from the Power button.
1. Click the Windows icon on the lower left corner of the desktop or press the Windows key on the keyboard.
16
2. Click the Power option on the Start menu.
17
3. Select Shut down from the Power option.
18
Settings Screen
1. Click the Windows icon on the low-left corner of the Desktop. Or, press on the Windows key on the keyboard.
19
2. Select Settings. This will open the Settings screen, as shown:
Connect to Wi-Fi
1. Open Settings and select Network & Internet.
20
2. Select Wi-Fi and set the function to ON , as shown below:
3. Make sure you have switched the Airplane mode off. To confirm that Airplane mode is disabled, go to desktop and check the
notification area. If you see an airplane icon on the lower right, press
21
+
to disable the Airplane mode.
4. Once the wireless has been enabled, the computer automatically scans for available wireless networks and displays them in the list.
5. Click the network’s name in the list, and then click Connect.
Note: Some networks require a network security key or password for connection. If necessary, ask the network administrator or the
Internet service provider (ISP) for the required information.
Troubleshooting
This section describes some of the possible issues that might arise on your laptop along with their possible resolutions.
Issue Description
When I turn on the computer, nothing
appears on the screen.
Possible Resolutions
If the screen is blank , make sure that:
The AC adapter is connected to the computer and the power cord is plugged into a
working electrical outlet.
● The power is on. (Press the power button for 6 seconds to force the power off, and
power it back on again.)
●
If these items are properly set, and the screen remains blank, have the computer serviced.
My screen goes blank while the
computer is on.
Your laptop is in sleep mode. Perform one of the following steps to resume from sleep mode:
Press any key on the keyboard for 2 to 3 seconds.
Press the power button.
● Press the windows key button.
●
●
The critical low-battery error message
appears, and the computer turns off
• The battery power is getting low. Connect the AC adapter to the computer.
The computer enters sleep mode
immediately after Power-on.
• Make sure that the battery is charged.
• The operating temperature may be too hot. Move to a cooler environment and try to
wake the computer.
22
The computer does not return from sleep
mode and the computer does not work.
• If your computer is in sleep mode, connect the AC adapter to the computer, then press
any button or the power button.
• If your computer is powered off, connect the AC adapter to the computer and press the
power button to resume operation.
The screen is blank.
Do the following:
●
●
●
The screen is unreadable or distorted.
If you are using the AC adapter, or using the battery, and the battery status indicator is
on, press Fn + F6 to make the screen brighter.
If the power indicator is blinking, press the power button to resume from sleep mode.
If the problem persists, follow the solution in the next problem “The screen is
unreadable or distorted.”
Ensure that:
●
●
The screen resolution and color quality are correctly set.
The monitor type is correct.
Incorrect characters appear on the
screen.
Check if the operating system or programs are installed correctly. If they are
installed and configured correctly, have the computer serviced.
No sound can be heard from the speaker
even when the volume is turned up.
• Make sure that:
The Mute function is off.
The combo audio jack is not being used.
● Speakers are selected as the playback device.
●
●
Your computer does not respond.
To turn off your computer, press and hold the power button for 6 seconds or more. If
the computer still does not respond, remove the AC adapter.
● Your computer might lock when it enters sleep mode during a communication
operation. Disable the sleep timer when you are working on the network.
●
23
The connected external device does not
work.
●
Do not connect or disconnect any external device cables other than USB while the
computer power is on. Otherwise, you might damage your computer.
● When using a high power consumption external device such as an external USB
optical disk drive, use an external device power adapter. Otherwise, the device may
not be recognized.
Device Specifications
Battery Voltage
Battery Capacity
Device Environmental Rating
Humidity Range
Battery Nominal voltage 7.4V
4500mAH, 33.3WH
Temperature 40±5℃
Relative humidity 65 ± 20%
Charger
AC-DC adaptor I/P & O/P
DC Output: 12V, 24W,
Input Voltage: 100–240VAC
Nominal Input Frequency: 50–60Hz
Environmental Rating
Operating Temperature :0℃--40℃
Storage Temperature : -25℃--60℃
Operating humidity : 25%--60%
Storage humidity : 5%--75%
Humidity Range
Ambient Temperature 25°C, Relative Humidity 35~65%RH
Input/Output
1 mini DC-in jack
2 x USB port-3.0
1 Micro HDMI port
1 Micro SD Card slot
Audio jack
LAN port
LAN port
24
Note: It is however recommended to use this device where the preferred ambient temperature is not more than
35℃.
Safety Precautions
Your device’s radio waves may interfere with inadequately shielded medical devices. Consult a physician or manufacturer of the medical device to know
whether they are adequately shielded from external Radio Frequency. Switch off your device when regulations require you to do so.
Always keep the device and accessories out of reach of small children. Small parts such as the micro SD card can be swallowed by small children.
Manufacturers of medical devices recommend a minimum distance of 15.3 cm (6 inches) between a wireless device and an implanted medical
device such as pacemaker or cardioverter defibrillator to avoid issues arising out of radio frequency interference.
The mains voltage (V) specified on the power supply unit must not be exceeded to prevent damage to the charging device. The power supply must
be plugged into an easily accessible AC power socket when charging the battery.
Do not open the device under any circumstances. All other changes to this device are strictly prohibited and will invalidate the warranty.
The device must be repaired by Micromax authorized personnel only. Repairing this device by yourself other than our authorized service
agents/centers goes against the warranty rules.
25
Taking Care of your device
Your device is a product of superior design and craftsmanship and should be handled with care. The following suggestions will help
you protect your device:
• Keep the device dry. Precipitation, humidity, and all types of liquids or moisture can rust the electronic circuits. If your de vice gets wet, wipe it with a dry
•
•
•
•
•
cloth and take it to an authorized service center.
Do not store the device in high or cold temperature. Extreme temperatures can shorten the life of electronic devices and damage batteries.
Do not use or store the device in dusty, dirty areas. Its moving parts and electronic components can get damaged.
Do not drop, knock, or shake the device. Rough handling can break internal circuit boards and fine mechanics.
Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. Only use a soft, clean, dry cloth to clean the surface of the device.
Do not store your device near magnetic fields or allow your device to come in contact with magnetic fields for extended periodlof time.
Recycle your Device
The WEEE logo (shown at the left) appears on the product (battery, device, and charger) to indicate that this product must
not be disposed off or dumped with your other household wastes. You are liable to dispose of all your electronic or electrical
waste equipment by relocating over to the specified collection point for recycling of such hazardous waste.
Collection and proper recovery of your electronic waste equipment at the time of disposal will allow us to help preserve the environment.
Recycling of the electronic waste equipment will ensure safety of human health and environment. For more information on best practices
for disposal of electronic and electrical waste, please visit to our web site: www.micromaxinfo.com/weee.php.
Note: Micromax will not bear any responsibility for any incompliance with the above mentioned guidelines or improper usage of the
device.
26
Disclaimer
• The colors, specifications, functions and graphics shown/mentioned in the user manual may differ from the actual product. In such a case, the latter shall
govern. Images shown are for representation purpose only. Specifications are subject to change without prior notice. Micromax keeps the right to modify the
content in this user guide without prior notice.
• Other product logos and company names mentioned herein may be trademarks or trade names of their respective owners.
• Available storage memory may vary based on the device software.
Micromax privacy policy is available at www.micromaxinfo.com
Copyright
All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the
prior written permission of Micromax is strictly prohibited.
27
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
