060R9301
060R9301

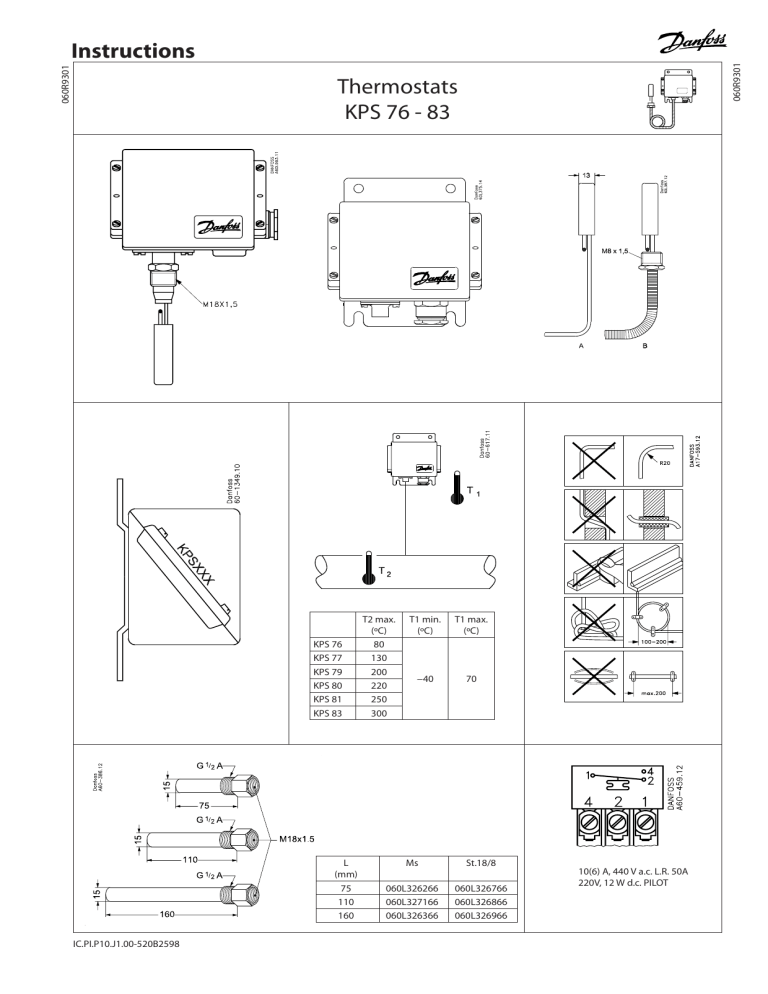

Instructions
Thermostats
KPS 76 - 83
KPS 76
KPS 77
KPS 79
KPS 80
KPS 81
KPS 83
L
(mm)
75
110
160
IC.PI.P10.J1.00-520B2598
T2 max.
(ºC)
80
130
200
220
250
300
T1 min.
(ºC)
T1 max.
(ºC)
−40
70
Ms
St.18/8
060L326266
060L327166
060L326366
060L326766
060L326866
060L326966
10(6) A, 440 V a.c. L.R. 50A
220V, 12 W d.c. PILOT
KPS 83
2
Code no.
060L314166
060L313966
060L314066
Diff. (ºC)
9
18
IC.PI.P10.J1.00-520B2598
©Danfoss A/S, AC-DSL, mr, 05-2006
Type
KPS 79
