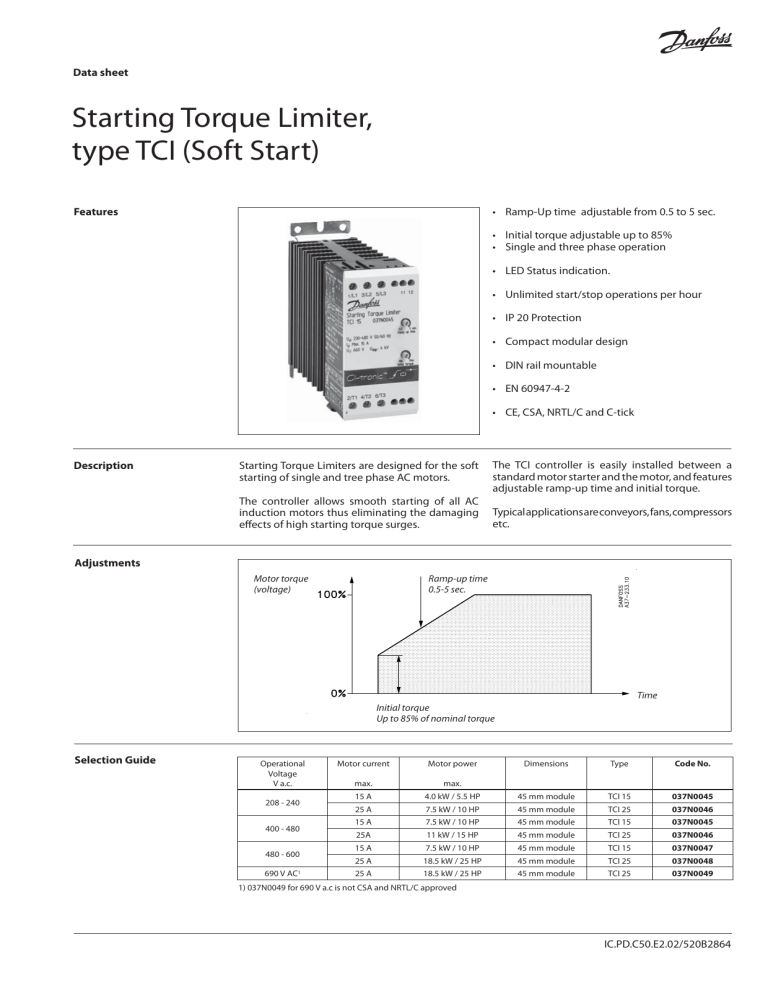

Data sheet
Starting Torque Limiter,
type TCI (Soft Start)
Features
• Ramp-Up time adjustable from 0.5 to 5 sec.
• Initial torque adjustable up to 85%
• Single and three phase operation
• LED Status indication.
• Unlimited start/stop operations per hour
• IP 20 Protection
• Compact modular design
• DIN rail mountable
• EN 60947-4-2
• CE, CSA, NRTL/C and C-tick
Description
Starting Torque Limiters are designed for the soft
starting of single and tree phase AC motors.
The TCI controller is easily installed between a
standard motor starter and the motor, and features
adjustable ramp-up time and initial torque.
The controller allows smooth starting of all AC
induction motors thus eliminating the damaging
effects of high starting torque surges.
Typical applications are conveyors, fans, compressors
etc.
Adjustments
Motor torque
(voltage)
Ramp-up time
0.5-5 sec.
Time
Initial torque
Up to 85% of nominal torque
Selection Guide
Operational
Voltage
V a.c.
208 - 240
400 - 480
480 - 600
690 V AC1
Motor current
Motor power
Dimensions
Type
Code No.
max.
max.
15 A
4.0 kW / 5.5 HP
45 mm module
TCI 15
037N0045
25 A
7.5 kW / 10 HP
45 mm module
TCI 25
037N0046
15 A
7.5 kW / 10 HP
45 mm module
TCI 15
037N0045
25A
11 kW / 15 HP
45 mm module
TCI 25
037N0046
15 A
7.5 kW / 10 HP
45 mm module
TCI 15
037N0047
25 A
18.5 kW / 25 HP
45 mm module
TCI 25
037N0048
25 A
18.5 kW / 25 HP
45 mm module
TCI 25
037N0049
1) 037N0049 for 690 V a.c is not CSA and NRTL/C approved
IC.PD.C50.E2.02/520B2864
Data sheet
Technical Data
Starting Torque Limiter, type TCI (Soft Start)
Control Circuit Specifications
TCI 15
TCI 25
Operational current
AC 3, AC 53a and AC 58a (motor load)
15 A
25 A
Motor size at:
208 - 240 V a.c
400 - 480 V a.c.
480 - 600 V a.c.
0.1-4.0 kW
0.1-7,5 kW
0.1-7.5 kW
Minimum operational current
50 mA
Overload current profile
X-Tx: 8-3
Overload relay trip class
Class 10
(0.18-5 HP)
(0.18-10 HP)
(0.18-10 HP)
Semiconductor protection fusing
100 A gL/gG
type 1 co-ordination
type 2 co-ordination
I2t(t = 10 ms) 6300 A2s
0.1-7,5 kW
0.1-11 kW
0.1-18kW
(0.18-10 HP)
(0.18-15 HP)
(0.18-25 HP)
100 A gL/gG
6300 A2s
Control specifications
Ramp-up time
Adjustable from 0,5-5 seconds
Initial torque
Adjustable from 0-85% of nominal torque
EMC immunity
meets requirements of EN50082-1 and EN 50082-2
Insulation specifications
Rated insulation voltage, Ui
660 V
Rated impulse withstand voltage, Uimp
4 KV
Installation category
III
Thermal specifications and environment
Power dissipation, continuously duty
1 W/A
Power dissipation, intermittent duty
1 W/A. x duty cycle
Operating temperature range
–5oC to 40°C
Cooling method
Natural convection
Mounting
Vertical (see also general mounting instructions)
Max. temperature with limited current
60oC, see derating for high temperatures in chart below
Storage temperature range
–20°C to 80oC
Protection degree / pollution degree
IP 20 / 3
Materials
Housing
Self extinguishing PPO UL94V1
Heat sink
Aluminum black anodized
Base
Electroplated steel
Functional diagram
Line voltage (L1, L2, L3)
Motor voltage (T1, T2, T3)
LED 1
LED 2
Soft start function
As soon as the TCI controller is connected to
mains voltage, it soft starts the motor according
to the settings.
Ramp up
During ramp up, the controller will gradually
increase the voltage to the motor until it reaches
full line voltage. The motors speed will depend
on the actual load on the motor.
A motor with little or no load will reach full
speed before the voltage has reached its
maximum value.
2
IC.PD.C50.E2.02/520B2864
Initial torque
The initial torque is used to set the initial starting
voltage. This way it is possible to adapt the
controller to an application requiring a higher
starting torque.
© Danfoss A/S 01-2007
Data sheet
Wiring
Overload and
Short Circuit Protection
Starting Torque Limiter, type TCI (Soft Start)
Single phase motor
Three phase motor
Overload and short circuit protection is easily
achieved by installing a circuit breaker on the
line side of the motor controller. Select the circuit
breaker from the table according to motor full
load current.
Be aware of the maximum prospective short
circuit current breaking capacity. For further
information please refer to the data sheet on the
circuit breaker.
380 - 415 V a.c.
Soft start
type
Max. prospective short-circuit current Icc
Motor full load
current in A
Danfoss
CTI 25
Co-ordination 1
Co-ordination 2
0.10 - 0.16
047B3020
50 kA
50 kA
0.16 - 0.25
047B3021
50 kA
50 kA
0.25 - 0.40
047B3022
50 kA
50 kA
0.40 - 0.63
047B3023
50 kA
50 kA
0.63 - 1.0
047B3024
50 kA
50 kA
1.0 - 1.63
047B3025
50 kA
50 kA
1.6 - 2.5
047B3026
50 kA
50 kA
2.5 - 4.0
047B3027
50 kA
50 kA
4-6
047B3028
50 kA
50 kA
6 - 10
047B3029
50 kA
10 kA
10 - 16
047B3030
10 kA
5 kA
16 - 20
047B3031
8 kA
3 kA
20 - 25
047B3032
8 kA
3 kA
TCI 15
TCI 25
Dimensions
mm (inch)
IC.PD.C50.E2.02/520B2864
© Danfoss A/S 01-2007
3
Data sheet
Starting Torque Limiter, type TCI (Soft Start)
Operating at high
temperatures
If the ambient temperature exceeds 40°C the
current must be derated according to table.
Overheat protection
Continues current
Duty-cycle rating (15 min. max. on-time)
Ambient
temperature
TCI 15
TCI 25
TCI 15
TCI 25
50oC
15 A
25 A
15 A, 100% duty-cycle
25 A, 100% duty-cycle
60oC
15 A
20 A
15 A, 100% duty-cycle
25 A, 80% duty-cycle
If required the controller can be protected
against overheating by inserting a thermostat in
the slot on the right-hand side of the controller.
Order: UP 62 thermostat 037N0050
The thermostat is connected in series with the
control circuit of the main contactor. When the
temperature of the heat sink exceeds 100oC the
main contactor will be switched OFF. A manual
reset is necessary to restart this circuit.
Mounting instructions
The controller is designed for vertical mounting.
If the controller is mounted horizontally the load
current must be reduced by 50%.
The controller needs no side clearance.
Clearance between two vertical mounted
controller must be minimum 80 mm (3.15”).
Clearance between controller and top and
bottom walls must be minimum 30 mm (1.2”).
4
IC.PD.C50.E2.02/520B2864
© Danfoss A/S 01-2007
