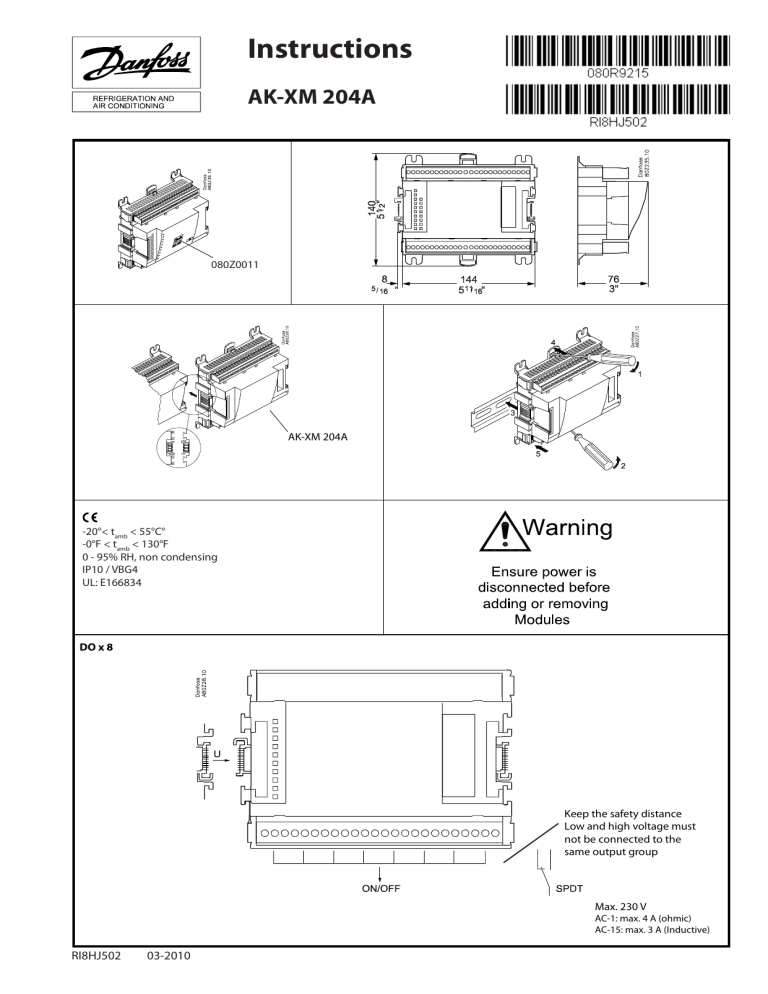

Instructions
AK-XM 204A
080Z0011
AK-XM 204A
-20°< tamb < 55°C°
-0°F < tamb < 130°F
0 - 95% RH, non condensing
IP10 / VBG4
UL: E166834
DO x 8
Keep the safety distance
Low and high voltage must
not be connected to the
same output group
Max. 230 V
AC-1: max. 4 A (ohmic)
AC-15: max. 3 A (Inductive)
RI8HJ502 03-2010
Point
Address
Signal
DO
Comp 1
Comp 2
Active at
ON
/
OFF
(Communication module)
Fan 1
Alarm
(Controller)
Signal
Active at
Module
Point
Terminals
1 (DO 1)
25-26-27
2 (DO 2)
28-29-30
3 (DO 3)
31-32-33
4 (DO 4)
34-35-36
5 (DO 5)
37-38-39
6 (DO 6)
40-41-42
7 (DO 7)
43-44-45
8 (DO 8)
46-47-48
The Product contains electrical components
And may not be disposed together with domestic waste.
Equipment must be separate collected with Electrical and Electronic waste. According to Local and currently valid legislation.
2
Instructions RI8HJ502
©
Danfoss 03/2010
AK-XM 204A
