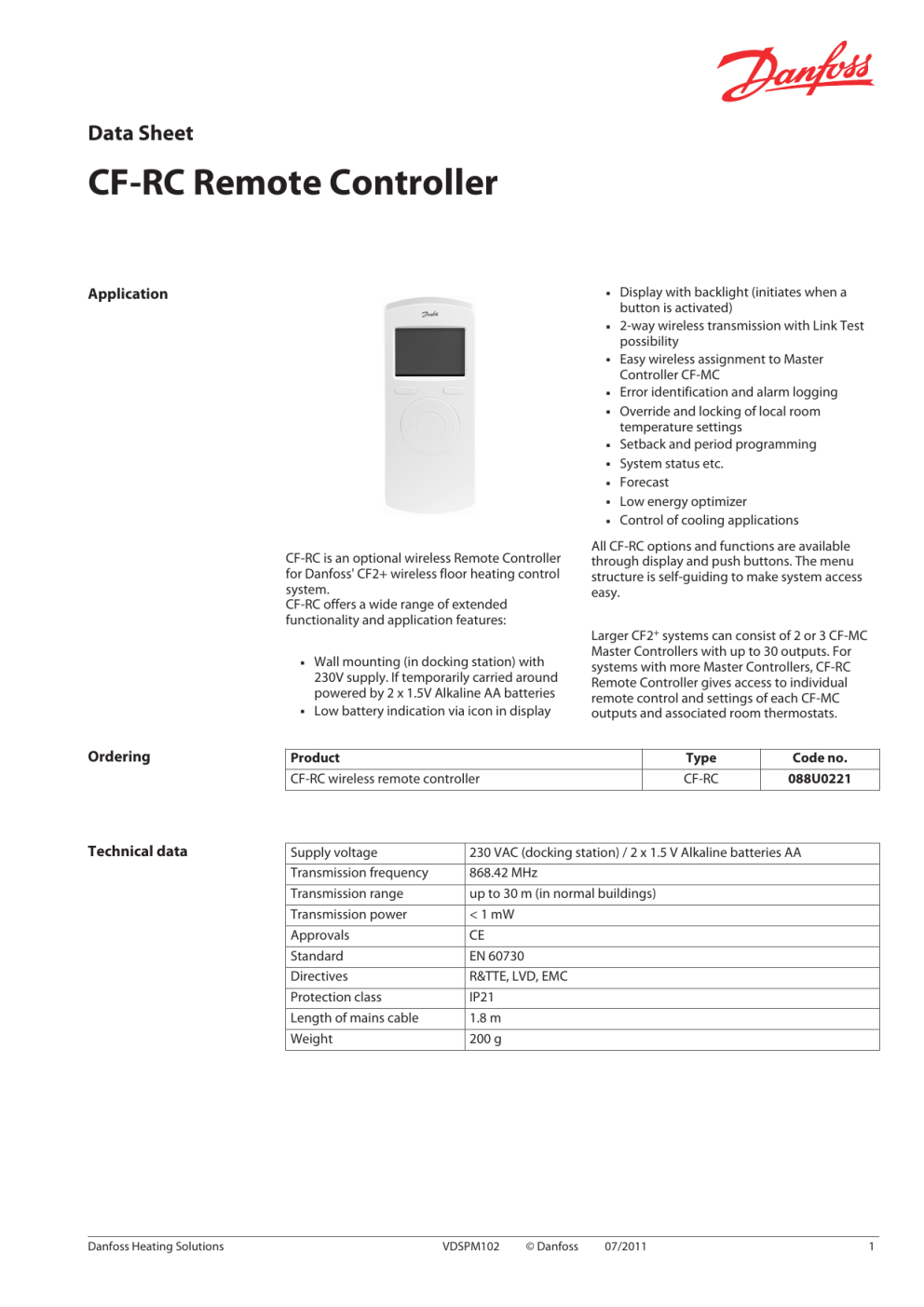

Danfoss CF-RC Remote Controller Data Sheet

Data Sheet
CF-RC Remote Controller
▪ Display with backlight (initiates when a
button is activated)
▪ 2-way wireless transmission with Link Test
possibility
▪ Easy wireless assignment to Master
Controller CF-MC
▪ Error identification and alarm logging
▪ Override and locking of local room
temperature settings
▪ Setback and period programming
▪ System status etc.
▪ Forecast
▪ Low energy optimizer
▪ Control of cooling applications
Application
CF-RC is an optional wireless Remote Controller
for Danfoss' CF2+ wireless floor heating control
system.
CF-RC offers a wide range of extended
functionality and application features:
▪ Wall mounting (in docking station) with
230V supply. If temporarily carried around
powered by 2 x 1.5V Alkaline AA batteries
▪ Low battery indication via icon in display
Ordering
Product
CF-RC wireless remote controller
Technical data
Supply voltage
Transmission frequency
Transmission range
Transmission power
Approvals
Standard
Directives
Protection class
Length of mains cable
Weight
Danfoss Heating Solutions
All CF-RC options and functions are available
through display and push buttons. The menu
structure is self-guiding to make system access
easy.
Larger CF2+ systems can consist of 2 or 3 CF-MC
Master Controllers with up to 30 outputs. For
systems with more Master Controllers, CF-RC
Remote Controller gives access to individual
remote control and settings of each CF-MC
outputs and associated room thermostats.
Type
CF-RC
Code no.
088U0221
230 VAC (docking station) / 2 x 1.5 V Alkaline batteries AA
868.42 MHz
up to 30 m (in normal buildings)
< 1 mW
CE
EN 60730
R&TTE, LVD, EMC
IP21
1.8 m
200 g
VDSPM102
© Danfoss
07/2011
1
Data Sheet
CF-RC Remote Controller
Dimensions
66
157
23.5
Danfoss A/S
Heating Solutions
Haarupvaenget 11
8600 Silkeborg
Denmark
Phone:+45 7488 8000
Fax: +45 7488 8100
Email: [email protected]
www.heating.danfoss.com
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products
already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective
companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
2
VDSPM102
© Danfoss
07/2011
Danfoss Heating Solutions
