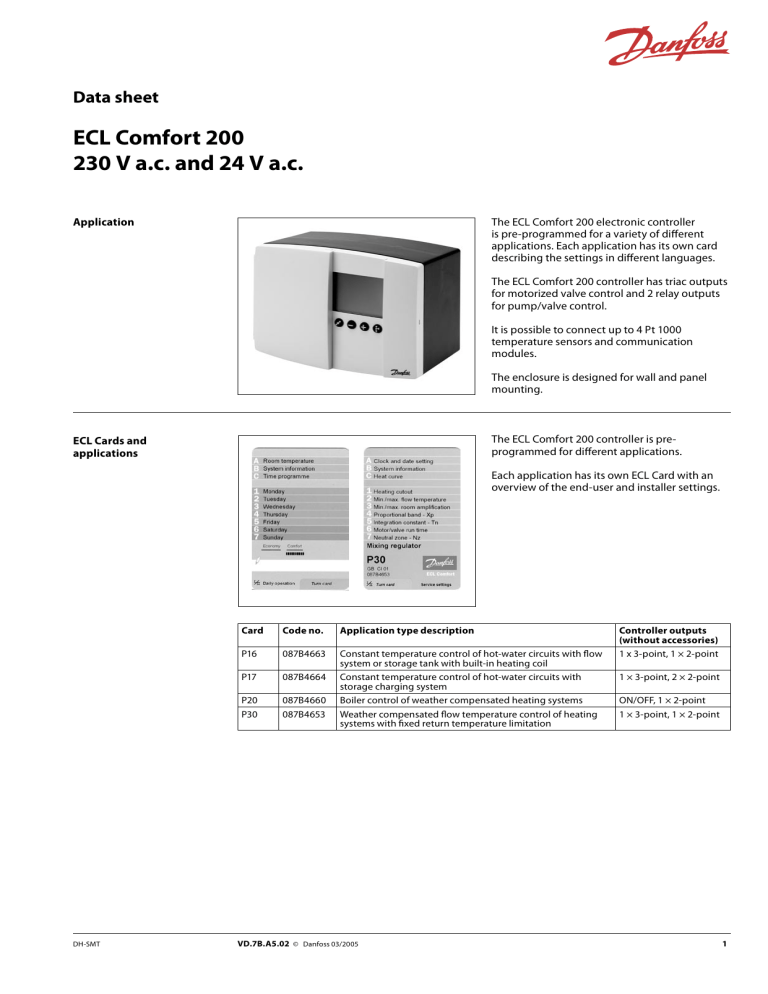

Data sheet
ECL Comfort 200
230 V a.c. and 24 V a.c.
Application
The ECL Comfort 200 electronic controller
is pre-programmed for a variety of different
applications. Each application has its own card
describing the settings in different languages.
The ECL Comfort 200 controller has triac outputs
for motorized valve control and 2 relay outputs
for pump/valve control.
It is possible to connect up to 4 Pt 1000
temperature sensors and communication
modules.
The enclosure is designed for wall and panel
mounting.
The ECL Comfort 200 controller is preprogrammed for different applications.
ECL Cards and
applications
Each application has its own ECL Card with an
overview of the end-user and installer settings.
DH-SMT
Card
Code no.
Application type description
P16
087B4663
P17
087B4664
P20
P30
087B4660
087B4653
Constant temperature control of hot-water circuits with flow
system or storage tank with built-in heating coil
Constant temperature control of hot-water circuits with
storage charging system
Boiler control of weather compensated heating systems
Weather compensated flow temperature control of heating
systems with fixed return temperature limitation
VD.7B.A5.02 © Danfoss 03/2005
Controller outputs
(without accessories)
1 x 3-point, 1 × 2-point
1 × 3-point, 2 × 2-point
ON/OFF, 1 × 2-point
1 × 3-point, 1 × 2-point
1
Data sheet
ECL Comfort 200
Ordering
Controller and enclosure
Type
ECL Comfort 200
ECL Comfort 200
Socket - ECL
Panel mounting kit
Mounting kit
Designation
Universal hardware - 230 V a.c.
Universal hardware - 24 V a.c.
For wall mounting
For ECL Comfort
For DIN-rail
Code no.
087B1120
087B1124
087B1149
087B1148
087B1145
Pt 1000 temperature sensors
Type
ESMT
ESM-10
ESM-11
ESMB-12
ESMC
ESMU-100
ESMU-250
ESMU-100
ESMU-250
Designation
Outdoor temperature sensor
Room temperature sensor
Surface sensor
Universal sensor
Surface sensor incl. 2 m cable
Immersion sensor, 100 mm, copper
Immersion sensor, 250 mm, copper
Immersion sensor, 100 mm, stainless steel
Immersion sensor, 250 mm, stainless steel
Code No.
084N1012
087B1164
087B1165
087B1184
087N0011
087B1180
087B1181
087B1182
087B1183
Designation
Room panel with sensor
Remote control with 1 zone clock and sensor
Room panel with sensors (°C and % RH)
Remote control with sensors (°C and % RH)
RS 232 service
LON - communication module
RS 232 remote control and data log
Modem cable (1.5 m) for ECA 87
PC cable (1.5 m) for ECA 87
24 V transformer, Lübke (35 VA)
Override module (for controller time programs)
Code no.
087B1140
087B1141
087B1169
087B1143
087B1151
087B1152
087B1160
087B1171
087B1172
087B1156
087B3081
Accessories
Type
ECA 60
ECA 61
ECA 62
ECA 63
ECA 81
ECA 82
ECA 87
ECA 99
ECA 9010
Application example
2
VD.7B.A5.02 © Danfoss 03/2005
DH-SMT
Data sheet
ECL Comfort 200
Operation
The ECL Card
Controller mode
Manual operation (used only
at maintenance and service)
Automatic operation
Constant comfort
temperature
Constant reduced
temperature
Stand-by mode
User
Service
setting
setting
indicator indicator
User/
Change Adjustservice of
ment
settings display
The display shows all status information about
the heating system. The time and the heating
program is shown in one of the displays which
can be selected as a favourite display. The display
is also used for the setting of control parameters.
Display example:
C
1835
19
3
0
Functions
3
6
9
12
15
18
21
24
ECL Comfort 200 has a custom-designed display
with backlight for monitoring and setting.
The controller can be used as master or slave in
systems with master/slave controllers.
A remote control or room panel can be
connected to the system device bus.
Optional modules can be inserted into the
controller to obtain communication via LON
or RS 232.
General data
Ambient temperature
Storage temperature
Enclosure
Sensor type
Grade of enclosure
- marking
in accordance with the standards
DH-SMT
Controller
mode
Arrow buttons. Switch
between the lines of the ECL
Card.
Shift button. Switch between
temperatures, changeover
points etc.
Adjust temperatures and
values etc.
Switches between user
settings (yellow card side)
and service settings (grey
card side)
VD.7B.A5.02 © Danfoss 03/2005
The Auto Tuning function for the automatic
setting of control parameters for instantaneous
domestic hot water production is available with
the ECL Card P16.
However, Auto Tuning is only applicable with
valves that are approved for Auto Tuning, i.e.
the Danfoss types VB 2 and VM 2 with split
characteristic as well as logarithmic valves such
as VF and VFS.
Motor protection, which ensures stable control
and a long life of the motorized valve, is available
with ECL Cards P16, P17 and P30.
0 - 50 °C
-40 - + 70 °C
Wall or panel mounting
Pt 1000 (1000 ohm at 0 °C)
IP 41 - DIN 40050
EMC-Directive 89/336/EEC, 92/31/EEC, 93/68/EEC,
EN 50081-1 and EN 50082-1
Low Voltage Directive 73/23/EEC and 93/68/EEC
3
Data sheet
ECL Comfort 200
Wiring - 230 V a.c.
Supply voltage
Voltage range
Power consumption
Load on relay outputs
Load on triac outputs
230 V a.c. - 50 Hz
207 to 244 V a.c. (IEC 60038)
5 VA
4(2) A - 230 V a.c.
0.2 A - 230 V a.c.
Supply voltage
Voltage range
Power consumption
Load on relay outputs
Load on triac outputs
24 V a.c. - 50 Hz
21.6 to 26.4 V a.c. (IEC 60038)
5 VA
4(2) A - 24 V a.c.
1 A - 24 V a.c.
Wiring - 24 V a.c.
Dimensions
4
VD.7B.A5.02 © Danfoss 03/2005
DH-SMT
Data sheet
ECL Comfort 200
Cut-out for mounting
Mounting in a panel (connector set, code no.
087B1148):
The panel plate thickness A must not exceed 3
mm.
DH-SMT
VD.7B.A5.02 © Danfoss 03/2005
Mounting on a wall (socket code no. 087B1149):
The plate thickness B must not exceed 1 mm.
5
Data sheet
ECL Comfort 200
6
VD.7B.A5.02 © Danfoss 03/2005
DH-SMT
Data sheet
ECL Comfort 200
DH-SMT
VD.7B.A5.02 © Danfoss 03/2005
7
Data sheet
ECL Comfort 200
8
VD.7B.A5.02 © Danfoss 03/2005
DH-SMT
