MAKING MODERN LIVING POSSIBLE

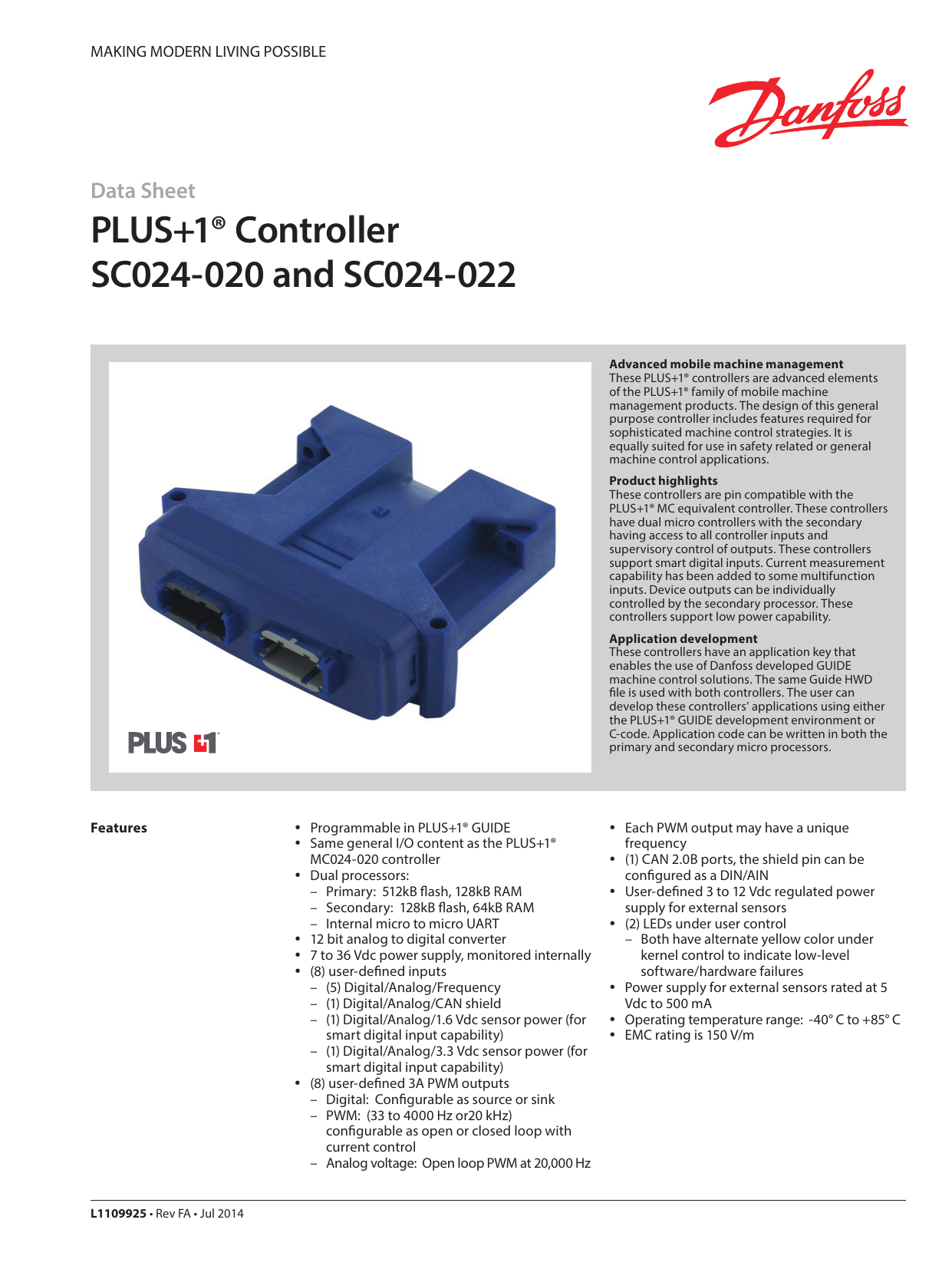

Data Sheet
PLUS+1® Controller
SC024-020 and SC024-022
Features
Advanced mobile machine management
These PLUS+1® controllers are advanced elements of the PLUS+1® family of mobile machine management products. The design of this general purpose controller includes features required for sophisticated machine control strategies. It is equally suited for use in safety related or general machine control applications.
Product highlights
These controllers are pin compatible with the
PLUS+1® MC equivalent controller. These controllers have dual micro controllers with the secondary having access to all controller inputs and supervisory control of outputs. These controllers support smart digital inputs. Current measurement capability has been added to some multifunction inputs. Device outputs can be individually controlled by the secondary processor. These controllers support low power capability.
Application development
These controllers have an application key that enables the use of Danfoss developed GUIDE machine control solutions. The same Guide HWD file is used with both controllers. The user can develop these controllers’ applications using either the PLUS+1® GUIDE development environment or
C-code. Application code can be written in both the primary and secondary micro processors.
y Programmable in PLUS+1® GUIDE y Same general I/O content as the PLUS+1®
MC024-020 controller y Dual processors:
– Primary: 512kB flash, 128kB RAM
– Secondary: 128kB flash, 64kB RAM
– Internal micro to micro UART y 12 bit analog to digital converter y 7 to 36 Vdc power supply, monitored internally y (8) user-defined inputs
– (5) Digital/Analog/Frequency
– (1) Digital/Analog/CAN shield
– (1) Digital/Analog/1.6 Vdc sensor power (for smart digital input capability)
– (1) Digital/Analog/3.3 Vdc sensor power (for smart digital input capability) y (8) user-defined 3A PWM outputs
– Digital: Configurable as source or sink
– PWM: (33 to 4000 Hz or20 kHz) configurable as open or closed loop with current control
– Analog voltage: Open loop PWM at 20,000 Hz y Each PWM output may have a unique frequency y (1) CAN 2.0B ports, the shield pin can be configured as a DIN/AIN y User-defined 3 to 12 Vdc regulated power supply for external sensors y (2) LEDs under user control
– Both have alternate yellow color under kernel control to indicate low-level software/hardware failures y Power supply for external sensors rated at 5
Vdc to 500 mA y Operating temperature range: -40° C to +85° C y EMC rating is 150 V/m
L1109925 • Rev FA • Jul 2014
Data Sheet PLUS+1® Controller SC024-020 and SC024-022
Mounting dimensions and pin assignments mm [in]
35.0 [1.38]
97.0
[3.82]
142.0 [5.59]
114.4 [4.50]
158.2 [6.23]
144.5 [5.69]
25.2 [1.0]
Pin connector
Connector 2 Connector 1
Pin Controller function
C2-P1 DIN/AIN/FreqIN
Pin Controller function
C1-P1 Power ground -
C2-P2 DIN/AIN/FreqIN C1-P2 Power supply +
C2-P3 PWMOUT/CrntOUT/DOUT C1-P3 CAN0 +
C2-P4 PWMOUT/CrntOUT/DOUT C1-P4 CAN0 -
C2-P5 PWMOUT/CrntOUT/DOUT C1-P5 DIN/AIN/CAN shield
C2-P6 PWMOUT/CrntOUT/DOUT C1-P6 DIN/AIN/SnsrPwr1.6Vdc
C2-P7 PWMOUT/CrntOUT/DOUT C1-P7 DIN/AIN/SnsrPwr3.3Vdc
C2-P8 PWMOUT/CrntOUT/DOUT C1-P8
12 1
C2-P9 PWMOUT/CrntOUT/DOUT C1-P9
10
2
SnsrPwr - (sensor ground)
C2-P10 PWMOUT/CrntOUT/DOUT C1-P10 DIN/AIN/FreqIN
C2-P11 Power supply +
5
C2-P12 Power supply +
7 6
C1-P12 DIN/AIN/FreqIN
Connector 2
'B' key (black)
Connector 1
'A' key (gray)
2
Connector 2
1
Connector 1
12
11
10
9
8
7
3
4
5
1
2
6
12
11
10
9
8
7
3
4
1
2
5
6
51.6 [2.03]
47.1 [1.85]
2195B
C Caution
PCB damage may occur. All device power supply + pins must be connected to battery +.
C Caution
This device is not field serviceable. Opening the device housing will void the warranty.
9
8
7
12
11
10
Connector 1
'A' key (gray)
2196B
Use care when wiring mating connector.
3
Above pinouts are for device pins.
4
5
6
Specifications – product parameters
Supply voltage 7 to 36 Vdc
Operating temperature (ambient) -40° C to 85° C [-40° F to 185° F]
Storage temperature -40° C to 85° C [-40° F to 185° F]
Programming temperature
IP rating
(with mating connector attached)
-40° C to 85° C [-40° F to 185° F]
IP 67
150 V/M EMI/RFI rating
Weight
Vibration
Shock
Maximum current, sourcing
Maximum current, sinking
0.40 kg [0.88 lb]
IEC 60068-2-64
IEC 60068-2-27 test Ea
24 A
8 A
SC024-020
SC024-022
2196B
Product part number
Related products part numbers
CG150 CAN/USB Gateway
Deutsch® mating connector bag assembly
PLUS+1® GUIDE single user license
11099062
11103248
10104136
10102023
(16 to 20 AWG)
10101000
Danfoss comprehensive technical information is on line at:
www.danfoss.com
Danfoss
Power Solutions (US) Company
2800 East 13th Street
Ames, IA 50010, USA
Phone: +1 515 239 6000
Danfoss
Power Solutions GmbH & Co. OHG
Krokamp 35
D-24539 Neumünster, Germany
Phone: +49 4321 871 0
Danfoss
Power Solutions ApS
Nordborgvej 81
DK-6430 Nordborg, Denmark
Phone: +45 7488 2222
Danfoss
Power Solutions Trading
(Shanghai) Co., Ltd.
Building #22, No. 1000 Jin Hai Rd
Jin Qiao, Pudong New District
Shanghai, China 201206
Phone: +86 21 3418 5200
Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without changes being necessary in specifications already agreed.
All trademarks in this material are property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
L1109925 • Rev FA • Jul 2014 www.danfoss.com © Danfoss A/S, 2014
