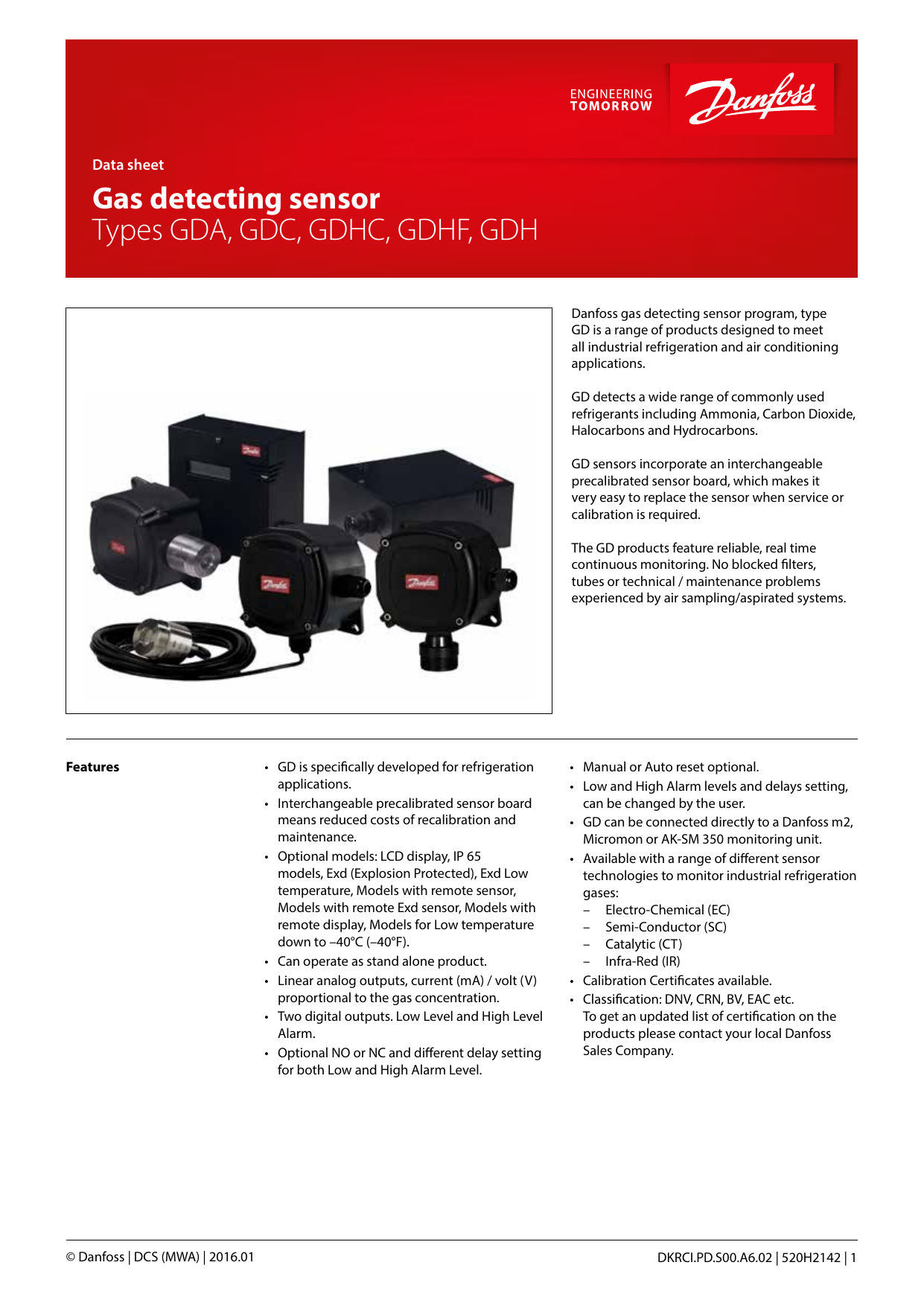

Danfoss Gas detecting sensor, type GDA,GDC,GDHC,GDHF, GDH Data Sheet

Data sheet
Gas detecting sensor
Types GDA, GDC, GDHC, GDHF, GDH
Danfoss gas detecting sensor program, type
GD is a range of products designed to meet
all industrial refrigeration and air conditioning
applications.
GD detects a wide range of commonly used
refrigerants including Ammonia, Carbon Dioxide,
Halocarbons and Hydrocarbons.
GD sensors incorporate an interchangeable
precalibrated sensor board, which makes it
very easy to replace the sensor when service or
calibration is required.
The GD products feature reliable, real time
continuous monitoring. No blocked filters,
tubes or technical / maintenance problems
experienced by air sampling/aspirated systems.
Features
© Danfoss | DCS (MWA) | 2016.01
• GD is specifically developed for refrigeration
applications.
• Interchangeable precalibrated sensor board
means reduced costs of recalibration and
maintenance.
• Optional models: LCD display, IP 65
models, Exd (Explosion Protected), Exd Low
temperature, Models with remote sensor,
Models with remote Exd sensor, Models with
remote display, Models for Low temperature
down to –40°C (–40°F).
• Can operate as stand alone product.
• Linear analog outputs, current (mA) / volt (V)
proportional to the gas concentration.
• Two digital outputs. Low Level and High Level
Alarm.
• Optional NO or NC and different delay setting
for both Low and High Alarm Level.
• Manual or Auto reset optional.
• Low and High Alarm levels and delays setting,
can be changed by the user.
• GD can be connected directly to a Danfoss m2,
Micromon or AK-SM 350 monitoring unit.
• Available with a range of different sensor
technologies to monitor industrial refrigeration
gases:
– Electro-Chemical (EC)
– Semi-Conductor (SC)
– Catalytic (CT)
– Infra-Red (IR)
• Calibration Certificates available.
• Classification: DNV, CRN, BV, EAC etc.
To get an updated list of certification on the
products please contact your local Danfoss
Sales Company.
DKRCI.PD.S00.A6.02 | 520H2142 | 1
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Contents
Page
Features........................................................................................................................................................................................ 1
Technical data............................................................................................................................................................................ 3
Electrical connection............................................................................................................................................................... 4
Design........................................................................................................................................................................................... 5
Sensor technology................................................................................................................................................................... 6
Calibration / test methods............................................................................................................................................. 6
Electrochemical Sensors - EC........................................................................................................................................ 6
Semi-conductor – SC....................................................................................................................................................... 6
Catalytic - CT....................................................................................................................................................................... 6
Infrared - IR.......................................................................................................................................................................... 6
Calibration test methods....................................................................................................................................................... 6
Bump test............................................................................................................................................................................. 7
Product range............................................................................................................................................................................ 7
Functions - all models............................................................................................................................................................. 8
Normalization Period............................................................................................................................................................... 8
Mother PCB................................................................................................................................................................................. 9
GD connected to Danfoss monitoring............................................................................................................................10
Reference material.................................................................................................................................................................11
Ordering.....................................................................................................................................................................................12
GD sensor PCB..................................................................................................................................................................13
Accessories........................................................................................................................................................................14
Dimensions...............................................................................................................................................................................15
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 2
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Technical data
Refrigerants - [ppm] range:
Ammonia (R 717)
Type GDA:
– 0-100 ppm
– 0-300 ppm
– 0-1,000 ppm
– 0-10,000 ppm
– 0-30,000 ppm
HFC ( R134A)
Type GDHF-R3
– 0-1,000 ppm
Hydro-carbon (R 290, R 600, R 600A, R 1270)
Type GDH
– 0-5,000 ppm
Carbon Dioxide (R 744)
Type GDC
0-10,000 ppm
0-20000 ppm
0-40000 ppm
Reference temperature conditions for factory
calibration:
Ambient temperature
For increased accuracy the unit must be calibrated at
the temperature of operation.
Halo-Carbon - HCFC (R 22, R 123)
Type GDHC
– 0-1,000 ppm
Response times may vary based on temperature of
operation, enclosure, and environmental conditions
HFC (R 404A, R 507)
Type GDHF
– 0-1,000 ppm
Alarm thresholds should be set accordingly based on
the environment of operation and the application in
which they are being used
Technical data
(Continued)
Models
Standard Basic
Standard
Basic with LCD
display
IP 65 with
stainless steel
sensor head
EC 1)
–20°C/+40°C
(–4°F/104°F)
0°C/+40°C
(32°F/104°F)
–20°C/+40°C
(–4°F/104°F)
SC, CT
–20°C/+50°C
(–4°F/122°F)
0°C/+50°C
(32°F/122°F)
–20°C/+50°C
(–4°F/122°F)
IR
0°C/+50°C
(32°F/122°F)
0°C/+50°C
(32°F/122°F)
–20°C/+50°C
(–4°F/122°F)
Sensor
IP 65 enclosure
Exd model
Exd model
Low
Temperature
IP 66 enclosure
5 m remote
IP 65 sensor
IP 66 enclosure
5 m remote
IP 65 Exd
sensor
Remote LCD
display
IP 41
5 m cable 3)
–20°C/+40°C
(–4°F/104°F)
–40°C/+40°C
(–40°F/104°F)
–20°C/+40°C
(–4°F/104°F)
–20°C/+40°C
(–4°F/104°F)
0°C/+40°C
(32°F/104°F)
–40°C/+50°C
(–40°F/122°F)
–20°C/+50°C
(–4°F/122°F)
–40°C/+50°C
(–40°F/122°F)
–20°C/+50°C
(–4°F/122°F)
–20°C/+50°C
(–4°F/122°F)
0°C/+50°C
(32°F/122°F)
–40°C/+50°C
(–40°F/122°F)
–20°C/+50°C
(–4°F/122°F)
not available
not available
not available
0°C/+50°C
(32°F/122°F)
4408 g (9.72 lb)
4408 g (9.72 lb)
1199 g (2.64 lb)
1199 g (2.64 lb)
3600 g (7.94 lb)
not available
not available
not available
Temperature range
–20°C/+40°C
(–4°F/104°F)
–40°C/+40°C
(–40°F/104°F)
Weight (excluding packing)
EC
SC, CT
912 g (2.01 lb)
947 g (2.09 lb)
903 g (1.99 lb)
562 g (1.24 lb)
IR
421 g (0.93 lb)
Electrical data
EC
SC, CT
12-24 V d.c., 0.23A
12-24 V a.c. 4 W
IR
12- 24 V d.c 0.3 A
12-24 V d.c., 0.23A 12-24 V d.c., 0.23A
12-24 V a.c. 4 W
12-24 V a.c. 4 W
12- 24 V d.c 0.24 A
12-24 V d.c., 0.23A
12-24 V a.c. 4 W
not available
not available
not available
IP 65
(~NEMA 4)
2
) IP 66
(~NEMA 4x)
2
) IP 66
(~NEMA 4x)
not available
not available
not available
Exd model
Low
Temperature
IP 66 enclosure
5 m remote
IP 65 sensor
IP 66 enclosure
5 m remote IP
65 Exd
sensor
M 42 x 1.5 mm
Supplied from
connector on GD
motherboard
Enclosure
EC
IP 30
(~NEMA 1)
SC, CT
IR
IP 30
(~NEMA 1)
IP 65
(~NEMA 4)
IP 65
(~NEMA 4)
IP 65
(~NEMA 4)
IP 41
(~NEMA 1)
) Two models.
) Remote sensor: IP 65.
) For all models except Exd and Exd Low Temp.
1
2
3
Sensor head
Models
Standard Basic
Sensor
Standard
Basic with LCD
display
IP 65 for High
RH and Fast
response
IP 65 enclosure
Exd model
Thread on external sensor
EC
M 42 x 1.5 mm
SC
M 42 x 1.5 mm
CT
–
–
M 35 x 1.5 mm
IR
M 42 X 1.5mm
EC
Stainless Steel
M 42 x 1.5 mm
M 42 x 1.5 mm
M 42 x 1.5 mm
M 42 x 1.5 mm
1” 5/16 x 20 UNF 1” 5/16 x 20 UNF
M 42 x 1.5 mm
1” 5/16 x 20 UNF
1” 5/16 x 20 UNF
M 35 x 1.5 mm
M 35 x 1.5 mm
M 35 x 1.5 mm
M 42 X 1.5mm
not available
not available
not available
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
not available
not available
not available
Material for external sensor
SC, CT
–
–
IR
© Danfoss | DCS (MWA) | 2016.01
Stainless Steel
Stainless Steel
Plastic
DKRCI.PD.S00.A6.02 | 520H2142 | 3
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Cable connection
1 gland for 6-13 mm cable (0.2”-0.5”)
1 Ø 20 mm (0.8”) hole with blanking plug.
1 extra gland can be fitted (only Standard, LCD
display, IP 65 and Exd).
Approvals
CE:
EN55011: 1998,
EN61326: 1996
Following the provisions of 89/336/EEC, EMC
Directives and, Cenelec
EN61010-2 : 2001
Following the provisions of 73/23/EEC, Low
ATEX for Exd model:
Directive 94/9/EC Group 2, Category2, G
and D, Zones 1 and 2.
Voltage directive (LVD)
Electrical connection
All terminals will accept 0.5-1.5 mm2 (20-15 AWG)
Analog output
4-20 mA
Max. 400Ω
0-10 V
Min. 10 kΩ
0-5 V
Min. 10 kΩ
Digital output – volt free contacts
Load: 1 A, 24 V a.c/d.c
RS 485 Communication
To Danfoss Monitoring System:
Danfoss m2
Danfoss Micromon
Danfoss AK SM 350
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 4
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Design
The GD product range is designed in a very flexible
way with a mother PCB (Print Circuit Board) and an
interchangeable precalibrated sensor PCB.
The mother PCB is the same for all GD models
independent of the refrigerant or sensor
technology. On the mother PCB individual settings
(Alarm levels, delays e.t.c) can be set to meet local
legislation or application requirements.
n
n
Standard
LCD display
n
n
n
The sensor PCB is always precalibrated and dedicated
to the actual refrigerant and ppm range. Danfoss has in
advance selected the most appropriate sensor making
it easy to optain safe detection and avoid false alarms
from other gases present.
Because of the interchangeable precalibrated
sensor PCB, it is very easy to replace the sensor
when service or a calibration procedure is required
(see the below drawings).
IP 65 with stainless steel sensor head
Exd
Exd Low Temp
Sensor PCB with
remote sensor
Mother PCB
Sensor PCB
Sensor head
Mother PCB
IP 65 enclosure
Danfoss
M148D0002_1
n
Mother PCB
Sensor
head
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 5
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Sensor technology
Danfoss has, depending on actual ppm range and
refrigerant, selected the most appropriate sensor for
the target refrigerant gas. When the refrigerant and
actual ppm range has been decided, the Danfoss
GD product range makes it easy to pick out the right
product.
Electrochemical Sensors - EC
EC sensors are used mainly for toxic gases and are
suitable for ammonia but not for the other refrigerants.
They are very accurate and tend to be used principally
for toxic gases which cannot be otherwise detected or
where high levels of accuracy are needed.
Catalytic - CT
CT sensors have been mainly used for combustible
gases including ammonia. CT are relatively low-cost,
well established and understood and they have a
good life span, up to 5 years. They can be subject to
poisoning in certain applications but not generally in
refrigeration and are more effective at gas levels of
above 2,000 ppm.
Below is a brief introduction to the GD sensor types.
For further information - please contact Danfoss.
Semi-conductor – SC
SC sensors can be used for a wide range of gases
including combustible, toxic and refrigerant gases.
The SC sensors are low-cost, long life, sensitive, stable,
resistant to poisoning and can be used to detect a
large range of gases including all the CFC, HCFC, HFC
refrigerants, ammonia and hydrocarbons.
However, they are not selective and are not suited to
detecting a single gas in a mixture or for use where
high concentrations of interfering gases are likely to be
present.
Calibration / test methods
Infrared - IR
IR sensors are very specific and is very precise for
detection of CO2.
The calibration procedure consist of:
• Annual checks by qualified bump test
• Calibration by replacement of the sensor PCB with a
Danfoss pre-calibrated certified sensor PCB
Annual Test
To comply with the requirements of EN378 and the F GAS regulation sensors must be tested annually.
However local regulations may specify the nature and frequency of this test. If not the Danfoss
recommended bump test procedure should be followed. Contact Danfoss for details.
For increased accuracy the unit must be calibrated at the temperature of operation.
After exposure to a substantial gas leak, sensor should be checked and replaced if necessary.
Check local regulations on calibration or testing requirements.
Method I
Calibration / test by means of
replacing Sensor PCB
This method requires that Danfoss offers factory
calibrated PCB sensor boards with calibration certificate
and traceability codes. Additionally an electrically
simulation is required to verify the output signals and
alarm settings.
The PCB sensor board, which is the essential measuring
element of the gas detector, is produced, calibrated,
tested and certified by Danfoss.
After the main PCB of the gas detector has been tested
with the GD tester, the new calibrated Sensor PCB can
be installed.
Test and calibration of GD Main
Board by the use of GD tester
Danfoss recommends that the calibration / test
procedure is done by means of replacing the Sensor
PCB, because:
• No need to purchase calibration gases in several
different concentrations
• Simpler and quicker than gas calibration
• Danfoss guarantees the correct calibration and
functioning of the new sensor PCB, which is supplied
with a calibration certificate.
• No problems with sensor deterioration or end-of-life
• Price competitive, compared to the gas calibration
carried out on site.
Certificate
XXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXX
XXXXXXXXXXXXXXXXXXXXX
Exchange of PCB
sensor board
© Danfoss | DCS (MWA) | 2016.01
+
Electrical
test of alarm
Certificate:
Gas / calibration levels etc.
Traceability
Gas sensor
tested
DKRCI.PD.S00.A6.02 | 520H2142 | 6
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Bump test
A Bump Test consists of exposing the sensor to a gas. The objective is to establish if the sensor is reacting to the
gas and all the sensor outputs are working correctly. A qualified bump test is a test carried out using ampoules or
similar of known concentration.
Bump test of gas sensors (this test is a function test - it is not a calibration)
SC
SemiMethod
Refrigerant
conductor
Ampoules
Ammonia

Lighter gas
HCFC, HCF

Lighter gas
HC - Hydro Carbon

Ampoules or (Breath on sensor)
CO2
Ammonia water
Ammonia
EC
Electrochemical

CT
Catalytic
IR
Infrared



Technician use only!
This unit must be installed by a suitably qualified technican who will install this unit in accordance with
these instructions and the standards set down in their particular industry/country.
Suitably qualified operators of the unit should be aware of the regulations and standards set down by
their industry/country for the operation of this unit. These notes are only intended as a guide and the
manufacturer bears no responsibility for the installation or operation of this unit.
Failure to install and operate the unit in accordance with these instructions and with industry guidelines
may cause serious injury including death and the manufacturer will not be held responsible in this regard.
Danfoss
M148D0003_1
Product range
Standard
LCD display
IP 65 with stainless steel sensor head
Exd
Exd Low temperature
Exd Low temperature for CO2
Remote LCD display IP 41
IP 65 enclosure
IP 66 enclosure 5 m remote IP 65 sensor
IP 66 enclosure 5 m remote IP 65 Exd sensor
• Standard
Basic standard model for machine/engine rooms and
cold rooms
• Standard with LCD display
Basic standard model for machine/engine rooms
with the actual reading of present ppm level in the
room and Alarm messages.
• IP 65
Two models with IP 65 available:
- IP 65 with stainless steel sensor head.
Temperature down to –20°C(–4°F)
- IP 65 enclosure. Temperature down to
–40°C(–40°F)
© Danfoss | DCS (MWA) | 2016.01
• Exd
Like Standard but applicable in explosive areas Zone
1 and 2 and higher IP(NEMA).
The sensor is mounted in an external Stainless Steel
head.
• Remote LCD (accessory)
Remote LCD display with 5 m cable
• Remote sensor
Models with 5 m cable. Can be used in connection
with safety valves/vent pipe applications.
Also available with remote Exd sensor
DKRCI.PD.S00.A6.02 | 520H2142 | 7
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Functions - all models
All GD models shown above have the same basic
functions. All settings are done by means of jumper
settings on the mother PCB.
See the section “Mother PCB” for more details.
For detailed information on how to adjust Alarm
setting - please see the instruction PI.S00.A.
Alarm
All GD models can detect 2 alarm levels and give
alarm via 2 volt free contacts. When an alarm has been
detected a yellow LED (Low Level Alarm) or a red LED
(High Level Alarm) will go ON. All GD sensors have
been preset by the factory, to realistic Low/High values
related to the actual ppm range of the GD model. The
actual Low and High Alarm ppm values can be read on
the external GD label.
The 2 volt free contacts can be set individually to either
Normally Open (NO) or Normally Closed (NC).
All GD models are factory set to NO
NO/NC can not be used as fail safe during power failure.
Normalization Period
With the option Auto reset selected, the release of the
Low or High Level Alarm is done automatically.
All GD models are factory set to Auto Reset.
The factory preset values can be adjusted, with a
voltmeter measuring a 0-5 V d.c output.
0 V corresponds to the min. ppm range (e.g. 0 ppm)
5 V corresponds to the max. ppm range (e.g. 1000)
Example:
If a setting of 350 ppm is required the voltage shall be
set to 1.75 V (35 % of 5 V)
Analog Output
All GD will continuously generate a linear analog
output, proportional to the gas concentration. The
signal is available as 4-20 mA, 0-10 V and 0-5 V.
All are available at the same time (see next page).
LCD display
The model with the LCD display will continuously
display the actual present ppm level in the room and
the Alarm messages.
Upper Line:
Actual present ppm level (e.g: “580 ppm”).
Both Low and High Level Alarm can be delayed
individually before the 2 volt free contacts are
activated. This is useful when cross interference from
other gasses may occur. The delayed response time can
be set to 0, 1, 5 or 10 minutes.
All GD models are factory set to 0 minutes.
When the GD sensors have detected a Low or High
Level Alarm an option for having these alarms with
Manual reset or Auto Reset is possible. With the option
Manual reset selected, a push button on the mother
PCB must be activated to release the Low or High Level
Alarm.
Lower Line:
Alarm status.
4 text messages are possible - only one at a time:
“No Alarm”
Neither Low Level Alarm nor High Level Alarm active.
“Lo Alarm on”
Low Level Alarm active.
“Lo,Hi Alarm on”
Both Low Level Alarm and High Level Alarm active.
“Hi Alarm on”
High Level Alarm active.
Once the GD is powered up it takes some time to
normalize. When GD is powered up it will give a
higher analog output (4-20 mA/0-10 V/0-5 V 1)) in the
beginning and after some time it goes back
to the actual concentration (in clean air and no leaks,
the analog output will go back to:
~ 0 V/4 mA / ( ~ 0 ppm)) 2)
1
Times below are only intended as a guide.
They may vary due to temperature, humidity,
cleanliness of the air, storage time 3) etc.
Model
EC Sensors are 2 min (all models)
SC Sensors are 60 minutes (all models)
CT Sensors are 60 minutes (all models)
IR Sensors are 2 minutes (all models)
)
Always use the voltage 0-10 V to check the output for
normalization check
)
GDC IR goes back to about 400 ppm as this is the normal
level in air. (~4.6 mA/~0.4 V/ 0.2 V)
2
)
If the GD has been in long-term storage or has been turned
off for a long period, normalisation would be much
slower. However within 1-2 hours the GD should have
dropped below the low alarm level and be operational.
The progress can be monitored exactly on the 0-10V
output. When the output settles around zero (400 ppm
in the case of IR CO2 sensors) the GD is normalised. In
exceptional circumstances particularly with SC and CT
sensors the process can take up to 30 hours.
3
For SC Sensors, it must be calibrated at temperature of
operation.
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 8
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Mother PCB
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 9
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Mother PCB
(Continued)
GD connected to
Danfoss monitoring
Danfoss offers the possibility of connecting every GD,
independent of model, via the built-in RS 485 Bus
communication, directly to the Danfoss monitoring
unit.
Up to 31 GD sensors can be connected via a twocore screened communication cable (see the below
drawing).
Every GD sensor needs a unique address number which
must be selected. The address of GD is set by S2 and
S3. By setting S2 and S3 between 0 and F, the GD will be
assigned an address. See next page.
A conversion chart between channel number of the
Danfoss monitoring system and the hexadecimal
address of the GD is attached. Power must be removed
when setting the addresses on the GD sensor.
If more than 31 units are needed, a GD Repeater
(amplifier) must be installed (see Accessories).
Contact Danfoss for further information.
Danfoss
m2
Micromon
AK-SM 350
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 10
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
GD connected to
Danfoss monitoring
(Continued)
Channel on Danfoss
Monitoring System
Reference material
© Danfoss | DCS (MWA) | 2016.01
S3
S2
Channel on Danfoss
Monitoring System
S3
S2
Channel on Danfoss
Monitoring System
S3
S2
1
0
1
34
2
2
67
4
3
2
0
2
35
2
3
68
4
4
3
0
3
36
2
4
69
4
5
4
0
4
37
2
5
70
4
6
5
0
5
38
2
6
71
4
7
6
0
6
39
2
7
72
4
8
7
0
7
40
2
8
73
4
9
8
0
8
41
2
9
74
4
A
9
0
9
42
2
A
75
4
B
10
0
A
43
2
B
76
4
C
11
0
B
44
2
C
77
4
D
12
0
C
45
2
D
78
4
E
13
0
D
46
2
E
79
4
F
14
0
E
47
2
F
80
5
0
15
0
F
48
3
0
81
5
1
16
1
0
49
3
1
82
5
2
17
1
1
50
3
2
83
5
3
18
1
2
51
3
3
84
5
4
19
1
3
52
3
4
85
5
5
20
1
4
53
3
5
86
5
6
21
1
5
54
3
6
87
5
7
22
1
6
55
3
7
88
5
8
23
1
7
56
3
8
89
5
9
24
1
8
57
3
9
90
5
A
25
1
9
58
3
A
91
5
B
26
1
A
59
3
B
92
5
C
27
1
B
60
3
C
93
5
D
28
1
C
61
3
D
94
5
E
29
1
D
62
3
E
95
5
F
30
1
E
63
3
F
96
6
0
31
1
F
64
4
0
97
6
1
32
2
0
65
4
1
98
6
2
33
2
1
66
4
2
99
6
3
Danfoss m2 literature:
Technical Leaflet
RB8BA
Manual
RS8AN
Instruction
RI8BM
Micromon:
Technical leaflet
Instruction
Instruction
Danfoss AK-SM 350 literature:
Manual
RS8EF
Instruction
RI8LC
Danfoss GD apllication guide:
PA.000.B
RC8AU
RI8HV (Micromon Expanable)
RI8GA (Micromon)
DKRCI.PD.S00.A6.02 | 520H2142 | 11
Danfoss Type
© Danfoss | DCS (MWA) | 2016.01
0
0
5000/
9000
3000/
28000
GDA SC 10000 0-10000
GDA CT 30000 0-30000
GDH SC 5000
1) Contact Danfoss
R 290,
R 600,
R 600A,
R 1270
Hydro-Carbon
GDHF-R3 SC
1000
HFC
R 134A
0-5000
0-1000
GDHF SC 1000 0-1000
GDHC SC 1000 0-1000
HFC
R 404A,
R 507
HCFC
R 22,
R 123
800/
2500
500/
900
500/
900
500/
900
0
0
0
0
20000/
36000
GDC IR 40000
0-40000
0
GDC IR 20000
Halo-Carbon
R 744
0
10000/
0-20000
18000
GDC IR 10000
5000/
9000
0-10000
0
80/
250
0
25/
500
0-1000
0
500/
1000
GDA SC 1000
0
100/
200
0-1000
0-1000
GDA EC 1000
0
Resp.
Delay
[s]”
25/
35
Alarm
limits
Low/
High
[ppm]
GDA EC 1000
0-300
GDA EC 300
Carbon Dioxide - CO2
R 717
0-100
Range
[ppm]
GDA EC 100
Ammonia NH3
Type
of gas
All models
Standard GD models
Complete
Sensor
PCB
Complete
Sensor
PCB
Standard Basic
with LCD display
Complete
Sensor
PCB
IP 65 with stainless
steel sensor head
Complete



IP 65
Sensor
PCB
Code number
Complete
–20°C/+40°C (–4°F/104°F)
–40°C/+50°C (–40°F/122°F)
–40°C/+40°C (–40°F/104°F)
Sensor
PCB
Complete
Sensor
PCB
Exd model
Complete
Sensor
PCB
Exd model Low
Temperature
Complete
Sensor
PCB
IP 66 enclosure
5 m remote
IP 65 sensor
1)
-
1)
-
-
-
148H5065  148H5224  148H5063 148H5240
1)
-
1)
-
1)
-
148H5042 148H5254 148H5049  148H5227 
1)
1)
148H5245
148H5244
1)
1)
148H5245
148H5244
148H5070 148H5204 148H5071 148H5204
-
-
-
-
-
-
148H5092  148H5220 
148H5082  148H5219 
148H5072  148H5218 
148H5030 148H5203 148H5031 148H5203 148H5032 148H5211 148H5039  148H5229 
Semi148H5190 148H5267 148H5191 148H5267
Conductor
Semi148H5120 148H5246 148H5121 148H5246
Conductor
-
-
-
-
-
148H5247 148H5129  148H5242 
Semi148H5110 148H5206 148H5111 148H5206 148H5112 148H5213 148H5119  148H5217 
Conductor
Semi148H5100 148H5205 148H5101 148H5205 148H5102 148H5212 148H5109  148H5223 
Conductor
Infrared
Infrared
Infrared
Catalytic
Semi148H5020 148H5202 148H5021 148H5202 148H5022 148H5210 148H5029  148H5228 
Conductor
Semi148H5040 148H5249
Conductor
-
-
-
1)
1)
-
-
1)
-
-
1)
1)
1)
1)
Complete
-
-
-
-
-
Sensor
PCB
IP 66 enclosure
5 m remote
IP 65 Exd sensor
148H5242
-
-
148H5193 148H5260
1)
148H5113 148H5243
1)
1)
1)
148H5073 148H5250
148H5033 148H5211
-
1)
1)
1)
1)
1)
1)
1)
-
-
-
-
-
-
-
-
-
-
-
-
-
-
148H5127 148H5264
148H5117 148H5263
148H5107 148H5262
1)
1)
1)
1)
-
1)
1)
1)
1)
1)
1)
1)
-
-
-
-
-
-
-
-
148H5023 148H5241 148H5026 148H5241 148H5027 148H5261 148H5028 148H5265
1)
Electro148H5050 148H5201 148H5051 148H5201 148H5052 148H5209 148H5059  148H5226  148H5055  148H5225  148H5053 148H5209
chemical
Electro148H5010 148H5201 148H5011 148H5201 148H5012 148H5209 148H5019  148H5226  148H5015  148H5225  148H5013 148H5209 148H5016 148H5269 148H5017 148H5275
chemical
Electro148H5060 148H5215
chemical
Electro148H5000 148H5200 148H5001 148H5200 148H5002 148H5208 148H5009  148H5222  148H5005  148H5221  148H5003 148H5208 148H5006 148H5268 148H5007 148H5273
chemical
Sensor
type
Standard Basic
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Ordering
DKRCI.PD.S00.A6.02 | 520H2142 | 12
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Ordering - GD sensor PCB
Ordering - GD upgrade kits
© Danfoss | DCS (MWA) | 2016.01
Description
Code No.
GDA EC 100 sensor PCB
148H5200
GDA EC 1000 sensor PCB
148H5201
GDA SC 10000 sensor PCB
148H5202
GDA CT 30000 sensor PCB
148H5203
GDC IR 10000 sensor PCB for Standard Basic and Standard Basic with LCD display
148H5204
GDHC SC 1000 sensor PCB
148H5205
GDHF SC 1000 sensor PCB
148H5206
GDH CT 5000 sensor PCB
148H5207
GDA EC 100 sensor PCB Ext for IP 65/Exd enclosure
148H5208
GDA EC 1000 sensor PCB Ext for IP 65/Exd enclosure
148H5209
GDA SC 10000 sensor PCB Ext for IP 65 enclosure
148H5210
GDA CT 30000 sensor PCB Ext for IP 65/Exd enclosure
148H5211
GDHC SC 1000 sensor PCB Ext for IP 65 enclosure
148H5212
GDHF SC 1000 sensor PCB Ext for IP 65 enclosure
148H5213
GDH CT 5000 sensor PCB Ext for Exd enclosure
148H5214
GDA EC 300 sensor PCB Ext for IP 65/Exd enclosure
148H5240
GDA EC 300 sensor PCB
148H5215
GDA SC 10000 sensor PCB Ext for Exd enclosure/Exd Low Temp. enclosure
148H5241
GDHC SC 1000 sensor PCB Ext for Exd enclosure
148H5242
GDHF SC 1000 sensor PCB Ext for Exd enclosure
148H5243
GDC IR 20000 sensor PCB for Standard Basic and Standard Basic with LCD display
148H5244
GDC IR 40000 sensor PCB for Standard Basic and Standard Basic with LCD display
148H5245
GDHF-R3 SC 1000 sensor PCB
148H5246
GDHF-R3 SC 1000 sensor PCB Ext for IP 65 enclosure
148H5247
GDE EC 500 sensor PCB Ext for IP 65
148H5248
GDA SC 1000 sensor PCB
148H5249
GDC IR 10000 sensor PCB Ext for Exd enclosure
148H5250
GDA SC 1000 sensor PCB Ext for IP 65 enclosure
148H5254
GDH SC 5000 sensor PCB Ext for Exd enclosure
148H5260
GDA SC 10000 sensor PCB with 5 m remote IP 65 sensor. For IP 66 enclosure
148H5261
GDHC SC 1000 sensor PCB with 5 m remote IP 65 sensor. For IP 66 enclosure
148H5262
GDHF SC 1000 sensor PCB with 5 m remote IP 65 sensor. For IP 66 enclosure
148H5263
GDHF-R3 SC 1000 sensor PCB with 5 m remote IP 65 sensor. For IP 66 enclosure
148H5264
GDA SC 10000 sensor PCB with 5 m remote IP 65 Exd sensor. For IP 66 enclosure
148H5265
GDH SC 5000 sensor PCB
148H5267
GDA EC 100 sensor PCB Ext for Exd Low Temp. enclosure
148H5268
GDA EC 1000 sensor PCB Ext for Exd Low Temp. enclosure
148H5269
GDA EC 100 sensor PCB with 5 m remote IP 65 sensor. For IP 66 enclosure
148H5273
GDA EC 1000 sensor PCB with 5 m remote IP 65 sensor. For IP 66 enclosure
148H5275
Description
Code No.
GDA EC 100 LT IP56 sensor upgrade kit
148H5221
GDA EC 100 HT IP56 sensor upgrade kit
148H5222
GDA EC 1000 LT IP56 sensor upgrade kit
148H5225
GDA EC 1000 HT IP56 sensor upgrade kit
148H5226
GDA SC 10000 IP56 sensor upgrade kit
148H5228
GDA CT 30000 IP56 sensor upgrade kit
148H5229
GDA SC 1000 IP56 sensor upgrade kit
148H5227
GDA EC 300 LT IP56 sensor upgrade kit
148H5224
GDC IR 10000 IP56 sensor upgrade kit
148H5218
GDC IR 20000 IP56 sensor upgrade kit
148H5219
GDC IR 40000 IP56 sensor upgrade kit
148H5220
GDHC SC 1000 IP56 sensor upgrade kit
148H5223
GDHF SC 1000 IP56 sensor upgrade kit
148H5217
GDHF-R3 SC 1000 IP 56 sensor upgrade kit
148H5242
DKRCI.PD.S00.A6.02 | 520H2142 | 13
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Ordering - Accessories
Description
Code No.
GD Test Kit
- GD Tester all models. To test mother PCB at Sensor PCB replacement
- Beaker M42
- EC/SC/CT-Adapter. Fit Beaker M42
- M35 Adapter. Fit Beaker M42
148H5230
GD Repeater all models. Between GD and Danfoss Monitoring System
148H5231
GD mother PCB all models
148H5232
GD Tester for mother PCB, all models
148H5239
I-PACK(10) GD Ampoules 100 ppm ammonia
148H5234
I-PACK(10) GD Ampoules 1000 ppm ammonia
148H5235
I-PACK(10) GD Ampoules 2000 ppm CO2
148H5236
Remote LCD display IP 41
148H5238
GD Tester and GD Mother PCB
GD Tester
GD Mother PCB
Bump test equipment
Beaker
Ampoules
EC/SC/CT-Adaptor
M35 Adaptor
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 14
Data sheet | Gas detecting sensor, types GDA, GDC, GDHC, GDHF, GDH
Dimensions
Standard
LCD display
IP 65 with stainless steel sensor head
Exd
Exd Low Temperature
122
122
168
Danfoss
M148D0004_1
152
75
7
14
Mounting Holes
2 x Clearance for M6
IP 65 Enclosure
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 15
Dimensions (Continued)
IP 66 enclosure 5 m remote IP 65 sensor
IP 66 enclosure 5 m remote IP 65 Exd sensor
Remote LCD display IP 41
Exd for CO2
© Danfoss | DCS (MWA) | 2016.01
DKRCI.PD.S00.A6.02 | 520H2142 | 16

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
