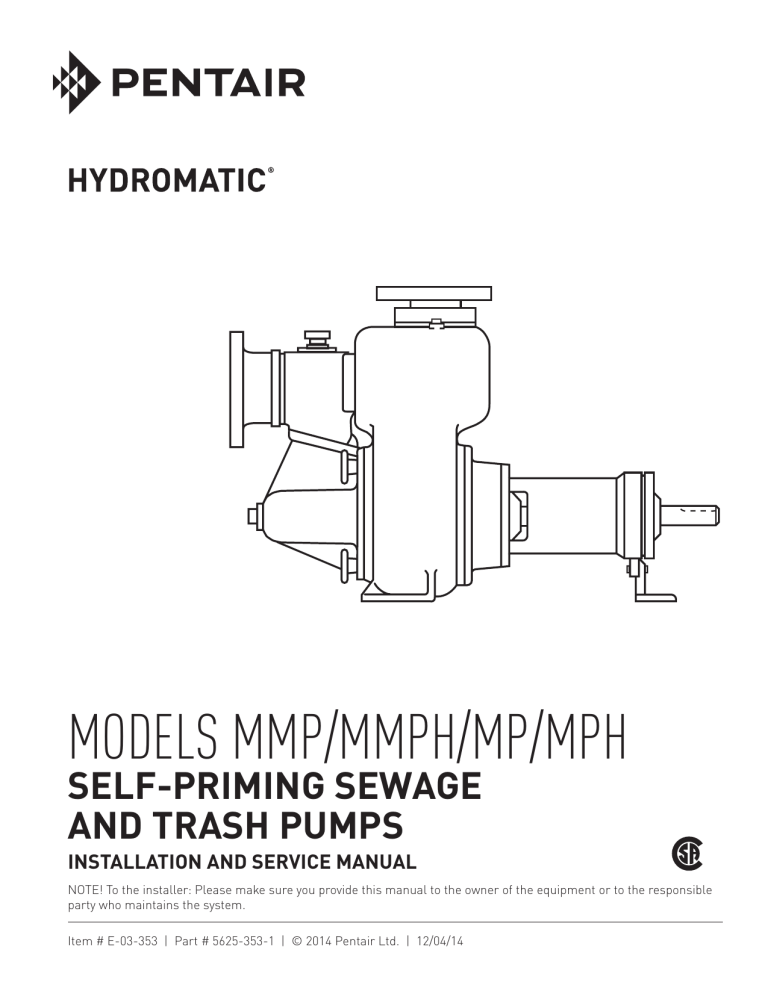

MODELS MMP/MMPH/MP/MPH
SELF-PRIMING SEWAGE
AND TRASH PUMPS
INSTALLATION AND SERVICE MANUAL
NOTE! To the installer: Please make sure you provide this manual to the owner of the equip­ment or to the responsible
party who maintains the system.
Item # E-03-353 | Part # 5625-353-1 | © 2014 Pentair Ltd. | 12/04/14
General
Information
The MMP/MMPH/MP/MPH selfpriming centrifugal pump has a
semi-open impeller and suction
flap valve. Pump is designed to
handle raw unscreened sewage,
mild industrial waste and slurries
containing entrained solids. The
material of construction is a cast
iron volute case and bearing frame,
ductile iron impeller and wear plate.
General Information:
This manual contains important
information for the safe use of
this product. Read this manual
completely before using this product
and refer to it often for continued
safe product use.
Unpacking Pump:
Remove pump from pallet. When
unpacking unit, check for concealed
damage. Claims for damage must be
made at the receiving end through
the delivery carrier. Damage claims
cannot be processed from the
factory. Check for and tighten all
loose attaching hardware. Check oil
levels and lubricate as necessary.
WARNING: Before handling
these pumps and controls, always
disconnect the power first. Do not
smoke or use sparkable electrical
devices or flames in a septic
(gaseous) or possible septic area.
CALIFORNIA PROPOSITION
65 WARNING:
This product and
related accessories contain chemicals
known to the State of California to
cause cancer, birth defects or other
reproductive harm.
Pump Not Operating or
in Storage:
If pump is not put into service
immediately, it must be properly
stored to prevent damage. Store
unit in a dry warm location. Never
store unit in the open even if it
is protected with plastic or other
covering. The bearing housing and
motor will draw moisture, which
may result in pump failure after
being put in operation.
2
While in storage pumps with
carbon ceramic seals must have
impellers manually rotated (6 to
12 revolutions) after setting nonoperational for 3 months or longer
and prior to electrical start-up.
Pumps with tungsten carbide seals
must have impellers manually
rotated (6 to 12 revolutions) after
setting non-operational for 3 weeks
or longer and prior to electrical
start-up.
Motors:
Pump unit may be shipped less
the motor for customer to supply
and mount.
Motor Types:
Pumps can be driven by standard
drip-proof, totally enclosed fancooled, totally enclosed hazardous
location or drip-proof motor with
encapsulated windings for moisture
protection. If motor is to operate in
the open or in a dusty location, a
totally enclosed fan-cooled motor
must be used. If pump is to operate
in a damp location, a motor with
encapsulated winding should be
used. Motors are to be sized so
that no overload will exist in the
operating range of the pump.
Note: When pump units are mounted
at the factory, the driver and pump
are aligned before shipment. During
transit and handling of pump and
components, misalignment may
occur. Before operation the drive
alignment should be checked.
Shaft Couplings:
We recommend using Wood’s
flexible coupling to prevent
misalignment and noise that can be
caused by other couplings. The extra
cost of the coupling is easily saved
in installation and field service that
can result from coupling problems.
V-belt Drive:
Where V-belts are used, keep
belts tight by adjusting motor base
screws. Belts should run cool. If
belts heat up, it indicates slipping.
The V-belts should be fiddlestring tight.
CAUTION: Belt guards and
coupling guards must be properly
installed before operating pump unit.
Electrical Starting Equipment:
If electrical starting equipment is
not furnished with pump, certain
precautions must be observed in
selecting motor starter.
Type of Starter:
For three phase power a magnetic
starter with 3-leg overload
protection is recommended to
prevent motor burnout that can
occur from single phasing or
transformer faults on three phase
systems. For single-phase motors a
standard starter with 2-leg overload
protection is recommended.
Electrical:
1. For motor overload protection
the magnetic starter trip amp
rating should not be more than
1.25 times the full load amps
of the motor. Hydromatic®
recommends a rating of 1.15
times the full load amps of
the motor.
2. Always use fused disconnect
switch or circuit breaker ahead
of magnetic starter for short
circuit protection. When duplex
pumps are used and are operated
from single disconnect switch,
be sure disconnect switch is
large enough to withstand the
starting current of both pumps
coming on at once. This can
occur after a power failure. This
is important as a blown fuse or
tripped circuit breaker can make
both pumps and an alarm system
inoperative, resulting in flooding
or other damage.
Ground:
Connect a ground wire to motors,
control box and other related
controls. Ground wire is to be
sized to the National Electric Code
article 250-95. Ground wire must be
connected to a driven ground stake
or to a ground wire from the supply
service. If a ground stake is used, it
must be driven at least 8 feet into
the ground.
Codes:
All local wiring codes must be
observed, and any exceptions to
data given must be followed in
accordance with the local code.
Consult the local inspector before
installation to avoid costly delays.
Pump
Installation
Pump Installation Foundation:
Pump frame or base should be
installed on a concrete floor with
proper shims and grout. Use
hardwood tapered shims to drive
under base to level. Base should be
about 1 to 11/2" off the floor. Build
form around the base and fill base
inside cavity with grout. Foundation
bolts can be set in the grout or
set in the concrete floor with
expansion bolts.
Grout should be made with 1 part
cement and 2 parts sand. Mixture
should be fluid enough to run under
base. Wood shim blocks can be
removed after grout has set and
holes filled with quick set cement.
Piping:
All piping to suction and discharge
openings of pump must be supported
to remove stress from the pump case
and bearing frame.
Suction Pipe:
1. Suction pipe should be the same
size as pump opening. Do
not use larger suction pipe as
priming time will be increased
and velocity may not be high
enough to properly carry solids.
2. Pump should be installed as
close to the liquid being pumped
as possible with a minimum of
elbows or fittings.
3. To avoid air pockets, suction
pipe must be as short and direct
as possible. Suction pipe must
always slope upward to the pump
from the source of the liquid
being pumped.
4. The suction pipe should be
installed at a distance equal to
11/2 times the diameter of the
suction pipe from the wall of the
wet well, minimum.
5. The suction pipe should be
installed at a distance equal to
one half the diameter of the
suction pipe or 3" from the floor
of the wet well, minimum.
6. If more than one suction pipe
is to be installed in the same
wet well, a distance equal to at
least 3 times the diameter of
the suction pipe should separate
them, minimum.
7. Submergence of the suction
pipe is critical to efficient pump
operations. Submergence may be
reduced by installing a standard
pipe increaser fitting at the
end of the suction pipe. The
larger opening size will reduce
the inlet velocity and required
submergence.
Vertical Suction Lift:
Vertical lift should not be more than
25 feet for MMP/MMPH models
and not more than 15 feet for MP/
MPH models. This is for starting
level only. After pump primes, level
can be pumped down to 26 to 27
feet for MMP/MMPH models or 18
to 20 feet for MP/MPH models, if
desired. But sump level must rise
up to the original level for restart.
All suction line joints must be
airtight as a leak in the suction pipe
can cause the pump to lose prime
or not prime at all. Always check
NPSH calculations for available
atmosphere pressure before
applying pump.
Discharge Lines:
If the discharge line ends at level
lower than the liquid being pumped,
a siphon breaker must be installed
in the discharge line. Otherwise,
siphoning action may cause damage
to the pump.
The discharge line should include
a system check valve, with outside
weight or spring, to protect the
pump from excessive shock
pressure and reverse rotation when
pump is stopped. Do not depend
on the check valve at pump suction
to hold discharge pressure. The
discharge line should include an
isolation valve, plug valve or gate
valve, to isolate the pump from
the discharge line. This will allow
maintenance to be performed on
the pump or check valve without
draining the discharge line.
Air Bleed Pipe:
A 3/4" or 1" bleed line with ball
valve or gate valve must be installed
between the pump discharge flange
and discharge check valve. The
bleed line should be installed as
close to the discharge check valve
as possible, the end extending a
minimum of 6" below low water
offset point in the wet well. The
valve in the bleed line is to be fully
open at initial start-up of pump. After
initial start-up the valve is to be
left partially open at all times. This
will allow any trapped air or gas
to be vented back to the wet well.
Be sure vent line is under water at
all times. This is important. Selfpriming pumps will not compress air
to any extent. Pump may not prime
if the bleed line is not used or closed
and may not reprime if pump loses
prime after discharge line is full of
water and a discharge check valve
is used.
Drain Line from Pump Case:
A pipe should be installed in the
lower drain tapping of volute case
and be piped back to the wet well.
Install a shut-off valve, ball valve
or gate valve in this line. This will
permit draining of pump case if
necessary to remove suction elbow/
plate to clean impeller or perform
maintenance on the pump.
Electrical Connections:
Connect power lines to motor from
magnetic starter. Turn pump shaft
by hand to be sure it is free before
attempting to start motor. Turn
power on and off quickly to check
rotation. If motor is three phase,
interchanging any two lines to
motor can reverse rotation. If motor
is single-phase, consult literature
supplied with the motor for specific
instructions. Correct pump rotation
is clockwise when looking at pulley
or coupling end (power end) of
pump. Direction arrow is cast on
bearing housing.
3
Priming:
For initial prime, remove priming
cap from suction inlet casting and
fill pump housing with water. Fully
open the air bleed valve in the bleed
line. Replace cap, being sure gasket
is in place and that seat is clean.
Start motor and allow sufficient
timing for priming. Priming time is
dependent on pump speed, impeller
diameter and vertical suction lift.
Cleaning Impeller:
If impeller gets clogged at any time,
suction elbow/plate can be removed
by unscrewing 4 hand knobs or
nuts. Drain pump case before
removing suction elbow/plate. Tap
on knobs with hammer to loosen.
Be sure O-ring gaskets are in place
before replacing suction elbow/plate.
Use grease on machined faces to
make removal easier at a later date.
Tap on hand knobs with hammer
to retighten.
Adjusting Impeller Clearance:
Flapper Valve, Suction Inlet,
Priming Port Housing:
When the pump is empty, the
flapper valve rests loosely against
the inlet flange of the suction inlet.
Before the initial start, the priming
port/cap is opened and the pump
filled with water. The discharge
should be vented and water should
fill both suction and discharge
chambers. When completely full, the
suction flap valve will press against
the suction inlet flange and no water
should leak down into the sump.
Just before the pump is engaged and
turned for the first time:
1. Both suction and discharge
chambers are filled with clean
fresh water.
2. The suction flap valve is pressed
tightly against the inlet flange
with the water that now fills the
priming port housing.
Impeller face vanes must be within
.015" of suction wear plate for most
efficient operation.
3. The vacuum gauge registers zero.
When wear plate or impeller wears,
it can be readjusted to proper
clearance from the outboard bearing
end without the use of shims or
disturbing the pump case or piping.
Loosen the three screws with the
jam nuts. Tighten the other three
screws evenly until the impeller
just drags on the suction wear plate
when the shaft is turned by hand.
Back off the three screws and place
a .015" shim under the head of the
screw. Turn screw up against the
shim, then remove shim. Repeat
this operation on each of the three
pushing screws. Now retighten the
three screws with jam nuts, pushing
the housing up against the three
adjusting screws. Retighten the jam
nuts and pump is ready to operate
with the impeller face .015" from
suction wear plate.
Just after the pump turns on and the
impeller has revolved 8–15 times,
some of the water in the pump
has been:
This clearance should be checked at
least once a year and more often if
water containing abrasives is being
pumped. When impeller face wear
exceeds 1/8", impeller, wear plate and
volute lip plate should be replaced.
4
4. The suction pipe into the wet
well is empty.
1. Pumped into the discharge pipe
and possibly through the
discharge check valve.
2. Vented through a ¾ inch
discharge vent, back into
the sump.
3. Internally recirculated back
to suction.
As the pump continues to run, air is
vented and water recirculated, and a
partial vacuum is generated.
The function of the flapper valve,
therefore, is to vent the partial
vacuum created in the suction volute
to the suction line. This allows
atmospheric air pressure to push
sump water up through the suction
line into the pump.
Pump
Lubricating
Shaft Seals:
All Hydromatic self-priming sewage
pumps use two shaft seals with an
oil chamber between the seals. The
oil in the seal chamber should be
checked every six months or every
three months if water containing
abrasives is being pumped. Remove
hex head plug from top of seal
chamber and loosen hex plug at
bottom of seal chamber. Place a
container under the lower plug,
then remove lower plug and allow
oil to drain into container. After all
oil is removed, pour used oil into
a glass container so that it can be
observed. If the oil is clean it will
indicate seals are in good condition.
If a small amount of water shows
in the oil, this will also indicate
satisfactory seal operation. If
considerable water and some dirt
show in the oil, it will indicate the
inboard seal is worn and should
be replaced before outboard seal is
damaged. If seals are in good order,
refill the seal chamber with #30 nondetergent automotive oil. About 21/2
quarts are required for MMP/MMPH
models and about 1 quart for MP/
MPH models. Fill with funnel or
tube so that the air can escape. Oil
chamber must have a 1" air gap; do
not overfill oil chamber.
Pump Bearings Grease
Lubricated:
Bearings should be lubricated
every six months or more often if
pump is operated 24 hours a day.
Do not overgrease bearings as heat
will build up that can damage the
bearings. Bearing housing is fitted
with grease gun pressure fittings at
both bearing locations and grease
relief fittings. Add grease until a
small amount comes from relief
fitting. The same basic instructions
apply to lubricating motor bearings,
but consult motor manufacturer’s
data on lubricating bearings. Use
high quality ball bearing grease or
high temperature grease. Bearings
can run quite hot to the hand
without damage to the bearing.
Outside temperature of the housing
should not exceed 130° F for long
bearing life.
Pump
Maintenance
Replacing Impeller and Volute
Lip Plate:
Disconnect power from the motor
before attempting to work on
pump. Drain pump volute case and
oil from seal chamber. Remove
suction elbow/plate with wear plate
attached. Clean any trash out of
pump volute, clean all machined
surfaces and wipe all ports clean.
The following pertains to the 3"
and 4" pumps. Remove stainless
steel socket head impeller screw
that locks impeller to the shaft.
This screw has a right-hand thread.
Remove impeller lock washer with
pin. Block impeller vane with a
piece of hardwood and unscrew
impeller by turning pump shaft
counterclockwise. Impeller shaft
has a right-hand thread. Use large
crescent wrench or strap wrench
on shaft, pulling against the key. A
pipe wrench can be used if care is
used not to damage shaft. It may be
necessary to tap on impeller vanes
with hammer to break impeller
loose, especially if pump has been in
service for a long period of time.
If impeller is held to the shaft with
a taper fit, remove the stainless
steel nut on the end of shaft, then
remove washer. A taper fit shaft
can be identified by the key that
drives the impeller. To remove
impeller, loosen 3 holding screws at
outboard bearing cap and tighten up
on back-off screws. This will pull
the impeller loose from the shaft.
After impeller is removed, retighten
screws to bring bearing cap back to
original position. It will be necessary
to readjust the impeller clearance
after impeller is reinstalled.
After impeller is removed, unscrew
3 or 4 stainless steel socket head
screws that hold volute lip plate in
place. Tap on plate to loosen and
remove through volute case inlet
opening. The inboard seal now can
be removed for inspection by sliding
sleeve from pump shaft. If faces are
worn, the seal should be replaced.
Clean pump casing thoroughly,
removing any rust or dirt from all
machined surfaces.
Install lip plate with lip in the
one o’clock position. Use a pipe
compound on all machined faces.
The following pertains to the 3" and
4" pumps. Use Permatex®* on the
three stainless steel screws that hold
volute lip plate in place. Reinstall
the lip plate and tighten the screws.
Install seal on shaft and place seal
spring in place. Block impeller
vane with a piece of hardwood and
screw impeller on by turning pump
shaft clockwise. Use large crescent
wrench or strap wrench on shaft,
pulling against key to retighten. A
pipe wrench can be used if care is
used not to damage shaft. Replace
impeller lock washer with pin and
stainless lock screw.
All 6", 8" and 10" pumps, use
a taper fit impeller shaft. Use
Permatex® on the four stainless
steel screws that hold volute lip
plate in place. Reinstall the lip plate
and tighten the screws. Install seal
on shaft and place seal spring in
place, then install key and impeller.
Caution must be taken to be sure
impeller is seated on the shaft and
not on the key. Replace impeller
lock washer and stainless lock bolt.
Replace suction elbow/plate
with wear plate attached. Check
impeller clearance and adjust
if necessary as described under
Adjusting Impeller Clearance. Refill
seal chamber as described under
lubricating instructions.
Replacing Inboard Seal:
Use all steps outlined under impeller
removal. Slide seal and shaft sleeve
from shaft. It may be necessary to
tap on sleeve with plastic hammer
to loosen. After rotating part of seal
is removed, use wire hook and pull
stationary seal seat from casting.
Wipe seal pocket clean, then install
new stationary seat. Use grease
on rubber cap and push in place
with fingers, then wipe the seal
face clean. Place new rotating seal
part on sleeve and to push sleeve
onto shaft. Be sure O-ring gasket
is in place at end of stainless steel
shaft sleeve.
Reinstall volute lip plate, put
seal spring in place and install
impeller. Install impeller washer,
impeller lock screw or nut, and
suction elbow/plate. Check
impeller clearance, and adjust
if necessary as described under
adjusting instructions. Refill seal
chamber with #30 nondetergent
automotive oil.
Replacing Both Inboard and
Outboard Seals:
When it is necessary to replace
both seals, which will be indicated
by water leaking from the seal
chamber, it is recommended that
the complete rotating assembly be
removed so that it can be worked on
more easily.
Drain pump and seal chamber
as described above. Then loosen
or remove the pump coupling or
remove V-belt components, if belt
driven. Remove motor bolts and
move motor to one side. Remove
bolts in bearing bracket support
foot and remove six nuts from studs
in seal housing. Tap on housing
with hammer to loosen, then pull
complete assembly from case.
Remove impeller and lip plate; see
Replacing Impeller and Lip Plate.
Remove inboard seal by sliding
sleeve from shaft. Use two screws
in tapped holes of seal plate and pry
out plate with pinch bar under heads
of pull bolts. Remove snap ring
from shaft and pull outboard rotating
assembly from shaft. Use wire
hooks to pull ceramic stationary
seal seat from housing. It may be
necessary to break the ceramic seal
ring. Ceramic ring can be easily
broken by tapping with screwdriver.
Ring is broken only if worn and
needs to be replaced.
Wipe housing clean and replace
ceramic stationary ring. Use grease
on rubber cap to push into housing.
Push in stationary seal seat with
fingers only, then wipe the seal
face clean. Push new rotating seal
part onto shaft. Replace seal spring
and holding washer, then install
snap ring.
Replace seal plate. Be sure O-ring is
in place and that flat rubber gasket is
in place on backside of seal plate.
Use grease on O-ring and push
plate into position in seal housing.
5
Replace the three socket head
stainless steel screws. Use Permatex
on bolt threads. Replace new inboard
stationary seal face. Now replace
rotating seal part mounted on shaft
sleeve. Replace volute lip plate
with the three or four socket head
stainless screws. Use Permatex on
screw threads. Install seal spring
and then screw impeller onto shaft.
Lock impeller on with washer and
stainless steel socket head screw.
If shaft has a taper fit, be sure key
is in place and in notch of shaft
sleeve. Unit is now ready to reinstall
in casing. Use a pipe compound
on machine faces and be sure case
O-ring is in place on flange. Replace
nuts and bearing bracket support
foot. Reset motor and connect
coupling or reinstall belts if unit is
belt driven. Refill seal chamber with
#30 nondetergent automotive grade
oil. Replace top fill plugs.
Replacing Shaft Bearings:
Both inboard and outboard shaft
bearings are single row type and
are the same size for any given
pump. Grease lubricated bearings
are single shield.
To replace bearings, remove the
impeller, seal plate and seals as
described previously. Remove
holding screws from outboard
bearing cap and pull shaft and
bearing assembly from housing. It
may be necessary to tap on end of
shaft with plastic or rubber hammer
to loosen shaft bearings from
housing. After shaft is removed
take snap ring off end bearing
cap and push shaft and bearing
from housing.
Use arbor press to press bearings
from shaft. Always support or press
on inner face of bearing. Never
press on outer face as this can
damage the bearing. Be sure housing
and all parts are thoroughly cleaned
before installing new bearings.
Use care in pushing shaft through
lip seals that seal shaft in bearing
housing and bearing cap. Clean all
old grease from housing and cap
and pack bearing level full with
grease before reinstalling. Do not
add any extra grease to housing
after assembly, as this grease pack
is sufficient for at least 6 months
usage. After shaft is reassembled,
6
install seals and impeller and
adjust clearance of impellers as
described previously.
Pump
Troubleshooting
WARNING: If pump has
overheated, allow pump to cool
before servicing. Do not remove
plates, cover, gauges or fittings from
an overheated pump. Liquid inside
the pump case can reach the boiling
point, and vapor pressure within
the pump case may cause parts to
be ejected with great force. Drain
pump case only after pump has
been allowed to cool. Use care to
prevent personnel from touching the
hot liquid.
Pump will not prime:
1. Pump discharge does not have
air bleed line installed. See pump
installation instructions for air
bleed line.
2. Vertical suction lift is too high.
Vertical lift for priming should
not be more than 20 feet (MMP/
MMPH) and 15 feet (MP/MPH).
3. Allow sufficient time for
priming. On high lifts and at low
pump speeds priming time may
take 5 minutes or longer.
4. Suction line has an air leak.
Install a vacuum gauge at pump
suction flange and start pump.
After a vacuum is established,
stop pump and see if gauge
holds. If gauge hand drops, it
will indicate an air leak at some
connection below the gauge tap.
5. Check pump rotation. Pump must
turn clockwise when looking at the
power end of pump.
6. Not enough liquid in pump
casing; add water to the case.
Pump needs water in the pump
case to prime.
7. Suction check valve damaged
or contaminated; replace
check valve.
8. Leaking or worn seal or pump
gasket; check pump case
vacuum; replace leaking or worn
seals or gaskets.
Pump primed OK initially but
occasionally loses prime and will
not reprime without adding water:
IMPORTANT: Drain pump case and
close discharge gate valve before
removing the inspection cover.
1. Air bleed line is not installed
properly as specified or is plugged.
2. Check priming port for plugging.
Remove inspection cover on
right side of case when facing
power end of pump. Check
priming port hole in case below
inspection plate for plugging.
3. Impeller may be worn, leaving
too much clearance between
impeller face and suction
wear plate. Adjust impeller
as described under adjusting
instructions. If impeller and
volute lip plate are worn, they
must be replaced to regain
original priming efficiency.
Pump makes a loud crackling
noise when operating:
1. If pump has been operating
satisfactorily and this noise
suddenly starts, it may indicate
that some large object is lodged
in the suction check valve,
suction elbow/plate or impeller
causing the pump to be noisy.
Remove debris from these areas
of the pump.
2. If noise exists when suctioning
pipe, check to see if valve and
suction elbow are clear. It may
indicate too high a capacity
is being delivered for a given
suction lift, causing suction
cavitation. If pump is allowed to
operate under these conditions,
the impeller will be damaged.
Using a smaller impeller or
reducing the pump speed if a belt
drive is used may alleviate the
cavitation. Consult factory for
recommendations.
3. If cracking noise is pronounced
when pump is operating at low
capacity it may indicate pump is
operating too near the shut-off head.
Increasing the impeller diameter
or increasing pump speed may
alleviate this condition. Consult
factory for recommendations.
4. Performance curves show
maximum / minimum capacity
that the pump will deliver at a
given condition point and the
allowable suction lift without
cavitation. Use vacuum gauge
at pump suction to check total
suction lift when pump is
operating. Use discharge pressure
gauge at pump discharge to
check discharge head. Total the
two-gauge reading to determine
the total dynamic head the pump
must operate against.
5. Entrained air may be present and
is being pumped. Find source of
air and eliminate.
6. Pump or drive not securely
mounted. Retighten all components.
Pump does not deliver
rated capacity:
1. Total head may be higher than
calculated. Pump capacity
is based on total head. Total
dynamic head is arrived at by
adding the suction gauge reading,
in feet, to the discharge gauge
reading, in feet. These readings
should be taken at the suction
flange and at the pump discharge
flange connections. Reading
should be taken as close to the
flange fittings and pump case as
possible. To convert psi, pressure
per square inch, to feet, multiply
the total psi readings by 2.31.
This will equal total dynamic
head in feet.
2. Pump impeller may be worn on
the vane faces or the clearance
between the impeller and wear
plate may be greater than .015".
Adjust impeller to wear plate
clearances for proper clearance
as described under Adjusting
Impeller Clearance. If impeller,
suction wear plate and volute lip
plate are badly worn, they must
be replaced.
3. Pump speed may be too slow.
Check drive assembly, V-belts or
coupling, for slippage.
4. Possible air leak in the suction
piping; eliminate the leak.
5. Suction head may be too high.
Reduce lift by raising on /off
levels in the wet well or reduce
friction losses due to suction
piping arrangement.
Bearing running too hot:
6. Suction line not submerged at
proper levels; correct suction
pipe submergence.
3. Suction and/or discharge pipe not
supported properly. Check piping
installation for proper support
and take strain off the pump case
and bearing frame.
7. Blockage in the suction pipe or
discharge pipe; remove blockage.
Where the blockage is can be
determined by gauge readings.
1. Drive misaligned; realign drive.
2. Low or incorrect lubricant; use
proper type and level of lubricant.
8. Impeller clogged; remove debris.
Motor starter overload trips
after pump has operated for a
short period:
1. Rags or trash may be caught in
the impeller, causing extra load.
Remove suction elbow/plate
and clean impeller. Pump shaft
must turn freely by hand after
cleaning impeller.
2. Overload heater may be too
small. Check heater size with full
load amps of motor.
3. Total head may be lower
than calculated, causing extra
load on the motor. Reducing
impeller diameter or reducing
speed if belt driven, will lower
motor load. Consult factory
for recommendations.
4. Pump may be pumping a liquid
heavier than water or a liquid
with higher viscosity than water,
such as heavy oil. Consult
factory for power required
to pump oils or liquids other
than water.
5. Bearings may be damaged,
causing excessive motor load.
6. Pump speed may be too high.
Check drive output to see if they
are sized properly.
Pump clogs frequently:
1. Liquid solution being pumped is
too thick; dilute if possible.
2. Discharge velocity too slow.
Open discharge valves to fully
open and increase pump speed.
* Permatex® is a registered trademark of Permatex, Inc.
7
30MMP Parts List
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
1
134840001
Sleeve
2
32
057600002
2
120140011
Piston Cup
3
020490002
Suc­tion Flange 3" x 4"
Qty.
Item
Eng.
No.
Part
Description
Qty.
Lip Plate 8-13/32" Dia Imp
1
50
010650013
Support Foot
1
1
1
042280032
Lip Plate 7-7/8" Dia Imp
1
51
05454A004
Lockwasher
4
042280022
Lip Plate 7-1/2" Dia Imp
1
52
100-012112-273
Bolt
4
120110001
Bracket, Flap
2
1
042280012
Lip Plate 7" Dia Imp
1
53
19102A012
Bolt
5
131230021
Screw
1
032430032
Lip Plate 6-1/2" Dia Imp
1
54
010900011
Lip Seal
6
013420002
Suc­tion Flange 3" x 3"
1
032430022
Lip Plate 6-1/4" Dia Imp
1
55
041300001
Shaft
1
7
009050022
Clamp Handle
2
33
005680021
Impeller Bolt
1
56
009750041
Snap Ring
1
8
05454A005
Lockwasher
14
34
010390001
Impeller Washer
1
57
062050001
Grease Fitting
1
SC
Part
Description
2
9
010850011
Nut
17
35
001780011
Capscrew
3
58
010660002
Bearing Cap
10
010790021
Stud
10
36
009050002
Clamp Handle
4
59
001500131
O-ring
11
120110105
Flap Valve Assy – Piston Cup
1
37
010240011
Stud
4
60
010640002
Bearing Housing
12
010270021
Stud
2
38
001500231
O-ring
SC
2
61
052180001
Grease Fitting Straight
13
010750012
Weight
1
39
001500211
O-ring
SC
1
62
015090021
Shaft Sleeve
14
010300081
Stud
2
40
010600002
Wear Plate
1
63
009010002
Seal Plate
1
15
127-058011-243
Nut – Hex 5/8-11
2
41***
010610042
Impeller 8-13/32" Dia
1
64
010630012
Seal Housing
1
16
05454A011
Lockwasher
2
010610052
Impeller 8-3/16" Dia
1
65
016640011
Pipe Plug
2
17
002410061
O-ring
1
010610062
Impeller 7-7/8" Dia
1
66
001500191
O-ring
18
041270002
Discharge Flange
1
010610072
Impeller 7-1/2" Dia
1
67
041230002
Volute Case
1
19
120090003
Priming Cover
1
011720032
Impeller 7" Dia
1
68
001560591
Washer
1
20
120150001
Cover Gasket
1
011720042
Impeller 6-1/2" Dia
1
69
045800011
Drivescrews
4
21
001560471
Washer
1
011720052
Impeller 6-1/4" Dia
1
70
010240051
Stud
2
22
119990002
Suction Box
1
011720132
Impeller 6-3/4" Dia
1
71
19109A030
Nut
2
23
120130001
Gasket
3
72
001180011
Pipe Plug
2
24
001190011
3
73
041290002
Discharge Flange 3" x 4"
1
25
010770002
3
74
010240021
Stud
2
26
1
75
041280002
Discharge Flange 3" x 3"
1
SC
SC
SC
SC
1
SC
1
1
1
SC
SC
1
1
1
42
011330011
Gasket
Pipe Plug
3
43
001780061
Capscrew
Suction Flange
1
44
029220011
Stat-O-Seal
001200011
Pipe Plug
1
45
009750031
Snap Ring
27
000790071
O-ring
SC
1
46
009200011
Seal (Ceramic) Std.
SC
2
76
010790091
Stud
4
28
002410041
O-ring
SC
1
009200041
Seal (Carbide) Opt.
C
1
77*
19109A013
Nut
1
29
045120002
Inlet Elbow
1
47
013450001
Relief Fitting
2
78
052190001
Grease Fitting Cap
2
30
025830011
Pipe Plug
1
48
000650071
Bearing
2
79
001560491
Washer
3
31
19101A003
Bolt
2
49
009740021
Snap Ring
1
80
517280005
Flap Valve Box Assy
1
517000387
Seal Kit
1
517003387
Carbide Seal Kit
1
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit *Consult Factory
***Impellers cannot be trimmed. Trim sizes must come from the factory.
8
6
SC
SC
30MMP Parts
76 9 8
3
72
7
73
26
74
71
51
6
75
26
74
71
51
14 15 16
17 18 51 71 70
25 24
20 12
19 22
67
69
1
11
4
5
66
21
68
23
64
13
28
37
36
65
77
63
2
8
9 10 61,78 61 54 60 59 48 58 9 53
78
57,78
56
31
32
55
33
54
47
34
30
53
52
29
51
50
49
24 38 24
12
39 40 41 35 43 42 8
2
1
13
77
47 48
41 32
4
19
9
9 10 62 27 45 46
20
4
21
77
1
5
68
68
21
Flat back plate used
with full dia. im­pel­ler
43,44,79
2
76
23
80
13
11
9
40MMP Parts List
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
1
19101A003
Cap Screw
2
30
009240011
Pipe Plug
1
54
008980002
Bearing Housing
1
2
001500231
O-ring
1
31
001500241
O-ring
2
55
052180001
Grease Fitting Straight
1
3
000790071
O-ring
1
32
008910002
Wear Plate
1
56
005680041
Impeller Bolt
1
4
052190001
Grease Fitting Cap
2
33***
008880042
Impeller 9-1/8" Dia
1
57
010390001
Impeller Washer
1
5
134840011
Sleeve
2
008880062
Impeller 8-1/2" Dia
1
58
517290005
Flap Valve Box Assembly
1
6
013090002
Suc­tion Flange, 4"
1
010880082
Impeller 8" Dia
1
59
001560471
Washer
7
009050012
Clamp Handle
2
010880092
Impeller 7-1/2" Dia
1
60
001500191
O-ring
SC
1
8
010240031
Stud
4
010880102
Impeller 7" Dia
1
61
015090021
Sleeve
SC
1
3
62
009010002
Seal Plate
1
3
63
009000022
Seal Housing
1
SC
Part
Description
Qty.
1
9
19109A030
Nut
23
34
001780011
Setscrew
10
05454A004
Lockwasher
20
35
011330011
Gasket
11*
120120001
Flapper Bracket
1
36
002390031
Bolt
2
64
016640011
Pipe Plug
2
12
010790021
Stud
2
37
001010111
Setscrew
3
65
054420002
Lip Plate, 9-1/8" Imp Dia
1
13*
120180011
Flap Disc Gasket
1
38
001560491
Washer
SC
3
042220032
Lip Plate, 8-1/2" Imp Dia
1
14
010240021
Stud
14
39
009200011
Seal (Ceramic), Std.
SC
2
042220002
Lip Plate, 8" Imp Dia
1
15
006260011
O-ring
009200041
Seal (Carbide), Opt.
C
1
040250042
Lip Plate, 7-1/2" Imp Dia
1
16
120100003
Priming Cover
040250002
Lip Plate, 7" Imp Dia
1
17
120160001
Cover Gasket
18
120000002
Suction Box
19
120170001
Front Gasket
20
001190011
21
SC
SC
1
SC
1
40
009750031
Snap Ring
1
1
41
013450001
Relief Fitting
2
66
029220011
Seal
1
42
000650051
Bearing
2
67
045800011
Drive Screw
4
1
43
009740031
Snap Ring
1
68
041240002
Volute
1
Pipe Plug
2
44
009450033
Support Foot
1
69
008930002
Discharge Flange, Threaded
1
009020002
Suction Flange, Threaded
1
45
100-012112-273
Bolt
8
70
05454A011
Lockwasher
2
22*
009030012
Weight
1
46
010900011
Lip Seal
2
71
127-058011-243
Nut
2
23*
131230021
Bolt
1
47
009460031
Shaft
1
72
010300031
Stud
2
24*
001560191
Washer
1
48
009750051
Snap Ring
1
73
001200011
Pipe Plug
2
25
002410071
O-ring
1
49
062050001
Grease Fitting
1
74
001180011
Pipe Plug
2
26
009050002
Clamp Handle
2
50
008520021
Jam Nut
3
75
013080002
Discharge Flange 4"
1
27
010240011
Stud
4
51
008990002
Bearing Cap
1
76
001140021
Nut
1
28
025830011
Pipe Plug
1
52
120120105
Flap Valve Assembly – Piston Cup
1
517000417
Seal Kit
1
29
060320005
Inlet Elbow w/Handles
1
53
001500141
O-ring
1
517003417
Carbide Seal Kit
1
SC
SC
SC
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit *Consult Factory
***Impellers cannot be trimmed. Trim sizes must come from the factory.
10
SC
SC
SC
3
40MMP Parts
74
74
7
7
6
75
73
8 9 10
18
8 9 10
14 9 10
14 9 10
76
73
26,27
15
21 20 19 16
12
70 71 72
18
69
68
67
65
31
9,27
60
23
30
64
24
63
62
61
25
4, 55
46
54
53 42 51 50 45
3
1
49, 4
48
47
57
56
46
41
45
28
29
16
41
12
31
2
44
5
13
11
11
5
76
23
59
24
23
76
24
13
59
8
22
10
43
32 33 34,35 37 38 10 9 14,36
17
19
42
40 10 9 14
20
83
85
45
39
58
22
Flat back plate used
with full dia. im­pel­ler
38, 37, 66
52
11
40MMPH Parts List
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
1
010900021
Lip Seal
1
28
025830011
Pipe Plug
1
53
001500141
O-ring
2
000790091
3
052190001
O-ring
1
29
060320005
Inlet Elbow w/Handles
1
54
008980012
Bearing Housing
1
Grease Fitting Cap
2
30
009240011
Pipe Plug
1
55
052180001
Grease Fitting Straight
4*
1
134840011
Sleeve
2
31
001500241
O-ring
2
56
029190021
Impeller Bolt
1
5*
001560471
Washer
1
32
008910002
Wear Plate
1
57
038280005
Impeller Washer
1
6
013090002
Suc­tion Flange, 4"
1
33
008880072
Impeller 9-1/8" Dia
1
58
19101A003
Bolt
7
009050012
Clamp Handle
2
34
001780011
Setscrew
3
59
001500231
O-ring
SC
1
8
010240031
Stud
4
35
011330011
Gasket
3
60
001500191
O-ring
SC
1
SC
1
SC
SC
Part
Description
Qty.
SC
1
2
9
19109A030
Nut
23
36
002390031
Bolt
2
61
038040005
Sleeve
10
05454A004
Lockwasher
20
37
001010111
Setscrew
3
62
051240002
Seal Plate
1
11*
120120001
Flapper Bracket
1
38
120120105
Flap Valve Assembly – Piston Cup
1
63
051230012
Seal Housing
1
12
010790021
Stud
2
39
019570001
Seal (Ceramic), Std.
SC
2
64
016640011
Pipe Plug
2
13*
120180011
Flap Disc Gasket
019570021
Seal (Carbide), Opt.
C
1
65
054420012
Lip Plate, 9-1/4" Imp Dia
14
010240021
Stud
15
006260011
O-ring
16
120100003
Priming Cover
17
120160001
Cover Gasket
18
120000002
Suction Box
19
120170001
Front Gasket
20
001190011
21
SC
SC
SC
1
1
14
40
009750061
Snap Ring
1
66
029220011
Seal
1
41
013450001
Relief Fitting
2
67
045800011
Drive Screw
4
1
42
000650051
Bearing
1
68
041240002
Volute
1
3
071670021
Bearing
1
69
008930002
Discharge Flange, Threaded
1
1
43
009740031
Snap Ring
1
70
05454A011
Lockwasher
2
1
44
009450033
Support Foot
1
71
127-058011-243
Nut
2
Pipe Plug
2
45
100-012112-273
Bolt
8
72
010300031
Stud
2
009020002
Suction Flange, Threaded
1
46
010900011
Lip Seal
1
73
001200011
Pipe Plug
2
22*
009030012
Weight
1
47
009460021
Shaft
1
74
001180011
Pipe Plug
2
23*
131230021
Bolt
1
48
009750051
Snap Ring
1
75
013080002
Discharge Flange 4"
1
24*
001560191
Washer
1
49
062050001
Grease Fitting
1
76
19109A013
Nut
1
25
002410071
O-ring
1
50
008520021
Jam Nut
1
517000437
Seal Kit
1
26
009050002
Clamp Handle
2
51
008990002
Bearing Cap
1
517003437
Carbide Seal Kit
1
27
010240011
Stud
4
52
517290005
Flap Valve Box Assembly
1
SC
SC
1
SC
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit *Consult Factory
12
SC
40MMPH Parts
74
74
7
7
6
75
73
8 9 10
18
8 9 10
14 9 10
14 9 10
76
73
26,27
15
21 20 19 16
70 71 72
12
69
68
67
31
23
24
9,27
60
65
59
30
64
63
62
58
25
61
3,55
1
54
53 42 51 50 45
2
49,3
48
47
57
56
46
41
45
28
29
16
41
12
31
44
4
13
11
11
4
76
23
5
24
23
76
24
13
5
8
22
10
43
32 33 34,35 37 38 10 9 14,36
17
19
42
40 10 9 14
20
83
85
45
39
52
22
Flat back plate used
with full dia. im­pel­ler
37, 66
38
13
60MMPH Parts List
Item
Eng.
No.
1
052420002
Part
Description
Qty.
Item
Eng.
No.
Part
Description
6" Suc­tion Flange
1
27***
023040172
Impeller, 10-1/4" Dia
Qty.
Item
Eng.
No.
Part
Description
1
56
037180001
Seal (Ceramic), Standard
SC
2
C
1
Qty.
092820002
8" Suction Flange
1
023040162
Impeller, 9-3/4" Dia
1
037180011
Seal (Carbide), Opt.
2
001190011
Pipe Plug
1
28
05454A011
Lockwasher
14
57
019370012
Seal Housing
1
3*
126480002
Body, Flap Valve
1
29
011240031
Nut
15
58
019380022
Seal Plate
1
4*
126490003
Priming Cover
1
30
010300021
Stud
12
59
016640011
Pipe Plug
2
5*
001560191
Washer
1
31
010370011
Stat-O-Seal
4
60
042430032
Lip Plate, 12-3/4" Dia Imp
1
6*
126500001
Gasket
1
32
001010111
Screw
4
019360092
Lip Plate, 12-1/4" Dia Imp
1
7*
131230031
Capscrew, SST
1
33
002410161
O-ring
SC
1
019360082
Lip Plate, 11-3/4" Dia Imp
1
8*
126520003
Weight, Flap Valve
1
34
000790101
O-ring
SC
1
019360072
Lip Plate, 11" Dia Imp
1
9*
120180031
Flap Valve
SC
1
35
023100023
Sleeve
SC
1
019360142
Lip Plate, 10-1/4" Dia Imp
1
10
006260061
O-ring
SC
1
36
009750101
Snap Ring
1
019360282
Lip Plate, 9-3/4" Dia Imp
1
11
052400015
Suction Elbow w/Handles
1
37
013450001
Relief Fitting
2
61
001560491
Washer
4
12
025830011
Pipe Plug
1
38
010900031
Oil Seal
1
62
045800011
Drivescrew
4
13*
023240021
Stud
12
39
071670031
Bearing
1
63
042330032
Volute
1
14
023680011
Nut
20
40
009740041
Snap Ring
1
64
024070041
Gasket
1
15
001770121
Lockwasher
12
41
005700051
Bolt
5
65
023240051
Stud
8
16
001200011
Pipe Plug
1
42
042420002
Foot Support
1
66
015950041
Discharge Flange, CI, 8"
1
17
001500281
O-ring
2
43
005700101
Bolt
6
170040021
Discharge Flange, CI, 6"
1
18
010240121
Stud
4
44
009750081
Snap Ring
1
67
001180011
Pipe Plug
2
19
19109A084
Nut
4
45
019421115
Shaft w/Stud
1
68*
001560471
Washer
1
20
001500271
O-ring
1
46
010900021
Oil Seal
1
69*
19109A013
Nut
1
21
028550011
Key
1
47
000650121
Bearing
1
70*
009050022
Clamp Handle
3
22
105840011
Washer
1
48
062050001
Grease Fitting
1
71*
134840021
Sleeve
2
23
006280301
Shim
2
49
052190001
Grease Cap
2
72*
010270021
Stud
3
24
019340012
Wear Plate
1
50
126530005
Flap Valve Assy
1
73*
126510001
Bracket
25
011330021
Seal Plate Gasket
3
51
019400002
Bearing Cap
1
74*
126540001
Gasket
26
06106A028
Screw
3
52
001500181
O-ring
1
75
105250081
Cap Screw
1
27***
023040132
Impeller, 12-3/4" Dia
1
53
019390012
Bearing Housing
1
126550005
Flap Valve Box Assy
1
023040122
Impeller, 12-1/4" Dia
1
54
009750111
Snap Ring
1
517000477
Seal Kit
1
023040112
Impeller, 11-3/4" Dia
1
55
052180001
Grease Fitting
1
517003477
Carbide Seal Kit
1
023040102
Impeller, 11" Dia
1
SC
C
SC
SC
SC
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit *Consult Factory
***Impellers cannot be trimmed. Trim sizes must come from the factory.
14
SC
SC
SC
SC
1
SC
1
60MMPH Parts
9
71
7
73
5
69
8
68
50
1
2
74
4
3 70 72
66
65
14
64
63
6
71
62
8
9
67
73
5
69
7
68
17
60
33
18 19 20
10
57
59
58
56
11
28 29 30 49 55 54 53
52
51 50 43
49
48
47
21
46
22
45
75
12
44,23
24
37
26
43
33
25
17
16
27
34 35 36
37 38 39
40
41
31,32,61
28
30
42
29
28
13,14,15
15
80MMP/100MMP Parts List
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
1
001180011
Pipe Plug
2
33
001560491
2
001190011
Pipe Plug
1
34
3
001780021
Cap Screw
4
35
4
023680011
Hex Nut
8
5
001770121
Lockwasher
6
023240021
7
Qty.
Item
Eng.
No.
Washer
4
65
052190001
Cap-Grease Fitting
2
105840011
Washer
1
66
019390012
Bearing Bracket
1
105250081
Cap Screw
1
67
052180001
Grease Fitting
36
104390002
Seal Plate
1
68
037180051
Shaft Seal
SC
2
16
37
143630023
Gasket (100MMP Only)
2
69
023100023
Shaft Sleeve
SC
1
Stud
2
38
023680011
Hex Nut
8
70
000790101
O-ring
SC
1
002390081
Hex Head Screw
4
39
023240021
Stud
8
71
037180011
Seal, Carbide (Optional)
C
1
8
080970010
Cover
1
40
016640011
Pipe Plug
2
72
019380022
Seal Plate
1
1
41
009750101
Snap Ring
1
73
028550011
Key
1
1
42
05454A011
Lockwasher
6
74
06106A028
Allen Head Screw
Hex Nut
4
75
011330021
Gasket
SC
3
4
76
002410161
O-ring
SC
1
1
77
001010261
Cap Screw
SC
Part
Description
Part
Description
Qty.
1
9
104320001
Gasket
10
104330002
Flap Valve
11
104340001
Flap Gasket
SC
1
43
127-058011-243
12
080980001
Gasket
SC
1
44
010300021
Stud
13
009050022
Hand Nut
2
45
010900031
Grease Seal
14
010270091
Stud
2
46
013450001
Relief Fitting
2
78
029220011
Stat-O-Seal
15
001010211
Cap Screw
2
47
009750111
Snap Ring
1
79
006280371
Shim
1
16
105470002
Suction Body
1
48
071670031
Bearing
1
80
045800011
Drivescrew
4
17
023240021
Stud
4
49
009740041
Snap Ring
1
81
104310002
Volute
1
18
040060095
Weight Hinge Assy
1
50
009750081
Snap Ring
1
82
001190011
Pipe Plug
1
19
001760051
Hex Head Screw
2
51
104380002
Foot Support
2
83
143630013
Flange (100MMP Only)
1
20
104360003
Weight
1
52
143630003
Flange (100MMP Only)
1
84
21929A005
Lifting Eye
2
21
002410231
O-ring
1
53
005700051
Hex Head Screw
2
85***
104270002
Impeller, 15" Dia
1
22
009050042
Hand Nut
4
54
005700101
Hex Head Screw
3
104270011
Impeller, 14-1/2" Dia
1
23
023240101
Stud
2
55
114130031
Flat Head Screw (100MMP Only)
8
104270022
Impeller, 14" Dia
1
24
104370002
Suction Elbow
1
56
010900021
Grease Seal
1
104270032
Impeller, 13-1/2" Dia
1
25
002410151
O-ring
1
57
019421113
Shaft
1
104270042
Impeller, 13" Dia
1
26
104430002
Suction Pipe
1
58
062050001
Grease Fitting
1
109170003
Back Plate, Imp Dia 14-1/2" & 15"
1
27
002410221
O-ring
3
59
005700101
Hex Head Screw
3
104490002
Lip Plate, Imp Dia 14"
1
28
001200041
Pipe Plug
1
60
127-058011-243
Hex Nut
3
104490012
Lip Plate, Imp Dia 13-1/2"
1
29
19103A043
Hex Head Screw
4
61
019400002
Bearing Retainer
1
104490022
Lip Plate, Imp Dia 13"
1
30
001770181
Lockwasher
4
62
000650121
Bearing
1
05454A014
Lockwasher
2
31
104440002
Wear Plate
1
63
001500181
O-ring
1
517000317
Seal Kit
1
32
114130011
Flat Head Screw (100MMP Only)
8
64
023680021
Hex Nut
2
517003317
Carbide Seal Kit
1
SC
SC
SC
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit
***Impellers cannot be trimmed. Trim sizes must come from the factory.
16
SC
SC
SC
86
87
3
4
SC
4
80MMP/100MMP Parts
1
2
3
17
55
4,5
7
3
84, 64
83
10
12
8
13,14
8.00 DIA
FOR 80MMP
16
82
1
52
32
37
81
80
10.00 DIA.
FOR 100MMP
15, 87
11
29, 30
18
77, 78, 33
19
7
20
76
75
84, 64
74
60
73
70
68
37
9
61
67, 65
47
62
59
48
21
58, 65
56
6, 22
57
46
50, 79
45
41 44, 43, 42
69
24 23, 22 7
40 72 71
25
63
49
46
54
42, 53
51
38, 39, 5
27
28
66
26
31 27
85
35
34 86 36
17
30MP Parts List
Item
Eng.
No.
1
020500002
2
3
Part
Description
Qty.
Item
Eng.
No.
Qty.
Item
Eng.
No.
Part
Description
Dis. Flange (3"–4")
1
33
002410041
O-ring
Qty.
1
56
013450001
Relief Fitting
2
001200011
Pipe Plug
3
34
010590022
072870551
Pipe Nipple (3"x 3")
1
35
020040002
Inlet Elbow
1
57
010900011
Lip Seal
Lip Plate (8-13⁄32" Imp Dia)
1
58
009740021
Snap Ring
4
010680002
Inspection Cover
1
1
012110022
Lip Plate (7-3⁄4" Imp Dia)
1
59
010650013
Support Foot
5
002410071
O-ring
1
1
012110052
Lip Plate (7-1⁄2" Imp Dia)
1
60
134840001
2
Nut
18
013200012
Lip Plate (7" Imp Dia)
1
Sleeve (Drawing does not show sleeves
over hinge pins on flap valve)
6
010850011
7
010790031
Stud
2
013200022
Lip Plate (6-1⁄2" Imp Dia)
1
61
05454A004
Lockwasher
2
8
010570002
Volute
1
010610002
Impeller 8-13⁄32" Dia
1
62
19102A012
Bolt
3
9
010270021
Stud
2
010610082
Impeller 7-3⁄4" Dia
1
63
009750041
Snap Ring
1
10
000790071
O-ring
1
010610122
Impeller 7-1⁄2" Dia
1
64
041300001
Shaft
1
11
010750012
Weight
1
011720032
Impeller 7" Dia
1
65
000650071
Bearing
2
12
120140011
Piston Cup
1
011720042
Impeller 6-1⁄2" Dia
1
66
062050001
Grease Fitting
13
001560591
Flat Washer
1
37
010600002
Wear Plate
1
67
001500131
O-ring
14
024070021
Gasket, 4"
1
38
025830011
Pipe Plug
1
68
010660002
Bearing Cap
1
15
020490002
Suction Flange 4"
1
39
001780011
Capscrew
3
69
010640002
Bearing Housing
1
16
009050022
Clamp Handle
2
40
005680021
Impeller Bolt
1
70
052180001
Grease Fitting Straight
17
131230021
Screw
1
41
010390001
Impeller Washer w/Pin
1
71
009200011
Seal (Ceramic) Std
S
2
18
120110105
Flap Valve Assy – Piston Cup
1
42
002380081
Bolt
2
009200041
Seal (Carbide) Opt
SC
1
19
120090003
Priming Cover
1
43
001560481
Washer
2
72
010630002
Seal Housing
20
119990002
Flap Valve Housing
1
44
010240011
Stud
4
73
009010002
Seal Plate
21
001190011
Pipe Plug
3
45
009050002
Clamp Handle
4
74
001500191
O-ring
22
120150001
Cover Gasket
1
46
010370021
Stat-O-Seal 3⁄8"
SC
2
75
045800011
Drive Screw
23
052190001
Grease Fitting Cover
2
47
001500231
O-ring
SC
2
76
120130001
Flap Valve Front Gasket
24
517280005
Flap Valve Box Assy
1
48
005170051
Setscrew (6-1⁄4"-7-1⁄8" Imp)
3
77
009050012
Clamp Handle
1
25
19102A002
Bolt
3
011300071
Setscrew (7-5⁄32"-8-13⁄32" Imp)
3
78
010700002
Clamp Arm
1
26
010300081
Stud
2
49
011330011
Gasket
79
064620005
Pipe Nipple/Cplg
1
27
127-058011-243
Nut
2
50
001560471
Flat Washer
1
80
015950011
Flange, 3"
28
05454A011
Lockwasher
2
51
120110001
Flap Bracket
1
81
010790091
Stud
29
010770002
Suction Flange (Threaded)
1
52
016640011
Pipe Plug
2
517000387
Seal Kit
1
30
010790021
Stud
10
53
002390031
Bolt
4
517003387
Carbide Seal Kit
1
31
05454A005
Lockwasher
15
54
015090021
Sleeve
013420002
Suction Flange 3"
1
32
19109A013
Hex Nut
1
55
009750031
Snap Ring
024070011
Gasket, 3"
1
SC
SC
SC
SC
36**
Part
Description
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit
**Impellers cannot be trimmed. Trim sizes must come from the factory.
18
SC
SC
SC
3
1
1
SC
2
1
SC
1
1
1
1
SC
1
4
SC
1
1
SC
4
30MP Parts
16
19
9
22
84
85
86
83
87
88
89
81
8
82
20
7
6 31 5
2
1
2
3
4 78 77 76 75
90
16
2
80
79
9
19
22
21
29
18
47 31 6 30 74 52 73 72 49 71 23,70 65 69 67 68 6 62 66,23
81
6
31
76
65
20
57
26
64
27
63
28
56
34
25
33
61
38
53
35
59
37
36
39
40
41
21
42
43
51 46 21
48 47 53 52 54 55 31 6 30 56 57 58
44,45
10
14
19
9
22
12
60
51
17
32
51
15
35
48
50
32
60
17
13
13
12
81
76
11
11
24
50
18
19
40MP Parts List
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
1
120170001
Gasket – Front
1
31
010240031
Stud
2
001200011
3
010300031
Pipe Plug
3
32
009050012
Handle – Plate Clamp
Stud
2
33
000790071
O-ring
4
127-058011-243
Nut
2
34
008910002
5
05454A011
Lockwasher
2
35
6
008930002
Dis. Flange (4" Threaded)
1
7
006260011
O-ring
8
19109A030
Nut
SC
SC
SC
Part
Description
Qty.
Item
Eng.
No.
4
60
000650051
Bearing
2
61
062050001
Grease Fitting 45 Degree
1
62
002410101
O-ring
SC
1
Wear Plate
1
63
001500141
O-ring
SC
1
009050002
Clamp Handle
5
64
008980002
Bearing Housing
36
002380081
Setscrew
2
65
052180001
Grease Fitting
1
37
001560481
Washer
2
66
009200011
Seal (Ceramic) Std.
SC
2
22
38
010370021
Stat-O-Seal
009200041
Seal (Carbide) Opt.
SC
1
9
120160001
Gasket – Cover
1
39
010240011
Stud
10
134840011
Sleeve
2
40
001500241
O-ring
11
131230021
Screw
1
41
009240011
12
120180011
Piston Cup
1
42
13
120120001
Bracket
1
14
001190011
Pipe Plug
15
009030012
16
SC
SC
2
Part
Description
Qty.
2
1
1
1
4
67
009750031
Snap Ring
1
2
68
009000002
Seal Housing
1
Pipe Plug
1
69
001780011
Setscrew
005680021
Bolt
1
70
001500191
O-ring
43
010390001
Impeller Washer
1
71**
008880002
Impeller 9-5 ⁄32" Dia
1
2
44
015090021
Sleeve
1
008880112
Impeller 8-1 ⁄2" Dia
1
Weight
1
45
052190001
Cap – Grease Fitting
2
010880162
Impeller 8-5 ⁄32" Dia
1
009020002
Suction Flange (Threaded)
1
46
011300071
Setscrew (7-15 ⁄16" – 9-5 ⁄32" Imp)
3
010880172
Impeller 7-3 ⁄4" Dia
1
17
001560471
Washer
1
005170051
Setscrew (7" – 7-27⁄32" Imp)
3
010880182
Impeller 7-3 ⁄16" Dia
1
18
001560191
Washer
1
47
013080002
Discharge Flange 4"
1
020050002
Flat Plate 9-5 ⁄32" Dia Imp
1
19
013090002
Suction Flange 4"
1
48
002390031
Bolt
4
008920032
Lip Plate 8-1 ⁄2" Dia Imp
1
20
19109A013
Nut
1
49
016640011
Pipe Plug
2
013260022
Lip Plate 7-3 ⁄4" Dia Imp
1
21
120120105
Flap Valve Assy – Piston Cup
1
50
011330011
Gasket
3
013260032
Lip Plate 7-3 ⁄16" Dia Imp
1
22
120100003
Cover – Inspection
1
51
009010002
Seal Plate
1
73
008940002
Inspection Cover
1
23
517290005
Flap Valve Box Assy
1
52
013450001
Relief Fitting
2
74
045800011
Drivescrews
4
24
120000002
Housing – Flap Check Valve
1
53
009450033
Support Foot
1
75
008870002
Volute
1
25
05454A004
Lockwasher
21
54
100-012112-273
Bolt
6
76
010240041
Stud
2
26
010790021
Stud
2
55
009740031
Snap Ring
1
77
008950002
Clamp Arm
1
27
002410071
O-ring
1
56
008990002
Bearing Cap
1
517000417
Seal Kit
1
28
010240021
Stud
14
57
009750051
Snap Ring
1
517003417
Carbide Seal Kit
1
29
008890022
Inlet Elbow
1
58
009460031
Shaft
1
024070021
Gasket 4"
1
30
025830011
Pipe Plug
1
59
010900011
Lip Seal
SC
SC
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit
**Impellers cannot be trimmed. Trim sizes must come from the factory.
20
SC
SC
SC
SC
2
72
3
SC
1
40MP Parts
32
26
22
9
13
11
18
12
31
18
15
24
2
47
10
20
17
7
6
2
5
4
3 62 73 77 76 35
75
74
14
72
19
71
40
25
8
28
70
49
69
68
66
16
33
8
45 65 66 67 59 60 64 63
28
54
45
27
61
8
60
25
59
58
57
29
56
55
30
52
25
48
53
34 35 36 37 39 38 41 40 42 43 44 46 50 48 49 51 25 8 28 52
32
26 22
9
13
11
18
12
31
1
15
10
20
17
23
12
10
13
11
20
18
15
17
21
21
40MPH Parts List
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
1
120170001
Gasket – Front
1
32
010790021
2
001200011
3
010300031
Pipe Plug
3
33
Stud
2
34
4
127-058011-243
Nut
2
5
05454A011
Lockwasher
6
008930002
Dis. Flange (4" Threaded)
7
006260011
O-ring
8
19109A030
Nut
SC
SC
SC
Part
Description
Qty.
Item
Eng.
No.
Stud
2
60
000650051
Bearing
1
009050012
Handle – Plate Clamp
2
071670021
Bearing
1
008910002
Wear Plate
1
61
062050001
Grease Fitting 45 Degree
1
35
009050002
Clamp Handle
5
62
052190001
Cap – Grease Fitting
2
36
002380081
Setscrew
2
63
001500141
O-ring
1
37
001560481
Washer
2
64
008980012
Bearing Housing
1
38
010370021
Stat-O-Seal
2
65
052180001
Grease Fitting
22
39
010240011
Stud
4
66
019570001
Seal (Ceramic) Std.
SC
2
C
1
2
SC
1
1
1
9
120160001
Gasket – Cover
1
40
001500241
O-ring
019570021
Seal (Carbide) Opt.
134840011
Sleeve
2
41
009240011
Pipe Plug
1
67
009750061
Snap Ring
1
11
131230021
Screw
1
42
029190021
Impeller Bolt
1
68
051230002
Seal Housing
1
12
120180011
Piston Cup
1
43
038280005
Impeller Washer
1
69
001780011
Setscrew
13
120120001
Bracket
1
44
038040011
Sleeve
1
70
001500191
O-ring
14
001190011
Pipe Plug
2
45
020050012
Flat Plate
1
71**
008880012
Impeller 9-5⁄32" Dia
1
15
009030012
Weight
1
46
011300071
Flat Head Screw 7-15 ⁄16"– 9-5 ⁄32"
3
008880182
Impeller 8-1⁄2" Dia
1
16
009020002
Suction Flange (Threaded)
1
005170051
Flat Head Screw 7"– 7-27⁄32"
3
010881012
Impeller 7-3⁄4" Dia
1
17
001560471
Washer
1
47
000790091
O-ring
010881002
Impeller 7-3⁄16" Dia
1
18
001560191
Washer
1
48
002390031
Bolt
2
008921032
Lip Plate, 8-1 ⁄2" Dia Imp
1
19
013090002
Suction Flange 4"
1
49
016640011
Pipe Plug
2
013261012
Lip Plate, 7-3 ⁄4" Dia Imp
1
20
19109A013
Nut
1
50
011330011
Gasket
3
013261002
Lip Plate, 7-3⁄ 16" Dia Imp
21
120120105
Flap Valve Assy – Piston Cup
1
51
051240002
Seal Plate
1
73
002410101
O-ring
22
120100003
Cover – Inspection
1
52
013450001
Relief Fitting
2
74
045800011
Drivescrews
4
23
517290005
Flap Valve Box Assy
1
53
009450033
Support Foot
1
75
008870002
Volute
1
24
010240031
Stud
4
54
100-012112-273
Bolt
8
76
010240041
Stud
2
25
05454A004
Lockwasher
21
55
009740031
Snap Ring
1
77
008950002
Clamp Arm
1
26
013080002
Discharge Flange 4"
1
56
008990002
Bearing Cap
1
78
008940002
Inspection Cover
1
27
002410071
O-ring
1
57
009750051
Snap Ring
1
517000437
Seal Kit
1
28
010240021
Stud
14
58
009460021
Shaft
1
517003437
Carbide Seal Kit
1
29
008890022
Inlet Elbow
1
59
010900011
Lip Seal
SC
1
30
025830011
Pipe Plug
1
010900021
Lip Seal
SC
1
31
120000002
Housing – Flap Check Valve
1
SC
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit
**Impellers cannot be trimmed. Trim sizes must come from the factory.
22
SC
SC
SC
2
Qty.
10
SC
SC
Part
Description
1
72
3
SC
1
1
SC
1
40MPH Parts
33
32
22
9
13
2
26
10
20
11
18
12
24
1
15
17
31
23
86A
47
62
12
10
13
11
20
18
62
45
46
17
15
8821
19
23
60MP Parts List
Item
Eng.
No.
Part
Description
Qty.
Item
Eng.
No.
1
023240021
Stud
20
32
008520071
2
001200011
Pipe Plug
2
33
3
015950021
Discharge Flange Threaded
1
34
4
024070031
Gasket, 6"
1
35**
5
006280371
Shim
6
131530001
Gasket – Front
Qty.
Item
Eng.
No.
Locknut (Std.)
1
59
019390042
Bearing Housing
105850001
Washer (Std.)
1
60
010900051
Lip Seal
028550011
Key
1
61
052180001
Grease Fitting Straight
023040412
Impeller 12-3 ⁄4" Dia
1
62
080730002
Seal (Ceramic) Std.
SC
2
023040422
Impeller 12-1 ⁄4" Dia
1
080730011
Seal (Carbide) Opt.
SC
1
1
023040432
Impeller 11-3 ⁄4" Dia
1
63
009750151
Snap Ring
7
134840021
Sleeve
2
023040442
Impeller 11-1 ⁄4" Dia
1
64
000790121
O-ring
8
126090011
Bracket
1
023040462
Impeller 10-3 ⁄4" Dia
1
65
019380032
Seal Plate
SC
Part
Description
Part
Description
Qty.
1
SC
1
1
1
SC
1
1
9
19109A013
Nut
1
023040472
Impeller 10-1 ⁄4" Dia
1
66
023100033
Sleeve
10
001560471
Washer
1
023040482
Impeller 9-3 ⁄4" Dia
1
67
019370022
Seal Housing
1
11
001190011
Pipe Plug
1
36
100-012112-273
Bolt
2
68
042430022
Lip Plate (12-3 ⁄4" Imp Dia)
1
12
001770121
Lockwasher
12
37
001010111
Bolt
4
019360062
Lip Plate (12-1 ⁄4" Imp Dia)
1
13
023680011
Nut
20
38
029220011
Stat-O-Seal
SC
4
019360052
Lip Plate (11-3 ⁄4" Imp Dia)
1
14
019310002
Suction Flange, 6"
1
39
002410161
O-ring
SC
1
019360112
Lip Plate (11-1 ⁄4" Imp Dia)
1
15
126100013
Weight
1
40
016640011
Pipe Plug
2
019360102
Lip Plate (10-3 ⁄4" Imp Dia)
1
16
001560191
Washer
1
41
011330021
Gasket
3
019360032
Lip Plate (10-1 ⁄4" Imp Dia)
1
17
131230031
Screw
1
42
05454A011
Lockwasher
14
019360022
Lip Plate (9-3 ⁄4" Imp Dia)
1
18
120180021
Piston Cup
1
43
127-058011-243
Nut
15
69
010240041
Stud
19
126120005
Flap Valve Assy
1
44
010300021
Stud
12
70
002410101
O-ring
20
006260031
O-ring
SC
1
45
013450001
Relief Fitting
2
71
008940002
Inspection Cover
2
21
010370031
Stat-O-Seal
SC
4
46
019410002
Support Foot
1
72
045800011
Drive Screw
4
22
002390091
Bolt
4
47
005700051
Bolt
8
73
010270091
Stud
4
23
019280015
Inlet Elbow w/Handles
1
48
009740041
Snap Ring
1
74
008950005
Clamp Arm
2
24
001500161
O-ring
1
49
009750081
Snap Ring
2
75
019190002
Volute Case
1
25
019560002
Inspection Plate
1
50
010900021
Lip Seal
1
76
126070003
Inspection Plate
1
26
010240011
Stud
2
51
019420095
Shaft w/Stud
1
77
010240151
Stud
1
27
009050002
Clamp Handle
4
52
000650121
Bearing
2
78
001560491
Washer
4
28
06106A028
Setscrew
3
53
062050001
Grease Fitting 45 Degree
1
79
001560501
Washer
4
29
019340002
Wear Plate
1
54
052190001
Cover
2
80
126110005
Suction Box Assy
1
30
009240011
Pipe Plug
1
55
023240021
Stud
4
81
126060012
Valve Box
1
31
001500271
O-ring
2
56
126080001
Gasket – Top
1
82
57
019400002
Bearing Cap
58
001500181
O-ring
SC
SC
SC
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit
**Impellers cannot be trimmed. Trim sizes must come from the factory.
24
SC
SC
SC
SC
SC
1
4
SC
2
009050022
Clamp Handle
4
1
517000487
Seal Kit
1
1
517003487
Carbide Seal Kit
1
60MP Parts
4
3
2
1
13
11
27
74
75
70
71
1
13
72
12
69
68
42
14
43
13
44
1
67
12
40
20
66
65
21
61,54
62 64 63
53,54
62 52 60 49 59 58 57 48 52 5
49 50 43
47 51
22
79
23
24
27
26
25
39
28
77
29
30
1
13
12
30
32 33 34
82 73
6
55
19
35 31 78 36 37 38 40 41 42 43 44 45
42 47 46 45
76 56 81
7
8
9
10
18
17
16
15
80
19
25
60MPH Parts List
Item
Eng.
No.
Part
Description
1
024070031
Gasket
2
126080001
O-ring
3
100-012112-273
4
SC
Qty.
Item
Eng.
No.
Part
Description
1
30
002410161
O-ring
SC
Qty.
Item
Eng.
No.
Part
Description
1
64
001010111
Bolt
Qty.
4
1
31
019340002
Wear Plate
1
65
029220011
Stat-O-Seal
Capscrew
2
32
019380022
Seal Plate
1
66
042430032
Lip Plate, Imp Dia 12-3 ⁄4"
SC
4
1
010270091
Stud
4
33
126110005
Flap Valve Box Assy
1
019360092
Lip Plate, Imp Dia 12-1 ⁄4"
1
5
001560501
Washer
4
34
105840011
Impeller Washer
1
019360082
Lip Plate, Imp Dia 11-3 ⁄4"
1
6
009050022
Clamp Handle
4
35
028550011
Key
1
019360122
Lip Plate, Imp Dia 11-1 ⁄4"
1
7
126070003
Priming Cover
1
36
06106A028
Socket Head Screw
3
019360132
Lip Plate, Imp Dia 10-3 ⁄4"
1
8
126060012
Suction Box
1
37
037180051
Seal, (Ceramic) Standard
SC
2
019360142
Lip Plate, Imp Dia 10-1 ⁄4"
1
9
001190011
Pipe Plug
1
037180021
Seal, (Carbide) Optional
C
1
67
010240041
Stud
4
10
019310002
Suction Flange 6"
1
38
023100023
Sleeve
SC
1
68
19109A030
Nut
2
11
120180021
Flap Valve
1
39
010900031
Lip Seal
SC
1
69
008950002
Clamp Arm
2
12
126100013
Weight
1
40
009750101
Snap Ring
1
70
126120005
Flap Valve Assy
13
001560191
Washer
1
41
000790101
O-ring
SC
1
71
002410101
O-ring
14
131230031
Bolt
1
42
011330021
Gasket
SC
3
72
008940002
Inspection Cover
2
15
001770121
Lockwasher
12
43
05454A011
Lockwasher
14
73
045800011
Drive Screw
4
16
023680011
Nut
20
44
010300021
Stud
12
74
019190002
Volute
1
17
023240021
Stud
20
45
127-058011-243
Nut
15
75
015950021
Discharge Flange 6" Threaded
1
18
006260031
O-ring
1
46
016640011
Pipe Plug
2
76
105250081
Cap Screw
1
19
019280015
Inlet Elbow w/Handles
1
47
013450001
Relief Fitting
2
77
011240021
Jam Nut
3
20
002390091
Hex Head Screw
4
48
009750111
Snap Ring
1
78
006280371
Shim
1
21
010370031
Stat-O-Seal
4
49
009740041
Snap Ring
1
79
19109A013
Nut
1
22
009050002
Clamp Handle
4
50
019410002
Support Foot
1
80
001560471
Washer
1
23
010240011
Stud
2
51
005700051
Bolt
8
81
126090011
Hinge – Flap Valve
1
24
019560002
Inspection Cover
1
52
010900021
Lip Seal
1
82
131530001
Gasket – Suction Flange
1
25
001500161
O-ring
1
53
019421115
Shaft w/Stud
1
83
134840021
Sleeve
2
26
009240011
Pipe Plug
1
54
009750081
Snap Ring
1
84
001560491
Washer
4
27
001200011
Pipe Plug
2
55
062050001
Grease Fitting
1
517000497
Seal Kit
1
28
001500271
O-ring
2
56
052190001
Cover
2
517003497
Carbide Seal Kit
1
29**
023040132
Impeller, 12-3 ⁄4" Dia
1
57
019400002
Bearing Cap
1
023040122
Impeller, 12-1 ⁄4" Dia
1
58
000650121
Bearing
1
023040112
Impeller, 11-3 ⁄4" Dia
1
59
001500181
O-ring
023040192
Impeller, 11-1 ⁄4" Dia
1
60
019390012
Bearing Housing
1
023040182
Impeller, 10-3 ⁄4" Dia
1
61
071670031
Bearing
1
023040172
Impeller, 10-1 ⁄4" Dia
1
62
052180001
Grease Fitting Straight
1
023040162
Impeller, 9-3 ⁄4" Dia
1
63
019370012
Seal Housing
1
SC
SC
SC
SC
SC
Notes: S — Parts in Seal Kit C — Parts in Carbide Seal Kit
**Impellers cannot be trimmed. Trim sizes must come from the factory.
26
SC
SC
1
1
SC
2
60MPH Parts
10 9
7
8
6
4
1 27
75 15 16
17
22
74
72
11
13
15
14
71
12
67
69
68
15
16
16
17
73
17
82
66
3
65, 84
18
64
46 63 37 56 62 61 60
19
59
58
57
54 77 51
30
5, 20, 21
36
56
42
55
32
52
35
34
22
23
24
53
78
76
25
41
47
38
51
49
43
50
26
17
16
15
26
31 29 28 43 45 44 78 40 43 45 44 39 47 48
82
6
4
7 2 8
83
81
79
80
11
14
13
12
70
33
27
STANDARD LIMITED WARRANTY
Pentair Hydromatic® warrants its products against defects in material and workmanship for a period of 12 months
from the date of shipment from Pentair Hydromatic or 18 months from the manufacturing date, whichever
occurs first – provided that such products are used in compliance with the requirements of the Pentair Hydromatic
catalog and technical manuals for use in pumping raw sewage, municipal wastewater or similar, abrasive-free,
noncorrosive liquids.
during the warranty period and subject to the conditions set forth, Pentair Hydromatic, at its discretion, will repair
or replace to the original user, the parts that prove defective in materials and workmanship. Pentair Hydromatic
reserves the right to change or improve its products or any portions thereof without being obligated to provide such
a change or improvement for prior sold and/or shipped units.
Start-up reports and electrical schematics may be required to support warranty claims. Submit at the time of start up
through the Pentair Hydromatic website: http://forms.pentairliterature.com/startupform/startupform.asp?type=h.
Warranty is effective only if Pentair Hydromatic authorized control panels are used. All seal fail and heat sensing
devices must be hooked up, functional and monitored or this warranty will be void. Pentair Hydromatic will cover
only the lower seal and labor thereof for all dual seal pumps. under no circumstance will Pentair Hydromatic be
responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight
expenses to and from the factory or an authorized Pentair Hydromatic service facility.
This limited warranty will not apply: (a) to defects or malfunctions resulting from failure to properly install, operate or
maintain the unit in accordance with the printed instructions provided; (b) to failures resulting from abuse, accident
or negligence; (c) to normal maintenance services and parts used in connection with such service; (d) to units that
are not installed in accordance with applicable local codes, ordinances and good trade practices; (e) if the unit is
moved from its original installation location; (f) if unit is used for purposes other than for what it is designed and
manufactured; (g) to any unit that has been repaired or altered by anyone other than Pentair Hydromatic or an
authorized Pentair Hydromatic service provider; (h) to any unit that has been repaired using non factory specified/
oEM parts.
Warranty Exclusions: PEnTAiR HYdRoMATiC MAKES no EXPRESS oR iMPLiEd WARRAnTiES THAT EXTEnd
bEYond THE dESCRiPTion on THE FACE HEREoF. PEnTAiR HYdRoMATiC SPECiFiCALLY diSCLAiMS THE
iMPLiEd WARRAnTiES oF MERCHAnTAbiLiTY And FiTnESS FoR AnY PARTiCuLAR PuRPoSE.
Liability Limitation: in no EVEnT SHALL PEnTAiR HYdRoMATiC bE LiAbLE oR RESPonSibLE FoR
ConSEQuEnTiAL, inCidEnTAL oR SPECiAL dAMAGES RESuLTinG FRoM oR RELATEd in AnY MAnnER To
AnY PEnTAiR HYdRoMATiC PRoduCT oR PARTS THEREoF. PERSonAL inJuRY And/oR PRoPERTY dAMAGE
MAY RESuLT FRoM iMPRoPER inSTALLATion. PEnTAiR HYdRoMATiC diSCLAiMS ALL LiAbiLiTY, inCLudinG
LiAbiLiTY undER THiS WARRAnTY, FoR iMPRoPER inSTALLATion. PEnTAiR HYdRoMATiC RECoMMEndS
inSTALLATion bY PRoFESSionALS.
Some states do not permit some or all of the above warranty limitations or the exclusion or limitation of incidental or
consequential damages and therefore such limitations may not apply to you. no warranties or representations at any
time made by any representatives of Pentair Hydromatic shall vary or expand the provision hereof.
740 EAST 9TH STREET
ASHLAnd, oHio, uSA 44805
419-289-1144
WWW.HYdRoMATiC.CoM
Warranty Rev. 12/13
490 PinEbuSH RoAd, uniT #4
CAMbRidGE, onTARio, CAnAdA n1T 0A5
800-363-PuMP
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
