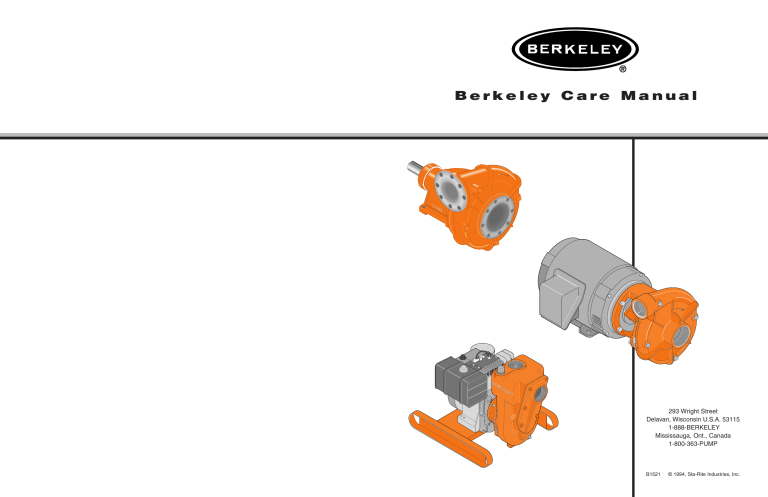

Berkeley Care Manual
H8
06
1353 1094
868 0494
ON
RJ
1 9L M
OFF
BE
881 0494
RK
EL
EY
293 Wright Street
Delavan, Wisconsin U.S.A. 53115
1-888-BERKELEY
Mississauga, Ont., Canada
1-800-363-PUMP
B1521
© 1994, Sta-Rite Industries, Inc.
Introduction
This Care Manual was designed as a general guide to Berkeley centrifugal
pumps and is not intended to be used as an Engineering Specifications
Manual.
All subjects covered, whether written or illustrated, are suggestions by
Berkeley Pumps to aid in the proper installation and operation of end suction
centrifugal pumps and apply to no particular application.
Questions on specific application and/or installation procedures,
maintenance, and repair, should be directed to the nearest Berkeley
Professional Dealer.
Table of Contentsx
Page
•
Introduction .........................................................................................................2
• Section 1: Installation....................................................................................3-14
• Section 2: Start-up.......................................................................................15-19
• Section 3: Maintenance...............................................................................20-28
• Section 4: Pump Nomenclature .................................................................29-35
Watch for this symbol
Component damage can occur when excessive force is applied
during assembly, disassembly, repair, or maintenance. Generally,
components do not need to be forced on or off during these
procedures. Use care at all times to protect the physical integrity
of all pump components.
2
SECTION 1
Installation
Contents
Page
• Suction Connection, Suction Lift – Recommended ................................4
• Suction Connection, Suction Lift – Not Recommended .........................5
• Suction Connection, Flooded Suction – Recommended .......................6
• Suction Connection, Flooded Suction – Not Recommended.................7
• Discharge Connection – Recommended................................................8
• Discharge Connection – Not Recommended.........................................9
• Pump Foundation ..................................................................................10
• Pump Protection, Pump House / Shelter ..............................................11
• Shaft Alignment Belt / Coupling Drive...................................................12
• Protect Your Investment ..................................................................13,14
3
I N S TA L L AT I O N
Suction Connection
Suction Lift
Short length of straight pipe after reducer.
( 2 times pipe diameter minimum )
For Han-Dee Primer
connection, see start-up.
Suction
Gauge
Straight run, short as possible but
at least 6 times pipe diameter ("D")
after elbow to stabilize flow.
503 0194
Eccentric Reducer
flat side up.
See foundation
section.
Standard or long
radius elbow.
Support pipe
as required
Slope upward
to pump.
NOTICE: All connections
must be air tight.
• Use pipe, tubing, or reinforced hose to make
As close
as possible
suction connection. Hose must have sufficient strength to resist collapse under the
atmospheric pressure differential that occurs
while pump is running.
• Piping run and connection fittings should be
properly aligned and independently supported to reduce strain on pump case.
Pipe diameter ("D")
• Suction pipe size should be at least one
4 x "D"
minimum
commercial pipe size larger than opening of
pump inlet. Flow velocity should not exceed
8 ft./sec.
• Suction screen must screen out solids that
could clog pump impeller.
1 x "D" minimum
from bottom
• Suction screen area must be at least four
times suction pipe area.
• Net Positive Suction Head Available
(NPSHA) must exceed Net Positive Suction
Head Required (NPSHR) by the pump or
reduced performance and severe pump
damage may result.
Strainer / Foot Valve
To keep debris from entering
pump suction and to maintain
pump prime after shut-off.
• All suction piping must have a continuous
rise to the pump suction inlet. A 1/4 inch per
foot minimum slope is recommended.
Recommended
4
I N S TA L L AT I O N
Suction Connection
Suction Lift
Do not use
Concentric
Reducer.
505 0194
Concentric Reducer causes high spots
along the suction line resulting in air pockets.
Do not install valves
in suction line.
No support or
uneven mounting
not recommended.
Unsupported
pipe causes
excessive stress
on pump and fittings.
Excess use of pipe fittings
means potential air leaks.
Long run
not recommended
Elbow immediately in
front of pump intake
not recommended.
Pipe diameter
("D") undersized
reduces performance
High suction
lift should
be avoided.
Vortex caused by
insufficient submergence
may cause pump to
lose prime.
• Suction pipe sloping downward to pump inlet
will trap air which will reduce performance and
may cause pump to lose prime.
• Suction piping that is undersized will create
excess friction losses that may cause cavitation
and a reduction in pump performance.
Less than
4 x "D"
• Excess fittings and bends in suction line results
No strainer
may cause
pump to
clog.
in trapped air, reduced performance, and high
friction losses which may cause cavitation.
Insufficient bottom
clearance
NOT Recommended
5
I N S TA L L AT I O N
Suction Connection
When flooded suction exists
Short run of straight pipe after reducer
(2 times pipe diameter).
Water under
pressure
Maintain minimum liquid
level to prevent vortexing.
Eccentric Reducer
flat side up.
Suction
Gauge
702 0294
Isolation Valve
full open when
pumping.
Straight run, short as possible but
at least 6 times pipe diameter after
pipe fitting to stabilize flow.
Slope upward to pump.
Support pipe
as required
• Use pipe, tubing, or reinforced hose to make suc-
Standard or
long radius
elbow.
• An isolation valve is used in a pressurized suction
tion connection. Hose must have sufficient
strength to resist collapse under the atmospheric
pressure differential that may occur while pump is
running.
pipe to permit servicing pump.
• Piping run and connection fittings should be properly aligned and independently supported to
reduce strain on pump case.
• It is important, even with a flooded suction condi-
• If solids are present, a strainer should be used to
tion, that proper pipe fittings are used so water is
delivered to impeller eye with a smooth flow and
constant velocity.
protect the pump.
• Suction pipe size should be at least one commercial pipe size larger than opening of pump inlet.
Flow velocity should not exceed 8 ft./sec.
Recommended
6
I N S TA L L AT I O N
Suction Connection
When flooded suction exists
Inverted Eccentric Reducer
may result in air pocket.
Water under
pressure
Valve in upward
position may trap
air.
Do not leave
valve partially
closed.
703 0294
Check Valve
in suction pipe
not needed.
Unsupported
pipe causes
excessive stress
on pump and fittings.
Concentric Reducer may
cause air pockets.
Miter elbow or short
radius elbow not
recommended.
• Suction piping that is undersized will create
Elbow immediately in front
of pump intake not recommended.
excess friction losses that may cause cavitation
and a reduction in pump performance.
• Excess fittings and bends in suction line results
in trapped air, reduced performance and high
friction losses which may cause cavitation.
• If a check valve is required for back flow prevention, locate on the discharge side of pump.
NOT Recommended
7
I N S TA L L AT I O N
Discharge Connection
This view shows discharge
fittings typical of pump
with flooded suction.
Expansion joint with tie
rods where needed.
Isolation
Valve
Use Concentric Reducer
to mimimize friction losses.
Discharge pipe diameter at
least one nominal pipe size
larger than discharge opening
in pump.
This fitting may be used to
check shut-off head.
706 0294
Pressure
Gauge
Support piping
as required
Align piping to
minimize flange
stress.
These two views show discharge
fittings typical of pump with
suction lift.
Isolation valve to
permit servicing of
check valve or pump.
• Use pipe, tubing, or reinforced hose to make
discharge connection. Material selected must
have sufficient strength for operating pressures.
Non-Slam or
spring loaded
check valve.
• Discharge pipe should be sized so that flow
velocity is below 8 ft./sec.
• Use only non-slamming check valves to prevent
hydraulic shock (water hammer).
• Use gate, ball, or butterfly valve for isolation.
Valve should be full open during operation.
• Maintain proper pipe size throughout discharge
system, using as few elbows and tees as possible to keep friction loss to a minimum.
Discharge
Priming
Valve
• Install pressure gauge after reducer as shown
to check operating pressure.
Recommended
8
I N S TA L L AT I O N
Discharge Connection
Avoid check valves
that cause hydraulic
shock.
708 0294
Avoid undersized
pipe diameter.
Do not force alignment
that can cause flange
stresses.
Do not use Gate Valve
to throttle flow.
Do not leave
pipe unsupported.
Avoid abrupt change
in pipe size.
• Avoid excess friction loss caused by numerous
• Some swing type check valves may permit build-
fittings, insufficient pipe diameter, and sharp turns
in pipe run.
up of reverse velocity before closing causing
hydraulic shock or “water hammer”.
NOT Recommended
9
I N S TA L L AT I O N
Pump Foundation
Typical Installations
1/2" or thicker
Sole Plate tapped
for hold down bolts
Pump or
Motor Frame
Anchor
Bolts
ge
ina
Dra
Concrete Foundation
Pump or
Motor Frame
Steel
Channel
Anchor
Bolt
Shims
for alignment
Wedges
Various Heights
Tack
Weld
Grout
Grout
Dam
Dra
Concrete
Foundation
inag
Shims
• There are several types of permanent pump/
ge
ina
Dra
foundation installations in use. Those pictured
above are typical.
Concrete
Foundation
• If grout is used, top of concrete should be left
rough to provide a good bonding surface.
• Foundation should slope away from pump to
prevent liquid from pooling.
797 0394
10
e
I N S TA L L AT I O N
Pump Protection
Pump House
Forced air ventilation
is recommended
To Pump
Discharge
To Pump
Suction
934 0594
To water
service
Large door(s)
for installation
and servicing
Allow for proper
drainage
Provide proper support
for all pipe runs.
From water
source
• Check local codes for all electrical connections.
• Check local codes for all plumbing connections.
• Allow adequate room around pump for servicing.
• Allow for water drainage inside pump house (floor
drains).
• Allow for heating capabilities if pump is running
year round.
Pump Shelter
Removable
for service
A ir M o v e m e n t
935 0594
• Pump shelter with removable roof protects pump
• Allow for proper drainage away from pump and
from rain, dust, plants, and the sun. Locate shelter
to avoid flooding.
motor.
• Check local codes for all electrical connections.
• Check local codes for all plumbing connections.
• Proper ventilation is a must.
11
I N S TA L L AT I O N
Shaft Alignment
Coupling Alignment
Straight Edge
Centerline
Caliper
See standard or preferred
method descibed below.
B.P
err
y
H8
06
936 0594
• Standard Method:
Use a caliper or straight edge to check for proper
alignment. Check four places, 90 degrees apart.
• Preferred Method:
• Coupling guard shown in phantom for pictorial
Use a commercially available dial indicator to
check for proper alignment. Refer to coupling
I.O.M. for detailed instruction.
clarity. Never operate pump without guard or
shroud in place.
Belt Drive
B
B
A
Incorrect
Incorrect
A
Centerline - A of each shaft and pulley must
be parallel for proper alignment.
Centerline - B represents center of belt and
pulley.This centerline must be straight for
proper alignment.
Centerline
A
B
B
H8
06
937 0594
Centerline
A
• Belt guard is not shown for pictorial clarity.
• For proper belt tension, check belt manufac-
Never operate pump without proper guard or
shroud in place.
turer’s specifications.
12
I N S TA L L AT I O N
Protect Your Investment
Electrical
Incoming Power
1 Contactor
1
4
2 Lightning Arrestor
3 Loss of Prime Protection
4 Fuseable Disconnect
5 Starter
2
5
3
L1
AMP
L2
L3
TIME
AUTO
STOP
HAND
START
• Minimum recommended components to protect
your pump during operation are listed above.
Check all local electrical codes prior to
installation.
884 0494
13
I N S TA L L AT I O N
Protect Your Investment
Typical Installation
Misalignment Sensing Probe and Switch for Centrifugal Pumps
BE
RK
EL
EY
1155 0794
• This probe is designed to minimize damage if thrust bearing wear or impeller
separation threaten your pump. When installed and adjusted properly, the
probe senses slight axial movement of the rotating impeller. Unsafe movement abrades the tip of the probe, completing a circuit to shut down the
power source (diesel or gas engine, or electric motor).
This protective probe circuit can also be configured to include a visual or
audible warning device.
14
SECTION 2
Start-up
Contents
Page
• Pump Priming....................................................................................16,17
• Determine Pump Rotation ....................................................................18
• Start-up Check List................................................................................19
15
S TA R T- U P
Pump Priming
Han-Dee
Primer
Berkeley Discharge
Priming Valve or
Butterfly Valve.
Primer Isolation
Valve
For Engine Exhaust Type Primer
Locate connection at least
one pipe diameter from
pump case.
787 0394
Suction to
Water Source
Suction Lift with Priming Pumpx
Suction Lift with Enginei
Exhaust Primeri
• Close air tight valve on discharge.
• Han-Dee Primer operation:
• Locate exhaust primer connection as shown
above.
1. Open Han-Dee Primer isolation valve.
• For operation, refer to specific instructions included
2. Work handle of Han-Dee primer up and down to
evacuate air from the suction line. (Refer to
primer owner’s manual for proper procedure).
with exhaust primer.
3. When water flows freely from primer, close HanDee Primer isolation valve. (Pump case should
now be filled with water).
• Immediately start pump.
• Slowly open butterfly valve (if
used) until desired
flow is achieved. (Discharge Priming Valve will
open automatically).
16
S TA R T- U P
Pump Priming
Suction Lift with Foot Valvex
Hydraulically Balanced Pumpsx
• Hydraulically balanced pumps operate with a very
• Close air tight valve on discharge.
• Remove pipe plug from highest opening in pump
low positive pressure across the stuffing box, permitting a much looser fit of the packing rings
around the shaft sleeve to control the loss of water
from the pump through the stuffing box. Because
of the looser fit of the packing rings, air can be
more easily drawn into the pump through the stuffing box when priming the pump with an air evacuation type primer.
case.
• Completely fill pump and suction piping with water.
• Rotate shaft slowly to allow any air trapped in
impeller to escape.
• When all air has been forced out of pump, replace
pipe plug. Use pipe joint compound on plug
threads and tighten as necessary to prevent
leakage.
• A grease fitting, communicating through the side of
the stuffing box to a lantern ring in the packing set,
is provided to grease seal the stuffing box to prevent air leakage during priming.
• If pump cannot be primed due to air leakage
Flooded Suctionx
through the stuffing box, DO NOT tighten packing.
Instead, pump grease into fitting until back pressure occurs, forcing grease into lantern ring to seal
the stuffing box. After priming, when unit is put into
operation, the grease will be flushed out through
the packing by water flowing outward through the
stuffing box. Proceed with normal adjustment of
the packing as described in pump owners manual.
Note that the grease seal is used only for control
of air leakage during priming, and that only the
packing gland is used to control the flow of water
through the stuffing box during normal operation.
• Close air tight valve on discharge.
• Open air vent (or pipe plug) in the highest tapped
opening in pump case.
• Open inlet isolation valve, allowing water to fill the
pump completely and force all air out through vent.
• Rotate shaft slowly to allow any air trapped in
impeller to escape.
• Close vent opening when water without air
emerges.
17
S TA R T- U P
Count
erC
on
tati
ro
12
12
9
3
Viewed from
this direction
ise
kw
loc
Clock
wis
e
Determine Pump Rotation
9
3
Viewed from
this direction
6
6
As viewed
As viewed
938 0594
H8
06
H
608
Pump with a
Pump with a
Clockwise
Counter-Clockwise
Rotation
Rotation
Pump Rotation is determined as clockwise or counter-clockwise
by viewing liquid end of pump from the back or shaft side, and
NOT from looking into the impeller eye or front of volute.
Pump Rotation must be verified after installation.
• Electric Motors:
• Note: It is common for many motor and engine
manufacturers to indicate rotational direction in the
opposite manner as the pump standard. That is,
they refer to the rotation as viewed from the front
of motor or engine. Pump rotation is determined
by viewing from the back.
Single Phase: Refer to wiring information on the
motor plate to obtain proper rotation.
Three Phase: If pump runs backward, reverse any
two leads coming off incoming power (L1, L2, L3)
until proper rotation is obtained. (ie: reverse L1
and L2, L2 and L3, or L1 and L3).
• Pump running backward – A centrifugal pump will
still pump liquids, however, GPM and head will be
a fraction of the published performance.
18
S TA R T- U P
Check List
■
■
■
Read and be familiar with the pump Installation, Operation and Maintenance
Manual. Check to see that all aspects of these instructions have been complied with.
Pipe connections must be securely fastened and air tight. All piping must be
clean and free of debris.
Is pump and all piping properly supported and are all supports securely fastened?
■
Are required screens in place?
■
Are all valves in the system in the proper open or close position for start-up?
■
Confirm power source voltage matches the motor nameplate.
■
Verify that belt or coupling alignment is properly adjusted if applicable, and
that all safety guards are in place.
■
Does the impeller / shaft rotate freely?
■
Is pump primed?
■
■
Verify that rotational direction is correct for pump by VERY short “on-off” of
power source.
Slowly open discharge valve to obtain desired flow rate of pumping system.
Do not start pump until above checks have been
made and all start-up instructions in the pump I.O.M.
have been complied with. Failure to do so may result in severe damage to
equipment, cause personal injury, and may void warranty.
19
MAINTENANCE
Maintenance Record
20
SECTION 3
Maintenance
Contents
Page
• Impeller Replacement ............................................................................22
• Packing Replacement ............................................................................23
• Mechanical Seal Replacement – Disassembly, Motor Drive ................24
• Mechanical Seal Replacement – Reassembly, Motor Drive .................25
• Routine Maintenance ........................................................................26,27
• Recommended Spare Parts ..................................................................28
• Winterizing ..............................................................................................28
21
MAINTENANCE
Impeller Replacement
Threaded Shaft – Frame Mount
Clockwise Rotation
Volute shown.
H8
06
1149 0794
1
• Unfasten hardware holding volute to bracket.
• Remove volute to expose impeller.
• Peel off old volute gasket (or O-Ring) and discard.
NOTE: Certain models such as the B4EY, are constructed with
a suction flange which is removed first to access the impeller.
Counter-Clockwise rotation
as viewed from shaft end.
Clockwise rotation as viewed
from shaft end.
Left Hand Thread
Right Hand Thread
Hold shaft
stationary
being careful
not to damage
shaft.
Hold shaft
stationary
being careful
not to damage
shaft.
H8
06
H8
06
1150 0794
RE M
RE M
O
2
O
VE
• Hold impeller stationary and remove impeller
VE
ing in the direction shown for either clockwise or
counter-clockwise pump rotation.
NOTE: Do not use impeller vanes for leverage.
screw and associated hardware.
• Hold shaft stationary and remove impeller by turn-
Keyed Shaft
Key
• If motor drive with keyed shaft, refer to mechanical seal
disassembly drawing.
• For bearing frame pumps with keyed shaft, consult with
factory for approved method of impeller removal.
1151 0794
22
MAINTENANCE
Packing Ring Replacement
Removal
1
Packing
Hooks
2
Packing
Gland
Motor / Engine not shown
for clarity.
Motor / Engine not shown
for clarity.
826 0394
• Unfasten hardware holding Packing Gland in place
• Slide Lantern Ring (if used) back to expose any
and slide back on shaft to expose packing rings. A
split Packing Gland with threaded studs is shown.
remaining rings, including metallic. Remove them
in the same manner.
• Remove packing rings from stuffing box using two
commercially available Packing Hooks as shown.
Installing New Rings
Motor / Engine not shown
for clarity.
Typical Packing Arrangement
Ring Joints
1147 0794
Packing
Rings
Metallic Ring
Procedure and parts will vary slightly
depending on pump style.
Lantern Ring
• Clean shaft sleeve and Packing Gland.
• Inspect shaft sleeve for wear, replace if needed.
• Install new packing rings in stuffing box by placing
• Slide packing gland into position, then gently and
evenly tighten nuts to force rings into place and
seat (do not overtighten). Loosen nuts again to
hand tight.
over shaft sleeve and pushing them in as far as
they will go.
• Start primed pump and allow packing to leak
liberally.
• Rotate ring joint 90 degrees when installing each
• Evenly tighten gland nuts one complete turn at a
ring as shown.
time until leakage is reduced to 40 to 60 drops per
minute.
23
MAINTENANCE
Mechanical Seal Replacement
Disassembly – Motor Drive
1
Procedure and parts will
vary slightly depending
on pump style.
2
1135 0794
1137 0794
• Unfasten hardware holding volute to bracket.
•
• Peel off old gasket or O-Ring and discard.
• Hold impeller stationary and remove impeller
NOTE: For model B4EY, consult factory for special
instructions.
Remove volute case to expose impeller.
3
screw and associated hardware.
4
Gear Puller
Finger
Note:
A hexnut placed between the
jackscrew and shaft end will
prevent damage to the shaft
and impeller screw threads.
Key
1139 0794
Shaft
Sleeve
1138 0794
Gear Puller
Jackscrew
Gear Puller
Finger
• Remove capscrews holding bracket to motor.
• Install a standard gear puller to shaft end and
•
•
motor bracket placing puller fingers in the area
shown.
Rotate gear puller jackscrew until impeller clears
5
shaft. Mechanical shaft seal will come off with
motor bracket.
If a seal retaining ring is part of the assembly, it
will need to be replaced.
Rotating
Seat
Stationary
Seat
• Push stationary seat out of
Spring
Spring
Retainer
Stationary
Seat
seal cavity from the back
of bracket.
• Clean seal cavity in
bracket thoroughly.
1140 0794
0794
Typical Mechanical Seal
24
MAINTENANCE
Mechanical Seal Replacement
Reassembly – Motor Drive
1
If shaft is threaded, cover threads
with tape to protect seal during
installation.
2
Cardboard washer
(Supplied with seal)
Polished Face
1143 0794
1142 0794
• Place bracket on a smooth, flat surface, pump side up.
• Apply a small amount of mineral oil to O-Ring on
•
stationary seat and press into seal cavity. Cover
ceramic face with cardboard washer and press
3
straight in using a piece of pipe or tubing.
Reinstall bracket on motor using extreme care not to
scratch or chip ceramic face of seal with shaft.
4
Key
1145 0794
1144 0794
Truarc
• Apply a small amount of mineral oil to inside dia-
•
• Place impeller key in motor shaft keyway. Slide
meter of rubber ring in rotating seat and outside of
shaft sleeve. Slide rotating seat onto shaft, polished face first, until it is tight against ceramic face.
Compress seal spring, and install retaining ring (if
used) in shaft sleeve groove.
•
•
impeller on to shaft as far as possible.
Apply non-permanent thread adhesive to impeller
capscrew and shaft threads.
Install impeller washer, shakeproof lockwasher,
and capscrew.
• Install new gasket or O-Ring and volute case onto
bracket.
5
• Install new O-Ring gasket and volute case on to
bracket.
• Apply anti-seizing compound to capscrews and
1146 0794
tighten securely.
Procedure and parts will
vary slightly depending
on pump style.
25
MAINTENANCE
Routine Maintenance
A well maintained pumping system will extend the life of the unit and require fewer
repairs. This means less down-time which can be very critical when a constant delivery
of liquid is required.
A routine maintenance and inspection schedule should be set up on a weekly, quarterly,
and annual basis with records kept of these actions. (Refer to individual pump owner’s
manual for required maintenance and/or lubrication).
Weekly
Observe the following to verify that pump unit is operating properly.
• Vibration – All rotating machines can be expected to produce some vibration.
However, excessive vibration can reduce the life of the unit. If the vibration seems
excessive, discontinue operation, determine cause, and correct.
• Noise – When the unit is operating under load, listen closely for unusual sounds that
might indicate that unit is in distress. Determine the cause and correct.
• Operating Temperature – During operation, heat is dissipated from the pump bearings and the driver. After a short period of time, the surface of the pump bracket will be
quite warm (as high as 150°F), which is normal. If the surface temperature of the pump
bracket or driver is excessive, discontinue operation, determine cause of the temperature rise, and correct. Bearings will run hotter for a brief run-in period after packing
which is normal. However, worn bearings will cause excessive temperatures and need
to be replaced.
The pump unit is cooled by the water flowing through it, and will normally be at the
temperature of the pumping liquid.
• Stuffing Box – After a short period of operation, verify that the stuffing box area and
gland are not hot. If heating is detected, loosen the gland nuts evenly until water is just
running out of stuffing box in a DROPLET form. Water must not be streaming or spraying out. Verify cool operation periodically. Adjust gland nuts EVENLY as necessary for
lubrication and cooling of the packing. If packing has been tightened to the limit of the
packing gland travel, additional packing is necessary.
• Mechanical Seal – Inspect seal for leakage. There should be no leakage at mechanical seal.
• Inspect suction line and/or screen for flow obstruction.
Quarterly
• Pump and Piping Connections – Inspect all system piping connections for leakage or
possible misalignment. Misalignment of pipe connections to the pump will put excessive strain on the pump case and can cause damage to internal components of both
the pump and motor. If stress on the pump case is suspected, adjust pipe supports to
correct. For flange connections, misalignment can be checked by shutting down the
pump, and removing the pipe flange bolts on the pump connections. If the mating
flanges come apart or shift, there is pressure at the connection(s) and adjustments
26
MAINTENANCE
Routine Maintenance
should be made to the piping supports until flanges mate without force. This procedure
can be done throughout piping system.
• Check pump foundation for soundness and see that all hold-down bolts are secure.
• Complete any lubrication requirements as dictated by pump/driver owners manuals.
• Inspect packing or mechanical seal for possible replacement. Examine shaft sleeve, if
present, for wear and replace it if necessary.
• Inspect pumping plant panel for signs of wear (ie: replace pitted contactors, etc., as
needed).
• Check pump and/or motor bearings for signs of wear. Repack or replace as required.
Annual
• Inspect pump and entire pumping system for signs of wear.
• Inspect system valves, screens, etc.
• Check electric motor windings for degradation, rewind if necessary.
• Check pump impeller eye clearance.
• Inspect impeller, volute case, and seal chamber for signs of excessive wear or
corrosion.
27
MAINTENANCE
Spares / Winterizing
Recommended Spare Parts
The number and type of spare parts kept on hand at any pump site is dictated by the
severity of the service in which the pump is used. That is, a pump servicing a golf
course’s sprinkling system should not be down because of a simple case gasket, or a
subdivision out of water because of a failed mechanical seal.
It is recommended that the following spare parts be kept on-site as a minimum back-up
to service pump and reduce down-time. Parts shown do not apply to all models. Check
your model/style against parts breakdown drawing(s) when selecting spares.
• Mechanical Shaft Seal
• Packing set and packing hooks
• Shaft Sleeve(s)
• Impeller wear ring
• All gaskets and O-Rings required for one pump
• Retaining Rings
If having a pump non-operational has severe consequences, a back-up pump should be
considered. Otherwise, a back-up impeller, volute case, bearings and shaft, would be
prudent.
Winterizing
If pump is to be out of service for an extended period of time, such as the winter months,
the following storage procedures should be followed.
• Remove exterior dirt and grime or any substance that may trap moisture. Exposed
metal is subject to oxidation, prime and repaint if necessary.
• Flush suction and discharge lines. Check for leaks at this time and replace any worn
gaskets.
• Remove lowest plug in pump and drain pump casing and suction and discharge lines.
• Lubricate bearings (refer to owners manual).
• If possible, keep unit clean and dry during storage period to guard against corrosion.
• Seal all open ports to keep out foreign objects such as insects, rodents, dust and dirt.
• Rotate driver shaft periodically to prevent freeze-up of internal components.
• Shelter pump from the elements when possible.
28
SECTION 4
Pump Nomenclature
Page
• Nameplate Data ......................................................................................30
• Part Nomenclature – Electric Motor Drive...........................................31
• Part Nomenclature – Bearing Frame Mount........................................32
• Part Nomenclature – S.A.E. Engine Mount .........................................33
• Part Nomenclature – Air Cooled Engine Drive ...................................34
• Part Nomenclature – Air Cooled Engine Drive, Self Prime ...............35
29
PUMP NOMENCLATURE
Nameplate Data
Model Number
Example: B3TPMS
B – Berkeley Type B Centrifugal
3 – Pump discharge size - 3 inch
Serial Number
T – Nominal Impeller diameter - 6 inch
Example: G100894
P – Pump Type - Electric Motor Drive
Date code. Represents the day, month
and year that the pump was built.
M – Impeller capacity - Medium
S – Mechanical Seal
(Refer to Berkeley Catalog for
model nomenclature information)
BERKELEY PUMPS
MODEL
S.N. OR DATE
B3TPMS
G100894
IMPELLER DIA.
B.M.
6-1/8"
B54598
788 0394
Impeller Trim
Bill of Material number
Example: 6-1/8”
Example: B54598
Size of outside diameter of Impeller.
Required when ordering replacement
impeller.
Also referred to as Catalog Number.
Use this number when ordering repair
parts or service requirements. This is the
most important number on the tag for pump
identification purposes.
30
PUMP NOMENCLATURE
Electric Motor Drive
Mechanical Seal
Seal Retaining
Ring
Truarc
771 0294
Impeller
Motor
Bracket
Mechanical
Seal
Shakeproof
Lockwasher
Shaft
Sleeve
Wear Ring
Volute
Case
Impeller
Washer
Impeller
Capscrew
• Electric Motor not shown.
• Drawing is representative of a typical
motor drive pump. Parts on some
models will vary slightly.
Gasket
or O-Ring
Packing
Impeller
Shakeproof
Lockwasher
Packing
Gland
Metallic
Ring
Lantern
Ring
Shaft
Sleeve
Packing
Grease Cup
or fitting
Impeller
Washer
Impeller
Capscrew
Packing
Rings
Gasket
or O-Ring
Balance Ring
Gasket
786 0394
• Electric Motor not shown.
• Drawing is representative of
a typical motor drive pump.
Parts on some models will
vary slightly.
Motor
Bracket
Balance
Ring
31
Volute Case
PUMP NOMENCLATURE
Bearing Frame Mount
Packing / Mechanical Seal
Retaining
Ring
Thrust
Ring
Double row
Bearing
Single row
Bearing
Truarc
Inner
Bearing
Cap
Slinger
Packing
Gland
Outer
Bearing
Cap
Packing
Rings
Lantern
Ring
Metallic
Ring
Packing
Grease Cup
or Fitting
Shaft
Sleeve
Balance
Ring
Gasket
Pump
Shaft
Balance
Ring
H8
06
772 0394
Impeller
Shakeproof
Lockwasher
Bracket
(Bearing Frame)
Wear
Ring
Impeller
Washer
Impeller
Capscrew
Mechanical Seal
Seal Retainer
Volute
Gasket
Volute
Case
O-Ring
or Gasket
Mechanical
Seal
• Drawing is representative of a typical bearing frame
pump, parts on some models will vary slightly.
• Frame mount pumps with a mechanical seal use
the same types of components as the packing style
except as shown in supplemental view.
Pump
Shaft
32
PUMP NOMENCLATURE
S.A.E. Engine Mount
Packing / Mechanical Seal
Outer Bearing
Cap
Single Row
Bearing
Shoulder
Ring
L
Double Row
Thrust Bearing
Oil Seal
Slinger
Packing
Gland
Packing
Rings
Lantern
Ring
Metallic
Ring
L
773 0394
Shaft
Sleeve
BE
RK
Balance
Ring
Gasket
EL
EY
Pump
Shaft
Balance
Ring
Packing
Grease
Cup
Impeller
Shakeproof
Lockwasher
Bracket
SAE 1:
SAE 2:
SAE 3:
SAE 4:
SAE 5:
12 Holes on 20.88" Bolt Circle
12 Holes on 18.38" Bolt Circle
12 Holes on 16.88" Bolt Circle
12 Holes on 15.00" Bolt Circle
8 Holes on 13.12" Bolt Circle
Wear
Ring
Impeller
Washer
Impeller
Capscrew
Mechanical Seal
Volute Gasket
or O-Ring
Seal Retainer
Volute
Case
O-Ring
or Gasket
• Drawing is representative of a typical SAE engine
Mechanical
Seal
mounted pump, parts on some models will vary
slightly.
• SAE engine mounted pumps with a mechanical
seal use the same types of components as the
packing style except as shown in supplemental
view.
Pump
Shaft
33
PUMP NOMENCLATURE
Air Cooled Engine Drive
ON
RJ
1 9L M
OFF
Air Cooled
Engine
Engine
Bracket
1175 0794
O-Ring
Slinger
Shaft
Sleeve
Mechanical
Seal
Base
Impeller
Typical of 8 - 18 H.P.
Volute Case
Telescope
Shaft
Volute
Gasket
or
O-Ring
Impeller
Washer
Impeller
Capscrew
Typical of 30 H.P.
Shakeproof
Lockwasher
34
PUMP NOMENCLATURE
Air Cooled Engine Drive – Self Prime
Cast Iron
Companion
Flange
Engine
Bracket
Case
Gasket
Oil Seal
Slinger
Volute
(Pump Case)
Flange
Gasket
Pumps with 4" discharge
Shaft
Sleeve
Mechanical
Seal
BE
Clack
Weight
RK
Sleeve
O-Ring
Telescope Shaft
(30 H.P.)
EL
Rubber
Clack
Clack
Washer
EY
Semi-open
Impeller
Impeller
Capscrew
Impeller
Washer
Shakeproof
Lockwasher
• Gas Engine not shown.
• Base shown is representative
Suction
Cover
Base
774 0294
of small H.P. models.
Aluminum
Handle
Discharge
Cap 2"
Seal Plate
Discharge
Cap 1"
O-Ring
Discharge
Cap 1-1/2"
Impeller
Wear
Washer
Clack
Assembly
Mechanical
Seal
Neck
Ring
Diffuser
Pump
Case
777 0294
• Gas Engine not shown.
35
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
