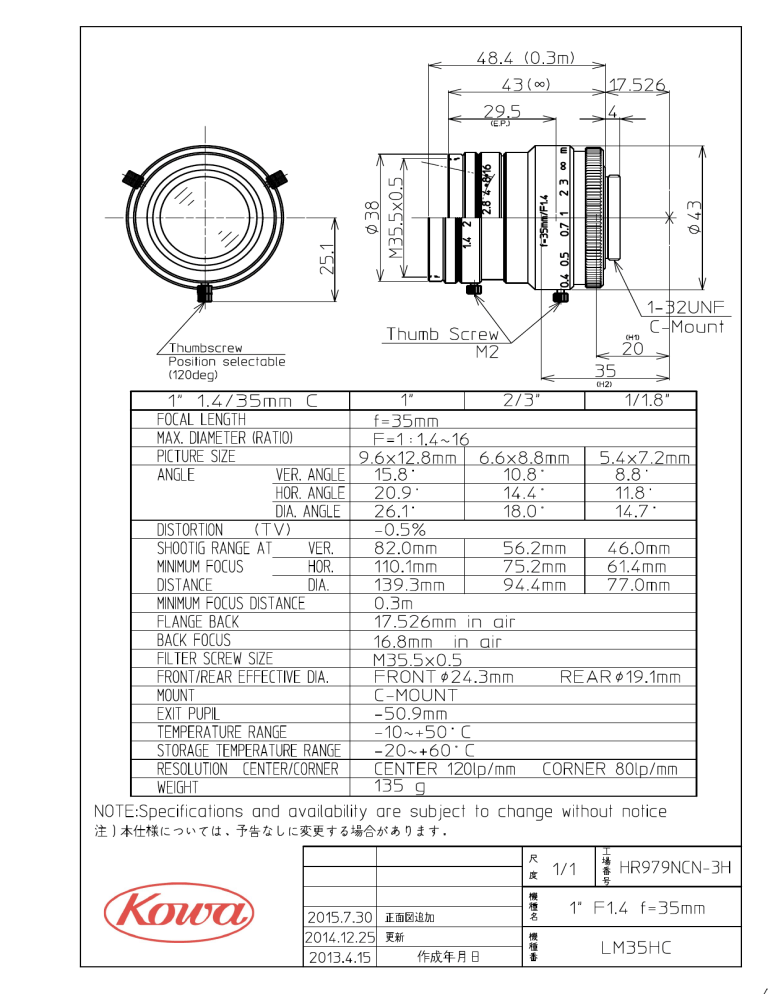

Basler Lens Kowa LM35HC F1.4 f35mm 1" Datasheet

Basler Lens Kowa LM35HC F1.4 f35mm 1
 48.4 (0.3m)
43 (09) 7 32
295 :
Fl Ne а =
LM m —
x | Е m
| e ph г NS - ©.
— A = =:
Ia > JE
N JL Jd E:
o ==
7 57 UNF
Thumb Screw Mount
Thumbscrew M2?
Position selectable
(120deq) 35
1 1.4/35mm © 1 | 2/3 | 1/1.8"
FOCAL LENGTH f=35mm
MAX. DIAMETER (RATIO) F=1:1.4~16
PICTURE SIZE 9.6x12.8mm | 6.6x8.8mm | 5.4x7.2mm
ANGLE VER. ANGLE| 15.8" 10.8 0.0"
HOR. ANGLE | 20.9" 14.4” 11.8"
DIA. ANGLE 26.7" 18.0 14.7”
DISTORTION (TV) -0.5%
SHOOTIG RANGE AT VER. 82.0mm 56.2mm 46.0mm
MINIMUM FOCUS HOR. 110.1mm /75.2MM 61.4mm
DISTANCE DIA. 139.3mm 94.4MM 7/.0mm
MINIMUM FOCUS DISTANCE 0.3m
FLANGE BACK 17.526mm in air
BACK FOCUS 16.8mm__in air
FILTER SCREW SIZE M35.5x0.5
FRONT/REAR EFFECTIVE DIA. FRONT ¢24.3mm REAR ¢19.1mm
MOUNT C-MOUNT
EXIT PUPIL -50.9mm
TEMPERATURE RANGE -10++50" C
STORAGE TEMPERATURE RANGE -20+-+60" C
RESOLUTION CENTER/CORNER CENTER 120lp/mm CORNER 80lp/mm
WEIGHT 135 @g
NO TE:Specifications and availability are subject to change without nofice
E) AKI Td, FTERUVICEET E5845 0 FT.
I
^ 4/4 | HR979NCN-3H
№
2015.7.30| Enix 8 O1 F14 f=35mm
2014.12.25] EH y M3SHC
2013.4.15 (ERE A E
