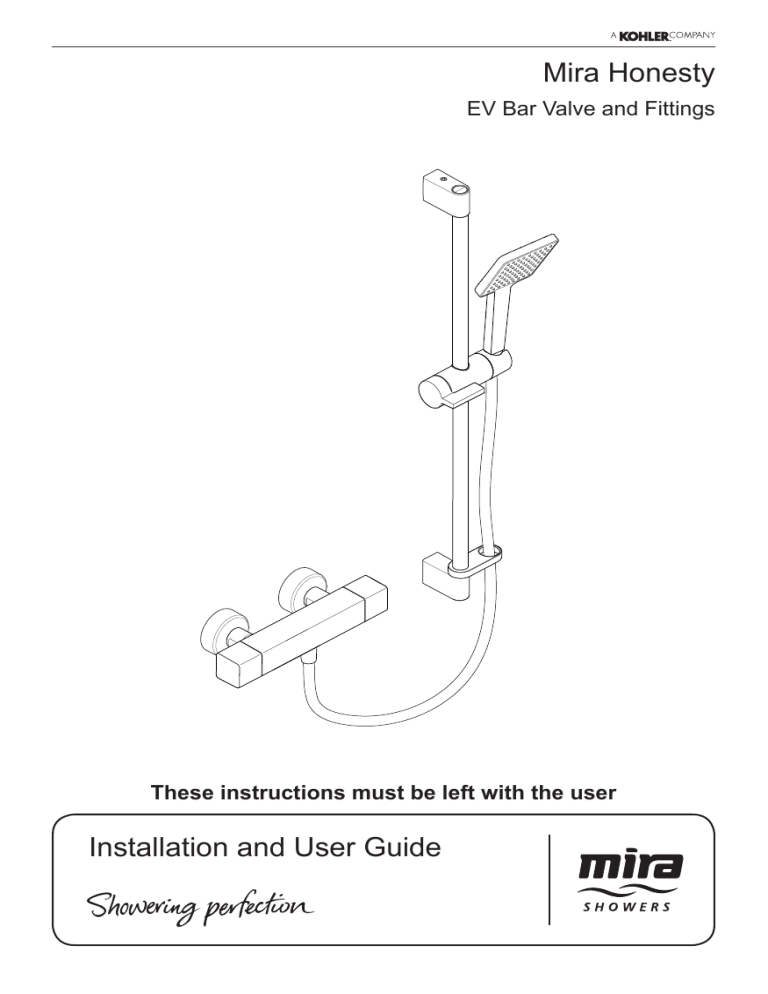

Mira Honesty Mixer shower EV Installation & User Guide

Mira Honesty
EV Bar Valve and Fittings
These instructions must be left with the user
Installation and User Guide
1
1333237-W2-B
Introduction
Thank you for choosing a Mira shower. To enjoy the full potential of
your new shower, please take time to read this guide thoroughly, and
keep it handy for future reference.
Guarantee
For domestic installations, Mira Showers guarantee this product
against any defect in materials or workmanship for a period of five
years from the date of purchase (shower fittings for one year).
For non-domestic installations, Mira Showers guarantee this
product against any defect in materials or workmanship for a period
of one year from the date of purchase.
Failure to follow the instructions provided with the shower will
invalidate the guarantee.
For Terms and Conditions refer to the 'Customer Service'.
Recommended Usage




Domestic
Light Commercial
Heavy Commercial
Healthcare
Design Registration
Design Registration Number
1333237-W2-B
005259041-0006-0007
2
Pack Contents
 2 x Wall Plugs
 2 x Mounting Brackets
 2 x Fixing Screw
 1 x Bar Valve
 2 x Slide Bar
Support
 2 x Wall Brackets
 1 x Handset
 2 x Olives
 2 x Hose
Seals
 2 x Compression Nuts
 2 x Concealing Plates
 1 x Clamp
Bracket
 1 x Hose
Retaining
Ring
 2 x Washers/Filters
 1 x Hose
 1 x Slide
Bar
 2 x Wall Plugs
 2 x Fixing Screws
 2 x Screws
 1 x Pipe Guide
 2 x End Cap
3
1333237-W2-B
Safety Information
WARNING - This product can deliver scalding temperatures if
not operated, installed or maintained in accordance with the
instructions, warnings and cautions contained in this guide.
The function of a thermostatic mixing valve is to deliver water
consistently at a safe temperature. In keeping with every other
mechanism, it cannot be considered as functionally infallible and
as such, cannot totally replace a supervisor’s vigilance where that
is necessary. Provided it is installed, commissioned, operated and
maintained within manufacturers recommendations, the risk of
failure, if not eliminated, is reduced to the minimum achievable.
PLEASE OBSERVE THE FOLLOWING TO REDUCE THE RISK OF
INJURY:
INSTALLING THE SHOWER
1. Installation of the shower must be carried out in accordance with
these instructions by qualified, competent personnel. Read all
instructions before installing the shower.
2. DO NOT install the shower where it may be exposed to freezing
conditions. Ensure that any pipework that could become frozen
is properly insulated.
3. DO NOT perform any unspecified modifications, drill or cut holes
in the shower or fittings other than instructed by this guide. When
servicing only use genuine Kohler Mira replacement parts.
4. If the shower is dismantled during installation or servicing then,
upon completion, an inspection must be made to ensure all
connections are tight and that there are no leaks.
USING THE SHOWER
1. The shower must be operated and maintained in accordance with
the requirements of this guide. Make sure you fully understand
how to operate the shower before use, read all instructions and
retain this guide for future reference.
2. DO NOT switch the shower on if there is a possibility that the water
in the shower unit or fittings is frozen.
1333237-W2-B
4
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
The shower can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children must not
be allowed to play with the shower.
Anyone who may have difficulty understanding or operating
the controls of any shower should be attended whilst showering.
Particular consideration should be given to the young, the elderly,
the infirm or anyone inexperienced in the correct operation of the
control.
DO NOT allow children to clean or perform any user maintenance
to the shower unit without supervision.
Always check the water temperature is safe before entering the
shower.
Use caution when altering the water temperature while in use,
always check the temperature before continuing to shower.
DO NOT fit any form of outlet flow control. Only Mira recommended
outlet fittings should be used.
DO NOT operate the temperature control rapidly, allow 10-15
seconds for the temperature to stabilise before use.
Use caution when altering the water temperature while in use,
always check the temperature before continuing to shower.
DO NOT switch the shower off and back on while standing in the
water flow.
DO NOT connect the outlet of the shower to any tap, control valve,
trigger handset or showerhead other than those specified for use
with this shower. Only Kohler Mira recommended accessories
must be used.
The showerhead must be descaled regularly. Any blockage of the
showerhead or hose may affect showering performance.
5
1333237-W2-B
Specification
Pressures
•
•
•
Max Static Pressure: 10 Bar.
•
Min Maintained Pressure (Gravity System): 0.1 Bar (0.1 bar =
1 Metre head from cold tank base to shower handset outlet).
Max Maintained Pressure: 5 Bar.
Min Maintained Pressure: (Gas Water Heater): 1.0 Bar (for
optimum performance supplies should be nominally equal).
Temperatures
•
•
Close temperature control is provided between 20°C and 50°C.
•
Recommended Hot Supply: 60°C to 65°C (Note! The mixing
valve can operate at temperatures up to 85°C for short periods
without damage. However for safety reasons it is recommended
that the maximum hot water temperature is limited to 65°C).
•
Minimum Recommended Differential between Hot Supply and
Outlet Temperature: 12°C at desired flow rates.
Minimum hot water supply temperature: 55°C.
•
Optimum Thermostatic Control Range: 35°C to 45°C (achieved
with supplies of 15°C cold, 65°C hot and nominally equal
pressures).
Thermostatic Shut-down
•
For safety and comfort the thermostat will shut off the mixing
valve within 2 Seconds if either supply fails (achieved only if
the blend temperature has a minimum differential of 12°C from
either supply temperature).
Connections
•
•
•
Hot: Left - 15mm pipework, 3/4” BSP to valve.
Cold: Right - 15mm to pipework, 3/4” BSP to valve.
Outlet: Bottom - 1/2” BSP Male to flexible hose.
Note! This product does not allow for reversed inlets and will
deliver unstable temperatures if fitted incorrectly.
1333237-W2-B
6
Installation
Suitable Plumbing Systems
Gravity Fed:
The thermostatic mixer must be fed from a cold water cistern (usually fitted in the
loft space) and a hot water cylinder (usually fitted in the airing cupboard) providing
nominally equal pressures.
Gas Heated System:
The thermostatic mixer can be installed with a combination boiler.
Unvented Mains Pressure System:
The thermostatic mixer can be installed with an unvented, stored hot water system.
Mains Pressurised Instantaneous Hot Water System:
The thermostatic mixer can be installed with systems of this type with balanced
pressures.
Pumped System:
The thermostatic mixer can be installed with an inlet pump (twin impeller). The
pump must be installed on the floor next to the hot water cylinder.
General
1.
2.
3.
4.
5.
6.
7.
Installation of the shower must be carried out in accordance with these
instructions by qualified, competent personnel.
The plumbing installation must comply with all national or local water regulations
and all relevant building regulations, or any particular regulation or practice
specified by the local water supply company.
Make sure all pressures and temperatures comply with the requirements of the
shower. See ‘Specifications’.
Full bore / non restrictive isolating valves must be fitted in a readily accessible
position adjacent to the shower to facilitate maintenance of the shower.
DO NOT use a valve with a loose washer plate (jumper) as this can lead to a
build up of static pressure.
Use copper pipe for all plumbing.
DO NOT apply excessive force to plumbing connections; always provide
mechanical support when making plumbing connections. Any soldered joints
should be made before connecting the shower. Pipework must be rigidly
supported and avoid any strain on the connections.
Pipework dead-legs should be kept to a minimum.
7
1333237-W2-B
8.
9.
Position the shower unit where the controls are at a convenient height for the
user. Position the showerhead so that the water sprays in line with the bath or
across the opening of a shower cubicle. The installation must not cause the
shower hose to be kinked during normal use or obstruct the use of the control
handles.
The position of the shower unit and hose retaining ring must provide a minimum
air gap of 25 mm between the showerhead and the spill over level of any bath,
shower tray or basin. There must be a minimum distance of 30 mm between
the showerhead and the spill over lever of any toilet, bidet or other appliance
with a Fluid Category 5 backflow risk.
Note! There will be occasions when the hose retaining ring will not provide a
suitable solution for Fluid Category 3 installations, in these instances an outlet
double checkvalve must be fitted, this will increase the required supply pressure
typically by 10kPa (0.1 bar). Double checkvalves fitted in the inlet supply to
the appliance cause a pressure build up, which affect the maximum static inlet
pressure for the appliance and must not be fitted. For Fluid category 5 double
checkvalves are not suitable.
Zone of
Backflow
Risk
Mixer
Shower
30 mm
Minimum
Toilet or Bidet
FC5
25 mm
Minimum
25 mm Minimum
Bath or Shower
Tray FC3
Hand Basin
FC3
10. Only use the inlet connections supplied with the product. DO NOT use any
other type of fittings.
11. DO NOT overtighten connections, screws or grubscrews as product damage
may occur.
1333237-W2-B
8
Installation of the Bar Valve Fast Fix Kit
1
2
m
m
150
25 mm
25 mm
COLD
HOT
Plastic Pipe
Guide
Fit the plastic pipe guide over the inlet
pipes. Level the pipe guide and secure
to the wall to hold in position. Leave the
guide in place and finish the wall.
Make sure that the pipework has been
installed correctly and that it protrudes
25 mm from the finished wall surface.
3
4
Wall Bracket
8 mm
Hold the wall bracket in position and
mark the position of the fixing holes.
Drill the fixing holes using an 8 mm
diameter drill.
9
1333237-W2-B
6
5
Ø6 mm
Install the wall plugs.
Install the fixing screws and tighten.
7
8
Install the olives and the connectors.
Tighten finger tight and then another Turn on the water supply and flush the
1/4 to 1/2 turn.
pipework.
10
9
Install the concealing plates.
1333237-W2-B
Assemble the bar valve with a sealing
washer / filter in each inlet and attach
to the wall bracket.
Note! Connections are: Hot-Left,
Cold- Right.
10
Installing the Shower Fittings
2
For new installations optimum
fixing centres 510 mm
1
3
Ø 8 mm
Ø 8 mm
4
5
6
7
Remove red
protective
cover or white
label before
fitting
Note! Ensure an equal
length of slide bar top
and bottom
8
A flow regulator (not supplied) may be required for installation on high pressure
systems (above 0.5bar).
Connecting the Shower Hose
9 Connect the conical with the red cover or the white label to the showerhead.
11
1333237-W2-B
Commissioning
Maximum Temperature Setting
Follow this procedure to check and adjust the temperature before using the shower
for the first time. Make sure that all users are familiar with the operation of the
shower. This guide is the property of the homeowner and must be left with
them following installation completion.
The shower’s maximum temperature has been pre set to 46 C, but may require
adjustment for the following reasons:
•
•
To reset to a comfortable temperature (may be required to suit the
plumbing system).
To suit your showering preference.
The following procedure requires a constant supply of hot water at a minimum
temperature of 55°C.
1.
2.
3.
4.
5.
6.
7.
8.
Turn the shower ON to full flow.
Turn to full hot. Allow the temperature and
flow to stabilise.
To set the temperature to either warmer
or cooler, pull off the temperature knob
taking care not to rotate the hub.
Note! Take care not to damage the chrome
if a tool is used to lever off.
To increase the temperature, rotate the hub
in an anticlockwise direction, colder turn
clockwise. Make small adjustments and
allow temperature to settle before making
further adjustments. Continue to adjust until
the required temperature is achieved.
Remove the fixing screw securing the hub
and refit aligning the hub as shown. Clips to
be orientated in the 3, 6, 9 and 12 O'clock
positions.
Retighten the fixing screw without rotating
the hub.
Push on the temperature knob making sure
that it locates correctly.
Note! The arrow on the inside of the handle
should point downwards.
Rotate the temperature knob to full cold
then rotate back to full hot and check the
maximum temperature is set correctly.
1333237-W2-B
12
Hot +
Cold Hub
Fixing Screw
Clips
Temperature Knob
Clips
Inside View of
Temperature Knob
Operation
Flow Operation
Use the flow handle to turn the shower on / off.
Adjusting the Temperature
Use the temperature handle to make the shower warmer or cooler.
User Maintenance
WARNING! PLEASE OBSERVE THE FOLLOWING TO REDUCE THE RISK OF
INJURY OR PRODUCT DAMAGE:
1. DO NOT allow children to clean or perform any user maintenance to the shower
unit without supervision.
2. If the shower is not to be used for a long period, the water supply to the shower
unit should be isolated. If the shower unit or pipework is at risk of freezing during
this period, a qualified, competent person should drain them of water.
Cleaning
Many household and commercial cleaners, including hand and surface cleaning
wipes contain abrasives and chemical substances that can damage plastics, plating
and printing and should not be used.
Important! The showerhead must be descaled regularly, keeping the showerhead
clean and free from limescale will ensure that your shower continues to give the best
performance. Limescale build up can restrict the flow rate and may cause damage
to your shower.
13
1333237-W2-B
Use your thumb or a soft cloth to wipe any limescale
from the nozzles.
Inspecting the Hose
Important! The shower hose should
be inspected periodically for damage or
internal collapse, internal collapse can
restrict the flow rate from the showerhead
and may cause damage to the shower.
1.
Unscrew the hose from the showerhead and the shower outlet.
2.
Inspect the hose.
3.
Replace if necessary.
Fault Diagnosis
If you require a Mira trained service engineer or agent, refer to ‘Customer Service’.
Symptom
Cause / Rectification
Water too hot or
too cold
Inlets reversed (hot supply to cold inlet of shower unit),
rework inlet pipework.
Check the washer / filters are not blocked.
Check the maximum temperature setting (If you have a
combination type boiler it may not be producing sufficient
hot water at the desired flow rate). Fit a flow regulator to the
outlet of the shower unit.
Installation conditions outside operating parameters, refer
to ‘Specifications’ and ‘Commissioning’.
Poor temperature
control
Make sure that the inlet temperature differentials are
sufficient, refer to ‘Specifications’.
Fluctuating or
reduced flow
Check the showerhead and hose are not blocked.
Check the washer / filters are not blocked.
Make sure that the maintained inlet pressures are nominally
balanced and sufficient, refer to ‘Specifications’.
Air lock or partial blockage in the pipework.
Water leaking from
the showerhead
Water may drain from the showerhead for a short period
after showering, this is normal.
1333237-W2-B
14
Spare Parts
1836.179
Fixing Kit
1836.174
Washer / Filter
1836.171
Concealing
Plate
1901.016
Flow Knob
(x2)
1836.181
Flow
Cartridge
Assembly
A
1703.196
Cap
1901.014
Knob Assembly
(x2)
(x2)
1744.108
Thermostatic
Cartridge
1901.023
Temperature Cartridge
Retaining Plate Assy
(x2)
1703.510
Slide Bar
Support
(x2)
1736.737
Slide Bar
(550 mm)
1878.155
9 l/min
1878.156
6 l/min
1878.157
12 l/min
Flow Regulator
Pack (2 pcs per pack)
1901.012
Showerhead
632.73
Hose Seal
1901.019
Clamp
Bracket
(x2)
1264162
Hose (1.25 m)
(x2)
(x2)
Note! These flow regulators
are fitted in the shower fittings
A
(x2)
1703.199
Hose
Retaining
Ring
1736.740 Seal Pack - ‘A’
15
1333237-W2-B
Customer Service
Guarantee
What to do if something goes wrong
Your product has the benefit of our manufacture's
guarantee which starts from date of purchase. This
guarantee only applies in the United Kingdom and
Republic of Ireland. To activate this guarantee, please
return your completed registration card, visit our
website or free phone 0800 5978551 within 30 days
of purchase (UK only).
If your product does not work correctly refer to this
manual for fault diagnosis and check that it is installed
and commissioned in accordance with our instructions.
If this does not resolve the issue, contact us for help
and advice.
Helpdesk Service
Contact our Customer Services Team for
product advice, to purchase spare parts or
accessories or to set up service visit. You can contact
us via phone or e-mail - contact details below.
Please provide your model name, power rating (if
applicable) and date of purchase.
Within the guarantee period we will resolve defects in
materials or workmanship, free of charge, by repairing
or replacing parts or product as we may choose.
This guarantee is in addition to your statutory
rights and is subject to the following conditions :
Mira Showers Website
(www.mirashowers.co.uk)
Visit our website to register your guarantee,
download user guides, diagnose faults, purchase our
full range of accessories and popular spares, or request
a service visit.
● The guarantee applies solely to the original
installation under normal use and to the original
purchaser only. The product must be installed and
maintained in accordance with the instructions
given in this guide.
● Servicing must only be undertaken by us or our
appointed representative.
Note! If a service visit is required the product must
be fully installed and connected to services.
● Repair under this guarantee does not extend
the original expiry date. The guarantee on any
replacement parts or product ends at the original
expiry date.
● For shower fittings or consumable items we
reserve the right to supply replacement parts only.
The guarantee does not cover:
Spares and Accessories
We hold the largest stocks of genuine Mira
spares and accessories.Contact us for a
price or visit our website to purchase items from our
accessory range and popular spares. (Only available
in the United Kingdom )
Service/Repairs
No one knows our products better than our
nationwide team of Service Technicians. We
can carry out service or repair work to your product both
during and after the guarantee period. (Only available in
the United Kingdom and Republic of Ireland) Ask about
our fixed price service repairs.
To Contact Us: UK
● Call out charges for non product faults (such as
damage or performance issues arising from
incorrect installation, improper use, inappropriate
cleaning, lack of maintenance, build up of
limescale, frost damage, chemical attack,
corrosion, system debris or blocked filters) or
where no fault has been found with the product.
● Water or electrical supply, waste and isolation
issues.
● Compensation for loss of use of the product or
consequential or indirect loss of any kind.
● Damage or defects caused if the product is
repaired or modified by persons not authorised by
us or our appointed representative.
● Routine maintenance or replacement parts to
repaired or modified by persons not authorised by
comply with the requirements of the TMV2 or
repaired or modified by persons not authorised by
TMV3 healthcare schemes
● Accidental or wilful damage.
● Products purchased ex-showroom display.
0800 001 4040
Fax: 01242 282595
Email – Visit
www.mirashowers.co.uk/contactus
By Post: Mira Customer Services Dept, Cromwell
Road, Cheltenham, Gloucestershire GL52 5EP
To Contact Us: Eire Only
01 531 9337
E-mail:
[email protected]
Mira is a registered trade mark of
Kohler Mira Limited.
The company reserves the right to alter
product specifications without notice.
1333237-W2-B
14648
16
© Kohler Mira Limited, April 2018

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
