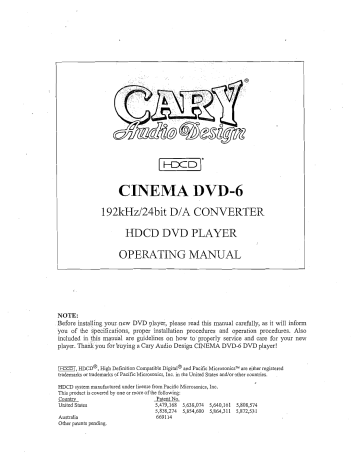

 mao Design
HDD
CINEMA DVD-6
192kHz/24b1t D/A CONVERTER
HDCD DVD PLAYER
OPERATING MANUAL
NOTE:
‘Before installing your-new DVD player, please read this manual carefully, as it will inform
you of the specifications, proper installation procedures and operation procedures. Also
included in this manual are guidelines on how to’ properly service and care for your new
player. Thank you for buying a Cary Audio Design CINEMA DVD-6 DVD player!
[Foc], HDCD®, High Definition Compatible Digital® and Pacific Microsonics™ are either registered
trademarks or trademarks of Pacific Microsonics, Inc. in the United States and/or other countries.
HDCD system manufactured under license from Pacific Microsonics, Inc.
This product is covered by one or more of the following:
Country Patent No.
United States 5,479,168 5,638,074 5,640,161 5,808,574
5,838,274 5,854,600 5,864,311 5,872,531
Australia 669114
Other patents pending.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: |
TO REDUCE THE-RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
Iriangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the products enclosure that may be of
The exclamation point within an equilateral tnangle is intended to alert
| the user to the presence of important operating and maintenance
WARNING
RISK OF ELECTRIC SHOCK
ed
The lightning flash with arrowhead symbol, within an equilateral
sufficient magnitude to conslitute a risk of electric shock to persons.
(servicing) instructions in the literature accompanying the appliance.
uards
13.
Read Instructions — All the safety and operating instructions should
be read before the appliance is operated.
Retain Instructions — The safety and operating instructions should
be retained for future reference.
Heed Warnings — All wamings on the appliance and in the operating
instructions should be adhered to.
Follow Instructions — All operating and use instructions should be
followed.
Cleaning — Unplug the appliance from the wall outlet before
cleaning. The appliance should be cleaned only as recommended by
the manufacturer.
Attachments — Do not use attachments not recommended by the
appliance manufacturer as they may cause hazards,
Water and Moisture — Do not use the appliance near water —for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a
wet basement; or near a swimming pool; and the like,
Accessories — Do not place the appliance on an unstable cart, stand,
tripod, bracket, or table. The appliance may fall, causing serious injury
to a child or adult, and serious damage to the appliance. Use only with
a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the appliance. Any mounting of the
appliance should follow the manufacturer's instructions, and should
use a Mounting accessory recommended by the manufacturer.
An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
PORTABLE CART WARNING
53125A EEE
. Ventilation — Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the appliance and to
protect it from overheating, and these openings must not be blocked or
covered. The openings should never be blocked by placing the
appliance on a bed, sofa, rug, or other similar surface. The appliance
should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided. There should be free space
of at least 5 cm (2 im) and an opening behind the appliance.
. Power Sources — The appliance should be operated only from the
type of power source indicated on the marking label. 1f you are not
sure of the type of power supply to your home, consult your appliance
dealer or local power company.
. .Grounding or Polarization — The appliance may be equipped with
a polarized alternating current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert the plug fully
into the outlet, try reversing the plug. If the plug should still fail to fit,
contact your electrician to replace your obsolete outlet. Do not defeat
the safety purpose of the polarized plug.
Power-Cord Protection — Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the
appliance. o
20.
21.
22,
Lightning — For added protection for the appliance during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall-outlet and disconnect the antenna or
cable system. This will prevent damage to the appliance due to
lightning and power-line surges.
. -Overloading — Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of fire or
electric shock.
Object and Liquid Entry — Never push objects of any kind into the
appliance through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
. Never spill liquid of any kind on the appliance.
. Servicing — Do not attempt to service the appliance yourself as
opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
. Damage Requiring Service — Unplug the appliance form the wall
outlet and refer servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen into the appliance,
C. If the appliance has been exposed to rain or water,
D.
If the appliance does not operate normally by following the
operating instructions. Adjust only those controls that are covered
by the operating instructions as an improper adjustment of other
controls may result in damage and will often require extensive
work by a qualified technician to restore the appliance to its
normal operation,
E. If the appliance has been dropped or damaged in any way, and
F. When the appliance exhibits a distinct change in performance —
this indicates a need for service.
. Replacement Parts — When replacement parts are required, be sure
the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.
Safety Check — Upon completion of any service or repairs to the
appliance, ask the service technician to perform safety checks to
determine that the appliance is in proper operation condition.
Wall or Ceiling Mounting — The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
Heat — The appliance should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
ra rame) - E e га ть TT
= = = Ta e Le [A a к
р in E ss as Ня A Н
IM = ba i) = я -:
E Я 7 kd = i]
Г] = bol - a La hal F
A n= a E
В ка i Ц
This unit contains a semiconductor laser system and is classified as a
“CLASS 1 LASER PRODUCT”. So, to use this model properly, read
this Instruction Manual carefully. In case of any trouble, please contact
the store where you purchased the unit. To prevent being exposed to the
laser beam, do not try to open the enclosure.
CAUTION:
VISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK
FAILED OR DEFEATED. DO NOT STARE INTO BEAM.
CAUTION:
THIS PRODUCT UTILIZES ALASER. USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
The label on the right is
applied on the rear
panel 24 “CLASS 1 LASER
PRODUCT"
Die a
e
1. This unit is a CLASS | LASER PRODUCT and employs a laser
inside the cabinet,
2. To prevent the laser from being exposed, do not remove the
cover. Refer servicing to qualified personnel.
The laser is covered by a housing which prevents exposure during
operation or maintenance. However, this product is classified as a Laser
Product by CDRH (Center for Devices and Radiological Health) which is a
department of the Food and Drug Administration. According to their
regulations 21 CFR section 1002.30, all manufactures who sell Laser
Products must maintain records of written communications between the
manufacturer, dealers and customers concerning radiation safety. If you
have any complaints about instructions or explanations affecting the use of
this product, please feel free to write to the address on the back page of this
manual. When you write us, please include the model number and serial
number of your unit,
In compliance with Federal Regulations, the certification, identification
and the period of manufacture are indicated on the rear panel.
FCC INFORMATION FOR USER
CAUTION:
The user changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
.are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, Which can be determined by tuming the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
= Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
+ Consult the dealer or an experienced radio/TV technician for help.
For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF PLUG TO WIDE SLOT, FULLY INSERT.
Specifications
The following section describes the CINEMA DVD-6 basic specifications. The specifications are subject to change
or improvement without notice or obligation.
Video Specifications
Playback System
Video D/A Converter
Video S/N Ratio
Video Signal Resolution
Signal Formal System
Composite Video Output
S-Video
Component Video Output
DVD Video/Video CD/CD/DVD-RW/DVD+RW/CD-RW
10-bit/54mHz
78.5 dB
540 TV Lines (DVD)
PAL (625/50, 5225/60) / NTSC (525/60, 625/50)
1.0Vp-p (752 ) Sync Negative
Luminance Signal : 1Vp-p (759 load)
Color Signal : 0.286Vp-p (759 load)
Y Output Level : 1Vp-p (759 load)
Pb Output Level : 0.7Vp-p (752 load)
Pr Output Level : 0.7Vp-p (752 load)
Audio Specifications
Master Clock Jitter
Digital / Analog Converters
Analog Filter
Analog Outputs
Frequency Range ...............
Amplifier Linearity .............
Phase Linearity .................
Dynamic Range ........eenencoes
Signal-to-Noise Ratio ..........
Channel Separation ............
Total Harmonic Distortion ....
Audio Output Level .............
Below measurable levels
(3) Burr Brown PCM1738u
3rd Order Bessel
Ended RCA (Front LAR)
Single-Ended RCA (Surround L/R, Center and Subwoofer)
scans aneu ns 2 Hz - 22KHz Fs = 48KHz
2 Hz - 44KHz Fs = 96KHz
PET 0.1dB (20Hz - 20KHz)
rere 3° (20Hz - 20KHZ)
ИА, 117dB (1KHz)
Cea 117dB (1KHz)
nenonaacaa. 115dB (1KHz)
SA 0.0004% (1KHz)
ass aa 0e e 2.2Vrms
Digital Audio Output Specifications
Coaxial Digital
Dolby Digital / DTS / LPCM 200mV RMS(75Q)
Optical Digital
Dolby Digital / DTS / Toslink
Power Input Reconfigured at factory
100-120/200-240 VAC, 50-60Hz
Power Consumption 28 Watts
This section shows you how to handle, clean, and store discs.
( Playable Discs
This DVD Player can playback the following discs.
||
Disc mark Contents Disc size
Audio 12 cm
+
DVD- . К у D
Vide = Video
o VIDEO (moving
pictures) 8 em
12cm
ovo- | DVD
RW «EE
8 cm
COMPACT Audio +
Video dise Video 12 om
movin
c |. pictures sn
COMPACT 12cm
CD ISE Audio
DIGITAL AUDIO 8 cem(CD single)
CD-R and CD-RW discs recorded by CD-DA method can also be
played. Some CD-R/RW discs may be incompatible.
You cannot playback discs other than those listed above.
You can play discs such as CD-ROM, DVD-RAM, DVD-RW,
etc., even if the marks in the above table are labeled on those
discs.
This DVD Player uses the PAL/NTSC color system, and cannot
playback video media recorded in any other color system
(SECAM, etc.).
Avoid using heart-shaped or octagonal discs. Playing irregularly
shaped discs may damage the internal mechanism of the DVD
- Player.
Discs with shapes such
as these cannot be
played.
Do not use discs that have residue from adhesive tape, rental discs
that have peeling labels, or discs that have custom labels or
stickers. Otherwise, you may not be able to eject the discs or the
DVD Player may become inoperative.
Handling Discs )
* Do not touch the playback side of the disc.
| Cleaning Discs В
« Fingerprints and dust on the disc cause picture and sound
deterioration. Wipe the disc from the center outwards with a soft
cloth. Always keep the disc clean.
» If you cannot wipe off the dust with a soft cloth, wipe the disc
lightly with a slightly moistened soft cloth and finish with a dry
cloth.
* Do not use any type of solvent such as thinner, benzine,
commercially available cleaners or antistatic spray for vinyl LPs.
It may damage the disc.
[ Storing Discs | |]
* Do not store discs in a place subject to direct sunlight or near heat
sources.
* Do not store discs in places subject to moisture and dust such as a”
bathroom or near a humidifier.
* Store discs vertically in a case. Stacking or placing objects on
discs outside of their case may cause warping.
sing the
Remote
Sontro!
This section explains how to get the best use of the remote control.
| Using the remote control to operate the DVD player
The following buttons can be used to operate the DVD player.
8
5
10 © E!
a
19990
IDI
11)
2) <——(19
©
JE
i
43
=
pos
a
D
—ú0
9) PREVIOUS NEST ) —
< (16
e ©
(«) (>) < (17
© @ ——
“ OLUME
(=) Cb) <— 19)
CRE
| \ SHAT J
(1)OPEN/CLOSE
Press to open or close the disc tray
(2)Number buttons
(3)oTo -
Press to skip to specified title, chapter or time
(4) ANGLE
Press to change the camera angle during DVD multi-angle
scene playback
(S)SETUP
Press to display (or exit) the on-screen
(CENTER & UP/DOWN/LEFT/RIGHT
Use to navigate on-screem displays and menus.
Press ENTER to select an option or execute a command
(7)0SD DISPLAY
Press to display information about the disc playing
(8)sTOP
Press to stop the disc (you can resume playback by pressing (play))
(9)PAUSE
Press to pause playback; press again to restart
(10) ¿POWER
Press to switch the player on or into standby
(DSUBTITLE
Press to select a subtitle display
12AUDIO
—
Press to select the audio channel or language
(13MENU
Press to display the top menu of a DVD disc
—
TITLE
Press to display a DVD disc menu, or the Disc Navigator if
a DVD-RW, CD, Video CD or Mp3 disc is loaded
(I9PLAY
Press to start or resume playback
(OPREVIOUS / NEXT
. Press to jump to the start of the previous / next chapter/ track
(REVERSE/ FORWARD
Press to reverse / forward siow motion playback, frame reverse /
advance andreverse/ forward scanning.
(8Zo0M +/- BUTTONS
Press to enlarge and reduce the screen image,
(VOLUME
Press to adjust the vlume
To accommodate a wide range of home entertainment systems, this player features numerous connection
types for both audio and video, please refer to the instructions on this and the following pages to determine
the best possible type of connections for your system.
Before connecting
Refer to the instruction manuals supplied with any and all components that you plan
to-connect the DVD Player to.
Be sure to turn off the power of all components to be connected and unplug them
from the wall outlet before making any connections.
Connect the DVD Player'to the TV directly. If you connect the DVD Player to a VCR,
TV/VCR combination, or video selector, the playback picture may be distorted as
DVD Video images are copy protected.
Please note that video connections to a TV or monitor are necessary because some
discs require on-screen menu interaction before they can be played.
| Connections toa TV
Using the audio / video connection cable
Using the audio audio/video cable, make audio connections from the 5.1 CH SURROUND
ANALOG OUTPUT Land R jacks to the corresponding audio input jacks on the TV.
In the same manner, make video connection from the VIDEO OUTPUT VIDEO jack to
the corresponding video input jack on the TV.
Be sure to set Audio Setup—Speaker Setup Select to "Movie Stereo" using the
on-screen setup menu.
Note
Be sure to match the colors of the plugs on the cable with the corresponding jacks
on the DVD Player and the TV : yellow for.video, red for R (right) audio and
white for L (left) audio.
Making Connections
| Optional Video Connections
Visible improvement in DVD Video quality can be achieved by making either S-Video or
component video connections to a TV or monitor compatible with these of connections.
Note
When either S-Video or component video connection is made, it is not necessary to make
composite video connections using the yellow cord of the audio-video cable.
Making component video connections
If the TV or monitor has component video inputs, making this type of video connection
will produce the ideal picture quality for the presentation of DVD-Video. Using a component
video cable (sold separately), connect the VIDEO OUTPUT COMPONENT jacks to the
corresponding component video input jacks on the TV.
Actual labels for component video inputs may vary depending on the TV manufacturer.
(E.g. Y, R-Y, B-Y or Y, Cs, CR)
In some TVs or monitors, the colors levels of the playback picture may be reduced slightly
or the tint may change. In such a case, adjust the TV or monitor for optimum performance.
Be sure to set Audio Setup—Speaker Setup Select to "Movie Stereo” using the on-screen menu,
PROGRESSIVE outputs / inputs
Some TVs or monitors are equipped with component video inputs that are capable of
reproducing a progressively scanned video signal. Connecting to these inputs allows
you to view the highest quality pictures with less flicker.
Interlaced outputs / inputs
Some TVs or monitors are equipped with component video inputs. Connecting to these
inputs allows you to enjoy higher quality picture playback. In some TVs or monitors,
the color levels of the playback picture may be reduced slightly or the tint may change.
In such a case, adjust the TV or monitor for optimum performance.
Making S-Video connections
If the TV or monitor has an S-video input, making this type of video connection will produce
improved picture quality. Using a S-video cable, connect the VIDEO OUTPUT S-VIDEO jack
to the corresponding S-video input jack on the TV.Be sure to set Audio Setup—Speaker Setup
Select to "Movie Stereo" using the on-screen menu. |
и
| Optional Audio Connections |
This DVD Player provides numerous ways to take full advantage of the digital multi channel sound recorded
on DVD media.
When listening to CD-Audio
For full enjoyment of CD-Audio media, it is recommended to make connections to the 6-channel ANALOG
OUTPUT jacks.
Analog connections
In addition to offering two stereo outputs for connection to a stereo system, two types of muiti channel
analog outputs allow you to make connections to an AV component that features multichannel analog input
for full enjoyment of multi channel DVD-Video.
Making discrete 6-channel ANALOG QUTPUT connections
The discrete ANALOG OUTPUT jacks are intended to deliver up to 5.1 channels of multi channel audio from
DVD-Video sources. Connections can be made from the ANALOG OUTPUT FRONT, SURR (surround), CENTER,
and SUBWOOFER jacks to the corresponding input jacks on an AV component with multi channel discrete
audio input jacks.
Note
To ensure proper delivery of sound, be sure to match the names of the jacks on the DVD Player and the
component being connected to.
Making stereo audio connections
By making connections to a stereo system, you can improve the quality of the sound of cinematic
presentations as well as make effective use of the DVD Player's ability to playback CDs.
Using an audio cable (sold separately), make audio connections from the ANALOG OUTPUT L and R jacks
to the corresponding jacks on the stereo component.
Note
Be sure to match the colors of the plugs on the cable with the corresponding jacks on the
DVD Player and the stereo component : red for R (right) audio and white for L (left) audio.
Do not make connections to the PHONO or TUNER jacks on the stereo component.
Digitai connections
Make digital connections from the DVD Player to an AV component that features digital input capability
“orone or more multi-channel audio decoders to realize the full cinematic experience made possible by
the DVD format. This DVD Player features one set of optical and coaxial digital audio output jacks and
can output Dolby digital, DTS and PCM bitstreams. Make connections from the DIGITAL OUTPUT OPTICAL
jacks to the digital optical input jack on the AV component using an optical fiber cable (sold separately).
Make connections from the DIGITAL OUTPUT COAXIAL jacks to the digital coaxial input jack on the AV
component using a coaxial cable (sold separately). It is not necessary to make more than one type of
digital connection to a single component. When you are making connections to an amp or receiver that
has internal Dolby Digital, DTS, Decoding capabilities.
Getting Started
After making sure that everything is connected properly and that the playeris plugged in, press POWER
on the front panel to switch the player on.
Also, switch on your TV and make sure that it is set to the input you connected the DVD player to.
[Switching On | | | | IR |
The front panel POWER button switches the player on and off. When the player is off, it can only be
switched bank on using the same front panel button. When the player is on, you can put it into standby
.“ using the POWER button on the remote control.
| Using the on-screen displays
For ease of use, this player makes extensive use of graphical on-screen displays (OSDs). You should get
. used to the way these work as you'll need to use them when setting up the player, using some of the
playback features, such as program play, and when making more advanced settings for audio and video.
All the screens are navigated in basically the same way, using the cursor buttons to change the |
highlighted item and pressirig ENTER to select it.
| Setting up with the Setup Navigator IE | |
Using the Setup Navigator you can make a number of other initial settings for this player.
1 lfadiscis playing, press stop ose)
Also turn on your TV and make sure thatitissetto
. ” vipeoseruP | AUDIO SETUP
the correct video input. (ose
: { DISC SETUP } f HDCD SETUP )
2 Press SETUP {. DEFAULTS ) { — exrrseTuUP )
The on-screen display (OSD) appears C VIDEO SETUP >
{ DYD-6 SETUP-MENU )
CEST ANI
AUDIO SETUP
DISC SETUP HOCO SETUP
DEFAULTS EXIT SETUP
С GOTO YIDEO SETH MENU
=
|
‘3 Select Video Setup
||
Y
4: Select “TV DISPLAY"
If you have a widescreen TV, select the (Wide)
setting - widescreen DVD software is then shown
using the full screen area. When playing
software recorded in conventional (4:3) format,
the settings on your TV will determine how the
material is presented - see the manual that
came with your TV for details on what options
are available.
If you have a conventional TV, select either
NORMAL (Letter Box) or NORMAL (Pan&Scan).
In LetterBox mode, widescreen software is shown
with black bars at the top and bottom of the screen.
Pan & Scan chops the sides off widescreen
material to make it fit the NORMAL screen (so even
though the image looks larger on the screen,
you're actually seeing less of the picture).
5 Select "TV TYPE"
The default setting of this player is NTSC and
unless you notice that the picture is distorted
when playing some discs, you should leave it set
to MULTI. If you experience picture distortion
with some discs, set the TV system to match your
country or region's system,
Doing this, however, may restrict the kinds of
disc you can watch.
6 Select "Exit Setup"
Or press SETUP to quit the DVD-6 setup-menu
without making any changes.
с —VIDEO SETUP-- y
(
( VFD MODE
{ ANGLEMAxK )
CAPTIONS y
( SER SAVER )
(км PAPER }
pa
SETUP.MENL )
|| SEOTMED Y
-
uu SETTY DISPLAY MODE }
{ VIDEO SETUF— )
TY DISPLAY
GA D GR
{ FIC MODE ) y
( VFD MODE ( PAL }
( ANGLEMARK
(eme Y
[ sCrRSAYER }
( WALL PAPER }
{ SETU?:MENU )
En NINE
LU SETTVTYFE }
и TN
DVD-6 SETUP-MENU }
„сн
| VIDED SETUP ] ( AUDIO SETUP )
_————]ssÚ
RE
C EXIT SETUP-MENU )
m
Congratulation, first time setup is complete !
| (1) Playback. —_ _ me
1 Turn on the Power.
- Press the power button, the standby indicator lights turns off and the power turns on.
- When in standby mode, press the POWER button of remote control unit.
2 Press the OPEN/CLOSE button to open the disc tray. |
3 Setthe discin the disc tray.
4 Press the OPEN/CLOSE button.
- For many interactive DVDs and video CDs with playback control, a menu screen appears.
In this case use the procedure in step 6 to select the desired item.
* Interactive DVDs are DVDs including multiple angles, stories, etc.
5 Press the PLAY button.
6 Usethe cursor buttons (4 ,Y ,d and P) to select the desired item.
- For some discs there is a second menu screen. Ifso, press the bb button to display the next menu screen.
(See the disc's jacket.) |
* The cursor buttons (A, Y ,<d and p ) do not work for video CDs, Use the number buttons to select the
desired item.
7 Press the ENTER button. |
- The desired item is selected and playback starts.
- You can return to the menu screen by pressing the MENU/TITLE button while the DVD is playing,
though this depends on the disc.
- Press the PLAY button during playback of a video CD to return to the menu screen.
NOTES:
-If Y appears on the TV screen while buttons are being operated, that operation is not possible on
the DVD-6 or with that disc.
- Set the disc in the disc guide.
- Do not place more than one disc in the disc tray.
- The disc keeps turning while the menu screen is displayed on-the TV screen.
| (2) Stopping Playback
During playback, press the STOP button on the main unit or the remote control unit,
playback stops and wall paper is displayed.
"
<Resume play memory function (DVD only) >
- With the DVD-6, when the STOP button is pressed, that position is stored in the memory.
At this time," PLAY " flashes on the display. When the PLAY button is pressed after pressing the
STOP button, playback resumes from the position at which it was stopped. The resume play
memory function is cancelled if the disc tray is opened or the STOP button is pressed a second time.
- If you do not want to continue playing the disc or to save electricity press the POWER button
on the main unit to turn the power off or press the POWER OFF button on the remote control unit to
set the power to the standby mode.
| (3) Playing Still Pictures (Pausing)
During playback, press the STILL/PAUSE button on the remote control! unit.
- Press the PLAY button to resume normal playback.
| (4) Forward/Reverse Searching
During playback, press one of the REW/ FF buttons on the remote control unit,
44 : Reverse direction
pp : Forward direction
- When pressed again, the search speed increases (in four steps).
- Variable in 4 steps for CDs, 4 steps for DVD video (movie part), DVD video and video CD discs.
- Press the PLAY button to resume normal playback.
Note:
In some cases the menu screen may reappear when one of the REW/FF buttons is
pressed during menu playback on a video CD.
ACK
PLAYE
| (5) Skipping to the Beginning of Chapters or Tracks
Cueing using the SKIP button
During playback, press one of the skip buttons on the main unit or the remote control unit.
K{ : Reverse direction (PREVIOUS)
PM : Forward direction (NEXT)
- Anumber of chapters or tracks equal to the number of times the button is pressed is skipped.
- When the skip back button is pressed once, the pickup returns to the beginning of the currently
playing chapter or track.
Playing positing
к NK \¥ NZ uz M
| Chapter/track Chapter/Track | Chapter/track | Chapter/Track В
Reverse direction « — Forward direction (direction of playback)
Note :
In some cases the menu screen may reappear when one of the SKIP buttons is pressed
during menu playback on a video CD.
Cueing using the number buttons
Press the GOTO MODE button during playback.
- The GOTO mode switches each time the button is pressed.
For DVD video discs : Title __/ _ Chapter ==
For DVD video discs . Title _/ _Time_
For CDs and video CDs : GOTO _ _
*The GOTO mode set by pressing the GOTO MODE button is stored in the memory
until the button is pressed again.
However, the GOTO mode returns to the default mode when the power is turned off.
- Use the number buttons to input the number to be played.
Note:
Some DVD video and video CD discs do not operate as described .in this manual
due to the intentions of the discs’ producers.
(6) Selecting the still image | |
During playback, press the PREVIOUS or NEXT button on the remote control unit.
- On some discs the image cannot be selected due to the intentions of the discs' producers.
(7) Playing bonus groups | |
1 Inthestop mode, press the TITLE button on the remote contro! unit to set the search mode to "GROUP"
2 Use the number buttons to input the bonus group number.
- 3 Usethe number buttons on the remote control unit to input the password (3 digits),
then press the ENTER button.
- Playback starts from the first track in the specified group.
- In some cases the password must be input at the menu screen,
In these cases, follow the instructions on the screen.
- Once the password is input, the disc can be playedas many times as you want until it is removed.
- If you make a mistake when inputting the password, press the ENTER button on the remote contro! unit.
Sha ng in gt he Default S ettin e s ©
Make the initial settings to suit your usage conditions before starting playback.
The initial settings are retained until they are next changed, even if the power is turned off.
1 Turn on the power. |
- Press the power button, the power indicator lights turns off and the power turns on.
2 In the stop mode, press the SETUP button,
- The setup (default settings) screen appears.
NOTE: For some menus, the initial values can
be changed during playback.
(1) VIDEO SETUP |
(2)
(3) DISC SETUP sn (er
Use this to set the language to be used (Comm) (omer)
when playing the disc. С VIDEO SETUP >
If the set language is not offered on that
disc, the discs default language is set.
(4) HDCD SETUP
Use this to set the HDCD Digital Output
word and HDCD Digital filter.
(5) DEFAULTS
Use this to reset the factory defaults
settings.
(6) EXIT SETUP
Use this to exit the setup.
3 Use the < and » cursors buttons to select the desired setting item, then press the Enter button.
(1) Select "VIDEO SETUP". (See page 16) (2) Select "AUDIO SETUP". (See page 19)
(3) Select "DISC SETUP". (See page 23)
Use this to set the DVD-6 screen mode. |
(TV aspect and TV type.)
AUDIO SETUP
Use this to set the DVD-6 audio output
mode.
(Digital and LPCM output settings.)
* To exit the setup mode
С ‚РУр-6 БЕТОР-МЕМО В
`` —
VIDEO SETUP { AUDIDSETUP >)
| DISC SETUP } | HDCD SETUP )
(4) Select "HDCD SETUP". (See page 26)
Use the Y cursor button to select "EXIT SETUP", then press the ENTER button. It is also
possible to quit by pressing the SETUP button on the remote control unit.
| When "VIDEO SETUP" is selected
—
© See page 15.
3
4 Use the M and Y cursor buttons to select the desired setting, then press the ENTER button.
(1) TV DISPLAY
Use this to set the shape of your TV's screen.
(2) TV TYPE
Use this to set your TV's video format
(NTSC, PAL or MULTI).
(3) PIC MODE
The play DVD video, select the desired video
mode ("VIDEO", "FILM", "AUTO"). a VIDEO SETUP >
| HOAMALIPS )
AAC ER
(4) VFD MODE e ero I
Use this to select the brightness of the VFD ANGLE MARK
Display. rear
EXI 9
(5) ANGLE MARK
Use this to set the MULTI-ANGLE scenes on o" >
DVD Discs,
(6) CAPTIONS
Usethis to set whether of not to display the
closed captions recorded on DVDs.
(7) SCR SAVER
Use this to set a constant image is not
displayed for a dangerously long time.
(8) WALL PAPER
Use this to select the image to be shown on
the screen in the stop mode and CD play
mode,
Ch angi ng The Default Settings —
[ When "VIDEO SETUP" is selected
5
Use the 4 and Y cursor buttons to select the desired setting, then press the ENTER button.
(1) When "TV DISPLAY".is selected :
NORMAL / PS
Select this to play wide DVDs in the pan a
scan mode (with the sides of the picture cut
off).
Discs for which pan & scan is not specified
are played in the letter box mode.
NGRMAL / LB (Factory default)
Select this to play wide DVDs in the letter
‘box mode (with black strips at the top and
bottom).
WIDE
Select this to play wide DVDs in the
full-screen mode.
(2) When "TV TYPE" is selected:
NTSC (Factory default)
Select this when your TV's video format is
NTSC. If NTSC is selected, output format is
fixed to NTSC.
PAL
Select this when your TV's video format is
PAL. If PAL is selected, output format is
fixed to PAL.
MULTI
Select this when your TV is compatible with
both the NTSC and PAL formats.
NTSC signals are output from the video
output jacks when discs recorded in NTSC
format are played, and PAL signals are
output from the video output jacks when
discs recorded in PAL format are played.
(3) When "PIC MODE" is selected:
*
VIDEO
This mode is best suited for playing discs
containing video material.
FILM
This mode is best suited for playing discs
containing fiim material or video material
recorded with the progressive scan method.
AUTO (factory default)
The set identifies the type of material on the
disc being played (film or video) and selects
the mode automatically. This mode is suited
for playing discs containing both film and
video material.
NOTE:
TV DISPLAY
WALL PAPER
~
( - YIDED SETUP" > “à
PER AU LUE NE ( RORMAL IPT }
PIC MODE WIDE
¥FD MODE
> SCASAYER
WALL PAPER
{ SETUP-MENU )
{ SET YY DISPLAY HOOE ; >
С —УТ1Ю ЕО БЕТЫР-- >
( , SET TY TY/E )
{ =Y10EO SETUP.
TV DISPLAY
cs
TAT
( vrouope __) MODE
(батон;
SCA SAVER
{ — SETUF.MENU }
C SET PICTURE MODE >
~ |
- If stripes of noise appear on the picture or the picture isunclear when playing a
specific DVD video disc, try changing the video mode.
When "VIDEO SETUP" is selected
(4)
When "VFD MODE" is selected:
NORMAL (Factory default)
A normal brightness is set,
{ UATTILN )
MEDIUM EXILE
The brightness is set to 50% of the (Cmos)
normal setting.
OFF
The VFD display is switched off.
(5) When "ANGLE MARK" Is selected:
-
L LY VID MOL
Ud
MM
e IDU SETUP, ,
OFF |
ON (Factory default) END CRETE
If you prefer to see the camera icon az = J
on-screen during multi-angle scenes. on
. DVD discs. Change this setting to ON.
© ANCLE VANE Do? >
(6) When "CAPTIONS" is selected:
OFF (Factory default)
Select this when you do not want playing the с vo Tr >
captions on the screen when playing DVDs mom
. containing English captions
ON a
Select’this to display the captions on the ses 9
screen when playing DVDs containing
9
(8)
English captions.
When "SCR SAVER" is selected:
OFF (Factory default)
ON
If a constantimage is displayed on a
conventional CRT-Type TV, it can "burn in"
leaving a ghost image on the screen.
Switch to ON to make sure that a constant
image is not displayed for a dangerously
long time.
When "WALL PAPER" is selected:
BLUE
Select this to display a.blue background on
the TV display.
BLACK
~ Select this to display a black background on
the TV display. :
. PICTURE (Factory default) :
Select this to display the wallpaper on the
TV display.
Y IDCO SETUP-
TY DISPLAY )
TY TYFE
ИСТОР Су
{ LOREM AVL
[ —YIDED ECTUF-
* To Exit the setup mode
Use the v cursor button to select "EXIT SETUP", then press the ENTER button. Itis also possible to
quit by pressing the SETUP button on the remote control unit.
Chan ging The Default Se ttings
| When "AUDIO SETUP" is selected
See раде 15,
HW a
Use the Mand Y cursor buttons to select the desired setting, then press the ENTER button.
SPEAKER SETUP
Use this to adjust for the connected speaker
systems.
DIGITAL OUT —
Use this to select the digital output's signal CTT wesw TD
f orma t. ES THE
DIGITAL CLOCK (48kHZ/96kHZ) DIGITAL OUT
Use this to set the digital Clock output when a
playing DVDs recorded in linear PCM audio. . Comowar
COMPRESSION
Use this to set the dynamic range output when
playing discs. Cenas)
PRO LOGICII CT épars > |
Selection of PRO LOGIC II allows the user to |
enable /disable Pro Logic Il decoding on two-
channel sources to create a multi-channel
output when SPEAKER CONFIGURATION is
set to DOWNMIX OFF.
® When "SPEAKER SETUP" is selected, use the A and v cursor buttons to select the
item to be set, then pressthe ENTER button.
SPEAKER SETUP PAGE
It will available. Use the A and ¥ cursor buttons to select the
item to be set, then pressthe ENTER button.
DOWNMIX
Use this to select the multi ch or 2ch of the
different speakers.
FRONT | |
Use this to select the size of speaker,
CENTER es
Use this to select the size of speaker. ERI
SURROUND (Lena EEE EEE
Use this to select the size of speaker. (wear 5
SUBWOOFER node
Use this to select the subwoofer on or off. Cs
FRONT POSN :
Use this to set the front L & R speaker distance.
CENTER POSN — emmm >
Use this to set the center speaker distance. | —A
SURROUND POSN
Use this to set the surround L 8 R speaker distance.
TEST TONE
Use this to test the speaker position.
+ To exit the SPEAKER SETUP PAGE mode Use the Y cursor button to select "AUDIO
SETUP" then press ENTER button.
| When "AUDIO SETUP" is selected
5 Use the A and Y cursor buttons to select the desired setting, then press the ENTER button.
(1) When "DOWNMIX" is selected:
Use the 4 and Y cursor buttons to select
the item to be set, then press the ENTER
button.
a
—SPEAKER SETUP PAGE-- ,
=”
MOVIE STEREO Emme Cu)
Selected this for systems in which only I,
two speakers are connected. ora
STEREO {moron 9
Select this for systems in which only two (_sukroumorasw
speakers are connected.
OFF (Factory default)
Select this for systems in which three or с Youre J
more speakers are connected.
(2) When "FRONT", "CENTER","SURROUND","SUBWOOFER' are selected, use the A and
Y cursor to select the speakerto be set then press the ENTER button.
- The type of speaker used for the front
speakers, center speaker, subwoofer
and surround speakers can be set.
Use the A and Y cursor buttons to select
the speaker type, then press the ENTER
button.
LARG E . ( SPEAKER SETUP PAGE-- 3
Select this when a large speaker is connected. DOWNMIX
SMALL (cen
Select this when a small speaker is connected.
NONE FRONT TOS
Select this when no speaker is connected.
YES
Select this when a subwoofer is connected.
NO a SETUP FRONT SPEAKER SITE >
Select this when no subwoofer is connected.
(3) When "FRONT POSN", "CENTER POSN","SURROUND POSN" is selected, use the A and
Y cursor to set the distance from the listening position to the difference speakers then press
the ENTER button,
Use the Aand ¥ cursor buttons to set the
distance from the listening position to the
difference speakers.
0. FT/0.0M
130 FT /9.2 M
* The distance can be set within the range
of O to 30 feet (9.2 meters).
* The maximum difference in speaker
distance for which adjustment is possible
is 15 feet (4.5 meters).
>h an ging The Default Settings
| When "AUDIO SETUP" is selected
(4) When "TEST TONE" is selected, use the 4 and Y cursor buttons to select the
speaker to be adjusted.
OFF (Factory default)
ON
Use the 4 and ¥ cursor buttons to select
the test tone, then output the test tone
using the procedure described below.
Md Front speaker (L)
Center speaker
Front speaker (R)
Surround speaker (R)
Surround speaker (L)
Subwoofer
À To exit the SPEAKER SETUP PAGE mode use the Y cursor button to select "AUDIO OUTPUT",
then press ENTER button.
6 When "DIGITAL OUT" is selected :
OFF
ON (Factory default) Cr EE ——
When playing DVDs recorded in Dolby PAL LOC GE an
COMPRESSION
Digital or DTS, bitstream signals are
output terminals. When playing DVDs
recorded in linear PCM or packed PCM,
linear pcm signals are output.
Select "ON" when making digital
connections to an AV amplifier with © AED
built-in Dolby Digital and DTS decoder.
7 When "DIGITAL CLOCK" (48KHz/96KHz)” is selected :
LPCM 96K (Factory default) CC AUDIO SETUF- —
When playing linear PCM or packed PCM readin stron)
DVDs that are not copyright-protected, Er
for 2-channel PCM audio signal up to 96 kHz, (_cournesiion _)
linear PCM signal are output as such without —
being converted from the digital outputs.
When playing copyright-protected linear PCM ET
or packed PCM DVDs, in consideration of
‘copyright, no digital signals are output for COS ws ons >
sources exceeding 48kHz/16 bits. | . | |
| When "AUDIO SETUP" is selected
8
When "DIGITAL CLOCK" (48KHz/96KHz)" is selected :
LPCM 48K
Linear PCM and packed PCM signals are
converted to 44.1KHz or 48KHz and output.
(The PCM digital audio output signals are
converted to 48KHz or less in consideration
of copyrights.)
When making digital connections to and AV
amplifier thatis not compatible with 96KHz/
88.2KHz signals.
When playing DVDs recorded in linear PCM or .
packed PCM and the unit is set to output
digital and analog audio signals simultaneously,
the analog audio output signals are also
converted to 48KHz or below, so we recommend
setting to "LPCM 96K" and also making analog
connections.
When "COMPRESSION" is selected:
OFF
Select this for the standard range.
FULL (Factory default)
Select this to achieve powerful sound even
when the volume is low. This setting is
suited for watching DVDs late at night with
the volume low. (This setting is only valid
for DVDs recorded in Dolby Digital.)
When "PRO LOGIC" is selected:
OFF (Factory default)
Pro Logic decoding is off. Two-channel
sources are output only on the left and
right channel.
AUTO
Pro Logic decoding is automatically enabled
for Dolby Digital content that indicates that it
contains Pro Logic encoded material. If the
content does not contain this indication,
no Pro Logic decoding is performed and only
two-channel output on the left and right
channel is provided.
ON
Pro Logic decoding is forced on for all
two-channel content, regardless if the
content is Pro Logic encoded or not.
To exit the audio setup mode .
Use the Y cursor button to select "SETUP MENU", then press the ENTER button. Itis
also possible to quit by pressing the SETUP button on the remote control unit.
( «AUDIO SETUP. )
(DIGITAL OUT
CA
{ courzession >
POLOGIE )
C гсм 41K )
( SET LPCM OUTPUT TO AIK OR 93K >)
© «AUDIO SETUP-- >
SPEAKER SETUP
DIGITAL CLOCK, >
ÉTIENNE
FRO LOGIC
SETUF-MEHL
{ OYHAUIC RANGE COMPRESSION }
( SET PRO LOGIC ON/OFE )
C —AUDSO SETUP— )
SFÉAXER SETUF
Shan ging The Default S ettings
| When "DISC SETUP: is selected
4
2
Read page 15.
DISC DIALOG
Use this to set the language of the sound output
from the speakers.
SUBTITLE
Use this to set the language of the subtitles
displayed on the TV.
DISC MENUS
Use this to set the language of the menus recorded
on the disc (top menu, etc.)
PARENTAL
Use this to restrict playback of adult DVDs you
do not want children to view, Note that even with
adult DVDs, viewing cannot be restricted unless
the restriction level is recorded on the disc.
It is however possible to disable playback of all DVDs.
PASS-WORD
Use this to change the password.
The set's password is set to "0000" by default.
(1) When "DIALOG" is selected:
ENGLISH (Factory default)
Select this when you want to play the DVD
with the sound in English.
FRENCH
Select this when you want to play the DVD
with the sound in French.
SPANISH
Select this when you want to play the DVD
with the sound in Spanish.
GERMAN
Select this when you want to play the DVD
with the sound in German.
JAPANESE
Select this when you want to play the DVD
with the sound in Japanese.
OTHERS
Use the number buttons to input the language
number.
Use the Aand Y cursor buttons to select the desired setting, then press the ENTER button.
BRILL IER TE
SUBTITLE
DISC MENUS
=DI$C SETUF— }
CT ENGR INE
JAPANESE
ak
DISC IETUP MENU }
Use the Aand Y cursor buttons to select the desired setting, then press the ENTER button.
{ = DISC SETUP . )
gy RYT LTR
ec
SEYFREFERENRCE TO ENGLISH )
| When "DISC SETUP" is selected
О
Use the Aand ¥ cursor buttons to select the
desired setting, ‘then press the ENTER button.
(2)
(3)
<
When "SUBTITLE" is selected:
OFF
Select this if you do not want to display the
subtitles. (For some discs it is not possible
to turn off the subtitle display.)
ENGLISH (Factory default)
Select this when you want to play the DVD
with the subtitle in English.
FRENCH
Select this when you want to play the DVD
with the subtitles in French.
SPANISH:
Select this when you want to play the DVD
with the subtities in Spanish.
JAPANESE
Select this when you want to play the DVD
with the subtitles in Japanese,
OTHERS
Use the number buttons to input the language
number.
When "DISC MENUS" is selected:
ENGLISH (Factory default)
Select this when you want to display the
menus in English.
FRENCH
Select this when you want to display the
menus in French.
SPANISH
- Select this when you want to display the
menusin Spanish.
GERMAN
Select this when you want to display the
menus in German.
JAPANESE
Select this when you want to display the
menus in Japanese,
-OTHERS
Use the number buttons to input the language
number,
—
N_ —DISC SETUP )
| DISC DIALOG
Freres Pp
DISC MEHL
METIERS С
PARENTAL
SPANISH )
GERMAN
‚ JAPANESE
( sETUF-MENU )
( PREFERRED SUBTITLE LANGUAGE )
С —DISC SETUP. }
SPANISH
DERMAN
OTHERS
{ PREFERAED DISC MENMULANGUAGE >
Changing The Default S
ettings
| When "DISC SETUP" is selected
5
(4) When "PARENTAL" is selected:
1
Select this to play only DVDs for children.
(Adult and general audience DVDs cannot be
played.)
2to 8
Select this to play DVDs for general audiences
and children. Adult DVDs cannot be played.
NO_PARENTAL (Factory default)
Select this to play all DVDs,
CC —BI1SC SETUP. 3
ñ DISC DIALDD )
L SUBTITLE
(DISC MEHUS
Y LE. EC
PASSWORD
Use the number buttons to input a 4-digit password
* The set's password is set to "0000" by default.
* Do not forget the password.
* The setting cannot be changed without inputting
the correct password.
|
, then press the ENTER button.
(5) When "PASSWORD" is selected:
CHANGE
Use the number buttons to input a 4-digit
password, then press the ENTER button.
Do not forget the password.
* The setting cannot be changed without
inputting the correct password.
* The set's passwordis set to "0000" by
default.
—] ida re te LD e Le 8 em ty
oT
1 DISC SETUF— )
DISC DIALOG
t SUBTITLE
( piscmenus )
C PARENT AL У
FoR TULA TTT) pe
EAN
[o SETUP-HEKU }
———]] —————]
fe CHANGE PASSWORD >
——
To Exit the SETUP mode
Use the Y cursor button to select "SETUP-MENU", then press the ENTER button.
It is also possible to quit by pressing the SETUP button on the remove control unit.
В
| When "HDCD SETUP" is selected
1
2 See page 15.
3
A Use the A and ¥cursor buttons to select the desired setting, then press the ENTER button
HDCD SETUP |
Use this to set the HDCD Digital Output
& Digital audio Filter.
5 Use the Aand Y cursor buttons to select the desired setting, then press the ENTER button.
(1) When "HDCD SETUP" is selected:
DIG OUTPUT
Use this to select the HDCD Digital word output. —
SPDIF FILTER o
Use this to select the HDCD Digital Audio Filter. AIS AS
(2) When "DIG OUTPUT" is selected:
HDCD 16 (Factory default) с meme
HDCD Digital audio word 16 Dit signals
are output from the Digital out terminal.
HDCD 20
HDCD Digital audio word 20 bit signals
are output from the Digital out terminal.
(3) When "SPDIF FILTER" is selected:
44.1kHz (Factory default)
8 x Oversampling Digital Filter working
on Sampling Frequency Clock at 44.1kHz. иле
88.2kHz — — 5
4 x Oversampling Digital Filter working —
on Sampling Frequency Clock at 88.2kHz.
+ To Exit the HDCD setup mode
Use the Y cursor button to select "SETUP MENU”, then press the ENTER button.
It is also possible to quit by pressing the SETUP button on the remove control unit.
Maintenance,
| Maintenance
Be sure to turn the unit off and disconnect the AC power cord before servicing the unit.
Wipe the player with a dry soft cloth to dust or clean it. Ifthe surfaces are extremely
dirty, wipe it clean with a cloth which has been dipped in a weak soap-and-water solution
and wrung out thoroughly, and then wipe it-again with a dry cloth. Never use alcohol, benzine,
thinner, cleaning fluid or other harsh chemicals. We don't recommend compressed air to
remove dust,
[ Break-In-Period
3
The micro-components, capacitors and output transformers take approximately 100 hours of music
playing to fully settle in for peak performance. The DVD-6 will seem OK Sounding right out of the box.
However, after the first couple of hours you will notice increased depth and tighter bass. This break-
in period contradicts engineering theory, but is true with most High PERFORMANCE audio and video
equipments.
| Care and Cleaning
The housing and front of the DVD-6 may be cleaned with a soft cloth and windex or a window
cleaner. The frequency of cleaning will be governed by how many hours the DVD-6 is operated
and by operating environment cleanliness,
| Factory Service
Careful consideration has been given to the design of your DVD-6 Player to keep maintenance
problems to a minimum. Any problems or requests for service should be referred to our Customer
Service Department at our customer service phone number 1-919-355-0010. DO NOT return the
DVD-6 to the factory without a return authorization number (RMA) from the Customer Service.
Department.
Cary Audio Design, Inc will assume no responsibility if the shipping company refuses to pay a
damage due to your improper packing or lack of insurance should the unit be lost or damaged
inshipment. Please retain and always use the original shipping carton for shipping the player.
UNITED STATES LIMITED WARRANTY
Cary Audio Design, Inc. warrants to the original United States purchaser for use in the United States, that this
product shall be free from defects in material (except tubes and AF output transistors) or workmanship for:
Amplifiers and Preamplifiers, Three (3) years from the date of the original purchase.
Digital Products, One (1) year from original date of purchase.
During the warranty period, Cary Audio Design, Inc. or an authorized Cary Audio Design, Inc. service facility will
provide free of charge both parts (except tubes and AF output transistors) and labor necessary to correct defects in
material or workmanship.
To obtain such warranty service, the original purchaser must:
(1) Complete and send in the warranty Registration Card.
(2) Notify Cary Audio Design, Inc. as soon as possible after the discovery of a possible defect:
(a) The model number and serial number;
(b) The identity of the seller and the approximate date of purchase;
(c) A detailed description of the problem, including details on the electrical
connection in the associated equipment and the list of such equipment.
(3) Deliver the product to Cary Audio Design, Inc. or the nearest authorized service facility,
or ship the same in its original container or equivalent, fully insured and the shipping charges prepaid.
Correct maintenance, repair and use are important to obtain optimum performance from this product. Therefore,
carefully read the Operating Manual. This warranty does not apply to any defect that Cary Audio Design, Inc. in
its sole discretion determines is due to:
(1) Improper maintenance or repair, including the installation of parts or accessories that does not
conform to the quality and the specifications of the original parts.
(2) Misuse, abuse, neglect or improper installation.
(3) Accidental or incidental damage.
WARRANTY DISCLAIMER
Except for the express warranties stated herein, Cary Audio Design, Inc. disclaims all other warranties including,
without limitation, all implied warranties of merchantability and fitness for a particular purpose.
EXCLUSIVE REMEDY
Notwithstanding the foregoing, the purchaser’s exclusive remedy for any breach of warranty, express or implied,
‚is limited to the repair or replacement of the defective unit or the refund of the purchase price, at the option of
Cary Audio Design, Inc. Under no circumstances is Cary Audio Design, Inc. liable for incidental or consequential
damages. Any implied warranties imposed by law terminate one (1) year from the date of purchase.
FOREIGN PURCHASERS
Cary Audio Design, Inc. warrants its merchandise to purchasers in the United States for use in the United States. It
provides mo other warranties. If you are a foreign purchaser, consult with your dealer to determine whether your
dealer provides any warranty.
The foregoing constitutes Cary Audio Design, Inc.’s entire obligation with respect to this product, and the original
purchaser and any user or owner shall have no other claim for incidental or consequential damages. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation and
- exclusion may not apply to you.
This warranty gives legal rights and you may have other rights which vary from state to state.
1020 Goodworth Drive
Apex, NC 27539
USA
Phone: 919-355-0010 Fax: 919-355-0013
www.caryaudio.com
mmfo(@caryaudio.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
