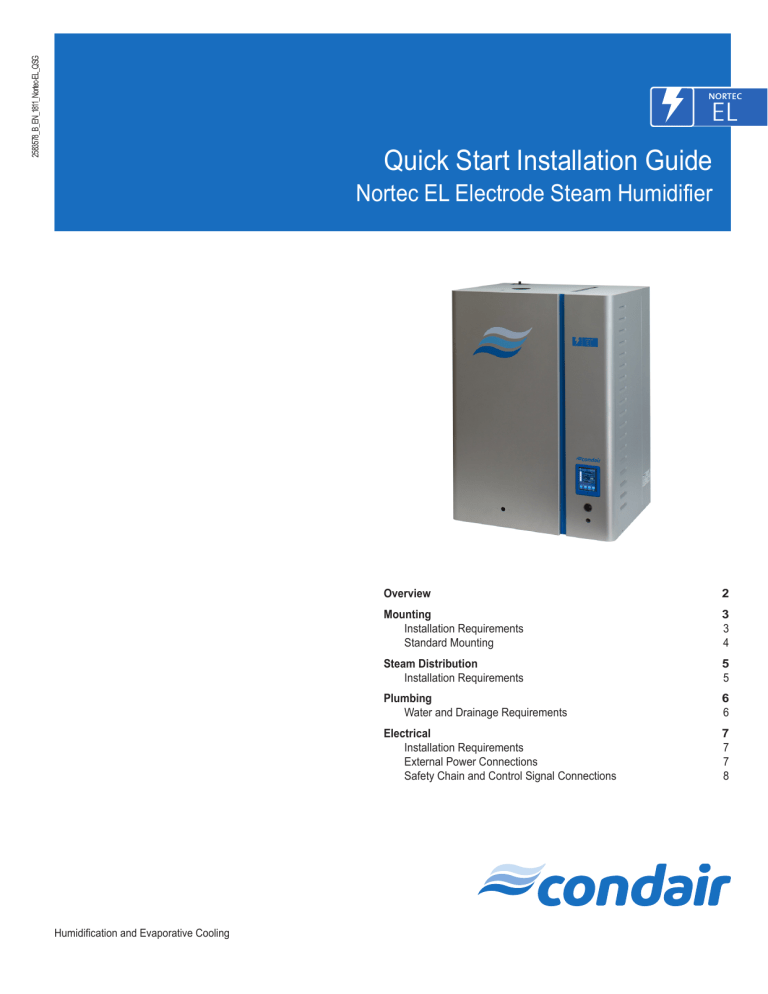

Quick Start Installation Guide
Nortec EL Electrode Steam Humidifier
Humidification and Evaporative Cooling
Overview
2
Mounting
Installation Requirements
Standard Mounting
3
3
4
Steam Distribution
Installation Requirements
5
5
Plumbing
Water and Drainage Requirements
6
6
Electrical
Installation Requirements
External Power Connections
Safety Chain and Control Signal Connections
7
7
7
8
Overview
2, 3
ft
. 10
)
(3m
min
)
-3m
in.
rm
Bno
13
0
8-1
.4
ft (2
1, 2
4
12
10
11
9
5
6
8
7
1
2
3
4
5
6
7
8
9
10
11
12
13
2
High limit On/Off humidistat (external safety chain)
Humidity sensor or modulating humidistat (used for control of the space in the return duct, high limit in the supply duct)
On/Off humidistat (used for humidity control)
Steam line
Electrical disconnect, high voltage supply
Drain line
Air gap funnel (with optional trap)
Water supply
Condensate line
Steam distributor
Air proving switch (external safety chain)
Supply air duct
Return air duct
Nortec EL
Mounting
2.
3.
4.
5.
6.
7.
The location of the humidifier depends largely on the steam distribution system. The required minimum clearances are shown on the
right. The table below shows the required minimum clearances for
a Nortec EL Space humidifier.
When choosing the location of the humidifier, install it as close as
possible to the steam distributor to minimize heat loss through the
steam line.
When possible, install the humidifier below the steam distributor.
Make sure that the selected location permits proper routing of steam
and condensate lines.
Allow adequate clearances around the humidifier for ease of maintenance. Although the Nortec EL humidifier requires no side clearance,
Condair recommends minimum clearances of 6 in (150 mm) on the
sides. A clearance of 24 in (610 mm) between the humidifier and
the ground is required. Observe all local and national installation
codes. Condair is not responsible for any installation code violations.
Do not mount the humidifier on hot surfaces, or surfaces that can
freeze, or near vibrating components, or on the floor. In addition,
the mounting surface must be able to withstand temperatures of
140-158°F (60-70°C) that can be generated during operation of
the humidifier.
The humidifier should be mounted on a wall or other suitable surface
that offers a sufficiently high load-bearing capacity.
The Nortec EL humidifier should be installed in a drip-proof location
within buildings, where the ambient temperature is 41-104°F (5-40°C)
and the relative humidity is 5-95% (non-condensing).
0 in m)
(0 m
D
0 in m)
(0 m
min
(91 . 36 i
5m n
m)
W
H
min. 24 in
(610 mm)
1.
min. 15.75 in
(400 mm)
Installation Requirements
D
D
Minimum Clearances – Nortec EL Space Humidifier
Capacity
5 lb/h
10 lb/h 20 lb/h
30 lb/h
50 lb/h
75 lb/h
100 lb/h
(2.3 kg/h) (4.5 kg/h) (9 kg/h) (13.6 kg/h) (22.7 kg/h) (34.0 kg/h) (45.4 kg/h)
Low Speed
Dimension
9 in
18 in
75 in
86 in
"A"
(0.23 m) (0.46 m) (1.91 m) (2.19 m)
(minimum)
Dimension
12 in
"B"
(0.31 m)
(minimum)
B
174 in
(4.42 m)
189 in
(4.81 m)
248 in
(6.3 m)
48 in
(1.22 m)
84 in
(2.14 m)
153 in
(3.89 m)
218 in
(5.54 m)
A
High Speed
Dimension
"A"
(minimum)
Dimension
"B"
(minimum)
Dimension
"C"
(minimum)
Dimension
"D"
(suggested)
Nortec EL
6 in
(0.16 m)
60 in
(1.53 m)
71 in
(1.81 m)
132 in
(3.36 in)
C
12 in
(0.31 m)
86.5 in
(2.2 m)
12 in
(0.31 m)
30 in
(0.77 m)
3
Mounting continued...
Standard Mounting
1.
2.
3.
4.
5.
6.
7.
Locate 2×4 wooden studs or equivalent support in the mounting
surface, and mark the attachment points “A” and “B” at the desired
position with the help of a level.
Install 1/4×2 in lag bolts (supplied by others) at attachment points
“A”. Use longer screws if going through drywall or other structural
material into the mounting surface. Allow the heads of the screws
to extend 0.25 in (5 mm) from the mounting surface so that the
humidifier can be installed on the bolts.
Remove the door panels from the humidifier.
Carefully raise and install the humidifier onto the installed lag bolts.
Align the humidifier with the help of a level, then tighten the lag bolts.
Install additional lag bolts (supplied by others) into the mounting
surface at attachment points “B”, and fasten securely.
Reinstall the door panels, and fasten them securely.
WARNING!
Heavy object – risk of injury! The small humidifier weighs 45 lb
(20 kg), and the large humidifier weights 120 lb (54 kg). Use an
appropriate lifting device, or request assistance to raise the humidifier
into position.
Dimension
Housing Size
Small
Medium
Large
X
12.0 in
(305 mm)
16.0 in
(406 mm)
16.0 in
(406 mm)
Y
17.6 in
(446 mm)
20.7 in
(526 mm)
16.8 in
(426 mm)
Refer to “Mounting the Humidifier” in the Installation Manual (Condair
document number 2582302) for other mounting arrangements, including
OSHPD (seismic) mounting arrangement.
X
A
X
A
A
B
B
Y
B
1
Large Nortec EL humidifier shown.
1
4
Lag bolt
Nortec EL
Steam Distribution
Installation Requirements
1.
2.
3.
4.
5.
6.
7.
Use steam line made of copper or stainless steel tube exclusively,
or use a Condair steam hose for short distances. Steam line made
of any other material may adversely affect the operation of the
humidifier, and will void the warranty. Refer to the table below for
steam line sizing.
To prevent excessive backpressure in the steam cylinder, the steam
line must not have any restrictions.
The steam line must run straight up from the humidifier minimum
12 in (300 mm) before any bends.
The steam line must have a constant slope – minimum upslope of
10°, or minimum downslope of 2°.
Do not merge steam lines, except at the steam distributor. Use a
Condair adaptor designed for the purpose.
Insulate the steam line with minimum 1 in (25 mm) pipe insulation.
Support the steam line so there is no load on the humidifier.
12 in
(300 mm)
8.
Install condensate lines at all low points and horizontal-to-vertical
transitions in the steam line. The condensate line should always
connect to a full size “Tee” connector, and have a minimum constant downslope of 1.2°. The trap should be located minimum 12 in
(300 mm) below the connector, and have a minimum height of 8 in
(200 mm).
9. Use 3/8 in (9.5 mm) Condair condensate hose, or 1/4 in (6.5 mm)
Med-L copper tube or 3/8 in (9.5 mm) stainless steel tube for
condensate traps.
10. Install condensate traps every 15 ft (4.5 m) in the steam line.
11. Upon completion of installation, purge the steam and condensate
lines to remove any contaminants or construction material.
12. Prime the condensate traps with water.
Refer to “Steam Line Connections“ in the Installation Manual for other
details.
2 in
(50 mm)
Minimum Upslope
o
10
Min.
12 in
(300 mm)
8 in
(200 mm)
½ in
(12 mm)
Minimum Downslope
Nortec
EL
Maximum Equiv.
Model
Length
EL005
7 ft (2 m)
EL010
12 ft (3.5 m)
EL020
17 ft (5 m)
EL030
22 ft (6.5 m)
EL050
43 ft (13 m)
EL075
EL100
47 ft (14 m)
EL150*
EL200*
50 ft (15 m)
12 in
(300 mm)
2o
1 in
(25 mm)
1.2o
Minimum
Downslope
48 in
(1.2 m)
Min.
12 in
(300 mm)
1 in
(25 mm)
8 in
(200 mm)
1.2o
Minimum
Downslope
48 in
(1.2 m)
Steam Line Sizing
MED-L
Copper Tube
3/4 in
(20 mm)
Stainless Steel Tube
Steam Losses
7/8 in × 0.049 wall
0.06 lb/h/ft
(0.09 kg/h/m)
(22 mm × 1.25 mm wall)
1-1/2 in
(40 mm)
1-3/4 in × 0.065 wall
(45 mm × 1.65 mm
wall)
1-1/2 in
(40 mm)
1-3/4 in × 0.065 wall
(45 mm × 1.65 mm wall)
0.11 lb/h/ft
(0.18 kg/h/m)
WARNING!
Risk of serious injury or damage to equipment!
Restrictions in the steam line can cause excess build-up
of backpressure which can result in serious burn injuries
or damage to equipment. Backpressure should not exceed
5.5 in H2O (1.36 kPa).
Condair Steam Hose
EL005EL030
10 ft
(3 m)
P/N 1328810 – 7/8 in (22 mm)
0.1 lb/h/ft
(0.15 kg/h/m)
EL050EL200
10 ft
(3 m)
P/N 1328820 – 1-3/4 in (45 mm)
0.15 lb/h/ft
(0.22 kg/h/m)
* Use a single steam line for each steam cylinder. Do not combine lines except at a
distributor, and only if using the steam cylinders in parallel.
Refer to the Installation Manual for over-sized steam lines for longer steam runs.
Nortec EL
5
Plumbing
Water and Drainage Requirements
1.
2.
3.
4.
5.
6.
7.
All water supply and drain connections must be installed to local
plumbing codes.
The water supply line should be minimum 1/2 in (12.7 mm) in
diameter, with a shutoff valve and a union fitting.
The water supply to the humidifier must be cold potable drinking
water (and not RO or DI water). The conductivity of the water should
be 150-1200 micro-seimens/cm (hardness 0-12 gpg, when Silica
is between 0-4 ppm, 0-3 gpg when Silica is between 4-14 ppm;
Silica content above 14 ppm is not recommended). pH should be
between 7 and 7.5.
The water supply should be filtered to 5 μm (optional, but recommended), surge-free and pressure regulated to 30-80 psig (207-550 kPa).
Water temperature should be 34-104°F (1-40°C).
The air gap funnel should be located away from the control cabinet
to keep any rising steam from damaging the electrical components
in the cabinet. The drain piping should have a minimum internal
diameter of 7/8 in (22 mm).
The flexible bent hose exiting the humidifier should be connected
to a drain line with a minimum internal diameter of 7/8 in (22 mm)
and secured with clamps.
8.
9.
The drain line should be as short as possible, and have a constant
minimum downslope of 1 in/48 in (1.2°) to the funnel without touching
its sides or bottom. Use stainless steel or plastic pipe suitable for
temperatures up to 212°F (100°C).
Drain lines from large humidifiers with dual steam cylinders must
empty into separate air gap funnels before connecting to the drain.
Combined drain line minimum 1.5 in (38 mm) I.D.
Upon completion of installation, flush the water supply and drain
lines to clear out any debris in the lines. Check the strainer in the
fill valve to ensure it is clear of all debris.
Refer to “Water Connections” in the Installation Manual for other
details.
CAUTION!
Risk of damage to the plastic threads of the fill valve. Handtighten the NPT adaptor to the fill valve.
11
10
9
4
5
8
7
1
6
5
3
2
4
1
2
3
4
5
6
6
Drain canal, 1-3/16 in (30 mm) O.D.
Hose clamp (supplied)
Flexible bent hose (supplied)
Drain line, minimum 7/8 in (22 mm) I.D.
Water supply line, minimum 1/2 in (12.7 mm)
Adaptor, 3/4 BSPP to 1/2 in NPT (supplied)
7 Inlet, fill valve (3/4 in BSPP plastic threads)
8 Air gap funnel (and optional trap)
9
Shutoff valve
10 Filter, 5 μm (optional, but recommended)
11 Union fitting
Nortec EL
Electrical
Installation Requirements
1.
2.
3.
4.
All wiring must only be done by a licensed electrician in accordance
with the wiring diagram (refer to the Installation Manual), and local
and national codes.
An external dedicated fused disconnect switch must be installed
close to the unit to allow for power interruption during servicing and/
or maintenance. The fusing must not exceed the maximum circuit
protection shown on the specification label. The optional internal
fusing is not a substitute for an external disconnect switch.
The humidifier should only be connected to primary power (main
power) after all installation work has been completed.
All cables must enter the control cabinet in the humidifier through
appropriate cable glands or grommets, and must be properly secured
to prevent fraying, or become a tripping hazard.
DANGER!
Risk of electric shock! The Condair humidifier is mains powered,
and should only be wired by a licensed electrician.
CAUTION!
Risk of damage to electronic components in the control cabinet
due to ESD (electrostatic discharge). Refer to ANSI/ESD-S20.20
for appropriate measures to prevent damage to electronic
components.
Refer to “Electrical Connections” in the Installation Manual for other details.
External Power Connections
s s s
L3 L2 L1
X0
Single-phase
External
1
External
2
3
1
s s s
L3 L2 L1
X0
Three-phase
3
1
2
3
2
External fused disconnect switch
Terminal block, power supply (XO)
Internal primary fuse, optional
Nortec EL
7
Electrical continued...
Safety Chain and Control Signal Connections
1.
2.
3.
If a blower pack is installed, then connect it to terminal points “8”
and “9” on the low voltage terminal strip. Make sure that no other
wires are connected to these terminal points. If using multiple blower
packs, make sure that they are connected in series. Install a jumper
between terminal points “8” and “9” if a blower pack is not used.
Connect external monitoring devices (for example, high limit humidistat, air proving switch, etc.) in series to terminal points “1” and “2”
on the low voltage terminal strip. Install a jumper between terminal
points “1” and “2” if external monitoring devices are not used (not
recommended).
Connect an external humidity sensor input or direct demand
modulating input to terminal points “3” and “4” on the low voltage
terminal strip. Do not connect multiple modulating signals to the
same modulating input on the humidifier. If necessary, a second
modulating signal can be connected to terminal point “5” and “3”,
using terminal point “3” as common. Note: If the cable shielding is
already connected to a potential or a grounded conductor, do not
connect it to terminal point “3”.
4.
5.
If a 24 V On/Off humidistat is used, connect the input to the terminal
points “4” and “6” on the low voltage terminal strip. When connecting
a 24 V On/Off humidistat, set the jumper JP1 on the driver board to
24 V (so that terminal point “6” will output 24 VDC).
If an external On/Off input is used to control the humidifier, connect
it to connector X11 on the driver board.
CAUTION!
Risk of damage to internal component. DO NOT apply voltage
to low voltage terminal strip terminal points “1” and “2” through the
contacts of the external On/Off devices.
8
6
LV
9
8
GND
10/24 Vdc
(+) Limit signal
(+) Control signal
(-) Signal
7
6
+
Blower pack
Safety loop
5
4
3
2
1
6
7
JP1
φ
max
1
24V
Δp
10V
External
2
5
4
3
1
2
3
4
5
6
7
8
8
Modulating demand or humidity sensor signal (additional)
Modulating demand or humidity sensor signal
24 V On/Off humidistat (jumper JP1 must be set to 24 V)
High limit humidistat
Air proving switch
Jumper
Low voltage terminal strip
Blower pack
Nortec EL
Notes
All information contained in this Quick Start Guide is for general
information purposes only. For complete Condair installation/operation recommendations for your Condair equipment, please refer to
the installation manual for your specific system, accessories, and
components.
All electrical connections must be installed in accordance with local
and national electrical code requirements by a licensed electrician.
All water supply and drain line connections must be installed in
accordance with local plumbing codes by a licensed plumber.
Condair does not accept any liability for installations of humidity
equipment installed by unqualified personnel or the use of parts/components/equipment that are not authorized or approved by Condair.
USA 835 Commerce Park Drive, Ogdensburg, NY 1366-2209
Canada 2740 Fenton Road, Ottawa, Ontario K1T 3T7
1.866.667.8321
[email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
