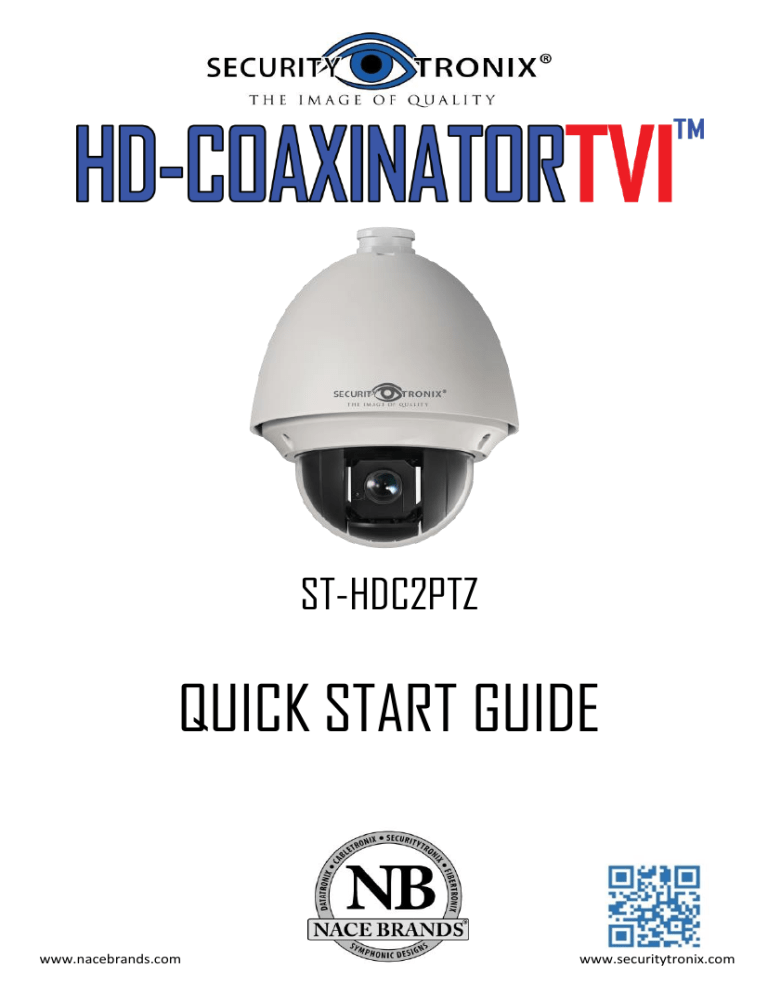

ST-HDC2PTZ
QUICK START GUIDE
www.ŶĂĐĞďƌĂŶĚƐ.com
www.securitytronix.com
ST-HDC2PTZ·Quick Start Guide
Quick Start Guide
About this Manual
This Manual is applicable to HD-COAXINATORTVI Speed Dome Cameras.
This Manual includes instructions for using and managing the product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in this Manual is subject to change, without notice, due to firmware updates or other
reasons. Please use this user manual under the guidance of professionals.
03261060707
ii
ST-HDC2PTZ·Quick Start Guide
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the
RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see:
www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the battery to your supplier or to a designated
collection point. For more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
iii
ST-HDC2PTZ·Quick Start Guide
Safety Instruction
These instructions are intended to ensure that the user can use the product correctly to avoid
danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
Warnings Follow
these safeguards to
prevent serious injury
or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Warnings
 All electronic operation should be in strict compliance with the electrical safety regulations, fire
prevention regulations and other related regulations in your local region.
 Please use the power adapter, which is provided with the camera. The standard of the power
adapter is 24VAC10% or 12VDC10% (depending on models). The power consumption cannot
be less than the required value.
 Do not connect several devices to one power adapter as adapter overload may cause over-heat
or fire hazard.
 Please make sure that the power has been disconnected before you wire, install or dismantle the
speed dome.
 When the product is installed on wall or ceiling, the device shall be firmly fixed.
 If smoke, odors or noise rise from the device, turn off the power at once and unplug the power
cable, and contact support for further assistance.
 If the product does not work properly, please contact your dealer or the nearest service center.
Never attempt to disassemble the speed dome yourself. (We shall not assume any responsibility
for problems caused by unauthorized repair or maintenance.)
Cautions
 Do not drop the dome or subject it to physical shock, and do not expose it to high
electromagnetic radiation. Avoid installing the equipment on surfaces subject to shock or
vibration (failure to do so can cause equipment damage).
 Do not place the dome in extremely hot, cold, dusty or damp locations, otherwise fire or
electrical shock may occur. The operating temperature should be -22°F ~ 149°F(outdoor speed
dome) and -14°F ~ 122°F (indoor speed dome).
 The indoor dome cover should be protected from rain and moisture.
 Exposing the equipment to direct sun light, low ventilation or a heat source such as heater or
radiator should be avoided (failure to do so could cause a fire hazzard).
iv
ST-HDC2PTZ·Quick Start Guide
 Do not aim the speed dome at the sun or extremely bright scenes. A blooming or smear may
occur (which is not a malfunction), and affecting the longevity of sensor at the same time.
 Please use the provided glove when opening up the dome cover, avoid direct contact with the
dome cover, because the acidic sweat of the fingers may erode the surface coating of the dome
cover.
 Please use a soft and dry cloth when cleaning inside and outside surfaces of the dome cover, do
not use alkaline detergents.
 Please keep all wrappers after unpacking them for future use. In case of any failure, you will need
to return the speed dome to the factory with original packaging to prevent to damage to the
camera while in transit.
 For further assistance, or if you encounter any issue while using this product, please contact your
distributor or Securitytronix at: 800-688-9282 Press 3 for support, then 2 for CCTV.
v
ST-HDC2PTZ·Quick Start Guide
Table of Contents
1 Installation ........................................................................................................ 1
1.1 Connecting the Cables .............................................................................................................. 1
1.2 DIP Switch Settings ................................................................................................................... 2
1.2.1 5-inch Speed Dome Settings .............................................................................................. 2
1.2.2 5-inch IR & Mini IR Speed Dome Settings .......................................................................... 4
1.2.3 7-inch IR Speed Dome Settings .......................................................................................... 7
1.2.4 Mini Speed Dome Settings ................................................................................................ 9
1.3 Wiring and Installation ........................................................................................................... 11
1.3.1 Wiring .............................................................................................................................. 11
1.3.2 Installing the Bracket ....................................................................................................... 12
1.3.3 Setting the DIP Switch ..................................................................................................... 13
1.3.4 Installing the Speed Dome ............................................................................................... 13
2 In-door Mounting Applications....................................................................... 14
2.1 5-inch Speed Dome In-ceiling Mounting Applications ............................................................ 14
2.2 5-inch Speed Dome Ceiling Mounting Applications ................................................................ 16
2.2.1 Removing the Mounting Bracket ..................................................................................... 16
2.2.2 Wiring .............................................................................................................................. 17
2.2.3 Ceiling Mounting ............................................................................................................. 18
2.3 Mini Speed Dome In-ceiling Mounting Applications............................................................... 20
2.4 Mini Speed Dome Ceiling Mounting Applications .................................................................. 22
2.4.1 Wiring .............................................................................................................................. 22
2.4.2 Ceiling Mounting ............................................................................................................. 22
3 Application and Operations ............................................................................ 24
3.1 System Application ................................................................................................................. 24
3.2 Basic Operations ..................................................................................................................... 24
3.2.1 Configuring Patrol ............................................................................................................ 25
3.2.2 Configuring Park Actions ................................................................................................. 28
4 Troubleshooting .............................................................................................. 30
4.1 Device Exceptions ................................................................................................................... 30
4.2 PTZ Control Exceptions ........................................................................................................... 30
4.3 Other Questions ..................................................................................................................... 30
vi
ST-HDC2PTZ·Quick Start Guide
1 Installation
Before you start:
Check the package contents and make sure that the device in the package is in good condition and
all the assembly parts are included.
There are several ways to install the HDC-TVI speed dome. The wall mounting is taken as an
example below.
1.1 Connecting the Cables
Please turn the power off before connecting the cables.
The cable interfaces of speed dome are shown in following figure. The cables are distinguished by
different colors. The labels attached on the cables are for identification.
The cables may vary according to different camera models. Please refer to the actual device.
Power Supply
AC
HD-TVI Video Output
VID E O
CVBS Video Output
VID E O
G
D
W/
RE
O
LL
K
YE
AC
BL
RS485
R4
YE
LL
OR
OW
AN
85
R4
RE
EN
24
V
2
AC
4V
-
85
+
GE
Alarm
Figure 1-1 Cables
Table 1-1 Cables Description
Name
Description
Power Supply
24V AC/ 12V DC
HDC-TVI Video Output
HDC-TVI and coaxial video output
CVBS Video Output
SD analog video output
RS485
RS 485 control
Alarm
Alarm input and alarm output
1
ST-HDC2PTZ·Quick Start Guide
1.2 DIP Switch Settings
1.2.1 5-inch Speed Dome Settings
The DIP switch is used for setting the address and baudrate for the speed dome, with value ON=1
and OFF=0.
The SW1 switches from the first to the eighth are used to set the address. The SW2 switches are
used to set the baudrate.
The default dome address is 0. The default baudrate is 2400.
DIP Switch
12345678 1
2
Figure 1-2 DIP Switch Settings for 5-inch Outdoor Speed Dome
DIP Switch
1234567
8
12
Figure 1-3 DIP Switch Settings for 5-inch Indoor Speed Dome
Figure 1-4 Enlarged View of DIP Switch

Address Settings
The SW1 switches from 1 to 5 are used for setting the address of speed dome. You can refer to
Table 1-2 for details of setting the speed dome address to a specific number.
2
ST-HDC2PTZ·Quick Start Guide
Table 1-2 Set the Dome Address
Switch No.
Dome Address
1
2
3
4
5
0
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
…
…
…
…
…
…
31
ON
ON
ON
ON
ON
 Protocol Settings
The number 6 and 7 of SW1 switches are for setting the protocol of the speed dome. You can refer
to Table 1-3 for details of setting the speed dome protocol.
Table 1-3 Set the Protocol of the Dome
Switch No.
6
7
Self-adaptive
OFF
OFF
PELCO_D
ON
OFF
MAN_BOSCH
OFF
ON
MAN_AD
ON
ON
Protocol
 TVI Mode Settings
The number 8 of SW1 switches is for setting the TVI mode of the speed dome. You can refer to
Table 1-4 for details of TVI mode settings.
Table 1-4 Set the TVI Mode
Switch No.
TVI Mode
8
V2.0
OFF
V1.0
ON
 Baudrate Settings
The number 1 and 2 SW2 switches are used for setting the baudrate of the speed dome. The
baudrate can be 2400bps, 4800bps, 9600bps and 19200bps. The baudrate will be set as 2400bps by
default if it is out of this range. Refer to the following table:
3
ST-HDC2PTZ·Quick Start Guide
Table 1-5 Set the Baudrate of the Dome
Switch No.
Baudrate
1
2
2400
OFF
OFF
4800
ON
OFF
9600
OFF
ON
19200
ON
ON
1.2.2 5-inch IR & Mini IR Speed Dome Settings
The DIP switch is for setting the speed dome address, baudrate, protocol, etc., with value ON=1 and
OFF=0. The switch label of the 5-inch IR speed dome is on the back of the SWITCH cover as shown
in Figure 1-5. The DIP switch of mini IR speed dome is shown in Figure 1-6.
Screws
Switch Cover
DIP Switch
Figure 1-5 Position of DIP Switch for 5-inch IR Speed Dome

DIP Switch Location of Mini IR Speed Dome
DIP Switch
Screws
Figure 1-6 DIP Switch of Mini IR Speed Dome

Setting DIP Switch
4
ST-HDC2PTZ·Quick Start Guide
ON
ON
1
2
DIP
1
2
3
4
5
6
7
8
9
10
Figure 1-7 Enlarged View of DIP Switch


For some certain models, the two individual DIP switches at the left side of the Figure 1-7 are
supported for turning on/off the terminator; while other models are not supported.
The default dome address is 0; the default baudrate is 2400; and the default value of the 120Ω
terminator is OFF.
Table 1-6 Switch Functions
Switch
Function
1 to 5
Set the address for the speed dome
6, 7
Set the baudrate for the speed dome
8
Set the protocol for the speed dome
9
Set the TVI mode for the speed dome
10
Set the terminal resistor for the speed dome
The DIP switch is designed according to binary system. When the switch is ON, it stands for the
number 1. When the switch is OFF, it stands for the number 0.
Example:
The switches from No. 1 to 5 are used to set the speed dome address. No. 1 is the lowest digit and
No. 5 is the highest. Turning on all these 5 switches stands for the binary number 11111. Converting
the 11111 to a decimal number is 31. So the speed dome address will be 31.
 Address List
For convenient settings, refer to the following list to set the address for the speed domes.
Table 1-7 Dome Address
Switch No.
Dome Address
1
2
3
4
5
0
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
…
…
…
…
…
…
31
ON
ON
ON
ON
ON
5
ST-HDC2PTZ·Quick Start Guide
 Baudrate List
For convenient settings, refer to the following list to set the baudrate for the speed dome. The
baudrate will be set as 2400bps by default.
Table 1-8 Baudrate
Switch
6
7
OFF
OFF
4800
ON
OFF
9600
OFF
ON
19200
ON
ON
Baudrate
2400
 Protocol List
For convenient settings, refer to the following list to set the protocol for the speed dome.
Table 1-9 Protocol
Protocol
8
Self-adaptive
OFF
MAN_AD
ON
 TVI Mode
Table 1-10 TVI Mode
TVI Mode
9
V2.0
OFF
V1.0
ON
The speed dome is self-adaptive to private protocol when the No.8 and 9 switches are both
OFF.
 Terminal Resistor
Table 1-11 Terminal Resistor
Terminal Matching Resistance
10
Turn on the Resistor
ON
Turn off the Resistor
OFF
6
ST-HDC2PTZ·Quick Start Guide
1.2.3 7-inch IR Speed Dome Settings
Two DIP switches SW1 and SW2 are for setting the speed dome address, baudrate, protocol, etc.,
with value ON=1 and OFF=0. The switch label is on the back of the SWITCH cover as shown in Figure
1-8.
Each number of the switch represents a DIP value, ranging from 1 to 8 for the lowest to highest.
SW1
SW2
Figure 1-8 Label of DIP Switch for IR Speed Dome
ON
ON
SW2
SW1
1
2
3
4
5
6
7
1
8
2
3
4
5
6
7
8
Figure 1-9 Enlarged View of DIP Switch
The default dome address is 0; the default baudrate is 2400; and the default value of the 120Ω
terminator is OFF.
 Address Settings
The SW1 switches are used for setting the address of speed dome. You can refer to Table 1-12 for
details of setting the speed dome address to a specific number.
Table 1-12 Set the Dome Address
Dome Address
1
2
3
4
5
6
7
8
0
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
...
...
...
...
...
...
...
...
...
255
ON
ON
ON
ON
ON
ON
ON
ON
7
ST-HDC2PTZ·Quick Start Guide
 Baudrate Settings
The No. 1, 2 of SW2 switches are for setting the baudrate of the speed dome, standing for 2400bps,
4800bps, 9600bps and 19200bps respectively. The baudrate will be set to 2400bps by default if it is
out of this range, refer to the following table:
Table 1-13 Set the Baudrate of the Dome
DIP Switch SW2-Baudrate Settings
Baudrate
1
2
2400
ON
OFF
4800
OFF
ON
9600
ON
ON
19200
OFF
OFF
 Protocol Settings
For convenient settings, refer to the following list to set the protocol for the speed dome.
Table 1-14 Set the Protocol of the Dome
DIP Switch SW2-Protocol Settings
Protocol
3
4
5
Self-adaptive
OFF
OFF
OFF
PELCO_P
ON
OFF
OFF
PELCO_D
OFF
ON
OFF
HIKVISION
ON
ON
OFF
KALATE
OFF
OFF
ON
VICON
ON
OFF
ON
MAN_BOSCH
OFF
ON
ON
MAN_AD
ON
ON
ON
 TVI Mode Settings
The No. 7 of SW2 switches is for setting the TVI mode of the speed dome. You can refer to the
following table for details of setting the speed dome TVI mode.
Table 1-15 Set the TVI Mode
TVI Mode
7
V2.0
OFF
V1.0
ON
8
ST-HDC2PTZ·Quick Start Guide
 Terminal Resistor Settings
The No. 8 of SW2 switches is used for turning on/off the 120Ω terminal resistor.
Table 1-16 Set Terminal Resistor
Terminal Matching Resistance
8
Turn on the Resistor
ON
Turn off the Resistor
OFF
The o-ring in the groove of the switch cover is for waterproof.
1.2.4 Mini Speed Dome Settings

DIP Switch Location of Mini HDC-TVI Speed Dome
DIP Switch
Figure 1-10 DIP Switch of Mini HDC-TVI Speed Dome

Setting DIP Switch
ON
ON
1
2
1
DIP
2
3
4
5
6
7
8
9
10
Figure 1-11 Enlarged View of DIP Switch
Table 1-17 Switch Functions
Switch No.
Function
1 to 5 (SW1)
Set the address for the speed dome
6, 7 (SW1)
Set the baudrate for the speed dome
8, 9 (SW1)
Set the protocol for the speed dome
10 (SW1)
Set the TVI mode for the speed dome
1,2 (SW2)
Set the terminal resistor for the speed dome
9
ST-HDC2PTZ·Quick Start Guide
The DIP switch is designed according to binary system. When the switch is ON, it stands for the
number 1. When the switch is OFF, it stands for the number 0.
Example:
The SW1 switches from No. 1 to 5 are used to set the speed dome address. No. 1 is the lowest digit
and No. 5 is the highest. Turning on all these 5 switches stands for the binary number 11111.
Converting the 11111 to a decimal number is 31. So the speed dome address will be 31.

Address List
For convenient settings, refer to the following list to set the address for the speed domes.
Table 1-18 Dome Address
Switch No.
1
2
3
4
5
0
OFF
OFF
OFF
OFF
OFF
1
ON
OFF
OFF
OFF
OFF
2
OFF
ON
OFF
OFF
OFF
3
ON
ON
OFF
OFF
OFF
…
…
…
…
…
…
31
ON
ON
ON
ON
ON
Dome Address

Baudrate List
For convenient settings, refer to the following list to set the baudrate for the speed dome. The
baudrate will be set as 2400bps by default if it is out of this range.
Table 1-19 Baudrate
Switch No.
6
7
2400
OFF
OFF
4800
ON
OFF
9600
OFF
ON
19200
ON
ON
Baudrate

Protocol List
For convenient settings, refer to the following list to set the protocol for the speed dome.
10
ST-HDC2PTZ·Quick Start Guide
Table 1-20 Protocol
Switch No.
8
9
Self-adaptive
OFF
OFF
Pelco_P
ON
OFF
Protocol
The speed dome is self-adaptive to private protocol when the No.8 and 9 switches are both
OFF.
 TVI Mode
For convenient settings, refer to the following list to set the TVI mode of the speed dome.
Table 1-21 TVI Mode

Switch No.
TVI Mode
10
V2.0
OFF
V1.0
ON
Terminal Resistor
Table 1-22 Terminal Resistor
Switch No.
1
2
Turn on the Resistor
ON
ON
Turn off the Resistor
OFF
OFF
1.3 Wiring and Installation
There are several ways to install the speed dome. The wall mounting is taken as an example below.
1.3.1 Wiring
Surveying of the installation environment and wire planning is highly recommended before actual
deployment of the wire is implemented in order to provide a safe and steady power supply and a
reasonable wiring route.
 Get familiar with the installation environment before deploying the wire, including the wiring
distance, surrounding, and electromagnetic interference and so on.
 Please choose the cable with nominal voltage higher than the actual voltage, to ensure normal
operation.
 To protect the power cable and the signal transmitting cable from human tampering, you
11
ST-HDC2PTZ·Quick Start Guide

should pay attention to the routing and reinforcement of the cables.
When deploying the wire, please do not over tighten the wires or leave the wire loose.
*The wiring of the speed dome camera should be performed by professionals.
1.3.2 Installing the Bracket
Before you start:
Wall mounting is applicable for indoor/outdoor solid wall construction. The following are the
mandatory conditions for wall mounting:
 The wall must be thick enough to install the expansion screws.
 Please make sure that the wall is strong enough to withstand more than 8 times the weight of
the dome and the mount.
Steps:
1. Check whether the type of the bracket and the number of accessories are right, as shown in
the figure below.
Figure 1-12 Wall Mount Bracket, Nuts and Flat Washers
2.
Drill 4 screw holes in the wall according to the holes of the mount, and then insert M8
expansion screws (not supplied) into the mounting holes.
Figure 1-13 Drill Mounting Holes
3.
4.
Attach the wall mount to the wall by aligning the 4 screw holes of the mount with expansion
screws on the wall.
Secure the wall mount with 4 hex nuts and washers.
Figure 1-14 Secure the Mount
12
ST-HDC2PTZ·Quick Start Guide
5.
Install the speed dome to the mount. Please refer to Section 1.3.4 Installing the Speed Dome
for installation details.
Follow the same instructions described above for the short-arm wall mounting. For outdoor
applications, please ensure water proofing measures are taken. The short-arm wall mount is
not optimal for outdoor applications.
1.3.3 Setting the DIP Switch
Set the address and baudrate for the speed dome. The default value of DIP switch is shown below:
 Address: 0
 Baudrate:2400
 Terminal Resistor: OFF
Please refer to the Section 1.2 DIP Switch Settings for DIP switch settings.
1.3.4 Installing the Speed Dome
The sketches of installing the speed dome are for reference only.
Steps:
1. Hang the safety rope to the speed dome and then hook to the mount as shown in Figure
1-15(left).
2. Route the cables of the speed dome through the wall mount.
3. Connect the corresponding video/power/RS-485 cables.
4. Install the speed dome to the mount, and secure the speed dome by rotating the speed dome
clockwise.
5. Fasten the two lock screws with the Allen wrench, as shown in Figure 1-15(right).
①
②
③
Figure 1-15 Install the Speed Dome
13
ST-HDC2PTZ·Quick Start Guide
2 In-door Mounting Applications
Before you start:
 For cement wall, you need to use expansion screws to fix the mount. The mounting hole of the
expansion pipe on the wall should align with the mounting hole on the mount.
 For wooden wall, you can just use the self-tapping screw to fix the mount.
2.1 5-inch Speed Dome In-ceiling Mounting
Applications
Before you start:
The in-ceiling mounting is applicable for ceiling construction. The following are mandatory
conditions for mounting:
 The height of the space above the ceiling must be more than 250mm.
 The thickness of the ceiling must range between 5 and 40mm.
 The ceiling must be strong enough to withstand more than 4 times the weight of the dome and
its accessories.
Steps:
1. Rotate the lower dome counterclockwise to separate it from the back box as shown in Figure 2-1.
2. Remove the protective lens cover, foam and sticker from the dome drive.
3. Set the address and baudrate for the HDC-TVI speed dome. Please refer to the Section 1.2.1
5-inch Speed Dome Settings for DIP switch settings.
4. Attach lower dome to the back box, and rotate clockwise to secure it.
Protective Foam
Back Box
Lower Dome
Sticker
Figure 2-1 Remove the Protective Accessory
5. Drill a hole on the ceiling according to the drill template (supplied).
±2mm of the diameter of the circle is tolerable.
14
ST-HDC2PTZ·Quick Start Guide
Figure 2-2 Draw and Cut Hole on the Ceiling
6. Connect the cables.
Make sure the video cable and control wire have been connected to the corresponding interfaces.
Connect the power cable and the red LED indicator turns on when the power is on.
Please turn the power off after checking the speed dome.
7. Install the speed dome.
(1) Loosen the two lock screws on both sides of the back box and make the locks in internal
position, as shown in the following figure:
Lock
Lock
Figure 2-3 Locks and Lock Screws
(2) Push the back box into the mounting hole in the ceiling
(3) Tighten the lock screws with the screwdriver and the locks will automatically rotate outwards
to secure the in-ceiling mount to the ceiling.
Ceiling
Lock
Lock
Figure 2-4 Install the back box
15
ST-HDC2PTZ·Quick Start Guide
8. Install the trim ring.
(1) Attach the trim ring to the lower dome and align the triangular notch of the trim ring with
the arrow label on the in-ceiling mount.
(2) After having firmly placed the trim ring to the ceiling, rotate the trim ring in the direction of
arrow to secure the trim ring in place.


Please remove the protective film on the lower dome after the installation is finished.
In order to obtain clear video images, please wear anti-static gloves when you install the speed
dome.
Arrow Label
Notch
Figure 2-5 Install the Trim Ring
2.2 5-inch Speed Dome Ceiling Mounting Applications
Before you start:
The ceiling mounting is applicable for indoor/outdoor solid ceiling construction. The following are
the mandatory conditions for ceiling mounting:
 The thickness of the ceiling must range between 5 and 40mm.
 The ceiling must be strong enough to withstand more than 4 times the weight of the dome and
its accessories.
2.2.1 Removing the Mounting Bracket
It is required to modify the external structure of the in-ceiling mount speed dome before the
operation of ceiling mounting.
Steps:
1. Remove the 4 screws on the back box by a Phillips screwdriver.
16
ST-HDC2PTZ·Quick Start Guide
Figure 2-6 Remove 4 screws
2.
Remove the in-ceiling mounting bracket.
Figure 2-7 Remove the in-ceiling mounting bracket
3.
Screw 4 bolts onto the back box by a Phillips screwdriver.
Figure 2-8 Install the bolts
2.2.2 Wiring
The cables of dome can be routed either from the top or the side of the back box. For the cables
routed from the top of the back box, it is required to drill a cable hole in the ceiling.
17
ST-HDC2PTZ·Quick Start Guide
Figure 2-9 Cabling for Ceiling Mounting
2.2.3 Ceiling Mounting
Steps:
1. Rotate the lower dome counterclockwise to separate it from the back box. Refer to the Figure
2-1.
2. Remove the protective lens cover, foam and sticker from the dome drive.
3. Set the address and baudrate for the HDC-TVI speed dome. Please refer to the Section 1.2.1
5-inch Speed Dome Settings for DIP switch settings.
4. Attach lower dome to the back box, and rotate clockwise to secure it.
5. Use the mounting base as a template to mark four screw holes onto the ceiling.
6. If you route cables from the top of the back box, mark the cable hole on the ceiling and drill a
hole.
Figure 2-10 Mark the Screw Positions
7.
Secure the mounting base to the ceiling with set screws.
 If the speed dome is installed to a wooden wall, use the self-tapping screws to secure the
mounting base.
 If the dome is installed to the cement wall, drill three Φ5 mounting holes onto the wall
according to the hole locations, and then insert the cement screws into the holes and
finally use self-tapping screws to secure the mounting base to the wall.
18
ST-HDC2PTZ·Quick Start Guide
Screw Holes
Cable Hole
Figure 2-11 Secure the Mounting Base
8.
Install the speed dome to the mounting base.
(1) Route the cables for the speed dome. Align the bottom of the speed dome with the
mounting base.
(2) Line up the direction of arrow with the spring end of the mounting base.
(3) Push the speed dome upwards and then forwards in the direction of arrow. When the speed
dome is placed in position, the spring will automatically snap into the lock clip firmly. Refer
to the following figure.
② Push Forwards
Spring
Line up
Lock Clip
①
Push Upwards
Figure 2-12 Attach the Back Box to the Mounting Base


Please remove the protective film on the lower dome after the installation is finished.
Do avoid direct hand contact with the dome cover to prevent image distortion.
19
ST-HDC2PTZ·Quick Start Guide
2.3 Mini Speed Dome In-ceiling Mounting Applications
Before you start:
The in-ceiling mounting is applicable for indoor ceiling construction. The following are the
mandatory conditions for mounting:
 The height of the space above the ceiling must be more than 250mm.
 The ceiling must be between 5 and 40mm in thickness.
 The ceiling must be strong enough to withstand more than 4 times the weight of the dome and
its accessories.
Steps:
1. Drill holes in the ceiling.
(1) Attach the drill template to the ceiling where you need to install the speed dome.
(2) Cut a hole and drill screw holes according to the drill template.
±2mm of the diameter of the circle is tolerable.
Ф129
Ф11
Figure 2-13 Drill Holes
2.
Disassemble the speed dome.
(1) Loosen three screws as shown in the following figure.
(2) Remove the lower dome.
(3) Loosen three screws and remove the back box.
(4) Remove the protective lens cover, foam and sticker from the dome drive.
Protective Foam
Notch
Lower Dome
Back Box
Sticker
Figure 2-14 Disassemble the Speed Dome
3.
Install the toggle bolts.
(1) Remove the toggle from the toggle bolt.
(2) Insert the bolts into the screw holes on the dome.
20
ST-HDC2PTZ·Quick Start Guide
(3)
(4)
Rotate the bolts through the screw holes.
Reinstall the toggles as shown in Figure 2-15.
Toggle
Bolt
Figure 2-15 Install the Toggle Bolts
4.
5.
6.
Align the toggle bolts with the screw holes on the ceiling.
Push the dome to the mounting hole on the ceiling.
Rotate the bolts again. The toggle will automatically rotate down to secure the dome to the
ceiling.
Ceiling
Toggle
Figure 2-16 Install the Dome to the Ceiling
7.
Secure the lower dome to the back box with three screws as shown in Figure 2-17.
Screws
Figure 2-17 Install the Lower Dome
8.
Route the cables through the ceiling for the speed dome. Please refer to the section 1.1
Connecting the Cables to connect the cables.
21
ST-HDC2PTZ·Quick Start Guide
2.4 Mini Speed Dome Ceiling Mounting Applications
Before you start:
The ceiling mounting is applicable for indoor/outdoor solid ceiling construction. The following are
the mandatory conditions for ceiling mounting:
 The ceiling must be between 5mm and 40mm in thickness.
 The ceiling must be strong enough to withstand more than 4 times the weight of the dome and
its accessories.
2.4.1 Wiring
The cables of dome can be routed either from the top or the side of the back box, as shown in
Figure 2-18. For the cables routed from the top of the back box, it is required to drill a cable hole in
the ceiling.
Figure 2-18 Cabling for Ceiling Mounting
2.4.2 Ceiling Mounting
Steps:
1. Drill Screw holes in the ceiling.
(1) Attach the drill template to the ceiling where you need to install the speed dome.
(2) Drill screw holes and a cable hole (optional) according to the drill template.
Figure 2-19 Drill Template
2.
Disassemble the speed dome.
(1) Loosen three screws on the notch.
(2) Remove the lower dome.
(3) Remove the protective lens cover, foam and sticker from the dome drive as shown in
Figure 2-20.
22
ST-HDC2PTZ·Quick Start Guide
Protective Foam
Notch
Lower Dome
Lens Cover
Sticker
Figure 2-20 Disassemble the Speed Dome
3.
4.
Attach lower dome to the back box, and secure it with screws.
Align the ceiling mount with the screw holes on the drill template. Secure the ceiling mount to
the ceiling with screws (supplied).
Ceiling
Figure 2-21 Install Ceiling Mount
5.
6.
Align the hook of the ceiling with unlock label on the speed dome.
Push the speed dome to the ceiling mount and rotate clockwise to secure it.
Align
Unlock Label
Figure 2-22 Install Speed Dome


For cement ceiling mounting, you need to use expansion screws to fix the mount. The
mounting hole of the expansion pipe on the wall should align with the mounting hole on the
mount.
For wooden ceiling mounting, you can just use self-tapping screws to fix the bracket.
23
ST-HDC2PTZ·Quick Start Guide
3 Application and Operations
3.1 System Application
The device can be controlled through the back-end device or control software. The back-end device
includes control keyboard, HDC-TVI (TVI Video Recorder), etc., and the control software includes
client software. Here we take the connection of a TVR as an example.
SYV
RS485 Cable
Speed Dome
DVR
Monitor
Figure 3-1 System Application


If both the speed dome and the DVR support CoC (Control over Coaxial cable), the RS485
cable is not necessary.
The HDC-TVI video output can only be connected to specific HD-TVI DVR.
3.2 Basic Operations
Make sure the speed dome is connected properly, and the following basic operations are
functioning:
Panning and tilting:
Click the direction buttons to control the pan and tilt movement of the speed dome.
Zooming:
Click the ZOOM+ and ZOOM- buttons to control the zoom.
Focusing:
Click the FOCUS+ and FOCUS- buttons to adjust the focus.
Iris:
Click the IRIS+ and IRIS- buttons to adjust the iris.
Preset control:
The speed dome supports the preset function, and the configurable preset range varies according
to the control system. The system menu pops up after you call the No.95 preset
The main menu interface is shown as follows:
24
ST-HDC2PTZ·Quick Start Guide
MAIN MENUS
<SYSTEM INFO>
<DOME SETTINGS>
<RESTORE SETTINGS>
<RESTORE CAMERA>
<REBOOT DOME>
<LANGUAGE>
EXIT
ENGLISH
Figure 3-2 Main Menu
Refer to the full user’s manual for the detailed instruction on setting the speed dome.
3.2.1 Configuring Patrol
You can set the patrol function by the DVR and OSD menu, as well as the one-touch patrol can be
configured.
 Configuring Patrol by DVR
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ
Figure 3-3 PTZ Settings
2. Select patrol No. in the drop-down list of patrol.
3. Click the Set button to add key points for the patrol.
25
ST-HDC2PTZ·Quick Start Guide
Figure 3-4 Key point Configuration
4. Configure key point parameters, such as the key point No., duration of staying for one key
point and speed of patrol. The key point is corresponding to the preset. The Key Point No.
determines the order at which the PTZ will follow while cycling through the patrol. The
Duration refers to the dwell time of the corresponding key point. The Speed defines the speed
at which the PTZ will move from one key point to the next.
5. Click the Add button to add the next key point to the patrol, or you can click the OK button to
save the key point to the patrol.
You can delete all the key points by clicking the Clear button for the selected patrol, or click
the Clear All button to delete all the key points for all patrols.
 Configuring Patrol by OSD Menu
Steps:
1. Call the preset 95 to enter the main menu and move the cursor to enter patrol configuration
submenu:
MAIN MENU > DOME SETTINGS > PATROLS
PATROLS
PATROL NO.
1
EDIT PATROL
PREVIEW
CLEAR PATROL
PATROL_D
BACK
30S
EXIT
Figure 3-5 Patrol Configuration Menu
2.
Choose the patrol number.
(1) Move the cursor to PATROL NO. and click IRIS+ to enter edit mode.
(2) Click the up and down direction buttons to select the number of the patrol which is to
be configured.
(3) Click IRIS+ again to confirm the settings and exit edit mode of this column.
26
ST-HDC2PTZ·Quick Start Guide
3.
Up to 8 patrols can be configured.
Edit the patrol.
(1) Move the cursor to EDIT PATROL and click IRIS+ to enter edit mode.
NUM PST
DWELL
SPEED
1
0
6
30
2
3
0
0
6
6
30
30
4
0
6
30
5
0
6
30
6
0
6
30
7
0
IRIS+ OK
6
30
IRIS- CANCEL
Figure 3-6 Edit the Patrol
(2)
(3)
4.
Click up/down direction buttons to choose the number and locate the preset to be
edited.
Click left/right direction buttons to position the cursor to the column of PRESET, DWELL
and SPEED. You can click the up/down direction buttons to set the value of preset
number, dwell time and patrol speed.
The presets you set for a patrol should be the ones that have been pre-defined by users.
The dwell time (5-800 seconds selectable) is the time that the speed dome stays on a
certain preset; the patrol speed (level 1-40 selectable) is the scanning speed the speed
dome switching between the presets.
(4) Follow the above steps to define the other presets for the selected patrol. You can
configure up to 32 presets in sequence for a patrol. Press IRIS+ to save the new settings
or press IRIS- to cancel and return to the previous menu.
Call the defined patrol.
Back to the live view interface after you finish editing the patrol, and call the special presets to
call the defined patrol. The presets 35~38 stand for patrol 1~4 and presets 102~105 stand for
patrol 5~8.

Calling Quick Patrol
The dome starts patrol from the predefined preset 1 to preset 32 in order after the park time. The
undefined preset will be skipped.
Steps:
1. Set the preset 1~32 by DVR or OSD menu.
2. Call the preset 46 to start the quick patrol.
27
ST-HDC2PTZ·Quick Start Guide
3.2.2 Configuring Park Actions
Purpose:
For some certain modesl of the speed dome, it can be configured to start a predefined park action
(scan, preset, patrol and etc.) automatically after a period of inactivity (park time).
 Configuring Park Actions by DVR
Steps:
1. Click the button PTZ in the lower-right corner of the PTZ setting interface;
Menu>Camera>PTZ
2.
Click the
button to show the one-touch function of the PTZ control.
Figure 3-7 PTZ Panel - One-touch
3.
There are 3 one-touch park types selectable, click the corresponding button to activate the
park action.
Park (Quick Patrol): The dome starts patrol from the predefined preset 1 to preset 32 in order
after the park time. The undefined preset will be skipped.
Park (Patrol 1): The dome starts move according to the predefined patrol 1 path after the park
time.
Park (Preset 1): The dome moves to the predefined preset 1 location after the park time.
4.
The park time can only be set through the speed dome configuration interface, by default
the value is 5s.
Click the button again to activate it.

Configuring Park Actions by OSD Menu
Steps:
1. Call the preset 95 to enter the main menu and move the cursor to enter motion parameters
setting submenu:
MAIN MENU > DOME SETTINGS > MOTION SETTINGS
28
ST-HDC2PTZ·Quick Start Guide
MOTION
AUTO FLIP
ON
PROPORTIONAL PAN
ON
PARK TIME
PARK ACT
5
NONE
SCAN SPEED
IMAGE FREEZE
28
OFF
DOME SPEED
BACK
6
EXIT
Figure 3-8 PTZ Configuration
2.
3.
Move the cursor to the PARK TIME, and set the value in the range from 5 to 720 seconds.
Move the cursor to the PARK ACT, and the action can be set as preset 1-8, pattern 1-5, patrol
1-10, pan scan, tilt scan, random scan, frame scan, panoramic scan, day mode, night mode,
patrol-d or none.
29
ST-HDC2PTZ·Quick Start Guide
4 Troubleshooting
4.1 Device Exceptions
Question
Why does the speed dome fail to start or repeatedly reboot? Why does the speed dome restart
intermittently when controlling PTZ, calling presets or turning on the infrared lights of the IR dome
at night?
Answer
 Check the supply voltage of the dome. Ensure the supply voltage meets the power requirements
of the speed dome.
 Check whether the diameter (AWG) of the power wires meet the requirements.
4.2 PTZ Control Exceptions
Question
The speed dome cannot do PTZ control but can do zoom control.
Answer
 For the 5 inch speed dome, you need to remove the protective sticker and foam of the camera
module by opening the bubble, correctly install the speed dome again and then wire up.
 For IR speed dome, please remove the protective sticker and then wire up.
Question
Neither zoom control nor PTZ control is available for the speed dome.
Answer
 Check the supply voltage of the dome. Ensure the supply voltage meets the power requirements
of the speed dome.
 Check whether the diameter (AWG) of the power wires meet the requirements.
4.3 Other Questions
Question
The preview image of the speed dome is not clear.
30
ST-HDC2PTZ·Quick Start Guide
Answer
 Please check whether the protective film of the bubble has been removed.
 Please check whether there are foreign objects on the bubble or the lens.
 Please check where there are obstructions such as spider webs nearby.
 Open the bubble and check whether the lens cover has been removed.
 Restore the device to the default settings. Call the preset 95 to enter the OSD menu and select
the RESTORE CAMERA function.
Question
For the IR speed dome, the image is washed out when the IR light is turned on at night.
Answer
 Please check whether there are obstructions near the lens, e.g. wall, leaf, spider webs, cables,
etc., which will cause the over-exposure due to the IR light reflection. Clear the obstructions if
necessary.
Question
The speed dome cannot focus when working in indoor conditions.
Answer
 Please restore the device to the default to exclude incorrect configurations.
 Reduce the minimum focusing distance of the device by configuring the image settings through
the OSD menu.
For further assistance and troubleshooting, please contact SecurityTronix tech support at: (800)
688-9282, press 3 for Tech Support, then press 2 for CCTV.
31
ST-HDC2PTZ·Quick Start Guide
SECURITYTRONIX 1-Year Limited PTZ Camera Warranty
Securitytronix. (the "Company") warrants to the Original Purchaser that the PTZ Camera is free
from defects in workmanship or material under normal use. This warranty starts on the date of
shipment of the hardware to the Original Purchaser. During the warranty period, the Company
agrees to repair or replace, at its sole option, without charge to Original Purchaser, any defective
component in the PTZ Camera. To obtain service, the Original Purchaser must return the PTZ
Camera to the Company properly packaged for shipping. All defective products must be returned to
the Company within thirty (30) days of failure. Products must be returned with a description of the
failure and Return Merchandise Authorization (RMA) number supplied by the Company. To receive
a RMA number and a return shipping address on where to deliver the hardware, call 610-429-1821.
The shipping, and insurance charges incurred in shipping to the Company will be paid by Original
Purchaser, and all risk for the hardware shall remain with the Original Purchaser until such time as
Company takes receipt of the hardware. Upon receipt, the Company will promptly repair or replace
the defective unit, and then return said unit to Original Purchaser, shipping prepaid. The Company
may use reconditioned or like-new parts or units, at its sole option, when repairing any hardware.
Repaired products shall carry the same amount of outstanding warranty as from original purchase.
Any claim under the warranty must include dated proof of purchase or invoice. In any event, the
Company's liability for defective hardware is limited to repairing or replacing the hardware. This
warranty is contingent upon proper use of the hardware by Original Purchaser and does not cover:
if damage is due to Acts of God (including fire, flood, earthquake, storm, hurricane or other natural
disaster), accident, unusual physical, electrical, or electromechanical stress, modifications, neglect;
misuse, operation with media not approved by the Company, tampering with or altering of the
hardware, war, invasion, act of foreign enemies, hostilities (regardless of whether war is declared),
civil war, rebellion, revolution, insurrection, military or usurped power or confiscation, terrorist
activities, nationalization, government sanction, blockage, embargo, labor dispute, strike, lockout
or interruption or failure of electricity, air conditioning, or humidity control, internet, network, or
telephone service The warranties given herein, together with any implied warranties covering the
hardware, including any warranties of merchantability or fitness for a particular purpose, are
limited in duration to one year from the date of shipment to the Original Purchaser. Jurisdictions
vary with regard to the enforceability of warranty limitations, and you should check the laws of
your local jurisdiction to find out whether the above limitation applies to you. The Company shall
not be liable to your for loss of data, loss of profits, lost savings, special, incidental, consequential,
indirect, or other similar damages arising from breach of warranty, breach of contract, negligence,
or other legal action even if the Company or its agent has been advised of the possibility of such
damages, or for any claim brought against your by another party. Jurisdictions vary with regard to
the enforceability of provisions excluding or limiting liability for incidental or consequential
damages. You should check the laws of your local jurisdiction to find out whether the above
exclusion applies to you. This warranty allocates risks of product failure between Original Purchaser
and the Company. The Company's hardware pricing reflects this allocation of risk and the
limitations of liability contained in this warranty. The warranty set forth above is in lieu of all other
express warranties, whether oral or written. The agents, employees, distributors, and dealers of the
Company are not authorized to make modification to this warranty, or additional warranties
binding on the Company. Accordingly, additional statements such as dealer advertising or
presentations, whether oral or written, do not constitute warranties by the Company and should
not be relied upon. This warranty gives you specific legal rights. You may also have other rights
which vary from one jurisdiction to another.
32
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
