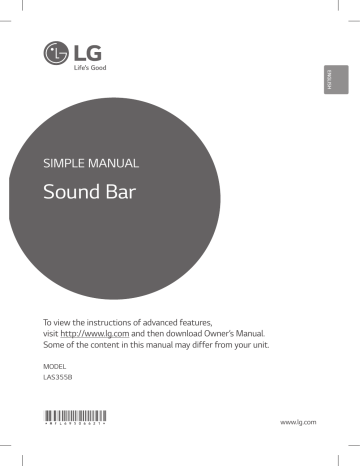

ENGLISH
SIMPLE MANUAL
Sound Bar
To view the instructions of advanced features,
visit http://www.lg.com and then download Owner’s Manual.
Some of the content in this manual may differ from your unit.
MODEL
LAS355B
*MFL69506621*
www.lg.com
Front Panel
Rear Panel
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Power On /Off
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · Selects Function
· · · · · · · · · · · · · · · · · · · · · · · · · · Adjusts Volume
1
Subwoofer Connection
Place the subwoofer near the sound bar and follow
steps below.
a Press each plastic finger pad to open subwoofer
terminals on the unit.
b Connect the black wire to the terminals
marked - (minus) and the other end to the
terminals(red tube) marked + (plus).
SUB WOOFER(4Ω) · · · · · · · Connect to a subwoofer
OPT. IN · · · · · · · · · · · · · · · · Connect to an Optical device
PORT. IN · · · · · · · · · · · · · Connect to a Portable device
USB port · · · · · · · · · · · · · · · · · Connect to a USB device
2
TV Connection
a Connect the sound bar to the TV using Optical
cable.
b Set up [External Speaker (Optical)] on
your TV setting menu.
TV
You may need to attach Ferrite core in order to
reduce or eliminate any electrical interference.
i. Open
ii. Wind (Twice)
iii.
Close
i.
ii.
iii.
Controller App
LG Sound Sync (Wireless)
TV
Download the Music Flow Bluetooth App to your
device.
For more information, download the online owner’s
manual. http://www.lg.com
Additional Information
Specification
Power
requirements
Power
consumption
Dimensions
(W x H x D)
Net Weight
Bus Power
Supply (USB)
Amplifier
(Total RMS
Output power)
Refer to the main label.
Refer to the main label.
Networked standby : 0.5 W
(If all network ports are activated.)
How to disconnect the wireless network
connection or the wireless device
Set up the AUTO POWER ON/OFF function to off and
turn off the unit.
Replacement of battery
Approx.
880 mm x 59 mm x 90 mm
Approx. 1.9 kg
5 V 0 500 mA
120 W
Design and specifications are subject to change without
notice.
Remote control
Declaration of Conformity
Hereby, LG Electronics European Shared Service Center B.V., declares
that this Sound Bar is compliant with the essential requirements
and other relevant provisions of Directive 1999/5/EC. The complete
Declaration of Conformity may be requested through the following
postal address:
LG Electronics European Shared Service Center B.V.
Krijgsman 1
1186 DM Amstelveen
The Netherlands
or can be requested at our dedicated DoC website:
: Makes comfortable sound at Dolby Digital.
: Turns down the volume at night.
: Synchronizes the audio and video.
:S
ets the system to turn off automatically at a
specified time.
: Adjusts the volume level appropriately.
: Automatically turns on by an input source.
http://www.lg.com/global/support/cedoc/cedoc#
This device is a 2.4 GHz wideband transmission system, intended for
use in all EU member states and EFTA countries.
