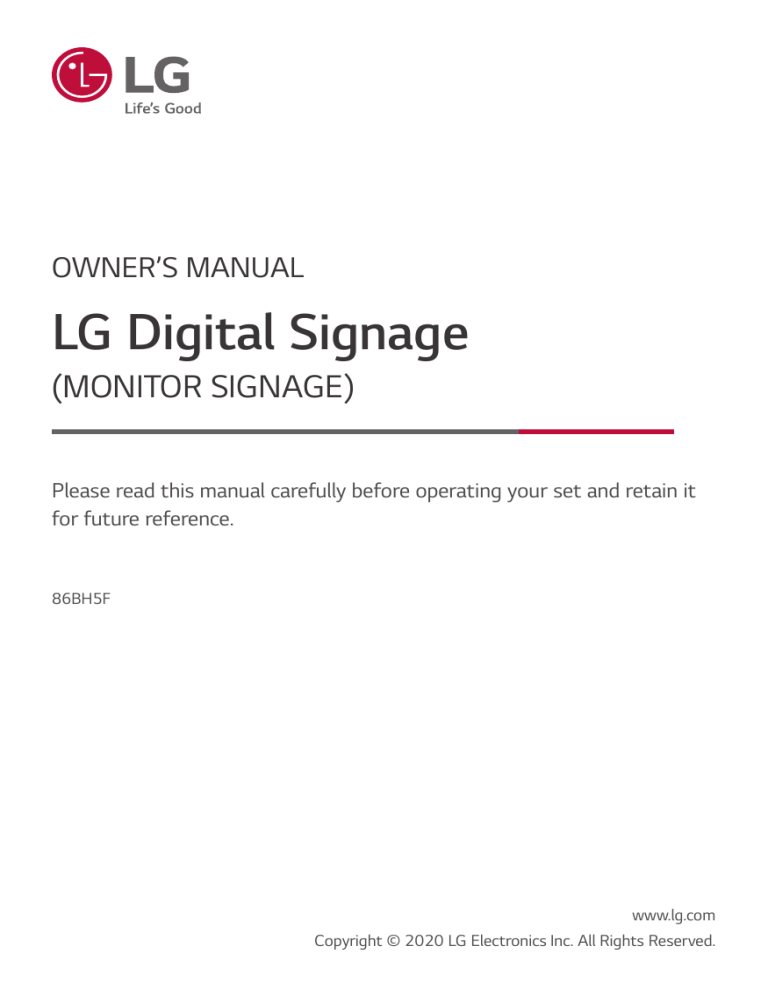

OWNER’S MANUAL
LG Digital Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it
for future reference.
86BH5F
www.lg.com
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
2
ENGLISH
TABLE OF CONTENTS
SAFETY PRECAUTIONS.................3
-- Precautions for the AC Adapter and Power.......4
-- Precautions for Moving the Product.......................6
-- Precautions for Installing the Product...................7
-- Precautions for Cleaning the Product....................9
-- Precautions for Using the Product.......................10
-- Precautions for Using the Remote control.......12
-- Precautions for Experiencing Image Retention....
13
-- Product Disposal.............................................................13
ASSEMBLY AND PREPARATION.14
-- Optional Accessories.....................................................15
-- Parts and Buttons..........................................................16
-- External Equipment Setup........................................16
IR Receiver
-- Portrait Layout.................................................................17
-- Removing Protective Plastic Film from Sides
before Installation..........................................................17
-- Installing on a Wall.........................................................19
REMOTE CONTROL..................... 20
MAKING CONNECTIONS............ 22
-- Connecting to a PC.......................................................22
-- External Device Connection......................................22
-- Connecting Multiple Monitors.................................24
-- Using the Input List.......................................................25
TROUBLESHOOTING................... 26
PRODUCT SPECIFICATIONS....... 29
LICENSES..................................... 34
3
SAFETY PRECAUTIONS
The safety precautions are intended to prevent unexpected danger or harm by helping the user to use the product
safely and for its intended purpose.
WARNING
If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.
CAUTION
If you ignore the caution message, you may be slightly injured or the product may be damaged.
WARNING
Indoor Use Only.
ENGLISH
Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause
radio interference.
4
ENGLISH
Precautions for the AC Adapter and Power
WARNING
•• Use only the power cord or AC adapter provided or approved by LG Electronics, Inc. If you use another power cord,
make sure that it is certified by the national standards. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized service center for a replacement.
•• Operate the display only from a power source(i.e. voltage) indicated in the product specification.
-- Otherwise the product can be damaged, fire can occur or you may be electrocuted. If you are not sure what type of
power supply you have, consult a certified installation company.
•• Make sure the power cord connect to a properly grounded outlet.
-- If you do not you may be electrocuted or injured or the product can be damaged.
•• Insert the power plug or AC adapter firmly so it cannot come loose.
-- Poor connection may cause a fire or electric shock.
•• In the presence of thunder and lightning, never touch the power cord and signal cable because it can be very
dangerous.
-- It can cause electric shock.
•• Be careful not to step or place heavy objects (electronic appliances, clothing, etc.) on the power cord or AC adapter.
Additionally, do not bend or pull out the power cord or AC adapter with excessive force.
-- Damaged power cords may cause a fire or electric shock.
•• Do not connect power cord or AC adapter damaged with sharp objects to power outlet.
-- You may be electrocuted.
•• Do not insert a conductor (like a metal chopstick) into one end of the power cord while the other end is connected to
the input terminal on the wall. Additionally, do not touch the power cord right after unplugged.
-- You may be electrocuted.
•• Do not use with a multi-outlet connected by many electrical product and heating devices. Use an exclusive multioutlet with a grounding terminal.
-- A fire can break out due to overheating.
5
•• Keep the power cord or AC adapter away from any heating devices.
-- The cord coating may melt and cause fire or electric shock.
•• Never disassemble, repair or modify the power cord or AC adapter.
-- This may cause a fire or electric shock.
•• Please make sure the main power cutoff device is power cord and the product is installed near the wall outlet that is
easily accessible.
•• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the
unit is turned off.
•• Power consumption will be ‘0’ only when the power plug is unplugged.
•• Use an appliance coupler as a disconnect device.
CAUTION
•• If the outlet, pins of the power plug, or AC adapter is covered with dust, be sure wipe and keep clean.
-- Overheating due to layers of dust may cause a fire or electric shock.
•• If the outlet, pins of the power plug, or AC adapter is covered with water, be sure wipe and keep clean. Additionally,
Do not touch the power plug or AC adapter with wet hands.
-- This may cause an electric shock.
•• Do not turn the product on or off by plugging in or unplugging the power plug from the power outlet. It means do not
use the power plug as a switch.
-- This may cause an electric shock or product malfunction.
•• Do not unplug the power cord while the product is in use.
-- Electrical shock can damage the product.
ENGLISH
•• If water or any foreign substance goes inside the product, disconnect the power cord immediately and contact the
service center.
-- Otherwise, this may cause a fire or electric shock due to damage to the product.
6
ENGLISH
Precautions for Moving the Product
WARNING
•• Contact the service center before moving the product.
-- It may cause electric shock and damage the product.
•• Make sure the product is turned off, unplugged, and all cables have been removed before the product is moved.
-- You may be electrocuted or the product can be damaged.
•• When moving the product, Do not shock the product and impact on the front panel of the product.
-- You may be electrocuted or the product can be damaged.
•• Comply with the number of people according to weight of product. (Under 25 kg (55.1 lbs) per person, use the
equipment when exceed 100 kg (220.4 lbs))
-- If use the damaged product again, contact the service center because it can cause electric shock or fire.
•• Do not hold it upside down while holding only the stand. (It is for stand supported models only.)
-- This may cause stand warping, panel damage and other types of product damage.
CAUTION
•• Do not dispose the product-packing box. It may be used put the product in the box when carrying it.
7
WARNING
•• Contact the service center before installing the product.
-- It can cause electric shock and damage the product.
•• Do not drop an object on or impact on the product. Keep out of reach of children and do not place toys or objects
near the product to prevent throwing things on the product screen.
-- It can cause injury to human, problem to product and damage the display.
•• Do not put heavy objects on, or hang from, the product.
-- If the product collapses or is dropped, you may be injured.
•• Do not touch the surface of product to overheat.
-- It can cause injury to human.
•• Install the product firmly fixed on a floor, wall, etc. to prepare against external impact such as wind and earthquake.
-- You must refer to the manual provided.
•• Prevent Children from climbing or hanging on the product.
-- If the product collapses or is dropped, you may be injured.
•• Do not install it where there are heating devices such as electrical heaters or lighting equipment.
-- Fire, electrical shock, malfunction may occur.
•• Do not install this product by yourself as you may injure yourself or cause damage to product. Please contact service
engineer authorized by service center.
•• Do not install this product on a wall if it could be exposed to oil or oil mist.
-- This may damage the product and cause it to fall.
•• Do not leave the power or signal cable, etc. on the pathway.
-- This could cause a trip or fall, which can be caused electrical shock, fire, product breakdown, or injury.
•• Do not let the product drop when connecting it to an external device connected with a short cable.
-- This may cause injury and damage to the product.
•• If you dropped the product or the case is broken, turn off the product and unplug the power cord and contact the
service center.
-- If you continue to use without taking proper measures, electrical shock or fire can occur.
•• Install the product in a dry place where it is not near dust and water. Avoid high temperatures and humidity.
-- This may cause electrical shock, fire or product damage.
•• Safely install the product in a place that can hold the weight of the product.
-- A lack of strength may cause the product to fall.
•• Take a comfortable and natural position to relax the muscles when working with a product.
ENGLISH
Precautions for Installing the Product
8
ENGLISH
CAUTION
•• Install the product where no Electromagnetic Interference occurs.
•• If you install the product in a place that does not meet the recommended conditions, this may cause serious damage
to the product’s picture quality, life cycle, and appearance. Please check with service engineer before installing. Please
do not install the product in places such as where there is an abundance of fine dust or oil mist, chemical substances
are used, exposed to direct sunlight, the temperature is very high or low, the humidity is very high.
•• Make sure the product is well ventilated by Installing at a distance (100 mm (3.9 inches) or more) from the wall.
-- If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat buildup.
•• Do not cover the product with tablecloth or curtain or other material (eg. plastic) while plugged in to block the
ventilation hole of the product.
-- The product can be deformed or fire can break out due to overheating inside the product.
•• Do not install the product in an area with poor ventilation (e.g. on a bookshelf, in a closet) or outside and avoid placing
on cushions or carpets.
-- The product could catch fire due to overheating inside the product.
•• Install the product on a flat and stable place that is large enough to support the product.
-- If the product is dropped, you may be injured or the product may be broken.
•• When installing the product on a shelf or cabinet, make sure that the bottom end of the product is not protruding
forward.
-- The product may fall due to unbalanced center of gravity, which may cause personal injury or damage to the
product. Be sure to use cabinets or shelves that fit your product.
9
WARNING
•• Keep the product clean at all times.
-- If you don’t clean the unit for a long time and it becomes covered in dust, it can cause fire or product damage.
•• When you need to clean the inside of the product, you must contact the service center.
-- Otherwise, cleaning without support may cause a fire, electric shock, or damage to the product.
•• When cleaning the product, unplug the power cord and wipe gently with a soft cloth to prevent scratching.
-- An electric shock may occur or damage to the screen as get a scratch.
•• When you want to clean the front frame, spray water onto a soft cloth 2 to 4 times and wipe in one direction only.
-- Too much moisture may cause staining.
CAUTION
•• When cleaning the product or the screen, unplug the power cord and wipe it gently with a soft cloth. Do not spray
water or other liquids directly on the product. Especially, do not clean your product with chemicals including glass
cleaner, any type of air freshener, insecticide, lubricants, wax (car, industrial), abrasive, thinner, benzene, alcohol, etc.,
which can damage the product or its panel.
-- This may result in fire, electric shock or product damage (deformation, corrosion or breakage).
ENGLISH
Precautions for Cleaning the Product
10
ENGLISH
Precautions for Using the Product
WARNING
•• Do not use the product in any environment with excessively high temperatures or humidity.
-- It may cause electrical shock or damage the product.
•• If you use the product for a long period of time, take a rest from time to time to protect your vision.
-- Extended viewing could result in impaired vision.
•• Listening at high volume or using for a long time can cause damage to your hearing.
•• In the event that liquid or a foreign object falls into the product, please switch it off and unplug it from the wall outlet
and contact the service center.
-- Otherwise, the product may cause fire or electric shock.
•• In the event that no image appears on the screen or no sound is heard, stop using the product. Switch it off
immediately, unplug it from the power outlet and contact the service center.
-- Otherwise, the product may cause fire or electric shock.
•• Do not drop an object or impact on the product or screen.
-- It can cause injury to human, problem to product and damage the screen.
•• If you can smell smoke or other odors or hear a strange sound, unplug the power cord and contact the service center.
-- If you continue to use the product without taking proper measures, it may cause electrical shock or fire.
•• Do not attempt to disassemble, repair or modify the product yourself. Please contact service center if you need to
repair it.
-- Fire or electric shock can occur.
•• Do not place objects filled with liquids, such as vases, cups, etc. on over of the product to prevent liquid from entering
the product.
-- Failure to do so may result in fire, electric shock, malfunction or deformation.
•• Do not push hard on or scratch the product’s surface with your hands or sharp objects, such as nails, pencils or pens.
Do not shock or scratch the front and sides of the screen with metallic objects.
-- This may damage the products and cause it to malfunction.
•• Do not touch the product if it has been exposed to sunlight or an intense light because it could be hot.
11
•• If there is a gas leak, do not touch the outlet, and open the windows for ventilation.
-- Otherwise, the product may cause fire or electric shock.
•• If you dropped the product or the case is broken, turn off the product and unplug the power cord.
-- If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service center.
•• Keep small accessories out of the reach of children.
-- If a child swallows it, consult a doctor immediately.
•• Keep out of reach of children from the product. Also, do not throw toys or objects to the product or screen.
-- It can cause injury to human, problem to product and damage the screen.
•• All the power sources must be disconnected by removing the power cables to remove all power from the unit.
CAUTION
•• This panel is an advanced product that contains millions of pixels. You may occasionally see pixel spots when viewing
the screen. Since these deactivated pixels are not a defect, the performance and reliability of the product is not
affected.
•• Do not put or store inflammable substances near the product.
-- There is a danger of explosion or fire.
•• Keep the proper distance from the product.
-- It can cause damage to your vision if you look at the product too closely.
•• Set the appropriate resolution and frequency by products.
-- It can cause damage to your vision.
•• Take a regular break when working with the product for a long time.
ENGLISH
•• Do not use high voltage electrical goods near the product (e.g., a bug zapper).
-- This may result in product malfunction if it receives an electrical shock.
12
ENGLISH
Precautions for Using the Remote control
WARNING
•• Avoid places with high humidity.
-- It may cause electrical shock or damage the product.
•• Do not expose batteries to excessive heat, such as direct sunlight, open fireplace, and electric heaters.
-- It may cause fire and you may be injured.
•• Make sure that children do not swallow the remote control batteries when you replace them. Keep batteries out of
reach of children.
-- If a child swallows a battery, consult a doctor immediately.
•• Do not dispose of batteries in a fire.
-- Please dispose batteries at a local recycling center or a retail store that handles batteries.
•• Used batteries, which include rechargeable batteries, should be recycled separately from waste.
-- Please dispose used batteries and rechargeable batteries at a local recycling center or a retail store that handles
batteries.
CAUTION
•• Do not short circuit and disassemble of batteries.
-- It may cause electrical shock or fire.
•• The remote control may not function properly in sunlight or under a strong lamp. Move the product if it is being used
in these conditions.
•• Check if there is any obstacle between the product and the remote control.
•• Do not mix new batteries with old batteries.
-- Overheating or leaking batteries may cause fire or electric shock.
•• Only use the specified type of battery. Do not insert batteries that are not rechargeable into the charger.
-- Overheating or leaking batteries may cause fire or electric shock.
13
•• Displaying a still image for a prolonged period of time may cause damage to the screen, resulting in image retention.
Most third-party products have the same issue. The resulting damage is not covered by the product warranty.
-- Use a screen saver when using the monitor for a prolonged period of time.
Product Disposal
•• Do not dispose of this product with general household waste.
•• Disposal of this product must be carried out in accordance to the regulations of your local authority.
ENGLISH
Precautions for Experiencing Image Retention
14
ENGLISH
ASSEMBLY AND PREPARATION
CAUTION
•• Always use genuine components to ensure safety and product performance.
•• The product warranty will not cover damage or injury caused by the use of counterfeit components.
NOTE
•• The accessories provided with your product may vary depending on the model or region.
•• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•• SuperSign Software & Manual
-- Downloading from the LG Electronics website.
-- Visit the LG Electronics website (http://partner.lge.com) and download the latest software for your model.
•• The warranty will not cover any damage caused by using the product in an excessively dusty environment.
15
Without prior notice, optional accessories are subject to change to improve the performance of the product, and new
accessories may be added. The illustrations in this manual may differ from the actual product and accessories.
Media Player kit
Media Player
MP500 / MP700
Screws
Diameter 3.0 mm (0.1 inches) x
Pitch 0.5 mm (0.01 inches) x Length
6.0 mm (0.2 inches)
CD (Owner’s Manual) / Cards
OPS kit
KT-OPSF
Screws
Diameter 3.0 mm (0.1 inches) x Pitch
1.27 mm (0.05 inches) x Length
8.0 mm (0.3 inches)
Screws
Diameter 3.0 mm (0.1 inches) x
Pitch 0.5 mm (0.01 inches) x Length
5.5 mm (0.2 inches)
Card (Easy Setup Guide)
Power Cord
Connecting Cable
NOTE
•• Optional accessories are available for some models. If necessary, please purchase them separately.
•• Before you attach the OPS kit or Media Player, connect the cable to the port.
CAUTION
•• Before attaching/removing a KT-OPSF to/from a monitor, make sure that you unplug the power cords connected to
the monitor and the KT-OPSF from their power outlets.
ENGLISH
Optional Accessories
16
ENGLISH
Parts and Buttons
The image may be different according to the model.
Buttons
••
••
••
••
••
••
: Changes the input source.
: Accesses the main menus, or saves your input and exits the menus.
: Adjust the up and down.
: Moves left and right.
: Displays the current signal and mode.
: Turns the power on or off.
External Equipment Setup
IR Receiver
This allows a remote control sensor to be placed in a custom location. Then that display can control other displays via
an RS-232C cable.
17
When installing in a portrait layout, rotate the monitor counterclockwise 90 degrees (when facing the screen).
Removing Protective Plastic Film from Sides before Installation
Make sure that the protective plastic film is removed from each corner before installing the product.
ENGLISH
Portrait Layout
18
ENGLISH
Using Kensington Lock
(This is not available for all models.)
The Kensington security system connector is located at the back of the monitor.
For more information on installation and use of this system, refer to the manual provided with the Kensington security
system or visit http://www.kensington.com.
Connect the Kensington security system cable between the monitor and a table.
NOTE
•• The Kensington security system is optional. You can obtain additional accessories from most electronics retail stores.
19
For proper ventilation, allow a clearance of 100 mm (3.9 inches) on each side and from the wall. Detailed installation
instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
100 mm (3.9 inches)
100 mm
100 mm
100 mm
100 mm
To install your monitor on a wall, attach a wall mounting bracket (optional part) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
1 Use only screws and wall mounting brackets that conform to VESA standards.
2 Screws which are longer than standard length may damage the inside of the monitor.
3 A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for
any accidents related to the use of non-standard screws.
4 Please use VESA standard as below.
•• 785 mm (30.9 inches) and above
* Fixing screws: Diameter 8.0 mm x Pitch 1.25 mm x Length 14 mm (Max: 18 mm (0.7 inches))
(Diameter 0.3 inches x Pitch 0.04 inches x Length 0.5 inches)
785 mm
(30.9 inches)
CAUTION
•• Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock.
•• If you install the monitor on a ceiling or slanted wall, it may fall and result in injury.
•• Do not over tighten the screws as this may damage the monitor and void your warranty.
•• Use only screws and wall mounting brackets that meet the VESA standard. Any damage or injuries caused by misuse
or use of improper accessories are not covered by the warranty.
•• If you want to install the monitor on the wall with the media player and OPS kit attached, leave a space of at least
45 mm (1.7 inches). Otherwise, interference may occur.
ENGLISH
Installing on a Wall
20
ENGLISH
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to
use the monitor correctly.
To install batteries, open the battery cover, place batteries (1.5 V AAA) matching
and
terminals to the labels
inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse. The illustrations may differ from the actual
accessories.
CAUTION
•• Do not mix old and new batteries, as this may damage the remote control.
•• Be sure to point the remote control toward the remote control sensor on the monitor.
•• Some features of the remote control may not be supported in certain models.
•• The product’s internal and external batteries should not be exposed to excessive heat such as direct sunlight, fire, or
the like.
(POWER) Turns the monitor on or off.
Turns the monitor on.
Turns the monitor off.
Reduces power consumption by adjusting peak screen brightness.
(INPUT) Selects the input mode.
This function is not supported in this model.
Number and Alphabet buttons Enters numerical or alphabetical characters
depending upon the setting.
Toggles between numerical and alphabetical.
Deletes the entered numerical or alphabetical character.
(Volume Up/Down Button) Adjusts the volume.
Selects the Aspect Ratio mode.
Automatically adjusts picture position and minimizes image instability
(available for RGB input only).
(MUTE) Mutes all sounds.
Adjusts the brightness of the display.
This function is not supported in this model.
",#
21
ENGLISH
Selects the Picture Mode.
(HOME) Activates the Launcher.
Enters the White Balance menu.
(SETTINGS) Accesses the main menus or saves your input and exit
menus.
This function is not supported in this model.
(Navigation Buttons) Scrolls through menus or options.
Selects menus or options and confirms your input.
(BACK) Allows you to move back one step in the user interaction
function.
Quit all OSD tasks and applications.
Allows you to control various multimedia devices to enjoy
multimedia simply by using the remote control through the SimpLink menu.
Selects the TILE Mode.
When the Picture ID number matches the Set ID
number, you can control whichever monitor you want in multi-display format.
Trick key May not be supported on some models.
22
ENGLISH
MAKING CONNECTIONS
You can connect various external devices to your monitor. Change the input mode and select the external device you
want to connect. For more information about external device connections, see the user manual provided with each
device.
Connecting to a PC
Some of the cables are not provided. This monitor supports the
*
* feature.
: a feature that enables a PC to recognize devices attached by the user without device configuration or
user intervention when powering up.
External Device Connection
Some of the cables are not provided. Connect a HD receiver, DVD, or VCR player to the monitor and select an
appropriate input mode.
For the best picture and sound quality, connecting external devices to your monitor using HDMI cables is recommended.
23
•• For the best image quality, using the monitor with HDMI connection is recommended.
•• To comply with the standard specifications of the product, make sure to use a shielded interface cable made with a
ferrite core for the DisplayPort cable and DVI-D/HDMI cable.
•• If you turn the monitor on when the set is cold, the screen may flicker. This is normal.
•• Sometimes red, green, or blue spots may appear on the screen. This is normal.
•• Use a High Speed HDMI®/™ cable. (shorter than 3 meters (9.84 ft))
•• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not
display or a connection error may occur.
•• Recommended HDMI Cable Types
-- High Speed HDMI®/™ Cable
-- High Speed HDMI®/™ Cable with Ethernet
•• If you cannot hear any sound in HDMI mode please check your PC settings. Some PCs require you to manually change
the default audio output to HDMI.
•• If you want to use HDMI-PC mode, you must set your PC/DTV to PC mode.
•• You may experience compatibility issues if you use HDMI-PC mode.
•• Make sure the power cable is disconnected.
•• If you connect a gaming device to the monitor, use the cable provided with the gaming device.
CAUTION
•• Connect the signal input cable and tighten it by turning the screws clockwise.
•• Do not press the screen with your finger for a prolonged period as this may result in temporary distortion on the
screen.
•• Avoid displaying static images on the screen for a long period of time to prevent image burn. Use a screensaver if
possible.
•• A wireless communication device near your monitor can affect the image.
ENGLISH
NOTE
24
ENGLISH
Connecting Multiple Monitors
To use multiple products, first connect an external device to the product, connect one end of the supported signal input
cable to the
connector of the product, and then connect the other end to the connector of the product you
wish to connect to.
* DP Cable: Use a DP cable that is certified to a DP 1.1a (SST) standard or higher.
DP IN
DP OUT
DP IN
DP OUT
DP IN
DP OUT
HDMI IN
DP OUT
DP IN
DP OUT
DP IN
DP OUT
DVI IN
DP OUT
DP IN
DP OUT
DP IN
DP OUT
LAN IN
LAN OUT
LAN IN
LAN OUT
LAN IN
LAN OUT
RS-232C RS-232C
IN
OUT
RS-232C RS-232C
IN
OUT
RS-232C RS-232C
IN
OUT
NOTE
•• In general, up to 100 monitors can be connected via the DP OUT port (at the recommended resolution) if the signal is
stable and there is no cable loss. To connect more than 100 monitors, it is recommended to use a distributor.
•• When the tile mode is configured via HDMI3 / DVI-D / OPS cables, HDCP-encrypted content cannot be displayed.
•• If the signal cable connecting the product to your PC is too long, make sure to use a booster or optical cable.
25
(HOME)
••
ENGLISH
Using the Input List
26
ENGLISH
TROUBLESHOOTING
ŮŮ Each model may have different points to check.
ŮŮ For information on your PC settings, refer to the Windows Help.
Issues Related to Use
•• The power won’t turn on.
-- Check if the power cord is correctly plugged into the power outlet.
-- Try turning the power on after disconnecting the AC adapter and cleaning the contacting port.
•• The ‘Unknown Product’ message appears when the product is connected.
-- Check if the driver of PC(graphics card) has been installed.
-- Check if the
function is supported by the PC(graphics card) user manual.
Issues Related to Screen (Video)
•• A message saying ‘No signal’ or ‘Invalid Format’ appears.
-- The signal cable is not connected between the PC and the product, or the cable connection status is unstable.
Check the signal cable.
-- Access the input menu to check the input signal.
-- The signal from the PC (Graphics card) is out of the vertical or horizontal frequency range of the product. Adjust
the frequency range by referring to the Specifications in this manual.
•• The position of the screen is incorrect.
-- Check if the graphics card resolution and frequency are supported by the product. If the frequency exceeds the
supported range, use PC settings to set the resolution to the recommended value.
-- D-Sub analog signal - Press the
button in the remote control to automatically select the optimal screen
status that fits into the current mode. If the adjustment is not satisfactory, adjust the display settings manually in
the OSD menu.
•• The screen is displayed abnormally.
-- Connect the signal cable that matches with the source input signal.
•• Images are flickering or fluttering on the screen.
-- If you turn the monitor on when it is cold, the screen may flicker. This is normal.
-- Make sure that the current resolution and frequency settings of the graphics card are supported by the monitor.
•• Stripes appear in the background.
-- D-Sub analog signal - Press the
button in the remote control to automatically select the optimal screen
status that fits into the current mode. If the adjustment is not satisfactory, adjust the display settings manually in
the OSD menu.
•• Horizontal noise appears or the characters look blurred.
-- D-Sub analog signal - Press the
button in the remote control to automatically select the optimal screen
status that fits into the current mode. If the adjustment is not satisfactory, adjust the display settings manually in
the OSD menu.
•• In case of initial boot up, the Screen On time may be delayed due to system settings.
27
Issues Related to Screen (Color)
•• Screen has poor color resolution (16 colors).
-- Use PC settings to set the color to 24 bits (True Color) or above.
•• Screen color is unstable or mono-colored.
-- Check the connection status of the signal cable. Or, re-insert the PC graphics card.
•• I see dark or bright spots on the screen.
-- Some pixels (red, green, blue, black) are visible on the screen due to the unique characteristics of the display panel.
This is not a malfunction of the product.
•• The screen’s brightness seems dark.
-- Adjust brightness and contrast again.
-- Backlight may need repair.
Issues Related to Sound
•• The audio doesn’t work.
-- See if the audio cable is connected properly.
-- Adjust the volume of the product or external device.
-- See if the sound is set properly.
•• Sound is too dull.
-- Select the appropriate equalizer sound.
•• Sound is too low.
-- Adjust the volume of the product or external device.
•• For some models, you will need to purchase external speakers separately since they do not have speakers built-in.
Other Issues
•• The power suddenly turned off.
-- Check if the ‘Power Off Time’ is set.
-- Power interrupted. See if the product power cord is connected properly.
-- Check the power control settings.
ENGLISH
•• The PC BIOS configuration screen is not displayed correctly.
-- On some PCs, the BIOS configuration screen may not display correctly because the 58:9 aspect ratio is not
supported before the graphics card driver is configured. This is not a problem of the product; it is due to the design
of the graphics card’s BIOS configuration screen aspect ratio. To access the PC BIOS configuration screen, please
connect a standard aspect ratio (4:3 or 16:9) monitor, then perform the BIOS configuration.
28
ENGLISH
Image sticking
•• After-image appears when the product is turned off.
-- If you use a fixed image for a long time, the pixels may be damaged. Use the screen-saver function.
-- When a dark image is displayed on the screen after an image with high contrast (black and white or gray), this may
cause image sticking. This is normal for display products.
•• When the LCD panel displays a static image for an extended period of time, it can cause a voltage difference between
the electrodes that operate the liquid crystals. When the voltage difference between the electrodes builds up over
time, liquid crystals have a tendency to remain aligned in one direction. During this process, a previously displayed
image remains visible. This phenomenon is referred to as image sticking.
•• Image sticking does not occur when using constantly changing images but may occur when using a fixed image for an
extended period of time. Therefore, it is recommended that you use the instructions below to decrease the likelihood
of image sticking occurring when using a fixed image. It is recommended that you change the screen at least once
every 12 hours at the very minimum; if done more frequently, the prevention of image sticking is more effective.
•• Recommended operating conditions
1 Change the background and the character colors using the same time interval.
-- When changing colors, using complementary colors helps to prevent image sticking.
A
A
ITO or MoTi Pixel Layer
2 Change the image using the same time interval.
-- Make sure that the characters or images before changing the image remain in the same location after changing the
image.
29
The product specifications below may be changed without prior notice due to upgrade of product functions.
LCD screen
Screen type
Video signal
Maximum resolution
Recommended resolution
Horizontal frequency
Vertical frequency
Synchronization
Thin Film Transistor (TFT)
Liquid Crystal Display (LCD) Screen
HDMI1 / HDMI2 / DisplayPort: 3840 x 2160 @ 60 Hz
HDMI3 / OPS: 3840 x 2160 @ 30 Hz
DVI-D: 1920 x 1080 @ 60 Hz
-- This may not be supported on some OS or graphic card types.
HDMI1 / HDMI2 / HDMI3 / DisplayPort / OPS:
3840 × 600 @ 60 Hz
DVI-D: 1920 x 300 @ 60 Hz
-- This may not be supported on some OS or graphic card types.
HDMI1 / HDMI2 / HDMI3 / DVI-D /DisplayPort / OPS:
30 kHZ to 83 kHZ
HDMI1 / HDMI2 / DisplayPort: 30 kHZ to 136 kHZ
DVI-D: 56 HZ to 60 HZ
HDMI / DisplayPort / OPS: 58 HZ to 62 HZ
Separate Sync / Digital
Input / Output ports
,
,
Embedded battery
Environmental
Conditions
Audio
“
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Input Sensitivity
” refers to alternating current (AC), and “
,
,
,
,
,
,
Applied
0 °C to 40 °C (32 °F to 104 °F)
10 % to 80 %
-20 °C to 60 °C (-4 °F to 140 °F)
5 % to 85 %
0.7 Vrms
” refers to direct current (DC).
,
,
ENGLISH
PRODUCT SPECIFICATIONS
30
ENGLISH
86BH5F
LCD screen
Pixel pitch
0.5595 mm (H) x 0.5595 mm (V)
Power
Rated power
AC 100-240 V~ 50/60 Hz 2.4 A
Power consumption
On Mode: 220 W (Typ.)
Sleep Mode: ≤ 0.5 W
Off Mode: ≤ 0.5 W
2158.3 mm x 348.5 mm x 81.7 mm / 20.5 kg
(84.9 inches x 13.7 inches x 3.2 inches / 45.1 lbs)
Dimensions (Width
x Height x Depth) /
Weight
Head
Wireless module (LGSBWAC72) Specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency range (MHz)
Output power (Max.) (dBm)
2400 to 2483.5
5150 to 5725
5725 to 5850
15
14.5
14.5
Bluetooth
Frequency range (MHz)
Output power (Max.) (dBm)
2400 to 2483.5
8.5
•• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is
configured for the regional frequency table.
•• For consideration of the user, this device should be installed and operated with a minimum distance of
20 cm (7.8 inches) between the device and the body.
* FCC ID: BEJLGSBWAC72 / IC: 2703H-LGSBWAC72
31
Resolution
Horizontal frequency
(kHz)
Vertical frequency
(Hz)
800 x 600
37.879
60.317
Remark
1024 x 768
48.363
60
1280 x 1024
63.981
60.02
1680 x 1050
65.29
59.954
1920 x 1080
67.5
60
1920 x 300
18.75
58.777
DVI-D
59.933
HDMI1 / HDMI2 / HDMI3 /
OPS / DISPLAYPORT
3840 x 600
37.398
DVI-D
HDMI1 / HDMI2 / HDMI3 / DISPLAYPORT / OPS (DTV) Support Mode
Resolution
Horizontal frequency
(kHz)
Vertical frequency
(Hz)
480/60p
31.5
60
576/50p
31.25
50
720/50p
37.5
50
720/60p
45
60
1080/50i
28.1
50
Remark
1080/60i
33.75
60
1080/50p
56.25
50
1080/60p
67.432
59.94
1080/60p
67.5
60
2160/30p
67.5
30
2160/50p
112.5
50
HDMI1 / HDMI2 /
DISPLAYPORT
2160/60p
135
60
HDMI1 / HDMI2 /
DISPLAYPORT
ENGLISH
DVI-D / HDMI1 / HDMI2 / HDMI3 / DISPLAYPORT / OPS (PC) Support Mode
32
ENGLISH
Multi-screen (PC) Support Mode
Resolution
Horizontal frequency
(kHz)
Vertical frequency
(Hz)
Remark
1920 x 600
37.4
59.93
Recommended resolution for twoscreen split screen
1280 x 600
37.35
59.85
Recommended resolution for threescreen split screen (1:1:1)
960 x 600
37.4
59.93
1st, 3rd screen
1920 x 600
37.4
59.93
2nd Screen
960 x 600
37.4
59.93
Recommended resolution for fourscreen split screen
Remark
Recommended
resolution for
three-screen
split screen
(1:2:1)
Multi-screen (DTV) Support Mode
Resolution
Horizontal frequency
(kHz)
Vertical frequency
(Hz)
720/60p
45
60
HDTV 720p
1080/24p
27
24
HDTV 1080p 24 Hz
1080/30p
33.75
30
HDTV 1080p 30 Hz
1080/60p
67.5
60
HDTV 1080p 60 Hz
33
ENGLISH
NOTE
•• When the cable is connected to the HDMI1 / HDMI2 / HDMI3 / DVI-D / DISPLAYPORT, you can select the PC/DTV
mode optionally. It is recommended that you select PC mode when connecting to a PC and select DTV mode when
connecting to other devices. The DTV mode refers to all modes excluding the PC mode.
•• Vertical frequency: The product display functions by the screen image changing dozens of times every second like a
fluorescent lamp. The vertical frequency or refresh rate is the number of image displays per second. The unit is Hz.
•• Horizontal frequency: The horizontal interval is the time taken to display one horizontal line. When 1 is divided by
the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
•• For the recommended resolution of 3840 x 600, use a graphics card that is UHD (3840 x 2160) compatible.
•• When using a graphics card that does not support the recommended resolution (3840 x 600), a resolution of 1920 x
300 or 1920 x 1080 can be used instead.
•• Some graphics cards may not support a 3840 x 600 resolution.
•• In Multi-screen mode, the resolution changes to fit the screen.
34
ENGLISH
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Audio, Dolby Atmos, and the double-D
symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol,
& DTS and the Symbol together, DTS 2.0 Channel, DTS 2.0+Digital Out, DTS-HD, and DTS Virtual:X are registered
trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
Supplier’s Declaration of Conformity
Trade Name
LG
Responsible Party
LG Electronics USA, Inc.
Address
111 Sylvan Avenue, North Building,
Englewood Cliffs, NJ 07632
E-mail
[email protected]
The model and serial number of the product are located
on the back and on one side of the product. Record them
below in case you ever need service.
MODEL
SERIAL NO.
Temporary noise is normal when powering ON or OFF
this device.
USER MANUAL
LG Digital
Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operation and retain it for future
reference.
webOS 4.0
www.lg.com
2
ENGLISH
CONTENTS
SETTINGS.......................................4
-- Home........................................................................................4
-- Sound....................................................................................34
[Sound Mode]
Global Buttons
[Sound Out]
Dashboard
[Audio Out]
[Content Manager]
-- Ez Setting..............................................................................5
[Video Wall]
[AV Sync Adjustment]
[Digital Audio Input]
-- Admin....................................................................................37
[On/Off Scheduler]
[Lock Mode]
[SI Server Setting]
[Change Password]
[Server Setting]
[Enterprise Settings]
[Fail Over]
[HDCP Dynamic output control]
[Status Mailing]
[Factory Reset]
[Play via URL]
[Setting Data Cloning]
[Sync Mode]
[Signage 365 Care]
[Multi Screen]
-- General.................................................................................13
[Language]
[System Information]
[Set ID]
[Time Setting]
[Power]
[Network]
[Safety Mode]
[Advanced Setting]
-- Display..................................................................................26
[Picture Mode]
[Aspect Ratio]
[Rotation]
[Advanced Setting]
Video Output Resolution
CONTENT MANAGER................. 39
-- Web Login...........................................................................39
-- Content Manager...........................................................39
[Player]
[Scheduler]
[Template]
-- Group Manager 2.0.......................................................46
-- ScreenShare.......................................................................49
-- LG Presenter.....................................................................50
Connect
Screen Share
Handover
3
ENGLISH
MANAGEMENT TOOLS............... 54
-- Admin....................................................................................54
-- Picture ID.............................................................................55
TOUCH......................................... 56
-- Touch Assistive Menu...................................................56
TO CONTROL AN EXTERNAL PC
USING TOUCH SCREEN.............. 57
-- Connecting to a PC.......................................................57
-- Prioritized Tasks on the Touch Screen.................57
SMART CALIBRATION................ 58
-- How to Run........................................................................58
[Manual Calibration]
IR CODE....................................... 60
CONTROLLING MULTIPLE
PRODUCTS................................... 62
-- Connecting cables..........................................................62
-- Communication Parameter.......................................63
-- Command Reference List...........................................64
-- Transmission/Reception Protocol..........................68
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained
in this product, please visit http://opensource.lge.
com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices
are available for download. LG Electronics will
also provide open source code to you on CD-ROM
for a charge covering the cost of performing
such distribution (such as the cost of media,
shipping, and handling) upon email request to
[email protected] This offer is valid for a
period of three years after our last shipment of
this product. This offer is valid to anyone in receipt
of this information.
4
NOTE
ENGLISH
•• Software-related content may be changed without prior notice due to upgrades of the product functions.
•• Some features described in the User Manual may not be supported in certain models and countries.
•• SNMP 2.0 is supported.
SETTINGS
Home
Global Buttons
••
••
••
••
[Position]: Navigate to the OSD Output Position Selection screen.
[MOBILE URL]: Provides information necessary to access the monitor set through an external device's browser.
With this feature, you can view QR code and URL information. In addition, by accessing the URL, you can also run
Content Manager and Group Manager 2.0, and Control Manager. (This featured is optimized for Google Chrome.)
[Input]: Navigate to the external input selection screen
[Setting]: Navigate to the Settings screen
Dashboard
•• This feature displays key information about your Signage monitor in the center of the home screen. In the Dashboard,
you can manually change settings by selecting the corresponding items.
••
[Manual Download]: Downloads a manual by scanning a QR code.
NOTE
•• If the dashboard is locked, the focus does not move.
•• Depending on the QR Code app on your mobile device, you may not be able to access the page. (Use the address
provided to access the manual download page.)
[Content Manager]
•• [Player]: Play a variety of content including images, videos, and SuperSign content.
•• [Scheduler]: Manage schedules for content that will be played at different times.
•• [Template]: You can create your own content using templates and media files.
•• [Group Manager 2.0]: Distribute content schedules and setting data to the connected device.
5
[Video Wall]
[Ez Setting] [Video Wall]
Set Video Wall options to create a wide visual canvas.
•• [Tile Mode]: Turn [Tile Mode] on or off.
•• [Tile Mode Settings]: Display a single integrated screen on multiple Signage monitors.
•• [Natural Mode]: Display the image excluding the area that overlaps with the monitor's bezel so that the image
displayed has a more natural feel to it.
•• [Frame Control]: Adjust the sets that run [Scan Inversion] and frame deviation.
-- When running [Scan Inversion], please run [Frame Control] for the sets that do not run [Scan Inversion].
•• [Scan Inversion]: Reduce screen deviation between adjoining video walls by changing screen scanning method.
•• [White Balance]: Configure white balance settings (White Pattern, R/G/B-Gain, and Backlight).
•• [Reset]: Reset to initial settings.
•• [Reboot to Apply]: Reboot the set to configure a changed Frame Control/Scan Inversion value.
NOTE
•• When Tile Mode is enabled, automatically set [Frame Control] for odd numbered rows and [Scan Inversion] for even
numbered rows.
[On/Off Scheduler]
[Ez Setting] [On/Off Scheduler]
Set a schedule to use your signage by time and day of the week.
•• [On/Off Time Setting]: Set on/off times for each day of the week.
•• [Holiday Setting]: Set holidays by date and by day of the week.
[SI Server Setting]
[Ez Setting] [SI Server Setting] [SI Server Setting]
Set up to connect your signage to an external SI server. Set up a server environment for SI app installation.
[Ez Setting] [SI Server Setting] [Developer Mode & Beanviser]
This feature provides great convenience to the app developers.
Set up to install and activate the Developer mode and BEANVISER app.
ENGLISH
Ez Setting
6
NOTE
ENGLISH
•• To use these features, an account (ID/PASSWORD) for webOS Signage developer website (http://webossignage.
developer.lge.com/) is required.
[Server Setting]
[Ez Setting] [Server Setting]
Set up to connect your signage to a SuperSign server.
•• CMS Server
•• Control Server
[Fail Over]
[Ez Setting] [Fail Over]
Set the priority of the input devices when a fault occurs. Automatically play the content stored in the device or run the
set app.
•• [On/Off]: Turns [Fail Over] on or off.
•• [Input Priority]: Set the priority of input sources for fail over.
•• [Backup via storage]: W
hen there is no input signal, this feature automatically plays the content stored in the device
or runs the set app. When set to [On], [Auto], [Manual], [SuperSign Contents] items are
activated.
-- [Auto]: When the automatic input switches due to taking screenshots of an image or video that is playing at
regular intervals, this feature will play back the file. (OLED model is not supported.)
--> Capture time Interval: The time interval can be set to 30 min, 1 hour, 2 hours and 3 hours.
-- [Manual]: When the automatic input switches due to the image and video file being uploaded, the feature will play
back the file.
--> [Backup media select]: Using the settings button, you can upload a single file in the internal / external memory.
--> [Preview]: You can preview the uploaded file.
-- [SuperSign Contents]: When the automatic input switches, this feature will play the file(s) distributed in SuperSign
CMS.
•• [reset]: Reset to initial settings.
7
[Status Mailing]
•• [On/Off]: Turns [Status Mailing] on or off.
•• [Mailing Option], [Scheduling]: Sets the email sending interval.
•• [User E-mail Address]: Set the user email address of the sender.
•• [Sending Server(SMTP)]: Set the address of the SMTP server.
•• [ID]: Enter the account ID of the sender.
•• [Password]: Enter the password for the sender's account.
•• [Receiver E-mail Address]: Set the email address of the recipient.
•• [Send message]: Immediately assess the status of the device and deliver the information to the specified email
address.
•• [reset]: Reset to initial settings.
NOTE
•• If the status regarding any of the following items changes or becomes abnormal, a status message can be sent.
-- 1. Temp. Sensor: If the set reaches a dangerous temperature, its current temperature is recorded, and an email
containing such information is sent.
-- 2. Temp. Sensor Validation: An email is sent if there is no temperature sensor connected, if the communication
status of the temperature sensor is unknown, or if the information provided by the chip provider is abnormal.
-- 3. LAN Status, WiFi Status: An email is sent when the network's connection status is changed. The maximum
number of network status changes that can be saved is limited to 50. The saved value is reset once the power turns
off.
-- 4. No Signal Check: Checks whether there is a signal. If there are no signals for more than 10 seconds, an email is
sent.
-- 5. Schedule Play Status: An email is sent if content cannot be played between the scheduled start time and end
time in either Content Management Schedule status or SuperSign Content status. However, this does not apply
when terminated using the remote control.
-- 6. Fail Over Status: An email is sent if input switching occurred due to an error. (Excludes input switching initiated
by the user (RC, RS232C, SuperSign))
•• Only SMTP ports 25, 465, and 587 are supported.
•• The occurrence of internal input switches, excluding external input switches (RC, RS232C, SuperSign), are considered
as Fail Over Status.
•• One email containing the “Failover status : Failover” message is sent when switching to Fail Over Status, and the
following status emails sent regularly or upon status changes contain the message “Failover status : None”.
ENGLISH
[Ez Setting] [Status Mailing]
This feature configures the system so that the status of the device is assessed and then notified to the administrator
by e-mail.
8
[Play via URL]
ENGLISH
[Ez Setting] [Play via URL]
Play content you want to play automatically through the built-in web browser.
•• [URL Loader]: Turns [Play via URL] on or off.
•• [Set URL]: Enter the URL address to display automatically.
•• [Preview]: Preview your desired website by accessing the specified URL.
•• [Save]: Save the specified URL.
•• [Reboot to Apply]: Restarts the monitor set after saving the specified URL.
•• [Reset]: Reset to initial settings.
NOTE
•• This feature does not apply when [Screen Rotation] is enabled, and using this feature disables [Preview].
•• If [Time Setting] is not set to [Set Automatically], website navigation may be difficult.
-Check [General] [Time Setting ] [Set Automatically]
[Setting Data Cloning]
[Ez Setting] [Settings Data Cloning]
This feature is used to copy and import the settings of the device to other devices.
•• [Export Setting Data]: Export the settings of the device to another device.
•• [Import Setting Data]: Import the settings of another device into the device.
[Sync Mode]
[Ez Setting] [Sync Mode]
Sync up time and content among multiple signage.
•• [RS-232C Sync]: Sync up multiple signage connected by RS-232C.
•• [Backlight Sync]: Shares values to control backlights using illumination sensors between devices connected by RS232C.
•• [Network contents sync]: Sync up multiple signage connected to the same network.
9
[Signage 365 Care]
•• [Install]: Installs the Signage 365 Care solution.
1) [ENTER ACCOUNT NUMBER]: Enters the 6-digit account number to install the Signage 365 Care solution.
-- Account Number: The number assigned when the Signage 365 Care solution is registered. When the account
number is entered, the account name corresponding to the number is obtained.
2) [CONFIRM ACCOUNT NUMBER]: Displays the account number and the account name corresponding to the
account number and validates the account number.
-- If the account number is registered, the account name corresponding to the account number is displayed, and you
can continue to install the Signage 365 Care solution.
-- If the account number is not registered, “Unknown” is displayed as the account name, and you cannot continue to
install the solution.
•• [Enable]/[Disable]: Sets whether to Enable/Disable the Signage 365 Care solution.
•• [Account]: Displays user’s currently connected account number and name.
•• [Version]: Displays the version of the Signage 365 Care solution.
•• [Check for Update]: Checks for available updates in the server.
•• [Update]: Updates the Signage 365 Care solution to the latest version.
•• [Server Status]: Displays the status of connection between the set and server.
-- [Connected]: Displayed when the set and server are connected.
-- [Not Connected]: Displayed when the set and server are disconnected.
-- [Waiting for Approval]: Displayed when the server is waiting for approval.
-- [Rejected]: Displayed when the server rejected the connection.
•• [Reset]: Deletes the installed Signage 365 Care solution.
ENGLISH
[Ez Setting] [Signage 365 Care]
You can install the Signage 365 Care (fault diagnosis) solution for fault diagnosis and prediction service.
10
[Multi Screen]
ENGLISH
[Ez Setting] [Multi Screen]
This feature allows you to view multiple external inputs and videos on a single screen.
PIP Mode
PBP Mode
3-Screen Split Mode
4-Screen Split Mode
11
2-Screen Split Mode (1:1)
ENGLISH
3-Screen Split Mode (1:1:1)
3-Screen Split Mode (1:2:1)
4-Screen Split Mode (1:1:1:1)
NOTE
•• In multi-screen mode, the DP daisy chain feature is not supported.
•• The available number/shape of split screens may vary depending on the model.
Selecting Screen Layout
When you enter multi-screen mode without having set any screen layout, the screen layout selection menu appears.
When the screen layout selection menu is not displayed on the screen, go to the screen layout menu bar by pressing
the up arrow key on your remote control and select your desired screen layout. If you want to close the screen layout
menu, press the back key.
Closing Screen Layout Menu
From the screen layout menu, press the up arrow key on the remote control to go to the screen layout menu bar and
select it or press the back key to close the screen layout menu.
12
Changing Screen Input
ENGLISH
Press the
button on the top right of each split screen to select the desired input.
NOTE
•• Inputs which have already been selected for other split screens cannot be selected again. To select them, press the
RESET button to reset the inputs for all screens first.
•• The PIP mode works only when External Input Rotation is set to Off and Screen Rotation is set to Off or 180.
•• In the PIP mode, supported resolutions for subscreen are as follows: Other resolutions are not supported.
-- 1680 x 1050 / 1920 x 1080
•• Interlaced formats are not supported. E.g. 1080i
•• This applies to both AV/Media.
•• Models with 4-screen split mode support external input resolution of 3840 x 2160 on PIP Sub screens.
•• According to the model If there is no
button, enter the Change Input button in the screen configuration menu to
select the screen and select the desired input.
Playing Videos on Split Screens
Press the
button on the upper right of each split screen, select Video File, and then select a storage device to view
the list of videos in the selected device. Next, select your desired video from the list to play it.
NOTE
•• Videos created with HEVC, MPEG-2, H.264, or VP9 codecs can be played on split screens. When using PIP mode, the
following combinations cannot be used.
Main
Sub
HEVC
HEVC
H.264
HEVC
MPEG2
HEVC
VP9
VP9
H.264 4K
MPEG2
H.264 4K
VP9
•• The limitations of 3 and 4-screen split are as below.
When Using 4K
It supports only up to 2 videos.
A combination of max. 4K @ 60 fps + 2K @ 60 fps is available.
However, H.264 4K supports max. 30 fps.
When Using Only 2K
60fps
You can combine up to 1 MPEG2, 2 H.264, and 4 other codecs.
30fps
You can combine up to 2 MPEG2 and 4 other codecs.
•• Recommended Framerate: 24, 25, 30, 60 (including 23.9, 24.9, 29.9, 59.9)
We do not guarantee performance when you play contents with other framerates.
•• According to the model If there is no
button, enter the Change Input button in the screen configuration menu to
select the screen and then select the desired video.
13
ENGLISH
General
[Language]
[General] [Language]
You can select the menu language to be displayed on the screen.
•• [Menu Language]: Sets the language of your Signage monitor.
•• [Keyboard Language]: Sets the language of the keyboard displayed on the screen.
[System Information]
[General] [System Information]
This feature displays information such as the device name, software version, and storage space.
[Set ID]
[General]
[Set ID]
•• [Set ID] (1-1000): Assigns a unique Set ID number to each product when several products are connected via RS232C. Assign numbers ranging from 1 to 1000 and exit the option. You can control each product separately by using
the Set ID you assigned to each product.
•• [Auto Set ID]: Automatically assigns a unique Set ID number to each product when several products are connected
for display.
•• [Reset Set ID]: Reset the Set ID of the product to 1.
[Time Setting]
[General] [Time Setting]
This feature enables you to view and change the time and date on the device.
•• [Set Automatically]: Set [Time] and [Date].
•• [Daylight Saving Time]: Set the start and end times for Daylight Saving Time. The DST start/end times function only
when you set them more than one day apart from each other.
•• [NTP Server Setting]: Allows you to set other NTP servers other than the basic NTP server.
•• [Time Zone]: Allows you to change the time zone based on continent, country/region, city or user settings.
14
[Power]
ENGLISH
[General]
Power-related feature settings
[Power]
[No Signal Power Off (15 Min)]
Set whether to use the 15 Min Auto Off feature.
•• You can set this option to [On] or [Off].
•• If you set this feature to [On], the product turns off after it’s remained in No Signal status for 15 minutes.
•• If you set this feature to [Off], the 15 Min Force Off feature is disabled.
•• It is recommended that you set this feature to [Off] if you intend to use the product for long periods of time as the
feature turns the power of the product off.
[No IR Power Off (4hour)]
Set whether to use 4 Hours Off feature.
•• You can set this option to [On] or [Off].
•• If you set this feature to [On] the product turns off if there is no input from the remote control for 4 hours.
•• If you set this feature to [Off], the 4 Hours Off feature is disabled.
•• It is recommended that you set this feature to [Off] if you intend to use the product for long periods of time as the
feature turns the power of the product off.
[DPM]
Set the Display Power Management (DPM) mode.
•• If this feature is not set to [Off], the monitor will enter DPM mode when there is no input signal.
•• If you set this feature to [Off], [DPM] is disabled.
[DPM Wake Up Control]
Turns on the set according to the digital signal processing of the connected DVI-D/HDMI port.
•• When set to [Clock], the set only checks for digital clock signals and turns on once it finds the clock signal.
•• When set to [Clock+DATA], the set turns on if the digital clock and data signals are both input.
15
[PM Mode]
NOTE
•• In order for the screen to switch from [Screen Off] to On status, there must be input from the remote control's
Power or Input button, or the monitor's On button.
[Power On Delay](0-250)
•• This feature prevents overload by implementing a power-on delay when multiple monitor sets turn on.
•• You can set the delay interval in the range of 0 to 250 seconds.
[Power On Status]
•• Select the operating status of the monitor when the main power has turned on.
•• You can choose from among [PWR (Power On)], [STD (Standby)], [and LST (Last Status)].
•• [PWR (Power On)] keep the monitor powered on when the main power has turned on.
•• [STD (Standby)] switch the monitor to Standby status when the main power has turned on.
•• [LST (Last Status)] switches the monitor back to its previous status.
[Wake On LAN]
•• Set whether to use [Wake On LAN].
•• You can set the feature to On or Off for each wired/wireless network.
•• [Wired]: When set to [On], the [Wake On LAN] feature is enabled, letting you turn the product on remotely through
a wired network.
•• [Wireless]: When set to [On], the [Wake On LAN] feature is enabled, letting you turn the product on remotely
through a wireless network.
ENGLISH
•• [Power Off (Default)]: Set the normal DC off mode.
•• [Sustain Aspect Ratio]: The PC retains the Extended Display Identification Data (EDID) even when the power is off.
•• [Screen Off]: Switches to [Screen Off] status when entering DPM, Auto Power Off (15 min, 4 hours), or Abnormal
Shut Down mode.
•• [Screen Off Always]: Switches to [Screen Off] status when entering DPM, Auto Power Off (15 min, 4 hours), Off
Time Scheduling, or Abnormal Shut Down mode, or when there is input from the remote control's Power button or
the monitor's Off button.
•• [Screen Off & Backlight On]: Partially turns on the backlight to keep the display at a proper temperature when in
Screen Off status.
16
[Power Indicator]
ENGLISH
•• This function enables you to change the [Power Indicator] settings.
•• Setting to [On] will turn on [Power Indicator].
•• Setting to [Off] will turn off [Power Indicator].
•• Regardless of [On] or [Off] settings in [Power Indicator], [Power Indicator] will be turned on for approximately 15
seconds.
[Power On/Off History]
Display the device's power on/off history.
[Network]
[General]
[Network]
[Wired Connection (Ethernet)]
•• Wired Connection: Connects the monitor to a local area network (LAN) via the LAN port and configures wired
network settings. Only wired network connections are supported. After setting up a physical connection, the display
will automatically connect without any adjustments on most networks. A small number of networks may require the
display settings to be adjusted. For detailed information, contact your Internet provider or consult your router manual.
[Wi-Fi Connection]
If you have set your monitor up for a wireless network, you can view and connect to available wireless Internet
networks.
•• [Add a Hidden Wireless Network]: You can add a wireless network by manually typing in its name.
•• [Connect via WPS PBC]: Press the button on the wireless router that supports PBC to easily connect to the router.
•• [Connect via WPS PIN]: Enter the PIN number in the web page of the PIN-supporting wireless router to connect to
the router in a simple manner.
•• [Advanced Wi-Fi Settings]: You can change the settings of the connected wireless network.
NOTE
•• On models that support Wi-Fi dongles, the Wireless Network Connection menu is enabled only when a Wi-Fi dongle
is connected.
•• When connected to a network that supports IPv6, you can select IPv4 / IPv6 in the wired / wireless network
connection. But, IPv6 connection only supports automatic connection.
17
[LAN Daisy Chain]
[SoftAP]
If you set up a SoftAP, you can connect many devices via a Wi-Fi connection without a wireless router and use wireless
Internet.
•• The SoftAP and ScreenShare features cannot be used at the same time.
•• On models that support Wi-Fi dongles, the SoftAP menu is enabled only when a Wi-Fi dongle is connected to the
product.
•• Wi-Fi Channel: You can directly select a Wi-Fi channel.
•• SoftAp Access Information
-- SSID: A unique identifier necessary to make a wireless Internet connection
-- Security Key: Security key: The security key you enter to connect to the desired wireless network
-- Connected Devices Count: lumber of connected devices: Shows the number of devices currently connected to your
Signage device via a Wi-Fi connection. Up to 10 devices are supported.
[UPnP]
Open and block UDP port 1900, which is used for UPnP.
•• The default setting is [On]. Setting this feature to [Off] blocks UDP port 1900, making the UPnP function
unavailable.
•• If you set this feature to [Off], Sync Mode's "Network" option will be deactivated. When the value for Sync Mode is
"Network," the value switches to "Off," deactivating the "Network" option.
•• If you change the UPnP value, the change will not be applied before a [reboot].
•• If you set UPnP to [Off], you cannot use Group Manager 2.0 properly.
[Ping Test]
Check your network status with the ping test.
[Port Control]
Unused ports can be blocked for network security.
[Connection Domain]
Change domain for checking network connection.
NOTE
•• A reboot is recommended for the settings to be applied properly.
ENGLISH
•• LAN Daisy Chain forms a daisy chain of LAN ports so that even if you connect only one monitor set to a network, the
other sets in the daisy chain are connected to the network.
•• However, the first monitor set in the daisy chain must be connected to the network through a port that is not used
for the daisy chain connection.
18
Tips for Network Settings
ENGLISH
•• Use a standard LAN cable (Cat5 or higher with an RJ45 connector) with this display.
•• Many network connection problems during set up can often be fixed by re-setting the router or modem. After
connecting the display to the home network, quickly power off and/or disconnect the power cable of the home
network router or cable modem, Then power on and/or connect the power cable again.
•• Depending on the Internet service provider (ISP), the number of devices that can receive INTERNET service may be
limited by the applicable terms of service. For details, contact your ISP.
•• LG is not responsible for any malfunction of the display or Internet connection failures due to communication errors/
malfunctions associated with your Internet connection or other connected equipment.
•• LG is not responsible for problems within your INTERNET connection.
•• You may experience undesired results if the network connection speed does not meet the requirements of the
content being accessed.
•• Some INTERNET connection operations may not be possible due to certain restrictions set by the Internet service
provider (ISP) supplying your Internet connection.
•• Any fees charged by an ISP including, without limitation, connection charges are your responsibility.
NOTE
•• If you want to access the Internet directly on your display, the INTERNET connection should always be on.
•• If you cannot access the Internet, check the network conditions from a PC on your network.
•• When you use Network Setting, check the LAN cable or check if DHCP in the router is turned on.
•• If you do not complete the network settings, the network may not function correctly.
CAUTION
•• Do not connect a modular phone cable to the LAN port.
•• Since there are various connection methods, please follow the specifications of your telecommunication carrier or
INTERNET service provider.
•• Network setting menu will not be available until the display connected to physical network.
19
Tips for When Configuring Wireless Network Settings
ENGLISH
•• The wireless network may be affected by interference from a device that uses 2.4 GHz frequency, such as a wireless
telephone, Bluetooth device or microwave. Interference may also be caused by a device that uses 5 GHz frequency
such as Wi-Fi devices.
•• The wireless network service may run slowly depending on the surrounding wireless environment.
•• Some devices may have a network traffic jam if any local home networks are turned on.
•• To connect to a wireless router, a router that supports wireless connection is necessary; the wireless connection
function of the corresponding router must also be activated. Ask the router manufacturer whether the router
supports wireless connection.
•• To connect to a wireless router, verify the SSID and security settings of the wireless router. Please refer to the user
guide of the corresponding router regarding SSID and security settings of the wireless router.
•• The monitor may not work properly if network devices (wire/wireless router or hub, etc.) are incorrectly set up. Be
sure to install the devices correctly by referring to their user guides before configuring the network connection.
•• The connection method may vary according to the manufacturer of the wireless router.
20
[Safety Mode]
ENGLISH
[General] [Safety Mode]
Set to this function for safe performance.
[ISM Method]
If a still image is displayed on the screen for an extended period of time, image sticking can occur. The ISM method is a
feature that prevents image sticking.
[Mode]
•• Sets the [ISM Method] mode.
•• [Off]: Disable the Brightness Control function.
•• [Orbiter]: To prevent afterimage on the screen, the screen location moves by 4 pixels in a regular order. (This item is
inactivated when the current input is No Signal.) (It only supports the models for exterior use.)
•• [White Wash]: Displays a white pattern to remove image sticking.
•• [User Image]: Plays your photos or movies using a USB storage device.
•• [User Video]: Plays your photos or movies using a USB storage device.
Repeat Daily
•• [Off, Just 1 Time]: Select this mode and click Complete to run the ISM function immediately.
•• [On]: Performs the ISM function for the amount of time set in duration if the still image is maintained for the period
set in standby.
•• [On, with moving detection]: It only applies in the [Orbiter] mode. When the still image remains for the [StandBy]
time, the afterimage prevention function works for the [Duration] time.
•• [On, without moving detection]: It only applies in the [Orbiter] mode. When you tap the [DONE] button, the
afterimage prevention function immediately applies and operates continuously.
•• [Schedule]: Enable the ISM feature from start time to end time on the set day.
[StandBy]
•• You can set the period between 1 and 24 hours.
•• This option is available only when [Repeat] is set to [Schedule].
•• The ISM function is performed if the still image is maintained for the set period.
[Duration]
•• You can select from among 1 - 10 min / 20 min / 30 min / 60 min / 90 min / 120 min / 180 min / 240 min.
•• This option is available only when [Repeat] is set to [Schedule].
•• The ISM function is performed for the set time.
[Select Day]
•• You can set the date.
•• This option is available only when [Repeat] is set to [Schedule].
21
[Start Time]
[End Time]
•• Set the End time.
•• This option is available only when [Repeat] is set to [Schedule].
•• You cannot set the same time for Start time and End time.
[Action Cycle]
You can select from among 1 - 10 min / 20 min / 30 min / 60 min / 90 min / 120 min / 180 min / 240 min.
•• This option is only available when [Orbiter] is selected.
•• [Orbiter]: The screen location moves at every set interval.
[User Image Download]
•• In order to download an image, there must be an image file in “ISM” folder on your USB storage device.
•• Delete the existing images stored on internal memory before downloading a new image file.
•• Supported image file formats: BMP, JPG, JPEG and PNG
•• You can download up to 4 images. (The maximum resolution is 1920 x 1080.)
•• If a bar image is deleted or does not exist, the default image is used. (The default image is a white background)
•• This option is only available when [User Image] is selected.
[User Video Download]
•• In order to download a video, there must be a video file in the “ISM” folder on your USB storage device.
•• Delete the existing contents stored on the internal memory before downloading a new video file.
•• Supported video file formats: “MP4”, “AVI”, “FLV”, “MKV”, “MPEG”, “TS”
•• You can download only 1 video.
•• If a video is deleted or does not exist, the default video is used. (The default video is a white background image)
•• This option is only available when [User Image] is selected.
* How to reset or delete User Image / User Video
•• Reset using
> [Admin] > [Factory Reset]
•• Open the Player app > Click “Delete” button at the top right of the screen > Delete downloaded image / video
ENGLISH
•• Set the Start time.
•• This option is available only when [Repeat] is set to [Schedule].
•• You cannot set the same time for Start time and End time.
22
[Screen Fault Detection]
ENGLISH
•• The screen fault detection feature determines whether there is an abnormality at the end of screen; R, G, and B
OSDs are created in the upper left-hand corner of the panel at intervals of about one second, and then a pixel sensor
checks the area.
•• Setting to [On] enables the screen fault detection feature.
•• Setting to [Off] disables the screen fault detection feature.
[Advanced Setting]
[General]
[Advanced Setting]
[Beacon]
•• This option enables BLE Beacon, one of Bluetooth 4.0's features.
•• Beacon Mode (On/Off Toggle): enables the Beacon feature.
•• The LG Beacon/iBeacon/Eddystone Type Beacon features are supported.
•• iBeacon
-- Beacon UUID (hex): Set the UUID.
1. Field1: 4byte hex value (8 digits)
2. Field2: 2byte hex value (4 digits)
3. Field3: 2byte hex value (4 digits)
4. Field4: 2byte hex value (4 digits)
5. Field5: 6byte hex value (12 digits)
-- Major (0–65535): Sets the Major value.
-- Minor (0–65535): Sets the Minor value.
•• Eddystone
-- Frame: Frame: Set UUID or URL.
•• 1. Setting the URL method
-- Beacon UUID (hex): Set the UUID.
1 - Field1: 10byte hex value (20 digits)
2 - Field2: 6byte hex value (12 digits)
•• 2. Setting the URL method
-- URL Prefix: URL Prefix: Sets the prefix of the URL.
-- URL Suffix: URL Suffix: Set the suffix of the URL.
-- Play via URL URL: Enter the part of the URL that excludes the prefix and suffix.
-- URL string length is limited to 15 characters.
•• [Check] button: The button used to complete and apply the Beacon settings.
23
NOTE
[Control Interface]
Devices connected to the display can be controlled via the interface.
•• [PC/OPS Power Control]: Enable you to control the power of PC or OPS as you turn the display on and off.
-- [Disable]: Disable [PC/OPS Power Control].
-- [Sync(On)]: Set the PC/OPS power to be turned on when the display is turned on.
-- [Sync(On/Off)]: Set the PC/OPS power to be turned on when the display is turned on and set the PC/OPS power to
be turned off when the display is turned off.
•• [Control Interface Selection]: Select the serial communication path between the display and the connected devices.
-- [Display]: Serial communication is available via a display RS-232C IN terminal.
-- [OPS]: Serial communication is available with the OPS installed in the display.
-- [HDBaseT]: Serial communication is available with the display via HDBaseT equipment.
NOTE
•• Depending on the model, it can be displayed as [PC/OPS Control].
•• Depending on the supported interface, the sub-menu of [Control Interface Selection] may be different.
•• The PC products that support the power control are MP500/MP700, and you have to purchase them separately if
necessary.
•• If you change [Control Interface Selection], the [RS-232C Sync] feature of [Sync Mode] may be restricted.
ENGLISH
•• Some models do not support background screening services in iOS.
•• A reboot is recommended for the settings to be applied properly.
•• The UUID value is hexadecimal and the exact number of digits must be entered.
•• The distance to Beacon may vary depending on the device.
•• The distance to Beacon may vary depending on the application used in the device.
•• The Beacon function is affected by radio waves because it employs the Bluetooth Low Energy (BLE) technology. It
may not function properly if the frequency range is not around 2.4GHz.
•• When you set iBeacon, LG Beacon will be set to be the same as the value of iBeacon field. But the LG Beacon setting
item won’t be provided separately.
24
[Background Image]
ENGLISH
This feature enables you to set the default background image.
•• [Booting Logo Image]: Change the logo image that appears when the device boots up. If you set this option to Off, no
logo image appears when the device boots up. Download or initialize an image file on the storage device.
•• [No Signal Image]: Change the image that appears when there is no signal. If you set this option to Off, no image
appears when there is no signal. Download or initialize an image file on the storage device.
NOTE
•• To download an image, an image file must exist in a folder named “LG_MONITOR” or “lg_monitor” in the external
memory (USB).
•• Supported image file formats : “BMP”, “JPG”
•• The maximum downloadable resolution is as follows, depending on the model.
Boot logo image
No signal image
Full HD
1920x1080
1920x1080
Ultra HD
1920x1080
3840x2160
86 "Ultra Stretch
1920x300
3840x600
88 "Ultra Stretch
1920x540
3840x1080
[Input Manager]
You can set the PC or DTV label for each external input.
[SIMPLINK Setup]
•• When the [SIMPLINK Setup] is set to [On], you can use the SIMPLINK provided by LG Signage.
•• [Device ID]: Set the ID of the device connected via CEC wiring. You can choose a value between [All] and [E].
•• [StandBy]: Sets the scenarios for sending and receiving the Standby command. Detailed scenarios are as follows:
Transmission
Reception
All
O
O
Send Only
O
X
Receive Only
X
O
25
[Crestron]
•• Server: This menu sets the server's IP address for the network connection with the server (equipment provided by
Crestron).
•• Port (1024~65535): This menu sets the port for the network connection with the server. The default port number is
41794.
•• IP ID (3-254): This menu sets a unique ID for synchronizing with the application.
[LED Controller]
Allows a specific LED display manufacturer to remotely control some features of the linked display.
[USB2 to HDBaseT]
This function transfers the data received from the USB2 terminal of the display to HDBaseT.
•• [On]: Transfer the data of the device connected to USB2 to the HDBaseT equipment.
•• [Off]: Receive the data of the HDBaseT equipment to Signage.
NOTE
•• The HDBaseT function will be temporarily interrupted when the setting is changed.
ENGLISH
This function enables synchronization with applications provided by Crestron.
26
ENGLISH
Display
[Picture Mode]
[Display]
[Picture Mode]
[Mode]
This feature enables you to choose the optimal picture mode for your installation environment.
•• [Mall/QSR], [Transportation], [Education], [Gov./Corp.]: Display the picture optimally for your installation environment.
•• [Normal]: Display the picture at normal contrast, brightness, and sharpness.
•• [APS]: Adjust the screen brightness to reduce power consumption.
•• [Expert], [Calibration]: Allow an expert, or anyone who loves picture quality, to manually tune to the best picture
quality.
•• [Hospital]: An image setting mode optimized for medical images.
NOTE
•• The type of [Picture Mode] you can select may vary depending on the model or input signal.
•• [Expert] is an option that allows a picture quality expert to fine-tune the picture quality using a specific image. Thus,
it may not be effective for a normal picture.
[HDR]
This feature enables you to choose the optimal picture mode for your installation environment.
•• [Mall/QSR]: sharpens the image by increasing the contrast, brightness and sharpness.
•• [General]: In a normal viewing environment, it opens a screen that can properly show the expressiveness and
brightness of HDR.
•• [Gov./Corp.]: The screen appears brighter and clearer than of the General screen.
•• [Education]: Suitable picture for gameplay.
27
[Customize]
ENGLISH
•• [Backlight]: Adjust the brightness of the screen by adjusting the brightness of the backlight. The closer the value is to
100, the brighter the screen is.
•• [OLED Light]: Adjusts the brightness of the LED panel to control the brightness of the screen.
•• [LED Light]: Adjust screen brightness by tuning the LED Light. Higher values increase brightness.
•• [Contrast]: Adjust the difference between the light and dark areas of the picture. The closer the value is to 100, the
greater the difference is.
•• [Brightness]: Adjust the overall brightness of the screen. The closer the value is to 100, the brighter the screen is.
•• [Sharpness]: Adjust the sharpness of the edges of objects. The closer the value is to 50, the clearer and the sharper
the edge becomes.
•• [Color]: Soften or deepen the tints on the screen. The closer the value is to 100, the deeper the colors become.
•• [Tint]: Adjust the balance between red and green levels displayed on the screen. The closer to Red 50, the redder the
color will be. The closer to Green 50, the greener the color will be.
•• [Color Temperature]: The higher you set the color temperature, the cooler the colors on the screen will feel. The lower
you set the color temperature, the warmer the colors on the screen will feel.
•• [Advanced Controls] / [Expert Controls]: Customize the advanced options.
-- [Dynamic Contrast]: Optimize the difference between the light and dark parts of the screen according to the
brightness of the image.
-- [Super Resolution]: Sharpen the areas of the screen that are blurry or barely distinguishable.
-- [Color Gamut]: Select the range of colors available.
-- [Dynamic Color]: Adjust the tint and saturation of the image for a more vivid and lively display.
-- [Color Filter]: Accurately adjust color and tint by filtering a specific color area of RGB space.
-- [Preferred Color]: Adjust the skin tint, grass tint, and sky tint to your preference.
-- [Gamma]: Adjust gamma settings to compensate for the brightness of the input signal.
-- [White Balance]: Adjust the overall color fidelity of the screen to your liking. In Expert mode, you can fine-tune the
picture using the Method/Pattern options.
-- [Color Management System]: Experts use the color management system when they adjust the colors by using the
test pattern. The color management system allows you to make an adjustment by selecting from among 6 different
color spaces (Red/Yellow/Blue/Cyan/Magenta/Green) without affecting other colors. In a normal picture, you may
not notice the color changes you have made.
-- [Dynamic tone mapping]: Suitable contrast settings based on image brightness of the HDR content.
28
ENGLISH
•• [Picture Option]: Customize the picture options.
-- [Noise Reduction]: Remove randomly popping dots to make the picture look clearer.
-- [MPEG Noise Reduction]: Reduce the noise generated in the process of creating a digital video signal.
-- [Black Level]: Adjust the brightness and contrast of the screen by adjusting the black level of the screen.
(Recommended settings based on input signals: Backlight 0 - 255 High, RGB 16 - 235: Low, YCbCr: Low)
-- [Real Cinema]: Optimize the video image for a cinematic look.
-- [Motion Eye Care]: Reduce eye fatigue by adjusting brightness levels and lessening blurriness based on the
displayed image.
-- [LED Local Dimming]: Make the light areas of the screen lighter and the dark areas darker for maximum contrast.
Setting this feature to Off may increase the monitor's power consumption.
-- [TruMotion]: Reduce image shaking and image sticking that can occur with /moving images. (If you set the [External
Input Rotation], this feature is unavailable.)
•• [Apply to all inputs]: Copies the current value of the detailed setting menu to the entire input, and applies only to the
selected picture mode.
•• [Reset]: Reset the picture settings. Because the picture settings are reset according to the monitor's picture mode,
please select the picture mode before resetting the picture settings.
29
[Aspect Ratio]
•• [Full Wide]: Stretch the picture to fill the screen.
•• [Original]: Display the picture at its original resolution.
[Rotation]
[Display]
[Rotation]
[Screen Rotation]
•• This feature rotates the screen clockwise.
•• You can set this feature to Off/90/180/270.
•• When set to off, this feature is deactivated.
•• It is recommended that you use content designed to be used in Portrait mode.
•• When the screen rotation is enabled, the PIP mode of the multi-screen is unavailable.
NOTE
•• Depending on the model, the automatic screen rotation feature may not be supported.
[External Input Rotation]
•• This feature rotates the screen clockwise.
•• You can set this feature to Off/90/180/270.
•• When this feature is set to On (90 or 270 degrees), as for ARC, the picture is resized to be [Full Wide].
•• If [External Input Rotation] is enabled during WiDi operation, the position of the mouse cursor may not be displayed
accurately.
•• Please note that the degradation of picture quality that occurs when you have enabled [External Input Rotation]
during the use of external input has nothing to do with the product itself.
•• When External Input Rotation is set to On, Multi Screen's PIP mode is disabled.
•• If External Input Rotation is enabled on models that support touch, touch may not work properly.
•• To use Ultra Stretch products in optimum picture quality, please refer to the User Manual’s Contents Creation & Use
Guide.
•• For Ultra Stretch products, content picture quality may be compromised depending on the conditions of content
creation and product settings (screen split/rotate).
[Mirror mode]
•• Set the screen to rotate 180 degrees.
ENGLISH
[Display] [Aspect Ratio]
This feature enables you to change the picture size to view the picture at its optimal resolution.
30
[Advanced Setting]
ENGLISH
[Display]
[Advanced Setting]
[UHD Deep Color]
If you connect an HDMI, DP, or OPS device to one of the Deep Color adjustable ports, you can select between UHD
Deep Color On (6G) or Off (3G) in the UHD Deep Color settings menu.
If a compatibility issue occurs with a graphics card when the Deep Color option is set to On at 3840 x 2160 @ 60 Hz,
set the Deep Color option back to Off.
•• HDMI, DP, and OPS specifications may vary depending on the input port. Check the specifications of each device
before connecting.
•• HDMI input port 2 is best suited for high definition videos that are [email protected] Hz (4:4:4, 4:2:2). However, video or audio
may not be supported depending on the specifications of the external device. If this is the case, please connect the
device to a different HDMI port.
•• This feature may not be available on some models.
[OLED Panel Settings]
•• [Clear Panel Noise]: Correct issues that may arise on the screen when it is turned on for a long period of time.
•• [Screen Protection Mode Setting]: This feature analyzes the characteristics of the image from the external input to
prevent afterimages on the screen.
Master
Slave
Slave
Slave
1
1
2
2
3
3
4
4
5
When Master is selected
5
When Slave is selected
31
Item
[Tiling Type]
Description
Select and set the mode according to the installation type of your Signage.
•• Stand-alone: Select and use this mode when you use only one unit.
•• Video Wall: Select and use this mode when using two or more multi-screen
configurations. This mode requires advanced settings.
2
3
[Detail Settings]
Select Master or Slave.
[Screen Protection
Mode]
•• When Master is selected: Enter the number of rows and columns for the entire
multi-screen.
•• When Slave is selected: Enter the multi-tile ID number for the individual set.
This feature enables you to set the content correction level and to set whether to use
the Screen Switch feature.
•• 4 [Content Luminance Compensation]: Select a high or low correction level to use.
•• 5 [Screen Shift]: Set whether to use the Screen Switch feature.
NOTE
•• The [Tiling Type] and [Detail Settings] menu items are not available for models that do not support the tile mode.
•• The [Screen Protection Mode] function is supported for external input images.
-- The [Screen Protection Mode] function is not enabled for playing images in USB devices.
-- The [Screen Protection Mode] function is not enabled when interlaces signals are input.
•• [Screen Protection Mode] does not work with the functions [TruMotion] / [Noise Reduction] / [MPEG Noise
Reduction].
-- To enable the functions [TruMotion] / [Noise Reduction] / [MPEG Noise Reduction] in the DTV input mode, ensure
that the [Screen Protection Mode] menu is set to (Off).
•• It is recommended to use contents with 10 minutes of playback time. (The [Screen Protection Mode] function may
not work smoothly for the content with the duration longer than 10 minutes.)
•• For the [Screen Protection Mode] feature to work normally, the Dithering feature should be turned OFF on the
external input player or the graphics chip/card you are using.
•• To enable the [Screen Protection Mode] feature in Video Wall, the screens must be connected to the same network
through a LAN.
However, some operations may not be available when the screens are connected to [LAN Daisy Chain]. In this case,
we recommend using a router or network switch.
•• If [Screen Protection Mode Settings] is all set and in operation, and the settings are changed or the [Screen
Protection Mode] function is discontinued, the function restarts next time the product is turned on.
-- To enable the [Screen Protection Mode] function, it needs time to recognize the pattern of the content. (The time
may vary depending on the duration of the content.)
•• The [Screen Shift] feature is supported only for the stand-alone configuration or for use in a single DP daisy chain.
That is, if [Tile Mode] is enabled, the [Screen Shift] feature only works properly when the values of [Row] and
[Column] in [Tile Mode Setting] are the same as those of [Row] and [Column] in [Detail Settings].
•• When [Content Luminance Compensation] is set to [High], there may be differences in brightness than when it is set
to [Low].
•• To return to the initial settings, execute [Administrator]> [Factory default].
•• When using the Screen Shift function, the location of the touched and operated area may be slightly different.
ENGLISH
No.
1
32
[Energy Saving]
ENGLISH
•• [Smart Energy Saving]: Automatically adjust the brightness of the screen according to the brightness of the picture
to save energy.
-- [On]: Enable the Smart Energy Saving feature.
-- [Off]: Disable the Smart Energy Saving feature.
•• [Brightness Control]: Adjust the brightness of the screen to save energy.
-- [Auto:] Automatically adjust the brightness of the screen according to ambient light.
-- [Off]: Disable energy saving.
-- Minimum/Medium/Maximum: Use energy saving according to the energy saving level set for the monitor.
•• [Brightness Range Adjustment]: Sets the min/max values of the brightness range for the backlights adjusted by the
illumination sensors.
-- [Min Backlight]: Sets the min value of the backlights.
-- [Max Backlight]: Sets the max value of the backlights.
•• [Brightness Scheduling]: Adjust the backlight at specified times.
-- You can set this feature to [On/Off].
-- Add schedule by setting the schedule time and backlight / OLED Light / LED Light value.
-- If the current time has not been set, [Brightness Scheduling] is disabled.
-- You can add up to six schedules, and they are sorted in ascending order by time.
-- You can edit a schedule by selecting it from the list and pressing the [OK] button.
NOTE
•• To return to the initial settings, execute [Administrator]> [Factory default].
[HDMI IT Content]
Set the HDMI IT Contents function.
•• [Off]: Disable the HDMI IT Contents function.
•• [On]: Enable the HDMI IT Contents function.
This feature automatically changes the monitor's picture mode based on HDMI Contents information when an HDMI
signal is entered.
Even if the monitor's picture mode has been changed by the HDMI IT Contents feature, you can change the picture
mode again manually.
As this has a higher priority than the picture mode set by the user, the existing picture mode may be changed when
the HDMI signal changes.
[Color Calibration]
Sets the screen color to match the actual color temperature.
•• [Off]: Disables the Color Calibration feature. The screen color is set to the default value.
•• [On]: Enables the Color Calibration feature. The screen color is set to match the actual color temperature.
NOTE
•• The screen color may change if you enable or disable the feature.
•• If the Picture Mode is ‘Calibration’, this feature will not be available.
33
[LED Local Dimming]
NOTE
•• To return to the initial settings, execute [Administrator]> [Factory default].
[Low Latency]
Reduces frame delay in the LED Signage.
[Factory Calibration]
Retrieves factory pixel calibration data of the LED Signage and reflects it on the screen. Calibration needs to be done
once during the initial installation and should also be carried out when relocating or replacing the LDM.
Video Output Resolution
[Display] [Video Output Resolution]
You can set the resolution of webOS BOX.
ENGLISH
Make the light areas of the screen lighter and the dark areas darker for maximum contrast.
34
ENGLISH
Sound
[Sound Mode]
[Sound]
[Sound Mode]
[Sound Mode]
The best sound quality will be selected automatically depending on the video type currently being watched.
•• [Standard]: This sound mode works well for content of all types.
•• [Cinema]: Optimize sound for watching movies.
•• [Clear Voice III] Enhance voices so they can be heard more clearly.
•• [Sports]: Optimize sound for watching sports.
•• [Music]: Optimize sound for listening to music.
•• [Game]: Optimize sound for playing video games.
[Balance]
•• [Balance]: Adjust the output volume for the left speaker and the right speaker.
[Equalizer]
•• [Equalizer]: Manually adjust sound by using the equalizer.
[Reset]
•• [Reset]: Resets sound settings.
35
[Sound Out]
[Sound Out]
NOTE
•• Some recently connected devices may automatically attempt to reconnect to the Signage monitor when it is turned
on.
•• It is recommended that you set LG audio devices that support LG Sound Sync to LG TV mode or LG Sound Sync mode
before connecting.
•• Press Device Selection to view the devices that are or that can be connected and connect other devices.
•• You can use the signage remote control to adjust the volume of the connected device.
•• If the audio device fails to connect, check that it is switched on and available for connection.
•• Depending on the type of the Bluetooth device, the device may not connect correctly or an abnormal behavior may
occur such as unsynchronized video and audio.
•• Sound may stutter or sound quality may be reduced if:
-- The Bluetooth device is too far from the Signage monitor.
-- There is an obstructing object between the Bluetooth device and the Signage monitor.
-- The Bluetooth device is used together with radio equipment such as a microwave oven or wireless LAN.
ENGLISH
[Sound]
•• [Internal Speaker] / [External Speaker]: You can output audio either through your Signage monitor's internal speaker
or through an external speaker connected to it.
•• [SIMPLINK External Speaker]: This function connects Home Theater device by SIMPLINK. When it is set to Home
Theater device input, it outputs voice through the connected device. This option is activated when SIMPLINK has been
set to On.
•• [LG Sound Sync / Bluetooth]: Enables you to connect Bluetooth audio devices or Bluetooth headsets wirelessly to
your monitor so that you can enjoy richer audio conveniently.
36
[Audio Out]
ENGLISH
[Sound]
[Audio Out]
•• [Off]: Disables the use of [Audio Out]. (No audio outputted.)
•• [Variable]: You can specify an output range for the external audio device connected to the monitor and adjust the
volume within the range. You can change the volume of an external audio device within the range of 0 to 100 (the
same as the Signage speaker volume). However, there may be a difference in the actual volume level outputted.
•• [Fixed]: Sets a fixed audio output level for the external audio device.
-- If there is no external input, no external audio is outputted.
-- The variable audio output level 100 is the same as the fixed audio output level.
[AV Sync Adjustment]
[Sound] [AV Sync Adjustment]
This feature adjusts audio timing to synchronize video and audio.
•• [External Speaker] (0~15): Adjust the sync between video and audio coming from external speakers, such as those
connected to the digital audio output port, LG audio equipment, or headphones. The larger the number is, the slower
the voice output is than the default value.
•• [Internal Speaker] (0~15): Adjust the sync of sound from the internal speakers. The larger the number is, the slower
the voice output is than the default value.
•• [Bypass]: Output the broadcast signals or the sound from external devices without any audio delay. Audio may be
outputted earlier than video due to the processing time for video that is inputted into the monitor.
[Digital Audio Input]
[Sound] [Digital Audio Input]
This feature enables you to choose an input source for audio output.
•• [Digital]: Output the audio contained in the digital signal inputted from the connected digital input source (HDMI,
DISPLAYPORT, OPS).
•• [Analog]: Output audio from the digital input source (HDMI, DISPLAYPORT, OPS) connected to the monitor through
the Audio In port.
37
ENGLISH
Admin
[Lock Mode]
[Admin]
[Lock Mode]
[Home Dashboard Lock]
When you set the Home Dashboard Lock, you can limit the change in the settings of the Home Dashboard.
[USB Lock]
This feature enables you to configure the USB lock feature so that settings or content cannot be changed.
[OSD Lock]
This feature enables you to configure the OSD lock feature so that settings or content cannot be changed.
•• Press and hold the Settings key for at least 10 seconds and enter password to access the settings menu in OSD Lock.
[IR Operation Lock]
•• If you set this feature to [Off (Normal)], you can use your remote control.
•• If you set this feature to [On (Power Key Only)], you can only use the power key.
•• If you set this feature to [On (Block All)], you cannot use your remote control. (However, Power On feature is
available.)
•• Press and hold the Settings key for at least 10 seconds and enter password to access the settings menu in IR
Operation Lock.
[Local Key Lock]
This feature enables you to configure the Local Key Operation Lock feature so that settings or content cannot be
changed.
•• If you set this feature to [Off (Normal)], you can use the local keys on the monitor.
•• If you set this feature to [On (Power Key Only)], you can only use the power key. (When you use a joystick, press and
hold a local key to turn on/off the monitor.)
•• If you set this feature to [On (Block All)], you cannot use the local keys. (However, Power On feature is available.)
[Wi-Fi Lock]
This feature enables you to turn the Wi-Fi feature on or off.
[Screen Share Lock]
This feature enables you to turn the Screen Share feature on or off.
If the Screen Share Lock value is changed, the function is not applied without a reboot.
38
[Change Password]
ENGLISH
This feature enables you to set the password you use to enter the Installation menu. (The default password: 000000)
1 Enter your current password.
2 Enter a new 6-digit password.
3 Enter the same password again in the Confirm Password field for confirmation.
[Enterprise Settings]
•• Enter your company account code to apply the corresponding enterprise settings.
•• When your code has been entered, the monitor set gets reset, thereby applying the corresponding enterprise
settings.
•• This feature does not get activated if a code has already been entered.
[HDCP Dynamic output control]
•• Only HDCP protected content will be encrypted delivered when you set ‘On’.
•• Every content will be encrypted delivered when you set ‘Off’.
[Factory Reset]
Initializes all settings in [Setting] and files from the internal storage.
The exceptions are RGB gain value of [Calibration] mode, [Video Wall]([Tile Mode], [Tile Mode Setting], [Natural Mode],
[Frame Control], [Scan Inversion]) and [Server Setting] items of [Ez Setting], and [Set ID] items of [General].
NOTE
•• It keeps the existing settings because the Off / On button in the User menu only affects the active / inactive status
of the submenu.
39
Web Login
•• Different features are supported depending on the product.
This Signage product comes with a feature that enables you to access it on your PC or mobile device.
-- Content Manager, Group Manager 2.0, Control Manager, Log Out, Change Password menus are provided.
•• URL: https://set ip:443
•• The default password: 00000000
CAUTION
•• Supported resolutions (this program is optimized for the following resolutions):
-- PC: 1920 x 1080 / 1280 x 1080
-- Mobile: 360 x 640(1440 x 2560, 1080 x 1920), DPR
•• Supported browsers (this program is optimized for the following browsers):
-- Chrome 56 or later (recommended)
Content Manager
[Player]
(Player)
The Content Manager app's player feature enables you to play/manage contents of video, image, template, SuperSign
and playlist in an integrated way. (The OLED models do not support the playback and management of image content
and template content.)
[Continuous Play]
1 Select your desired type of content from the tab on the left and then select your desired content.
2 Click [Play] in the upper right-hand corner of the screen and enjoy the content you have selected.
[Export]
1 Select your desired type of content from the tab on the left and click [Export] in the upper right-hand corner of the
screen.
2 Select the content you wish to export.
3 Click [Copy]/[Move] in the upper right-hand corner of the screen and select the device to which you wish to export
the content. (If a content file stored on the target device has been selected, the processing of the content file is
skipped.)
4 You can see that the content has been moved/copied to the device.
ENGLISH
CONTENT MANAGER
40
[Delete]
ENGLISH
1 Select your desired type of content from the tab on the left and click [Delete] in the upper right-hand corner of the
screen.
2 Select the content you wish to delete.
3 Click [Delete] in the upper right-hand corner of the screen.
4 You can see that the content has been deleted.
[Filter / Sort]
1 Click [Filter / Sort] in the upper right-hand corner of the screen.
2 1) Choose your desired sort criterion to sort content files either by file name or in the order they have been played
(the most recently played file shown at the top of the list).
2) It is possible to only view the content stored on your desired device by filtering content files by device.
3) It is possible to only view the content of your desired type by filtering content files by content type.
[Create Playlist]
When creating a playlist, you cannot include characters that cannot be used in file names on Windows — such as \, /,:,
*,?, ", <,>, and | — in the names of the files in the playlist. In addition, if the playlist contains content files whose names
include such characters, you cannot move or copy the playlist.
1 Select the [Playlist] tap from the tab on the left and click [Create Playlist] in the upper right-hand of the screen.
2 Select the content you wish to add to the playlist and click [NEXT] in the upper right-hand of the screen.
3 Set a play time for each piece of content (applicable only for photo and template content), as well as other items
such as Conversion Effect, Ratio, and Auto Playback, and then click [DONE] button in the upper right-hand corner
of the screen.
4 You can see a new [Playlist] has been created.
[Distribution]
1 Click [Distribute] in the upper right-hand corner of the screen.
2 Go to the Group Manager app to distribute the created playlists.
NOTE
•• The Distribute button shows only when playlist is selected as media type.
41
[Scheduler]
[Creating a Schedule]
1 Click [New Schedule] in the upper right-hand corner of the screen.
2 Choose between [Playlist] and [Input Source].
3 1) If you have selected [Playlist], select the playlist you wish to schedule the playback of.
2) If you have selected [Input Source], select the external input source you wish to schedule the playback of.
4 Enter schedule information and create a new schedule. (When creating a schedule, you cannot include characters
that cannot be used in file names on Windows — such as \, /,:, *,?, ", <,>, and | — in the name of the schedule file.
In addition, if the playlist linked to the schedule contains content files whose names include such characters, you
cannot move or copy the playlist.)
5 Watch the playlist or external input you selected play back at its scheduled time.
[Importing a Schedule]
1
2
3
4
5
Click [Import] in the upper right-hand corner of the screen.
Select the external storage device from which you wish to import a schedule.
Select the schedule you wish to import to your monitor. (You can only choose a single schedule.)
Click [Select] in the upper right-hand corner of the screen.
Check that the schedule has been imported to the monitor's internal storage memory.
[Exporting a Schedule]
1
2
3
4
5
Click [Export] in the upper right-hand corner of the screen.
Select the external storage device to which you wish to export a schedule.
Select the schedule you wish to export from your monitor. (You can choose multiple schedules.)
Click [Select] in the upper right-hand corner of the screen.
Check that the schedule has been exported to the external storage device you selected.
ENGLISH
(Scheduler)
The Content Manager app's scheduler feature enables certain content to be played at a scheduled time through a
playlist or external input.
42
[Delete Schedule]
ENGLISH
1
2
3
4
Click [DELETE] in the upper right-hand corner of the screen.
Select the schedules you wish to delete.
Click [DELETE].
Check that the schedules have been deleted.
[Calendar View]
1 When you have registered schedules, click [Calendar View].
2 You can see that the schedules registered are displayed in the form of a timetable.
[Distribute]
1 Click [Distribute] in the upper right-hand corner of the screen.
2 Go to the Group Manager app to distribute the created schedules.
NOTE
•• If the schedule creation time overlaps, the previously created schedule is deleted.
•• When a schedule that has not been set repeatedly is completed, the schedule is automatically deleted.
•• Schedule does not work while Scheduling list app is running.
[Template]
(Template)
The Content Manager app's editor feature enables you to add your desired templates.
1 Select the template of your desired format. (You can choose between Landscape mode and Portrait mode.)
2 Modify the template's text.
2-1. A
pply your desired font style (Size, Weight, Underline, Italic)
3 Modify the media file.
3-1. S elect and apply the rate you want.
4 Save the template by clicking [Save] in the top right-hand corner of the screen.
5 Check that the template you saved is shown in the template list.
43
Supported Photo & Video Files
ENGLISH
NOTE
•• Subtitles are not supported.
•• The photo feature is not supported in OLED model.
Supported video codecs
Extension
.asf, .wmv
Codec
Video
VC-1 Advanced Profile (except for WMVA), VC-1 Simple and Main Profiles
Audio
WMA Standard (excluding WMA v1/WMA Speech)
Video
Xvid (excluding 3 warp-point GMC), H.264/AVC, Motion Jpeg, MPEG-4
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, LPCM, ADPCM,
DTS
Video
H.264/AVC, MPEG-4, HEVC
Audio
Dolby Digital, Dolby Digital Plus, AAC, MPEG-1 Layer III (MP3)
.3gp
Video
H.264/AVC, MPEG-4
.3g2
Audio
AAC, AMR-NB, AMR-WB
.mkv
Video
MPEG-2, MPEG-4, H.264/AVC, VP8, VP9, HEVC
Audio
Dolby Digital, Dolby Digital Plus, AAC, PCM, DTS, MPEG-1 Layer I, II, MPEG-1
Layer III (MP3)
Video
H.264/AVC, MPEG-2, HEVC
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital, Dolby Digital Plus,
AAC, PCM
Video
MPEG-1, MPEG-2
Audio
MPEG-1 Layer I, II, MPEG-1 Layer III (MP3)
Video
MPEG-1, MPEG-2
Audio
Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
.avi
.mp4, .m4v, .mov
.ts, .trp, .tp, .mts
.mpg, .mpeg, .dat
.vob
Maximum transmit ratio
Full HD movie
ULTRA HD movie
(UHD models only.)
H.264 1920 x [email protected] BP/MP/[email protected] 40Mbps
HEVC 1920 x [email protected] Main/[email protected] 40Mbps
H.264 3840 x [email protected] BP/MP/[email protected] 50Mbps
HEVC 3840 x [email protected] Main/[email protected] 60Mbps
44
Supported Photo File Formats
ENGLISH
File type
Format
.jpeg, .jpg, .jpe
JPEG
.png
PNG
.bmp
BMP
Resolution
•• Minimum: Min: 64 x 64
•• Maximum: Normal Type: 15360 (W) x 8640 (H)
Progressive Type: 1920 (W) x 1440 (H)
•• Minimum: Min: 64 x 64
•• Maximum: 5760 (W) x 5760 (H)
•• Minimum: Min: 64 x 64
•• Maximum: 1920 (W) x 1080 (H)
Tips for using USB storage devices
•• Only USB storage devices are recognized.
•• USB storage devices connected to the monitor through a USB hub may not work properly.
•• USB storage devices that use an automatic recognition program may not be recognized.
•• USB storage devices that use their own drivers may not be recognized.
•• The recognition speed of a USB storage device may depend on each device.
•• Please do not turn off the display or unplug the USB device when the connected USB storage device is working.
When the device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
•• Please do not connect the USB storage device which was artificially maneuvered on the PC. The device may cause
the product to malfunction or fail to be played. Remember to only use USB storage devices that store normal music,
image, and/or movie files.
•• Storage devices formatted with utility programs that are not supported by Windows may not be recognized.
•• Please connect power to a USB storage device (over 0.5 A) which requires an external power supply. Otherwise, the
device may not be recognized.
•• Please connect a USB storage device with the cable offered by the device maker.
•• Some USB storage devices may not be supported or operated smoothly.
•• File alignment methods of the USB storage device is similar to Windows XP and filenames can include up to 100
English characters.
•• Be sure to back up important files since data stored in a USB memory device may be damaged. We will not be
responsible for any data loss.
•• If the USB HDD does not have an external power source, the USB device may not be detected. So make sure to
connect it to an external power source.
-- Please use a power adapter for an external power source. No USB cable is provided for an external power source.
45
ENGLISH
•• If your USB storage device has multiple partitions, or if you use a USB multi-card reader, you can use up to four
partitions or USB memory devices.
•• If a USB storage device is connected to a USB multi-card reader, its volume data may not be detected.
•• If the USB storage device does not work properly, remove it and connect it again.
•• If the USB storage device is connected in Standby Mode, a specific hard disk will automatically be loaded when the
display is turned on.
•• The recommended capacity is 1 TB or less for a USB external hard disk and 32 GB or less for USB memory.
•• Any device with more than the recommended capacity may not work properly.
•• If a USB external hard disk with an energy saving feature does not work, turn the hard disk off and on again to make
it work properly.
•• USB storage devices (USB 2.0 or below) are also supported. However, they may not work properly in the videos list.
•• A maximum of 999 folders or files can be recognized under one folder.
•• When distributing contents to USB while playing a video in UHD resolution, the video might experience temporary
stuttering.
•• USB storage devices supported by a mobile device may not be recognized.
•• Even if multiple USB storage devices are connected, only one USB storage device can be used.
46
ENGLISH
Group Manager 2.0
This feature enables you to group together multiple monitor sets on a single network into the same group and to
distribute content (schedules and playlists) or copy setting data on a group basis. This feature has two modes, Master
and Slave, and it can access the browser on your PC or mobile device.
[Master]
•• Add, edit, and delete group.
•• Clone your device's settings data.
•• Distribute [Schedule] and [Playlists] on a group basis.
•• All monitor sets initially come in Master mode.
[Slave]
•• Play [Schedule] and [Playlists] distributed in Master mode.
•• Remove monitor sets for their groups.
•• Monitor sets that have been added to a group are automatically switched to Slave mode. Conversely, when a monitor
set has been deleted from a group, it is automatically initialized and switched to Master mode.
•• If a new Slave has been added to an existing group, or if the [Data Cloning] or the distribution of [schedule]/[Playlist]
has not been properly performed, the [Data Cloning] or [SYNCHRONIZE] button will be activated.
•• You can duplicate the master device's setting data to the group by using [Data Cloning].
•• You can re-download the content distributed to the group by using [Synchronıze].
47
[GROUP MANAGEMENT]
ENGLISH
•• Creating a New Group
1. Click [Add New Group].
2. Enter a group name.
3. Click [Add Device], select the devices you wish to add to the group, and add them.
4. Click [Done], and you will see that a new group has been created.
•• Editing a Group
1. Click the group you wish to edit.
2. Add a new device by using [Add Device].
3. Delete a device by using [Delete Device].
4. Check whether the devices in the group are connected to a network by using [Device Check].
5. If there are any sets of devices in the group that are not [Data Cloning] or content synchronized, [Data Cloning] or
[Synchronıze] button will be activated.
6. You can re-copy the master device's setting data to the group by using [Data Cloning].
7. You can re-distribute the content distributed to the group by using [Synchronıze].
•• Deleting a Group
1. Click [Delete Group].
2. Select the group you wish to delete and click [Delete].
3. Check that the group you selected has been deleted.
•• ALL DEVICES VIEW: All Devices View: This page enables you to manage all slave monitor sets that are connected to
the same network.
1. Click [All Devices View].
2. Click [Reset Device Mode].
3. Select the slave monitor set whose device mode you wish to change and click [Reset].
48
[Setting Data Cloning]
ENGLISH
1 Select your desired group and click Clone.
2 Check that the data have been copied on the slave sets.
[Content Distribute]
1
2
3
4
Select the type of content you wish to distribute (Schedules or Playlists).
Select the content you wish to distribute.
Select the group to which you wish to distribute the content and click [Distribute].
Run the Content Manager app on the slave sets and check that the content has been distributed.
How to Use
•• Monitor: Run, add, delete or edit app on the home screen.
•• Mobile: Mobile devices: Run the app in the Launcher bar or access the app from a mobile device using the QR code or
URL provided.
CAUTION
•• You can create up to 25 groups.
•• You can add up to 12 slave devices to a group.
•• You can distribute the schedules stored on external devices after executing Content Manager's import operation.
•• Make sure to delete all schedules stored on the slave sets before distributing any schedules.
•• A list of devices you can add to your desired group appears only when the following conditions have been met:
-- The devices you wish to add must be on the same network as the master device.
-- The devices you wish to add must be in Master mode, and they must not belong to any existing group.
-- The UPnP feature must be enabled (go to [General] > [Network] > UPnP and set it to [On]).
•• It may not work properly in wireless network environments. It is recommended you use a wired network.
•• Run the initial settings for Slave function when deleting the group.
49
This feature allows the screen of a user's device such as a mobile or PC Windows to be shared with a display using a
wireless connection such as WiDi or Miracast.
How to Use [ScreenShare]
(INPUT)
[ScreenShare]
1 Connect according to the instructions provided by the guide that can be accessed through the CONNECTION GUIDE
button in the upper right.
2 Once the connection is established, Screen Share between the user device and the monitor is enabled.
NOTE
Configuring WiDi (Wireless Display)
WiDi, which is short for Wireless Display, is a system that wirelessly transmits video and audio files from a laptop that
supports Intel WiDi to the display.
This is available only in certain input modes (HDMI/DP/OPS/DVI-D).
Other than these modes, LG Signage cannot be detected by your PC.
1 Connect your laptop to AP. (This feature can be used without an AP, but it is recommended that you connect to it
for optimal performance.) Go to “PC Settings”
“PC and Devices”
“Devices” on your laptop.
2 Click “Add Device” in the top center of the screen, and then you will see a list of nearby WiDi-capable LG Signage
monitors. From the list of detected Signage monitors, select one you wish to connect to and click Connect.
3 The screen of your laptop screen appears on the screen of the Signage monitor within 10 seconds. The wireless
environment may affect the screen from displaying. If the connection is poor, the Intel WiDi connection may be lost.
•• Instructions for using Intel WiDi can be found on the homepage of the manufacturer of your PC or notebook.
•• This feature only works properly with WiDi 3.5 or later versions.
•• This feature only works on Windows 8.1 or later
ENGLISH
ScreenShare
50
ENGLISH
LG Presenter
This feature is to display the PC (Windows or Mac OS) screen on the Signage monitor with wired/wireless connection
to the PC. To use this feature, you need to install LG Presenter PC Client (“Client”) on the PC.
You can use LG Presenter in the following ways.
-- Connect: Enter the PIN code to connect your Signage device to the Client.
-- Screen Share: Share the PC screen of the connected Client with your Signage device.
-- Hand over: If a Client is already connected and another Client needs to share screen, you can request for a hand over
to the connected Client to get permission to share screen.
-- Settings: You can see the information of the Client or change the language used by the Client.
NOTE
•• This feature may not be available on some models.
•• Only sharing PC screen is supported and not voice sharing.
51
Connect
ENGLISH
On Signage
[LG Presenter]
On PC
1
2
3
4
5
Go to www.lge.com/LGP to download the Client.
Install and run the downloaded Client.
Enter the username you want and press the button.
When the list of Signage devices found in the network appears, select the one you want to connect to.
Enter the PIN code you see on your Signage device into the PIN code field on the Client.
2
3
1
No.
1
2
3
Item
Name
List of devices
Pin Code
Description
User Name
It shows the list of Signage devices available to connect.
To connect to the Signage device, enter the PIN code shown the Signage device.
CAUTION
•• The Signage device and the PC must be on the same network.
•• If a specific port (UDP 1900) of your LG Signage is blocked, the LG Presenter feature will not be available.
52
Screen Share
ENGLISH
1 Select the screen you want to share and press the Share button.
2 To leave Screen Share, press the Stop button.
1
4
2
5
6
3
No.
Item
1
2
3
4
5
6
Connection status
Screen list
[Share]
Thumbnail
[Stop]
Switch screen
Description
It shows the currently connected user's name and you can also disconnect here.
It shows the list of PC screens available to share.
Press this button to start Screen Share.
It shows a thumbnail of the screen currently shared.
Stops Screen Share.
It switches between screens to share.
CAUTION
•• if Screen Share does not work or won’t connect to the Signage device, check the firewall settings on your PC.
53
Handover
On PC2
1 Run the Client and search for the Signage device on the same network.
2 From the list of the Signage devices found, select the one connected to PC1.
On PC1
1 When the hand over request pop-up appears on PC2, select whether to approve or deny the request.
2 If you approve the request for hand over, the Signage device will be disconnected, and the Client on PC2 will be
connected to the Signage device.
3 If you deny the request for hand over, the Signage device will remain connected, so you can continue to use the
features of LG Presenter.
1
No.
1
Item
Request for
Handover
Description
When there is a Client currently connected to your Signage device and the Client from
another PC requests to connect to the same Signage device, you can determine whether
to approve the request.
ENGLISH
PC1: The PC where the client currently connected to your Signage device is running.
PC2: The PC you want to connect to the Signage device connected to PC1
54
ENGLISH
MANAGEMENT TOOLS
Admin
Control and check the status of the display through the Web browser.
This function is available for PCs and mobile devices.
Different features are supported depending on the product.
Function
•• [Dashboard]: Display a summary of the product's status and provides links to each page.
•• [Display & sound]: Provides features such as Screen Brightness, Sound, Input, and Reboot.
•• [Time Setting]: Enable/disable Set Automatically feature and displays/changes the time set for the product.
•• [Network]: Set the name and IP address of your Signage monitor.
•• [Tile Mode]: Display the tile mode settings of the product.
•• [Fail Over]: Turns the Fail Over feature on or off and sets related items.
•• [Play via URL]: Turn Play via URL on or off and set URLs.
•• [S/W Update]: Update the firmware of the product.
•• [Charts]: Output the product's status information such as its temperature and fan status.
•• [Log]: Output product malfunction records.
•• [System Information]: Output information such as the product's software version and model name.
55
AUDIO
(RGB/DVI)
RS-232C OUT
RS-232C OUT
RS-232C OUT
RS-232C IN
RS-232C IN
RS-232C IN
[Picture ID] is used to change the settings of a specific set (display) using a single IR receiver for multi-vision.
Communication is possible between a monitor with an IR receiver and other monitors using RS-232C cables. Each
monitor is identified by a Set ID. Setting [Picture ID] allows you to only use the remote control with monitors with a
[Set ID] that matches the [Picture ID].
REMOTE
CONTROL IN
1 Assign [Set ID] to the installed monitors as shown below:
2 Press the red [Picture ID] [On] button on the remote control.
3 Make sure that the Picture ID you set is identical to the [Set ID] of the monitory you wish to control.
•• A set with a [Set ID] that is different from the [Picture ID] cannot be controlled by IR signals.
NOTE
•• If [Picture ID] has been set to 2, only the upper right monitor, which has a [Set ID] of 2, can be controlled by IR signals.
•• If you press the green [Picture ID] [Off] button on your remote control, the [Picture ID] for all monitors are turned
off. If you then press any button on the remote control, all monitors can be controlled by IR signals regardless of their
[Set ID]'s.
ENGLISH
Picture ID
56
ENGLISH
TOUCH
Touch Assistive Menu
This touch-exclusive feature allows the user to configure settings without a remote control.
Touching the screen for a certain period of time or pressing the Touch Assistive Menu local key brings up the Touch
Assistive Menu on the screen.
Different features are supported depending on the product.
Function
••
••
••
••
••
-----
: Navigates to the Home screen.
: Navigate to the external input selection screen.
: Navigates to the Settings screen.
: Go to SI App Selection screen
: Run SI Apps installed with ZIP Type
: Run SI Apps installed with IPK Type
: Go to Developer Mode
: Go to SI Server Setting
: Go to the volume control screen
57
•• This only applies to certain models.
Connecting to a PC
Connecting this product to a PC with a USB cable (Type A to Type B) allows you to control the connected PC by
touching the screen of the product.
For a PC that supports USB-C, use a USB-C cable to connect this product to the PC and control the PC using the touch
screen.
You can control the installed OPS by touching the screen of the product even with the OPS installed.
Prioritized Tasks on the Touch Screen
Priority
1
2
3
4
5
States
•• External input rotation set to 90˚/180˚/270˚
•• Menu, App, dashboard, etc. displayed
•• Pop-up message displayed
•• Equipped with OPS
•• External input configured for OPS
•• Connected to a PC with a USB-C cable
•• External input configured for USB-C
•• External input configured (except for OPS/
USB-C)
•• PC connected to the front of the product with
a touch cable
•• External input configured (except for OPS/
USB-C)
•• PC connected to the rear of the product with a
touch cable
Operation Conditions
Device performing the
task when the screen is
touched
Only one of the states is
shown
Screen of the product
All states are shown
OPS
All states are shown
PC connected with
USB-C
All states are shown
PC connected to the
front of the product with
a touch cable
All states are shown
PC connected to the rear
of the product with a
touch cable
NOTE
•• When connecting to an external PC and using it with a touch screen, it may take a while to recognize your touch on
the touch screen device upon switching the connection for the touch function between external PCs.
ENGLISH
TO CONTROL AN EXTERNAL PC USING TOUCH
SCREEN
58
ENGLISH
SMART CALIBRATION
How to Run
[Smart Calibration]
1 Set the Set ID of each set.
2 Select the [Picture Mode] to execute Smart Calibration.
After selecting the [Calibration] mode, you can set [Color Temperature].
-- [Optimal Target]: Set the optimal color value of the installed set as the target.
-- Please set the target to 3,000K in the broadcasting station environment.
3 With [START SMART CALIBRATION], you can correct the color/brightness.
4 If you set the [Schedule Setting] menu, calibration is performed automatically on a regular basis.
RS-232C
IR
1
2
3
4
59
[Manual Calibration]
•• [Screen Split]: Set the manual adjustment area.
•• [Calibration Position]: Select the manual adjustment location.
Screen Split: 4, Calibration Position: 3
Screen Split: 9, Calibration Position: 5
ENGLISH
You can manually adjust the color of the selected location.
60
ENGLISH
IR CODE
•• All models do not support the HDMI/USB function.
•• Some key codes may not be supported depending on the model.
08
Code (Hex)
(Power)
Remarks
Remote control button
C4
MONITOR ON
Remote control button
C5
MONITOR OFF
Remote control button
95
Function
(Energy Saving)
Remote control button
0B
INPUT (Select input)
Remote control button
10
Number Key 0
Remote control button
11
Number Key 1
Remote control button
12
Number Key 2
Remote control button
13
Number Key 3
Remote control button
14
Number Key 4
Remote control button
15
Number Key 5
Remote control button
16
Number Key 6
Remote control button
17
Number Key 7
Remote control button
18
Number Key 8
Remote control button
19
Number Key 9
Remote control button
02
(Vol +)
Remote control button
(Vol -)
Remote control button
03
E0
Brightness
(Page Up)
Remote control button
E1
Brightness
(Page Down)
Remote control button
DC
(3D)
Remote control button
32
1/a/A
Remote control button
2F
CLEAR
Remote control button
7E
Remote control button
79
ARC (Mark/Aspect Ratio)
Remote control button
4D
PSM (Picture Mode)
Remote control button
09
(MUTE)
Remote control button
43
(Settings/Menu)
Remote control button
99
Auto Configuration
Remote control button
40
(Up)
Remote control button
41
(Down)
Remote control button
06
(Right)
Remote control button
07
(Left)
Remote control button
44
28
(OK)
(BACK)
Remote control button
Remote control button
61
Code (Hex)
Tile
Remarks
Remote control button
5B
Exit
Remote control button
72
Picture ID On (red)
Remote control button
71
Picture ID Off (green)
Remote control button
63
Yellow
Remote control button
61
Blue
W.Bal
Remote control button
Remote control button
5F
Function
3F
(S.Menu)
Remote control button
7C
(Home)
Remote control button
97
96
Swap
Mirror
Remote control button
Remote control button
ENGLISH
7B
62
ENGLISH
CONTROLLING MULTIPLE PRODUCTS
•• This only applies to certain models.
Use this method to connect several products to a single PC. You can control several products at a time by connecting
them to a single PC.
In the Option menu, the Set ID must be between 1 and 1000 without being duplicated.
Connecting cables
•• Images may differ according to the model.
Connect the RS-232C cable as shown in the picture.
The RS-232C protocol is used for communication between the PC and product. You can turn the product on/off, select
an input source and adjust the OSD menu from your PC.
Monitor 4
RS-232C
OUT
RS-232C
IN
Monitor 3
RS-232C
OUT
RS-232C
IN
Monitor 2
RS-232C
OUT
RS-232C
IN
4P Cable (sold separately)
PC
Monitor 1
RS-232C Cable (sold separately)
Monitor 2
Monitor 1
RS-232C
OUT
PC
RS-232C
IN
RS-232C Gender
Monitor 3
RS-232C Cable
(sold separately)
Monitor 4
63
Baud Rate: 9600 BPS
Data Length: 8 bits
Parity Bit: None
Stop Bit: 1 bit
Flow Control: None
Communication Code: ASCII
NOTE
•• When using 3-wire connections (non-standard), an IR
daisy chain cannot be used.
•• Be sure to only use the provided gender to connect
properly.
•• When you have daisy-chained multiple Signage
products to control them simultaneously, if you
attempt to turn on/off the master device in a
continuous manner, some products may not turn
on. In this case, you can turn those monitors on by
pressing the MONITOR ON button, not the Power
button.
(Power)
MONITOR ON
BACK
TILE
ID
ON
OFF
EXIT
ENGLISH
Communication Parameter
64
ENGLISH
Command Reference List
Command
Data
(Hexadecimal)
1
2
k
x
k
a
b
c
00 to 02
See Select Input
See [Aspect Ratio]
01
02
03
[Power]
Select Input
[Aspect Ratio]
04
[Brightness Control]
j
q
00 to 04
05
06
07
08
09
10
11
12
13
14
15
[Picture Mode]
[Contrast]
[Brightness]
[Sharpness]
[Color]
[Tint]
[Color Temperature]
[Balance]
[Sound Mode]
[Mute on]
Volume Control
[Current Time] 1 (year/month/
day)
[Current Time] 2 (hour/minute/
second)
[No Signal Power Off (15 Min)]
[No IR Power Off (4hour)]
[Language]
Default Settings
Current Temperature
[Key]
Time Elapsed
Check product serial number
d
k
k
k
k
k
x
k
d
k
k
x
g
h
k
i
j
u
t
y
e
f
See [Picture Mode]
00 to 64
00 to 64
00 to 32
00 to 64
00 to 64
70 to D2
00 to 64
See [Sound Mode]
00 to 01
00 to 64
f
a
See [Current Time] 1
f
x
See [Current Time] 2
f
m
f
f
d
m
d
f
g
n
i
k
n
c
l
y
00 to 01
00 to 01
See [Language]
00 - 02
FF
See [Key]
FF
FF
16
17
18
19
20
21
22
23
24
25
65
Command
2
f
j
j
j
s
s
s
m
k
d
d
d
d
z
m
n
o
x
y
z
g
d
d
z
i
j
FF
00 to FE
00 to FE
00 to FE
00 to 7F
00 to 7F
00 to 7F
00 to 64
00 to 01
00 to FF
FF
See [Tile ID]
00 to 01
See [DPM]
26
27
28
29
30
31
32
33
34
35
36
37
38
[Software Version]
[White Balance] Red Gain
[White Balance] Green Gain
[White Balance] Blue Gain
[White Balance] Red Offset
[White Balance] Green Offset
[White Balance] Blue Offset
[Backlight]
[Screen Off]
[Tile Mode]
Check [Tile Mode]
[Tile ID]
[Natural Mode]
39
[DPM]
f
j
40
41
42
43
44
45
46
47
48
49
50
Remote Control/Local Key Lock
[Power On Delay]
Select [Fail Over] Mode
Select [Fail Over] Input
Remote Control Key Lock
Local Key Lock
[Status Check]
[Daylight Saving Time]
[PM Mode]
[ISM Method]
[Network Setting]
k
f
m
m
t
t
s
s
s
j
s
m
h
i
j
p
o
v
d
n, 0c
p
n, 80(81)(82)
00 to 01
00 to FA
00 to 02
See Select [Fail Over] Input
00 to 02
00 to 02
See [Status Check]
See [Daylight Saving Time]
00 to 04
See [ISM Method]
See [Network Setting]
ENGLISH
Data
(Hexadecimal)
1
66
Command
ENGLISH
Data
(Hexadecimal)
1
2
t
f
r
w
00 to 02
00 to 01
51
52
[Power On Status]
Wired [Wake On LAN]
53
[Screen Rotation]
t
h
00 to 03
54
[Time Sync]
s
n, 16
00 to 01
55
[Contents Sync]
t
g
00 to 01
56
[LAN Daisy Chain]
s
n, 84
00 to 01
57
[External Input Rotation]
s
n, 85
00 to 03
58
[Beacon]
s
n, 88
00 to 01
59
[Brightness Scheduling] Mode
s
m
00 to 01
60
[Brightness Scheduling]
s
s
See [Brightness Scheduling]
61
[Multi Screen] Mode & Input
x
c
See [Multi-screen] Mode & Input
62
See [Aspect Ratio]
x
d
See [Aspect Ratio]
63
[Screen Off] (Multi screen)
x
e
See [SCREEN OFF] (Multi screen)
64
[Screen Off Always]
s
n, 0d
00 to 01
65
Stop Video
k
x
00 to 01
66
Wireless [Wake On LAN]
s
n, 90
00 to 01
67
[OSD Lock]
k
l
00 to 01
68
[HDMI IT Content]
s
n, 99
00 to 01
69
[Holiday Setting]
s
n, 9b
See [Holiday Setting]
70
[UPnP]
s
n, 9c
00 to 01
71
[Home Dashboard Lock]
s
n, 9d
00 to 01
72
[USB Lock]
s
n, 9e
00 to 01
73
[Wi-Fi Lock]
s
n, 9f
00 to 01
74
[Screen Share Lock]
s
n, a0
00 to 01
75
[Backup via Storage]
s
n, a1
See [Backup via Storage]
67
Command
2
Data
(Hexadecimal)
76
[Digital Audio Input]
s
n, a2
00 to 01
77
[Booting Logo Image]
s
n, a3
00 to 01
78
[SoftAP]
s
n, a4
00 to 01
79
[Natural Size]
s
n, a5
00 to 64
80
Play Saved Internal Media
s
n, a8
See Playback of Saved Internal Media
81
[No Signal Image]
s
n, a9
00 to 01
82
[Audio Out]
s
n, aa
00 to 02
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
[DPM Wake Up Control]
Check [Fan] Failure
[Apply to all inputs]
[Timer Power On]
[Timer Power Off]
LCIN008 Control
[Transfer Control]
Multichannel
Change Setid
[Gamma]
[Black Level]
[UHD Deep Color]
[Sync Mode]
[Input Manager]
[PC/OPS Power Control]
[LED Local Dimming]
[Scan Inversion]
[Frame Control]
[Average Picture Level Auto
Control]
Read Brightness Value
[Screen Fault Detection]
[Stereo Mode]
[HDR Picture Mode]
[Dynamic Tone Mapping]
[LED Local Dimming]
[USB2 to HDBaseT]
[Change Password]
[Brightness Range Adjustment]
[Color Calibration]
s
d
s
f
f
s
s
s
j
s
s
s
s
s
s
s
s
s
n, 0b
w
n, 52
d
e
n,b8
n,cb
n,76
x
n,ad
n,ae
n,af
n,b0
n,b1
n,8b
n,c1
n,87
n,b7
00 to 01
FF
01
See [Timer Power On]
See [Timer Power Off]
See LCIN008 Control
See Transfer Control
01 to 09
See Change Setid
00 to 03
00 to 02
See [UHD Deep Color]
00 to 01
See [Input Manager]
00 to 02
00 to 01
00 to 01
00 to 01
s
n,be
00 to 01
m
t
s
s
s
s
s
s
s
s
u
z
n,c2
n,c4
n,c5
n,c6
n,c3
n,a7
n,ab
n,d6
FF
00 to 01
00 to 02
See [HDR Picture Mode]
00 to 01
00 to 03
00 to 01
See [Change Password]
See [Brightness Range Adjustment]
00 to 01
101
102
103
104
105
106
107
108
109
110
111
* Note Commands may not work when there is no external input used.
* Some commands may not be supported on some models.
ENGLISH
1
68
ENGLISH
Transmission/Reception Protocol
Transmission
(Command1)(Command2)( )(Set ID)( )(Data)(Cr)
* (Command1): This command is used to identify between the adjustment setting or the user adjustment modes.
* (Command2): This command is used to control the monitor.
* (Set ID): Used for selecting a set you want to control. A unique Set ID can be assigned to each set ranging from 1
to 1000 (01H to FFH) under Settings in the OSD menu. Selecting '00H' for Set ID allows the simultaneous
control of all connected monitors. (The maximum value may differ depending on the model.)
* (Data): Transmits command data. Data count may increase depending on the command.
* (Cr): C
arriage Return. This parameter corresponds to '0 x 0D' in ASCII code.
* ( ): White Space. This parameter corresponds to '0 x 20' in ASCII code.
Acknowledgment
(Command2)( )(Set ID)( )(OK/NG)(Data)(x)
* The product transmits an ACK (acknowledgment) based on this format when receiving normal data. At this point,
if the data is FF, it indicates the present status data. If the data is in data write mode, it returns the data of the PC
computer.
* If a command is sent with Set ID '00' (=0 x 00), the data is reflected to all monitors and they do not send an
acknowledgment (ACK).
* If you send "FF" as the value of the data in control mode via RS-232C, you can check the value currently set for the
relevant feature (not applicable to some features).
* Some commands may not be supported on some models.
69
01. [Power] (Command: k a)
Transmission
(k)(a)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
02: Restart
Acknowledgment
(a)( )(Set ID)( )(OK/NG)(Data)(x)
* The Acknowledgment signal is returned properly only when
the monitor is fully powered on.
* There may be a delay between the Transmission and
Acknowledgment signals.
* This feature may not be available for all models.
02. Select Input (Command: x b)
Selects an input signal.
Transmission
(x)(b)( )(Set ID)( )(Data)(Cr)
Data 20: AV
40: COMPONENT
60: RGB
70: DVI-D (PC)
80: DVI-D (DTV)
90: HDMI1 (DTV)
A0: HDMI1 (PC)
91: HDMI2 (DTV)
A1: HDMI2 (PC)
92: OPS/HDMI3/DVI-D (DTV)
A2: OPS/HDMI3/DVI-D (PC)
95: OPS/DVI-D (DTV)
A5: OPS/DVI-D (PC)
96: HDMI3/DVI-D (DTV)
A6: HDMI3/DVI-D (PC)
97: HDMI3/HDMI2/DVI-D (DTV)
A7: HDMI3/HDMI2/DVI-D (PC)
98: OPS (DTV)
A8: OPS (PC)
99: HDMI2/OPS (DTV)
A9: HDMI2/OPS (PC)
C0: DISPLAYPORT (DTV)
D0: DISPLAYPORT (PC)
C1: DISPLAYPORT/USB-C (DTV)
D1: DISPLAYPORT/USB-C (PC)
C2: HDMI3 (DTV)
D2: HDMI3 (PC)
C3: HDBaseT (DTV)
D3: HDBaseT (PC)
E0: SuperSign webOS Player
E1: Others
E2: Multi Screen
E3: Play via URL
Acknowledgment
(b)( )(Set ID)( )(OK/NG)(Data)(x)
* Some input signals may not be available for all models.
* If it is not distributed from SuperSign W, WebOS Player
returns NG.
* If it says “Read” from the IDB mode, it will respond as a PC
Label type.
03. [Aspect Ratio] (Command: k c)
Adjusts the aspect ratio of your monitor.
Transmission
(k)(c)( )(Set ID)( )(Data)(Cr)
Data 02: [ Full Screen]
06: [Original]
Acknowledgment
(c)( )(Set ID)( )(OK/NG)(Data)(x)
* The aspect ratio may differ depending on the model's input
configuration.
04. [Brightness] (Command: j q)
Sets the brightness of your monitor.
Transmission
(j)(q)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [Minimum]
02: [Medium]
03: [Maximum]
04: [Auto]
Acknowledgment
(q)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
05. [Picture Mode] (Command: d x)
Selects a picture mode.
Transmission
(d)(x)( )(Set ID)( )(Data)(Cr)
Data 00: [Mall/QSR]
01: [General]
02: [Gov./Corp.]
03: [Transportation]
04: [Education]
05: [Expert1]
08: [APS]
11: [Calibration]
12: [Hospital]
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data)(x)
* Some picture modes may not be available for all models.
ENGLISH
Controls the power on/off status of the monitor.
70
06. [Contrast] (Command: k g)
ENGLISH
Adjusts the screen contrast.
10. [Tint] (Command: k j)
Adjusts the screen tints.
Transmission
(k)(g)( )(Set ID)( )(Data)(Cr)
Data 00-64: Contrast 0-100
Transmission
(k)(j)( )(Set ID)( )(Data)(Cr)
Data 00-64: Tint Red 50-Green 50
Acknowledgment
(g)( )(Set ID)( )(OK/NG)(Data)(x)
Acknowledgment
(j)( )(Set ID)( )(OK/NG)(Data)(x)
07. [Brightness] (Command: k h)
Adjusts the screen brightness.
11. [Color Temperature] (Command: x u)
Adjusts the screen color temperature.
Transmission
(k)(h)( )(Set ID)( )(Data)(Cr)
Data 00-64: Brightness 0-100
Transmission
(x)(u)( )(Set ID)( )(Data)(Cr)
Data 70-D2: 3200K-13000K
Acknowledgment
(h)( )(Set ID)( )(OK/NG)(Data)(x)
Acknowledgment
(u)( )(Set ID)( )(OK/NG)(Data)(x)
08. [Sharpness] (Command: k k)
Adjusts the screen sharpness.
Transmission
(k)(k)( )(Set ID)( )(Data)(Cr)
Data 00-32: Sharpness 0-50
Acknowledgment
(k)( )(Set ID)( )(OK/NG)(Data)(x)
09. [Color] (Command: k i)
Adjusts the screen colors.
Transmission
(k)(i)( )(Set ID)( )(Data)(Cr)
Data 00-64: Color 0-100
Acknowledgment
(i)( )(Set ID)( )(OK/NG)(Data)(x)
12. [Balance] (Command: k t)
Adjusts the sound balance.
Transmission
(k)(t)( )(Set ID)( )(Data)(Cr)
Data 00-64: Left 50-Right 50
Acknowledgment
(t)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
71
13. [Sound Mode] (Command: d y)
Transmission
(d)(y)( )(Set ID)( )(Data)(Cr)
Data 01: [Standard]
02: [Music]
03: [Cinema]
04: [Sports]
05: [Game]
07: [ News (Clear Voice III)]
Acknowledgment
(y)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
14. [Mute on] (Command: k e)
Mutes/unmutes audio.
Transmission
(k)(e)( )(Set ID)( )(Data)(Cr)
Data 00: [ Mute] (Volume off)
01: M
ute off (Volume on)
16. [Current Time] 1 (year/month/day) (Command:
f a)
Sets the Clock 1 (year/month/day) values and Auto Time.
Transmission
1. (f)(a)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
2. (f)(a)( )(Set ID)( )(0)(0)( )(Data1)(Cr)
1. When setting Clock 1 (year/month/day)
Data1 00-: 2
010 Data2 01-0C: January - December
Data3 01-1F: 1-31
* The minimum and maximum values for Data1 differ
depending on the product's release year.
* Enter "fa [Set ID] ff" to view Clock 1 (year/month/day)
settings.
2. When Setting Auto Time
Data1 00: [Auto]
01: [Manual]
* To view the set value of the Auto time, enter “fa [Set ID] 00
ff”.
Acknowledgment
1. (a)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
2. (a)( )(Set ID)( )(OK/NG)(0)(0)(Data1)(x)
Acknowledgment
(e)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
17. [Current Time] 2 (hour/minute/second)
(Command: f x)
Sets the Clock 2 values (hour/minute/second).
15. Volume Control (Command: k f)
Adjusts the playback volume.
Transmission
(k)(f)( )(Set ID)( )(Data)(Cr)
Data 00-64: Volume 0-100
Acknowledgment
(f)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
Transmission
(f)(x)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
Data1 00-17: 0
0-23 hours
Data2 00-3B: 0
0 - 59 minutes
Data3 00-3B: 0
0-59 seconds
* Enter "fx [Set ID] ff" to view the Time 2 (hour/minute/
second) settings.
* This feature is only available when Clock 1 (year/month/day)
has been set.
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
ENGLISH
Selects a sound mode.
72
18. [No Signal Power Off(15Min)] (Command: f g)
ENGLISH
Sets the monitor to enter Automatic Standby mode if there is
no signal for 15 minutes.
Transmission
(f)(g)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(g)( )(Set ID)( )(OK/NG)(Data)(x)
19. [No IR Power Off] (Command: m n)
Activates Auto Power Off when there is no IR signal for 4 hours.
21. [Default] Settings (Command: f k)
Executes Reset.
(Initialize Screen can only be executed in RGB input mode.)
Transmission
(f)(k)( )(Set ID)( )(Data)(Cr)
Data 00: [Picture Reset]
02: [Reset to Initial Settings]
Acknowledgment
(k)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
22. Current Temperature (Command: d n)
Transmission
(m)(n)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Checks the current temperature of the product.
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(Data)(x)
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(Data)(x)
* The temperature is displayed in hexadecimal.
20. [Language] (Command: f i)
Sets the OSD language.
Transmission
(f)(i)( )(Set ID)( )(Data)(Cr)
Data 00: Czech
01: Danish
02: German
03: English
04: Spanish (Europe)
05: Greek
06: French
07: Italian
08: Dutch
09: Norwegian
0A: Portuguese
0B: Portuguese (Brazil)
0C: Russian
0D: Finnish
0E: Swedish
0F: Korean
10: Chinese (Mandarin)
11: Japanese
12: Chinese (Cantonese)
13: Arabic
14: Turkish
Acknowledgment
(i)( )(Set ID)( )(OK/NG)(Data)(x)
* Some languages may not be available for all models.
Transmission
(d)(n)( )(Set ID)( )(Data)(Cr)
Data FF: Status Check
23. [Key] (Command: m c)
Sends a key code for the IR remote control.
Transmission
(m)(c)( )(Set ID)( )(Data)(Cr)
Data IR_KEY_CODE
Acknowledgment
(c)( )(Set ID)( )(OK/NG)(Data)(x)
* For key codes, see IR Codes.
* Some key codes may not be supported depending on the
model.
73
24. Time Elapsed (Command: d l)
Transmission
(d)(l)( )(Set ID)( )(Data)(Cr)
Data FF: R
ead status
Acknowledgment
(l)( )(Set ID)( )(OK/NG)(Data)(x)
* The data received is displayed in hexadecimal.
27. [White Balance] Red Gain (Command: j m)
Adjusts the red gain value for white balance.
Transmission
(j)(m)( )(Set ID)( )(Data)(Cr)
Data 00-FE: R
ed Gain 0-254
FF: C
hecks red gain value
Acknowledgment
(m)( )(Set ID)( )(OK/NG)(Data)(x)
28. [White Balance] Green Gain (Command: j n)
25. Product Serial Number Check (Command: f y)
Checks the serial number of the product.
Transmission
(f)(y)( )(Set ID)( )(Data)(Cr)
Data FF: C
heck product serial number
Acknowledgment
(y)( )(Set ID)( )(OK/NG)(Data)(x)
* Data is in ASCII format.
Adjusts the green gain value for white balance.
Transmission
(j)(n)( )(Set ID)( )(Data)(Cr)
Data 00-FE: G
reen Gain 0-254
FF: C
hecks green gain value
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(Data)(x)
29. [White Balance] Blue Gain (Command: j o)
26. [Software Version] (Command: f z)
Checks the software version of the product.
Transmission
(f)(z)( )(Set ID)( )(Data)(Cr)
Data FF: C
heck the software version
Acknowledgment
(z)( )(Set ID)( )(OK/NG)(Data)(x)
Adjusts the blue gain value for white balance.
Transmission
(j)(o)( )(Set ID)( )(Data)(Cr)
Data 00-FE: B
lue Gain 0-254
FF: C
hecks blue gain value
Acknowledgment
(o)( )(Set ID)( )(OK/NG)(Data)(x)
ENGLISH
Displays the time that has elapsed after your monitor has
turned on.
74
30. [White Balance] Red Offset (Command: s x)
ENGLISH
Adjusts the red offset value for white balance.
Transmission
(s)(x)( )(Set ID)( )(Data)(Cr)
Data 00-7F: Red Offset 0-127
FF: Checks red offset value
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data)(x)
31. [White Balance] Green Offset (Command: s y)
Adjusts the green offset value for white balance.
Transmission
(s)(y)( )(Set ID)( )(Data)(Cr)
Data 00-7F: Green Offset 0-127
FF: Checks green offset value
Acknowledgment
(y)( )(Set ID)( )(OK/NG)(Data)(x)
32. [White Balance] Blue Offset (Command: s z)
Adjusts the blue offset value for white balance.
Transmission
(s)(z)( )(Set ID)( )(Data)(Cr)
Data 00-7F: Blue Offset 0-127
FF: Checks blue offset value
Acknowledgment
(z)( )(Set ID)( )(OK/NG)(Data)(x)
33. [Backlight] (Command: m g)
Adjusts the backlight brightness.
Transmission
(m)(g)( )(Set ID)( )(Data)(Cr)
Data 00-64: Backlight 0-100
Acknowledgment
(g)( )(set ID)()(OK/NG)(Data)(x)
34. [SCREEN OFF] (Command: k d)
Turns off/off the screen.
Transmission
(k)(d)( )(Set ID)( )(Data)(Cr)
Data 00: Screen On
01: Screen Off
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
35. [Tile Mode] (Command: d d)
Sets a tile mode and values for the tile rows and columns.
Transmission
(d)(d)( )(Set ID)( )(Data)(Cr)
Data 00-FF: The first byte - tile column
The second byte - tile row
* 00, 01, 10, and 11 mean that the tile mode is off.
* The maximum value may differ depending on the model.
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
* If you change the values on a Video Wall model, please reboot
for it to work normally.
75
36. [Tile Mode] Check (Command: d z)
Transmission
(d)(z)( )(Set ID)( )(Data)(Cr)
Data FF: C
heck Tile Mode
39. [DPM] (Command: f j)
Sets the DPM(Display Power Management) function.
Transmission
(f)(j)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
04: 1
minute
05: 3
minutes
06: 5
minutes
07: 1
0 minutes
Acknowledgment
(z)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
Data1 00: Tile Mode off
01: Tile Mode on
Data2 00-0F: Tile column
Data3 00-0F: Tile row
* This feature may not be available for all models.
Acknowledgment
(j)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
37. [Tile ID] (Command: d i)
40. Remote Control/Local Key Operation Lock
(Command: k m)
Sets the tile ID value of the product.
Transmission
(d)(i)( )(Set ID)( )(Data)(Cr)
Data 01-E1: Tile ID 1-225
FF: Checks the Tile ID
* The data value cannot exceed the value of row x column.
Acknowledgment
(i)( )(Set ID)( )(OK/NG)(Data)(x)
* If you enter a value that exceeds the value of row x column
for the Data parameter (except for 0xFF), Ack becomes NG.
* This feature may not be available for all models.
* If you change the values on a Video Wall model, please reboot
for it to work normally.
Adjusts the remote control/local key (front) lock.
Transmission
(k)(m)( )(Set ID)( )(Data)(Cr)
Data 00: [ Off] (Lock Off)
01: [ On] (Lock On)
* When the monitor is turned off, the power key works even in
On (01) mode.
Acknowledgment
(m)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
41. [Power On Delay] (Command: f h)
38. [Natural Mode] (In Tile Mode) (Command: d j)
To display the image naturally, the part of the image that
would normally be displayed in the gap between the monitors
is omitted.
Transmission
(d)(j)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(j)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
Sets the schedule delay for when the power turns on. (Unit:
seconds)
Transmission
(f)(h)( )(Set ID)( )(Data)(Cr)
Data 00-FA: Min 0- Max 250 (sec)
Acknowledgment
(h)( )(Set ID)( )(OK/NG)(Data)(x)
* The maximum value may differ depending on the model.
ENGLISH
Checks the tile mode.
76
42. [Fail Over] Mode (Command: m i)
ENGLISH
Selects a sound mode.
Transmission
(m)(i)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [Auto]
02: [User Setting]
Acknowledgment
(i)( )(Set ID)( )(OK/NG)(Data)(x)
44. Remote Control Key Lock (Command: t p)
Configures the settings of the product's remote control key.
Transmission
(t)(p)( )(Set ID)( )(Data)(Cr)
Data 00: Unlocks all keys
01: Locks all keys except Power key
02: Locks all keys
Acknowledgment
(p)( )(Set ID)( )(OK/NG)(Data)(x)
* When the monitor is turned off, the power key works even in
the locks on all of the keys (02) mode.
43. [Fail Over] Input Select (Command: m j)
Selects an input source for fail over. (This feature is only
available when Fail Over is set to Custom.)
Transmission
(m)(j)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)( )(Data4)
… ( )(DataN)(Cr)
Data1-N (Input priority 1-N)
60: RGB
70: DVI-D
90: HDMI1
91: HDMI2
92: OPS/HDMI3/DVI-D
95: OPS/DVI-D
96: HDMI3/DVI-D
97: HDMI3/HDMI2/DVI-D
98: OPS
99: HDMI2/OPS
C0: DISPLAYPORT
C1: DISPLAYPORT/USB-C
C2: HDMI3
C3: HDBaseT
Acknowledgment
(j)( )(SetID)( )(OK/NG)(Data1)(Data2)(Data3)(Data4)
… (DataN)(x)
* Some input signals may not be available for all models.
* The data number (N) may vary depending on the model. (The
data number depends on the number of supported input
signals.)
* This feature operates as the last input, and supports data in
DTV format.
45. [Local Key Operation Lock] (Command: t o)
Configures the local key operation settings of the product.
Transmission
(t)(o)( )(Set ID)( )(Data)(Cr)
Data 00: Unlocks all keys
01: Locks all keys except Power key
02: Locks all keys
Acknowledgment
(o)( )(Set ID)( )(OK/NG)(Data)(x)
* When the monitor is turned off, the power key works even in
the locks on all of the keys (02) mode.
* This feature may not be available for all models.
77
46. Status Check (Command: s v)
Data
09(when checking the fan speed)
Acknowledgement
(v)( )(Set ID)( )(OK/NG)(Data)(Data1_1)(Data1_2)
…(DataN_1)(DataN_2)(x)
Data1_1:00~ff: First fan speed top 1 Byte
Data1_2: 00~ff: First fan speed bottom 1 Byte
…
DataN_1: 00~ff: Nth fan speed top 1 Byte
DataN_2: 00~ff: Nth fan speed bottom 1 Byte
Transmission
(s)(v)( )(Set ID)( )(Data)( )(FF)(Cr)
Data 02: C
heck whether there is a signal
03: The monitor is currently in PM Mode
07: C
hecks whether the Top, Bottom and Main
temperature sensors are functioning normally.
09: F an Speed
10: R
GB Sensing OK/NG (screen fault detection)
16: Check the humidity value
17: C
heck the value of the intensity of illumination
18: C
heck the status value of the slope of the
product
Fan Speed: Hex 0~2008, Decimal 0~8200
* The data number (N) may vary depending on the model.
* This feature may not be available for all models.
Acknowledgment
(v)( )(Set ID)( )(OK/NG)(Data)(Data1)(x)
Data 02 (when a signal is found)
Data1 00: N
o signal
01: S ignal present
47. [Daylight Saving Time] (Command: s d)
Data 03 (when the monitor is currently in PM mode)
Data1 00: S creen is on
01: S creen is off
02: S creen Off Always is activated
03: S ustain Aspect Ratio is activated
04: S creen Off & Backlight On is activated
Data
07 (when checking whether the Top, Bottom
and Main temperature sensors are working
properly)
Data1 00: A
ll temperature sensors are faulty
01: Top normal, Bottom faulty, Main faulty
02: Top faulty, Bottom normal, Main faulty
03: Top normal, Bottom normal, Main faulty
04: Top faulty, Bottom faulty, Main normal
05: Top normal, Bottom faulty, Main normal
06: Top faulty, Bottom normal, Main normal
07: A
ll temperature sensors are normal
Data 10(when executing Screen Fault Detection)
Data 1 00: Screen Fault Detection result NG
07: Screen Fault Detection result OK
* When screen Fault Detection is set to Off or not supported,
execution results are rendered “NG.”
Data 16(for checking the humidity value)
Data 1 0~100: Reads the %RH value of the current
humidity (indicated as a Hex value).
Data
17(for checking the value of the intensity of
illumination)
Data 1 1~1000: Reads the Lux value of the current
intensity of illumination (indicated as a Hex value).
Data
18(for checking the status value of the slope of
the product)
Data 1 00: 0 degrees
01: 90 degrees
02: 180 degrees
03: 270 degrees
04: Fallen forward
05: Fallen backward
Sets Daylight Savings Time.
Transmission
(s)(d)( )(Set ID)( )(Data1)( )(Data2)( )
(Data3)( )(Data4)( )(Data5)( )(Cr)
Data1 00: O
ff (Data2-5: F F)
01: Start Time
02: End Time
Data2 01~0C: January - December
Data3 01-06: W
eek 1 - 6
* The maximum value of [Data3] may vary depending on the
date.
Data4 00-06: ( Sunday - Saturday)
Data5 00-17: 0
0 - 23 hours
* If you wish to read the start/end times, enter FF for
parameters [Data2] through [Data5].
(Example 1: sd 01 01 ff ff ff ff - Checks the start time.
Example 2: s d 01 02 ff ff ff ff - Checks the end time.)
* This feature only works when Clock 1 (year/month/day) and
Clock 2 (hour/minute/second) have been set.
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data1)(Data2)
(Data3)(Data4)(Data5)(x)
* This feature may not be available for all models.
ENGLISH
Checks the current signal of the product.
78
48. [PM Mode] (Command: s n, 0c)
ENGLISH
Sets the PM mode.
Transmission
(s)(n)( )(Set ID)( )(0c)( )(Data)(Cr)
Data 00: [Power Off] (Basic)
01: [Sustain Aspect Ratio]
02: [Screen Off]
03: [Screen Off Always]
04: [Screen Off & Backlight On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(0c)(Data)(x)
* This feature may not be available for all models.
49. [ISM Method] (Command: j p)
Selects an ISM method.
Transmission
(j)(p)( )(Set ID)( )(Data)(Cr)
Data 04: [White Wash]
08: [Off]
90: [User Image]
91: [User Video]
Acknowledgment
(p)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
50. [Network Setting] (Command: s n, 80 or 81 or
82)
Configures network and DNS settings.
Transmission
(s)(n)( )(Set ID)( )(Data1)( )(Data2)( )
(Data3)( )(Data4)( )(Data5)(Cr)
Data1 80: Configures/views the temporary IP mode
(Auto/Manual), subnet mask, and gateway.
81: Configures/views the temporary DNS address.
82: Saves temporary settings and views
information about the current network.
* If Data1 is 80,
Data2 00: Auto
01: Manual
FF: Views the temporary IP mode (Auto/Manual),
subnet mask, and gateway.
* If Data2 is 01 (Manual),
Data3 Manual IP address
Data4 Subnet mask address
Data5 Gateway address
* If Data1 is 81,
Data2 DNS address
FF: Displays the temporary DNS address.
* If Data1 is 82,
Data2 80: Applies the temporary IP mode (Auto/
Manual), subnet mask, and gateway.
81: Applies the temporary DNS address
FF: Information on the current network (IP, subnet
gateway and DNS)
* An example of settings,
1. Auto: sn 01 80 00
2. Manual: sn 01 80 01 010177223241 255255254000
010177222001(IP:10.177.223.241, subnet:
255.255.254.0, gateway: 10.177.222.1)
3. Network read: s n 01 80 ff
4. DNS setting: sn 01 81 156147035018 (DNS:
156.147.35.18)
5. Applying the settings: sn 01 82 80 (applies the saved IP
mode (auto/manual), subnet mask, and
gateway), sn 01 82 81 (applies the
saved DSN)
* Each IP address contains 12 decimal digits.
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(Data1)(Data)(x)
* This feature is available only for wired networks.
* This feature may not be available for all models.
79
51. [Power On Status] (Command: t r)
Transmission
(t)(r)( )(Set ID)( )(Data)(Cr)
Data 00: [ LST(Last Status)]
01: [STD(Standby)]
02: [ PWR(Power On)]
Acknowledgment
(r)( )(Set ID)( )(OK/NG)(Data)(x)
54. [Time Sync] (Command: s n, 16)
Sets Time Sync.
Transmission
(s)(n)( )(Set ID)( )(1)(6)( )(Data)(Cr)
Data 00: [Off]
01: [On]
* This feature only works when the monitor is in Master mode.
* This feature does not work if the current time is not set.
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(1)(6)(Data)(x)
* This feature may not be available for all models.
52. Wired [Wake On LAN] (Command: f w)
Selects a Wired Wake On LAN option.
Transmission
(f)(w)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(w)( )(Set ID)( )(OK/NG)(Data)(x)
55. [Contents Sync] (Command: t g)
Sets Content Sync.
Transmission
(t)(g)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(g)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
53. [OSD Rotation] (Command: t h)
Sets the Screen Rotation feature.
Transmission
(t)(h)( )(Set ID)( )(Data) (Cr)
Data 00: [Off]
01: 9
0 degrees
02: 2
70 degrees
03: 1
80 degrees
Acknowledgment
(h)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
56. [LAN Daisy Chain] (Command: s n, 84)
Turns on/off LAN Daisy Chain.
Transmission
(s)(n)( )(Set ID)( )(8)(4)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(8)(4)(Data)(x)
* This feature may not be available for all models.
ENGLISH
Sets the Power On status of the monitor.
80
57. [External Input Rotation] (Command: s n, 85)
ENGLISH
Sets the External Input Rotation feature.
Transmission
(s)(n)( )(Set ID)( )(8)(5)( )(Data)(Cr)
Data 00: [Off]
01: 90 degrees
02: 270 degrees
03: 180 degrees
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(8)(5)(Data)(x)
* This feature may not be available for all models.
60. [Brightness Scheduling] (Command: s s)
Sets Brightness Scheduling.
Transmission
(s)(s)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
Data 1
1. f1 to f6 (data reading)
F1: Reads the 1st brightness schedule’s data
F2: Reads the 2nd brightness schedule’s data.
F3: Reads the 3rd brightness schedule’s data.
F4: Reads the 4th brightness schedule’s data.
F5: Reads the 5th brightness schedule’s data.
F6: Reads the 6th brightness schedule’s data.
2. FF: Reads all stored lists
58. [Beacon] (Command: s n, 88)
Turns on/off Beacon.
Transmission
(s)(n)( )(Set ID)( )(8)(8)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(8)(8)(Data)(x)
* This feature may not be available for all models.
59. [Brightness Scheduling] Mode (Command: s m)
Selects a Brightness Scheduling mode.
Transmission
(s)(m)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(m)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature does not work if the current time is not set.
* This feature may not be available for all models.
3. e1 to e6 (Deletes one index), e0 (Deletes all indexes)
E0: Deletes all brightness schedules.
E1: Deletes the 1st brightness schedule.
E2: Deletes the 2nd brightness schedule.
E3: Deletes the 3rd brightness schedule.
E4: Deletes the 4th brightness schedule.
E5: Deletes the 5th brightness schedule.
E6: Deletes the 6th brightness schedule.
4. 00-17: 00 - 23 hours
Data 2 00-3B: 00 - 59 minutes
Data 3 00~64: Backlight 0 - 100
* To read or delete a brightness schedule you have set, (Data2)
(Data3) must be set to FF.
* If you want to read all configured brightness schedules
through FF, do not enter any values in (Data2)(Data3).
* When retrieving all items of the set Brightness Scheduling
list through FF, OK will be acknowledged (ACK) even if there
is no saved list.
ex1: ss 01 f1 ff ff – Reads the 1st index data in Brightness
Schedule.
ex2: ss 01 ff - Reads all index data in Brightness Schedule.
ex3: ss 01 e1 ff ff – Deletes the 1st index data in Brightness
Schedule.
ex4: ss 01 07 1E 46 - Adds a schedule whose time is 07:30
and whose backlight is 70.
Acknowledgement
(s)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
* This feature may not be available for all models.
81
61. [Multi Screen] Mode & Input (Command: x c)
Transmission
(x)(c)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)( )(Data4)
( )(Data5)( )(Cr)
Data1 (Sets MultiScreen mode)
10: PIP
22: PBP2
23: PBP3
24: PBP4
25: PBP3 (1:2:1)
Data2 (Sets the Main input of Multi screen)
Data3 (Sets the Sub1 input of Multi screen)
Data4 (Sets the Sub2 input of Multi screen)
Data5 (Sets the Sub3 input of Multi screen)
80: DVI-D
90: HDMI1
91: HDMI2
92: OPS/HDMI3/DVI-D
95: OPS/DVI-D
96: HDMI3/DVI-D
97: HDMI3/HDMI2/DVI-D
98: OPS
99: HDMI2/OPS
C0: DISPLAYPORT
C1: DISPLAYPORT/USB-C
C2: HDMI3
C3: HDBaseT
Acknowledgment
(c)( )(Set ID)( )(OK/NG)( )(Data1)(Data2)(Data3)
(Data4)(Data5)(x)
* This feature may not be available for all models.
* Only the input modes supported by the model works.
* This feature operates as the last input, and supports data in
DTV format.
62. [Aspect Ratio] (Multi screen) (Command: x d)
Controls the aspect ratio of Multi Screen.
Transmission
(x)(d)( )(Set ID)( )(Data1)( )(Data2)(Cr)
Data1 01: C
ontrols the Main input
02: C
ontrols the Sub1 input
03: C
ontrols the Sub2 input
04: C
ontrols the Sub3 input
Data2 00: F ull Screen
01: Original
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)
* This feature may not be available for all models.
63. [SCREEN OFF] (Multi screen) (Command: x e)
Turns on/off each screen in the Multi Screen.
Transmission
(x)(e)( )(Set ID)( )(Data1)( )(Data2)(Cr)
Data1 01: C
ontrols the Main input
02: C
ontrols the Sub1 input
03: C
ontrols the Sub2 input
04: C
ontrols the Sub3 input
Data2 00: S creen On
01: S creen Off
* This feature only works when the Multi Screen app is running.
* This feature does not work when there is no signal.
Acknowledgment
(e)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)
* This feature may not be available for all models.
64. [Screen Off Always] (Command: s n, 0d)
If you activate the Screen Off Always feature, the monitor
enters Screen Off mode regardless of whether or not you have
activated PM mode.
Transmission
(s)(n)( )(Set ID)( )(0)(d)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(0)(d)(Data)(x)
* This feature may not be available for all models.
ENGLISH
Saves and controls Multi Screen modes and inputs.
82
ENGLISH
65. Stop Video (Command: k x)
69. [Holiday Setting] (Command: s n, 9b)
Transmission
(k)(x)( )(Set ID)( )(Data)(Cr)
Data 00: The Stop Video feature is on.
01: The Stop Video feature is off.
* This feature only works in single input mode.
Transmission
1. (s)(n)( )(Set ID)( )(9)(b)( )
(Data1)( )(Data2)( )(Data3)( )
(Data4)( )(Data5)( )(Data6)(Cr)
2. (s)(n)( )(Set ID)( )(9)(b)( )(Data1)( )(Data2)(Cr)
3. (s)(n)( )(Set ID)( )(9)(b)( )(Data1)(Cr)
1. Setting a Holiday
Data1 Start year
00-: 2010Data2 Start month
01 - 0c: January - December
Data3 Start date
01 - 1F: 0
1-31
Data4 For how long from the start year/month/date
01-07: For 1 to 7 days
Data5 Repetition
00: None
01: Every month
02: Every Year
Data6Repeats the schedule on a date/day-of-the-week
basis.
01: On a date basis.
02: On a day-of-the-week basis.
* The minimum and maximum values for Data1 differ
depending on the product's release year.
* You can input a value for [Data 6] only when a value has
already been set for [Data 5] (every year or every month).
Controls Stop Video.
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
66. Wireless [Wake On LAN] (Command: s n, 90)
Sets the Wireless Wake-on-LAN feature.
Transmission
(s)(n)( )(Set ID)( )(9)(0)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(0)(Data)(x)
* This feature may not be available for all models.
67. [OSD Lock] (Command: k l)
Sets OSD Lock.
Transmission
(k)(l)( )(Set ID)( )(Data)(Cr)
Data 00: OSD Lock
01: Unlock OSD Lock
Acknowledgment
(l)( )(Set ID)( )(OK/NG)(Data)(x)
68. [HDMI IT Content] (Command: s n, 99)
Automatically sets the picture mode based on HDMI data.
Transmission
(s)(n)( )(Set ID)( )(9)(9)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(9)(Data)(x)
* This feature may not be available for all models.
Sets holidays.
2. Checking a Schedule
Data1 Select the desired schedule.
F1: Reads the 1st schedule
F2: Reads the 2nd schedule
F3: Reads the 3rd schedule
F4: Reads the 4th schedule
F5: Reads the 5th schedule
F6: Reads the 6th schedule
F7: Reads the 7th schedule
Data2
FF
83
Acknowledgment
1. (n)( )(Set ID)( )(OK/NG)(9)(b)
(Data1)(Data2)(Data3)(Data4)(Data5)(Data6)(x)
2. (n)( )(Set ID)( )(OK/NG)(9)(b)(f)(1~7)
(Data1)(Data2)(Data3)(Data4)(Data5)(Data6)(x)
3. (n)( )(Set ID)( )(OK/NG)(9)(b)(Data1)(x)
* This feature may not be available for all models.
70. [ISM Method] (Command: s n, 9c)
Sets UPnP.mode.
Transmission
(s)(n)( )(Set ID)( )(9)(c)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(c)(Data)(x)
* This feature may not be available for all models.
* Changing UPnP mode results in a reboot.
71. [Home Dashboard Lock] (Command: s n, 9d)
Sets Home Dashboard Lock.
Transmission
(s)(n)( )(Set ID)( )(9)(d)( )(Data)(Cr)
Data 00: H
ome Dashboard Unlock
01: H
ome Dashboard Lock
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(d)(Data)(x)
* This feature may not be available for all models.
72. [USB Lock] (Command: s n, 9e)
Sets USB Lock.
Transmission
(s)(n)( )(Set ID)( )(9)(e)( )(Data)(Cr)
Data 00: U
SB Unlock
01: U
SB Lock
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(e)(Data)(x)
* This feature may not be available for all models.
ENGLISH
3. Deleting a Schedule
E0: D
eletes all holiday schedules
E1: D
eletes the 1st holiday schedule
E2: D
eletes the 2nd holiday schedule
E3: D
eletes the 3rd holiday schedule
E4: D
eletes the 4th holiday schedule
E5: D
eletes the 5th holiday schedule
E6: D
eletes the 6th holiday schedule
E7: D
eletes the 7th holiday schedule
* This feature does not work if the current time is not set.
84
73. [Wi-Fi Lock] (Command: s n, 9f)
ENGLISH
Sets Wi-Fi Lock.
Transmission
(s)(n)( )(Set ID)( )(9)(f)( )(Data)(Cr)
Data 00: Wi-Fi Unlock
01: Wi-Fi Lock
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(9)(f)(Data)(x)
* This feature may not be available for all models.
74. [Screen Share Lock] (Command: s n, a0)
Sets Screen Share Lock.
Transmission
(s)(n)( )(Set ID)( )(a)(0)( )(Data)(Cr)
Data 00: Screen Share Unlock
01: Screen Share Lock
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(0)(Data)(x)
* This feature may not be available for all models.
75. See [Backup via Storage] (Command: s n, a1)
Sets Backup via Storage.
Transmission
1. (s)(n)( )(Set ID)( )(a)(1)( )(Data1)(Cr)
2. (s)(n)( )(Set ID)( )(a)(1)( )(Data1)(Data2)(Cr)
1. Disabling Backup via Storage.
Data1 00: Off
2. Setting Backup via Storage to Auto
Data1 01: Auto
Data2 01: 30 minute
02: End time
03: End time
04: End time
3. Setting Backup via Storage to Manual
Data1 02: Manual
4. Setting Backup via Storage to SuperSign Content
Data1 03: SuperSign Contents
5. Set to SI App / Play via URL
Data 1 04: [SI App / Play via URL]
Acknowledgment
1. (n)( )(Set ID)( )(OK/NG)(a)(1)(Data1)(x)
2. (n)( )(Set ID)( )(OK/NG)(a)(1)(Data1)(Data2)(x)
* This feature may not be available for all models.
85
76. [Digital Audio Input] (Command: s n, a2)
Transmission
(s)(n)( )(Set ID)( )(a)(2)( )(Data)(Cr)
Data 00: Digital
01: Analog
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(2)(Data)(x)
* This feature may not be available for all models.
77. [Booting Logo Image] (Command: s n, a3)
Sets Booting Logo Image.
Transmission
(s)(n)( )(Set ID)( )(a)(3)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(3)(Data)(x)
* This feature may not be available for all models.
79. [Natural Size] (Command: s n, a5)
Sets the Natural Size feature.
Transmission
(s)(n)( )(Set ID)( )(a)(5)( )(Data)(Cr)
Data 00-64: N
atural Size 0 - 100
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(5)(Data)(x)
* This feature may not be available for all models.
80. Play Saved Internal Media (Command: s n, a8)
Plays media files saved on internal storage. Internal storage
media: videos and images stored on the monitor's internal
storage after being exported via Contents Management Player.
* Not applicable: Template content, SuperSign content, and
playlist content.
Transmission
(s)(n)( )(Set ID)( )(a)(8)( )(Data)(Cr)
Data 01: Play
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(8)( )(Data)(x)
* This feature may not be available for all models.
78. [SoftAP] (Command: s n, a4)
Sets SoftAP Mode.
Transmission
(s)(n)( )(Set ID)( )(a)(4)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(4)(Data)(x)
* This feature may not be available for all models.
81. [No Signal Image] (Command: s n, a9)
Sets the No Signal Image feature.
Transmission
(s)(n)( )(Set ID)( )(a)(9)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(9)(Data)(x)
* This feature may not be available for all models.
ENGLISH
Sets Digital Audio Input.
86
82. [Audio Out] (Command: s n, aa)
ENGLISH
Sets Audio Out to Off/Variable/Fixed.
Transmission
(s)(n)( )(Set ID)( )(a)(a)( )(Data)(Cr)
Data 00: [Off]
01: [Variable]
02: [Fixed]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(a)(Data)(x)
* This feature may not be available for all models.
83. [DPM Wake Up Control] (Command: s n, 0b)
Controls the DPM Wake Up Control settings.
Transmission
(s)(n)( )(Set ID)( )(0)(b)( )(Data)(Cr)
Data 00: [Clock]
01: [Clock+DATA]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(0)(b)(Data)(x)
* This feature may not be available for all models.
84. [Fan] Failure Check (Command: d w)
Check the fan malfunction.
Transmission
(d)(w)( )(Set ID)( )(Data)(Cr)
Data FF: Read status
Acknowledgment
(w)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)
Data1 00: Fan failure
01: Fan normal
Data2 00: 0 faults (Fan Normal)
01: 1 fault
02: 2 faults
03: 3 faults
04: 4 faults
05: 5 faults
06: 6 faults
07: 7 faults
08: 8 faults
09: 9 faults
0A: 10 faults
* This feature may not be available for all models.
85. [Apply to all inputs] (Command: n, 52)
Apply the video mode and low value of the current input to the
same video value of all inputs.
Transmission
(s)(n)( )(Set ID)( )(5)(2)( )(Data)(Cr)
Data 01: Apply
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(5)(2)(Data)(x)
* This feature may not be available for all models.
* Other commands do not work for a certain time after
applying.
86. [Timer Power On] Scheduling (Command: f d)
Sets On Timer settings.
Transmission
(f)(d)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
Data1
1. f1h to f7h (data reading)
F1: Reads the 1st Timer Power On’s data
F2: Reads the 2nd Timer Power On’s data
F3: Reads the 3rd Timer Power On’s data
F4: Reads the 4thTimer Power On’s data
F5: Reads the 5th Timer Power On’s data
F6: Reads the 6th Timer Power On’s data
F7: Reads the 7th Timer Power On’s data
2. e1h to e7h (Deletes one index), e0h (Deletes all
indexes)
E0: Delete all Timer Power On’s
E1: Delete the 1st Timer Power On
E2: Delete the 2nd Timer Power On
E3: Delete the 3rd Timer Power On
E4: Delete the 4th Timer Power On
E5: Delete the 5th Timer Power On
E6: Delete the 6th Timer Power On
E7: Delete the 7th Timer Power On
87
* To read or delete a Timer Power On you have set, [Data2]
[Data3] must be set to FFH.
Example 1: fd 01 f1 ff ff - Reads the 1st index data in Timer
Power On.
Example 2: fd 01 e1 ff ff - Reads the 1st index data in Timer
Power On.
Example 3: fd 01 04 02 03 - Sets the Timer Power On as
Monday - Saturday 02:03.
* This feature only works when Clock 1 (year/month/day) and
Clock 2 (hour/minute/second) have been set.
Acknowledgment
(d)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
87. [Time to OFF] Scheduling (Command: f e)
Sets Off Timer settings.
Transmission
(f)(e)( )(Set ID)( )(Data1)( )(Data2)( )(Data3)(Cr)
Data1
1. f1h to f7h (data reading)
F1: Reads the 1st Timer Power Off’s data
F2: Reads the 2nd Timer Power Off’s data
F3: Reads the 3rd Timer Power Off’s data
F4: Reads the 4th Timer Power Off’s data
F5: Reads the 5th Timer Power Off’s data
F6: Reads the 6th Timer Power Off’s data
F7: Reads the 7th Timer Power Off’s data
2. e1h to e7h (Deletes one index), e0h (Deletes all
indexes)
E0: Delete all Timer Power Off’s
E1: Delete the 1st Timer Power Off
E2: Delete the 2nd Timer Power Off
E3: Delete the 3rd Timer Power Off
E4: Delete the 4th Timer Power Off
E5: Delete the 5th Timer Power Off
E6: Delete the 6th Timer Power Off
E7: Delete the 7th Timer Power Off
3. 01h to 0ch (Timer Power Off days setting)
02: Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06: Repeat on Sunday
07: Repeat on Monday
08: Repeat on Tuesday
09: Repeat on Wednesday
0A: Repeat on Thursday
0B: Repeat on Friday
0C: Repeat on Saturday
Data2 00-17: 0
0 - 23 hours
Data3 00-3B: 0
0 - 59 minutes
* To read or delete a Timer Power Off you have set, [Data2]
[Data3] must be set to FFH.
Example 1: fe 01 f1 ff ff - Reads the 1st index data in Timer
Power Off.
Example 2: fe 01 e1 ff ff - Reads the 1st index data in Timer
Power Off.
Example 3: fe 01 04 02 03 - Sets the Timer Power Off as
Monday - Saturday 02:03.
* This feature only works when Clock 1 (year/month/day) and
Clock 2 (hour/minute/second) have been set.
Acknowledgment
(e)( )(Set ID)( )(OK/NG)(Data1)(Data2)(Data3)(x)
ENGLISH
3. 01h to 0ch (Timer Power On days setting)
02: Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06: Repeat on Sunday
07: Repeat on Monday
08: Repeat on Tuesday
09: Repeat on Wednesday
0A: Repeat on Thursday
0B: Repeat on Friday
0C: Repeat on Saturday
Data2 00-17: 00 - 23 hours
Data3 00-3B: 00 - 59 minutes
88
88. LCIN008 Control (Command: s n, b8)
ENGLISH
It controls the LCIN008 device.
Transmission
(s)(n)( )(Set ID)( )(b)(8)( )(Data1)(Data2)(Cr)
Data 1 00: LCIN008 Power
01: LCIN008 Brightness
Data 2
1. For Power
0 x 00: Off
0 x 01: On
2. For Brightness
0 x ff: Read
0 x 00 ~ 0 x 64: Applies a set value
Acknowledgement
(n)( )(Set ID)( )(OK/NG)(b)(8)(Data1)(Data2)(x)
* This feature may not be available for all models.
* Other commands do not work for a certain time after
applying.
91. Change Setid (Command: j x)
Changes and checks Setid.
1. When it is a general LED model
Transmission
(j)(x)( )(Set ID)( )(Data1)( )(Data2)(Cr)
Data1 Data2 : 00 01 ~ 03 e8 (1~1000)
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data1)(Data2)(x)
2. When it is another model (read only)
Transmission
(j)(x)( )(Set ID)( )(Data)(Cr)
Data FF: Check the value of Setid
The returned value is indicated as a value of hexadecimal
numbers corresponding to the ASCII code value.
(Return when Setid is 1: x 01 OK31x
Return when Setid is 1000: x 3e8 OK31303030x)
Acknowledgment
(x)( )(Set ID)( )(OK/NG)(Data)(x)
* It works even if the Setid does not match.
89. [Transfer Control] (Command: s n, cb)
It transfers the command to RS232C out.
Transmission
(s)(n)( )(Set ID)( )(c)(b)( )(Data)(Cr)
DataData that goes out to RS232C out
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(b)(Data)(x)
DataResponse value of Data transferred to RS232C
out
* This feature may not be available for all models.
* Other commands do not work for a certain time after
applying.
92. [Gamma] (Command: s n, ad)
Sets Gamma Mode.
Transmission
(s)(n)( )(Set ID)( )(a)(d)( )(Data)(Cr)
Data 00: [low](1.9)
01: [medium](2.2)
02: [High1](2.4)
03: [High2](BT.1886)
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(d)(Data)(x)
* This feature may not be available for all models.
90. Multichannel (Command: s n, 76)
It changes the channel.
Transmission
(s)(n)( )(Set ID)( )(7)(6)( )(Data)(Cr)
Data 01 - 09: Channel to switch to
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(7)(6)(Data)(x)
* This feature may not be available for all models.
93. [Black Level] (Command: s n, ae)
It sets the Black Level mode.
Transmission
(s)(n)( )(Set ID)( )(a)(e)( )(Data)(Cr)
Data 00: Low
01: High
02: Auto
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(e)(Data)(x)
* This feature may not be available for all models.
89
94. [UHD Deep Color] (Command: s n, af)
Transmission
(s)(n)( )(Set ID)( )(a)(f)( )(Data1)( )(Data2)(Cr)
Data1 70: DVI-D
90: HDMI1
91: HDMI2
92: OPS/HDMI3/DVI-D
95: OPS/DVI-D
96: HDMI3/DVI-D
97: HDMI3/HDMI2/DVI-D
98: OPS
99: HDMI2/OPS
C0: DISPLAYPORT
C1: DISPLAYPORT/USB-C
C2: HDMI3
C3: HDBaseT
Data2 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(a)(f)(Data1)(Data2)(x)
* This feature may not be available for all models.
95. [Sync Mode] (Command: s n, b0)
Sets Sync Mode.
96. [Input Manager] (Command: s n, b1)
It sets labels by input.
Transmission
(s)(n)( )(Set ID)( )(b)(1)( )(Data1)( )(Data2)(Cr)
Data1 90: HDMI1
91: HDMI2
92: OPS/HDMI3/DVI-D
95: OPS/DVI-D
96: HDMI3/DVI-D
97: HDMI3/HDMI2/DVI-D
98: OPS
99: HDMI2/OPS
C0: DISPLAYPORT
C1: DISPLAYPORT/USB-C
C2: HDMI3
C3: HDBaseT
Data2 00: DTV
01: PC
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(b)(1)(Data1)(Data2)(x)
* This feature may not be available for all models.
97. [PC/OPS Power Control] (Command: s n, 8b)
It sets the OPS/PC Power Control mode.
Transmission
(s)(n)( )(Set ID)( )(b)(0)( )(Data)(Cr)
Data 00: [ Slave Mode]
01: [ Master Mode]
Transmission
(s)(n)( )(Set ID)( )(8)(b)( )(Data)(Cr)
Data 00: [Disable]
01: [Sync(On)]
02: [Sync(On/Off)]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(b)(0)(Data)(x)
* This feature may not be available for all models.
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(8)(b)(Data)(x)
* This feature may not be available for all models.
98. [LED Local Dimming] (Command: s n, c1)
It sets [LED Local Dimming].
(A feature to set the LED Local Dimming in a sub-item under
[Settings] [Display] [Expert Controls])
Transmission
(s)(n)( )(Set ID)( )(c)(1)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(1)(Data)(x)
* This feature may not be available for all models.
ENGLISH
It sets the UHD Deep Color mode for each input.
90
99. [Scan Inversion] (Command: s n, 87)
ENGLISH
It controls the on/off status of Scan Inversion.
Transmission
(s)(n)( )(Set ID)( )(8)(7)( )(Data)(Cr)
Data 00: Off
01: On
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(8)(7)(Data)(x)
* This feature may not be available for all models.
* If you change the values on a Video Wall model, please reboot
for it to work normally.
100. [Frame Control] (Command: s n, b7)
It controls the Frame Control.
Transmission
(s)(n)( )(Set ID)( )(b)(7)( )(Data)(Cr)
Data 00: Off
01: On
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(b)(7)(Data)(x)
* This feature may not be available for all models.
* If you change the values on a Video Wall model, please reboot
for it to work normally.
102. Read Brightness Value (Command: m u)
Checks the brightness value.
Transmission
(m)(u)( )(Set ID)( )(FF)(Cr)
Acknowledgment
(u)()(SetID)()(OK/NG)(Data1)(Data2)(Data3)(Data4)
(Data5)(Data6)(Data7)(x)
Data 1 00~64: Backlight PWM figure 0-100
Data 2 00~ff: The upper 1-byte of the value measured by
the CA210.
Data 3 00~ff: The lower 1-byte of the value measured by
the CA210.
The CA210 measurement is Hex: 0000~ffff, Decimal:
0 - 65535
Data 4 00~ff: The upper 1-byte of the value measured by
BLU 1 Sensor.
Data 5 00~ff: The lower 1-byte of the value measured by
BLU 1 Sensor
Data 6 00~ff: The upper 1-byte of the value measured by
BLU 2 Sensor
Data 7 00~ff: The lower 1-byte of the value measured by
BLU 2 Sensor
The BLU measurement is Hex: 0000~ffff, Decimal: 0 65535
* The CA210 measurement is entered as “Calibration” when
the product is released from the factory. It is Default 0 before
the calibration.
* This feature may not be available for all models.
103. [Screen Fault Detection] (Command: t z)
Sets the Screen Fault Detection feature.
101. [Average Picture Level Auto Control] (Command: s
n, be)
Sets Average Picture Level Auto Control.
Transmission
(s)(n)( )(Set ID)( )(b)(e)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Transmission
(t)(z)( )(Set ID)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(z)( )(Set ID)( )(OK/NG)(Data)(x)
* This feature may not be available for all models.
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(b)(e)(Data)(x)
* This feature may not be available for all models.
104. [Stereo Mode] (Command: s n, c2)
Controls Stereo Mode.
Transmission
(s)(n)( )(Set ID)( )(c)(2)( )(Data)(Cr)
Data 00: Left/Right
01: Left/Left
02: Right/Right
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(2)(Data)(x)
* This feature may not be available for all models.
91
108. [USB2 to HDBaseT] (Command: s n, c3)
Sets USB2 to HDBaseT.
Transmission
(s)(n)( )(Set ID)( )(c)(4)( )(Data)(Cr)
Data 00: Mall/QSR
01: General
02: Gov./Corp.
04: Education
Transmission
(s)(n)( )(Set ID)( )(c)(3)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(4)(Data)(x)
* Depending on the model, some picture modes may not be
supported.
* It works only when the HDR content is running.
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(3)(Data)(x)
* This feature may not be available for all models.
109. [Change Password] (Command: s n, a7)
Changes password.
106. [Dynamic Tone Mapping] (Command: s n, c5)
Selects Dynamic Tone Mapping.
Transmission
(s)(n)( )(Set ID)( )(c)(5)( )(Data)(Cr)
Data 00: [Off]
01: [On]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(5)(Data)(x)
* Depending on the model, some picture modes may not be
supported.
* It works only when the HDR content is running.
Transmission
(s)(n)( )(Set ID)( )(a)(7)( )(Data1)(Data2)(Data3)
(Data4)(Data5)(Data6)( )(Data7)(Data8)(Data9)
(Data10)(Data11)(Data12)(Cr)
Data 1~6 : 0~9(Previously set password)
Data 7~12 : 0~9(New password)
Acknowledgement
(n)( )(Set ID)( )(OK/NG)(a)(7)( )(Data1)(Data2)(Data3)
(Data4)(Data5)(Data6)( )(Data7)(Data8)(Data9)
(Data10)(Data11)(Data12)(x)
* This feature may not be available for all models.
110. [Brightness Range Adjustment] (Command: s n, ab)
Adjust the brightness range.
107. [LED Local Dimming] (Command: s n, c6)
Sets the LED Local Dimming.
(A feature to set the LED Local Dimming in a sub-item under
[Settings] [Display] [Picture Mode] [Picture Options])
Transmission
(s)(n)( )(Set ID)( )(c)(6)( )(Data)(Cr)
Data 00: [Off]
01: [low]
02: [Medium]
03: [High]
Acknowledgment
(n)( )(Set ID)( )(OK/NG)(c)(6)(Data)(x)
* This feature may not be available for all models.
Transmission
(s)(n)( )(Set ID)( )(a)(b)( )(Data1)( )(Data2)(Cr)
Data 1 00: Minimum brightness control
01: Maximum brightness control
Data 1 00~64: Range control
Acknowledgement
(n)( )(Set ID)( )(OK/NG)(a)(b)(Data1)(Data2)(x)
* This feature may not be available for all models.
* Data2 only supports Hex values that are multiples of 5.
* The range of minimum brightness value cannot exceed the
range of maximum brightness, and the range of maximum
brightness value cannot be less than the range of minimum
brightness.
ENGLISH
105. [HDR Picture Mode] (Command: s n, c4)
Selects a HDR Picture Mode.
92
ENGLISH
111. [Color Calibration] (Command: s n, d6)
Selects Color Calibration.
Transmission
(s)(n)( )(Set ID)( )(d)(6)( )(Data)(Cr)
Data 00: Off
01: On
Acknowledgement
(n)( )(Set ID)( )(OK/NG)(d)(6)(Data)(x)
* It may not be supported depending on the model.
