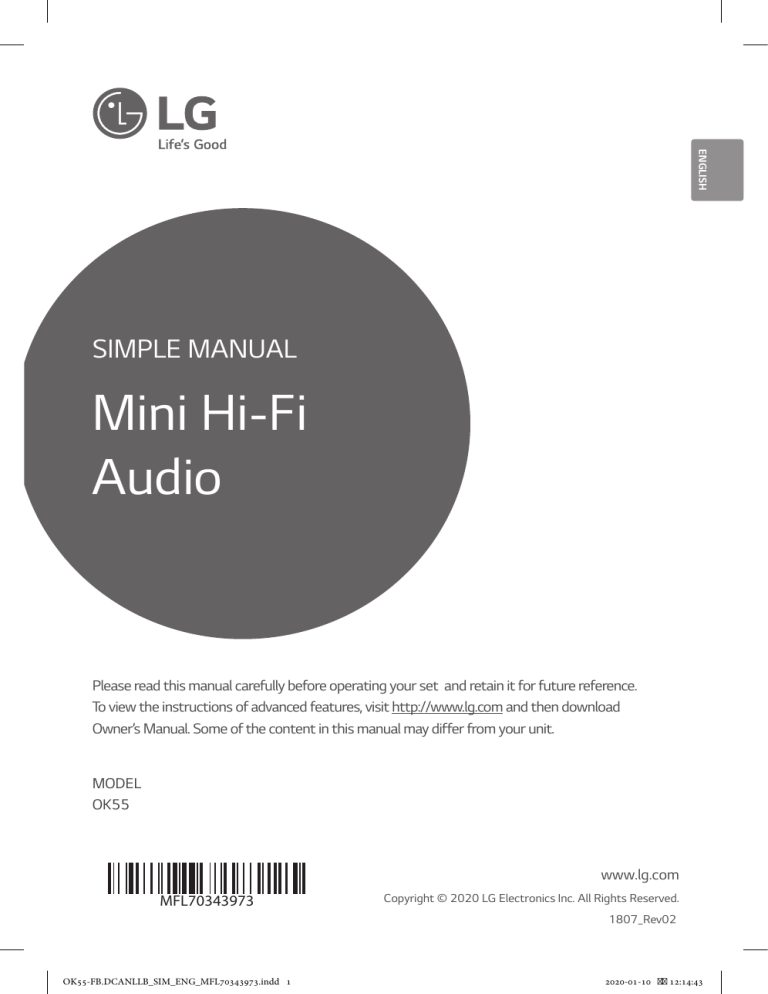

ENGLISH
SIMPLE MANUAL
Mini Hi-Fi
Audio
Please read this manual carefully before operating your set and retain it for future reference.
To view the instructions of advanced features, visit http://www.lg.com and then download
Owner’s Manual. Some of the content in this manual may differ from your unit.
MODEL
OK55
www.lg.com
MFL70343973
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
1807_Rev02
OK55-FB.DCANLLB_SIM_ENG_MFL70343973.indd 1
2020-01-10
12:14:43
Top panel
a b
c
d
e
Z (Stop)
Stops playback or cancels DELETE function.
f g
q
h
p
i
o
j
n
B (Open/Close)
Opens and closes the disc tray.
j DJ SCRATCH / SEARCH & MULTI
- Turns clockwise or counterclockwise to make scratch sound.
- Searches a folder or a file
k SPECIAL EQ / BASS BLAST (or BASS BLAST+)
- Chooses special equalizer.
- Press and hold to select BASS (or BASS+) effect directly.
SEARCH
Moves to folder or file in selection mode.
OK
Selects a folder when searching a file.
m
l
k
l PARTY STARTER
- In power off state, this function turns on the unit with Party
Kick Starter sound.
a 1 (Standby)
Turns the power on or off.
- In power on state, this function mixes the music with Party
Kick Starter sound.
b USB REC / DEMO
- Records to USB.
- To stop Recording, press and hold for 3 seconds.
- In power off status, if you press USB REC / DEMO, show
demo mode.
CLUB, DRUM, USER (DJ PAD)
c USB Port
You can play sound files by connecting the USB device.
d Display window
Selects CLUB, DRUM or USER sound effect to mix.
(If you want to use USER, you have to register a source with
“Music Flow Bluetooth” app.)
1, 2, 3 (DJ PAD)
Press a desired sound pad.
m DJ EFFECT
Selects a desired DJ effect.
e PARTY ACCELERATOR lever
Slide the lever to create a party atmosphere.
USER EQ
Selects the equalizer created by your own.
f F (Function)
Selects the function and input source.
LIGHTING
Selects the lighting mode.
g 3WIRELESS LINK
- Selects MAIN or OTHER on WIRELESS PARTY LINK mode.
- Enable or disable WIRELESS PARTY LINK mode.
h MASTER VOL. (Volume) -/+
Adjusts speaker volume.
i C (Skip/Search)
- Skips backward.
- Searches for a section within a track/file.
- Selects the radio stations.
N (Play/Pause)
- Starts or pauses playback.
- Selects stereo/mono.
n DJ SCRATCH / LEVEL CONTROL
- Turns clockwise or counterclockwise to make scratch sound.
- Turns clockwise or counterclockwise to control the USER EQ
level.
- Adjust DJ EFFECT level.
- Selects the vocal effects.
- Selects the lighting effects.
o PARTY ACCELERATOR MODE
Selects PARTY ACCELERATOR MODE.
DJ LOOP
Selects DJ LOOP mode.
(DJ LOOP mode can use during CD/USB playback.)
V (Skip/Search)
- Skips forward.
- Searches for a section within a track/file.
- Selects the radio stations.
OK55-FB.DCANLLB_SIM_ENG_MFL70343973.indd 2
2020-01-10
12:14:44
q MIC VOL. (Microphone Volume) -/+
Adjust microphone volume.
p KEY CHANGER ( / )
Changes the key to suit your vocal range.
VOICE CANCELLER
You can reduce the vocal tones during music playback from
various input sources.
VOCAL EFFECTS
Selects VOCAL EFFECTS mode.
MIC ECHO
Selects ECHO mode.
Front panel / Rear panel
a
b
e
fg
c
d
h
a
(Remote sensor)
e AUX IN (L/R) : Connect an auxiliary device.
b MIC (Microphone) 1/2 jack
f PORT.(Portable ) IN : Connect a portable device.
c Disc tray
g ANTENNA (FM)
d Lighting
h AC IN socket
Controller App
Download the Music Flow Bluetooth App to your
device. (Android only)
OK55-FB.DCANLLB_SIM_ENG_MFL70343973.indd 3
LG Sound Sync (Wireless)
For more information, download the online owner’s
manual. http://www.lg.com
2020-01-10
12:14:46
Additional Information
Power Consumption
Dimensions (W x H x D)
Refer to the main label on
the unit.
Refer to the main label on
the unit.
Approx. 330.0 mm x
716.0 mm x 318.0 mm
3)
Power Requirements
Replacement of battery
(R0
Specifications
(R03)
(13.0 inch x 28.2 inch x
12.5 inch)
Bus Power Supply (USB)
5 V 0 500 mA
Amplifier
(Total RMS output power)
500 W RMS
Design and specifications are subject to change without
notice.
Caution
yy Connect the power cord to wall outlet directly if
possible. Or when you use an extension cable, it is
highly recommended to use an extension cable of 110
V / 15 A or 230 V / 15 A, otherwise the unit may not
operate properl y because of the lack of power supply.
yy Do not overload the extension cord with excessive
electrical load.
OK55-FB.DCANLLB_SIM_ENG_MFL70343973.indd 4
2020-01-10
12:14:46
Industry Canada Statement
WARNING
[For having wireless function (WLAN, Bluetooth,...)]
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
[For product having the wireless function using 5 GHz
frequency bands]
i.
the device for operation in the band 5150–5250
MHz is only for indoor use to reduce the potential
for harmful interference to co-channel mobile
satellite systems;
ii. for devices with detachable antenna(s), the
maximum antenna gain permitted for devices in the
bands 5250-5350 MHz and 5470-5725 MHz shall
be such that the equipment still complies with the
e.i.r.p. limit;
iii. for devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits as
appropriate; and
iv. [for devices operating in the band 5250-5350 MHz
having an e.i.r.p. greater than 200 mW] antenna
type(s), antenna models(s), and worst-case tilt
angle(s) necessary to remain compliant with the
e.i.r.p. elevation mask requirement set forth in
section 6.2.2.3 of RSS-247 shall be clearly indicated.
CAN ICES-3 (B)/NMB-3 (B)
IC Radiation Exposure Statement
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation exposure
limits set forth for an uncontrolled environment. This
equipment should be installed and operated with
minimum distance 20 cm (7.8 inches) between the
antenna & your body.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
Users should also be advised that high-power radars
are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage to
LE-LAN devices.
OK55-FB.DCANLLB_SIM_ENG_MFL70343973.indd 5
2020-01-10
12:14:46
LG Customer Information Center
1-888-542-2623
CANADA
Register your product Online!
www.lg.com
OK55-FB.DCANLLB_SIM_ENG_MFL70343973.indd 6
2020-01-10
12:14:46
