LG OLED77G7P Owner's manual

LG OLED77G7P Owner's manual

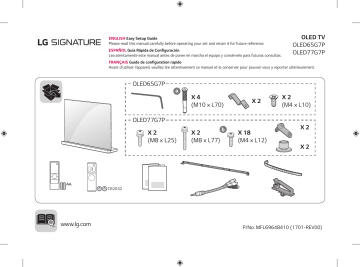

ENGLISH Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
OLED TV
OLED65G7P
OLED77G7P
FRANÇAIS Guide de configuration rapide
Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement.
OLED65G7P
a
X4
(M10 x L70)
X2
OLED77G7P
X2
(M8 x L25)
AA
www.lg.com
X2
(M8 x L77)
b
X 18
(M4 x L12)
X2
(M4 x L10)
X2
X2
CR2032
P/No: MFL69648410 (1701-REV00)
ENGLISH
Read Safety & Reference.
ESPAÑOL
Leer Seguridad y Consultas.
FRANÇAIS Lisez Sécurité et références.
OLED65G7P
1
3
2
5 mm
a
4
5
6
OLED77G7P
1
2
3
4
5
b
6
b
7
8
9
10
www.lg.com/us/support
ENGLISH
Easy TV Connect Guide
(Animation)
ESPAÑOL
Guía Rápida de Conexión de TV
(Sólo en Inglés)
FRANÇAIS
Guide simplifié pour la connexion du
téléviseur (Offert en anglais seulement)
1
2
3
4
1
2
AA
1
2
3
3
4
*MFL69648410*
0
1
2
,
,
,
,
: mm (inches / pulgadas / po)
: kg (lbs / libras / lb)
OLED65G7P-U
OLED77G7P-U
1,461
(57.5)
1,734
(68.2)
1 461 883
883
243
243
892
892
(57,5) (34.7) (34,7) (9.5) (9,5) (35.1) (35,1)
1 734 1,055 1 055 317
317 1,067 1 067
(68,2) (41.5) (41,5) (12.4) (12,4) (42.0) (42,0)
68
(2.6)
83
(3.2)
68
(2,6)
83
(3,2)
31.7
31,7
(69.8) (69,8)
54.1
54,1
(119.2) (119,2)
5.0 A / 500 W
5,0 A / 500 W
7.9 A / 790 W
7,9 A / 790 W
AC 120 V ~ 50 / 60 Hz
Safety and Reference
Please read this manual carefully before operating your set and
retain it for future reference.
OLED65G7P
OLED77G7P
*MFL69707622*
www.lg.com
P/NO : MFL69707622 (1701-REV00)
Warning! Important Safety
instructions
Read these instructions. Keep these instructions.
Heed all warnings. Follow all instructions.
••Only use attachments/accessories specified by
the manufacturer.
••Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ENGLISH
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE. REFER
TO QUALIFIED SERVICE PERSONNEL.
The symbol is intended to alert the user
to the presence of uninsulated dangerous
voltage within the product’s enclosure that
may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The symbol is intended to alert the user
to the presence of important operating
and maintenance (servicing) instructions in
the literature accompanying the device.
WARNING : TO REDUCE THE RISK OF FIRE
AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
••Do not use this apparatus near water.
••Clean only with dry cloth.
••Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
••Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
••Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
••Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
2
••Unplug this apparatus during lightning storms
or when unused for long periods of time.
••Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
••Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil, or
pen, or make a scratch on it.
••Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it is
plugged in.
••Keep the packing anti-moisture material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if swallowed.
If swallowed, induce vomiting and go to the
nearest hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
••Concerning the Power Cord (Can differ by
country): Check the specification page of this
owner’s manual to be certain concerning
current requirements. Do not connect too
many devices to the same AC power outlet as
this could result in fire or electric shock. Do not
overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked
wire insulation are dangerous. Any of these
conditions could result in electric shock or fire.
Periodically examine the cord of your device,
and if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the device, and have the cord replaced with
an exact replacement part by an authorized
servicer. Protect the power cord from physical or
charges. Section 810 of the National Electrical
Code (NEC) in the U.S.A. provides information
with respect to proper grounding of the mast
and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size
of grounding conductors, location of antenna
discharge unit, connection to grounding
electrodes and requirements for the grounding
electrode. Antenna grounding according to the
National Electrical Code, ANSI/NFPA 70
••Moving Make sure the product is turned off,
unplugged, and all cables have been removed.
It may take 2 or more people to carry larger TVs.
Do not press or put stress on the front panel of
the TV.
••Ventilation Install your TV where there is proper
ventilation. Do not install in a confined space
such as a bookcase. Do not cover the product
with cloth or other materials while plugged. Do
not install in excessively dusty places.
••Take care not to touch the ventilation openings.
When watching the TV for a long period, the
ventilation openings may become hot. This does
not affect the performance of the product or
cause defects in the product.
••If you smell smoke or other odors coming from
the TV, unplug the power cord and contact an
authorized service center.
••If water or another substance enters the
product (like an AC adapter, power cord, or TV),
disconnect the power cord and contact the
service center immediately. Otherwise, this may
result in fire or electric shock.
••Do not install this product on a wall if it could be
exposed to oil or oil mist. This may damage the
product and cause it to fall.
••Use only an authorized AC adapter and power
cord approved by LG Electronics. Otherwise, this
may result in fire, electric shock, malfunction, or
product deformation.
••Never disassemble the AC adapter or power
cord. This may result in fire or electric shock.
ENGLISH
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the device. Do not
move the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be sure
do grasp the plug when unplugging the power
cord. Do not pull on the power cord to unplug
the TV.
••To reduce the risk of fire or electrical shock,
do not expose this product to rain, moisture
or other liquids. Do not touch the TV with
wet hands. Do not install this product near
flammable objects such as gasoline or candles,
or expose the TV to direct air conditioning.
••Do not use high voltage electrical equipment
near the TV (e.g., a bug zapper). This may result
in product malfunction.
••Do not expose to dripping or splashing and
do not place objects filled with liquids, such as
vases, cups, etc. on or over the apparatus (e.g.,
on shelves above the unit).
••Grounding (Except for devices which are not
grounded.) Ensure that you connect the earth
ground wire to prevent possible electric shock
(i.e., a TV with a three-prong grounded AC plug
must be connected to a three-prong grounded
AC outlet). If grounding methods are not
possible, have a qualified electrician install a
separate circuit breaker. Do not try to ground
the unit by connecting it to telephone wires,
lightning rods, or gas pipes.
••As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if the unit is turned off.
••Do not attempt to modify this product in any
way without written authorization from LG
Electronics. Unauthorized modification could
void the user’s authority to operate this product.
••Outdoor Antenna Grounding (Can differ by
country): If an outdoor antenna is installed,
follow the precautions below. An outdoor
antenna system should not be located in the
vicinity of overhead power lines or other electric
light or power circuits, or where it can come in
contact with such power lines or circuits as death
or serious injury can occur. Be sure the antenna
system is grounded to provide some protection
against voltage surges and built-up static
3
ENGLISH
••Handle the adapter carefully to avoid dropping
or striking it. An impact could damage the
adapter.
••Keep the product away from direct sunlight.
••Never touch this apparatus or antenna during a
lightning storm.
••When mounting a TV on the wall, make sure not
to install the TV by hanging the power and signal
cables on the back of the TV.
••Do not allow an impact shock, any objects to fall
into the product, and do not drop anything onto
the screen.
••DISCONNECTING THE DEVICE FROM THE MAIN
POWER The power plug is the disconnecting
device. In case of an emergency, the power plug
must remain readily accessible.
••Make sure the power cord is connected securely
to the power plug on the TV.
••Batteries Store the accessories (battery, etc.) in a
safe location out of the reach of children.
••This apparatus uses batteries. In your community
there might be regulations that require you
to dispose of these batteries properly due to
environmental considerations. Please contact
your local authorities for disposal or recycling
information.
••Do not dispose of batteries in a fire.
••Do not short circuit, disassemble, or allow the
batteries to overheat.
••Cleaning When cleaning, unplug the power
cord and wipe gently with a soft cloth to prevent
scratching. Do not spray water or other liquids
directly on the TV as electric shock may occur.
Do not clean with chemicals such as alcohol,
thinners, or benzene.
Preparing
••When the TV is turned on for the first time after
being shipped from the factory, initialization of
the TV may take approximately one minute.
••Image shown may differ from your TV.
••Your TV’s OSD (On Screen Display) may differ
slightly from that shown in this manual.
••The available menus and options may differ from
the input source or product model that you are
using.
4
••New features may be added to this TV in the
future.
••The items supplied with your product may vary
depending upon the model.
••Product specifications or contents of this manual
may be changed without prior notice due to
upgrade of product functions.
••For an optimal connection, HDMI cables and
USB devices should have bezels less than 10 mm
(0.39 inches) thick and 18 mm (0.7 inches) width.
••Use an extension cable that supports USB 2.0 if
the USB cable or USB flash drive does not fit into
your TV’s USB port.
••Use a certified cable with the HDMI logo
attached. If you do not use a certified HDMI
cable, the screen may not display or a
connection error may occur.
••Recommended HDMI cable types (3 m or less)
-- High-Speed HDMI®/™ cable
-- High-Speed HDMI®/™ cable with Ethernet
B
A
B
A
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
••Do not use any unapproved items to ensure the
safety and lifespan of the product.
••Any damages or injuries by using unapproved
items are not covered by the warranty.
••Some models appear to have a thin film on the
screen. It is actually part of the screen; do not
remove it.
••When attaching the stand to the TV set, place
the screen facing down on a cushioned table or
flat surface to protect the screen from scratches.
••Make sure that the screws are fastened tightly.
(If they are not fastened securely enough, the TV
may tilt forward after being installed.)
••Do not fasten the screws with excessive force
otherwise they may be worn out and become
loose.
••Make sure to wring any excess water or cleaner
from the cloth.
••Do not spray water or cleaner directly onto the
TV screen.
••Make sure to spray just enough of water or
cleaner onto a dry cloth to wipe the screen.
Lifting and Moving the TV
When moving or lifting the TV, read the following
to prevent the TV from being scratched or
damaged and for safe transportation regardless of
its type and size.
••It is recommended to move the TV in the box or
packing material that the TV originally came in.
••Before moving or lifting the TV, disconnect the
power cord and all cables.
••When holding the TV, the screen
should face away from you to
avoid damage.
••Hold the top and bottom of the TV frame firmly.
Make sure not to hold the transparent part,
speaker, or speaker grille area.
••Avoid touching the screen at all times, as
this may result in damage to the screen.
••Do not place the product on the floor with
its front facing down without padding.
Failure to do so may result in damage to the
screen.
••Do not move the TV by holding the cable
holders, as the cable holders may break,
and injuries and damage to the TV may
occur. (Depending upon model)
••Make sure to attach the AV box fixing
supporter to the AV box before you lift the
product and move. Moving the product
without attaching the AV box fixing
supporter to the AV box first may cause
injury to your fingers.
Using the Button
You can operate the TV functions, using the
button.
ENGLISH
••Use at least two people to move
a large TV.
••When transporting the TV by
hand, hold the TV as shown in the
following illustration.
••When transporting the TV, do not expose the TV
to jolts or excessive vibration.
••When transporting the TV, keep the TV upright;
never turn the TV on its side or tilt towards the
left or right.
••When handling the TV, be careful not to damage
the protruding buttons.
Basic Functions
Power On (Press)
Power Off 1 (Press and Hold)
Volume Control
Channels Control
1 All running apps will close.
5
Adjusting the Menu
When the TV is turned on, press the button one
time. You can adjust the Menu items using the
button. (Depending upon model)
Turns the power off.
Accesses the setting menu.
Clears on-screen displays and returns to TV
viewing.
Changes the input source.
Mounting on a Table
(Depending upon model)
1 Lift and tilt the TV into its upright position on a
table.
-- Leave a 10 cm (4 inches) (minimum) space from
the wall for proper ventilation.
ENGLISH
(4 inches)
2 Connect the power cord to a wall outlet.
••Do not apply foreign substances (oils,
lubricants, etc.) to the screw parts when
assembling the product. (Doing so may
damage the product.)
Securing the TV to a Wall (optional)
1 Insert and tighten the eye-bolts or TV brackets
and bolts on the back of the TV.
-- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall. Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly
with a sturdy rope or cable. Make sure to keep
the rope parallel to the flat surface.
••Make sure that children do not climb on or
hang on the TV.
••Use a platform or cabinet that is strong and
large enough to support the TV securely.
••Brackets, bolts, and ropes are optional. You
can obtain additional accessories from your
local dealer.
Mounting on a Wall
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the wall
mount bracket at the rear of the TV. Install the wall
mount bracket on a solid wall perpendicular to the
floor. If you are attaching the TV to other building
materials, please contact qualified personnel to
install the wall mount. Detailed instructions will
be included with the wall mount. We recommend
that you use an LG brand wall mount. The LG wall
mount is easy to adjust or to connect the cables.
When you do not use LG’s wall mount bracket,
use a wall mount bracket where the device is
adequately secured to the wall with enough space
to allow connectivity to external devices. If you are
using a non-adjustable mount, attach the mount
to the wall. Attach the cables to the TV first, then
attach the TV to the mount.
(Depending upon model)
(4 inches)
6
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions for
the wall mount kits are described in the following
table.
Model
VESA (A x B)
OLED65G7P
400 x 200
Standard screw
M6
Number of screws 4
Wall mount bracket
OTW420B
(optional)
OLED77G7P
600 x 300
M8 (4 EA) /
M4 (2 EA)
6
OTW630B
(For OLED77G7P)
Provided Item
X2
X2
AV Box Fixing Supporter /
Wall Mount Spacer
X2
X2
Wall Mount Spacer
X2
A
B
••Fold the AV box before installing the TV on a wall
mount by performing the stand attachment in
reverse.
Connections (Notifications)
••Remove the stand before installing the TV
on a wall mount by performing the stand
attachment in reverse.
••Fold the AV box and attach the AV box
fixing supporter / wall mount spacer to the
AV box before installing the product on a
wall mount.
(For OLED65G7P)
Provided Item
1
X2
AV Box Fixing
Supporter
X2
ENGLISH
••To install the wall mount,
switch the selector to
WALL TYPE as shown in
the following illustration.
(For OLED77G7P)
2
You can connect various external devices to the TV.
Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices,
PC, gaming devices, and other external devices. For
more information on external device’s connection,
refer to the manual provided with each device.
••If you record a TV program on a DVD recorder or
VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information about recording, refer to
the manual provided with the connected device.
••The external device connections shown may
differ slightly from illustrations in a manual.
••Connect external devices to the TV regardless
about the order of the TV port.
••If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
••Refer to the external equipment’s manual for
operating instructions.
7
••In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast
or brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the Picture menu until the picture is
clear. Depending upon the graphics card, some
resolution settings may not allow the image to
be positioned on the screen properly.
••Some USB Hubs may not work. If a USB device
connected through a USB Hub is not detected,
connect it directly to the USB port on the TV.
••The TV may be capable of operating without
a set-top-box from a multichannel video
programming distributor (MVPD).
••When connecting via a wired LAN, it is
recommended to use a CAT 7 cable.
Connecting to an Antenna or Cable
Connect an antenna, cable, or cable box to watch
TV while referring to the following. The illustrations
may differ from the actual items and an RF cable is
optional.
••Make sure not to bend the copper wire of the RF
cable.
ENGLISH
Copper wire
••Complete all connections between devices, and
then connect the power cord to the power outlet
to prevent damage to your TV.
••Use a signal splitter to use 2 TVs or more.
••DTV Audio Supported Codec: MPEG, Dolby
Digital
••This TV cannot receive ULTRA HD (3840 x 2160
pixels) broadcasts directly because the related
standards have not been confirmed. (Depending
upon model)
8
Other Connections
Connect your TV to external devices. For the best
picture and audio quality, connect the external
device and the TV with the HDMI cable.
•• >
> > General > HDMI ULTRA HD
Deep Color:
-- On : Support 4K @ 60 Hz (4:4:4, 4:2:2, 4:2:0)
-- Off : Support 4K @ 60 Hz 8bit (4:2:0)
••If the device connected to Input Port also
supports ULTRA HD Deep Color, your picture
may be clearer. However, if the device doesn’t
support it, it may not work properly. In that case,
connect the device to a different HDMI port or
change the TV’s HDMI ULTRA HD Deep Color
setting to off.
••HDMI Audio Supported Format: DTS (44.1 kHz /
48 kHz), Dolby Digital / Dolby Digital Plus (32 kHz
/ 44.1 kHz / 48 kHz), PCM (32 kHz / 44.1 kHz / 48
kHz / 96 kHz / 192 kHz) (Depending on model)
Slim Remote Control
(Some buttons and services may not be provided
depending upon models or regions.)
The descriptions in this manual are based on
the buttons on the remote control. Please read
this manual carefully and use the TV correctly.
To replace coin batteries, turn the battery cover
counterclockwise by using a coin. Then, take the
battery cover. Insert and fix the battery (CR2032)
with the facing forward. And, Put the battery
cover on the remote control and turn it clockwise
to close. To remove the coin batteries, perform
the installation actions in reverse. When in use,
it should be pointed in the direction of the TV’s
remote sensor.
Battery Installation
A
B
A
B
Returns to the previous screen.
* Clears all on-screen displays and returns to
TV viewing.
(Home) Accesses the Home menu.
(Input) Changes the input source.
••Pressing and holding the (Input) button
displays all the lists of external inputs.
(Navigation buttons) Scrolls through
menus or options. (up/down/left/right)
Selects menus or options and confirms your
input.
* To use the button, press and hold for more than
3 seconds.
ENGLISH
(Power) Turns the TV on or off.
You can turn your set-top box on or off by
adding the set-top box to the universal
remote control for your TV.
Adjusts the volume level.
(Mute) Mutes all sounds.
Scrolls through the saved channels.
••DO NOT INGEST BATTERY. CHEMICAL BURN
HAZARD.
••The battery used in this device may present
a fire or chemical burn hazard if mistreated.
Do not recharge, disassemble, incinerate,
or heat above 100 °C (212 °F). Replace
the battery part no. CR2032 only. Use of
another battery may present a risk of fire
or explosion. Dispose of used battery.
Keep battery away from children. Do not
disassemble or dispose of in fire.
••[The remote control supplied with] This
product contains a coin/button cell battery.
If the coin/button cell battery is swallowed,
it can cause severe internal burns in just
2 hours and can lead to death. Keep new
and used batteries away from children. If
the battery compartment does not close
securely, stop using the product and keep
it away from children. If you think batteries
might have been swallowed or placed
inside any part of the body, seek immediate
medical attention.
••If you have long nails, do not open the
battery cover by using your finger. Or else,
your nail could break.
Magic Remote Functions
(Some buttons and services may not be provided
depending upon models or regions.)
When the message Magic remote battery is low.
Change the battery. is displayed, replace the
batteries. To install batteries, open the battery
cover, replace batteries (1.5 V AA) matching and
ends to the label inside the compartment, and
close the battery cover. Failure to match the correct
polarities of the battery may cause the battery to
burst or leak, resulting in fire, personal injury, or
ambient pollution. Be sure to point the remote
control at the remote control sensor on the TV.
To remove the batteries, perform the installation
actions in reverse.
This remote uses infrared light. When in use, it
should be pointed in the direction of the TV’s
remote sensor.
9
B
A
B
Adjusts the volume level.
(Mute) Mutes all sounds.
(Voice recognition) Press the button and speak
when the voice display window appears on the TV
screen.
••Network connection is required to use the voice
recognition function.
* (Search) Shows the search mode.
Scrolls through the saved channels.
(Home) Accesses the Home menu.
(Q. Settings) Accesses the quick settings.
••Pressing and holding the (Q. Settings) button
displays the All settings menu.
* Shows the previous history.
C
C
ENGLISH
A
(Power) Turns the TV on or off.
You can turn your set-top box on or off by
adding the set-top box to the universal
remote control for your TV.
Number button Enters numbers.
- (Dash) Inserts a dash between numbers such as
2-1 and 2-2.
Accesses the saved channel list.
(Screen Remote) Displays the Screen Remote.
••Accesses the Universal Control Menu in some
regions.
* You can access the application or
Live TV channel by using the number buttons as
registered.
* SAP (Secondary Audio Program) Feature can
be enabled by pressing the key.
10
(up/down/left/right) Press the up, down,
left or right button to scroll the menu. If you press
buttons while the pointer is in use, the
pointer will disappear from the screen and Magic
Remote will operate like a general remote control.
To display the pointer on the screen again, shake
Magic Remote to the left and right.
Wheel (OK) Press the center of the Wheel
button to select a menu. You can change channels
by using the Wheel button.
Returns to the previous screen.
Displays the program event according to time
scheduler.
* Clears all on-screen displays and returns to
TV viewing.
Streaming Service buttons
Connects to the Video Streaming Service.
(Input) Changes the input source.
••Pressing and holding the
(Input) button
displays all the lists of external inputs.
, , , Control buttons for media contents
* Provides content related to the program
you are currently watching.
Activates or deactivates the subtitles.
By zooming in on the selected area, you can
view it in full screen.
* You can zoom in on the area where the
remote control is pointed.
,
,
,
These access special functions
in some menus.
* To use the button, press and hold for more than
3 seconds.
Registering Magic Remote
How to Register the Magic Remote
To use the Magic Remote, first pair it with your TV.
1 Put batteries into the Magic Remote and turn
the TV on.
2 Point the Magic Remote at your TV and press the
Wheel (OK) on the remote control.
••If the TV fails to register the Magic Remote, try
again after turning the TV off and back on.
How to Deregister the Magic Remote
Licenses
Supported licenses may differ by model. For more
information about licenses, visit www.lg.com.
To obtain the source code under GPL, LGPL, MPL,
and other open source licenses, that is contained in
this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license
terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code
to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of
media, shipping, and handling) upon email request
to [email protected] This offer is valid for three
(3) years from the date on which you purchased
the product.
External Control Device Setup
To obtain the external control device setup
information, please visit www.lg.com.
ENGLISH
••Press the
and
(Home) buttons at the
same time, for five seconds, to unpair the Magic
Remote with your TV.
••Pressing and holding the
button will let
you cancel and re-register Magic Remote at
once.
Open Source Software Notice
Information
Troubleshooting
••Cannot control the TV with the remote control.
-- Check if anything such as tape has been placed
over the receiver.
-- Check if there is any obstacle between the
product and the remote control.
-- Replace the batteries with new fresh ones.
••No image display and no sound is produced.
-- Check if the product is turned on.
-- Check if the power cord is connected to a wall
outlet.
-- Check if there is a problem in the wall outlet by
connecting other products.
••The TV turns off suddenly.
-- Check the power control settings. The power
supply may be interrupted.
-- Check if the Timer Power Off / Sleep Timer
feature is activated in the Timers settings.
-- If there is no signal while the TV is on, the TV
will turn off automatically after 15 minutes of
inactivity.
11
ENGLISH
••Abnormal Display
-- If the TV feels cold to the touch, there may be a
small flicker when it is turned on. This is normal;
there is nothing wrong with TV. Some minute
dot defects may be visible on the screen,
appearing as tiny red, green, or blue spots.
However, they have no adverse effect on the
TV’s performance. Avoid touching the screen
or holding your finger(s) against it for long
periods of time. Doing so may produce some
temporary distortion effects on the screen.
-- This panel is an advanced product that contains
millions of pixels. In a very few cases, you could
see fine dots on the screen while you’re viewing
the TV. Those dots are deactivated pixels and
do not affect the performance and reliability
of the TV.
-- Displaying a still image for a prolonged period
of time may cause an image sticking. Avoid
displaying a fixed image on the TV screen for a
extended length of time.
-- Some horizontal lines may appear when the
Pixel Refresher feature is performed. It is
normal and there is no need to be concerned.
••Generated Sound
-- Cracking noise A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required.
-- Electrical circuit humming/panel buzzing
A low level noise is generated from a highspeed switching circuit, which supplies a
large amount of current to operate a product.
It varies depending upon the product.
This generated sound does not affect the
performance and reliability of the product.
Specifications
Product specifications may be changed without
prior notice due to upgrade of product functions.
Estimated yearly energy consumption indicated on
the FTC label is measured in accordance with the
Test Procedures for Television Sets (USA only).
The actual energy consumption depends on the
usage environment (The content watched, TV
settings, etc.).
12
Television System ATSC, NTSC-M, 64 & 256 QAM
Program Coverage
VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135,
CADTV 1-135
External Antenna Impedance
75 Ω
Environment condition
••Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
••Operating Humidity
Less than 80 %
••Storage Temperature
-20 °C to 60 °C (-4 °F to 140 °F)
••Storage Humidity
Less than 85 %
Wireless Module (LGSBWAC72)
Specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency Range
Output Power (Max.)
2400 to 2483.5 MHz
15 dBm
5150 to 5725 MHz
14.5 dBm
5725 to 5850 MHz
14.5 dBm
Bluetooth
Frequency Range
Output Power (Max.)
2400 to 2483.5 MHz
8.5 dBm
••As band channels can vary per country, the
user cannot change or adjust the operating
frequency. This product is configured for the
regional frequency table.
••For consideration of the user, this device should
be installed and operated with a minimum
distance of 20 cm (7.8 inches) between the
device and the body.
••FCC ID: BEJLGSBWAC72 / IC: 2703H-LGSBWAC72
Regulatory
FCC NOTICE
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This transmitter must not be
colocated or operating in conjunction with any
other antenna or transmitter. This equipment
should be installed and operated with minimum
distance 20 cm (7.8 inches) between the radiator
and your body. Users must follow the specific
operating instructions for satisfying RF exposure
compliance.
Industry Canada Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This device complies with Industry Canada’s
applicable licence-exempt RSSs. Operation is
subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause undesired
operation of the device.
IC Radiation Exposure Statement
ENGLISH
(For USA)
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the
equipment and the receiver.
-- Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV
technician for help.
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference and (2) this device must accept any
interference received, including interference that
may cause undesired operation of the device. Any
changes or modifications in construction of this
device which are not expressly approved by the
party responsible for compliance could void the
user’s authority to operate the equipment.
FCC RF Radiation Exposure Statement
(For Canada)
[For having wireless function (WLAN, Bluetooth,...)]
This equipment complies with IC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with minimum distance 20 cm (7.8
inches) between the antenna & your body.
NOTE : THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE CAUSED
BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD
VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
FCC Radio Frequency Interference
Requirements (for UNII devices)
High power radars are allocated as primary users
of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.
These radar stations can cause interference with
and/or damage this device. This device cannot be
co-located with any other transmitter.
13
ENGLISH
(For Canada)
[For product having the wireless function using 5
GHz frequency bands]
••The device for operation in the band 5150–5250
MHz is only for indoor use to reduce the
potential for harmful interference to co-channel
mobile satellite systems;
••For devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the bands 5250-5350 MHz and 5470-5725 MHz
shall be such that the equipment still complies
with the e.i.r.p. limit;
••For devices with detachable antenna(s), the
maximum antenna gain permitted for devices in
the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits
specified for point-to-point and non-point-topoint operation as appropriate; and
••The worst-case tilt angle(s) necessary to remain
compliant with the e.i.r.p. elevation mask
requirement set forth in Section 6.2.2(3) shall be
clearly indicated.(devices operating in the band
5250-5350 MHz with a maximum e.i.r.p. greater
than 200 mW)
••High-power radars are allocated as primary users
(i.e. priority users) of the bands 5250–5350 MHz
and 5650–5850 MHz and that these radars could
cause interference and/or damage to LE-LAN
devices.
NOTE TO CABLE/TV INSTALLER
(For USA and Canada)
This reminder is provided to call the CATV system
installer’s attention to Article 820-40 of the
National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected
to the grounding system of the building, as close
to the point of the cable entry as practical.
14
WARNING!
Never place a television set in an unstable
location. A television set may fall, causing serious
personal injury or death. Many injuries, particularly
to children, can be avoided by taking simple
precautions such as:
••Using cabinets or stands recommended by the
manufacturer of the television set.
••Only using furniture that can safely support the
television set.
••Ensuring the television set is not overhanging
the edge of the supporting furniture.
••Not placing the television set on tall furniture
(for example, cupboards or bookcases) without
anchoring both the furniture and the television
set to a suitable support.
••Not placing the television set on cloth or other
materials that may be located between the
television set and supporting furniture.
••Educating children about the dangers of
climbing on furniture to reach the television set
or its controls.
If your existing television set is being retained
and relocated, the same considerations as above
should be applied.
Symbols
Refers to alternating current(AC).
Refers to direct current(DC).
Refers to class II equipment.
Refers to stand-by.
Refers to “ON” (power).
Refers to dangerous voltage.
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY CARES
• Manufacturers, retailers and the rest of the consumer electronics industry are committed to
making home entertainment safe and enjoyable.
• As you enjoy your television, please note that all televisions – new and old- must be supported on
proper stands or installed according to the manufacturer’s recommendations. Televisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,
may fall over, resulting in injury.
TUNE IN TO SAFETY
• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television
is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped
over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
• ALWAYS contact your retailer about professional installation if you have any doubts about your
ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certification by an independent laboratory (such as UL, CSA, ETL).
• ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.
Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder
block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount
installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
• Many new television buyers move their older CRT televisions into a secondary room after the
purchase of a flat-panel television. Special care should be made in the placement of older CRT
televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size
and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the
drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.
CE.org/safety
Declaration of Conformity
Trade Name
LG
Model
OLED65G7P-U,
OLED77G7P-U
Responsible Party LG Electronics Inc.
Address
1000 Sylvan Ave. Englewood
Cliffs NJ 07632 U.S.A
TEL
201-266-2534
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-984-6306
1-888-542-2623
USA
CANADA
Register your product Online!
www.lg.com
The model and serial numbers of the TV are located
on the back and on one side of the TV. Record them
below should you ever need service.
MODEL
SERIAL
OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com
2
KEY CODES
ENGLISH
ENG
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
Function
Note
Code
(Hexa)
Function
Note
00
CH +, PR +
R/C Button
53
List
R/C Button
01
CH -, PR -
R/C Button
5B
Exit
R/C Button
02
Volume +
R/C Button
60
PIP(AD)
R/C Button
03
Volume -
R/C Button
61
Blue
R/C Button
06
> (Arrow Key / Right Key)
R/C Button
63
Yellow
R/C Button
07
< (Arrow Key / Left Key)
R/C Button
71
Green
R/C Button
08
Power
R/C Button
72
Red
R/C Button
09
Mute
R/C Button
79
Ratio / Aspect Ratio
R/C Button
0B
Input
R/C Button
91
AD (Audio Description)
R/C Button
0E
SLEEP
R/C Button
9E
LIVE MENU
R/C Button
0F
TV, TV/RAD
R/C Button
7A
User Guide
R/C Button
R/C Button
7C
Smart / Home
R/C Button
10 - 19 * Number Key 0 - 9
1A
Q.View / Flashback
R/C Button
7E
SIMPLINK
R/C Button
1E
FAV (Favorite Channel)
R/C Button
8E
►► (Forward)
R/C Button
20
Text (Teletext)
R/C Button
8F
◄◄ (Rewind)
R/C Button
21
T. Opt (Teletext Option)
R/C Button
AA
Info
R/C Button
28
Return (BACK)
R/C Button
AB
Program Guide
R/C Button
30
AV (Audio / Video) Mode
R/C Button
B0
► (Play)
R/C Button
39
Caption/Subtitle
R/C Button
B1
ꕗ (Stop / File List)
R/C Button
40
Λ (Arrow Key / Cursor Up)
R/C Button
B5
RECENT
R/C Button
41
V (Arrow Key / Cursor
Down)
R/C Button
BA
ꕘ (Freeze / Slow Play /
Pause)
R/C Button
42
My Apps
R/C Button
BB
Soccer
R/C Button
43
Menu / Settings
R/C Button
BD
ꔄ (REC)
R/C Button
44
OK / Enter
R/C Button
DC
3D
R/C Button
45
Q.Menu
R/C Button
99
AutoConfig
R/C Button
4C
List, - (ATSC Only)
R/C Button
9F
App / *
R/C Button
4D
R/C Button
9B
TV / PC
R/C Button
52
SOUND
R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
EXTERNAL CONTROL DEVICE SETUP
3
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB IN
USB Type
(PC)
(TV)
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product
ID :IN0x2008) USB to serial converter
RS-232C
(CONTROL & SERVICE)
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
(TV)
(PC)
USB IN
RS-232C With RS232C Cable
(PC)
(TV)
SERVICE ONLY
DE9 (D-Sub 9pin) Type
1
• You need to purchase the RS-232C (DE9, D-Sub
3 9pin female-to-female type) to RS-232C cable required
for the connection between the PC and the TV, which is specified in the manual.
(PC)
2
RS-232C IN
(CONTROL & SERVICE)
(PC)
SERVICE ONLY
1
3
RS-232C IN
(CONTROL & SERVICE)
2
(PC)
(TV)
1
3
(PC)
The connection interface may differ from your TV.
(TV)
2
(TV)
(TV)
1
3
(PC)
RS-232C IN
2
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
(CONTROL & SERVICE)
(TV)
ENGLISH
ENG
EXTERNAL CONTROL DEVICE SETUP
USB USB
IN IN
4
EXTERNAL CONTROL DEVICE SETUP
(PC)
(PC)
(TV)
(TV)
RS-232C IN
(CONTROL
SERVICE)
• You need to purchase the phone-jack to RS-232 cable required
for &the
connection between the PC and
the TV, which is specified in the manual.
RS-232C IN
(PC)
(PC)
(CONTROL & SERVICE)
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
1
3
(PC)
(PC)
1
3
2
2
- or
(TV)
(TV)
(TV)
(TV)
1
3
(PC)
(PC)
SERVICE
ONLY ONLY
SERVICE
ENGLISH
ENG
Phone jack Type
1
3
RS-232C IN
(CONTROL & SERVICE)
2
RS-232C IN
(CONTROL & SERVICE)
2
Customer Computer
(TV)
(TV)
RS-232C configurations
3-Wire Configurations(Not standard)
1
5
PC
RXD
RS-232C IN
(CONTROL & SERVICE)
TXD
RS-232C IN
(CONTROL & SERVICE)
GND
6
2
2
TXD
3
1
RXD
5
3
GND
OR
9
RS-232C
(Serial port)
TV
RXD
3
2
TXD
TXD
2
1
RXD
GND
5
3
GND
D-Sub 9
Phone
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)
EXTERNAL CONTROL DEVICE SETUP
5
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
ENGLISH
ENG
Communication Parameters
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power*
k
a
00 to 01
02. Aspect
Ratio
k
c
(p.7)
03. Screen
Mute
k
d
(p.7)
k
e
00 to 01
k
f
00 to 64
06. Contrast
k
g
00 to 64
07.
Brightness
k
h
00 to 64
08. Color/
Colour
k
i
00 to 64
09. Tint
k
j
00 to 64
k
00 to 32
l
00 to 01
m
00 to 01
04. Volume
Mute
05. Volume
Control
10.
k
Sharpness
11. OSD
k
Select
12. Remote
Control Lock k
Mode
13. Treble
k
r
00 to 64
14. Bass
k
s
00 to 64
COMMAND1 COMMAND2
DATA
(Hexadecimal)
15. Balance k
16. Color
(Colour)
x
Temperature
17. ISM
Method (Only j
Plasma TV)
t
00 to 64
u
00 to 64
p
(p.8)
18. Equalizer j
v
(p.8)
q
00 to 05
a
(p.9)
b
00 to 01
19. Energy
j
Saving
20. Tune
m
Command
21. Channel m
(Programme)
Add/Del(Skip)
22. Key
m
c
Key Codes
23. Control
Backlight,
Control Panel
Light
24. Input
select (Main)
25. 3D (Only
3D models)
26. Extended
3D (Only 3D
models)
27. Auto
Configure
m
g
00 to 64
x
b
(p.11)
x
t
(p.11)
x
v
(p.12)
j
u
(p.12)
* Note:During playing or recording media, all commands except Power (ka) and Key (mc) are not
executed and treated as NG.
With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with
USB-to-Serial converter cable, the command works only if TV is on.
6
EXTERNAL CONTROL DEVICE SETUP
ENGLISH
ENG
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID]
:You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA]
: To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr]
: Carriage Return - ASCII code ‘0x0D’
[ ]
: Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0
01 : Step 1 (Set ID 1)
...
0A : Step 10 (Set ID 10)
...
0F : Step 15 (Set ID 15)
10 : Step 16 (Set ID 16)
...
32 : Step 50 (Set ID 50)
33 : Step 51 (Set ID 51)
...
63 : Step 99 (Set ID 99)
...
C7 : Step 199
C8 : Step 200
...
FE : Step 254
FF : Step 255
...
01 00 : Step 256
...
27 0E : Step 9998
27 0F : Step 9999
...
EXTERNAL CONTROL DEVICE SETUP
7
01. Power (Command: k a)
►► To control Power *On or Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off
01 : *Power On
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
►► To Show TV is Power On or *Off
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][Data][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
►► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen 07 : 14:9
(4:3)
(Europe, Colombia, Mid-East,
02 : Wide screen
Asia except South Korea and
(16:9)
Japan)
04 : Zoom
09 : * Just Scan
05 : Zoom 2
0B : Full Wide
(Latin America
(Europe, Colombia, Midexcept Colombia
East, Asia except South
Only)
Korea and Japan)
06 : Set by Program/ 10 to 1F : Cinema Zoom 1 to 16
Original
0c : 21:9 (Depending on model)
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
04. Volume Mute (Command: k e)
►► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
►► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
►► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV,
AV partially.
07. Brightness (Command: k h)
►► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
03. Screen Mute (Command: k d)
►► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
ENGLISH
ENG
* Commands may work differently depending on model and signal.
8
EXTERNAL CONTROL DEVICE SETUP
ENGLISH
ENG
08. Color/Colour (Command: k i)
13. Treble (Command: k r)
►► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
►► To adjust treble.
You can also adjust in the AUDIO menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
►► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 0
0 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [r][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
14. Bass (Command: k s)
►► To adjust Bass.
You can also adjust in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
10. Sharpness (Command: k k)
►► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Ack [s][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
15. Balance (Command: k t)
►► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
►► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off
01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
►► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off
01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
16. Color(Colour) Temperature (Command: x u)
►► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
17. ISM Method (Command: j p) (Only Plasma TV)
►► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
EXTERNAL CONTROL DEVICE SETUP
* Analog Antenna/Cable
►► Adjust EQ of the set.
Transmission [j][v][ ][Set ID][ ][Data][Cr]
MSB
0
[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
LSB
0
0
0
0
Frequency
0
0
0
Data 02 : Input Source (Analog)
- 00 : Antenna TV (ATV)
- 80 : Cable TV (CATV)
Data
7
6
5
Frequency
4
3
2
1
0
Step
0
0
0
1st Band
0
0
0
0
0
0(decimal)
0
0
1
2nd Band
0
0
0
0
1
1(decimal)
0
1
0
3rd Band
...
...
...
...
...
...
0
1
1
4th Band
1
0
0
1
1
19(decimal)
1
0
0
5th Band
1
0
1
0
1
20(decimal)
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
* It depends on model, and can adjust when sound
mode is EQ adjustable value.
19. Energy Saving (Command: j q)
►► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto (For LCD TV / LED TV) /
Intelligent sensor (For PDP TV)
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
20. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
►► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ]
[Data 01][ ][Data 02][Cr]
* Digital Antenna/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Antenna TV (DTV)
- 20 : Antenna Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the Analog antenna (PAL) Channel 10.
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analog Antenna TV = 00
Result = ma 00 00 0a 00
2. Tune to the digital antenna (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Antenna TV = 10
Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
►► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.
ENGLISH
ENG
18. Equalizer (Command : j v)
9
10 EXTERNAL CONTROL DEVICE SETUP
ENGLISH
ENG
* Analog Antenna/Cable
Data 00 : Physical Channel Number
- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analog)
- 00 : Antenna TV (ATV)
- 01 : Cable TV (CATV)
2.Tune to the digital antenna (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Antenna TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
* Digital Antenna/Cable
►► To tune channel to following physical/major/minor
number.
Data 00 : xx (Don't care)
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Antenna TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
Number
- 22 : Antenna TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Physical/Major
Channel Number Only (One Part Channel)
- 66 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
- 0b : Cable DTV Plus – Use Physical Channel
Number
- 2b : Cable DTV Plus – Don’t Use Physical
Channel Number
- 4b : Cable DTV Plus – Use Physical/Major
Channel Number Only (One Part Channel)
- 6b : Cable DTV Plus – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1.Tune to the Analog cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analog Cable TV = 01
Total = ma 00 23 00 00 00 00 01
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Antenna/Satellite
Data 00: xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Antenna TV (DTV)
- 42 : Antenna TV (DTV) – Use Physical/Major
Channel Number Only (One Part Channel)
- 62 : Antenna TV (DTV) – Use Major Channel
Number Only (One Part Channel)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1 Tune to the digital antenna (ISDB-T) channel 17-1.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Antenna TV = 02
Total = ma 00 00 00 11 00 01 02
EXTERNAL CONTROL DEVICE SETUP
►► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
21. Channel(Programme) Add/Del(Skip)
(Command: m b)
►► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
22. Key (Command: m c)
►► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
23. Control Backlight (Command: m g)
• For LCD TV / LED TV
►► To control the backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
►► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Data
00 : DTV
01 : CADTV
02 : Satellite DTV
10 : ATV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
20 : AV or AV1
21 : AV2
40 : Component1
60 : RGB
41 : Component2
90 : HDMI1
92 : HDMI3
91 : HDMI2
93 : HDMI4
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
25. 3D(Command: x t) (only 3D models)
(Depending on model)
►► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
* (Depending on model)
Data Structure
[Data 00]00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01]00 : Top and Bottom
01 : Side by Side
02 : Check Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02]00 : Right to Left
01 : Left to Right
[Data 03]3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
ENGLISH
ENG
24. Input select (Command: x b)
(Main Picture Input)
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
Data 00 : Del(ATSC,ISDB)/Skip(DVB)
11
12 EXTERNAL CONTROL DEVICE SETUP
ENGLISH
ENG
* [Data 02], [Data 03] functions depend on model
and signal.
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
3) When[Data 00] is 06, 07
00 : Off
01 : On
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only.
4) When[Data 00] is 08
00 : Revert to 3D video from 3D-to-2D
converted 2D video
01 : Change 3D video to 2D video, except
2D-to-3D video
* If conversion condition doesn’t meet, command is
treated as NG.
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
5) When [Data 00] is 09
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03 (2D to 3D), [Data 01] and
[Data 02] have no meaning.
00 : Standard
02 : Cinema
04 : Manual
01 : Sport
03 : Extreme
05 : Auto
[Data 00]
[Data 01]
[Data 02]
[Data 03]
00
O
O
O
01
X
X
X
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
02
X
X
X
[v][ ][Set ID][ ][NG][Data00][x]
03
X
O
O
X : don’t care
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
26. Extended 3D(Command: x v) (only 3D models)
(Depending on model)
►► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
[Data 00]3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01]It has own range for each 3D option
determined by [Data 00].
1) When[Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When[Data 00] is 01, 02
DataMin: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
27. Auto Configure (Command: j u)
(Depending on model)
►► To adjust picture position and minimize image
shaking automatically. It works only in RGB (PC)
mode.
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Data 01 : To set Auto Configure
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
WebOS TV Quick Setup Guide
Network Settings
1 Press the
(Home) button to access the
Smarthome menu. Select
(Settings) and press
Wheel (OK).
Sound
Channels
WI-FI CONNECTION
Network/
iptime_Jungju.Lee
iptime_areum.kim
iptime_yujin.choi
iptime_bonghee.Kwon
iptime_seokhak.le e
Network
General
Add a Hidden Wireless Network
Connect via WPS PBC
Connect via WPS PIN
Advanced Wi-Fi Settings
Safety
2 Select
(All Settings) and press
Wheel (OK).
Accessibility
5 If the connection is completed, Connected to
Internet is displayed.
Sound
3 Select the Network
Wired Connection
(Ethernet) or Wi-Fi Connection.
NETWORK
Channels
Network
General
NETWORK
TV Name
[LG] webOS TV WEBOS3.5
Wired Connection (Ethernet)
Not Connected
Wi-Fi Connection
Connected to Internet
Wi-Fi Direct
LG Connect Apps
Safety
Sound
TV Name
[LG] webOS TV WEBOS3.5
MBM65896901
Channels
Network
General
Wired Connection (Ethernet)
Not Connected
Wi-Fi Connection
Not Connected
Accessibility
You can check the status of connection in Advanced
Wi-Fi Settings.
Wi-Fi Direct
LG Connect Apps
Safety
Sound
Accessibility
4 The device automatically tries to connect to the
available network (wired network first).
When you select the Wi-Fi Connection, the network
list available is displayed. Choose the network you
wish to use. For wireless AP (Router) that has the
symbol, you need to enter the security key.
Channels
Network/
iptime_Jungju.Lee
iptime_areum.kim
iptime_yujin.choi
iptime_bonghee.Kwon
iptime_seokhak.lee
Network
General
Safety
Accessibility
*MBM65896901*
WI-FI CONNECTION
Add a Hidden Wireless Network
Connect via WPS PBC
Connect via WPS PIN
Advanced Wi-Fi Settings
ENGLISH
* Image shown may differ from your TV.
* Image shown on a PC or mobile phone may vary depending upon the Operating System (OS).
* Depending upon the version of the software, icon position can be changed.
Troubleshooting Network Problems
Depending upon the version of the software, icon position can be changed.
ENGLISH
1 Press the
(Home) button to access the
Smarthome menu. Select
(Settings) and press
Wheel (OK).
2 Select
(All Settings) and press
Wheel (OK).
3 Select the Network
Wired Connection
(Ethernet) or Wi-Fi Connection
Advanced WiFi Settings.
Sound
Channels
Network
General
Follow the instructions below that match to your
network status.
Check the TV or the AP (Router).
When X appears next to TV:
1 Check the connection status of the TV,
AP (Router) and cable modem.
2 Power off and power on in the following order;
(1st) the cable modem, wait for the cable modem
to reset, (2nd) the AP (Router), wait for the AP
(Router) to reset and (3rd) the TV.
3 If you are using a static IP, enter the IP directly.
4 Contact Internet service provider or AP (Router)
manufacturer.
Check the AP (Router) or
consult your Internet service provider.
NETWORK
TV Name
[LG] webOS TV WEBOS3.5
Wired Connection (Ethernet)
Not Connected
Wi-Fi Connection
Not Connected
Wi-Fi Direct
LG Connect Apps
When X appears next to Gateway:
1 Unplug the power cord of the AP (Router) or cable
modem, wait 5 seconds. Reapply power.
2 Initialize (Reset) the AP (Router) or cable modem.
3 Contact Internet service provider or AP (Router)
manufacturer.
Safety
Accessibility
Sound
Channels
WI-FI CONNECTION
Network/
iptime_Jungju.Lee
iptime_areum.kim
iptime_yujin.choi
iptime_bonghee.Kwon
iptime_seokhak.lee
Network
General
Safety
Accessibility
Add a Hidden Wireless Network
Connect via WPS PBC
Connect via WPS PIN
Advanced Wi-Fi Settings
When X appears next to DNS:
1 Unplug the power cord of the AP (Router) or cable
modem, wait 5 seconds. Reapply power.
2 After the cable modem or AP (Router) has
initialized (Reset), try to reconnect.
3 Check that the MAC address of the TV/AP
(Router) is registered with your Internet service
provider. (The MAC address displayed on the right
pane of the network status window should be
registered with your Internet service provider.)
4 Check the AP (Router) manufacturer’s website
to make sure your router has the latest firmware
version installed.
SmartShare PC SW Installation & Setting
NOTE
••SmartShare service is only available if TV and other devices are connected to the same AP (Router).
SmartShare Connection to Smartphone
1 Check that Wi-Fi is enabled on your smartphone.
To use SmartShare, both devices must on the same local network.
2 Install/run the app for sharing content on your smartphone
(It's called LG TV Plus on LG phones).
3 Enable your smartphone to share content files with other devices.
4 Open Device Connector application on TV.
(Home)
Device Connector
Smartphone
CONTENT SHARE.
5 Select the file type you want to play (movie, audio, or photo).
6 Select a movie, music, or photo file to play on the TV.
7 Play the media file to view and enjoy it on your TV.
Updating the TV Firmware
(Home)
(Settings)
(All Settings)
General
About This TV
CHECK FOR UPDATES
You can check the Software Version and update it.
If Allow Automatic Updates is selected, when an update is available, the update automatically starts without
prompting a question.
* When the TV is turned on for the first time after a software update, initialization of the TV may take
approximately one minute.
GENERAL
ABOUT THIS TV
General/
Sound
Channels
Network
General
Sound
SIMPLINK(HDMI-CEC)
LG Wireless Keyboard
Settings Help
Screen Saver
Reset to Initial Settings
About This TV
HDMI ULTRA HD Deep Color
Home/Store Mode
Home Mode
Channels
Network
General
Safety
Safety
Accessibility
Accessibility
Software Version
03.50.08
Allow Automatic Updates
CHECK FOR UPDATES
TV Information
[LG] webOS TV WEBOS3.5
LG Remote Service
Customer Service
User Agreements
ENGLISH
Install the SmartShare PC SW program on your PC.
1 Go to www.lg.com. Then, select your region.
2 Select Support.
3 Select Software & Drivers. Then, select SmartShare.
4 Download the SmartShare PC SW and install it on your PC. You can run the program when installation is
complete.
Wi-Fi Direct Setting
ENGLISH
(Home)
(Settings)
(All Settings)
Network
Wi-Fi Direct
If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct.
With SmartShare, you can share files or screens of devices connected to Wi-Fi Direct.
Sound
Channels
Network
General
Wi-Fi Direct
Network/
LG webOS TV UJ6500
1 When you open Wi-Fi Direct menu, a list of available devices appears. Select your
device.
2 When you are prompted to the connection request, select OK. Wi-Fi Direct is now
connected to your TV.
* You can only use devices that support Wi-Fi Direct.
Safety
Accessibility
Screen sharing Setting
Screen sharing allows a portable device to send video and sound securely to the TV wirelessly.
(Home) /
(Input)
(Screen Share)
1 Screen sharing should be set to ON on your portable device.
2 When your TV is detected, select the device on your portable device.
When connection is completed, the device screen appears on the TV screen.
* If you turn Listen Mode to ON after launching the Screen Share app, you can connect the device without starting
the Screen Share app.
WiDi (Wireless Display) Setting
Intel® WiDi (Wireless Display) technology enables easy and fast connection without wires or internet network for
mirrored and dual monitor display on your TV. You can sit back and experience your favorite movies, videos, photos,
online shows and more in full HD on your TV with great image clarity and sound.
(Home) /
(Input)
(Screen Share)
1 On the TV Intel® WiDi is set to On. Your laptop runs the Intel® WiDi program.
* LG TVs do not need to register.
* For more information on Intel® WiDi, visit http://intel.com/go/widi.
2 It detects LG Smart TVs available, which
supports WiDi. In the list, select the TV you
want and click Connect. Enter the number
shown on the screen into the input field ( )
on your laptop and then click Continue.
3 The laptop screen appears on the TV screen.
The wireless environment may affect the
screen display. If the connection is poor, the
Intel® WiDi connection may be lost.
<-(>XFC04570-&%
<-(>XFC04576+
<-(>XFC04574+
<-(>XFC04576+
?
Troubleshooting Wi-Fi Network Problems
Checkpoints
Wi-Fi Router
ENGLISH
••Make sure that you have the latest version of the software.
-- If you are using a Wi-Fi router, check whether you have the latest firmware installed.
-- If there are any available updates, update the firmware according to the manufacturer's instructions.
-- Check the current software version and if there is an available update, install it.
(Home)
(Settings)
(All Settings)
General
About This TV
Software Version
••Check if the same symptom occurs with two or more Wi-Fi devices.
-- Wi-Fi problems may be related to network condition and a device that is connected to the network.
-- If other Wi-Fi devices can connect to the Internet at the same location as the TV, then your Wi-Fi router is
probably normal.
••Check the power and Ethernet cables of the Wi-Fi router.
-- When the Ethernet cable connected to the Wi-Fi router is loose or disconnected, network problems can occur.
-- Check all power and Ethernet cables of the Wi-Fi router to see if they are correctly connected.
••Check the Wi-Fi router to see if the router is set to the recommended wireless settings. If network problems
continue, reset your network devices.
••Check the signal strength of the Wi-Fi router to connect to from the TV UI.
-- The
that is next to the Wi-Fi router name (SSID) in the menu indicates the sensitivity of the receiver.
-- It is recommended that you connect to a Wi-Fi network with 3 or more bars of signal strength.
-- If the number of bars indicating signal strength are less than 3, the network connection status may be weak or
unstable, so shorten the distance between the Wi-Fi router and the TV.
••If the signal strength of the Wi-Fi router is weak, wireless speed slowdowns and network disconnection may
occur.
••To supplement wireless coverage of network equipment, your Wi-Fi router should be placed in the middle of the
network equipment.
ENGLISH
••Interference Factors
If there is any interference from surrounding equipment, the network connection may be weak or unstable.
-- Wireless telephones that operate in the 2.4 GHz or 5 GHz bandwidth
-- Wireless speakers that operate in the 2.4 GHz or 5 GHz bandwidth
-- Video transmitters that operate in the 2.4 GHz or 5 GHz bandwidth
-- Other wireless devices (Microwaves, cameras, baby monitors, neighboring wireless devices, etc.) that operate in
the 2.4 GHz or 5 GHz bandwidth.
•• How to reduce the effects of interference between Wi-Fi and Bluetooth devices
-- Set the channel on your wireless network equipment to avoid the 2.4 GHz or 5 GHz bandwidth which has lots
of interference.
-- If possible, use the 5 GHz wireless network.
-- If the Wi-Fi router is located too far away or in environments with high interference, the network connection
may be weak or unstable.
-- In this case, move the Wi-Fi router closer to the TV or check if there are any obstructions (e.g., concrete walls,
cabinets) between the two devices.
••Radio Frequency (RF) Interference and Absorbing Obstructions
Interference
Interference
Interference
Type of Barrier
Type of Barrier
Type of Barrier
Potential
Potential
Potential
Wood
Low
Water
Medium
Plaster
High
Synthetic material
Low
Bricks
Medium
Concrete
High
Glass
Low
Marble
Medium
Bulletproof glass
High
Metal
Very High
Was this manual useful for you? yes no
