1
002-10322-00
a) 029-4654-00
b) 029-4654-01
2
045-0001-156
4
50-7601-00-216
40-0008-97
3
10
040-0250-135
040-0375-83
5

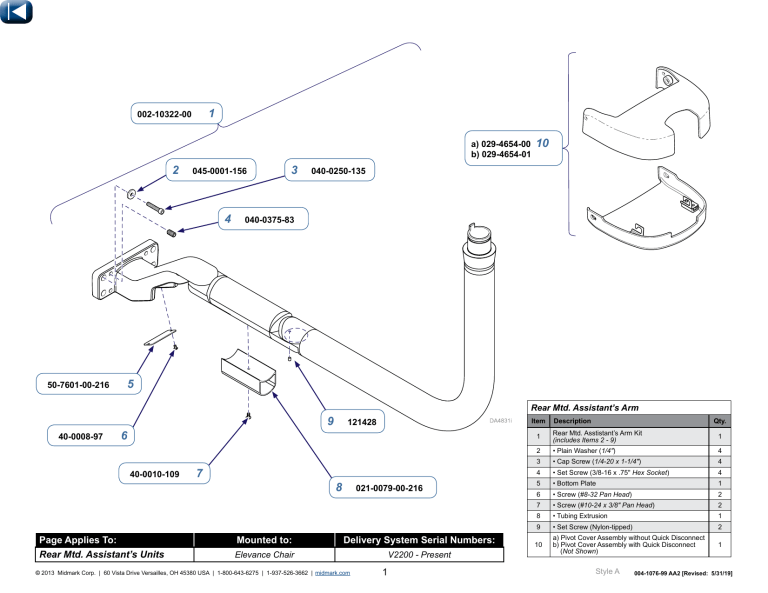

Rear Mtd. Assistant’s Arm
9
6
40-0010-109
7
121428
8
Item
021-0079-00-216
Page Applies To:
Mounted to:
Delivery System Serial Numbers:
Rear Mtd. Assistant’s Units
Elevance Chair
V2200 - Present
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
1
Description
Qty.
1
Rear Mtd. Asstistant’s Arm Kit
(includes Items 2 - 9)
1
2
• Plain Washer (1/4")
4
3
• Cap Screw (1/4-20 x 1-1/4")
4
4
• Set Screw (3/8-16 x .75" Hex Socket)
4
5
• Bottom Plate
1
6
• Screw (#8-32 Pan Head)
2
7
• Screw (#10-24 x 3/8" Pan Head)
2
8
• Tubing Extrusion
1
9
• Set Screw (Nylon-tipped)
2
10
a) Pivot Cover Assembly without Quick Disconnect
b) Pivot Cover Assembly with Quick Disconnect
(Not Shown)
1
Style A
004-1076-99 AA2 [Revised: 5/31/19]
