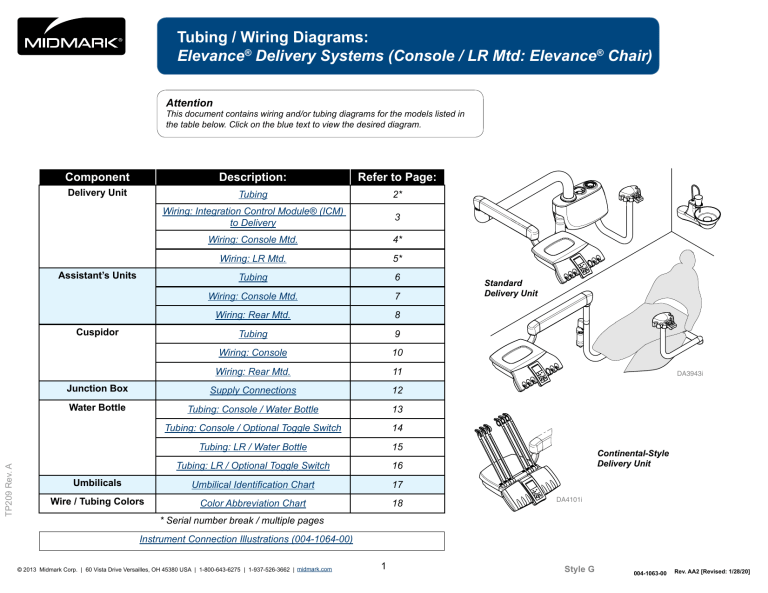

Tubing / Wiring Diagrams:
Elevance® Delivery Systems (Console / LR Mtd: Elevance® Chair)
Attention
This document contains wiring and/or tubing diagrams for the models listed in
the table below. Click on the blue text to view the desired diagram.
Component
Description:
Refer to Page:
Delivery Unit
Tubing
2*
Wiring: Integration Control Module® (ICM)
to Delivery
3
Wiring: Console Mtd.
4*
Wiring: LR Mtd.
5*
Tubing
6
Wiring: Console Mtd.
7
Wiring: Rear Mtd.
8
Tubing
9
Wiring: Console
10
Wiring: Rear Mtd.
11
Junction Box
Supply Connections
12
Water Bottle
Tubing: Console / Water Bottle
13
Tubing: Console / Optional Toggle Switch
14
Tubing: LR / Water Bottle
15
Tubing: LR / Optional Toggle Switch
16
Umbilicals
Umbilical Identification Chart
17
Wire / Tubing Colors
Color Abbreviation Chart
18
Assistant’s Units
TP209 Rev. A
Cuspidor
Standard
Delivery Unit
DA3943i
Continental-Style
Delivery Unit
DA4101i
* Serial number break / multiple pages
Instrument Connection Illustrations (004-1064-00)
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
1
Style G
004-1063-00
Rev. AA2 [Revised: 1/28/20]
CW - Coolant Water
DA - Drive Air
CA - Coolant Air
Master Switch
(Located under
delivery unit)
Check
Valve
Actuator
Assembly
(N.C. 3-Way)
Drive Air
Bleed Off
Air
Water
Proportional Proportional
Valve
Valve
Drive Air
Bypass Toggle
Handpiece
Tubing
Kink Valve
Push to Open
Pressure
Sensor
Actuator
Assembly
(N.C. 3-Way)
Water
Bypass Toggle
Push to Open
Drive Air
Bypass
Adjustment
Handpiece
Water
Master
Air
Pilot Air
Pilot Water
Coolant Air
Chip Air
(Optional)
Drive Air
Supply
Air Spare
Spare
Flex Arm
Brake
Kink Valve
Water Bypass
Adjustment
Coolant Air
Adjustment
Interface
PC Board
Check Valve
(On Continental-Style
units ONLY)
Syringe Water
Adjustment
Brake
Solenoid &
Water Pilot
Manifold
Syringe Air
Adjustment
Drive Air
Manifold
Kink Valve
Actuator
Assembly
(N.C. 3-Way)
Brake Valve
Water Pilot
Valve
Push to Open
Purge
Air
N.C.
Shuttle Valve
3-Way Valves
Syringe
Tubing
TP209 Rev. A
Syringe
Maximum of five clear exhaust tubes to air/oil separator
Air / Oil
Separator
Description
Mounting Style
Serial Numbers:
Delivery Unit Tubing
Console / LR
V2200 thru V1621353
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
2
Color Abbreviation Chart
004-1063-00
[Revised: 2/12/15
CW - Coolant Water
DA - Drive Air
CA - Coolant Air
Master Switch
(Located under
delivery unit)
Check
Valve
Air
Water
Proportional Proportional
Valve
Valve
Drive Air
Bypass Toggle
Handpiece
Tubing
Actuator
Assembly
(N.C. 3-Way)
Drive Air
Bleed Off
Kink Valve
Push to Open
Pressure
Sensor
Actuator
Assembly
(N.C. 3-Way)
Water
Bypass Toggle
Push to Open
Drive Air
Bypass
Adjustment
Handpiece
Water
Master
Air
Pilot Air
Pilot Water
Coolant Air
Chip Air
(Optional)
Drive Air
Supply
Air Spare
Spare
Flex Arm
Brake
Kink Valve
Water Bypass
Adjustment
Coolant Air
Adjustment
Interface
PC Board
Check Valve
Syringe Water
Adjustment
Brake
Solenoid &
Water Pilot
Manifold
Syringe Air
Adjustment
Drive Air
Manifold
Kink Valve
Actuator
Assembly
(N.C. 3-Way)
Brake Valve
Water Pilot
Valve
Push to Open
Purge
Air
N.C.
Shuttle Valve
3-Way Valves
Syringe
Tubing
TP209 Rev. A
Syringe
Maximum of five clear exhaust tubes to air/oil separator
Air / Oil
Separator
Description
Mounting Style
Serial Numbers:
Delivery Unit Tubing
Console / LR
V1621354 to V1736201
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
2.1
Color Abbreviation Chart
004-1063-00
[Revised: 2/1/16]
CW - Coolant Water
DA - Drive Air
CA - Coolant Air
Master Switch
(Located under
delivery unit)
Check
Valve
Actuator
Assembly
(N.C. 3-Way)
Drive Air
Bleed Off
Air
Water
Proportional Proportional
Valve
Valve
Drive Air
Bypass Toggle
Handpiece
Tubing
Kink Valve
Push to Open
Pressure
Sensor
Water
Bypass Toggle
Kink Valve
Water Bypass
Adjustment
Master Air
Pilot Air
Pilot Water
Coolant Air
Chip Air (Optional)
Drive Air
Supply Air
Spare
Spare
Push to Open
Drive Air
Bypass
Adjustment
Handpiece Water
Actuator
Assembly
(N.C. 3-Way)
Interface
PC Board
Coolant Air
Adjustment
Check Valve
Syringe Water
Adjustment
Flex Arm
Brake
Kink Valve
Drive Air
Manifold
Syringe Air
Adjustment
Brake Valve
TP209 Rev. A
Water Pilot
Valve
Air / Oil
Separator
Shuttle Valve
Syringe
Tubing
Maximum of five clear exhaust tubes to air/oil separator
Brake/Flush
Solenoid Valve
Description
Mounting Style
Serial Numbers:
Delivery Unit Tubing
Console / LR
V1736202 to V2216571
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
2.2
004-1063-00
[Revised: 1/28/20)
Air
Proportional
Valve
Master Switch
(Located under
delivery unit)
Water
Proportional
Valve
Check
Valve
Handpiece
Tubing
CW - Coolant Water
DA - Drive Air
CA - Coolant Air
Kink Valve
Drive Air
Bypass Toggle
Actuator
Assembly
(N.C. 3-Way)
Drive Air
Bleed Off
Push to Open
Pressure
Sensor
Water
Bypass Toggle
Pilot Air
Pilot Water
Coolant Air
Chip Air (Optional)
Drive Air
Spare
Spare
Flex Arm
Brake
Kink Valve
Water Bypass
Adjustment
Master Air
Supply Air
Push to Open
Drive Air
Bypass
Adjustment
Handpiece Water
Coolant Air
Adjustment
Actuator
Assembly
(N.C. 3-Way)
Drive Air
Manifold
Interface
PC Board
Check Valve
Syringe Water
Adjustment
Syringe Air
Adjustment
Kink Valve
Brake Valve
TP209 Rev. A
Shuttle Valve
Syringe
Tubing
Maximum of five clear exhaust tubes to air/oil separator
Air / Oil
Separator
Brake/Flush
Solenoid Valve
Description
Mounting Style
Serial Numbers:
Delivery Unit Tubing
Console / LR
V2216572 to Present
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
2.3
004-1063-00
[Revised: 1/28/20]
Continental-Style
Delivery Unit
Note
Standard Delivery Unit
ICM PC Boards are included in the Integration
Control Module® (ICM).
ICM PCBs
D
E
BK
WH
RD
BL
BR
GN
OR
YL
A
WH
B
RD BK
TP209 Rev. A
C
B
Wiring Diagram:
ICM to Delivery Unit
Item
Description
Part
Number
A
ICM Harness
015-2234-00
B
E-Field Sensor Harness (17” (22.9 cm))
015-2224-01
C
E-Field Sensor Harness (9” (43.2 cm)
015-2224-00
Color Abbreviation Chart
ICM to Continental-Style Delivery Unit ONLY
Elevance Interface PCB
Item
Description
Mounting Style
Serial Numbers:
ICM to Delivery Unit Wiring
Console / LR
all
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
3
Description
Part
Number
D
USB Connector Extension (ICM to
Flashdrive)
015-2362-03
E
Tybe B Mini USB Connector (for factory
use only)
015-3263-00
004-1063-00
[Revised: 11/19/14]
Delivery Unit
Console Mtd.
ICM PCB
For
Illuminated
Handpiece
Elevance Interface PCB
Power Supply
model: 153808
Inside Delivery
Unit
For Assistant's Unit
Wiring Diagram:
Delivery Unit (Console Mtd.)
TP209 Rev. A
Item
Elevance Chair
PC Board
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Delivery Unit Wiring
Console
V2200 - V1276167
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
4
Description
Part
Number
A
LIN Connector (ICM to Chair)
015-2149-02
B
LIN Connector (ICM to Chair)
015-2149-01
C
Coupler Box
029-5244-00
D
Elevance Unit Power Harness
015-2837-00
E
Interface Control Power Harness
015-2333-00
F
Refer to: Assistant’s Unit Wiring
Ref
G
LIN Connector
Power Supply to Chair 72” (182.9 cm)
Power Supply to Chair 120” (304.8 cm)
015-2149-01
015-2149-03
Color Abbreviation Chart
004-1063-00
[Revised: mo/dd/yr]
Color Page
Delivery Unit
Console Mtd.
To
Connector
To USB
Connector
in Del. Unit
Camera port (optional)
To USB
Power
Adapter
Optional
(located
in J-box)
Optional
ICM PCB
For
Illuminated
Handpiece
Elevance Interface PCB
Inside Delivery
Unit
For Assistant's Unit
TP209 Rev. A
Power Supply
model: 153808
Elevance Chair
PC Board
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Delivery Unit Wiring
Console
V1276168 - V1407549
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
4.1
Wiring Diagram:
Delivery Unit (Console Mtd.)
Item
Description
Part
Number
A
Ethernet Harness
015-2838-0x
B
Ethernet Coupler
015-2962-00
C
USB Cable
015-2945-02
D
USB Coupler
Note: These components are optional
029-5540-00
E
USB Power Harness
015-2946-0x
F
USB Cable
015-2945-0x
G
LIN Connector (to Interface PCB)
015-2149-02
H
LIN Connector
015-2149-01
I
Coupler Box
029-5244-00
J
Elevance Unit Power Harness
015-2837-00
K
Power Interface Control Harness
015-2333-00
L
Refer to: Assistant’s Unit Wiring
Ref
M
LIN Connector
Power Supply to Chair 72” (182.9 cm)
Power Supply to Chair 120” (304.8 cm)
015-2149-01
015-2149-03
Color Abbreviation Chart
004-1063-00
[Revised: 5/22/13]
Delivery Unit
Console Mtd.
To USB
Connector
in Del. Unit
Camera port (optional)
To USB
Power
Adapter
Optional
(located
in J-box)
Optional
ICM PCB
For
Illuminated
Handpiece
Elevance Interface PCB
Inside Delivery
Unit
For Assistant's Unit
TP209 Rev. A
Power Supply
model: 153808
Elevance Chair
PC Board
Item
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Delivery Unit Wiring
Console
V1407550 - V1765598
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
Wiring Diagram:
Delivery Unit (Console Mtd.)
4.2
Description
Part
Number
A
USB Cable
015-2945-02
B
USB Coupler
Note: These components are optional
029-5540-00
C
USB Power Harness
015-2946-0x
D
USB Cable
015-2945-0x
E
LIN Connector (to Interface PCB)
015-2149-02
F
LIN Connector
015-2149-01
G
Coupler Box
029-5244-00
H
Elevance Unit Power Harness
015-2837-00
I
Power Interface Control Harness
015-2333-00
J
Refer to: Assistant’s Unit Wiring
Ref
K
LIN Connector
Power Supply to Chair 72” (182.9 cm)
Power Supply to Chair 120” (304.8 cm)
015-2149-01
015-2149-03
Color Abbreviation Chart
004-1063-00
[Revised: 4/5/16]
Delivery Unit
Console Mtd.
To USB
Connector
in Del. Unit
Camera port (optional)
Optional
(located
in J-box)
Optional
ICM PCB
For
Illuminated
Handpiece
Elevance Interface PCB
A
Inside Delivery
Unit
For Assistant's Unit
TP209 Rev. A
Power Supply
model: 153941
Elevance Chair
PC Board
Item
For Illuminated Handpiece
A
Description
Mounting Style
Serial Numbers:
Delivery Unit Wiring
Console
V1765599 - present
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
Wiring Diagram:
Delivery Unit (Console Mtd.)
4.3
Description
Part
Number
A
USB Cable
015-2945-02
B
USB Coupler
Note: These components are optional
029-5540-00
C
USB Power Harness
015-2946-0x
D
USB Cable
015-2945-0x
E
LIN Connector (to Interface PCB)
015-2149-02
F
LIN Connector
015-2149-01
G
Coupler Box
029-5244-00
H
Elevance Unit Power Harness
015-2837-00
I
Power Interface Control Harness
015-2333-00
J
Refer to: Assistant’s Unit Wiring
Ref
K
LIN Connector
Power Supply to Chair 72” (182.9 cm)
Power Supply to Chair 120” (304.8 cm)
015-2149-01
015-2149-03
L
USB Harness
015-3430-00
Color Abbreviation Chart
004-1063-00
[Revised: 4/5/16]
Delivery Unit
LR Mtd.
ICM PCB
For
Illuminated
Handpiece
Elevance Interface PCB
Inside Delivery
Unit
For Assistant's Unit
Power Supply
model: 153808
Wiring Diagram:
Delivery Unit (LR Mtd.)
TP209 Rev. A
Item
Elevance Chair
PC Board
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Delivery Unit Wiring
LR
V2200 - V1276167
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
5
Description
Part
Number
A
LIN Connector (to Interface PCB)
015-2149-01
B
LIN Connector
015-2149-01
C
Coupler Box
029-5244-00
D
Elevance Unit Power Harness
015-2837-00
E
Interface Control Power Harness
015-2333-00
F
Refer to: Assistant’s Unit Wiring
Ref
G
LIN Connector
Power Supply to Chair 72” (182.9 cm)
Power Supply to Chair 120” (304.8 cm)
015-2149-01
015-2149-03
Color Abbreviation Chart
004-1063-00
[Revised: mo/dd/yr]
To
Connector
Delivery Unit
LR Mtd.
To USB
Connector
in Del. Unit
Camera port (optional)
To USB
Power
Adapter
Optional
Optional
(located
in J-box)
ICM PCB
For
Illuminated
Handpiece
Elevance Interface PCB
Inside Delivery
Unit
For Assistant's Unit
Item
TP209 Rev. A
Power Supply
model: 153808
Elevance Chair
PC Board
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Delivery Unit Wiring
LR
V1276168 - V1407549
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
Wiring Diagram:
Delivery Unit (LR Mtd.)
5.1
Description
Part
Number
A
Ethernet Harness
015-2838-0x
B
Ethernet Coupler
015-2962-00
C
USB Cable
015-2945-02
D
USB Couplers
Note: These components are optional
015-0708-32
E
USB Power Harness
015-2946-0x
F
USB Cable
015-2945-0x
G
LIN Connector (to Interface PCB)
015-2149-01
H
LIN Connector
015-2149-01
I
Coupler Box
029-5244-00
J
Elevance Unit Power Harness
015-2837-00
K
Power Interface Control Harness
015-2333-00
L
Refer to: Assistant’s Unit Wiring
Ref
M
LIN Connector
Power Supply to Chair 72” (182.9 cm)
Power Supply to Chair 120” (304.8 cm)
015-2149-01
015-2149-03
Color Abbreviation Chart
004-1063-00
[Revised: 5/22/13]
Delivery Unit
LR Mtd.
To
Connector
To USB
Connector
in Del. Unit
Camera port (optional)
To USB
Power
Adapter
Optional
Optional
(located
in J-box)
ICM PCB
For
Illuminated
Handpiece
Elevance Interface PCB
Inside Delivery
Unit
For Assistant's Unit
TP209 Rev. A
Power Supply
model: 153808
Item
Elevance Chair
PC Board
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Delivery Unit Wiring
LR
V1407550 - V1765598
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
Wiring Diagram:
Delivery Unit (LR Mtd.)
5.2
Description
Part
Number
A
USB Cable
015-2945-02
B
USB Couplers
Note: These components are optional
015-0708-32
C
USB Power Harness
015-2946-0x
D
USB Cable
015-2945-0x
E
LIN Connector (to Interface PCB)
015-2149-01
F
LIN Connector
015-2149-01
G
Coupler Box
029-5244-00
H
Elevance Unit Power Harness
015-2837-00
I
Power Interface Control Harness
015-2333-00
J
Refer to: Assistant’s Unit Wiring
Ref
K
LIN Connector
Power Supply to Chair 72” (182.9 cm)
Power Supply to Chair 120” (304.8 cm)
015-2149-01
015-2149-03
Color Abbreviation Chart
004-1063-00
[Revised: 4/5/16]
Delivery Unit
LR Mtd.
To
Connector
To USB
Connector
in Del. Unit
Camera port (optional)
Optional
ICM PCB
For
Illuminated
Handpiece
Elevance Interface PCB
A
Inside Delivery
Unit
For Assistant's Unit
TP209 Rev. A
For Illuminated Handpiece
A
Description
Mounting Style
Serial Numbers:
Delivery Unit Wiring
LR
V1765599 - present
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
Wiring Diagram:
Delivery Unit (LR Mtd.)
Item
Power Supply
model: 153941
Elevance Chair
PC Board
Optional
(located
in J-box)
5.3
Description
Part
Number
A
USB Cable
015-2945-02
B
USB Couplers
Note: These components are optional
015-0708-32
C
USB Power Harness
015-2946-0x
D
USB Cable
015-2945-0x
E
LIN Connector (to Interface PCB)
015-2149-01
F
LIN Connector
015-2149-01
G
Coupler Box
029-5244-00
H
Elevance Unit Power Harness
015-2837-00
I
Power Interface Control Harness
015-2333-00
J
Refer to: Assistant’s Unit Wiring
Ref
K
LIN Connector
Power Supply to Chair 72” (182.9 cm)
Power Supply to Chair 120” (304.8 cm)
015-2149-01
015-2149-03
L
USB Harness
015-3430-00
Color Abbreviation Chart
004-1063-00
[Revised: 4/5/16]
PSI
kpa
30
206.8
50
344.7
80
551.6
100
689.5
Open
Curing Light
(Option)
Closed
Rib on Air Side (Yellow Tubing)
Saliva
Ejector
Solids
Collector
Closed
Open
Pinch
Valve
High
Volume
Evacuator
(HVE)
Vacuum
Flow
Control
Knobs
3/4
Water
From
Water
Selector
Valve
Water
Quick
Connect
Filtered /
Regulated Air
Air
Quick
Connect
Air From
Air Regulator
(Junction Box)
TP209 Rev. A
To Vacuum
Supply
Regulated /
Filtered Water
Pinch
Valve
Description
Mounting Style
Serial Numbers:
Assistant’s Unit Tubing
Console / LR
all
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
6
Color Abbreviation Chart
004-1063-00
[Revised: mo/dd/yr]
Curing Light
(Option)
Heated Syringe
(Option)
Elevance Chair PC
Board
(bottom right corner)
Located in
console
Curing Light
(Option)
Located on lower
chair lift arm
For Delivery Unit
Power Supply
model: 153808
Wiring Diagram:
Assistant’s Unit (Console Mtd.)
TP209 Rev. A
Item
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Assistant’s Unit Wiring
Console
V2200 - V1765598
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
7
Description
Part
Number
A
Chair Mtd. Assistant’s Unit Tubing/Wiring
Harness
015-2345-00
B
Curing Light Jumper Harness (Optional)
015-2342-00
C
Assistant's Unit Power Supply Harness
144" (365.8 cm)
192" (487.7 cm)
015-2937-00
015-2937-01
D
Refer to: Delivery Unit Wiring
E
LIN Connector
Power Supply to Chair 72" (182.9 cm)
015-2149-01
F
LIN Connector
Power Supply to Chair 72" (182.9 cm)
Power Supply to Chair 120" (304.8 cm)
015-2149-01
015-2149-03
Ref
Color Abbreviation Chart
004-1063-00
[Revised: 4/5/16]
Curing Light
(Option)
Heated Syringe
(Option)
Elevance Chair PC
Board
(bottom right corner)
Located in
console
Curing Light
(Option)
Located on lower
chair lift arm
For Delivery Unit
Power Supply
model: 153941
Wiring Diagram:
Assistant’s Unit (Console Mtd.)
TP209 Rev. A
Item
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Assistant’s Unit Wiring
Console
V1765599 - present
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
7.1
Description
Part
Number
A
Chair Mtd. Assistant’s Unit Tubing/Wiring
Harness
015-2345-00
B
Curing Light Jumper Harness (Optional)
015-2342-00
C
Assistant's Unit Power Supply Harness
144" (365.8 cm)
192" (487.7 cm)
015-2937-00
015-2937-01
D
Refer to: Delivery Unit Wiring
E
LIN Connector
Power Supply to Chair 72" (182.9 cm)
015-2149-01
F
LIN Connector
Power Supply to Chair 72" (182.9 cm)
Power Supply to Chair 120" (304.8 cm)
015-2149-01
015-2149-03
Ref
Color Abbreviation Chart
004-1063-00
[Revised: 4/5/16]
Heated Syringe
Curing Light (Option)
(option)
Elevance Chair PC
Board
(bottom right corner)
Located in
console
Curing Light
(option)
Located on lower
chair lift arm
For Delivery Unit
Power Supply
model: 153808
Wiring Diagram:
Assistant’s Unit (Rear Mtd.)
TP209 Rev. A
Item
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Assistant’s Unit Tubing
Rear
V2200 - V1765598
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
8
Description
Part
Number
A
Chair Mtd. Assistant’s Unit Tubing/Wiring
Harness
015-2345-00
B
Curing Light Jumper Harness (Optional)
015-2342-00
C
Assistant’s Unit Power Supply Harness
114" (289.6 cm)
162" (411.5 cm)
015-2937-04
015-2937-05
D
Refer to: Delivery Unit Wiring
E
LIN Connector
Power Supply to Chair 72" (182.9 cm)
015-2149-01
F
LIN Connector
Power Supply to Chair 72" (182.9 cm)
Power Supply to Chair 120" (304.8 cm)
015-2149-01
015-2149-03
Ref
Color Abbreviation Chart
004-1063-00
[Revised: 4/5/16]
Heated Syringe
Curing Light (Option)
(option)
Elevance Chair PC
Board
(bottom right corner)
Located in
console
Curing Light
(option)
Located on lower
chair lift arm
For Delivery Unit
Power Supply
model: 153941
Wiring Diagram:
Assistant’s Unit (Rear Mtd.)
TP209 Rev. A
Item
For Illuminated Handpiece
Description
Mounting Style
Serial Numbers:
Assistant’s Unit Tubing
Rear
V1765599 - present
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
8.1
Description
Part
Number
A
Chair Mtd. Assistant’s Unit Tubing/Wiring
Harness
015-2345-00
B
Curing Light Jumper Harness (Optional)
015-2342-00
C
Assistant’s Unit Power Supply Harness
114" (289.6 cm)
162" (411.5 cm)
015-2937-04
015-2937-05
D
Refer to: Delivery Unit Wiring
E
LIN Connector
Power Supply to Chair 72" (182.9 cm)
015-2149-01
F
LIN Connector
Power Supply to Chair 72" (182.9 cm)
Power Supply to Chair 120" (304.8 cm)
015-2149-01
015-2149-03
Ref
Color Abbreviation Chart
004-1063-00
[Revised: 4/5/16]
Pilot Operated
Water Valves
(N/C)
Three-way Electric Operated
Solenoid Valve (N/C)
PSI
kpa
30
206.8
50
344.7
80
551.6
100
689.5
To Bowl Rinse
Supply Air
Pilot
Air
City Water
To Cup Fill
Cup Fill
Connects to Cuspidor
Control PCB
1
Bowl Rinse
Three-way Electric
Operated Solenoid
Valve (N/C)
Fill &
Rinse
Touch
Sensors
Constant Flow
Pilot Controlled Flow
Pilot Operated
Water Valves
Pilot
Air
Vent Tube
TP209 Rev. A
PC Board
Set Button
Limit Switch
Drain Tube
Supply City Water
Air
Supply
Description
Mounting Style
Serial Numbers:
Cuspidor Tubing
Console / LR
all
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
9
Color Abbreviation Chart
004-1063-00
[Revised: mo/dd/yr]
Dual Solenoid
E-field Sensors
Note
Limit switch opens when cuspidor is lifted up.
D
Limit
Switch
Elevance Chair
PC Board
Cuspidor
PC Board
A
C
Console
B
TP209 Rev. A
Wiring Diagram:
Cuspidor (Console Mtd.)
Item
Description
Part
Number
A
Chair to Cuspidor Power Harness
015-2323-00
B
Cuspidor Power/Limit Harness
015-2325-00
C
Ground Wire
015-2621-0x
D
E-Field Sensor Harness (1 per sensor)
015-2224-00
Description
Mounting Style
Serial Numbers:
Cuspidor Wiring
Console
all
Color Abbreviation Chart
10
004-1063-00
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
[Revised: 3/27/14
Dual Solenoid
E-field Sensors
Note
D
Limit
Switch
Limit switch opens when cuspidor is lifted up.
Cuspidor
PC Board
Elevance Chair
PC Board
C
Chair Rear Hub
A
B
TP209 Rev. A
Wiring Diagram:
Cuspidor (Rear Mtd.)
Item
Description
Part
Number
A
Chair to Cuspidor Power Harness
015-2323-01
B
LR Mtd Cuspidor Harness
015-2910-00
C
Cuspidor Power / Limit Harness
015-2325-00
D
E-Field Sensor Harnness (1 per sensor)
015-2224-00
Description
Mounting Style
Serial Numbers:
Cuspidor Wiring
Rear
all
Color Abbreviation Chart
11
004-1063-00
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
[Revised: 3/28/2014]
1/8 OR
1/8
GN
kpa
30
206.8
50
344.7
80
551.6
100
689.5
Throttle
Valve
1/8 GN
5/16 CL
Pilot Shutoff
w/ Dash
1/8 BR
(Pulse Air)
5/16 CL w/ Dash
5/16 CL
Wet / Dry
Toggle
CL
PSI
5/16
CL
1/8 OR
N/O
CL
Air
Regulator
N/C
1/8
RD
C
80-100
PSI
1/8
RD
Foot Control
Manual
Air
Shutoff
Power Supply
Air Pressure
Switch
(Optional)
1/8 GN
80 PSI
1/8
PR
Supply Air
80-100 PSI
80-100
PSI
Filtered / Regulated Air
Unfiltered / Unregulated Air
Pilot
Shutoff
30
PSI
5/16 CL
80 PSI
1/8 PR
80-100 PSI
Water
Regulator
1/8 BL
Water
Manual
Shutoff
City Supply
Water
30-50 PSI
(Optional)
1/4 BL
Spare
Tubes
3/4
Description
Mounting Style
Serial Numbers:
Supply Connections
Console / LR
all
12
Water to Cuspidor
1/8 CL
1/8 WH
5/8
Junction Box
30 PSI
Water to City /
Bottle Selector
30-50 PSI
Unregulated / Filtered Water
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
Air to Master
ON / OFF Switch
1/8 RD
Air from Master
ON / OFF Switch
80-100 PSI
1/8 BL
Regulated / Filtered Water
1/4
BL
To Handpiece Drive Air
80 PSI
Air to Syringe & Cuspidor
1/4 YL
1/8
RD
1/8
RD
TP209 Rev. A
To Handpiece Coolant Air
80 PSI
To Pilot Air for Coolant Water
1/8 OR
Drain
Vacuum
Umbilical
Color Abbreviation Chart
004-1063-00
[Revised: mo/dd/yr]
To Cuspidor
Umbilical to
Junction Box
Pressure
Regulator
1/8 CL
1/8 BR
1/8 WH
80 PSI
Spare
Tubing
80 PSI
Air Supply
for Water
Bottle On /
Off Switch
5/16 CL
Water
Bottle
1/8 BL
30
PSI
1/8 GN
Water Quick
Disconnect
80 PSI
Syringe
Air
Hand
Piece
Coolant
Air
1/8 OR
80
PSI
1/8 RD
Air
Supply
Air from
Master
On/Off
Switch
80-100 PSI
30 PSI
30 PSI
Hand
Piece
Drive
Air
Hand Piece
Pilot Air for
Coolant
Water
80-100 PSI
Air Quick
Disconnect
80 PSI
Water
Supply
Air to
Master
On/Off
Switch
1/8 PR
689.5
1/4 YL
100
Instrument
Water
30 PSI
551.6
To Delivery Unit
Drain
Tube
5/8
344.7
80
30-50 PSI
50
80 PSI
206.8
1/4 BL
kpa
30
1/8 YL
PSI
Supply City
Air Water
30 PSI
30 PSI
Capped
Off
City Water
Air Regulator
Filtered City Water
Drain Tube
Supply Air
Supply Air
Handpiece Pilot Air for
Coolant Water
Handpiece Coolant Air
Handpiece Drive Air
80 PSI
30-50 PSI
80-100 PSI
80-100 PSI
80 PSI
80 PSI
80 PSI
Spare Tubing
Vacuum
Supply Tube
Note
TP209 Rev. A
Syringe Air
80 PSI
Tubing and connectors are provided for connecting a delivery unit and an assistant’s unit.
Leave connectors capped if you are not installing these components.
30 PSI
Vacuum
Instrument
Water
To Assistant's Unit
An additional 1/8" piece of blue tubing is provided that can be used to connect to a city water supply.
Description
Mounting Style
Serial Numbers:
Water Bottle Tubing
Console
all
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
13
Color Abbreviation Chart
004-1063-00
[Revised: mo/dd/yr]
To Cuspidor
Supply Air
Supply Air
Handpiece Pilot Air for
Coolant Water
Handpiece Coolant Air
Handpiece Drive Air
1/8 CL
1/8 BR
1/8 WH
Spare
Tubing
80 PSI
80 PSI
5/16 CL
1/8 GN
80 PSI
30
PSI
1/8 BL
30 PSI
Syringe
Air
Hand
Piece
Coolant
Air
1/8 OR
Water Quick
Disconnect
Water Selector
Switch
Umbilical to
Junction Box
Regulated / Filtered
City Water
Air Regulator
Unregulated / Filtered
City Water
Drain Tube
City
1/8 RD
Water
Bottle
Bottle
80
PSI
Supply
Air from
Master
On/Off
Switch
80-100 PSI
30 PSI
Air 30
PSI
Hand
Piece
Drive
Air
Hand Piece
Pilot Air for
Coolant
Water
80-100 PSI
Air Quick
Disconnect
80 PSI
Water
Instrument
Water
Supply
Air to
Master
On/Off
Switch
1/8 PR
689.5
1/4 YL
551.6
To Delivery Unit
Drain
Tube
30 PSI
80
100
Supply City
Air Water
5/8
344.7
30-50 PSI
206.8
50
80 PSI
30
1/4 BL
kpa
1/8 YL
PSI
Pressure
Regulator
30 PSI
30 PSI
80 PSI
30-50 PSI
80-100 PSI
80-100 PSI
80 PSI
80 PSI
80 PSI
Spare Tubing
Vacuum
Supply Tube
Syringe Air
TP209 Rev. A
80 PSI
30 PSI
Vacuum
Instrument
Water
To Assistant's Unit
Description
Mounting Style
Serial Numbers:
Optional Water Selector Switch Tubing
Console
all
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
14
Color Abbreviation Chart
004-1063-00
[Revised: mo/dd/yr]
To Delivery Unit
80 PSI
Hand
Piece
Drive Air
1/4 or 5/16 CL
80 PSI
Hand Piece
Coolant Air
1/8 GN
80 PSI
689.5
1/8 OR
100
Supply
Air
80-100 PSI
551.6
Air from
Master
On/Off
Switch
1/8 RD
344.7
80
1/8 PR
50
80-100 PSI
206.8
80 PSI
kpa
30
1/4 YL
PSI
Air to
Master
On/Off
Switch
1/8 BR
1/8 CL
1/8 WH
Spare Tubing
Hand Piece
Pilot Air for
Coolant
Water
Water to
Delivery Unit
1/8 YL
Pressure Regulator
Air Supply for
Water Bottle
On/Off Switch
Umbilical to
Junction Box
1/4 YL
Air Regulator
1/8 PR
Supply Air
Handpiece Pilot Air
for Coolant Water
80-100 PSI
1/8 RD
80 PSI
1/8 OR
80 PSI
Handpiece Coolant Air
1/8 GN
80 PSI
Spare Tubing
TP209 Rev. A
Handpiece
Drive Air
1/4 or 5/16 CL
80 PSI
Water to Assistant's
Instrument Head
Air to Assistant's
Instrument Head
Description
Mounting Style
Serial Numbers:
Water Bottle Tubing
LR
all
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
15
DA3312i
Color Abbreviation Chart
004-1063-00
[Revised: 7/14/14]
80 PSI
To Delivery Unit
80 PSI
Hand
Piece
Drive Air
1/4 or 5/16 CL
Hand Piece
Coolant Air
1/8 BR
1/8 CL
1/8 WH
Spare Tubing
1/8 GN
80 PSI
689.5
1/8 OR
100
Supply
Air
1/8 RD
551.6
Air from
Master
On/Off
Switch
80-100 PSI
344.7
80
1/8 PR
206.8
50
80-100 PSI
30
Air to
Master
On/Off
Switch
80 PSI
kpa
1/4 YL
PSI
Hand Piece
Pilot Air for
Coolant
Water
Water to
Delivery Unit
1/8 YL
1/8 YL
Bottle
1/8 PR
Supply Air
Handpiece Pilot Air
for Coolant Water
City
1/4 YL
Air Regulator
1/8 YL
Umbilical to
Junction Box
Water Selector
Switch
80-100 PSI
1/8 RD
80 PSI
1/8 OR
80 PSI
1/8 GN
Handpiece Coolant Air
80 PSI
Spare Tubing
Handpiece
Drive Air
Regulated / Filtered
City Water
1/4 or 5/16 CL
TP209 Rev. A
Air to Assistant's
Instrument Head
1/8 YL
Water to Assistant's
Instrument Head
DA3250i
Description
Mounting Style
Serial Numbers:
Optional Water Selector Switch Tubing
LR
all
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
16
Color Abbreviation Chart
004-1063-00
[Revised: 7/14/14]
TP209 Rev. A
Umbilicals: Elevance Delivery System / Elevance Chair
Description
Mount Style
Connects: (A / B)
Length
Assembly Number
Chair Umbilical
Console
J-box / Delivery Unit Umbilical
4 ft. (1.2 m)
029-4353-00
8 ft. (2.5 m)
029-4353-01
4 ft. (1.2 m)
029-4352-00
8 ft. (2.5 m)
029-4352-01
LR
Delivery Unit Umbilical
Assistant’s Unit Umbilical
J-box / Delivery Unit Umbilical
Console
Delivery Unit / Console
LR
Delivery Unit / Chair LR Mount
All
Assistant’s Unit / Chair Rear Hub
5.2 ft (1.5 m)
029-4370-00
Rear
Cuspidor / Chair Rear Hub
6.8 ft. (2.0 m)
015-2910-00
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
17
10 ft. (3.1 m)
029-4369-00
002-10435-00
004-1063-00
[Revised: 7/30/19]
Color Abbreviation Chart
Item
Color
(English)
Farbe
(Deutsch)
Couleur
(Français - Europe)
Color
(español europeo)
Colore
(italiano)
BK
Black
Schwarz
Noir
Negro
BL
Blue
Blau
Bleu
Azul
Blu
BR
Brown
Braun
Marron
Marrón
Marrone
Trasparente
Nero
CL
Clear
Durchsichtig
Incolore
Transparente
GN
Green
Grün
Vert
Verde
Verde
GY
Grey
Grau
Gris
Gris
Grigio
OR
Orange
Orange
Orange
Naranja
Arancione
PR
Purple
Purpur
Pourpre
Morado
Porpora
Trasparente Porpora
CL/PR
Color
(others)
Clear Purple
Durchsichtig Purpur
Incolore Pourpre
Transparente Morado
RD
Red
Rot
Rouge
Rojo
Rosso
WH
White
Weiß
Blanc
Blanco
Bianco
YL
Yellow
Gelb
Jaune
Amarillo
Giallo
PK
Pink
Pink
Rose
Rosa
Rosa
TN
Tan
Hellbraun
Fauve
Marrón claro
Tanè (marrone scuro)
BK/WH
Black/White
Schwarz / Weiß
Noir / Blanc
Negro / Blanco
Bianco / Nero
BL/WH
Blue/White
Blau / Weiß
Bleu / Blanc
Azul / Blanco
Blu / Bianco
BR/WH
Brown/White
Braun / Weiß
Marron / Blanc
Marrón / Blanco
Marrone / Bianco
CL/BK
Clear / Black
Durchsichtig / Schwarz
Incolore / Noir
Transparente / Negro
Trasparente / Nero
Green / White
Grün / Weiß
Vert / Blanc
Verde / Blanco
Verde / Bianco
GN/YL
Green / Yellow
Grün / Gelb
Vert / Jaune
Verde / Amarillo
Verde / Giallo
OR/WH
Orange / White
Orange / Weiß
Orange / Blanc
Naranja / Blanco
Arancione / Bianco
PR/WH
Purple / White
Purpur / Weiß
Pourpre / Blanc
Morado / Blanco
Porpora / Bianco
RD/WH
Red / White
Rot / Weiß
Rouge / Blanc
Rojo / Blanco
Rosso / Bianco
VI/WH
Violet / White
Violett / Weiß
Violet / Blanc
Violeta / Blanco
Viola / Bianco
YL/WH
Yellow / White
Gelb / Weiß
Jaune / Blanc
Amarillo / Blanco
Giallo / Bianco
YL/GN
Yellow / Green
Gelb / Grün
Jaune / Vert
Amarillo / Verde
Giallo / Verde
YL/BK
Yellow / Black
Gelb / Schwarz
Jaune / Noir
Amarillo / Negro
Giallo / Nero
TP209 Rev. A
GN/WH
© 2013 Midmark Corp. | 60 Vista Drive Versailles, OH 45380 USA | 1-800-643-6275 | 1-937-526-3662 | midmark.com
18
004-1063-00
[Revised: 8/5/13]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
