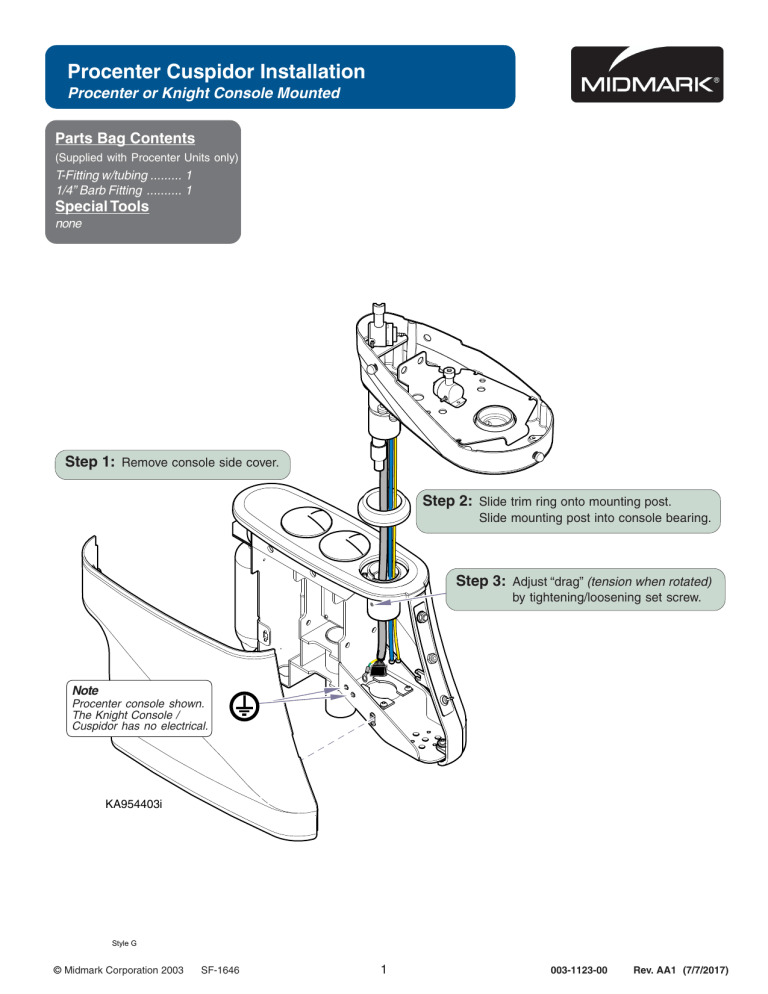

Procenter Cuspidor Installation
Procenter or Knight Console Mounted
Parts Bag Contents
(Supplied with Procenter Units only)
T-Fitting w/tubing ......... 1
1/4” Barb Fitting .......... 1
Special Tools
none
Step 1: Remove console side cover.
Step 2: Slide trim ring onto mounting post.
Slide mounting post into console bearing.
Step 3: Adjust “drag” (tension when rotated)
by tightening/loosening set screw.
Note
Procenter console shown.
The Knight Console /
Cuspidor has no electrical.
KA954403i
Style G
© Midmark Corporation 2003
SF-1646
1
003-1123-00
Rev. AA1 (7/7/2017)
Step 5: Install faucet and gasket.
Install bowl flush spout and gasket.
Install gold trap.
Step 4: Position cuspidor bowl over
base then press down gently.
DA137300i
© Midmark Corporation 2003
SF-1646
2
Color Page
Step 6: Remove plug from water shut-off valve.
Install 1/4” barb fitting.
Connect 1/4” blue tubing from umbilical.
40
20
2
60
3
4
1
80
0
5
0
6
7
100
Step 7: Connect 5/8”
smooth tubing
from umbilical to
facility drain.
Note: 5/8” ribbed tubing
is for optional
Assistant’s Unit on
Midmark Units only.
40
60
20
2
3
4
1
80
0
5
0
6
7
100
© Midmark Corporation 2003
SF-1646
3
Color Page
Caution
Connect ground wire to ensure system ground continuity.
Failure to do so may result in electric shock.
Note
Procenter console shown. Knight Console / Cuspidor has no electrical connections.
Step 8:
On Procenter Units,
Remove jumper wire.
Connect ground wire
and wire harness.
Step 9: Connect drain tube
from cuspidor to 5/8”
smooth tubing from
umbilical.
Step 10: Connect 1/4” blue tubing.
Step 11: Cut 1/8” yellow tubing.
Insert T-fitting w/tubing.
Connect to 1/8” yellow
tubing from cuspidor.
© Midmark Corporation 2003
SF-1646
4
Cup Fill Button
Cup Fill
Adjustment Knob
Increase
Decrease
KA938902i
Step 12: Adjust water flow if necessary.
Bowl Flush
Adjustment Knob
Midmark Corporation
60 Vista Drive
P.O. Box 286
Versailles, OH 45380-0286
937-526-3662
Fax 937-526-5542
www.midmark.com
© Midmark Corporation 2003
SF-1646
5
Bowl Flush Button
