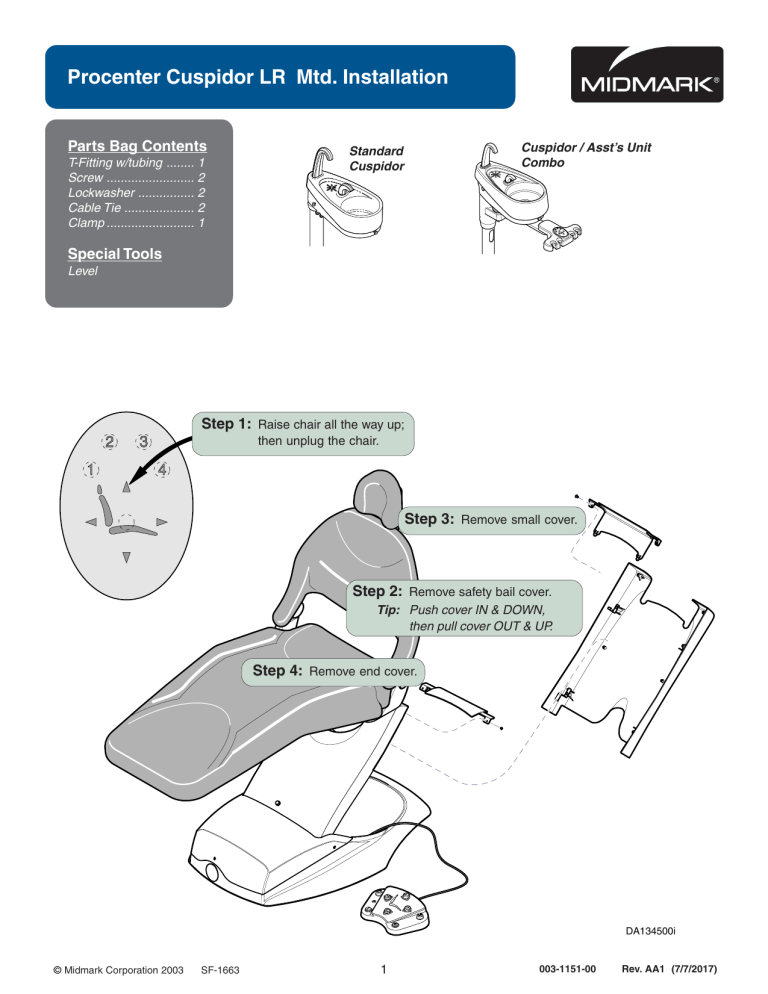

Procenter Cuspidor LR Mtd. Installation
Parts Bag Contents
T-Fitting w/tubing ........ 1
Screw ......................... 2
Lockwasher ................ 2
Cable Tie .................... 2
Clamp ......................... 1
Cuspidor / Asst’s Unit
Combo
Standard
Cuspidor
Special Tools
Level
Step 1: Raise chair all the way up;
then unplug the chair.
Step 3: Remove small cover.
Step 2: Remove safety bail cover.
Tip: Push cover IN & DOWN,
then pull cover OUT & UP.
Step 4: Remove end cover.
DA134500i
© Midmark Corporation 2003
SF-1663
1
003-1151-00
Rev. AA1 (7/7/2017)
© Midmark Corporation 2003
SF-1663
2
Adjust leveling screws until arm is level
Replace cover.
Step 6: Remove cover.
Leveling Screws
with screws and lockwashers.
Step 5: Secure extension plate to chair
DA137200i
Have an assistant secure the cuspidor arm at all pivot points to prevent damage to equipment.
Equipment Alert
Step 8: Install faucet and gasket.
Install bowl flush spout and gasket.
Install gold trap.
Step 7: Position cuspidor bowl over
base then press down gently.
DA137300i
Attention!
After completing Step 8:
Cuspidor / Asst’s Unit Combo,
Go to page 5.
Standard Cuspidor,
Go to page 4.
DA144700i
© Midmark Corporation 2003
SF-1663
3
Attention!
This page applies to
Standard Cuspidor only.
For Cuspidor / Asst’s Unit Combo,
Go to page 5.
Standard Cuspidor
Step A: Pull out yellow tubing & cut.
Insert T-fitting w/yellow tubing.
5/8” Smooth
Tubing
Vacuum line
to Assistant’s
Unit
Air
Water
Standard Cuspidor
Step B: Connect 1/8” yellow tubing.
Connect 1/4” blue tubing.
Note:
1/8” blue tubing is not used.
Standard Cuspidor
Step C: Connect 5/8” grey tubing from cuspidor
to 5/8” smooth tubing from umbilical.
Note: 5/8” ribbed tubing is for optional assistant’s unit.
Go to Page 6
© Midmark Corporation 2003
SF-1663
4
Attention!
For Standard Cuspidor,
Go to page 4.
This page applies to
Cuspidor / Asst’s Unit Combo only.
Cuspidor/Asst’s Combo
Step A: Remove plugged section from 1/8” blue tubing.
Cuspidor/Asst’s Combo
Step B: Pull out 1/8” yellow tubing & cut.
Insert T-fitting w/yellow tubing.
Vacuum
line to
Assistant’s
Unit
Vacuum line
to console
Cuspidor/Asst’s Combo
Step C: Connect 1/8” bluetubing.
Connect 1/8” yellow tubing.
Connect 1/4” blue tubing.
Cuspidor/Asst’s Combo
Step D: Connect cuspidor drain tube
to 5/8” smooth tubing from umbilical.
Water
Air
Water
Cuspidor/Asst’s Combo
Step E: Connect vacuum tube
to 5/8” ribbed tubing from umbilical.
© Midmark Corporation 2003
SF-1663
5
Go to Page 6
Step 9: Remove plug from water shut-off valve.
Install 1/4” barb fitting.
Connect 1/4” blue tubing from umbilical.
40
20
2
60
3
4
1
80
0
5
0
6
7
100
Step 10: Connect 5/8” smooth tubing
from umbilical to facility drain.
Note: Standard Cuspidor, go to page 7.
40
60
20
2
3
4
1
80
0
5
0
6
7
100
Cuspidor/Asst’s Combo only:
Step 11: Connect 5/8” ribbed tubing (not shown)
from umbilical to central vacuum unit.
© Midmark Corporation 2003
SF-1663
6
Caution
Connect ground wire to ensure system ground continuity.
Failure to do so may result in electric shock.
Step 12: Connect wiring. Use two or more ties to
bundle wiring and vacuum tubing together
and attached to the chair frame.
Cuspidor Umbilical
Assistant’s Unit
Umbilical
Controls
Power
Chair Umbilical
© Midmark Corporation 2003
SF-1663
7
© Midmark Corporation 2003
SF-1663
8
Step 15: Slide extension plate cover over tabs.
Cable Ties
Secure with two cable ties .
Step 13: Pull tubing/wiring toward extension plate to minimize slack.
“Hooks”
Tabs
DA135200i
Tip:
Position bottom “hooks” on lower mounting pins.
Align top “hooks” with upper mounting pins.
Push cover Down, In, then pull Upward
until upper “hooks” engage.
Step 14: Install safety bail cover.
Cup Fill Button
Cup Fill
Adjustment Knob
Increase
Decrease
KA938902i
Step 16: Adjust water flow if necessary.
Bowl Flush
Adjustment Knob
Midmark Corporation
60 Vista Drive
P.O. Box 286
Versailles, OH 45380-0286
937-526-3662
Fax 937-526-5542
www.midmark.com
© Midmark Corporation 2003
SF-1663
9
Bowl Flush Button
