SECTION VI
PARTS LIST

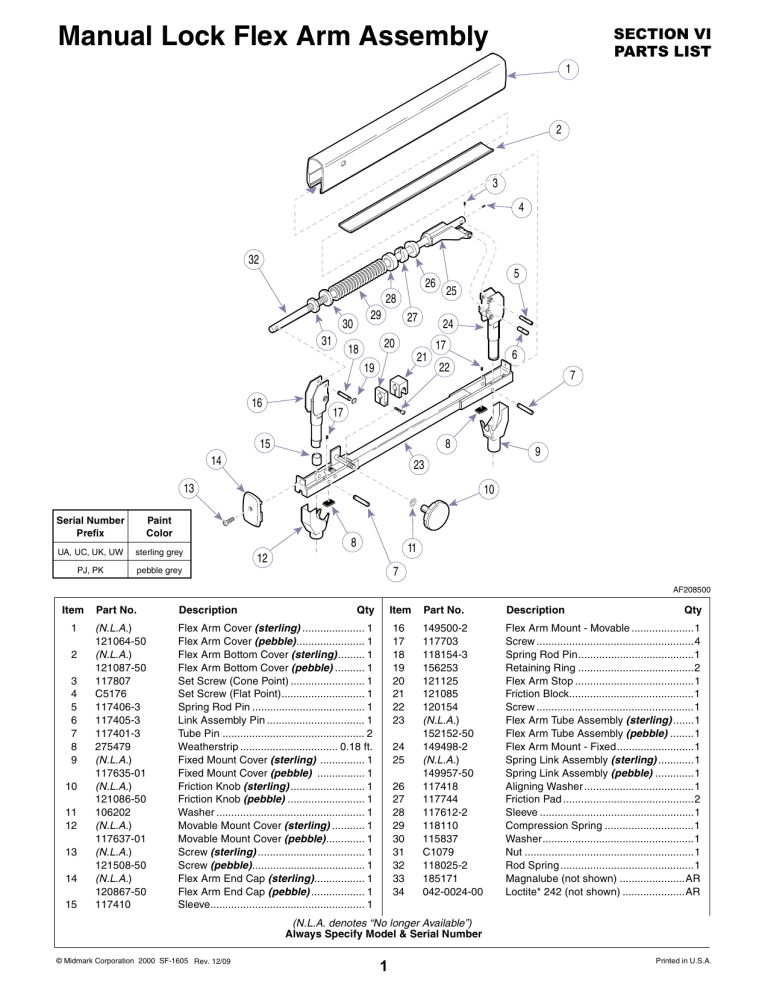

Manual Lock Flex Arm Assembly
1
2
3
4
32
5
26
25
28
29
30
31
27
20
18
17
21
19
16
24
15
8
UA, UC, UK, UW
sterling grey
PJ, PK
pebble grey
9
23
13
Paint
Color
7
17
14
Serial Number
Prefix
6
22
10
8
11
12
7
AF208500
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Part No.
Description
(N.L.A.)
121064-50
(N.L.A.)
121087-50
117807
C5176
117406-3
117405-3
117401-3
275479
(N.L.A.)
117635-01
(N.L.A.)
121086-50
106202
(N.L.A.)
117637-01
(N.L.A.)
121508-50
(N.L.A.)
120867-50
117410
Flex Arm Cover (sterling) ..................... 1
Flex Arm Cover (pebble) ....................... 1
Flex Arm Bottom Cover (sterling) ......... 1
Flex Arm Bottom Cover (pebble) .......... 1
Set Screw (Cone Point) ......................... 1
Set Screw (Flat Point)............................ 1
Spring Rod Pin ...................................... 1
Link Assembly Pin ................................. 1
Tube Pin ................................................ 2
Weatherstrip ................................. 0.18 ft.
Fixed Mount Cover (sterling) ............... 1
Fixed Mount Cover (pebble) ................ 1
Friction Knob (sterling) ......................... 1
Friction Knob (pebble) .......................... 1
Washer .................................................. 1
Movable Mount Cover (sterling) ........... 1
Movable Mount Cover (pebble) ............. 1
Screw (sterling) .................................... 1
Screw (pebble)...................................... 1
Flex Arm End Cap (sterling) ................. 1
Flex Arm End Cap (pebble) .................. 1
Sleeve.................................................... 1
Qty
Item
Part No.
Description
16
17
18
19
20
21
22
23
149500-2
117703
118154-3
156253
121125
121085
120154
(N.L.A.)
152152-50
149498-2
(N.L.A.)
149957-50
117418
117744
117612-2
118110
115837
C1079
118025-2
185171
042-0024-00
Flex Arm Mount - Movable .....................1
Screw .....................................................4
Spring Rod Pin.......................................1
Retaining Ring .......................................2
Flex Arm Stop ........................................1
Friction Block..........................................1
Screw .....................................................1
Flex Arm Tube Assembly (sterling) .......1
Flex Arm Tube Assembly (pebble) ........1
Flex Arm Mount - Fixed..........................1
Spring Link Assembly (sterling) ............1
Spring Link Assembly (pebble) .............1
Aligning Washer .....................................1
Friction Pad ............................................2
Sleeve ....................................................1
Compression Spring ..............................1
Washer...................................................1
Nut .........................................................1
Rod Spring .............................................1
Magnalube (not shown) ......................AR
Loctite* 242 (not shown) .....................AR
24
25
26
27
28
29
30
31
32
33
34
Qty
(N.L.A. denotes “No longer Available”)
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1605 Rev. 12/09
Page 6-51
1
Printed in U.S.A.
