SECTION VI
PARTS LIST

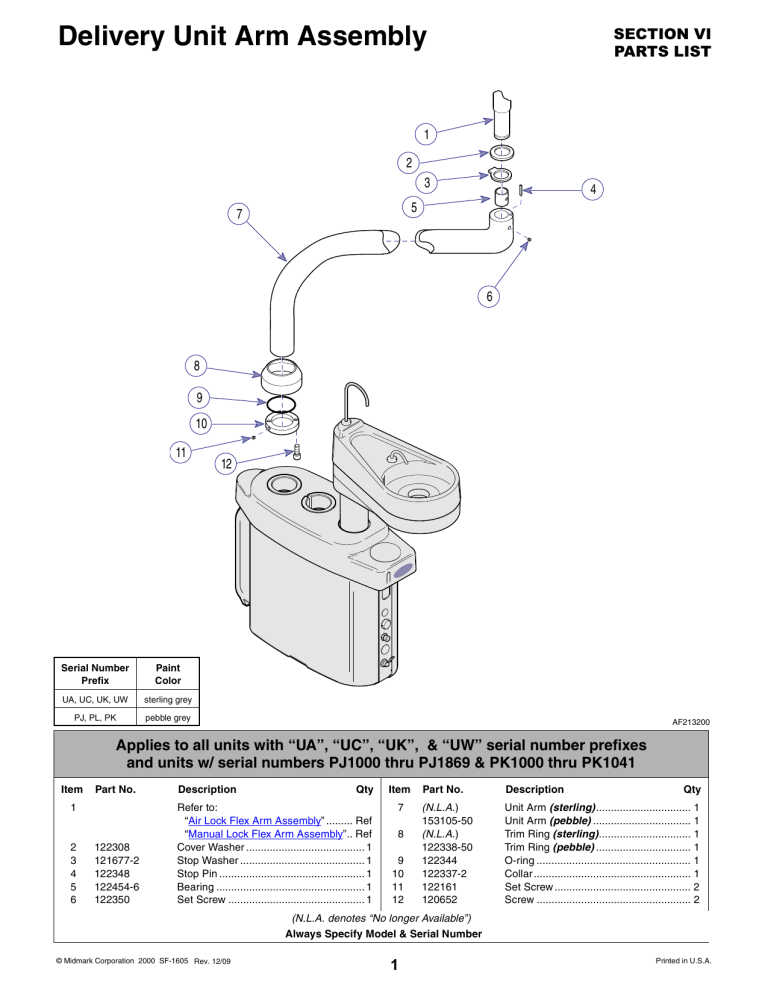

Delivery Unit Arm Assembly
1
2
3
4
5
7
6
8
9
10
11
Serial Number
Prefix
Paint
Color
UA, UC, UK, UW
sterling grey
PJ, PL, PK
pebble grey
12
AF213200
Applies to all units with “UA”, “UC”, “UK”, & “UW” serial number prefixes
and units w/ serial numbers PJ1000 thru PJ1869 & PK1000 thru PK1041
Item
Part No.
Description
122308
121677-2
122348
122454-6
122350
Refer to:
“Air Lock Flex Arm Assembly” ......... Ref
“Manual Lock Flex Arm Assembly”.. Ref
Cover Washer ........................................ 1
Stop Washer .......................................... 1
Stop Pin ................................................. 1
Bearing .................................................. 1
Set Screw .............................................. 1
1
2
3
4
5
6
Qty
Item
7
8
9
10
11
12
Part No.
Description
(N.L.A.)
153105-50
(N.L.A.)
122338-50
122344
122337-2
122161
120652
Unit Arm (sterling) ................................ 1
Unit Arm (pebble) ................................. 1
Trim Ring (sterling) ............................... 1
Trim Ring (pebble) ................................ 1
O-ring .................................................... 1
Collar ..................................................... 1
Set Screw .............................................. 2
Screw .................................................... 2
Qty
(N.L.A. denotes “No longer Available”)
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1605 Rev. 12/09
Page 6-52
1
Printed in U.S.A.
SECTION VI
PARTS LIST
Delivery Unit Arm Assembly
3
2
5
9
10
11
4
1
8
7
6
DA110600i
Applies to units w/serial numbers PJ1870 & PK1042 thru Present
Applies to units w/ serial numbers V2200 thru Present
Item
1
2
3
4
5
6
Part No.
Description
002-0903-03
• 016-0856-02
• 016-0837-00
040-0010-126
122348
122161
Unit Arm Kit (includes items 2 & 3) ........ 1
• Needle Bearing ................................... 2
• Bearing Sleeve .................................... 1
Set Screw............................................... 2
Dowel Pin............................................... 4
Set Screw............................................... 2
Qty
Item
7
8
9
10
11
Part No.
Description
122337-2
053-1221-01
Collar ..................................................... 1
Trim Ring ............................................... 1
Serial Number Label / Laminate............ 1
ETL Label .............................................. 1
Type B Label.......................................... 1
061-0894-00
061-0652-00
Qty
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1605 Rev. 3/10
Page 6-52.1
1.1
Printed in U.S.A.
