SECTION VI
PARTS LIST

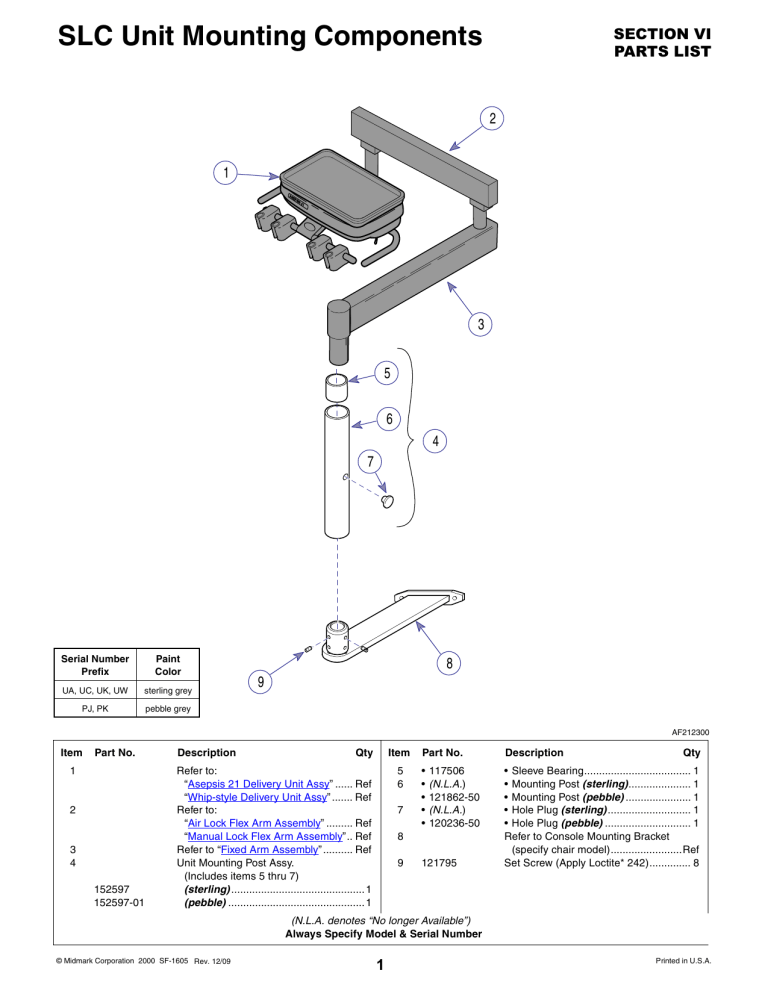

SLC Unit Mounting Components
2
1
AS
EP
SIS
21
111
3
5
6
4
7
Serial Number
Prefix
Paint
Color
UA, UC, UK, UW
sterling grey
PJ, PK
pebble grey
8
9
AF212300
Item
Part No.
Description
152597
152597-01
Refer to:
“Asepsis 21 Delivery Unit Assy” ...... Ref
“Whip-style Delivery Unit Assy” ....... Ref
Refer to:
“Air Lock Flex Arm Assembly” ......... Ref
“Manual Lock Flex Arm Assembly”.. Ref
Refer to “Fixed Arm Assembly” .......... Ref
Unit Mounting Post Assy.
(Includes items 5 thru 7)
(sterling) ............................................. 1
(pebble) .............................................. 1
1
2
3
4
Qty
Item
5
6
7
Part No.
Description
•
•
•
•
•
• Sleeve Bearing.................................... 1
• Mounting Post (sterling) ..................... 1
• Mounting Post (pebble) ...................... 1
• Hole Plug (sterling) ............................ 1
• Hole Plug (pebble) ............................. 1
Refer to Console Mounting Bracket
(specify chair model)........................Ref
Set Screw (Apply Loctite* 242).............. 8
117506
(N.L.A.)
121862-50
(N.L.A.)
120236-50
8
9
121795
Qty
(N.L.A. denotes “No longer Available”)
Always Specify Model & Serial Number
© Midmark Corporation 2000 SF-1605 Rev. 12/09
Page 6-53
1
Printed in U.S.A.
