Go to Pictorial Index
1
053-1223-01
2
122454-6
3
5
121677-2
122348
4
122350
002-0904-02
6
Item 7 used only when mounted
to Elevance chair.
7
040-0008-74
DA2726i

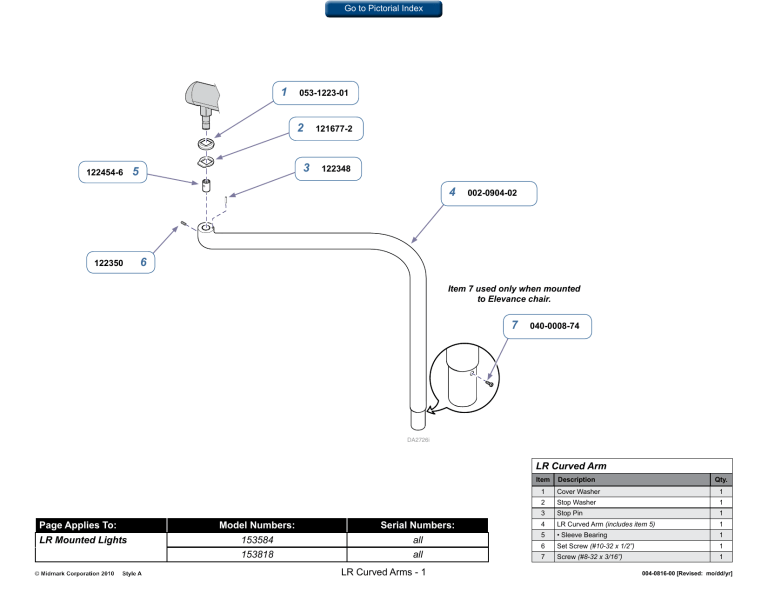

LR Curved Arm
Page Applies To:
LR Mounted Lights
Model Numbers:
Serial Numbers:
153584
all
153818
all
LR Curved Arms - 1
Item
Description
Qty.
1
Cover Washer
1
2
Stop Washer
1
3
Stop Pin
1
4
LR Curved Arm (includes item 5)
1
5
• Sleeve Bearing
1
6
Set Screw (#10-32 x 1/2”)
1
7
Screw (#8-32 x 3/16”)
1
004-0816-00 [Revised: mo/dd/yr]
