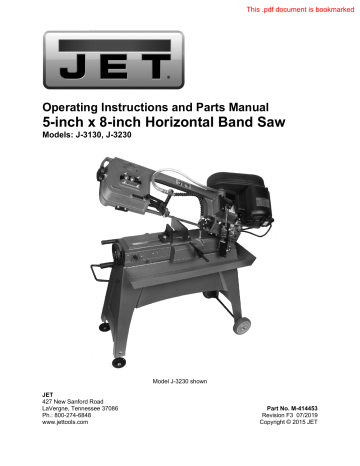

Operating Instructions and Parts Manual
5-inch x 8-inch Horizontal Band Saw
Models: J-3130, J-3230
Model J-3230 shown
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.jettools.com
Part No. M-414453
Revision F3 07/2019
Copyright © 2015 JET
specifications could result in severe injury from
the breakage of the eye protection.
1.0 IMPORTANT SAFETY
INSTRUCTIONS
2.
Wear proper apparel. No loose clothing or jewelry
which can get caught in moving parts. Rubber
soled, nonslip, footwear is recommended for best
footing.
3.
Do not overreach. Failure to maintain a proper
working position can cause you to fall into the
machine or cause your clothing to get caught —
pulling you into the machine.
4.
Keep guards in place and in proper working
order. Do not operate the machine with the
guards removed.
5.
Avoid dangerous working environments. Do not
use stationary machine tools in wet or damp
locations. Keep work areas clean and well lit.
6.
Special electrical precautions should be taken
when working on flammable materials.
7.
Avoid accidental starts by being sure that the
start switch is in the “OFF” position before
plugging in the machine.
8.
Never leave the machine running while
unattended. The machine shall be shut off
whenever it is not being used.
9.
Disconnect the electrical power before servicing,
whenever changing accessories or when general
maintenance is done on the machine.
General Cautions
- Misuse of this machine can cause serious injury.
- For safety, the machine must be set up, used and
serviced properly.
- Read, understand and follow the instructions in the
operator’s and parts manual which was shipped
with your machine.
When setting up the machine:
- Always avoid using the machine in damp or poorly
lighted work areas.
- Always be sure the machine is securely anchored
to the floor or the work bench.
- Always keep the machine guards in place.
- Always put the start switch in the “OFF” position
before plugging in the machine.
When using the machine:
- Never operate the machine with safety guards
missing.
- Always wear safety glasses with side shields (See
ANSI Z87.1)
- Never wear loose clothing or jewelry.
- Never overreach; you may slip and fall into the
machine.
- Never leave the machine running while unattended.
- Always shut the machine off when not in use.
When servicing the machine:
- Always unplug the machine from the electrical
power before servicing.
- Always follow the instructions in the operators and
parts manual when changing accessory tools or
parts.
- Never modify the machine without consulting JET.
10. Maintain all machine tools with care. Follow all
maintenance instructions for lubricating and the
changing of accessories. No attempt shall be
made to modify or have makeshift repairs done to
the machine. This not only voids the warranty but
also renders the machine unsafe.
11. If there is any risk of tipping or sliding, the
machinery must be anchored to the floor.
12. Secure your work. Use clamps or a vise to hold
your work, when practical. It is safer than using
your hands and it frees both hands to operate the
machine.
13. Never brush chips away while the machine is in
operation.
Read and follow these simple rules for best results
and full benefits from your machine. Used properly,
JET machinery is among the best in design and
safety. However, any machine used improperly can
be rendered inefficient and unsafe. It is mandatory
that those who use our products be properly trained in
how to use them correctly. They should read and
understand the Operator’s and Parts Manual as well
as all labels affixed to the machine. Failure to follow
all of these warnings can cause serious injuries.
14. Keep work area clean. Cluttered areas invite
accidents.
15. Remove adjusting keys and wrenches before
turning the machine on.
16. Use the right tool. Don’t force a tool or
attachment to do a job for which it was not
designed.
17. Use only recommended accessories and follow
manufacturer’s instructions pertaining to them.
General Machinery Warnings
1.
Always wear protective eye wear when operating
machinery. Eye wear shall be impact resistant,
protective safety glasses with side shields which
comply with ANSI Z87.1 specifications. Use of
eye wear which does not comply with ANSI Z87.1
18. Keep hands in sight and clear of all moving parts
and cutting surfaces.
2
19. All visitors should be kept at a safe distance from
the work area. Make your workshop completely
safe by using padlocks, master switches, or by
removing starter keys.
9.
20. Know the tool you are using; its application,
limitations, and potential hazards.
General Electrical Cautions
Always wear protective eye wear when
operating, servicing, or adjusting machinery.
Eyewear shall be impact resistant, protective
safety glasses with side shields complying with
ANSI Z87.1 specifications. Use of eye wear
which does not comply with ANSI Z87.1
specifications could result in severe injury
from breakage of eye protection.
This machine should be grounded in accordance with
the National Electrical Code and local codes and
ordinances. The work should be done by a qualified
electrician. The machine should be grounded to
protect the user from electrical shock.
10. Nonslip footwear
recommended.
Wire Sizes
12. The workpiece, or part being sawed, must be
securely clamped before the saw blade enters
the workpiece.
0-50 feet
50-100 feet
Over 100 feet
15. Avoid contact with coolant, especially guarding
your eyes.
WARNING: This product can expose you to
chemicals including lead which is known to the
State of California to cause cancer and birth
defects or other reproductive harm, and
ethylbenzene which is known to the State of
California to cause cancer. For more
information go to http://www.p65warnings.ca.
gov.
120 volt lines
No. 14
No. 12
No. 8
Safety Instructions on Sawing Systems
Always wear leather gloves when handling
saw blade. The operator shall not wear gloves
when operating the machine.
2.
All doors shall be closed, all panels replaced,
and other safety guards in place prior to the
machine being started or operated.
3.
Be sure that the blade is not in contact with the
workpiece when the motor is started. The
motor shall be started and you should allow
the saw to achieve full speed before bringing
the saw blade into contact with the workpiece.
4.
Keep hands away from the blade area.
5.
Remove any cut off piece carefully while
keeping your hands free of the blade area.
6.
Saw must be stopped and electrical supply
must be cut off before any blade replacement
or adjustment of blade support mechanism is
done, or before any attempt is made to change
the drive belts or before any periodic service or
maintenance is performed on the saw.
7.
Remove all loose items and unnecessary
workpieces from the area before starting
machine.
8.
Bring adjustable saw guides and guards as
close as possible to the workpiece.
are
14. Saw must be stopped and electrical supply
disconnected before reaching into cutting area.
Table 1
1.
shoes
13. Remove cut off pieces carefully, keeping
hands away from saw blade.
AWG (American Wire Gauge) number
240 volt lines
No. 14
No. 14
No. 12
safety
11. Wear ear protectors (plugs or muffs) during
extended periods of operation.
CAUTION: For circuits that are a great distance from
the electrical service box, the wire size must be
increased in order to deliver ample voltage to the
motor. To minimize power losses and to prevent
motor overheating and burnout, the use of wire sizes
for branch circuits or electrical extension cords
according to the following table is recommended:
Conductor
length
and
WARNING: Some dust, fumes and gases
created by power sanding, sawing, grinding,
drilling, welding and other construction activities
contain chemicals known to the State of
California to cause cancer and birth defects or
other reproductive harm. Some examples of
these chemicals are:
 lead from lead based paint
 crystalline silica from bricks, cement and
other masonry products
 arsenic and chromium from chemically
treated lumber
Your risk of exposure varies, depending on how
often you do this type of work. To reduce your
exposure to these chemicals, work in a wellventilated area and work with approved safety
equipment, such as dust masks that are
specifically designed to filter out microscopic
particles. For more information go to
http://www.p65warnings.ca.gov/ and http://
www.p65warnings.ca.gov/wood.
4
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or possible
machine damage.
This means that if precautions are not heeded, it may result in serious injury or possibly even
death.
2.0 Table of contents
Section
Page
1.0 IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................... 2
2.0 Table of contents ............................................................................................................................................ 4
3.0 About this machine and manual ..................................................................................................................... 5
4.0 Features and Nomenclature ........................................................................................................................... 5
5.0 Specifications ................................................................................................................................................. 6
6.0 Set-up and assembly ..................................................................................................................................... 7
6.1 Shipping contents ....................................................................................................................................... 7
6.2 Tools required for assembly ....................................................................................................................... 7
6.3 Unpacking and cleanup .............................................................................................................................. 7
6.4 Assembling the band saw .......................................................................................................................... 8
6.5 Installing coolant kit .................................................................................................................................... 9
7.0 Electrical connections .................................................................................................................................... 9
7.1 Wiring diagram ......................................................................................................................................... 10
8.0 Operating Instructions .................................................................................................................................. 10
8.1 Clamping materials in the vise ................................................................................................................. 10
8.2 Right angle cutting .................................................................................................................................... 10
8.3 Angle cutting ............................................................................................................................................. 10
8.4 Clamping methods ................................................................................................................................... 11
8.5 Using the stock stop ................................................................................................................................. 11
8.6 Blade selection ......................................................................................................................................... 11
8.7 Changing blade speeds ............................................................................................................................ 12
8.8 Evaluating cutting efficiency ..................................................................................................................... 12
8.9 Cutting procedure ..................................................................................................................................... 12
8.10 Using the hydraulic feed control ............................................................................................................. 12
8.11 Blade break-in procedures ..................................................................................................................... 13
8.12 Changing blades .................................................................................................................................... 13
9.0 Maintenance ................................................................................................................................................. 14
9.1 Motor replacement ................................................................................................................................... 14
9.2 Adjusting guide bearings .......................................................................................................................... 14
9.3 Blade tracking ........................................................................................................................................... 14
9.4 Replacing guide bearings ......................................................................................................................... 15
9.5 Adjusting back-up bearings ...................................................................................................................... 15
9.6 Adjusting the arm stop adjustment bolt .................................................................................................... 15
9.7 Adjusting motor switch actuator ............................................................................................................... 15
9.8 Replacing a back up bearing .................................................................................................................... 16
9.9 Adjusting the bearing guide seats for blade vertical ................................................................................. 16
9.10 Test cutting to verify adjustment accuracy ............................................................................................. 16
10.0 Maintenance Chart ..................................................................................................................................... 17
11.0 Troubleshooting J-3130 and J-3230 Band Saws ....................................................................................... 18
12.0 Replacement Parts ..................................................................................................................................... 21
12.1.1 J-3130/3230 Lower Saw Head – Exploded View ................................................................................ 22
12.1.2 J-3130/3230 Lower Saw Head – Parts List ......................................................................................... 23
12.2.1 J-3130/3230 Upper Saw Head – Exploded View ................................................................................ 24
12.2.2 J-3130/3230 Upper Saw Head – Parts List ......................................................................................... 25
12.3.1 J-3130/3230 Saw Base – Exploded View ........................................................................................... 26
12.3.2 J-3130/3230 Saw Base – Parts List .................................................................................................... 27
12.4.1 J-3130/3230 Stand and Coolant System – Exploded View ................................................................. 28
12.4.2 J-3130/3230 Stand and Coolant System – Parts List.......................................................................... 29
13.0 Warranty and Service ................................................................................................................................. 30
4
3.0 About this machine and manual
The JET 5”x8” Band Saw is available as a dry cutting saw or a wet cutting saw. If required, a dry cutting band
saw can be retrofitted with a kit which converts it to use with cutting fluids. The use of a hydraulic feed delivers
consistent, accurate cuts and longer blade life.
This manual is provided by JET covering the safe operation and maintenance procedures for a JET Model J3130 and J-3230 Band Saw. This manual contains instructions on installation, safety precautions, general
operating procedures, maintenance instructions and parts breakdown. Your machine has been designed and
constructed to provide consistent, long-term operation if used in accordance with the instructions as set forth in
this document.
If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our
web site: www.jettools.com.
Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.
Read and understand the entire contents of this manual before attempting assembly
or operation! Failure to comply may cause serious injury!
4.0 Features and Nomenclature
Figure 1: Features and nomenclature
5
5.0 Specifications
Model numbers .....................................................................................J-3130..................................................... J-3230
Stock numbers .....................................................................................414461.................................................... 414453
Type ............................................................................................................dry.......................................................... wet
Motor and electricals:
Motor type ............................................................................... .totally enclosed fan cooled, induction, capacitor start
Horsepower ..................................................................................................................................................... 1/2 HP
Phase ............................................................................................................................................................... single
Voltage ............................................................................................................................. 115/230V (prewired 115V)
Cycle .................................................................................................................................................................. 60Hz
Listed FLA (full load amps) ................................................................................................................................ 9/4.5
Starting amps...................................................................................................................................................... 44 A
Running amps (no load) .................................................................................................................................... 7.2A
Start capacitor.............................................................................................................................. 200 MFD, 125 VAC
Power transfer ...................................................................................................................................................... belt
On/off switch .......................................................................................................................................... toggle switch
Motor speed ............................................................................................................................................... 1725 RPM
Power cord length ................................................................................................................................ 6.4 ft. (195cm)
Power plug installed........................................................................................................................................... 120V
Recommended circuit size1 ................................................................................................................................. 15A
Sound emission ....................................................................................... 70 dB at 40” (1m) from blade, without load
Wet cutting package - coolant pump (optional) ................................................................................. single phase, 120V
1
subject to local/national electrical codes.
Capacities:
90° Cutting (Round) ................................................................................................................................. 5” (127mm)
90° Cutting (Rectangle) ................................................................................................ 7-1/2”w x 5”h (190 x 127mm)
90° Cutting (Flat Stock) ...................................................................................................... 8”w x 1”h (200 x 25.4mm)
45° Cutting (Round) ........................................................................................................................... 4-3/4” (120mm)
45° Cutting (Rectangle) ................................................................................................ 4-3/4”w x 5”h (120 x 127mm)
Blade speeds ................................................................................................................................... 85,120,200 SFM
Wet cutting tank (optional) .......................................................................................................... 1 gal (4.5L) capacity
Materials:
Table ....................................................................................................................................cast iron, ground surface
Bow............................................................................................................................................................... cast iron
Stand .................................................................................................................................................................. steel
Blade drive .......................................................... steel, heat-treated worm driving a bronze worm gear in an oil bath
Side blade guides ............ ball bearings mounted on eccentric shafts (bearings sealed and permanently lubricated)
Rear blade guides.......................................................................... ball bearings, sealed and permanently lubricated
Band wheels .....................................................................................................................................flanged cast iron
Dimensions:
Blade size .............................................................................................................................. 8/12T, 2” x 0.025” x 68”
Blade wheel diameter ........................................................................................................................ 7-3/8” (187mm)
Bed height from floor ....................................................................................................................... 23-1/2” (600mm)
Overall machine dimensions (arm horizontal) ........................................... 38”L x 16”W x 38”H (960 x 400 x 940mm)
Overall machine dimensions (arm vertical) ............................................. 38”L x 16”W x 58”H (960 x 400 x 1450mm)
Net weight ............................................................................... 143 lbs. (65 kg).................................... 160 lbs. (72.6 kg)
Shipping weight ....................................................................... 148 lbs. (67 kg)....................................... 165 lbs. (75 kg)
The specifications in this manual were current at time of publication, but because of our policy of continuous
improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring
obligations.
6
6.0 Set-up and assembly
Read and understand all
assembly instructions before attempting
assembly. Failure to comply may cause serious
injury.
6.1 Shipping contents
See Figures 2 and 3.
1
1
1
1
1
1
1
1
2
2
1
2
1
1
4
Band saw (not shown)
Work stop assembly – A
Pulley cover – B
Belt – C
Handwheel – D
Handle – E
Axle – F
Hydraulic cylinder – G
Wheels – H
Adjustable foot with nuts and washer – I
Stand trough – J
Stand cross braces – K
Stand shelf – L
Stand front panel – M
Stand legs (2 LH, 2 RH) – N
1
Hardware package, includes:
1 Socket hd cap screw, 5/16 x 4 – HP1
1 Socket hd cap screw, 3/8 x 1-1/4 – HP2
5 Socket hd cap screws, 1/4 x 1-1/4 – HP3
19 Phillips hd screws, 1/4 x 5/8 – HP4
2 Cotter pins, 1/8x1 – HP5
1 Hex nut, 5/16 – HP6
24 Hex nuts, 1/4 – HP7
24 Flat washers, 1/4 – HP8
6 Flat washers, 5/8 – HP9
Figure 3
6.2 Tools required for assembly
Wrenches, 10/12mm
Hex keys, 3/4/6/8 mm
#2 cross point screwdriver
Pliers
(Note: Ratchets and sockets will speed assembly.)
6.3 Unpacking and cleanup
Figure 2
(Hardware package p/n J-3130G-HK)
7
1.
Inspect contents for shipping damage. Report
damage, if any, to your distributor.
2.
Compare contents of shipping carton with the
contents list in this manual. Report shortages,
if any, to your distributor.
Figure 4
7.
6.4 Assembling the band saw
Remove the fixed plate which secured the saw
head for transport. Figure 5.
Refer to Figures 4 through 7. If further clarification
is needed, refer to exploded views in sect.12.0.
NOTE: Only make fasteners hand-tight at this time.
They will be fully tightened after band saw has
been settled atop stand.
1.
Assemble legs, cross braces, front panel and
shelf, as shown in Figure 4.
2.
Install handle (E) into end of assembled stand.
3.
Install axle and wheels on right side of stand.
Use two flat washers between wheel and
stand leg on each side. Insert cotter pin (HP5)
at each axle end and bend prongs to secure.
4.
Install adjustable feet (I) at opposite end of
stand and adjust until stand is level.
5.
Install trough (J), making sure tab on trough
engages slot on stand.
6.
Use an assistant to help lift band saw onto
stand, aligning the holes at the four corners
with the holes in the stand.
Figure 5
8
8.
Install a 1/4 x 1-1/4 socket head cap screw
with two flat washers and a hex nut in each of
the holes that mount the saw to the stand. Do
not fully tighten yet.
9.
Align holes in bracket and hydraulic cylinder
shaft, and secure with 3/8 x 1-1/4 socket head
cap screw (HP2). See Figure 6.
7.
Install the nozzle on the front of the valve, then
install the hose fitting and hose on the back
end of the valve.
8.
Fill the tank with approximately one gallon of
coolant.
9.
Put the valve handle in OFF position – at right
angle to the direction of flow through the valve.
10. Connect the pump to its electrical source.
Note: The pump cable is supplied with a standard
plug for a 120V single phase grounded branch
receptable. Always use a grounded receptable for
this purpose.
Figure 6
10. Insert a 5/16 x 4 socket head cap screw
through the hydraulic cylinder, and install a
hex nut on the threaded end, as shown in
Figure 6. Insert threaded end into hole in base
casting. Do not fully tighten yet.
Figure 7: Installing valve in valve bracket
11. Tighten all screws and nuts securing the saw
to the stand, and the screw on the hydraulic
cylinder.
7.0 Electrical connections
12. Tighten all hex nuts on stand assembly.
Plug the saw into a suitable service branch. The
saw is a 120V single phase motor and the motor
cable has a standard 3-prong grounded plug
installed.
6.5 Installing coolant kit
Refer to sect. 12.4.1 for a complete view of the
components in the coolant kit, and refer to Figure 7
for the attachment of the valve to the valve bracket
on the guide bearing seat.
1.
Install the baffle in the tank so the pump is
held at one end.
2.
Install the 90 degree elbow and one of the
hose fittings in the bottom of the coolant pump.
3.
Install one end of the coolant hose on the
pump fitting.
4.
Install the pump on the tank and put the
assembly into the tray underneath the saw
base.
5.
Install the valve, back end first, into the bracket
(Figure 7).
6.
Secure it with the set screw after being sure
the handle can turn its full 1/4 turn.
Always connect the plug to a
grounded branch circuit.
If local regulations require that the saw be
permanently wired, or if the environment in
which the saw is used makes this advisable,
the connection should only be made by a
licensed electrician who is familiar with all
national and local electrical codes.
The service disconnect should have an external
ON/OFF switch or lever which permits the saw
operator to disconnect branch power to the
saw during set-up and maintenance operations
as described in this manual.
9
7.1 Wiring diagram
for cutoff work, use the following procedure to
check the blade-to-jaw angle.
The motor standard on the saw is a 120V single
phase, 1750RPM motor which can also be
reconfigured for 240V operation. If the saw will be
used on a 240V single phase branch circuit, the
electrician will find a diagram for reconfiguring the
motor wiring underneath the motor terminal plate.
1.
Disconnect the saw from its electric power
source.
2.
With the saw arm in its fully lowered position,
place a machinist's square, or a machinist's
protractor 90 degrees, against the saw blade
and right vise jaw. If the jaw is square to the
blade, then no adjustment is required.
3.
If adjustment is required, see Angle Cutting.
The procedure for setting the jaw angle with
respect to the blade is described in that
section.
The wiring diagram here is included for reference
when replacing the motor, ON/OFF switch or cable.
These operations should be performed only by a
licensed electrician.
8.3 Angle cutting
Refer to Figure 9.
1.
Loosen the right jaw pivot and lock bolts.
2.
With the arm in its fully lowered position, and
using a machinist's protractor between the saw
blade and right vise jaw, set the angle of the
right jaw to the required angle.
3.
Tighten the pivot and lock bolts.
Figure 8: Wiring diagram
8.0 Operating Instructions
8.1 Clamping materials in the vise
Refer to Figure 1.
1.
Lift the saw arm to its full up position.
2.
Lock the arm up using the hydraulic feed
control valve.
NOTE: Use the handle on the arm to lift the
arm. Never use any other part of the arm as a
lifting method.
3.
Open the left vise by turning the vise
handwheel counterclockwise.
4.
Adjust the vise jaws for the appropriate cutting
angle, if required. See sections on Right angle
cutting and Angle cutting.
5.
Put the work piece material between the vise
jaws.
NOTE: If the work piece material is long,
support both the ends of the material as
needed to keep the material level on the saw
base.
6.
Turn the vise handwheel clockwise until the
work piece is securely clamped in the vise.
7.
Proceed to cut according to instructions in
Cutting procedure.
Figure 9: Using a protractor to set the vise jaws at
desired angle. By setting the protractor to 90
degrees, or using a machinist's square, the jaws
can also be set square with respect to the blade.
1.
8.2 Right angle cutting
Lift the saw arm to its full up position and lock
it up using the hydraulic feed control knob.
NOTE: Use the handle on the arm to lift the
arm. Never use any other part of the arm as a
lifting method.
Refer to Figures 1 and 9.
If you want to be certain the workpiece is being
held in the vise at exactly 90 degrees to the blade
2.
10
Loosen the left jaw lock bolt.
3.
Use the handwheel to move the left jaw until it
touches the right jaw firmly.
4.
Snug the left jaw lock bolt. Both vise jaws are
now the correct angle for the required cut.
8.5 Using the stock stop
When cutting a number of identical pieces, the use
of the stock stop can speed operations.
Refer to Figures 1 and 12.
NOTE: There is a scale on the back of the saw
table which allows you to set up for angle cuts
without using a protractor. See Figure 10.
These
angles
should
be
considered
approximate, and the protractor method should
be used where higher accuracy is required.
1.
Disconnect the saw from its electric power
source.
2.
With the arm in its fully lowered position,
loosen the stock stop set screw.
3.
Slide the stock stop to the required distance
from the blade.
4.
Rotate the stock stop so the stop is at the
lowest possible position for stopping the work
piece at the required distance. This will help
prevent any binding between the work piece
and blade when the cut is completed.
5.
Tighten the stock stop set screw securely.
6.
For best accuracy, make a test cut on a piece
of scrap material to verify the length of cut
using the stock stop.
Figure 10: Using the scale on the rear of the saw
base to set the jaws for angle sawing. Where the
edge of the right jaw crosses the scale an
approximate angle cut can be made to the
indicated number of degrees on the scale.
8.4 Clamping methods
The method for clamping different cross-section
work pieces is shown in Figure 11.
Figure 12: Setting the stock stop cutoff length
8.6 Blade selection
The saw is delivered with a blade adequate for a
variety of jobs on a variety of common materials.
However, JET's blades, while appropriate to many
shop cutting needs, don't begin to exhaust the wide
variety of special blades available for special
cutting jobs.
For high production cutting of special materials, or
for hard-to-cut materials such as stainless steel,
tool steel, titanium, etc., ask your industrial
distributor for more specific blade recommendations.
Material
Speed
Steel shapes and low carbon steel
Medium and high carbon steel
Cr-Moly steel
Chromium steel
Tool steel
Cast iron
Aluminum
Most plastics
Wood
125
85
125
125
85
85
85-125
200
200
Table 2: Recommended blade speeds
Figure 11: Clamping methods for various crosssections of stock
11
8.7 Changing blade speeds
1.
5.
Refer to Table 2 for recommendations on
blade speed for various materials.
8.8 Evaluating cutting efficiency
Note: These are approximate speeds.
Different alloys and section materials and the
use of cutting fluid may require other speeds.
Check your machinists' handbook, or ask for
recommendations from your blade, cutting fluid
or workpiece suppliers for specific recommendations on specific material.
2.
Disconnect the saw from its electrical power
source.
3.
With the arm in its fully lowered position,
remove the pulley cover lock screw and open
the pulley cover. Refer to Figure 13 for speeds
and belt positions.
Is the blade cutting efficiently? The best way to tell
is by observing the chips formed by the blade as it
cuts.
If the chip formation is powdery, then the feed is
much too light or the blade is too dull.
If the chips formed are curled, but straw or blue
colored, then the feed rate is too high.
If the chips formed are curled but not colored, then
the blade is sharp enough and cutting at an
efficient rate.
8.9 Cutting procedure
Figure 13: Blade speeds and belt positions
4.
Re-establish electrical power to the saw and
proceed with cutting.
To change the belt position (and, therefore, the
blade speed) first loosen the motor plate
adjustment lock nut. Refer to Figure 14 for the
position of the motor plate adjustment screw
and locknut.
1.
Never start a cut with the blade resting on the
work piece.
2.
Be certain you knock off the sharp corners of
any work piece material which might damage
the blade. See Figure 11.
3.
Have the motor ON and running at full speed
before lowering the blade into the cut.
4.
Use the hydraulic control valve to feed the
blade into the work piece.
5.
If you use a cutting fluid, turn the valve on
before beginning the cut.
8.10 Using the hydraulic feed control
Refer to Figure 16.
The hydraulic feed control cylinder is a "single
action" hydraulic cylinder. This allows you to lift the
arm at any time, easily, but controls the downward
movement of the arm using a valve on the top of
the cylinder.
Figure 14: Motor plate adjustment screw
5.
Turn the adjustment screw counterclockwise
until the belt can be moved to the pulley
position required.
6.
Turn the adjustment screw clockwise to
tension the belt until there is 1/2 inch of play in
the belt as shown in Figure 15.
Figure 15: Setting correct play in drive belt
7.
Tighten the adjustment lock nut.
8.
Close the pulley cover and secure it shut with
the lock screw.
Figure 16: Hydraulic feed control
12
When the control valve is turned fully clockwise the
cylinder is "locked" and the saw arm will not move
downward. You can lock the arm, using the valve,
at any position in its travel. This allows you to lock
the arm in its up position for operations which
require it. And it allows you to lock the arm in
positions which allow you to adjust work piece
length, etc.
2.
3.
Remove the blade guard cover thumb screw
and open the cover.
Most important, use of the valve allows you to
begin any cuts "gently," which can greatly extend
the life of the blade. Simply open the valve slightly
to begin the cut, then open the valve to effective
cutting feed. See Evaluating cutting efficiency.
4.
Loosen the blade tension knob until the blade
comes off of its wheels.
5.
Using leather gloves to protect from cuts, slip
the blade out of the blade guide bearings and
off of the saw.
6.
Examine the drive and idler wheels for
evidence of wear on the flanges. If the flanges
are wearing, the blade is misadjusted. See
Blade tracking for correcting this condition.
7.
Put a replacement blade in the blade guide
bearings and loop the ends of the blade over
the drive and idler wheels.
NOTE: Use the handle on the arm to lift the
arm. Never use any other part of the arm as a
lifting method.
The valve is also important when breaking in any
new blades. See Blade break-in procedures.
8.11 Blade break-in procedures
New blades are very sharp, and therefore have a
tooth geometry which is easily damaged if a careful
break-in procedure is not followed. You may want
to consult manufacturers' literature for break-in of
specific blades on specific materials. However, the
following break-in procedure will be adequate for
break-in of JET supplied blades.
1.
Clamp a 2 inch or larger work piece in the saw.
2.
Set the blade speed to its required speed.
See Changing blade speeds.
3.
If possible, use a cutting fluid during break-in
cuts.
4.
NOTE: The saw blade teeth must point in the
direction of travel. See Figure 17.
8.
When the blade has cut 1/3rd of the way
through the work piece, increase the feed rate
slightly and allow the blade to complete the
cut.
6.
Make another cut on the stock. Begin the cut
with the control valve set at the same feed rate
you finished the first cut.
7.
1/3rd of the way through the second cut,
increase the rate of feed until the blade is
cutting at its most efficient rate. See Evaluating
cutting efficiency.
8.
Allow the saw to complete this second cut.
The blade can now be considered ready for
regular service.
9.
Close the blade guard cover and replace and
tighten the thumb screw.
10. Reconnect the saw to its electrical power
source.
Figure 17: Corrrect tooth direction when replacing
blade.
8.13 Adjusting blade guides
Refer to Figure 1.
Both the left and right blade guides should be
positioned as close as possible to the left and right
edges of any work piece being cut. This provides
support to the blade so it can make a straight cut.
Note: There are flanges on the back face of the
drive and idler wheels to prevent the blade from
"walking off" the back of the wheels. If these
flanges are damaged the wheels must be replaced.
Check blade tracking whenever changing a blade
to be certain the blade is positioned correctly on
the wheels. See Blade tracking in the Maintenance
section of this manual
8.12 Changing blades
1.
Use the blade tension knob to put tension on
the blade until it no longer slips on the wheels.
NOTE: Do not overtighten the blade. Just
increase tension until the blade does not slip
on the wheels.
Set the hydraulic control valve just enough to
begin a very light cut on the work piece.
5.
Lift the saw arm to its full up position and lock
it up using the hydraulic feed control knob.
Disconnect the saw from its electric power
source.
13
1.
Loosen the blade guide knobs.
2.
Slide the blade guides to the correct spacing.
3.
Tighten the lock knobs securely.
3.
9.0 Maintenance
NOTE: The following maintenance operation
requires the services of a licensed electrician.
9.3 Blade tracking
9.1 Motor replacement
1.
Perform steps 2 through 5 in Changing blade
speeds, sect. 9.7.
2.
Remove the drive belt.
3.
Remove the set screw which retains the motor
drive pulley to the motor shaft.
4.
Pull the pulley off of the motor drive shaft.
5.
BEING CERTAIN THAT THE SAW HAS BEEN
SAFELY DISCONNECTED FROM THE
SERVICE BRANCH, open the motor terminal
cover and remove the three wires which
connect it to the power cable.
6.
Remove the four nuts, bolts and washers
which hold the motor to its mounting plate.
7.
Remove the motor from the saw.
8.
Reinstall the replacement motor and pulley by
reversing steps 7 through 4, above.
9.
Loosen the motor mounting plate adjustment
screw so the screw puts no tension on the
plate.
While holding the shaft from turning, tighten
the lock nut on the upper side of the bearing
seat.
1.
If the blade is fully tensioned, release tension
slightly while performing the tracking
operation.
2.
If the blade is not on slow speed, change to
the slowest speed according to instructions in
Changing blade speeds.
3.
Lift the saw arm to its full up position and lock
it using the hydraulic feed control knob.
NOTE: Use the handle on the arm to lift the
arm. Never use any other part of the arm as a
lifting method.
4.
Remove the thumb screw and open the blade
guard cover. Prop it open so you can have
access to the idler wheel.
5.
Refer to Figure 18. Use a wrench to loosen
bolt A, a small amount.
10. Adjust the position of the motor so that:
A. the pulleys are parallel with each other, and
B. the drive belt can just be installed over the
pulleys (It may be necessary to adjust the
drive pulley along the motor shaft to make the
pulleys parallel.)
Figure 18: Blade tracking mechanism
11. Tighten the motor mounting bolts securely.
6.
Turn the saw motor ON.
7.
Insert a hex wrench into the set screw, B, and
turn it slightly while observing the tracking
action of the blade on the idler wheel. Turning
the hex wrench clockwise will make the blade
track toward the wheel flange. Turning the
wrench counterclockwise will make the blade
track away from the flange.
8.
Adjust the set screw in very small amounts
until the blade just starts to track toward the
flange.
9.
As you adjust the blade toward the flange,
insert a strip of paper between the blade and
wheel as shown in Figure 19.
12. Tighten the pulley set screw securely.
13. Install the drive belt.
14. Tension the drive belt and complete the
replacement task by performing instructions 5
through 9 in Changing blade speeds.
9.2 Adjusting guide bearings
The outside guide bearing on each of the bearing
seats is mounted on an eccentric shaft to allow
adjustment of the bearing clearance between
bearings and blade, as follows:
1.
Loosen the guide bearing shaft lock nut.
2.
Use an open end wrench on the hex flats
underneath the guide seat to adjust the
eccentric shaft so the bearing holds the blade
vertically against its opposing bearing. Overtightening the blade between the bearings will
only shorten bearing life. Adjust the bearings
so blade is just held firmly in vertical position.
Use a strip of paper six
inches long or longer so your hands stay
clear of the moving parts of the saw.
14
Figure 19: Checking blade tracking
10. Keep using small amounts of adjustment to
move the blade toward the flange, testing with
the paper strips, until the paper is cut between
the blade and flange.
11. When the paper is cut, turn the hex wrench
slightly in the opposite direction so the blade
does not track while touching the flange.
12. Tighten bolt A.
Figure 20: Adjusting back-up bearings
13. Check with a paper strip to be certain the
blade has not moved back into contact with the
flange. Readjust, if necessary.
9.6 Adjusting the arm stop
adjustment bolt
14. Using the blade tension knob, reapply tension
to the blade so it does not slip on the wheels.
Refer to Figure 1.
1.
9.4 Replacing guide bearings
Lower the arm to its fully lowered position.
The saw blade should be level and the cutting
edge of the blade should be in the relief slot,
below the level surface of the saw base. If this
is not the case, adjust the arm height as
follows:
2.
Loosen the leveling bolt lock nut.
1.
Remove the blade according to instructions 1
through 5 in Changing blades, sect. 9.12.
3.
2.
Remove the snap ring which holds the bearing
to the shaft.
Adjust the leveling bolt until it supports the arm
and blade correctly as described above -- level
and below the top of the saw base.
4.
Tighten the leveling bolt lock nut.
3.
Press off the bearing.
4.
Press on the new bearing and secure it with
the snap ring.
15. Turn the saw OFF.
16. Close the blade guard cover and install and
tighten the thumb screw.
5.
Reinstall the blade according to instructions 6
through 10 in Changing blades.
6.
Adjust the bearing spacing according to
instructions in Adjusting guide bearings.
9.7 Adjusting motor switch actuator
This task should be performed whenever the arm
stop adjustment is corrected or whenever the saw
is turning off incorrectly.
Refer to Figure 1.
1.
9.5 Adjusting back-up bearings
Raise the arm until the switch actuator is not in
contact with the switch.
2.
Turn the switch ON.
Refer to Figure 20.
3.
Open the hydraulic control valve so the arm
moves slowly downward.
4.
The motor switch should shut off just as the
arm contacts its horizontal stop bolt and the
blade is fully below the blade relief in the saw
base. If the motor shuts off too soon, or not at
all, adjust the switch actuator by bending it, as
required, to correct the fault condition.
1.
Disconnect the saw from its electrical power
source.
2.
Loosen the guide bearing seat retaining bolt.
3.
Slide the bearing seat as necessary until the
back-up bearing just touches the back edge of
the saw blade.
4.
Tighten the guide bearing seat retaining bolt.
5.
Restore electrical power to the saw.
15
9.8 Replacing a back up bearing
1.
Remove the blade according to instructions 1
through 5 in sect. 9.12.
2.
relief between the seat and guide bar to allow
for this adjustment.)
7.
Tighten the seat attachment bolt.
Remove the guide bearing assembly from the
saw arm by removing the guide lock knob and
sliding the assembly from the arm.
8.
Move the scale and square to the other side of
the exposed blade and repeat steps 4, 5, 6
and 7, above.
3.
Use a drift to knock out the pin until the
bearing can be removed.
4.
Replace the bearing and press the shaft back
into the seat.
9.10 Test cutting to verify adjustment
accuracy
5.
Reinstall the bearing assembly in the arm.
6.
Reinstall the blade according to instructions 6
through 9 in sect. 9.12.
7.
Adjust the back-up bearing spacing according
to instructions in Adjusting back up bearings.
Test cuts can be used to determine whether or not
you have adjusted the blade accurately. Use 2 inch
bar stock to perform these test cuts, as follows:
9.9 Adjusting the bearing guide
seats for blade vertical
1.
Install a new blade according to instructions in
sect. 9.12.
2.
Adjust the guide bearings according to
instructions in sect. 10.2, Adjusting guide
bearings.
3.
Adjust the back-up bearing according to
instructions in sect. 10.5, Adjusting back-up
bearings.
4.
With the arm in its full horizontal position and
the blade guides moved apart to clear the
widest possible cutting area, clip a scale to the
blade, to provide a vertical reference surface.
5.
Place a machinist's square on the saw base,
against the scale. See Figure 21.
1.
With the bar stock securely clamped in the
vise, make a cut through the bar stock. (See
Figure 22.)
2.
Mark the top of the bar stock.
3.
Move the bar stock about 1/4 inch past the
blade so you can begin a second cut.
4.
Rotate the bar stock 180 degrees so the mark
you made is now at the bottom of the cut.
5.
Make a cut through the bar stock.
6.
Use a micrometer to measure the thickness
variation between the top and bottom of the
disc you have cut from the bar stock. Unless
things are truly perfectly aligned, there is
almost certain to be a certain amount of
"wedge" to the shape of the disc you have cut.
The saw blade can be considered correctly
adjusted when the variation measured is no
more than .012 inch across the face of the
disc. If you do not have a 2 inch bar stock
available for a test cut, use a larger diameter
test work piece rather than a smaller one.
The maximum thickness variation on any
test piece should be no more than .003
inches, per side, per inch of stock diameter.
Figure 21: Adjusting the saw blade for vertical. Be
sure to do this operation on both of the bearing
guide seats so the blade is perfectly vertical along
its entire exposed cutting surface.
6.
Loosen the guide bearing seat attachment bolt
slightly and, using a wrench on the bearing
seat, adjust the angle of the seat so the blade
is vertical. (There is a small amount of side
Figure 22: Making a test disc.
16
10.0 Maintenance Chart
Item
Action
Interval
Comments
Wheel, guide or back-up
bearings
Inspect for leakage
Daily
All bearings are sealed –
any leaking bearing must
be replaced.
Lead screw
Wipe on lubricant
Weekly
Gear oil* (see note, below)
Drive belt
Inspect and replace when
glazed or worn
When changing blade
speeds
Gearbox
Inspect for leakage – repair
if leaking
Daily
Replace lubricant
Annually
Gear oil*(see note, below)
Inspect flange and blade
surfaces
When changing blades
Replace wheels if flanges
are worn
Daily
Dirt on the control rod can
damage the seal and cause
leakage -- resulting in
replacement of the cylinder
assembly.
Drive and idler wheels
Hydraulic cylinder assembly Clean control rod with a
clean rag
Table 3
* Note: Gearbox and lead screw lubrication: Lubricate the vise lead screw and gearbox with Shell Omala S1W
or its equivalent.
The gearbox gears run in an oil bath and will not require lubricant change more than once a year unless the
lubricant is accidentally contaminated or leakage occurs due to improper replacement of the gearbox cover or
gasket. During the first few days of operation the drive gears will run hot. Unless the temperature exceeds 200
degrees F., there is no cause for concern.
17
11.0 Troubleshooting J-3130 and J-3230 Band Saws
Table 4
Symptom
Possible Cause
Correction
Excessive blade
breakage.
Material loose in the vise.
Use more pressure to tighten vise.
Incorrect feed or speed.
Incorrect blade tension.
Teeth in contact with work before saw is
started.
Blade rubs on wheel flange.
Misadjusted blade guides.
Blade too thick for wheel diameter
Premature blade
dulling.
Check right jaw pivot and lock bolts for
tightness.
Check left jaw pivot bolt for looseness -- be
certain the jaw is not tilting upward when you
apply pressure to the work in the vise.
If you are stacking multiple pieces in the vise,
be sure all of the pieces are captured by the
vise pressure.
Check technical literature for recommended
feeds and speeds for the material and blade
you are using.
Check chip formation to adjust speed and feed
to correct rate when sawing.
Adjust blade tension to where it just does not
slip on the wheel.
Be sure the saw motor has come fully up to
speed before beginning a cut and be sure the
blade is not resting on the work piece before
the motor has come up to full speed.
Use paper cutting method of adjusting blade
tracking. See Blade Tracking .
Check drive and idler wheels for looseness in
mounting parts or worn/damaged bearings.
Adjust blade guides.
Cracking at weld
Use a thinner blade. Check with your blade
supplier for recommendations on blade
thickness for a specific wheel diameter.
Replace blade.
Teeth too coarse.
Use finer tooth blade.
Blade speed too high.
Try next lower speed or check technical
literature
for
specific
recommendations
regarding speeds for specific blade and
material being cut.
Check
with
materials
supplier
for
recommendations on the work piece material
supplied.
If using coolant, check with supplier regarding
correct coolant for the job.
Increase pressure while observing chip
formation to be sure you are cutting efficiently.
Reduce speed of blade.
Inadequate feed pressure.
Hard spot or scale on material.
Increase feed pressure in scale or hard spots.
Work hardening of material (especially
stainless steel).
Blade installed backwards.
18
Work hardening materials such as stainless
require a heavy, continuous cut. Be sure you
are using a sharp blade, then, if necessary,
release some counterbalance spring pressure
by loosening the tension nut if work hardening
of the material is a problem.
Reinstall blade so teeth point toward right end
of saw.
Symptom
Possible Cause
Correction
Incorrect coolant or no coolant.
Check with materials supplier and/or blade
supplier for coolant recommendations.
Check with coolant supplier for specific
recommendations on the blade and material
you are using.
Increase tension so blade is above the slipping
point.
Adjust the right vise jaw so it is at right angles
to the blade.
Clamp work tightly in the vise.
Premature blade
dulling. (cont.)
Insufficient blade tension.
Crooked cuts.
Work not square.
Feed pressure too great.
Guide bearings not adjusted properly.
Inadequate blade tension.
Blade guides incorrectly spaced.
Dull blade.
Check blade for vertical and adjust, if
necessary.
Move guide bearings as close as possible to
work while still completing the cut.
Check guide bearings, seats and brackets for
possible looseness or wear.
Observe chip formation to be sure cutting is
efficient.
Adjust guide bearings according to instructions
in this manual.
Increase blade tension so blade does not slip
on the wheels.
Move guide brackets until they just clear the
work piece while making a complete cut.
For small section pieces, be sure the blade is
sharp and correctly tensioned. Use less feed
pressure.
Replace blade when it dulls.
Consider using a coolant, if not already used.
Incorrect speed.
Rough cuts.
Blade guide assembly loose.
Check technical literature for recommended
speeds and blade type for material being cut –
observe chip formation to verify efficient
cutting.
Tighten guide bracket.
Blade guide bearing assembly loose.
Check tightness of bearing seat bolt.
Blade tracking too far away from wheel
flanges.
Worn upper wheel bearings.
Use paper cutting method of setting blade
tracking.
Replace bearings if worn.
Loose upper wheel mounting assembly.
Tighten all bolts securing wheel to arm.
Too much feed or speed.
Try one step lower speed and observe chip
formation for efficient cutting/feed rate.
Use finer blade. Check with suppliers for
recommendations for the material you are
cutting.
Check
with
blade
suppliers
for
recommendations for exotic or unusual
materials or specifications.
Be sure work piece is flat on saw base.
Blade too coarse.
Incorrect blade for material.
Blade twisting.
Cut is binding blade.
Decrease feed pressure.
Too much blade tension.
Reduce tension to just above point where
blade slips.
Check eccentric jam nuts for tightness.
Loose guide bearing eccentrics.
Worn guide bearings.
Check guide bearings for wear. Replace if
necessary.
19
Symptom
Blade twisting. (cont.)
Possible Cause
Correction
Incorrect guide bearing adjustment
Adjust guide bearings according to instructions
in this manual.
Tighten bracket on saw arm.
Loose guide bearing bracket
Loose bearing seat attachment screw
Unusual wear on
side/back of blade.
Breaking teeth.
Blade guides worn.
Blade guide bearings not adjusted
properly.
Blade guide bearing bracket loose.
Check and adjust for proper clearance.
Blade running on wheel flange.
Adjust blade tracking using the paper cutting
method.
Use blade with finer pitch.
Teeth too coarse for work.
Too heavy feed.
Tighten bracket to saw arm.
Decrease feed rate – observe chip formation to
verify efficient cutting.
Increase blade speed. Check technical
literature or blade or work piece supplier for
blade speed recommendations.
Be sure vise is tight.
Too slow speed.
Vibrating work piece.
Worn transmission and worm gear.
Support slender cross section or long work
pieces with appropriate in feed and out feed
supports.
If stacking pieces in the vise, be sure all work
pieces are securely captured by the vise.
Use coarser blade or one with a tooth
geometry more appropriate to the work piece
being cut.
Always allow motor to come fully up to speed
before beginning cut.
Decrease blade tension to just above slip
point.
Replace gears in transmission gearbox.
Gears need lubrication.
Check gearbox and add oil as required.
Tooth gullets loading
Motor running too hot.
Tighten bearing seat attachment screw –
adjust bearing clearance.
Replace.
Blade in contact with work piece before
motor is started.
Blade tension too high.
20
12.0 Replacement Parts
Replacement parts are listed on the following pages. To order parts or reach our service department, call 1800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Having the Model Number and Serial
Number of your machine available when you call will allow us to serve you quickly and accurately.
Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from JET.
Some parts are shown for reference only, and may not be available individually.
21
12.1.1 J-3130/3230 Lower Saw Head – Exploded View
22
12.1.2 J-3130/3230 Lower Saw Head – Parts List
Index No Part No
Description
Size
Qty
01 .............. 5631421 .................... Hex head Screw ...................................................... 1/4"-20x3/4" .................. 4
02 .............. 5631431 .................... Hex nut .................................................................... 1/4"-20 .......................... 4
03 .............. 5630221 .................... Washer * .................................................................. 1/4"x5/8xt1.5mm ........... 3
04 .............. 5631451 .................... Washer ................................................................... 5/16"x23xt2 ................... 8
05 .............. 5630061 .................... Hex nut ................................................................... 5/16"-18 ........................ 1
06 .............. 5631161 .................... Motor cable .............................................................. ...................................... 1
07 .............. 5630471 .................... Hex head screw ...................................................... 5/16"-18x1-1/4"L ........... 1
08 .............. 5630301 .................... Washer ................................................................... 3/8"x27xt3 ..................... 1
09 .............. 5631481 .................... HH screw ................................................................. 5/16"-18x3/4"L .............. 2
10 .............. 5630461 .................... Washer .................................................................... 5/16"x23xt3 ................... 2
11 .............. 5630661 .................... Wheel bearing Cover ............................................... ...................................... 1
12 .............. 5630671 .................... Key .......................................................................... 5x5x25mm .................... 2
13 .............. 5632011 .................... Motor key ................................................................. 5x5x30mm .................... 1
14 .............. 5632021 .................... Hex head screw ....................................................... 1/4"-20x1/2"L ................ 9
15 .............. 5630701 .................... Switch activator bracket ........................................... ...................................... 1
16 .............. 5630731 .................... Blade tension adjustment knob ............................... 3/8"-16UNCx94mmL ..... 1
17 .............. 5630741 .................... Spring ...................................................................... ...................................... 1
18 .............. J-5630751G .............. Head casting ............................................................ ...................................... 1
19 .............. 5630681 .................... Set screw ................................................................. M8-P1.25x8L ................ 1
20 .............. 563077A .................... Hex head screw ....................................................... 3/8"-16x1-1/4"L ............. 2
21 .............. 563078AG ................. Motor mounting plate ............................................... ...................................... 1
22 .............. J-5630791 ................. Motor ....................................................................... 1/2HP,1PH,,115V ......... 1
23 .............. 5630811 .................... Motor pulley ............................................................. ...................................... 1
24 .............. 5630821 .................... Ball bearing ............................................................. 6202Z ............................ 2
25 .............. 5633121 .................... Transmission gear shaft .......................................... ...................................... 1
25-1 ........... 5521940 .................... Transmission Wheel Shaft ....................................... ...................................... 1
25-2 ........... 5521941 .................... Transmission Gear .................................................. ...................................... 1
25-3 ........... 5521942 .................... Pin ........................................................................... 4x22mmL ...................... 1
25-4 ........... 5630821 .................... Ball Bearing ............................................................. 6202ZZ ......................... 2
25-5 ........... 5521943 .................... Bushing .................................................................... ...................................... 1
25-6 ........... 5630941 .................... Oil Seal .................................................................... TC15x35x7 ................... 1
27 .............. 5630871 .................... Gearbox gasket ....................................................... ...................................... 1
28 .............. 5630881G ................. Gearbox cover ......................................................... ...................................... 1
29 .............. 5630921 .................... Worm gear & shaft assy. ......................................... ...................................... 1
31 .............. 5630911 .................... Bearing bushing ....................................................... ...................................... 1
32 .............. 563093A .................... Belt tension adj. screw ............................................ 5/16"-18x1-1/2"L ........... 1
33 .............. 5630941 .................... Oil Seal .................................................................... TC15x35x7 ................... 1
34 .............. 5632031 .................... RH Phillips screw ..................................................... 5/32"-32x3/8"L ............. 3
35 .............. 5630961 .................... Worm gear pulley .................................................... ...................................... 1
36 .............. 5630971 .................... Blade tension guide block ........................................ ...................................... 1
37 .............. 5630981 .................... Set Screw ................................................................ M8-P1.25x15mmL ....... 1
38 .............. 5630991 .................... Spiral pin ................................................................. 4x20L ............................ 1
39 .............. 5631001 .................... Sliding plate draw block ........................................... ...................................... 1
40 .............. 5631011 .................... Blade wheel shaft .................................................... ...................................... 1
41 .............. 5631021 .................... Tension block .......................................................... ...................................... 1
42 .............. 5631031 .................... Guide block holder ................................................... ...................................... 2
43 .............. 5631041 .................... Guard plate .............................................................. ...................................... 1
44 .............. 5631051 .................... Pulley guard ............................................................. ...................................... 1
45 .............. 5631061 .................... V-Belt ....................................................................... 4L230 ............................ 1
46 .............. 5631151 .................... Lock washer ........................................................... 1/4"................................ 1
47 .............. 5631311 .................... Vent plug ................................................................. ...................................... 1
48 .............. 5632081 .................... Rubber plug ............................................................. ...................................... 1
49 .............. 5521944 .................... Cylinder Upper Bracket............................................ ...................................... 1
50 .............. TS-2248162 .............. Socket HD button screw .......................................... M8X16 .......................... 2
50 .............. 5521951 .................... Hex head screw ...................................................... 5/16"-18x7/8"L .............. 2
51 .............. TS-1550061 .............. Flat Washer ............................................................. M8 ................................. 2
51 .............. 5521952 .................... Lock Washer ............................................................ 5/16".............................. 2
52 .............. 5632021 .................... Hex head screw * .................................................... 1/4"-20x1/2"L ................ 2
53 .............. 5521945 .................... Tension guard .......................................................... ...................................... 1
.................. JET-92....................... JET Logo with 3M Adhesive (not shown) ................ ...................................... 1
* indicates items included in J-3130G-HK Hardware Kit
23
12.2.1 J-3130/3230 Upper Saw Head – Exploded View
24
12.2.2 J-3130/3230 Upper Saw Head – Parts List
Index No Part No
Description
Size
Qty
01 .............. 5630221 .................... Washer ................................................................... 1/4"x16xt1.5 .................. 1
02 .............. 5630051 .................... Hex head screw ...................................................... 5/16"-18x1-1/4"L .......... 2
03 .............. 5630301 .................... Washer ................................................................... 3/8"x27xt3 ..................... 3
04 .............. 5631471 .................... RH Phillips screw ..................................................... 3/16"-24x3/8"L .............. 4
05 .............. 5631481 .................... Hex head screw ....................................................... 5/16"-18x3/4"L .............. 3
06 .............. 5630461 .................... Washer .................................................................... 5/16"x23xt3 ................... 1
07 .............. 5630511A .................. Top guide bar .......................................................... ...................................... 1
08 .............. 5630521 .................... Knob ........................................................................ ...................................... 1
09 .............. J-5630531 ................. Blade guard cover ................................................... ...................................... 1
10 .............. 5630541 .................... Retaining ring .......................................................... 5/16"x0.040 ................... 4
11 .............. 563055A .................... Bearing ................................................................... 608 and 629 .................. 6
12 .............. 563056A .................... Straight shaft ........................................................... ...................................... 2
13 .............. 563050A .................... Eccentric shaft ......................................................... ...................................... 2
14 .............. 563057A .................... Bearing pin shaft ...................................................... ...................................... 2
15 .............. 563129A .................... Bearing bracket, right .............................................. ...................................... 1
15-1 ........... 5521954 .................... Bearing bracket, left ................................................. ...................................... 1
16 .............. 563059A .................... Bottom guide bar ..................................................... ...................................... 1
17 .............. TS-0060061 .............. Hex cap screw ........................................................ 3/8"-16x1-1/4”L ............. 1
17-1 ........... J3130-17-1 ................ Lock handle ............................................................. ...................................... 1
18 .............. 5630621 .................... Flat head screw ...................................................... 1/4"-x20x1/2"L............... 1
19 .............. 5630631 .................... Deflector plate ......................................................... ...................................... 1
20 .............. 5630641 .................... Hex Nut ................................................................... 3/8-16UNC .................... 4
21 .............. 5630651 .................... Drive wheel .............................................................. ...................................... 1
21-1 ........... TS-0270021 .............. Socket set screw...................................................... 5/16"-18x5/16"L ........... 1
22 .............. 5630661 .................... Wheel bearing Cover ............................................... ...................................... 1
23 .............. 5630711 .................... Idler wheel ............................................................... ...................................... 1
24 .............. 5630821 .................... Ball bearing .............................................................. 6202ZZ ......................... 2
27 .............. 5632031 .................... RH Phillips screw .................................................... 5/32"-32x1/4"L .............. 5
28 .............. 5632041 .................... Washer ................................................................... 5/16"x2mm .................... 1
28-1 ........... TS-0720081 .............. Lock washer ............................................................ 5/16".............................. 1
29 .............. 5631241 .................... Standard blade ....................................................... 14Tx1/2x.025x68 .......... 1
.................. 5631261 .................... Optional blade ........................................................ 8Tx1/2x.025x68 ............ 1
.................. 5631071 .................... Optional blade ......................................................... 10Tx1/2x.025x68 .......... 1
30 .............. 5631081 .................... Split lock washer ..................................................... 3/8"................................ 4
31 .............. 5631121 .................... Bushing .................................................................... ...................................... 1
32 .............. 5632051 .................... Drive wheel bushing ................................................ ...................................... 1
33 .............. 5631341 .................... Retainer ring ............................................................ ...................................... 1
34 .............. 5630721 .................... Bushing .................................................................... ...................................... 1
35 .............. J-563120A ................. Bottom blade guard ................................................. ...................................... 1
36 .............. J-5631211 ................. Upper blade guard ................................................... ...................................... 1
38 .............. 5631231 .................... Bracket .................................................................... ...................................... 1
39 .............. 5630261 .................... Aluminum hd. screw ................................................ 5/16"-18x1-1/4"L .......... 1
40 .............. 5632131 .................... Set screw ................................................................. 1/4"-20x3/8"L ................ 1
41 .............. 5631371 .................... Bottom blade guide assembly ................................. ...................................... 1
42 .............. 5631361 .................... Top blade guide assembly ....................................... ...................................... 1
43 .............. 5518413 .................... C-Ring ..................................................................... S15 ............................... 1
25
12.3.1 J-3130/3230 Saw Base – Exploded View
26
12.3.2 J-3130/3230 Saw Base – Parts List
Index No Part No
Description
Size
Qty
01 .............. 5630221 .................... Washer ................................................................... 1/4"x16xt1.5 .................. 1
02 .............. 5630031 .................... Washer .................................................................... 5/16".............................. 1
03 .............. 5630051 .................... Hex head screw ....................................................... 5/16"-18x1"L ................. 2
04 .............. 5630061 .................... Hex nut .................................................................... 5/16"-18 ........................ 8
05 .............. 5630081 .................... Adjust rod ................................................................ ...................................... 1
06 .............. 5630111 .................... Pivoting rod .............................................................. ...................................... 1
07 .............. 5630121 .................... Support plate ........................................................... ...................................... 1
08 .............. 5630131 .................... Stock stop ................................................................ ...................................... 1
09 .............. 5630241 .................... Set screw ................................................................. 5/16"-18x5/16"L ............ 2
10 .............. 5630151 .................... Stock stop rod .......................................................... 1/2"x216L ...................... 1
11 .............. J3130-311 ................. Electric wire restrainer ............................................. ...................................... 2
12 .............. 5630171 .................... Toggle switch ........................................................... ...................................... 1
13 .............. 5630181 .................... T.S. hex nut ............................................................. ...................................... 1
14 .............. 5630211 .................... ON/OFF plate .......................................................... ...................................... 1
15 .............. 5631091 .................... Handle grip .............................................................. ...................................... 1
16 .............. 5630231 .................... Hand wheel .............................................................. ...................................... 1
17 .............. 5630251 .................... Retaining ring .......................................................... E10 ............................... 1
18 .............. 5630271 .................... Lead screw .............................................................. ...................................... 1
19 .............. 5630281 .................... Vise nut .................................................................... ...................................... 1
20 .............. J-5630291 ................. Vise jaw, left ............................................................ ...................................... 1
21 .............. 5630301 .................... Washer ................................................................... 3/8"x27xt3 ..................... 3
22 .............. 5630311 .................... Hex head screw ....................................................... 5/16"-18x1-1/4"L ........... 1
23 .............. J-5630321G .............. Base casting ............................................................ ...................................... 1
24 .............. 5630341 .................... Scale ........................................................................ ...................................... 1
25 .............. 5630351 .................... Switch enclosure ..................................................... ...................................... 1
26 .............. J3130-326 ................. Plastic Cover ........................................................... ...................................... 1
26-1 ........... 563038A .................... Wire restrainer ......................................................... PG9 ............................... 1
27 .............. 5630391 .................... Power supply cable ................................................. ...................................... 1
28 .............. 5630401 .................... Feed spring bracket, right ........................................ ...................................... 1
28-1 ........... 5521946 .................... Feed spring bracket, left .......................................... ...................................... 1
29 .............. 5630411 .................... Eye bolt .................................................................... ...................................... 1
30 .............. 5630421 .................... Spring ...................................................................... ...................................... 1
31 .............. J-5630441 ................. Vise jaw, right .......................................................... ...................................... 1
32 .............. 5631481 .................... Hex head screw ...................................................... 5/16"-18x1"L ................. 6
33 .............. 5630461 .................... Washer .................................................................... 5/16"x23xt3 ................... 3
34 .............. 5630451 .................... Hex head screw ....................................................... 5/16"-18x1-1/2"L ........... 1
35 .............. 5631491 .................... Hex head screw ...................................................... 7/16"-14x2"L ................. 1
36 .............. J-5630491G .............. Pivot ......................................................................... ...................................... 1
37 .............. 5630611 .................... Spring Washer ......................................................... 5/16"x3/4"x1/8" ............. 2
38 .............. 5630981 .................... Set screw ................................................................. 5/16"-18x5/8"L .............. 1
39 .............. 5632061 .................... Hex nut .................................................................... 7/16"-14 ........................ 1
40 .............. 5632091 .................... RH Phillips screw ..................................................... 3/16"-24x3/8"L .............. 2
40-1 ........... 5521947 .................... RH Phillips screw .................................................... 3/16"-24x3/4"L .............. 2
41 .............. 5632101 .................... Star Washer ............................................................. 3/16".............................. 3
42 .............. 5632111 .................... Hex nut ................................................................... 3/16"-24 ........................ 1
43 .............. 5521948 .................... Cylinder ................................................................... ...................................... 1
43-1 ........... TS-1540061 .............. Hex Nut, Full ........................................................... M8 ................................. 1
50 .............. 5521949 .................... Switch Cover ........................................................... ...................................... 1
52 .............. 5521950 .................... Fixed Plate ............................................................... ...................................... 1
55 .............. TS-0050051 .............. Hex cap screw * ....................................................... 1/4-20x1” ....................... 2
56 .............. TS-0680021 .............. Flat washer * ............................................................ 1/4"................................ 2
57 .............. HBS56S-259 ............. Cylinder Upper support * (serial #11110606 and higher) ............................... 1
58 .............. TS-0209061 .............. Socket HD cap screw * ............................................ 3/8”-16x1-1/4”L ............. 1
59 .............. TS-0561021 .............. Hex nut * .................................................................. 5/16” .............................. 1
60 .............. J-3130-60 .................. Socket HD cap screw * ............................................ 5/16”-18x4”L ................. 1
.................. J-3130-CHK .............. Cylinder Hardware Kit .............................................. ........................................
* indicates items included in J-3130-CHK Cylinder Hardware Kit
27
12.4.1 J-3130/3230 Stand and Coolant System – Exploded View
28
12.4.2 J-3130/3230 Stand and Coolant System – Parts List
Index No Part No
Description
Size
Qty
1 ................ J-5630041-CSA......... Complete Stand Assembly (includes #1 thru 17) .... ...................................... 1
1-1 ............. J-5630041-S1G ......... Left Stand Leg ........................................................ ...................................... 2
1-2 ............. J-5630041-S2G ......... Right Stand Leg ....................................................... ...................................... 2
1-3 ............. J-5630041-S3G ......... Cross Brace ............................................................. ...................................... 2
1-4 ............. J-5630041-S4G ......... Front Panel .............................................................. ...................................... 1
1-5 ............. J-5630041-S5G ......... Shelf ........................................................................ ...................................... 1
2 ................ HVBS56M-2 .............. Hex Socket Head Screw w/lock washer * ................ 1/4” x 5/8” .................... 19
3 ................ TS-0680021 .............. Flat Washer * ........................................................... 1/4” .............................. 24
4 ................ TS-0570011 .............. Hex Nut * ................................................................. 1/4” .............................. 24
5 ................ HVBS462-014 ........... Floor Stand Handle .................................................. ...................................... 1
6 ................ 5633021-N ................ Wheel ...................................................................... ...................................... 2
7 ................ TS-0680081 .............. Flat Washer ............................................................. 5/8” ................................ 6
8 ................ 5631441 .................... Cotter Pin * .............................................................. 1/8” x 1” ......................... 2
9 ................ HVBS56M-07 ............ Axle .......................................................................... ...................................... 1
10 .............. HVBS56M-013 .......... Adjustable Foot ........................................................ 3/8” ................................ 2
11 .............. TS-0561032 .............. Hex Nut .................................................................... 3/8”UNF ........................ 4
12 .............. TS-0680041 .............. Flat Washer ............................................................. 3/8” ................................ 2
13 .............. TS-0207071 .............. Socket Head Cap Screw * ....................................... 1/4 x 1-1/4” .................... 5
17 .............. J-5631171NG ............ Trough .............................................................. ............................................. 1
18 .............. J-5042291 ................. Tank ......................................................................... ...................................... 1
19 .............. J-5042281 ................. Coolant pump .......................................................... ...................................... 1
20 .............. 5042341 .................... Nozzle Assembly (includes #24,25) ........................ ...................................... 1
21 .............. 5042351 .................... Valve ........................................................................ ...................................... 1
23 .............. 9307291 .................... Hose ........................................................................ ...................................... 1
24 .............. 5042331 .................... Barb Fitting .............................................................. 1/4” x 1/4"...................... 1
25 .............. 5042321 .................... Hose Barb ................................................................ 1/4" x 1/8”...................... 1
26 .............. 5042981 .................... Elbow ....................................................................... 3/8PT x 5/16” ................ 1
27 .............. 3230-0527 ................. Support Plate ........................................................... ...................................... 1
28 .............. TS-1550031 .............. Washer ................................................................... M5 ................................. 3
29 .............. TS-1533042 .............. Screw ...................................................................... M5 x10L ........................ 3
30 .............. TS-1551041 .............. Spring Washer ........................................................ M6 ................................. 2
31 .............. TS-1534052 .............. Pan Head Screw ..................................................... M6x15L ......................... 2
.................. 5056840 .................... Wet Kit, 115V (includes #18-21,23,26-31) ............... ........................................
.................. TS-152705 ................ Hex Wrench * (not shown) ....................................... 4mm .............................. 1
.................. J-3130G-HK .............. Hardware Kit ............................................................ ........................................
* indicates items included in J-3130G-HK Hardware Kit
29
13.0 Warranty and Service
JET warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please
contact Technical Service by calling 1-800-274-6846, 8AM to 5PM CST, Monday through Friday.
Warranty Period
The general warranty lasts for the time period specified in the literature included with your product or on the official
JET branded website.

JET products carry a limited warranty which varies in duration based upon the product. (See chart below)

Accessories carry a limited warranty of one year from the date of receipt.

Consumable items are defined as expendable parts or accessories expected to become inoperable within a
reasonable amount of use and are covered by a 90 day limited warranty against manufacturer’s defects.
Who is Covered
This warranty covers only the initial purchaser of the product from the date of delivery.
What is Covered
This warranty covers any defects in workmanship or materials subject to the limitations stated below. This warranty
does not cover failures due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear,
improper repair, alterations or lack of maintenance. JET woodworking machinery is designed to be used with Wood.
Use of these machines in the processing of metal, plastics, or other materials outside recommended guidelines may
void the warranty. The exceptions are acrylics and other natural items that are made specifically for wood turning.
Warranty Limitations
Woodworking products with a Five Year Warranty that are used for commercial or industrial purposes default to a
Two Year Warranty. Please contact Technical Service at 1-800-274-6846 for further clarification.
How to Get Technical Support
Please contact Technical Service by calling 1-800-274-6846. Please note that you will be asked to provide proof
of initial purchase when calling. If a product requires further inspection, the Technical Service representative will
explain and assist with any additional action needed. JET has Authorized Service Centers located throughout the
United States. For the name of an Authorized Service Center in your area call 1-800-274-6846 or use the Service
Center Locator on the JET website.
More Information
JET is constantly adding new products. For complete, up-to-date product information, check with your local distributor
or visit the JET website.
How State Law Applies
This warranty gives you specific legal rights, subject to applicable state law.
Limitations on This Warranty
JET LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD OF THE LIMITED WARRANTY FOR EACH PRODUCT.
EXCEPT AS STATED HEREIN, ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXCLUDED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
JET SHALL IN NO EVENT BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR
INCIDENTAL, CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR
PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are
given as general information and are not binding. JET reserves the right to effect at any time, without prior notice,
those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason
whatsoever. JET® branded products are not sold in Canada by JPW Industries, Inc.
Product Listing with Warranty Period
90 Days – Parts; Consumable items
1 Year – Motors; Machine Accessories
2 Year – Metalworking Machinery; Electric Hoists, Electric Hoist Accessories; Woodworking Machinery used
for industrial or commercial purposes
5 Year – Woodworking Machinery
Limited Lifetime – JET Parallel clamps; VOLT Series Electric Hoists; Manual Hoists; Manual Hoist
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools
NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries,
Inc., or any of its successors in interest to the JET brand.
30
This page intentionally left blank.
31
427 New Sanford Road
LaVergne, Tennessee 37086
Phone: 800-274-6848
www.jettools.com
32
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
