Aeg BES331111M Information Sheet

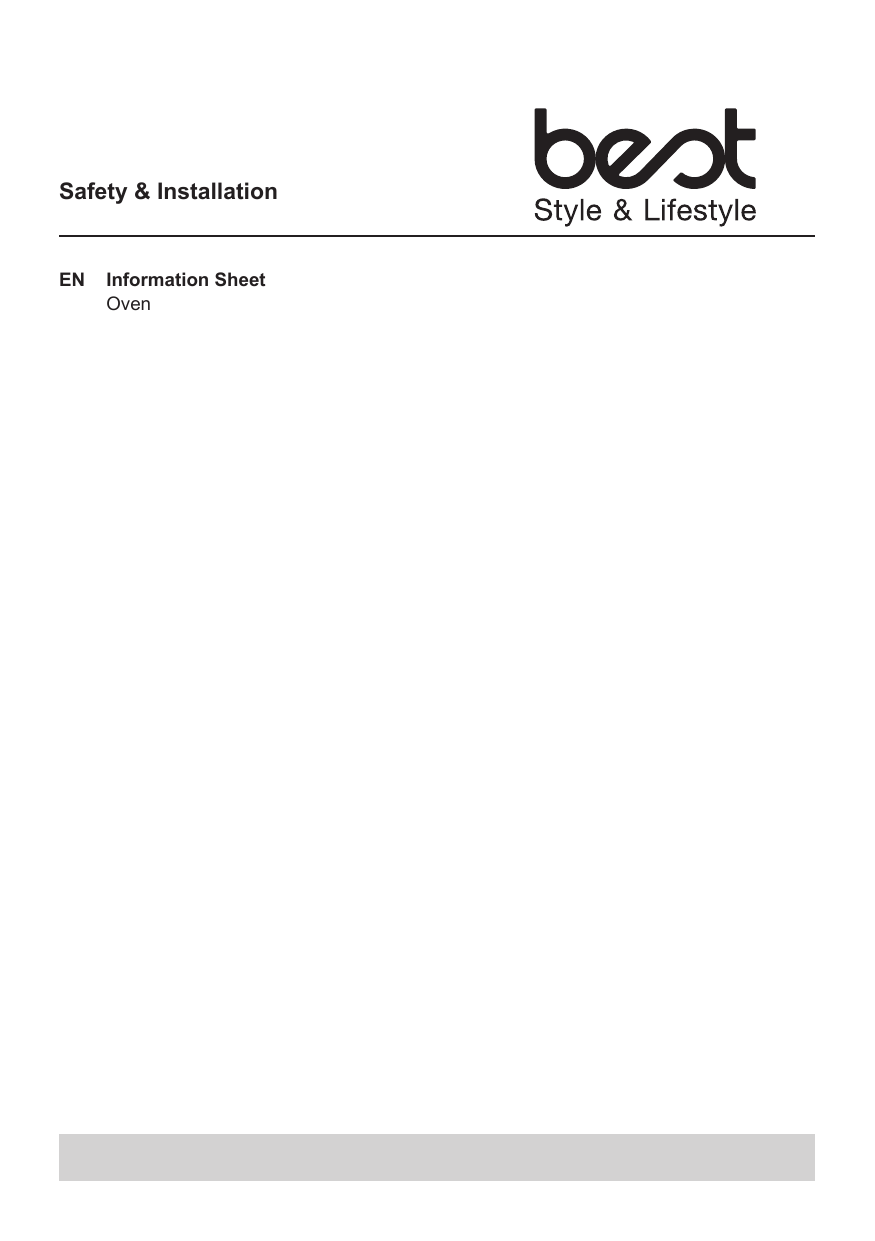

Safety & Installation
EN
Information Sheet
Oven
CONTENTS
1. SAFETY INFORMATION...................................................................................2
2. SAFETY INSTRUCTIONS.................................................................................3
3. INSTALLATION................................................................................................. 6
Subject to change without notice.
1.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the product in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
• Do not let children play with the appliance. Keep all
packaging away from children and dispose of it
appropriately.
• WARNING: Keep children and pets away from the
appliance when it operates or when it cools down.
Accessible parts become hot.
• Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
• If the appliance has a child safety device, it should be
activated.
• This appliance is for household use only. Do not change the
specification of this appliance.
• WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
2
ENGLISH
•
•
•
•
•
•
•
•
Always cook with the oven door closed.
Always use oven gloves to remove or put in accessories or
ovenware.
If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
Use only the food sensor (core temperature sensor)
recommended for this appliance (if applicable).
2. SAFETY INSTRUCTIONS
2.1 Installation and Electrical
connection
WARNING!
Only a qualified person must install and
connect this appliance.
Follow the installation instructions supplied
with the appliance.
Install the appliance in a safe and suitable
place that meets installation requirements.
Do not use the appliance before installing it in
the built-in structure.
Keep the minimum distance from other
appliances and units. Before mounting the
appliance, check if the oven door opens
without restraint.
Do not install or use a damaged appliance.
Remove all the packaging.
Always take care when moving the appliance
as it is heavy. Do not pull the appliance by
the handle. Always use safety gloves and
enclosed footwear.
The appliance is equipped with an electric
cooling system. It must be operated with the
electric power supply.
WARNING!
Risk of fire and electric shock.
Make sure that the parameters on the rating
plate are compatible with the electrical ratings
of the mains power supply.
The appliance must be earthed. Always use a
correctly installed shockproof socket.
Do not use multi-plug adapters and extension
cables.
Make sure not to cause damage to the mains
plug and to the mains cable. Contact the
Authorised Service Centre or an electrician to
change a damaged mains cable.
Do not let mains cables touch or come near
the appliance door or the niche below the
ENGLISH
3
appliance, especially when it operates or the
door is hot.
Do not pull the mains cable to disconnect the
appliance. Always pull the mains plug.
Connect the mains plug to the mains socket
only at the end of the installation. Make sure
that there is access to the mains plug after
the installation.
If the mains socket is loose, do not connect
the mains plug.
Fully close the appliance door before you
connect the mains plug to the mains socket.
Use only correct isolation devices: line
protecting cut-outs, fuses (screw type fuses
removed from the holder), earth leakage trips
and contactors.
The electrical installation must have an
isolation device which lets you disconnect the
appliance from the mains at all poles. The
isolation device must have a contact opening
width of minimum 3 mm.
For the section of the cable refer to the total
power on the rating plate. You can also refer
to the table:
Cable types applicable for installation or
replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05
V2V2-F (T90), H05 BB-F
Total power (W)
Section of the ca‐
ble (mm²)
maximum 1380
3 x 0.75
maximum 2300
3x1
maximum 3680
3 x 1.5
2.2 Use and Maintenance
WARNING!
Risk of injury, burns, electric shock, fire,
explosion or damage to the appliance.
This appliance is for cooking purposes only. It
must not be used for other purposes.
4
ENGLISH
Do not let the appliance stay unattended
during operation. Deactivate the appliance
after each use.
Make sure that the ventilation openings are
not blocked.
If the appliance is installed behind a furniture
panel (e.g. a door) make sure the door is
never closed when the appliance operates.
Heat and moisture can build up behind a
closed furniture panel and cause subsequent
damage to the appliance, the furniture or the
floor. Do not close the furniture panel until the
appliance has cooled down after use.
Be careful when you open the appliance door
while the appliance is in operation. Hot air
can release.
Do not operate the appliance with wet hands
or when it has contact with water.
Do not apply pressure on the open door. Be
careful when you remove the door from the
appliance. The door is heavy.
Do not use the appliance as a work surface
or as a storage surface.
Do not put flammable products or items that
are wet with flammable products in, near or
on the appliance.
When you place food into hot oil, it may
splash.
Open the appliance door carefully. The use of
ingredients with alcohol can cause a mixture
of alcohol and air.
Do not let sparks or open flames to come in
contact with the appliance when you open the
door.
To prevent damage or discoloration to the
enamel:
• do not put ovenware or other objects in
the appliance directly on the bottom.
• do not put aluminium foil directly on the
bottom of cavity of the appliance.
• do not put water directly into the hot
appliance.
• do not keep moist dishes and food in the
appliance after you finish the cooking.
• be careful when you remove or install the
accessories.
Use a deep pan for moist cakes. Fruit juices
cause stains that can be permanent.
Discoloration of the enamel or stainless steel
has no effect on the performance of the
appliance.
The type of light bulb or halogen lamp used
for this appliance is for household appliances
only. Do not use it for house lighting.
Clean regularly the appliance to prevent the
deterioration of the surface material.
Before replacing the lamp, disconnect the
appliance from the mains. Use only lamps
with the same specifications.
Before maintenance, deactivate the appliance
and disconnect from the mains. Do not clean
the catalytic enamel (if applicable) with
detergents.
Make sure the appliance is cold. There is the
risk that the glass panels can break. Replace
immediately the door glass panels when they
are damaged. Contact the Authorised Service
Centre.
To repair the appliance contact the
Authorised Service Centre. Use original spare
parts only.
2.3 Disposal
WARNING!
Risk of injury or suffocation.
Clean the appliance with a moist soft cloth.
Use only neutral detergents. Do not use
abrasive products, abrasive cleaning pads,
solvents or metal objects.
Disconnect the appliance from the mains
supply. Cut off the mains electrical cable
close to the appliance and dispose of it.
If you use an oven spray, follow the safety
instructions on its packaging.
Remove the door catch to prevent children or
pets from becoming trapped in the appliance.
ENGLISH
5
3. INSTALLATION
(*mm)
70
60
548
min. 550
20
520
114
18
590
21
min. 560
589
594
198
60
595+-1
5
3
523
20
(*mm)
548
21
min. 550
80
60
520
600
18
20
114
589
594
min. 560
595+-1
60
5
3
198
523
20
4. ENVIRONMENTAL CONCERNS
appliances marked with the symbol with
the household waste. Return the product to
your local recycling facility or contact your
municipal office.
Recycle materials with the symbol . Put the
packaging in relevant containers to recycle it.
Help protect the environment and human
health by recycling waste of electrical and
electronic appliances. Do not dispose of
6
ENGLISH
*
867361762-A-092020
