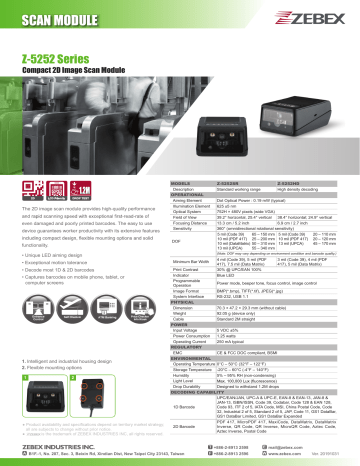

Zebex Z-5252 Series Datasheet

Zebex Z-5252 Series Datasheet
SCAN MODULE
Z-5252 Series
Compact 2D Image Scan Module
LCD Friendly
The 2D image scan module provides high-quality performance
even damaged and poorly printed barcodes. The easy to use
device guarantees worker productivity with its extensive features
MODELS
Description
OPERATIONAL
Aiming Element
Illumination Element
Optical System
Field of View
Focusing Distance
Sensitivity
DOF
functionality.
Minimum Bar Width
• Exceptional motion tolerance
• Decode most 1D & 2D barcodes
• Captures barcodes on mobile phone, tablet, or
computer screens
i
Self Check-In
ATM Banking
Price Checker
Info Kiosk
1. Intelligent and industrial housing design
2. Flexible mounting options
1
●
Z-5252HD
High density decoding
Dot Optical Power : 0.19 mW (typical)
625 ±5 nm
752H × 480V pixels (wide VGA)
39.2° horizontal, 25.4° vertical 38.4° horizontal; 24.9° vertical
13.3 cm / 5.2 inch
6.9 cm / 2.7 inch
360° (omnidirectional rotational sensitivity)
5 mil (Code 39)
65 – 150 mm 5 mil (Code 39)
20 – 110 mm
10 mil (PDF 417) 25 – 200 mm 10 mil (PDF 417) 20 – 120 mm
10 mil (DataMatrix) 50 – 310 mm 13 mil (UPCA)
45 – 170 mm
13 mil (UPCA)
55 – 340 mm
(Note: DOF may vary depending on environment condition and barcode quality.)
• Unique LED aiming design
Entrance
Control
Z-5252SR
Standard working range
2
all are subjects to change without prior notice.
is the trademark of ZEBEX INDUSTRIES INC, all rights reserved.
4 mil (Code 39), 5 mil (PDF
417), 7.5 mil (Data Matrix)
30% @ UPC/EAN 100%
Blue LED
3 mil (Code 39), 4 mil (PDF
417), 5 mil (Data Matrix)
Print Contrast
Indicator
Programmable
Power mode, beeper tone, focus control, image control
Operation
Image Format
BMP(*.bmp), TIFF(*.tif), JPEG(*.jpg)
System Interface
RS-232, USB 1.1
PHYSICAL
Dimension
70.3 × 47.2 × 29.3 mm (without cable)
Weight
92.05 g (device only)
Cable
Standard 2M straight
POWER
Input Voltage
5 VDC ±5%
Power Consumption
1.25 watts
Operating Current
250 mA typical
REGULATORY
EMC
CE & FCC DOC compliant, BSMI
ENVIRONMENTAL
Operating Temperature 0°C – 50°C (32°F – 122°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
Drop Durability
Designed to withstand 1.2M drops
DECODING CAPABILITY
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &
JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128,
1D Barcode
Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code
32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar,
GS1 DataBar Limited, GS1 DataBar Expanded
PDF 417, MicroPDF 417, MaxiCode, DataMatrix, DataMatrix
2D Barcode
Inverse, QR Code, QR Inverse, MicroQR Code, Aztec Code,
Aztec Inverse, Postal Code
A B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan
T +886-2-8913 2598
F +886-2-8913 2596
E [email protected]
W www.zebex.com
Ver. 20191031
