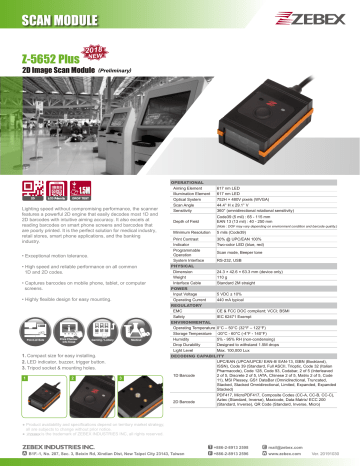

Z-5652 Plus
2018
NEW
2D Image Scan Module
(Preliminary)
LCD Friendly
Lighting speed without compromising performance, the scanner
features a powerful 2D engine that easily decodes most 1D and
2D barcodes with intuitive aiming accuracy. It also excels at
reading barcodes on smart phone screens and barcodes that
are poorly printed. It is the perfect solution for medical industry,
retail stores, smart phone applications, and the banking
industry.
• Exceptional motion tolerance.
• High speed and reliable performance on all common
1D and 2D codes.
• Captures barcodes on mobile phone, tablet, or computer
screens.
• Highly flexible design for easy mounting.
i
Point-of-Sale
Price Checker
Info Kiosk
Medical
Gaming / Lottery
1. Compact size for easy installing.
2. LED indicator, buzzer, trigger button.
3. Tripod socket & mounting holes.
1
●
2
3
OPERATIONAL
Aiming Element
Illumination Element
Optical System
Scan Angle
Sensitivity
617 nm LED
617 nm LED
752H × 480V pixels (WVGA)
44.4° H x 29.1° V
360° (omnidirectional rotational sensitivity)
Depth of Field
Code39 (5 mil) : 65 - 115 mm
EAN 13 (13 mil) : 40 - 250 mm
Minimum Resolution
5 mils (Code39)
(Note : DOF may vary depending on environment condition and barcode quality.)
Print Contrast
30% @ UPC/EAN 100%
Two-color LED (blue, red)
Indicator
Programmable
Scan mode, Beeper tone
Operation
System Interface
RS-232, USB
PHYSICAL
Dimension
24.3 × 42.6 × 63.3 mm (device only)
Weight
110 g
Interface Cable
Standard 2M straight
POWER
Input Voltage
5 VDC ± 10%
Operating Current
440 mA typical
REGULATORY
EMC
CE & FCC DOC compliant; VCCI; BSMI
Safety
IEC 62471 Exempt
ENVIRONMENTAL
Operating Temperature 0°C – 50°C (32°F – 122°F)
Storage Temperature -20°C - 60°C (-4°F - 140°F)
Humidity
5% - 95% RH (non-condensing)
Drop Durability
Designed to withstand 1.5M drops
Light Level
Max. 100,000 Lux
DECODING CAPABILITY
UPC/EAN (UPCA/UPCE/ EAN-8/ EAN-13, ISBN (Bookland),
ISSN), Code 39 (Standard, Full ASCII, Trioptic, Code 32 (Italian
Pharmacode), Code 128, Code 93, Codabar, 2 of 5 (Interleaved
1D Barcode
2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code
11), MSI Plessey, GS1 DataBar (Omnidirectional, Truncated,
Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded
Stacked)
PDF417, MicroPDF417, Composite Codes (CC-A, CC-B, CC-C),
Aztec (Standard, Inverse), Maxicode, Data Matrix/ ECC 200
2D Barcode
(Standard, Inverse), QR Code (Standard, Inverse, Micro)
all are subjects to change without prior notice.
is the trademark of ZEBEX INDUSTRIES INC, all rights reserved.
A B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan
T +886-2-8913 2598
F +886-2-8913 2596
E [email protected]
W www.zebex.com
Ver. 20191030
