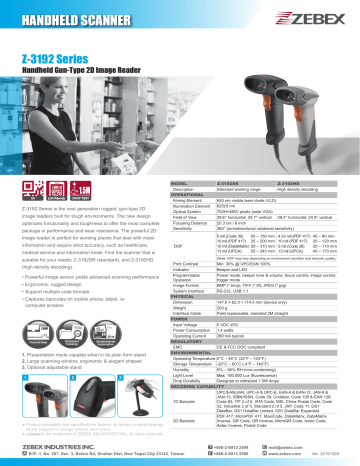

Zebex Z-3192 Series Datasheet

Zebex Z-3192 Series Datasheet
HANDHELD SCANNER
Z-3192 Series
Handheld Gun-Type 2D Image Reader
LCD Friendly
Z-3192 Series is the next generation rugged, gun-type 2D
image readers built for tough environments. The new design
optimizes functionality and toughness to offer the most complete
package in performance and wear resistance. The powerful 2D
MODEL
Description
OPERATIONAL
Aiming Element
Illumination Element
Optical System
Field of View
Focusing Distance
Sensitivity
image reader is perfect for working places that deal with mass
information and require strict accuracy, such as healthcare,
DOF
medical service and information kiosk. Find the scanner that is
suitable for your needs: Z-3192SR (standard), and Z-3192HD
(high density decoding).
• Powerful image sensor yields advanced scanning performance
• Ergonomic, rugged design
• Support multiple code formats
• Captures barcodes on mobile phone, tablet, or
computer screens
Point-of-Sale
Document
Tracking
Governmental
Automation
1. Presentation mode capable when in its plain form stand
2. Large scanning window, ergonomic & elegant shaped
3. Optional adjustable stand
1
●
2
3
all are subjects to change without prior notice.
is the trademark of ZEBEX INDUSTRIES INC, all rights reserved.
Z-3192SR
Standard working range
Z-3192HD
High density decoding
650 nm visible laser diode (VLD)
625±5 nm
752H×480V pixels (wide VGA)
39.6° horizontal; 25.7° vertical 38.4° horizontal; 24.9° vertical
20.3 cm / 8 inch
360° (omnidirectional rotational sensitivity)
5 mil (Code 39)
10 mil (PDF 417)
10 mil (DataMatrix)
13 mil (UPCA)
65 – 150 mm
25 – 200 mm
50 – 310 mm
55 – 340 mm
4.33 mil (PDF 417)
10 mil (PDF 417)
5 mil (Code 39)
13 mil (UPCA)
40 – 90 mm
20 – 120 mm
20 – 110 mm
45 – 170 mm
(Note: DOF may vary depending on environment condition and barcode quality.)
Print Contrast
Min. 30% @ UPC/EAN 100%
Beeper and LED
Indicator
Programmable
Power mode, beeper tone & volume, focus control, image control,
Operation
trigger mode
BMP (*.bmp), TIFF (*.tif), JPEG (*.jpg)
Image Format
System Interface
RS-232, USB 1.1
PHYSICAL
Dimension
147.0 × 62.0 × 114.5 mm (device only)
Weight
200 g
Interface Cable
Field replaceable, standard 2M straight
POWER
Input Voltage
5 VDC ±5%
Power Consumption
1.4 watts
Operating Current
280 mA typical
REGULATORY
EMC
CE & FCC DOC compliant
ENVIRONMENTAL
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
Drop Durability
Designed to withstand 1.5M drops
DECODING CAPABILITY
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &
JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128,
1D Barcode
Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code
32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1
DataBar, GS1 DataBar Limited, GS1 DataBar Expanded
PDF 417, MicroPDF 417, MaxiCode, DataMatrix, DataMatrix
2D Barcode
Inverse, QR Code, QR Inverse, MicroQR Code, Aztec Code,
Aztec Inverse, Postal Code
A B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan
T +886-2-8913 2598
F +886-2-8913 2596
E [email protected]
W www.zebex.com
Ver. 20191028
