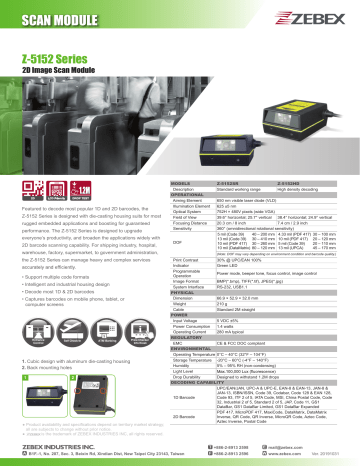

Zebex Z-5152 Series Datasheet

Zebex Z-5152 Series Datasheet
SCAN MODULE
Z-5152 Series
2D Image Scan Module
LCD Friendly
Featured to decode most popular 1D and 2D barcodes, the
Z-5152 Series is designed with die-casting housing suits for most
rugged embedded applications and boosting for guaranteed
performance. The Z-5152 Series is designed to upgrade
everyone’s productivity, and broaden the applications widely with
2D barcode scanning capability. For shipping industry, hospital,
MODELS
Description
OPERATIONAL
Aiming Element
Illumination Element
Optical System
Field of View
Focusing Distance
Sensitivity
DOF
warehouse, factory, supermarket, to government administration,
the Z-5152 Series can manage heavy and complex services
• Support multiple code formats
• Intelligent and industrial housing design
• Decode most 1D & 2D barcodes
• Captures barcodes on mobile phone, tablet, or
computer screens
i
Entrance
Control
Self Check-In
ATM Banking
Price Checker
Info Kiosk
1. Cubic design with aluminum die-casting housing
2. Back mounting holes
1
●
2
Z-5152SR
Standard working range
Z-5152HD
High density decoding
650 nm visible laser diode (VLD)
625 ±5 nm
752H × 480V pixels (wide VGA)
39.6° horizontal; 25.7° vertical 38.4° horizontal; 24.9° vertical
20.3 cm / 8 inch
7.4 cm / 2.9 inch
360° (omnidirectional rotational sensitivity)
5 mil (Code 39)
40 – 200 mm 4.33 mil (PDF 417) 30 – 100 mm
13 mil (Code 39) 30 – 410 mm 10 mil (PDF 417) 20 – 120 mm
10 mil (PDF 417) 30 – 260 mm 5 mil (Code 39)
20 – 110 mm
45 – 170 mm
10 mil (DataMatrix) 80 – 120 mm 13 mil (UPCA)
(Note: DOF may vary depending on environment condition and barcode quality.)
Print Contrast
30% @ UPC/EAN 100%
Green LED
Indicator
Programmable
Power mode, beeper tone, focus control, image control
Operation
Image Format
BMP(*.bmp), TIFF(*.tif), JPEG(*.jpg)
System Interface
RS-232, USB1.1
PHYSICAL
Dimension
66.9 × 52.9 × 32.0 mm
Weight
210 g
Cable
Standard 2M straight
POWER
Input Voltage
5 VDC ±5%
Power Consumption
1.4 watts
Operating Current
280 mA typical
REGULATORY
EMC
CE & FCC DOC compliant
ENVIRONMENTAL
Operating Temperature 0°C – 40°C (32°F – 104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Humidity
5% – 95% RH (non-condensing)
Light Level
Drop Durability
Designed to withstand 1.2M drops
DECODING CAPABILITY
UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 &
JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128,
1D Barcode
Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code
32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1
DataBar, GS1 DataBar Limited, GS1 DataBar Expanded
PDF 417, MicroPDF 417, MaxiCode, DataMatrix, DataMatrix
2D Barcode
Inverse, QR Code, QR Inverse, MicroQR Code, Aztec Code,
Aztec Inverse, Postal Code
all are subjects to change without prior notice.
is the trademark of ZEBEX INDUSTRIES INC, all rights reserved.
A B1F.-1, No. 207, Sec. 3, Beixin Rd, Xindian Dist, New Taipei City 23143, Taiwan
T +886-2-8913 2598
F +886-2-8913 2596
E [email protected]
W www.zebex.com
Ver. 20191031
