Dali PHANTOM OW FRAME User guide

Dali PHANTOM OW FRAME User guide

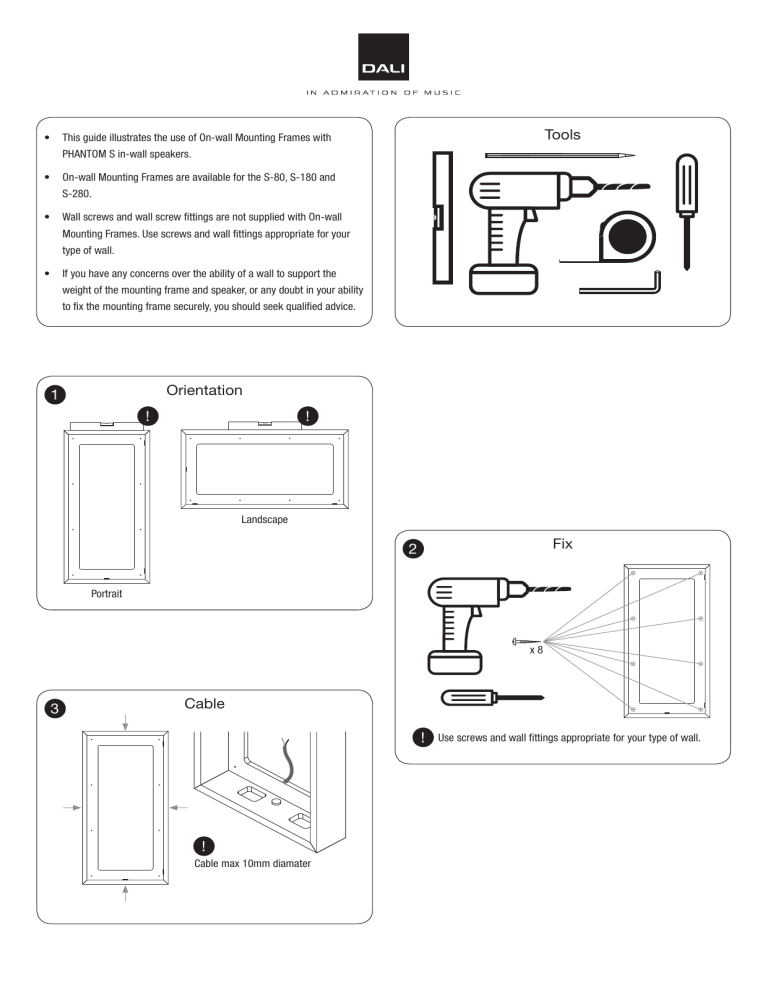

Tools
•This guide illustrates the use of On-wall Mounting Frames with
PHANTOM S in-wall speakers.
•On-wall Mounting Frames are available for the S-80, S-180 and
S-280.
•Wall screws and wall screw fittings are not supplied with On-wall
Mounting Frames. Use screws and wall fittings appropriate for your
type of wall.
•If you have any concerns over the ability of a wall to support the
weight of the mounting frame and speaker, or any doubt in your ability
to fix the mounting frame securely, you should seek qualified advice.
Orientation
1
!
!
Landscape
Fix
2
Portrait
x8
3
Cable
!
!
Cable max 10mm diamater
Use screws and wall fittings appropriate for your type of wall.
Insert and Connect Speaker
4
–
+
!
S-80: one person.
S-180/S-280: two people.
5
Height Adjustment (if necesssary)
6
Secure Speaker
DOWN
UP
Portrait
Landscape
DOWN
UP
DALI A/S
Dali Allé 1
9610 Nørager
Denmark
dali-speakers.com
Item No. 951086-0-0 Rev. A
