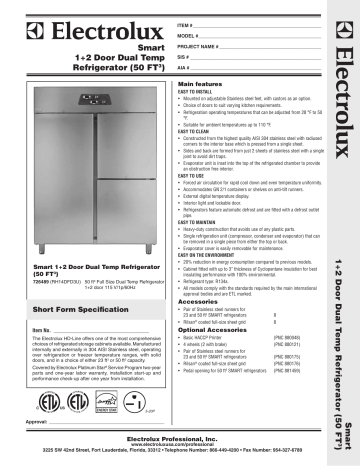

ITEM # _________________________________________________
MODEL #_______________________________________________
Smart
1+2 Door Dual Temp
Refrigerator (50 FT3)
PROJECT NAME # _______________________________________
SIS # __________________________________________________
AIA # __________________________________________________
Main features
726489 (RH14DFD3U) 50 ft3 Full Size Dual Temp Refrigerator
1+2 door 115 V/1p/60Hz
Accessories
Short Form Specification
• Pair of Stainless steel runners for
23 and 50 ft3 SMART refrigerators
• Rilsan® coated full-size sheet grid
Item No. ____________________________________
Optional Accessories
The Electrolux HD-Line offers one of the most comprehensive
choices of refrigerated storage cabinets available. Manufactured
internally and externally in 304 AISI Stainless steel, operating
over refrigeration or freezer temperature ranges, with solid
doors, and in a choice of either 23 ft3 or 50 ft3 capacity.
• Basic HACCP Printer
• 4 wheels (2 with brake)
• Pair of Stainless steel runners for
23 and 50 ft3 SMART refrigerators
• Rilsan® coated full-size sheet grid
• Pedal opening for 50 ft3 SMART refrigerators
Covered by Electrolux Platinum Star® Service Program two-year
parts and one-year labor warranty, installation start-up and
performance check-up after one year from installation.
8
8
(PNC 880048)
(PNC 880121)
(PNC 880175)
(PNC 880176)
(PNC 881459)
5-20P
Approval: ____________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Smart
1+2 Door Dual Temp Refrigerator (50 FT3)
Smart 1+2 Door Dual Temp Refrigerator
(50 FT3)
EASY TO INSTALL
• Mounted on adjustable Stainless steel feet, with castors as an option.
• Choice of doors to suit varying kitchen requirements.
• Refrigeration operating temperatures that can be adjusted from 28 °F to 50
°F.
• Suitable for ambient temperatures up to 110 °F.
EASY TO CLEAN
• Constructed from the highest quality AISI 304 stainless steel with radiused
corners to the interior base which is pressed from a single sheet.
• Sides and back are formed from just 2 sheets of stainless steel with a single
joint to avoid dirt traps.
• Evaporator unit is inset into the top of the refrigerated chamber to provide
an obstruction free interior.
EASY TO USE
• Forced air circulation for rapid cool down and even temperature uniformity.
• Accommodates GN 2/1 containers or shelves on anti-tilt runners.
• External digital temperature display.
• Interior light and lockable door.
• Refrigerators feature automatic defrost and are fitted with a defrost outlet
pipe.
EASY TO MAINTAIN
• Heavy-duty construction that avoids use of any plastic parts.
• Single refrigeration unit (compressor, condenser and evaporator) that can
be removed in a single piece from either the top or back.
• Evaporator cover is easily removable for maintenance.
EASY ON THE ENVIRONMENT
• 20% reduction in energy consumption compared to previous models.
• Cabinet fitted with up to 3” thickness of Cyclopentane insulation for best
insulating performance with 100% environmental.
• Refrigerant type: R134a.
• All models comply with the standards required by the main international
approval bodies and are ETL marked.
Smart
1+2 Door Dual Temp Refrigerator
(50 FT3)
Front View
Electric
Supply voltage: 726489 (RH14DFD3U)
115 V/1p/60Hz - 16A
Key Information
LEGEND
C - Water Drain
1/2″
I – Electrical Connection
115 V/1p/60Hz
TECHNICAL DATA
Operating temperature min.:
28 °F (-2.22 °C)
Operating temperature max.:
50 °F (10 °C)
Built-in Compressor and Refrigeration Unit
External Dimensions:
Top View
Side View
Width:
59-1/16″ (1500 mm)
Depth:
31-7/8″ (962 mm)
Height:
80-11/16″ (2049 mm)
Min/Max internal humidity % :
75/ 90
Number and type of doors:
1 Full, 2 Half
Door hinges:
1 Left, 2 Right
Number and type of grids (included):
8, GN 2/1
Compressor power:
1/4 x 2 HP
Refrigerant type:
R134a
Refrigerant quantity:
240g
Refrigerant Power:
378W
Power:
880 watts
Net weight:
624 lbs (283 kg)
Configuration:
Left:
Refrigerator
Top Right:
Refrigerator
Bottom Right:
Freezer
Smart
1+2 Door Dual Temp Refrigerator (50 FT3)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
11-25-07
