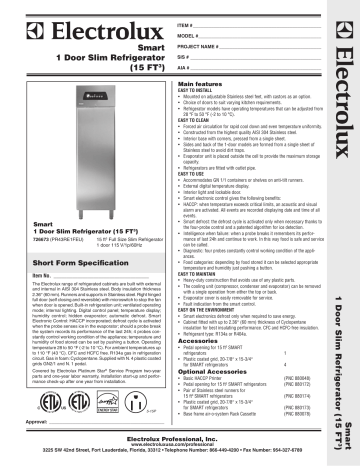

Electrolux 726673(PR43RE1FEU) Datasheet

Electrolux 726673(PR43RE1FEU) Datasheet
ITEM # _________________________________________________
MODEL #_______________________________________________
Smart
1 Door Slim Refrigerator
(15 FT3)
PROJECT NAME # _______________________________________
SIS # __________________________________________________
AIA # __________________________________________________
Main features
Smart
1 Door Slim Refrigerator (15 FT3)
726673 (PR43RE1FEU)
15 ft3 Full Size Slim Refrigerator
1 door 115 V/1p/60Hz
Short Form Specification
Item No. ____________________________________
Covered by Electrolux Platinum Star® Service Program two-year
parts and one-year labor warranty, installation start-up and performance check-up after one year from installation.
5-15P
Accessories
• Pedal opening for 15 ft3 SMART
refrigerators
• Plastic coated grid, 20-7/8″ x 15-3/4″
for SMART refrigerators
1
4
Optional Accessories
• Basic HACCP Printer
• Pedal opening for 15 ft3 SMART refrigerators
• Pair of Stainless steel runners for
15 ft3 SMART refrigerators
• Plastic coated grid, 20-7/8″ x 15-3/4″
for SMART refrigerators
• Base frame air-o-system Rack Cassette
(PNC 880048)
(PNC 880172)
(PNC 880174)
(PNC 880173)
(PNC 880078)
Approval: ____________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Smart
1 Door Slim Refrigerator (15 FT3)
The Electrolux range of refrigerated cabinets are built with external
and internal in AISI 304 Stainless steel. Body insulation thickness
2.36″ (60 mm). Runners and supports in Stainless steel. Right hinged
full door (self closing and reversible) with microswitch to stop the fan
when door is opened. Built-in refrigeration unit; ventilated operating
mode; internal lighting. Digital control panel; temperature display;
humidity control; hidden evaporator; automatic defrost. Smart
Electronic Control: HACCP incorporated; defrost cycle is activated
when the probe senses ice in the evaporator; should a probe break
the system records its performance of the last 24h; 4 probes constantly control working condition of the appliance; temperature and
humidity of food stored can be set by pushing a button. Operating
temperature 28 to 50 °F (-2 to 10 °C). For ambient temperatures up
to 110 °F (43 °C). CFC and HCFC free. R134a gas in refrigeration
circuit. Gas in foam: Cyclopentane. Supplied with N. 4 plastic coated
grids GN2/1 and N. 1 pedal.
EASY TO INSTALL
• Mounted on adjustable Stainless steel feet, with castors as an option.
• Choice of doors to suit varying kitchen requirements.
• Refrigerator models have operating temperatures that can be adjusted from
28 °F to 50 °F (-2 to 10 °C).
EASY TO CLEAN
• Forced air circulation for rapid cool down and even temperature uniformity.
• Constructed from the highest quality AISI 304 Stainless steel.
• Interior base with corners, pressed from a single sheet.
• Sides and back of the 1-door models are formed from a single sheet of
Stainless steel to avoid dirt traps.
• Evaporator unit is placed outside the cell to provide the maximum storage
capacity.
• Refrigerators are fitted with outlet pipe.
EASY TO USE
• Accommodates GN 1/1 containers or shelves on anti-tilt runners.
• External digital temperature display.
• Interior light and lockable door.
• Smart electronic control gives the following benefits:
• HACCP: when temperature exceeds critical limits, an acoustic and visual
alarm are activated. All events are recorded displaying date and time of all
events.
• Smart defrost: the defrost cycle is activated only when necessary thanks to
the four-probe control and a patented algorithm for ice detection.
• Intelligence when failure: when a probe breaks it remembers its performance of last 24h and continue to work. In this way food is safe and service
can be called.
• Diagnostic: four probes constantly control working condition of the appliances.
• Food categories: depending by food stored it can be selected appropriate
temperature and humidity just pushing a button.
EASY TO MAINTAIN
• Heavy-duty construction that avoids use of any plastic parts.
• The cooling unit (compressor, condenser and evaporator) can be removed
with a single operation from either the top or back.
• Evaporator cover is easily removable for service.
• Fault indication from the smart control.
EASY ON THE ENVIRONMENT
• Smart electronics defrost only when required to save energy.
• Cabinet fitted with up to 2.36″ (60 mm) thickness of Cyclopentane
insulation for best insulating performance. CFC and HCFC-free insulation.
• Refrigerant type: R134a or R404a.
Smart
1 Door Slim Refrigerator (15 FT3)
Front View
Electric
Supply voltage: 726673 (PR43RE1FEU) 115 V/1p/60Hz - 5.0A
Key Information
LEGEND
C - Water Drain
1/2″ (12.7 mm)
I – Electrical Connection
115 V/1p/60Hz
TECHNICAL DATA
Operating temperature min.:
28 °F (-2 °C)
Operating temperature max.:
50 °F (10 °C)
Built-in Compressor and Refrigeration Unit
External Dimensions:
Top View
Width:
23-5/8″ (600 mm)
Depth:
26-3/16″ (665 mm)
Height:
83-1/8″ (2111 mm)
Min/Max internal humidity % :
75/ 82
Number and type of doors:
1 Full
Door hinges:
Right
Number and type of grids (included):
4, GN 1/1
Compressor power:
1/4 HP
Refrigerant type:
R134a
Refrigerant Power:
260W
Power:
350 watts
Net weight:
287 lbs (130 kg)
Side View
Smart
1 Door Slim Refrigerator (15 FT3)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
11-25-07
