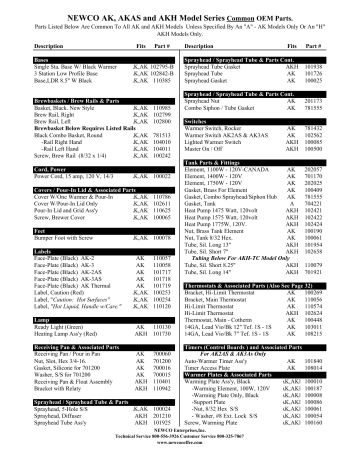

NEWCO AK, AKAS and AKH Model Series Common OEM Parts.
Parts Listed Below Are Common To All AK and AKH Models Unless Specified By An "A" - AK Models Only Or An "H"
AKH Models Only.
Description
Fits
Bases
Single Sta. Base W/ Black Warmer
3 Station Low Profile Base
Base,LDR 8.5" W Black
Part #
AK,AKH102795-B
AK,AKH102842-B
AK,AKH 110385
Brewbaskets / Brew Rails & Parts
AK,AKH 110985
Basket, Black. New Style
AK,AKH 102799
Brew Rail, Right
AK,AKH 102800
Brew Rail, Left
Brewbasket Below Requires Listed Rails
AK,AKH 781513
Black Combo Basket, Round
AK,AKH 104010
-Rail Right Hand
AK,AKH 104011
-Rail Left Hand
AK,AKH 100242
Screw, Brew Rail (8/32 x 1/4)
Cord, Power
Power Cord, 15 amp, 120 V, 14/3
AK,AKH 100022
Covers / Pour-In Lid & Associated Parts
AK,AKH 110786
Cover W/One Warmer & Pour-In
AK,AKH 102611
Cover W/Pour-In Lid Only
AK,AKH 110625
Pour-In Lid and Grid Ass'y
AK,AKH 100065
Screw, Brewer Cover
Feet
Bumper Foot with Screw
AK,AKH 100078
Labels
Face-Plate (Black) AK-2
Face-Plate (Black) AK-3
Face-Plate (Black) AK-2AS
Face-Plate (Black) AK-3AS
Face-Plate (Black) AK Thermal
Label, Caution (Red)
Label, "Caution: Hot Surfaces"
Label, "Hot Liquid, Handle w/Care."
AK 110057
AK 110058
AK 101717
AK 101718
AK 101719
AK,AKH 100253
AK,AKH 100254
AK,AKH 110120
Lamp
Ready Light (Green)
Heating Lamp Ass'y (Red)
AK 110130
AKH 101730
Receiving Pan & Associated Parts
Receiving Pan / Pour in Pan
Nut, Slot, Hex 3/4-16.
Gasket, Silicone for 701200
Washer, S/S for 701200
Receiving Pan & Float Assembly
Bracket with Relaty
AK
AK
AK
AK
AKH
AKH
700060
701200
700016
700015
110401
110942
Sprayhead / Sprayhead Tube & Parts
AK,AKH 100024
Sprayhead, 5-Hole S/S
AKH 201210
Sprayhead, Diffuser
AKH 101925
Sprayhead Tube Ass'y
Description
Fits
Part #
Sprayhead / Sprayhead Tube & Parts Cont.
Sprayhead Tube Gasket
AKH
Sprayhead Tube
AK
Sprayhead Gasket
AK
101938
101726
100025
Sprayhead / Sprayhead Tube & Parts Cont.
Sprayhead Nut
AK
Combo Siphon / Tube Gasket
AK
201173
781555
Switches
Warmer Switch, Rocker
Warmer Switch AK2AS & AK3AS
Lighted Warmer Switch
Master On / Off
781432
102562
100085
100500
AK
AK
AKH
AKH
Tank Parts & Fittings
Element, 1100W - 120V-CANADA
AK
Element, 1400W - 120V
AK
Element, 1750W - 120V
AK
Gasket, Brass For Element
AK
Gasket, Combo Sprayhead/Siphon Hub
AK
Gasket, Tank
A
Heat Pump 1475 Watt, 120volt
AKH
Heat Pump 1575 Watt, 120volt
AKH
Heat Pump 1775W, 120V.
AKH
Nut, Brass Tank Element
AK
Nut, Tank 8/32 Hex.
AK
Tube, Sil. Long 13"
AKH
Tube, Sil. Short 7"
AKH
Tubing Below For AKH-TC Model Only
Tube, Sil. Short 8.25"
AKH
Tube, Sil. Long 14"
AKH
202057
701170
202025
100409
781555
704221
102421
102422
102424
100190
100061
101954
102658
110079
701921
Thermostats & Associated Parts (Also See Page 32)
Bracket, Hi-Limit Thermostat
AK
100269
Bracket, Main Thermostat
AK
110056
Hi-Limit Thermostat
AK
110574
Hi-Limit Thermostat
AKH 102624
AK
100448
Thermostat, Main - Cotherm
14GA, Lead Vio/Bk 12" Tef. 1S - 1S
AK
103011
14GA, Lead Vio/Bk 7" Tef. 1S - 1S
AK
108215
Timers (Control Boards ) and Associated Parts
For AK2AS & AK3As Only
Auto-Warmer Timer Ass'y
AK
101840
Timer Access Plate
AK
108014
Warmer Plates & Associated Parts
Warming Plate Ass'y, Black
AK,AKH 100010
-Warming Element, 100W, 120V
AK,AKH 100187
AK,AKH 100008
-Warming Plate Only, Black
AK,AKH 100086
-Support Plate
-Nut, 8/32 Hex S/S
AK,AKH 100061
- Washer, #8 Ext. Lock S/S
AK,AKH 100054
Screw, Warming Plate
AK,AKH 100160
NEWCO Enterprises,Inc.
Technical Service 800-556-3926 Customer Service 800-325-7867
www.newcocoffee.com
