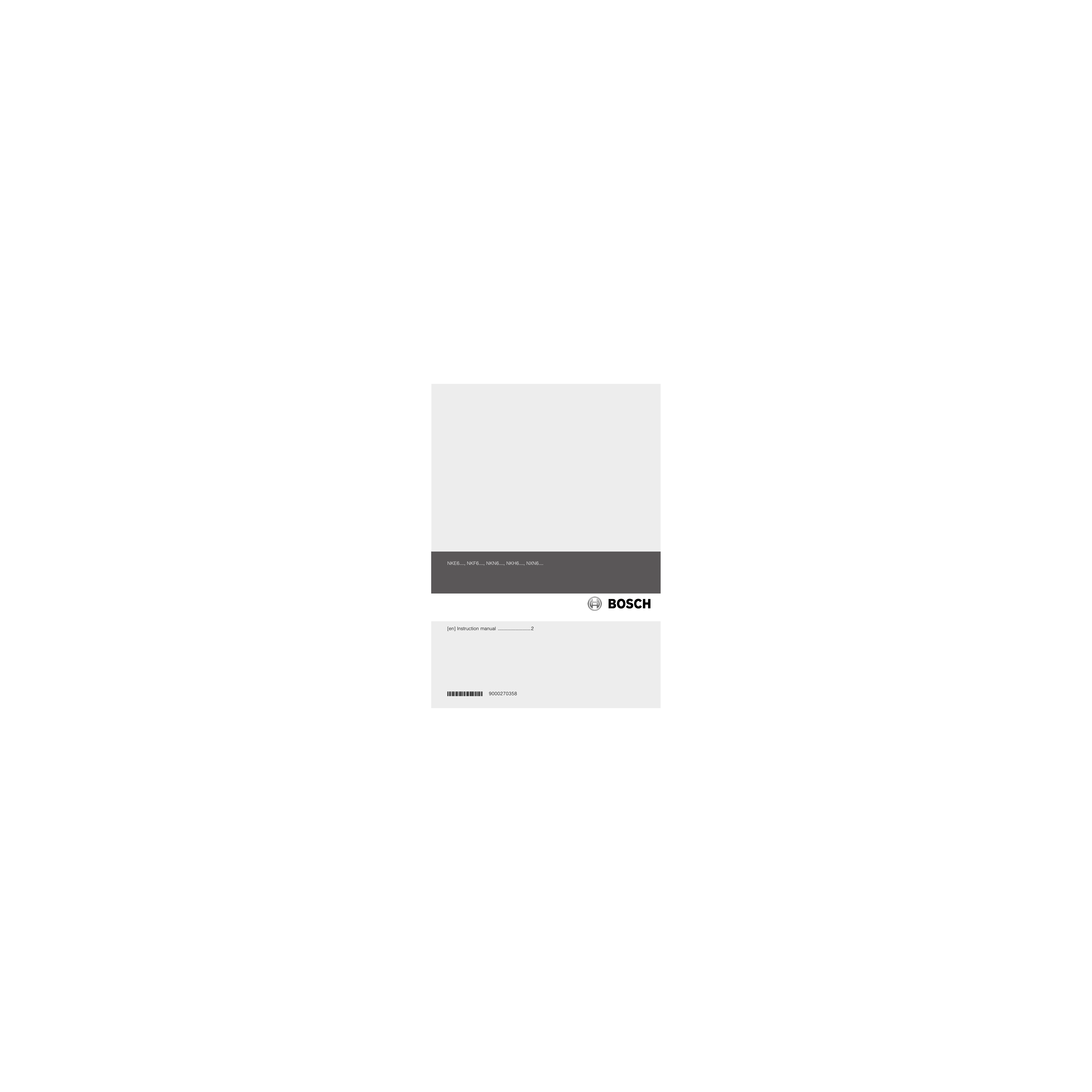

Bosch NKE645H14 Owner Manual

NKE6...., NKF6...., NKN6...., NKH6...., NXN6....
[en] Instruction manual ............................2
9000270358
9000270358
NKE6....
NKF6....
Ø 18
Ø 14,5
Ø 14,5
Ø 21
Ø 18
Ø 14,5
Ø 14,5
Ø 21/12
NKN6....
NKF6....
Ø 18
Ø 14,5
Ø 14,5
Ø 17/26,5
Ø 21/12
Ø 18
Ø 14,5
Ø 21/14,5
NXN6..H..
Ø 17/26,5
Ø 14,5
Ø 14,5
Ø 21/12
Ú Table of contents
Safety information......................................................................3
Safety information for this appliance...............................................3
Causes of damage .............................................................................3
Environmental protection ..........................................................4
Environmental protection...................................................................4
Tips for saving energy .......................................................................4
Getting to know your appliance ................................................4
The hotplates .......................................................................................4
Hotplate and residual heat indicators .............................................4
Setting the hob ...........................................................................4
Switching the hob on and off ...........................................................4
Setting a hotplate................................................................................4
Table of cooking times ......................................................................5
2
Cleaning and care ...................................................................... 6
Ceramic ................................................................................................6
Hob surround.......................................................................................6
After-sales service ..................................................................... 6
Produktinfo
Additional information on products, accessories, replacement
parts and services can be found at www.bosch-home.com
and in the online shop www.bosch-eshop.com
Ø = cm
m Safety information
Please read this instruction manual carefully. This will enable
you to operate your hob safely and correctly.
Please keep the instruction manual, installation instructions and
the appliance certificate in a safe place. If the appliance
changes owners, this documentation should always be
included.
Check the appliance for damage after unpacking it. Do not
switch on the appliance if it is damaged.
Safety information for this appliance
This appliance is intended for domestic use only. This
appliance must only be used for food preparation. Do not leave
the appliance unattended during operation.
Safe operation
Adults and children must not operate the appliance without
supervision if:
■
they do not have the physical or mental ability,
■
or they lack the knowledge and experience required
Risk of fire!
■
■
Never place combustible items on the hob.
Do not keep combustible objects or aerosol cans in drawers
directly underneath the hob.
Wet saucepan bases and hotplates
Risk of injury!
Steam pressure may build up if there is liquid between the
saucepan base and the hotplate. This may cause the pan to
jump suddenly. Always keep the hotplate and saucepan bases
dry.
Cracks in the ceramic
Risk of electric shock.!
Switch off the circuit breaker in the fuse box if the ceramic has
fractures, flaws or cracks. Call the after-sales service.
Incorrect repairs
Risk of electric shock.!
Incorrect repairs are dangerous. Switch off the circuit breaker in
the fuse box, if the appliance is faulty. Call the after-sales
service. Repairs may only be carried out by one of our qualified
after-sales engineers.
to operate the appliance correctly.
Overheated oil and fat
Risk of fire!
Overheated oil or fat can ignite very quickly. Never leave hot oil
or fat unattended. Never attempt to extinguish burning fat or oil
with water. Extinguish the flames with a lid or a plate. Switch the
hotplate off.
Hot hotplates
Causes of damage
Caution!
■
Rough pot and pan bases scratch the ceramic.
■
Avoid boiling pots dry. This may cause damage.
■
Risk of burning!
Never touch hot hotplates. Small children must be kept at a
safe distance from the hob.
■
■
Never place hot pots or pans on the control panel, the
display area or the surround. This may cause damage.
Damage can occur if hard or pointed objects fall on the hob.
Aluminium foil and plastic containers melt on hot hotplates.
Oven protective foil is not suitable for your hob.
Overview
The following table provides an overview of the most frequent
kinds of damage:
Damage
Stains
Scratches
Discolouration
Blisters
Cause
Action
Food spills
Remove spills immediately with a glass scraper.
Unsuitable cleaning agents
Only use cleaning agents which are suitable for ceramic
Salt, sugar and sand
Do not use the hob as a work surface or storage space.
Rough pot and pan bases scratch
the ceramic.
Check your cookware.
Unsuitable cleaning agents
Only use cleaning agents which are suitable for ceramic
Pan abrasion (e.g. aluminium)
Lift the pots and pans when moving them.
Sugar, food with a high sugar content Remove spills immediately with a glass scraper.
3
Environmental protection
Unpack the appliance and dispose of the packaging in an
environmentally-responsible manner.
■
■
Environmental protection
This appliance is labelled in accordance with the
European Directive 2002/96/EU concerning used
electrical and electronic appliances (WEEE – waste
electrical and electronic equipment). The guideline
determines the framework for the return and
recycling of used appliances as applicable.
Tips for saving energy
■
Always use the right lid for the pan in question. Cooking
without the lid requires four times as much energy.
■
■
■
■
Use pots and pans with even bases. Using cookware with
uneven bases increases energy consumption.
The diameter of the base of your pot or pan should match the
size of the hotplate. In particular, if pots that are too small are
placed on the hotplate, energy is wasted. Please note:
Cookware manufacturers often specify the diameter of the
top of the pan. This is usually bigger than the diameter of the
base of the pan.
Use a small pan for small quantities of food. A larger, less full
saucepan requires more energy.
Use only a little water when cooking. This saves energy. It
also preserves vitamins and minerals in vegetables.
Switch to a lower heat setting as soon as possible.
Use the residual heat of the hob. For longer cooking times,
you can switch the hotplate off 5 - 10 minutes before the end
of the cooking time.
Getting to know your appliance
The instruction manual is the same for various different hobs.
An overview of the models with their dimensions is given on
page 2.
Hotplate and residual heat indicators
The hotplates
■
Hotplate
Activating and deactivating
$ Single-circuit
hotplate
ð Dual-circuit
hotplate
To activate: turn the hotplate control clockwise to ð. Set the heat setting. To switch
off: turn the hotplate control to 0 and reset.
Never turn the hotplate control beyond the
ð symbol to 0.
The hotplate and residual heat indicators e light up when a
hotplate is warm:
■
Hotplate indicator - during operation, shortly after you have
switched on a hotplate.
Residual heat indicator - after cooking, when the hotplate is
still warm.
You can use the residual heat to save energy, e.g. to keep a
small dish warm or to melt chocolate.
æ Extended
To activate: Turn the hotplate control clockcooking zone wise to æ. Set the heat setting. To switch
off: turn the hotplate control to 0 and reset.
Never turn the hotplate control beyond the
æ symbol to 0.
Setting the hob
This section informs you how to set the hotplates. The table
shows heat settings and cooking times for various meals.
Setting a hotplate
Switching the hob on and off
Heat setting 1 = lowest setting
You can switch the hob on and off with the hotplate controls.
Adjust the heat setting of the hotplates using the hotplate
controls.
Heat setting 9 = highest setting
Note: Hotplate temperature is regulated by the heat switching
on and off. The heat may also switch on and off at the highest
setting.
4
Table of cooking times
The following table provides some examples.
When heating thick liquids, stir regularly.
Cooking times and heat settings may vary depending on the
type of food, its weight and quality. Deviations are therefore
possible.
For bringing liquids to the boil, use heat setting 9.
Ongoing cooking
setting
Ongoing cooking
time in minutes
Chocolate, cooking chocolate, gelatine
1
-
Butter
1-2
-
Stew (e.g. lentil stew)
1-2
-
Milk**
1-2
-
Dumplings
4*
20-30 mins
Fish
3*
10-15 mins
White sauces, e.g. béchamel sauce
1
3-6 mins
Rice (with double the quantity of water)
3
15-30 mins
Unpeeled boiled potatoes
3-4
25-30 mins
Boiled potatoes
3-4
15-25 mins
Pasta, noodles
5*
6-10 mins
Stew, soups
3-4
15-60 mins
Vegetables
3-4
10-20 mins
Vegetables, frozen
3-4
10-20 mins
Cooking in a pressure cooker
3-4
-
Roulades
3-4
50-60 mins
Pot roasts
3-4
60-100 mins
Goulash
3-4
50-60 mins
Escalope, plain or breaded
6-7
6-10 mins
Escalope, frozen
6-7
8-12 mins
Steak (3 cm thick)
7-8
8-12 mins
Fish and fish fillet, plain
4-5
8-20 mins
Fish and fish fillet, breaded
4-5
8-20 mins
Fish and fish fillet, breaded and frozen, e.g. fish fingers
6-7
8-12 mins
Stir fry, frozen
6-7
6-10 mins
Pancakes
5-6
continuous
Melting
Heating and keeping warm
Poaching, simmering
Boiling, steaming, stewing
Braising
Frying**
* Continue cooking without a lid
** Without lid
5
Cleaning and care
The information in this section provides help on how best to
care for your hob.
Suitable maintenance and cleaning products can be purchased
from the after-sales service or in our e-Shop.
■
Harsh cleaning agents such as oven spray or stain remover
■
Abrasive sponges
■
High-pressure cleaners or steam jet cleaners
Ceramic
Ground-in dirt can be best removed with a glass scraper,
available from retailers. Please note the manufacturer's
instructions.
Clean the hob after each use. This will prevent spills from
burning onto the ceramic.
You can also obtain a suitable glass scraper from our aftersales service or from the e-Shop.
Only clean the hob when it has cooled down sufficiently.
Use only cleaning agents which are suitable for ceramic. Follow
the cleaning instructions on the packaging.
Never use:
Hob surround
To prevent damage to the hob surround, please observe the
following instructions:
■
Undiluted washing-up liquid
■
Use only warm, soapy water.
■
Detergent intended for dishwashers
■
Do not use harsh or abrasive agents.
Scouring agents
■
Do not use the glass scraper.
■
After-sales service
Our after-sales service is there for you if your appliance should
need to be repaired. We are committed fo find the best solution
also in order to avoid an unnecessary call-out.
E number and FD number:
Please quote the E number (product number) and the FD
number (production number) of your appliance when
contacting the after-sales service. The rating plate bearing
these numbers can be found on the appliance certificate.
Please note that a visit from an after-sales service engineer is
not free of charge, even during the warranty period.
Please find the contact data of all countries in the enclosed
customer service list.
6
To book an engineer visit and product advice
GB
0844 8928979
Calls from a BT landline will be charged at up to 3
pence per minute. A call set-up fee of up to 6 pence
may apply.
IE
01450 2655
Trust the expertise of the manufacturer, and rest assured that
the repair will be carried out by trained service technicians
using original spare parts for your domestic appliance.
Robert Bosch Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München
DEUTSCHLAND
(900331)

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
