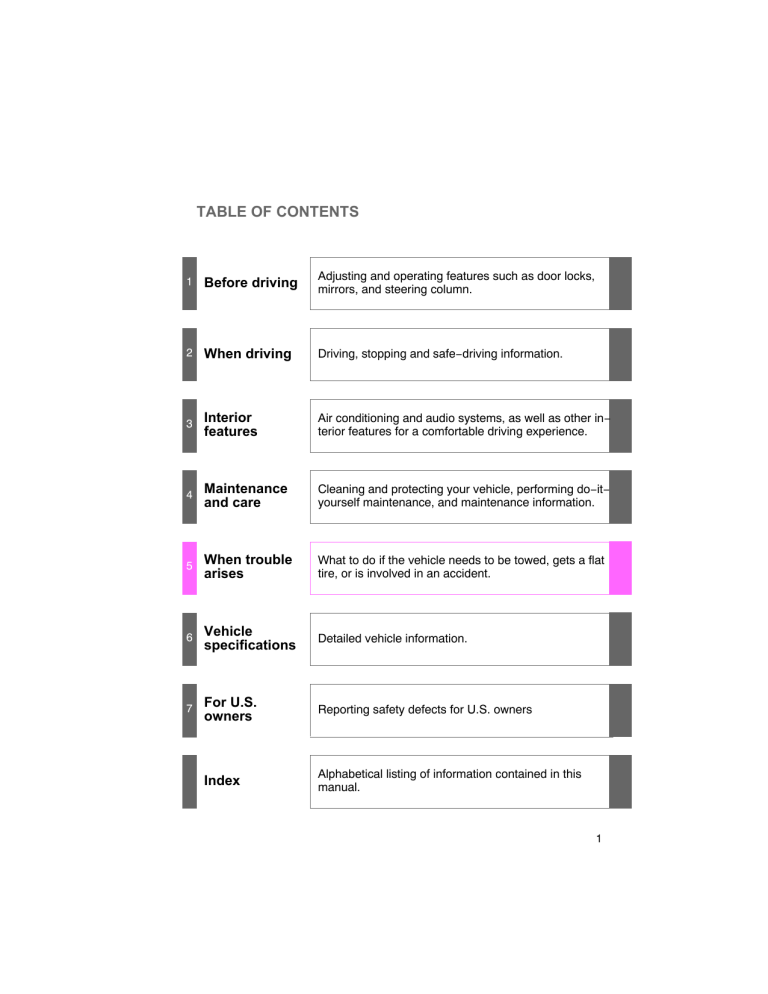

TABLE OF CONTENTS
1
Before driving
Adjusting and operating features such as door locks,
mirrors, and steering column.
2
When driving
Driving, stopping and safe−driving information.
3
Interior
features
Air conditioning and audio systems, as well as other in−
terior features for a comfortable driving experience.
4
Maintenance
and care
Cleaning and protecting your vehicle, performing do−it−
yourself maintenance, and maintenance information.
5
When trouble
arises
What to do if the vehicle needs to be towed, gets a flat
tire, or is involved in an accident.
6
Vehicle
specifications
Detailed vehicle information.
7
For U.S.
owners
Reporting safety defects for U.S. owners
Index
Alphabetical listing of information contained in this
manual.
1
TABLE OF CONTENTS
1
Index
Theft prevention labels
(U.S.A.) ............................... 70
Before driving
1−1. Key information .................. 28
1−7. Safety information .............. 71
Correct driving posture .........
SRS airbags .........................
Front passenger occupant
classification system ...........
Child restraint systems .........
Installing child restraints .......
Keys ..................................... 28
1−2. Opening, closing and
locking the doors ............. 30
Wireless remote control .......
Side doors ............................
Access doors ........................
Back door .............................
Glass hatch ..........................
30
33
36
38
41
1−3. Adjustable components
(seats, mirrors, steering
wheel) ................................ 43
Front seats ...........................
Rear seats ............................
Head restraints .....................
Seat belts .............................
Steering wheel .....................
Anti−glare inside rear view
mirror ..................................
Outside rear view mirrors .....
43
44
49
51
57
58
59
1−4. Opening and closing the
windows ............................ 62
Power windows .................... 62
1−5. Refueling ............................. 64
Opening the fuel tank cap .... 64
1−6. Theft deterrent system ...... 68
Engine immobilizer
system ................................ 68
2
2
71
73
85
90
93
When driving
2−1. Driving procedures ........... 104
Driving the vehicle ..............
Engine (ignition) switch .......
Automatic Transmission ......
Manual Transmission .........
Turn signal lever .................
Parking brake .....................
104
114
117
119
121
122
2−2. Instrument cluster ............ 124
Gauges and meters ............ 124
Indicators and warning
lights ................................. 127
Accessory meter ................. 130
2−3. Operating the lights and
wipers .............................. 131
Headlight switch ................. 131
Windshield wipers and
washer .............................. 133
Rear window wiper and
washer .............................. 135
2−4. Using other driving
systems ........................... 136
Cruise control ...................... 136
Intuitive parking assist......... 139
Four−wheel drive system
(4WD models with a manual
transmission) .................... 144
Four−wheel drive system
(4WD models with an
automatic transmission) .... 146
Active traction control
system .............................. 148
AUTO LSD system (2WD
models) ............................. 150
Rear differential lock
system .............................. 152
Clutch start cancel switch
(vehicles with a manual
transmission) .................... 155
Driving assist systems ........ 156
2−5. Driving information ........... 160
Off−road precautions ........... 160
Cargo and luggage ............. 165
Vehicle load limits ............... 168
Winter driving tips ............... 169
Trailer towing ...................... 172
Dinghy towing ..................... 182
3−2. Using the audio system ... 191
Audio system types ............ 191
Using the radio ................... 194
Using the CD player ........... 200
Playing back MP3 and
1
WMA discs ....................... 208
Optimal use of the audio
system .............................. 217
Operating the sub woofer ... 220
2
Changing display color
(type B only) ..................... 221
Using the AUX adapter....... 222
Using the steering wheel
audio switches.................. 224 3
3−3. Using the interior lights ... 226
Interior lights list ................. 226
S Interior lights.................... 227
4
3−4. Using the storage
features ........................... 228
List of storage features ....... 228
S Glove box ......................... 228 5
S Cup holders (front) ........... 229
S Cup holders (rear) ............ 232
S Bottle holders ................... 233
S Auxiliary box ..................... 234
6
3−5. Other interior features ..... 235
3
Interior features
3−1. Using the air conditioning
system and defogger...... 184
Air conditioning system ....... 184
Rear window defogger ........ 190
Sun visors...........................
Vanity mirror .......................
Clock ..................................
Outside temperature
display ..............................
Power outlet (12V DC) .......
Power outlet
(if 115V AC equipped) ......
Armrest ...............................
235
236
237 7
238
239
240
246
3
TABLE OF CONTENTS
Index
Floor mat ............................ 247
Luggage storage box (vehicles
without sub woofer) .......... 248
Luggage compartment
features ............................ 249
Compass ............................ 252
4
5
5−1. Essential information ....... 322
If your vehicle needs to be
towed ................................
If you think something is
wrong ................................
Fuel pump shut off
system ..............................
Event data recorder ............
Maintenance and care
4−1. Maintenance and care ...... 258
Cleaning and protecting the
vehicle exterior ................. 258
Cleaning and protecting the
vehicle interior .................. 260
If a warning light turns on
or a warning buzzer
sounds... ...........................
If you have a flat tire ...........
If the engine will not start ....
If the shift lever cannot be
shifted from P ...................
If you lose your keys ...........
If the vehicle battery is
discharged ........................
If your vehicle overheats .....
If the vehicle becomes
stuck .................................
Maintenance
requirements .................... 263
General maintenance ......... 265
Emission inspection and
maintenance (I/M)
programs .......................... 268
4−3. Do−it−yourself
maintenance ................... 269
4
269
273
274
287
292
296
298
301
303
314
322
327
328
329
5−2. Steps to take in an
emergency ...................... 331
4−2. Maintenance ..................... 263
Do−it−yourself service
precautions ......................
Hood ...................................
Engine compartment ..........
Tires ...................................
Tire inflation pressure .........
Wheels ...............................
Air conditioning filter ...........
Key battery .........................
Checking and replacing
fuses ................................
Light bulbs ..........................
When trouble arises
6
331
340
350
351
352
353
356
359
Vehicle specifications
6−1. Specifications ................... 362
Maintenance data
(fuel, oil level, etc.) ........... 362
Fuel information .................. 372
Tire information ................... 375
6−2. Customization ................... 386
Customizable features ........ 386
Items to initialize ................. 388
7
1
For U.S. owners
Reporting safety defects for
U.S. owners ...................... 390
2
Index
3
Abbreviation list ........................ 392
Alphabetical index ..................... 394
4
What to do if... ............................ 402
5
6
7
5
Pictorial index
Exterior
Outside rear view mirror
P. 131
illumination lights
Windshield wipers P. 133
Hood P. 273
Outside rear view mirrors
P. 59
Headlights P. 131
Front turn signal/parking and front
side marker lights P. 121, 131
6
Stop/tail and rear side
marker lights P. 131
Fuel filler door
Access doors
P. 64
P. 36
A
Side doors
Tires
Rotation
Replacement
Inflation pressure
Information
P. 33
P. 287
P. 340
P. 292
P. 375
Rear turn signal lights P. 121
: If equipped
7
Pictorial index
Glass hatch
Exterior
P. 41
Rear window wiper
Rear window
defogger P. 190
P. 135
Back door
P. 38
License plate lights P. 131
: If equipped
8
9
Pictorial index
Interior
Seat belts
Head restraints
P. 51
P. 49
SRS driver airbag P. 73
Bottle holders P. 233
Auxiliary box P. 234
SRS front passenger
airbag P. 73
Rear seats
P. 44
Floor mats P. 247
Cup holders P. 232
SRS side airbags
10
P. 73
Sun visors P. 235
Interior lights P. 227
Vanity mirror
P. 236
SRS curtain shield airbags
P. 73
Anti−glare inside rear view mirror P. 58
11
Pictorial index
Interior
Inside door lock button
P. 33
Door lock switch
Window lock switch
Power window switches
12
P. 62
P. 33
P. 62
Automatic transmission
Cup holders
Shift lever P. 117
P. 229
Front−wheel drive control
P. 146
lever
Parking brake lever
P. 122
Manual transmission
Shift lever P. 119
Shift lock override
button P. 351
Cup holders P. 229
Four−wheel drive control
lever P. 144
Cup holders
P. 229
Parking brake lever
P. 122
: If equipped
13
Pictorial index
Instrument panel
Headlight switch P. 131
Turn signal lever P. 121
Gauges and meters P. 124
Windshield wipers and
washer switch P. 133
Rear window wiper and
P. 135
washer switch
Accessory meter
P. 130
Glove box P. 228
Cruise control switch
Hood lock release lever P. 273
14
P. 136
Clock P. 237
Emergency flasher switch
Air conditioning
system P. 184
Audio system P. 191
Security indicator
P. 68
Rear window defogger
switch P. 190
: If equipped
15
Pictorial index
Instrument panel
AUTO LSD switch
P. 150
RR DIFF LOCK switch
P. 152
A−TRAC switch
P. 148
SUB WOOFER switch
P. 220
Power outlet P. 239
AUX adapter P. 222
Intuitive parking assist
P. 139
switch
Power outlet main switch
P. 240
16
Engine switch P. 114
: If equipped
17
Pictorial index
Instrument panel
Audio remote control
P. 224
switches
18
Instrument panel light
control dial P. 125
Tilt steering lock
release lever P. 57
CLUTCH START
CANCEL switch
P. 155
Outside rear view
P. 59
mirror switches
: If equipped
19
Pictorial index
Luggage compartment
Child restraint anchor brackets P. 93
Tie−down hooks P. 249
20
Shopping bag hooks P. 251
Cargo net hooks P. 250
Jack P. 340
Tools P. 340
Shopping bag hooks* P. 251
Cargo net hooks* P. 250
Luggage storage
box* P. 248
Power outlet
P. 240
: If equipped
*: Vehicles without sub woofer
21
For your information
Main Owners Manual
Please note that this manual applies to all models explains and all equip−
ment, including options. Therefore, you may find some explanations for
equipment not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
A wide variety of non−genuine spare parts and accessories for Toyota
vehicles are currently available in the market. You should know that Toyota
does not warrant these products and is not responsible for their
performance, repair, or replacement, or for any damage they may cause to,
or adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non−genuine Toyota products.
Modification with non−genuine Toyota products could affect its performance,
safety or durability, and may even
violate governmental regulations. In
addition, damage or performance problems resulting from the modification
may not be covered under warranty.
Installation of a mobile two−way radio system
As the installation of a mobile two−way radio system in your vehicle could
affect electronic systems such as the multiport fuel injection system/sequen−
tial multiport fuel injection system, cruise control system, anti−lock brake sys−
tem, SRS airbag system and seat belt pretensioner system, be sure to check
with your Toyota dealer for precautionary measures or special instructions
regarding installation.
22
Scrapping your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo−
nents may include airbag, seat belt pretensioners, and wireless remote con−
trol batteries.
CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ−
ence of alcohol or drugs that have impaired your ability to operate your vehi−
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that will hurt or kill you,
your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis−
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
23
CAUTION
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi−
tion, heat build−up or extremely cold temperatures inside the vehicle can be
fatal to children.
24
Symbols used throughout this manual
Cautions & Notices
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Safety symbol
Throughout this manual, you will also see the symbol of a circle with
a slash through it. This means “Do not”, “Do not do this”, or “Do not
let this happen”.
25
26
1−1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles with wireless remote control system
Master keys (with wireless
remote control function)
Operating the wireless remote
control function ( P. 30)
Valet key
Key number plate
Vehicles without wireless remote control system
Master keys
Valet key
Key number plate
Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by your Toyota dealer using
the key number plate. ( P. 352)
NOTICE
To prevent key damage
Do not subject the keys to strong shocks, expose them to high tempera−
tures by placing them in direct sunlight, or get them wet.
28
1−1. Key information
NOTICE
To prevent key damage
Do not expose the keys to electromagnetic materials or attach any mate−
1
rial that blocks electromagnetic waves to the key surface.
Before driving
29
1−2. Opening, closing and locking the doors
Wireless remote control (if equipped)
The wireless remote control can be used to lock and unlock the vehi−
cle from outside the vehicle.
Locks all doors
Unlocks all doors
Sounds alarm
(push and hold)
2−step unlocking function
When you push the UNLOCK button, the driver ’s door is unlocked. Pushing
the button again within 3 seconds unlocks the other doors.
Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors
have been locked/unlocked. (Locked: Once; Unlocked: Twice)
Panic mode
LOCK
UN
LOCK
PA N
IC
When PANIC button is pushed for longer
than about one second, an alarm will
sound for about 60 seconds and the vehi−
cle lights will flash to deter any person
from trying to break into or damage your
vehicle.
To stop the alarm, push any button on the
wireless remote control.
Door lock buzzer
If a door or glass hatch is not fully closed, a buzzer sounds for 10 seconds if
an attempt to lock the door and glass hatch are made. Fully close the door
and glass hatch to stop the buzzer, and lock the vehicle once more.
30
1−2. Opening, closing and locking the doors
Key battery depletion
The standard battery life is 1 to 2 years. (The battery becomes depleted
even if the key is not used.) If the wireless remote control function does not
operate, the battery may be depleted. Replace the battery when necessary.
( P. 301)
1
Security feature
Conditions affecting operation
The wireless remote control function may not operate normally in the follow−
ing situations.
Near a TV tower, radio station, electr ic power plant, airport or other facil−
ity that generates strong radio waves
When carrying a portable radio, cell ular phone or other wireless commu−
nication device
Conditions affecting operation
When multiple wireless keys are in the vicinity
When the wireless key has come into contact with, or is covered by a
metallic object
When a wireless key (that emits radio waves) is being used nearby
When the wireless key has been left near an electrical appliance such as
a personal computer
Customization that can be configured at Toyota dealer
Settings (e.g. wireless remote control system) can be changed.
(Customizable features P. 386)
31
Before driving
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
1−2. Opening, closing and locking the doors
Certification for wireless remote control
For vehicles sold in U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer−
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How−
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ−
ing interference that may cause undesired operation of the device.
32
1−2. Opening, closing and locking the doors
Side doors
The vehicle can be locked/unlocke d using the wireless remote con−
trol, key or door lock switch.
Wireless remote control (if equipped)
1
P. 3 0
Before driving
Key
Locks all doors
Unlocks all doors
Turning the key a single
time in the driver’s door
unlocks the driver’s door,
and turning the key again
unlocks the other doors.
Door lock switch
Driver ’s door lock switch
Locks all doors
Unlocks all doors
33
1−2. Opening, closing and locking the doors
Passenger ’s door lock switch
Locks all doors
Unlocks all doors
Inside door lock button
Locks the door
Unlocks the door
Pulling the inside handle can
open the front door even if the
inside door lock button is in the
lock position.
Locking the front doors from the outside without a key
Move the inside door lock button to the lock position.
Close the door.
The door cannot be locked if the dr iver ’s door is open and the key is
in the engine switch.
Key reminder buzzer
A buzzer sounds if the driver ’s door is opened, while the engine switch is in
the ACC or LOCK position to remind you to remove the key.
Customization that can be configured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 386)
34
1−2. Opening, closing and locking the doors
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
1
Before driving
Always use a seat belt.
Always lock all doors.
Ensure that all doors are properly closed.
Do not pull the inside handle of the front door while driving.
35
1−2. Opening, closing and locking the doors
Access doors
The access door (rear door) can be opened using the inside handle.
Open the front door widely
Pull (from the outside) or
push (from the inside) the
inside handle of the access
door.
Open the access door
You can open and close the
access door only when the
front door is widely opened.
CAUTION
When closing the access door
Observe the following precautions.
Failure to do so may result in serious personal injury.
Confirm safety of the area around.
Keep the hands, fingers and other parts
of the bodies of all occupants away
from the access door.
36
1−2. Opening, closing and locking the doors
NOTICE
When opening or closing the front door and access door
The front door and access door could be damaged if they hit each other
when being opened or closed.
1
Before driving
37
1−2. Opening, closing and locking the doors
Back door
The back door can be locked/unlo cked using a key, wireless remote
control or door lock switch.
Wireless remote control (if equipped)
P. 3 0
Key
Unlocks the back door
Locks the back door
Opens the back door
When you turn the key clock−
wise and hold it for about 1
second, the glass hatch opens.
( P. 41)
Door lock switch
P. 3 3
38
1−2. Opening, closing and locking the doors
Back door fixing function
The back door can be held in the following positions:
Half open position
1
Before driving
Open the back door to the half
open position.
It cannot be held in this posi−
tion when being closed.
Full open position
You can hold the back door in
this position:
Lock the damper
Unlock the damper
When closing the door, be sure
to unlock the damper.
39
1−2. Opening, closing and locking the doors
Rear step bumper
For rear end protection and eas−
ier step−up loading.
To get on the rear step bumper,
use the shaded area in the illus−
tration.
CAUTION
Caution while driving
Observe the following precautions.
Failure to do so may result in death or serious personal injury.
Keep the back door and glass hatch closed.
This not only keeps the luggage from being thrown out, but also prevents
exhaust gases from entering the vehicle.
Do not get on the rear step bumper.
NOTICE
To prevent damage to the back door components
Do not apply any force, paint or let any other foreign matter on the damper.
Ensure that the damper is unlocked before closing the back door.
Do not allow more than one person to get on the rear step bumper at a
time.
40
1−2. Opening, closing and locking the doors
Glass hatch
The glass hatch can be opened using the key.
Turn the key clockwise and
hold it for about 1 second.
1
Raise
Before driving
Opening the glass hatch
The glass hatch opens slightly, after the back door is locked.
When the rear window wiper is working, the wiper returns to the original
position and stops working.
The wiper restarts its working about 3 seconds after the glass hatch is
closed.
Closing the glass hatch
Make sure that the glass hatch is securely closed after closing it.
If the glass hatch is not securely closed, the rear window wiper and
washer will not work.
Be careful not to lock your keys in the vehicle.
41
1−2. Opening, closing and locking the doors
CAUTION
Operating the glass hatch
Do not open the glass hatch while the vehicle is moving.
Caution while driving
Keep the back door and glass hatch closed.
This not only keeps the luggage from being thrown out but also prevents
exhaust gases from entering the vehicle.
Before you close the glass hatch
To avoid death or serious personal injury, you must do the following.
Always make sure there is nobody around the glass hatch.
Make sure the heads, hands and other parts of the bodies of all occupants
are kept completely inside the vehicle.
NOTICE
To prevent damage to the glass hatch components
Do not apply any force, paint or let any other foreign matter on the damper.
42
1−3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Seat position adjustment
lever
Seat cushion angle adjust−
ment knob (driver’s side
only)
1
Before driving
Seat height adjustment
lever (driver’s side only)
Seatback angle adjustment
lever
Waterproof and water−repellent seats
Waterproof and water−repellent seats are installed in your vehicle; however,
the water−repellent effect does not last forever.
CAUTION
Seat adjustment
Do not recline the seat more than necessary when the vehicle is in motion
to reduce the risk of sliding under the lap belt.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
After adjusting the seat, make sure that the seat is locked in position.
43
1−3. Adjustable components (seats, mirrors, steering wheel)
Rear seats
The seatbacks of the rear seats can be folded down.
Stow the seat belt buckles and
remove the head restraints.
Swing the bottom cushion up
by pulling the lock release
strap.
44
1−3. Adjustable components (seats, mirrors, steering wheel)
Push the lock release button
and fold down the seatback.
1
Before driving
Removing rear seat bottom cushions
Loosen the bolts with the wrench
at first and turn the dials with
hands to remove them.
Dial
Hexagon
head bolt
45
1−3. Adjustable components (seats, mirrors, steering wheel)
Separate the bottom cushion
from the hinge.
Fold the hinge as shown in the
illustration.
46
1−3. Adjustable components (seats, mirrors, steering wheel)
If you cannot raise the seatback
Release the seat belt lock by:
Pushing on the lower front edge of the
seatback to slacken the seat belt.
Before driving
Let the seat belt retract a little.
1
When the bottom cushion is reinstalled
Click the claw of the hinge into the hole of
the bottom cushion before refastening the
dial.
Firmly tighten the hexagon head bolts
using a torque wrench.
Tightening torque:
12.5 ft⋅lbf (17 N⋅m, 1.7 kgf⋅m)
Waterproof and water−repellent seats
Waterproof and water−repellent seats are installed in your vehicle: however,
the water−repellent effect does not last forever.
47
1−3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
When the seatback is folded
Do not sit on or place anything on the seatback while driving.
When returning the seats to their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Be careful not to get your hands or feet pinched in the seat.
Make sure the seatbacks and bottom cushions are securely locked. Fail−
ure to do so will prevent the seat belt from operating properly.
Check that the seat belts are not twisted or caught under the seat.
Arrange the seat belts in the proper positions for ready use.
When removing or reinstalling the bottom cushion
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not get in the vehicle with the bottom cushions uninstalled.
Do not leave the removed bottom cushion unsecured in the vehicle.
Do not try to sit on or place anything on the removed bottom cushion.
Do not drop the bottom cushion.
Have the hexagon head bolts tightened with a torque wrench to 12.5 ft⋅lbf
(17 N⋅m, 1.7 kgf⋅m), or have them tightened by your Toyota dealer.
Failure to do so may cause the dials to be loosened and the bottom cush−
ions to be removed.
NOTICE
Before folding down or removing the seats
The seat belts buckles must be stowed.
The head restraints must be removed before you fold down the seatback.
48
1−3. Adjustable components (seats, mirrors, steering wheel)
Head restraints
Front seats
Vertical adjustment
1
Removal
Before driving
Lock
release
button
Push and hold the lock release
button when lowering the head
restraint.
Pull the head restraint up while
pushing the lock release but−
ton.
Rear seats
Vertical adjustment
2
1
Lock
release
button
Push and hold the lock release
button when lowering the head
restraint.
Removal
Pull the head restraint up while
pushing the lock release but−
ton.
49
1−3. Adjustable components (seats, mirrors, steering wheel)
Adjusting the height of the head restraints
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
Adjusting the rear seat head restraints
Always raise the head restraint one level from the stowed position when
using.
Head restraints of different seats
The head restraints are specially designed for the seats on which they are
installed.
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Adjust the head restraints to the correct position at all times.
Do not drive with the head restraints removed.
50
1−3. Adjustable components (seats, mirrors, steering wheel)
Seat belts
Make sure that all occupants are wearing their seat belts before driv−
ing the vehicle.
Correct use of the seat belts
1
Before driving
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul−
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is heard.
Releasing the belt
Press the release button.
Release
button
51
1−3. Adjustable components (seats, mirrors, steering wheel)
Adjusting the height of the belt (front seats)
Up
Move the height adjuster up as
needed until you hear a click.
Down
Push the lock release button
and slide the height adjuster
down.
Seat belt pretensioners (front seats)
The pretensioner helps the seat
belt to quickly restrain the occu−
pant by retracting the seat belt
when the vehicle is subjected to
certain types of severe frontal
collision.
The pretensioner may not acti−
vate in the event of a minor frontal
impact, a side impact or a rear
impact.
52
1−3. Adjustable components (seats, mirrors, steering wheel)
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
1
Automatic locking retractor (ALR)
Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. ( P. 51)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu−
pants. Extend the shoulder belt com−
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only a pregnant woman, but also the fetus
could suffer death or serious injury as a
result of sudden braking or a collision.
People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
become large enough to properly wear the vehicle’s seat belt. ( P. 90)
When the child becomes large enough to properly wear the vehicle’s seat
belt, follow the instructions on P. 51 regarding seat belt usage.
53
Before driving
When a passenger’s shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. ( P. 90)
1−3. Adjustable components (seats, mirrors, steering wheel)
Replacing the belt after the pretensioner has been activated
The seat belts cannot be used after a pretensioner has been activated. After
an accident, have the pretensioners inspected by your Toyota dealer. Make
sure the pretensioners are replaced if they have been activated.
Seat belt extender
If your seat belts cannot be fastened
securely because they are not long
enough, a personalized seat belt
extender is available from your Toyota
dealer free of charge.
CAUTION
Wearing a seat belt
Observe the following precautions to reduce the risk of injury in the event of
sudden braking or an accident.
Failing to do so may cause death or severe injury.
Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Toyota recommends that children be seated in the rear seat and always
use a seat belt and/or an appropriate child restraint system.
Do not recline the seat any more than necessary to achieve a proper seat−
ing position. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.
54
1−3. Adjustable components (seats, mirrors, steering wheel)
CAUTION
Seat belt pretensioners
Seat belt damage and wear
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt until it is replaced. Damaged seat
belt cannot protect an occupant from death or serious injury.
Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Toyota
dealer.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there is no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by your Toyota dealer.
Inappropriate handling of the pretensioner may prevent it from operating
properly resulting in death or serious injury.
Using a seat belt extender
Do not wear the seat belt extender, if you can fasten the seat belt without
the extender.
Do not use the seat belt extender when installing a child restraint system,
because the belt will not securely hold the child restraint system, increas−
ing the risk of death or serious injury in the event of a collision.
The personalized extender may not be safe on another vehicle, when
used by another person, or at a different seating position other than the
one originally intended.
55
1
Before driving
Do not place anything, such as a cushion, on the front passenger ’s seat.
Doing so will disperse the passenger ’s weight, which prevents the sensor
from detecting the passenger ’s weight properly. As a result, the seat belt
pretensioner for the front passenger ’s seat may not activate in the event of a
collision.
1−3. Adjustable components (seats, mirrors, steering wheel)
NOTICE
When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
56
1−3. Adjustable components (seats, mirrors, steering wheel)
Steering wheel
The steering wheel can be adjusted to a comfortable position.
Hold the steering
wheel and pull the
lever.
1
Before driving
Adjust to the ideal
position by moving the
steering wheel verti−
cally.
Release the lever.
CAUTION
Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident
may occur resulting in death or serious injury.
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident and resulting in death or serious injury.
57
1−3. Adjustable components (seats, mirrors, steering wheel)
Anti−glare inside rear view mirror
Glare from the headlights of veh
using the following functions.
icles behind can be reduced by
Normal position
Anti−glare position
CAUTION
Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in
death or serious injury.
58
1−3. Adjustable components (seats, mirrors, steering wheel)
Outside rear view mirrors
Mirror angle can be adjusted
Power−adjustable type
Select a mirror to adjust.
1
(L: left or R: right)
Before driving
Adjust the mirror up, down,
in or out using the switch.
Manually adjustable type
Adjust the mirror up, down, in
or out by pushing the mirror
surface.
59
1−3. Adjustable components (seats, mirrors, steering wheel)
Folding back the mirrors
Push backward to fold the mir−
rors.
Mirror operating conditions (with power−adjustable type only)
The engine switch is in the ACC or ON position.
CAUTION
When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an acci−
dent, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded back.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
60
1−3. Adjustable components (seats, mirrors, steering wheel)
NOTICE
If ice should jam the mirror
Do not operate the control or scrape the mirror face. Use a spray de−icer to
free the mirror.
1
Before driving
61
1−4. Opening and closing the windows
Power windows
The power windows can be opened/closed using the following
switches.
Driver ’s power window switches
Closing
Opening
One−touch opening (driver’s
window only)*
*:Pressing the switch in the
opposite direction will stop win−
dow travel partway.
Front passenger’s power window switch
Closing
1
Opening
AU
TO
2
Lock switch
Press the switch down to lock
passenger window switches.
Use this switch to prevent chil−
dren from accidentally opening or
closing a passenger window.
62
1−4. Opening and closing the windows
The power windows can be operated when
The engine switch is in the ON position.
Operating the power windows after turning the engine switch off
1
Before driving
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned off. They cannot, however, be operated
once either front door is opened.
CAUTION
Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.
63
1−5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
Before refueling the vehicle
Turn the engine switch off and ensure that all the doors, win−
dows and glass hatch are closed.
Opening the fuel tank cap
Open the fuel filler door.
Turn the fuel tank cap slowly
to open.
64
1−5. Refueling
Hang the tether as shown in
the illustration.
1
Before driving
Closing the fuel tank cap
When replacing the fuel tank
cap, turn it until a clicking sound
is heard.
After releasing your hand, the cap
will turn slightly to the opposite
direction.
Fuel types
Use premium unleaded gasoline. (91 Octane Rating [Research Octane
Number 96] or higher)
Fuel tank capacity
Approximately 19.0 gal. (72.0 L, 15.8 Imp. gal.)
65
1−5. Refueling
CAUTION
Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so, may result in death or serious injury.
Touch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible engine
hazard.
When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Doing so may cause a fire or other incident which may result in
death or serious injury.
66
1−5. Refueling
NOTICE
Refueling
To prevent damage to the fuel filler door
Do not apply excessive force.
67
1
Before driving
Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the exhaust systems to
operate abnormally or damaging fuel system components or the vehicle’s
painted surface.
1−6. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built−in tr ansponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle’s on−board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the key has been removed
from the engine switch to indi−
cate that the system is operat−
ing.
System maintenance
The vehicle has a maintenance−free type of engine immobilizer system.
Conditions that may cause the system to malfunction
If the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built−in transponder chip) of another vehicle
Certifications for the engine immobilizer system
For vehicles sold in U.S.A.
FCC ID: MOZRI−20BTY
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer−
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user ’s authority to operate the equipment.
68
1−6. Theft deterrent system
For vehicles sold in Canada
This device complies with RSS−210 of Industry Canada. Operation is subject
to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Before driving
NOTICE
1
To prevent damage to the key
Do not modify, remove or disable the engine immobilizer system. If any
unauthorized changes or modifications are made, the proper operation of
the system cannot be guaranteed.
69
1−6. Theft deterrent system
Theft prevention labels (U.S.A.)
These labels are attached to
the vehicle to reduce vehicle
theft by facilitating the tracing
and recovery of parts from sto−
len vehicles. Do not remove
under penalty of law.
70
1−7. Safety information
Correct driving posture
Drive in a good posture as follows:
Sit upright and well back in
the seat. ( P. 4 3 )
1
Before driving
Adjust the position of the
seat forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( P. 43)
Adjust the seatback so that
the controls are easily oper−
able.
Adjust the tilt positions of
the steering wheel down−
ward so the airbag is facing
your chest. ( P. 5 7 )
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P. 49)
Wear the seat belt correctly.
( P. 51)
71
1−7. Safety information
CAUTION
While driving
Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and head restraint, increasing the risk of
death or serious injury to the driver or passenger.
Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat
tracks and stop the seat from locking in place. This may lead to an acci−
dent. The adjustment mechanism may also be damaged.
Adjusting the seat position
Take care when adjusting the seat position to ensure that other passen−
gers are not injured by the moving seat.
Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
72
1−7. Safety information
SRS airbags
The SRS airbags inflate when the
vehicle is subjected to certain
types of severe impacts that may
cause significant injury to the
occupants. They work together with the seat belts to help reduce the
risk of death or serious injury.
1
Before driving
3
2
1
1
2
Front airbags
Driver airbag/front passenger airbag
Can help protect the head and ches t of the driver and front pas−
senger from impact with interior components.
Side and curtain shield airbags
Side airbags
Can help protect the torso of the front seat occupants.
Curtain shield airbags
Can help protect primarily the head of outside occupants.
73
1−7. Safety information
Airbag system components
Curtain shield airbags
Side and curtain shield air−
bag sensors
Side airbags
Driver airbag
Occupant detection system
(ECU and sensors)
Driver ’s seat position sen−
sor
Front passenger’s seat belt
buckle switch
Driver ’s seat belt buckle
switch
SRS warning light
AIR BAG ON and AIR BAG
OFF indicator lights
Front passenger airbag
Curtain shield airbag sen−
sors
Airbag sensor assembly
Front airbag sensors
74
1−7. Safety information
Your vehicle is equipped with ADVANCED AIRBAGS designed based
on US motor vehicle safety standards (FMVSS208). The airbag sys−
tem controls airbag deployment po wer for the driver and front pas−
senger. The driver airbag system consists of the driver seat’s position
sensor etc. The front passenger’s airbag system consists of the front 1
passenger occupant classification sensor etc.
In certain types of severe frontal or side impacts, the SRS airbag sys−
tem triggers the airbag inflators. A chemical reaction in the inflators
quickly fills the airbags with non−toxic gas to help rest rain the motion
of the occupants.
SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag
sensors, side and curtain shield airbag sensor assemblies, curtain shield air−
bag sensor assemblies, driver ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant classification system, AIR BAG ON
indicator light, AIR BAG OFF indicator light, front passenger ’s seat belt
buckle switch, seat belt pretensioner assemblies, inflators, interconnecting
wiring and power sources. ( P. 332)
If the SRS airbags deploy (inflate)
Bruising and slight abrasions may result from contact with a deploying
(inflating) SRS airbag.
A loud noise and white powder will be emitted.
Parts of the airbag module (steering wheel hub, airbag cover and inflator)
as well as the front seats, and parts of the front and rear pillars and roof
side rail, may be hot for several minutes. The airbag itself may also be
hot.
The front windshield may crack.
75
Before driving
The main SRS airbag system components are shown above. The
SRS airbag system is controlled by the airbag sensor assembly. The
airbag sensor assembly consists of a safing sensor and an airbag
sensor.
1−7. Safety information
Operating conditions (front airbags)
The SRS front airbags will deploy if the severity of the frontal impact is
above the designed threshold level, comparable to an approximate 15
mph (25 km/h) collision when the vehicle impacts straight into a fixed bar−
rier that does not move or deform.
However, this threshold velocity will be considerably higher if the vehicle
strikes an object, such as a parked vehicle or sign pole, which can move or
deform on impact, or if the vehicle is involved in an underride collision (e.g.
a collision in which the front of the vehicle “underrides”, or goes under, the
bed of a truck, etc.).
It is possible that in some collisions where the forward deceleration of the
vehicle is very close to the designed threshold level, the SRS front air−
bags and the seat belt pretensioners may not activate together.
The SRS front passenger airbag will not activate if there is no passenger
sitting in the front passenger seat. However, the front passenger airbag
may deploy if luggage is put in the seat, even if the seat is unoccupied.
( P. 8 5 )
Operating conditions (side airbags and curtain shield airbags)
The SRS side airbags and curtain shield airbags are designed to inflate
when the passenger compartment is subjected to a severe impact from
the side.
The SRS side airbag on the passenger seat will not activate if there is no
passenger sitting in the front passenger seat. However, the side airbag
on the passenger seat may deploy if luggage is put in the seat, even if
the seat is unoccupied. ( P. 85)
76
1−7. Safety information
Conditions under which the SRS airbags may deploy (inflate), other
than a collision
The SRS front airbags may also deploy if a serious impact occurs to the
underside of your vehicle. Some examples are shown in the illustration.
1
Hitting a curb, edge of pavement or
hard surface
Landing hard or vehicle falling
Types of collisions that may not deploy the SRS airbag (front airbags)
The SRS front airbags are generally not designed to inflate if the vehicle is
involved in a side or rear collision, if it rolls over, or if it is involved in a low−
speed frontal collision. But, whenever a collision of any type causes suffi−
cient forward deceleration of the vehicle, deployment of the SRS front air−
bags may occur.
Collision from the side
Collision from the rear
Vehicle rollover
77
Before driving
Falling into or jumping over a deep hole
1−7. Safety information
Types of collisions that may not deploy the SRS airbag
(side airbags and curtain shield airbags)
The SRS side airbag and curtain shield airbag system may not activate if the
vehicle is subjected to a collision from the side at certain angles, or a colli−
sion to the side of the vehicle body other than the passenger compartment.
Collision from the side to the vehicle
body other than the passenger com−
partment
Collision from the side at an angle
The SRS side airbags and curtain shield airbags are not generally designed
to inflate if the vehicle is involved in a frontal or rear collision, if it rolls over,
or if it is involved in a low−speed side collision.
Collision from the front
Collision from the rear
Vehicle rollover
78
1−7. Safety information
When to contact your Toyota dealer
In the following cases, contact your Toyota dealer as soon as possible. Do
not disconnect the battery cables before contacting your Toyota dealer.
Any of the SRS airbags have been inflated.
1
A portion of a door is damaged or
deformed, or the vehicle was involved
in an accident that was not severe
enough to cause the SRS side airbags
and curtain shield airbags to inflate.
The pad section of the steering wheel
or dashboard near the front passenger
airbag is scratched, cracked, or other−
wise damaged.
The surface of the seats with the side
airbag is scratched, cracked or other−
wise damaged.
The portion of the front pillars, rear pil−
lars or roof side rail garnishes (padding)
containing the curtain shield airbags is
scratched, cracked or otherwise dam−
aged.
79
Before driving
The front of the vehicle is damaged or
deformed, or was involved in an acci−
dent that was not severe enough to
cause the SRS airbags to inflate.
1−7. Safety information
CAUTION
SRS airbag precautions
Observe the following precautions regarding the airbags.
Failure to do so may cause death or serious injury.
The driver and all passengers in the vehicle must wear their seat belts
properly.
The SRS airbags are supplemental devices to be used with the seat belts.
The SRS driver airbag deploys with considerable force, and can cause
death or serious injury especially if the driver is very close to the airbag.
The National Highway Traffic Safety Administration (“NHTSA”) advises:
Since the risk zone for driver airbag is the first 2 − 3 in. (50 − 75 mm) of infla−
tion, placing yourself 10 in. (250 mm) fr om your driver airbag provides you
with a clear margin of safety. This distance is measured from the center of
the steering wheel to your breastbone. If you sit less than 10 in. (250 mm)
away now, you can change your driving position in several ways:
S Move your seat to the rear as far as you can while still reaching the
pedals comfortably.
S Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in.
(250 mm) distance, even with the driver seat all the way forward, sim−
ply by reclining the back of the seat somewhat. If reclining the back of
your seat makes it hard to see the road, raise yourself by using a firm,
non−slippery cushion, or raise the seat if your vehicle has that feature.
S If your steering wheel is adjustable, tilt it downward. This points the air−
bag toward your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA above, while still
maintaining control of the foot pedals, steering wheel, and your view of the
instrument panel controls.
80
1−7. Safety information
CAUTION
SRS airbag precautions
The SRS front passenger airbag also deploys with considerable force, and
can cause death or serious injury especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the air−
bag as possible with the seatback adjusted, so the front passenger sits
upright.
Improperly seated and/or restrainedinfants and children can be killed or
seriously injured by a deploying airbag. An infant or child who is too small
to use a seat belt should be properly secured using a child restraint sys−
tem. Toyota strongly recommends that all infants and children be placed in
the rear seats of the vehicle and properly restrained. The rear seats are
the safest for infants and children. ( P. 90)
81
1
Before driving
If the seat belt extender has been con−
nected to the driver ’s seat belt buckle
but the seat belt extender has not also
been fastened to the latch plate of the
driver ’s seat belt, the SRS driver ’s air−
bag system will judge that the driver is
wearing the seat belt even though the
seat belt has not been connected. In
this case, the driver ’s airbag may not
activate correctly in a collision, resulting
in death or serious injury in the event of
collision. Be sure to wear the seat belt
with the seat belt extender.
1−7. Safety information
CAUTION
SRS airbag precautions
Do not sit on the edge of the seat or
lean against the dashboard.
Do not allow a child to sit on the knees
of a front passenger while the vehicle is
moving.
Do not drive the vehicle while the driver
or passenger has items resting on their
knees.
Do not lean against the door, the roof
side rail or the front, side and rear pil−
lars.
Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
82
1−7. Safety information
CAUTION
SRS airbag precautions
Do not attach anything to areas such as
the door, windshield glass, side door
glass, front and rear pillars, roof side
rail or assist grip.
Do not hang coat hangers or other hard
objects on the coat hooks. All of these
items could become projectiles and
seriously injure or kill you, should the
SRS curtain shield airbag deploy.
Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags.
Do not strike or apply significant levels of force to the area of the SRS air−
bag components shown on P. 74.
Doing so can cause the SRS airbags to malfunction.
Do not touch any of the component parts immediately after the SRS air−
bags have deployed (inflated) as they may be hot.
If breathing becomes difficult after the SRS airbag has deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
If the areas where the SRS airbags are stored, such as the steering wheel
pad and front and rear pillar garnishes, are damaged or cracked, have
them replaced by your Toyota dealer.
83
1
Before driving
Do not attach anything to or lean any−
thing against areas such as the dash−
board or steering wheel pad.
These items can become projectiles
when SRS driver and front passenger
airbags deploy.
1−7. Safety information
CAUTION
Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Toyota dealer.
The SRS airbags may malfunction or deploy (inflate) accidentally, causing
death or serious injury.
Installation, removal, disassembly and repair of the SRS airbags.
Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front and rear pil−
lars or roof side rails.
Repairs or modifications of the frontfender, front bumper, or side of the
occupant compartment.
Installation of snow plows, winches, etc. to the front grille (bull bars, kan−
garoo bar etc.).
Modifications to the vehicle’s suspension system.
Installation of electronic devices such as mobile two−way radios or CD
players.
Modifications to your vehicle for a person with a physical disability.
84
1−7. Safety information
Front passenger occupant classification system
Your vehicle is equipped with a front passenger occupant classifica−
tion system. This system detects the conditions of the front passen−
ger seat and activates or deactivates the devices for front passenger.
1
Before driving
1
2
4
3
SRS warning light
Front passenger ’s seat belt reminder light
AIR BAG ON indicator light
AIR BAG OFF indicator light
85
1−7. Safety information
Condition and operation in the front passenger occupant classification system
Adult*1
AIR BAG ON and AIR BAG OFF indicator
AIR BAG ON
lights
Indicator/
SRS warning light
Off
warning light
Front passenger ’s seat belt reminder light
Flashing*2
Front passenger airbag
Side airbag on the front passenger seat
Devices
Activated
Curtain shield airbag in the front passenger
side
Front passenger ’s seat belt pretensioner
*3 or child restraint system*4
Child
Indicator/
warning light
Devices
AIR BAG ON and AIR BAG OFF indicator
lights
AIR BAG
OFF*5
SRS warning light
Off
Front passenger ’s seat belt reminder light
Flashing*2
Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger
side
Activated
Front passenger ’s seat belt pretensioner
Unoccupied
Indicator/
warning light
Devices
86
AIR BAG ON and AIR BAG OFF indicator
Not illuminated
lights
SRS warning light
Off
Front passenger ’s seat belt reminder light
Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger
Activated
side
Front passenger ’s seat belt pretensioner
Deactivated
1−7. Safety information
There is a malfunction in the system
Indicator/
warning light
*1:The
system judges a person of adult size as an adult. When a
smaller adult sits in the front pa ssenger seat, the system may rec−
ognize him/her as a child dependi ng on his/her physique and pos−
ture.
*2:In
the event the front passenger does not wear a seat belt.
*3:When
a larger child who has outgrown a child restraint system sits
in the front passenger seat, the system may rec ognize him/her as
an adult depending on his/her physique or posture.
*4:Never
install a rear−facing child restraint system on the front pas−
senger seat. A forward−facing child restraint system should only be
installed on the front passenger seat when it is unavoidable. ( P.
90)
*5:In
case the indicator is not illum inated, consult this manual as for
installing the child restraint system properly. ( P. 9 3 )
87
1
Before driving
Devices
AIR BAG ON and AIR BAG OFF indicator
AIR BAG
lights
OFF
SRS warning light
On
Front passenger ’s seat belt reminder light
Off
Front passenger airbag
Deactivated
Side airbag on the front passenger seat
Curtain shield airbag in the front passenger
side
Activated
Front passenger ’s seat belt pretensioner
1−7. Safety information
CAUTION
Front passenger occupant classification system precautions
Observe the following precautions r egarding front passenger occupant clas−
sification system.
Failure to do so may cause death or serious injury.
Wear the seat belt properly.
Make sure the front passenger ’s seat belt tab has not been left inserted
into the buckle before someone sits in the front passenger seat.
Make sure the AIR BAG OFF indicator light is not illuminated when using
the seat belt extender for the front passenger seat. If the AIR BAG OFF
indicator light is illuminated, disconnect the extender tongue from the seat
belt buckle, then reconnect the seat belt. Reconnect the seat belt extender
after making sure the AIR BAG ON indicator light is illuminated. If you use
the seat belt extender while the AIR BAG OFF indicator light is illuminated,
the front passenger airbag and side airbag on the front passenger side
may not activate correctly, which could cause death or serious injury in the
event of collision.
Do not apply a heavy load to the front passenger seat or equipment.
Do not put weight on the front passenger seat by putting your hands or
feet on the front passenger seat seatback from the rear passenger seat.
Do not let a rear passenger lift the front passenger seat with their feet or
press on the seatback with their legs.
Do not put objects under the front passenger seat.
Do not recline the front passenger seatback so far that it touches a rear
seat. This may cause the AIR BAG OFF indicator light to be illuminated,
which indicates that the passenger ’s airbags will not deploy in the event of
a severe accident. If the seatback touches the rear seat, return the seat−
back to a position where it does not touch the rear seat. Keep the front
passenger seatback as upright as possible when the vehicle is moving.
Reclining the seatback excessively may lessen the effectiveness of the
seat belt system.
88
1−7. Safety information
CAUTION
Front passenger occupant classification system precautions
When it is unavoidable to install the forward−facing child restraint system
on the front passenger seat, install the child restraint system on the front
passenger seat in the proper order. ( P. 93)
Do not modify or remove the front seats.
Do not kick the front passenger seat or subject it to severe impact. Other−
wise, the SRS warning light may come on to indicate a malfunction of the
detection system. In this case, contact your Toyota dealer immediately.
Child restraint systems installed on the rear seat should not contact the
front seatbacks.
89
Before driving
If an adult sits in the front passenger seat, the AIR BAG ON indicator light
is illuminated. If the AIR BAG OFF indicator is illuminated, ask the passen− 1
ger to sit up straight, well back in the seat, feet on the floor, and with the
seat belt worn correctly. If the AIR BAG OFF indicator still remain illumi−
nated, either ask the passenger to move to the rear seat, or if that is not
possible, move the front passenger seat fully rearward.
1−7. Safety information
Child restraint systems
A child restraint system for a small child or baby must itself be prop−
erly restrained on the seat with the lap portion of the lap/shoulder
belt.
The laws of all 50 states of the U.S.A. and Canada now require the
use of child restraint systems.
Points to remember
Studies have shown that installing a child restraint on a rear seat is
much safer than installing one to the front passenger seat.
Choose a child restraint system appropriate to the age and size of
the child.
For installation details, follow the instructions provided with the
child restraint system.
General installation instructions are provided in this manual.
( P. 9 3 )
Types of child restraints
Child restraint systems are clas sified into the following 3 types
according to the age and size of the child.
Infant seat
90
1−7. Safety information
Convertible seat
1
Before driving
Booster seat
When the child restraint system is not in use
Leave the child restraint system properly secured on the seat. Do not store
the restraint loosely on a passenger seat or in the luggage compartment.
Selecting an appropriate child restraint system
Get an appropriate child restraint system for the child. If a child is too large
for a child restraint system, sit the child on a rear seat and use the vehicle’s
seat belt. ( P. 51)
CAUTION
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
91
1−7. Safety information
CAUTION
Child restraint precautions
Toyota strongly urges the use of a proper child restraint system that con−
forms to the size of the child, installed on the rear seat. According to acci−
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
Never install a rear−facing child restraint system on the front passenger
seat even if AIR BAG OFF indicator light is illuminated. In the event of an
accident, the force of the rapid inflation of the front passenger airbag can
cause death or serious injury to the child if the rear−facing child restraint
system is installed on the front passenger seat.
A forward−facing child restraint system should allowed to be installed on
the front passenger seat only when it is unavoidable. Always move the
seat as far back as possible even if AIR BAG OFF indicator light is illumi−
nated, because the front passenger airbag could inflate with considerable
speed and force. Otherwise, the child may be killed or seriously injured.
Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri−
ous injury to the child or other passengers in the event of collision.
Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the sea t, front and rear pillars or roof side
rail from which the side airbags or curtain shield airbags deploy even if the
child is seated in the child restraint system. It is dangerous if the side air−
bags and curtain shield airbags inflate, and the impact could cause death
or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop or accident.
92
1−7. Safety information
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the outside rear seats using a seat belt or a
child restraint lower anchor belt. Attach the top strap when installing
a child restraint.
1
Before driving
Seat belts equipped with a
child restraint locking mecha−
nism (ALR/ELR belts except
driver ’s seat belt) ( P. 51)
Child restraint lower anchor−
ages
Lower anchorages are pro−
vided for the outside rear
seats. (Buttons displaying the
location of the anchorages are
attached to the seats.)
Anchor bracket (for top strap)
Anchor brackets are provided
for all rear seats.
93
1−7. Safety information
Installing child restraints using a seat belt (child restraint lock function belt)
Rear facing child seat Infant seat/convertible seat
Place the child seat on the rear
seat facing the rear of the vehi−
cle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.
94
1−7. Safety information
While pushing the child seat
down into the rear seat, allow the
shoulder belt to retract until the
child seat is securely in place.
Forward facing Convertible seat
Place the child seat on the seat
facing the front of the vehicle.
Run the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Fully extend the shoulder belt
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
95
1
Before driving
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
1−7. Safety information
While pushing the child seat into
the rear seat, allow the shoulder
belt to retract until the child seat
is securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended
Booster seat
Place the booster seat on the
seat facing the front of the vehi−
cle.
Sit the child in the booster seat.
Fit the seat belt to the booster
seat according to the manufac−
turer’s instructions and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 51)
96
1−7. Safety information
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
1
Before driving
Installation with child restraint lower anchorages
Type A
Widen the gap between
the seat cushion and
seatback slightly.
Latch the hooks of the
lower straps onto the
anchorages and tighten
the lower straps.
If the child restraint has a
top strap, the top strap
should be latched onto the
anchorages.
Canada
only
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
97
1−7. Safety information
Type B
Widen the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the anchorages.
If the child restraint has a
top strap, the top strap
should be latched onto the
anchorages.
Canada
only
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Child restraint systems with a top strap
Secure the child restraint using a
seat belt or lower anchors, and
remove the head restraint.
98
1−7. Safety information
Raise the anchor bracket, latch
the hook onto the anchor bracket
and tighten the top strap.
Make sure the top strap is
securely latched.
1
Before driving
Reinstall the head restraint.
Laws and regulations pertaining to anchorages
Anchorages conform to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica−
tions can be used.
This vehicle is designed to conform to the SAE J1819.
99
1−7. Safety information
When the anchor bracket is not in use
Lower the anchor bracket.
The anchor bracket is only designed to
secure the top strap. Do not use the
anchor bracket for any other purpose.
CAUTION
When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode. ( P. 53)
ALR mode causes the belt to tighten only which could cause injury or dis−
comfort to the child.
Do not allow the child to play with the seat belt or the child could be killed
or seriously injured.
100
1−7. Safety information
CAUTION
When installing a child restraint system
If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the right−
hand rear seat.
Only put a forward facing or booster
child seat on the front seat when
unavoidable. When installing a forward
facing or booster child seat on the front
passenger seat, move the seat as far
back as possible even if AIR BAG OFF
indicator light is illuminated. Failing to
do so may result in death or serious
injury if the airbags deploy (inflate).
When a booster seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of an accident or sudden braking.
Ensure that the belt and tab are securely locked and the seat belt is not
twisted.
Push and pull the child restraint system in different directions to be sure it
is secure.
Follow all installation instructions provided by the child restraint system
manufacturer.
101
1
Before driving
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child may be
seriously injured or even killed in the event of sudden braking or an accident.
1−7. Safety information
CAUTION
Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a colli−
sion.
To correctly attach a child restraint system to the anchorages
When using the lower anchorages, be sure that there are no foreign objects
around the anchorages and that the seat belt is not caught behind the child
restraint. Make sure the child restraint system is securely attached, or it may
cause death or serious injury to the child in the event of a sudden stop or
accident.
102
2−1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driv−
ing.
Starting the engine ( P. 11 4 )
Driving
Automatic transmission
With the brake pedal depressed, shift the shift lever to D.
( P. 117)
Release the parking brake.
( P. 122)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
Manual transmission
With the clutch pedal fully depressed, shift the shift lever to
1.
( P. 11 9 )
Release the parking brake.
( P. 122)
Gradually release the clutch pedal. At the same time, gently
depress the accelerator pedal to accelerate the vehicle.
Stopping
Automatic transmission
With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to P or N.
( P. 11 )7
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift
the shift lever to N.
( P. 119)
104
2−1. Driving procedures
Parking the vehicle
Automatic transmission
With the shift lever in D, depress the brake pedal.
Set the parking brake.
Shift the shift lever to P.
(
P. 122)
( P. 117)
When parking on a hill, if necessary, block the wheels.
Turn the engine switch off to stop the engine.
2
When driving
Lock the door, making sure that you have the key on your
person.
Manual transmission
With the clutch pedal fully depressed, depress the brake
pedal.
Set the parking brake.
( P. 114)
Shift the shift lever to N.
( P. 11 9 )
When parking on a hill, shift the shift lever to 1 or R. If necessary,
block the wheels.
Turn the engine switch off to stop the engine.
Lock the door, making sure that you have the key on your
person.
Starting on a steep uphill
Automatic transmission
With the brake pedal depressed, firmly set the parking brake
and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.
Manual transmission
With the parking brake firmly set and the clutch pedal fully
depressed, shift the shift lever to 1.
105
2−1. Driving procedures
Lightly depress the accelerator pedal at the same time as
gradually releasing the clutch pedal.
Release the parking brake.
Driving in the rain
Drive carefully when it is raining, because visibility will be reduced, the
windows may become fogged−up, and the road will be slippery.
Drive carefully when it starts to rain, because the road surface will be
especially slippery.
Refrain from high speeds when driving on an expressway in the rain,
because there may be a layer of water between the tires and the road
surface, preventing the steering and brakes from operating properly.
Breaking in your new Toyota
To extend the life of the vehicle, the following precautions are recommended
to observe:
For the first 200 miles (300 km):
Avoid sudden stops.
For the first 500 miles (800 km):
Do not tow a trailer.
For the first 1000 miles (1600 km):
S
S
S
S
Do not drive at extremely high speeds.
Avoid sudden acceleration.
Do not drive continuously in the low gears.
Do not drive at a constant speed for extended periods.
Drum−in disc type parking brake system
Your vehicle has a drum−in−disc type parking brake system. This type of
brake system needs bedding−down of the brake shoes periodically or when−
ever the parking brake shoes and/or drum are replaced. Have your Toyota
dealer perform the bedding down.
Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability
of the correct fuel. ( P. 364)
106
2−1. Driving procedures
Normal characteristics after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound
coming from under the vehicle for several minutes. This is the sound of a
fuel evaporation leakage check and, it does not indicate a malfunction.
CAUTION
When starting the vehicle
When driving the vehicle
Do not drive if you are unfamiliar with the location of the brake and accel−
erator pedals to avoid depressing the wrong pedal.
Accidentally depressing the accelerator pedal instead of the brake pedal
will result in sudden acceleration that may lead to an accident that could
result in death or serious injury.
Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. This may
cause a fire if there is any flammable material nearby.
Vehicles with an automatic transmission, do not let the vehicle roll back−
wards while the shift lever is in a driving position, or roll forward while the
shift lever is in R.
Doing so may cause the engine to stall or lead to poor brake and steering
performance, resulting in an accident or damage to the vehicle.
If the smell of exhaust is noticed inside the vehicle, open the windows and
check that the back door and glass hatch are closed. Large amounts of
exhaust in the vehicle can cause driver drowsiness and an accident,
resulting in death or a serious health hazard. Have the vehicle inspected
by your Toyota dealer immediately.
Do not under any circumstances shift the shift lever to P, R or N (automatic
transmission) or R (manual transmission) while the vehicle is moving.
Doing so can cause significant damage to the transmission system and
may result in a loss of vehicle control.
107
2
When driving
Vehicles with an automatic transmission, always keep your foot on the brake
pedal while stopped with the engine running. This prevents the vehicle from
creeping.
2−1. Driving procedures
CAUTION
When driving the vehicle
Do not shift the shift lever to N while the vehicle is moving.
Doing so may cause the engine brake to not operate properly and lead to
an accident.
Do not turn the engine off while driving.
The power steering and brake booster systems will not operate properly if
the engine is not running.
Use engine braking (downshift) to maintain a safe speed when driving
down a steep hill.
Using the brakes continuously may cause the brakes to overheat and lose
effectiveness. ( P. 11 8120)
When stopped on an inclined surface, use the brake pedal and parking
brake to prevent the vehicle from rolling backward or forward and causing
an accident.
Do not adjust the position of the steering wheel, the seat, or the inside or
outside rear view mirrors while driving.
Doing so may result in a loss of vehicle control that can cause accidents
that may result in death or serious injury.
Always check that all passengers’ arms, heads or other parts of their bod−
ies are not outside the vehicle, as this may result in death or serious injury.
Do not drive in excess of the speed limit. Even if the legal speed limit per−
mits it, do not drive over 85 mph (140 km/h) unless your vehicle has high−
speed capability tires. Driving over 85 mph (140 km/h) may result in tire
failure, loss of control and possible injury. Be sure to consult a tire dealer
to determine whether the tires on your vehicle are high−speed capability
tires or not before driving at such speeds.
108
2−1. Driving procedures
CAUTION
When driving on slippery road surfaces
Sudden braking, acceleration and steering may cause tire slippage and
reduce your ability to control the vehicle, resulting in an accident.
Sudden changes in engine speed, such as engine braking caused by up−
shifting or down−shifting, may cause the vehicle to skid, resulting in an
accident.
When shifting the shift lever
Vehicles with an automatic transmission, be careful not to shift the shift
lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
When the vehicle is stopped
Do not race the engine.
If the vehicle is in any gear other than P (automatic transmission only) or
N, the vehicle may accelerate suddenly and unexpectedly, and may cause
an accident.
Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and check that exhaust fumes do not enter the vehicle interior.
Vehicles with an automatic transmission, always keep a foot on the brake
pedal while the engine is running to prevent an accident caused by the
vehicle moving.
109
2
When driving
After driving through a puddle, lightly depress the brake pedal to make
sure that the brakes are functioning properly. Wet brake pads may prevent
the brakes from functioning properly. If the brakes on only one side are wet
and not functioning properly, steering control may be affected, resulting in
an accident.
2−1. Driving procedures
CAUTION
When the vehicle is parked
Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in
the vehicle when it is in the sun.
Doing so may result in the following.
S Gas may leak from a cigarette lighter or spray can, and may lead to a
fire.
S The temperature inside the vehicle may cause the plastic lenses and
plastic material of eye glasses to deform or crack.
S Soft drink cans may fracture, causing the contents to spray over the
interior of the vehicle, and may also cause a short circuit in the vehi−
cle’s electrical components.
Always apply the parking brake, shift the shift lever to P (automatic trans−
mission only), stop the engine and lock the vehicle.
Do not leave the vehicle unattended while the engine is running.
Do not touch the exhaust pipe while the engine is running or immediately
after turning the engine off.
Doing so may cause burns.
Do not leave the engine running in an area with snow build−up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle. This may lead
to death or a serious health hazard.
Exhaust gases
Exhaust gases include harmful carbon monoxide (CO) that is colorless and
odorless. Inhaling exhaust gases may lead to death or a serious health haz−
ard.
If the vehicle is in a poorly ventilated area, stop the engine. In a closed
area, such as a garage, exhaust gases may collect and enter the vehicle.
This may lead to death or a serious health hazard.
The exhaust should be checked occasionally. If there is a hole or crack
caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.
Failure to do so may allow exhaust gases to enter the vehicle, resulting in
death or a serious health hazard.
110
2−1. Driving procedures
CAUTION
When taking a nap in the vehicle
Always turn the engine off. Otherwise, you may accidentally move the shift
lever or depress the accelerator pedal, which could cause an accident or fire
due to engine overheating. Additionally, if the vehicle is parked in a poorly
ventilated area, exhaust gases may collect and enter the vehicle, leading to
death or a serious health hazard.
When braking the vehicle
2
If the power brake assist function does not operate, do not follow other
vehicles closely and avoid downhills or sharp turns that require braking.
In this case, braking is still possible, but it will require more force on the
pedal than usual. Braking distance may also increase.
Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power−assisted
brakes.
The brake system consists of 2 individual hydraulic systems: If one of the
systems fails, the other will still operate. In this case, the brake pedal
should be depressed more firmly than usual and braking distance
becomes longer.
Do not drive your vehicle with only a single brake system. Have your
brakes fixed immediately.
111
When driving
When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and may cause one
side of the vehicle to brake differently than the other side. Also the parking
brake may not securely hold the vehicle.
2−1. Driving procedures
NOTICE
When driving the vehicle
Vehicles with a manual transmission
Do not rest your foot on the clutch pedal while driving.
Doing so may cause clutch trouble.
Do not use any gears other than the first gear when starting off and mov−
ing forward.
Doing so may damage the clutch.
Do not use the clutch to hold the vehicle when stopping on an uphill grade.
Doing so may damage the clutch.
Vehicles with an automatic transmission
Do not use the accelerator pedal or depress accelerator and brake pedals
together to hold the vehicle on a hill.
When parking the vehicle
Vehicles with an automatic transmission: Always put the shift lever in P.
Failure to do so may cause the vehicle to move or the vehicle may acceler−
ate suddenly if the accelerator pedal is accidentally depressed.
Avoiding damage to vehicle parts
Do not turn the steering wheel fully in either direction and hold it there for a
long time.
Doing so may damage the power steering pump.
When driving over bumps in the road, drive as slowly as possible to avoid
damaging the wheels, underside of the vehicle, etc.
If you hear a squealing or scraping noise while driving (brake pad wear
limit indicators)
Have the brake pads checked and replaced by your Toyota dealer as soon
as possible.
The rotor damage can result if the pads are not replaced when needed.
It is dangerous to drive the vehicle when the wear limits of the brake pads
and/or that of the brake discs are exceeded.
112
2−1. Driving procedures
NOTICE
If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually press the brake pedal to slow down the vehicle.
It may be difficult to control your vehicle.
The vehicle will make abnormal sounds.
The vehicle will behave abnormally.
2
Replace a flat tire with a new one. ( P. 342)
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle.
Engine stalling
Short in electrical components
Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following.
Brake function
Changes in quantity and quality of oil and fluid used for the engine, trans−
mission, transfer (4WD vehicles), differentials, etc.
Lubricant condition for the propeller shaft, bearings and suspension joints
(where possible) and the function of all joints, bearings, etc.
113
When driving
When encountering flooded roads
2−1. Driving procedures
Engine (ignition) switch
Engine switch
LOCK
The steering wheel is locked
and the key can be removed.
ACC
Some electrical components
such as the audio system can
be used.
ON
All electrical components can
be used.
START
For starting the engine.
Starting the engine
Automatic transmission
Check that the parking brake is set.
Check that the shift lever is set in P.
Sit in the driver’s seat and firmly depress the brake pedal.
Turn the engine switch to the START position and start the
engine.
Manual transmission
Check that the parking brake is set.
Check that the shift lever is set in N.
Firmly depress the brake pedal and clutch pedal.
Turn the engine switch to the START position and start the
engine.
114
2−1. Driving procedures
Turning the key from ACC to LOCK
Shift the shift lever to P (auto−
matic transmission) or N (man−
ual transmission). ( P. 11 7119)
Push in the key and turn to the
LOCK position.
2
Steering lock release
If the engine does not start
The engine immobilizer system may not have been deactivated. ( P. 68)
Key reminder function
A buzzer sounds if the driver ’s door is opened, while the engine switch is in
the ACC or LOCK position to remind you to remove the key.
CAUTION
When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
115
When driving
When starting the engine, the engine
switch may seem stuck in the LOCK posi−
tion. To free it, turn the key while turning
the steering wheel slightly in either direc−
tion.
2−1. Driving procedures
CAUTION
Caution while driving
Do not turn the engine switch to the LOCK position.
If in an emergency, you must turn the engine off while the vehicle is moving,
turn the engine switch only to the ACC position.
NOTICE
To prevent battery discharge
Do not leave the engine switch in the ACC or ON position for long periods if
the engine is not running.
When starting the engine
Do not crank for more than 30 seconds at a time. This may overheat the
starter and wiring systems.
Do not race a cold engine.
If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
116
2−1. Driving procedures
Automatic Transmission (if equipped)
Select a shift position appropriate for the driving conditions.
Shifting the shift lever
2
When driving
While the engine switch is on, depress the brake pedal and
move the shift lever.
Shift position uses
*:
Shift position
Function
P
Parking the vehicle or starting the engine
R
Reversing
N
Neutral
D
Normal driving*
4
Position for engine braking
3, 2
Position for more powerful engine braking
L
Position for maximum engine braking
To improve fuel consumption and reduce noises, set the shift lever in
D for normal driving.
117
2−1. Driving procedures
Downshifting restrictions
The shift lever cannot be downshifted if the following speeds are exceeded.
2WD models
Maximum speed
mph (km/h)
Downshifting
4
3
86 (140)
3
2
59 (95)
2
L
25 (41)
4WD models
Downshifting
4
3
3
2
2
L
Transfer position
H2 and H4
Maximum speed
mph (km/h)
86 (140)
L4
33 (54)
H2 and H4
59 (95)
L4
22 (37)
H2 and H4
25 (41)
L4
9 (15)
When driving with the cruise control system (if equipped)
The engine brake will not operate when downshifting from D to 4.( P. 136)
If the shift lever cannot be shifted from P (P. 351)
AI−SHIFT
The AI−SHIFT automatically shifts the gear to the optimal position according
to the driver performance and driving conditions.
The AI−SHIFT automatically operates when the shift lever is in D.
118
2−1. Driving procedures
Manual Transmission (if equipped)
2
When driving
Fully depress the clutch pedal before operating the shift lever, and
then release it slowly.
119
2−1. Driving procedures
Maximum allowable speed
Observe the following maximum allowable speeds in each gear when maxi−
mum acceleration is necessary.
Shift position
1
2
3
4
5
Transfer position
H or HL
LL
H or HL
Maximum speed
mph (km/h)
30 (48)
11 (18)
58 (93)
LL
22 (35)
H or HL
86 (138)
LL
33 (53)
H or HL
LL
H or HL
LL
107 (172)
41 (66)
109 (175)
50 (80)
Reverse warning buzzer
When shifting into R, a buzzer will sound to inform the driver that the shift
lever is in R.
120
2−1. Driving procedures
Turn signal lever
2
When driving
Left turn
Right turn
Move and hold the lever partway to signal a lane change.
The left hand signal will flash until you release the lever.
Move and hold the lever partway to signal a lane change.
The right hand signal will flash until you release the lever.
Turn signals can be operated when
The engine switch is in the ON position.
If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
121
2−1. Driving procedures
Parking brake
Set the parking brake
Fully set the parking brake
while depressing the brake
pedal.
At this time, the indicator will
come on.
Release the parking brake
Slightly raise the lever
Press the button
Lower it completely
122
2−1. Driving procedures
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
2
When driving
123
2−2. Instrument cluster
Gauges and meters
The following gauges, meters and displays illuminate when the
engine switch is in the ON position.
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Voltmeter
Displays the charge state.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter switching and trip meter resetting button
Switches between odometer and trip meter displays. Pushing and hold−
ing the button will reset the trip meter when the trip meter is being dis−
played.
124
2−2. Instrument cluster
Odometer/trip meter
Odometer:
Displays the total distance the vehicle has been driven.
Trip meter:
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ−
ent distances independently.
2
Odometer and trip meter display button
Odometer
Trip meter A*
Trip meter B*
*:Pushing
and holding the button
will reset the trip meter.
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
Brighter
Darker
With the dial turned fully up, the
intensity of the instrument panel
lights will not be reduced even
when the tail lights/headlights are
turned on.
125
When driving
Pressing this button switches between odometer and trip meter dis−
plays.
2−2. Instrument cluster
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and
check the engine after it has cooled completely. ( P. 356)
126
2−2. Instrument cluster
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen−
ter panel inform the driver of the status of the vehicle’s various sys−
tems.
Instrument cluster
2
When driving
Center panel
127
2−2. Instrument cluster
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
( P. 121)
Headlight high beam
indicator ( P. 131)
(if equipped)
*
(if equipped)
Active traction control
system indicator ( P.
148)
AUTO LSD indicator
( P. 150)
Four−wheel drive
indicator( P. 146)
Security indicator
( P. 68)
(if equipped)
Center differential lock
indicator ( P. 144)
Shift position and shift
range indicators
( P. 117)
(Automatic
transmission
vehicles)
(if equipped)
*
*
128
(if equipped)
(if equipped)
Cruise control indicator
( P. 136)
Slip indicator
( P. 148, 150, 156)
VSC OFF indicator
( P. 157)
*
*
Rear differential lock
indicator ( P. 152)
AIR BAG ON indicator
( P. 85)
AIR BAG OFF indicator
( P. 85)
2−2. Instrument cluster
Warning lights
Warning lights inform the driver
vehicle’s systems. ( P. 331)
*
(Canada)
*
*
*
of malfunctions in any of the
*
*
*
(U.S.A.)
*
*
(Automatic
transmission
vehicles)
2
(if equipped)
These lights turn on when the engine switch is turned to the ON
position to indicate that a system check is being performed. They will
turn off after the engine is started, or after a few seconds. There may
be a malfunction in a system if a light does not come on, or if the
lights do not turn off. Have the vehicle inspected by your Toyota
dealer.
CAUTION
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
129
When driving
(U.S.A.)
*:
*
2−2. Instrument cluster
Accessory meter (if equipped)
Compass
Displays the direction that the vehicle is heading. ( P. 252)
Outside temperature
Displays the outside air temperature. ( P. 238)
Clinometer
Displays the longitudinal and lateral inclination of the vehicle.
SET button
This button is used to calibrate the compass. ( P. 253)
E/M button
Outside temperature mode:
Switch between English/U.S. Customary System and metric units of the
outside air temperature display by pressing this button quickly.
( P. 253)
Compass mode:
Select the zone number by pressing this button. ( P. 252)
130
2−3. Operating the lights and wipers
Headlight switch
The headlights can be operated manually.
2
When driving
The side marker, parking, tail, license plate, outside rear
view mirror illumination (if equipped) and instrument panel
lights turn on.
The headlights and all lights listed above turn on.
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off.
131
2−3. Operating the lights and wipers
Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and the
parking brake is released. Daytime running lights are not designed for use at
night.
Automatic light off system
When the headlights come on: The headlights and tail lights turn off 30
seconds after all doors and glass hatch are closed with the engine switch
turned to the ACC or LOCK position. (The lights turn off immediately if
the LOCK button on the wireless remote control is pressed twice after all
doors are locked.)
When only the tail lights come on: The tail lights turn off automatically
with the engine switch turned to the ACC or LOCK position and the
driver ’s door is opened.
If the driver ’s door is kept open, the lights automatically turn off after 30 min−
utes.
To turn the lights on again, turn the engine switch to the ON position, or turn
the headlight switch off once and then back to the
or
position.
Customization that can be configured at Toyota dealer
Settings (automatic light off system) can be changed. (Customizable
features P. 386)
NOTICE
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run−
ning.
132
2−3. Operating the lights and wipers
Windshield wipers and washer
Wiper intervals can be adjusted fo r intermittent operation (when INT
is selected.)
Intermittent wiper interval
adjustment (increase)
Intermittent wiper interval
adjustment (decrease)
Intermittent windshield
wiper operation
2
High speed windshield
wiper operation
Washer/wiper dual operation
Wipers will automatically oper−
ate a couple of times after the
washer squirts.
133
When driving
Low speed windshield wiper
operation
2−3. Operating the lights and wipers
The windshield wiper and washer can be operated when
The engine switch must be in the ON position.
If no windshield washer fluid sprays
Check that the washer nozzles are not blocked and if there is washer fluid in
the windshield washer fluid reservoir.
NOTICE
When the windshield is dry
Do not use the wipers, as they may damage the windshield.
When there is no washer fluid spray from the nozzle
Damage to the washer fluid pump may be caused if the lever is pulled
toward you and held continually.
When a nozzle becomes block
Do not try to clear it with a pin or other object. The nozzle will be damaged.
134
2−3. Operating the lights and wipers
Rear window wiper and washer (if equipped)
Intermittent window wiper
operation.
The wiper operates 3 times at
normal speed and then moves
to intermittent mode.
Normal window wiper oper−
ation
2
Washer/wiper dual opera−
tion
When driving
Washer/wiper dual opera−
tion
The rear window wiper oper−
ates while the washer squirts.
The rear window wiper and washer can be operated when
The engine switch must be in the ON position.
The glass hatch is closed.
NOTICE
When the rear window is dry
Do not use the wipers, as they may damage the rear window.
135
2−4. Using other driving systems
Cruise control (if equipped)
Use cruise control to maintain a set speed without using the acceler−
ator.
Set the vehicle speed
Press the ON−OFF button to
turn the cruise control on.
At this time, the cruise control
indicator will come on.
Press the button once more to
deactivate the cruise control.
Accelerate or decelerate to
the desired speed and push
the lever down to set the
cruise control speed.
Adjusting the speed setting
Increase speed
Decrease speed
Hold the lever until the desired
speed setting is obtained.
Fine adjustment of the set
speed (approximately 1.0 mph
[1.6 km/h]) can be made by
lightly pushing the lever up or
down and releasing it.
136
2−4. Using other driving systems
Canceling and resuming regular acceleration
Cancel
Pull the lever towards you to
cancel cruise control.
The speed setting is also can−
celed when the brakes are
applied or the clutch
depressed (manual transmis−
sion).
2
When driving
Resume
To resume cruise control and
return to the set speed, push
the lever up.
Cruise control can be set when
The shift lever is in D or 4 (vehicles with an automatic transmission).
Vehicle speed is between approximately 25 mph (40 km/h) and 125 mph
(200 km/h).
Accelerating
The vehicle can be accelerated normally.
Automatic cruise control cancelation
The set speed is automatically cancelled in any of the following situations.
Actual vehicle speed falls more than 10 mph (16 km/h) below the preset
vehicle speed.
At this time, the memorized set speed is not retained.
Actual vehicle speed is below 25 mph (40 km/h).
VSC is activated.
137
2−4. Using other driving systems
If the cruise control indicator light flashes
Press the ON−OFF button to turn the cruise control off, and then reactivate
the system.
If the cruise control speed cannot be set or if the cruise control cancels
immediately after being activated, there may be a malfunction in the cruise
control system. Have the vehicle inspected by your Toyota dealer.
CAUTION
To avoid operating the cruise control by mistake
Keep the ON−OFF button off when not in use.
Situations unsuitable for cruise control
Do not use cruise control in any of the following situations.
Doing so may result in control of the vehicle being lost and could cause seri−
ous or fatal accident.
In heavy traffic
On roads with sharp bends
On winding roads
On slippery roads, such as those covered with rain, ice or snow
On steep hills
While driving with the cruise control on
Vehicles with a manual transmission, do not shift to N without depressing the
clutch pedal, as this may cause engine racing or overrevving.
138
2−4. Using other driving systems
Intuitive parking assist (if equipped)
The distance to obstacles measured by the sensors is communi−
cated via the buzzer when parallel parking or maneuvering into a
garage. Always check the surrounding area when using this system.
This system works when the engine switch is in the ON position and
the shift lever is in R.
Back sensors
These sensors detect obsta−
cles behind the vehicle.
2
When driving
139
2−4. Using other driving systems
Intuitive parking assist switch
ON/OFF
When on, the buzzer sounds
to inform the driver that the
system is operational. At this
time, the indicator light will
come on.
Press the button to switch the
ON/OFF mode.
The distance and buzzer
When a sensor detects an obstacle, the buzzer sounds.
Distance shown
as
4.9 to 3.3 ft.
(150 to 100 cm)
Buzzer
Medium
140
3.3 to 1.6 ft.
(100 to 50 cm)
Fast
1.6 ft.
(50 cm)
Continuous
2−4. Using other driving systems
Sensors that operate and detection range
The following diagrams show the se nsor detection range. Note that
sensors may not be able to detect obstacles that are extremely close
to the vehicle.
Detection range of the sensors
Approx. 4.9 ft. (150 cm)
The range of the sensors may
change depending on the shape
of the object etc.
141
2
When driving
The diagram shows the detection
range of the sensors. Note that
the sensors may not be able to
detect obstacles that are
extremely close to the vehicle.
2−4. Using other driving systems
Sensor detection information
Certain vehicle conditions and the surrounding environment may affect
the ability of a sensor to correctly detect an obstacle. Particular instances
where this may occur are listed below.
There is dirt, snow or ice on a sensor.
A sensor is frozen.
A sensor is covered in any way.
The vehicle is leaning considerably to one side.
On an extremely bumpy road, on an incline, on gravel, or on grass.
The vicinity of the vehicle is noisy due to vehicle horns, motorcycle
engines, air brakes of large vehicles, or other loud noises producing
ultrasonic waves.
S There is another vehicle equipped with parking assist sensors in the
vicinity.
S A sensor is coated with a sheet of spray or heavy rain.
S The vehicle is equipped with a fender pole or radio antenna.
S A bumper or sensor receives a strong impact.
S The vehicle is approaching a tall or right−angled curb.
S In harsh sunlight or intense cold weather.
S The area directly under the bumpers is not detected.
Objects lower than the sensors or thin stakes etc. may be detected ini−
tially, but as they draw closer, they may cease to be detected.
S A towing hitch is mounted to the vehicle.
S A non−genuine Toyota suspension (lowered suspension etc.) is
installed.
In addition to the examples above, there are instances in which, because of
their shapes, signs and other objects may be judged by a sensor to be closer
than they are.
S
S
S
S
S
S
The shape of the obstacle may prevent a sensor from detecting it. Pay
particular attention to the following obstacles:
S
S
S
S
S
142
Wires, fences, ropes, etc.
Cotton, snow and other materials that absorb radio waves
Sharply−angled objects
Low obstacles
Tall obstacles with upper sections projecting outwards in the direction
of your vehicle
2−4. Using other driving systems
Certification (Canada only)
This ISM device compiles with Canadian ICES−001.
.
CAUTION
Caution when using the intuitive parking assist
Observe the following precautions.
Failure to do so may result in the vehicle being unable to be driven safely
and possibly cause an accident.
2
Do not use the sensor at speeds in excess of 6 mph (10 km/h).
When driving
Do not attach any accessories within the sensor range.
NOTICE
Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
143
2−4. Using other driving systems
Four−wheel drive system (4WD models with a manual transmission)
Use the four−wheel drive control lever to select the following transfer
modes.
The center differential lock indicator comes on when the LL or HL mode is
selected.
H (high speed position)
Normal driving
HL (high speed position, center differential locked)
When your vehicle’s wheel gets stuck in ditch or when you are driving
on a slippy or bumpy surface.
N (neutral position)
No power is delivered to the wheels.
LL (low speed position, center differential locked)
Driving requiring maximum power and traction such as climbing or
descending steep hills, off−road driving and hard pulling in sand or mud,
etc.
144
2−4. Using other driving systems
Shifting between H and HL
You need not to depress the clutch pedal.
If the center differential lock indicator does not come on when you shift
from H to HL, drive straight ahead while accelerating or decelerating.
If the center differential lock indicator does not go off when you shift from
HL to H, drive straight ahead while accelerating or decelerating, or drive
in reverse.
2
Shifting from HL to LL
When driving
Stop the vehicle or reduce your speed to less than 5 mph (8 km/h).
Depress the clutch pedal and move the four−wheel drive control lever.
Shifting from LL to HL
Depress the clutch pedal and move the four−wheel drive control lever.
Shifting to HL or LL
VSC is automatically turned off.
NOTICE
To prevent damage to the center differential
For normal driving on dry and hard surface roads, unlock the center differ−
ential.
Shift to H after the wheels are out of the ditch or off the slippery or bumpy
surface.
Do not shift to any position when the vehicle is cornering or when its
wheels spinning freely off the ground.
Shifting from H to HL while driving
Never move the four−wheel drive control lever if wheels are slipping. Stop
the slipping or spinning before shifting.
145
2−4. Using other driving systems
Four−wheel drive system (4WD models with an automatic transmission)
Use the front−wheel drive control le ver to select the following trans−
fer modes.
The four−wheel drive indicator comes on when the H4, N or L4 mode is
selected.
H2 (high speed position, two−wheel drive)
Normal driving.
H4 (high speed position, four−wheel drive)
Greater traction than two wheel drive.
When you experience a loss of power, such as wheel slipping.
N (neutral position)
No power is delivered to the wheels.
L4 (low speed position, four−wheel drive)
Driving requiring maximum power and traction such as climbing or
descending steep hills, off−road driving and hard pulling in sand or mud,
etc.
146
2−4. Using other driving systems
Shifting between H2 and H4
Reduce your speed to less than 50 mph (80 km/h) and shift the front−
wheel drive control lever from H2 to H4.
If you have trouble shifting in cold weather, reduce your speed or stop the
vehicle.
If the four−wheel drive indicator does not go off when you shift from H4 to
H2, drive straight ahead while accelerating or decelerating, or drive in
reverse.
2
Shifting between H4 and L4
Shifting to H4 or L4.
VSC is automatically turned off.
Four−wheel drive usage frequency
You should drive in four−wheel drive for at least 10 miles (16 km) each
month.
This will assure that the front drive components are lubricated.
CAUTION
Shift from H2 to H4 while driving
Never move the front−wheel drive control lever if wheels are slipping.
Stop the slipping or spinning before shifting.
147
When driving
Stop the vehicle, shift the shift lever to N and shift the front−wheel drive con−
trol lever.
2−4. Using other driving systems
Active traction control system (if equipped)
The active traction control system automatically helps prevent the
spinning of 4 wheels when the veh icle is started or accelerated on
slippery road surfaces.
System operation
Vehicles with an automatic transmission:
Shift the front−wheel drive control lever into L4.
Vehicles with a manual transmission:
Shift the four−wheel drive control lever into LL.
Press the A−TRAC switch to
activate the system.
At this time, the active traction
control system indicator will
come on.
To cancel the system, push the
switch again.
When the active traction control system is operating
If all wheels spin, the slip indica−
tor flashes to indicate that the
active traction control system
have been engaged.
148
2−4. Using other driving systems
When the rear differential is locked(vehicles with the rear differential
lock system)
The active traction control system is activated only when the vehicle speed
is less than 4 mph (6 km/h).
Sounds and vibrations caused by the active traction control system
A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indi−
cate that a malfunction has occurred in the system.
If the brake system overheats
The system will cease operation and a buzzer will sound to alert the driver.
Stop the vehicle in a safe place. (There is no problem with continuing normal
driving.)
CAUTION
The active traction control system may not operate effectively when
Directional control and power may not be achievable while driving on slip−
pery road surfaces, even if the active traction control system is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
149
2
When driving
Vibrations may be felt through the vehicle body and steering. It may
occur when the system is operating.
2−4. Using other driving systems
AUTO LSD system (2WD models)
The AUTO LSD system aids tractio n by using the traction control
system to control engine performance and braking when one of the
rear wheels begins to spin.
The system should be used only wh en wheel spinning occurs in a
ditch or rough surface.
The system is activated when driv ing at a speed under 62 mph (100
km/h).
This system is effective in case one of the rear wheels is spinning.
Press the AUTO LSD switch
to turn on the system.
At this time, the AUTO LSD
indicator will come on.
To turn off the system, push
the switch again.
If the engine is turned off while
the AUTO LSD indicator is on
and then restarted, the indica−
tor will turn off automatically.
When the AUTO LSD system is operating
If the rear wheels spin, the slip
indicator flashes to indicate that
the AUTO LSD system have
been controlled the spinning of
the rear wheels.
150
2−4. Using other driving systems
If the brake system overheats
The system will cease operation and a buzzer will sound to alert the driver.
Stop the vehicle in a safe place. (There is no problem with continuing normal
driving.)
CAUTION
To avoid an accident
2
Do not drive with the AUTO LSD switch continuously turned on.
151
When driving
Do not use the AUTO LSD system in conditions other than the above.
A much greater steering effort and more careful cornering control will be
required.
2−4. Using other driving systems
Rear differential lock system (if equipped)
The rear differential lock system is provided for use only when wheel
spinning occurs in a ditch or on a slippery or ragged surface.
The rear differential lock system is effective in case one of the rear
wheels is spinning.
Press the RR DIFF LOCK
switch to lock the rear differen−
tial.
At this time, the indicator will
blink. Wait a few seconds for
the system to complete opera−
tion. After the rear differential is
locked, the rear differential lock
indicator will stop blinking and
remain on.
To unlock the rear differential,
push the switch again.
Using the rear differential lock system
Automatic transmission
4WD models: Before using the rear differential lock system.
Shift the front−wheel drive control lever into L4 to see if this is
sufficient. If this has no effect, additionally use the rear differ−
ential lock system.
Be sure to stop the wheels.
Press the RR DIFF LOCK switch.
After the rear differential is locked, the indicator will come on.
Gently depress the accelerator pedal.
Unlock the rear differential as soon as the vehicle moves out.
To unlock the rear differential, push the switch again.
152
2−4. Using other driving systems
Manual transmission
Before using the rear differential lock system.
Shift the four−wheel drive control lever into LL to see if this is
sufficient. If this has no effect, additionally use the rear differ−
ential lock system.
Be sure to stop the wheels.
Depress the clutch pedal.
Press the RR DIFF LOCK switch.
2
After the rear differential is locked, the indicator will come on.
When driving
Slowly release the clutch pedal.
Unlock the rear differential as soon as the vehicle moves out.
To unlock the rear differential, push the switch again.
Locking the rear differential
When the rear differential is locked, VSC is automatically turned off.
(The rear differential lock and VSC OFF indicators come on.)
The following systems do not operate when the rear differential is locked.
It is normal operation for the ABS warning light, VSC OFF indicator and
slip indicator to be on at this time.
SABS
S Brake assist system
SVSC
STRAC
The rear differential lock is disengaged when
Shift the four−wheel drive control lever to H or HL. (4WD models with a
manual transmission)
Shift the front−wheel drive control lever to H2 or H4. (4WD models with
an automatic transmission)
Never forget to turn off the switch after using this feature.
After unlocking the rear differential
Check the indicator go off, turn the engine switch to the ON position, but do
not start the engine.
153
2−4. Using other driving systems
CAUTION
To avoid an accident
Do not use the rear differential lock system except when wheel spinning
occurs in a ditch or on a slippery or ragged surface. Large steering effort
and careful cornering control will be required.
Do not lock the rear differential until the wheels have stopped spinning.
Otherwise, the vehicle may move in an unexpected direction when the dif−
ferential lock is engaged, resulting in an accident. This may also lead to
possible damage to differential lock component parts.
Do not drive over 5 mph (8 km/h) when the differential is locked.
Do not keep driving with the RR DIFF LOCK switch on.
154
2−4. Using other driving systems
Clutch star t cancel switch (vehicles with a manual transmission)
The switch allows the vehicle to be driven out of difficult situations
by cranking the engine with the clutch engaged.
Never use the switch for normal engine starting. Be sure to follow the
starting procedure. ( P. 114)
Press the CLUTCH START
CANCEL switch to cancel the
clutch start system with the
engine switch is turned to the
ON position.
2
When driving
The indicator comes on when
the clutch start system is can−
celed.
The clutch start cancel switch
is automatically turned off
when the engine switch is
turned off.
Clutch start system
The system is designed to keep the starter motor from operating if the clutch
pedal is not depressed all the way down.
155
2−4. Using other driving systems
Driving assist systems
To help enhance driving safety a nd performance, the following sys−
tems operate automatically in response to various driving situations.
Be aware, however, that these systems are supplementary and
should not be relied upon too heavily when operating the vehicle.
ABS (Anti−lock Brake System)
Restrains the vehicle from slipping when driving on slick road surfaces
or in the event of sudden braking.
Brake Assist
Generates an increased level of braking force after the brake pedal is
depressed, when the system detects a panic stop situation.
VSC (Vehicle Stability Control)
Helps the driver to control skidding when swerving suddenly or turning
on slippery road surfaces.
TRAC (Traction Control)
Maintains drive power and prevents the rear wheels (2WD models) or
all wheels (4WD models) from spinning when starting the vehicle or
accelerating on slippery roads.
When VSC/TRAC are operating
If the vehicle is in danger of slip−
ping, or if the rear wheels (2WD
models) or all wheels (4WD
models) spin, the indicator light
flashes to indicate that VSC/
TRAC have been engaged.
A buzzer (intermittent) sounds to
indicate that VSC is operating.
156
2−4. Using other driving systems
To disable VSC
If the vehicle gets stuck in fresh snow or mud, VSC may reduce
power from the engine to the wheels. You may need to turn the sys−
tem off to enable you to rock the vehicle in order to free it.
Vehicles with rear differential lock system
Press the RR DIFF LOCK
switch.
2
Push the switch again to turn the
system back on.
4WD models with an automatic transmission
Shift the front−wheel drive control
lever to H4 or L4.
The four−wheel drive and VSC
OFF indicators should come on.
Shift the lever to H2, turn the sys−
tem back on.
4WD models with a manual transmission
Shift the four−wheel drive control
lever to HL or LL.
The center differential lock and
VSC OFF indicators should come
on.
Shift the lever to H, turn the sys−
tem back on.
157
When driving
The rear differential lock and VSC
OFF indicators should come on.
2−4. Using other driving systems
Sounds and vibrations caused by the ABS, TRAC, VSC and brake
assist system
A sound may be heard from the engine compartment when the engine is
started or just after the vehicle begins to move. This sound does not indi−
cate that a malfunction has occurred in any of these systems.
Any of the following conditions may occur when the above systems are
operating. None of these indicates that a malfunction has occurred.
S
S
S
S
Vibrations may be felt through the vehicle body and steering.
A motor sound may be heard after the vehicle comes to a stop.
The brake pedal may pulsate slightly after the ABS is activated.
The brake pedal may move down slightly after the ABS is activated.
If the brake system overheats
TRAC will cease operation and a buzzer will sound to alert the driver. Stop
the vehicle in a safe place. (There is no problem with continuing normal driv−
ing.)
158
2−4. Using other driving systems
CAUTION
The ABS does not operate effectively when
The limits of the gripping performance have been exceeded.
The vehicle hydroplanes while driving at high speed on the wet or slick
road.
Stopping distance when the ABS isoperating will exceed that of nor−
mal conditions
When driving on dirt, gravel or snow−covered roads
When driving with tire chains
When driving over bumps in the road
When driving over roads with potholes or roads with uneven roads
When VSC is activated
The slip indicator flashes and a warning buzzer sounds. Always drive care−
fully. Reckless driving may cause an accident. Exercise particular care when
the indicator flashes and a buzzer sounds.
TRAC may not operate effectively when
Directional control and power may not be achievable while driving on slip−
pery road surfaces, even if TRAC is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total
load capacity. In addition, make sure that the tires are inflated to the appro−
priate tire pressure level.
The ABS and VSC will not function correctly if different tires are fitted on the
vehicle.
Contact your Toyota dealer for further information when replacing tires or
wheels.
Handling of tires and suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause the system to malfunction.
159
2
When driving
The ABS is not designed to shorten the vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you in the following situ−
ations.
2−5. Driving information
Off−road precautions
This vehicle belongs to the utility vehicle class, which has higher
ground clearance and narrower tread in relation to the height of its
center of gravity to make it capable of performing in a wide variety of
off−road applications.
Off−road vehicle feature
Specific design characteristics give it a higher center of gravity
than ordinary passenger cars. This vehicle design feature causes
this type of vehicle to be more likely to rollover. And, utility vehicles
have a significantly higher rollover rate than other types of vehi−
cles.
An advantage of the higher ground clearance is a better view of the
road allowing you to anticipate problems.
It is not designed for cornering at the same speeds as ordinary
passenger cars any more than lo w−slung sports cars designed to
perform satisfactorily under off−road conditions. Therefore, sharp
turns at excessive speeds may cause rollover.
160
2−5. Driving information
CAUTION
Off−road vehicle precautions
Always observe the following precautions to minimize the risk of serious per−
sonal injury or damage to your vehicle:
In a rollover crash, an unbelted person is significantly more likely to die
than a person wearing a seat belt. Therefore, the driver and all passengers
should fasten their seat belts whenever the vehicle is moving.
2
Loading cargo on the roof luggage carrier will make the center of the vehi−
cle gravity higher. Avoid high speeds, sudden starts, sharp turns, sudden
braking or abrupt maneuvers, otherwise it may result in loss of control or
vehicle rollover due to failure to operate this vehicle correctly.
Always slow down in gusty crosswi
nds. Because of its profile and higher
center of gravity, your vehicle is more sensitive to side winds than an ordi−
nary passenger car. Slowing down will allow you to have better control.
When driving off−road or in rugged terrain, do not drive at excessive
speeds, jump, make sharp turns, strike objects, etc. This may cause loss
of control or vehicle rollover causing death or serious injury. You are also
risking expensive damage to your vehicle’s suspension and chassis.
Do not drive horizontally across steep slopes. Driving straight up or
straight down is preferred. Your vehicle (or any similar off−road vehicle)
can tip over sideways much more easily than forward or backward.
161
When driving
Avoid sharp turns or abrupt maneuvers, if at all possible.
Failure to operate this vehicle correctly may result in loss of control or
vehicle rollover causing death or serious injury.
2−5. Driving information
Off−road driving
When driving your vehicle off−road, please observe the following pre−
cautions to ensure your driving enjoyment and to help prevent the
closure of areas to off−road vehicles.
Drive your vehicle only in areas where off−road vehicles are permit−
ted to travel.
Respect private property. Get owner’s permission before entering
private property.
Do not enter areas that are closed. Honor gates, barriers and signs
that restrict travel.
Stay on established roads. When conditions are wet, driving tech−
niques should be changed or trav el delayed to prevent damage to
roads.
Additional information for off−road driving
For owners in U.S. mainland, Hawaii and Puerto Rico:
To obtain additional information pertaining to driving your vehicle off−road,
consult the following organizations.
State and Local Parks and Recreation Departments
State Motor Vehicle Bureau
Recreational Vehicle Clubs
U.S. Forest Service and Bureau of Land Management
162
2−5. Driving information
CAUTION
Off−road driving precautions
Always observe the following precautions to minimize the risk of serious per−
sonal injury or damage to your vehicle:
Drive carefully when off the road. Do not take unnecessary risks by driving
in dangerous places.
Do not grip the steering wheel spokes when driving off−road. A bad bump
could jerk the wheel and injure your hands. Keep both hands and espe−
cially your thumbs on the outside of the rim.
After driving through tall grass, mud, rock, sand, rivers, etc., check that
there is no grass, bush, paper, rags, stone, sand, etc. adhering or trapped
on the underbody. Clear off any such matter from the underbody. If the
vehicle is used with these materials trapped or adhering to the underbody,
a breakdown or fire could occur.
In a rollover crash, an unbelted person is significantly more likely to die
than a person wearing a seat belt. Therefore, the driver and all passengers
should fasten their seat belts whenever the vehicle is moving.
When driving off−road or in rugged terrain, do not drive at excessive
speeds, jump, make sharp turns, strike objects, etc. This may cause loss
of control or vehicle rollover causing death or serious injury. You are also
risking expensive damage to your vehicle’s suspension and chassis.
163
When driving
Always check your brakes for effectiveness immediately after driving in
sand, mud, water or snow.
2
2−5. Driving information
NOTICE
To prevent the water damage
Take all necessary safety measures to ensure that water damage to the
engine or other components does not occur.
Water entering the engine air intake will cause severe engine damage.
Water entering the automatic transmission will cause deterioration in shift
quality, locking up of your transmission accompanied by vibration, and ulti−
mately damage.
Water can wash the grease from wheel bearings, causing rusting and pre−
mature failure, and may also enter the differentials, transmission and
transfer case, reducing the gear oil’s lubricating qualities.
When you drive through water
If driving through water, such as when crossing shallow streams, first check
the depth of the water and the bottom of the river bed for firmness. Drive
slowly and avoid deep water.
Inspection after off−road driving
Sand and mud that has accumulated in brake drums and around brake
discs may affect braking efficiency and may damage brake system compo−
nents.
Always perform a maintenance inspection after each day of off−road driv−
ing that has taken you through rough terrain, sand, mud, or water. For
scheduled maintenance information, refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supplement”.
164
2−5. Driving information
Cargo and luggage
Take notice of the following information about storage precau−
tions, cargo capacity and load.
Stow cargo and luggage in the luggage compartment whenever
possible.
Be sure all items are secured in place.
Be careful to keep the vehicle level. Placing the weight as far for−
ward as possible helps maintain vehicle balance.
2
For better fuel economy, do not carry unnecessary weight.
When driving
Capacity and distribution
Cargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capacity) (Total weight of occupants)
Steps for Determining Correct Load Limit—
(1) Locate the statement “The co mbined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your vehicle’s
placard.
(2) Determine the combined weight of the driver and passengers that
will be riding in your vehicle.
(3)Subtract the combined weight of the driver and passengers from
XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and lug−
gage load capacity.
For example, if the “XXX” amount equals 1400 lbs. and there will
be five 150 lb passengers in your vehicle, the amount of available
cargo and luggage load capacity is 650 lbs. (1400 750 (5 150)
= 650 lbs.)
(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That weight may not safely exceed the
available cargo and luggage load capacity calculated in Step 4.
165
2−5. Driving information
(6) If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult this manual to determine how
this reduces the available cargo and luggage load capacity of your
vehicle.
Example on your vehicle
Cargo capacity
Total load capacity
When 2 people with the combined weight of 366 lb. (166 kg) are
riding in your vehicle, which has a total load capacity of 1190 lb. (540
kg), the available amount of cargo and luggage load capacity will be
as follows:
1190 lb.
366 lb. = 824 lb. (540 kg
166 kg = 374 kg)
In this condition, if 3 more pa ssengers with the combined weight of
388 lb. (176 kg) get on , the available cargo and luggage load will be
reduced as follows:
824 lb.
388 lb. = 436 lb. (374 kg
176 kg = 198 kg)
As shown in the above example,
if the number of occupants
increases, the cargo and luggage load equaling the combined weight
of the occupants who got on later, by an amount. In other words, if an
increase in the number of occupants causes an excess of the total
load capacity (combined weight of occupants plus cargo and luggage
load), you must reduce the cargo and luggage on your vehicle.
166
2−5. Driving information
CAUTION
Things that must not be carried in the luggage compartment
The following things may cause a fire if loaded in the luggage compart−
ment.
Receptacles containing gasoline
Aerosol cans
Storage precautions
2
Do not stack anything in the luggage compartment higher than the
Do not drive with objects on top of the instrument panel.
They may interfere with the driver ’s field of view or move during sharp
acceleration or turning, thus impairing the driver ’s control of the vehi−
cle. In an accident they may injure the vehicle occupants.
Secure all items in the occupant compartment, as they may shift and
injure someone during an accident or sudden braking.
Never allow anyone to ride in the luggage compartment. It is not
designed for passengers. They should ride in their seats with their seat
belts properly fastened. Otherwise, they are much more likely to suffer
death or serious bodily injury, in the event of sudden braking or a colli−
sion.
Capacity and distribution
Do not exceed the maximum axle weight rating or the total vehicle
weight rating.
Even if the total load of occupant’s weight and the cargo load is less
than the total load capacity, do no t apply the load unevenly. Improper
loading may cause deterioration of st eering or braking control which
may cause death or serious injury.
167
When driving
seatbacks.
Such items may be thrown about and possibly injure people in the
vehicle during sudden braking or in an accident.
2−5. Driving information
Vehicle load limits
Vehicle load limits include total load capacity, seating capacity,
towing capacity and cargo capacity.
Total load capacity: 1190 lb. (540 kg)
Total load capacity means the combined weight of occupants,
cargo and luggage.
Seating capacity: 5 occupants (Front 2, Rear 3)
Seating capacity means the ma ximum number of occupants
whose estimated average weight is 150 lb. (68 kg) per person.
Even if the number of occupants are within the seating capacity,
do not exceed the total load capacity.
Towing capacity: 5000 lb. (2265 kg)
Towing capacity means the maximum gross trailer weight (trailer
weight plus its cargo weight) that your vehicle is able to tow.
Cargo capacity
Cargo capacity may increase or decrease depending on the
weight and the number of occupants.
Total load capacity and seating capacity
These details are also described on the tire and loading information
label.( P. 292)
CAUTION
Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tires, but also degrade steering and
braking ability, resulting in an accident.
168
2−5. Driving information
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri−
ate to the prevailing weather conditions.
Pre−winter preparations
Use fluids that are appropriate to the prevailing outside tem−
peratures.
Engine oil
Engine coolant
Washer fluid
2
Have a service technician inspect the level and specific grav−
ity of battery electrolyte.
Have the vehicle fitted with four snow tires or purchase a set
of tire chains for the rear tires.
Ensure that all tires are the same size and brand, and that chains
match the size of the tires.
Before driving the vehicle
Perform the following according to the driving conditions.
Do not try to forcibly open a window, scrape an outside rear
view mirror surface or move a wiper or outside rear view mir−
ror that is frozen. Pour warm water over the frozen area to
melt the ice. Wipe away the water immediately to prevent it
from freezing.
To ensure proper operation of th e climate control system fan,
remove any snow that has accumulated on the air inlet vents
in front of the windshield.
Remove any ice that has accumulated on the vehicle chassis.
Periodically check for and remo ve any excess ice or snow
that may have accumulated in the wheel well or on the
brakes.
169
When driving
S
S
S
2−5. Driving information
When driving the vehicle
Accelerate the vehicle slowly and drive at a reduced speed suit−
able to road conditions.
When parking the vehicle
Park the vehicle and move the shift lever to P (automatic trans−
mission) or to 1 or R (manual transmission) without setting the
parking brake. The parking brak e may freeze up, preventing it
from being released.
Regulations on the use of snow chains
Regulations regarding the use of tire chains vary according to loca−
tion and type of road. Always check local regulations before install−
ing chains.
Install the chains on the rear tires.
Retighten the chains after driving 1/4 − 1/2 mile (0.5 − 1.0 km).
Snow chain installation
Observe the following precautions when installing and removing chains.
Install and remove tire chains in a safe location.
Install tire chains on the rear tires only. Do not install tire chains on the
front tires.
Install tire chains following the instructions provided in the accompanying
instructions.
170
2−5. Driving information
CAUTION
Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
Use tires of the size specified for your vehicle.
Maintain the recommended level of air pressure.
2
Do not drive in excess of 75 mph (120 km/h) regardless of the type of
snow tires being used.
4WD models:
Do not mix tires of different makes, models, tread patterns or treadwear.
Driving with snow chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
Do not drive in excess of the speed limit specified for the tire chains being
used or 30 mph (50 km/h), whichever is lower.
Avoid driving on bumpy road surfaces or over potholes.
Avoid sudden turns and braking.
Slow down sufficiently before entering a curve to ensure that vehicle con−
trol is maintained.
NOTICE
Repairing or replacing snow tires
Request repairs of and obtain replacement snow tires from Toyota dealers or
legitimate tire retailers.
This is because the removal and attachment of snow tires affects the opera−
tion of the tire pressure warning valves and transmitters.
Fitting tire chains
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
171
When driving
Snow tires should be installed on all wheels.
2−5. Driving information
Trailer towing
Your vehicle is designed primar ily as a passenger−carrying vehicle,
thus towing a trailer will have an ad verse effect on handling, perfor−
mance, braking, durability, and fu el consumption. For your safety
and the safety of others, do not overload the vehicle or trailer.
Toyota warranties do not apply to damage or malfunction caused by
towing a trailer for commercial purposes.
Weight limits
Confirm the total trailer weight, gross vehicle weight, gross axle
weight and trailer tongue load are all within the limits.
Gross vehicle weight
The gross vehicle weight must not exceed the Gross Vehicle
Weight Rating (GVWR) indicated on the Certification Label. The
gross vehicle weight is the sum weight of the unloaded vehicle,
driver, passengers, luggage, hitch and trailer tongue load. Also
included is the weight of any special equipment installed on your
vehicle.
Gross axle weight
The load on either the front or rear axle resulting from distribu−
tion of the gross vehicle weight on both axles must not exceed
the Gross Axle Weight Rating (GAWR) listed on the Certification
Label.
Certification label
172
2−5. Driving information
Trailer tongue load
The trailer cargo load should be distributed so that the tongue
load is 9 to 11% of the total trailer weight, not exceeding the
maximum 500 lb. (227 kg) (Tongue load / Total trailer weight
100 = 9 to 11%)
The total trailer weight and tongue load can be measured with
platform scales found at a highway weighing stations, building
supply company, trucking company, junk yards, etc.
2
When driving
Total trailer weight
Tongue load
Towing a trailer
Consult your Toyota dealer for further information about additional
requirements such as a towing kits, etc.
Hitch and tow hitch receiver
Hitch
Trailer hitch assemblies have different weight capacities estab−
lished by the hitch manufacturer . Even though the vehicle may be
rated for towing a higher weight, the operator must never exceed
the maximum weight rating specified for the trailer hitch.
173
2−5. Driving information
Selecting trailer ball
Use the correct trailer ball for your application.
Trailer ball load rating
Matches or exceeds the gross
trailer weight rating of the trailer.
Ball diameter
Matches the size of the trailer
coupler. Most couplers are
stamped with the required trailer
ball size.
Shank length
Protrudes beyond the bottom of
the lock washer and nut at least 2
threads.
Shank diameter
Matches the ball mount hole
diameter size.
Connecting trailer lights
Use the wire harness stored in
the rear end underbody.
174
2−5. Driving information
Before towing
Check that the following conditions are met:
Ensure that your vehicle’s tires are properly inflated. ( P. 370)
Trailer tires should be inflated according to the trailer manufacturer ’s rec−
ommendation.
All trailer lights work to be legal.
Confirm all lights work each time you connect them.
2
The trailer ball is set up at the proper height for the coupler on the trailer.
Make sure the trailer cargo is securely loaded.
Check that your rear view mirrors conform to any federal, state/provincial
or local regulations. If they do not, install rear view mirrors appropriate for
towing purposes.
Break−in schedule
Toyota recommends that you do not use a new vehicle or a vehicle with
any new power train components (engine, transmission, differential,
wheel bearings, etc.) to tow a trailer for the first 500 miles (800 km) of
driving.
Maintenance
If you tow a trailer, your vehicle will require more frequent maintenance
due to the additional load. (See “Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”.)
Retighten the fixing bolts of the towing ball and bracket after approxi−
mately 600 miles (1000 km).
175
When driving
Check that your vehicle remains level when a loaded or unloaded trailer
is hitched. Do not drive if the vehicle is not level, and check for improper
tongue load, overloading, worn suspension, or other possible causes.
2−5. Driving information
CAUTION
To avoid accident or injury
The total trailer weight (trailer weight plus the weight of cargo) must not
exceed 5000 lb. (2265 kg)
If a trailer and cargo weight over 2000 lb. (907 kg), use a sway control
device with sufficient capacity.
The gross combined weight (sum of your vehicle weight plus its load and
the total trailer weight) must not exceed the following.
2WD models
9200 lb. (4173 kg)
4WD models
9500 lb. (4309 kg)
Do not exceed the trailer hitch assembly weight, gross vehicle weight,
gross axle weight and trailer tongue load capacities.
Never load more weight in the back than in the front of the trailer. About
60% of the load should be in the front half of the trailer, and the remaining
40% in the rear.
The tow hitch receiver installed on your vehicle must never be used on
another vehicle.
Hitches
If you wish to install a trailer hitch, your Toyota dealer should be consulted.
Use only a hitch that conforms to the total trailer weight requirement.
Follow the directions supplied by the hitch manufacturer.
Lubricate the hitch ball with a light coat of grease.
Remove the trailer hitch whenever y ou are not towing a trailer to reduce
the possibility of additional damage caused by the hitch if your vehicle is
struck from behind.
176
2−5. Driving information
CAUTION
When towing a trailer
If the total trailer weight exceeds 1000 lb. (453 kg), trailer brakes are
required.
Never tap into your vehicle’s hydraulic system, as this will lower the vehi−
cle’s braking effectiveness.
Never tow a trailer without using a safety chain securely attached to both
the trailer and the vehicle. If damage occurs to the coupling unit or hitch
ball, there is danger of the trailer wandering into another lane.
2
When driving
NOTICE
When installing a trailer hitch
Use only the position recommended by your Toyota dealer. Do not install the
trailer hitch on the bumper; this may cause body damage.
Brakes
Toyota recommends trailers with brakes that conform to any applicable fed−
eral and state/provincial regulations.
Safety chain
A safety chain must always be used between the towing vehicle and the
trailer. Leave sufficient slack in the chain for turns. The chain should cross
under the trailer tongue to prevent the tongue from dropping to the ground in
the case that it becomes damaged or separated. For the correct safety chain
installation procedure, ask your Toyota dealer.
Do not directly splice trailer lights
Directly splicing trailer lights may damage your vehicle’s electrical system
and cause a malfunction.
177
2−5. Driving information
Trailer towing tips
Your vehicle will handle differently when towing a trailer. The three
main causes of vehicle−trailer ac cidents are driver error, excessive
speed and improper trailer loading. Keep these in mind when towing.
Before starting out, check the trailer’s light and the vehicle−trailer
connections. Recheck after driving a short distance.
Practice turning, stopping and reve rsing with the trailer attached in
an area away from traffic until you become accustomed to the feel
of the vehicle.
Reversing with a trailer attached is difficult and requires practice.
Grip the bottom of the steering wheel and move your hand to the
left to move the trailer to the left. Move your hand to the right to
move the trailer to the right. (This generally opposite to reversing
without a trailer attached.) Avoid sharp or prolonged turning. Have
someone guide you when reversing to reduce the risk of an acci−
dent.
As stopping distance is increased when towing a trailer, vehicle−to−
vehicle distance should be increased. For each 10 mph (16 km/h)
of speed, allow at least one vehicle and trailer length.
Avoid sudden braking as you may skid, resulting in jackknifing and
loss of control. This is especially true on wet or slippery surfaces.
Avoid jerky starts or sudden acceleration. Vehicles with a manual
transmission, prevent excessive clutch slippage by keeping engine
rpm low and not racing the engine. Always start out in first gear.
Avoid jerky steering and sharp turns, and slow down before mak−
ing a turn.
178
2−5. Driving information
Note that when making a turn, the trailer wheels will be closer than
the vehicle wheels to the inside of the turn. Compensate by making
a larger than normal turning radius.
Take care when passing other vehicles. Passing requires consider−
able distance. After passing a vehicle, do not forget the length of
your trailer, and be sure you hav e plenty of room before changing
lanes.
In order to maintain engine braking efficiency, do not use the trans−
mission in D (automatic transmission) or 6 (manual transmission).
Due to the added load of the trailer, your vehicle’s engine may
overheat on hot days (at temper atures over 85°F [30°C]) when
driving up a long or steep grade. If the engine coolant temperature
gauge indicates overheating, immediately turn off the air condition−
ing (if in use), pull your vehicle off the road and stop in a safe spot.
( P. 356)
179
When driving
Crosswinds and rough roads will adversely affect handling of your
vehicle and trailer, causing sway . Periodically check the rear to
prepare for being passed by large trucks or buses, which may
cause your vehicle and trailer to sway. If swaying occurs, firmly grip
the steering wheel, reduce speed immediately but gradually, and
2
steer straight ahead. Never increase speed. If you make no
extreme correction with the stee ring or brakes, your vehicle and
trailer will stabilize.
2−5. Driving information
Always place wheel blocks under both the vehicle and the trailer
wheels when parking. Apply the parking brake firmly, and put the
transmission in P (automatic transmission) or in 1 or R (manual
transmission). Avoid parking on a slope, but if unavoidable, do so
only after performing the following:
Apply the brakes and keep them applied.
Have someone place wheel blocks under both the vehicle and
trailer wheels.
When the wheel blocks are in place, release the brakes slowly
until the blocks absorb the load.
Apply the parking brake firmly.
Shift into 1 or R (manual transmission) or P (automatic trans−
mission) and turn off the engine.
When restarting after parking on a slope:
With the transmission in P (automatic transmission) or the
clutch pedal (manual transmission) depressed, start the
engine. On vehicles with an au tomatic transmission, be sure
to keep the brake pedal pressed.
Shift into a forward gear. If reversing, shift into R.
Release the parking brake (also brake pedal on vehicles with
an automatic transmission), and slowly pull or back away from
the wheel blocks. Stop and apply the brakes.
Have someone retrieve the blocks.
180
2−5. Driving information
CAUTION
To avoid an accident
Do not exceed 45 mph (72 km/h) or posted towing speed limit, whichever
is lower. As instability (swaying) of the towing vehicle−trailer combination
increases as speed increases, exceeding 45 mph (72 km/h) may cause
loss of control.
Slow down and downshift before descending steep or long downhill
grades. Do not make sudden downshifts.
2
181
When driving
Avoid holding the brake pedal down too long or too frequently. This could
cause the brakes to overheat and result in reduced braking efficiency.
2−5. Driving information
Dinghy towing
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.
NOTICE
To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
182
3−1. Using the air conditioning system and defogger
Air conditioning system
Outside air or recirculated
air mode switch
Fan speed control dial
Air conditioning
ON/OFF switch
Temperature control dial
Air outlet selection dial
Adjusting the settings
Adjusting the temperature setting
Turn the temperature control dial
clockwise (cool).
If
A/C
clockwise (warm) or counter−
is not pressed, the system will blow ambient temperature air or
heated air.
For quick cooling, turn the temperature control dial to the
MAX A/C
position. The air conditioning will automatically turn on and the air intake
selector will be set to recirculated air mode.
184
3−1. Using the air conditioning system and defogger
Adjusting the fan speed
Turn the fan speed control dial
clockwise (decrease).
clockwise (increase) or counter−
Set the dial to OFF to turn the fan off.
Selecting the air outlets
Set the air outlet selection dial to an appropriate position.
The positions between the air outlet selections shown below can also be
selected for more detailed adjustment.
When the dial is set to
flows to the upper body.
, air
3
When the dial is set to
flows to the feet.
, air
185
Interior features
When the dial is set to
, air
flows to the upper body and feet.
3−1. Using the air conditioning system and defogger
When the dial is set to
, air
flows to the feet and the wind−
shield defogger operates.
The air intake selector is automat−
ically set to outside air mode.
To return the recirculated air
mode, press
.
When the dial is set to
, air
flows to the windshield and side
windows.
The air intake selector is automat−
ically set to outside air mode.
In this position, the air intake
selector cannot be changed to the
recirculated air mode.
Switching between outside air and recirculated air modes
Press .
The mode switches between
(outside air mode) and
(recirculated air mode) each time the switch is pressed.
186
3−1. Using the air conditioning system and defogger
If the ambient temperature drops while using the recirculated
air mode
The air intake mode automatically changes from recirculated air
mode to outside air mode after a few minutes.
To cancel this function:
Press and hold
for longer than 2 seconds.
To reactivate this function:
Turn the engine switch to the LOCK or ACC position.
Adjusting the position of the air outlets
3
Center outlets
187
Interior features
Direct air flow to the left or right,
up or down.
3−1. Using the air conditioning system and defogger
Right and left side outlets
Direct air flow to the left or right,
up or down.
Opening and closing the right and left side outlets
Open the vent.
Close the vent.
188
3−1. Using the air conditioning system and defogger
Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
When outside air temperature approaches 325F (05C)
The air conditioning system may not operate even when
When
A/C
is pressed.
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow−
ing to the upper body depending on the position of the temperature adjust−
ment dial.
3
CAUTION
Interior features
To prevent the windshield from fogging up
Do not set the air outlet selection dial to
during cool air operation in
extremely humid weather. The difference between the temperature of the
outside air and that of the windshield can cause the outer surface of the
windshield to fog up, blocking your vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
189
3−1. Using the air conditioning system and defogger
Rear window defogger
Clear the rear window using the defogger.
ON/OFF
Press the button to turn on the
rear window defogger. The
indicator light will come on.
The defogger will automatically
turn off after 15 to 240 minutes.
The operation time changes
according to the ambient tem−
perature and vehicle speed.
Pressing the button again also
turns the defogger off.
The rear window defogger can be operated when
The engine switch is in the ON position.
NOTICE
To prevent battery discharge
Turn the rear window defogger off when the engine is off.
190
3−2. Using the audio system
Audio system types
Type A: CD player with external CD changer controller and AM/FM
radio
Type B: CD player with changer and AM/FM radio
Type A
3
Interior features
Type B
191
3−2. Using the audio system
Title
Page
Using the radio
P. 194
Using the CD player
P. 200
Playing back MP3 and WMA discs
P. 208
Optimal use of the audio system
P. 217
Operating the sub woofer
P. 220
Changing display color
P. 221
Using the AUX adapter
P. 222
Using the steering wheel audio switches
P. 224
Welcome function (type B only)
When you turn the engine switch to the ACC or ON position, “FJ CRUISER”
will appear scrolling on the display. A nd then “FJammer” will appear for 6
seconds.
While this function is operating, the display is illuminated with full intensity
and the instrument panel light control dial is disabled. However, you can turn
off the display illumination by pushing the
.
Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
192
3−2. Using the audio system
CAUTION
For vehicles sold in U.S.A. and Canada
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the
user ’s authority to operate this device.
Laser products
NOTICE
To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
193
3
Interior features
S Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a laser pickup to retrieve information
from the surface of compact discs. The laser is carefully shielded so
that its rays remain inside the cabinet. Therefore, never try to disas−
semble the player or alter any of its parts since you may be exposed to
laser rays and dangerous voltages.
S This product utilizes a laser.
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation expo−
sure.
3−2. Using the audio system
Using the radio
Type A
Power
Volume
Station selector
Adjusting the
frequency
Scanning for receivable stations
Seeking the frequency
AM/FM mode buttons
Type B
Power
Volume
AM⋅SAT/FM mode buttons
Scanning for receivable stations
Seeking the frequency
194
Station selector
Adjusting the frequency
(AM, FM mode) or
channel (SAT mode)
Display text message
(SAT mode)
3−2. Using the audio system
Setting station presets (excluding XM® Satellite Radio)
Search for desired stations by turning
pressing “ ” or “ ” on
or
or
or
.
Press and hold the button (from
or
to or
) that the station is to be set to until you hear a beep.
Scanning radio stations (excluding XM® Satellite Radio)
Scanning the preset radio stations
Press and hold
or
3
until you hear a beep.
When the desired station is reached, press the button once
again.
Scanning all radio stations within range
Press or .
All stations with reception will be played for 5 seconds each.
When the desired station is reached, press the button once
again.
XM® Satellite Radio (type B)
® Satellite Radio
Receiving XM
and select the XM® band.
Press
The display changes as follows each time
AM
SAT1
SAT2
is pressed.
SAT3
195
Interior features
Preset stations will be played for 5 seconds each.
3−2. Using the audio system
Turn
to select the desired channel in the all categories
or press “ ” or “ ” on
the current category.
to select the desired channel in
® Satellite Radio channel presets
Setting XM
Select the desired channel. Press and hold the button (from
to
) that the channel is to be set to until you hear a beep.
Changing the channel category
Press “ ” or “ ” on the
.
® Satellite Radio channels
Scanning XM
Scanning channels in the current category
Press .
When the desired channel is reached, press
again.
Scanning preset channels
Press and hold
until you hear a beep.
When the desired channel is reached, press
again.
Displaying text information
Press .
The display will show up to 10 characters.
The display changes as follows each time the button is pressed.
CH NAME
TITLE (SONG/PROGRAM TITLE)
NAME (ARTIST NAME/FEATURE)
CH NUMBER
196
3−2. Using the audio system
When the battery is disconnected
Stations presets are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the con−
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
The radio antenna is mounted on the right−side front fender. The antenna
can be removed from the base by turning it.
XM® Satellite Radio
An XM® Satellite Radio is a tuner designed exclusively to receive broadcasts
provided under a separate subscription. Availability is limited to the 48 con−
tiguous states and 10 Canadian provinces.
3
® subscriptions
Interior features
XM
For detailed information about XM® Satellite Radio or to subscribe:
U.S.A.—
Visit on the web at www.xmradio.com or call 1−800−967−2346.
Canada—
Visit on the web at www.xmradio.ca or call 1−877−438−9677.
Radio ID
You will need the radio ID when activating XM
problem. Select “CH000” using
®
service or reporting a
, and the receiver’s 8−character ID
number will appear.
Satellite tuner
The tuner supports only Audio Services (Music and Talk) and the accom−
panying Text Information of XM® Satellite Radio.
197
3−2. Using the audio system
If the satellite radio does not operate normally
If a problem occurs with the XM ® tuner, a message will appear on the dis−
play. Refer to the table below to identify the problem, and take the suggested
corrective action.
ANTENNA
UPDATING
198
The XM® antenna is not connected. Check
whether the XM® antenna cable is attached
securely.
There is a short−circuit in the antenna or the sur−
rounding antenna cable. See a Toyota certified
dealer.
You have not subscribed to the XM® Satellite
Radio. The radio is being updated with the latest
encryption code. Contact the XM® Satellite Radio
for subscription information. When a contract is
canceled, you can choose the “CH000” and all
free−to−air channels.
The premium channel you selected is not autho−
rized. Wait for about 2 seconds until the radio
returns to the previous channel or “CH001”. If it
does not change automatically, select another
channel. If you want to listen to the premium chan−
nel, contact the XM® Satellite Radio.
NO SIGNAL
The XM® signal is too weak at the current location.
Wait until your vehicle reaches a location with a
stronger signal.
LOADING
The unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIR
The channel you selected is not broadcasting any
programming. Select another channel.
−−−−−
There is no song/program title or artist name/fea−
ture associated with the channel at that time. No
action needed.
3−2. Using the audio system
−−−
The channel you selected is no longer available.
Wait for about 2 seconds until the radio returns to
the previous channel or “CH001”. If it does not
change automatically, select another channel.
Contact the XM® Listener Care Center at 1−800−967−2346 (U.S.A.) or
1−877−438−9677 (Canada).
Certifications for the radio tuner
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How−
ever, there is no guarantee that interference will not occur in a particular
installation.
Reorienting or relocate the receiving antenna.
Increasing the separation between the equipment and receiver.
Connecting the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consulting the dealer or an experienced radio/TV technician for help.
NOTICE
To prevent damage, remove the antenna in the following cases.
The antenna will touch the ceiling of a garage.
A cover will be put on the vehicle.
199
Interior features
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by trying one or more of
the following:
3
3−2. Using the audio system
Using the CD player
Type A
Power
Volume
CD selection (with external
CD changer only)
CD eject
Reverse
Search playback
Track selection
Fast−forward
Repeat play
Random playback
Display text message
Playback
Type B
Power
Volume
CD selection
CD eject
Search playback
Random playback
200
Playback
Fast−forward
Reverse
Repeat play
Track selection
Display text message
3−2. Using the audio system
Loading CDs
Loading a CD (type A)
Insert a CD.
Loading a CD (type B)
Press .
“WAIT” is shown on the display.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
Loading multiple CDs (type B only)
Press and hold
3
until you hear a beep.
Insert a CD when the indicator on the slot turns from amber to
green.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the CD is inserted.
Insert the next CD when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining CDs.
To stop the operation, press
.
Ejecting CDs
Ejecting a CD (type A)
Press
and remove the CD.
Ejecting a CD (type B)
To select the CD to be ejected, press
( ).
( ) or
The number of the CD selected is shown on the display.
Press
and remove the CD.
201
Interior features
“WAIT” is shown on the display.
3−2. Using the audio system
Ejecting all the CDs (type B only)
Press and hold
CDs.
until you hear a beep, and then remove the
Selecting and scanning a track
Selecting a track
Press “ ” to move up or “ ” to move down using
or
until the desired track number is displayed.
Scanning tracks
Press or .
The first 10 seconds of each track will be played.
Press the switch again when the desired track is reached.
Fast−forwarding and reversing tracks
To fast−forward or reverse.
Type A: Press and hold
(
) or
(
).
Type B: Press and hold
(
) or
(
).
Selecting a CD (with CD changer only)
Selecting the desired CD
Type A: Press
( ) or
( ).
Type B: Press
( ) or
( ).
Selecting loaded CDs
Press and hold
or
until you hear a beep.
The first 10 seconds of the first track on each CD will be played.
Press the switch again when the desired CD is reached.
202
3−2. Using the audio system
Repeat play
Repeating a track
Press
(RPT) or
(RPT).
Repeating all of the tracks on a CD (with CD changer only)
Press and hold
(RPT) or
(RPT) until you hear a beep.
Random playback
Current CD
Press
(RAND) or
(RAND).
Tracks are played in a random order until the button is pressed once
more.
3
Press and hold
beep.
(RAND) or
(RAND) until you hear a
Tracks on all loaded CDs are played in a random order until the button is
pressed once more.
Switching the display
Press or .
Each time the switch is pressed, the display changes in the order of Track
no./Elapsed time CD title Track name.
203
Interior features
All CDs (with CD changer only)
3−2. Using the audio system
Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
1 second or more will display the remaining characters.
A maximum of 24 characters can be displayed.
or
for
is pressed for 1 second or more again or has not been
If or
pressed for 6 seconds or more, the display will return to the first 12 charac−
ters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Canceling random playback
Press (RAND) or
(RAND) again.
Canceling repeat play
Press (RPT) or
(RPT) again.
Error messages
Refer to the following table and take the appropriate measures. If the prob−
lem is not rectified, take the vehicle to your Toyota dealer.
Message
Correction
Procedures
ERROR 1
S The disc may be dirty
S Clean the disc
or damaged
S Insert the disc cor−
S The disc may be
rectly
inserted upside down
ERROR 3
There is a problem
within the system
Eject the disc or mag−
azine
ERROR 4
Over−current
Ask your Toyota
dealer
Operation is stopped
due to a high temper−
ature inside the player
Eject the disc and
allow the player to
cool down
The external CD
changer lid is open
Close the lid
WAIT
CD OPEN
204
Cause
3−2. Using the audio system
Message
Cause
NO DISC
There is no disc in the
CD changer
Correction
Procedures
Insert a disc
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea−
tures, or due to scratches, dirt or deterioration.
3
CDs with copy−protect features may not be used.
CD player protection feature
If CDs are left inside the CD pla
extended periods
yer or in the ejected position for
CDs may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
205
Interior features
To protect the internal components, playback is automatically stopped when
a problem is detected while the CD player is being used.
3−2. Using the audio system
NOTICE
CDs and adapters that cannot be used
Do not use the following types of CDs or 3 in. (8 cm) CD adapters or Dual
Disc.
Doing so may damage the CD player and/or the CD insert/eject function.
CDs that have a diameter that is not 4.7
in. (12 cm)
Low−quality and deformed CDs
CDs with a transparent or translucent
recording area
CDs that have had tape, stickers or CD−
R labels attached to them, or that have
had the label peeled off
206
3−2. Using the audio system
NOTICE
CD player precautions
Failure to follow the precautions below may result in serious damage to the
CDs or the player itself.
Do not insert anything other than CDs into the CD slot.
Do not apply oil to the CD player.
Store CDs away from direct sunlight.
Never try to disassemble any part of the CD player.
Do not insert more than one CD at a
time
3
Interior features
207
3−2. Using the audio system
Playing back MP3 and WMA discs
Type A
Power
Volume
File selection
Fast−forward
Disc eject
Folder selection
Reverse
File selection
Search playback
Repeat play
Random playback
Display text message
Playback
Type B
Power
Volume
File selection
Disc selection
Playback
Disc eject
Reverse
Fast−forward
Search
playback
Random playback
Repeat play
File selection
208
Display text message
Folder selection
3−2. Using the audio system
Loading MP3 and WMA discs
Loading a disc (type A)
Insert a disc.
Loading a disc (type B)
Press .
“WAIT” is shown on the display.
Insert a disc when the indicator on the slot turns from amber
to green.
The display changes from “WAIT” to “LOAD”.
Loading multiple discs (type B only)
Press and hold
3
until you hear a beep.
Insert a disc when the indicator on the slot turns from amber
to green.
The display changes from “WAIT” to “LOAD”.
The indicator on the slot turns to amber when the disc is inserted.
Insert the next disc when the indicator on the slot turns from
amber to green again.
Repeat the procedure for the remaining discs.
To stop the operation, press
.
Ejecting MP3 and WMA discs
Ejecting a disc (type A)
Press
and remove the disc.
Ejecting a disc (type B)
To select the disc to be ejected, press
( ).
( ) or
The number of the disc selected is shown on the display.
Press
and remove the disc.
209
Interior features
“WAIT” is shown on the display.
3−2. Using the audio system
Ejecting all the discs (type B only)
Press and hold
discs.
until you hear a beep, and then remove the
Selecting a disc (type B only)
Selecting the desired disc
Press (
( ).
) or
Selecting a folder
Selecting folders one at a time
To select the desired folder, press “ ” or “ ” on
or
.
Selecting the desired folder by cueing the first file of each
folder
Press and hold
or
until you hear a beep.
The first 10 seconds of the first file in the each folder will be played.
When the desired folder is reached, press the switch once again.
Returning to the first folder
Press and hold “ ” on
or
until you hear a beep.
Selecting and scanning files
Selecting one file at a time
To select the desired file, turn the
“ ” on
210
or
.
or
or press “
” or
3−2. Using the audio system
Selecting the desired file by cueing the files in the folder
Press or .
The first 10 seconds of all files in the folder will be played.
When the desired file is reached, press the switch once again.
Fast−forwarding and reversing files
To fast−forward or reverse.
Type A: Press and hold
(
) or
(
).
Type B: Press and hold
(
) or
(
).
3
Repeat play
Press
(RPT) or
(RPT).
Repeating all of the files in the folder
Press and hold
(RPT) or
(RPT) until you hear a beep.
Random playback
Playing files from a particular folder in random order
Press
(RAND) or
(RAND).
Playing all of the files on a disc in random order
Press and hold
beep.
(RAND) or
(RAND) until you hear a
Switching the display
Press or .
Each time the switch is pressed, the display changes in the order of
Folder no./File no./Elapsed time Folder name File name Album title
(MP3 only) Track title Artist name.
211
Interior features
Repeating a file
3−2. Using the audio system
Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding
for 1 second or more will display the remaining characters.
A maximum of 24 characters can be displayed.
or
If
or
is pressed for 1 second or more again or has not been
pressed for 6 seconds or more, the display will return to the first 12 charac−
ters.
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
Canceling random playback
Press
(RAND) or
(RAND) again.
Canceling repeat play
Press
(RPT) or
(RPT) again.
Error messages
Refer to the following table and take the appropriate measures. If the prob−
lem is not rectified, take the vehicle to your Toyota dealer.
Message
Correction
Procedures
ERROR 1
S The disc may be dirty
S Clean the disc
or damaged
S Insert the disc cor−
S The disc may be
rectly
inserted upside down
ERROR 3
There is a problem
within the system
Eject the disc or mag−
azine
ERROR 4
Over−current
Ask your Toyota
dealer
Operation is stopped
due to a high temper−
ature inside the player
Eject the disc and
allow the player to
cool down
WAIT
212
Cause
3−2. Using the audio system
Message
Cause
NO MUSIC
This indicates that no
playable data is
included in the disc
Correction
Procedures
Eject the disc
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea−
tures, or due to scratches, dirt or deterioration.
3
MP3 and WMA player protection feature
If discs are left inside the MP3 and WMA player or in the ejected posi−
tion for extended periods
Discs may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the MP3 and WMA player.
MP3 and WMA files
MP3 (MPEG Audio LAYER3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media TM Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards and to the media/formats
recorded by them that can be used.
MP3 file compatibility
S Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
213
Interior features
To protect the internal components, playback is automatically stopped when
a problem is detected while the MP3 and WMA player is being used.
3−2. Using the audio system
S Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
S Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
S MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
S Compatible channel modes: stereo, joint stereo, dual channel and
monaural
WMA file compatibility
S Compatible standards
WMA Ver. 7, 8, 9
S Compatible sampling frequencies
32, 44.1, 48 (kHz)
S Compatible bit rates (only compatible with 2−channel playback)
Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
Compatible media
Media that can be used for MP3 and WMA playback are CD−Rs and CD−
RWs.
Playback in some instances may not be possible, depending on the status
of the CD−R or CD−RW. Playback may not be possible or the audio may
jump if the disc is scratched or marked with fingerprints.
Compatible disc formats
The following disc formats can be used.
S Disc formats: CD−ROM Mode 1 and Mode 2
CD−ROM XA Mode 2, Form 1 and Form 2
S File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet)
MP3 and WMA files written in any format other than those listed above
may not play correctly, and their file names and folder names may not
be displayed correctly.
Items related to standards and limitations are as follows.
S
S
S
S
214
Maximum directory hierarchy: 8 levels
Maximum length of folder names/file names: 32 characters
Maximum number of folders: 192 (including the root)
Maximum number of files per disc: 255
3−2. Using the audio system
File names
The only files that can be recogniz ed as MP3/WMA and played are those
with the extension .mp3 or .wma.
Multi−sessions
As the audio system is compatible with multi−sessions, it is possible to play
discs that contain MP3 and WMA files. However, only the first session can
be played.
ID3 and WMA tags
ID3 tags can be added to MP3 files, making it possible to record the track
title and artist name, etc.
The system is compatible with ID3 Ver. 1.0, 1.1, and Ver. 2.2, 2.3 ID3 tags.
(The number of characters is based on ID3 Ver. 1.0 and 1.1.)
WMA tags can be added to WMA files, making it possible to record the
track title and artist name in the same way as with ID3 tags.
When a disc containing MP3 or WMA files is inserted, all files on the disc
are first checked. Once the file check is finished, the first MP3 or WMA file
is played. To make the file check finish more quickly, we recommend you
do not write in any files other than MP3 or WMA files or create any unnec−
essary folders.
If the discs contain a mixture of music data and MP3 or WMA format data,
only music data can be played.
Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and
WMA files, they will be mistakenly recognized and played as MP3 and
WMA files. This may result in large amounts of interference and damage
to the speakers.
Playback
S To play MP3 file with steady sound quality, we recommend a fixed bit
rate of 128 kbps and a sampling frequency of 44.1 kHz.
S CD−R or CD−RW playback may not be possible in some instances,
depending on the characteristics of the disc.
215
Interior features
MP3 and WMA playback
3
3−2. Using the audio system
S There is a wide variety of freeware and other encoding software for
MP3 and WMA files on the market, and depending on the status of the
encoding and the file format, poor sound quality or noise at the start of
playback may result. In some cases, playback may not be possible at
all.
S When files other than MP3 or WMA files are recorded on a disc, it may
take more time to recognize the disc and in some cases, playback may
not be possible at all.
S Microsoft, Windows, and Windows Media are the registered trade−
marks of Microsoft Corporation in the U.S. and other countries.
NOTICE
CDs and adapters that cannot be used (P. 206)
CD player precautions ( P. 207)
216
3−2. Using the audio system
Optimal use of the audio system
Type A
Displays the current mode
Changes the following set−
ting
Sound quality and volume
balance ( P. 218)
The sound quality and bal−
ance setting can be changed
to produce the best sound.
Type B
3
Interior features
Using the AUDIO CONTROL function
Changing sound quality modes
Pressing
or
selects the mode to be changed in the
following order.
BAS
TRE
FAD
BAL
217
3−2. Using the audio system
Adjusting sound quality
Turning or adjusts the level.
Sound qual−
ity mode
Mode
displayed
Level
Bass
BAS
−5 to 5
Treble
TRE
−5 to 5
Front/rear
volume
balance
FAD
Left/right
volume
balance
BAL
Turn to the
left
Turn to the
right
Low
High
F7 to R7
Shifts to rear
Shifts to
front
L7 to R7
Shifts to left
Shifts to
right
Trademark owned by SRS Labs, Inc.
The audio systems utilize SRS FOCUS
and SRS TruBass
audio
enhancement technologies, under license from SRS Labs, Inc., in all mode
except AM radio mode.
FOCUS, TruBass, SRS and
symbols are trademarks of SRS Labs,
Inc.
FOCUS and TruBass technologies are incorporated under license from
SRS Labs, Inc.
218
3−2. Using the audio system
Trademark owned by New Transducers Limited
This vehicle incorporates NXT flat panel speaker technology by New
Transducers Limited, UK.
is a registered trademarks of New
Transducers Limited.
3
Interior features
219
3−2. Using the audio system
Operating the sub woofer (if equipped)
Pressing the switch, to oper−
ate the sub woofer.
To stop it, press the switch
again.
220
3−2. Using the audio system
Changing display color (type B only)
Display color can be changed by following the procedure below.
Select the function of which you want to change the display
color.
Turn the audio system off by pressing
.
Push
for more than 5 seconds. “TEXT MODE” will
appear on the display, and then the system is turned off.
Turn the system on.
Change the display color by turning
. When you turn
3
the knob, the display color changes as follows:
Set the display color by pressing
Green
Turquoiseblue
briefly. The name of
the function of wh ich the color was changed will appear on
the display.
If you want to set that display color for all the function displays,
press the knob for 2 seconds. “ALL CHANGE” will appear on the
display.
To continue to change the display color of other functions, select
the function of which you want to change the display color, and
repeat steps 5 to 6.
Turn the system off by pressing
change function ends.
. The display color
221
Interior features
Amber
Yel low Yellowgreen
Blue
Purple
Magenta
Red
3−2. Using the audio system
Using the AUX adapter
This adapter can be used to connect a portable audio device and lis−
ten to it through the vehicle’s speakers.
Connect the portable audio
device.
Type A
Press .
222
3−2. Using the audio system
Type B
Press .
3
Operating portable audio devices connected to the audio system
When using a portable audio deviceconnected to the power outlet or
cigarette lighter
Noise may occur during playback. Use the power source of the portable
audio device.
223
Interior features
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
3−2. Using the audio system
Using the steering wheel audio switches (if equipped)
Some audio features can be contro lled using the switches on the
steering wheel.
Volume
Radio: Select radio stations
CD: Select tracks, files
(MP3 and WMA) and discs
Power on, select audio
source
Turning on the power
Press
when the audio system is turned OFF.
The audio system can be turned off by holding the switch down until the
system turns off.
Changing the audio source
Press
when the audio system is turned ON. The audio source
changes as follows each time
is pressed.
CD player without changer:
FM1 FM2 CD AUX AM
CD player with changer:
FM1 FM2 CD changer AUX AM SAT1 SAT2 SAT3
Adjusting the volume
Press “+” on
volume.
to increase the volume and “–” to decrease the
Press and hold “+” or “–” on
the volume.
224
to continue increasing or decreasing
3−2. Using the audio system
Selecting a radio station
Press
to select the radio mode.
Press “ ” or “ ” on
to select a preset station.
To scan for receivable stations, press and hold the switch until you
hear a beep.
Selecting a track/file
Press
to select the CD mode.
Press “ ” or “ ” on
to select the desired track/file.
Selecting a disc in the CD player (CD player with changer only)
Press
3
to select the CD mode.
until you want to listen to is
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
225
Interior features
Press and hold “ ” or “ ” on
set.
3−3. Using the interior lights
Interior lights list
1
2
Front interior light ( P. 227)
Rear interior light ( P. 227)
Illuminated entry system
When the interior light switch is in the DOOR position, the interior light auto−
matically turns on/off according to whether the doors are locked/unlocked
and whether the doors are open/closed and the engine switch position.
To prevent the battery from being discharged
If the interior light remains on when the door is not fully closed and the inte−
rior light switch is in the DOOR position, the light will go off automatically
after 30 minutes.
Customization that can be configured at Toyota dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 386)
226
3−3. Using the interior lights
Interior lights
Interior lights
Front
DOOR position
OFF
ON
Rear
3
DOOR position
Interior features
OFF
ON
227
3−4. Using the storage features
List of storage features
Glove box
Auxiliary box
Glove box
Bottle holders
Cup holders
Glove box
Pull up the lever.
228
3−4. Using the storage features
Glove box and Cup holders (front)
CAUTION
Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders (front)
Vehicles with an automatic transmission
3
Interior features
229
3−4. Using the storage features
Cup holders (front)
Vehicles with a manual transmission
Holding large cups
Vehicles with an automatic transmission
Remove the adapter.
230
3−4. Using the storage features
Cup holders (front)
Vehicles with a manual transmission
Remove the adapter.
CAUTION
Items unsuitable for the cup holder
231
3
Interior features
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
3−4. Using the storage features
Cup holders (rear)
Cup holders (rear)
Removing the mat
Pull up.
CAUTION
Items unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
232
3−4. Using the storage features
Bottle holders
Bottle holders
Bottle holders
3
Depending on their size or shape, some bottles may not fit in the holders.
Items that should not be stowed in the bottle holders
Put the cap on before stowing a bottle. Do not place open bottles in the bot−
tle holders, or glasses and paper cups containing liquid. The contents may
spill and glasses may break.
233
Interior features
NOTICE
3−4. Using the storage features
Auxiliary box
Auxiliary box
Push the button.
Pull up the lid.
CAUTION
Items that should not be left in the auxiliary box
Do not leave anything flammable or deformable, such as a lighter or glasses
in the box.
If the interior of the vehicle becomes hot, flammable objects such as lighters
may explode, and objects that can be damaged by heat, such as glasses or
cellular phones may warp or crack.
Caution while driving
Do not leave the auxiliary box open while driving.
Items may fall out and cause death or serious injury in case of an accident or
sudden stop.
234
3−5. Other interior features
Sun visors
Front
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.
3
Interior features
Side
Flip down.
235
3−5. Other interior features
Vanity mirror
Flip down.
236
3−5. Other interior features
Clock
Adjusts the hours
Adjusts the minutes
The clock is displayed when
3
The engine switch is in the ACC or ON position.
Interior features
When disconnecting and reconnecting battery terminals
The time display will automatically be set to 1:00.
237
3−5. Other interior features
Outside temperature display (if equipped)
Displays the outside air
temperature.
The temperature range that
can be displayed is from −22°F
(−30°C) to 122°F (50°C).
Switches the outside air
temperature display
between English/U.S. Cus−
tomary System and metric.
When – –5C or – –5F is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.
The outside air temperature is displayed when
The engine switch is in the ON position.
When disconnecting and reconnecting battery terminals
The display will automatically be set to the initial mode.
238
3−5. Other interior features
Power outlet (12V DC)
The power outlet can be used for 12 V accessories that run on less
than 10A.
3
Interior features
The power outlet can be used when
The engine switch is in the ACC or ON position.
NOTICE
To avoid damaging the power outlet
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir−
cuit.
To prevent the fuse from being blown
Do not use an accessory that uses more than 12V/10A.
To prevent the battery discharge
Do not use the power outlet longer than necessary when the engine is not
running.
239
3−5. Other interior features
Power outlet (if 115V AC equipped)
The power outlet can be used for electrical appliances.
Operation
2
Main switch
To use the power outlet, turn on the main switch.
The power supply starts a few seconds after the main switch is
pressed.
Power outlet socket
Maximum available capacity of the power outlet
While the vehicle is being driven
The maximum capacity of the power outlet is always 115V
AC/100W.
When the vehicle is stationary
The maximum capacity of the power outlet varies depending
on the following conditions.
240
3−5. Other interior features
S
The maximum capacity is 115V AC/400W when the following
condition applies:
S Vehicles with an automatic transmission:
The shift lever is in P or N.
S Vehicles with a manual transmission:
The shift lever is in N and the clutch pedal is not depressed.
A maximum capacity of 400W can only be restored by turning
the power outlet main switch off and then on again under con−
dition described above.
S
The power outlet can be used when
The engine is started.
The indicator light changes according the maximum available capacity,
as follows:
Indicates 115V AC/400W
Indicates 115V AC/100W
When the power outlet is in operation
The sound of the cooling fan may be heard from the right side of the luggage
compartment. This is normal and does not indicate a malfunction.
241
3
Interior features
The maximum capacity is 115V AC/100W when the following
condition applies:
S Vehicles with an automatic transmission:
The shift lever is moved to any positions other than P and
N.
S Vehicles with a manual transmission:
The clutch pedal is depressed.
3−5. Other interior features
If the engine is started with the power outlet main switch on
The maximum capacity of the power supply may decrease to below the stan−
dard, or may be cut off completely, even when the vehicle is stationary.
The protection circuit may be activat ed to cut the power supply if any
of the following conditions apply:
The engine is started with the power outlet main switch on.
Use of electrical appliances exceeding the maximum capacity is
attempted.
A sound may be heard when the protection circuit is activated.
This is normal and does not indicate a malfunction.
Electrical appliances, which consume power exceeding 100W, have
been used continuously for a long time period.
The total power usage by all electrical features (headlights, air condition−
ing, etc.) has exceeded the total vehicle maximum for an extended
period of time.
If the protection circuit is activatedand the power supply is cut, con−
duct the following procedure:
Park the vehicle in a safe place, and then securely apply the park−
ing brake.
Check and ensure the following conditions
Vehicles with an automatic transmission:
The shift lever is in P or N.
Vehicles with a manual transmission:
The shift lever is in N and the clutch pedal is not depressed.
Make sure that the power consumption of the electric appliance is
within the maximum capacity of the power outlet and the appliance
is not broken.
Press the power outlet main switch again.
When the cabin temperature is high, open the windows to cool the tempera−
ture down. Once it reaches the normal temperature, turn the power outlet
main switch on again.
If the power supply is not resumed even after performing the above proce−
dure, have the vehicle inspected by a Toyota dealer.
242
3−5. Other interior features
CAUTION
Using a power outlet
Observe the following precautions to reduce the risk of injury.
Use of the power outlet when it is wet with drinking water or snow may
result in electrical shocks and is extremely dangerous. The power outlet
must be thoroughly dried before use.
Do not allow children to use or play with the power outlet.
Be careful not to get any part of your body caught in the power outlet lid.
When using electrical appliances, strictly follow any cautions and notices
written on their labels and in the manufacturers’ instruction manuals.
To prevent injuries and accidents, securely fix all electric appliances
before use and do not use any appl iances that may do any of the fol−
lowing:
Distract the driver while driving, or hamper safe driving.
Result in a fire or burn injuries due to the appliance rolling, falling or over−
heating while driving.
Emit steam, while the windows of the cabin are closed.
To prevent unexpected accidents, such as electric shocks, do not per−
form any of the following.
Using the power outlet for electric heaters while sleeping.
Contaminating the power outlet with liquid substances or mud.
Handling electrical appliance plugs at the power outlet with wet hands or
feet.
Inserting foreign objects into the power outlet.
Using malfunctioning electric appliances.
Inserting inappropriate or badly fitting plugs into the power outlet.
243
Interior features
Do not modify, disassemble or repair the power outlet or its inverter, in any
3
way. Doing so may result in unexpected malfunctions or accidents, which
could cause serious damage or injuries. Contact a Toyota dealer for any
necessary repairs.
3−5. Other interior features
NOTICE
To avoid damaging the power outlet and the plug
Close the power outlet lid when not in use.
Foreign objects or liquids that enter the power outlet may cause a short
circuit.
Do not use plug adaptors to connect too many plugs to the power outlet.
After inserting a plug, gently close the power outlet lid.
To prevent the fuse from being blown
Do not use a 115V AC appliance that requires more than maximum capacity.
If a 115V AC appliance that consumes more than maximum capacity is
used, the protection circuit will cut the power supply.
Appliances that may not operate properly (115V AC)
The following 115V AC appliances may not operate even if their power con−
sumption is under maximum capacity.
Appliances with high initial peak wattage
Measuring devices that process precise data.
Other appliances that require an extremely stable power supply
To prevent the battery from being discharged
Turn off all the vehicle’s electronic equipment and accessories, such as the
headlights and air conditioning, when elec trical appliances that consume in
excess of 100W are used continuously for long periods of time.
To prevent any damage caused by heat
Do not use any electrical appliances that give off intense heat such as toast−
ers, in any locations including the internal or external trim, seats and deck.
Do not use any electrical appliances, which are easily affected by vibration
or heat, inside the vehicle.
Vibration while driving, or the heat of the sun while parking, may result in
damage to those electrical appliances.
244
3−5. Other interior features
NOTICE
If any electrical appliances are to be used while driving
Securely fasten both the appliances and their cables to prevent them from
falling or getting caught any of the power train components.
If the power outlet is loose when an electrical appliance plug is con−
nected
Replace the outlet.
Contact a Toyota dealer for any necessary replacements.
If the power outlet gets dirty
Turn the main switch off and use a soft, clean cloth to wipe it gently.
Do not use any cleansing materials, such as organic solvents, wax, or com−
pound cleaners, as these may damage the power outlet or cause it to mal−
function.
3
Interior features
245
3−5. Other interior features
Armrest
Adjusting to the desired angle:
Lower the armrest from
the highest position to
the lowest position.
Raise the armrest to
the desired angle.
Unlock the armrest:
Lift the armrest to raise it
to the highest position.
NOTICE
To prevent damage to the armrest
Do not place too much strain on the armrest.
246
3−5. Other interior features
Floor mat
Securely place a mat that matches the size of the space on the car−
pet.
Secure the front floor mat
using the hooks provided.
3
CAUTION
Make sure the floor mat is properly placed on the vehicle carpet and the cor−
rect side face upward. If the floor mat slips and interferes with the movement
of the pedals during driving, it may cause an accident.
247
Interior features
When inserting the floor mat
3−5. Other interior features
Luggage storage box (vehicles without sub woofer)
Push the lid down and pull it
towards you.
CAUTION
Caution while driving
Keep the luggage storage box closed. Injuries may result in the event of an
accident or sudden braking.
248
3−5. Other interior features
Luggage compartment features
Tie−down hooks
Tie−down hooks are provided
for securing loose items.
3
Interior features
249
3−5. Other interior features
Cargo net hooks
To hang the cargo net, use the
cargo net hooks and tie−down
hooks.
The cargo net itself is not
included as an original equip−
ment.
250
3−5. Other interior features
Shopping bag hooks
To hang the shopping bag,
use the cargo net hooks.
3
Interior features
CAUTION
When the tie−down hooks and cargo net hooks are not in use
To avoid injury, always return the tie−down hooks and cargo net hooks to
their positions when they are not in use.
NOTICE
To prevent damage to the cargo net hooks and shopping bag hooks
Do not hang any object heavier than 8.8 lb. (4 kg) in them.
Avoid hanging things other than a cargo net on it when using the hooks as
cargo net hooks.
251
3−5. Other interior features
Compass (if equipped)
The compass indicates the direction that the vehicle is heading.
Operation
The compass points north for
about 3 seconds after the
engine switch is turned to the
ON position, and then indi−
cates the actual direction the
vehicle facing.
When the engine switch is
turned to the ACC or LOCK
position, it indicates the actual
direction for about 5 seconds
and then points in a random
direction.
Displays and directions
Display
NNorth
EEast
SSouth
WWest
252
Direction
3−5. Other interior features
Calibrating the compass
3
Samoa: 5
Guam: 8
Saipan: 8
If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.
Deviation calibration
Stop the vehicle where it is safe to drive in a circle.
Press the SET button
until a number (1 to 15)
appears on the outside
temperature display.
Press the E/M button,
and referring to the map
above, select the num−
ber of the zone where
you are.
253
Interior features
The direction display deviates fr om the true direction determined by
the earth’s magnetic field. The amoun t of deviation varies according
to the geographic position of the vehicle.
3−5. Other interior features
After calibration, leave the syst em for 6 seconds or press the
SET button for about 2 seconds.
If the display returns to the outside temperature display, the calibra−
tion is complete.
Circling calibration
Stop the vehicle where it is safe to drive in a circle.
Press the SET button
until the zone number
appears on the outside
temperature display.
Push the SET button.
“– –” will start moving.
Drive the vehicle in a cir−
cle at 5 mph (8 km/h).
If there is not enough space
to drive in a circle, drive
around the block until the
direction is displayed.
When the compass display
returns to the outside tem−
perature display, calibration
is complete.
When circling calibration fails, Er is displayed for 2 seconds and then COM−
PASS flashes. It also flashes when circling calibration is not completed.
If you want to cancel the calibration before it is complete, press the SET but−
ton for about 2 seconds.
254
3−5. Other interior features
Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
The engine switch is turned off immediately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the earth’s magnetic field is subject to
interference by artificial magnetic fields (underground car park/parking
lot, under a steel tower, between buildings, roof car park/parking lot, near
an intersection, near a large vehicle, etc.).
The vehicle has become magnetized.
(There is a magnet or metal object on or near the accessory meter.)
3
CAUTION
While driving the vehicle
Do not adjust the display. Be sure to adjust the display only when the vehicle
is stopped.
When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the
neighborhood. Do not violate any local traffic rules while performing circling
calibration.
255
Interior features
The battery has been disconnected.
3−5. Other interior features
NOTICE
To avoid the compass malfunctions
Do not place magnets or any metal objects on or near the accessory meter.
Doing this may cause a malfunction of the compass sensor.
To ensure normal operation of the compass
Do not perform circling calibration of the compass in a place where the
earth’s magnetic field is subject to interference by artificial magnetic fields.
During calibration, do not operate electric systems (power windows, etc.)
as they may interfere with the calibration.
256
4−1. Maintenance and care
Cleaning and protecting the vehicle exterior
Perform the following to protect the vehicle and maintain it in prime
condition.
Working from top to bottom, liber
ally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard−to−remove marks, use car wash soap and rinse thor−
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.
Automatic car washes
Before washing the vehicle, do the following.
S Fold the mirrors back.
S Remove the antenna.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
High pressure automatic car washes
Do not allow the nozzles of the car wash to come within close proximity of
the windows. Before entering an automatic car wash, check that the fuel filler
door on your vehicle is closed properly.
Touch−up paint (if equipped)
Touch−up paint may be used to cover small chips or scratches.
Apply the paint soon after the damage occurs or corrosion may set in. To
apply the touch−up paint so it is hardly noticeable the trick is to apply it only
to the bare spots. Apply only the smallest amount possible and do not paint
the surface around the scratch or chip.
258
4−1. Maintenance and care
Aluminum wheels (if equipped)
Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the point.
Bumpers and side moldings
Do not scrub with abrasive cleaners.
To prevent deterioration and body corrosion
Wash the vehicle immediately in the following cases:
After driving near the sea coast
After driving on salted roads
If you see coal tar or tree sap on the paint surface
If you see dead insects or insect droppings on the paint
After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
S If the vehicle becomes heavily soiled in dust or mud
S If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
S
S
S
S
S
Caution about the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.
NOTICE
To protect your vehicle’s painted surfaces
Do not use organic cleaners such as benzene or gasoline.
Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
Do not apply wax on the surfaces of the lights.
Wax may cause damage to the lenses.
259
Maintenance and care
CAUTION
4
4−1. Maintenance and care
Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty sur−
faces with a cloth dampened with lukewarm water.
Cleaning the leather areas
Remove dirt and dust using a vacuum cleaner.
Wipe any excess dirt and dust with a soft cloth dampened with
diluted detergent.
Use a diluted water solution of approximately 5% neutral wool deter−
gent.
Wring out any excess water from the cloth and thoroughly
wipe off all remaining traces of detergent.
Wipe the surface with a dry, soft cloth to remove any remain−
ing moisture. Allow the leather to dry in a shaded and venti−
lated area.
Cleaning the inside of the rear window
Do not use glass cleaner to clean the rear window, as this may cause dam−
age to the rear window defogger heater wires. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in
strokes running parallel to the heater wires.
Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year
to maintain the quality of the vehicle’s interior.
Shampooing the carpets
There are several commercial foaming−type cleaners available. Use a
sponge or brush to apply the foam. Rub in overlapping circles. Do not apply
water. The excellent results are obtained when keeping the carpet as dry as
possible.
260
4−1. Maintenance and care
Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
CAUTION
Water in the vehicle
Be careful not to splash or spill liquid on the floor.
Do not get any of the SRS components or wiring in the vehicle interior wet.
( P. 7 3 )
Electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or severe injury.
NOTICE
Cleaning detergents
Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces.
Remove any dust or dirt on leather surfaces immediately.
Do not expose the vehicle to direct sunlight for extended periods of time.
Park the vehicle in the shade, especially during summer.
Do not place items made of vinyl, plastic, or that contain wax on the uphol−
stery, as they may stick to the leather surface if the vehicle interior heats
up significantly.
Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes
into contact with electrical components under the floor of the vehicle, and
may also cause the body to rust.
261
4
Maintenance and care
Do not use organic substances such as benzene or gasoline, acidic or alka−
line solutions, dye, bleach or other detergent. Doing so may discolor the
vehicle interior or cause streaks or damage to painted surfaces.
4−1. Maintenance and care
NOTICE
Cleaning the inside of the rear window
Be careful not to scratch or damage the heater wires.
262
4−2. Maintenance
Maintenance requirements
To ensure safe and economical driv ing, day−to−day care and regular
maintenance is essential. It is the owner ’s responsibility to perform
regular checks. Toyota recommends the following maintenance.
General maintenance
Should be performed on a daily basis. This can be done by your−
self or by a Toyota dealer.
Scheduled maintenance
Should be performed at specified intervals according to the
maintenance schedule.
For details about maintenance items and schedules, refer to the
“Scheduled Maintenance Guide” or “Owner ’s Manual Supplement”.
Do−it−yourself maintenance
You can perform some maintenance procedures yourself.
Please be aware that do−it−yourself maintenance may affect war−
ranty coverage.
For details about warranty coverage, see the separate “Owner ’s
Warranty Information Booklet”, “Owner ’s Manual Supplement”.
Repair and replacement
It is recommended that genuine Toyota parts be used for repair to ensure
performance of each system. If non−Toyota parts are used in replacement or
if a repair shop other than Toyota deal er performs repairs, confirm the war−
ranty coverage.
263
Maintenance and care
The use of Toyota Repair Manuals is recommended.
4
4−2. Maintenance
Allow inspection and repairs to be performed by a Toyota dealer
Toyota technicians are well−trained specialists and are kept up to date
with the latest service information. They are well informed about the
operations of all systems on your vehicle.
Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly
take care of it.
CAUTION
Warning in handling of battery
Engine exhaust, some of its constituents, and a wide variety of automobile
components contain or emit chemicals known to the State of California to
cause cancer and birth defects and other reproductive harm. Work in a
well ventilated area.
Oils, fuels and fluids contained in vehicles as well as waste produced by
component wear contain or emit chemicals known to the State of Califor−
nia to cause cancer and birth defects or other reproductive harm. Avoid
exposure and wash any affected area immediately.
Battery posts, terminals and related accessories contain lead and lead
compounds which are known to cause brain damage. Wash your hands
after handling. ( P. 283)
264
4−2. Maintenance
General maintenance
Listed below are the general maintenance items that should be per−
formed at the intervals specified in the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supp lement”. It is recommended that
any problem you notice should be brought to the attention of your
Toyota dealer or qualified service shop for advice.
Engine compartment
Items
Check points
Battery
Maintenance−free.
( P. 283)
Brake fluid
At the correct level?
( P. 280)
Engine coolant
At the correct level?
( P. 279)
Engine oil
At the correct level?
( P. 275)
Exhaust system
No fumes or strange sounds?
At the correct level?
Radiator/condenser/hoses
Not blocked with foreign matter?
( P. 280)
Washer fluid
At the correct level?
( P. 282)
Maintenance and care
Power steering fluid
4
( P. 286)
265
4−2. Maintenance
Vehicle interior
Items
Accelerator pedal
S Moves smoothly (without uneven
pedal effort or catching)?
Automatic transmission “Park”
mechanism
S Can the vehicle be hold securely
on an incline with the shift lever in
P?
Brake pedal
S Moves smoothly?
S Does it have appropriate clear−
ance and correct amount of free
play?
Brakes
S Not pull to one side when
applied?
S Loss of brake effectiveness?
S Spongy feeling brake pedal?
S Pedal almost touches floor?
Clutch pedal
S Moves smoothly?
S Does it have correct amount of
free play?
Head restraints
S Move smoothly and lock
securely?
Indicators/buzzers
266
Check points
S Function properly?
Lights
S Do all the lights come on?
S Headlights aimed correctly?
( P. 314)
Parking brake
S Moves smoothly?
S Can hold the vehicle securely on
an incline?
Seat belts
S Does the seat belt system oper−
ate smoothly?
S Are the belts undamaged?
Seats
S Do the seat controls operate
properly?
4−2. Maintenance
Items
Steering wheel
Check points
S Moves smoothly?
S Has correct free play?
S No strange noises?
Vehicle exterior
Items
Check points
Door
S Operate smoothly?
Engine hood
S The lock system works properly?
S Is there any leakage after park−
ing?
Tire
S Inflation pressure is correct?
S Tire surfaces not worn or dam−
aged?
S Tires rotated according to the
maintenance schedule?
S Wheel nuts are not loose?
4
CAUTION
If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per−
forming maintenance checks.
267
Maintenance and care
Fluid leaks
4−2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emissi on inspection programs which
include OBD (On Board Diagnostics) checks. The OBD system moni−
tors the operation of the emission control system.
If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere
in the emission control system. Your vehicle may not pass the I/
M test and may need to be repaired. Contact your Toyota dealer
to service the vehicle.
Your vehicle may not pass the I/M test:
When the battery is disconnected or discharged
Readiness codes that are se t during ordinary driving are
erased.
Also, depending on your driving habits, the readiness codes
may not be completely set.
When the fuel tank cap is loose
The malfunction indicator lamp comes on as a temporary mal−
function and your vehicle may not pass the I/M test.
When the malfunction indicator lamp goes off after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
If your vehicle does not pass the I/M test
Contact your Toyota dealer to prepare the vehicle for re−testing.
268
4−3. Do−it−yourself maintenance
Do−it−yourself service precautions
If you perform maintenance yourself, be sure to follow the correct
procedures as given in these sections.
Items
Battery condition
Brake fluid level
Engine oil level
Fuses
( P. 283)
( P. 280)
( P. 279)
SWarm water
S Baking soda
S Grease
S Conventional wrench
(for terminal clamp bolts)
S FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
S Rag or paper towel
S Funnel (used only for adding
brake fluid)
S “Toyota Super Long Life Coolant”
or similar high quality ethylene
glycol based non−silicate, non−
amine, non−nitrite and non−borate
coolant with long−life hybrid
organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant”
is pre−mixed with 50% coolant
and 50% deionized water.
Canada:
“Toyota Super Long Life Coolant”
is pre−mixed with 55% coolant
and 45% deionized water.
S Funnel (used only for adding
engine coolant)
P. 275)
S Toyota Genuine Motor Oil or
equivalent
S Rag or paper towel
S Funnel (used only for adding oil)
( P. 303)
S Fuse with same amperage rating
as original
269
4
Maintenance and care
Engine coolant level
Parts and tools
4−3. Do−it−yourself maintenance
Items
Light bulbs
Parts and tools
( P. 314)
Power steering fluid level
( P. 282)
S Bulb with same number and watt−
age rating as original
S Phillips−head screwdriver
S Automatic transmission fluid
DEXRON® II or III
S Rag or paper towel
S Funnel (used only for adding
power steering fluid)
Radiator and condenser
( P. 280)
270
Tire inflation pressure ( P. 292)
S Tire pressure gauge
S Compressed air source
Washer fluid
S Water
S Washer fluid containing antifreeze
(for winter use)
S Funnel (used only for adding
washer fluid)
( P. 286)
4−3. Do−it−yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury observe the following precautions.
When working on the engine compartment
Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the bat−
tery. Fuel and battery fumes are flammable.
Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
If you still experience discomfort, see a doctor.
When working near the cooling fan or radiator grille
Be sure the engine switch is off.
With the engine switch on, the cooling fan may automatically start to run if
the air conditioning is on and/or the coolant temperature is high.
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in the eyes.
271
4
Maintenance and care
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
4−3. Do−it−yourself maintenance
NOTICE
If you remove the air cleaner
Driving with the air cleaner removed may cause excessive engine wear due
to dirt in the air. Also a backfire could cause a fire in the engine compart−
ment.
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
272
4−3. Do−it−yourself maintenance
Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
4
Maintenance and care
Pull up the hood catch lever
and lift the hood.
CAUTION
Pre−driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
273
4−3. Do−it−yourself maintenance
Engine compartment
1
2
3
4
5
6
7
10
Washer fluid tank ( P. 286)
Power steering fluid reservoir
( P. 282)
Radiator cap
274
8
9
Engine oil filler cap
( P. 275)
Brake fluid reservoir
( P. 280)
Engine oil level dipstick
( P. 275)
Fuse box
( P. 303)
Battery
( P. 283)
Engine coolant reservoir
( P. 279)
Condenser
( P. 280)
Radiator
( P. 280)
4−3. Do−it−yourself maintenance
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Park the vehicle on level gro und. After turning off the engine,
wait a few minutes for the oil to drain back into the bottom of
the engine.
Hold a rag under the end and
pull the dipstick out.
4
Wipe the dipstick clean.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
Low
Full
275
Maintenance and care
Reinsert the dipstick fully.
4−3. Do−it−yourself maintenance
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Oil grade
Items
ILSAC multigrade engine oil
Clean funnel
Remove the oil filler cap, turning it counterclockwise.
Add engine oil slowly.
Checking the dipstick.
Reinstall the filler cap, turning it clockwise.
The approximate quantity of oil needed to raise the level between low and
full on the dipstick is indicated as follows:
1.6 qt. (1.5 L, 1.3 lmp. qt.)
Recommended viscosity
SAE 5W−30 is the best choice for
good fuel economy, and good
starting in cold weather.
Outside temperature
276
*: If SAE 5W−30 oil is not avail−
able, SAE 10W−30 oil may be
used. However, it should be
replaced with SAE 5W−30 at
the next oil change.
4−3. Do−it−yourself maintenance
How to read oil container labels
Some oil containers are labeled with ILSAC certification marks that
help you to select the proper oil.
Engine oil consumption
The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level accu−
rately.
Oil consumption: Max. 1.1 qt./600 miles, 0.9 lmp.qt./600 miles (1.0 L per
1000 km)
If you consume more than 1.1 qt. (1.0 L, 0.9 lmp.qt.) every 600 miles
(1000 km), contact your Toyota dealer.
277
Maintenance and care
A new engine consumes more oil.
4
4−3. Do−it−yourself maintenance
After changing the engine oil (U.S.A. only)
The oil change system should be reset. Perform the following procedures:
Turn the engine switch off with the odometer reading shown.(
124)
P.
Turn the engine switch to the ON position while holding down the
trip meter reset button.
Continue to press and hold the button until the odometer displays
000000.
If the system fails to reset, the light will continue flashing.
CAUTION
Used engine oil
Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation or skin cancer, so care should
be taken to avoid prolonged and repeated contact. To remove used engine
oil from your skin, wash thoroughly with soap and water.
Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call your Toyota dealer, service station or auto parts store for
information concerning recycling or disposal.
Do not leave used engine oil within the reach of children.
NOTICE
To prevent serious engine damage
Check the oil level on regular basis.
When replacing the engine oil
Be careful not to spill engine oil on the vehicle components.
Avoid overfilling, as the engine could be damaged.
Check the oil level on the dipstick every time you refill the vehicle.
Be sure the engine oil filler cap is properly tightened.
278
4−3. Do−it−yourself maintenance
Engine coolant
The coolant level is satisfactory if it is between the F (Full) and L
(Low) lines on the reservoir when the engine is cold.
Reservoir cap
1
Full
Low
2
3
If the level is on or below the L
line, add coolant up to the F line.
If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock
and water pump.
If you cannot find a leak, have your Toyota dealer pressure test the cap and
check for leaks in the cooling system.
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene
glycol based non−silicate, non−amine, non−nitrite and non−borate coolant with
long−life hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and
50% deionized water. (Enabled: −31 F [−35 C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and
45% deionized water. (Enabled: −44 F [−42 C])
For more details about engine coolant, contact your Toyota dealer.
CAUTION
When the engine is hot
Do not remove the radiator cap.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing burns or other injuries.
279
Maintenance and care
Coolant selection
4
4−3. Do−it−yourself maintenance
NOTICE
When adding engine coolant
Coolant is neither plain water nor stra ight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
If you spill coolant
Be sure to wash it off with water to prevent damage to parts or paint.
Radiator and condenser
Check the radiator and condenser and clear any foreign objects.
If either of the above parts are ex tremely dirty or you are not sure of
their condition, have your vehicle checked by your Toyota dealer.
CAUTION
When the engine is hot
Do not touch the radiator or condenser as they may be hot and may cause
burns.
Brake fluid
Checking fluid level
The brake fluid level should be
between the MAX and MIN lines
on the reservoir.
280
4−3. Do−it−yourself maintenance
Adding fluid
Make sure to check the fluid type and prepare the necessary items.
Fluid type
FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Items
Clean funnel
Turn the engine switch off.
Depress the brake pedal 20 times or more.
Remove the reservoir cap.
Add newly opened brake fluid up to the MAX line.
Brake fluid can absorb moisture from the air
Excess moisture in the fluid can cause a dangerous loss of braking effi−
ciency. Use only newly opened brake fluid.
4
.
CAUTION
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with clean
water immediately.
If you still experience discomfort, see a doctor.
NOTICE
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.
If you spill fluid
Be sure to wash it off with water to prevent damage to parts or paint.
281
Maintenance and care
When filling the reservoir
4−3. Do−it−yourself maintenance
Power steering fluid
Fluid level
The fluid level should be within the appropriate range.
Full (when cold)
Add fluid (when cold)
Full (when hot)
Add fluid (when hot)
Hot:
Vehicle has been driven around 50 mph (80 km/h) for 20
minutes, or slightly longer in frigid temperatures. (Fluid
temperature, 140°F − 175°F [60°C − 80°C])
Cold:
Engine has not been run for about 5 hours. (Room tem−
perature, 50°F − 85°F[10°C − 30°C])
Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Fluid type
Items
Automatic transmission fluid DEXRON® II or III
Rag or paper towel and funnel (only for adding fluid)
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall and remove the reservoir cap again.
Check the fluid level.
282
4−3. Do−it−yourself maintenance
CAUTION
Checking the fluid level
Take care, as the reservoir may be hot.
NOTICE
When adding fluid
Avoid overfilling, or the power steering may be damaged.
After replacing the reservoir cap
Check the steering box case, vane pump and hose connections for leaks or
damage.
Battery
4
Battery exterior
Maintenance and care
Make sure that the battery terminals are not corroded and that
there are no loose connections, cracks, or loose clamps.
Te r m i n a l s
Hold−down clamp
283
4−3. Do−it−yourself maintenance
Checking battery condition
Check the battery condition using the indicator color.
Blue: Good condition
White: Charging is necessary.
Have the vehicle inspected by
your Toyota dealer.
Red: Not working properly,
have the battery checked by
your Toyota dealer.
Before recharging
When recharging, the battery produces hydrogen gas which is flammable
and explosive. Therefore, before recharging:
If recharging with the battery installed on the vehicle, be sure to discon−
nect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the battery.
CAUTION
Chemicals in the battery
A battery contains poisonous and corrosive sulfuric acid and may produce
hydrogen gas which is flammable and explosive. To reduce the risk of death
or serious injury, take the following precautions while working on or near bat−
tery:
Do not cause sparks by touching the battery terminals with tools.
Do not smoke or light a match near the battery.
Avoid contact with eyes, skin and clothes.
Never inhale or swallow electrolyte.
Wear protective safety glasses when working near the battery.
Keep children away from the battery.
284
4−3. Do−it−yourself maintenance
CAUTION
Where to safety charge the battery
Always charge the battery in an open area. Do not charge the battery in a
garage or closed room where there is not sufficient ventilation.
How to recharge the battery
Only perform a slow charge (5A or less).
The battery may explode if charged at a quicker rate.
Emergency measures regarding electrolyte
If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi−
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.
If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.
If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Follow with milk of magnesia,
beaten raw egg or vegetable oil. Get emergency medical attention immedi−
ately.
NOTICE
When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.
285
4
Maintenance and care
If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth−
ing and follow the procedure above if necessary.
4−3. Do−it−yourself maintenance
Washer fluid
If any washer does not work, the washer tank may be empty.
Open the lid.
Add washer fluid.
NOTICE
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.
286
4−3. Do−it−yourself maintenance
Tires
Replace or rotate tires in accordance with maintenance sched−
ules and treadwear.
Checking tires
New tread
1
2
3
Treadwear indicator
Worn tread
The location of treadwear
indicators is shown by the
“TWI” or “ ” marks, etc.,
molded on the sidewall of
each tire.
Check spare tire condition
and inflation pressure if not
rotated.
Tire rotation
4
Front
To equalize tire wear and
extend tire life, Toyota recom−
mends that tire rotation is
carried out at the same inter−
val as tire inspection.
The tire pressure warning system
Your Toyota is equipped with a tire pressure warning system that
uses tire pressure warning valves and transmitters to detect low
tire inflation pressure before serious problems arise. ( P. 334)
287
Maintenance and care
Rotate the tires in the order
shown.
4−3. Do−it−yourself maintenance
Installing tire pressure warning valves and transmitters
When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are installed,
sensor ID codes must be registered in the tire pressure warning com−
puter.
Registering ID codes
The tire pressure warning valve and transmitter is equipped with a
unique ID code. When replacing a tire pressure warning valve and
transmitter, it is necessary to regi ster the ID code of tire pressure
warning valve and transmitter. Have the ID code registered by your
Toyota dealer.
If the ID code is not registered , the system will not work properly.
After about 20 minutes, the tire pressure warning light comes on after
blinking for 1 minute to indicate a system malfunction.
When to replace your vehicle’s tires
Tires should be replaced if:
You have tire damage such as cuts, splits, cracks deep enough to
expose the fabric or bulges indicating internal damage
A tire goes flat repeatedly or c annot be properly repaired due to the
size or location of a cut or other damage
If you are not sure, consult with your Toyota dealer.
Tire life
Any tire over 6 years old must be checked by a qualified technician even
if they have seldom or never been used or damage is not obvious.
If the tread wears down below 0.16 in. (4 mm) on snow tires
The effectiveness of snow tires is lost.
288
4−3. Do−it−yourself maintenance
Routine tire inflation pressure checks
The tire pressure warning system doe s not replace routine tire inflation
pressure checks. Make su re to check tire inflation pressure as part of
your routine of daily vehicle checks.
Maximum load of tire
Check that the maximum load of the re placed tire is greater than 1/2 of
the Gross Axle Weight Ratings (GAWR) of either the front axle or the
rear axle, whichever is greater.
As for the maximum load of the tire, see the load limit at maximum cold
tire inflation pressure mentioned on the sidewall of the tire, and as for the
Gross Axle Weight Ratings (GAWR), see the Certification Label.
( P. 292, 363, 375).
Tire types
1 Summer tires
2 All season tires
All season tires are designed to prov ide better traction in snow and to
be adequate for driving in most winter conditions, as well as for use
year round. All season tires, however, do not have adequate traction
performance compared with snow tires in heavy or loose snow. Also,
all season tires fall short in acceleration and handling performance
compared with summer tires in highway driving.
3Snow tires
For driving on snow−covered roads or icy roads, we recommend using
snow tires. If you need snow tires, select tires of the same size, con−
struction and load capacity as the or iginally installed tires. Since your
vehicle has radial tires as original equipment, make sure your snow
tires also have radial construction. Do not install studded tires without
first checking local regulations for possible restriction. Snow tires
should be installed on all wheels. ( P. 169)
289
4
Maintenance and care
Summer tires are high−speed performance tires best suited to highway
driving under dry conditions. Since summer tires do not have the same
traction performance as snow tire s, summer tires are inadequate for
driving on snow−covered or icy roads. For driving on snow−covered
roads or icy roads, the use of
snow tires is recommended. When
installing snow tires, be sure to replace all four tires.
4−3. Do−it−yourself maintenance
Tire pressure warning system certification
For vehicles sold in U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Pa rt 15 of the FCC Rules. These lim−
its are designed to provide reasonable protection against harmful inter−
ference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particul ar installation. If this equipment does cause
harmful interference to radio or tele vision reception, which can be deter−
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expre ssly approved by the party responsi−
ble for compliance could void the user’s authority to operate the equip−
ment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference,
including interference that may cause undesired operation of the device.
290
4−3. Do−it−yourself maintenance
CAUTION
Tire pressure warning system operation
The tire pressure warning system may not provide warning immediately
if a tire bursts or if sudden air leakage occurs.
When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so
may cause damage to parts of the drive train, as well as dangerous han−
dling characteristics, which may lead to fatal or injury accidents.
Do not mix tires of different makes, models, tread patterns or tread−
wear.
Do not use tire sizes other than those recommended by Toyota.
Do not mix radial, bias−belted, or bias−ply tires.
Do not mix summer, all season and winter tires.
Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
4
Repairing or replacing tires, wheels and tire pressure warning
valves and transmitters
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
Do not use puncture sealant sprays to repair flats
Puncture sealant sprays may damage tire pressure warning valves and
transmitters.
Driving on rough roads
Take particular care when driving on roads with loose surfaces or pot−
holes.
These conditions may cause losses in tire inflation pressure, reducing
the cushioning ability of the tires. In addition driving on rough roads may
cause damage to the tires themselves, as well as the vehicle’s wheels
and body.
If tire inflation pressures become low while driving
Do not continue driving, or your tires and/or wheels may be ruined.
291
Maintenance and care
NOTICE
4−3. Do−it−yourself maintenance
Tire inflation pressure
Tire inflation pressure
The recommended cold tire inflation pressure and tire size is dis−
played on the tire and loading information label. ( P. 370)
292
4−3. Do−it−yourself maintenance
Inspection and adjustment procedure
Tire valve
1
2
Tire pressure gauge
STY43AC020
Remove the tire valve cap.
Press the tip of the tire pressure gauge onto the tire valve.
Read the pressure using the graduations of the gauge.
If the tire inflation pressure is not within the recommended
levels, adjust inflate the tire.
If you add too much air, pres s the center of the valve to
lower.
4
Maintenance and care
After completing the tire inflation pressure measurement
and adjustment, apply soapy water to the valve and check
for leakage.
Reinstall the tire valve cap.
Tire inflation pressure check interval
You should check tire pressure every two weeks, or at least once a
month.
Do not forget to check the spare.
Effects of incorrect tire inflation pressure
Driving with incorrect tire inflation pressure may result in the following:
Reduced fuel efficiency
Reduced driving comfort and tire life
Reduced safety
Damage to the drive train
If a tire needs frequent refilling, have it checked by your Toyota dealer.
293
4−3. Do−it−yourself maintenance
Instructions for checking tire inflation pressure
When checking tire inflation pressure, observe the following:
Check only when the tires are cold.
If your vehicle has been parked for at least 3 hours and has not been
driven for more than 1 mile or 1.5 km, you will get an accurate cold
tire inflation pressure reading.
Always use a tire pressure gauge.
The appearance of the tire can be mi sleading. In addition, tire infla−
tion pressures that are even just a few pounds off can degrade ride
and handling.
Do not bleed or reduce tire inflation pressure after driving. It is normal
for the tire inflation pressure to be higher after driving.
Never exceed the vehicle capacity weight.
Passengers and luggage weight should be placed so that the vehicle
is balanced.
CAUTION
Proper inflation is critical to save tire performance
Keep your tires properly inflated.
Otherwise, the following conditions may occur and result in an accident
causing death or serious injury.
Excessive wear
Uneven wear
Poor handling
Possibility of blowouts resulting from overheated tires
Poor sealing of the tire bead
Wheel deformation and/or tire separation
A greater possibility of tire damage from road hazards
294
4−3. Do−it−yourself maintenance
NOTICE
When inspecting and adjusting tire inflation pressure
Be sure to reinstall the tire valve caps.
Without the valve caps, dirt or mo isture could get into the valve and
cause air leakage, which could result in an accident. If the caps have
been lost, replace them as soon as possible.
4
Maintenance and care
295
4−3. Do−it−yourself maintenance
Wheels
If a wheel is bent, cracked or heavily corroded, it should be
replaced.
Otherwise, the tire may separate from the wheel or cause loss of
handling control.
Wheel selection
When replacing wheels, care should be taken to ensure that
they are equivalent to those removed in load capacity, diameter,
rim width, and offset.
Replacement wheels are available at your Toyota dealer.
Toyota does not recommend using:
Wheels of different sizes or types
Used wheels
Bent wheels that have been straightened
Aluminum wheel precautions (if equipped)
Use only Toyota wheel nuts and wrench designed for use with
your aluminum wheels.
When rotating, repairing or changing your tires, check that the
wheel nuts are still tight after driving 1000 miles (1600 km).
Be careful not to damage the aluminum wheels when using
tire chains.
Use only Toyota genuine balance weights or equivalent and a
plastic or rubber hammer when balancing your wheels.
When replacing wheels
The wheels of your Toyota are equipped with sensors that allow the tire
pressure warning system sensors to provide advanced warning in the
event of a loss in tire inflation pressure. Whenever wheels are replaced,
the tire pressure warning valve and transmitter must be switched over
from the old wheels. ( P. 288)
296
4−3. Do−it−yourself maintenance
CAUTION
When replacing wheels
Do not use wheels that are a different size from those recommended in
the Owner ’s Manual, as this may result in loss of handling control.
Never use an inner tube in a leaking wheel which is designed for a
tubeless tire. Doing so may result in an accident, causing death or seri−
ous injury.
NOTICE
Replacing tire pressure warning valves and transmitters
Because tire repair or replacement may affect the tire pressure warn−
ing valves and transmitters, make su re to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Toyota dealer.
4
Ensure that only Genuine Toyota wheels are used on your vehicle.
297
Maintenance and care
Tire pressure warning valves and transmitters may not work properly
with non−genuine wheels.
4−3. Do−it−yourself maintenance
Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to
maintain air conditioning efficiency.
Removal method
Turn the engine switch off.
Open the glove box.
Slide off the damper.
Push in each side of the glove
box to disconnect the claws.
298
4−3. Do−it−yourself maintenance
Remove the filter case.
Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
downward side.
If it is not available, have
the filter cleaned by your
Toyota dealer.
Replacement method
Remove the air conditioning
filter and replace it with a new
one.
The “ UP” marks shown on the
filter should be pointing up.
299
4
Maintenance and care
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm2
or bar).
4−3. Do−it−yourself maintenance
Checking interval
Inspect, clean and replace the air conditioning filter according to the mainte−
nance schedule. In dusty areas or areas with heavy traffic flow, more fre−
quent cleaning or early replacement may be required. (For scheduled
maintenance information, please refer to the “Scheduled Maintenance
Guide” or “Owner ’s Manual Supplement”.)
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
To prevent damage to the system
When using the air conditioning system, make sure that a filter is always
installed.
When cleaning the filter, do not clean the filter with water.
300
4−3. Do−it−yourself maintenance
Key battery
Replace the battery with a new one if it is discharged.
You will need the following items:
Small Phillips−head screwdriver
Lithium battery CR1616
Replacing the battery
Remove the screw and cover.
Push the cover in the arrow
direction.
Remove the module.
4
Maintenance and care
Remove the 2 screws to take
out the lid.
Insert a new battery with the
“+” terminal facing up.
301
4−3. Do−it−yourself maintenance
If the key battery is discharged
The following symptoms may occur.
The wireless remote control will not function properly.
The operational range is reduced.
Use a CR1616 lithium battery
Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
Replace only with the same or equivalent type recommended by your
Toyota dealer.
Dispose of used batteries according to the local laws.
CAUTION
Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other components inside the remote control.
Do not bend either of the battery terminals.
302
4−3. Do−it−yourself maintenance
Checking and replacing fuses
If any of the electrical componen ts do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Turn the engine switch off.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
Engine compartment
Type A
Push the tab in and lift the lid
off.
4
Type B (if equipped)
Maintenance and care
Push the tab in and lift the lid
off.
303
4−3. Do−it−yourself maintenance
Under the instrument panel
Remove the lid.
After a system failure, see “Fuse layout and amperage rat−
ings” ( P. 307) for details about which fuse to check.
304
4−3. Do−it−yourself maintenance
Remove the fuse with the pull−
out tool.
4
Check if the fuse has blown.
Maintenance and care
305
4−3. Do−it−yourself maintenance
Type A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Type B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Type C
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid
306
4−3. Do−it−yourself maintenance
Fuse layout and amperage ratings
Engine compartment
Type A
1
28
29
367
4 5
2526
27
33
2
13
8
9
10
11
12
14
15
16 17 18
30
31
32
19
20 21 22 2324
34
4
Type B (if equipped)
Maintenance and care
307
4−3. Do−it−yourself maintenance
Fuse
Ampere
1
SPARE
10 A
Spare fuse
2
SPARE
15 A
Spare fuse
3
TOWING TAIL
15 A
Trailer lights
4
OFFROAD LP
15 A
Offroad lamp
10 A
Circuit
Stop lights, high mounted stop−
light, anti−lock brake system, trac−
tion control system, active traction
control system, vehicle stability
control system, AUTO LSD system,
multiport fuel injection system/
sequential multiport fuel injection
system, shift lock system
5
STOP
6
AUX LP
15 A
Driving lamp
7
OBD
7.5 A
On−board diagnosis system
8
HEAD (LO RH)
10 A
9
HEAD (LO LH)
10
HEAD (HI RH)
11
HEAD (HI LH)
10 A
10 A
10 A
Right−hand headlight*2
Left−hand headlight (low beam)*1
Left−hand headlight*2
Right−hand headlight (high beam)
Left−hand headlight (high beam)
Multiport fuel injection system/
sequential multiport fuel injection
system
12
EFI NO.2
13
DRL
7.5 A
Daytime running light system
14
DEFOG
30 A
Rear window defogger
15
DEFOG NO.2
7.5 A
Multiport fuel injection system/
sequential multiport fuel injection
system
16
DOME
10 A
Interior light, luggage compartment
light, clock, accessory meter, meter
and gauge
308
10 A
Right−hand headlight (low beam)*1
4−3. Do−it−yourself maintenance
Fuse
17
RADIO NO.1
Ampere
20 A
10 A
Circuit
Audio system
Air conditioning system, multiplex
communication system, SRS air−
bag system, front passenger occu−
pant classification system
18
ECU−B
19
ALT−S
20
HORN
10 A
21
A/F HEATER
15 A
Multiport fuel injection system/
sequential multiport fuel injection
system
22
TRN−HAZ
15 A
Turn signal lights, emergency
flashers
10 A
Multiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle control
system
7.5 A
Charging system
Horn
23
ETCS
24
EFI
25
DR/LCK
26
TOWING
15 A
Towing converter
27
RADIO NO.2
20 A
Audio system
28
AM1
50 A
ACC, ECU−IG, IG1, RR WSH, FR
WIP−WSH, 4WD/DIFF and STA
29
J/B
50 A
TAIL, PWR OUTLET, POWER
ABS MTR
20 A
40 A
EFI NO.2, multiport fuel injection
system/sequential multiport fuel
injection system
Maintenance and care
30
20 A
4
Door lock system, multiplex com−
munication system
Anti−lock brake system, vehicle sta−
bility control system, traction con−
trol system, active traction control
system, AUTO LSD system
309
4−3. Do−it−yourself maintenance
Fuse
31
AM2
Ampere
Circuit
30 A
IGN and GAUGE, multiport fuel
injection system/sequential multi−
port fuel injection system, starting
system
30 A
Anti−lock brake system, vehicle sta−
bility control system, traction con−
trol system, active traction control
system, AUTO LSD system
32
ABS SOL
33
ALT
34
HEATER
60 A
Air conditioning system
35
AC 115V
80 A
Power outlet
120 A
AM1, AC 115V, DEFOG, DEFOG
NO.2, STOP, OBD, J/B, TOWING
TAIL, AUX LP and OFFROAD LP
*1: Vehicles with daytime running light
*2: Vehicles without daytime running light
310
4−3. Do−it−yourself maintenance
Under the instrument panel
1
23
4
5678
91011
12
Fuse
Ampere
IGN
10 A
2
GAUGE
7.5 A
3
FR WIP−WSH
30 A
4
4WD/DIFF
20 A
5
PWR OUTLET
15 A
6
RR WSH
15 A
Multiport fuel injection system/
sequential multiport fuel injection
system, anti−lock brake system,
vehicle stability control system,
traction control system, active trac−
tion control system, AUTO LSD
system, SRS airbag system, front
passenger occupant classification
system
4
Maintenance and care
1
Circuit
Meter and gauge
Windshield wipers and washer
Four−wheel drive system, rear dif−
ferential lock system
Power outlet
Rear window wiper and washer,
multiplex communication system
311
4−3. Do−it−yourself maintenance
Fuse
7
ECU−IG
Ampere
10 A
Circuit
Anti−lock brake system, vehicle sta−
bility control system, traction con−
trol system, active traction control
system, AUTO LSD system, multi−
port fuel injection system/sequen−
tial multiport fuel injection system,
cruise control system, back door
lock system, shift lock system, mul−
tiplex communication system
8
IG1
15 A
Turn signal lights, air conditioning
system, charging system, clutch
start cancel switch, anti−lock brake
system, traction control system,
active traction control system, vehi−
cle stability control system, AUTO
LSD system, back−up lights, intui−
tive parking assist, rear differential
lock system, power outlet, acces−
sory meter, meter and gauge
9
STA
7.5 A
Starting system, clutch start cancel
switch, power outlet
10
TAIL
10 A
Tail lights, license plate lights, park−
ing lights, instrument panel light
control, illuminations
11
ACC
Shift lock system, outside rear view
mirrors, audio system, power out−
7.5 A
let, clock, accessory meter, multi−
plex communication system
12
POWER
30 A
312
Power windows
4−3. Do−it−yourself maintenance
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. ( P. 314)
If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
Do not modify the fuse or the fuse box.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by your Toy−
ota dealer as soon as possible.
313
4
Maintenance and care
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
4−3. Do−it−yourself maintenance
Light bulbs
You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. (
P. 371)
Front bulb locations
Headlights
Front turn signal/parking
and front side marker lights
314
4−3. Do−it−yourself maintenance
Rear bulb locations
Stop/tail and rear
side marker lights
Back−up lights
Rear turn signal lights
License plate lights
Replacing light bulbs
4
Headlights
Maintenance and care
Unplug the connector.
315
4−3. Do−it−yourself maintenance
Remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
316
4−3. Do−it−yourself maintenance
Front turn signal/parking and front side marker lights
Turn the bulb base counterclock−
wise.
4
Maintenance and care
Remove the light bulb.
317
4−3. Do−it−yourself maintenance
Back−up lights, stop/tail and rearside marker lights and rear
turn signal lights
Open the back door and remove
the cover.
Using a flathead screwdriver
which is wrapped with a cloth.
1
2
Turn the bulb bases counter−
clockwise.
Back−up light
Stop/tail and rear side marker
lights
Rear turn signal light
3
Remove the light bulb.
1
Back−up light
2
3
318
Stop/tail and rear side marker
lights
Rear turn signal light
4−3. Do−it−yourself maintenance
License plate lights
Remove the screws and cover.
4
Remove the light bulb.
Maintenance and care
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
your Toyota dealer.
S
S
Outside rear view mirror illumination lights
High mounted stoplight
319
4−3. Do−it−yourself maintenance
Condensation build−up on the inside of the lens
Contact your Toyota dealer for more information in the following situations.
Temporary condensation build−up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
LED high mounted stoplight
The high mounted stoplight consists of a number of LEDs. If any of the LEDs
burn out, take your vehicle to your Toyota dealer to have the light replaced.
CAUTION
Replacing light bulbs
Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
320
5−1. Essential information
If your vehicle needs to be towed
If towing is necessary, we recommen d having your vehicle towed by
your Toyota dealer or a commerci al towing service, using a lift−type
truck or a flat bed truck.
Use a safety chain system for all to wing, and abide by all state/pro−
vincial and local laws.
The wheels and axle on the ground must be in good condition.
If they are damaged, use a towing dolly or flat bed truck.
Before towing
The following may indicate a problem with your transmission. Contact
your Toyota dealer before towing.
The engine is running, but the vehicle will not move.
The vehicle makes an abnormal sound.
Emergency towing
If a tow truck is not available, in an emergency your vehicle may be
temporarily towed using a cable or chain secured to the emergency
towing eyelet. This should only attempted on hard, surfaced roads for
short distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The
vehicle’s wheels, drive train, axles, steering and brakes must be in
good condition.
Towing eyelet
322
5−1. Essential information
Emergency towing procedure
The engine switch must be in the ACC (engine off) or the ON
(engine running) position.
4WD models with an automatic transmission: Shift the front−wheel
drive control lever in H2.
4WD models with a manual transmission: Unlock the center differ−
ential.
Put the shift lever in N.
Release the parking brake.
CAUTION
Caution while towing
Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive
stress on the emergency towing eyelet and the cables or chains.
If the engine is not running, the power assist for the brakes and steering
will not function, making steering and braking more difficult.
5
NOTICE
Never tow this vehicle from the rear with the four wheels on the ground.
This may cause serious damage to the transmission.
Emergency towing eyelet precautions
Before emergency towing, check that the eyelet is not broken or damaged.
Fasten the towing cable or chain securely to the eyelet.
Do not jerk the eyelet. Apply steady and even force.
To avoid damaging the eyelet, do not pull from the side or at a vertical
angle. Always pull straight ahead.
323
When trouble arises
To prevent causing serious damage to the transmission
(vehicles with an automatic transmission)
5−1. Essential information
Towing with a sling−type truck
NOTICE
To prevent body damage
Do not tow with a sling−type truck, either from the front or rear.
Towing with a wheel lift−type truck from the front
Use a towing dolly under the rear
wheels.
NOTICE
To prevent causing serious damage to the transmission
Never tow this vehicle wheels on the ground.
324
5−1. Essential information
Towing with a wheel lift−type truck from the rear
2WD models
Turn the engine switch to the
ACC position.
4WD models
Vehicles with a manual transmis−
sion: Use a towing dolly under
the front wheels.
Vehicles with an automatic trans−
mission: When not using a tow−
ing dolly, turn the engine switch
to the ACC position, shift the
5
shift lever to N and shift the front−
wheel drive control lever in H2.
To prevent causing serious damage to the transmission (4WD models)
Never tow this vehicle wheels on the ground.
To prevent damaging the vehicle
Do not tow the vehicle with the key removed or in the LOCK position.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.
325
When trouble arises
NOTICE
5−1. Essential information
Using a flat bed truck
Front
If your Toyota is transported by a
flat bed truck, it should be tied
down at the locations shown in
the illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45 .
Do not overly tighten the tie
downs or the vehicle may be
damaged.
Apply the parking brake firmly.
326
5−1. Essential information
If you think something is wrong
If you notice any of the followin g symptoms, your vehicle probably
needs adjustment or repair. Contact your Toyota dealer as soon as
possible.
Visible symptoms
Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
Flat−looking tires or uneven tire wear
Engine coolant temperature g auge needle continually points
higher than normal
Voltmeter continually points higher or lower than normal.
Audible symptoms
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the engine
Operational symptoms
5
Engine missing, stumbling or running rough
When trouble arises
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, s
touches the floor
pongy feeling, pedal almost
327
5−1. Essential information
Fuel pump shut off system
To minimize the risk of fuel leakage when the engine stalls or an air−
bag inflates upon collision, the fuel pump shut off system stops sup−
plying fuel to the engine.
Follow the procedure below to restart the engine after the system is
activated.
Turn the engine switch to the ACC or LOCK position.
Restart the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked onto the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
328
5−1. Essential information
Event data recorder
Your vehicle has computers that monitor and control certain aspects
of your vehicle. These computers assi st in driving and maintaining
optimal vehicle performance.
Besides storing data useful for tr oubleshooting, there is an event
data recorder (EDR) that records data in a crash or a near car
crash event.
In a crash or a near car crash event
The SRS airbag sensor assembly contains the EDR. In a crash or a
near car crash event, this device may record some or all of the follow−
ing information:
Engine speed
Whether the brake pedal was applied or not
Vehicle speed
To what extent the accelerator pedal was depressed
Position of the transmission shift lever
5
Whether the driver and front passenger wore seat belts or not
Front passenger’s occupant classification
SRS airbag deployment data
SRS airbag system diagnostic data
Your Toyota’s Electronic Contro l Unit (ECU) may contain another
EDR. There are a variety of driving situations which include activating
the VSC under which the VSC EDR will record certain information.
The VSC EDR may record some or all of the following information:
Behavior of the vehicle
Steering wheel angle
329
When trouble arises
Driver ’s seat position
5−1. Essential information
Vehicle speed
To what extent the accelerator pedal was depressed
To what extent the brake pedal was applied
To what extent the ECU controlled the condition of the 4 wheels
Vehicle stability control system diagnostic data
The information above is intended to be used for the purpose of
improving vehicle safety performance. Unlike general data recorders,
the EDR does not record sound data such as conversation between
passengers.
Disclosure of the data
Toyota will not disclose the data re corded in an EDR to a third party
except when:
An agreement from the vehicle’s ow
ner (or the leasing company for
a leased vehicle) is obtained
Officially requested by the police or other authorities
Used as a defense for Toyota in a law suit
Ordered by a court of law
However, if necessary Toyota will:
Use the data for research on Toyota vehicle safety performance
Disclose the data to a third party for research purposes without dis−
closing details of the vehicle owner, and only when it is deemed
necessary
Disclose summarized data cleared of vehicle identification informa−
tion to a non−Toyota organization for research purposes
330
5−2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
The following warning indicates a possible problem in the brake sys−
tem. Immediately stop the vehicle in a safe place and contact your
Toyota dealer.
Warning light
Warning light/Details
Brake system warning light
S Low brake fluid
S Malfunction in the brake system
This light also comes on when the parking brake is
not released. If the light turns off after the parking
brake is fully released, the system is operating nor−
mally.
5
When trouble arises
331
5−2. Steps to take in an emergency
Stop the vehicle immediately.
The following warnings indicate the possibility of damage to the vehi−
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Toyota dealer.
Warning light
Warning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging sys−
tem.
Low engine oil pressure warning light
Indicates that the engine oil pressure is too low*.
*: The light may come on when the oil level is extremely low. It is not designed
to indicate low oil level, and the oil level must be checked using the engine
oil level dipstick.
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning light
Warning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
S The electronic engine control system;
S The electronic throttle control system;
S The electronic automatic transmission control sys−
tem; or
S Emission control system.
SRS warning light
Indicates a malfunction in:
S The SRS airbag system;
S The front passenger occupant classification system;
or
S The seat belt pretensioner system.
332
5−2. Steps to take in an emergency
Warning light
(U.S.A.)
Warning light/Details
ABS warning light
Indicates a malfunction in:
S The ABS; or
S The brake assist system.
(Canada)
VSC/TRAC warning light
Indicates a malfunction in:
S The vehicle stability control system;
S The traction control system;
S The active traction control system (if equipped); or
S The AUTO LSD system (2WD models).
Automatic transmission fluid temperature warn−
ing light
Indicates that the automatic transmission fluid tem−
(Automatic transmis−
perature is too high.
sion vehicles)
(if equipped)
Unengaged “Park” warning light
Malfunction in the transmission “Park” mechanism.
5
When trouble arises
333
5−2. Steps to take in an emergency
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Warning light
(On the instrument
cluster)
(On the center panel)
Warning light/Details
Correction procedure
Open door warning light
Indicates that a door,
back door or glass hatch
is not fully closed.
Check that all doors
and glass hatch are
closed.
Driver ’s seat belt
reminder light
(warning buzzer)*1
Warns the driver to fas−
ten his/her seat belt.
Fasten the seat belt.
Front passenger ’s seat
belt reminder light
(warning buzzer)*2
Warns the front passen−
ger to fasten his/her seat
belt.
Fasten the seat belt.
Tire pressure warning
light
334
S When the light comes on:
Indicates low tire inflation
pressure.
Adjust the tire
inflation pressure.
(including spare tire)
S When the light stays on
after blinking for 1
minute: Indicates a mal−
function in the tire pres−
sure warning system.
Have the system
checked by your
Toyota dealer.
5−2. Steps to take in an emergency
Warning light
Warning light/Details
Low fuel level warning
light
Low level of fuel.
(U.S.A.)
Refuel the vehicle.
Engine oil replacement
reminder light
Check the engine oil,
S Illuminates for about 3
seconds and then flashes and change if neces−
for about 12 seconds: Indi− sary.
cates that the engine oil is
scheduled to be changed.
S Comes on and remains:
Indicates that the engine
oil should be changed.
*1
Correction procedure
Check and change the
engine oil.
: Driver’s seat belt reminder:
The driver ’s seat belt reminder sounds to alert the driver that his or her seat
belt is not fastened. Once the engine switch is turned to the ON or START
position, the buzzer sounds for 6 seconds. If the vehicle has reached a
speed of at least 12 mph (20 km/h), the buzzer sounds intermittently for 10
seconds. Then, if the seat belt is still unfastened, the buzzer will sound in a
different tone for 20 more seconds.
Front passenger ’s seat belt reminder:
The front passenger ’s seat belt reminder sounds to alert the front passenger
that his or her seat belt is not fastened. The buzzer sounds intermittently for
10 seconds after the vehicle has reached a speed of at least 12 mph (20 km/
h). Then, if the seat belt is still unfastened, the buzzer will sound in a different
tone for 20 more seconds.
335
When trouble arises
*2:
5
5−2. Steps to take in an emergency
Key reminder buzzer
The buzzer indicates that the key has not been removed (with the engine
switch in the ACC or LOCK position and the driver ’s door opened).
If the malfunction indicator lamp comes on while driving
First check the following:
Is your vehicle low on gas?
If it is, refuel the vehicle immediately.
Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after taking several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.
Front passenger detection sensor and passenger seat belt reminder
If luggage or other load is placed on the front passenger seat, depending on
its weight, the reminder light to flash and buzzer to sound.
When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such
as natural air leaks or tire inflation pressure changes caused by temper−
ature. In this case, adjusting the ti re inflation pressu re will turn off the
warning light after a few minutes.
When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and
transmitter. The tire pressure warning light will turn on if the tire inflation
pressure of the spare tire is low. If a tire goes flat, even though the flat
tire is replaced with the spare tire, the warning light does not turn off.
Replace the spare tire with the repair ed tire and adjust the proper tire
inflation pressure. The ti re pressure warn ing light will turn off after a few
minutes.
336
5−2. Steps to take in an emergency
If the tire pressure warning system is inoperative
The tire pressure warning system may become inoperative in the follow−
ing conditions:
(When the condition becomes normal, the system will work properly.)
If tires not equipped with tire pressure warning valves and transmit−
ters are used.
If the ID code on the tire pressure warning valves and transmitters is
not registered in the tire pressure warning computer.
If electronic devices or facilities us ing similar radio wave frequencies
are nearby.
If a radio set at similar frequencies is in use in the vehicle.
If a window tint that affects the radio wave signals is installed.
If there is a lot of snow or ice on the vehicle, in particular around the
wheels or wheel housings.
If non−genuine Toyota wheels are used.
If tire chains are used.
If the spare tire is in a location subject to poor radio wave signal
reception.
If the tire inflation pressure is more than 73 psi (500 kPa, 5.1 kgf/cm 2
or bar) or higher.
5
If the tire pressure warning light comes on after blinking for 1
minute frequently
After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( P. 278)
Customization that can be configured at Toyota dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features P. 386)
337
When trouble arises
If the tire pressure warning light comes on after blinking for 1 minute fre−
quently when the engine switch is turned to the ON position, have it
checked by your Toyota dealer.
5−2. Steps to take in an emergency
CAUTION
Maintenance of the tire
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ−
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS−ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under−inflated. Accordingly,
when the low tire pressu re telltale (tire pressure warning light) illumi−
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under−
inflated tire causes the tire to overheat and can lead to tire failure.
Under−inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub−
stitute for proper tire main tenance, and it is the driver ’s responsibility to
maintain correct tire pressure, even if under−inflation has not reached the
level to trigger illu mination of the TPMS low ti re pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indi cate when the system is not operat−
ing properly. The TPMS (tire pressure warning system) malfunction indi−
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi−
nated. This sequence will continue upon subsequent vehicle start−ups as
long as the malfunction exists. When the malfunction indi cator is illumi−
nated, the system may not be able to detect or signal low tire pressure
as intended.
338
5−2. Steps to take in an emergency
CAUTION
TPMS (tire pressure warning system ) malfunction may occur for a vari−
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres−
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter−
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause loss of vehicle control and result in death or serious injury.
Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
If the tire pressure warning light comes on even after tire inflation pres−
sure adjustment, it is probable that you have a flat tire. Check the tires.
If the tire is flat, change to the spare tire and have the flat tire repaired
by the nearest Toyota dealer.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
5
If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.
Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres−
sure warning system may not operate properly.
339
When trouble arises
NOTICE
5−2. Steps to take in an emergency
If you have a flat tire
Remove the flat tire and replace it with the spare provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P (automatic transmission) or R (manual
transmission).
Stop the engine.
Turn on the emergency flashers.
Location of the spare tire, jack and tools
Jack
Tool bag
Spare tire
340
5−2. Steps to take in an emergency
Taking out the jack and tool bag
Remove the cover and loosen
the strap.
Tighten
Loosen
Taking out the spare tire
5
To protect the wheel and wheel
ornament, place a rag between
the wrench and the wheel orna−
ment, as shown in the illustra−
tion.
341
When trouble arises
Vehicles with an aluminum
wheel, remove the wheel orna−
ment.
5−2. Steps to take in an emergency
Turn the hold−down nuts counter−
clockwise with the wheel nut
wrench and remove them.
Replacing a flat tire
Chock the tires.
Flat tire
Left−
hand
side
Behind the
rear right−
hand side
tire
Right−
hand
side
Behind the
rear left−
hand side
tire
Left−
hand
side
In front of
the front
right−hand
side tire
Right−
hand
side
In front of
the front
left−hand
side tire
Front
Rear
342
Wheel
chock
positions
5−2. Steps to take in an emergency
Aluminum wheel
Remove the wheel ornament
using the wheel nut wrench as
shown.
To protect the wheel and wheel
ornament, place a rag between
the wrench and the wheel orna−
ment, as shown in the illustra−
tion.
Steel wheel
Remove the wheel ornament
using the wheel nut wrench as
shown.
To protect the wheel and wheel
ornament, place a rag between
the wrench and the wheel orna−
ment, as shown in the illustra−
tion.
Slightly loosen the wheel nuts
(one turn).
5
When trouble arises
343
5−2. Steps to take in an emergency
Position the jack at the correct
jack point as shown.
Front
Front
Rear
Make sure the jack is positioned
on a level and solid place.
Assemble the jack handle exten−
sion as shown. Be sure to tighten
each bolt securely.
Raise the vehicle until the tire is
slightly raised off the ground.
When positioning the jack under
the rear axle housing, make
sure the groove on the top of
the jack fits with the rear axle
housing.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
344
5−2. Steps to take in an emergency
Installing the tire
Remove any dirt or foreign mat−
ter from the wheel contact sur−
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the tire and loosely ti ghten each wheel nut by hand by
approximately the same amount.
Replacing a steel wheel
Tapered portion
Tighten the nuts until the tapered
portion comes into loose contact
with the disc wheel sheet.
Disc wheel
sheet
5
Washer
Tighten the nuts until the washer
of the nut comes into loose con−
tact with the disc wheel.
Disc
wheel
345
When trouble arises
Replacing an aluminum wheel
5−2. Steps to take in an emergency
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
85 ft⋅lbf (113 N⋅m, 11.5 kgf⋅m)
Reinstall the wheel ornament.
Aluminum wheel
346
5−2. Steps to take in an emergency
Steel wheel
Stowing the flat tire, jack and all tools
Install the flat tire in the reverse order of removal.
Tightening torque:
65 ft⋅lbf (88 N⋅m, 8.9 kgf⋅m)
Stow the tools and jack securely.
CAUTION
Using the jack
Improper use of the jack may lead to death or injuries due to the vehicle
suddenly falling off the jack.
5
Do not use the jack for any purpose other than replacing tires or install−
Only use the jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, an d do not use other jacks for replac−
ing tires on this vehicle.
Always check that the jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the
jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a hei
replace the tire.
ght greater than that required to
347
When trouble arises
ing and removing tire chains.
5−2. Steps to take in an emergency
CAUTION
Using the jack
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle will be injured.
Using the jack handle
Tighten all the square head bolts securely to prevent the extension parts
from coming apart unexpectedly.
Replacing a flat tire
Observe the following precautions to reduce the risk of injury.
Do not try to remove the wheel ornament by hand. Take due care in
handling the ornament to avoid unexpected personal injury.
Never use oil or grease on the wheel bolts or wheel nuts.
The oil or grease can cause the wheel nuts to loosen, causing a seri−
ous accident. Remove any oil or grease on the wheel bolts or wheel
nuts.
Have the wheel nuts tightened with a torque wrench to 85 ft⋅lbf (113
N⋅m, 11.5 kgf⋅m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and
the wheels may fall off, which could lead to an accident causing death
or serious injury.
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
348
5−2. Steps to take in an emergency
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled cor−
rectly.
Replace the grommets for the tire pressure warning valves and trans−
mitters as well.
To avoid damaging the tire pressure warning valves and transmit−
ters
Do not use liquid sealants on flat tires.
To prevent damage to the wheel ornament (vehicles with a steel
wheel)
Do not attach wheel ornament to the wheel on the back door.
5
When trouble arises
349
5−2. Steps to take in an emergency
If the engine will not start
If the engine still does not start after following the correct starting
procedure ( P. 114) or releasing the steering lock ( P. 115), confirm
the following points.
The engine will not start even when the starter motor oper−
ates normally.
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
The engine may be flooded.
Try to restart the engine once more following correct starting
procedures.
There may be a malfunction inthe engine immobilizer system.
( P. 6 8 )
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
The battery may be discharged. (
P. 353)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (
P. 353)
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.
350
5−2. Steps to take in an emergency
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there
may be a problem with the shif t lock system (a system to prevent
accidental operation of the shift lever). Have the vehicle inspected by
your Toyota dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Turn the engine switch to the ACC or ON position.
Depress the brake pedal.
Pry the cover up with a flat−
head screwdriver or equiva−
lent.
5
When trouble arises
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
351
5−2. Steps to take in an emergency
If you lose your keys
New genuine Toyota keys can be made by your Toyota dealer using
one of the master keys and the key number stamped on your key
number plate. ( P. 28)
If you lose all your master keys.
You cannot make new keys; the whole engine immobilizer system must be
replaced.
352
5−2. Steps to take in an emergency
If the vehicle battery is discharged
The following procedures may be u sed to start the engine if the
vehicle’s battery is discharged.
You can call your Toyota dealer, Roadside Assistance or Toyota
Customer Service Assistance.
If you have a set of jumper (or boo ster) cables and a second vehi−
cle with a 12−volt battery, you can jump start your Toyota following
the steps below.
5
Connecting the jumper cables
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (−) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration.
353
When trouble arises
If required, remove all vent
plugs from the booster and dis−
charged batteries. Lay a cloth over the open vents on the batter−
ies. (This helps reduce the explosion hazard, personal injuries
and burns.)
5−2. Steps to take in an emergency
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Maintain the engine speed of the second vehicle and start
the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con−
nected.
If removed, replace all the battery vent plugs.
Once the engine starts, have the vehicle checked at your Toyota
dealer as soon as possible.
Avoiding a discharged battery
Turn off the headlights and the audio system while the engine is turned
off.
Turn off any unnecessary electrical components when the vehicle is run−
ning at a low speed for an extended period, such as in heavy traffic, etc.
CAUTION
Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flam−
mable gas that may be emitted from the battery.
Make sure the jumper cable is connected to the correct terminal and that it
is not unintentionally in contact with any part other than the intended termi−
nal.
Do not allow the jumper cables to come into contact with the “+” and “−” ter−
minals.
Do not smoke, use matches, cigarette lighters or allow open flame near
the battery.
354
5−2. Steps to take in an emergency
CAUTION
Battery precautions
The battery contains poisonous and corrosive acidic electrolyte, while
related parts contain lead and lead compounds. Observe the following pre−
cautions when handling the battery.
When working with the battery, always wear safety glasses and take care
not to allow any battery fluids (acid) to come into contact with skin, clothing
or the vehicle body.
Do not lean over the battery.
In the event that battery fluid comes into contact with the skin or eyes,
immediately wash the affected area with water and seek medical attention.
Place a wet sponge or cloth over the affected area until medical attention
can be received.
Always wash your hands after handling the battery support, terminals, and
other battery−related parts.
Do not allow children near the battery.
NOTICE
5
To prevent damaging the vehicle
When handling jumper cables
Be careful that the jumper cables do not become tangled in the cooling fan
or any of the belts when connecting or disconnecting them.
355
When trouble arises
Do not pull− or push−start the vehicle, because the three−way catalytic con−
verter may overheat and become a fire hazard.
5−2. Steps to take in an emergency
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air condi−
tioning system.
Check to see if steam is coming out from under the hood.
If you see steam:
Stop the engine and carefully lift the hood.
If you do not see steam:
Leave the engine running and carefully lift the hood.
Check to see if the cooling fan is operating.
If the fan is operating:
Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the
engine.
If the fan is not operating:
Stop the engine immediately and call your local Toyota
dealer.
356
5−2. Steps to take in an emergency
The engine has cooled down sufficiently.
The engine coolant temperature gauge indicates C.
Check the engine coolant level.
Look for obvious coolant leaks
under the vehicle.
from the radiator, hoses and
Note that water draining from the air conditioning is normal if it has
been used.
5
Add engine coolant if required.
Have the vehicle checked at your nearest Toyota dealer as soon as
possible.
357
When trouble arises
Water can be used in an emer−
gency if engine coolant is
unavailable. ( P. 366)
5−2. Steps to take in an emergency
Overheating
If you observe the following, your vehicle may be overheating.
The engine coolant temperature gauge enters the red zone or a loss of
power is experienced.
Steam is coming from under the hood.
CAUTION
To prevent an accident or injury when inspecting under the hood of
your vehicle
Keep hands and clothing away from the fan and other belts while the
engine is running.
Do not loosen the radiator cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
NOTICE
When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too
quickly can cause damage to the engine.
358
5−2. Steps to take in an emergency
If the vehicle becomes stuck
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and put the shift
lever in P (vehicles with an automatic transmission) or N
(vehicles with a manual transmission).
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
2WD models: Push the AUTO LSD switch. ( P. 150)
4WD models with an automatic transmission: Shift the
front−wheel drive control lever to L4. Then push the RR
DIFF LOCK switch (if equipped). ( P. 152)
4WD models with a manual transmission: Shift the four−
wheel drive control lever to LL. Then push the RR DIFF
LOCK switch (if equipped). ( P. 152)
Carefully apply the accelerator to free the vehicle.
5
Emergency hook
Do not use the rear hook. It is not
designed for towing.
359
When trouble arises
When your vehicle becomes stuck and
cannot move, the emergency hook is
used for another vehicle to pull your vehi−
cle out in an emergency.
Your vehicle is not designed to tow
another vehicle.
5−2. Steps to take in an emergency
CAUTION
When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur−
rounding area is clear, to avoid striki ng other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
Vehicles with automatic transmission: Be careful not to shift the shift lever
with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the wheels and do not rev the engine.
If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.
360
6−1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length
183.9 in. (4670 mm)
Overall width
75.0 in. (1905 mm)
Overall
height*
2WD models
71.3 in. (1810 mm)
4WD models
72.0 in. (1830 mm)
Wheelbase
105.9 in. (2690 mm)
Front tread
63.2 in. (1605 mm)
Rear tread
63.2 in. (1605 mm)
Vehicle capacity weight
(Occupants + luggage)
1190 lb. (540 kg)
Towing capacity
(Trailer weight + cargo)
5000 lb. (2265 kg)
*:
362
Unladen vehicle
6−1. Specifications
Vehicle identification
Vehicle identification number
The vehicle identificati on number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the
Certification Label.
Engine number
6
363
Vehicle specifications
The engine number is stamped
on the engine block as shown.
6−1. Specifications
Engine
Model
1GR−FE
Type
6−cylinder V type, 4−cycle, gasoline
Bore and stroke
3.70 3.74 in. (94.0
Displacement
241.4 cu.in.(3956 cm3)
Drive belt tension
Automatic adjustment
95.0 mm)
Fuel
Fuel type
Unleaded gasoline only
Octane rating
91 (Research octane number 96) or higher
Fuel tank capacity
(Reference)
364
19.0 gal. (72.0 L, 15.8 lmp.gal.)
6−1. Specifications
Lubrication system
Oil capacity
drain and refill
(Reference)
With filter
Without filter
Oil grade
5.5 qt. (5.2 L, 4.6 Imp.qt.)
5.2 qt. (4.9 L, 4.3 Imp.qt.)
ILSAC multigrade engine oil
Use Toyota approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the grade and
viscosity shown below.
Recommended oil
viscosity
Outside temperature
*: 5W−30 is an oil that provides optimal levels of fuel efficiency.
Oil viscosity
The 30 in 5W−30 indicates the oil viscosity when the oil is at its
operating temperature. An oil with a higher viscosity may be better
suited if the vehicle is operated at high speeds, or under extreme
load condition.
365
6
Vehicle specifications
The 5W portion of the oil viscosity rating indicates the characteristic
of the oil which allows cold startab ility. Oils with a lower value before
the W allow for easier starting of the engine in cold weather.
6−1. Specifications
Cooling system
Vehicles with an automatic transmission
10.4 qt. (9.8 L, 8.6 Imp.qt.)
Vehicles with a manual transmission
9.9 qt. (9.4 L, 8.3 Imp. qt.)
Capacity
Coolant type
Use either of the following.
S “Toyota Super Long Life Coolant”
S Similar high−quality ethylene glycol−based
non−silicate, non−amine, non−nitrite, and
non−borate coolant with long−life hybrid
organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
Make
DENSO
NGK
Gap
K20HR−U11
LFR6C11
0.043 in. (1.1 mm)
Electrical system
Battery
Open voltage at
68 F (20 C):
12.8 V Fully charged
12.6
12.2
12.4 V Half charged
11.8 12.0 V Discharged
(Voltage checked 20 minutes after
the key is removed with all the lights
turned off)
Charging rates
5 A max.
366
6−1. Specifications
Differential
Front
(4WD models)
Vehicles with a manual transmission
1.5 qt. (1.4 L, 1.2 Imp.qt.)
Vehicles with an automatic transmission
1.7 qt. (1.6 L, 1.4 Imp.qt.)
Rear
Vehicles with a rear differential lock
3.1 qt. (2.9 L, 2.6 Imp.qt.)
Vehicles without a rear differential lock
3.2 qt. (3.0 L, 2.6 Imp.qt.)
Oil capacity
Oil type and
viscosity
Front
(4WD models)
Hypoid gear oil API GL−5
Vehicles with an automatic transmission
SAE75W−85
Vehicles with a manual transmission
Above 0 F (−18 C): SAE90
Below 0 F (−18 C): SAE80W or 80W−90
Rear
Hypoid gear oil API GL−5
Above 0 F (−18 C): SAE90
Below 0 F (−18 C): SAE80W or 80W−90
Automatic transmission
Fluid capacity
Fluid type
*:
*
11.3 qt. (10.7 L, 9.4 Imp.qt.)
Toyota Genuine ATF WS
6
NOTICE
Automatic transmission fluid type
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic
transmission of your vehicle.
367
Vehicle specifications
The fluid capacity is the quantity of reference. If replacement is necessary,
contact your Toyota dealer.
6−1. Specifications
Manual transmission
Gear oil capacity (Reference)
1.9 qt. (1.8 L, 1.6 Imp.qt.)
Gear oil type
Gear oil API GL−4 or GL−5
Recommended gear oil viscosity
SAE 75W−90
Clutch
0.6 in. (5
15 mm)
Clutch free play
0.2
Fluid type
FMVSS No. 116 DOT 3 or SAE J1703
Transfer (4WD models)
Oil capacity
Vehicles with an automatic transmission
1.1 qt. (1.0 L, 0.9 Imp.qt.)
Vehicles with a manual transmission
1.5 qt. (1.4 L, 1.2 Imp.qt.)
Oil type
Vehicles with an automatic transmission
Hypoid gear oil API GL−4 or GL−5
Vehicles with a manual transmission
Hypoid gear oil API GL−5
Recommended oil viscosity
368
SAE 75W−90
6−1. Specifications
Brakes
Pedal clearance *1
2.1 in. (54 mm) Min.
Pedal free play
0.04
0.24 in. (1
6 mm)
0.04 in. (1.0 mm)
Brake pad wear limit
Parking brake lining wear limit
0.04 in. (1.0 mm)
Parking brake lever travel *
5 — 7 clicks
Fluid type
FMVSS No. 116 DOT 3 or SAE J1703
2
*1:
Minimum pedal clearance when depressed with a force of 110 lbf (490 N,
50 kgf) with the engine running.
*2:
Parking brake lever travel when pulled with a force of 44.1 lbf (196 N, 20.0
kgf).
Chassis lubrication
Propeller shafts
Spider
Lithium base chassis grease, NLGI No.2
Slide yoke
Molybdenum — disulfide lithium base
chassis grease, NLGI No.2 or lithium
base multipurpose grease, NLGI No.2
Steering
6
Less than 1.2 in. (30 mm)
Power steering fluid type
Automatic transmission fluid DEXRON® II or
III
369
Vehicle specifications
Free play
6−1. Specifications
Tires and wheels
Tire size
P265/75R16 114T, P265/70R17 113S
Tire inflation pressure
(Recommended cold tire
inflation pressure)
Front tires:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear tires:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spare tire:
32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size
16 7 J, 17
Wheel nut torque
85 ft⋅lbf (113 N⋅m, 11.5 kgf⋅m)
370
7 1/2 J
6−1. Specifications
Light bulbs
Light Bulbs
Exterior
Interior
A:
B:
C:
D:
E:
Bulb No.
W
Type
Headlights
—
60/55
A
Front turn signal/
parking and front side
marker lights
—
21/5
B
Outside rear view
mirror illumination
lights
—5 C
Rear turn signal lights
5674
21
D
Stop/tail and rear side
marker lights
7443
21/5
C
Back−up lights
921
18
C
License plate lights
—
5
C
Front interior light
8
E
Rear interior light
8
E
HB2 halogen bulbs
Single end bulbs
Wedge base bulbs (clear)
Wedge base bulbs (amber)
Double end bulbs
6
Vehicle specifications
371
6−1. Specifications
Fuel information
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an octane rating of 91 (Research
Octane Number 96) or higher required for optimum engine
performance.
At minimum, the gasoline you us e should meet th e specifications
of ASTM D4814 in the U.S.A. and CGSB3.5−M93 in Canada.
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Toyota has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If premium gasoline is not available
If 91 rating gasoline cannot be obtained, you may use unleaded gasoline
with an octane rating as low as 87 (Research Octane Number 91).
If your engine knocks
Consult your Toyota dealer.
You may occasionally notice light knocking for a short time while
accelerating or driving uphill. This is normal and there is no need for
concern.
Gasoline quality
In very few cases, driveability problems may be caused by the brand of
gasoline you are using. If driveability problems persist, try changing the
brand of gasoline. If this does not correct the problem, consult your Toyota
dealer.
Gasoline quality standards
Automotive manufacturers in the US, Europe and Japan have developed
a specification for fuel quality called World−Wide Fuel Charter (WWFC)
that is expected to be applied worldwide.
The WWFC consists of four categories that are based on required
emission levels. In the US, category 4 has been adopted.
The WWFC improves air quality by lowering emissions in vehicle fleets,
and customer satisfaction through better performance.
372
6−1. Specifications
Toyota recommends the use of gasoline containing detergent additives
Toyota recommends the use of gasoline that contains detergent additives
to avoid build−up of engine deposits.
All gasoline sold in the US contains detergent additives to clean and/or
keep clean intake systems.
Toyota recommends the use of cleaner burning gasoline
Cleaner burning gasoline, including reformulated gasoline that contains
oxygenates such as ethanol or MTBE (Methyl Tertiary Butyl Ether) is
available in many areas.
Toyota recommends the use of cleaner burning gasoline and appropriately
blended reformulated gasoline. These types of gasoline provide excellent
vehicle performance, reduce vehicle emissions and improve air quality.
Toyota does not recommend blended gasoline
Toyota allows the use of oxygenate blended gasoline where the
oxygenate content is up to 10% ethanol or 15% MTBE.
If you use gasohol in your Toyota, be sure that it has an octane rating no
lower than 91.
Toyota does not recommend the use of gasoline containing methanol.
Toyota does not recommend gasoline containing MMT
Some gasoline contains octane enhancing additive called MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel
containing MMT is used, your emission control system may be adversely
affected.
6
The malfunction indicator lamp on the instrument cluster may come on. If
this happens, contact your Toyota dealer for service.
Vehicle specifications
373
6−1. Specifications
NOTICE
Notice on gasoline quality
Do not use leaded gasoline.
Leaded gasoline can cause damage to your vehicle’s three−way catalytic
converters causing the emission control system to malfunction.
Do not use gasohol other than that stated here.
Other gasohol may cause fuel system damage or vehicle performance
problems.
Use of unleaded gasoline with an octane rating lower than 91 may result in
engine knocking. Persistent knocking can lead to engine damage and
should be corrected by refueling with higher octane unleaded gasoline.
Fuel−related poor driveability
If after using a different type of fuel, poor driveability is encountered (poor
hot starting, vaporization, engine knocking, etc.), discontinue the use of that
type of fuel.
When refueling with gasohol
Take care not to spill gasohol.
It can damage your vehicle’s paint.
374
6−1. Specifications
Tire information
Typical tire symbols
X
TE
MP
ER
E
UR
AT
TUBELESS
XPSI)
A (X
X KP
XX
ER
LYEST
:2PO
ALL
EW
SID
N
LO
NY
.
SS
RE
X.P
MA
TRA
CTIO
N
PRIESTR
EAD:
2PO
LYE
STE
R+
2S
TE
EL
+1
TREADWEAR XXX
XXXXX
X XX
XXX
STE
EL
BE
LTE
D
X
XX
TX
DO
RA
5 / 70R17 113S M
P26
+S
L
DIA
STANDARDLOAD
MAX.L
OAD
XXX
KG
(XX
XX
LB
S)
X
Tire size
( P. 377)
DOT and Tire Identification Number (TIN)
( P. 376)
Location of treadwear indicators
( P. 378)
Tire ply composition and materials
Plies are layers of rubber−coated parallel cords. Cords are the
strands which form the plies in a tire.
Uniform tire quality grading
For details, see “Uniform tire quality grading” that follows.
Load limit at maximum cold tire inflation pressure
( P. 380)
Maximum cold tire inflation pressure
(
This means the pressure to which a tire may be inflated.
6
P. 380)
Vehicle specifications
TUBELESS or TUBE TYPE
A tubeless tire does not have a tube and air is directly filled in the
tire. A tube type tire has a tu
be inside the tire and the tube
maintains the air pressure.
375
6−1. Specifications
Radial tires or bias−ply tires
A radial tire has RADIAL on the sidewall. A tire not marked RADIAL
is a bias−ply tire.
Summer tire or all season tire
( P. 289)
An all season tire has M+S on the sidewall. A tire not marked M+S
is a summer tire.
Typical DOT and tire identification number (TIN)
DOT symbol*
Tire Identification Number
(TIN)
Tire manufacturer’s
identification mark
Tire size code
Manufacturer’s optional tire
type code (3 or 4 letters)
Manufacturing week
Manufacturing year
*:The DOT symbol certifies that
the tire conforms to applicable
Federal Motor Vehicle Safety
Standards.
376
6−1. Specifications
Tire size
Typical tire size information
The illustration indicates typical
tire size.
Tire use
(P = Passenger car,
T = Temporary use)
Section width (millimeters)
Aspect ratio
(tire height to section width)
Tire construction code
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 digits or 3 digits)
Speed symbol
(alphabet with one letter)
Tire dimensions
Section width
Tire height
Wheel diameter
6
Vehicle specifications
377
6−1. Specifications
Tire section names
Bead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Uniform tire quality grading
This information has been prepared in accordance with regulations
issued by the National Highway Tr affic Safety Administration of the
U.S.A. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.
Your Toyota dealer will help answ er any questions you may have as
you read this information.
DOT quality grades
All passenger vehicle tires mu
st conform to Federal Safety
Requirements in addition to these grades. Quality grades can be
found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example: Treadwear 200 Traction AA Temperature A
378
6−1. Specifications
Treadwear
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested und
er controlled conditions on a
specified government test course.
For example, a tire graded 150 would wear one and a half (1 − 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual conditions
of their use, however, and may depart significantly from the norm due
to variations in driving habits, service practices and differences in
road characteristics and climate.
Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ab ility to stop on wet pavement as
measured under controlled cond itions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering
(turning) traction.
Temperature A, B, C
The temperature grades are
A (the highest), B, and C,
representing the tire’s resistance to the generation of heat and its
ability to dissipate heat when tested under controlled conditions on
a specified indoor laboratory test wheel.
The grade C corresponds to a level of performance which all
passenger car tires must meet under the Federal Motor Vehicle
Safety Standard No. 109.
Grades B and A represent higher levels of performance on the
laboratory test wheel than the minimum required by law.
379
Vehicle specifications
Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.
6
6−1. Specifications
Warning: The temperature grades for this tire are established for a
tire that is properly inflated and not overloaded.
Excessive speed, underinflation,
or excessive loading, either
separately or in combination, can cause heat buildup and possible
tire failure.
Glossary of tire terminology
Tire related term
Meaning
Cold tire inflation
pressure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressure
The maximum cold inflated pressure to which a
tire may be inflated, shown on the sidewall of
the tire
Recommended
inflation pressure
Cold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
transmission, power steering, power brakes,
power windows, power seats, radio and heater,
to the extent that these items are available as
factory−installed equipment (whether installed
or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded
vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
380
6−1. Specifications
Tire related term
Meaning
150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1* that
follows
Occupant distribution
Distribution of occupants in a vehicle as
specified in the third column of Table 1* below
Production options
weight
The combined weight of installed regular
production options weighing over 5 lb. (2.3 kg)
in excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy duty
battery, and special trim
Rim
A metal support for a tire or a tire and tube
assembly upon which the tire beads are seated
Rim diameter
(Wheel diameter)
Nominal diameter of the bead seat
Rim size designation
Rim diameter and width
Rim type designation
The industry manufacturer’s designation for a
rim by style or code
Rim width
Nominal distance between rim flanges
Vehicle capacity
weight (Total load
capacity)
The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity
Vehicle maximum load
on the tire
The load on an individual tire that is determined
by distributing to each axle its share of the
maximum loaded vehicle weight, and dividing
by two
Vehicle normal load
on the tire
The load on an individual tire that is determined
by distributing to each axle its share of curb
weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1* below), and dividing it by two
381
6
Vehicle specifications
Normal occupant
weight
6−1. Specifications
Tire related term
Meaning
Weather side
The surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separation
A breakdown of the bond between components
in the bead
Bias ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at alternate angles
substantially less than 90 degrees to the
centerline of the tread
Carcass
The tire structure, except tread and sidewall
rubber which, when inflated, bears the load
Chunking
The breaking away of pieces of the tread or
sidewall
Cord
The strands forming the plies in the tire
Cord separation
The parting of cords from adjacent rubber
compounds
Cracking
Any parting within the tread, sidewall, or
innerliner of the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire
and rim system in which the rim is designed
with rim flanges pointed radially inward and the
tire is designed to fit on the underside of the
rim in a manner that encloses the rim flanges
inside the air cavity of the tire
Extra load tire
A tire designed to operate at higher loads and
at higher inflation pressures than the
corresponding standard tire
Groove
The space between two adjacent tread ribs
Innerliner
The layer(s) forming the inside surface of a
tubeless tire that contains the inflating medium
within the tire
382
6−1. Specifications
Tire related term
Meaning
The parting of the innerliner from cord material
in the carcass
Intended outboard
sidewall
(a)The sidewall that contains a whitewall, bears
white lettering, or bears manufacturer,
brand, and/or model name molding that is
higher or deeper than the same molding on
the other sidewall of the tire, or
(b)The outward facing sidewall of asymmetrical
tire that has a particular side that must
always face outward when mounted on a
vehicle
Light truck (LT) tire
A tire designated by its manufacturer as
primarily intended for use on lightweight trucks
or multipurpose passenger vehicles
Load rating
The maximum load that a tire is rated to carry
for a given inflation pressure
Maximum load rating
The load rating for a tire at the maximum
permissible inflation pressure for that tire
Maximum permissible
inflation pressure
The maximum cold inflation pressure to which
a tire may be inflated
Measuring rim
The rim on which a tire is fitted for physical
dimension requirements
Open splice
Any parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameter
The overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of
the sidewalls of an inflated tire, including
elevations due to labeling, decorations, or
protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars,
multipurpose passenger vehicles, and trucks,
that have a gross vehicle weight rating
(GVWR) of 10,000 lb. or less
6
Vehicle specifications
Innerliner separation
383
6−1. Specifications
Tire related term
Meaning
Ply
A layer of rubber−coated parallel cords
Ply separation
A parting of rubber compound between
adjacent plies
Pneumatic tire
A mechanical device made of rubber,
chemicals, fabric and steel or other materials,
that, when mounted on an automotive wheel,
provides the traction and contains the gas or
fluid that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that
extend to the beads are laid at substantially 90
degrees to the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and
at higher inflation pressures than the
corresponding standard tire
Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding
elevations due to labeling, decoration, or
protective bands
Sidewall
That portion of a tire between the tread and
bead
Sidewall separation
The parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E−
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F−1805−00, Standard Test Method for
Single Wheel Driving Traction in a Straight Line
on Snow−and Ice−Covered Surfaces, and which
is marked with an Alpine Symbol (
) on at
least one sidewall
Te s t r i m
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
384
6−1. Specifications
Tire related term
Meaning
Tread
That portion of a tire that comes into contact
with the road
Tread rib
A tread section running circumferentially
around a tire
Tread separation
Pulling away of the tread from the tire carcass
Treadwear
indicators(TWI)
The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel−holding fixture
The fixture used to hold the wheel and tire
assembly securely during testing
*:Table 1
Occupant loading and distri bution for vehicle normal load
for various designated seating capacities
Vehicle normal load,
Number of occupants
Occupant distribution
in a normally loaded
vehicle
2 through 4
2
2 in front
5 through 10
3
2 in front, 1 in second
seat
11 through 15
5
2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
7
2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat
16 through 20
385
6
Vehicle specifications
Designated seating
capacity, Number of
occupants
6−2. Customization
Customizable features
Your vehicle includes a variety of electronic features that can be per−
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by an autho−
rized Toyota dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.
Item
Function
Default setting
Wireless remote control
ON
Unlocking operation
Wireless
remote con−
trol
( P. 30)
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
OFF
All doors
unlocked in
one step
0 seconds
60 seconds
30 seconds
120 seconds
Operation signal
(Emergency flashers)
ON
OFF
Door lock buzzer
ON
OFF
Panic function
ON
OFF
Buzzer sounds when
pushing LOCK with any
door not closed
386
Driver ’s door
unlocked in
one step, all
doors
unlocked in
two steps
Customized
setting
ON
OFF
6−2. Customization
Item
Function
Default setting
Driver ’s door
unlocked in
one step, all
doors
unlocked in
two steps
Door lock
( P. 33)
Unlocking using a key
Automatic
light off sys−
tem
( P. 131)
Time elapsed before
headlights automati−
cally turn off after doors
are closed
30 seconds
Time elapsed before
lights turn off
15 seconds
Illumination
( P. 226)
Seat Belt
Reminder
Buzzer
( P. 334)
Customized
setting
All doors
unlocked in
one step
0 seconds
60 seconds
90 seconds
7.5 seconds
30 seconds
Operation after the
engine switch is turned
to the LOCK position
ON
OFF
Operation when the
doors are unlocked
ON
OFF
Vehicle speed linked
seat belt reminder
buzzer
ON
OFF
6
Vehicle specifications
387
6−2. Customization
Items to initialize
The following items must be init ialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.
Item
Engine oil maintenance
data
388
When to initialize
After changing engine oil
Reference
P. 278
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway Traffic Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll−free:
1−800−331−4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can−
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll−free
at 1−888−327−4236 (TTY: 1−800−424−9153); go to http://www.safer−
car.gov; or write to: Administrator, NHTSA, 400 Seventh Street,
SW., Washington, DC 20590. You can also obtain other informa−
tion about motor vehicle safety from http://www.safercar.gov.
390
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONS
2WD
4WD
Two Wheel Drive
Four Wheel Drive
ABS
Anti−Lock Brake System
ACC
Accessory
AI−SHIFT
Artificial Intelligence shifting
ALR
Automatic Locking Retractor
A−TRAC
AUTO LSD
Active Traction Control
Automatic Limited Slip Differential
CRS
Child Restraint System
E/M
English/U.S. Customary System and metric
ECU
Electronic Control Unit
EDR
Event Data Recorder
ELR
Emergency Locking Retractor
GAWR
Gross Axle Weight Rating
GVWR
Gross Vehicle Weight Rating
I/M
Emission inspection and maintenance
INT
Intermittent
LED
Light Emitting Diode
LT
Light truck
M+S
Mud + Snow
MMT
Methylcy clopentadienyl Manganese Tricarbonyl
MTBE
Methyl Tertiary Butyl Ether
OBD
On Board Diagnostics
RES
Resume
RR DIFF LOCK
392
MEANING
Rear differential lock
SRS
Supplemental Restraint System
TIN
Tire Identification Number
ABBREVIATIONS
MEANING
TPMS
Tire Pressure Warning System
TRAC
Traction Control
TWI
Treadwear indicators
VIN
Vehicle Identification Number
VSC
Vehicle Stability Control
393
Alphabetical index
Alphabetical index
A A/C ............................................. 184
ABS ........................................... 156
Access doors ............................. 36
Accessory meter ...................... 130
Active traction control
system .................................... 148
Air conditioning filter............... 298
Air conditioning system
Air conditioning filter .............. 298
Manual air conditioning
system ................................ 184
Airbags
Airbag operating conditions..... 76
Airbag precautions for your
child ...................................... 80
Airbag warning light............... 332
Curtain shield airbag operating
conditions.............................. 76
Curtain shield airbag
precautions ........................... 83
Front passenger occupant
classification system ............. 85
General airbag precautions ..... 80
Locations of airbags ................ 73
Modification and disposal of
airbags .................................. 84
Proper driving posture ....... 71, 80
Side airbag operating
conditions.............................. 76
Side airbag precautions .......... 82
SRS airbags ............................ 73
Antenna..................................... 199
Anti−lock brake system
ABS warning light .................. 332
Anti−lock brake system .......... 156
Armrest ..................................... 246
Audio input ............................... 222
Audio remote controls............. 224
Audio system
Antenna ................................. 199
Audio input ............................ 222
AUX adapter.......................... 222
CD player .............................. 200
394
MP3/WMA disc ..................... 208
Optimal use ........................... 217
Portable music player ........... 222
Radio..................................... 194
Type ...................................... 191
AUTO LSD system ................... 150
Automatic light off system...... 132
Automatic limited slip
differential .............................. 150
Automatic transmission
Automatic transmission ......... 117
If the shift lever cannot be
shifted from P ..................... 351
AUX adapter ............................. 222
Auxiliary box .................... 228, 234
B Back door ................................... 38
Back door lock ........................... 38
Back−up lights
Replacing light bulbs ............. 318
Wattage................................. 371
Back window .............................. 41
Battery
Charging system warning
light ..................................... 332
Checking ............................... 283
If the vehicle battery is
discharged .......................... 353
Preparing and checking
before winter ....................... 169
Bottle holders................... 228, 233
Brake assist.............................. 156
Brakes
Brake system warning
buzzer ................. 149, 151, 158
Brake system warning light ... 331
Fluid ...................................... 280
Parking brake ........................ 122
Break−in tips ............................. 106
Alphabetical index
C Care
Exterior ................................. 258
Interior .................................. 260
Seat belts ............................. 261
Cargo capacity ........................ 165
Cargo net hook ........................ 250
CD player ................................. 200
Center differential lock ........... 144
Certification label ............ 172, 363
Chains ...................................... 170
Child restraint system
Booster seats, definition ......... 90
Booster seats, installation ...... 96
Convertible seats, definition ... 90
Convertible seats,
installation ............................ 95
Front passenger occupant
classification system ............ 85
Infant seat, definition .............. 90
Infant seats, installation .......... 94
Installing CRS with lower
anchorages .......................... 97
Installing CRS with seat
belts ..................................... 93
Installing CRS with top
straps ................................... 98
Child safety
Airbag precautions ................. 81
Battery precautions ...... 284, 355
Child restraint system ............. 90
How your child should wear
the seat belt ......................... 53
Installing child restraints ......... 93
Power window lock switch ...... 62
Power window precautions..... 63
Removed key battery
precautions ........................ 302
Seat belt extender
precautions .......................... 54
Seat belt precautions.............. 54
Cleaning
Exterior ................................. 258
Interior .................................. 260
Seat belts .............................. 261
Clinometer ................................ 130
Clock ........................................ 237
Clutch start cancel switch....... 155
Compass ........................... 130, 252
Condenser ................................ 280
Cooling system
Engine overheating ............... 356
CRS ............................................. 90
Cruise control........................... 136
Cup holders .............. 228, 229, 232
Curtain shield airbags ............... 73
Customizable features............. 386
D Daytime running light
system .................................... 132
Defogger
Rear window ......................... 190
Dimension................................. 362
Dinghy towing .......................... 182
Do−it−yourself maintenance..... 269
Doors
Access doors........................... 36
Door glasses ........................... 62
Door lock ........................... 30, 33
Open door warning light ........ 334
Side doors ............................... 33
Side mirrors ............................. 59
Driver’s seat belt reminder
buzzer ..................................... 334
Driver’s seat belt reminder
light ......................................... 334
Driving
Break−in tips .......................... 106
Correct posture ....................... 71
Driving assist systems........... 156
Procedures ............................ 114
Winter driving tips.................. 169
395
Alphabetical index
E Emergency, in case of
Blown fuse............................. 303
If the engine will not start ...... 350
If the shift lever cannot be
shifted from P...................... 351
If the vehicle battery is
discharged .......................... 353
If the warning buzzer
sounds ................................ 331
If the warning light turns on ... 331
If you have a flat tire ............. 340
If you lose your keys ............. 352
If you think something is
wrong .................................. 327
If the vehicle becomes
stuck ................................... 359
If your vehicle needs to be
towed .................................. 322
If your vehicle overheats ....... 356
Engine
Compartment ........................ 274
Engine switch ........................ 114
Exhaust gas .......................... 110
Hood...................................... 273
How to start the engine ......... 114
Identification number ............. 363
If the engine will not start ...... 350
Ignition switch........................ 114
Immobilizer system ................. 68
Overheating........................... 356
Warning light ......................... 331
Engine coolant
Capacity ................................ 366
Checking ............................... 279
Preparing and checking
before winter ....................... 169
Temperature gauge............... 124
Engine coolant temperature
gauge ...................................... 124
Engine immobilizer system....... 68
Engine oil
Capacity ................................ 365
Checking ............................... 275
396
Preparing and checking before
winter .................................. 169
Warning light ................. 332, 334
Engine oil maintenance
data ......................................... 278
Engine switch........................... 114
Event data recorder ................. 329
F Floor mat .................................. 247
Fluid
Brake..................................... 280
Washer.................................. 286
Four−wheel drive system
Four−wheel drive control
lever .................................... 144
Front−−wheel drive control
lever .................................... 146
Front passenger occupant
classification system .............. 85
Front passenger’s seat belt
reminder light ........................ 334
Front passenger’s seat belt
warning buzzer ...................... 334
Front seats
Adjustment .............................. 43
Front side marker lights
Replacing light bulbs ............. 317
Switch ................................... 131
Wattage................................. 371
Front turn signal lights
Lever ..................................... 121
Replacing light bulbs ............. 317
Switch ................................... 121
Wattage................................. 371
Fuel
Capacity ................................ 364
Fuel gauge ............................ 124
Fuel pump shut off system .... 328
Gas station information ......... 408
Information ............................ 372
Refueling ................................. 64
Type ...................................... 364
Warning light ......................... 334
Alphabetical index
Fuel door .................................... 64
Fuel filler door ........................... 64
Fuel pump shut off system .... 328
Fuses
Fuses.................................... 303
Locations ...................... 307, 311
G Gas station information .......... 408
Gauges ..................................... 124
Glass hatch ................................ 41
Glove box ................................. 228
H Head restraints
Adjusting ................................ 49
Headlights
Replacing light bulbs ............ 315
Switch ................................... 131
Wattage ................................ 371
Hood ......................................... 273
Hooks
Cargo net.............................. 250
Shopping bag ....................... 251
I
I/M test ...................................... 268
Identification
Engine .................................. 363
Tire ....................................... 376
Vehicle.................................. 363
Ignition switch ......................... 114
Illuminated entry system ........ 226
Immobilizer system ................... 68
Indicator lights ........................ 127
Initialization
Items to initialize ................... 388
Inside rear view mirror.............. 58
Interior lights
Switch ................................... 227
Wattage ................................ 371
Instrument panel light
control.................................... 125
Intuitive parking assist ........... 139
J Jack
Positioning the jack ............... 342
Replacing the wheel .............. 340
Jack handle .............................. 342
K Keyless entry.............................. 30
Keys
Engine switch ........................ 114
If you lose your keys ............. 352
Ignition switch........................ 114
Key battery ............................ 301
Keyless entry........................... 30
Key number ............................. 28
Keys ........................................ 28
Reminder buzzer ................... 336
Wireless remote control
key .................................. 28, 30
L License plate lights
Replacing light bulbs ............. 319
Switch.................................... 131
Wattage ................................. 371
Light bulbs
Replacing .............................. 314
Wattage ................................. 371
Lights
Automatic light off system ..... 132
Headlights switch .................. 131
Instrument panel light control
dial ...................................... 125
Interior light switch ................ 227
Replacing light bulbs ............. 314
Turn signal lights switch ........ 121
Wattage ................................. 371
Limited slip differential............ 150
Load capacity ........... 165, 168, 362
Lock steering column ................ 57
Luggage storage box............... 248
Luggage compartment
features................................... 249
397
Alphabetical index
M Maintenance
Do−it−yourself maintenance ... 269
General maintenance ............ 265
Maintenance data.................. 362
Maintenance requirements.... 263
Vehicle exterior ..................... 258
Vehicle interior ...................... 260
Malfunction indicator lamp ..... 332
Manual air conditioning
system .................................... 184
Manual transmission ............... 119
Meter
Accessory meter ................... 130
Instrument panel light
control ................................. 125
Meters ................................... 124
Mirrors
Inside rear view mirror............. 58
Side mirrors ............................. 59
Vanity mirrors ........................ 236
MP3 disc ................................... 208
O Odometer .................................. 124
Off−road precautions
Driving ................................... 162
Vehicle .................................. 160
Oil
Engine oil .............................. 275
Warning light .................. 332,334
Opener
Hood...................................... 273
Outside rear view mirror
illumination lights
Replacing light bulbs ............. 319
Switch.................................... 131
Wattage ................................. 371
Outside rear view mirrors
Adjusting and folding ............... 59
Outside temperature
display .................................... 238
Overheating, Engine ................ 356
398
P Parking assist .......................... 139
Parking brake ........................... 122
Parking lights
Replacing light bulbs ............. 317
Switch ................................... 131
Wattage................................. 371
Power outlet ..................... 239, 240
Power steering
Fluid ...................................... 282
Power windows .......................... 62
R Radiator ............................ 274, 280
Radio ......................................... 194
Rear seat
Folding down........................... 44
Removing rear seat bottom
cushions ............................... 45
Rear side marker lights
Replacing light bulbs ............. 318
Switch ................................... 131
Wattage................................. 371
Rear turn signal lights
Lever ..................................... 121
Replacing light bulbs ............. 318
Switch ................................... 121
Wattage................................. 371
Rear window............................... 41
Rear window defogger ............ 190
Replacing
Key battery ............................ 301
Fuses .................................... 303
Light bulbs............................. 314
Tires ............................... 287,340
Wheels .................................. 296
Rear differential lock
system .................................... 152
Rear step bumper ...................... 40
Rear window wiper .................. 135
Reporting safety defects for
U.S. owners ............................ 390
Alphabetical index
S Seat belts
Adjustment ............................. 51
ALR ........................................ 53
Automatic Locking Retractor .. 53
Child restraint system
installation ............................ 93
Cleaning and maintaining ..... 261
ELR ........................................ 53
Emergency Locking
Retractor .............................. 53
How to wear your seat belt ..... 51
How your child should wear
the seat belt ......................... 53
Pregnant women, proper
seat belt use......................... 53
Reminder buzzer .................. 334
Reminder light ...................... 334
Seat belt extenders ................ 54
Seat belt pretensioners .......... 52
Seating capacity ...................... 168
Seats
Adjustment ............................. 43
Adjustment precautions .......... 43
Child seats/child restraint
system installation................ 93
Cleaning ....................... 258, 260
Folding down the rear seat ..... 44
Folding down the rear seat
precautions .......................... 48
Front seat adjustment............. 43
Front seat adjustment
precautions .......................... 43
Head restraint ......................... 49
Properly sitting in the seat ...... 71
Service reminder
indicators .............................. 128
Shift lever
Automatic transmission ........ 117
Four−wheel drive................... 144
Front−wheel drive.................. 146
If the shift lever cannot be
shifted from P ..................... 351
Manual transmission ............ 119
Shift lock system ..................... 351
Side airbags................................ 73
Side doors .................................. 33
Side marker lights
Replacing light bulbs ..... 317, 318
Switch.................................... 131
Wattage ................................. 371
Side mirror
Adjusting and folding ............... 59
Spare tire
Inflation pressure................... 370
Replacing .............................. 340
Spare tire............................... 340
Spark plug ................................ 366
Specifications........................... 362
Speedometer ............................ 124
SRS airbags
Curtain shield airbags ............. 73
Front airbags ........................... 73
Precautions ............................. 80
Side airbags ............................ 73
Steering wheel
Adjustment .............................. 57
Stop lights
Replacing light bulbs ............. 318
Wattage ................................. 371
Storage feature......................... 228
Storage precautions ................ 165
Stuck
If the vehicle becomes
stuck ................................... 359
Sun visors
Front ...................................... 235
Side ....................................... 235
Switch
Active traction control
switch .................................. 148
AUTO LSD switch ................. 150
Clutch start cancel switch...... 155
Cruise control switch ............. 136
Engine switch ........................ 114
Ignition switch........................ 114
399
Alphabetical index
Intuitive parking assist
switch .................................. 139
Headlights switch .................. 131
Light switch ........................... 131
Power door lock switch ........... 33
Power window switch .............. 62
Rear differential lock
switch .................................. 152
Turn signal lights ................... 121
Window lock switch ................. 62
Wiper and washer ......... 133, 135
T Tachometer............................... 124
Tail lights
Replacing light bulbs ............. 318
Switch.................................... 131
Wattage ................................. 371
Theft deterrent system
Engine immobilizer system ..... 68
Theft prevention labels ............ 70
Theft prevention labels.............. 70
Tire inflation pressure ............. 370
Tire information
Glossary ................................ 380
Size ....................................... 377
Tire identification number ...... 376
Uniform tire quality grading ... 378
Tires
Chains ................................... 170
Checking ............................... 287
If you have a flat tire .............. 340
Identification number ............. 376
Inflation pressure................... 370
Inflation pressure sensor ....... 288
Information ............................ 375
Replacing ...................... 287, 340
Rotating tires ......................... 287
Size ....................................... 370
Snow tires ............................. 170
Spare tire............................... 341
Tire pressure warning
system ........................ 287, 337
Warning light ......................... 334
400
Tools ......................................... 340
Total load capacity .................. 168
Towing
Dinghy towing ....................... 182
Emergency towing ................ 322
Trailer towing ........................ 172
Traction control system .......... 156
TRAC ......................................... 156
Trip meter ................................. 124
Turn signal lights
Lever ..................................... 121
Replacing light bulbs ............. 315
Switch ................................... 121
Wattage................................. 371
V Vanity mirrors .......................... 236
Vehicle identification
number ................................... 363
Vehicle stability control .......... 156
Voltmeter .................................. 124
VSC ........................................... 156
W Warning buzzers
Key reminder......................... 336
Seat belt reminder................. 334
Warning lights
ABS ....................................... 332
Airbag system ....................... 332
Anti−lock brake system .......... 332
Automatic transmission fluid
temperature ........................ 332
Brake system ........................ 331
Charging system ................... 332
Driver’s seat belt ................... 334
Electronic engine control
system ................................ 332
Engine oil replacement ......... 334
Front passenger occupant
classification system ........... 332
Front passenger’s seat belt... 334
Low brake fluid ...................... 331
Low engine oil pressure ........ 332
Alphabetical index
Low fuel level........................ 334
Low tire inflation pressure .... 334
Malfunction indicator lamp.... 332
Open door ............................ 334
Seat belt ............................... 334
Seat belt pretensioner
system................................ 332
SRS ...................................... 332
SRS airbag system............... 332
Tire pressure ........................ 334
Tire pressure warning
system................................ 334
Unengaged “Park” ................ 332
VSC/TRAC ........................... 332
Washer
Checking .............................. 286
Preparing and checking
before winter ...................... 169
Switch ........................... 133, 135
Washing and waxing............... 258
Weight
Cargo capacity ..................... 165
Load limits ............................ 168
Weight .................................. 362
Wheels...................................... 296
Window glasses ................. 41, 62
Window lock switch .................. 62
Windows
Power windows ...................... 62
Rear window defogger ......... 190
Washer ......................... 133, 135
Windshield wipers........... 133, 135
Wireless remote control key
Replacing the battery ........... 301
Wireless remote control.......... 30
Winter driving tips................... 169
WMA disc ................................. 208
401
What to do if...
What to do if...
A tire punctures
P. 340 If you have a flat tire
P. 350 If the engine will not start
The engine does not start
P. 6 8 Engine immobilizer system
P. 353 If the battery is discharged
The shift lever cannot be
moved out
P. 351
If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
P. 356 If your vehicle overheats
Steam can be seen coming
from under the hood
The key is lost
P. 352 If you lose your keys
The battery runs out
P. 353 If the battery is discharged
P. 3 3 Side doors
The doors cannot be locked
P. 3 6 Access doors
P. 3 8 Back door
The vehicle is stuck in
mud or sand
P. 359 If the vehicle becomes stuck
The warning light or indicator
light comes on
P. 331 If a warning light turns on
402
What to do if...
Instrument cluster
Center panel
403
What to do if...
Warning lights
Brake system warning
light
P. 331
Unengaged Park warning
light
P. 333
Charging system warning
light
P. 332
VSC/TRAC warning
P. 333
light
Low engine oil pressure
warning light
P. 332
Tire pressure warning
light
P. 334
Malfunction indicator
lamp
P. 332
Open door warning light
ABS warning light
Low fuel level warning
light
P. 335
or
Driver ’s seat belt reminder
P. 3 3 3
Engine oil replacement
reminder light P. 3 3 5
SRS warning light
P. 3 3 2
Automatic transmission
fluid temperature
P. 3 3 3
warning light
404
P. 334
light
P. 334
Front passenger ’s seat belt
reminder light
P. 334
Memo
405
Memo
406
Memo
407
GAS STATION INFORMATION
Auxiliary catch lever
P. 273
Fuel filler door
P. 6 4
Hood lock release lever
P. 273
Fuel tank capacity
19.0 gal. (72.0 L, 15.8 lmp.gal.)
Fuel type
Premium unleaded gasoline, Octane Rating 91
(Research Octane Number 96) or higher
Cold tire inflation
pressure
Engine oil capacity
(Drain and refill)
Engine oil type
408
Tire inflation pressure
P. 370
P. 3 7 0
With filter
Without filter
qt. (L, Imp.qt.)
5.5 (5.2, 4.6)
5.2 (4.9, 4.3)
Toyota Genuine Motor Oil or equivalent
Oil grade:
P. 365
ILSAC multigrade engine oil
Recommended oil viscosity:
SAE 5W−30
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
