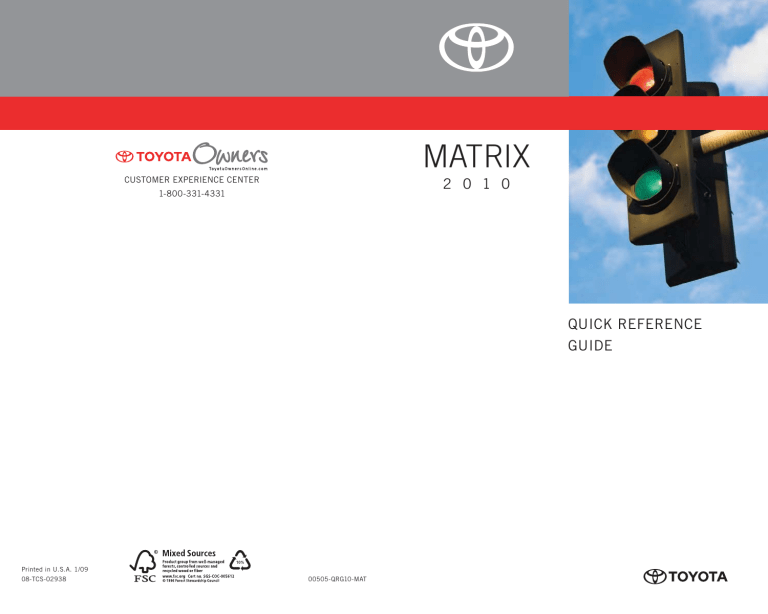

MATRIX
CUSTOMER EXPERIENCE CENTER
2 0 1 0
1-800-331-4331
QUICK REFERENCE
GUIDE
Printed in U.S.A. 1/09
08-TCS-02938
00505-QRG10-MAT
2010
Corolla Matrix
Seatbelts
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Corolla Matrix.
Too high
OVERVIEW
Take up slack
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
Keep as low on
hips as possible
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.
Spare tire & tools
Tool location
FEATURES/OPERATIONS
! A word about safe vehicle operations
Jack handle
This Quick Reference Guide is not a full description of
Corolla Matrix operations. Every Corolla Matrix owner should
review the Owner’s Manual that accompanies this vehicle.
Jack
Spare tire
Wheel nut wrench
Removing the spare tire
(1)
(2)
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
(1) Turn the knobs to the “UNLOCK” position and remove the deck boards.
(2) Loosen the center fastener that secures the spare tire.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
21
SAFETY AND EMERGENCY FEATURES
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
INDEX
FEATURES/OPERATIONS
Air Conditioning/Heating
Audio
Auto lock functions2
Automatic Transmission
Auxiliary storage
Bottle holders
Clock
Cruise control
Cup holders
Door-Back
Door locks-Power
Light control-Instrument panel
Lights & turn signals
Moonroof
Parking brake
Power outlet-12V DC
Power outlet-115V AC
Seat adjustments-Front
Seat adjustments-Rear
Seats-Head restraints
Telephone controls (Bluetooth®)
Tilt and telescopic steering wheel
Windows-Power
Windshield wipers & washers
SAFETY AND
EMERGENCY FEATURES
2
16
14-15
8
8
17
19
10
17
18
13
13
16
11
13
10
19
19
9
9
9
18
10
12
12
20
21
20
21
20
Visit your Toyota dealer for information on customizing this feature.
Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
1
SAFETY AND EMERGENCY FEATURES
1
Doors-Child safety locks
Seatbelts
Seatbelts-Shoulder belt anchor
Spare tire & tools
Tire Pressure Monitoring (warning) System
7
6
7
5
4
2-3
6
FEATURES/OPERATIONS
Engine maintenance
Fuel tank door release and cap
Hood release
Indicator symbols
Instrument cluster
Instrument panel
Keyless entry1
OVERVIEW
OVERVIEW
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls1,2
Voice command button1
Telephone controls1
Ignition switch
Cruise control1
VSC/TRAC OFF switch
Auxiliary storage
Power outside rearview mirror control
Headlight, turn signal and front fog light1 controls
Wiper and washer controls
“AIR BAG ON” and “AIR BAG OFF” indicator
Front passenger seatbelt reminder light
Engine immobilizer indicator
Emergency flasher button
2
OVERVIEW
FEATURES/OPERATIONS
Audio system2
Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button
Tire Pressure Monitoring (warning) System reset
Tilt and telescopic steering control
Hood lock release lever
2
If equipped
Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
3
SAFETY AND EMERGENCY FEATURES
1
OVERVIEW
Instrument cluster
Service indicator and reminder
Tachometer
Speedometer
Fuel gauge
Trip meter reset/Instrument panel light control
Engine coolant temperature
Automatic Transmission shift range display (if equipped)
Odometer and two trip meters
4
Indicator symbols
Brake system warning1
OVERVIEW
For details, refer to “Indicators and warning lights,” Section 2-2, 2010
Owner’s Manual.
Driver seatbelt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seatbelt reminder
(alarm will sound if speed is over 12 mph)
Charging system warning1
AIR BAG ON and AIR BAG OFF indicator1
Electric power steering warning1
Malfunction/Check Engine indicator1
Low fuel level warning
SRS Airbag warning1
Low Tire Pressure Warning1
Headlight low/high beam indicator
FEATURES/OPERATIONS
Open door warning
Turn signal indicator
Fog light indicator
Slip indicator1
Cruise control indicator
Anti-lock Brake System warning1
Low engine oil pressure warning1
Engine oil replacement reminder1
Active torque control 4WD system warning1
1
If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
5
SAFETY AND EMERGENCY FEATURES
Vehicle Stability Control OFF indicator1
OVERVIEW
Keyless entry (if equipped)
Locking operation
Unlocking operation
Push ONCE: Driver door
TWICE: All doors
Push
NOTE: If a door is not opened within
60 seconds of unlocking, all doors will
relock for safety.
Panic button
Push and hold
Fuel tank door release and cap
Pull
Turn
Store
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
6
Hood release
OVERVIEW
Pull up latch
and raise hood
Pull
Engine maintenance
4 cylinder (2AZ-FE) engine
4 cylinder (2ZR-FE) engine
FEATURES/OPERATIONS
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
7
SAFETY AND EMERGENCY FEATURES
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
FEATURES/OPERATIONS
Auto lock functions (if equipped)
Automatic door locks can be programmed to operate in three different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after
setting the engine switch to “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
Automatic Transmission (if equipped)
Standard type
Multi-mode type
Park*
Reverse
Park*
Neutral
Reverse
Drive
3
2
L
Neutral
Third gear
Drive
Second gear
3
2
L
“S” mode
First gear
“S”
“D”
* The ignition switch must be “ON” and the brake pedal depressed to shift
from Park.
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
8
Seat adjustments-Front
OVERVIEW
Position (forward/backward)
Height crank (driver side only)
Seatback angle
Seats-Head restraints
FEATURES/OPERATIONS
Rear
Front
Lock release button
Lock release button
Seat adjustments-Rear
Pull
9
SAFETY AND EMERGENCY FEATURES
Fold down
FEATURES/OPERATIONS
Parking brake
Set
Release
(2) Push
(1) Pull slightly
Pull
(3) Lower
Tilt and telescopic steering wheel
Lock release lever
Angle
Length
Hold wheel, push lever down,
set angle and length, and
return lever.
Note: Do not attempt to adjust while the vehicle is in motion.
Clock
Hour set
Minute set
Round off minutes
10
Lights & turn signals
Headlights
OVERVIEW
Headlights
Parking lights
High beam
Low beam
High beam flasher
Front fog lights (if equipped)
FEATURES/OPERATIONS
-Daytime Running Light system (DRL) Headlights turn on automatically
upon starting engine. The brightness of the headlights will
automatically change depending on the darkness of the surroundings.
Turn
Front fog lights come on only when the headlights are on low beam.
Turn signals
SAFETY AND EMERGENCY FEATURES
Right turn
Lane change
Lane change
Left turn
11
FEATURES/OPERATIONS
Windshield wipers & washers
Front
Adjust frequency*
Single wipe
Pull to wash
and wipe
Interval wipe
Slow
Fast
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency (if equipped).
Rear (if equipped)
Wash and wipe
Wipe
Interval wipe
Wash and wipe
Windows-Power (if equipped)
Driver side
Window lock switch
Up
Down
Automatic operation (driver side only) Push the switch completely down
and release to fully open. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
12
Moonroof (if equipped)
Tilting operation
Sliding operation
OVERVIEW
Recommended driving position to
minimize wind noise.
Open
Tilt
Close
Close
Push once to open partway; again to
open completely.
Door-Back
Lock
FEATURES/OPERATIONS
Unlock
Open
Door locks-Power (if equipped)
Unlock
Lock
SAFETY AND EMERGENCY FEATURES
13
FEATURES/OPERATIONS
Audio
Type 1 functions
Preset buttons - functions in other
modes indicated above number
Eject CD
Push to
turn
ON/OFF
Push and
turn to
adjust tone
& balance
Seek
station/
CD track
select
Station/CD
track scan
Push to skip
up/down
folder and
radio
category
type
Mode
View CD
text
Load CD(s)
Type 2 other functions
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.FILE.”
14
RADIO
OVERVIEW
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
AUX audio jack
By inserting a mini plug into
the AUX audio jack, you can
listen to music from a portable
audio device through the
vehicle’s speaker system while
in AUX mode.
Volume control
FEATURES/OPERATIONS
Steering wheel switches (if equipped)
v
15
SAFETY AND EMERGENCY FEATURES
“v ”
-In radio mode Push to select a preset station; push and hold to seek
the next strong station.
-In CD mode Push to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn the audio system OFF.
FEATURES/OPERATIONS
Air Conditioning/Heating
Airflow vent
In “
” or “
” mode, use fresh air (“
” indicator OFF) to
reduce window fogging.
Fan speed
Temperature selector
Air Conditioning ON/OFF
Use for quick cooling. MAX A/C changes air intake to recirculate.
It is not possible to change intake to fresh, or to turn A/C OFF in
this mode.
Outside rearview mirror/Rear window defogger
Fresh or recirculated cabin air
Light control-Instrument panel
+
Brightness
control
-
16
Cruise control (if equipped)
Turning system ON/OFF
OVERVIEW
System ON/OFF
Functions
Increase speed
Resume2
Cancel1
1
2
The set speed may also be cancelled by depressing the brake pedal.
The set speed may be resumed once vehicle speed exceeds 25 mph.
Auxiliary storage
Instrument panel
FEATURES/OPERATIONS
Decrease speed
Pull
Push
17
SAFETY AND EMERGENCY FEATURES
Overhead console (if equipped)
FEATURES/OPERATIONS
Telephone controls (Bluetooth®)
(if equipped)
Vehicles with moonroof
Vehicles without moonroof
Steering wheel telephone switches
Start call
Volume control
End call
Voice command button
Bluetooth®
technology allows dialing or receive calls without taking hands
from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to the Owner’s Manual for more details.
Cup holders
Front
Rear
18
Bottle holders
Rear
Front
OVERVIEW
Power outlet-12V DC
FEATURES/OPERATIONS
Designed for 12V car accessories.
The engine switch must be in the “ACC” or “ON” position.
Power outlet-115V AC (if equipped)
SAFETY AND EMERGENCY FEATURES
ON/OFF switch
Push
The engine switch must be in the “ON” position. Push the AC115V switch
to use outlet.
19
SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks
Rear door
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Tire Pressure Monitoring (warning)
System
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“
SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Note: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Seatbelts-Shoulder belt anchor
Push up, or squeeze
lock release to lower
20
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
